Continental Refrigerator SW27UD Specifications

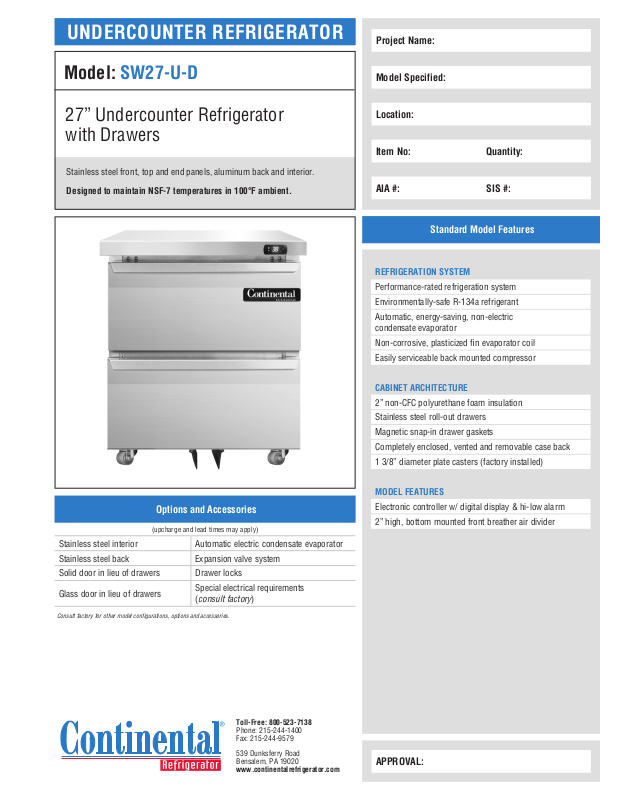

UNDERCOUNTER REFRIGERATOR
Project Name:
Model: SW27-U-D
27” Undercounter Refrigerator with Drawers
Stainless steel front, top and end panels, aluminum back and interior.
Designed to maintain NSF-7 temperatures in 100°F ambient.
Location:
Item No: Quantity:
AIA #: SIS #:
Standard Model Features
REFRIGERATION SYSTEM
Performance-rated refrigeration system Environmentally-safe R-134a refrigerant Automatic, energy-saving, non-electric
condensate evaporator
Non-corrosive, plasticized n evaporator coil
Easily serviceable back mounted compressor
Options and Accessories
(upcharge and lead times may apply)
Stainless steel interior Automatic electric condensate evaporator Stainless steel back Expansion valve system Solid door in lieu of drawers Drawer locks
Glass door in lieu of drawers
Consult factory for other model configurations, options and accessories.
Special electrical requirements (consult factory)
CABINET ARCHITECTURE
2” non-CFC polyurethane foam insulation Stainless steel roll-out drawers Magnetic snap-in drawer gaskets Completely enclosed, vented and removable case back 1 3/8” diameter plate casters (factory installed)
MODEL FEATURES
Electronic controller w/ digital display & hi-low alarm 2” high, bottom mounted front breather air divider
Toll-Free: 800-523-7138
Phone: 215-244-1400 Fax: 215-244-9579
539 Dunksferry Road Bensalem, PA 19020
www.continentalrefrigerator.com
APPROVAL:
Model Specifications
DIMENSIONAL DATA
Net Capacity (cu. ft.) 7.4 (210 cu l) Width, Overall (in.) 27 1/2 (699 mm) Depth, Overall (in.)
(incl. handles & bumpers)
Height, Overall (in.)
(incl. 1 3/8” plate casters)
No. of Drawers (two tier) 2 No. of Drawers (three tier) 3
REFRIGERANT DATA
Condensing Unit Size (H.P.) 1/5 Capacity (BTU/Hr)* 1620
ELECTRICAL DATA
Voltage (int’l) 115/60/1 (n/a) Fans 1 Total Amps (int’l) 6.3 (3.7) 10 ft. Cord/Plug [attached] (int’l) Yes (No)
31 9/16 (802 mm)
31 13/16 (808 mm)
FRONT VIEW
Model Plan Views
27 1/2”
(699 mm)
SHIPPING DATA
Weight (lbs.) 165 (75 kg) Height - Crated (in.) 40 (1016 mm) Width - Crated (in.) 35 1/2 (902 mm) Depth - Crated (in.) 37 1/4 (946 mm)
DRAWER PAN CONFIGURATIONS
Two Tier: (1) 12 x 20 x 6 pan per drawer Three Tier: (1) 12 x 20 x 4 pan per drawer
* Rating @ +25°F evaporator, 90°F ambient
Figures in parentheses reect metric equivalents rounded to the nearest
whole unit.
Equipped with one NEMA-5-15P Plug
(varies by country)
Toll-Free: 800-523-7138
Phone: 215-244-1400 Fax: 215-244-9579
539 Dunksferry Road Bensalem, PA 19020
www.continentalrefrigerator.com
31 9/16”
1 1/2”
(38 mm)
(802 mm)
30”
(762 mm)
29 3/4”
(756 mm)
31 13/16”
(808 mm)
2 1/16”
SIDE VIEW
NOTE: For proper operation, the area under and in front of the cabinet must not be obstructed in any way.
(52 mm)
Due to our continued efforts in developing innovative products, specifications subject to change without notice.
®
MADE IN THE U.S.A.
© Copyright 2018. Continental Refrigerator. A Division of National Refrigeration & Air Conditioning Products, Inc.
SW27-U-D (5/8/18)
