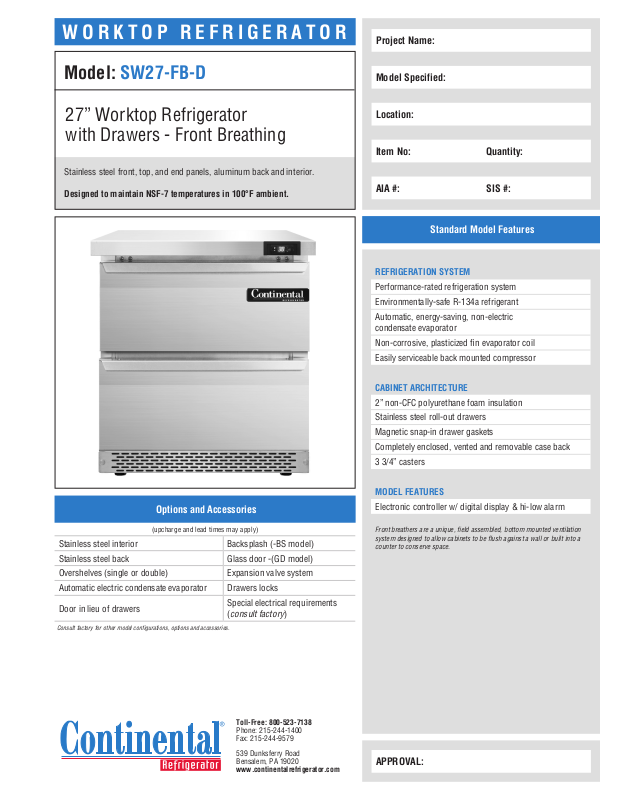

WORKTOP REFRIGERATOR
Project Name:
Model: SW27-FB-D
27” Worktop Refrigerator
with Drawers - Front Breathing
Stainless steel front, top, and end panels, aluminum back and interior.
Designed to maintain NSF-7 temperatures in 100°F ambient.
Model Specified:
Location:
Item No: Quantity:
AIA #: SIS #:
Standard Model Features
REFRIGERATION SYSTEM
Performance-rated refrigeration system
Environmentally-safe R-134a refrigerant
Automatic, energy-saving, non-electric
condensate evaporator
Non-corrosive, plasticized n evaporator coil
Easily serviceable back mounted compressor
Options and Accessories
(upcharge and lead times may apply)
Stainless steel interior Backsplash (-BS model)
Stainless steel back Glass door -(GD model)
Overshelves (single or double) Expansion valve system
Automatic electric condensate evaporator Drawers locks
Door in lieu of drawers
Consult factory for other model configurations, options and accessories.
Special electrical requirements
(consult factory)
CABINET ARCHITECTURE
2” non-CFC polyurethane foam insulation
Stainless steel roll-out drawers
Magnetic snap-in drawer gaskets
Completely enclosed, vented and removable case back
3 3/4” casters
MODEL FEATURES
Electronic controller w/ digital display & hi-low alarm
Front breathers are a unique, field assembled, bottom mounted ventilation
system designed to allow cabinets to be flush against a wall or built into a
counter to conserve space.
Toll-Free: 800-523-7138
Phone: 215-244-1400
Fax: 215-244-9579
539 Dunksferry Road
Bensalem, PA 19020
www.continentalrefrigerator.com
APPROVAL:
Model Specifications
Model Plan Views
DIMENSIONAL DATA
Net Capacity (cu. ft.) 7.4 (210 cu l)
Width, Overall (in.) 27 1/2 (699 mm)
Depth, Overall (in.)
(incl. handles & bumpers)
31 9/16 (802 mm)
Depth, Body Only (in.) (less drawers) 27 1/2 (699 mm)
Height, Overall (in.) (incl. 3 3/4” casters) 34 (864 mm)
No. of Drawers (two tier) 2
No. of Drawers (three tier) 3
REFRIGERANT DATA
Condensing Unit Size (H.P.) 1/5
Capacity (BTU/Hr)* 1620
ELECTRICAL DATA
Voltage (int’l) 115/60/1 (220/50/1)
Fans 2
Total Amps (int’l) 6.3 (3.7)
10 ft. Cord/Plug [attached] (int’l) Yes (No)
SHIPPING DATA
Weight (lbs.) 165 (75 kg)
Height - Crated (in.) 42 (1067 mm)
Width - Crated (in.) 35 1/2 (902 mm)
Depth - Crated (in.) 37 1/4 (946 mm)
DRAWER PAN CONFIGURATIONS
Two Tier: (1) 12 x 20 x 6 pan per drawer
Three Tier: (1) 12 x 20 x 4 pan per drawer
* Rating @ +25°F evaporator, 90°F ambient
Figures in parentheses reect metric equivalents rounded to the nearest
whole unit.
FRONT VIEW
27 1/2”
(699 mm)
Note: Shown with two tier drawers.
31 9/16”
(802 mm)
30”
(762 mm)
1”
(25 mm)
Equipped with one NEMA-5-15P Plug
(varies by country)
Toll-Free: 800-523-7138
Phone: 215-244-1400
Fax: 215-244-9579
539 Dunksferry Road
Bensalem, PA 19020
www.continentalrefrigerator.com
Due to our continued efforts in developing innovative
products, specifications subject to change without notice.
®
MADE IN THE U.S.A.
© Copyright 2018. Continental Refrigerator.
A Division of National Refrigeration & Air Conditioning Products, Inc.
SIDE VIEW
27 1/2”
(699 mm)
30 1/4”
(768 mm)
3 3/4”
(95 mm)
34”
(864 mm)
SW27-FB-D (5/8/18)
