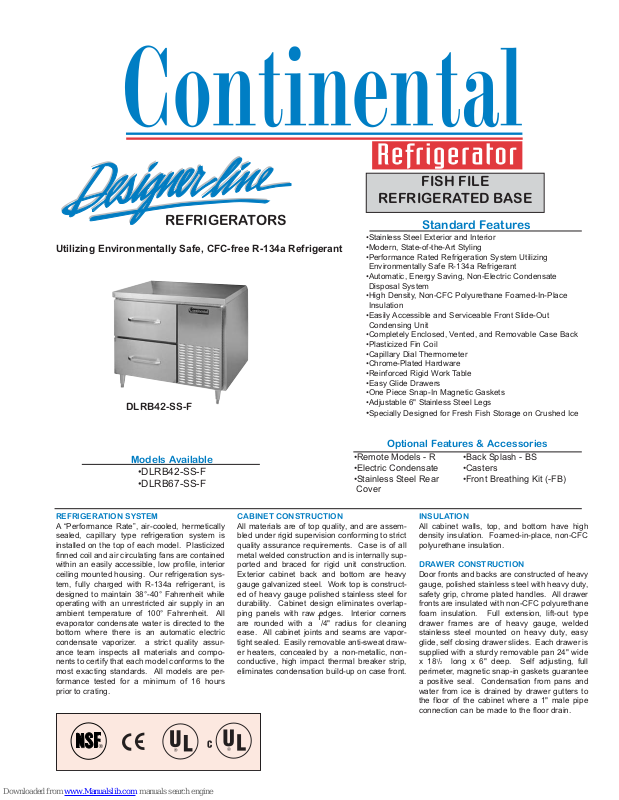

Continental Refrigerator DLRB42-SS-F-BS, DLRB67-SS-F, DLRB67-SS-F-BS Specifications
FISH FILE
REFRIGERATED BASE
REFRIGERATORS
Utilizing Environmentally Safe, CFC-free R-134a Refrigerant
Standard Features
•Stainless Steel Exterior and Interior
•Modern, State-of-the-Art Styling
•Performance Rated Refrigeration System Utilizing
Environmentally Safe R-134a Refrigerant
•Automatic, Energy Saving, Non-Electric Condensate
Disposal System
•High Density, Non-CFC Polyurethane Foamed-In-Place
Insulation
•Easily Accessible and Serviceable Front Slide-Out
Condensing Unit
•Completely Enclosed, Vented, and Removable Case Back
•Plasticized Fin Coil
•Capillary Dial Thermometer
•Chrome-Plated Hardware
•Reinforced Rigid Work Table
•Easy Glide Drawers
•One Piece Snap-In Magnetic Gaskets
•Adjustable 6" Stainless Steel Legs
•
Specially Designed for Fresh Fish Storage on Crushed Ice
Models Available
•DLRB42-SS-F
•DLRB67-SS-F
DLRB42-SS-F
Optional Features & Accessories
•Remote Models - R •Back Splash - BS
•Electric Condensate •Casters
•Stainless Steel Rear •Front Breathing Kit (-FB)
Cover
REFRIGERATION SYSTEM
A “Performance Rate”, air-cooled, hermetically
sealed, capillary type refrigeration system is
installed on the top of each model. Plasticized
finned coil and air circulating fans are contained
within an easily accessible, low profile, interior
ceiling mounted housing. Our refrigeration system, fully charged with R-134a refrigerant, is
designed to maintain 38°-40° Fahrenheit while
operating with an unrestricted air supply in an
ambient temperature of 100° Fahrenheit. All
evaporator condensate water is directed to the
bottom where there is an automatic electric
condensate vaporizer. a strict quality assurance team inspects all materials and components to certify that each model conforms to the
most exacting standards. All models are performance tested for a minimum of 16 hours
prior to crating.
CABINET CONSTRUCTION
All materials are of top quality, and are assembled under rigid supervision conforming to strict
quality assurance requirements. Case is of all
metal welded construction and is internally supported and braced for rigid unit construction.
Exterior cabinet back and bottom are heavy
gauge galvanized steel. Work top is constructed of heavy gauge polished stainless steel for
durability. Cabinet design eliminates overlapping panels with raw edges. Interior corners
are rounded with a 1/4" radius for cleaning
ease. All cabinet joints and seams are vaportight sealed. Easily removable anti-sweat drawer heaters, concealed by a non-metallic, nonconductive, high impact thermal breaker strip,
eliminates condensation build-up on case front.
INSULATION
All cabinet walls, top, and bottom have high
density insulation. Foamed-in-place, non-CFC
polyurethane insulation.
DRAWER CONSTRUCTION
Door fronts and backs are constructed of heavy
gauge, polished stainless steel with heavy duty,
safety grip, chrome plated handles. All drawer
fronts are insulated with non-CFC polyurethane
foam insulation. Full extension, lift-out type
drawer frames are of heavy gauge, welded
stainless steel mounted on heavy duty, easy
glide, self closing drawer slides. Each drawer is
supplied with a sturdy removable pan 24" wide
x 18
1
/2 long x 6" deep. Self adjusting, full
perimeter, magnetic snap-in gaskets guarantee
a positive seal. Condensation from pans and
water from ice is drained by drawer gutters to
the floor of the cabinet where a 1" male pipe
connection can be made to the floor drain.
DLRBSF305
REFRIGERATORS
A Division of National Refrigeration & A/C Products, Inc.
539 Dunksferry Road Bensalem, PA 19020
(800) 523-7138 Fax: (215) 244-9579
www.continentalrefrigerator.com
CHARACTERISTICS DLRB42-SS-F DLRB42-SS-F-BS DLRB67-SS-F DLRB67-SS-F-BS
DIMENSIONAL DATA
Net Capacity (cu.ft.) 8.0 8.0 17.0 17.0
Width, Overall (in.) 42
1
/4 421/4 671/4 671/4
Depth, Overall (incl. Hdls. (in.) 36 36 36 36
Depth, Body Only (Less Drawer(s)) (in.) 34 34 34 34
Height, Overall (incl. 6" Legs) (in.) 36 42 36 42
No. of Drawers 2 2 4 4
Drawer Pans (WxLxD) (in.) 24x18
1
/2x6 24x181/2x6 24x181/2x6 24x181/2x6
Interior Depth (in.) 28
1
/2 281/2 281/2 281/2
Interior Height (in.) 26 26 26 26
Interior Width (in.) 22 22 47 47
Condensing Unit Size (H.P.)
1
/
4
1
/
4
1
/
3
1
/
3
Refrigerant R-134a R-134a R-134a R-134a
Cabinet Electrical 115/60/1 115/60/1 115/60/1 115/60/1
Amps 6.1 6.1 8.8 8.8
Fans 1 1 2 2
Shipping Weight (lbs.) 355 470 495 495
Shipping Height (in.) 43 43 43 43
Shipping Length (in.) 54 54 77 77
Shipping Depth (in.) 41 41 41 41
SIDE VIEW
DLRB42-SS-F
DLRB67-SS-F
Note: All specifications subject to change without notice
