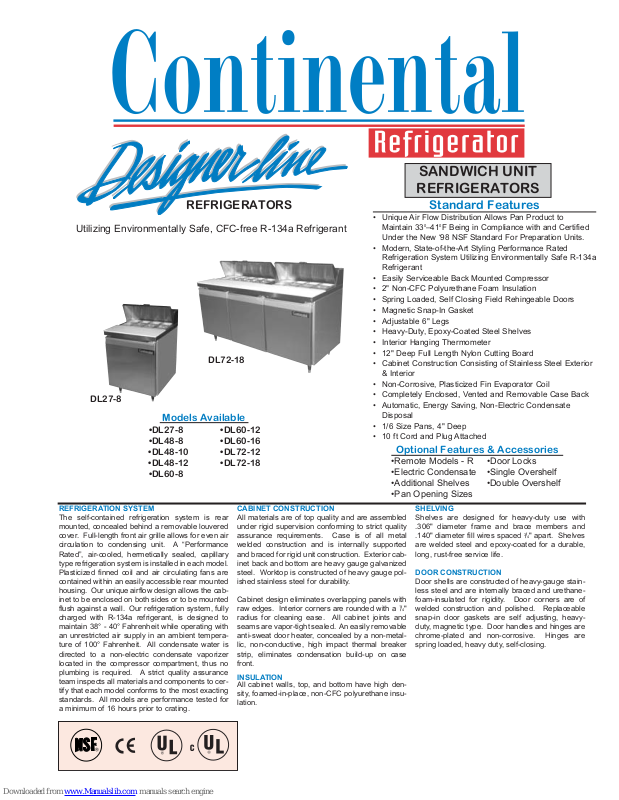

Continental Refrigerator DL27-8, DL48-12, DL48-8, DL60-12, DL60-16 Specifications
...
SANDWICH UNIT
REFRIGERATORS
Standard Features
• Unique Air Flow Distribution Allows Pan Product to
Maintain 330–410F Being in Compliance with and Certified
Under the New ‘98 NSF Standard For Preparation Units.
• Modern, State-of-the-Art Styling Performance Rated
Refrigeration System Utilizing Environmentally Safe R-134a
Refrigerant
• Easily Serviceable Back Mounted Compressor
• 2" Non-CFC Polyurethane Foam Insulation
• Spring Loaded, Self Closing Field Rehingeable Doors
• Magnetic Snap-In Gasket
• Adjustable 6" Legs
• Heavy-Duty, Epoxy-Coated Steel Shelves
• Interior Hanging Thermometer
• 12" Deep Full Length Nylon Cutting Board
• Cabinet Construction Consisting of Stainless Steel Exterior
& Interior
• Non-Corrosive, Plasticized Fin Evaporator Coil
• Completely Enclosed, Vented and Removable Case Back
• Automatic, Energy Saving, Non-Electric Condensate
Disposal
• 1/6 Size Pans, 4" Deep
• 10 ft Cord and Plug Attached
REFRIGERATION SYSTEM
The self-contained refrigeration system is rear
mounted, concealed behind a removable louvered
cover. Full-length front air grille allows for even air
circulation to condensing unit. A “Performance
Rated”, air-cooled, hermetically sealed, capillary
type refrigeration system is installed in each model.
Plasticized finned coil and air circulating fans are
contained within an easily accessible rear mounted
housing. Our unique airflow design allows the cabinet to be enclosed on both sides or to be mounted
flush against a wall. Our refrigeration system, fully
charged with R-134a refrigerant, is designed to
maintain 38° - 40° Fahrenheit while operating with
an unrestricted air supply in an ambient temperature of 100° Fahrenheit. All condensate water is
directed to a non-electric condensate vaporizer
located in the compressor compartment, thus no
plumbing is required. A strict quality assurance
team inspects all materials and components to certify that each model conforms to the most exacting
standards. All models are performance tested for
a minimum of 16 hours prior to crating.
CABINET CONSTRUCTION
All materials are of top quality and are assembled
under rigid supervision conforming to strict quality
assurance requirements. Case is of all metal
welded construction and is internally supported
and braced for rigid unit construction. Exterior cabinet back and bottom are heavy gauge galvanized
steel. Worktop is constructed of heavy gauge polished stainless steel for durability.
Cabinet design eliminates overlapping panels with
raw edges. Interior corners are rounded with a
1
/4"
radius for cleaning ease. All cabinet joints and
seams are vapor-tight sealed. An easily removable
anti-sweat door heater, concealed by a non-metallic, non-conductive, high impact thermal breaker
strip, eliminates condensation build-up on case
front.
INSULATION
All cabinet walls, top, and bottom have high density, foamed-in-place, non-CFC polyurethane insulation.
SHELVING
Shelves are designed for heavy-duty use with
.306" diameter frame and brace members and
.140" diameter fill wires spaced
3
/4" apart. Shelves
are welded steel and epoxy-coated for a durable,
long, rust-free service life.
DOOR CONSTRUCTION
Door shells are constructed of heavy-gauge stainless steel and are internally braced and urethanefoam-insulated for rigidity. Door corners are of
welded construction and polished. Replaceable
snap-in door gaskets are self adjusting, heavyduty, magnetic type. Door handles and hinges are
chrome-plated and non-corrosive. Hinges are
spring loaded, heavy duty, self-closing.
REFRIGERATORS
Models Available
•DL27-8
•DL48-8
•DL48-10
•DL48-12
•DL60-8
•DL60-12
•DL60-16
•DL72-12
•DL72-18
Utilizing Environmentally Safe, CFC-free R-134a Refrigerant
Optional Features & Accessories
•Remote Models - R •Door Locks
•Electric Condensate •Single Overshelf
•Additional Shelves •Double Overshelf
•Pan Opening Sizes
DL72-18
DL27-8
MODEL CU.FT. 1/6 EXT.DIM. DEPTH SHELF SHELVES DOORS HP VOLTS AMPS FANS SHIP
Pans (WxDxH) (Cut BRD) AREA WGHT
(4" Deep) (lbs)
DL27-8 7.4 8 271/2x30x43 12 3.5 1 1
1
/5 115 6.0 2 180
DL48-8 13.4 8 48x30x43 12 6.8 2 2
1
/5 115 6.9 3 270
DL48-10 13.4 10 48x30x43 12 6.8 2 2 1/5 115 6.9 3 270
DL48-12 13.4 12 48x30x43 12 6.8 2 2
1
/5
115 6.9 3 315
DL60-8 17.0 8 60x30x43 12 8.1 2 2
1
/4
115 7.8 3 315
DL60-12 17.0 12 60x30x43 12 8.1 2 2
1
/4 115 7.8 3 315
DL60-16 17.0 16 60x30x43 12 8.1 2 2
1
/4
115 7.8 3 315
DL72-12 20.6 12 72x30x43 12 10.2 3 3
1
/4
115 8.7 4 398
DL72-18 20.6 18 72x30x43 12 10.2 3 3
1
/4 115 8.7 4 398
DLSWP704
REFRIGERATORS
A Division of National Refrigeration & A/C Products, Inc.
539 Dunksferry Road Bensalem, PA 19020
(800) 523-7138 Fax: (215) 244-9579
www.continentalrefrigerator.com
Side View Dimensions
DL48-8,10,12 Front View
DL60-8,12,16 Front View
DL72-12,18 Front View
DL27-8 Front View
DL27-8 Top View
DL48-8 Top View
DL60-8 Top View
DL72-12 Top View
DL72-18 Top View
DL48-10 Top View
DL60-12 Top View
DL48-12 Top View
DL60-16 Top View
