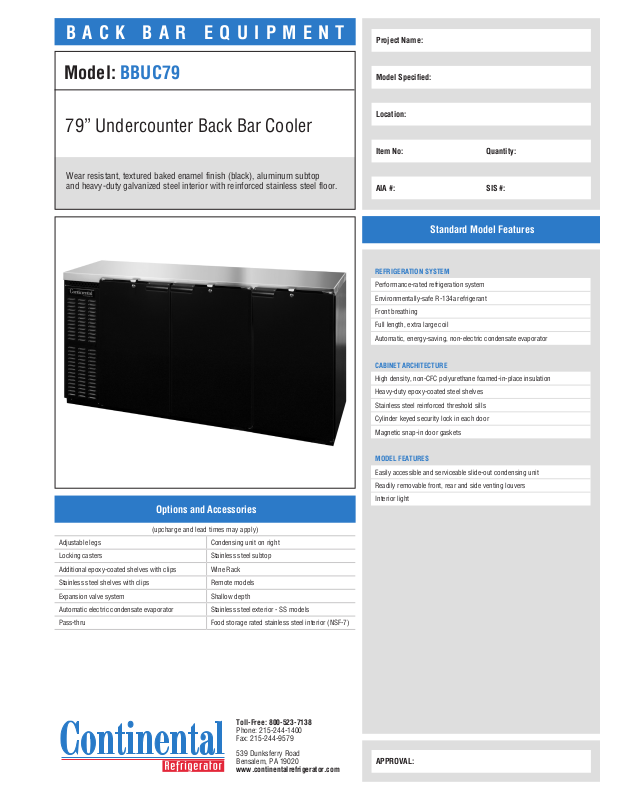

Page 1
BACK BAR EQUIPMENT
Project Name:
Model: BBUC79
79” Undercounter Back Bar Cooler
Wear resistant, textured baked enamel finish (black), aluminum subtop and heavy-duty galvanized steel interior with reinforced stainless steel floor.
Location:
Item No: Quantity:
AIA #: SIS #:
Standard Model Features
REFRIGERATION SYSTEM
Performance-rated refrigeration system
Environmentally-safe R-134a refrigerant
Front breathing
Full length, extra large coil
Automatic, energy-saving, non-electric condensate evaporator
CABINET ARCHITECTURE
High density, non-CFC polyurethane foamed-in-place insulation
Heavy-duty epoxy-coated steel shelves
Stainless steel reinforced threshold sills
Cylinder keyed security lock in each door
Magnetic snap-in door gaskets
Options and Accessories
(upcharge and lead times may apply)
Adjustable legs Condensing unit on right
Locking casters Stainless steel subtop
Additional epoxy-coated shelves with clips Wine Rack
Stainless steel shelves with clips Remote models
Expansion valve system Shallow depth
Automatic electric condensate evaporator Stainless steel exterior - SS models
Pass-thru Food storage rated stainless steel interior (NSF-7)
Toll-Free: 800-523-7138
Phone: 215-244-1400 Fax: 215-244-9579
539 Dunksferry Road Bensalem, PA 19020
www.continentalrefrigerator.com
MODEL FEATURES
Easily accessible and serviceable slide-out condensing unit
Readily removable front, rear and side venting louvers
Interior light
APPROVAL:
Page 2
Model Specifications
DIMENSIONAL DATA
Net Capacity (cu. ft.) 28 (793 cu l)
Width, Overall (in.) 79 3/16 (2011 mm)
Depth, Overall (incl. handles & bumpers) (in.) 29 1/4 (743 mm)
Height, Overall (in.) 34 15/16 (887 mm)
Barrel Capacity (# barrel type kegs) 4
Straight Wall Capacity (# straight wall kegs) 4
No. of Doors 3
No. of Shelves 6
REFRIGERANT DATA
Condensing Unit Size (H.P.) 1/3
Capacity (BTU/Hr)* 2500
34 15/16” (887 mm)
Model Plan Views
79 3/16”
(2011 mm)
ELECTRICAL DATA
Voltage (int’l) 115/60/1 (220/50/1)
Feed Wires (incl. ground) 3
Total Amps (int’l) 6.7 (4.9)
10 ft. Cord/Plug [attached] (int’l) Yes (No)
SHIPPING DATA
Weight (lbs.) 465 (211 kg)
Height - Crated (in.) 46 (1168 mm)
Width - Crated (in.) 88 (2235 mm)
Depth - Crated (in.) 42 (1067 mm)
* Rating @ +25°F evaporator, 90°F ambient
Figures in parentheses reflect metric equivalents rounded to the nearest whole unit.
FRONT VIEW
22 1/2”
(571 mm)
79”
(2006 mm)
29 1/4”
(743 mm)
25 3/16”
(640 mm)
1”
(25 mm)
Equipped with one NEMA-5-15P Plug
(varies by country)
Toll-Free: 800-523-7138
Phone: 215-244-1400 Fax: 215-244-9579
539 Dunksferry Road Bensalem, PA 19020
www.continentalrefrigerator.com
Due to our continued efforts in developing innovative products, specifications subject to change without notice.
®
MADE IN THE U.S.A.
© Copyright 2014. Continental Refrigerator. A Division of National Refrigeration & Air Conditioning Products, Inc.
SIDE VIEW
25”
(635 mm)
BBUC79 (3/13/14)
