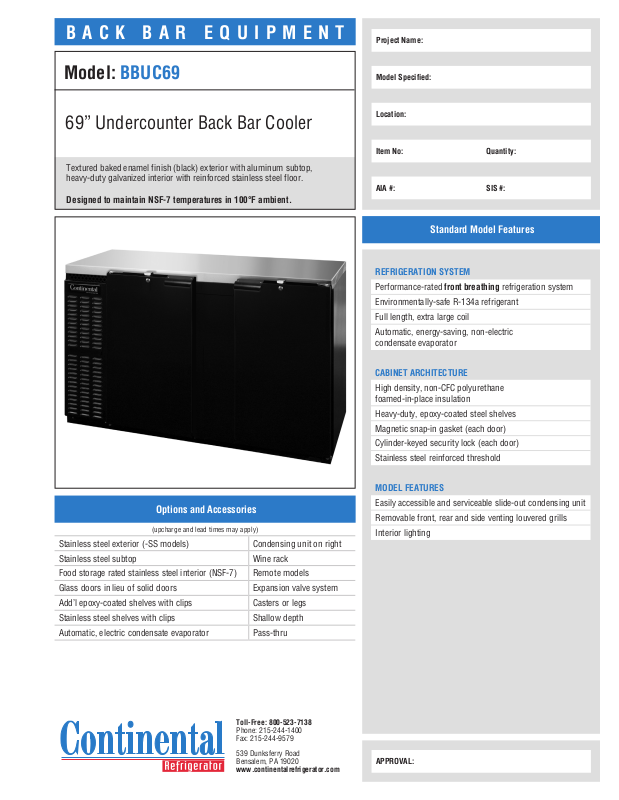

BACK BAR EQUIPMENT
Project Name:
Model: BBUC69
69” Undercounter Back Bar Cooler
Textured baked enamel finish (black) exterior with aluminum subtop,
heavy-duty galvanized interior with reinforced stainless steel floor.
Designed to maintain NSF-7 temperatures in 100°F ambient.
Model Specified:
Location:
Item No: Quantity:
AIA #: SIS #:
Standard Model Features
REFRIGERATION SYSTEM
Performance-rated front breathing refrigeration system
Environmentally-safe R-134a refrigerant
Full length, extra large coil
Automatic, energy-saving, non-electric
condensate evaporator
Options and Accessories
(upcharge and lead times may apply)
Stainless steel exterior (-SS models) Condensing unit on right
Stainless steel subtop Wine rack
Food storage rated stainless steel interior (NSF-7) Remote models
Glass doors in lieu of solid doors Expansion valve system
Add’l epoxy-coated shelves with clips Casters or legs
Stainless steel shelves with clips Shallow depth
Automatic, electric condensate evaporator Pass-thru
CABINET ARCHITECTURE
High density, non-CFC polyurethane
foamed-in-place insulation
Heavy-duty, epoxy-coated steel shelves
Magnetic snap-in gasket (each door)
Cylinder-keyed security lock (each door)
Stainless steel reinforced threshold
MODEL FEATURES
Easily accessible and serviceable slide-out condensing unit
Removable front, rear and side venting louvered grills
Interior lighting
Toll-Free: 800-523-7138
Phone: 215-244-1400
Fax: 215-244-9579
539 Dunksferry Road
Bensalem, PA 19020
www.continentalrefrigerator.com
APPROVAL:
Model Specifications
DIMENSIONAL DATA
Net Capacity (cu. ft.) 26 (736 cu l)
Width, Overall (in.) 69 3/16 (1757 mm)
Depth, Overall (in.)
(incl. handles & bumpers)
Depth, Body Only (in.) (less doors) 25 (533 mm)
Height, Overall (in.) 34 15/16 (887 mm)
Barrel Capacity (# barrel type kegs) 3
Straight Wall Capacity
(# straight wall kegs)
No. of Doors 2
No. of Shelves 4
REFRIGERANT DATA
Condensing Unit Size (H.P.) 1/3
Capacity (BTU/Hr)* 2250
29 1/4 (743 mm)
3
34 15/16”
(887 mm)
Model Plan Views
69 3/16”
(1757 mm)
19 3/16”
(487 mm)
69”
(1753 mm)
28 11/16”
(729 mm)
ELECTRICAL DATA
Voltage (int’l) 115/60/1 (220/50/1)
Feed Wires (incl. ground) 3
Total Amps (int’l) 6.7 (5.0)
10 ft. Cord/Plug [attached] (int’l) Yes (No)
SHIPPING DATA
Weight (lbs.) 425 (193 kg)
Height - Crated (in.) 46 (1168 mm)
Width - Crated (in.) 78 (1981 mm)
Depth - Crated (in.) 42 (1067 mm)
* Rating @ +25°F evaporator, 90°F ambient
Figures in parentheses reflect metric equivalents rounded to the nearest
whole unit.
Equipped with one NEMA-5-15P Plug
(varies by country)
FRONT VIEW
SIDE VIEW
22 1/2”
(571 mm)
29 1/4”
(743 mm)
25 3/16”
(640 mm)
29 1/8”
(740 mm)
22 3/16”
(564 mm)
(635 mm)
1”
(25 mm)
23 3/8”
(594 mm)
25”
Toll-Free: 800-523-7138
Phone: 215-244-1400
Fax: 215-244-9579
539 Dunksferry Road
Bensalem, PA 19020
www.continentalrefrigerator.com
Due to our continued efforts in developing innovative
products, specifications subject to change without notice.
®
MADE IN THE U.S.A.
© Copyright 2015. Continental Refrigerator.
A Division of National Refrigeration & Air Conditioning Products, Inc.
BBUC69 (6/24/15)
