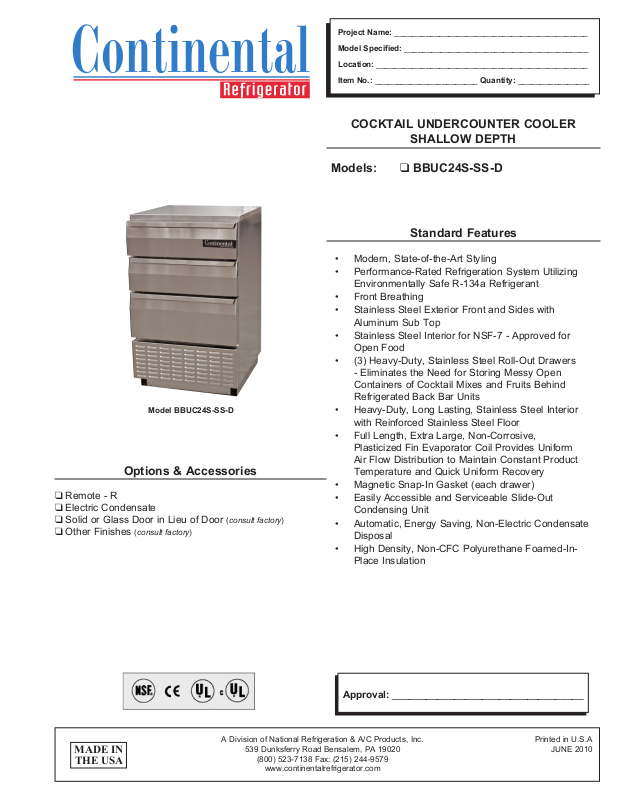

Continental Refrigerator BBUC24S-SS-D User Manual
Model BBUC24S-SS-D
Options & Accessories
q Remote - R
q Electric Condensate
q Solid or Glass Door in Lieu of Door (consult factory)
q Other Finishes (consult factory)
Project Name: ___________________________________________
Model Specified: _________________________________________
Location: _______________________________________________
Item No.: _______________________ Quantity: ________________
COCKTAIL UNDERCOUNTER COOLER
SHALLOW DEPTH
Models: q BBUC24S-SS-D
Standard Features
Modern, State-of-the-Art Styling•
Performance-Rated Refrigeration System Utilizing •
Environmentally Safe R-134a Refrigerant
Front Breathing•
Stainless Steel Exterior Front and Sides with •
Aluminum Sub Top
Stainless Steel Interior for NSF-7 - Approved for •
Open Food
(3) Heavy-Duty, Stainless Steel Roll-Out Drawers •
- Eliminates the Need for Storing Messy Open
Containers of Cocktail Mixes and Fruits Behind
Refrigerated Back Bar Units
Heavy-Duty, Long Lasting, Stainless Steel Interior •
with Reinforced Stainless Steel Floor
Full Length, Extra Large, Non-Corrosive, •
Plasticized Fin Evaporator Coil Provides Uniform
Air Flow Distribution to Maintain Constant Product
Temperature and Quick Uniform Recovery
Magnetic Snap-In Gasket (each drawer)•
Easily Accessible and Serviceable Slide-Out •
Condensing Unit
Automatic, Energy Saving, Non-Electric Condensate •
Disposal
High Density, Non-CFC Polyurethane Foamed-In-•
Place Insulation
MADE IN
THE USA
Approval: __________________________________
A Division of National Refrigeration & A/C Products, Inc.
539 Dunksferry Road Bensalem, PA 19020
(800) 523-7138 Fax: (215) 244-9579
www.continentalrefrigerator.com
Printed in U.S.A
JUNE 2010
Project Name: _____________________________________________________ Model Specified: ___________________________________
Location: _________________________________________________________ Item No.: ___________________ Quantity: ______________
SPECIFICATIONS MODEL
BBUC24S-SS-D
Net Capacity (cu. ft.) 6
Width, Overall (in.) 24
Depth, Overall (in.) 26⅞
Height, Overall (in.) 39½
Number of Drawers 3
Condensing Unit Size (H.P.)
1
∕5
Refrigerant R-134a
Cabinet Electrical 115/60/1
Total Amps 5.5
Power Supply Cord (10 ft.) YES
Shipping Weight (lbs.) 180
Shipping Height (in.) 45
Shipping Length (in.) 35¾
Shipping Depth (in.) 37¼
Due to our continued efforts in developing innovative products, specifications subject to change without notice.
BBUC24S-SS-D FRONT VIEW
A Division of National Refrigeration & A/C Products, Inc.
539 Dunksferry Road Bensalem, PA 19020
(800) 523-7138 Fax: (215) 244-9579
www.continentalrefrigerator.com
BBUC24S-SS-D SIDE VIEW
NEMA -5-15P
BBUC24S-SS-D-06/10
