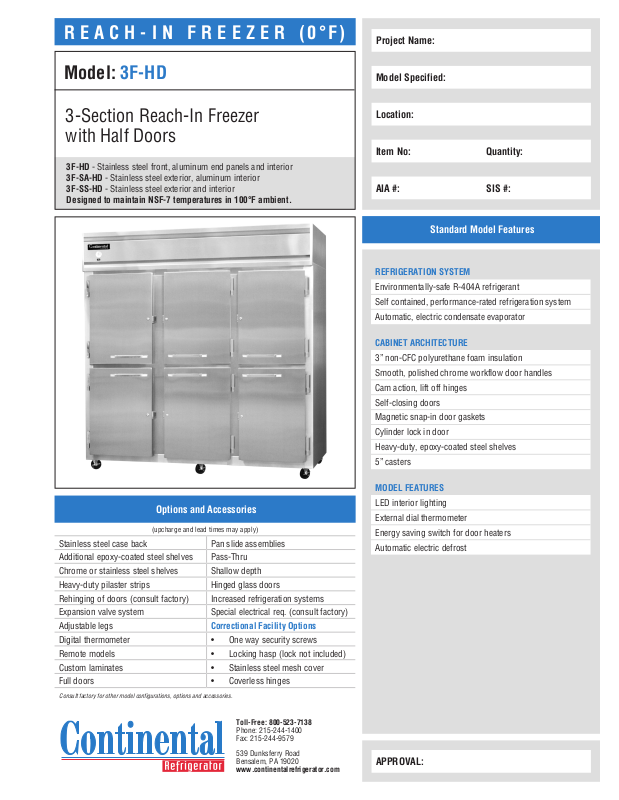

Continental Refrigerator 3F-HD User Manual
REACH-IN FREEZER (0°F)
Project Name:
Model: 3F-HD
3-Section Reach-In Freezer
with Half Doors
3F-HD - Stainless steel front, aluminum end panels and interior
3F-SA-HD - Stainless steel exterior, aluminum interior
3F-SS-HD - Stainless steel exterior and interior
Designed to maintain NSF-7 temperatures in 100°F ambient.
Model Specified:
Location:
Item No: Quantity:
AIA #: SIS #:
Standard Model Features
REFRIGERATION SYSTEM
Environmentally-safe R-404A refrigerant
Self contained, performance-rated refrigeration system
Automatic, electric condensate evaporator
CABINET ARCHITECTURE
3” non-CFC polyurethane foam insulation
Smooth, polished chrome workflow door handles
Cam action, lift off hinges
Self-closing doors
Magnetic snap-in door gaskets
Cylinder lock in door
Heavy-duty, epoxy-coated steel shelves
5” casters
Options and Accessories
(upcharge and lead times may apply)
Stainless steel case back Pan slide assemblies
Additional epoxy-coated steel shelves Pass-Thru
Chrome or stainless steel shelves Shallow depth
Heavy-duty pilaster strips Hinged glass doors
Rehinging of doors (consult factory) Increased refrigeration systems
Expansion valve system Special electrical req. (consult factory)
Adjustable legs
Digital thermometer • One way security screws
Remote models • Locking hasp (lock not included)
Custom laminates • Stainless steel mesh cover
Full doors • Coverless hinges
Consult factory for other model configurations, options and accessories.
Correctional Facility Options
Toll-Free: 800-523-7138
Phone: 215-244-1400
Fax: 215-244-9579
539 Dunksferry Road
Bensalem, PA 19020
www.continentalrefrigerator.com
MODEL FEATURES
LED interior lighting
External dial thermometer
Energy saving switch for door heaters
Automatic electric defrost
APPROVAL:
Model Specifications
DIMENSIONAL DATA
Net Capacity (cu. ft.) 70 (1982 cu l)
Width, Overall (in.) 78 (1981 mm)
Depth, Overall (in.) (incl. handles) 35 3/8 (899 mm)
Depth [less doors] (in.) 32 (813 mm)
Depth [doors open 90°] (in.) 55 1/2 (1410 mm)
Clear Door Width (in.) 19 3/8 (492 mm)
Clear Half Door Height (in.) 27 1/2 (699 mm)
Height, Overall (in.) (incl. 5” casters) 82 1/4 (2089 mm)
No. of Doors 6
No. of Shelves 9
Shelf Area (sq. ft.) 61.2 (5.7 sq m)
Tray Slide Capacity (per half section) 11
REFRIGERANT DATA
Condensing Unit Size (H.P.) 3/4
Capacity (BTU/Hr)* 3575
ELECTRICAL DATA
Voltage (int’l)
Feed Wires (incl. ground) 4
Total Amps (int’l) 11.9 (10.7)
Defrost Amps (int’l) 9.6 (4.8)
10 ft. Cord/Plug (int’l) No (No)
SHIPPING DATA
Height - Crated (in.) 85 1/2 (2172 mm)
Width - Crated (in.) 90 (2286 mm)
Depth - Crated (in.) 42 (1067 mm)
Volume - Crated (cu. ft.) 187 (3766 cu l)
Weight Std - Crated (lbs.) 790 (358 kg)
Weight SS - Crated (lbs.) 905 (411 kg)
Weight Std - Uncrated (lbs.) 580 (263 kg)
Weight SS - Uncrated (lbs.) 695 (315 kg)
* Rating @ -15°F evaporator, 90°F ambient
Figures in parentheses reflect metric equivalents rounded to the nearest
whole unit.
115/208-230/60/1
(220/50/1)
(330 mm)
82 1/4”
(2096 mm)
(127 mm)
FRONT VIEW
SIDE VIEW
13”
5”
Model Plan Views
19 3/8”
(492 mm)
DOOR OPENING
27 1/2”
(699 mm)
DOOR OPENING
78”
(1981 mm)
12”
(305 mm)
29”
(737 mm)
54 3/4”
(1391 mm)
32”
(813 mm)
34”
(864 mm)
35 3/8”
(899 mm)
Toll-Free: 800-523-7138
Phone: 215-244-1400
Fax: 215-244-9579
539 Dunksferry Road
Bensalem, PA 19020
www.continentalrefrigerator.com
Due to our continued efforts in developing innovative
products, specifications subject to change without notice.
®
MADE IN THE U.S.A.
© Copyright 2015. Continental Refrigerator.
A Division of National Refrigeration & Air Conditioning Products, Inc.
IMPORTANT NOTE: If the cabinet is located directly against a wall and/or under a low ceiling, a minimum
clearance of 12” is required.
3F-HD (7/10/15)
