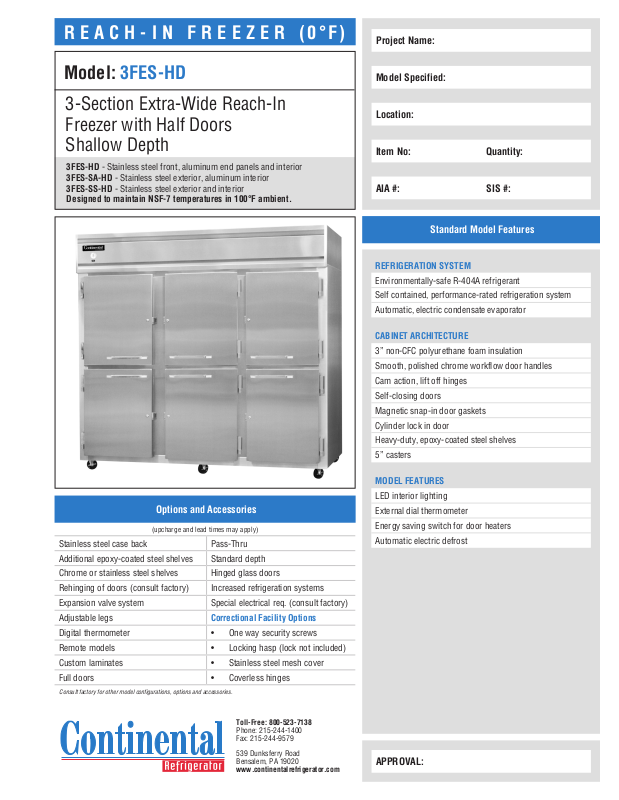

Continental Refrigerator 3FES-HD User Manual
REACH-IN FREEZER (0°F)
Project Name:
Model: 3FES-HD
3-Section Extra-Wide Reach-In
Freezer with Half Doors
Shallow Depth
3FES-HD - Stainless steel front, aluminum end panels and interior
3FES-SA-HD - Stainless steel exterior, aluminum interior
3FES-SS-HD - Stainless steel exterior and interior
Designed to maintain NSF-7 temperatures in 100°F ambient.
Model Specified:
Location:
Item No: Quantity:
AIA #: SIS #:
Standard Model Features
REFRIGERATION SYSTEM
Environmentally-safe R-404A refrigerant
Self contained, performance-rated refrigeration system
Automatic, electric condensate evaporator
CABINET ARCHITECTURE
3” non-CFC polyurethane foam insulation
Smooth, polished chrome workflow door handles
Cam action, lift off hinges
Self-closing doors
Magnetic snap-in door gaskets
Cylinder lock in door
Heavy-duty, epoxy-coated steel shelves
5” casters
Options and Accessories
(upcharge and lead times may apply)
Stainless steel case back Pass-Thru
Additional epoxy-coated steel shelves Standard depth
Chrome or stainless steel shelves Hinged glass doors
Rehinging of doors (consult factory) Increased refrigeration systems
Expansion valve system Special electrical req. (consult factory)
Adjustable legs
Digital thermometer • One way security screws
Remote models • Locking hasp (lock not included)
Custom laminates • Stainless steel mesh cover
Full doors • Coverless hinges
Consult factory for other model configurations, options and accessories.
Correctional Facility Options
Toll-Free: 800-523-7138
Phone: 215-244-1400
Fax: 215-244-9579
539 Dunksferry Road
Bensalem, PA 19020
www.continentalrefrigerator.com
MODEL FEATURES
LED interior lighting
External dial thermometer
Energy saving switch for door heaters
Automatic electric defrost
APPROVAL:
Model Specifications
DIMENSIONAL DATA
Net Capacity (cu. ft.) 63 (1784 cu l)
Width, Overall (in.) 85 1/2 (2172 mm)
Depth, Overall (in.) (incl. handles) 29 1/4 (743 mm)
Depth [less doors] (in.) 25 7/8 (657 mm)
Depth [doors open 90°] (in.) 51 1/8 (1299 mm)
Clear Door Width (in.) 21 7/8 (556 mm)
Clear Half Door Height (in.) 27 1/2 (699 mm)
Height, Overall (in.) (incl. 5” casters) 82 1/4 (2089 mm)
No. of Doors 6
No. of Shelves 9
Shelf Area (sq. ft.) 61.2 (5.7 sq m)
REFRIGERANT DATA
Condensing Unit Size (H.P.) 3/4
Capacity (BTU/Hr)* 3575
ELECTRICAL DATA
Voltage (int’l)
Feed Wires (incl. ground) 4
Total Amps (int’l) 11.9 (10.7)
Defrost Amps (int’l) 9.6 (4.8)
10 ft. Cord/Plug (int’l) No (No)
SHIPPING DATA
Height - Crated (in.) 85 1/2 (2172 mm)
Width - Crated (in.) 90 (2286 mm)
Depth - Crated (in.) 42 (1067 mm)
Volume - Crated (cu. ft.) 181 (5125 cu l)
Weight Std - Crated (lbs.) 830 (376 kg)
Weight SS - Crated (lbs.) 965 (438 kg)
Weight Std - Uncrated (lbs.) 640 (290 kg)
Weight SS - Uncrated (lbs.) 755 (342 kg)
* Rating @ -15°F evaporator, 90°F ambient
Figures in parentheses reflect metric equivalents rounded to the nearest
whole unit.
115/208-230/60/1
(220/50/1)
82 1/4”
(2096 mm)
FRONT VIEW
SIDE VIEW
77 1/4”
(1962 mm)
5”
(127 mm)
Model Plan Views
21 7/8”
(556 mm)
DOOR OPENING
27 1/2”
(699 mm)
DOOR OPENING
85 1/2”
(2172 mm)
12”
(305 mm)
22 7/8”
(581 mm)
54 3/4”
(1391 mm)
25 7/8”
(657 mm)
27 7/8”
(708 mm)
29 1/4”
(743 mm)
Toll-Free: 800-523-7138
Phone: 215-244-1400
Fax: 215-244-9579
539 Dunksferry Road
Bensalem, PA 19020
www.continentalrefrigerator.com
Due to our continued efforts in developing innovative
products, specifications subject to change without notice.
®
MADE IN THE U.S.A.
© Copyright 2015. Continental Refrigerator.
A Division of National Refrigeration & Air Conditioning Products, Inc.
IMPORTANT NOTE: If the cabinet is located directly against a wall and/or under a low ceiling, a minimum
clearance of 12” is required.
3FES-HD (8/11/15)
