Continental Refrigerator 2RES-HD User Manual

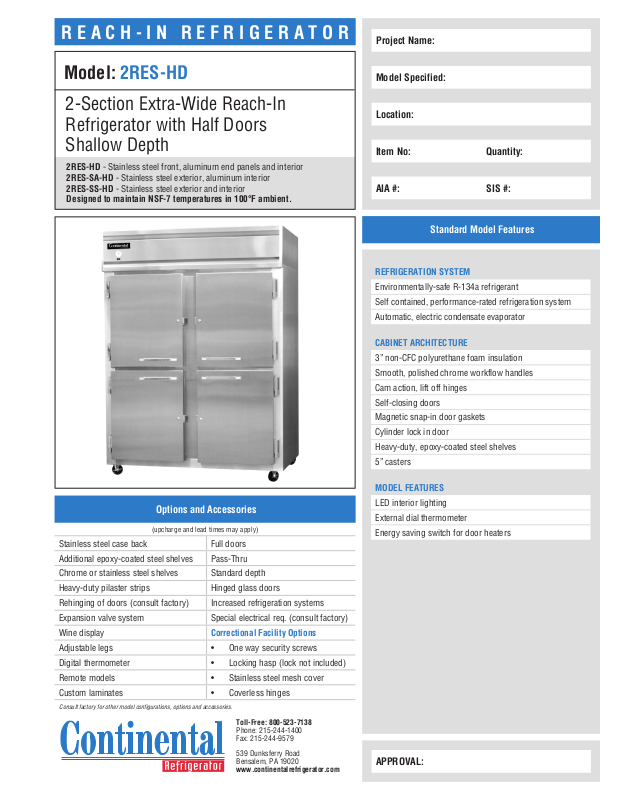

REACH-IN REFRIGERATOR
Project Name:
Model: 2RES-HD
2-Section Extra-Wide Reach-In
Refrigerator with Half Doors
Shallow Depth
2RES-HD - Stainless steel front, aluminum end panels and interior
2RES-SA-HD - Stainless steel exterior, aluminum interior
2RES-SS-HD - Stainless steel exterior and interior
Designed to maintain NSF-7 temperatures in 100°F ambient.
Model Specified:
Location:
Item No: Quantity:
AIA #: SIS #:
Standard Model Features
REFRIGERATION SYSTEM
Environmentally-safe R-134a refrigerant
Self contained, performance-rated refrigeration system
Automatic, electric condensate evaporator
CABINET ARCHITECTURE
3” non-CFC polyurethane foam insulation
Smooth, polished chrome workflow handles
Cam action, lift off hinges
Self-closing doors
Magnetic snap-in door gaskets
Cylinder lock in door
Heavy-duty, epoxy-coated steel shelves
5” casters
Options and Accessories
(upcharge and lead times may apply)
Stainless steel case back Full doors
Additional epoxy-coated steel shelves Pass-Thru
Chrome or stainless steel shelves Standard depth
Heavy-duty pilaster strips Hinged glass doors
Rehinging of doors (consult factory) Increased refrigeration systems
Expansion valve system Special electrical req. (consult factory)
Wine display
Adjustable legs • One way security screws
Digital thermometer • Locking hasp (lock not included)
Remote models • Stainless steel mesh cover
Custom laminates • Coverless hinges
Consult factory for other model configurations, options and accessories.
Correctional Facility Options
Toll-Free: 800-523-7138
Phone: 215-244-1400
Fax: 215-244-9579
539 Dunksferry Road
Bensalem, PA 19020
www.continentalrefrigerator.com
MODEL FEATURES
LED interior lighting
External dial thermometer
Energy saving switch for door heaters
APPROVAL:
Model Specifications
DIMENSIONAL DATA
Net Capacity (cu. ft.) 40 (1133 cu l)
Width, Overall (in.) 57 (1448 mm)
Depth, Overall (in.) (incl. handles) 29 1/4 (743 mm)
Depth [less doors] (in.) 25 7/8 (657 mm)
Depth [doors open 90°] (in.) 51 1/8 (1299 mm)
Clear Door Width (in.) 21 7/8 (556 mm)
Clear Half Door Height (in.) 27 1/2 (699 mm)
Height, Overall (in.) (incl. 5” casters) 82 1/4 (2089 mm)
No. of Doors 4
No. of Shelves 6
Shelf Area (sq. ft.) 40.8 (3.8 sq m)
REFRIGERANT DATA
Condensing Unit Size (H.P.) 1/3
Capacity (BTU/Hr)* 2560
ELECTRICAL DATA
Voltage (int’l) 115/60/1 (220/50/1)
Feed Wires (incl. ground) 3
Total Amps (int’l) 6.5 (4.9)
10 ft. Cord/Plug [attached] (int’l) Yes (No)
SHIPPING DATA
Height - Crated (in.) 85 1/2 (2172 mm)
Width - Crated (in.) 64 (1626 mm)
Depth - Crated (in.) 42 (1067 mm)
Volume - Crated (cu. ft.) 133 (3766 cu l)
Weight Std - Crated (lbs.) 520 (236 kg)
Weight SS - Crated (lbs.) 600 (272 kg)
Weight Std - Uncrated (lbs.) 350 (159 kg)
Weight SS - Uncrated (lbs.) 430 (195 kg)
* Rating @ +25°F evaporator, 90°F ambient
Figures in parentheses reflect metric equivalents rounded to the nearest
whole unit.
(2089 mm)
FRONT VIEW
82 1/4”
77 1/4”
(1962 mm)
5”
(127 mm)
Model Plan Views
12”
(305 mm)
22 7/8”
(581 mm)
(1391 mm)
57”
(1448 mm)
54 3/4”
21 7/8”
(556 mm)
DOOR OPENING
27 1/2”
(699 mm)
DOOR OPENING
Equipped with one NEMA-5-15P Plug
(varies by country)
Toll-Free: 800-523-7138
Phone: 215-244-1400
Fax: 215-244-9579
539 Dunksferry Road
Bensalem, PA 19020
www.continentalrefrigerator.com
Due to our continued efforts in developing innovative
products, specifications subject to change without notice.
®
MADE IN THE U.S.A.
© Copyright 2015. Continental Refrigerator.
A Division of National Refrigeration & Air Conditioning Products, Inc.
25 7/8”
(657 mm)
27 7/8”
(708 mm)
29 1/4”
SIDE VIEW
IMPORTANT NOTE: If the cabinet is located directly against a wall and/or under a low ceiling, a minimum
clearance of 12” is required.
(743 mm)
2RES-HD (7/23/15)
