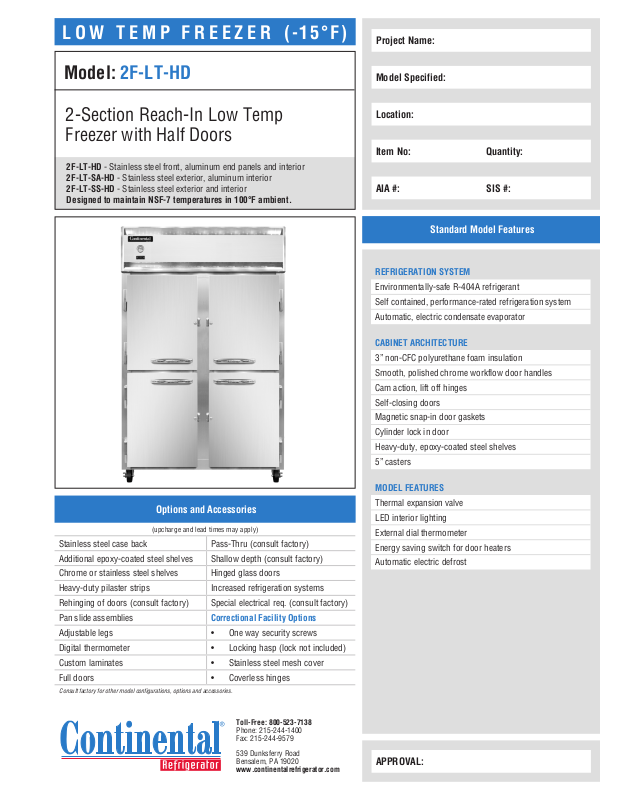

LOW TEMP FREEZER (-15°F)
Project Name:
Model: 2F-LT-HD
2-Section Reach-In Low Temp
Freezer with Half Doors
2F-LT-HD - Stainless steel front, aluminum end panels and interior
2F-LT-SA-HD - Stainless steel exterior, aluminum interior
2F-LT-SS-HD - Stainless steel exterior and interior
Designed to maintain NSF-7 temperatures in 100°F ambient.
Model Specified:
Location:
Item No: Quantity:
AIA #: SIS #:
Standard Model Features
REFRIGERATION SYSTEM
Environmentally-safe R-404A refrigerant
Self contained, performance-rated refrigeration system
Automatic, electric condensate evaporator
CABINET ARCHITECTURE
3” non-CFC polyurethane foam insulation
Smooth, polished chrome workflow door handles
Cam action, lift off hinges
Self-closing doors
Magnetic snap-in door gaskets
Cylinder lock in door
Heavy-duty, epoxy-coated steel shelves
5” casters
Options and Accessories
(upcharge and lead times may apply)
Stainless steel case back Pass-Thru (consult factory)
Additional epoxy-coated steel shelves Shallow depth (consult factory)
Chrome or stainless steel shelves Hinged glass doors
Heavy-duty pilaster strips Increased refrigeration systems
Rehinging of doors (consult factory) Special electrical req. (consult factory)
Pan slide assemblies
Adjustable legs • One way security screws
Digital thermometer • Locking hasp (lock not included)
Custom laminates • Stainless steel mesh cover
Full doors • Coverless hinges
Consult factory for other model configurations, options and accessories.
Correctional Facility Options
Toll-Free: 800-523-7138
Phone: 215-244-1400
Fax: 215-244-9579
539 Dunksferry Road
Bensalem, PA 19020
www.continentalrefrigerator.com
MODEL FEATURES
Thermal expansion valve
LED interior lighting
External dial thermometer
Energy saving switch for door heaters
Automatic electric defrost
APPROVAL:
Model Specifications
DIMENSIONAL DATA
Net Capacity (cu. ft.) 48 (1359 cu l)
Width, Overall (in.) 52 (1321 mm)
Depth, Overall (in.) (incl. handles) 35 3/8 (899 mm)
Depth (in.) (less doors) 32 (813 mm)
Depth (in.) (doors open 90°) 55 1/2 (1410 mm)
Clear Door Width (in.) 19 3/8 (492 mm)
Clear Half Door Height (in.) 27 1/2 (699 mm)
Height, Overall (in.) (incl. 5” casters) 85 3/4 (2178 mm)
No. of Doors 4
No. of Shelves 6
Shelf Area (sq. ft.) 40.8 (3.8 sq m)
Tray Slide Capacity (per half section) 11
REFRIGERANT DATA
Condensing Unit Size (H.P.) 1
Capacity (BTU/Hr)* 2600
ELECTRICAL DATA
Voltage (int’l)
Feed Wires (incl. ground) 4
Total Amps (int’l) 13.1 (10.6)
Defrost Amps (int’l) 9.6 (4.8)
10 ft. Cord/Plug (int’l) No (No)
SHIPPING DATA
Height - Crated (in.) 85 1/2 (2172 mm)
Width - Crated (in.) 64 (1626 mm)
Depth - Crated (in.) 42 (1067 mm)
Volume - Crated (cu. ft.) 133 (3766 cu l)
Weight Std - Crated (lbs.) 565 (256 kg)
Weight SS - Crated (lbs.) 645 (293 kg)
Weight Std - Uncrated (lbs.) 395 (179 kg)
Weight SS - Uncrated (lbs.) 475 (215 kg)
* Rating @ -30°F evaporator, 90°F ambient
Figures in parentheses reflect metric equivalents rounded to the nearest
whole unit.
115/208-230/60/1
(220/50/1)
85 3/4”
(2178 mm)
FRONT VIEW
SIDE VIEW
5”
(127 mm)
Model Plan Views
(492 mm)
DOOR OPENING
52”
29”
54 3/4”
(1391 mm)
32”
(813 mm)
34”
35 3/8”
(899 mm)
(1321 mm)
(737 mm)
(864 mm)
19 3/8”
27 1/2”
(699 mm)
DOOR OPENING
Toll-Free: 800-523-7138
Phone: 215-244-1400
Fax: 215-244-9579
539 Dunksferry Road
Bensalem, PA 19020
www.continentalrefrigerator.com
Due to our continued efforts in developing innovative
products, specifications subject to change without notice.
®
MADE IN THE U.S.A.
© Copyright 2016. Continental Refrigerator.
A Division of National Refrigeration & Air Conditioning Products, Inc.
IMPORTANT NOTE: If the cabinet is located directly against a wall and/or under a low ceiling, a minimum
clearance of 12” is required on top and 3” on sides and rear.
