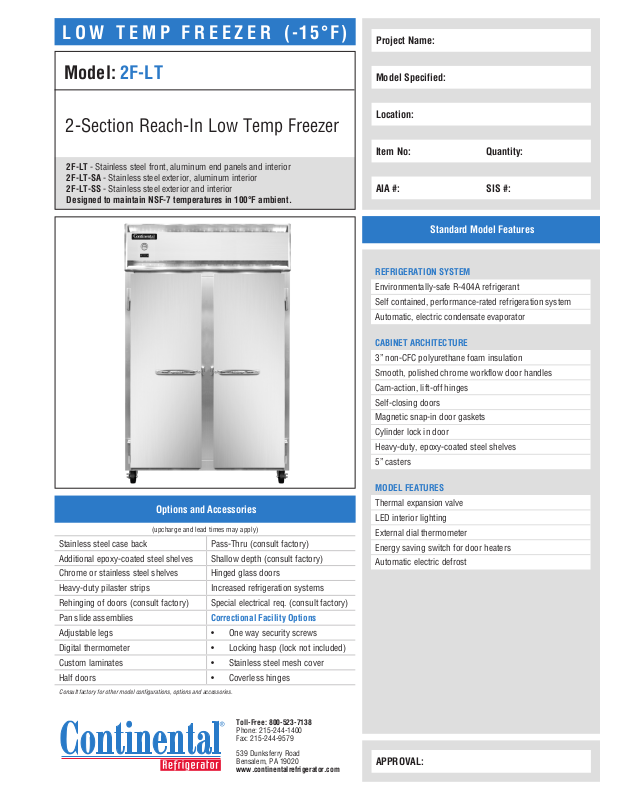

LOW TEMP FREEZER (-15°F)

Project Name:

Model: 2F-LT

2-Section Reach-In Low Temp Freezer

2F-LT - Stainless steel front, aluminum end panels and interior 2F-LT-SA - Stainless steel exterior, aluminum interior 2F-LT-SS - Stainless steel exterior and interior Designed to maintain NSF-7 temperatures in 100°F ambient.

Model Specified:

Location:

Item No: Quantity:

AIA #: SIS #:

Standard Model Features

REFRIGERATION SYSTEM

Environmentally-safe R-404A refrigerant Self contained, performance-rated refrigeration system Automatic, electric condensate evaporator

CABINET ARCHITECTURE

3” non-CFC polyurethane foam insulation Smooth, polished chrome workflow door handles Cam-action, lift-off hinges Self-closing doors Magnetic snap-in door gaskets Cylinder lock in door Heavy-duty, epoxy-coated steel shelves 5” casters

Options and Accessories

(upcharge and lead times may apply)

Stainless steel case back Pass-Thru (consult factory) Additional epoxy-coated steel shelves Shallow depth (consult factory) Chrome or stainless steel shelves Hinged glass doors Heavy-duty pilaster strips Increased refrigeration systems Rehinging of doors (consult factory) Special electrical req. (consult factory) Pan slide assemblies Adjustable legs • One way security screws Digital thermometer • Locking hasp (lock not included) Custom laminates • Stainless steel mesh cover Half doors • Coverless hinges

Consult factory for other model configurations, options and accessories.

Correctional Facility Options

Toll-Free: 800-523-7138

Phone: 215-244-1400 Fax: 215-244-9579

539 Dunksferry Road Bensalem, PA 19020

www.continentalrefrigerator.com

MODEL FEATURES

Thermal expansion valve LED interior lighting External dial thermometer Energy saving switch for door heaters Automatic electric defrost

APPROVAL:

Model Specifications

DIMENSIONAL DATA

Net Capacity (cu. ft.) 48 (1359 cu l) Width, Overall (in.) 52 (1321 mm) Depth, Overall (in.) (incl. handles) 35 3/8 (899 mm) Depth (in.) (less doors) 32 (813 mm) Depth (in.) (doors open 90°) 55 1/2 (1410 mm) Clear Door Width (in.) 19 3/8 (492 mm) Clear Door Height (in.) 58 5/8 (1489 mm) Height, Overall (in.) (incl. 5” casters) 85 3/4 (2178 mm) No. of Doors 2 No. of Shelves 6 Shelf Area (sq. ft.) 40.8 (3.8 sq m) Tray Slide Capacity (per section) 24

REFRIGERANT DATA

Condensing Unit Size (H.P.) 1 Capacity (BTU/Hr)* 2600

ELECTRICAL DATA

Voltage (int’l)

Feed Wires (incl. ground) 4 Total Amps (int’l) 13.1 (10.6) Defrost Amps (int’l) 9.6 (4.8) 10 ft. Cord/Plug (int’l) No (No)

SHIPPING DATA

Height - Crated (in.) 85 1/2 (2172 mm) Width - Crated (in.) 64 (1626 mm) Depth - Crated (in.) 42 (1067 mm) Volume - Crated (cu. ft.) 133 (3766 cu l) Weight Std - Crated (lbs.) 565 (256 kg) Weight SS - Crated (lbs.) 645 (293 kg) Weight Std - Uncrated (lbs.) 395 (179 kg) Weight SS - Uncrated (lbs.) 475 (215 kg)

* Rating @ -30°F evaporator, 90°F ambient

Figures in parentheses reflect metric equivalents rounded to the nearest whole unit.

115/208-230/60/1 (220/50/1)

85 3/4”

(2178 mm)

FRONT VIEW

SIDE VIEW

5”

(127 mm)

Model Plan Views

19 3/8”

(492 mm)

DOOR OPENING

52”

(1321 mm)

29”

(737 mm)

54 3/4”

(1391 mm)

32”

(813 mm)

34”

(864 mm)

35 3/8”

(899 mm)

58 5/8”

(1489 mm)

DOOR OPENING

Toll-Free: 800-523-7138

Phone: 215-244-1400 Fax: 215-244-9579

539 Dunksferry Road Bensalem, PA 19020

www.continentalrefrigerator.com

Due to our continued efforts in developing innovative products, specifications subject to change without notice.

MADE IN THE U.S.A.

IMPORTANT NOTE: If the cabinet is located directly against a wall and/or under a low ceiling, a minimum clearance of 12” is required on top and 3” on sides and rear.

2F-LT (8/2/16)
