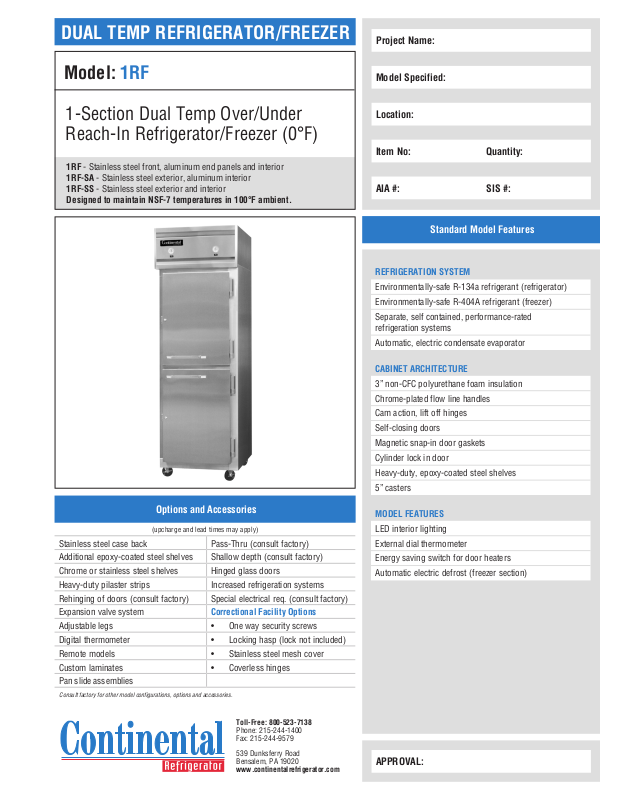

DUAL TEMP REFRIGERATOR/FREEZER

Project Name:

Model: 1RF

1-Section Dual Temp Over/Under Reach-In Refrigerator/Freezer (0°F)

1RF - Stainless steel front, aluminum end panels and interior 1RF-SA - Stainless steel exterior, aluminum interior 1RF-SS - Stainless steel exterior and interior Designed to maintain NSF-7 temperatures in 100°F ambient.

Model Specified:

Location:

Item No: Quantity:

AIA #: SIS #:

Standard Model Features

REFRIGERATION SYSTEM

Environmentally-safe R-134a refrigerant (refrigerator) Environmentally-safe R-404A refrigerant (freezer) Separate, self contained, performance-rated

refrigeration systems Automatic, electric condensate evaporator

Options and Accessories

(upcharge and lead times may apply)

Stainless steel case back Pass-Thru (consult factory) Additional epoxy-coated steel shelves Shallow depth (consult factory) Chrome or stainless steel shelves Hinged glass doors Heavy-duty pilaster strips Increased refrigeration systems Rehinging of doors (consult factory) Special electrical req. (consult factory) Expansion valve system Adjustable legs • One way security screws Digital thermometer • Locking hasp (lock not included) Remote models • Stainless steel mesh cover Custom laminates • Coverless hinges Pan slide assemblies

Consult factory for other model configurations, options and accessories.

Correctional Facility Options

CABINET ARCHITECTURE

3” non-CFC polyurethane foam insulation Chrome-plated flow line handles Cam action, lift off hinges Self-closing doors Magnetic snap-in door gaskets Cylinder lock in door Heavy-duty, epoxy-coated steel shelves 5” casters

MODEL FEATURES

LED interior lighting External dial thermometer Energy saving switch for door heaters Automatic electric defrost (freezer section)

Toll-Free: 800-523-7138

Phone: 215-244-1400 Fax: 215-244-9579

539 Dunksferry Road Bensalem, PA 19020

www.continentalrefrigerator.com

APPROVAL:

Model Specifications

DIMENSIONAL DATA

Net Capacity (cu. ft.) 10/10 (283/283 cu l) Width, Overall (in.) 26 (660 mm) Depth, Overall (incl. handles) (in.) 35 3/8 (899 mm) Depth [less doors] (in.) 32 (813 mm) Depth [doors open 90°] (in.) 55 1/2 (1410 mm) Clear Door Width (in.) 19 3/8 (492 mm) Clear Half Door Height (in.) 27 1/2 (699 mm) Height, Overall (incl. 5” casters)

(in.) No. of Half Doors 2 No. of Shelves 4 Shelf Area (sq. ft.) 20.4 (1.9 sq m) Tray Slide Capacity (per half sect.) 11 ea.

REFRIGERANT DATA

Condensing Unit Size (H.P.) 1/5, 1/4 Capacity (BTU/Hr)* 1725, 1250

ELECTRICAL DATA

Voltage (int’l) 115/60/1 (220/50/1) Feed Wires (incl. ground) 3, 3 Total Amps (int’l) 5.5 (3.1), 4.8 (2.9) Defrost Amps (int’l) 5.2 (2.6) (2) 10 ft. Cord/Plug [attach.] (int’l) Yes (No)

SHIPPING DATA

Height - Crated (in.) 85 1/2 (2172 mm) Width - Crated (in.) 31 5/8 (803 mm) Depth - Crated (in.) 42 (1067 mm) Volume - Crated (cu. ft.) 65 (1841 cu l) Weight Std - Crated (lbs.) 420 (191 kg) Weight SS - Crated (lbs.) 480 (218 kg) Weight Std - Uncrated (lbs.) 320 (145 kg) Weight SS - Uncrated (lbs.) 380 (172 kg)

* Rating @ +25°F evaporator, 90°F ambient (refrigerator) * Rating @ -15°F evaporator, 90°F ambient (freezer)

Figures in parentheses reflect metric equivalents rounded to the nearest whole unit.

82 1/4 (2089 mm)

FRONT VIEW

SIDE VIEW

82 1/4”

(2096 mm)

Model Plan Views

13”

(330 mm)

5”

(127 mm)

11 1/2”

(292 mm)

28 1/8”

(714 mm)

19 3/8”

(492 mm)

DOOR OPENING

26”

(660 mm)

12”

(305 mm)

29”

(737 mm)

23 1/2”

(597 mm)

32”

(813 mm)

34”

(864 mm)

35 3/8”

(899 mm)

27 1/2”

(699 mm)

DOOR OPENING

4 5/8”

(117 mm)

Toll-Free: 800-523-7138

Phone: 215-244-1400 Fax: 215-244-9579

539 Dunksferry Road Bensalem, PA 19020

www.continentalrefrigerator.com

Due to our continued efforts in developing innovative products, specifications subject to change without notice.

MADE IN THE U.S.A.

IMPORTANT NOTE: If the cabinet is located directly against a wall and/or under a low ceiling, a minimum clearance of 12” is required.

Equipped with two NEMA-5-15P Plugs

(varies by country)
