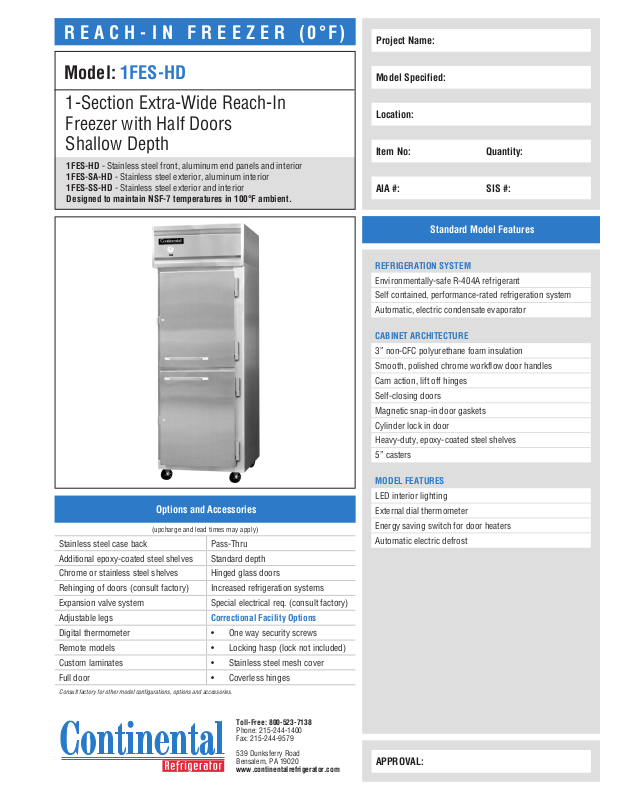

Continental Refrigerator 1FES-HD User Manual

REACH-IN FREEZER (0°F)

Project Name:

Model: 1FES-HD

1-Section Extra-Wide Reach-In Freezer with Half Doors Shallow Depth

1FES-HD - Stainless steel front, aluminum end panels and interior 1FES-SA-HD - Stainless steel exterior, aluminum interior 1FES-SS-HD - Stainless steel exterior and interior Designed to maintain NSF-7 temperatures in 100°F ambient.

Model Specified:

Location:

Item No: Quantity:

AIA #: SIS #:

Standard Model Features

REFRIGERATION SYSTEM

Environmentally-safe R-404A refrigerant Self contained, performance-rated refrigeration system Automatic, electric condensate evaporator

CABINET ARCHITECTURE

3” non-CFC polyurethane foam insulation Smooth, polished chrome workflow door handles Cam action, lift off hinges Self-closing doors Magnetic snap-in door gaskets Cylinder lock in door Heavy-duty, epoxy-coated steel shelves 5” casters

Options and Accessories

(upcharge and lead times may apply)

Stainless steel case back Pass-Thru Additional epoxy-coated steel shelves Standard depth Chrome or stainless steel shelves Hinged glass doors Rehinging of doors (consult factory) Increased refrigeration systems Expansion valve system Special electrical req. (consult factory) Adjustable legs Digital thermometer • One way security screws Remote models • Locking hasp (lock not included) Custom laminates • Stainless steel mesh cover Full door • Coverless hinges

Consult factory for other model configurations, options and accessories.

Correctional Facility Options

Toll-Free: 800-523-7138

Phone: 215-244-1400 Fax: 215-244-9579

539 Dunksferry Road Bensalem, PA 19020

www.continentalrefrigerator.com

MODEL FEATURES

LED interior lighting External dial thermometer Energy saving switch for door heaters Automatic electric defrost

APPROVAL:

Model Specifications

DIMENSIONAL DATA

Net Capacity (cu. ft.) 18 (510 cu l) Width, Overall (in.) 28 1/2 (724 mm) Depth, Overall (in.) (incl. handle) 29 1/4 (743 mm) Depth [less door] (in.) 25 7/8 (657 mm) Depth [door open 90°] (in.) 49 1/2 (1257 mm) Clear Door Width (in.) 21 7/8 (556 mm) Clear Half Door Height (in.) 27 1/2 (699 mm) Height, Overall (in.) (incl. 5” casters) 82 1/4 (2089 mm) No. of Doors 2 No. of Shelves 3 Shelf Area (sq. ft.) 20.4 (1.9 sq m)

REFRIGERANT DATA

Condensing Unit Size (H.P.) 1/3 Capacity (BTU/Hr)* 1590

ELECTRICAL DATA

Voltage (int’l) 115/60/1 (220/50/1) Feed Wires (incl. ground) 3 Total Amps (int’l) 6.3 (3.8) Defrost Amps (int’l) 5.2 (2.6) 10 ft. Cord/Plug [attached] (int’l) Yes (No)

SHIPPING DATA

Height - Crated (in.) 85 1/2 (2172 mm) Width - Crated (in.) 31 5/8 (803 mm) Depth - Crated (in.) 42 (1067 mm) Volume - Crated (cu. ft.) 65 (1841 cu l) Weight Std - Crated (lbs.) 345 (156 kg) Weight SS - Crated (lbs.) 395 (179 kg) Weight Std - Uncrated (lbs.) 245 (111 kg) Weight SS - Uncrated (lbs.) 295 (134 kg)

* Rating @ -15°F evaporator, 90°F ambient

Figures in parentheses reflect metric equivalents rounded to the nearest whole unit.

FRONT VIEW

82 1/4”

(2096 mm)

Model Plan Views

(305 mm)

22 7/8”

(581 mm)

DOOR OPENING

77 1/4”

(1962 mm)

5”

(127 mm)

21 7/8”

(556 mm)

27 1/2”

(699 mm)

28 1/2”

(724 mm)

12”

54 3/4”

(1391 mm)

Equipped with one NEMA-5-15P Plug

(varies by country)

Toll-Free: 800-523-7138

Phone: 215-244-1400 Fax: 215-244-9579

539 Dunksferry Road Bensalem, PA 19020

www.continentalrefrigerator.com

Due to our continued efforts in developing innovative products, specifications subject to change without notice.

MADE IN THE U.S.A.

25 7/8”

(657 mm)

27 7/8”

(708 mm)

29 1/4”

SIDE VIEW

IMPORTANT NOTE: If the cabinet is located directly against a wall and/or under a low ceiling, a minimum clearance of 12” is required.

(743 mm)

1FES-HD (8/11/15)
