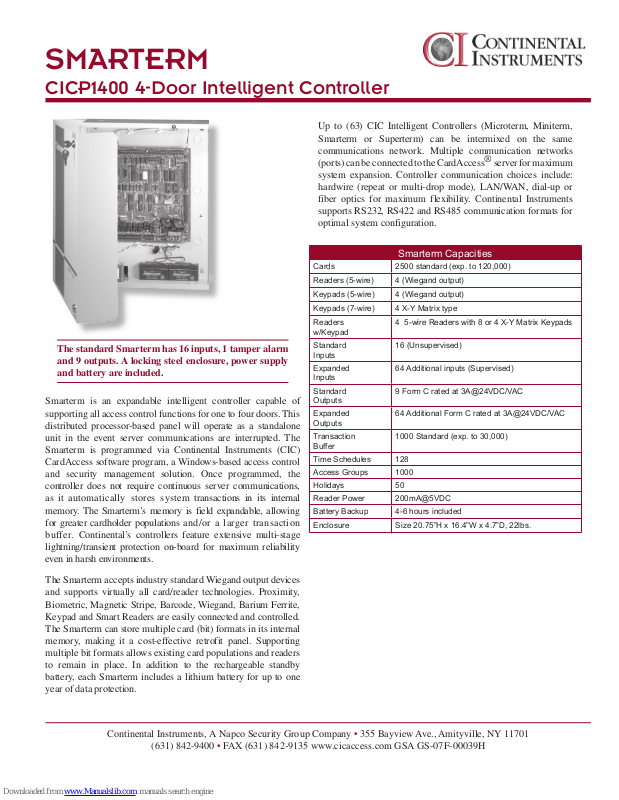

SMARTERM
CICP1400 4-Door Intelligent Controller
Up to (63) CIC Intelligent Controllers (Microterm, Miniterm,
Smarterm or Superterm) can be intermixed on the same
communications network. Multiple communication networks
(ports) can be connected to the CardAccess® server for maximum
system expansion. Controller communication choices include:
hardwire (repeat or multi-drop mode), LAN/WAN, dial-up or
fiber optics for maximum flexibility. Continental Instruments
supports RS232, RS422 and RS485 communication formats for
optimal system configuration.
Cards 2500 standard (exp. to 120,000)
Readers (5-wire) 4 (Wiegand output)
Keypads (5-wire) 4 (Wiegand output)
Keypads (7-wire) 4 X-Y Matrix type
Readers
w/Keypad
The standard Smarterm has 16 inputs, 1 tamper alarm
and 9 outputs. A locking steel enclosure, power supply
and battery are included.
Smarterm is an expandable intelligent controller capable of
supporting all access control functions for one to four doors. This
distributed processor-based panel will operate as a standalone
unit in the event server communications are interrupted. The
Smarterm is programmed via Continental Instruments (CIC)
CardAccess software program, a Windows-based access control
and security management solution. Once programmed, the
controller does not require continuous server communications,
as it automatically stores system transactions in its internal
memory. The Smarterm’s memory is field expandable, allowing
for greater cardholder populations and/or a larger transaction
buffer. Continental’s controllers feature extensive multi-stage
lightning/transient protection on-board for maximum reliability
even in harsh environments.
Standard
Inputs
Expanded
Inputs
Standard
Outputs
Expanded
Outputs
Transaction
Buffer
Time Schedules 128
Access Groups 1000
Holidays 50
Reader Power 200mA@5VDC
Battery Backup 4-6 hours included
Enclosure Size 20.75”H x 16.4”W x 4.7”D, 22lbs.
Smarterm Capacities
4 5-wire Readers with 8 or 4 X-Y Matrix Keypads
16 (Unsupervised)
64 Additional inputs (Supervised)
9 Form C rated at 3A@24VDC/VAC
64 Additional Form C rated at 3A@24VDC/VAC
1000 Standard (exp. to 30,000)
The Smarterm accepts industry standard Wiegand output devices
and supports virtually all card/reader technologies. Proximity,
Biometric, Magnetic Stripe, Barcode, Wiegand, Barium Ferrite,
Keypad and Smart Readers are easily connected and controlled.
The Smarterm can store multiple card (bit) formats in its internal
memory, making it a cost-effective retrofit panel. Supporting
multiple bit formats allows existing card populations and readers
to remain in place. In addition to the rechargeable standby
battery, each Smarterm includes a lithium battery for up to one
year of data protection.
Continental Instruments, A Napco Security Group Company • 355 Bayview Ave., Amityville, NY 11701
(631) 842-9400 • FAX (631) 842-9135 www.cicaccess.com GSA GS-07F-00039H
t
C
u
Door Lock
G
G
C
3000
abase and
C
s
S
r
CICE1940
1
r
2
Required if server is not located
0
k
000
p
.
p
p
2
000'
2
000'
2
000'
2
000'
2
32
50'
i
m
Sm
Typical Door Configuration
See Continental Instruments Configuration Guide for
additional detailed system wiring information.
Smarterm Components
QTY. Part No. Description
1
1
1
1 Optional*
1 Optional*
Up to 4
Optional**
Up to 4
Optional**
NOTE: * Either a 256K or 2MB Memory board may be added to the Smarterm unit in order to increase cardholder and/or transaction memory. **A
maximum of 4 Expansion Boards in any combination may be added to the
Smarterm enclosure.
CICP1400 Four (4) reader controller with stan-
dard 2,500 card capacity, 16 alarm
inputs, tamper alarm, and 9 relay
outputs. Unit ships complete in a
locking steel enclosure including
standby battery for memory and
system operation.
Standard 115VAC Power Supply (230VAC
optional). 10’ power line cable with
110VAC plug is included.
Standard 7AH Battery Backup included.
CICP1400MB256-1 Memory Board - 256K (up to 14,000
cardholders or for supporting
elevator control).
CICP1400MB2-1 Memory Board - 2MB (up to 120,000
cardholders and elevator control).
CICP1400RB Relay Expander Board - 16 output
relays, 8 alarm inputs (Unsupervised).
CICP1400RB Alarm Expander Board - 16 alarm
inputs (Supervised). UL Listed.
G
Door Contact
ardAccess
Dat
ommunication
A or B
RS422 to Panels
Door Lock
Power Supply
Continental
Instruments llc
G
Request
to Exit
Electric
H
Door Strike
NOTE: Request to Exit motion detectors will require
an additional 12VDC power cable. Exit devices are
typically mounted on the egress side of door.
Polling Line Converte
RS232 to RS42
within 5
RS2
Max.
erve
ard Reader
G
Request
to Exit
B
PL-
42
. 4
Request to Exi
Motion Detector
Door Contact
G
ertermSu
CICP1400 Four Door Intelligent Controller
Continental Instrument’s Controllers can connect to the
CardAccess Server via hardwire (shown below), LAN/WAN
dial-up modem or fiber optics. See the CIC Configuration
Guide for additional detailed system information.
RS422 Repeat Mode Communications Networ
4
' max. distance between controllers.
to 63 controllers on a Repeat Mode Network
U
RS42
Max. 4
RS42
Max. 4
ertermSu
RS42
Max. 4
arter
RS42
nitermM
