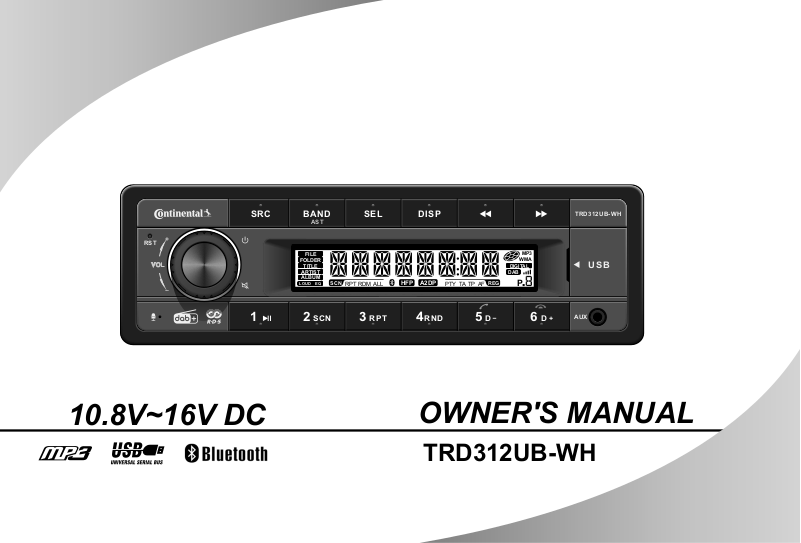

OWNER'S MANUAL

TRD312UB-WH

Safety Information

Specications

Contents

Thank you for purchasing this product, please
read the manual carefully before operating,
and reserve it for future reference.

PRECAUTIONS

• Onlyina12-voltDCnegative-ground

electrical system.

• Disconnectthevehicle'snegative battery

terminal while mounting and connecting
the unit.

• When replacing the fuse, be sure to use

one with an identical amperage rating.

Using a fuse with a higher amperage

rating may cause serious damage to the
unit.

• Make sure that pins or other foreign

objects do not get inside the unit, they
may cause malfunctions, or create safety
hazards such as electrical shock.

• Ifyou have parked the car for a long

time in hot or cold weather, wait until the
temperature in the car becomes normal
before operating the unit.

• Keep the volume at a level at which you

can hear outside warning sounds (horns
sirens, etc.).

CAUTION

• DONOTopen covers and do not

repair by yourself. Ask the dealer or an
experienced technician for help.

General

Powersupply: 10.8V~16VDC

Maximumpoweroutput: 4x40W

Suitable speaker impedance: 4ohm

Fuse spec: 10A

Weight:   0.9kg

Dimensions(WxDxH): 188x131x58.5mm

FM Stereo Radio

Frequencyrange: 87.5-108MHz

Signal/noise ratio: 50dB

AUTOStep: 100KHz

AM (MW) Radio

Frequencyrange:  522-1620KHz

Step:  9KHz

backupcurrent:  ≤3mA

BT

Frequency range:
output power:

2402-2480MHz

≤20dBm

Safety Information ........................................1

Specifications............................................... 1

Panel Controls...............................................2

Button Tips....................................................3

Bluetooth Functions.......................................4

USB function Summarization........................4

Troubleshooting...............................................5

BEFORE OPERATION

•Do not raise the volume level too much,

as this will block outside sounds, making
driving dangerous.

•Stop the car before performing any

complicated operation.

Note:

1 According to models with different wiring

harness to connect the definition of the

speciccontent,please refer to the model

label.

2Specicationsandthedesignaresubjectto

change without notice due to improvements
in technology.

1

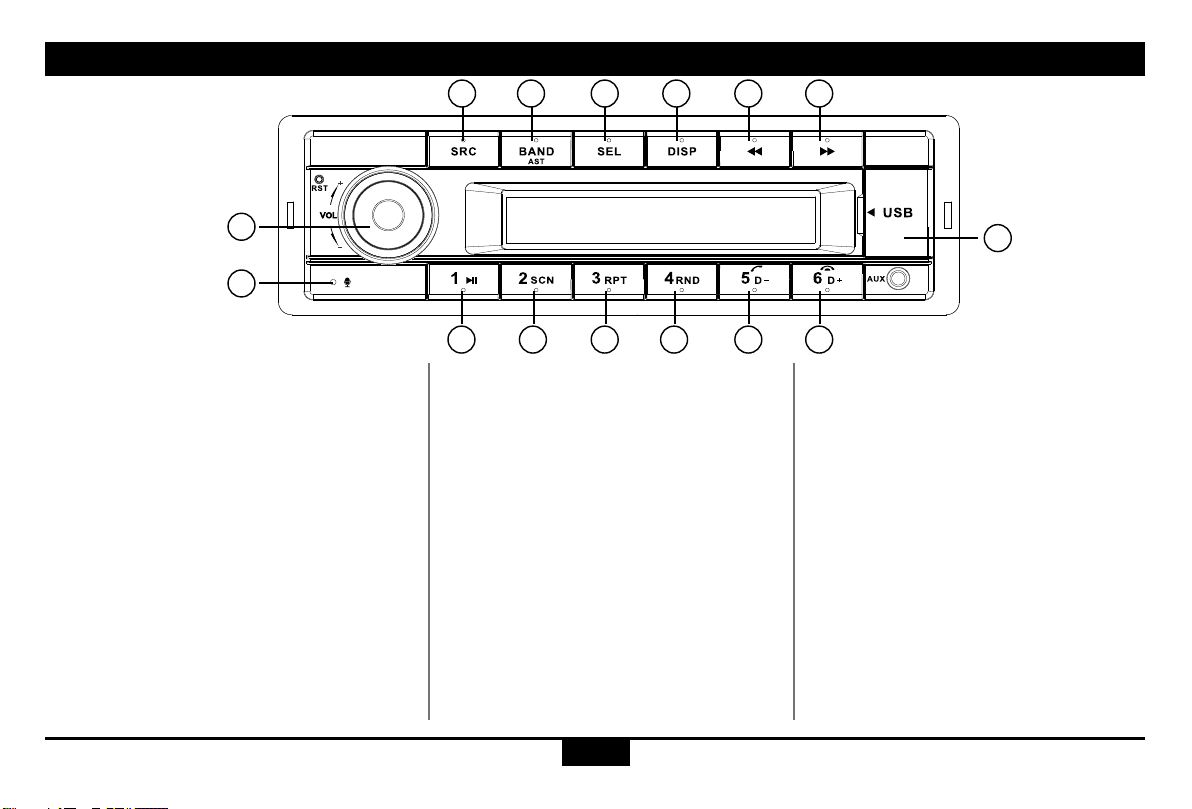

Panel Controls

3 4 5 6 7 8

2

1

(1).-Microphone
(2).-Poweron/off,
-Mute,
 Whenon,holditmorethan2secondsto

power off.

-RotatetheVOLknobtoadjustvolume.
(3).-Switchaudiosource
(4).-Bandswitch:
 FM1/FM2/FM3/MW1/MW2
 -HolditAutomatically search station and

store the signal strongly station to 1-6
Preset.

(5).-EnterAudioSettingmenu
(6).-DisplaySWVersion/ID3INFO
-Systemsetup(longpress)

15 14 13 12 11 10

(7).-Radiomode
 Manualseek the station
-MP3mode

Select the previous track

(8).-Radiomode
Manualseek the station
-MP3mode

Select the next track

(9).-USBslot
(10).-MP3nextfolder/ Hangup
(11).-MP3previousfolder  

-Dial/Calltransfer
(12).-MP3randomplay
(13).-MP3repeatplay
(14).-scanplay

2

9

(15).-Play/pause

(10-15).
-1-6radiopreset

Press to tune in a preset station.

Holdformorethan2secondsto

store current station.

Button Tips

Power On/Off Button

Press the [ ] button to turn the unit on when
the vehicle ignition switch is on. Press and
hold the button to turn the unit off.

Adjust Volume level

Rotate the knob to adjust volume level. Rotate
it clockwise to increase and anticlockwise to
decrease the volume.

Audio Mute

Press the [ ] button to mute the volume
from the system. “MUTE” will appear on the
display panel and the volume will be muted.
Press the [ ] button again, or rotate or
press the VOL/MENU control to return the
volume level to the setting in use before the
Mute function was activated.

Mode Button (SRC)

Press the [SRC ] button to change between
Radio, USB (when USB is connected), AUX
play.

MP3 Playback

Track skip

Press the [ / ] button to go to the previous

or next track.

Holdittoenterfastforwardorreverseback

mode.

MP3 track fast search

Press the [ 5D-]/[ 6D+]button to select
MP3previous/nextfolder.

System setting

Onthenontimedisplaymenu:
Holdit[DISP]andpress[ / ]buttonto

enter the system setup menu, .

PINCODE VISIBLE CT BEEP
LOGIC AM ARERSEL

Waitfor 1s and rotate the knob to set the

system.

Band

During radio play, press the [BAND] button to
choose between three FM, two MW bands.

Up Tuning

Press the seek up [ ] button to tune
stations upward step-by-step. The current
frequency will be shown in digital format on
the display panel.

Press and hold the seek [ ] button to the
next available station.

Down Tuning

Press the seek down [ ] button to tune
stations downward step-by-step.
Press and hold the seek down [ ] button
to the previous available station.

Manual Memory Store

AtFM1/FM2/FM3/MW1/MW2mode,press
andhold button1-6tostore currentstationin

memory. You can store 36 stations in total. (18

FM/18MW)

SOUND SETTING

Pressthe[SEL]buttontoentersoundeffect

setting mode. First press shows current

EQ.Press[ ]or[  ] button to select

options, rotate the knob to adjust.

EQOFF->BALANCE->FADER->LOUD

BALANCE:LEFT1-7->CENTER->RIGHT1-7
FADER:FRONT1-7->CENTER->REAR1-7
LOUD:ON/OFF

3

Bluetooth Functions

USB Function Summarization

Pairing

Use this function to establish a connection
between the unit and your mobile phone.

1. Turn on the unit.

2. Turn on Bluetooth function of your mobile
phone, keep phone within 3 meters to
the unit and start to search for Bluetooth
devices.

3. After the name of the Bluetooth module

“Continental radio” appears on the pairing
list of your mobile phone, select it. At this
time, a pairing code is required. Enter the
pairing code “1234”, and the Bluetooth
pairing will process automatically. Some
mobile phones may instruct you to select
connect or disconnect, please select
connecting.

BT mode selecting

Press[SRC]buttontochooseBTmode.

Receive

1. After pair successfully, if there is a call
incoming, the unit switch to BT mode
automatically.

2. Press

3. Press

[ 5D-]
[ 6D+]

button to receive.
button to hang up.

 Mobilephonedialing,LCDscreendisplays

dialing information.

Call Transfer

During talking, press
transfer audio from the unit to your mobile
phone.

Note:

Some mobile phones will transfer audio from
the unit to themselves once the incoming call
is answered.

[ 5D-]

button to

Music Mode

A2DP

A2DP is short for Advanced Audio
Distribution Profile. The mobile phones
supporting this function can transmit stereo
audio, whereas the ones not supporting this

function can transmit mono audio only.
On A2DP music playing mode, press [1]

button to choose pause/play mode.
Press [ / ] button to previous or next
track.

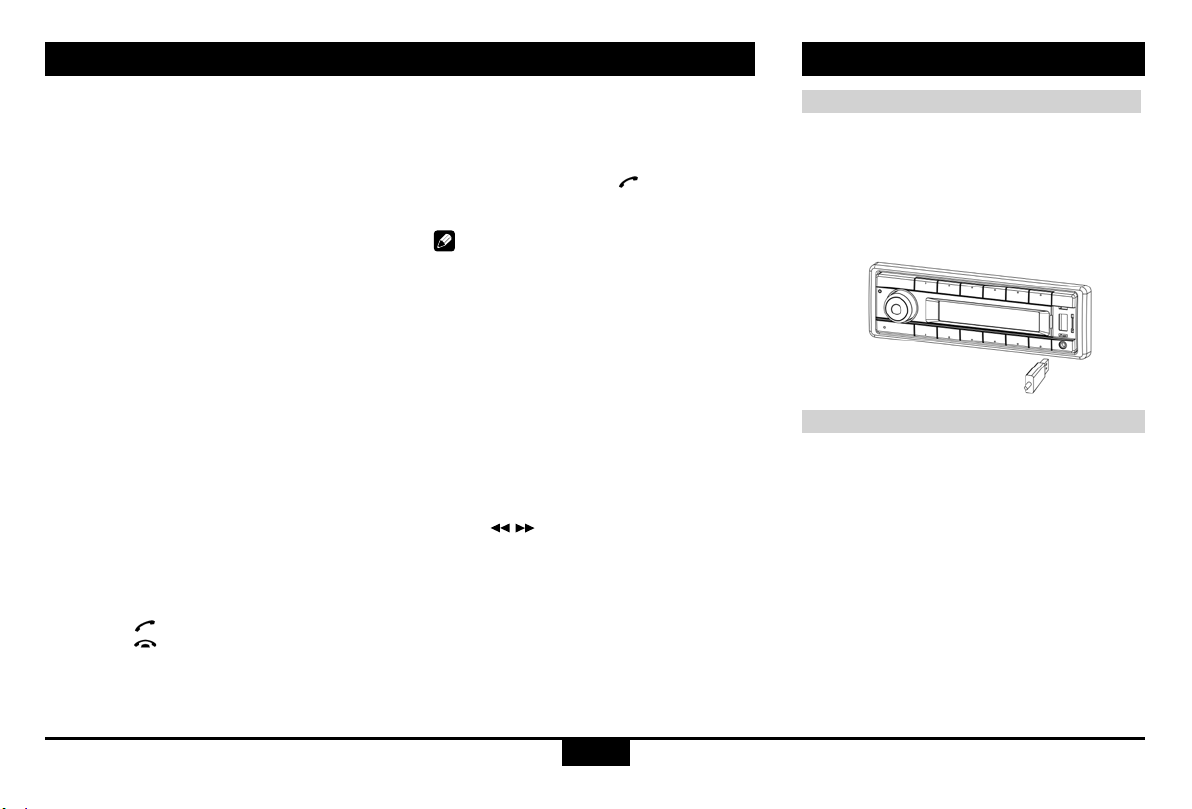

Loading/Take out USB equipment

1. Insert a USB device into the connector
and the unit will begin to play
automatically.

2. To stop playback of USB device, push

 theSRCbuttontononUSBmodeand

then remove the USB device.

USB functions (ash memory type)

1. USBashmemory2in1support

2. FAT 12/FAT 16/FAT 32 format supported.

3. USB 1.1 support, USB 2.0 support (For

2.0, speed performance is as USB 1.1).

4. WMAlessupport.

5. MaximumnumberofMP3lesandfolder

are 65534.

6.MaximumUSBcapacitysupportis2TB.

7. Not all USB devices are compatible with

the unit.

.

Dialing

1. Phone dialing

4

TROUBLESHOOTING

The following checklist can help you solve some problems which you may encounter when using the unit. Before consulting it, check the connections

andfollowtheinstructionsintheusermanual.Donotusetheunitinabnormalcondition,forexamplewithoutsound,orwithsmokeorfoulsmellcan

causereorelectricshock,immediatelystopusingitandcallthestorewhereyou purchased it.

Problem Possible cause Solution

General

The unit will not
switch on.

Nosound Volume is set at minimum or the mute

The unit or screen
does not work
normally.

ModeTUNER

Unable to receive
stations.

Poor quality reception
of radio station.

Preset stations are
lost.

ModeUSB

Unable to insert USB
device

Car ignition is not on.
Cable is not properly connected.
Fuse is burnt.

function is on.
The unit system is unstable. PresstheRESETbutton.

The antenna is not connected properly. Connect the antenna properly.

The antenna is not fully extended or it is
broken.

The battery cable is not properly connected. Connect the permanent live on the unit to the permanent

The USB device has been
inserted the wrong way round.

Turn your car key in the ignition.
Check cable connection.

Replacefusewithanewfuseofthesamecapacity.

Check the volume or switch the mute function off.

Fully extend the antenna and if broken, replace it with a

new one.

live on the vehicle.

Insert it the other way around.

The USB device
cannot be read.

NTFSformatisnotsupported. CheckthatthelesystemisinFATorFAT32format.Due

to different formats, some models of storage devices or

MP3playersmaynotberead.

5

FCC

FCCSTATEMENT

1. This device complies with Part 15 of the

FCCRules.Operationis subject to the

following two conditions:
(1) This device may not cause harmful
interference, and
(2) This device must accept any interference
received, including interference that may
cause undesired operation.

2. any Changes or modifications not

expressly approved by the party responsible

forcompliancecouldvoidtheuser'sauthority

to operate the equipment.

NOTE:Thisequipmenthas beentestedand

found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC

Rules.These limits are designed to provide

reasonable protection against harmful
interference in a residential installation.
This equipment generates uses and can
radiate radio frequency energy and, if not
installed and used in accordance with the
instructions, may cause harmful interference

toradiocommunications.However,there

is no guarantee that interference will not
occur in a particular installation. If this
equipment does cause harmful interference
to radio or television reception, which can
be determined by turning the equipment
off and on, the user is encouraged to try to
correct the interference by one or more of
the following measures:

•Reorientorrelocatethereceivingantenna.

•Increasetheseparationbetweenthe

equipment and receiver.

•Connecttheequipmentinto an outlet on a

circuit different from that to which the receiver
is connected.

•Consultthedealeroranexperiencedradio/

TV technician for help.

FCCRadiationExposureStatement

This equipment complies with FCC radiation
exposure limits set forth for an uncontrolled
environment. This equipment should be
installed and operated with minimum distance
20cm between the radiator & your body

6

P/N:127075002XXX
