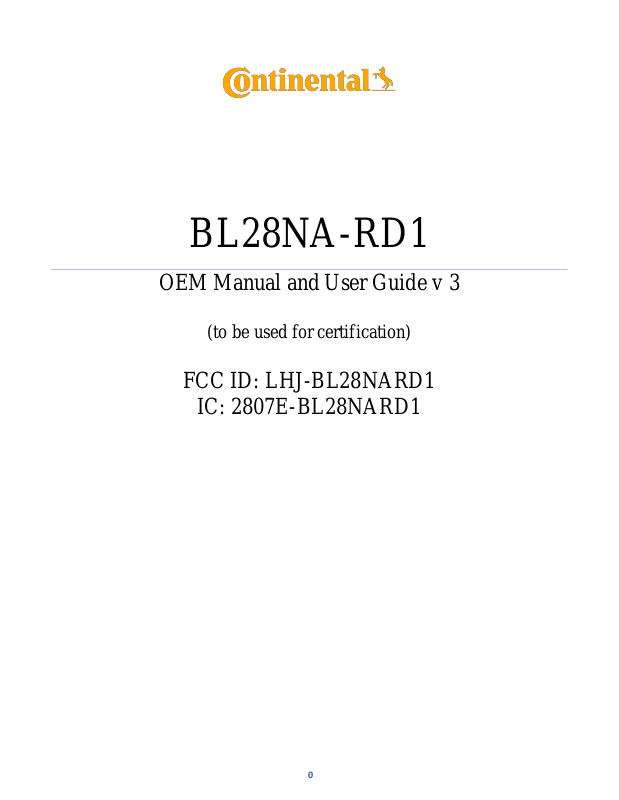

Continental BL28NARD1 User Manual

BL28NA-RD1

OEM Manual and User Guide v 3

(to be used for certification)

FCC ID: LHJ-BL28NARD1

IC: 2807E-BL28NARD1

Terms and Acronyms

• CDMA Code Division Multiple Access

• DCM Data Connectivity Module

• DRX Discontinuous Reception

• ES Engineering Sample

• FDD Frequency Division Duplex

• GLONASS GLOBal’naya NAVigatsionnaya Sputnikovaya Sistema

• GNSS Global Navigation Satellite System

• GPIO General Purpose Input Output

• GSM Global System for Mobile

• HU Head Unit

• HSIC High Speed Inter-Chip

• LTE Long Term Evolution

• MP Mass Production

• NAD Network Access Device

• OEM Original Equipment Manufacturer

• PCB Printed Circuit Board

• PHY Physical Layer

• SIM Subscriber Identity Module

• TCU Telematics Control Unit

• TDD Time Division Duplex

• TSP Telematics Service Provider

• UMTS Universal Mobile Telecommunication System

• WCDMA Wideband Code Division Multiple Access

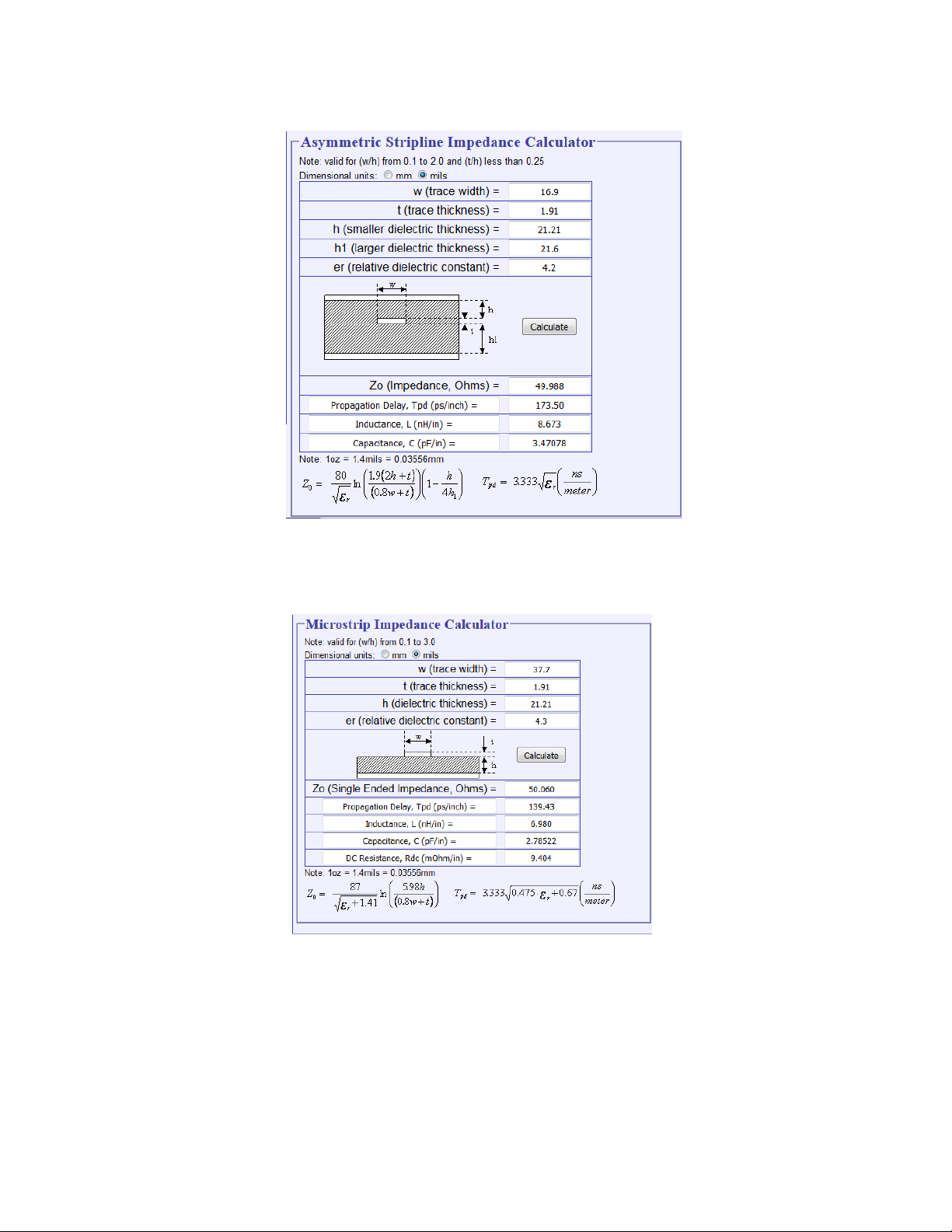

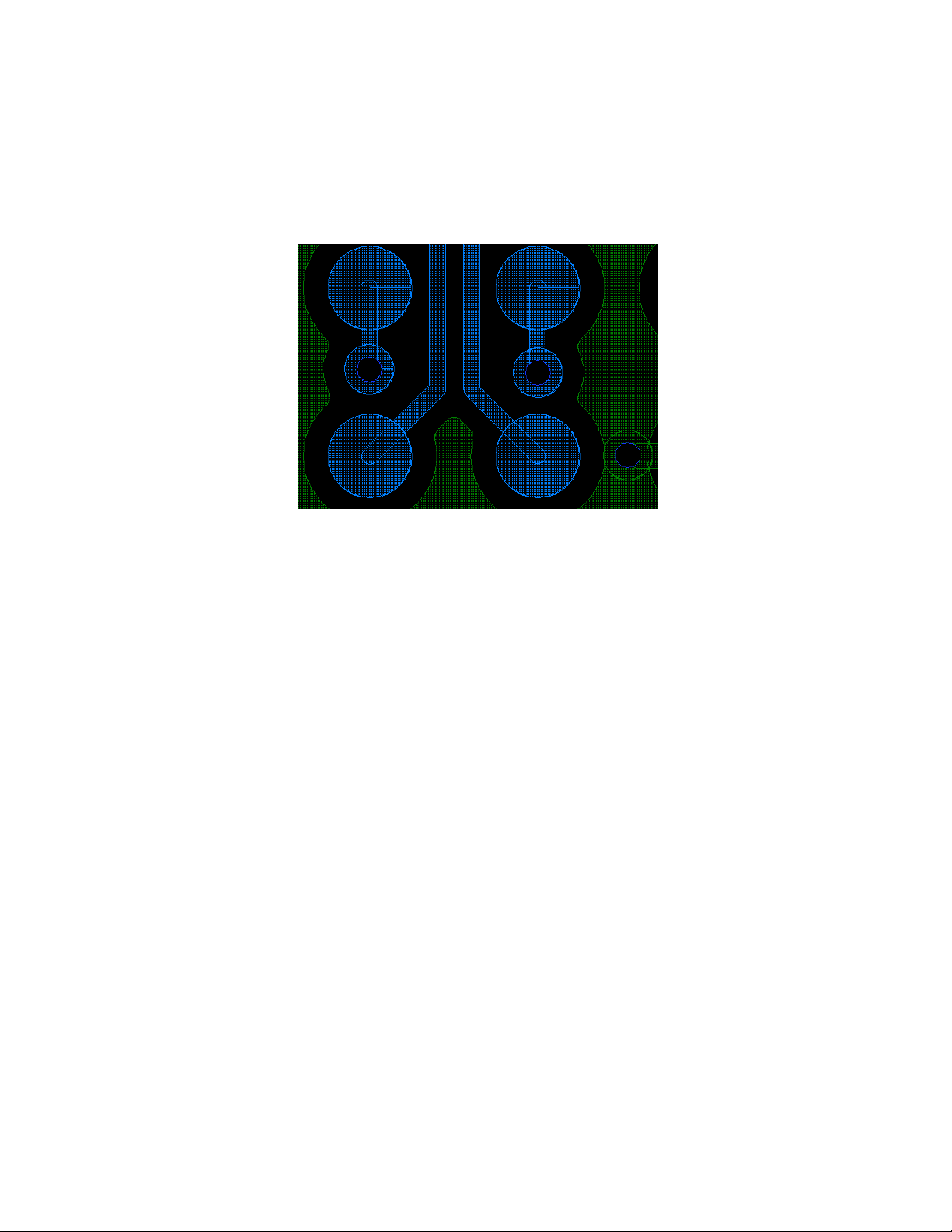

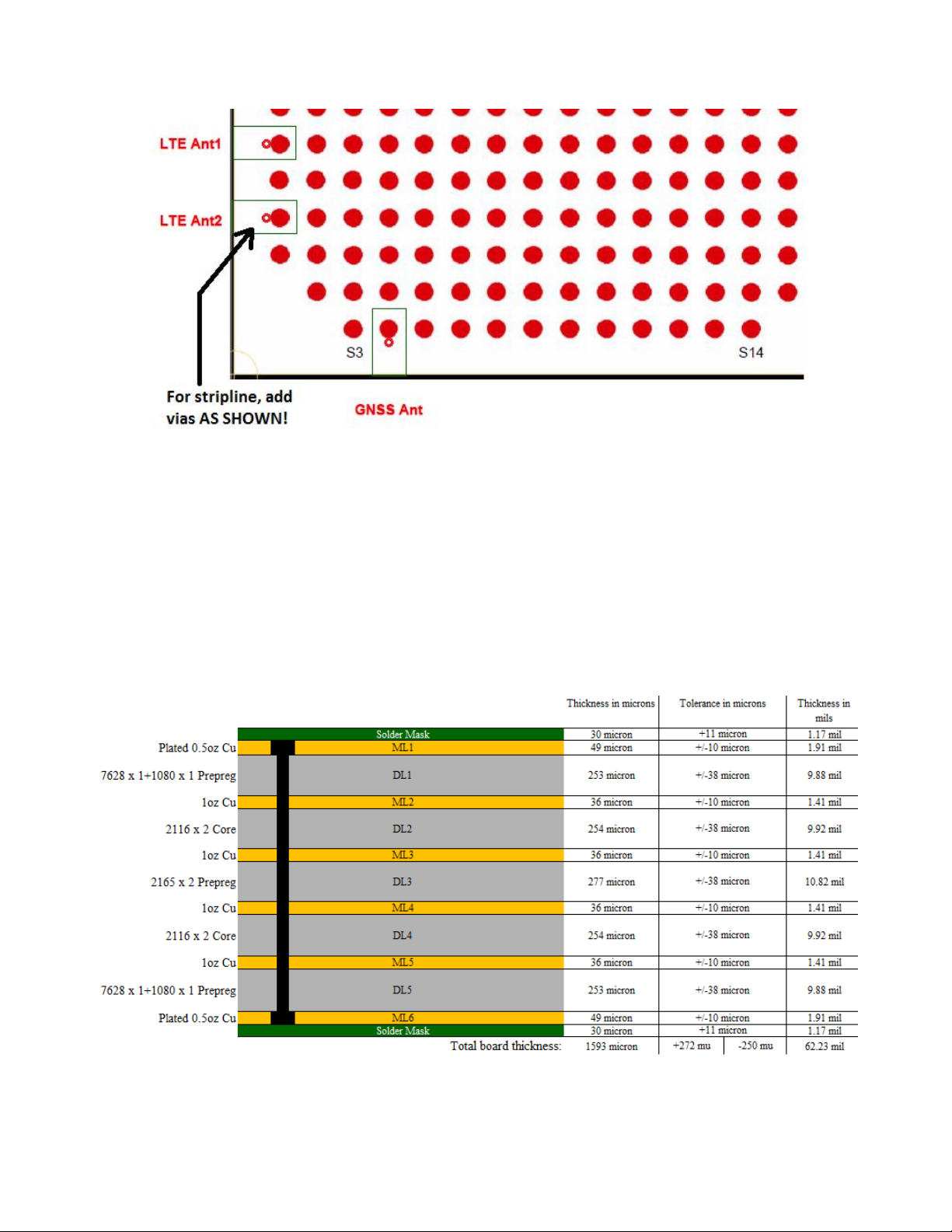

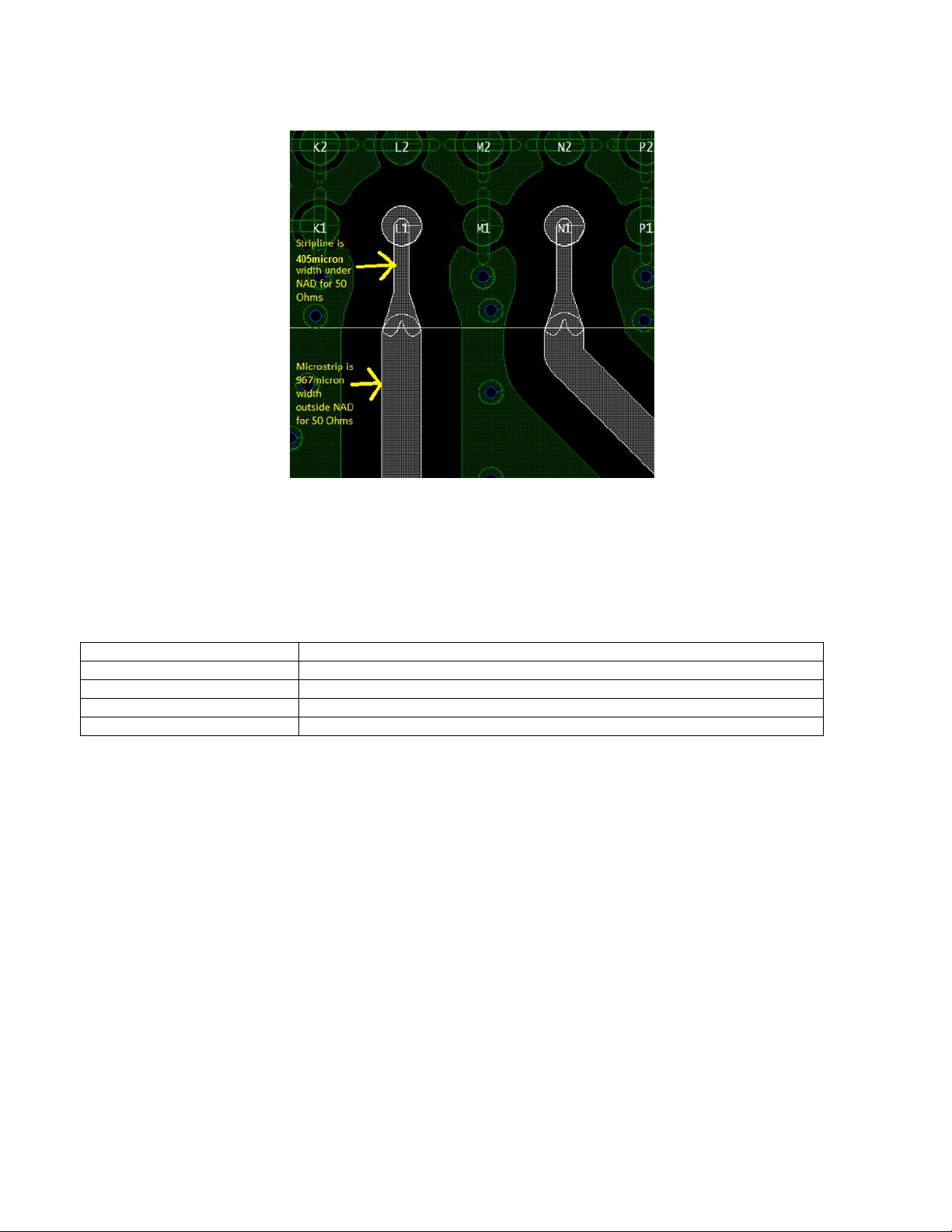

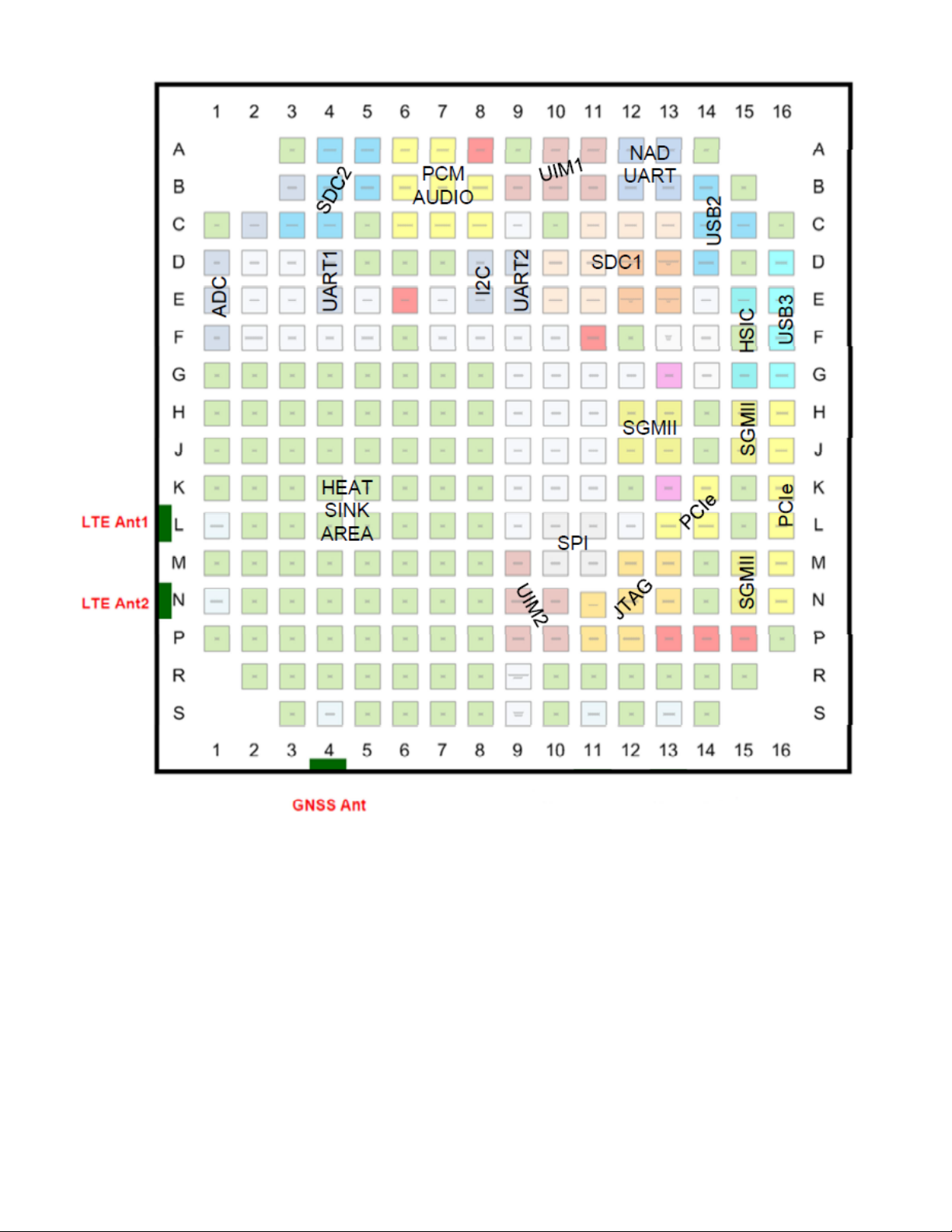

BL28NA-RD1 Module

The BL28NA-RD1 NAD is a proprietary modem module designed by Continental Automotive Systems, Inc. The modem will be integrated into Data Connectivity Modules (DCMs) or Head Units (HUs) designed and produced by Continental or by a 3rd party for use by automotive OEMs. DCMs will be

installed into vehicles during the OEM’s factory assembly process and will not be accessible without use

of special tools. Primary use-cases are data-centric with data and voice connections to Telematics Service Providers (TSP).

1 Key Features

1.1 LTE CAT4 NAD Module

Air Interface Support

• LTE FDD/TDD: 3GPP Rel 10

• LTE FDD CAT4

• UMTS: HSUPA CAT 6 (up to 5.76-Mbps), HSPA CAT14 (up to 21-Mbps)

2 Regulatory Compliance Notes

FCC:

This device complies with Part 15, Part 22(H), Part 24(E) and Part 27 of the FCC Rules. The FCC ID for this device is LHJ-BL28NARD1. Operation is subject to the following two conditions:

1. This device may not cause harmful interference.

2. This device must accept any interference received, including interference that may cause undesired operation.

Industry of Canada:

This device complies with Industry Canada’s license-exempt RSSs. Operation is subject to the following two conditions:

(1) This device may not cause interference; and (2) This device must accept any interference, including interference that may cause undesired operation of the device.” « Le présent appareil est conforme aux CNR d'Industrie Canada applicables aux appareils radio exempts

de licence. L'exploitation est autorisée aux deux conditions suivantes : (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioélectrique subi, même si le brouillage est susceptible d'en compromettre le fonctionnement. » This radio transmitter (2807E-BL28NARD1) has been approved by Industry Canada to operate with the

antenna types listed below with the maximum permissible gain indicated. Antenna types not included in this list, having a gain greater than the maximum gain indicated for that type, are strictly prohibited for use with this device.

« Le présent émetteur radio (2807E-BL28NARD1) a été approuvé par Industrie Canada pour fonctionner avec les types d'antenne énumérés ci-dessous et ayant un gain admissible maximal. Les types d'antenne
