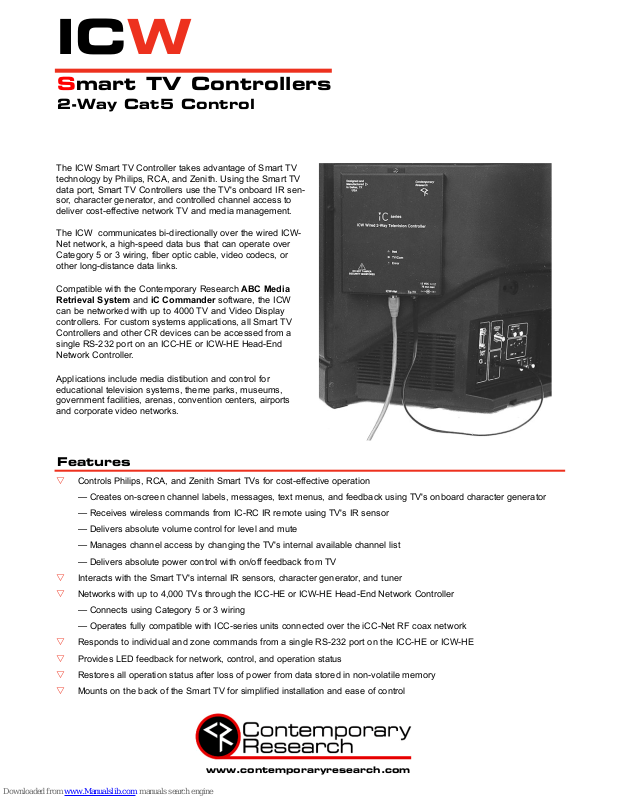

ICW
Smart TV Controllers
2-Way Cat5 Control
The ICW Smart TV Controller takes advantage of Smart TV
technology by Philips, RCA, and Zenith. Using the Smart TV
data port, Smart TV Controllers use the TV's onboard IR sensor, character generator, and controlled channel access to
deliver cost-effective network TV and media management.
The ICW communicates bi-directionally over the wired ICWNet network, a high-speed data bus that can operate over
Category 5 or 3 wiring, fiber optic cable, video codecs, or
other long-distance data links.
Compatible with the Contemporary Research ABC Media
Retrieval System and iC Commander software, the ICW
can be networked with up to 4000 TV and Video Display
controllers. For custom systems applications, all Smart TV
Controllers and other CR devices can be accessed from a
single RS-232 port on an ICC-HE or ICW-HE Head-End
Network Controller.
Applications include media distibution and control for
educational television systems, theme parks, museums,
government facilities, arenas, convention centers, airports
and corporate video networks.
V Controls Philips, RCA, and Zenith Smart TVs for cost-effective operation
— Creates on-screen channel labels, messages, text menus, and feedback using TV's onboard character generator
— Receives wireless commands from IC-RC IR remote using TV's IR sensor
— Delivers absolute volume control for level and mute
— Manages channel access by changing the TV's internal available channel list
— Delivers absolute power control with on/off feedback from TV
V Interacts with the Smart TV's internal IR sensors, character generator, and tuner
V Networks with up to 4,000 TVs through the ICC-HE or ICW-HE Head-End Network Controller
— Connects using Category 5 or 3 wiring
— Operates fully compatible with ICC-series units connected over the iCC-Net RF coax network
V Responds to individual and zone commands from a single RS-232 port on the ICC-HE or ICW-HE
V Provides LED feedback for network, control, and operation status
V Restores all operation status after loss of power from data stored in non-volatile memory

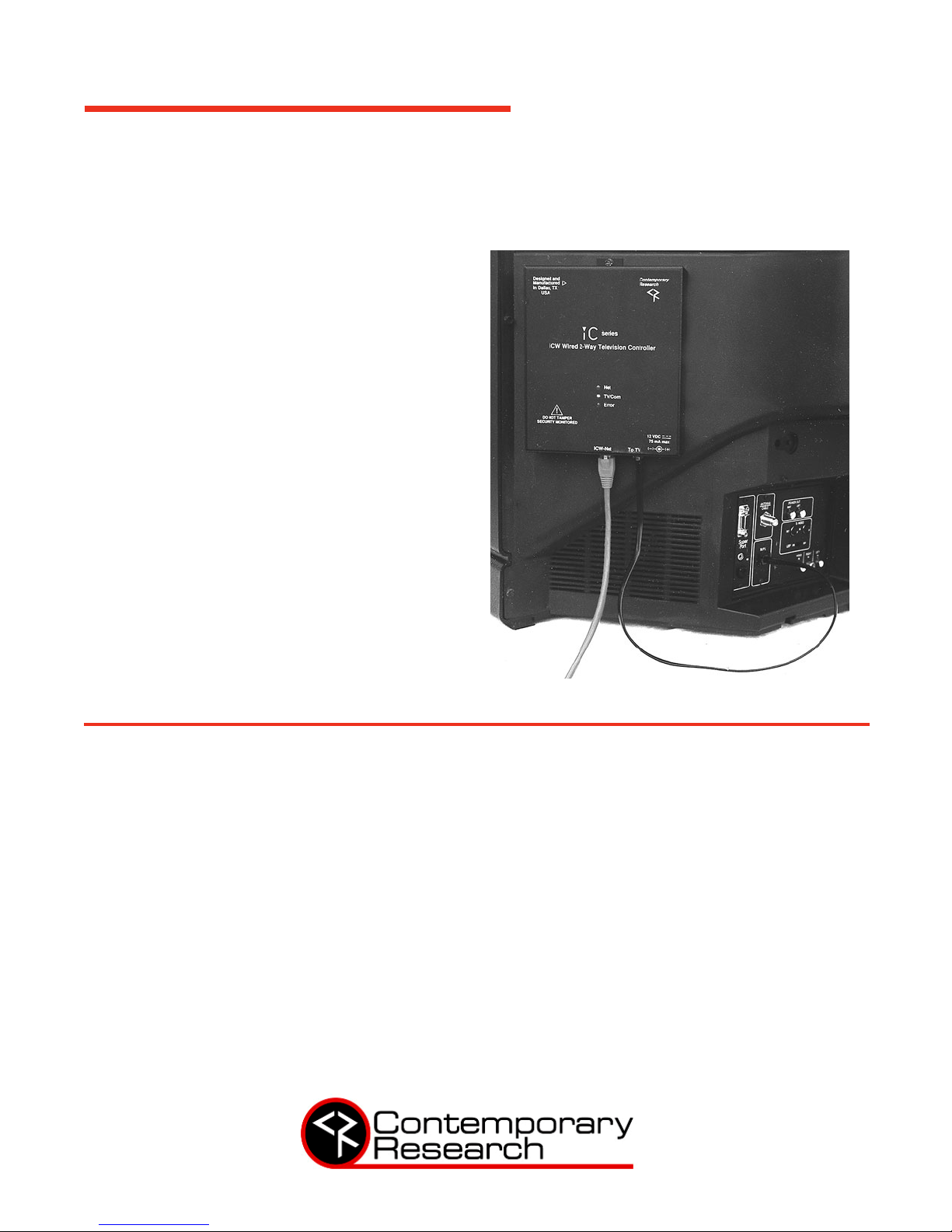

V Mounts on the back of the Smart TV for simplified installation and ease of control
www.contemporaryresearch.com
Features
Page 2
ICW Specifications
Models
Philips: ICW-P Philips Smart TV, 2-way iCW-Net wired networking
SmartPlug compatible, PL, PA series (most) and PC series
Some PC series need Card01A, MonCard, SterCard, or ProKit1 Card for SmartPlug
Will not operate with Philips ScanCard TVs
RCA: ICW-R RCA Smart TV, 2-way iCW-Net wired networking
SmartPlug DSCI compatible, J series Lodging televisions PL series
8-pin models provide 12 VDC power to ICC/ICW units
Zenith: ICW-Z Zenith Smart TV, 2-way iCW-Net wired networking
MPI compatible, Concierge series, Presentation series, and Health View models
Physical
Size: 5.47" [139mm] wide x 6.35" [161mm] height x 1.13" [29mm] deep
Weight: 12 oz [341g]
Enclosure: All aluminum with durable black powder coat paint
Mounting: Mounts on rear of TV

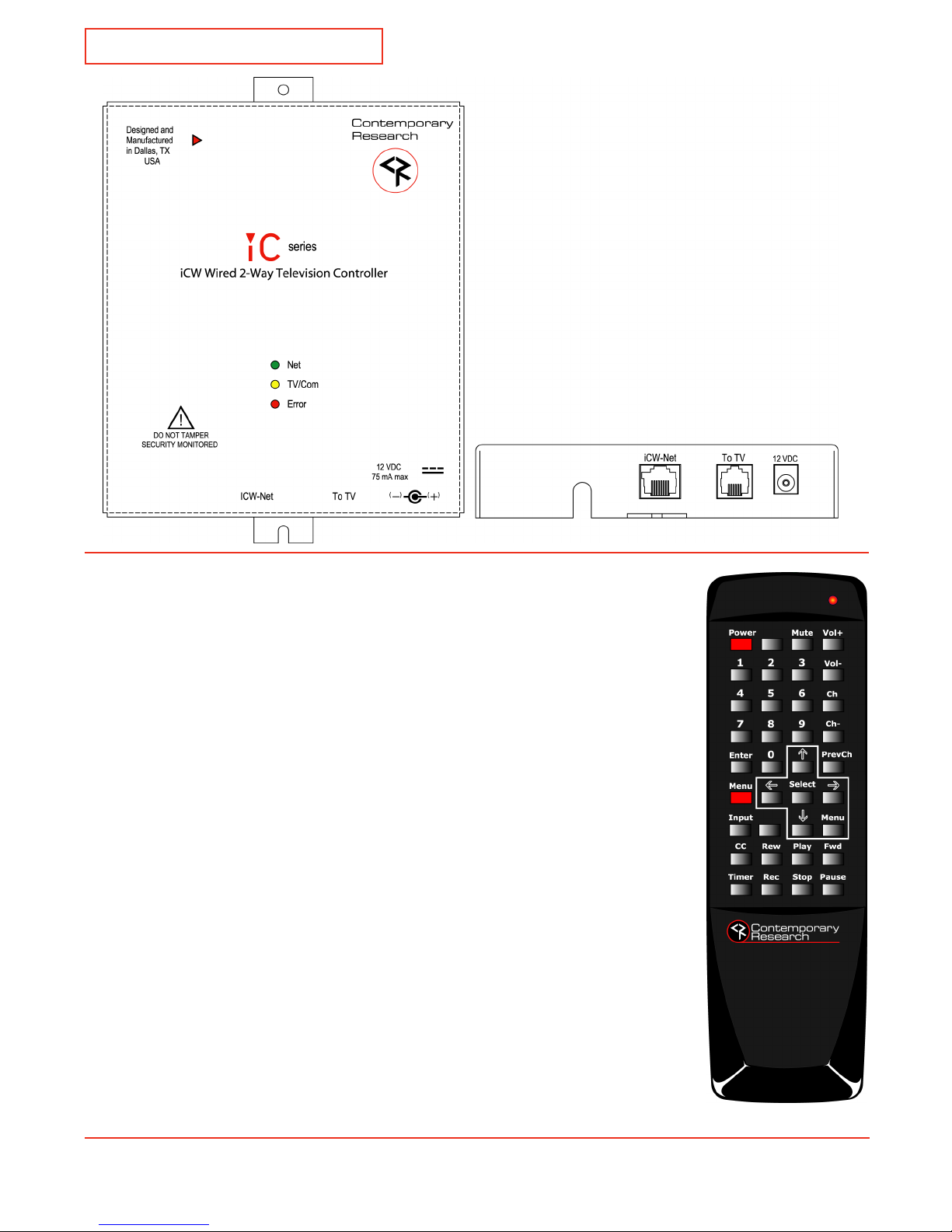

Front Panel
Net LED: Green LED for iC-Net bus, flashes once per second if receiving communication
TV/COM LED: Yellow LED, flashes when receiving IR data, off when Smart data link is not active
Error LED: Red LED indicates a problem within the unit
Connections
Standard Wiring: CAT3/CAT5 compatible unshielded, max 3300 feet [914m] from iC Head End
To TV: RJ-11 female 6-pin Telco jack, accepts included Smart TV data cable
Power In: 2.1mm coaxial jack (inside center conductor positive), 75 mA maximum
9 to 16.5 VDC, 12 VDC typical (may be unregulated)
Includes
Smart TV data link cable
Mounting hardware
12 VDC Power Supply, 100 mA (Not included for international shipments or if powered by TV)
Options
IC-RC Wireless IR Remote required for user control and system setup
Contemporary Research z 17630 Davenport z Suite 113, Dallas, Texas z 75252-5963
Phone: (972) 931-2728 z Toll Free: (888) 972-2728 z Fax: (972) 931-2765
Doc 5003-025 0103 © 2003, specifications subject to change without notice
IC-RC Wireless IR Remote
