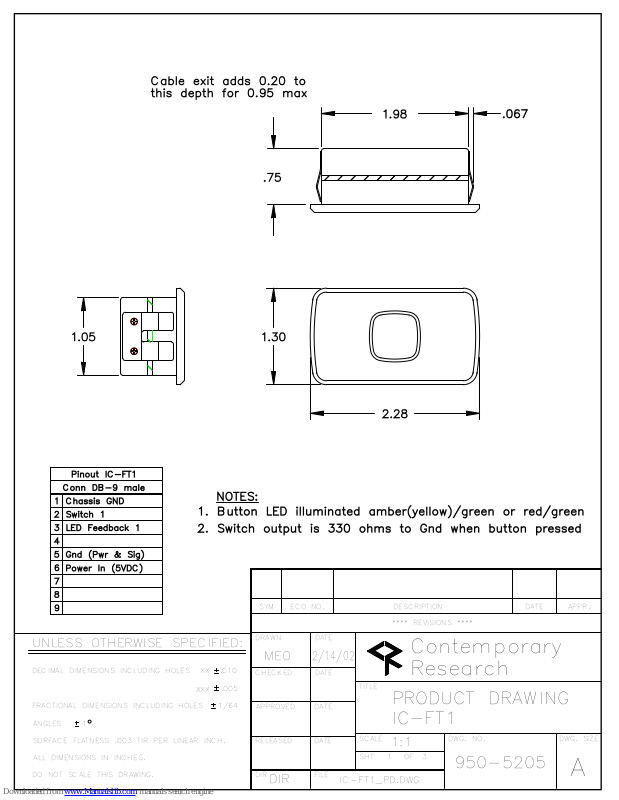

Page 1
Cable exit adds 0.20 to
this depth for 0.95 max
1.05
.75
1.30
1.98
.067
Pinout IC-FT1
Conn DB-9 male
Chassis GND1
Switch 12
LED Feedback 13
4
5
Gnd (Pwr & Sig)
6
Power In (5VDC)
7
8
9
1. Button LED illuminated amber(yellow)/green or red/green
2. Switch output is 330 ohms to Gnd when button pressed
UNLESS OTHERWISE SPECIFIED:
DECIMAL DIMENSIONS INCLUDING HOLES XX .010
XXX
FRACTIONAL DIMENSIONS INCLUDING HOLES 1/64
ANGLES
SURFACE FLATNESS .003 TIR PER LINEAR INCH.
ALL DIMENSIONS IN INCHES.
DO NOT SCALE THIS DRAWING.
1
NOTES:
.005
DRAWN
MEO
CHECKED
APPROVED
RELEASED
DIR
DIR
ECO NO.SYM
DATE
2/14/02
DATE
DATE
DATE
FILE
IC-FT1_PD.DWG
TITLE
SCALE
2.28
DATE
**** REVISIONS ****
Contemporary
Research
PRODUCT DRAWING
IC-FT1
1:1
1 OFSHT
DWG. NO.
3
950-5205
APPR.DESCRIPTION
DWG. SIZE
A
Page 2
Cable exit adds 0.20 to
this depth for 0.95 max
1.05
.75
1.30
2.80
.067
Pinout IC-FT3
Conn DB-9 male
Chassis GND1
2
Switch 1
3
LED Feedback 1
4
Switch 2
5
Gnd (Pwr & Sig)
6
Power In (5VDC)
7
LED Feedback 2
8
Switch 3
9
LED Feedback 3
NOTES:
1. Button illuminated amber(yellow)/green or red/green
2. Switch output is 330 ohms to Gnd when button pressed
UNLESS OTHERWISE SPECIFIED:
DECIMAL DIMENSIONS INCLUDING HOLES XX .010
.005
XXX
FRACTIONAL DIMENSIONS INCLUDING HOLES 1/64
ANGLES
SURFACE FLATNESS .003 TIR PER LINEAR INCH.
ALL DIMENSIONS IN INCHES.
DO NOT SCALE THIS DRAWING.
1
DRAWN
MEO
CHECKED
APPROVED
RELEASED
DIR
DIR
ECO NO.SYM
3.10
DATE
2/14/02
DATE
DATE
DATE
FILE
IC-FT3_PD.DWG
TITLE
SCALE
DATE
**** REVISIONS ****
Contemporary
Research
PRODUCT DRAWING
IC-FT3
1:1
1 OFSHT
DWG. NO.
3
950-5209
APPR.DESCRIPTION
DWG. SIZE
A
Page 3
Cable exit adds 0.20 to
this depth for 0.95 max
1.05
.75
1.30
1.98
.067
Pinout IC-FT2
Conn DB-9 male
Chassis GND1
2
Switch 1
3
LED Feedback 1
4
Switch 2
5
Gnd (Pwr & Sig)
6
Power In (5VDC)
7
LED Feedback 2
8
9
NOTES:
1. Button illuminated amber(yellow)/green or red/green
2. Switch output is 330 ohms to Gnd when button pressed
UNLESS OTHERWISE SPECIFIED:
DECIMAL DIMENSIONS INCLUDING HOLES XX .010
.005
XXX
FRACTIONAL DIMENSIONS INCLUDING HOLES 1/64
ANGLES
SURFACE FLATNESS .003 TIR PER LINEAR INCH.
ALL DIMENSIONS IN INCHES.
DO NOT SCALE THIS DRAWING.
1
DRAWN
MEO
CHECKED
APPROVED
RELEASED
DIR
DIR
ECO NO.SYM
DATE
2/14/02
DATE
DATE
DATE
FILE
IC-FT2_PD.DWG
TITLE
SCALE
2.28
DATE
**** REVISIONS ****
Contemporary
Research
PRODUCT DRAWING
IC-FT2
1:1
1 OFSHT
DWG. NO.
3
950-5210
APPR.DESCRIPTION
DWG. SIZE
A
