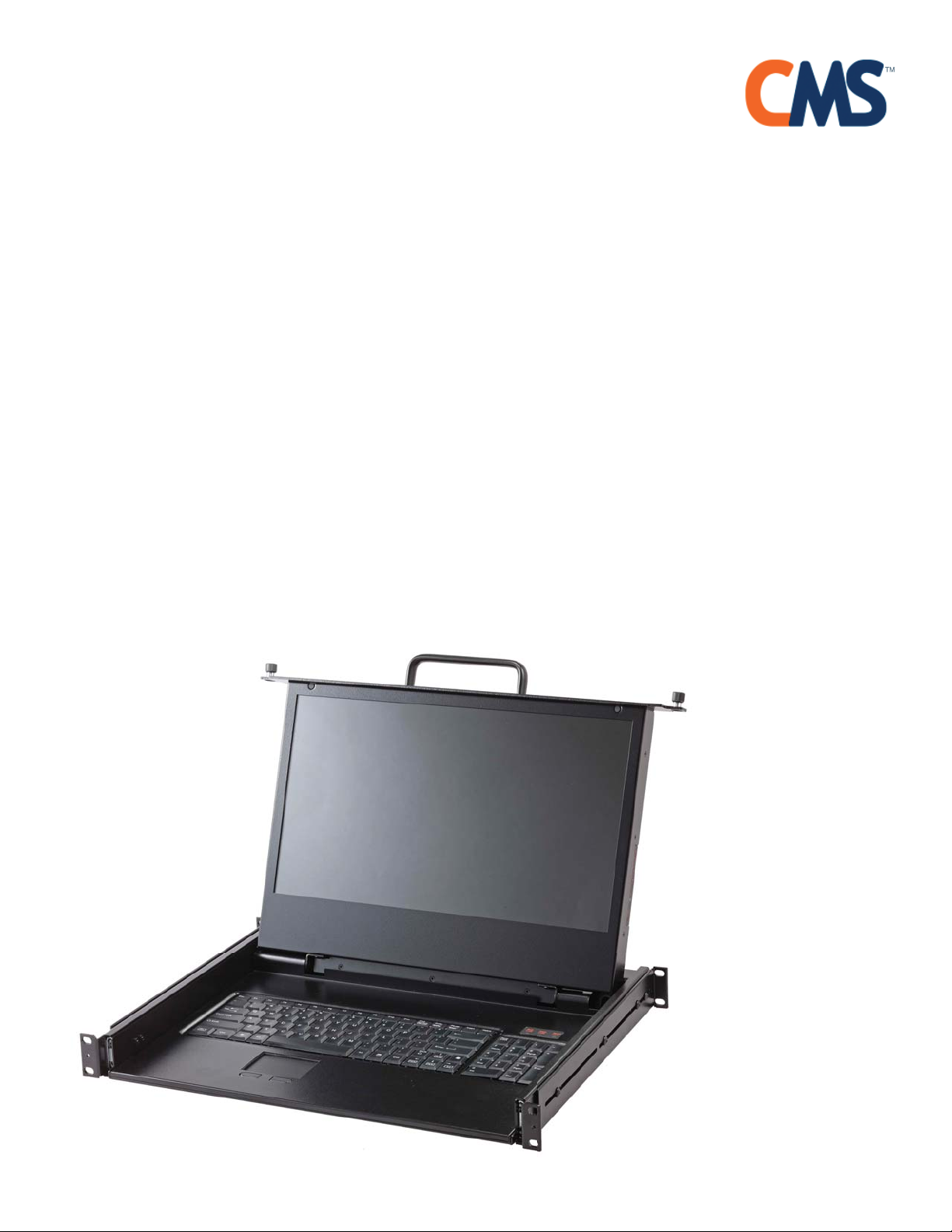

DKM-HD17 Rack Console
Monitor Keyboard Mouse with Flip-up 17.3” Full-HD LCD in a Short-depth Slide-out Drawer
Features
» Rack console with LCD monitor, keyboard and touchpad mouse.
» Slide-out rack mount drawer designed for 19 inch racks.
» Monitor and keyboard take up only 1U rack space.
» Flip-up 17.3” LCD @ 1920 x 1080 pixels HD resolution.
» LED backlight LCD panel.
» Built-in speakers and audio connector.
» Front bezel control buttons for display adjustment.
» Only 16” in depth (including drawer handle).
» Detachable slide rails with adjustable mounting brackets.
» Choice of PS/2 or USB models.
Single Point Server Management
The DKM-HD17 is a rack-mountable flat panel LCD monitor that occupies only 1
rack unit space. Using a flip-up monitor design, the DKM-HD17 offers a low profile
rack mount console for your server. The LCD monitor and keyboard drawer is
mounted on slide rails so you can easily pull the unit out of your equipment rack.
The LCD monitor flips up for use and folds down for storage. Using an extension
bracket that lets you adjust flange to flange distance from 14.5” to 24.5”, the
DKM-HD17 is designed for shallow-depth cabinets as well as regular equipment
racks.
The DKM-HD17 has a LED backlight LCD monitor that offers full HD resolution and
6-bit color display. The LCD’s lower power consumption and EMI free technology
makes it ideal for industrial applications. And with its native resolution of 1920 x
1080 pixels, you can work more and scroll less, because you can put more informa-
tion on screen instead of cluttering it with menus and tool bars. An on-screen
display (OSD) menu using four front-panel-mounted control buttons let’s you
adjust the display for optimum viewing.
The DKM-HD17 provides your server with a PS/2 or USB keyboard and touchpad
mouse.
Page 2
DKM-HD17 Rack Console
Technical Specifications
Physical Specifications
Chassis
Mounting Options
Form Factor
Electrical and Power
External Controls
I/O Connectors
Dimensions
Weight
Display Type
Display Size
Resolution
Color Depth
Contrast Ratio
Brightness
Viewing Angles
Response Time
LCD Backlight
LED Backlight Lifetime
Input Signal
1U slide-out rack mount drawer with LCD monitor, keyboard and touch-
pad mouse. Rugged metal construction.
Designed for 19” racks. Mounting brackets extension from 14.5” to
24.5” in depth.
1U rack-mountable.
Autosensing AC power supply.
Front bezel OSD menu controls for LCD contrast, brightness, image
position, color temperature, language, focus. LCD backlight on/off
button.
D-Sub 15-pin VGA, DVI-D dual link, audio connectors. PS/2 or USB con-
nector for keyboard and mouse.
19.0” (W) x 1.75” (H) x 17.0” (D). Depth includes drawer handle and
protrusion of PS/2 model’s keyboard/mouse connectors.
21 lbs. (28 lbs. shipping weight).
Flat Panel LCD Specifications
Active matrix TFT LCD with anti-glare surface treatment.
17.3-inch screen (measured diagonally).
1920 x 1080 optimum resolution (full HD).
6-bit color depth per RGB channel (262k colors).
400:1
300 (nits).
120/140 (vertical/horizontal, degrees).
8ms typical.
LED.
10,000 hours (estimated time to 50% degradation of initial luminous).
Analog RGB, digital
Environmental, Safety
ESD/EMI/EMC/Safety
Operating Temperature
Storage Temperature
UL, CE, FCC.
32 ~122 F
-40 ~158 F
Ordering Information
PS/2 keyboard mouse interface
USB keyboard mouse interface
Contemporary MicroSystems
838 Fairview Ave. Unit J
Arcadia, CA 91007
www.ipctechnology.com
626-487-7034
© 2014 Contemporary MicroSystems. All rights reser ved. Features and specifications are subject to change without notice. CMS is a trademark of Contemporary MicroSystems. W indows is a registered trademarks of Microsoft
Corporation. Intel, Pentium are registered trademarks of Intel Corp. All ot her trademarks mentioned herein are the property of their respective owners.
DMK-HD17P
DMK-HD17U
