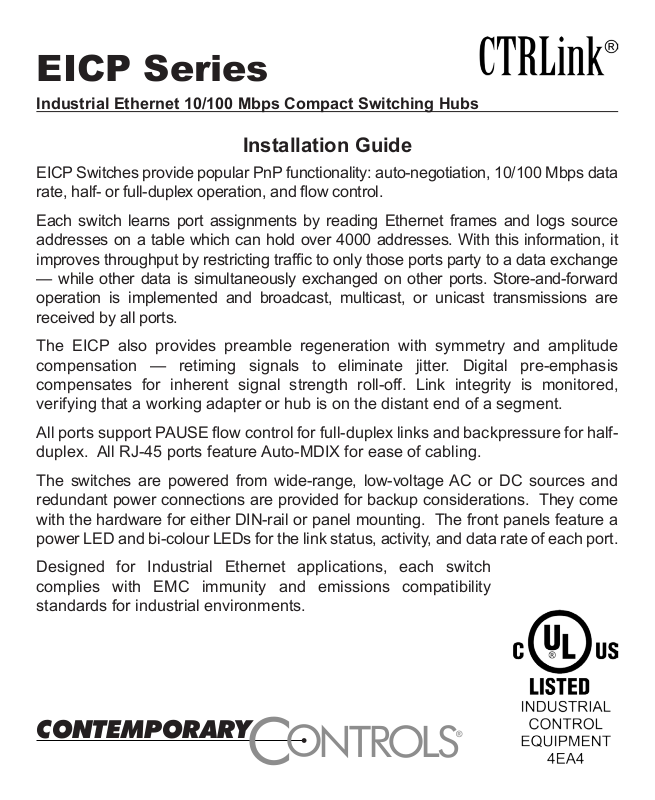

EICP Series

Industrial Ethernet 10/100 Mbps Compact Switching Hubs

Installation Guide

EICP Switches provide popular PnP functionality: auto-negotiation, 10/100 Mbps data
rate, half- or full-duplex operation, and ow control.

Each switch learns port assignments by reading Ethernet frames and logs source
addresses on a table which can hold over 4000 addresses. With this information, it
improves throughput by restricting trafc to only those ports party to a data exchange
— while other data is simultaneously exchanged on other ports. Store-and-forward
operation is implemented and broadcast, multicast, or unicast transmissions are
received by all ports.

The EICP also provides preamble regeneration with symmetry and amplitude
compensation — retiming signals to eliminate jitter. Digital pre-emphasis
compensates for inherent signal strength roll-off. Link integrity is monitored,
verifying that a working adapter or hub is on the distant end of a segment.

All ports support PAUSE ow control for full-duplex links and backpressure for half­duplex. All RJ-45 ports feature Auto-MDIX for ease of cabling.

The switches are powered from wide-range, low-voltage AC or DC sources and
redundant power connections are provided for backup considerations. They come
with the hardware for either DIN-rail or panel mounting. The front panels feature a
power LED and bi-colour LEDs for the link status, activity, and data rate of each port.

Designed for Industrial Ethernet applications, each switch
complies with EMC immunity and emissions compatibility
standards for industrial environments.

CONTEMPORARY

C

O

N

TR LSO

®

Specications

Electrical

INPUT DC AC

Voltage: 10–36 V 8–24 V
Power
Non-bre Units: 6 W 6 VA
Fibre Units: 10 W 10 VA
Frequency: N/A 47–63 Hz

Environmental

Operating Temperature: 0°C to +60°C
Storage Temperature: – 40°C to +85°C
Humidity, non-cond.: 10% to 95%
Protection: IP 30

DIN-rail Mounting TS-35

Shipping Weight 1 lb (0.45 kg)

Regulatory Compliance

CE Mark; EN55022; EN55024
CFR 47 Part 15, Class A
UL508 & C22.2 No. 142-M1987: Ind. Cont. Eq.

For use in Class 2 circuits only

Mechanical

Functional

Compliance: ANSI/IEEE 802.3

Copper Fibre

Data Rates: 10/100 Mbps 100 Mbps
Signalling: 10BASE-T 100BASE-FX

100BASE-TX

Connectors: RJ-45 (shielded) SC or ST
Segment 100 m 2 km*
Length (max): 15 km**

* multimode,

full-duplex

** single mode,

full-duplex

LED Indicators

Power green
Port Activity ashing
Port Data Rate/Link green (100 Mbps)
yellow (10 Mbps)

RJ-45 Connector Pin Assignments

Pin Function
1 TD+
2 TD–
3 RD+
6 RD–
(All other pins are unused.)

Power Options

The EICP can be
powered in various
ways as illustra ted
below :

Power Considerations

Voltage in the range of 10–36 VDC or 8–24 VAC must
deliver current commensurate with power consumption.
Power conductors can be stranded (16–18 AWG) or
solid (16–22 AWG). Zero volts and the chassis are
isolated from each other. Input connections are reverse­polarity protected. Primary power backup for a substitute
DC supply or backup battery is possible by way of built-in
redundant diode-isolated inputs, but separate provisions
are required for charging any backup battery.

LED Indicators

To aid troubleshooting, each port LED glows solid if a link
exists, ashes to show activity and shows data rate by
colour: green for 100 Mbps and yellow for 10 Mbps. A
power LED is provided.

Network Connections

Cabling requirements appear in the table below. With
the Auto-MDIX feature, either crossover or standard
straight-through cables may be used to connect to any
copper port. When connecting bre between one device
and another, the transmit port of one unit must connect to
the receive port of the other unit — and vice versa. Half­duplex operation is not supported on the bre port.

Need more help installing this product?

If contacting our ofce, ask for Technical Support. More information is at:

www.ccontrols.com.

Warranty

Contemporary Controls (CC) warrants this product to the original purchaser for two
years from the shipping date. If it fails to operate in compliance with its specication
during this period, CC will, at its option, repair or replace the product at no charge.
Product returned to CC for repair is warranted for one year from the date that the
repaired product is shipped back to the purchaser or for the remainder of the original
warranty period, whichever is longer. The customer is responsible for shipping
product; CC assumes no responsibility for product until received. This limited
warranty covers products only as delivered. User modication may void the warranty.
Damage from abuse, accident, disaster, misuse, or incorrect installation are not
covered. This warranty in no way warrants suitability of the product for any specic
application. More warranty information can be found at www.ccontrols.com.

Warning: This is a Class A product. In a domestic environment this product may cause radio
interference in which case the user may be required to take adequate measures.

Returning Products for Repair

Return the product by following the instructions at the URL below:

www.ccontrols.com/rma.htm

Declaration of Conformity

Information about the regulatory compliance of this product can be found at:

www.ccontrols.com/compliance.htm
