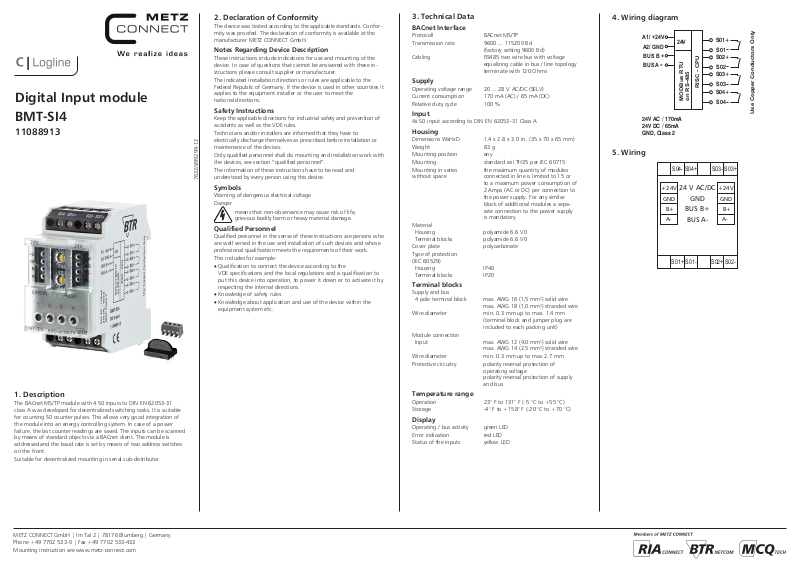

Contemporary Control Systems BMT-SI4 User Manual
Digital Input module
A1/ +24V
BMT-SI4
11088913
1. Description
The BACnet MS/TP module with 4 S0 inputs to DIN EN 62053-31
class A was developed for decentralized switching tasks. It is suitable
for counting S0 counter pulses. This allows very good integration of
the module into an energy controlling system. In case of a power
failure, the last counter readings are saved. The inputs can be scanned
by means of standard objects via a BACnet client. The module is
addressed and the baud rate is set by means of two address switches
on the front.
Suitable for decentralized mounting in serial sub-distributor.
2. Declaration of Conformity
The device was tested according to the applicable standards. Conformity was proofed. The declaration of conformity is available at the
manufacturer METZ CONNECT GmbH.
Notes Regarding Device Description
These instructions include indications for use and mounting of the
device. In case of questions that cannot be answered with these instructions please consult supplier or manufacturer.
The indicated installation directions or rules are applicable to the
Federal Republic of Germany. If the device is used in other countries it
applies to the equipment installer or the user to meet the
national directions.
Safety Instructions
Keep the applicable directions for industrial safety and prevention of
accidents as well as the VDE rules.
Technicians and/or installers are informed that they have to
electrically discharge themselves as prescribed before installation or
maintenance of the devices.
Only qualified personnel shall do mounting and installation work with
the devices, see section “qualified personnel”.
The information of these instructions have to be read and
understood by every person using this device.
7632/899299-12
Symbols
Warning of dangerous electrical voltage
Danger
means that non-observance may cause risk of life,
grievous bodily harm or heavy material damage.
Qualified Personnel
Qualified personnel in the sense of these instructions are persons who
are well versed in the use and installation of such devices and whose
professional qualification meets the requirements of their work.
This includes for example:
• Qualification to connect the device according to the
VDE specifications and the local regulations and a qualification to
put this device into operation, to power it down or to activate it by
respecting the internal directions.
• Knowledge of safety rules.
• Knowledge about application and use of the device within the
equipment system etc.
3. Technical Data
BACnet Interface
Protocoll BACnet MS/TP
Transmission rate 9600 ... 115200 Bd
(factory setting 9600 Bd)
Cabling RS485 two wire bus with voltage
equalizing cable in bus / line topology
terminate with 120 Ohms
Supply
Operating voltage range 20 ... 28 V AC/DC (SELV)
Current consumption 170 mA (AC) / 65 mA (DC)
Relative duty cycle 100 %
Input
4x S0 input according to DIN EN 62053-31 Class A
Housing
Dimensions WxHxD 1.4 x 2.8 x 3.0 in. (35 x 70 x 65 mm)
Weight 83 g
Mounting position any
Mounting standard rail TH35 per IEC 60715
Mounting in series the maximum quantity of modules
without space connected in line is limited to 15 or
to a maximum power consumption of
2 Amps (AC or DC) per connection to
the power supply. For any similar
block of additional modules a sepa rate connection to the power supply
is mandatory.
Material
Housing polyamide 6.6 V0
Terminal blocks polyamide 6.6 V0
Cover plate polycarbonate
Type of protection
(IEC 60529)
Housing IP40
Terminal blocks IP20
Terminal blocks
Supply and bus
4 pole terminal block max. AWG 16 (1,5 mm²) solid wire
max. AWG 18 (1,0 mm²) stranded wire
Wire diameter min. 0.3 mm up to max. 1.4 mm
(terminal block and jumper plug are
included to each packing unit)
Module connection
Input max. AWG 12 (4.0 mm²) solid wire
max. AWG 14 (2.5 mm²) stranded wire
Wire diameter min. 0.3 mm up to max 2.7 mm
Protective circuitry polarity reversal protection of
operating voltage
polarity reversal protection of supply
and bus
Temperature range
Operation 23° F to 131° F (-5 °C to +55 °C)
Storage -4° F to +158° F (-20 °C to +70 °C)
Display
Operating / bus activity green LED
Error indication red LED
Status of the inputs yellow LED
4. Wiring diagram
A2/ GND
BUS B +
BUS A
-
24V AC / 170mA
24V DC / 65mA
GND, Class 2
5. Wiring
+24V
GND
B+
A-
RISC - CPU
on RS-485
GND
S01+
S01
S02+
S02
S03+
S03
S04+
S04
S03- S03+
+24V
GND
B+
A-
24V
MODBus RTU
S04-
S04+
24 V AC/DC
BUS B+
BUS A-
S01+ S01- S02+ S02-
Use Copper Conductors Only
METZ CONNECT GmbH | Im Tal 2 | 78176 Blumberg | Germany
Phone +49 7702 533-0 | Fax +49 7702 533-433
Mounting instruction see www.metz-connect.com
6. Mounting
Power down the equipment
Mount the module on standard rail (TH35 per IEC 60715 in
junction boxes and/or on distribution panels).
Installation
Electric installation and device termination shall be done by qualified persons only, by respecting all applicable
specifications and regulations.
Plug in the terminal block for bus connection
1
2
Connect the cable for bus supply
5 mm
43
Mounting in series
5 6
The module can be aligned without interspace. Use the jumper plug
to connect bus and supply voltage when the modules are mounted
in series.
The maximum quantity of modules connected in line is limited
to 15 or to a maximum power consumption of 2 Amps (AC or
DC) per connection to the power supply. For any similar block of
additional modules a separate connection to the power supply is
mandatory.
7. Network address and bit rate setting
Configuration Switches
Hexadecimal Switches x10, x1 define the Network-Address
(00 - F9; e.g. F9h = 15x16+9 = 249d) and Baudrate (FA – FF).
• Turn Switch x10 to E (Device is temporaryly configured as Slave)
• Turn Switch x1 to A – F to select Baudrate
• Turn Switch x10 to F, wait 1 Second
• Red and green LEDs are blinking when Baudrate ist stored in
EEPROM
• Turn Switch x10 to select Network-Address
• Turn Switch x1 to select Network-Address
Address switch x10 F F F F F F
Address switch x1 A B C D E F
Bit rate (Bit/s) 9600 19200 38400 57600 76800 115200
Factory setting: 9600 Bit/s
8. Software Description
Device Object
Property Remark / Value RW
Object_Identifier device, default instance: 421000 + Network-Address RW-E
Object_Name
Object_Type DEVICE (8) R
System_Status OPERATIONAL (0) R
Vendor_Name “BTR Netcom GmbH” R
Vendor_Identifier 421 R
Model_Name “BMT-SI4” R
Description max. 127 Bytes, default “” RW-E
Location max. 63 Bytes, default “” RW-E
Firmware_Revision “1.1” R
Application_Software_Version “1.0” R
Protocol_Version 1 R
Protocol_Revision 12 R
Protocol_Services_Supported
Protocol_Object_Types_Supported DEVICE, BINARY_INPUT, GROUP, ACCUMULATOR R
Object_List [12] device, binary-input 1…4, group 1…3, accumulator 1…4 R
Max_APDU_Length_Accepted 480 R
Segmentation_Supported NO_SEGMENTATION (3) R
APDU_Timeout 10000 R
Number_Of_APDU_Retries 3 R
Device_Address_Binding - R
Database_Revision 0 R
Max_Master 0…127, default 127 RW-E
Max_Info_Frames 1…255, default 1 RW-E
Active_COV_Subscriptions
R: Read Property, W: Write Property, -E: Storage in EEPROM / Flash
Binary Input Object 1…4
Property Remark / Value RW
Object_Identifier binary-input, instance 1 … 4 R
Object_Type BINARY_INPUT (3) R
Object_Name max. 42 Bytes, default “Input 1” … “Input 4” RW-E
Description max. 84 Bytes, default “” RW-E
Present_Value
Status_Flags
Event_State NORMAL (0) R
Out_Of_Service FALSE (0) / TRUE (1) RW
Polarity NORMAL (0) / REVERSE (1) RW-E
Inactive_Text max. 20 Bytes, default “Off” RW-E
Active_Text max. 20 Bytes, default “On” RW-E
Notification_Class
R: Read Property, W: Write Property, -E: Storage in EEPROM / Flash
max. 63 Bytes,
default “BMT-SI4_” + Network-Address (Hexadecimal)
read-property, write-property, subscribe-cov, who-has, who-is, device-communication-control,
reinitialize-device
max. 6 Subscriptions, for binary-input 1…4,
Confirmed / Unconfirmed, Lifetime = 0…65535 sec.
INACTIVE (0) / ACTIVE (1),
writable if Out_Of_Service
IN_ALARM: 0
FAULT: 0
OVERRIDDEN: 0
OUT_OF_SERVICE: 0 / 1
Unsubscribed UnconfirmedCOVNotification
0: no COV notification, default,
1: local broadcast,
2: global broadcast
RW-E
R
R
R
RW
R
RW-E
