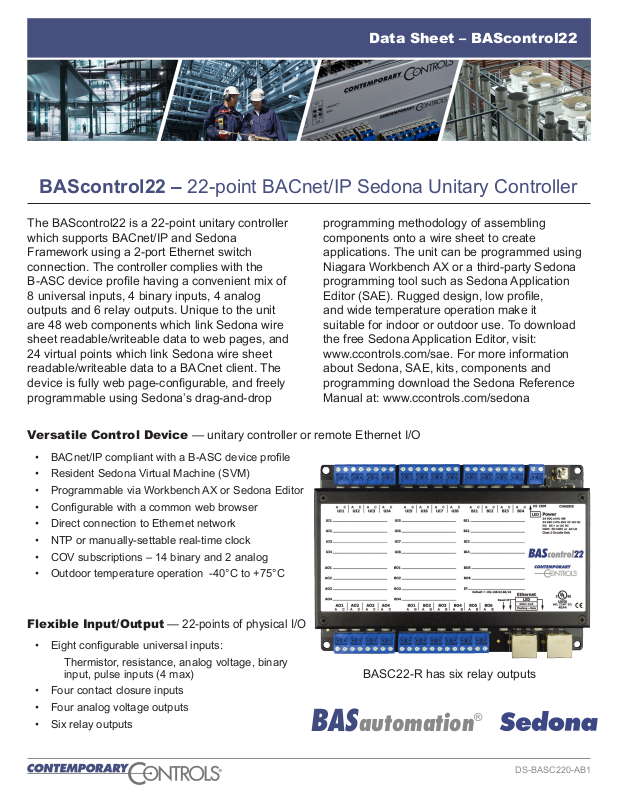

Data Sheet – BAScontrol22
BAScontrol22 – 22-point BACnet/IP Sedona Unitary Controller
The BAScontrol22 is a 22-point unitary controller
which supports BACnet/IP and Sedona
Framework using a 2-port Ethernet switch
connection. The controller complies with the
B-ASC device prole having a convenient mix of
8 universal inputs, 4 binary inputs, 4 analog
outputs and 6 relay outputs. Unique to the unit
are 48 web components which link Sedona wire
sheet readable/writeable data to web pages, and
24 virtual points which link Sedona wire sheet
readable/writeable data to a BACnet client. The
device is fully web page-congurable, and freely
programmable using Sedona’s drag-and-drop
Versatile Control Device — unitary controller or remote Ethernet I/O
• BACnet/IP compliant with a B-ASC device prole
• Resident Sedona Virtual Machine (SVM)
• Programmable via Workbench AX or Sedona Editor
• Congurable with a common web browser
• Direct connection to Ethernet network
• NTP or manually-settable real-time clock
• COV subscriptions – 14 binary and 2 analog
• Outdoor temperature operation -40°C to +75°C
programming methodology of assembling
components onto a wire sheet to create
applications. The unit can be programmed using
Niagara Workbench AX or a third-party Sedona
programming tool such as Sedona Application
Editor (SAE). Rugged design, low prole,
and wide temperature operation make it
suitable for indoor or outdoor use. To download
the free Sedona Application Editor, visit:
www.ccontrols.com/sae. For more information
about Sedona, SAE, kits, components and
programming download the Sedona Reference
Manual at: www.ccontrols.com/sedona
Flexible Input/Output — 22-points of physical I/O
• Eight congurable universal inputs:
Thermistor, resistance, analog voltage, binary
input, pulse inputs (4 max)
• Four contact closure inputs
• Four analog voltage outputs
• Six relay outputs
BASC22-R has six relay outputs
®
BASautomation
DS-BASC220-AB1
BAScontrol22 — Overview
Data Sheet – BAScontrol22
The BAScontrol22 utilizes a powerful 32-bit ARM7
processor with 512 kB of ash memory plus a 16 Mbit
serial ash le system for storing conguration data
and an application program.
By operating at the BACnet/IP level, the BAScontrol22
can share the same Ethernet network with
supervisory controllers and operator workstations.
The unit can be congured for a xed IP address or
can operate as a DHCP client receiving its IP address
from a DHCP server. A real-time clock with a supercap backup allows for creating local schedules.
Universal Inputs
Eight input points can be congured — all discoverable as BACnet objects.
• Analog inputs: 0–10 VDC, 12-bit resolution, 0–20 mA (with external resistor)
• Temperature inputs: Type II or Type III 10 kΩ thermistors; 20 kΩ thermistor
• Resistance inputs: 1 kΩ to 100 kΩ
• Contact closure, voltage-free
• Pulse input accumulators (UI1–UI4): accommodates active or passive
sources (40 Hz max)
Via a 10/100 Mbps Ethernet switch, the Ethernet
port supports protocols such as BACnet/IP,
Sedona SOX, HTTP and FTP. Conguration of
universal inputs and virtual points can be
accomplished using web pages. Type II and type III
10 kΩ thermistor curves and a 20 kΩ thermistor
curve are resident in the unit. Current inputs can be
measured using external resistors. Contact closures
require a voltage-free source. Binary inputs and
outputs as well as analog outputs require no
conguration. The unit is powered from either a
24VAC/VDC source.
Binary Inputs
Four points of voltage-free contact
closure
Power Input
24 VAC/VDC 6 VA
half-wave rectied allows
power sharing with other
half-wave devices.
Analog Outputs
0–10 V, 10-bit resolution
Binary Outputs
Six form “A“ relays for
30 VAC/VDC 2 A loads.
Class 2 circuits only.
Point LEDs
for all 22 points
Reset
to factory
IP defaults
Earth
Optional Earth
Connection
Power LED
Indicates power
applied
IP Address
xed or DHCP client
Ethernet LEDs
for each port
Lights on link and ashes
with data
Ethernet Switch Ports
10/100 Mbps Ethernet with auto-negotiation and Auto-MDIX. Protocols supported
include HTTP, IP, UDP, TCP, BACnet/IP,
NTP, DNS, DHCP, FTP, and Sedona SOX.
2
DS-BASC220-AB1
Data Sheet – BAScontrol22
Web Page Conguration — Main Page and System
Access to the web pages is intended for the installer or
skilled technicians. In order to access any of the web
pages authentication is required. The default IP address
is 192.68.92.68 and the default User Name and
Password is admin/admin. Once on the main page, the
System Conguration button can be clicked.
The main web page provides an overview of all real
points plus access to other web pages. To congure a
point, click on the point and a conguration page will
appear. To observe the updated data for each point,
click Auto Refresh button to ON. Point values can be
temporarily forced by checking the box adjacent to the
point and entering a value into the point’s text box
(make sure Auto Refresh button is OFF). The value will
remain forced until the box is unchecked or the unit
power cycled. Care must be exercised when forcing
values into points.
The IP settings can be changed to the
desired values. Either DHCP or a static IP
address can be selected. If a static address is
desired, enter the value along with the
network mask and gateway address. If
domain address is required, enter in the
Primary and Secondary DNS addresses.
BACnet device data must be entered when
using BACnet. Make sure the Device Instance
and Device Object Name are both unique over
the complete BACnet Internetwork.
Either BACnet or Sedona protocols or both can
be selected.
3
DS-BASC220-AB1
Data Sheet – BAScontrol22
Web Page Conguration — Channel, Time and Web Components
The BAS Channel should be congured rst.
Universal inputs must rst be dened which may
lead to more requests for information. Once the BAS
Channel is congured, the BACnet Object
Conguration can be accomplished. Although the
BACnet Object Instance is predened, the Object
Name can be entered and Units can be selected with
the drop-down. The COV Increment can be specied
for those channels intended for COV reporting by the
BACnet client device.
Separate web pages allow for
the conguration of up to 48 web
components. Web components
provide a means to write and
read data to and from Sedona
wire sheets without the need of a
Workbench tool. A web
component congured as a wire
sheet input can have its input
range restricted to minimum and
maximum values eliminating the
need to add limit detection within
the wire sheet logic. Web
components are ideal for
simplied control logic
conguration.
Time and date can be set manually or with the help of
a NTP server if access to the Internet is possible.
Daylight Savings Time can also be supported.
Manually-set time is backed up for seven days through
the use of a supercap in the event of power loss. If
accessing an NTP server using domain names, make
sure the DNS servers are specied in the System
Conguration screen.
Time is backed up for seven days through the use of a
super-cap.
4
DS-BASC220-AB1
Data Sheet – BAScontrol22
The 24 virtual points are viewable from a separate web page.
3.1.2
3.1.1
The System Status page provides information on the controller.
5
DS-BASC220-AB1
Data Sheet – BAScontrol22
Powered by a Sedona Virtual Machine — for Implementing Control
The BAScontrol22 incorporates Sedona Virtual
Machine (SVM) technology developed by Tridium.
Using established Tridium tools such as Niagara
Workbench AX, a system integrator can develop a
control application using Workbench’s powerful drag-
and-drop visual programming methodology. Once
developed, the program remains stored in the
BAScontrol22 and executes by way of the SVM. The
application can run standalone in the BAScontrol22 or
it can interact with a program in a Tridium JACE
supervisory controller over Ethernet. The number of
potential applications is only limited by the imagination
of the system integrator.
The BAScontrol22 includes Tridium’s Sedona 1.2 kits
of components — and Contemporary Controls’
product-specic and non-product-specic kits. The
BAScontrol22 IO Kit components provide 22 physical
points, virtual points and four retentive counters. The
BAScontrol22 Web Kit has 48 components that share
data with web pages. Input components receive data
from hosted web pages. Output components send data
to hosted web pages. The Contemporary Controls’
Function kit provides additional components for
increased exibility.
The free Sedona Application Editor, Workbench AX, or a third-party Sedona tool
can be used to program Sedona applications running on the BAScontrol 22.
The BAScontrol22’s Sedona Framework logic can operate on its own I/O or its virtual I/O. Also, a network-connected
Niagara Framework device can read or modify the operating state of the Sedona Framework function blocks.
6
DS-BASC220-AB1
Data Sheet – BAScontrol22
Contemporary Controls’ Developed Sedona Components
AO1 – AO4 Analog output – analog voltage output point
BI1 – BI4 Binary input – binary input point
BAScontrol22 I/O Kit
BAScontrol22 platform
specic components
BO1 – BO6 Binary output – binary output point
ScanTim Scan time monitor – records the min, max and average scan times
UI1 – UI4 Universal input – binary, analog voltage, thermistor, resistance or accumulator
UI5 – UI8 Universal input – binary, analog voltage, thermistor or resistance
UC1 – UC4 Retentive universal counters – up/down retentive counters
VT01 – VT08 Retentive virtual points – share retentive wire sheet data with BACnet/IP clients
VT09 – VT24 Virtual points – share wire sheet data with BACnet/IP clients
BAScontrol22 Web Kit
BAScontrol22 platform
specic components
Contemporary Controls
Function Kit
Common to Sedona 1.2
compliant controllers
WC01 – WC48 Web components – share wire sheet data with the BAScontrol22 web pages
Cand2 Two-input Boolean product – two-input AND/NAND gate with complementary outputs
Cand4 Four-input Boolean product – four-input AND/NAND gate with complementary outputs
Cand6 Six-input Boolean product – six-input AND/NAND gate with complementary outputs
Cand8 Eight-input Boolean product – eight-input AND/NAND gate with complementary outputs
Cmt Comment – comment eld up to 64 characters
Cor2 Two-input Boolean sum – two-input OR/NOR gate with complementary outputs
Cor4 Four-input Boolean sum – four-input OR/NOR gate with complementary outputs
Cor6 Six-input Boolean sum – six-input OR/NOR gate with complementary outputs
Cor8 Eight-input Boolean sum – eight-input OR/NOR gate with complementary outputs
CtoF °C to °F – Celsius to Fahrenheit Temperature Conversion
Dff “D” Flip-Flop – D-style Edge-triggered Single-bit Storage
FtoC °F to °C – Fahrenheit to Celsius Temperature Conversion
HLpre High – Low Preset – dened logical true and false states
PsychrE Psychrometric Calculator – English Units
PsychrS Psychrometric Calculator – SI Units
SCLatch Set/Clear Latch – single-bit level-triggered single-bit data storage
7
DS-BASC220-AB1
Tridium’s Sedona 1.2 Components
Data Sheet – BAScontrol22
The HVAC Group
operations that
facilitate control
The Scheduling Group
scheduling operations
based upon time of day
The Function Group
convenient functions for
developing control schemes
The Priority Group
prioritizing actions of Boolean,
Float and Integer variables
The Types Group
variable types and
conversion between types
The Logic Group
logical operations using
Boolean variables
The Timing Group
time-based components
The Math Group
math-based components
LSeq Linear Sequencer — bar graph representation of input value
ReheatSeq Reheat sequence — linear sequence up to four outputs
Reset Reset — output scales an input range between two limits
Tstat Thermostat — on/off temperature controller
DailySc Daily Schedule Boolean — two-period Boolean scheduler
DailyS1 Daily Schedule Float — two-period oat scheduler
DateTime Time of Day — time, day, month, year
Cmpr Comparison math — comparison (<=>) of two oats
Count Integer counter — up/down counter with integer output
Freq Pulse frequency — calculates the input pulse frequency
Hysteresis Hysteresis — setting on/off trip points to an input variable
IRamp IRamp — generates a repeating triangular wave with an integer output
Limiter Limiter — Restricts output within upper and lower bounds
Linearize Linearize — piecewise linearization of a oat
LP LP — proportional, integral, derivative (PID) loop controller
Ramp Ramp — generates a repeating triangular or sawtooth wave with a oat output
SRLatch Set/Reset Latch — single-bit data storage
TickTock Ticking clock — an astable oscillator used as a time base
UpDn Float counter — up/down counter with oat output
PrioritizedBool Prioritized boolean output — highest of sixteen inputs
PrioritizedFloat Prioritized oat output — highest of sixteen inputs
PrioritizedInt Prioritized integer output — highest of sixteen inputs
B2F Binary to oat encoder — 16-bit binary to oat conversion
ConstBool Boolean constant — a predened Boolean value
ConstFloat Float constant — a predened oat variable
ConstInt Integer constant — a predened integer variable
F2B Float to binary decoder — oat to 16-bit binary conversion
F2I Float to integer — oat to integer conversion
I2F Integer to oat — integer to oat conversion
L2F Long to oat — long integer to oat conversion
WriteBool Write Boolean — setting a writable Boolean value
WriteFloat Write Float — setting a writable oat value
WriteInt Write integer — setting an integer value
ADemux2 Analog Demux — Single-input, two-output analog de-multiplexer
And2 Two-input Boolean product — two-input AND gate
And4 Four-input Boolean product — four-input AND gate
ASW Analog switch — selection between two oat variables
ASW4 Analog switch — selection between four oats
B2P Binary to pulse — simple mono-stable oscillator (single-shot)
BSW Boolean switch — selection between two Boolean variables
DemuxI2B4 Four-output Demux — integer to Boolean de-multiplexer
ISW Integer switch — selection between two integer variables
Not Not — inverts the state of a Boolean
Or2 Two-input Boolean sum — two-input OR gate
Or4 Four-input Boolean sum — four-input OR gate
Xor Two-input exclusive Boolean sum — two-input XOR gate
DlyOff Off delay timer — time delay from a “true” to “false” transition of the input
DlyOn On delay timer — time delay from an “false” to “true” transition of the input
OneShot Single Shot — provides an adjustable pulse width to an input transition
Timer Timer — countdown timer
Add2 Two-input addition — results in the addition of two oats
Add4 Four-input addition — results in the addition of four oats
Avg10 Average of 10 — sums the last ten oats while dividing by ten thereby providing a running average
AvgN Average of N — sums the last N oats while dividing by N thereby providing a running average
Div2 Divide two — results in the division of two oat variables
FloatOffset Float offset — oat shifted by a xed amount
Max Maximum selector — selects the greater of two inputs
Min Minimum selector — selects the lesser of two inputs
MinMax Min/Max detector — records both the maximum and minimum values of a oat
Mul2 Multiply two — results in the multiplication of two oats
Mul4 Multiply four — results in the multiplication of four oats
Neg Negate — changes the sign of a oat
Round Round — rounds a oat to the nearest N places
Sub2 Subtract two — results in the subtraction of two oats
Sub4 Subtract four — results in the subtraction of four oats
TimeAvg Time average — average value of oat over time
8
DS-BASC220-AB1
Data Sheet – BAScontrol22
Object Type Supported
Can Be Created Dynamically
Can Be Deleted Dynamically
Analog Input
No
No
Analog Output
No
No
Analog Value
No
No
Binary Input
No
No
Binary Output
No
No
Binary Value
No
No
Device
No
No
BACnet Protocol Implementation Conformance (PIC) Statement
BAScontrol22
BACnet/IP Sedona Field Controller
BACnet Protocol Implementation Conformance Statement (Annex A)
Date: August 9, 2016
Vendor Name: Contemporary Controls
Product Name: BAScontrol22
Product Model Number: BASC-22R
Applications Software Version: 1.2.28 Firmware Revision: 3.1.2 BACnet Protocol Revision: 3
Product Description: BACnet/IP compliant 22-point field controller or remote I/O that allows a direct connection to Ethernet without the
BACnet Standardized Device Profile (Annex L):
BACnet Operator Workstation (B-OWS)
BACnet Building Controller (B-BC)
BACnet Advanced Application Controller (B-AAC)
List all BACnet Interoperability Building Block Supported (Annex K)
DS-RP-B Data Sharing — ReadProperty – B
DS-WP-B Data Sharing — WriteProperty – B
DS-RPM-B Data Sharing — ReadPropertyMultiple – B
DS-COV-B Data Sharing — ChangeOfValue – B
Segmentation Capability:
Able to transmit segmented messages Window Size:
Able to receive segmented messages Window Size:
Standard Object Types Supported:
need of a BACnet router.
BACnet Application Specific Controller (B-ASC)
BACnet Smart Sensor (B-SS)
BACnet Smart Actuator (B-SA)
:
DM-DDB-B Device Management — Dynamic Device Binding – B
DM-DOB-B Device Management — Dynamic Object Binding – B
DM-DCC-B Device Management — Device Communication Control – B
DM-TS-B Device Management — Time Synchronization – B
No optional properties are supported.
Data Link Layer Options:
Device Address Binding:
Is static device binding supported? (This is currently necessary for two-way communication with MS/TP slaves and certain other
devices.)
Networking Options:
Does the BBMD support registrations by Foreign Devices?
Character Sets Supported:
Indicating support for multiple character sets does not imply that they can all be supported simultaneously.
If this product is a communication gateway, describe the types of non-BACnet equipment/network(s) that the gateway supports:
No gateway support.
9 Aug 2016 PI-BASC220-AA1
BACnet IP, (Annex J)
BACnet IP, (Annex J), Foreign Device
ISO 8802-3, Ethernet (Clause 7)
ANSI/ATA 878.1, EIA-485 ARCNET (Clause 8), baud rate(s):
MS/TP master (Clause 9), baud rate(s):
Yes No
Router, Clause 6 – List all routing configurations, e.g., ARCNET-Ethernet-MS/TP, etc.
Annex H, BACnet Tunnelling Router over IP
BACnet/IP Broadcast Management Device (BBMD)
ANSI X3.4 IBMÔ/MicrosoftÔ DBCS ISO 8859-1
ISO 10646 (UCS-2) ISO 10646 (UCS-4) JIS C 6226
MS/TP slave (Clause 9), baud rate(s):
Point-To-Point, EIA 232 (Clause 10), baud rate(s):
Point-To-Point, modem, (Clause 10), baud rate(s):
LonTalk, (Clause 11), medium:
Other:
Yes No
9
DS-BASC220-AB1
Wiring Diagram
Power Monitor
and
Pulse Generator
Phase C
Phase B
+24 VDC
Phase A
24 VAC
or
24 VDC
contact
closure
or pulse
Class 2
transformer
L1
L2
10K thermistors
Type II Type III
500 Ω
0/2 – 10 V IN
4 – 20 mA
Data Sheet – BAScontrol22
24 VAC
3-wire
actuator
+24 VDC
0/2 – 10 V IN
0/2 – 10 V OUT
4 – 20 mA
500 Ω
Phase A
Phase B
Phase C
Power Monitor
and
Pulse Generator
10K thermistors
Type II Type III
contact
closure
or pulse
24 VAC
or
24 VDC
Class 2
transformer
L1
L2
CR
Dimensions (all dimensions are in mm)
24 VAC
Ø 4.7
10/100 Mbps
Ethernet BACnet/IP
120
128
25
173
181
10
DS-BASC220-AB1
Data Sheet – BAScontrol22
Specications
Universal Inputs (Points UI1 through UI8 )
ConguredAs Characteristics
Analog input 0–10 VDC or 0–20 mA (with external resistor).
Input impedance 1 MΩ on voltage.
Temperature input Type II 10 kΩ thermistors: –10º to +190 ºF (–23.3º to +87.8ºC)
Type III 10 kΩ thermistors: –15º to +200 ºF (–26.1º to +93.3ºC)
20 kΩ thermistors: 15º to 215º F (–9º to +101º C)
Contact closure input Excitation current 0.5 mA. Open circuit voltage 12 VDC.
Sensing threshold 3 VDC (low) and 7 VDC (high). Response time 20 ms.
Pulse input (Points UI1–UI4) 0–10 VDC for active output devices
0–12 VDC for passive devices (congured for internal pull-up resistor)
40 Hz maximum input frequency with 50% duty cycle.
Adjustable high and low thresholds.
Resistance 1 kΩ -100 kΩ range
Binary Inputs (Points BI1 through BI4)
Contact closure Excitation current 1.2 mA. Open circuit voltage 12 VDC
Sensing threshold 3 VDC (low) and 7 VDC (high). Response time 20 ms
AnalogOutputs(Points AO1 through AO4)
Analog output 0–10 VDC. 10-bit resolution. 4 mA maximum
BinaryOutputs(Points BO1 through BO6) (Class 2 circuits only — requires external power source)
Binary output Normally open relay contacts. 30VAC/VDC 2A
RegulatoryCompliance
CE Mark; CFR 47, Part 15 Class A; RoHS
UL 508, C22.2 No. 142-M1987
Functional Ethernet
Compliance IEEE 802.3
Protocols supported BACnet/IP, Sedona SOX, HTTP and FTP
Data rate 10 Mbps, 100 Mbps
Physical layer 10BASE-T, 100BASE-TX
Cable length 100 m (max)
Port connector Shielded RJ-45
LED Green = Link established
Flash = Link activity
Electrical
Input (DC or AC) DC AC
Voltage (V, ± 10%) 24 24
Power 4 W 6 VA
Frequency N/A 47–63 Hz
11
DS-BASC220-AB1
United States
Contemporary Control
Systems, Inc.
2431 Curtiss Street
Downers Grove, IL 60515
USA
Tel: +1 630 963 7070
Fax:+1 630 963 0109
info@ccontrols.com
China
Contemporary Controls
(Suzhou) Co. Ltd
19F, Metropolitan Towers,
No.199 Shishan Road,
Suzhou New District,
215009 China
Tel: +86 512 68095866
Fax: +86 512 68093760
info@ccontrols.com.cn
United Kingdom
Contemporary Controls Ltd
14 Bow Court
Fletchworth Gate
Coventry CV5 6SP
United Kingdom
Tel: +44 (0)24 7641 3786
Fax:+44 (0)24 7641 3923
info@ccontrols.co.uk
Germany
Contemporary Controls
GmbH
Fuggerstraße 1 B
04158 Leipzig
Germany
Tel: +49 341 520359 0
Fax: +49 341 520359 16
info@ccontrols.de
Specications (continued)
Data Sheet – BAScontrol22
Environmental/Mechanical
Operating temperature -40°C to +75°C
Storage temperature -40°C to +85°C
Relative humidity 10–95%, noncondensing
Protection IP30
Weight 0.6 lbs. (.27 kg)
RJ-45 Pin Assignments
10BASE-T/100BASE-TX
Terminal Usage
1 TD +
2 TD –
3 RD +
6 RD –
Other pins Not Used
Electromagnetic Compatibility
Standard TestMethod Description TestLevels
EN 55024 EN 61000-4-2 Electrostatic Discharge 6 kV contact & 8 kV air
EN 55024 EN 61000-4-3 Radiated Immunity 10 V/m, 80 MHz to 1 GHz
EN 55024 EN 61000-4-4 Fast Transient Burst 1 kV clamp & 2 kV direct
EN 55024 EN 61000-4-5 Voltage Surge 2 kV L-L & 2 kV L-Earth
EN 55024 EN 61000-4-6 Conducted Immunity 10 Volts (rms)
EN 55024 EN 61000-4-11 Voltage Dips & Interruptions 1 Line Cycle, 1 to 5 s @ 100% dip
EN 55022 CISPR 22 Radiated Emissions Class A
EN 55022 CISPR 22 Conducted Emissions Class B
CFR 47, Part 15 ANSI C63-4 Radiated Emissions Class A
Ordering Information
Model Description
BASC-22R BAScontrol22 BACnet Server 22-Point 6 Relays 2xRJ45 Switch
www.ccontrols.com
DS-BASC220-AB1
September, 2020
Loading...
