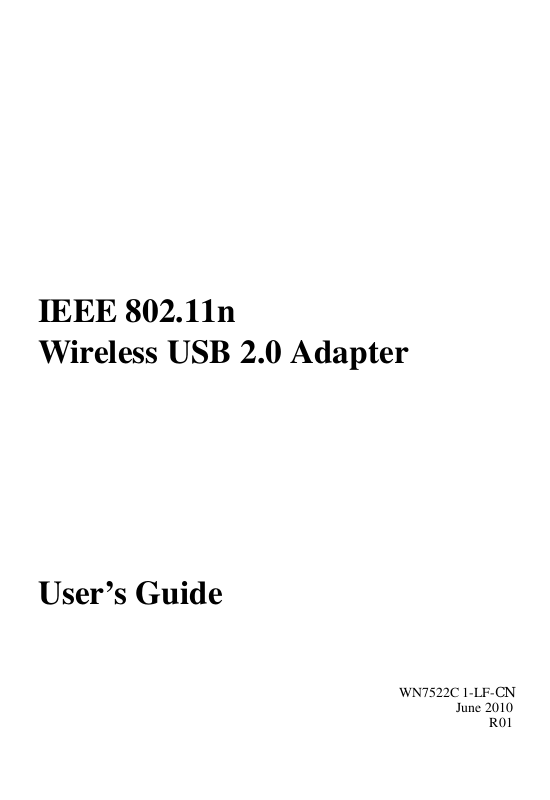

Page 1
IEEE 802.11n
Wireless USB 2.0 Adapter
User’s Guide
WN7522C 1-LF-CN
June 2010
R01
Page 2
Trademarks:
Other product and company names are trademarks or registered trademarks of their
respective holders.
Page 3
COMPLIANCES
Federal Communication Commission Interference
Statement
This equipment has been tested and found to comply with the limits for a Class B
digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may
cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television reception, which
can be determined by turning the equipment off and on, the user is encouraged to
try to correct the interference by one of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the
receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
This device complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) This device may not cause harmful interference, and
(2) this device must accept any interference received, including interference that
may cause undesired operation.
FCC Caution: Any changes or modifications not expressly approved by the party
responsible for compliance could void the user's authority to operate this
equipment.
IMPORTANT NOTE:
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation exposure limits set forth for an
uncontrolled environment. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
2.4GHz operation of this product in the U.S.A. is firmware-limited to channels 1
through 11.
i
Page 4
C
OMPLIANCES
IC Statement
This device complies with RSS-210 of the Industry Canada Rules.
Operation is subject to the following two conditions:
1) this device may not cause interference and
2) this device must accept any interference, including interference that may cause
undesired operation of the device
This Class B digital apparatus complies with Canadian ICES-003.
Cet appareil numerique de la class B est conforme a la norme NMB-003 du
Canada.
IMPORTANT NOTE:
IC Radiation Exposure Statement:
This equipment complies with Canada radiation exposure limits set forth for
uncontrolled environments. This equipment should be installed and operated with
minimum distance 20cm between the radiator & your body.
This transmitter must not be co-located or operating in conjunction with any other
antenna or transmitter.
2.4GHz operation of this product in Canada is firmware-limited to channels 1
through 11.
ii
Page 5
802.11N WIRELESS
USB ADAPTER
The 802.11N Wireless USB Adapter (WN7522C 1-LF-CN) is
another cutting edge introduction in 2.4GHz wireless
communication for 11n wireless network connection. Designed
for both the home and office, this wireless USB2.0 adapter
provides the speed, coverage and security expected by today’s
wireless users. The WN7522C 1-LF-CN is IEEE 802.11n
compliant while maintaining full backwards compatibility with the
802.11g and 802.11b standards. This standard utilizes advanced
MIMO (Multiple-In, Multiple-Out) technology to deliver incredible
speed and range. The WN7522C 1-LF-CN provides better
performance than existing 802.11g technology. Upgrading to
wireless 11n network provides an excellent solution for sharing
an Internet connection and files such as video, music, photos,
and documents. With security being a key consideration,
WN7522C 1-LF-CN supports the WPA and WPA2 wireless
encryption standards, which prevent unauthorized access to
wireless networks and ensure data is secure. Once installed the
WLAN utility allows you to scan for available wireless networks
and manage multiple network profiles so connecting becomes
instantaneous.
1
Page 6
802.11N Wireless USB Adapter
Features
• IEEE802.11n compliant
• Wireless speeds up to 300 Mbps with 40 MHz operating mode
• Increased speed and coverage - up to 15 times the speed of
IEEE 802.11g
• Fully backwards compatible with 802.11b/g wireless networks
• Enhances your network security with Wired Equivalent
Privacy (WEP), Wi-Fi Protected Access (WPA), and WPA2
• User-friendly configuration
• Orthogonal Frequency Division Multiplexing (OFDM) and
advanced MIMO (Multiple-In, Multiple-Out) technology
provides high speed connection
Applications
The wireless products offer fast, reliable, cost-effective network
access for wireless clients in applications such as:
• Remote access to corporate network information
Email, file transfer, and terminal emulation
• Access to databases for mobile workers
Doctors, nurses, retailers, office workers who need access to
databases while being mobile in a hospital, retail store, office,
campus, etc.
• SOHO (Small Office Home Office) users
SOHO users who need quick and easy installation of a small
network
2
Page 7
Hardware Description
HARDWARE DESCRIPTION
The WN7522C 1-LF-CN adapter provides 300 Mbps connections.
It is fully compliant with the specification of the IEEE 802.11n
Draft standard. It can be installed in a DVD player with a 2.0 USB
slot.
3
Page 8

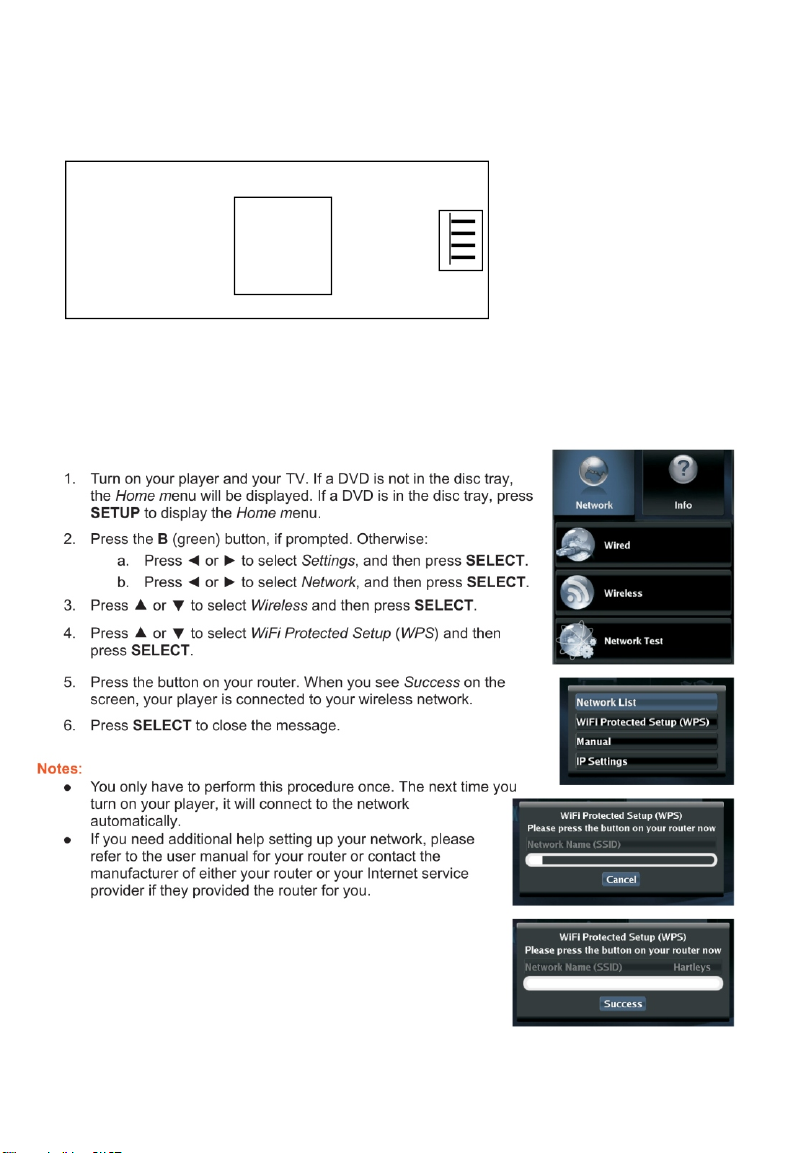

How to co nnec t a Wir eles s USB 2.0 Adapter:
J2
USB PORT
GND
+D
-D
VCC
The wi rel ess USB 2 .0 ad apter prov ide a g enera l USB p ort. The Pin fun cti ons
defi ned a s follo ws:
Use th e shi eldin g wir e pin to pin con nec t to a USB ho st( B lu- R ay Pl ayer) .
How to co nfig ure a Wirel ess USB 2.0 Adapter :
Page 9
Model Number: WN7522C 1-LF-CN
E062010-R01
