ConTech Lighting SWS7103 User Manual

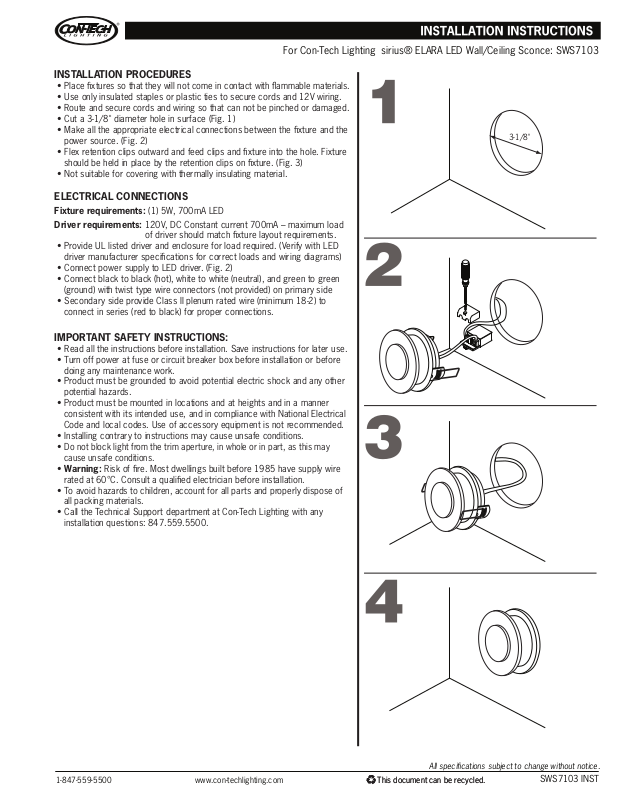

For Con-Tech Lighting sirius® ELARA LED Wall/Ceiling Sconce: SWS7103
INSTALLATION PROCEDURES
Place fixtures so that they will not come in contact with flammable materials.
• Use only insulated staples or plastic ties to secure cords and 12V wiring. Route and secure cords and wiring so that can not be pinched or damaged.
• Cut a 3-1/8" diameter hole in surface (Fig. 1)
• Make all the appropriate electrical connections between the fixture and the power source. (Fig. 2)
• Flex retention clips outward and feed clips and fixture into the hole. Fixture should be held in place by the retention clips on fixture. (Fig. 3)
• Not suitable for covering with thermally insulating material.
ELECTRICAL CONNECTIONS
Fixture requirements: (1) 5W, 700mA LED Driver requirements: 120V, DC Constant current 700mA – maximum load
of driver should match fixture layout requirements.
• Provide UL listed driver and enclosure for load required. (Verify with LED driver manufacturer specifications for correct loads and wiring diagrams)
• Connect power supply to LED driver. (Fig. 2)
• Connect black to black (hot), white to white (neutral), and green to green (ground) with twist type wire connectors (not provided) on primary side
• Secondary side provide Class II plenum rated wire (minimum 18-2) to connect in series (red to black) for proper connections.
IMPORTANT SAFETY INSTRUCTIONS:
• Read all the instructions before installation. Save instructions for later use.
• Turn off power at fuse or circuit breaker box before installation or before doing any maintenance work.
• Product must be grounded to avoid potential electric shock and any other potential hazards.
• Product must be mounted in locations and at heights and in a manner consistent with its intended use, and in compliance with National Electrical Code and local codes. Use of accessory equipment is not recommended.
• Installing contrary to instructions may cause unsafe conditions. Do not block light from the trim aperture, in whole or in part, as this may
• cause unsafe conditions.
Warning: Risk of fire. Most dwellings built before 1985 have supply wire rated at 60°C. Consult a qualified electrician before installation. To avoid hazards to children, account for all parts and properly dispose of
• all packing materials.
• Call the Technical Support department at Con-Tech Lighting with any installation questions: 847.559.5500.
3-1/8"
All specifications subject to change without notice.
1-847-559-5500 This document can be recycled.
www.con-techlighting.com
This document can be recycled.
SWS7103 INST
