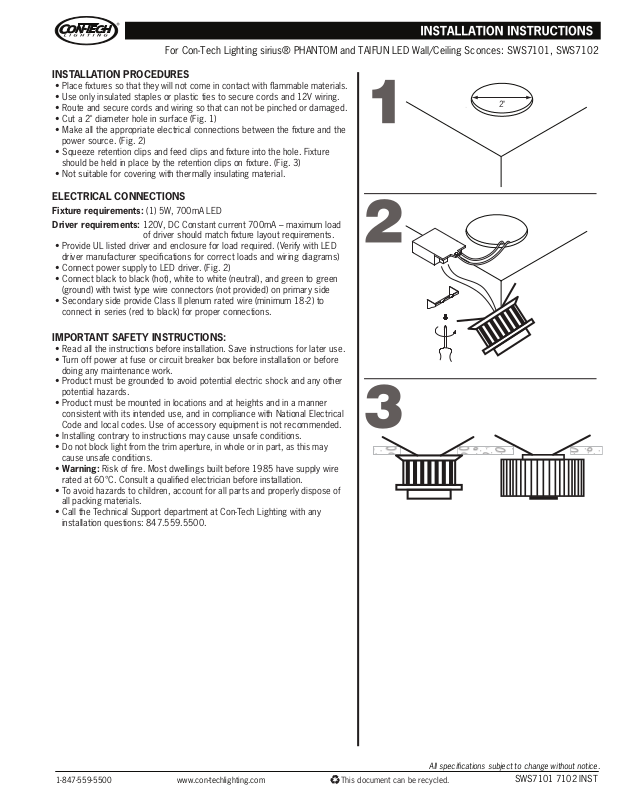

ConTech Lighting SWS7102 User Manual
For Con-Tech Lighting sirius® PHANTOM and TAIFUN LED Wall/Ceiling Sconces: SWS7101, SWS7102
INSTALLATION PROCEDURES
•
Place fixtures so that they will not come in contact with flammable materials.
• Use only insulated staples or plastic ties to secure cords and 12V wiring.
Route and secure cords and wiring so that can not be pinched or damaged.
•
• Cut a 2" diameter hole in surface (Fig. 1)
• Make all the appropriate electrical connections between the fixture and the
power source. (Fig. 2)
• Squeeze retention clips and feed clips and fixture into the hole. Fixture
should be held in place by the retention clips on fixture. (Fig. 3)
• Not suitable for covering with thermally insulating material.
ELECTRICAL CONNECTIONS
Fixture requirements: (1) 5W, 700mA LED
Driver requirements: 120V, DC Constant current 700mA – maximum load
of driver should match fixture layout requirements.
• Provide UL listed driver and enclosure for load required. (Verify with LED
driver manufacturer specifications for correct loads and wiring diagrams)
• Connect power supply to LED driver. (Fig. 2)
• Connect black to black (hot), white to white (neutral), and green to green
(ground) with twist type wire connectors (not provided) on primary side
• Secondary side provide Class II plenum rated wire (minimum 18-2) to
connect in series (red to black) for proper connections.
IMPORTANT SAFETY INSTRUCTIONS:
• Read all the instructions before installation. Save instructions for later use.
• Turn off power at fuse or circuit breaker box before installation or before
doing any maintenance work.
• Product must be grounded to avoid potential electric shock and any other
potential hazards.
• Product must be mounted in locations and at heights and in a manner
consistent with its intended use, and in compliance with National Electrical
Code and local codes. Use of accessory equipment is not recommended.
• Installing contrary to instructions may cause unsafe conditions.
Do not block light from the trim aperture, in whole or in part, as this may
•
cause unsafe conditions.
• Warning: Risk of fire. Most dwellings built before 1985 have supply wire
rated at 60°C. Consult a qualified electrician before installation.
To avoid hazards to children, account for all parts and properly dispose of
•
all packing materials.
• Call the Technical Support department at Con-Tech Lighting with any
installation questions: 847.559.5500.
