ConTech Lighting REXA User Manual
Con-Tech Lighting REXA Series Adjustable Recessed or Surface Mount LED Edge-Lit Exit Sign with Battery Back-Up
For AC
Power
Junction
Box
Main Housing
Rotation Housing
Chevron
Recessed Mount
Recessed Back Box
(Metal Housing)
Bar Hangers
Main Backup Circuit
Spring Bracket
End Cap
Bar Hangers
Recessed Back Box
(Metal Housing)
Adjusting Slots
Tighten Screws After Positioning
Ground
Wire
Green
277VAC
Input
Orange
120VAC
Input
White
Black
EXIT Panel
Screw
Chevron Template
Trim
Plate
Recessed Ceiling Mount
Recessed Wall Mount

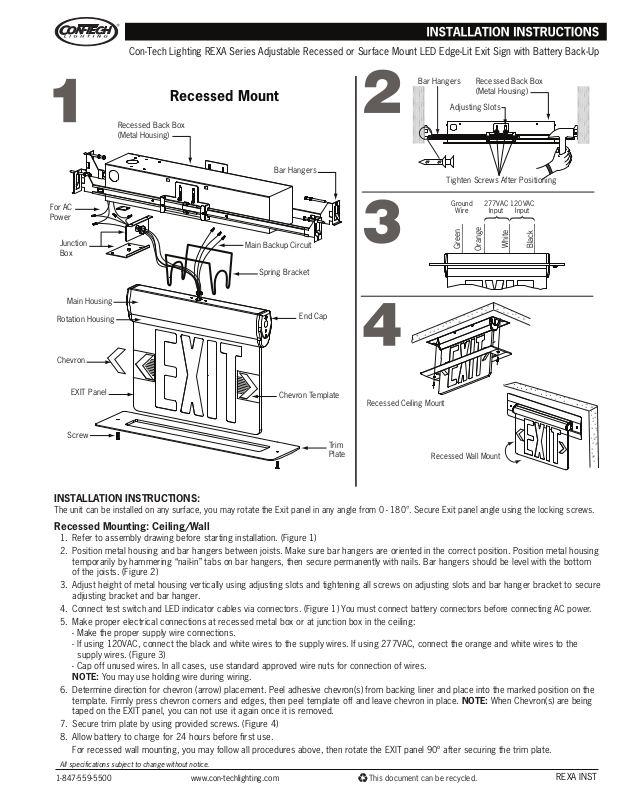

INSTALLATION INSTRUCTIONS:
The unit can be installed on any surface, you may rotate the Exit panel in any angle from 0 - 180°. Secure Exit panel angle using the locking screws.
Recessed Mounting: Ceiling/Wall
1. Refer to assembly drawing before starting installation. (Figure 1)
2. Position metal housing and bar hangers between joists. Make sure bar hangers are oriented in the correct position. Position metal housing
temporarily by hammering “nail-in” tabs on bar hangers, then secure permanently with nails. Bar hangers should be level with the bottom
of the joists. (Figure 2)
3. Adjust height of metal housing vertically using adjusting slots and tightening all screws on adjusting slots and bar hanger bracket to secure
adjusting bracket and bar hanger.
4.
Connect test switch and LED indicator cables via connectors. (Figure 1) You must connect battery connectors before connecting AC power.
5. Make proper electrical connections at recessed metal box or at junction box in the ceiling:
- Make the proper supply wire connections.
- If using 120VAC, connect the black and white wires to the supply wires. If using 277VAC, connect the orange and white wires to the
supply wires. (Figure 3)
- Cap off unused wires. In all cases, use standard approved wire nuts for connection of wires.
NOTE: You may use holding wire during wiring.
6. Determine direction for chevron (arrow) placement. Peel adhesive chevron(s) from backing liner and place into the marked position on the
template. Firmly press chevron corners and edges, then peel template off and leave chevron in place. NOTE: When Chevron(s) are being
taped on the EXIT panel, you can not use it again once it is removed.
7. Secure trim plate by using provided screws. (Figure 4)
8. Allow battery to charge for 24 hours before first use.
For recessed wall mounting, you may follow all procedures above, then rotate the EXIT panel 90º after securing the trim plate.
All specifications subject to change without notice.
1-847-559-5500 This document can be recycled.
www.con-techlighting.com
REXA INST
Con-Tech Lighting REXA Series Adjustable Recessed or Surface Mount LED Edge-Lit Exit Sign with Battery Back-Up
Surface Mounting
1. Refer to assembly drawing before starting installation. (Figure 5)
2. Attach crossbar to junction box, using screws if needed (not
provided). Open end cap (with test switch and indicator assembled)
to connect battery connector before connecting AC power.
Ceiling/Wall: Figures 6 and 7. Feed AC supply wires through
canopy center hole.
End: Figure 8. Remove the opposite mounting end cap and knock
out the holes on the cap for pulling through wires and assembly
screws. Pull out all AC supply wires and feed wires through the
center holes of end cap first, then the canopy.
Assemble canopy onto aluminum housing with (2) #10-24 screws
(supplied) and make proper wire connections.
- Make the proper supply wire connections.
- If using 120VAC, connect the black and white wires to the
supply wires. If using 277VAC, connect the orange and white
wires to the supply wires. (Figure 3)
- Cap off unused wires. In all cases, use standard approved wire
nuts for connection of wires.
2. Remove bushing and then insert plug and rivets into housing top
holes to close the holes on the aluminum housing.
3. Determine direction for chevron (arrow) placement. Peel adhesive
chevron(s) from backing liner and place into the marked position on
the template. Firmly press chevron corners and edges, then peel
template off and leave chevron in place. NOTE: When Chevron(s)
are being placed on the Exit panel, you can not use it again once it
is removed.
4. Using (2) M4-40 screws (supplied), tighten canopy to mounting
plate/crossbar.
IMPORTANT SAFETY INSTRUCTIONS:
•
Read all the instructions before installation. Save instructions for later use.
• Turn off the power at fuse or circuit breaker box before installation or
maintenance work.
• Wear rubber soled shoes and work on a sturdy wooden or
non-conductive ladder.
• Product must be installed in compliance with National Electrical Code
and local building codes. For indoor use only.
• Do not mount near gas or electric heaters.
• Use caution when servicing batteries. Battery acid can cause burns to
skin and eyes.
• Installing contrary to instructions may cause unsafe conditions.
• Warning: Risk of fire. Most dwellings built before 1985 have supply
wire rated at 60°C. Consult a qualified electrician before installation.
• Avoid hazards to children: account for all parts and properly dispose of
all packing materials.
• Call the Technical Support department at Con-Tech Lighting with any
installation questions.
Main
Housing
Rotation
Housing
Chevron
EXIT Panel
Canopy
Mounting End Cap
Bracket
Surface Ceiling Mount
Surface Wall Mount
Crossbar
Surface Mount
Power Wires
Hole Plug
Bushing
Canopy
Ni-Cad Battery
Chevron Template
Crossbar
Canopy
Junction Box
(Not Provided)
End Cap
Test Switch
LED Indicator
Locking Screw
LED PCB
Junction Box
(Not Provided)
Surface End Mount
Crossbar
