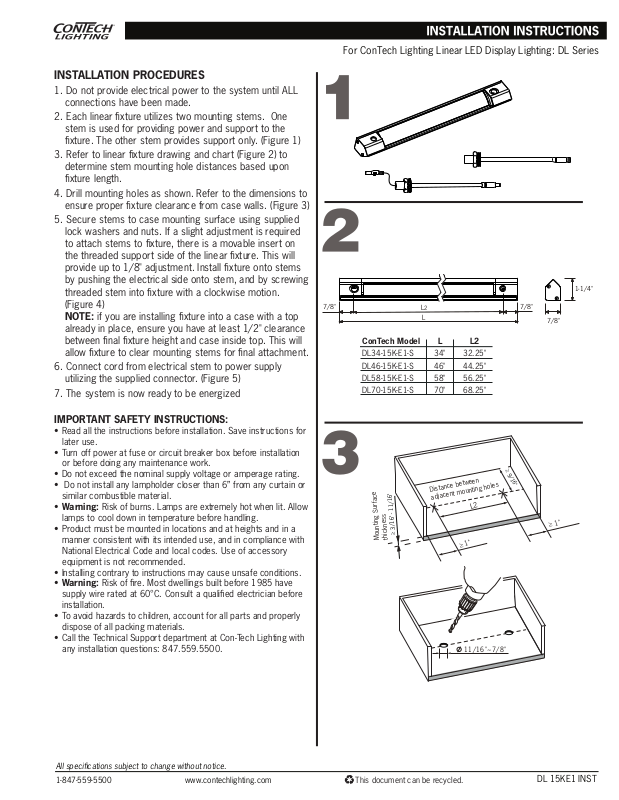

ConTech Lighting DL Series User Manual
INSTALLATION PROCEDURES
1. Do not provide electrical power to the system until ALL
connections have been made.
2. Each linear fixture utilizes two mounting stems. One
stem is used for providing power and support to the
fixture. The other stem provides support only. (Figure 1)
3. Refer to linear fixture drawing and chart (Figure 2) to
determine stem mounting hole distances based upon
fixture length.
4.
Drill mounting holes as shown. Refer to the dimensions to
ensure proper fixture clearance from case walls. (Figure 3)
5. Secure stems to case mounting surface using supplied
lock washers and nuts. If a slight adjustment is required
to attach stems to fixture, there is a movable insert on
the threaded support side of the linear fixture. This will
provide up to 1/8" adjustment. Install fixture onto stems
by pushing the electrical side onto stem, and by screwing
threaded stem into fixture with a clockwise motion.
(Figure 4)
NOTE: if you are installing fixture into a case with a top
already in place, ensure you have at least 1/2" clearance
between final fixture height and case inside top. This will
allow fixture to clear mounting stems for final attachment.
6. Connect cord from electrical stem to power supply
utilizing the supplied connector. (Figure 5)
7. The system is now ready to be energized
For ConTech Lighting Linear LED Display Lighting: DL Series
7/8"
2
L
L
ConTech Model L L2
DL34-15K-E1-S 34" 32.25"
DL46-15K-E1-S 46" 44.25"
DL58-15K-E1-S 58" 56.25"
DL70-15K-E1-S 70" 68.25"
7/8"
7/8"
1-1/4"
IMPORTANT SAFETY INSTRUCTIONS:
• Read all the instructions before installation. Save instructions for
later use.
• Turn off power at fuse or circuit breaker box before installation
or before doing any maintenance work.
• Do not exceed the nominal supply voltage or amperage rating.
• Do not install any lampholder closer than 6” from any curtain or
similar combustible material.
• Warning: Risk of burns. Lamps are extremely hot when lit. Allow
lamps to cool down in temperature before handling.
• Product must be mounted in locations and at heights and in a
manner consistent with its intended use, and in compliance with
National Electrical Code and local codes. Use of accessory
equipment is not recommended.
• Installing contrary to instructions may cause unsafe conditions.
• Warning: Risk of fire. Most dwellings built before 1985 have
supply wire rated at 60°C. Consult a qualified electrician before
installation.
• To avoid hazards to children, account for all parts and properly
dispose of all packing materials.
• Call the Technical Support department at Con-Tech Lighting with
any installation questions: 847.559.5500.
thickness
Mounting Surface
≥ 3/16" - 11/16"
Distance between
adjacent mounting holes
L2
≥ 1"
11/16"~7/8"
≥ 9/16"
≥ 1"
All specifications subject to change without notice.
1-847-559-5500 This document can be recycled.
www.contechlighting.com
DL 15KE1 INST
4
For ConTech Lighting Linear LED Display Lighting: DL**-15K-E1 Series
5
LED Power supply
All specifications subject to change without notice.
1-847-559-5500 This document can be recycled.
www.contechlighting.com
DL 15KE1 INST
