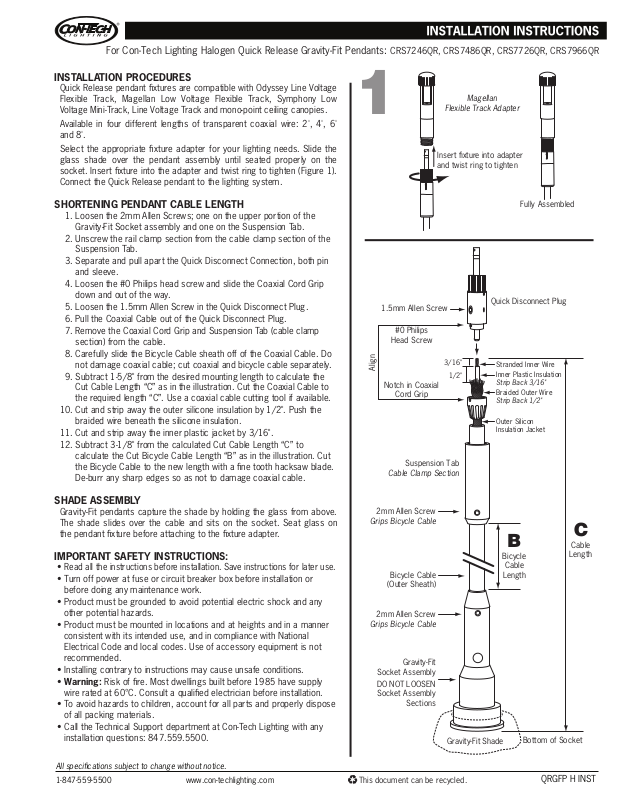

ConTech Lighting CRS7 User Manual
For Con-Tech Lighting Halogen Quick Release Gravity-Fit Pendants: CRS7246QR, CRS7486QR, CRS7726QR, CRS7966QR
INSTALLATION PROCEDURES
Quick Release pendant fixtures are compatible with Odyssey Line Voltage
Flexible Track, Magellan Low Voltage Flexible Track, Symphony Low
Voltage Mini-Track, Line Voltage Track and mono-point ceiling canopies.
Available in four different lengths of transparent coaxial wire: 2', 4', 6'
and 8'.
Select the appropriate fixture adapter for your lighting needs. Slide the
glass shade over the pendant assembly until seated properly on the
socket. Insert fixture into the adapter and twist ring to tighten (Figure 1).
Connect the Quick Release pendant to the lighting system.
1
Magellan
Flexible Track Adapter
Insert fixture into adapter
and twist ring to tighten
SHORTENING PENDANT CABLE LENGTH
1. Loosen the 2mm Allen Screws; one on the upper portion of the
Gravity-Fit Socket assembly and one on the Suspension Tab.
2. Unscrew the rail clamp section from the cable clamp section of the
Suspension Tab.
3. Separate and pull apart the Quick Disconnect Connection, both pin
and sleeve.
4. Loosen the #0 Philips head screw and slide the Coaxial Cord Grip
down and out of the way.
5. Loosen the 1.5mm Allen Screw in the Quick Disconnect Plug.
6. Pull the Coaxial Cable out of the Quick Disconnect Plug.
7. Remove the Coaxial Cord Grip and Suspension Tab (cable clamp
section) from the cable.
8. Carefully slide the Bicycle Cable sheath off of the Coaxial Cable. Do
not damage coaxial cable; cut coaxial and bicycle cable separately.
9. Subtract 1-5/8" from the desired mounting length to calculate the
Cut Cable Length “C” as in the illustration. Cut the Coaxial Cable to
the required length “C”. Use a coaxial cable cutting tool if available.
10. Cut and strip away the outer silicone insulation by 1/2". Push the
braided wire beneath the silicone insulation.
11. Cut and strip away the inner plastic jacket by 3/16".
12. Subtract 3-1/8" from the calculated Cut Cable Length “C” to
calculate the Cut Bicycle Cable Length “B” as in the illustration. Cut
the Bicycle Cable to the new length with a fine tooth hacksaw blade.
De-burr any sharp edges so as not to damage coaxial cable.
1.5mm Allen Screw
#0 Philips
Head Screw
Align
Notch in Coaxial
Cord Grip
Suspension Tab
Cable Clamp Section
3/16"
1/2"
Fully Assembled
Quick Disconnect Plug
Stranded Inner Wire
Inner Plastic Insulation
Strip Back 3/16"
Braided Outer Wire
Strip Back 1/2"
Outer Silicon
Insulation Jacket
SHADE ASSEMBLY
Gravity-Fit pendants capture the shade by holding the glass from above.
The shade slides over the cable and sits on the socket. Seat glass on
the pendant fixture before attaching to the fixture adapter.
2mm Allen Screw
Grips Bicycle Cable
IMPORTANT SAFETY INSTRUCTIONS:
•
Read all the instructions before installation. Save instructions for later use.
• Turn off power at fuse or circuit breaker box before installation or
before doing any maintenance work.
• Product must be grounded to avoid potential electric shock and any
other potential hazards.
• Product must be mounted in locations and at heights and in a manner
consistent with its intended use, and in compliance with National
Electrical Code and local codes. Use of accessory equipment is not
recommended.
• Installing contrary to instructions may cause unsafe conditions.
• Warning: Risk of fire. Most dwellings built before 1985 have supply
wire rated at 60°C. Consult a qualified electrician before installation.
• To avoid hazards to children, account for all parts and properly dispose
of all packing materials.
• Call the Technical Support department at Con-Tech Lighting with any
installation questions: 847.559.5500.
All specifications subject to change without notice.
1-847-559-5500 This document can be recycled.
www.con-techlighting.com
Bicycle Cable
(Outer Sheath)
2mm Allen Screw
Grips Bicycle Cable
Gravity-Fit
Socket Assembly
DO NOT LOOSEN
Socket Assembly
Sections
Gravity-Fit Shade
B
Bicycle
Cable
Length
Bottom of Socket
C
Cable
Length
QRGFP H INST
