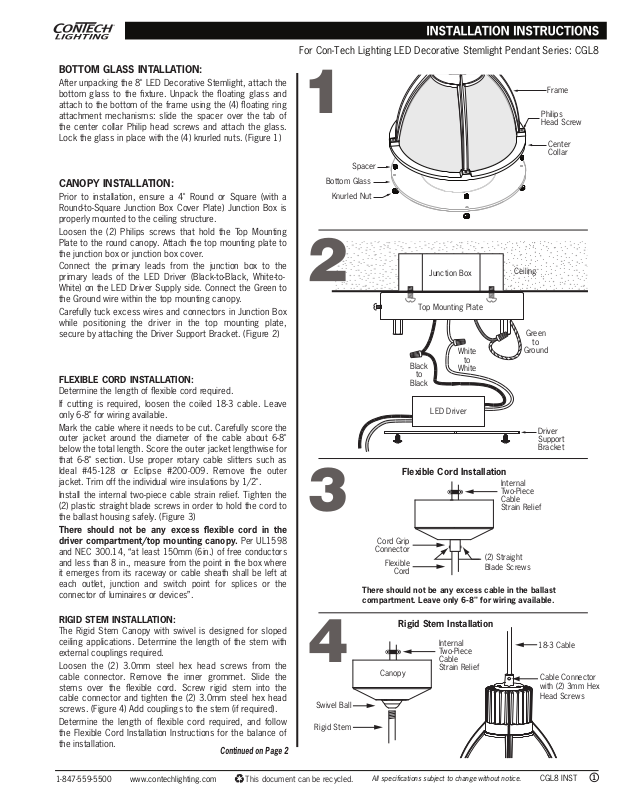

ConTech Lighting CGL8 User Manual
BOTTOM GLASS INTALLATION:
After unpacking the 8" LED Decorative Stemlight, attach the
bottom glass to the fixture. Unpack the floating glass and
attach to the bottom of the frame using the (4) floating ring
attachment mechanisms: slide the spacer over the tab of
the center collar Philip head screws and attach the glass.
Lock the glass in place with the (4) knurled nuts. (Figure 1)
CANOPY INSTALLATION:
Prior to installation, ensure a 4" Round or Square (with a
Round-to-Square Junction Box Cover Plate) Junction Box is
properly mounted to the ceiling structure.
Loosen the (2) Philips screws that hold the Top Mounting
Plate to the round canopy. Attach the top mounting plate to
the junction box or junction box cover.
Connect the primary leads from the junction box to the
primary leads of the LED Driver (Black-to-Black, White-toWhite) on the LED Driver Supply side. Connect the Green to
the Ground wire within the top mounting canopy.
Carefully tuck excess wires and connectors in Junction Box
while positioning the driver in the top mounting plate,
secure by attaching the Driver Support Bracket. (Figure 2)
FLEXIBLE CORD INSTALLATION:
Determine the length of flexible cord required.
If cutting is required, loosen the coiled 18-3 cable. Leave
only 6-8" for wiring available.
Mark the cable where it needs to be cut. Carefully score the
outer jacket around the diameter of the cable about 6-8"
below the total length. Score the outer jacket lengthwise for
that 6-8" section. Use proper rotary cable slitters such as
Ideal #45-128 or Eclipse #200-009. Remove the outer
jacket. Trim off the individual wire insulations by 1/2".
Install the internal two-piece cable strain relief. Tighten the
(2) plastic straight blade screws in order to hold the cord to
the ballast housing safely. (Figure 3)
There should not be any excess flexible cord in the
driver compartment/top mounting canopy. Per UL1598
and NEC 300.14, “at least 150mm (6in.) of free conductors
and less than 8 in., measure from the point in the box where
it emerges from its raceway or cable sheath shall be left at
each outlet, junction and switch point for splices or the
connector of luminaires or devices”.
For Con-Tech Lighting LED Decorative Stemlight Pendant Series: CGL8
Frame
Philips
Head Screw
Center
Collar
Spacer
Bottom Glass
Knurled Nut
Junction Box
Top Mounting Plate
White
Black
to
Black
LED Driver
Flexible Cord Installation
Cord Grip
Connector
Flexible
Cord
There should not be any excess cable in the ballast
compartment. Leave only 6-8" for wiring available.
to
White
Ceiling
Green
to
Ground
Driver
Support
Bracket
Internal
Two-Piece
Cable
Strain Relief
(2) Straight
Blade Screws
RIGID STEM INSTALLATION:
The Rigid Stem Canopy with swivel is designed for sloped
ceiling applications. Determine the length of the stem with
external couplings required.
Loosen the (2) 3.0mm steel hex head screws from the
cable connector. Remove the inner grommet. Slide the
stems over the flexible cord. Screw rigid stem into the
cable connector and tighten the (2) 3.0mm steel hex head
screws. (Figure 4) Add couplings to the stem (if required).
Determine the length of flexible cord required, and follow
the Flexible Cord Installation Instructions for the balance of
the installation.
1-847-559-5500 This document can be recycled.
www.contechlighting.com
Continued on Page 2
4
Swivel Ball
Rigid Stem
Rigid Stem Installation
Internal
Two-Piece
Cable
Canopy
All specifications subject to change without notice.
Strain Relief
18-3 Cable
Cable Connector
with (2) 3mm Hex
Head Screws
CGL8 INST
1
LED DRIVER INSTALLATION:
The white fixture lead gets connected to the black LED
driver lead. The black fixture lead gets connected to the
red LED driver lead. Cap off the green wire. (Figure 5)
For Con-Tech Lighting LED Decorative Stemlight Pendant Series: CGL8
Top Mounting Plate
5
LED Driver
FIXTURE CANOPY INSTALLATION:
Using the (2) Philips Head Screws, twist and lock the fixture
canopy to the top mounting plate while carefully tucking
wires out of the way. (Figure 6)
Tighten screws to ensure fixture assembly is safely
attached to the Top Mounting Plate.
Black (−)
6
Red (+)
Black
Green
White
Strain Relief
Bracket
Canopy/LED Driver Compartment
Top
Mounting
Plate
(2) Philips
Screws
There should not be any excess cable in the ballast
compartment. Leave only 6-8" for wiring available.
18-3 Cable
Canopy
IMPORTANT SAFETY INSTRUCTIONS:
• Read all the instructions before installation. Save instructions for later use.
• Turn off power at fuse or circuit breaker box before installation of before doing any maintenance work.
• Wear rubber soled shoes and work should be done on a sturdy wooden or non-conductive ladder.
• Product must be mounted in locations and at heights in a manner consistent with its intended use, and in compliance with National
Electrical Code and local building codes. For indoor use only.
• Product must be grounded to avoid potential electric shock and any other potential hazards.
• Do not exceed the nominal supply voltage or amperage ratings.
• Make sure all screws are properly tightened.
• Do not install any lamp holder closer than 6” from any curtain or similar combustible material.
• Use only fixtures and fittings intended for use with Con-Tech Decorative Stemlight Pendant systems.
• Installing contrary to instructions may cause unsafe conditions.
• Warning: Risk of fire. Most dwellings built before 1985 have supply wire rated at 60˚C. Consult a qualified electrician before installation.
• Warning: Risk of burns. Lamps are extremely hot when lit. Allow lamps to cool down in temperature before handling.
• To avoid hazards to children, account for all parts and properly dispose of all packing materials.
• Call the Technical Support department at Con-Tech Lighting with any installation questions: 847-559-5500.
