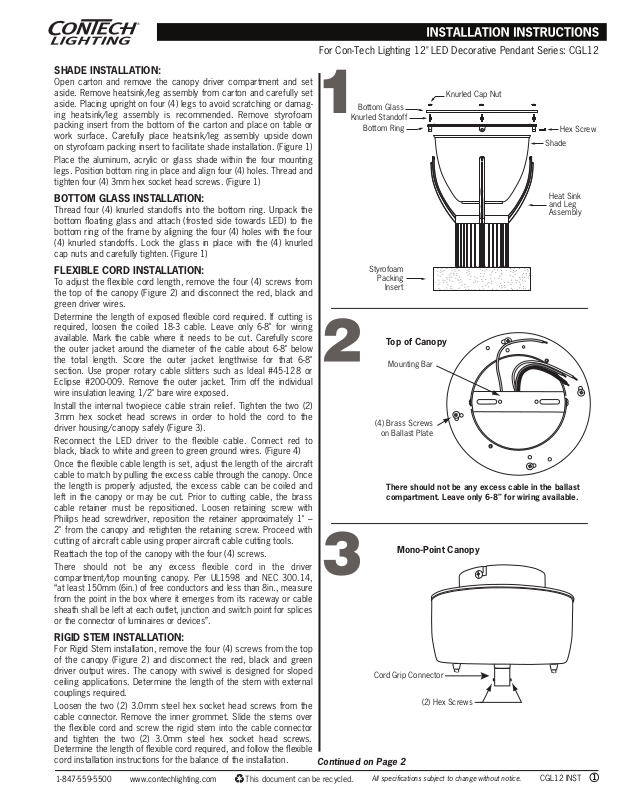

ConTech Lighting CGL12 User Manual

For Con-Tech Lighting 12" LED Decorative Pendant Series: CGL12

SHADE INSTALLATION:

Open carton and remove the canopy driver compartment and set
aside. Remove heatsink/leg assembly from carton and carefully set
aside. Placing upright on four (4) legs to avoid scratching or damag­ing heatsink/leg assembly is recommended. Remove styrofoam
packing insert from the bottom of the carton and place on table or
work surface. Carefully place heatsink/leg assembly upside down
on styrofoam packing insert to facilitate shade installation. (Figure 1)

Place the aluminum, acrylic or glass shade within the four mounting
legs. Position bottom ring in place and align four (4) holes. Thread and
tighten four (4) 3mm hex socket head screws. (Figure 1)

BOTTOM GLASS INSTALLATION:

Thread four (4) knurled standoffs into the bottom ring. Unpack the
bottom floating glass and attach (frosted side towards LED) to the
bottom ring of the frame by aligning the four (4) holes with the four
(4) knurled standoffs. Lock the glass in place with the (4) knurled
cap nuts and carefully tighten. (Figure 1)

FLEXIBLE CORD INSTALLATION:

To adjust the flexible cord length, remove the four (4) screws from
the top of the canopy (Figure 2) and disconnect the red, black and
green driver wires.

Determine the length of exposed flexible cord required. If cutting is
required, loosen the coiled 18-3 cable. Leave only 6-8" for wiring
available. Mark the cable where it needs to be cut. Carefully score
the outer jacket around the diameter of the cable about 6-8" below
the total length. Score the outer jacket lengthwise for that 6-8"
section. Use proper rotary cable slitters such as Ideal #45-128 or
Eclipse #200-009. Remove the outer jacket. Trim off the individual
wire insulation leaving 1/2" bare wire exposed.

Install the internal two-piece cable strain relief. Tighten the two (2)
3mm hex socket head screws in order to hold the cord to the
driver housing/canopy safely (Figure 3).

Reconnect the LED driver to the flexible cable. Connect red to
black, black to white and green to green ground wires. (Figure 4)

Once the flexible cable length is set, adjust the length of the aircraft
cable to match by pulling the excess cable through the canopy. Once
the length is properly adjusted, the excess cable can be coiled and
left in the canopy or may be cut. Prior to cutting cable, the brass
cable retainer must be repositioned. Loosen retaining screw with
Philips head screwdriver, reposition the retainer approximately 1" –
2" from the canopy and retighten the retaining screw. Proceed with
cutting of aircraft cable using proper aircraft cable cutting tools.

Reattach the top of the canopy with the four (4) screws.
There should not be any excess flexible cord in the driver

compartment/top mounting canopy. Per UL1598 and NEC 300.14,
“at least 150mm (6in.) of free conductors and less than 8in., measure
from the point in the box where it emerges from its raceway or cable
sheath shall be left at each outlet, junction and switch point for splices
or the connector of luminaires or devices”.

Bottom Glass

Knurled Standoff

Bottom Ring

Styrofoam

Packing

Insert

Top of Canopy

Mounting Bar

(4) Brass Screws

on Ballast Plate

There should not be any excess cable in the ballast
compartment. Leave only 6-8" for wiring available.

Mono-Point Canopy

Knurled Cap Nut

Hex Screw

Shade

Heat Sink
and Leg
Assembly

RIGID STEM INSTALLATION:

For Rigid Stem installation, remove the four (4) screws from the top
of the canopy (Figure 2) and disconnect the red, black and green
driver output wires. The canopy with swivel is designed for sloped
ceiling applications. Determine the length of the stem with external
couplings required.

Loosen the two (2) 3.0mm steel hex socket head screws from the
cable connector. Remove the inner grommet. Slide the stems over
the flexible cord and screw the rigid stem into the cable connector
and tighten the two (2) 3.0mm steel hex socket head screws.
Determine the length of flexible cord required, and follow the flexible
cord installation instructions for the balance of the installation.

1-847-559-5500 This document can be recycled.

www.contechlighting.com

Continued on Page 2

Cord Grip Connector

(2) Hex Screws

All specifications subject to change without notice.

CGL12 INST

1

CANOPY INSTALLATION:

Prior to installation, ensure a 4" Round or Square (with a Round-to­Square Junction Box Cover Plate) Junction Box is properly
mounted to the ceiling structure

Loosen the two (2) side screws on the canopy (Figure 4), unhook
safety chain and remove mounting bracket from the canopy.
Attach the mounting bracket to junction box.

Position canopy and pendant assembly close to mounting bracket
and reconnect safety chain.

ELECTRICAL CONNECTION:

Connect the primary leads from the junction box to the primary
leads of the fixture (Black-to-Black, White-to-White and Green-to­Ground). (Figure 4)

Carefully tuck excess wires and connectors in Junction Box while
positioning the canopy in place. Twist and lock canopy and tighten
side screws to complete assembly.

IMPORTANT SAFETY INSTRUCTIONS:

• Read all the instructions before installation. Save instructions for
later use.

• Turn off power at fuse or circuit breaker box before installation
of before doing any maintenance work.

• Wear rubber soled shoes and work should be done on a sturdy
wooden or non-conductive ladder.

•

Product must be mounted in locations and at heights in a manner
consistent with its intended use, and in compliance with National
Electrical Code and local building codes. For indoor use only.

• Product must be grounded to avoid potential electric shock and
any other potential hazards.

• Do not exceed the nominal supply voltage or amperage ratings.

• Make sure all screws are properly tightened.

• Do not install any lamp holder closer than 6" from any curtain or
similar combustible material.

• Use only fixtures and fittings intended for use with Con-Tech
Decorative Stemlight Pendant systems.

• Installing contrary to instructions may cause unsafe conditions.

Warning: Risk of fire. Most dwellings built before 1985 have supply

•
wire rated at 60˚C. Consult a qualified electrician before installation.

• Warning: Risk of burns. Lamps are extremely hot when lit. Allow
lamps to cool down in temperature before handling.

• To avoid hazards to children, account for all parts and properly
dispose of all packing materials.

• Call the Technical Support department at Con-Tech Lighting with
any installation questions: 847-559-5500.

For Con-Tech Lighting 12" LED Decorative Pendant Series: CGL12
