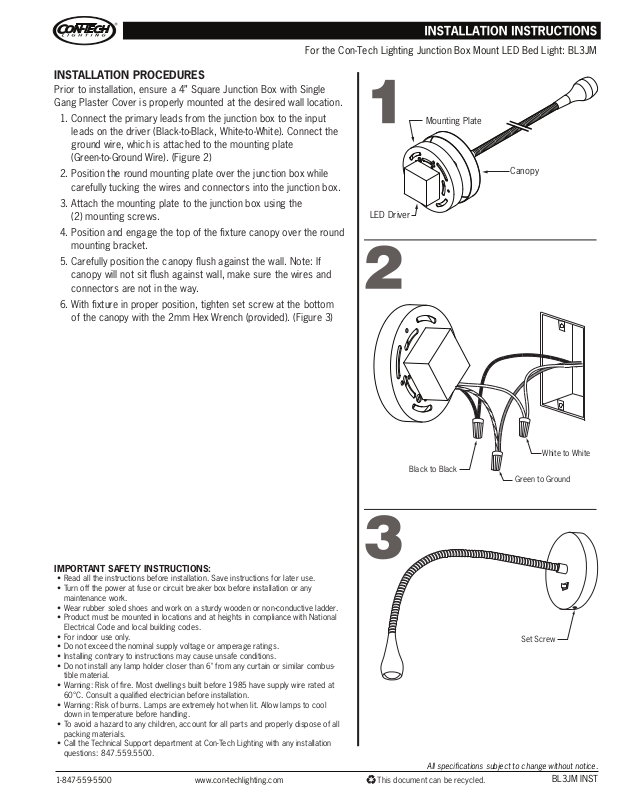

ConTech Lighting BL3JM User Manual
For the Con-Tech Lighting Junction Box Mount LED Bed Light: BL3JM
INSTALLATION PROCEDURES
Prior to installation, ensure a 4” Square Junction Box with Single
Gang Plaster Cover is properly mounted at the desired wall location.
1. Connect the primary leads from the junction box to the input
leads on the driver (Black-to-Black, White-to-White). Connect the
ground wire, which is attached to the mounting plate
(Green-to-Ground Wire). (Figure 2)
2. Position the round mounting plate over the junction box while
carefully tucking the wires and connectors into the junction box.
3. Attach the mounting plate to the junction box using the
(2) mounting screws.
4. Position and engage the top of the fixture canopy over the round
mounting bracket.
5. Carefully position the canopy flush against the wall. Note: If
canopy will not sit flush against wall, make sure the wires and
connectors are not in the way.
6. With fixture in proper position, tighten set screw at the bottom
of the canopy with the 2mm Hex Wrench (provided). (Figure 3)
Mounting Plate
Canopy
LED Driver
Black to Black
IMPORTANT SAFETY INSTRUCTIONS:
• Read all the instructions before installation. Save instructions for later use.
• Turn off the power at fuse or circuit breaker box before installation or any
maintenance work.
• Wear rubber soled shoes and work on a sturdy wooden or non-conductive ladder.
• Product must be mounted in locations and at heights in compliance with National
Electrical Code and local building codes.
• For indoor use only.
• Do not exceed the nominal supply voltage or amperage ratings.
• Installing contrary to instructions may cause unsafe conditions.
• Do not install any lamp holder closer than 6" from any curtain or similar combus-
tible material.
• Warning: Risk of fire. Most dwellings built before 1985 have supply wire rated at
60°C. Consult a qualified electrician before installation.
• Warning: Risk of burns. Lamps are extremely hot when lit. Allow lamps to cool
down in temperature before handling.
• To avoid a hazard to any children, account for all parts and properly dispose of all
packing materials.
• Call the Technical Support department at Con-Tech Lighting with any installation
questions: 847.559.5500.
All specifications subject to change without notice.
1-847-559-5500 This document can be recycled.
www.con-techlighting.com
White to White
Green to Ground
Set Screw
BL3JM INST
