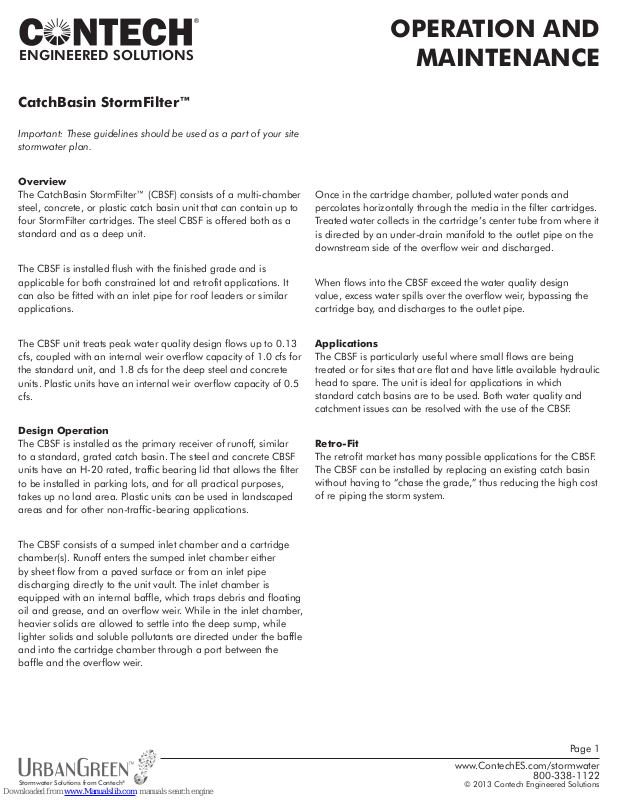

CatchBasin StormFilter™
Important: These guidelines should be used as a part of your site
stormwater plan.
Overview
The CatchBasin StormFilter™ (CBSF) consists of a multi-chamber
steel, concrete, or plastic catch basin unit that can contain up to
four StormFilter cartridges. The steel CBSF is offered both as a
standard and as a deep unit.
The CBSF is installed flush with the finished grade and is
applicable for both constrained lot and retrofit applications. It
can also be fitted with an inlet pipe for roof leaders or similar
applications.
OPERATION AND
MAINTENANCE
Once in the cartridge chamber, polluted water ponds and
percolates horizontally through the media in the filter cartridges.
Treated water collects in the cartridge’s center tube from where it
is directed by an under-drain manifold to the outlet pipe on the
downstream side of the overflow weir and discharged.
When flows into the CBSF exceed the water quality design
value, excess water spills over the overflow weir, bypassing the
cartridge bay, and discharges to the outlet pipe.
The CBSF unit treats peak water quality design flows up to 0.13
cfs, coupled with an internal weir overflow capacity of 1.0 cfs for
the standard unit, and 1.8 cfs for the deep steel and concrete
units. Plastic units have an internal weir overflow capacity of 0.5
cfs.
Design Operation
The CBSF is installed as the primary receiver of runoff, similar
to a standard, grated catch basin. The steel and concrete CBSF
units have an H-20 rated, traffic bearing lid that allows the filter
to be installed in parking lots, and for all practical purposes,
takes up no land area. Plastic units can be used in landscaped
areas and for other non-traffic-bearing applications.
The CBSF consists of a sumped inlet chamber and a cartridge
chamber(s). Runoff enters the sumped inlet chamber either
by sheet flow from a paved surface or from an inlet pipe
discharging directly to the unit vault. The inlet chamber is
equipped with an internal baffle, which traps debris and floating
oil and grease, and an overflow weir. While in the inlet chamber,
heavier solids are allowed to settle into the deep sump, while
lighter solids and soluble pollutants are directed under the baffle
and into the cartridge chamber through a port between the
baffle and the overflow weir.
Applications
The CBSF is particularly useful where small flows are being
treated or for sites that are flat and have little available hydraulic
head to spare. The unit is ideal for applications in which
standard catch basins are to be used. Both water quality and
catchment issues can be resolved with the use of the CBSF.
Retro-Fit
The retrofit market has many possible applications for the CBSF.
The CBSF can be installed by replacing an existing catch basin
without having to “chase the grade,” thus reducing the high cost
of re piping the storm system.
®
Page 1
www.ContechES.com/stormwater
800-338-1122
© 2013 Contech Engineered Solutions
Page 2
Stormwater Solutions from Contech
ENGINEERED SOLUTIONS
CatchBasin StormFilter™
OPERATION AND
MAINTENANCE
Maintenance Guidelines
Maintenance procedures for typical catch basins can be applied
to the CatchBasin StormFilter (CBSF). The filter cartridges
contained in the CBSF are easily removed and replaced during
maintenance activities according to the following guidelines.
1. Establish a safe working area as per typical catch basin
service activity.
2. Remove steel grate and diamond plate cover (weight 100
lbs. each).
3. Turn cartridge(s) counter-clockwise to disconnect from pipe
manifold.
4. Remove 4” center cap from cartridge and replace with
lifting cap.
5. Remove cartridge(s) from catch basin by hand or with vactor
truck boom.
6. Remove accumulated sediment via vactor truck (min.
clearance 13” x 24”).
7. Remove accumulated sediment from cartridge bay. (min.
clearance 9.25” x 11”).
8. Rinse interior of both bays and vactor remaining water and
sediment.
9. Install fresh cartridge(s) threading clockwise to pipe
manifold.
10. Replace cover and grate.
Mosquito Abatement
In certain areas of the United States, mosquito abatement is
desirable to reduce the incidence of vectors.
In BMPs with standing water, which could provide mosquito
breeding habitat, certain abatement measures can be taken.
1. Periodic observation of the standing water to determine if
the facility is harboring mosquito larvae.
2. Regular catch basin maintenance.
3. Use of larvicides containing Bacillus thuringiensis israelensis
(BTI). BTI is a bacterium toxic to mosquito and black fly
larvae.
In some cases, the presence of petroleum hydrocarbons may
interrupt the mosquito growth cycle.
Using Larvicides in the CatchBasin StormFilter
Larvicides should be used according to manufacturer’s
recommendations.
Two widely available products are Mosquito Dunks and
Summit B.t.i. Briquets. For more information, visit http://www.
summitchemical.com/mos_ctrl/d efault.htm.
The larvicide must be in contact with the permanent pool. The
larvicide should also be fastened to the CatchBasin StormFilter
by string or wire to prevent displacement by high flows. A
magnet can be used with a steel catch basin.
11. Return original cartridges to Contech for cleaning.
Media may be removed from the filter cartridges using the
vactor truck before the cartridges are removed from the catch
basin structure. Empty cartridges can be easily removed from
the catch basin structure by hand. Empty cartridges should be
reassembled and returned to Contech as appropriate.
Materials required include a lifting cap, vactor truck and
fresh filter cartridges. Contact Contech for specifications and
availability of the lifting cap. The vactor truck must be equipped
with a hose capable of reaching areas of restricted clearance.
the owner may refresh spent cartridges. Refreshed cartridges are
also available from Contech on an exchange basis. Contact the
maintenance department of Contech at 503-258-3157 for more
information.
Maintenance is estimated at 26 minutes of site time. For units
with more than one cartridge, add approximately 5 minutes for
each additional cartridge. Add travel time as required.
®
For more information on mosquito abatement in stormwater
BMPs, refer to the following: http://www.ucmrp.ucdavis.edu/
publications/managingmosquitoesstormwater8125.pdf
