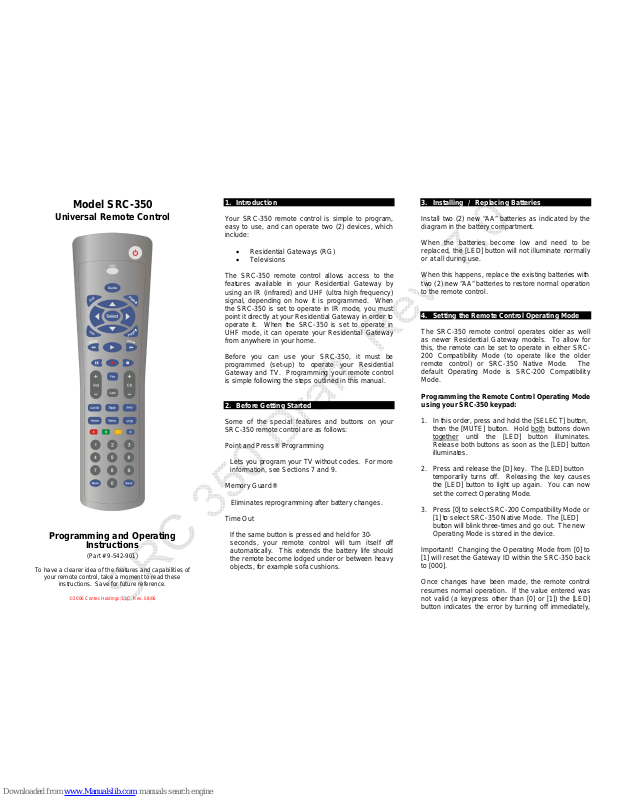

Page 1
Model SRC-350
Universal Remote Control
Programming and Operating
Instructions
(Part # 9-542-901)
To have a clearer idea of the features and capabilities of
your remote control, take a moment to read these
instructions. Save for future reference.
© 2006 Contec Holdings, LLC, Rev. 08/06
1. Introduction
Your SRC-350 remote control is simple to program,
easy to use, and can operate two (2) devices, which
include:
• Residential Gateways (RG)
• Televisions
The SRC-350 remote control allows access to the
features available in your Residential Gateway by
using an IR (infrared) and UHF (ultra high frequency)
signal, depending on how it is programmed. When
the SRC-350 is set to operate in IR mode, you must
point it directly at your Residential Gateway in order to
operate it. When the SRC-350 is set to operate in
UHF mode, it can operate your Residential Gateway
from anywhere in your home.
Before you can use your SRC-350, it must be
programmed (set-up) to operate your Residential
Gateway and TV. Programming your remote control
is simple following the steps outlined in this manual.
2. Before Getting Started
Some of the special features and buttons on your
SRC-350 remote control are as follows:
Point and Press® Programming
Lets you program your TV without codes. For more
information, see Sections 7 and 9.
Memory Guard®
Eliminates reprogramming after battery changes.
Time Out
If the same button is pressed and held for 30-
seconds, your remote control will turn itself off
automatically. This extends the battery life should
the remote become lodged under or between heavy
objects, for example sofa cushions.
3. Installing / Replacing Batteries
Install two (2) new “AA” batteries as indicated by the
diagram in the battery compartment.
When the batteries become low and need to be
replaced, the [LED] button will not illuminate normally
or at all during use.
When this happens, replace the existing batteries with
two (2) new “AA” batteries to restore normal operation
to the remote control.
4. Setting the Remote Control Operating Mode
The SRC-350 remote control operates older as well
as newer Residential Gateway models. To allow for
this, the remote can be set to operate in either SRC200 Compatibility Mode (to operate like the older
remote control) or SRC-350 Native Mode. The
default Operating Mode is SRC-200 Compatibility
Mode.
Programming the Remote Control Operating Mode
using your SRC-350 keypad:
1. In this order, press and hold the [SELECT] button,
then the [MUTE] button. Hold both buttons down
together
until the [LED] button illuminates.
Release both buttons as soon as the [LED] button
illuminates.
2. Press and release the [D] key. The [LED] button
temporarily turns off. Releasing the key causes
the [LED] button to light up again. You can now
set the correct Operating Mode.
3. Press [0] to select SRC-200 Compatibility Mode or
[1] to select SRC-350 Native Mode. The [LED]
button will blink three-times and go out. The new
Operating Mode is stored in the device.
Important! Changing the Operating Mode from [0] to
[1] will reset the Gateway ID within the SRC-350 back
to [000].
Once changes have been made, the remote control
resumes normal operation. If the value entered was
not valid (a keypress other than [0] or [1]) the [LED]
button indicates the error by turning off immediately,
Page 2
and the remote returns to normal operation. All
values in the device remain unchanged.
LED Playback of the Remote Control Operating
Mode:
1. In this order, press and hold the [SELECT] button,
then the [MUTE] button. Hold both
buttons down
together
until the [LED] button illuminates.
Release both buttons as soon as the [LED] button
illuminates.
2. Press [INFO], then [D]. The [LED] button will
“blink back” the Remote Control Operating Mode.
Please note that for the numeric [0], the [LED]
button will blink in fast-sequence.
5. Setting The Gateway ID
The Gateway ID allows your remote to talk to your
Residential Gateway. The Gateway ID that you
program into the remote must also be programmed
into your Residential Gateway. The Gateway ID
programming mode allows you to set the Gateway ID
in both. Refer to your Residential Gateway User
Guide for instructions on determining the Gateway ID
in your Residential Gateway.
NOTE: The SRC-350 Remote Control must be
pointed at the Residential Gateway to program the
Gateway ID in the Residential Gateway. All Remote
Controls must be programmed with the same
Gateway ID in order to communicate with the
Gateway.
Programming the Gateway ID using your SRC-350
keypad:
1. In this order, press and hold the [SELECT] button,
then the [MUTE] button. Hold both buttons down
together
until the [LED] button illuminates.
Release both buttons as soon as the [LED] button
illuminates.
2. Press and release the [B] key. The [LED] button
temporarily turns off. Releasing the key causes
the [LED] button to light up again. You can now
set the correct Gateway ID.
3. Enter the three-digit code assigned to your RG.
The valid range is 004 - 999 for SRC-350s set to
SRC-350 Native Mode. For SRC-350s set to
SRC-200 Compatibility Mode, the valid range is
004 - 255. Enter a three-digit number, even if it
contains leading zeroes. Examples of valid values
are: 009, 012, 354, or 988.
If you entered the Gateway ID correctly, the [LED]
button will blink three-times and go out. If the
value was not entered successfully, the [LED]
button will go off and the remote control will return
to normal operation. Repeat the steps above to
try again.
LED Playback of the Remote Control Gateway ID:
1. In this order, press and hold the [SELECT ] button,
then the [MUTE] button. Hold both
buttons down
together
until the [LED] button illuminates.
Release both buttons as soon as the [LED] button
illuminates.
2. Press [INFO], then [B]. The [LED] button will
“blink back” the Remote Control Gateway ID.
Please note that for the numeric [0], the [LED]
button will blink in fast-sequence.
6. Setting The Remote Control ID
The Remote Control ID allows you to control your
Residential Gateway TV viewing on a specific TV in
your home. Your Network Service Provider uses the
following table when programming your Remote
Control ID to work with each TV in your household:
Remote
Control
ID
Operates TV Mode
0
Local TV1 - TV in
same room as the
RG. Remote is set
to operate in IR
mode.
IR
1
Remote TV1 - TV
in a different room
than the RG.
UHF
2 TV2 (remote TV). UHF
3
TV3 (3-stream
models only).
UHF
Programming the Remote Control ID using your
SRC-350 keypad:
1. In this order, press and hold the [SELECT ] button,
then the [MUTE] button. Hold both
buttons down
together
until the [LED] button illuminates.
Release both buttons as soon as the [LED] button
illuminates.
2. Press and release the [A] key. The [LED] button
temporarily turns off. Releasing the key causes
the [LED] button to light up again. You can now
set the correct Remote Control ID.
3. Enter the single-digit Remote Control ID from the
table above. The [LED] button will blink threetimes and go out. The new Remote Control ID is
stored in the device.
Note: Valid single-digit codes are 0, 1, 2, or 3. If you
entered an invalid sequence or a 30-second lapse
between button presses occurs, the [LED] button will
turn off and the remote control will return to normal
operation.
LED Playback of the Remote Control ID:
1. In this order, press and hold the [SELECT ] button,
then the [MUTE] button. Hold both
buttons down
together
until the [LED] button illuminates.
Release both buttons as soon as the [LED] button
illuminates.
2. Press [INFO], then [A]. The [LED] button will
“blink back” the Remote Control ID. Please note
that for the numeric [0], the [LED] button will blink
in fast-sequence.
7. Programming Your TV
Your Network Service Provider programs your remote
control to work with your TV by way of a TV Setup
Code. The TV Setup Code is a specific code for each
brand and model of TV. When a TV Setup Code is
set, the remote control is ready to operate the TV.
The TV Setup Codes can be programmed manually,
or they can be auto-scanned. Each method is
described below.
Page 3
Code-Entry (Manual) TV Programming using your
SRC-350 keypad:
1. Turn on your TV.
2. In this order, press and hold the [SELECT] button,
then the [MUTE] button. Hold both buttons down
together
until the [LED] button illuminates.
Release both buttons as soon as the [LED] button
illuminates.
3. a. Locate the three-digit code for your brand in
the TV Setup Code list (Section 11) and enter
it on the keypad of the remote control. Entry of
the correct code will cause your TV to turn off.
If multiple codes are listed for your brand, you
may have to enter several different codes until
your TV turns off.
b. As soon as you have entered a three-digit
code that turns your TV off, press [MUTE].
1. If the TV turns back on, press [SELECT] to
lock in the code. The [LED] button will
blink three-times and go out.
Or
2. If the TV does not turn back on, enter a
different three-digit setup code until your
TV turns back on. Then press [SELECT ]
to lock in the code. The [LED] button will
blink three-times and go out.
Point and Press
®
(Auto-Scan) TV Programming
using your SRC-350 keypad:
This method allows you to program
your remote
control without
codes using the [S] or [T] buttons
("Power" function during programming). For more
information on this method as well as other buttons
you can program your remote with, see Section 9.
1. Turn on your TV.
2. In this order, press and hold the [SELECT ] button,
then the [MUTE] button. Hold both buttons down
together
until the [LED] button illuminates.
Release both buttons as soon as the [LED] button
illuminates.
3. Press [S] one
step at a time until your TV turns
off. Each time you press the [S] button, the [LED]
button will blink. As soon as your TV turns off,
stop pressing the [S] button.
4. Press [MUTE]. If your TV...
a. Turns back on, press [SELECT] to lock in this
code. The [LED] button will blink three-times
and go out.
Or
b. Does not turn back on, press the [T] button
one step at a time until your TV turns back on.
Each time you press the [T] button, the [LED]
button will blink and remain illuminated.
Once you have found a code that turns the
device on / off, press [SELECT] to lock in this
code. The [LED] button will blink three-times
and go out.
Note: Given the size of the TV Setup Code library in
your remote control, it will take several minutes to
cycle through all the codes when using the Point and
Press Programming method.
8. TV Code Number Readback
To identify the three-digit TV Setup Code stored
under the Point and Press
®
programming method,
follow these steps using the remote control keypad…
1. In this order, press and hold the [SELECT ] button,
then the [MUTE] button. Hold both buttons down
together
until the [LED] button illuminates.
Release both buttons as soon as the [LED] button
illuminates.
2. Press [INFO], then [C]. The [LED] button will
“blink back” the code numbers, with a 1-second
interval between each digit of the code. Please
note that for the numeric [0], the [LED] button will
blink in fast-sequence.
Example: For TV Setup Code “130”, the remote
will blink 1 time, then 3 times, then in a fastsequence for the 0.
9. Additional Programming Information
1. The [LED] button will illuminate while the remote is
in a programming mode. In the absence of a
keypress entry, the [LED] button will stop
illuminating after 30 seconds and the remote will
exit the programming mode.
2. The Point and Press® (Auto-Scan) Programming
method allows you to program
your remote control
without
using codes. Instead, the remote control
automatically finds the correct TV setup code
using certain buttons / commands that you select.
Once you have found a setup codes that operates
your TV, you then lock it in.
3. When using the Point and Press® Programming
Method, there are several important points to
remember:
• There may be several codes that turn your TV
on / off (or perform other functions).
• It may take several minutes for the remote to
find the correct code that turns your TV on /
off (or performs another selected function).
During this time, the [LED] button will
illuminate.
4. When programming the remote control using the
[S] or [T] buttons (Power function) under the
Point and Press
®
Programming method, you may
find a code that turns your TV off but not back on.
If this happens…
• The correct TV code has not been found as
you may you may have a code that operates
some but not all of the functions of your TV.
Continue pressing [S] until your TV turns
back on.
OR
• You may have gone past the correct matching
code. Try pressing [T] one
press at a time
until you find a code that turns your TV back
on.
Page 4
5. When using the Point and Press® Programming
method, you can also program your remote using
the following buttons:
• [VOL S] – to “go forward” through the codes
using the “VOL S” function on your TV.
• [VOL T] – to “go back” through the codes
using the “VOL T“ function on your TV.
Note: When you find the correct code, the
volume of the TV being programmed will
increase or decrease.
FCC Warning: This device complies with Part 15 of
the FCC Rules. Changes or modifications to this
device not expressly approved by the parties
responsible for compliance could void the user’s
authority to operate this remote control.
Rev. 08/06
© 2006, Contec Holdings, LLC
Point and Press
®
and Memory Guard
®
are registered
trademarks of Contec Holdings, LLC
MOTOROLA and the stylized M logo are registered in
the U.S. Patent and Trademark office
Page 5
10. Using Your SRC-350 Remote Contro
l
Power: Powers TV on/off and tunes to default
channel.
Page up and down: Pages up and down in
program guide and menus.
Select: Selects highlighted option.
Day forward: Moves program guide forward
24 hours. Video on demand fast forward if
service is available.
Ch: Changes program channel.
Last: Tunes to last channel.
PPV: Displays pay per view menu.
VOD: Launches VOD (video on demand)
menu, if provided.
Menu: Displays main menu.
A, B, C, D and Text: Reserved for Teletext
and interactive TV functions, if service is
available.
Number pad: Selects channels
Back: Moves back to the previous screen
.
[LED]: Lights when any button on the remote
is pressed.
Guide: Displays interactive program guide.
Exit: Exits the current function.
Directionals: Moves cursor in program guide
and menus.
Info: Displays current channel and program
guide and menus.
Day back: Moves program guide back 24
hours. Video on demand rewind control if
service is available.
Play, Record, Pause, Stop: Video on demand
controls if service is available.
Fav: Scans through favorite channels.
Vol: Adjusts TV volume.
Call ID: Opens caller ID screen.
Text:
Home: Displays web browser, if provided.
Mute: Mutes and unmutes TV sound.
Page 6
11. TV Setu p Codes
Brands Setup Codes
Admiral 003 018 041 087 125
129 187 194 210 211
254 084 405 147 063
146
Advent 251 179 425 075 139
107 027 010 447 150
Adventura 214 471
Aiwa 194 251 214 471 179
Akai 000 005 006 032 070
072 075 107 108 120
135 139 149 462 281
269 131 027 150
Amark 032 098 120 224 215
244 281 144 219
Amstrad 033 157
Anam 005 009 021 032 041
120 121 183 221 223
217 281 269
AOC 005 006 019 024 032
120 140 053 095 108
281 269 131
Apex 038 427 108 131
AudioVox 024 032 041 120 130
465 121 250 154
Aiko 024
Alaron 187
Anam 211 146
Archer 032 120 281
Audio Dynamics 238
Belcor 005 269
Bell & Howell 018 194 211 405 146
Broksonic 005 010 027 174 176
225 226 245 167 037
269 107
Brokwood 005 269
BPL 144 098
Candle 005 006 022 025 091
206 380 269
Centurion 005 006 194 095 107
108 269 131 027
Citizen 005 006 010 016 018
022 024 025 027 098
202 224 068 091 211
Brands Setup Codes
233 380 269 405 144
107 146
Concerto 005 010 027 095 269
107
Contec 017 041 054 181 185
227
Coronado 098 224 244 144 219
Craig 021 041 223
Crown 041 098 224 244 144
219
Curtis Mathes 005 006 010 016 018
027 059 098 125 131
194 202 210 224 231
251 107 108 211 144
244 003 087 084 269
219 147 063 146
CXC 041
Capehart 019
Carver 010 027 107
Corando 098 224 144
Coronado 098 224 144
Daewoo 005 010 024 027 029
030 032 098 120 130
214 215 224 247 250
252 158 196 095
197 202 204 205 206
207 209 194 154 007
033 281 269 144 107
Daytron 006 024 098 194 224
144 131 027 095 107
108 005 269
Dumont 001 005 269 249
Electro Home 072 098 149 224 240
095 005 269 144
Elektra 184
Emerson 005 017 033 035 037
038 039 041 054 098
130 132 141 143 176
181 185 187 194 203
222 223 224 225 226
227 251 252 253 167
144 244 006 167 103
158
169 392 400 401 408
269 219 250
Brands Setup Codes
Envision 006 095 005 269
ESA 454 456
DBX 238
Denon 052 266
Dimensia 125 147 063
Dixi 010 027 032 120 281
107
Fisher 042 099 194 217
Funai 024 041 132 187 251
157 211 179 223 146
Fujitsu 187 460 469
Furturetech 041
Gateway 156
GE 003 005 008 009 043
087 125 130 143 147
165 182 206 210 211
228 231 233 248 095
015 101 018 042 090
406 407 183 146 001
249 063 084 194 269
405 250
Gibralta 090 095 107 108 233
360 224 223 006 206
005 269 131 027
Goldstar (LG) 005 006 010 027 045
098 168 194 223 224
230 238 090 107 108
233 360 224 206 269
144 131
Gradiente 057 060 397
Grundig 233
GO-Video 443
Granada 010 027 107
Hall Mark 005 095 269
Hitachi 005 017 018 024 048
049 050 051 052 053
054 055 098 116 126
142 160 185 224 206
266 269 405 144 219
231 251 095 098 244
Hyundai 453
Harman Kardon 238
Hinari 010 027 187 107
Inkel 364
Insignia 450 461 456
Page 7
Brands Setup Codes
Infinity 010 027 107
JC Penney 003 005 006 014 016
043 072 087 096 098
125 131 149 165 194
202 206 210 223 228
269 144 108 218 084
147 063 224 231 238
242 095
Jensen 056 062
JVC 057 059 060 234 235
238 397 410 008 165
JBL 010 027 107
Kawasho 061 095 005 269
KMC 098 224 144
Konka 236 445 041
KTV 005 006 039 041 098
224 233 269 244 144
219
Kurazai 211 018 405 146
KEC 041
Kenwood 006 235 251
Kloss 022 110 175 380
LG (Goldstar) 090 107 108 233 360
224 006 206 005 045
244 269 131 219 027
Lodgenet 018 211 405 146
Logik 018 211 405 146
Luxman 005 095 206 269
LXI 003 005 010 027 087
125 129 131 132 194
223 251 024 157 254
269 108 107 084 147
063
Lloytron 098 224 144
Loewe 010 027 107
Magnavox (Phillips) 000 005 006 008 010
017 024 025 027 054
067 068 098 110 132
154 167 175 187 251
254 090 091 404 397
419 057 060 206 075
472 269 144 107 150
185 129 194 216 224
231 237
Majestic 018 211 405 146
Brands Setup Codes
Marantz 005 006 010 027 068
072 149 237 238 107
108 109 269 189 131
Megatron 215
Memorex 005 018 032 072 120
149 187 194 219 223
242 244 248 251 090
211 405 101 245 281
269 405 218 146
MGA 005 006 071 072 149
187 194 240 090 095
384 394 107 108 109
110 070 206 017 054
185 269 189 131 027
Mitsubishi 005 006 071 072 149
187 194 240 017 054
070 123 239 090 095
384 394 107 108 149
269 189 131 027 185
109 110 206 187 158
Mintek 470
Montgomery Ward 108 211 141 129 006
067 075 018 244 254
068 150 405 131 219
150 146
MTC 005 006 010 016 024
027 202 251 269 107
Magnasonic 010 024 027 129 131
187 108 107 254
Marta 223
Matsui 010 027 032 109 120
281 189 107
Midland 001 003 087 165 084
249
Multitech 041 251
NEC 005 006 007 183 191
194 090 108 129 206
254 269 131
Norcent 455 472
NAD 002 005 131 166 269
108
National 008 010 011 012 027
146 190 211 241 107
Nikkai 010 027 113 131 108
107
Brands Setup Codes
Orion 010 027 037 176 212
225 226 019 160 161
163 382 033 216 107
Onwa 041
Optimus 012 166 194 242 241
218
Optonica 129 254
Osume 017 054 185
Panasonic 008 009 010 011 012
127 148 165 177 183
211 218 231 241 242
042 429 146
Philco 005 006 010 024 025
027 052 067 068 072
098 110 149 175 176
183 216 224 237 150
266 269 144 219 107
251 091 206 075 244
Philips (Magnavox) 000 005 006 008 010
017 024 025 027 054
067 068 098 110 132
154 167 175 187 194
216 224 231 237 251
254 136 137 138 150
220 223 206 228 075
397 090 404 091 419
472 269 144 107 150
185 129
Pilot 005 027 107 233 269
Pioneer 002 008 048 051 076
131 166 235 111 383
108
Planar 474
Polaroid 384 394
Portland 005 024 098 224 206
244 269 144 219
Prima 075 150
Proscan 005 125 147 152 210
233 147 070 269 063
Proton 005 006 013 019 098
224 013 090 371 269
144
Protron 457 467
Proview 459
Pulsar 001 024 048 005 269
Page 8
Brands Setup Codes
249
Quasar 008 009 012 165 183
211 231 242 241 218
146
Radio Shack 003 005 041 072 087
098 141 149 194 224
230 242 251 269 144
218 084
Realistic 005 006 035 041 098
141 194 222 223 224
251 269 144
RCA 003 005 008 014 048
063 072 078 079 080
082 084 085 086 087
125 130 147 149
233 251 254 006 206
042 266 070 416 269
250 160 182 183 210
231
Runco 001 006 243 249
Sampo 006 019 156 194 090
108 131
Samsung 005 006 010 016 027
032 098 120 155 157
167 194 202 219 221
224 229 244 246 411
108 107 017 090 224
181 144 281 269 144
131 107 054 185 247
153 015 386 151
Sansui 176 225 235 251 424
245
Sanyo 042 089 092 109 184
194 217 219 244 135
189
Sceptre 468
Scott 005 006 037 041 093
098 187 194 224 247
090 108 269 144 131
Sears 003 005 010 016 027
042 087 096 098 099
101 102 104 125 131
132 184 187 194 038
244 155 206 108 229
269 144 219 107 084
Brands Setup Codes
147 063 202 217 223
224 251
Sharp 017 054 098 129 141
200 224 254 409 024
025 393 144 244 224
187 219 185
Signature 2000 010 018 027 251 108
211 244 224 254 129
405 131 219 107 146
Sony 000 109 180 189 232
178 191
Soundesign 005 025 041 187 251
091 269
Squareview 157
Superscan 419
Supre-Macy 005 022 380 269
Sylvania 005 006 010 024 025
027 068 098 110 132
175 194 224 237 240
251 131 090 091 107
108 157 158 419 228
075 150 067 206 269
144
Symphonic 132 179 251 157
Starlite 041
Spectricon 032 120 281
Tatung 009 010 027 183 211
446 107 146
TechWood 005 165 206 269
Teknika 005 010 016 018 022
024 025 027 041 072
098 114 149 187 202
223 224 251 091
269 405 144 219 107
244 075 150 206 380
Telerent 018 098 224 244 405
144 219
Tera 381
Tevion 065 414
TMK 005 090 206 269
Toshiba 016 017 054 096 131
194 202 240 245 247
038 108 155 229 185
Totevision 098 223 224 233 144
TIVO 136 137 138
Brands Setup Codes
Tandy 098 113 129 224 251
144 254
Teac 251
Technics 008 012 165 242 241
218
Teletech 032 120 281
Thomson 051 116 142
Universal 043 206
VidTech 005 206 269
ViewSonic 428
Vizio 095 454
Vector Research 006 238
Victor 057 060 235 397
Video concepts 070 238 251
Viking 022 380
Wards 000 005 006 010 018
027 043 067 068 125
141 182 187 194 206
224 251 090 269 405
107 147 063
White Westinghouse 037 041 130 176 194
211 408 449 458 250
146
X30SVNAGAIII 468
XR-1000 018 405
Yamaha 005 006 238 251 206
York 090 108 131
YORX 006 194
Zenith 001 018 024 178 223
225 235 248 249 251
405 406 179 154
Zonda 032 120 281
Loading...
