Contec SPI-Q6700-LLVA User Manual

SPI-Q6700-LLVA

PICMG 1.3 Full-size SBC

User’s Manual

Version 1.0

2012.08

This page is intentionally left blank.

Index

Table of Contents

Chapter 1 - Introduction .................................................................... 1

1.1 Copyright Notice ...............................................................2

1.2 Declaration of Conformity ................................................2

1.3 About This User’s Manual ................................................4

1.4 Warning ..............................................................................4

1.5 Replacing the Lithium Battery .........................................4

1.6 Technical Support .............................................................4

1.7 Warranty .............................................................................4

1.8 Packing List .......................................................................5

1.9 Ordering Information ........................................................6

1.10 Specications .................................................................. 7

1.11 Board Dimensions ........................................................... 8

1.12 Installing the CPU ...........................................................9

1.13 Installing the Memory ...................................................10

Chapter 2 - Installation .................................................................... 11

2.1 Block Diagram ................................................................12

2.2 Jumpers and Connectors ............................................... 13

2.3 Jumpers & Connectors Location ................................... 14

2.4 Jumpers ...........................................................................15

2.5 Connectors ......................................................................17

2.6 The Installation Paths of CD Driver ...............................27

Chapter 3 - BIOS .............................................................................. 29

3.1 BIOS Introduction ...........................................................30

3.2 Advanced Settings ..........................................................32

3.2.1 ACPI Settings ................................................................. 33

3.2.2 CPU Conguration ......................................................... 34

3.2.3 SATA Conguration ....................................................... 36

3.2.4 Intel® IGD SWSCI OpRegion ......................................... 37

3.2.5 Intel® Trusted Execution Technology Conguration .. 38

3.2.6 USB Conguration ......................................................... 39

3.2.7 Super IO Conguration ................................................. 40

3.2.8 H/W Monitor .................................................................... 44

3.3 Advanced Chipset Settings ............................................45

3.3.1 North Bridge ................................................................... 46

3.3.2 South Bridge ................................................................. 47

- I -

Index

3.3.3 ME Subsystem .............................................................. 50

3.4 Boot Settings ................................................................... 52

3.5 Security ............................................................................54

3.6 Exit Options .....................................................................55

3.7 Beep Sound codes list .................................................... 56

3.7.1 Boot Block Beep Codes .............................................. 56

3.7.2 POST BIOS Beep Codes.............................................. 56

3.7.3 Troubleshooting POST BIOS Beep Codes ................ 57

3.8 AMI BIOS Checkpoints ...................................................58

3.8.1 Bootblock Initialization Code Checkpoints ............... 58

3.8.2 Bootblock Recovery Code Checkpoints.................... 60

3.8.3 POST Code Checkpoints............................................. 62

3.8.4 DIM Code Checkpoints ................................................ 66

3.8.5 ACPI Runtime Checkpoints ........................................ 67

Appendix ..........................................................................................69

Appendix A: I/O Port Address Map ...................................... 70

Appendix B: BIOS Memory Map ..........................................72

Appendix C: Interrupt Request Lines (IRQ) ........................ 74

Appendix D: Digital I/O Setting ............................................75

Appendix E: Watchdog Timer (WDT) Setting ......................81

- II -

Introduction

1Chapter 1

Introduction

Chapter 1 - Introduction

- 1 -

Introduction

1.1 Copyright Notice

All Rights Reserved.

The information in this document is subject to change without prior notice in
order to improve the reliability, design and function. It does not represent a
commitment on the part of the manufacturer.

Under no circumstances will the manufacturer be liable for any direct, indirect,
special, incidental, or consequential damages arising from the use or inability
to use the product or documentation, even if advised of the possibility of such
damages.

This document contains proprietary information protected by copyright.
All rights are reserved. No part of this manual may be reproduced by any
mechanical, electronic, or other means in any form without prior written
permission of the manufacturer.

1.2 Declaration of Conformity

CE

The CE symbol on your product indicates that it is in compliance with the

directives of the Union European (EU). A Certicate of Compliance is available

by contacting Technical Support.

This product has passed the CE test for environmental specications when

shielded cables are used for external wiring. We recommend the use of
shielded cables. This kind of cable is available from Contec Solution. Please
contact your local supplier for ordering information.

This product has passed the CE test for environmental specications. Test

conditions for passing included the equipment being operated within an
industrial enclosure. In order to protect the product from being damaged by
ESD (Electrostatic Discharge) and EMI leakage, we strongly recommend the
use of CE-compliant industrial enclosure products.

Warning

This is a class A product. In a domestic environment this product may cause
radio interference in which case the user may be required to take adequate
measures.

FCC Class A

This device complies with Part 15 of the FCC Rules. Operation is subject to
the following two conditions:

- 2 -

Introduction

(1)This device may not cause harmful interference, and

(2)This device must accept any interference received, including interference
that may cause undesired operation.

NOTE:

This equipment has been tested and found to comply with the limits for a
Class A digital device, pursuant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against harmful interference when
the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed
and used in accordance with the instruction manual, may cause harmful
interference to radio communications. Operation of this equipment in a
residential area is likely to cause harmful interference in which case the user
will be required to correct the interference at his own expense.

RoHS

Contec Solution Corp. certies that all components in its products are in
compliance and conform to the European Union’s Restriction of Use of
Hazardous Substances in Electrical and Electronic Equipment (RoHS) Directive
2002/95/EC.

The above mentioned directive was published on 2/13/2003. The main
purpose of the directive is to prohibit the use of lead, mercury, cadmium,
hexavalent chromium, polybrominated biphenyls (PBB), and polybrominated
diphenyl ethers (PBDE) in electrical and electronic products. Member states of
the EU are to enforce by 7/1/2006.

Contec Solution Corp. hereby states that the listed products do not
contain unintentional additions of lead, mercury, hex chrome, PBB or PBDB that
exceed a maximum concentration value of 0.1% by weight or for cadmium
exceed 0.01% by weight, per homogenous material. Homogenous
material is dened as a substance or mixture of substances with uniform
composition (such as solders, resins, plating, etc.). Lead-free solder is used for all
terminations (Sn(96-96.5%), Ag(3.0-3.5%) and Cu(0.5%)).

SVHC / REACH

To minimize the environmental impact and take more responsibility to the

earth we live, Contec Solution hereby conrms all products comply with the

restriction of SVHC (Substances of Very High Concern) in (EC) 1907/2006
(REACH --Registration, Evaluation, Authorization, and Restriction of
Chemicals) regulated by the European Union.

All substances listed in SVHC < 0.1 % by weight (1000 ppm)

- 3 -

Introduction

1.3 About This User’s Manual

This user’s manual provides general information and installation instructions
about the product. This User’s Manual is intended for experienced users and
integrators with hardware knowledge of personal computers. If you are not
sure about any description in this booklet. Please consult your vendor before
further handling.

1.4 Warning

Single Board Computers and their components contain very delicate
Integrated Circuits (IC). To protect the Single Board Computer and its
components against damage from static electricity, you should always follow
the following precautions when handling it :

1. Disconnect your Single Board Computer from the power source when you
want to work on the inside.

2. Hold the board by the edges and try not to touch the IC chips, leads or
circuitry.

3. Use a grounded wrist strap when handling computer components.

4. Place components on a grounded antistatic pad or on the bag that comes
with the Single Board Computer, whenever components are separated
from the system.

1.5 Replacing the Lithium Battery

Incorrect replacement of the lithium battery may lead to a risk of explosion.

The lithium battery must be replaced with an identical battery or a battery type
recommended by the manufacturer.

Do not throw lithium batteries into the trash-can. It must be disposed of in
accordance with local regulations concerning special waste.

1.6 Technical Support

If you have any technical difculties, please do not hesitate to call or e-mail our

customer service.

1.7 Warranty

This product is warranted to be in good working order for a period of two years
from the date of purchase. Should this product fail to be in good working order
at any time during this period, we will, at our option, replace or repair it at no
additional charge except as set forth in the following terms. This warranty does

- 4 -

Introduction

not apply to products damaged by misuse, modications, accident or disaster.

Vendor assumes no liability for any damages, lost prots, lost savings or any

other incidental or consequential damage resulting from the use, misuse of,
or inability to use this product. Vendor will not be liable for any claim made by
any other related party.

Vendors disclaim all other warranties, either expressed or implied, including
but not limited to implied warranties of merchantability and tness for a
particular purpose, with respect to the hardware, the accompanying product’s
manual(s) and

written materials, and any accompanying hardware. This limited

warranty gives you specic legal rights.

Return authorization must be obtained from the vendor before returned
merchandise will be accepted.
faxing

the vendor and

number.

Returned

requesting a Return Merchandise Authorization (RMA)

goods should always be accompanied by a clear problem

Authorization can be obtained by calling or

description.

1.8 Packing List

Packing List

Before you begin installing your single board, please make sure that the following
materials have been shipped:

1 x SPI-Q6700-LLVA PICMG 1.3 Full-size SBC

1 x Driver CD
1 x Quick Installation Guide

Cable Kit

1 x RS-232 cable
1 x RS-232/422/485 cable

CBK-06-67Q1-00

1 x SATA cable
1 x USB cable w/ bracket
1 x Keyboard & Mouse cable
1 x AUDIO cable

- 5 -

Introduction

If any of the above items is damaged or missing, contact your vendor
immediately.

1.9 Ordering Information

SPI-Q6700-LLVA

SPI-Q6701-LLVA

HS-67Q1-C1 Aluminium CPU cooler for Pentium G850

HS-67Q1-C2 Copper CPU cooler for Core-i series

PBPE-07SA 7 slots PICMG 1.3 backplane

PBPE-10SA 10 slots PICMG 1.3 backplane

PBPE-13SA 13 slots PICMG 1.3 backplane

Note:

SPI-Q6700-LLVA supports 1 x PCIex4. SPI-Q6701-LLVA supports 4 x PCIex1.
PCIe x4 slot and PCIe x1 slot can’t work at the same time with the same BIOS
version. Therefore, 2 BIOS versions are required to be applied as following

congurations.

Update BIOS in DOS:

- PCIex1.bat: BIOS set as PCIe x1 enabled.

- PCIex4.bat: BIOS set as PCIe x4 enabled.

Socket LGA1155 for Intel® Sandy Bridge processor
Full-size SBC with BIOS to support 1 x PCIex4

Socket LGA1155 for Intel® Sandy Bridge processor
Full-size SBC with BIOS to support 4 x PCIex1

- 6 -

Introduction

1.10 Specications

Form Factor PICMG 1.3 Full-size SBC

Socket LGA1155 for Intel 32nm Sandy Bridge

Processor

Chipset Intel® PCH Q67

System Memory

Graphics

Display 1 x Analog RGB supported, up to 2048 x 1536 @60Hz

Super I/O

BIOS AMI BIOS

Serial ATA

Ethernet 2 x Intel 82583V PCIe GbE controllers

USB 2.0

Serial Port

Parallel Port SPP/EPP/ECP mode
Digital I/O 8-bit programmable digital I/O
Keyboard/

Mouse
Audio HD Audio Codec ALC886, Line-in/ Line-out/MIC
Expansion Bus Standard SHB Express
Power Connector 4-pin ATX 12V type and ATX feature
Certication CE/FCC
Operation Temp. 0
Humidity 0% ~ 95% non-condensing
Dimension (L x W)

processors (i7-2600 at 3.4GHz, i5-2400 at 3.1GHz,
i3-2120 at 3.3GHz, or Pentium G850 at 2.9GHz)

2 x 240-pin Long-DIMM sockets, supporting DDR3
1066/1333MHz, up to 8GB

Integrated Intel HD Graphics 200

Fintek F71869ED

2 x SATA 600MB/s ports,
4 x SATA 300MB/s ports (2 x SATA ports on SBC,
2 x SATA ports through GF to Backplane)
Support RAID 0, 1, 5, 10

14 x USB 2.0 ports: 10 x ports by pin-header, 4 x ports
to GF

2 x COM ports: COM1 RS-232, COM2 RS-232/422/485
selectable

One 6-pin Mini-DIN connector for keyboard and mouse
(PS/2 standard via Y-cable)

o

C ~ 60oC (32oF ~ 140oF)

338 x 126 mm (13.3" x 4.96")

- 7 -

Introduction

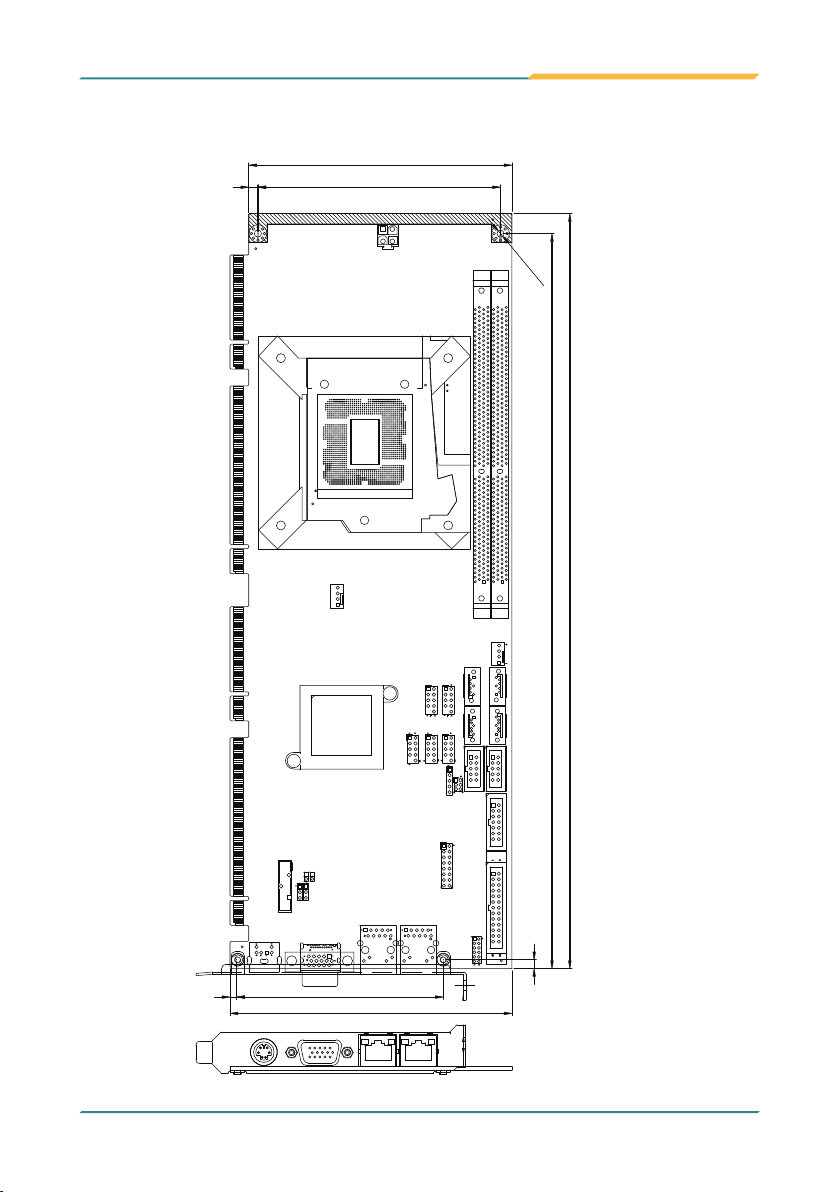

1.11 Board Dimensions

4.12 108.77

118.00

4

3

Ø3.2 x Ø8.0

41

338.60

329.58

1

1

6

5

19

1

2

20

4

321

5

1

10

6

15

11

3.44 92.2

12910129

126.4

- 8 -

2

10910

9

+

+

1

2

2

1

10

10

9

10

9

9

1

2

6

5

2

2

1

16

15

1

2

10

26

25

12

11

4.00

Unit:mm

Introduction

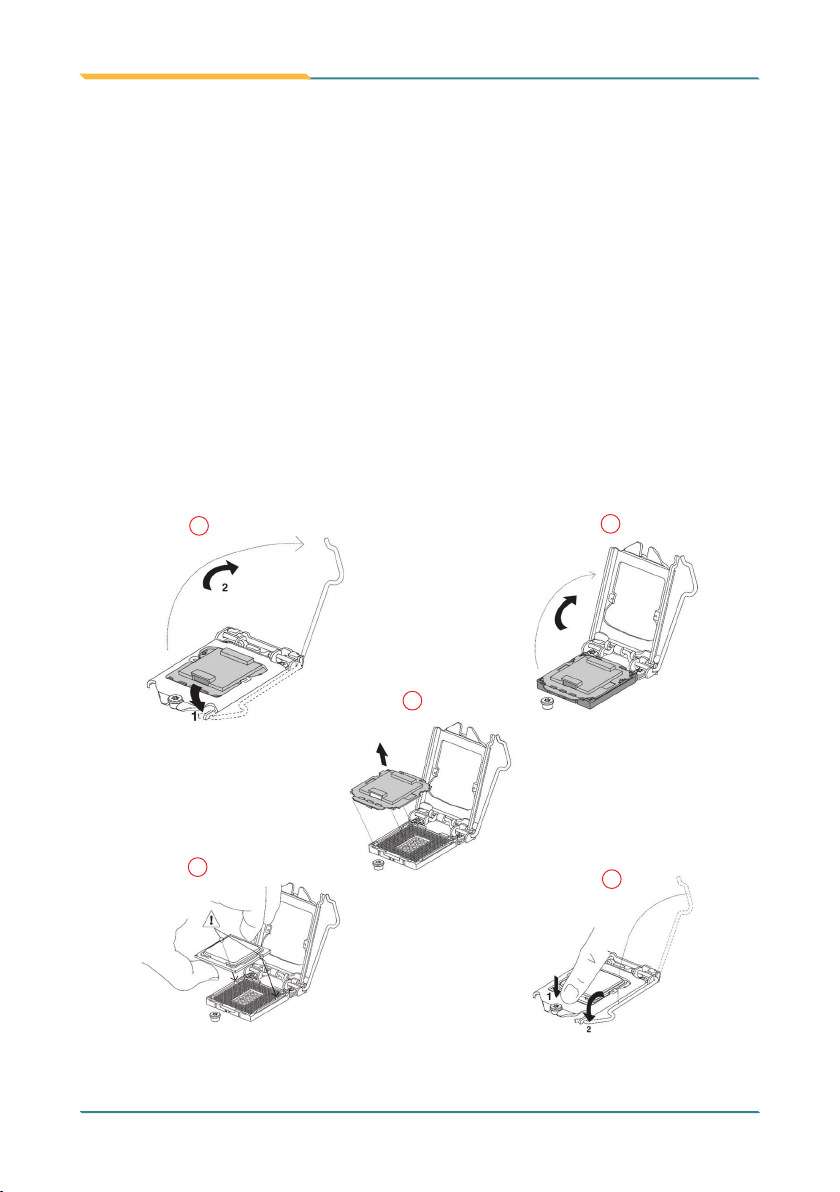

1.12 Installing the CPU

The LGA1155 processor socket comes with a lever to secure the processor.
Please refer to the pictures step by step as below.

1. Push the lever down to unclip it and lift it.

2. Open the load plate.

3. Remove the protective cover from the load plate. Do not discard the protective
cover. Always replace the socket cover if the processor is removed from the
socket.

4. Hold processor with your thumb and index ngers, oriented as shown. Ensure

your ngers align to the socket cutouts. Align the notches with the socket.

Lower the processor straight down without tilting or sliding the processor in
the socket.

5. Close the load plate. Pressing down on the load plate, close and engage
the socket lever.

1

3

4

2

5

- 9 -

Introduction

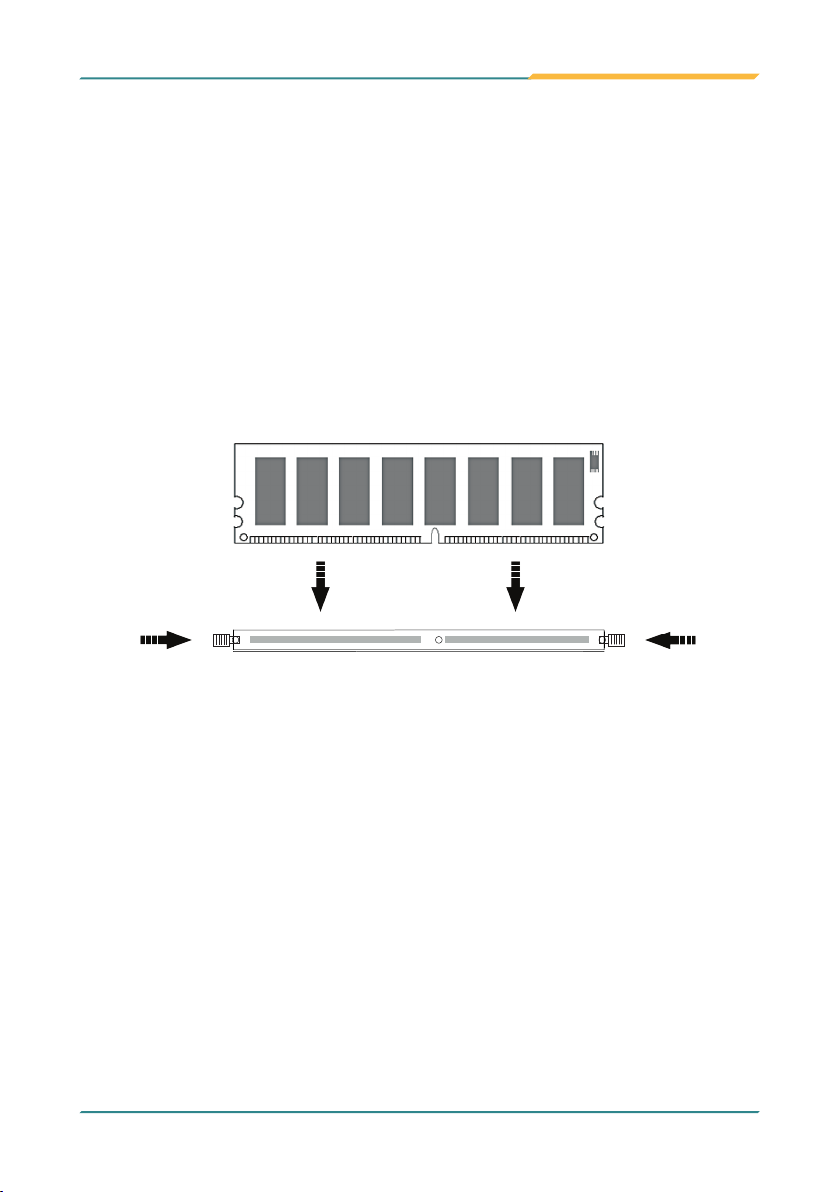

1.13 Installing the Memory

To install the Memory module, locate the Memory DIMM slot on the board and
perform as below:

1. Hold the Memory module so that the key of the Memory module align with
those on the Memory DIMM slot.

2. Gently push the Memory module in an upright position and a right way
until the clips of the DIMM slot close to lock the Memory module in place,
when the Memory module touches the bottom of the DIMM slot.

3. To remove the Memory module, just pressing the clips of DIMM slot with
both hands.

Lock Lock

- 10 -

2Chapter 2

Installation

Installation

Chapter 2 - Installation

- 11 -

Installation

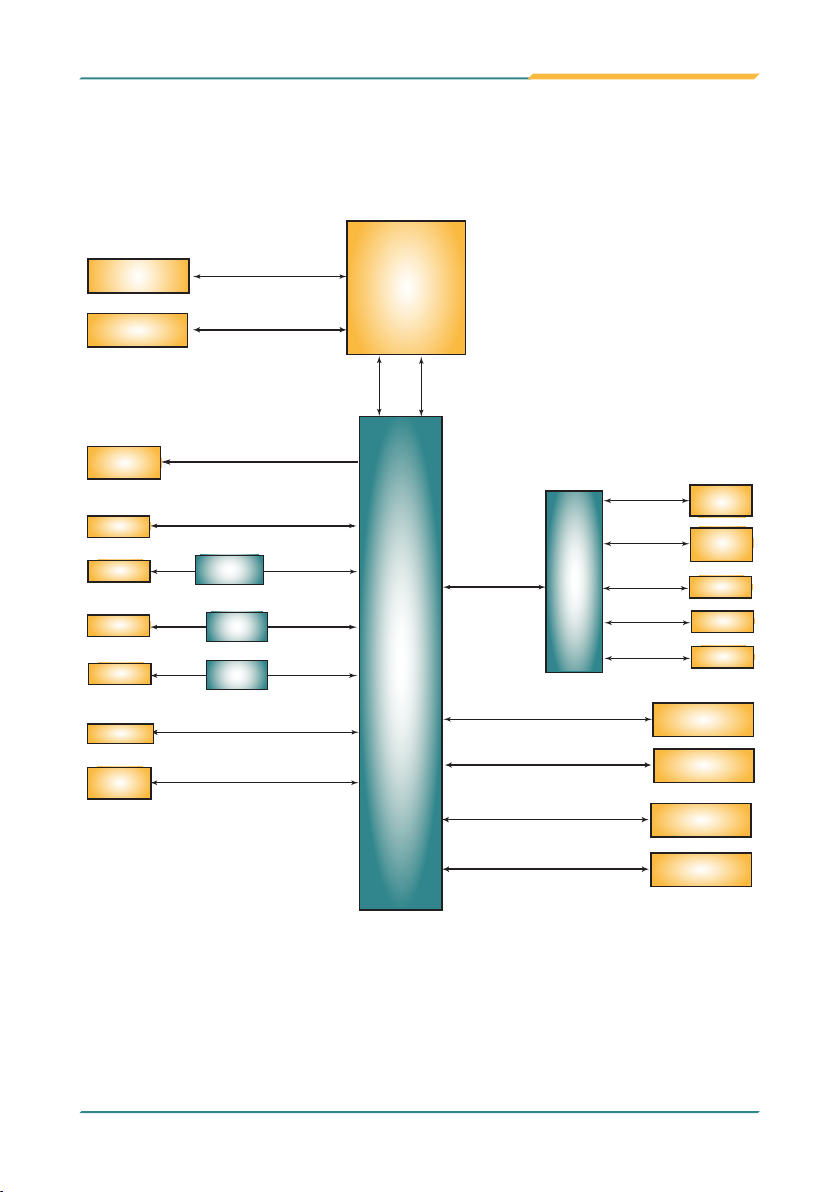

2.1 Block Diagram

HiCORE-i67Q1
PICMG 1.3

2 x 240-pin DDR3

DIMM socket

PICMG 1.3
PCIex16 GF

Dual Channel DDR3

1066/1333 MT/z

PCIex16 I/F

Socket LGA1155

for Intel®

i3-2120/

i5-2400/

i7-2600

Processor

DMI

FDI

(x4)

VGA

USB ports

Line-in/out, MIC

1 x RJ-45

1 x RJ-45

BIOS

4 x SATA

Analog R.G.B.

10 x USB 2.0 ports

ALC886

7.1 Channel

82583V GbE

GbE

Controller

82583V GbE

GbE

Controller

Serial ATA I/F

SPI

HD Audio
Link

PCIex1

PCIex1

Intel®

Q67

PCH

COM1 RS-232,
COM2 RS-232/422/485 selectable

LPC I/F

Fintek

F71869ED

Super I/O

Serial ATA I/F

4 x USB ports

4 x PCI Masters

4 x PCIex1 Lanes

8-bit Digital I/O

COM1~2

KB, MS

Parallel Port

IrDA

COM1~2

PS/2 KB/ MS

LPT 2*13

Digital I/O

PICMG 1.3
SATA GF

PICMG 1.3
USB GF

PICMG 1.3
PCI GF

PICMG 1.3
PCIe GF

IrDA

- 12 -

2.2 Jumpers and Connectors

Jumpers/ Connectors Quick Reference
Jumpers

Label Description

JBAT1 Protected RTC Setting

JBAT2 Clear CMOS Setting

JRS1 COM2 RS-232/422/485 Selection

Connectors

Label Description

AUDIO1 AUDIO Connector
COM1 RS-232 Connector
COM2 RS-232/422/485 Connector
DIO1 Digital I/O Connector
IR1 Infrared Connector
J2, J3, J5, J6 SATA Connectors
J4 LPT Connector
J7 ATX1 2V power Connector
JFAN1~2 Fan Connectors
JFRT1 Switches and Indicators
JUSB1~5 USB Port Connectors
KBM1 Keyboard and Mouse Connector
LAN1~2 Ethernet Connectors
VGA1 Analog RGB Connector

Installation

- 13 -

Installation

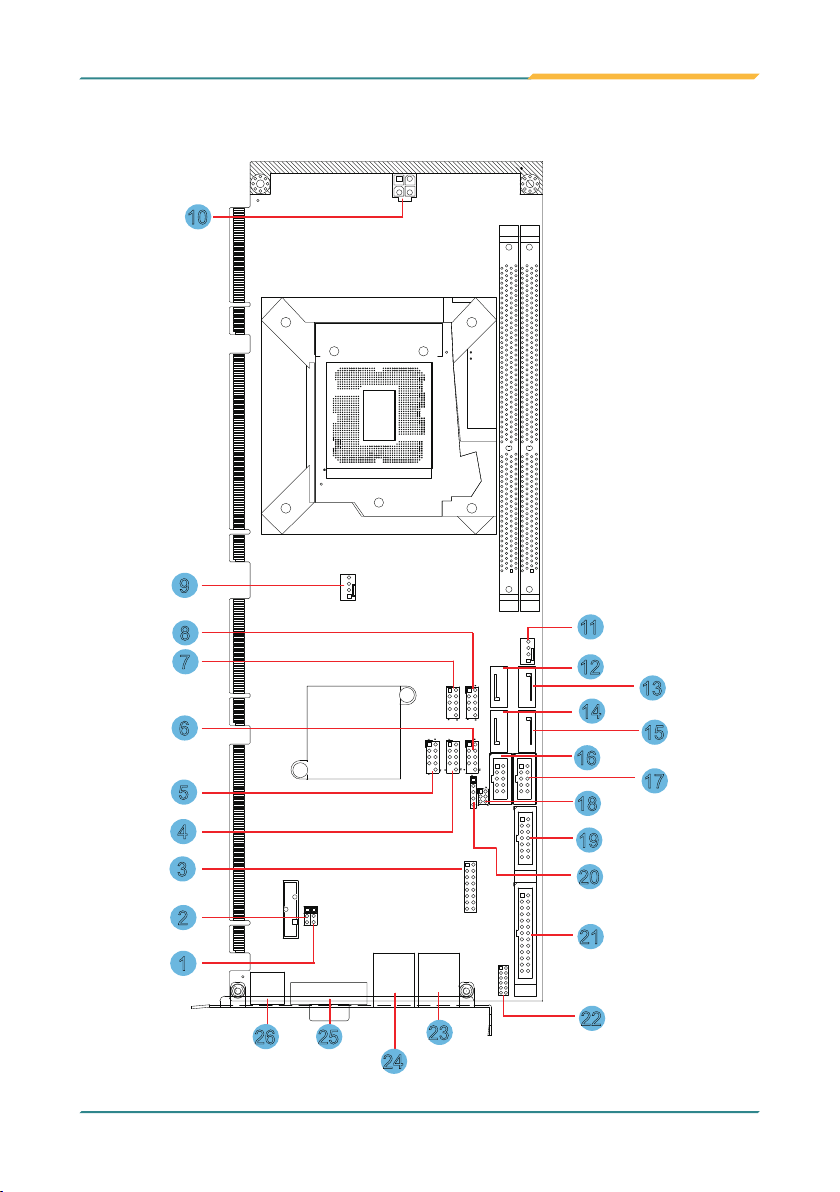

2.3 Jumpers & Connectors Location

1 2
3

4

10

J7

Socket

LGA1155

JFAN2

JUSB3
JUSB1

JUSB2

JUSB5

JUSB4

JFRT1

JBAT2

JBAT1

9

11

12

14

16

18

19

20

21

22

JFAN1

J5

13

J6

15

DIO1

17

JRS1

COM1

IR1

J4

AUDIO1

J2

J3

COM2

8
7

6

1

2

1

10

10

9

9

5

1

1

2

1

10910

9

1

2

1

10

9

1

2

6

5

4

23

21

21

1615

1

25 26

11212

3

1

2

1

1

26

KBM1

25

VGA1

24

LAN1

LAN2

- 14 -

Installation

2.4 Jumpers

JBAT1: Protected RTS Setting (1)

If the board refuses to boot due to inappropriate CMOS settings here is how
to proceed to clear (reset) the CMOS to its default values.
Connector type: 2.54mm pitch 1x3-pin headers

Pin Mode

1-2 Keep Protected (Default)

2 31

2-3 Clear CMOS

2 31

JBAT2: Clear CMOS Setting (2)

If the board refuses to boot due to inappropriate CMOS settings here is how
to proceed to clear (reset) the CMOS to its default values.
Connector type: 2.54mm pitch 1x3-pin headers

Pin Mode

1-2 Keep CMOS (Default)

2-3 Clear CMOS

You may need to clear the CMOS if your system cannot boot up because you
forgot your password, the CPU clock setup is incorrect, or the CMOS settings
need to be reset to default values after the system BIOS has been updated.
Refer to the following solutions to reset your CMOS setting:

Solution A:

1. Power off the system and disconnect the power cable.

2. Place a shunt to short pin 2 and pin 3 of JBAT1 for ve seconds.

3. Place the shunt back to pin 1 and pin 2 of JBAT1.

4. Power on the system.

Solution B:

If the CPU Clock setup is incorrect, you may not be able to boot up. In this
case, follow these instructions:

1. Turn the system off, then on again. The CPU will automatically boot up us­ing standard parameters.

2. As the system boots, enter BIOS and set up the CPU clock.

2 31

2 31

- 15 -

Installation

Note:

If you are unable to enter BIOS setup, turn the system on and off a few times.

1

1

1

1

1

10

2

9

10

9

1 2

3 4

Socket

LGA1155

6

2

10

5

2

1

9
10

1

9

10

2

1

9

JBAT2

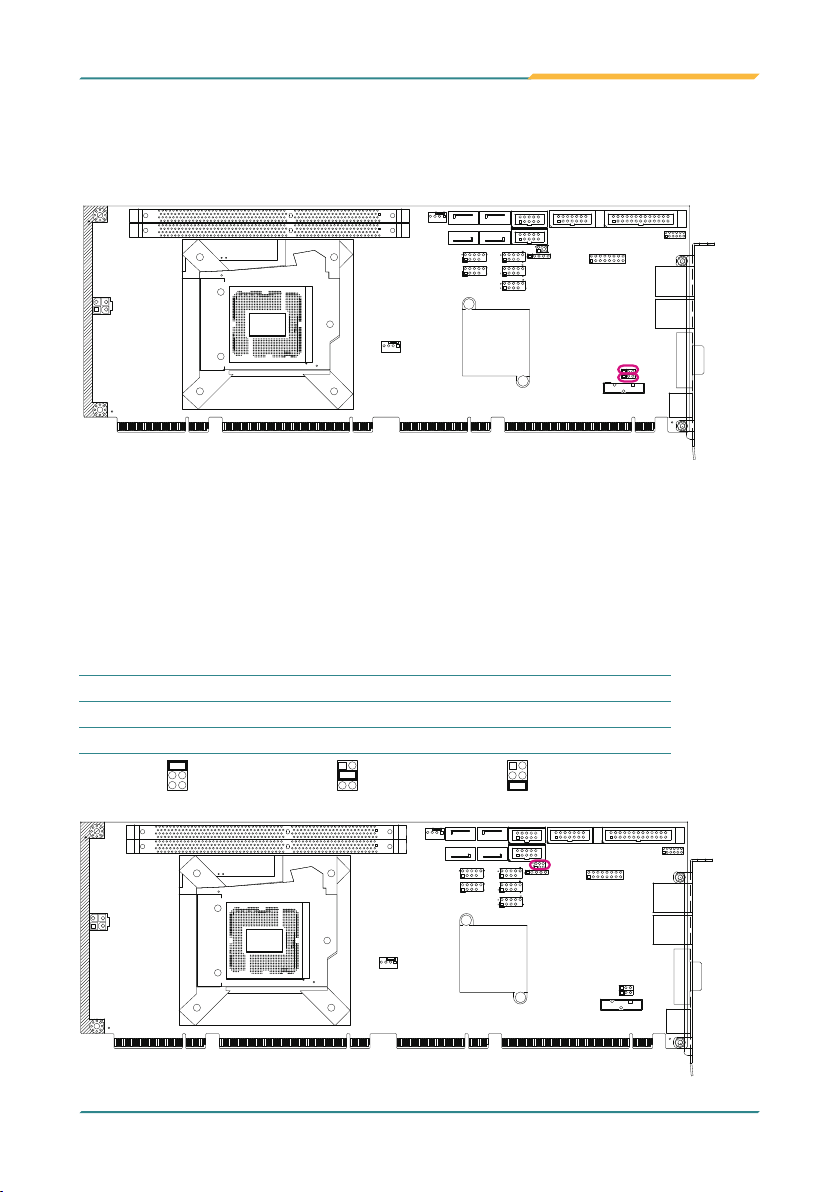

JRS1: COM2 RS-232 / 422 / 485 Selection (18)

Connector type: 2.00mm pitch 2x3-pin headers.

Mode RS-232 (Default) RS-422 RS-485

1-2 Short Open Open
3-4 Open Short Open
5-6 Open Open Short

21

65

21

65

21

65

21

21

1615

JBAT1

1

1

25 26

2

12

1

11

6

JRS1

5

21

21

25 26

2

12

1

11

1615

1

1

1

1

1

1

1

2

10

10

2

2

1

9

9
10

10

1

9

9

10

2

1

9

1 2

3 4

Socket

LGA1155

- 16 -

Installation

2.5 Connectors

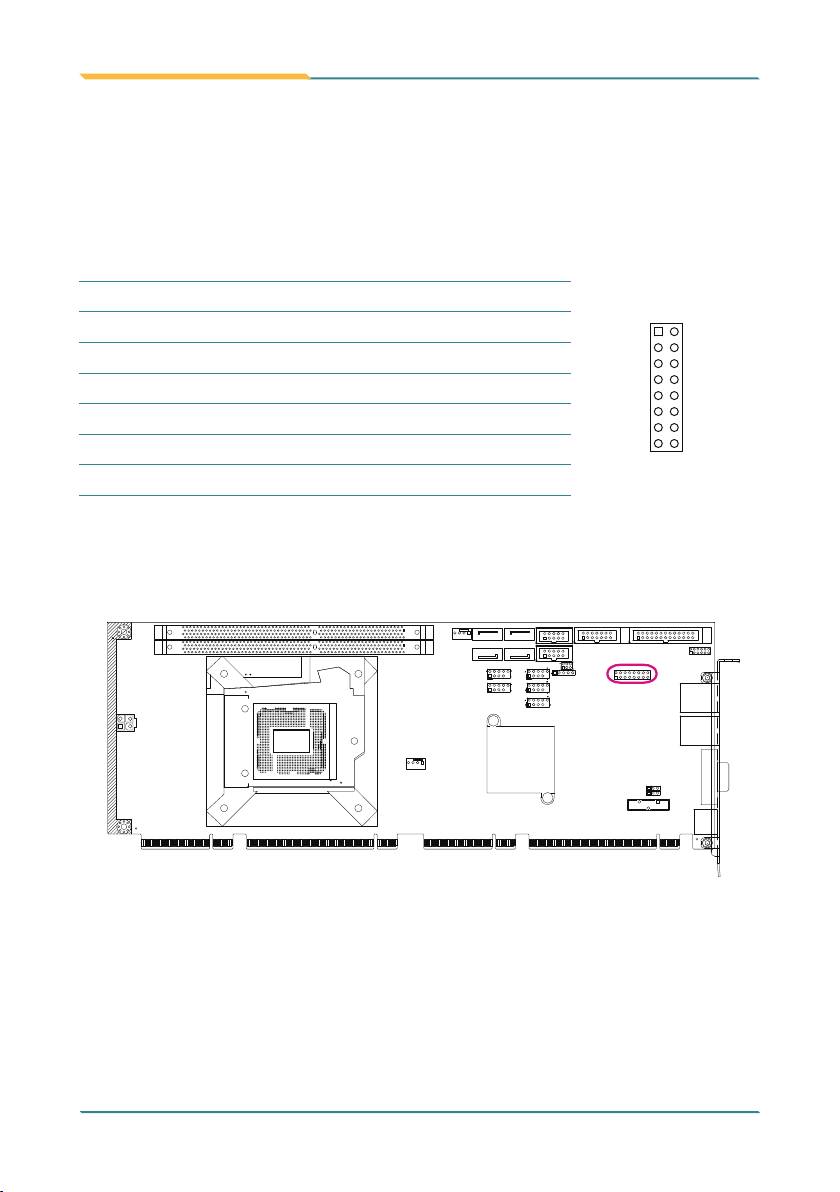

JFRT1: Switches and Indicators (3)

It provides connectors for system indicators that provides light indication of
the computer activities and switches to change the computer status.
Connector type: 2.54mm pitch 2x8-pin headers.

Pin Description Pin Description

1 Power LED+ 2 PWRBTN+

3 Power LED- 4 PWRBTN-

5 Power LED- 6 RESET+

7 HD LED+ 8 RESET-

9 HD LED- 10 SPEAKER+

11 SMB CLK 12 SPEAKER+

13 SMB DAT 14 SPEAKER-

15 SMB GND 16 SPEAKER-

1 2

15 16

1

1

1

1

1

2

10

10

2

2

1

9

9

10

10

1

9

9

10

2

1

9

1 2

3 4

Socket

LGA1155

21

6

5

21

25 26

2

12

1

11

1615

JFRT1

1

1

- 17 -

Installation

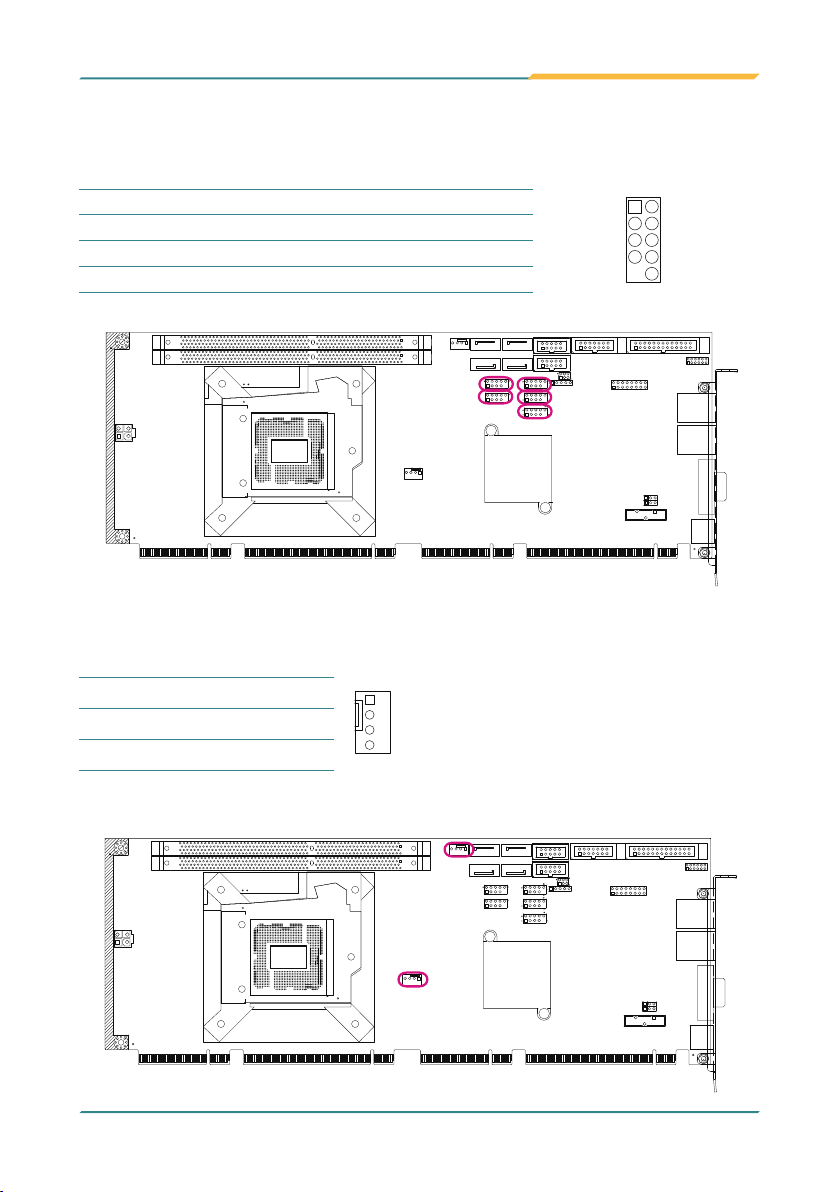

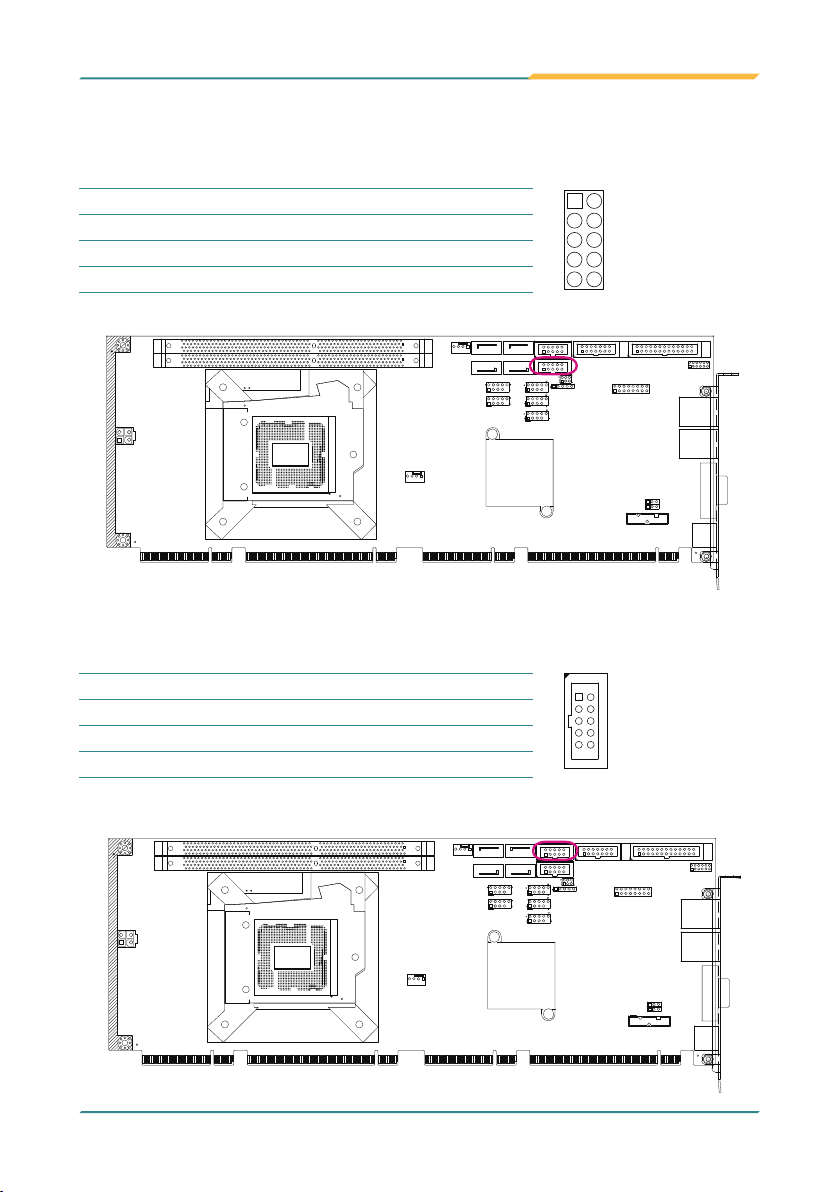

JUSB1~5: USB Ports (4, 5, 6, 7, 8)

Connector type: 2.54mm pitch 2x5 pin-header, pin-10 is eliminated.

Pin Description. Pin Description.

1 +5V 2 +5V

1 2

3 USBD1- 4 USBD2­5 USBD+ 6 USBD2+
7 GND 8 GND

109

9 N/C (Key) 10 N/C

1

1

1

1

1

2

JUSB2

10

10

2

2

1

JUSB3
JUSB1

1 2

3 4

Socket

LGA1155

9

9
10

10

1

9

JUSB4

9

10

2

1

9

JUSB5

21

6

5

21

1615

1

1

JFAN1, 2: Fan Connectors (9), (11)

Connector type: 2.54mm pitch 1x4-pin wafer connector.

Pin Description

1 GND

2 +12V

3 RPM

4 FAN_CTL

1

2

3

4

25 26

2

12

1

11

JFAN1

1 2

3 4

Socket

LGA1155

JFAN2

1

1

1

1

1

2

10

10

2

2

1

9

9
10

10

1

9

9

10

2

1

9

21

6

5

21

25 26

2

12

1

11

1615

1

1

- 18 -

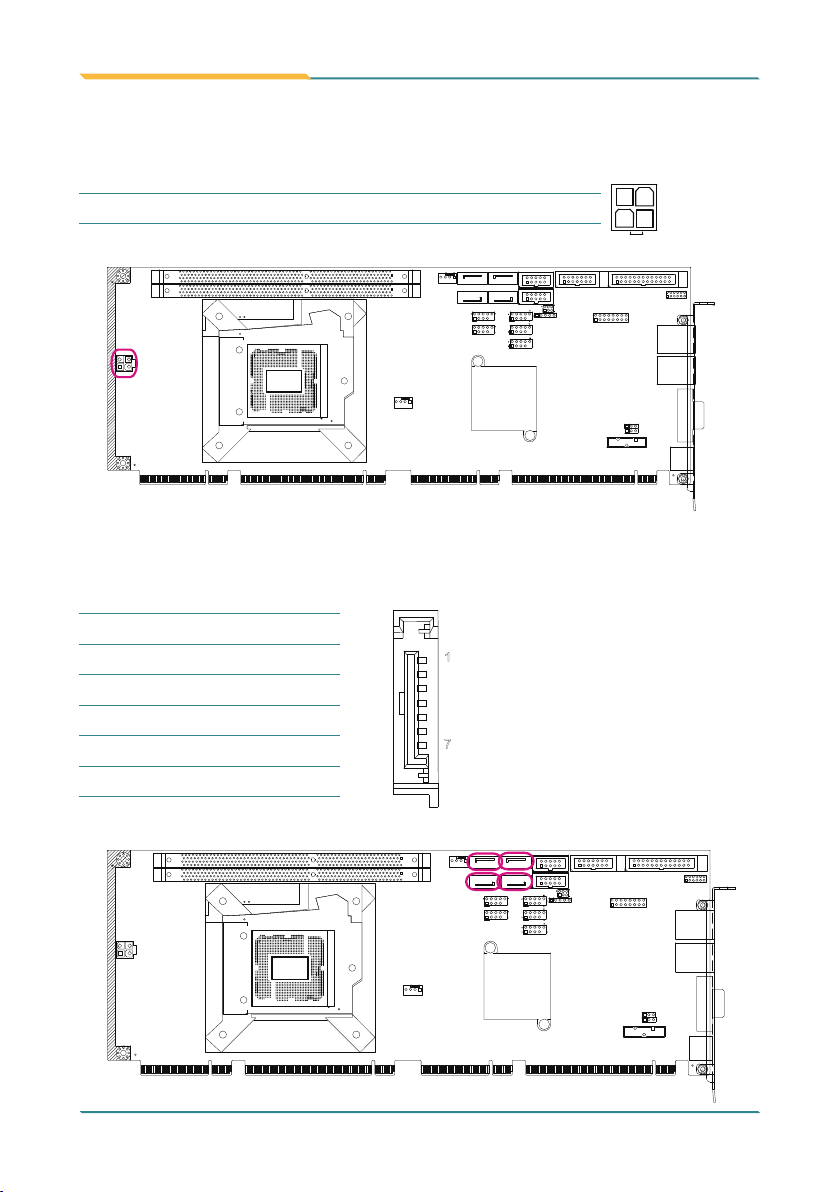

J7: ATX +12V Connector (10)

J7 supplies the CPU operation ATX +12V (Vcore).

Pin Description Pin Description

1 GND 2 GND

132

4

3 +12V 4 +12V

1

1

1

1

1

2

10

10

2

2

1

9

9
10

10

1

9

9

10

2

1

9

J7

1 2

3 4

Socket

LGA1155

21

6

5

21

1615

1

1

J2, J3, J5, J6: Serial ATA Connectors (12, 13, 14, 15)

Connector type: SATA connectors.

Pin Description

1 GND

2 TX+

3 TX-

4 GND

5 RX-

6 RX+

7 GND

1 2

3 4

Socket

LGA1155

1

7

J2 J3

1

1

1

1

1

J5

2

2

10

10

2

J6

1

9

9

10

10

1

9

9

10

2

1

9

21

6

5

21

1615

1

1

Installation

25 26

2

12

1

11

25 26

2

12

1

11

- 19 -

Installation

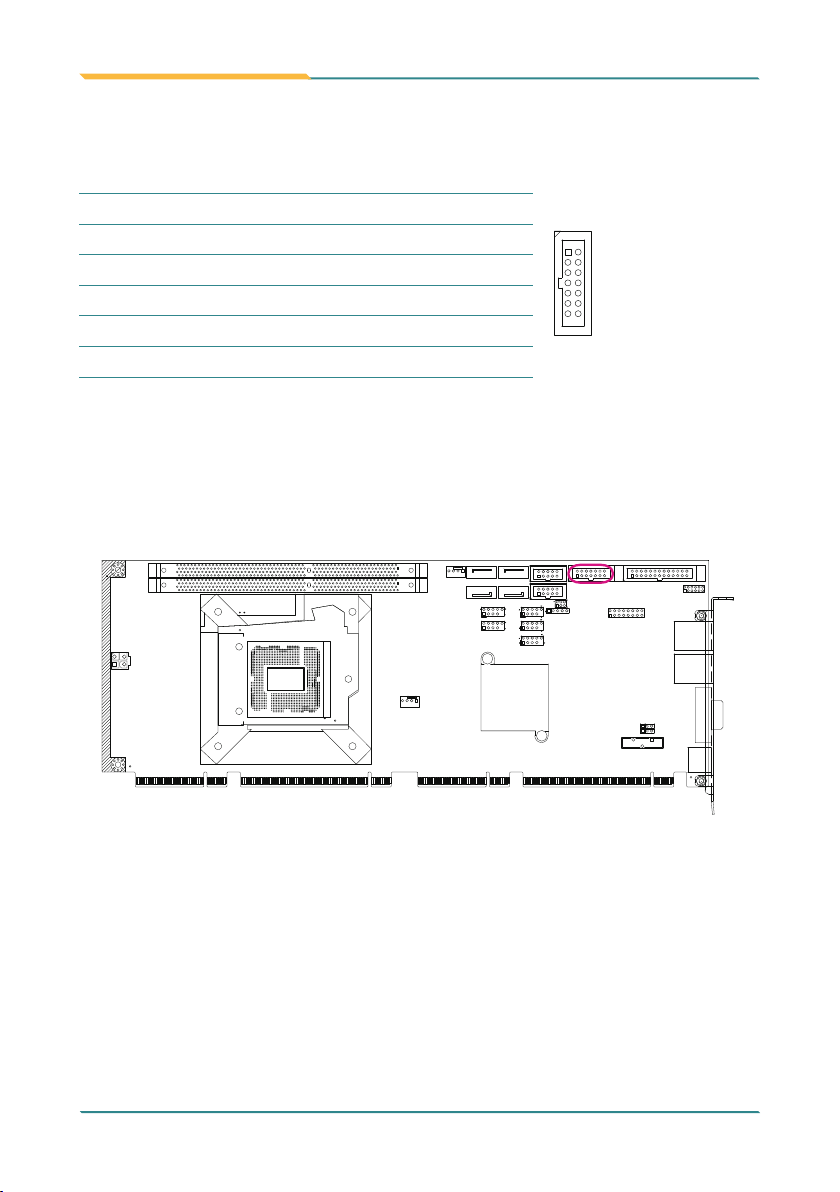

DIO1: Digital I/O Connector (16)

Connector type: 2.54mm pitch 2x5-pin headers.

Pin Description Pin Description

1 DIO0 2 DIO1
3 DIO2 4 DIO3
5 DIO4 6 DIO5
7 DIO6 8 DIO7
9 +5V 10 GND

1

1

1

1

10

2

9

10

9

1 2

3 4

Socket

LGA1155

COM2: RS-232 Port (17)

Connector type: 2.54mm pitch 2x5-pin box headers.

Pin Description Pin Description

1 DCD# 2 DSR#
3 RXD 4 RTS#
5 TXD 6 CTS#
7 DTR# 8 RI#
9 GND 10 N/C

1 2

109

6

5

1 2

DIO1

21

21

25 26

2

12

1

11

1615

1

1

1

2

10

2

1

9

10

1

9

10

2

1

9

9 10

COM2

1

1

1

1

1

2

10

10

2

2

1

9

9
10

10

1

9

9

10

2

1

9

1 2

3 4

Socket

LGA1155

21

6

5

21

25 26

2

12

1

11

1615

1

1

- 20 -

COM1: RS-232/422/485 Port (19)

Connector type: 2.54mm pitch 2x7-pin box headers.

Pin Description Pin Description

1 DCD# 2 DSR#

3 RXD 4 RTS#

5 TXD 6 CTS#

7 DTR# 8 RI#

9 GND 10 GND

11 442TX+/ 485+ 12 422TX-/ 485-

13 422RX+ 14 422RX-

1

1

1

1

1

10

2

2

9

10

1

9

2

1

1 2

3 4

Socket

LGA1155

Installation

1 2

13 14

COM1

21

6

2

10

5

1

9
10

9

10

9

21

25 26

2

12

1

11

1615

1

1

- 21 -

Installation

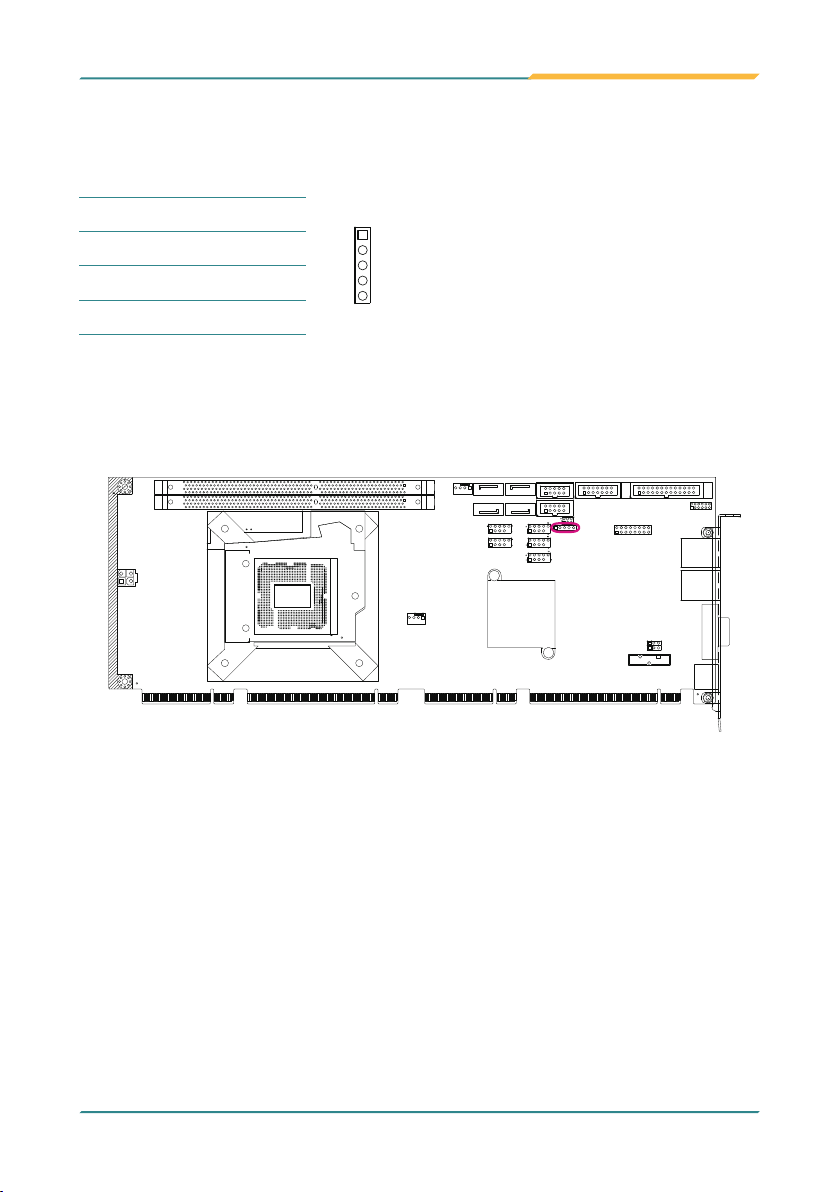

IR1: Infrared Connector (20)

Connector type: 2.54mm pitch 1x5-pin headers.

Pin Description

1 +5V

2 N/C

3 IRRX

4 GND

5 IRTX

1 2

3 4

Socket

LGA1155

1

2

3

4

5

1

1

1

1

1

2

10

10

2

2

1

9

9
10

10

1

9

9

10

2

1

9

21

6

5

IR1

21

25 26

2

12

1

11

1615

1

1

- 22 -

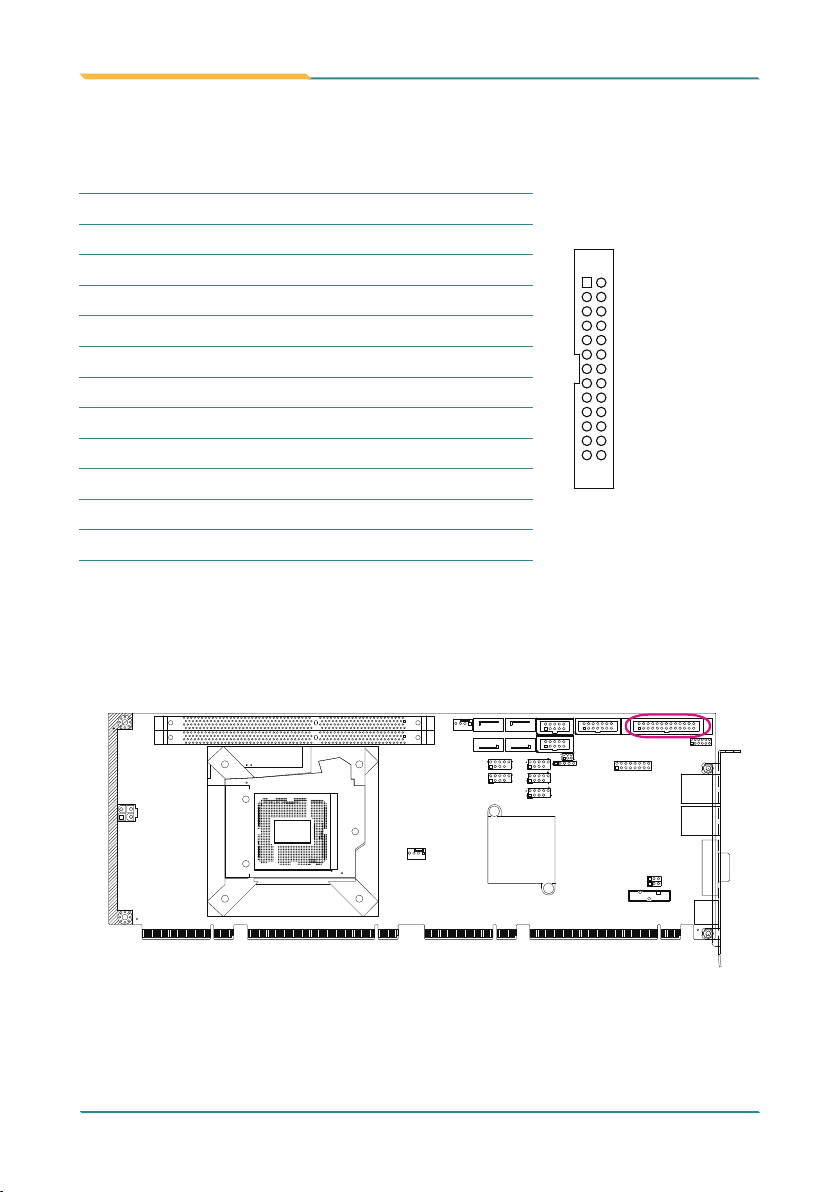

J4: Parallel Port Connector (21)

Connector type: 2.54mm pitch 2x13 box headers.

Pin Description Pin Description

1 STB# 14 AFD#

2 PTD0 15 ERROR#

3 PTD1 16 INIT#

4 PTD2 17 SLIN#

5 PTD3 18 GND

6 PTD4 19 GND

7 PTD5 20 GND

8 PTD6 21 GND

9 PTD7 22 GND

10 ACK# 23 GND

11 BUSY 24 GND

12 PE 25 GND

13 SELECT 26 N/C

Installation

11314

26

J4

1

1

1

1

1

2

10

10

2

2

1

9

9
10

10

1

9

9

10

2

1

9

1 2

3 4

Socket

LGA1155

21

6

5

21

25 26

2

12

1

11

1615

1

1

- 23 -

Installation

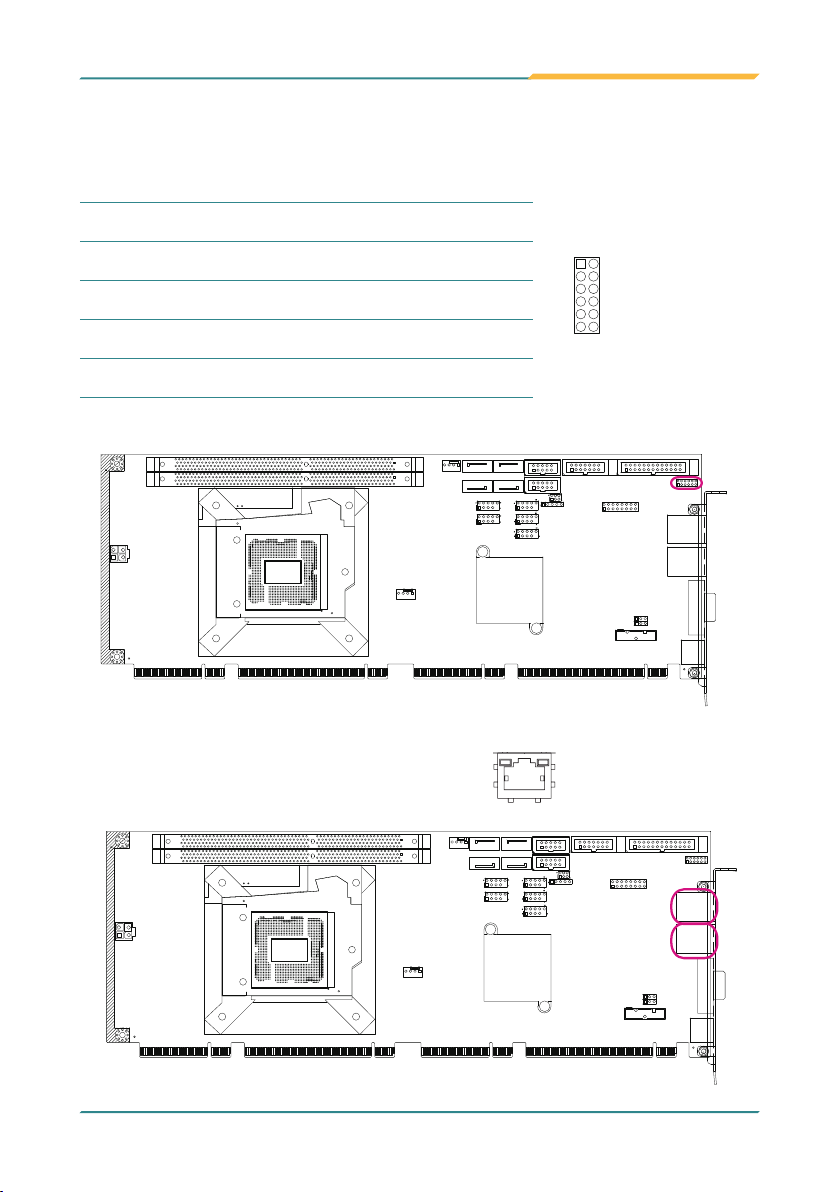

AUDIO1: AUDIO Connector (22)

Connector type: 2.00mm pitch 2x6-pin headers.

Pin Description Pin Description

1 LIN-L 2 LIN-R

3 LINE-JD 4 GND_AU

5 MICL 6 MICR

7 MIC-JD 8 GND_AU

9 LOUT-L 10 LOUT-R

11 FRONT-JD 12 GND_AU

1 2

1211

1

1 2

3 4

Socket

LGA1155

LAN1, 2: GbE Connectors (23), (24)

Connector type: RJ-45 with LED indicators.

1 2

3 4

Socket

LGA1155

1

1

1

1

2

10

10

2

2

1

9

9
10

10

1

9

9

10

2

1

9

1

1

1

1

1

2

10

10

2

2

1

9

9
10

10

1

9

9

10

2

1

9

21

6

5

21

21

6

5

21

25 26

2

12

AUDIO1

1

11

1615

1

1

25 26

2

12

1

11

1615

LAN1

LAN2

1

1

- 24 -

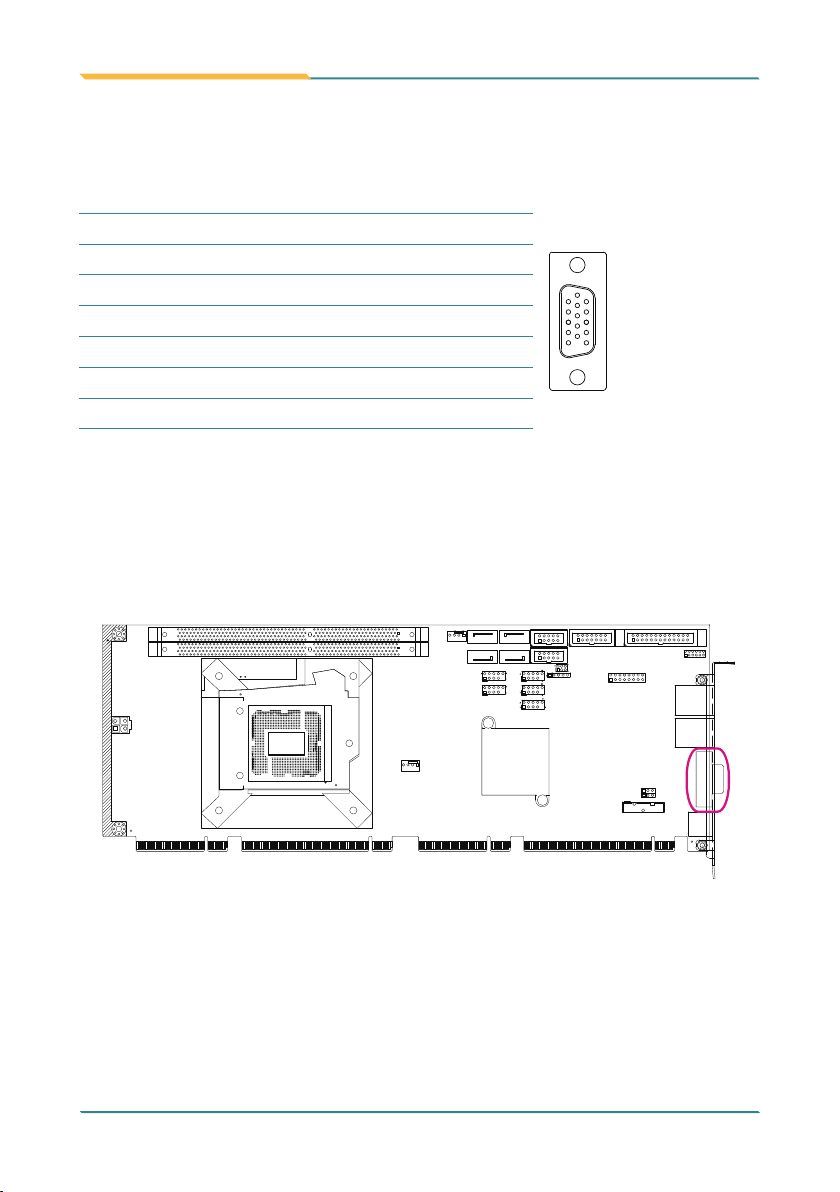

VGA1: Analog RBG Connector (25)

Connector type: D-Sub 15-pin female.

Pin Description Pin Description

1 RED 9 VCC

2 GREEN 10 GND

3 BLUE 11 N/C

4 N/C 12 DDC_DATA

5 GND 13 HSYNC

6 GND 14 VSYNC

7 GND 15 DDC-CLK

8 GND

Installation

1

11

15

5

1

1

1

1

1

10

2

9

10

9

1 2

3 4

Socket

LGA1155

6

2

10

5

2

1

9

10

1

9

10

2

1

9

21

21

25 26

2

12

1

11

1615

VGA1

1

1

- 25 -

Installation

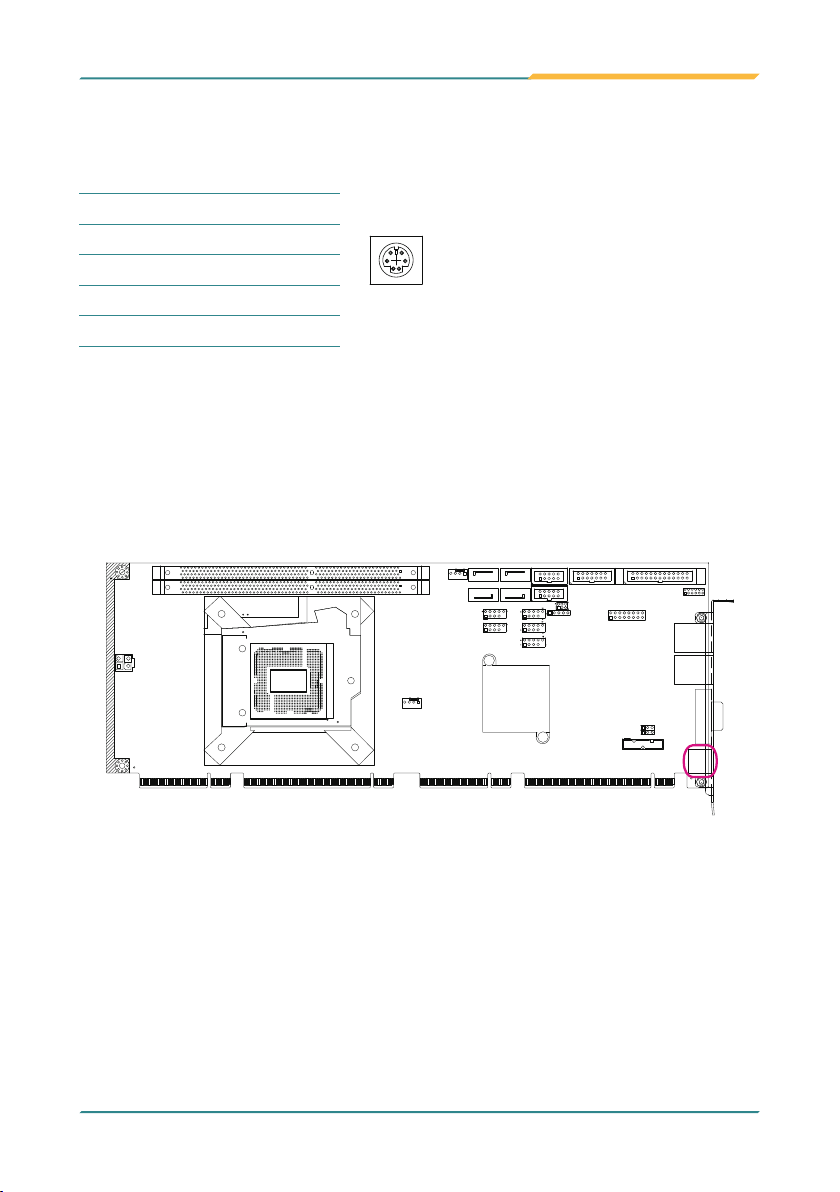

KBM1: Keyboard & Mouse Connector (26)

Connector type: 6-pin Mini-DIN connector.

Pin Description

1 KB Data

2 MS Data

3 GND

4 VCC PS2

5 KB Clock

6 MS Clock

56

3

4

12

1

1

1

1

1

2

10

10

2

2

1

9

9
10

10

1

9

9

10

2

1

9

1 2

3 4

Socket

LGA1155

21

6

5

21

25 26

2

12

1

11

1615

1

1

KBM1

- 26 -

Installation

2.6 The Installation Paths of CD Driver

Windows XP

Chipset \CHIPSET\INF 9.2.0.1021

NET Framework \NET Framework

LAN

Graphics

AHCI \RAID\INTEL\6-series 10.1.0.1008

AUDIO \AUDIO\REALTEK_HD\WIN2K_XP_x86x64_R257

\ETHERNET\INTEL\82583V\32
\ETHERNET\INTEL\82583V\64

\GRAPHICS\INTEL_2K_XP_32\5313
\GRAPHICS\INTEL_2K_XP_64\5313

Windows 7

Chipset \CHIPSET\INF 9.2.0.1021

NET Framework \NET Framework

LAN

Graphics

AHCI \RAID\INTEL\6-series 10.1.0.1008

AUDIO \AUDIO\REALTEK_HD\Win7_R257

\ETHERNET\INTEL\82583V\32
\ETHERNET\INTEL\82583V\64

\GRAPHICS\INTEL_WIN7_32\2291
\GRAPHICS\INTEL_WIN7_64\2291

Management Engine Driver

Please download the driver at Contec Solution ftp server.

- 27 -

This page is intentionally left blank.

BIOS

BIOS

3Chapter 3

Chapter 3 - BIOS

- 29 -

BIOS

3.1 BIOS Introduction

The AMI BIOS provides a Setup utility program for specifying the system

congurations and settings. The BIOS ROM of the system stores the Setup
utility and congurations.

When you turn on the computer, the AMI BIOS is immediately activated. To
enter the BIOS SETUP UTILILTY, press “Delete” once the power is turned on.

When the computer is shut down, the battery on the motherboard supplies the
power for BIOS RAM.

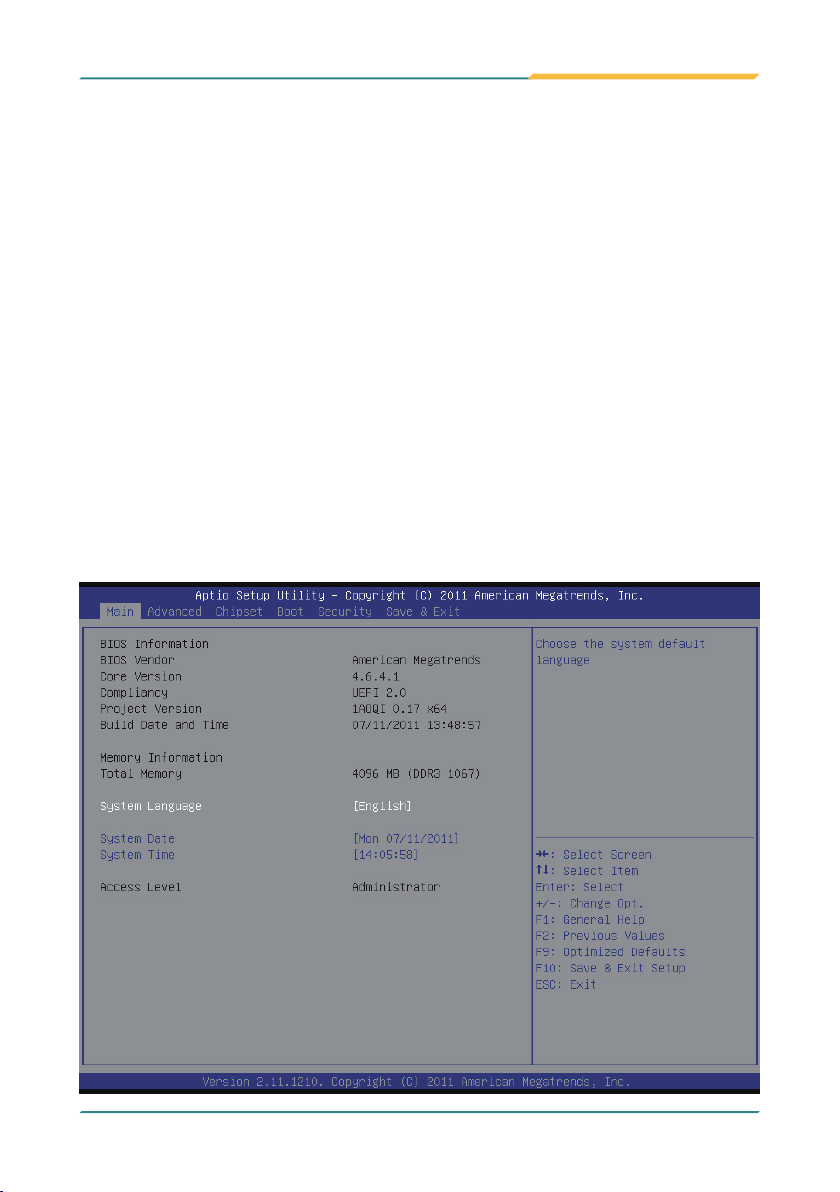

The Main Setup screen lists the following information
BIOS Information
BIOS Vendor: displays the vendor name
Core Version: displays the current version information of the core
Project Version
Build Date: the date when the project was made/updated
Memory Information: displays the total memory
Access Level: shows user’s access level

- 30 -

BIOS

Key Commands

BIOS Setup Utility is mainly a key-based navigation interface. Please refer to
the following key command instructions for navigation process.

“←”“→”

“↓” “↑” Move to highlight previous/next item

Enter Select and access a setup item/eld

Esc

Page Up / +

Page Down -

F2 Recover to previous values in setup

F3 Recover to optimized defaults automatically

F1 Activate “General Help” screen

F10

Move to highlight a particular conguration screen from

the top menu bar / Move to highlight items on the screen

On the Main Menu – Quit the setup and discard changes
saved into CMOS (a message screen will display and ask
you to select “OK” or “Cancel” for exiting and discarding

changes. Use “←” and “→” to select and press “Enter” to
conrm)

On the Sub Menu – Exit current page and return to main
menu

Increase the numeric value on a selected setup item /
make change

Decrease the numeric value on a selected setup item /
make change

Save the changes that have been made in the setup and
exit. (a message screen will display and ask you to select
“OK” or “Cancel” for exiting and saving changes. Use “←”
and “→” to select and press “Enter” to conrm)

System Date

Set the system date. Note that the “Day” automatically changes when you
set the date.
The date format is: Day : Sun to Sat

Month : 1 to 12
Date : 1 to 31
Year : 1999 to 2099

System Time

Set the system time.
The time format is: Hour : 00 to 23
Minute : 00 to 59
Second : 00 to 59

- 31 -

BIOS

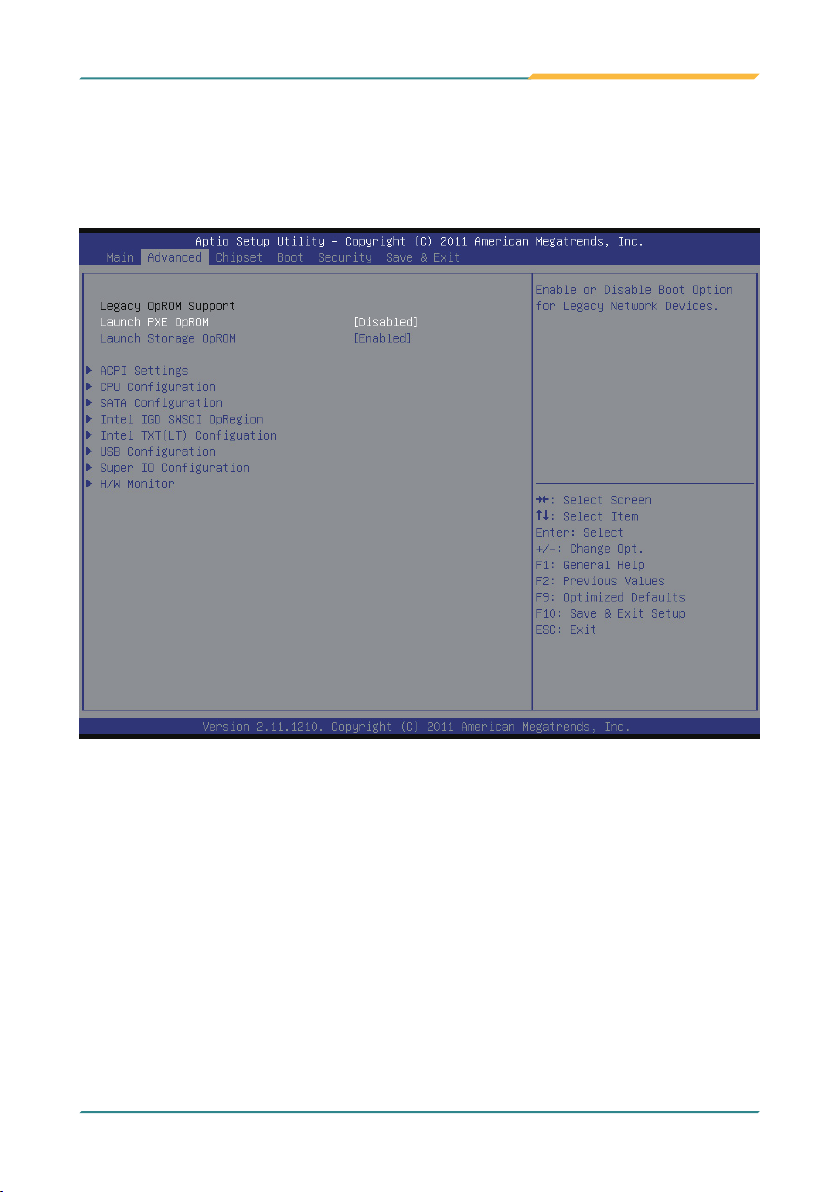

3.2 Advanced Settings

The “Advanced” screen provides setting options to congure ACPI, CPU,
SATA, USB, Super IO and other peripherals. You can use “←” and “→” keys
to select “Advanced” and use the “↓” and “↑” to select a setup item.

Note:
Please pay attention to the instructions at the upper-right frame before you

decide to congure any setting of an item.

- 32 -

BIOS

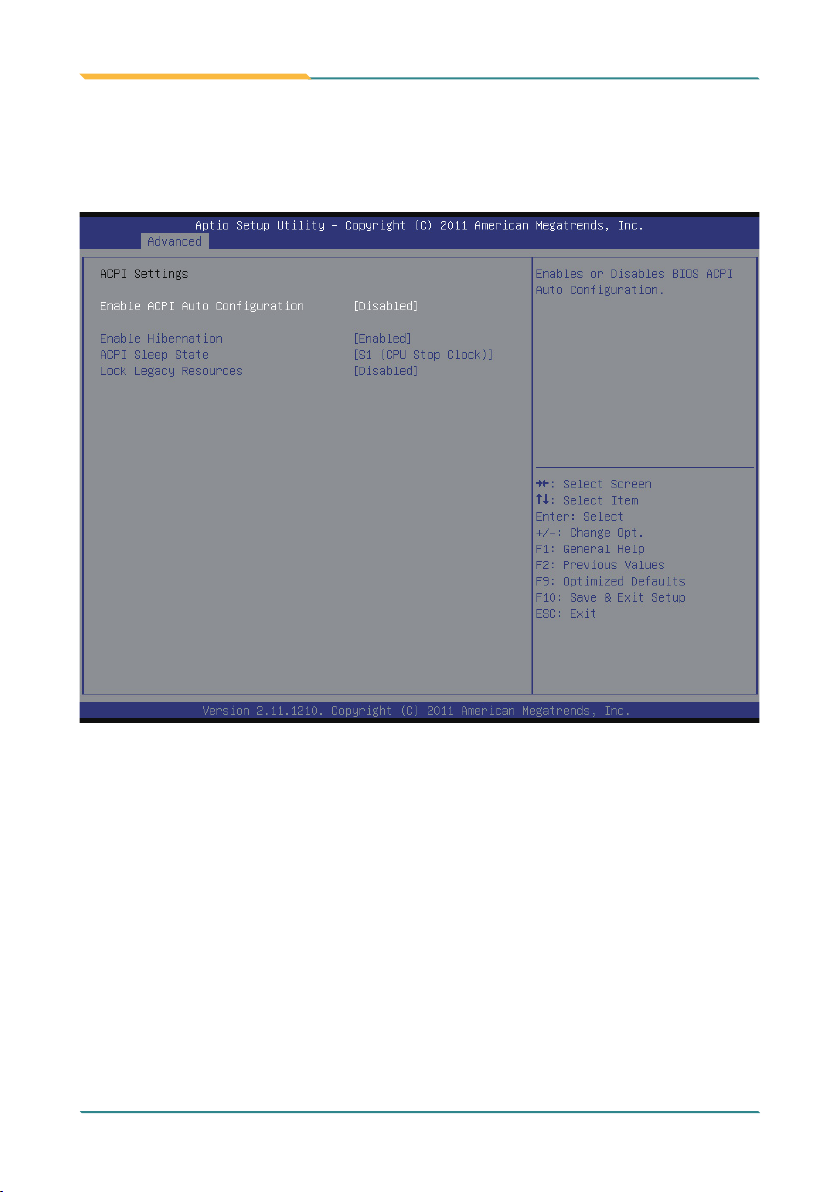

3.2.1 ACPI Settings

Press “Enter” on “ACPI Settings” and you will be able to set up ACPI

conguration.

Enable ACPI Auto Conguration

Allow you to enable or disable BIOS ACPI Auto Conguration.

Enable Hibernation

Allow you to enable or disable system hibernation (OS/S4 Sleep State).
This option may not be effective in some OSes.

ACPI Sleep State

Provide 3 options, Suspend Disable, S1 (CUP Stop Clock), and S3 (Suspend
to RAM) in order. Suspend ranks the highest ACPI sleep state.

Lock Legacy Resources

Allow you to enable or disable Lock Legacy Resources.

- 33 -

BIOS

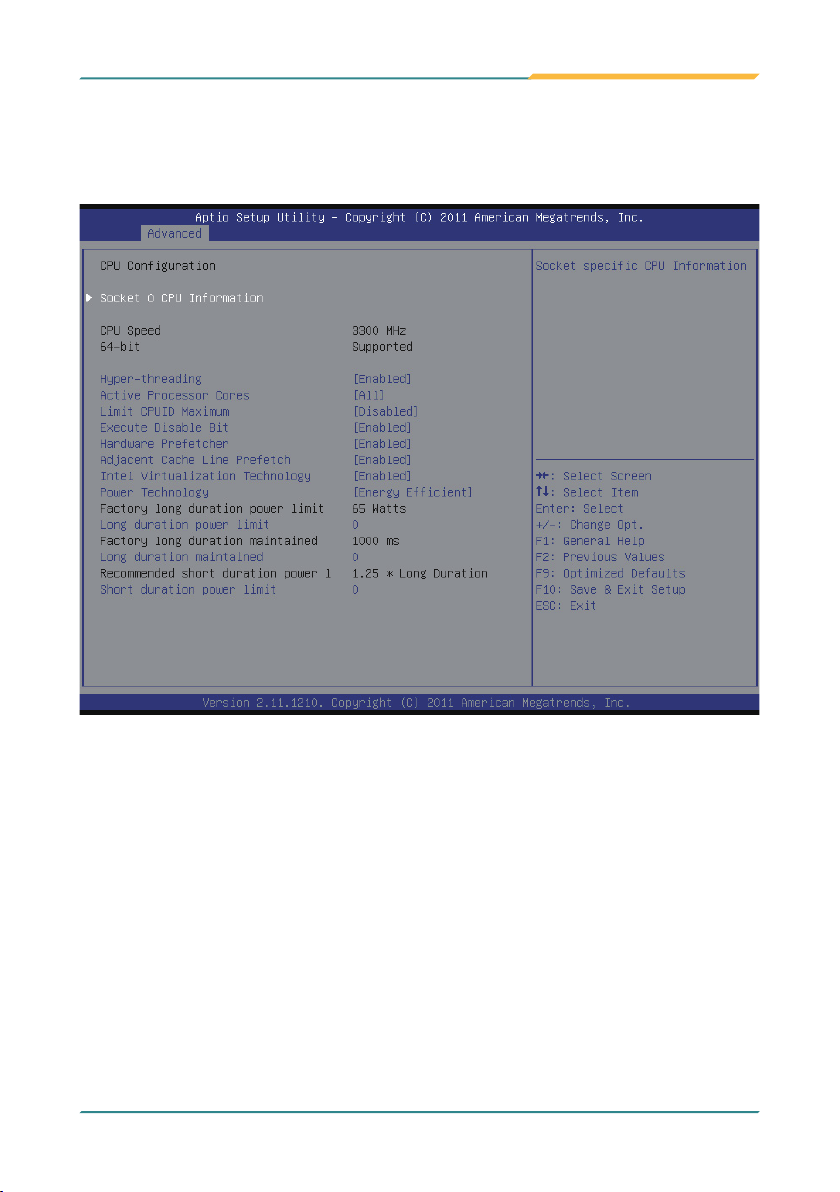

3.2.2 CPU Conguration

Press “Enter” on “CPU Conguration” to congure the CPU on the “CPU
Conguration” screen.

CPU Details

Detail information including CPU manufacturer name, Processor Speed,
Processor Stepping, Microcode Revision, Processor Core number, etc.

Hyper-Threading Technology

Enabled: activates the Hyper-Threading Technology for higher CPU threading
speed. (Recommended)
Disabled: deactivates the Hyper-Threading Technology.

- 34 -

Active Processor Cores

Number of cores to enable in each processor package.
The choice: All, 1, 2

Limit CPUID Maximum

Disable for Windows XP.
The choice: Disabled, Enabled

Execute Disable Bit

Enable/Disable the Execute disable bit function.

Hardware Prefetcher

To turn on/off the MLC streamer prefetcher.
The choice: Disabled, Enabled

Adjacent Cache Line Prefetch

To turn on/off prefetching of adjacent cache lines.
The choice: Disabled, Enabled

Intel® Virtualization Technology

Enable/Disable the Intel® Virtualization Technology feature.

Power Technology

Enable the power management features.

The choice: Disabled, Energy Efcient, Custom

BIOS

- 35 -

BIOS

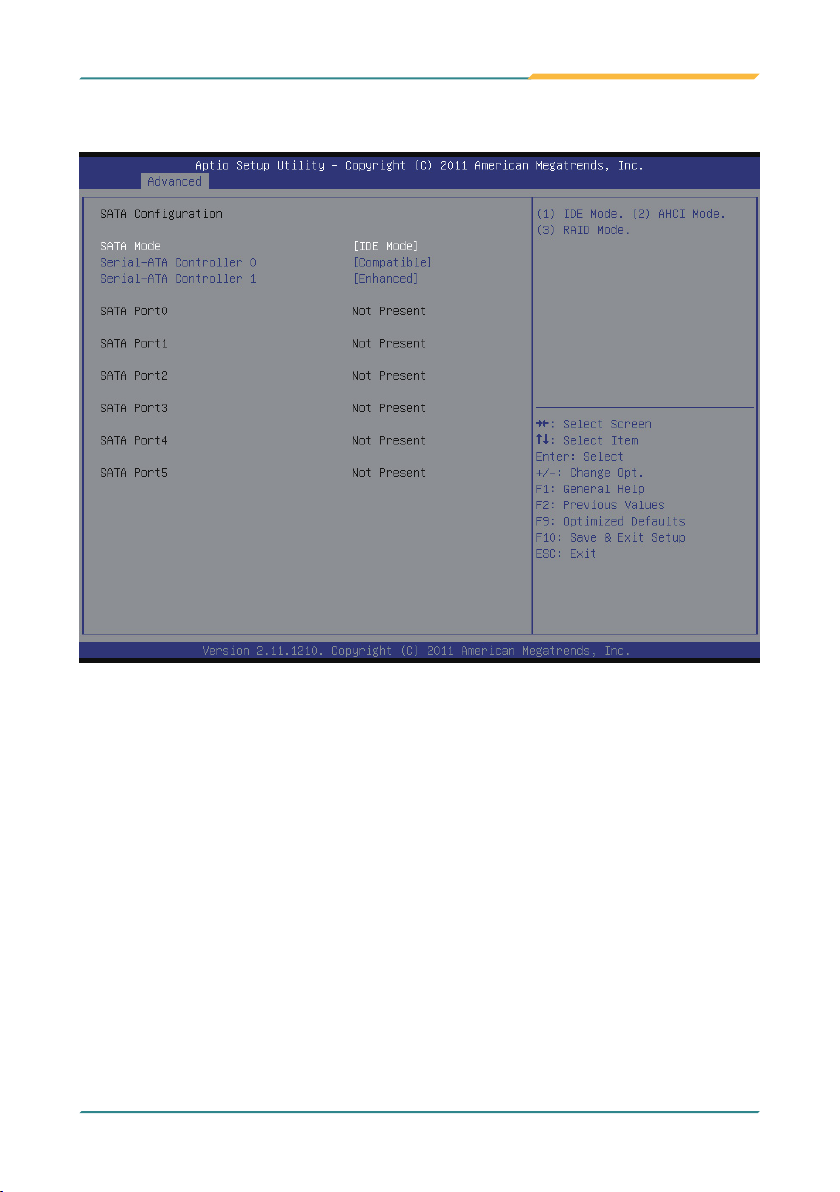

3.2.3 SATA Conguration

SATA Mode

It allows you to select the operation mode for SATA controller.

Serial-ATA Controller 0

Enable/ Disable Serial ATA Controller 0.
The choice: Disable, Enhanced, Compatible

Serial-ATA Controller 1

Enable/ Disable Serial ATA Controller 0.
The choice: Disable, Enhanced

- 36 -

3.2.4 Intel® IGD SWSCI OpRegion

BIOS

DVMT/ Fixed Memory

This feature allows you to select the memory size of DVMT/BOTH operating
mode.
The choice: 256MB, 128MB, Maximum

IGD – Boot Type

This feature allows you to select the display device when you boot up the
system.

- 37 -

BIOS

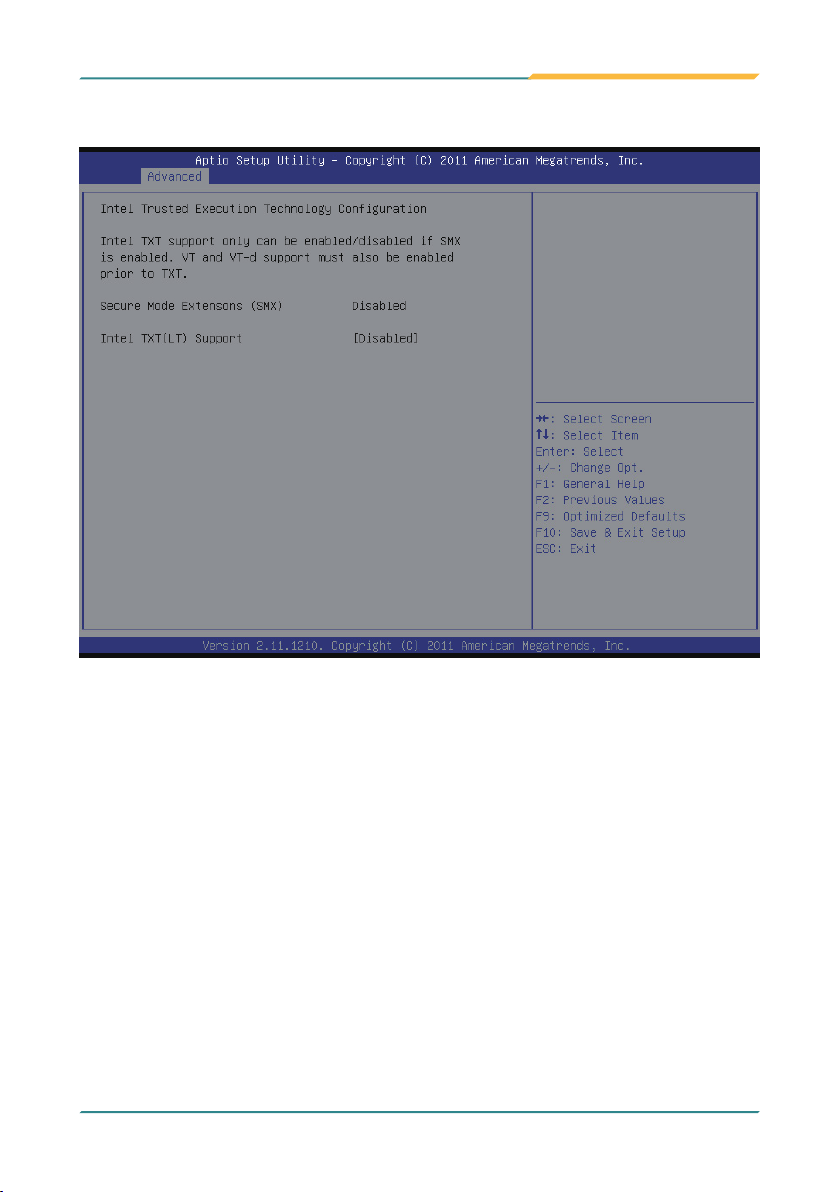

3.2.5 Intel® Trusted Execution Technology Conguration

Intel® TXT(LT) Support

This item allows you to enable/disable the Intel TXT (LT) support.

- 38 -

BIOS

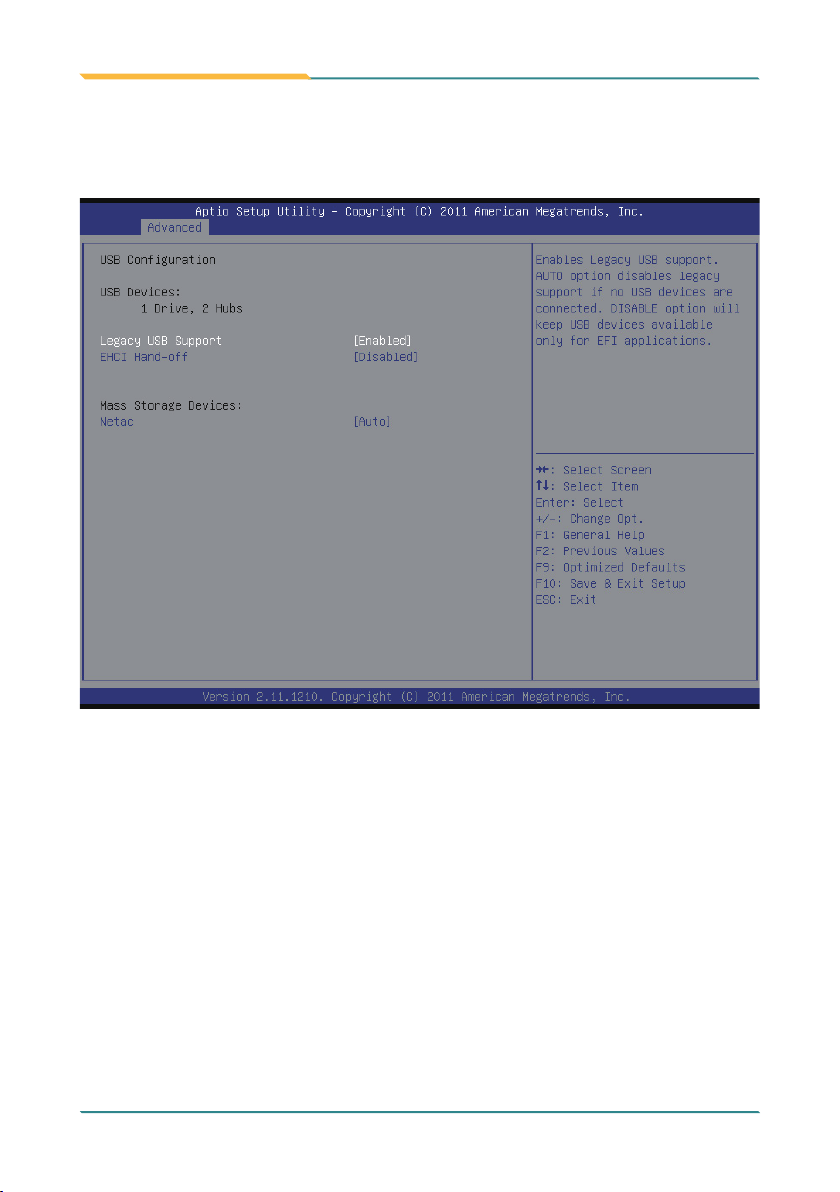

3.2.6 USB Conguration

The menu is used to read USB conguration information and congure the

USB setting.

Legacy USB Support

Enable support for legacy USB. Normally if this option is not enabled, any
attached USB mouse or USB keyboard won’t be accessible until a USB
compatible operating system is fully booted with all loaded USB drivers. When
this option is enabled, any attached USB mouse or USB keyboard can control
the system even when there is no USB driver loaded onto the system.
The choice: Enabled, Disabled, Auto (AUTO option disables legacy support if
no USB devices are connected.)

EHCI Hand-Off

This option allows you to enable EHCI Hand-Off function by BIOS if your
computer operating system does not support it. EHCI is the abbreviation for
Enhanced Host Controller Interface, which is necessary for high speed USB
operation.
The choice: Enabled, Disabled

- 39 -

BIOS

Mass Storage Devices

This item allows you to set up mass storage devices.
The choice: Auto, Floppy, Forced FDD, Hard-Disk, CD-ROM

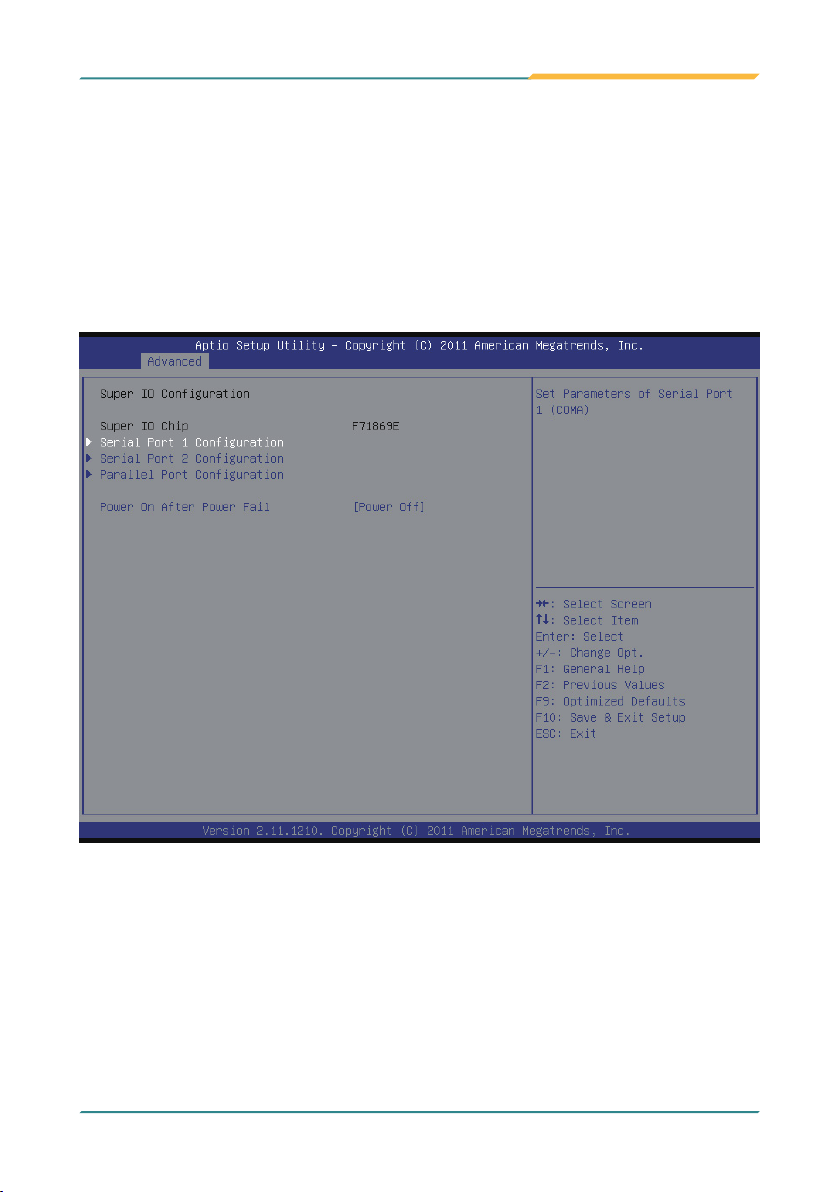

3.2.7 Super IO Conguration

You can use this item to set up or change the Super IO conguration for FDD

controllers, parallel ports and serial ports.

- 40 -

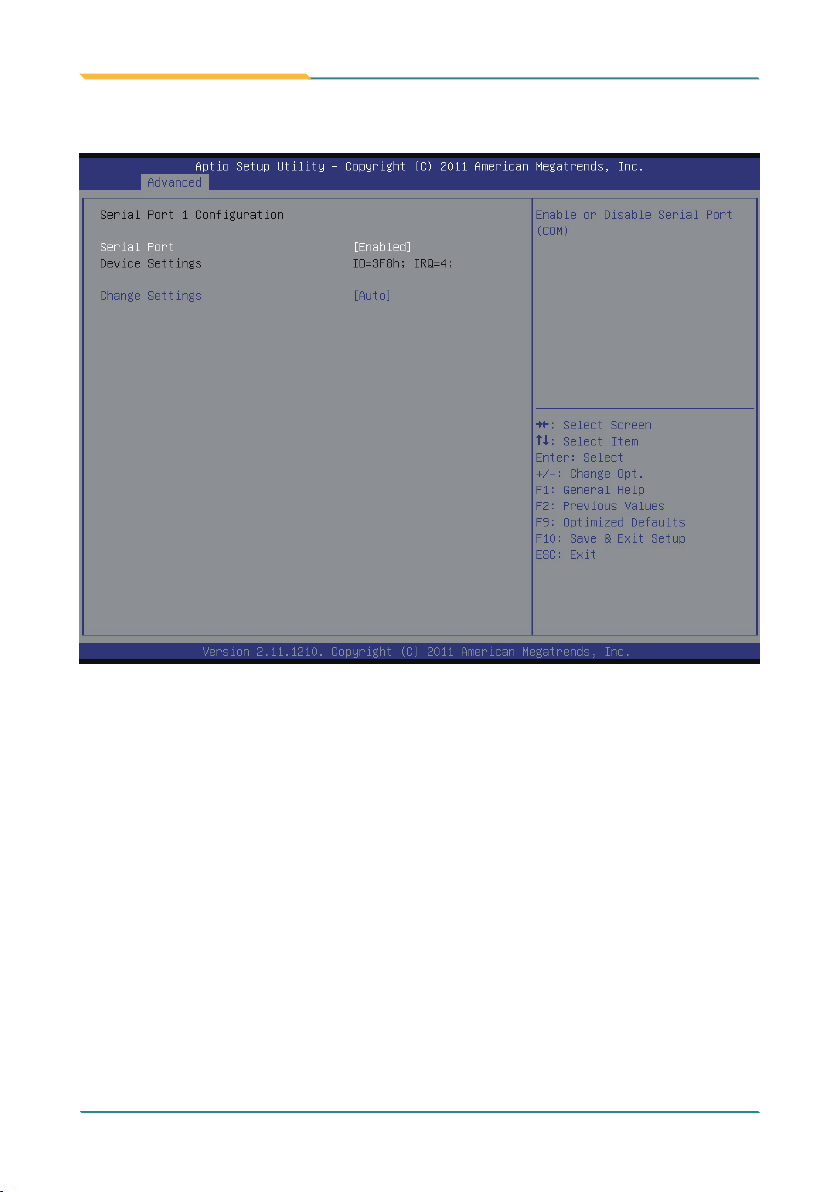

Serial Port 1 Conguration

BIOS

Serial Port

This item allows you to enable/disable Serial Port (COM).

- 41 -

BIOS

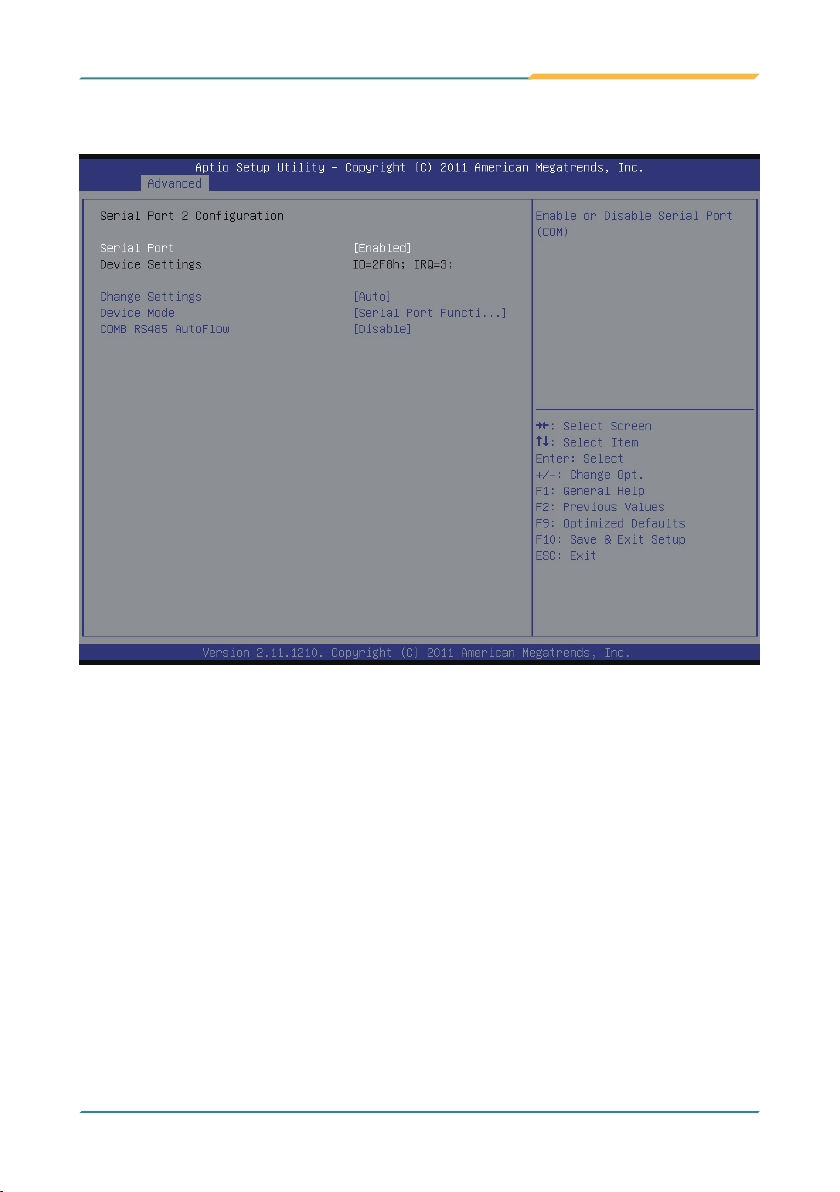

Serial Port 2 Conguration

Serial Port

This item allows you to enable/disable Serial Port (COM).

Change Settings

This item allows you to change the serial port IO port address and interrupt
address.

COMB RS-485 Autoow

This item allows you to enable serial port 2 auto ow control function.
Auto ow control is used in RS-485 to control the signal transmitter

automatically. When RS-485 auto ow is disabled, the RS-485 auto ow will
not work. RS-422/485 is available after modifying the COMB RS-485 Autoow
in BIOS setting to enabled.
The choice: Enabled, Disabled (default)

- 42 -

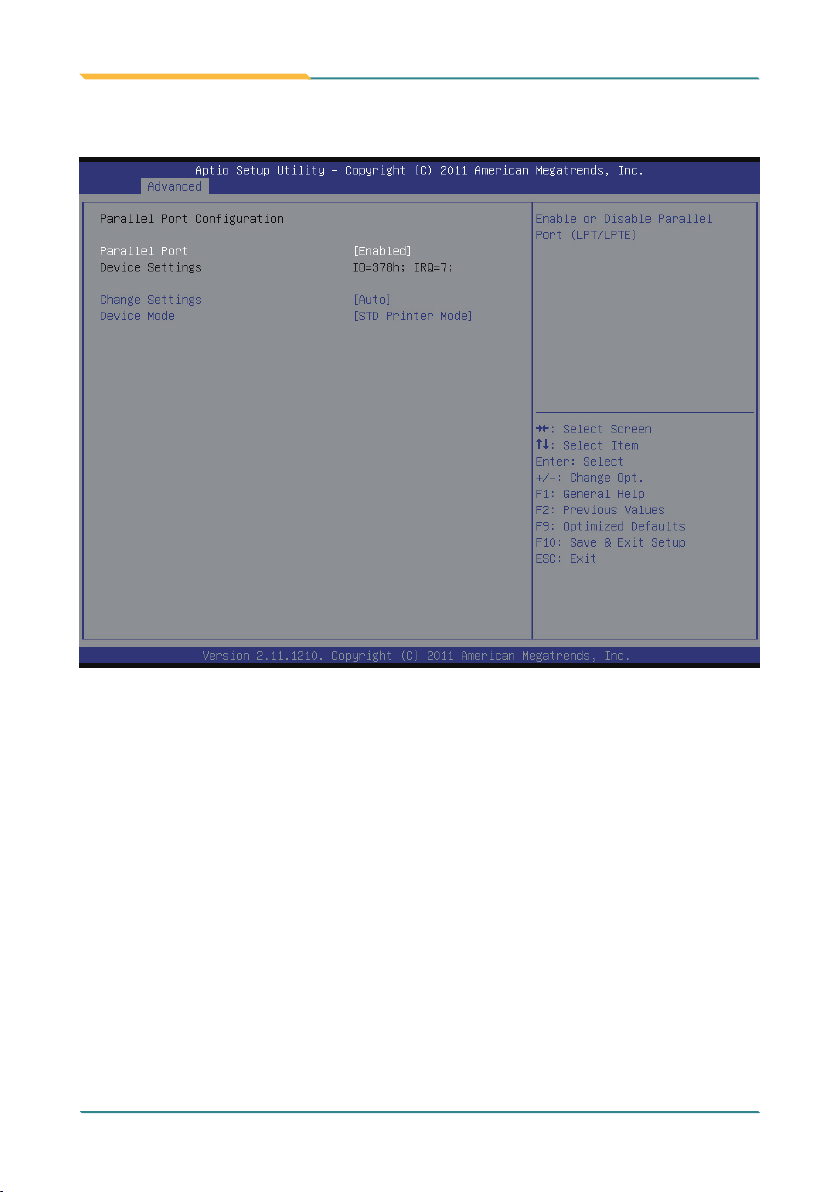

Parallel Port Conguration

BIOS

Parallel Port Conguration

This item allows you to enable/disable Parallel Port (LPT/LPTE).

- 43 -

BIOS

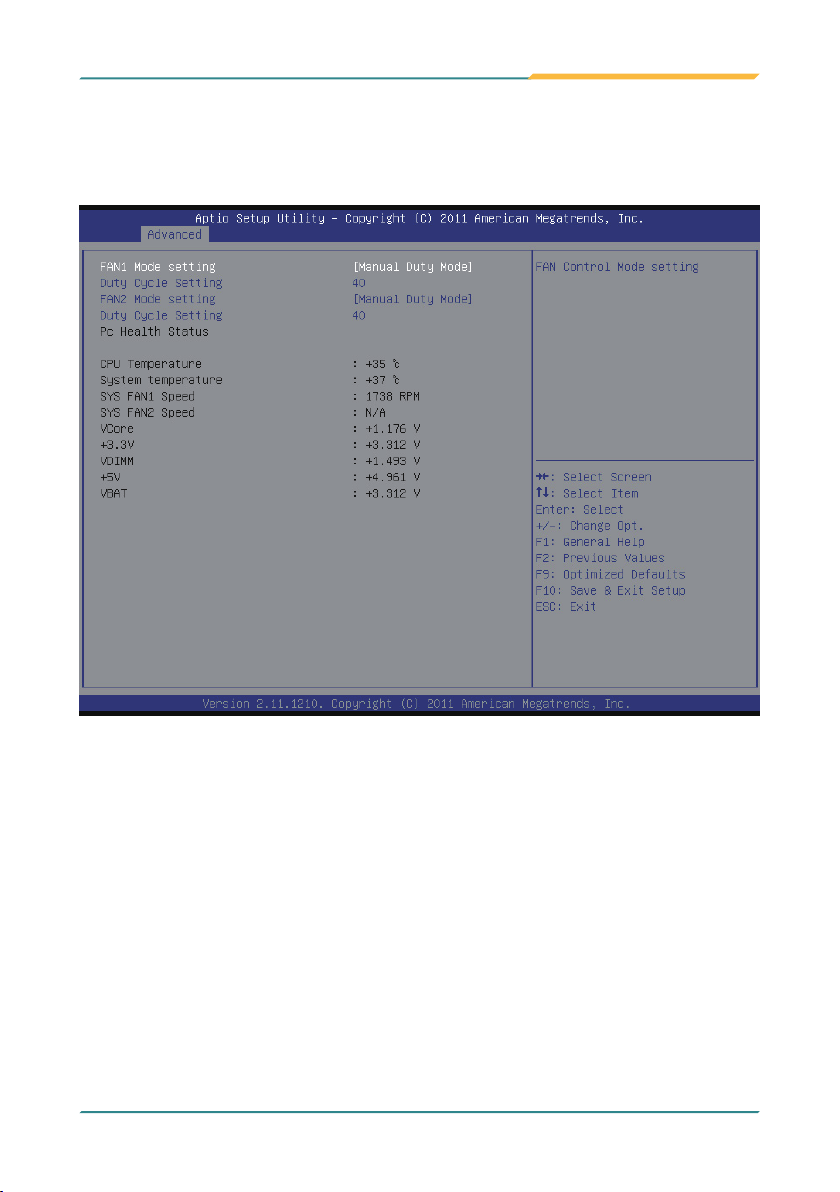

3.2.8 H/W Monitor

The H/W Monitor lists out the temperature, fan speeds and system voltages
being monitored.

FAN1 Mode Setting

Allow you to select the FAN control mode.

FAN2 Mode Setting

Allow you to select the FAN control mode.

CPU/System Temperature

Show you the current CPU/System fan temperature.

System FAN1/2 Speed

Show you the current system Fan operating speed.

Vcore

Show you the voltage level of CPU (Vcore).

- 44 -

BIOS

+3.3V / +5V / VBAT

Show you the voltage level of the +3.3V, +5V standby and battery.

VDIMM

Show you the current VDIMM voltage.

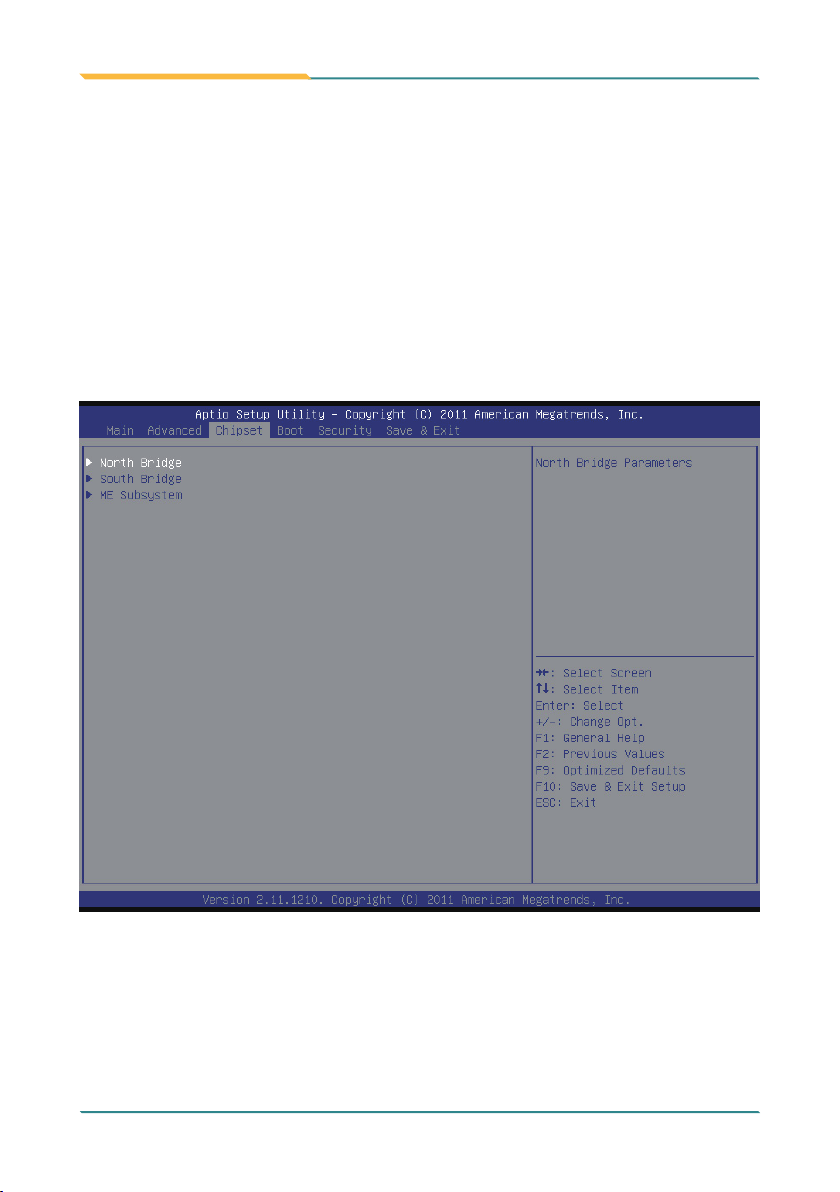

3.3 Advanced Chipset Settings

Select “Chipset” to enable CRID, access “North Bridge,” “South Bridge” and
“ME Subsystem.”

- 45 -

BIOS

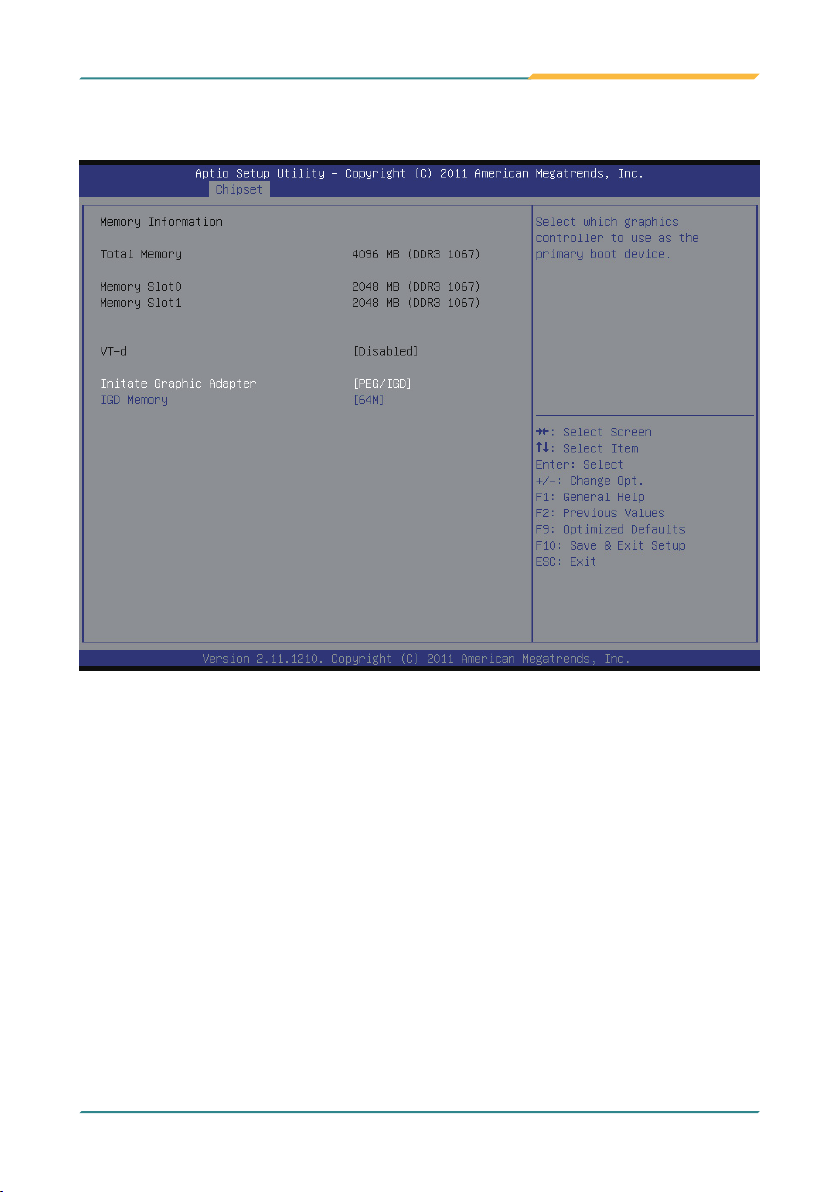

3.3.1 North Bridge

Vt-d

Enable/Disable the Vt-d function.

Initate Graphic Adapter

This item allows you to select which graphics controller to use and set it as the
primary boot device.
The choice: IGD, PCI/IGD, PCI/PEG, PEG/IGD, PEG/PCI

IGD Memory

This item shows the information of the IGD (Internal Graphics Device) memory.

- 46 -

BIOS

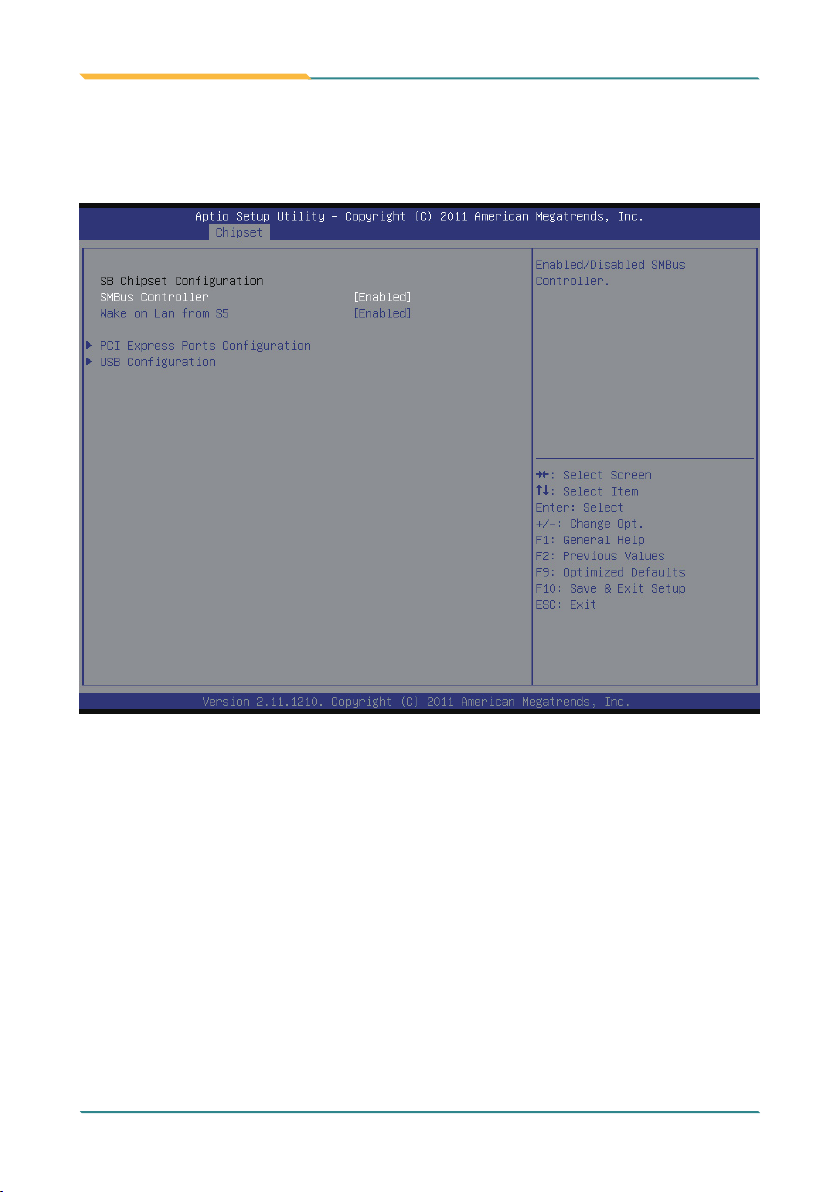

3.3.2 South Bridge

Normally, the south bridge controls the basic I/O functions, such as USB and

audio. This screen allows you to access the congurations of I/Os.

SMBus Controller

SMBus Controller help
The choice: Enabled, Disabled

Wake on Lan from S5

Wake on Lan from S5 help
The choice: Enabled, Disabled

- 47 -

BIOS

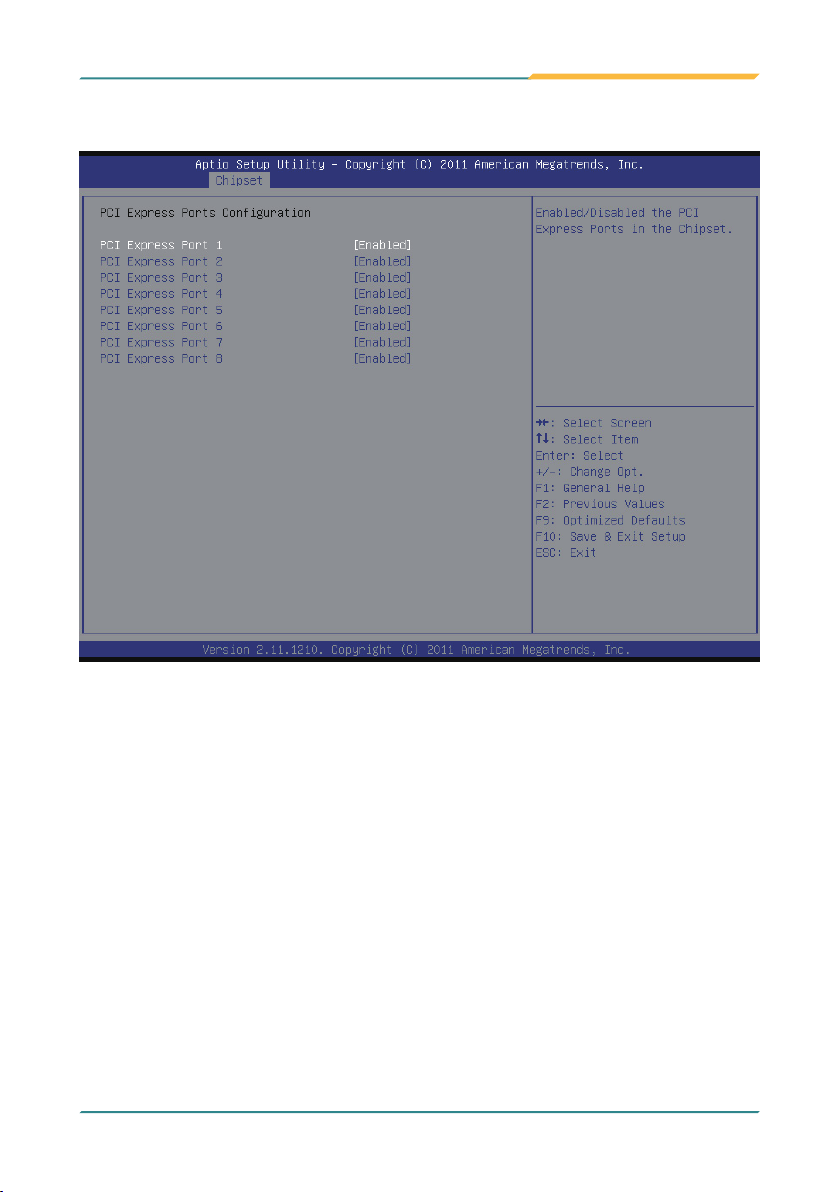

PCI Express Ports Conguration

PCI Express Port 1/2/3/4/5/6/7/8

Enable/Disable the PCI Express Ports in the chipset.

- 48 -

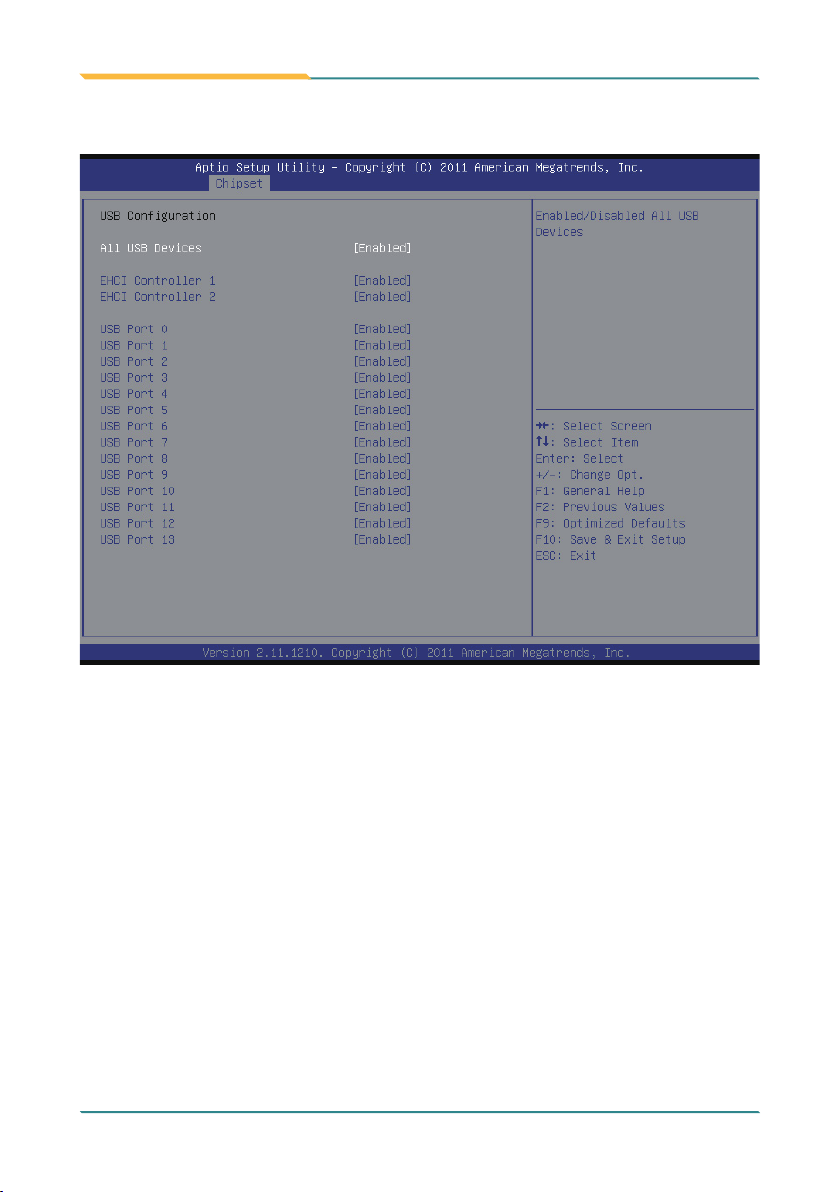

USB Conguration

BIOS

The USB Conguration menu is used to read USB conguration information
and congure the USB settings.

All USB Devices

Use this item to enable or disable all USB devices.

- 49 -

BIOS

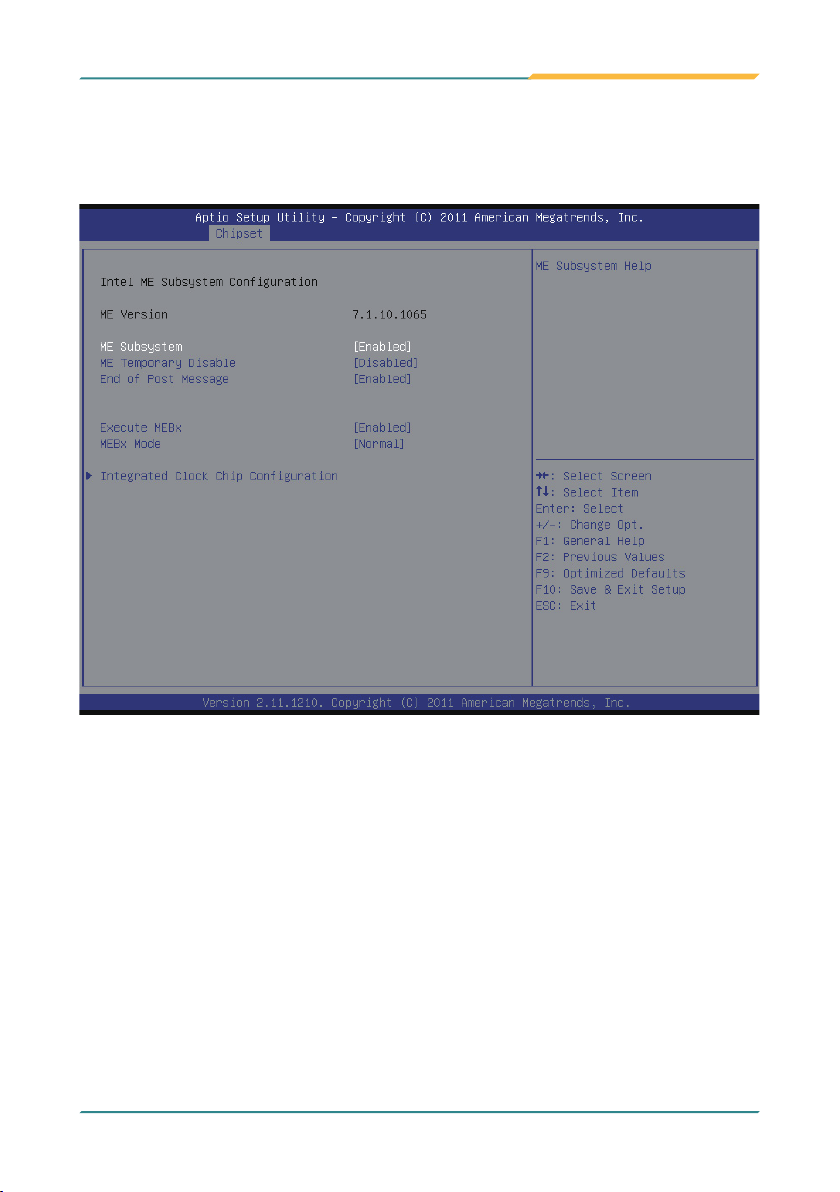

3.3.3 ME Subsystem

Use the ME Subsystem menu to congure the Intel® Management Engine
(ME) conguration options.

ME Subsystem

Use the ME Subsystem option to enable or disable the Intel® ME subsystem.
The choice: Enabled, Disabled

End of Post Message

Use the End of Post Message option to enable or disable the end of post mes­sage of the ME Subsystem.
The choice: Enabled, Disabled

Execute MEBx

Use the Execute MEBx option to enable or disable the Intel® Management
Engine BIOS extension (MEBx).
The choice: Enabled, Disabled

- 50 -

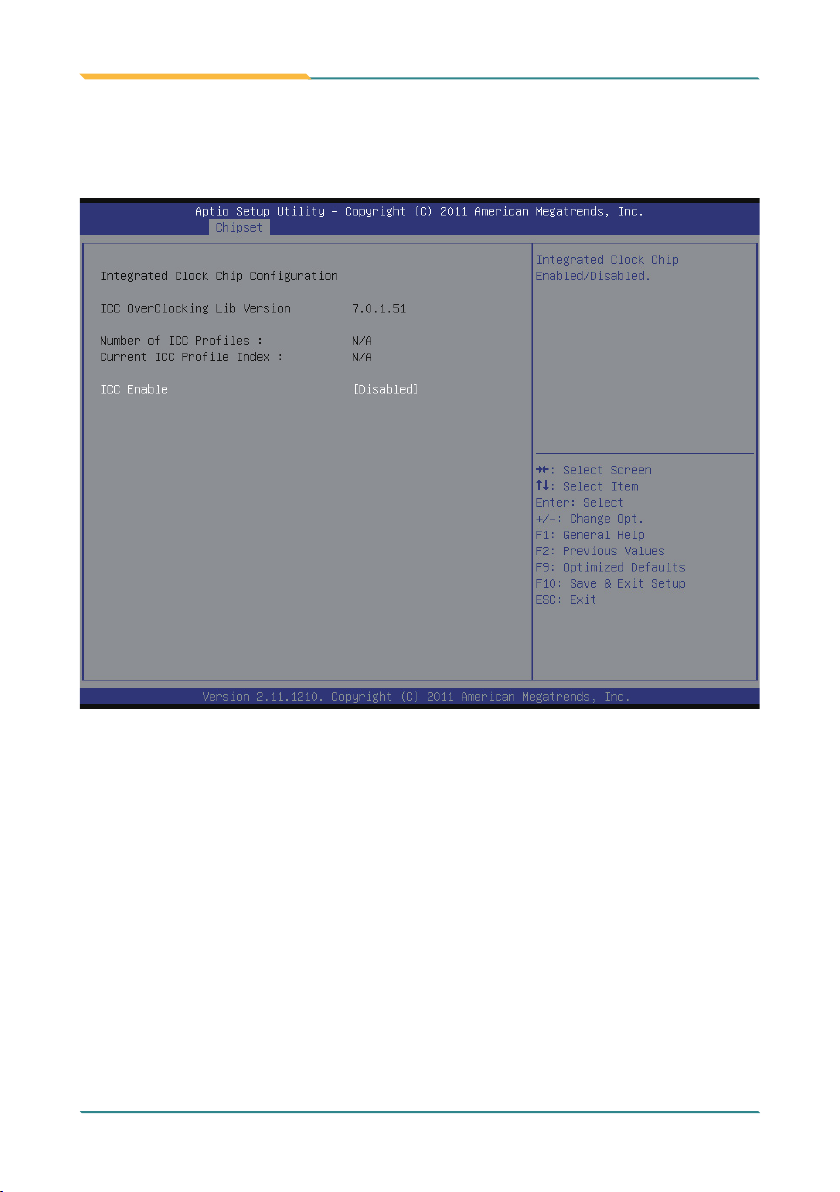

Integrated Clock Chip Conguration

BIOS

ICC Enable

This item allows you to enable or disable the current ICC.

- 51 -

BIOS

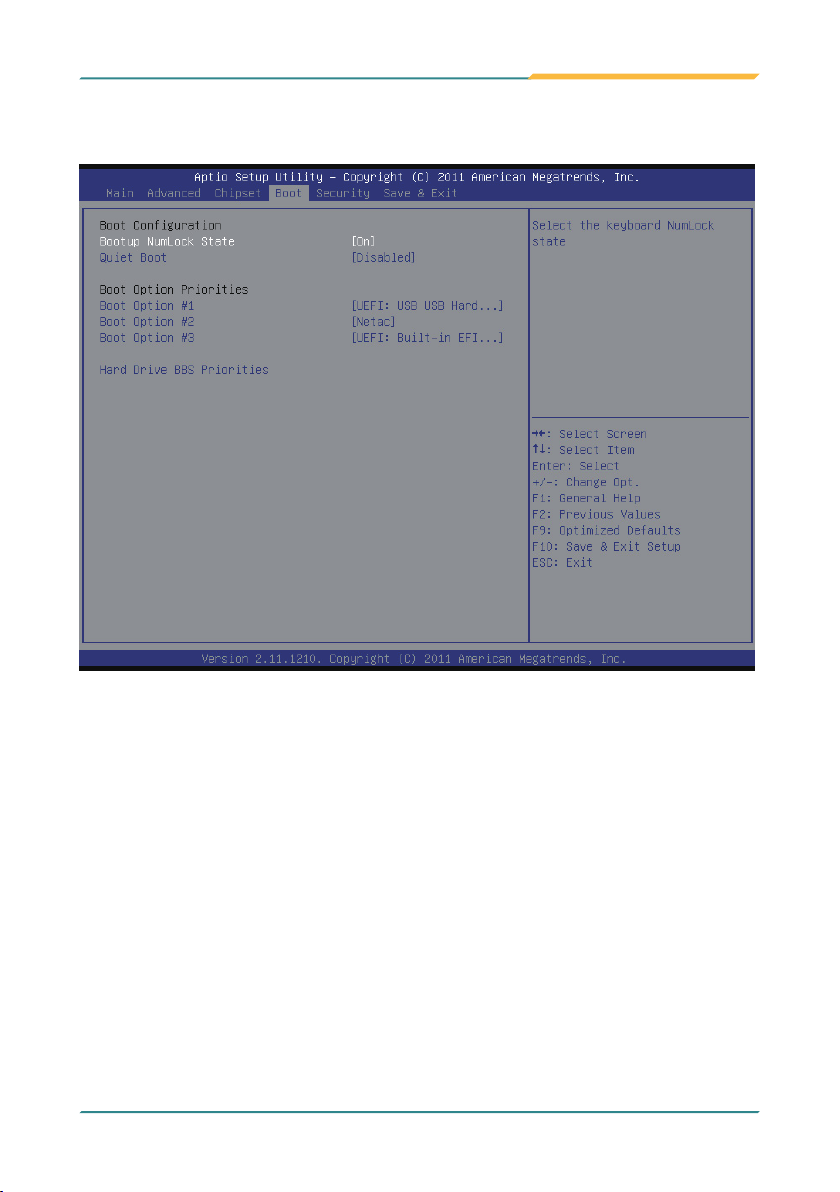

3.4 Boot Settings

Bootup Numlock State

This item determines if the Numlock key is active or inactive at system
start-up time.

Quiet Boot

This item can helps to select screen display when the system boots.
The choice: Enabled, Disabled

Boot Option Priorities

This item allows you to select boot priorities for all boot devices.

- 52 -

BIOS

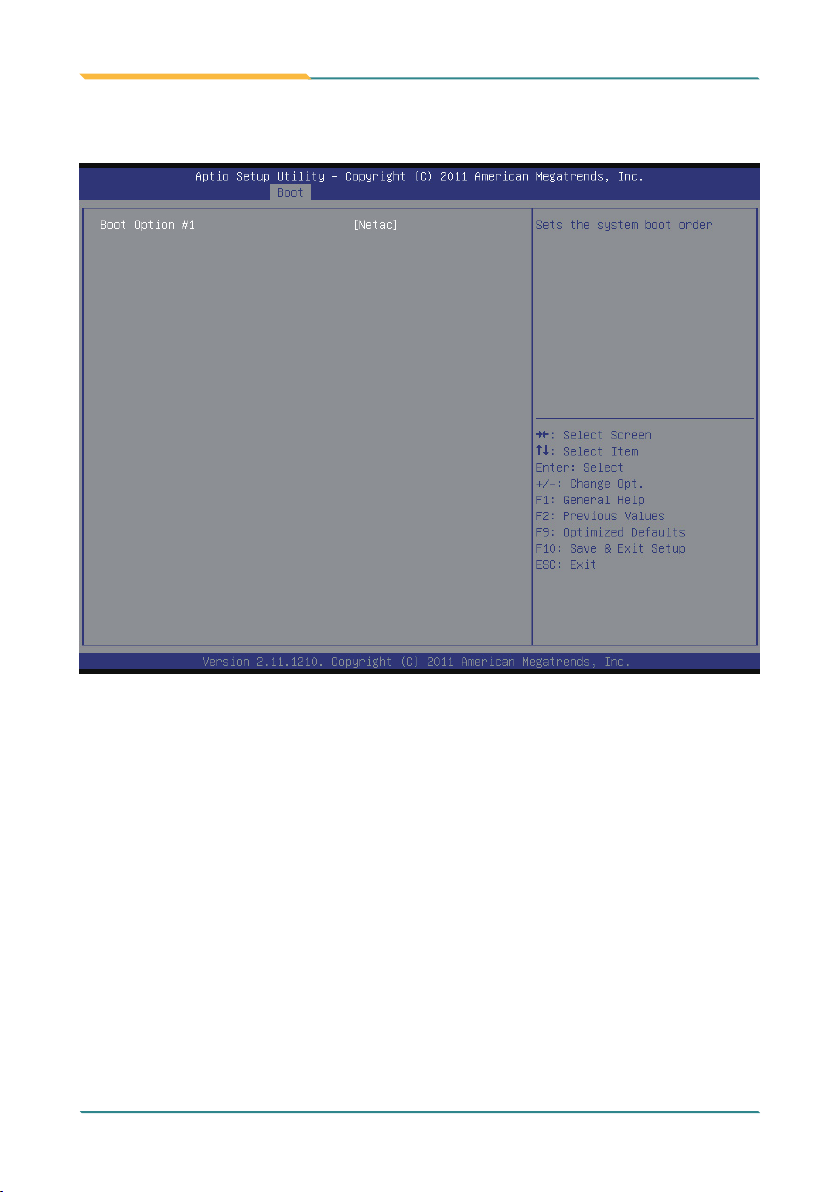

Boot Option #1

This item allows you to set the system boot priorities.

- 53 -

BIOS

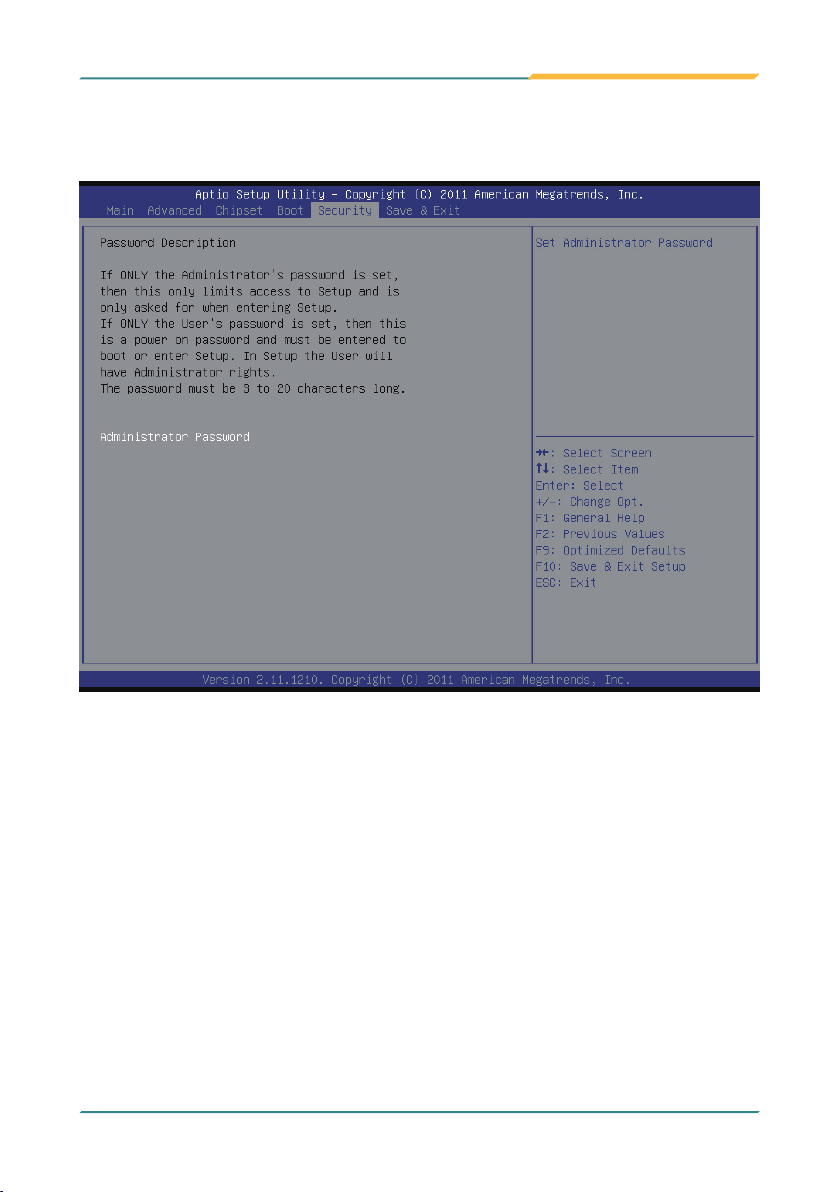

3.5 Security

You can set administrator password by Security menu.

- 54 -

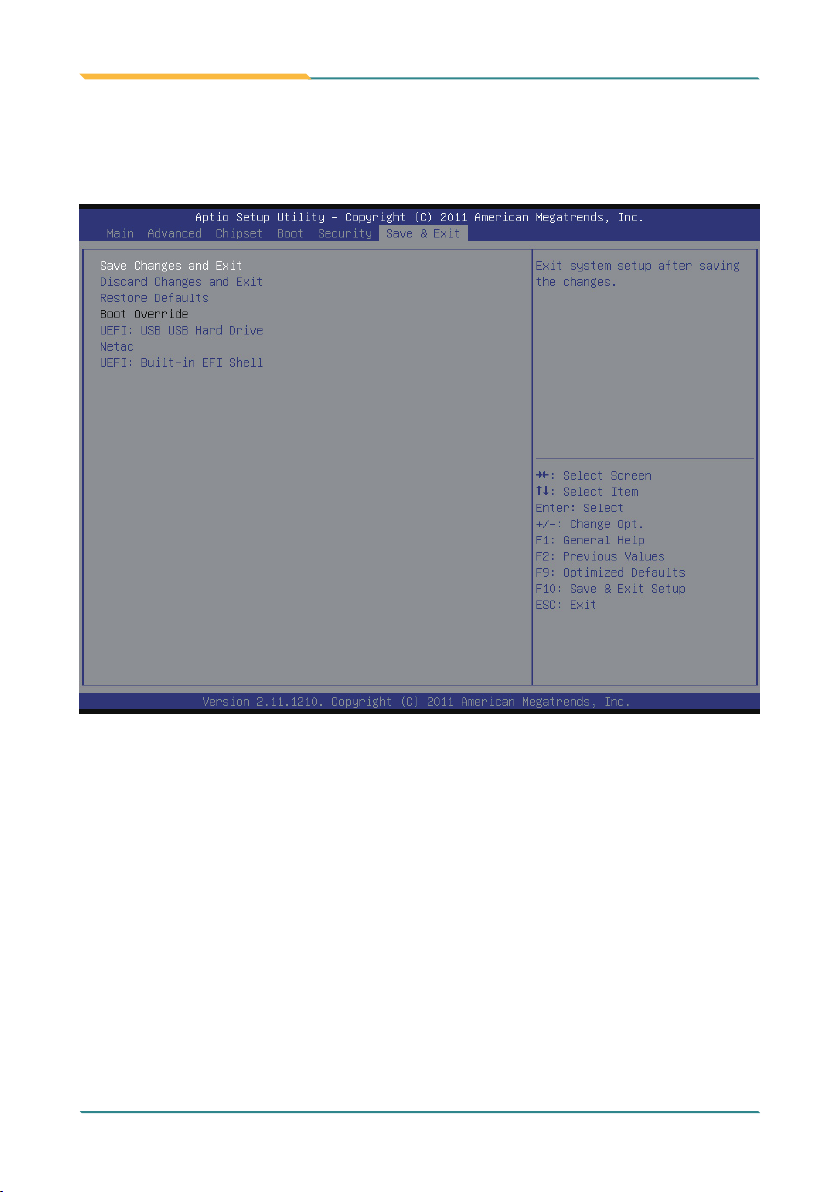

3.6 Exit Options

Use the option to exit BIOS settings, and save/discard any changes you
made.

BIOS

Save Changes and Exit

Exit system setup after saving the changes.

Discard Changes and Exit

Exit system setup without saving any changes.

Discard Changes

Discard changes done so far to any of the setup questions.

- 55 -

BIOS

3.7 Beep Sound codes list

3.7.1 Boot Block Beep Codes

Number of Beeps Description

1 Insert diskette in oppy drive A:

2

4 Flash Programming successful

5 Floppy read error

6 Keyboard controller BAT command failed

7 No Flash EPROM detected

8 Floppy controller failure

9 Boot Block BIOS checksum error

10 Flash Erase error

11 Flash Program error

12 ‘AMIBOOT.ROM’ le size error

13

‘AMIBOOT.ROM’ le not found in root directory of

diskette in A:

BIOS ROM image mismatch (le layout does not
match image present in ash device)

3.7.2 POST BIOS Beep Codes

Number of Beeps Description

1 Memory refresh timer error.

2 Parity error in base memory (rst 64KB block)

4 Motherboard timer not operational

5 Processor error

6

7

8 Display memory error (system video adapter)

9 AMIBIOS ROM checksum error

10 CMOS shutdown register read/write error

11

8042 Gate A20 test error (cannot switch to protected
mode)

General exception error (processor exception
interrupt error)

Cache memory test failed

- 56 -

3.7.3 Troubleshooting POST BIOS Beep Codes

Number of Beeps Description

1, 2 or 3

4-7, 9-11

8

Reseat the memory, or replace with known good
modules.

Fatal error indicating a serious problem with the
system. Consult your system manufacturer. Before
declaring the motherboard beyond all hope, eliminate
the possibility of interference by a malfunctioning
add-in card. Remove all expansion cards except the
video adapter.

• If beep codes are generated when all other expansion

cards are absent, consult your system manufacturer’s
technical support.

• If beep codes are not generated when all other

expansion cards are absent, one of the add-in cards
is causing the malfunction. Insert the cards back into
the system one at a time until the problem

If the system video adapter is an add-in card, replace
or reset the video adapter. If the video adapter is an
integrated part of the system board, the board may
be faulty.

BIOS

- 57 -

BIOS

3.8 AMI BIOS Checkpoints

3.8.1 Bootblock Initialization Code Checkpoints

The Bootblock initialization code sets up the chipset, memory and other
components before system memory is available. The following table describes
the type of checkpoints that may occur during the bootblock initialization
portion of the BIOS

Checkpoint Description

Before D0

D0

D1

(Note)

:

If boot block debugger is enabled, CPU cache-as-RAM
functionality is enabled at this point. Stack will be enabled
from this point.

Early Boot Strap Processo (BSP) initialization like microcode
update, frequency and other CPU critical initialization. Early
chipset initialization is done.

Early super I/O initialization is done including RTC and
keyboard controller. Serial port is enabled at this point if
needed for debugging. NMI is disabled. Perform keyboard
controller BAT test. Save power-on CPUID value in scratch

CMOS. Go to at mode with 4GB limit and GA20 enabled.

D2

D3

D4

D5

Verify the boot block checksum. System will hang here if
checksum is bad.

Disable CACHE before memory detection. Execute full
memory sizing module. If memory sizing module is not
executed, start memory refresh and do memory sizing
in Boot block code. Do additional chipset initialization.

Re-enable CACHE. Verify that at mode is enabled.

Test base 512KB memory. Adjust policies and cache rst

8MB. Set stack.

Bootblock code is copied from ROM to lower system
memory and control is given to it. BIOS now executes out of
RAM. Copy compressed boot block code to memory in right
segments. Copy BIOS from ROM to RAM for faster access.
Perform main BIOS checksum and update recovery status
accordingly.

- 58 -

Both key sequence and OEM specic method are checked

to determine if BIOS recovery is forced. If BIOS recovery

D6

D7

D8

D9

DA

DC System is waking from ACPI S3 state

is necessary, control ows tocheckpoint E0. See Bootblock
Recovery Code Checkpoints section of document for more

information.
Restore CPUID value back into register. The Bootblock-

Runtime interface module is moved to system memory and
control is given to it. Determine whether to execute serial

ash.

The Runtime module is uncompressed into memory. CPUID
information is stored in memory.

Store the Uncompressed pointer for future use in PMM.
Copying Main BIOS into memory. Leaves all RAM below
1MB Read-Write including E000 and F000 shadow areas
but closing SMRAM.

Restore CPUID value back into register. Give control to BIOS
POST (ExecutePOSTKernel). See POST Code Checkpoints
section of document for more information.

BIOS

E1 - E8

EC - EE

OEM memory detection/conguration error. This range is

reserved for chipset vendors & system manufacturers. The
error associated with this value may be different from one
platform to the next.

- 59 -

BIOS

3.8.2 Bootblock Recovery Code Checkpoints

The Bootblock recovery code gets control when the BIOS determines that
a BIOS recovery needs to occur because the user has forced the update
or the BIOS checksum is corrupt. The following table describes the type of
checkpoints that may occur during the Bootblock recovery portion of the BIOS

(Note)

:

Checkpoint Description

Initialize the oppy controller in the super I/O. Some interrupt

E0

E9 Set up oppy controller and data. Attempt to read from oppy.

vectors are initialized. DMA controller is initialized. 8259
interrupt controller is initialized. L1 cache is enabled.

EA

Enable ATAPI hardware. Attempt to read from ARMD and
ATAPI CDROM.

EB Disable ATAPI hardware. Jump back to checkpoint E9.

EF Read error occurred on media. Jump back to checkpoint EB.

F0 Search for pre-dened recovery le name in root directory.

F1 Recovery le not found.

F2

Start reading FAT table and analyze FAT to nd the clusters
occupied by the recovery le.

F3 Start reading the recovery le cluster by cluster.

F5 Disable L1 cache.

FA

Check the validity of the recovery le conguration to the
current conguration of the ash part.

Make ash write enabled through chipset and OEM specic

FB

method. Detect proper ash part. Verify that the found ash
part size equals the recovery le size.

F4 The recovery le size does not equal the found ash part size.

- 60 -

FC Erase the ash part.

FD Program the ash part.

The ash has been updated successfully. Make ash write

FF

disabled. Disable ATAPI hardware. Restore CPUID value back
into register. Give control to F000 ROM at F000:FFF0h.

BIOS

- 61 -

BIOS

3.8.3 POST Code Checkpoints

The POST code checkpoints are the largest set of checkpoints during
the BIOS pre-boot process. The following table describes the type of
checkpoints that may occur during the POST portion of the BIOS

Checkpoint Description

Disable NMI, Parity, video for EGA, and DMA controllers.

03

Initialize BIOS, POST, Runtime data area. Also initialize BIOS
modules on POST entry and GPNV area. Initialized CMOS as
mentioned in the Kernel Variable "wCMOSFlags."

Check CMOS diagnostic byte to determine if battery power
is OK and CMOS checksum is OK. Verify CMOS checksum
manually by reading storage area. If the CMOS checksum is

04

bad, update CMOS with power-on default values and clear
passwords. Initialize status register A. Initializes data variables
that are based on CMOS setup questions. Initializes both the
8259 compatible PICs in the system

(Note)

:

05

Initializes the interrupt controlling hardware (generally PIC)
and interrupt vector table.

Do R/W test to CH-2 count reg. Initialize CH-0 as system

06

timer.Install the POSTINT1Ch handler. Enable IRQ-0 in
PIC for system timer interrupt. Traps INT1Ch vector to
"POSTINT1ChHandlerBlock."

07 Fixes CPU POST interface calling pointer.

Initializes the CPU. The BAT test is being done on KBC.

08

Program the keyboard controller command byte is being done
after Auto detection of KB/MS using AMI KB-5.

C0 Early CPU Init Start -- Disable Cache – Init Local APIC

C1 Set up boot strap processor Information

C2 Set up boot strap processor for POST

C5 Enumerate and set up application processors

C6 Re-enable cache for boot strap processor

- 62 -

C7 Early CPU Init Exit

0A Initializes the 8042 compatible Key Board Controller.

0B Detects the presence of PS/2 mouse.

0C Detects the presence of Keyboard in KBC port.

Testing and initialization of different Input Devices. Also, update

0E

13 Early POST initialization of chipset registers.

20

24

the Kernel Variables. Traps the INT09h vector, so that the
POST INT09h handler gets control for IRQ1. Uncompress all
available language, BIOS logo, and Silent logo modules.

Relocate System Management Interrupt vector for all CPU in
the system.

Uncompress and initialize any platform specic BIOS modules.

GPNV is initialized at this checkpoint.

BIOS

2A

2C

2E Initializes all the output devices.

31

33

37

Initializes different devices through DIM. See DIM Code
Checkpoints section of document for more information.

Initializes different devices. Detects and initializes the video
adapter installed in the system that have optional ROMs.

Allocate memory for ADM module and uncompress it.
Give control to ADM module for initialization. Initialize language
and font modules for ADM. Activate ADM module.

Initializes the silent boot module. Set the window for displaying
text information.

Displaying sign-on message, CPU information, setup key

message, and any OEM specic information.

- 63 -

BIOS

Initializes different devices through DIM. See DIM Code

38

39 Initializes DMAC-1 & DMAC-2.

3A Initialize RTC date/time.

3B

3C Mid POST initialization of chipset registers.

40

52

Checkpoints section of document for more information. USB
controllers are initialized at this point.

Test for total memory installed in the system. Also, Check for
DEL or ESC keys to limit memory test. Display total memory
in the system.

Detect different devices (Parallel ports, serial ports, and
coprocessor in CPU, … etc.) successfully installed in the
system and update the BDA, EBDA…etc.

Updates CMOS memory size from memory found in memory
test. Allocates memory for Extended BIOS Data Area from
base memory. Programming the memory hole or any kind of
implementation that needs an adjustment in system RAM size
if needed.

60

75 Initialize Int-13 and prepare for IPL detection.

78 Initializes IPL devices controlled by BIOS and option ROMs.

7C Generate and write contents of ESCD in NVRam.

84 Log errors encountered during POST.

85 Display errors to the user and gets the user response for error.

87

8C Late POST initialization of chipset registers.

8D Build ACPI tables (if ACPI is supported)

8E

90

A1 Clean-up work needed before booting to OS.

Initializes NUM-LOCK status and programs the KBD typematic
rate.

Execute BIOS setup if needed / requested. Check boot
password if installed.

Program the peripheral parameters. Enable/Disable NMI as
selected

Initialization of system management interrupt by invoking
all handlers. Please note this checkpoint comes right after
checkpoint 20h

- 64 -

A2

BIOS

Takes care of runtime image preparation for different BIOS
modules. Fill the free area in F000h segment with 0FFh.
Initializes the Microsoft IRQ Routing Table. Prepares the

runtime language module. Disables the system conguration

display if needed.

A4

A7

A9 Wait for user input at cong display if needed.

AA Uninstall POST INT1Ch vector and INT09h vector.

AB Prepare BBS for Int 19 boot. Init MP tables.

AC

B1

00 Passes control to OS Loader (typically INT19h).

Initialize runtime language module. Display boot option popup
menu.

Displays the system conguration screen if enabled. Initialize

the CPU’s before boot, which includes the programming of the
MTRR’s.

End of POST initialization of chipset registers. De-initializes the
ADM module.

Save system context for ACPI. Prepare CPU for OS boot

including nal MTRR values.

- 65 -

BIOS

3.8.4 DIM Code Checkpoints

The Device Initialization Manager (DIM) gets control at various times during
BIOS POST to initialize different system busses. The following table describes
the main checkpoints where the DIM module is accessed

Checkpoint Description

Initialize different buses and perform the following functions:
Reset, Detect, and Disable (function 0); Static Device
Initialization (function 1); Boot Output Device Initialization
(function 2). Function 0 disables all device nodes, PCI devices,

2A

and PnP ISA cards. It also assigns PCI bus numbers. Function

1 initializes all static devices that include manual congured

onboard peripherals, memory and I/O decode windows in PCI­PCI bridges, and noncompliant PCI devices. Static resources
are also reserved. Function 2 searches for and initializes any
PnP, PCI, or AGP video devices.

Initialize different buses and perform the following functions:
Boot Input Device Initialization (function 3); IPL Device
Initialization (function 4); General Device Initialization (function

5). Function 3 searches for and congures PCI input devices

38

and detects if system has standard keyboard controller.

Function 4 searches for and congures all PnP and PCI boot
devices. Function 5 congures all onboard peripherals that are
set to an automatic conguration and congures all remaining

PnP and PCI devices.

(Note)

:

While control is in the different functions, additional checkpoints are output to
port 80h as a word value to identify the routines under execution. The low byte
value indicates the main POST Code Checkpoint. The high byte is divided

into two nibbles and contains two elds. The details of the high byte of these

checkpoints are as follows:

HIGH BYTE XY

The upper nibble “X” indicates the function number that is being executed.
“X” can be from 0 to 7.

- 66 -

BIOS

0 = func#0, disable all devices on the BUS concerned.
2 = func#2, output device initialization on the BUS concerned.
3 = func#3, input device initialization on the BUS concerned.
4 = func#4, IPL device initialization on the BUS concerned.
5 = func#5, general device initialization on the BUS concerned.
6 = func#6, error reporting for the BUS concerned.
7 = func#7, add-on ROM initialization for all BUSes.
8 = func#8, BBS ROM initialization for all BUSes.

The lower nibble 'Y' indicates the BUS on which the different routines are
being executed. 'Y' can be from 0 to 5.
0 = Generic DIM (Device Initialization Manager).
1 = On-board System devices.
2 = ISA devices.
3 = EISA devices.
4 = ISA PnP devices.
5 = PCI devices.

3.8.5 ACPI Runtime Checkpoints

ACPI checkpoints are displayed when an ACPI capable operating system
either enters or leaves a sleep state. The following table describes the type of
checkpoints that may occur during ACPI sleep or wake events

(Note)

:

Checkpoint Description

AC

First ASL check point. Indicates the system is running
in ACPI mode.

AA System is running in APIC mode.

01, 02, 03, 04, 05 Entering sleep state S1, S2, S3, S4, or S5.

10, 20, 30, 40, 50 Waking from sleep state S1, S2, S3, S4, or S5.

Note:

Please note that checkpoints may differ between different platforms based on

system conguration. Checkpoints may change due to vendor requirements,
system chipset or option ROMs from add-in PCI devices.

- 67 -

This page is intentionally left blank.

Appendix

Appendix

Appendix

- 69 -

Appendix

Appendix A: I/O Port Address Map

Each peripheral device in the system is assigned a set of I/O port addresses
which also becomes the identity of the device.
The following table lists the I/O port addresses used.

Address Device Description

0x00000000-0x0000000F Direct memory access controller

0x00000000-0x0000000F PCI bus

0x00000010-0x0000001F Motherboard resources

0x00000020-0x00000021 Programmable interrupt controller

0x00000022-0x0000003F Motherboard resources

0x00000040-0x00000043 System timer

0x00000044-0x0000005F Motherboard resources

0x00000060-0x00000060 Standard 101/102-Key or Microsoft Natural

PS/2 Keyboard

0x00000061-0x00000061 System speaker

0x00000062-0x00000063 Motherboard resources

0x00000064-0x00000064 Standard 101/102-Key or Microsoft Natural

PS/2 Keyboard

0x00000065-0x0000006F Motherboard resources

0x00000070-0x00000071 System CMOS/real time clock

0x00000072-0x0000007F Motherboard resources

0x00000080-0x00000080 Motherboard resources

0x00000081-0x00000083 Direct memory access controller

0x00000084-0x00000086 Motherboard resources

0x00000087-0x00000087 Direct memory access controller

0x00000088-0x00000088 Motherboard resources

0x00000089-0x0000008B Direct memory access controller

0x0000008C-0x0000008E Motherboard resources

0x0000008F-0x0000008F Direct memory access controller

0x00000090-0x0000009F Motherboard resources

0x000000A0-0x000000A1 Programmable interrupt controller

0x000000A2-0x000000BF Motherboard resources

- 70 -

Appendix

0x000000C0-0x000000DF Direct memory access controller

0x000000E0-0x000000EF Motherboard resources

0x000000F0-0x000000FF Numeric data processor

0x000001F0-0x00000177 ATA Channel 1

0x000001F0-0x000001F7 ATA Channel 0

0x000002F8-0x0000029F Motherboard resources

0x000002F8-0x000002FF Communications Port (COM2)

0x00000378-0x00000376 ATA Channel 1

0x00000378-0x0000037F Printer Port (LPT1)

0x000003B0-0x000003BB Intel(R) HD Graphics Family

0x000003B0-0x000003BB PCI bus

0x000003C0-0x000003DF Intel(R) HD Graphics Family

0x000003E0-0x00000CF7 PCI bus

0x000003F6-0x000003F6 ATA Channel 0

0x000003F8-0x000003FF Communications Port (COM1)

0x00000400-0x00000453 System board

0x00000454-0x00000457 Motherboard resources

0x00000458-0x0000047F System board

0x000004D0-0x000004D1 Motherboard resources

0x00000500-0x0000057F System board

0x0000D000-0x0000FFFF PCI bus

0x00001180-0x0000119F System board

0x0000D000-0x0000DFFF Intel(R) 6 Series/C200 Series Chipset Family

PCI Express Root Port 3 - 1C14

0x0000E000-0x0000EFFF Intel(R) 6 Series/C200 Series Chipset Family

PCI Express Root Port 2 - 1C12

0x0000F000-0x0000F03F Intel(R) HD Graphics Family

0x0000F040-0x0000F05F Intel(R) 6 Series/C200 Series Chipset Family

SMBus Controller - 1C22

0x0000F060-0x0000F06F Intel(R) 6 Series/C200 Series Chipset Family 2

port Serial ATA Storage Controller - 1C08

- 71 -

Appendix

0x0000F070-0x0000F07F Intel(R) 6 Series/C200 Series Chipset Family 2

port Serial ATA Storage Controller - 1C08

0x0000F080-0x0000F083 Intel(R) 6 Series/C200 Series Chipset Family 2

port Serial ATA Storage Controller - 1C08

0x0000F090-0x0000F097 Intel(R) 6 Series/C200 Series Chipset Family 2

port Serial ATA Storage Controller - 1C08

0x0000F0A0-0x0000F0A3 Intel(R) 6 Series/C200 Series Chipset Family 2

port Serial ATA Storage Controller - 1C08

0x0000F0B0-0x0000F0B7 Intel(R) 6 Series/C200 Series Chipset Family 2

port Serial ATA Storage Controller - 1C08

0x0000F0C0-0x0000F0CF Intel(R) 6 Series/C200 Series Chipset Family 4

port Serial ATA Storage Controller - 1C00

0x0000F0D0-0x0000F0DF Intel(R) 6 Series/C200 Series Chipset Family 4

port Serial ATA Storage Controller - 1C00

0x0000F120-0x0000F127 Intel(R) Active Management Technology - SOL

(COM3)

0x0000F130-0x0000F13F Standard Dual Channel PCI IDE Controller

0x0000F140-0x0000F143 Standard Dual Channel PCI IDE Controller

0x0000F150-0x0000F157 Standard Dual Channel PCI IDE Controller

0x0000F160-0x0000F163 Standard Dual Channel PCI IDE Controller

0x0000F170-0x0000F177 Standard Dual Channel PCI IDE Controller

Appendix B: BIOS Memory Map

Address Device Description

0xFED10000-0xFED19FFF System board

0xE0000000-0xEFFFFFFF System board

0xFED90000-0xFED93FFF System board

0xFED20000-0xFED3FFFF System board

0xFEE00000-0xFEE0FFFF System board

0xFB400000-0xFB7FFFFF Intel(R) HD Graphics Family

0xD0000000-0xDFFFFFFF Intel(R) HD Graphics Family

0xFBC07000-0xFBC07FFF Intel(R) Active Management Technology -

SOL (COM3)

- 72 -

Appendix

0xFBC00000-0xFBC03FFF

0xFBC04000-0xFBC040FF Intel(R) 6 Series/C200 Series Chipset Family

0xFED00000-0xFED003FF High Precision Event Timer

0xFBC05000-0xFBC053FF Intel(R) 6 Series/C200 Series Chipset Family

0xFBB40000-0xFBB5FFFF Intel(R) 82583V Gigabit Network Connection #7

0xFBA00000-0xFBAFFFFF Intel(R) 82583V Gigabit Network Connection #7

0xFBA00000-0xFBAFFFFF Intel(R) 6 Series/C200 Series Chipset Family

0xFBB60000-0xFBB63FFF Intel(R) 82583V Gigabit Network Connection #7

0xFBC06000-0xFBC063FF Intel(R) 6 Series/C200 Series Chipset Family

0xFB940000-0xFB95FFFF Intel(R) 82583V Gigabit Network Connection #8

0xFB800000-0xFB8FFFFF Intel(R) 82583V Gigabit Network Connection #8

0xFB800000-0xFB8FFFFF Intel(R) 6 Series/C200 Series Chipset Family

0xFB960000-0xFB963FFF Intel(R) 82583V Gigabit Network Connection #8

0xFBC08000-0xFBC0800F Intel(R) Management Engine Interface

0xBFA00000-0xFFFFFFFF PCI bus

0xFED1C000-0xFED1FFFF System board

0xFEC00000-0xFECFFFFF System board

0xFED08000-0xFED08FFF System board

0xFF000000-0xFFFFFFFF System board

0xA0000-0xBFFFF Intel(R) HD Graphics Family

0xA0000-0xBFFFF PCI bus

0xC0000-0xDFFFF PCI bus

High Denition Audio Controller

SMBus Controller - 1C2

USB Enhanced Host Controller - 1C26

PCI Express Root Port 2 - 1C12

USB Enhanced Host Controller - 1C2D

PCI Express Root Port 3 - 1C14

- 73 -

Appendix

Appendix C: Interrupt Request Lines (IRQ)

Peripheral devices use interrupt request lines to notify CPU for the service
required. The following table shows the IRQ used by the devices on board.

Level Function

IRQ 0 System timer

IRQ 1 Standard 101/102-Key or Microsoft Natural PS/2 Keyboard

IRQ 3 Communications Port (COM2)

IRQ 4 Communications Port (COM1)

IRQ 8 System CMOS/real time clock

IRQ 10 Intel(R) 6 Series/C200 Series Chipset Family SMBus Control-

ler - 1C22

IRQ 12 Microsoft PS/2 Mouse

IRQ 13 Numeric data processor

IRQ 14 ATA Channel 0

IRQ 15

IRQ 16 Intel(R) 6 Series/C200 Series Chipset Family USB Enhanced

IRQ 16 Intel(R) Management Engine Interface

IRQ 17 Intel(R) Active Management Technology - SOL (COM3)

IRQ 18

IRQ 19 Intel(R) 6 Series/C200 Series Chipset Family 2 port Serial ATA

IRQ 22 High Denition Audio Connector

IRQ 23 Intel(R) 6 Series/C200 Series Chipset Family USB Enhanced

IRQ 81
~IRQ190

ATA Channel 1

Host Controller - 1C2D

Storage Controller - 1C08

Host Controller - 1C26

Microsoft ACPI-Compliant System

- 74 -

Appendix

Appendix D: Digital I/O Setting

Below are the source codes written in C, please take them for Digital I/O
application examples. The default I/O address is 6Eh.

#include <stdio.h>
#include <dos.h>
#include <conio.h>

char APName[]= “\t\tSPI-Q6700-LLVA DIO Testing Program\n”
“\t===========================================
\n” ;

char APHelp[]= “\n - Pass ‘A’ key for inver state of DIO GPIO”
“\n - Pass ‘Esc’ key for Exit”
“\n” ;

void main(void){
char getkey = 0;
// char DIOSTS=0;
// char tempJ=0;
// char tempA=0;
unsigned char GP2xVal,GP3xVal,GP1xVal;

clrscr(); //clear screen
printf(APName);
printf(APHelp);

outportb(0x2e, 0x87); /* entry key*/

outportb(0x2e, 0x87); /* enable conguration */

outportb(0x2e, 0x07); /* point to logical device */
outportb(0x2e+1, 0x06); /* select logical device 6 */

- 75 -

Appendix

//pg DIO as output
//0:input 1:Output
/* Index c0, GPIO3x Output pin control */
outportb(0x2e, 0xc0); /* select offset c0h */
outportb(0x2e+1, 0xff);
delay(10);

//pg DIO default LOW
/* Index c1, GPIO3x Output Data value */
outportb(0x2e, 0xc1); /* select offset c1h */
outportb(0x2e+1, 0x00);
GP3xVal = 0;
delay(10);

gotoxy(1,9);
//printf(“DIO Status: Low \n”);

do{
if (getkey != 27){
while (!kbhit());
getkey = getch();
switch (getkey){
case ‘A’:
case ‘a’:
if (GP3xVal == 0)
{
GP3xVal = 1; //DIO
all high
//pg DIO high
outportb(0x2e,
0xc1); /* select offset c1h */
outportb(0x2e+1,
0xff);

gotoxy(1,8);
printf(“GP3x Status:
High\n”);

}
else
{

- 76 -

Appendix

GP3xVal = 0; //DIO
all low
//pg DIO LOW
outportb(0x2e,
0xc1); /* select offset c1h */
outportb(0x2e+1,
0x00);

gotoxy(1,8);
printf(“GP3x Status:
Low \n”);
}
break;
default:
break;
};
//-printf( “Input: [%c] “, getkey); //DEBUG
};
}while (getkey != 27); //ESC ascii==27
//pg all DIO as Input

outportb(0x2e, 0xaa); /* exit key / disable conguration */

}

unsigned long Process_686C_Command_Write(unsigned long m_ECCMD,
unsigned long m_ECDATA)
{
//-------------------------------------------------------------------------­ int i,temp;
unsigned long m_OutBuf;
//-------------------------------------------------------------------------­ m_OutBuf=inportb(0x6C);
if ( ( m_OutBuf&0x00000003) > 0 )
{
// temp=inportb(0x68);
return 0xFFFFFFFF;
}

outport(0x6C,m_ECCMD);
for ( i=0; i<=4000; i++ )

- 77 -

Appendix

{
m_OutBuf=inportb(0x6C);
if ( ( m_OutBuf&0x00000002) == 0 ) break;
}
if ( i < 3999 )
{
outport(0x68,m_ECDATA);
for ( i=0; i<=4000; i++ )
{
m_OutBuf=inportb(0x6C);
if ( ( m_OutBuf&0x00000002) == 0 )
{ return 0x00000000; }
}
}

if ( i > 3999 ) m_OutBuf=inportb(0x68);
return 0xFFFFFFFF;
}
//--------------------------------------------------------------------------­unsigned long Process_686C_Command_Read(unsigned long m_ECCMD )
{
int i,temp;
unsigned long m_OutBuf,m_InBuf;
m_OutBuf=inportb(0x6C);
if ( ( m_OutBuf&0x00000003) > 0 )
{
temp=inportb(0x68);
return 0xFFFFFFFF;

}
m_InBuf = m_ECCMD;
outport(0x6C,m_InBuf);
for ( i=0; i<=3500; i++ )
{
m_OutBuf=inportb(0x6C);
if ( ( m_OutBuf&0x00000001) > 0 )
{
temp=inportb(0x68);
temp= (temp & 0x000000FF ) ;
return temp;

- 78 -

Appendix

// break;
}
}
if ( i > 3499 )
{
temp=inportb(0x68);
return 0xFFFFFFFF;
}
return 0xFFFFFFFF;
}

//---------------------------------------------------------------------------­ unsigned long ECU_Read_686C_RAM_BYTE( unsigned long ECUMe­mAddr )
{
unsigned long uDATA1,uDATA2,ECRamAddrH,ECRamAddrL;
ECRamAddrL=ECUMemAddr%256; ECRamAddrH=ECUMemAddr/256;
//
uDATA1=Process_686C_Command_Write(0x000000A3, ECRamAddrH );
if ( uDATA1==0xFFFFFFFF ) { return 0xFFFFFFFF; }
//
uDATA1=Process_686C_Command_Write(0x000000A2, ECRamAddrL );
if ( uDATA1==0xFFFFFFFF ) { return 0xFFFFFFFF; }
//
uDATA1=Process_686C_Command_Read( 0x000000A4 );
if ( uDATA1 > 0x000000FF ) { return 0xFFFFFFFF; }
uDATA2=Process_686C_Command_Read( 0x000000A4 );
if ( uDATA2 > 0x000000FF ) { return 0xFFFFFFFF; }
if (uDATA1==uDATA2) return uDATA1;
else return 0xFFFFFFFF;
}
//---------------------------------------------------------------------------­ unsigned long ECU_Write_686C_RAM_BYTE( unsigned long
ECUMemAddr,unsigned long ECUMemData )
{
unsigned long uDATA, RD_DATA, ECRamAddrH, ECRamAddrL;
ECRamAddrL=ECUMemAddr%256; ECRamAddrH=ECUMemAddr/256;
//
uDATA=Process_686C_Command_Write(0x000000A3, ECRamAddrH );
if ( uDATA==0xFFFFFFFF ) { return 0xFFFFFFFF;}

- 79 -

Appendix

//
uDATA=Process_686C_Command_Write(0x000000A2, ECRamAddrL );
if ( uDATA==0xFFFFFFFF ) { return 0xFFFFFFFF;}
//
uDATA=Process_686C_Command_Write(0x000000A5, ECUMemData );
if ( uDATA==0xFFFFFFFF ) { return 0xFFFFFFFF;}
//
return 0x00000000;
}
//----------------------------------------------------------------------------

unsigned char SMB_Byte_READ(int SMPORT, int DeviceID, int REG_IN­DEX)
{
unsigned char SMB_R;
outportb(SMPORT+02, 0x00); /* clear */
outportb(SMPORT+00, 0xff); /* clear */
delay(10);
outportb(SMPORT+04, DeviceID+1); /* clear */
outportb(SMPORT+03, REG_INDEX); /* clear */
outportb(SMPORT+02, 0x48); /* read_byte */
delay(10);
//printf(“ %02x “,inportb(SMPORT+05));
SMB_R= inportb(SMPORT+05);
return SMB_R;
}

void SMB_Byte_WRITE(int SMPORT, int DeviceID, int REG_INDEX, int
REG_DATA)
{
outportb(SMPORT+02, 0x00); /* clear */
outportb(SMPORT+00, 0xff); /* clear */
delay(10);
outportb(SMPORT+04, DeviceID); /* clear */
outportb(SMPORT+03, REG_INDEX); /* clear */
outportb(SMPORT+05, REG_DATA); /* read_byte */
outportb(SMPORT+02, 0x48); /* read_byte */
/* delay(10);
printf(“ %02x “,inportb(SMPORT+05)); */
}

- 80 -

Appendix

Appendix E: Watchdog Timer (WDT) Setting

WDT is widely used for industry application to monitor the activity of CPU.
Application software depends on its own requirement to trigger WDT with
adequate timer setting. Before WDT time-out, the functional normal system will
reload the WDT. The WDT never times out for a normal system. Then, WDT
will time out and reset the system automatically to avoid abnormal operation.

This board supports 255-level watchdog timer by software programming.
Below are the source codes written in C, please take them as WDT application
example.

C Language Code

/*----- Include Header Area -----*/
#include “math.h”
#include “stdio.h”
#include “dos.h”

/*----- routing, sub-routing -----*/

void main()
{
/*-------- index port 0x4e ---------*/
outportb(0x4e, 0x87); /* initial IO port */
outportb(0x4e, 0x87); /* twice, */

outportb(0x4e, 0x07); /* point to logical device */
outportb(0x4e+1, 0x07); /* select logical device 7 */
outportb(0x4e, 0xf5); /* select offset f5h */
outportb(0x4e+1, 0x40); /* set bit5 = 1 to clear bit5 */
outportb(0x4e, 0xf0); /* select offset f0h */
outportb(0x4e+1, 0x81); /* set bit7 =1 to enable WDTRST# */
outportb(0x4e, 0xf6); /* select offset f6h */
outportb(0x4e+1, 0x05); /* update offset f6h to 0ah :10sec */
outportb(0x4e, 0xf5); /* select offset f5h */
outportb(0x4e+1, 0x20); /* set bit5 = 1 enable watch dog time */

outportb(0x4e, 0xAA); /* stop program F71869E, Exit */
}

- 81 -
