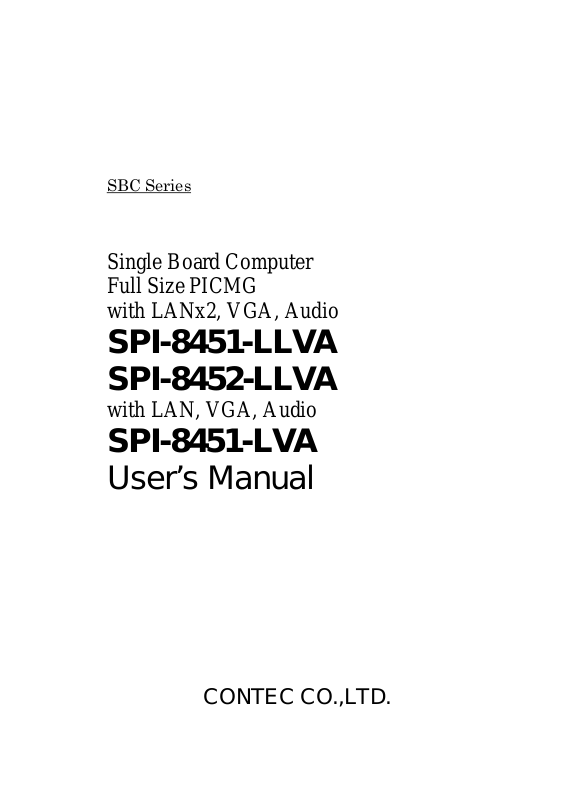

Contec SPI-8452-LLVA, SPI-8451-LVA, SPI-8451-LLVA User Manual

SBC Series

Single Board Computer
Full Size PICMG
with LANx2, VGA, Audio

SPI-8451-LLVA
SPI-8452-LLVA

with LAN, VGA, Audio

SPI-8451-LVA

User’s Manual

CONTEC CO.,LTD.

Check Your Package

Thank you for purchasing the CONTEC product.

The product consists of the items listed below.
Check, with the following list, that your package is complete. If you discover damaged or missing items,

contact your retailer.
Product Configuration List

- Board (One of the following)
[SPI-8451-LLVA/-LVA or SPI-8452-LLVA] …1

- Product Guide …1

- IPC Precaution List …1

- CD-ROM (Driver disk utilities) …1 * 1

- IDE 80 pin Ribbon Cable …1

- IDE 40 pin Ribbon Cable …1

- FDD Ribbon Cable … 1

- 2 serial Ports (9 pin D-SUB male x 2) ribbon cable (with bracket) …1

- Parallel port (25 pin D-SUB female x 1) ribbon cable (with bracket) …1

- Audio jack cable (with bracket) …1

- 6 pin mini-DIN cable (2 in 1 for PS2 Mouse & Keyboard functions) …1

- DVI - Analog RGB conversion adapter
(SPI-8451-LLVA, SPI-8452-LLVA only) …1

- +12V power supply cable …1

- Jumper short pin (2 mm) …5

* 1 The CD-ROM contains the driver software and User’s Manual (this Manual)

Board

Driver disk utility

[CD-ROM]

Product Guide

Product

Guide

2 serial ports
(9pin D-SUB

male x 2)

ribbon cable

(with bracket)

IPC Precaution

List

IPC Precaution List

Parallel port

(25pin D-SUB

female x 1)

ribbon cable

(with bracket)

Audio jack

ribbon cable

(with bracket)

Floppy

Ribbon Cable

IDE 80 pin

Ribbon Cable

IDE 40 pin

Ribbon Cable

6 pin mini-DIN cable
(2 in 1 for PS2 Mouse

& Keyboard functions)

Jumper

short pin

(2mm)

x 5

DVI-Analog RGB

Convertion Adapter

(SPI-8451-LLVA,

SPI-8452-LLVA only)
