Contec SPC-8520-LA, SPC-8521-LA User Manual

SBC Series

Single Board Computer PCI Half
for Pentium M with LAN, Audio

SPC-8520-LA

Celeron M 800MHz with LAN, Audio

SPC-8521-LA

User’s Manual

CONTEC CO.,LTD.

Check Your Package

Thank you for purchasing the CONTEC product.
The product consists of the items listed below.
Check, with the following list, that your package is complete. If you discover damaged or missing items,
contact your retailer.

Product Configuration List

- Board (One of the following)
[SPC-8520-L A or SPC-8521-LA]….1

- Product Guide…1

- CD-ROM * 1 [Driver disk utilities]…1

- IDE 80 pin Ribbon Cable...1

- FDD Ribbon Cable...1

- 2 Serial ports (9 pin D-SUB male x 2) ribbon cable (with bracket)…1

- Parallel port (25 pin D-SUB female x 1) ribbon cable (with bracket)…1

- Audio jack ribbon cable (with bracket)…1

- 6 pin mini-DIN cable (2 in 1 for PS2 Mouse & Keyboard functions)…1

- Jumper short pin...5

- IPC Precaution List...1
*1 The CD-ROM contains the driver software and User’s Manual (this Manual)

x 5

Board

IDE 80 pin

Ribbon Cable

FDD Ribbon Cable

Jumper short pin

(2mm)

2 Serial ports

(9 pin D-SUB male x 2)

ribbon cable

(with bracket)

CD-ROM

[Driver disk utility]

(25 pin D-SUB female x 1)

Product

Guide

Product Guide

SPC-8520-LA , SPC-8521-LA

Parallel port

ribbon cable

(with bracket)

IPC Precaution

IPC Precaution List

Audio jack ribbon cable

(with bracket)

List

6 pin mini-DIN cable
(2 in 1 for PS2 Mouse

& Keyboard functions)

i

Copyright

Copyright 2006 CONTEC CO., LTD. ALL RIGHTS RESERVED.
No part of this document may be copied or reproduced in any form by any means without prior written

consent of CONTEC CO., LTD.

CONTEC CO., LTD. makes no commitment to update or keep current the information contained in this
document. The information in this document is subject to change without notice.

All relevant issues have been considered in the preparation of this document. Should you notice an
omission or any questionable item in this document, please feel free to notify CONTEC CO., LTD.

Regardless of the foregoing statement, CONTEC assumes no responsibility for any errors that may appear
in this document or for results obtained by the user as a result of using this product.

Trademarks

Intel, Celeron and Pentium are registered trademarks of Intel Corporation.
Microsoft Windows is a registered trademark of Microsoft Corporation.
All Other product names or trademarks are properties of their respective owners.

Caution about Battery

Replace only with the same or equivalent type recommended by the manufacturer.
Dispose of used batteries according to the local ordinances or regulations.

ii

SPC-8520-LA , SPC-8521-LA

Table of Contents

Check Your Package...............................................................................................................i

Copyright.................................................................................................................................................ii

Trademarks ..............................................................................................................................................ii

Caution about Battery..............................................................................................................................ii

Table of Contents....................................................................................................................................iii

1. INTRODUCTION 1

About the SBC.........................................................................................................................................1

Features............................................................................................................................................. 1

Option List........................................................................................................................................2

Customer Support....................................................................................................................................3

Web Site............................................................................................................................................3

Limited One Year Warranty.................................................................................................................... 3

How to Obtain Service ............................................................................................................................ 3

Liability....................................................................................................................................................3

Safety Precautions ................................................................................................................................... 4

Safety Information............................................................................................................................4

Handling Precautions ....................................................................................................................... 4

Environment ..................................................................................................................................... 5

Inspection..........................................................................................................................................5

Storage.............................................................................................................................................. 5

Disposal ............................................................................................................................................5

2. SYSTEM REFERENCE 7

Specifications........................................................................................................................................... 7

Power Management Features .................................................................................................................. 9

Power Requirements................................................................................................................................9

Power Consumption ................................................................................................................................9

Connector & Jumper Location .............................................................................................................. 10

Block Diagram.......................................................................................................................................11

SPC-8520-LA, SPC-8521-LA

iii

3. HARDWARE INSTALLATIONS 13

Installation procedure.............................................................................................................................13

CPU Installation (Only SPC-8520-LA):................................................................................................14

Audio Connector: CNA1 .......................................................................................................................15

Main Memory Installation: CND1.........................................................................................................15

Compact Flash Slot: CNE1....................................................................................................................16

Floppy Disk Drive Connector: CNF1....................................................................................................17

Serial Port Connector: CNG1 , CNG2...................................................................................................18

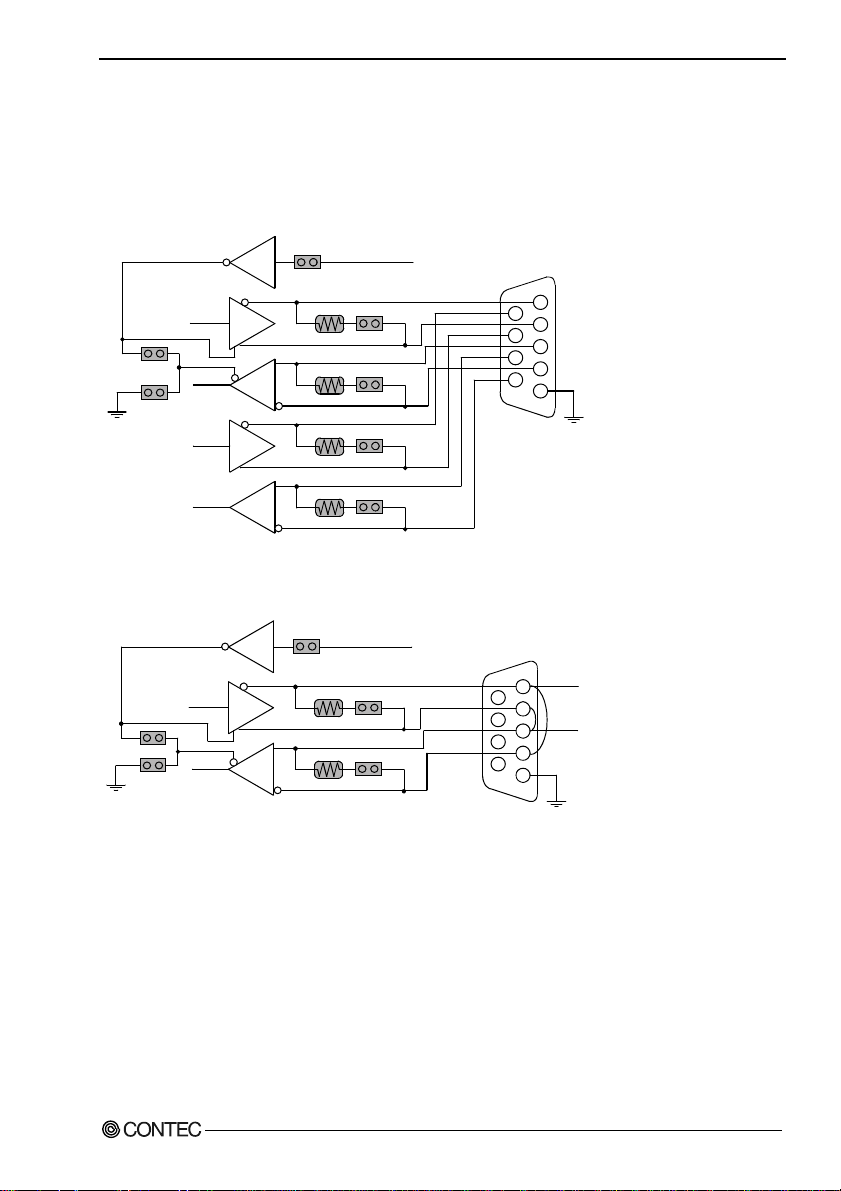

RS-422 / RS-485 specifications......................................................................................................19

VGA Connector: CNV1.........................................................................................................................19

Primary IDE Connector: CNI1 ..............................................................................................................20

FAN1 Connector: CNJ1.........................................................................................................................21

FAN2 Connector: CNJ2.........................................................................................................................21

LVDS LCD panel Connector: CNK1....................................................................................................22

10/100BASE-TX LAN Connector: CNL1 ............................................................................................22

Parallel Port Connector: CNP1..............................................................................................................23

Keyboard / Mouse Connector: CNQ1 ...................................................................................................24

External Keyboard Connector: CNQ2...................................................................................................24

USB Connector: CNU1, CNU2.............................................................................................................25

External Battery Connector: CNW1......................................................................................................25

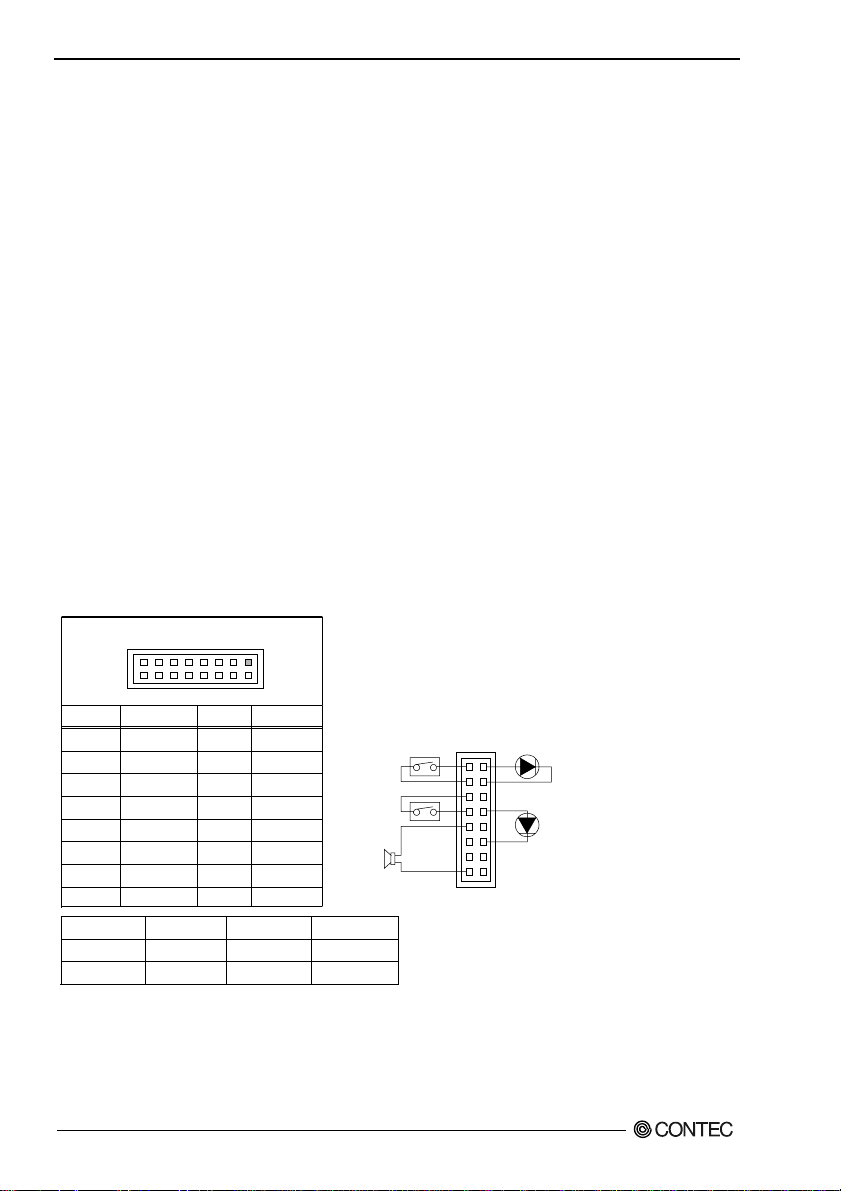

Front Panel Connector: CN1..................................................................................................................26

CD-IN Connector: CN2 .........................................................................................................................27

ATX power control Connector: CN3.....................................................................................................27

External Power Connector (Only SPC-8521-LA) : CN6 ......................................................................28

4. JUMPER SETTING 29

RS-422A/485 Terminator: JP1 ..............................................................................................................29

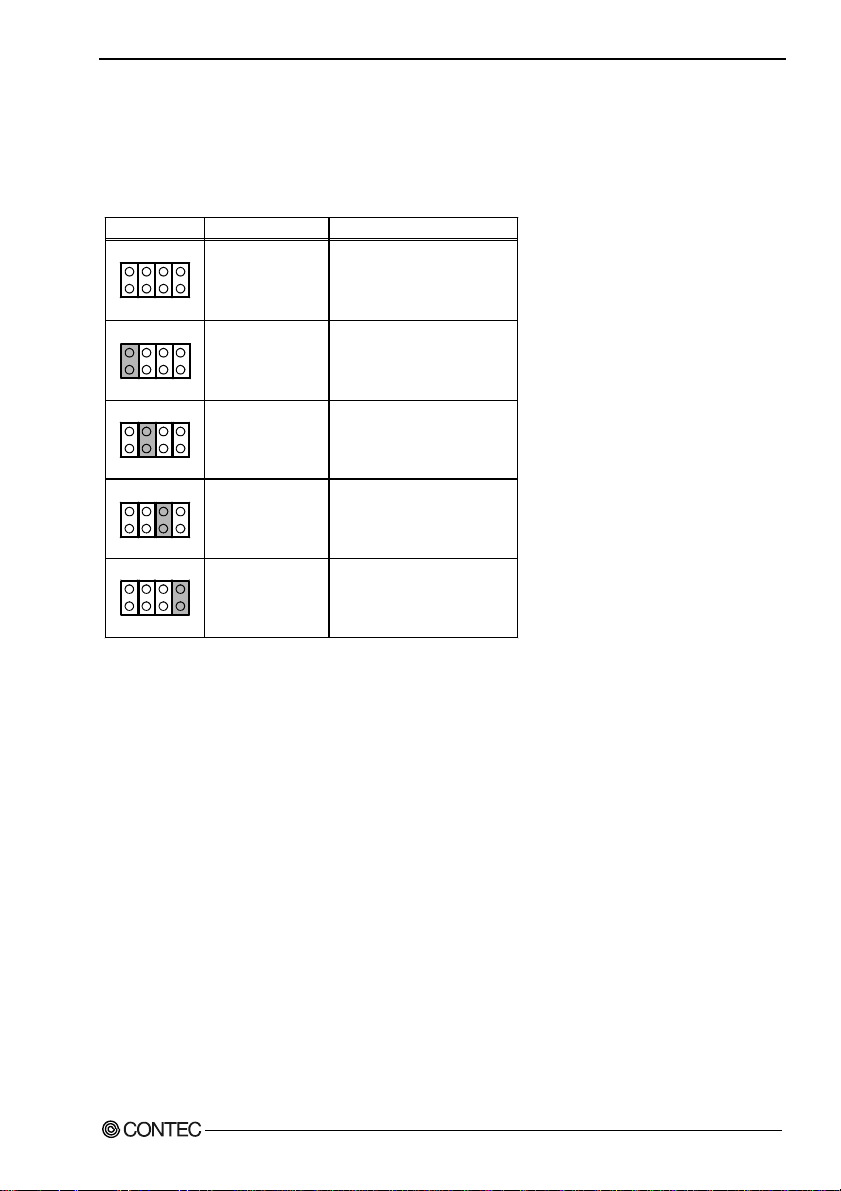

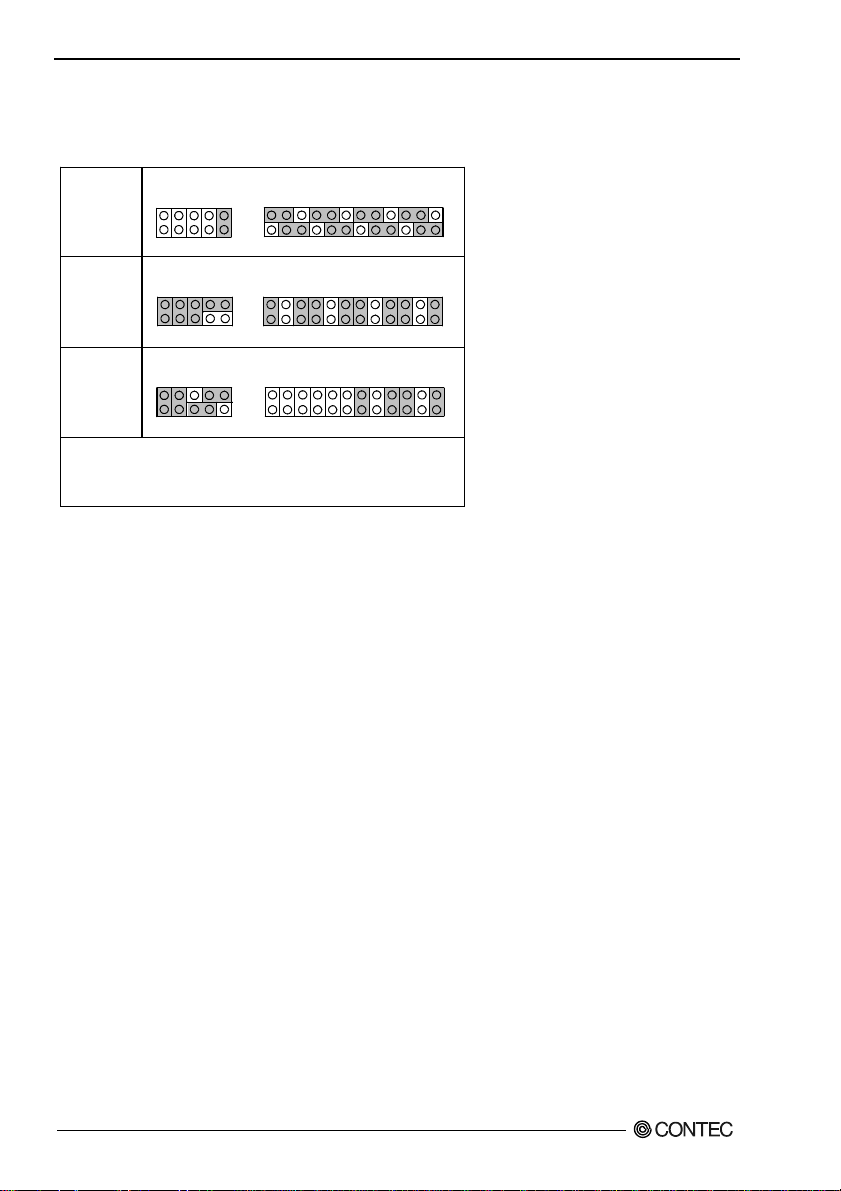

RS-232C/422A/485 Selector: JP2/JP3 ..................................................................................................30

Transmit date control in half-duplex mode ....................................................................................30

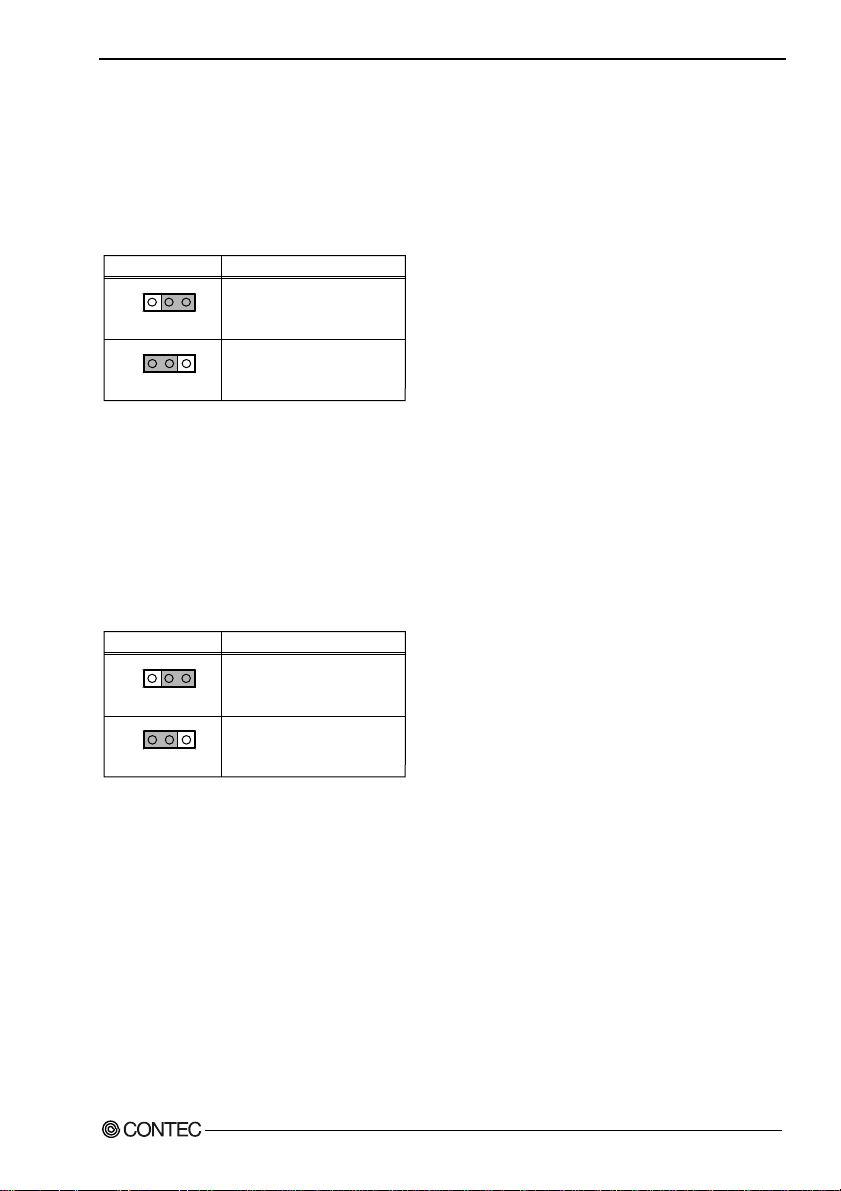

Setting the RS-422A/RS-485 receiver disable control jumper ......................................................31

I/O addresses and instructions ........................................................................................................32

Clear CMOS Content: JBAT1 ...............................................................................................................33

Clear ROM Content: JP5 .......................................................................................................................33

5. BOARD RESOURCES 35

System Address Map .............................................................................................................................35

6. WATCH-DOG-TIMER (WDT) SETTING 37

iv

SPC-8520-LA , SPC-8521-LA

7. BIOS SETUP 41

Introduction............................................................................................................................................41

Starting Setup ................................................................................................................................. 41

Using Setup.....................................................................................................................................41

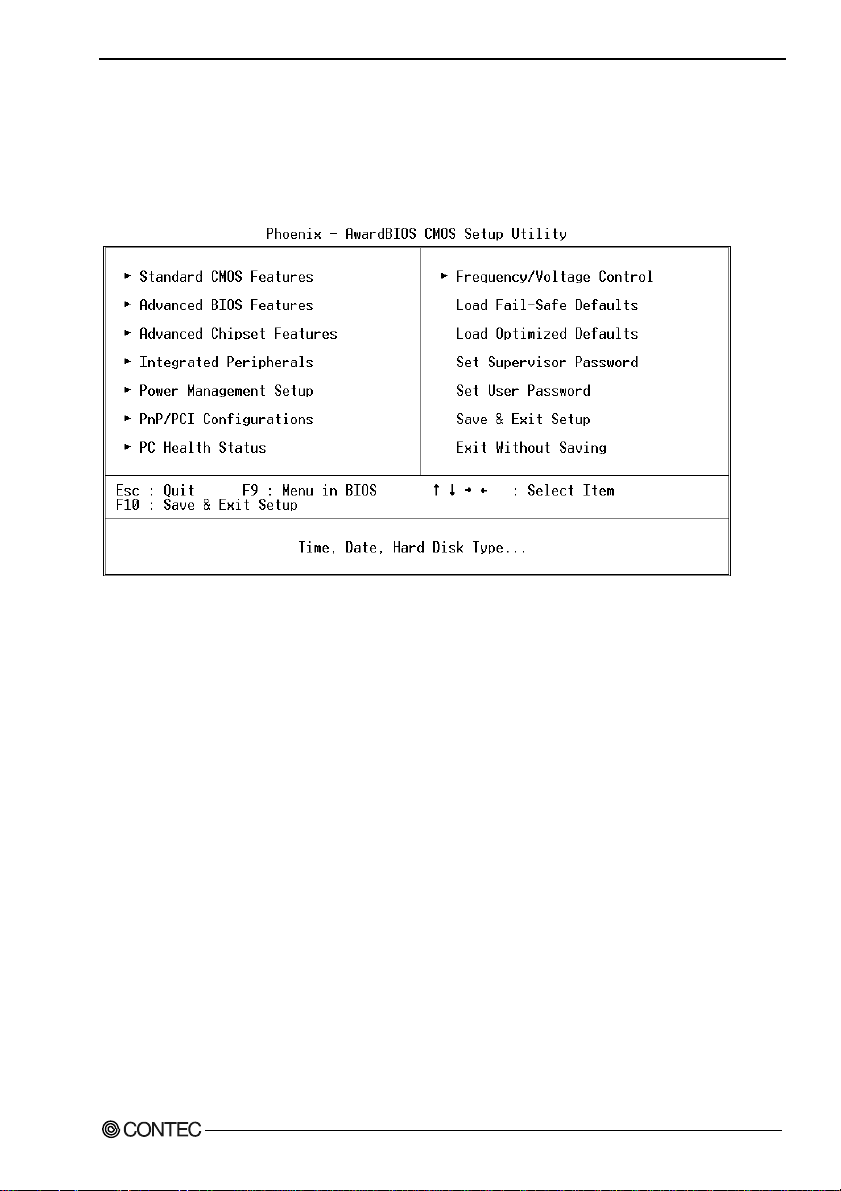

Main Menu.............................................................................................................................................43

Standard CMOS Setup...........................................................................................................................44

Main Menu Selections........................................................................................................................... 45

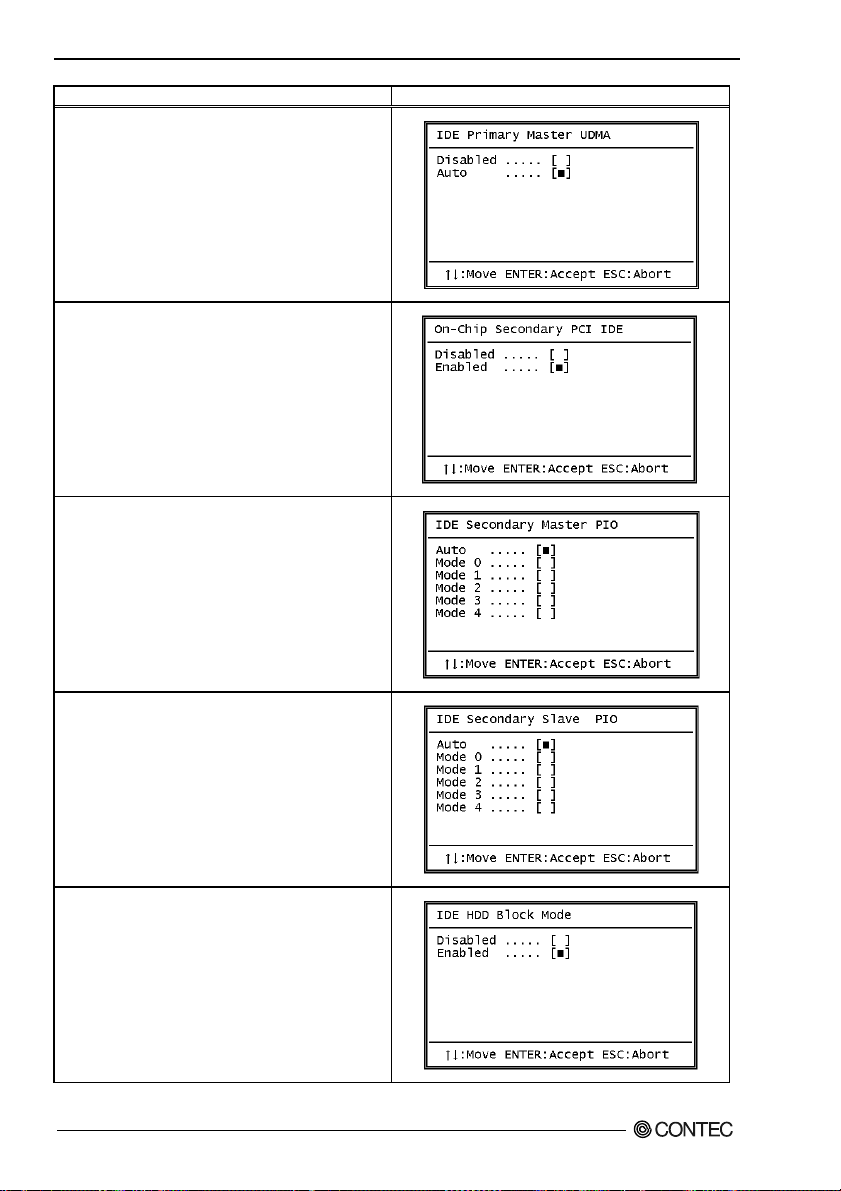

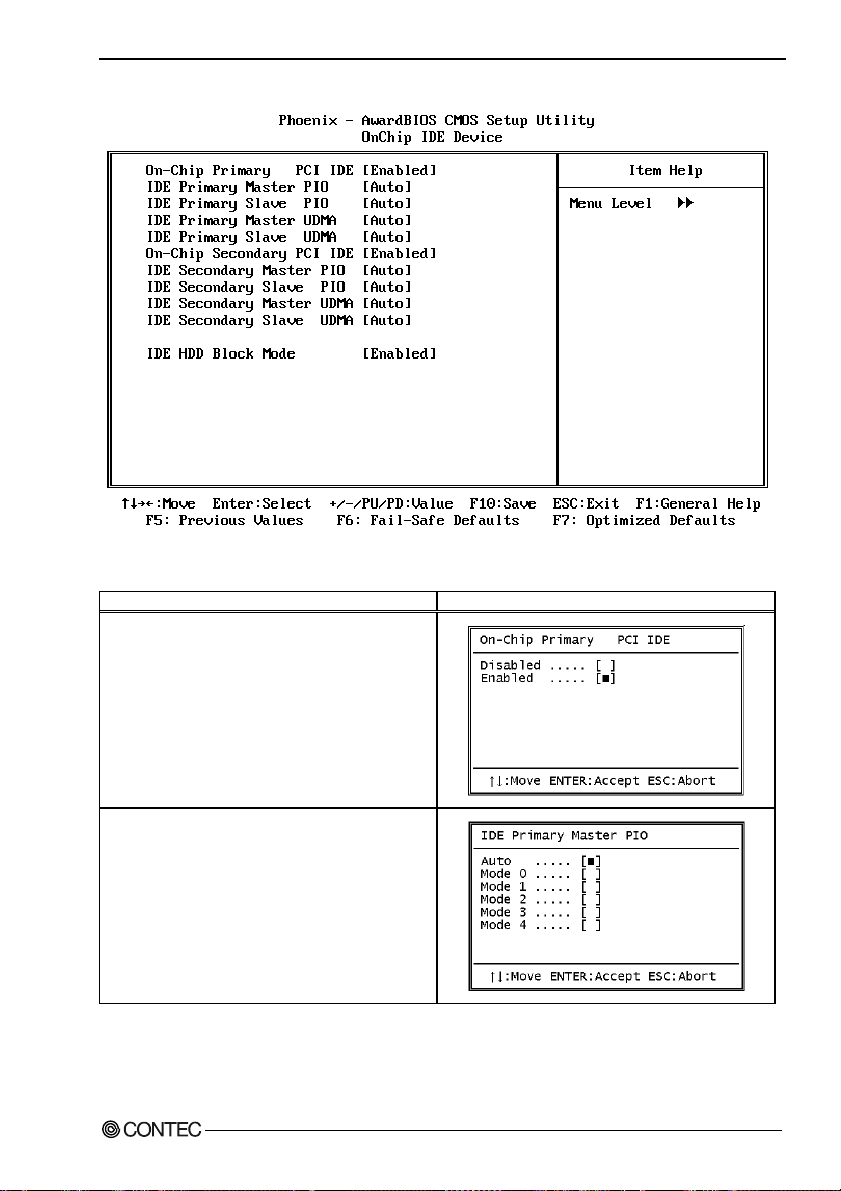

IDE Adapters.................................................................................................................................. 46

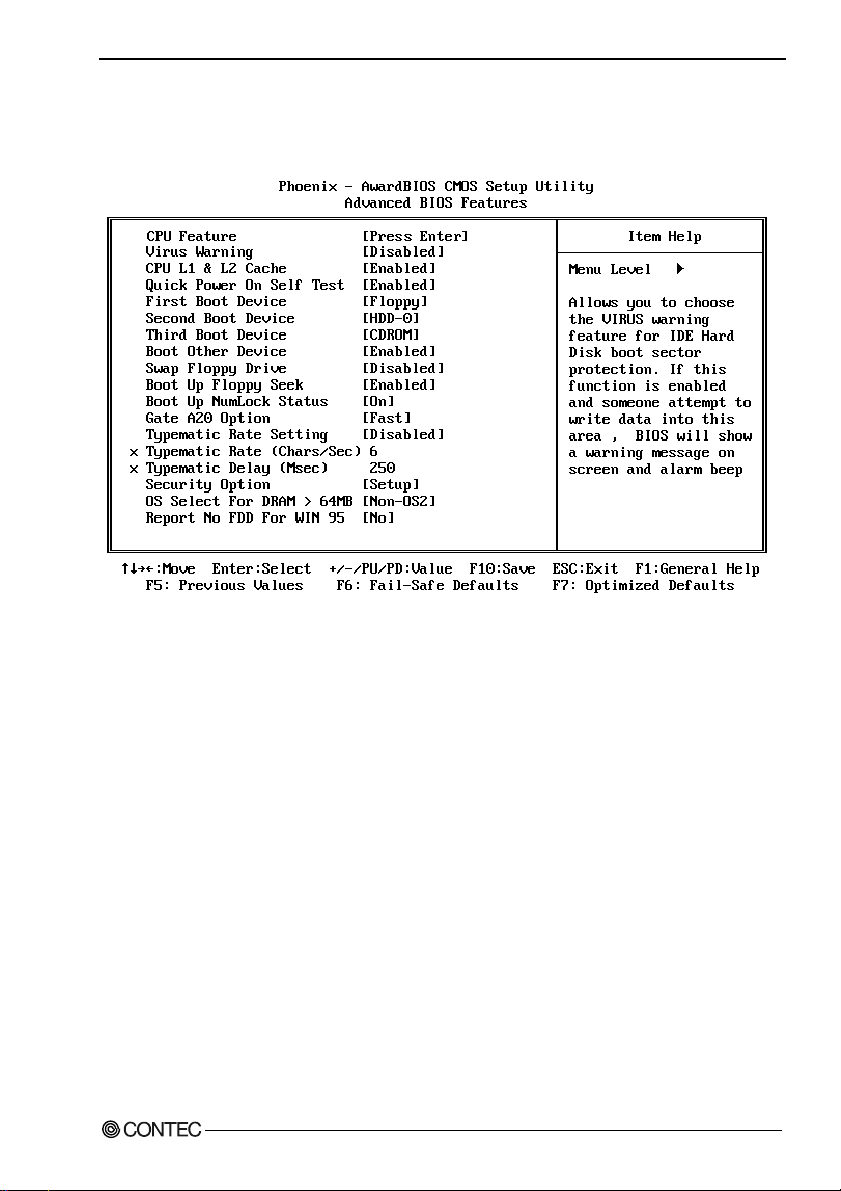

Advanced BIOS Features Setup............................................................................................................ 47

Virus Warning ................................................................................................................................50

Advanced Chipset Features Setup.........................................................................................................54

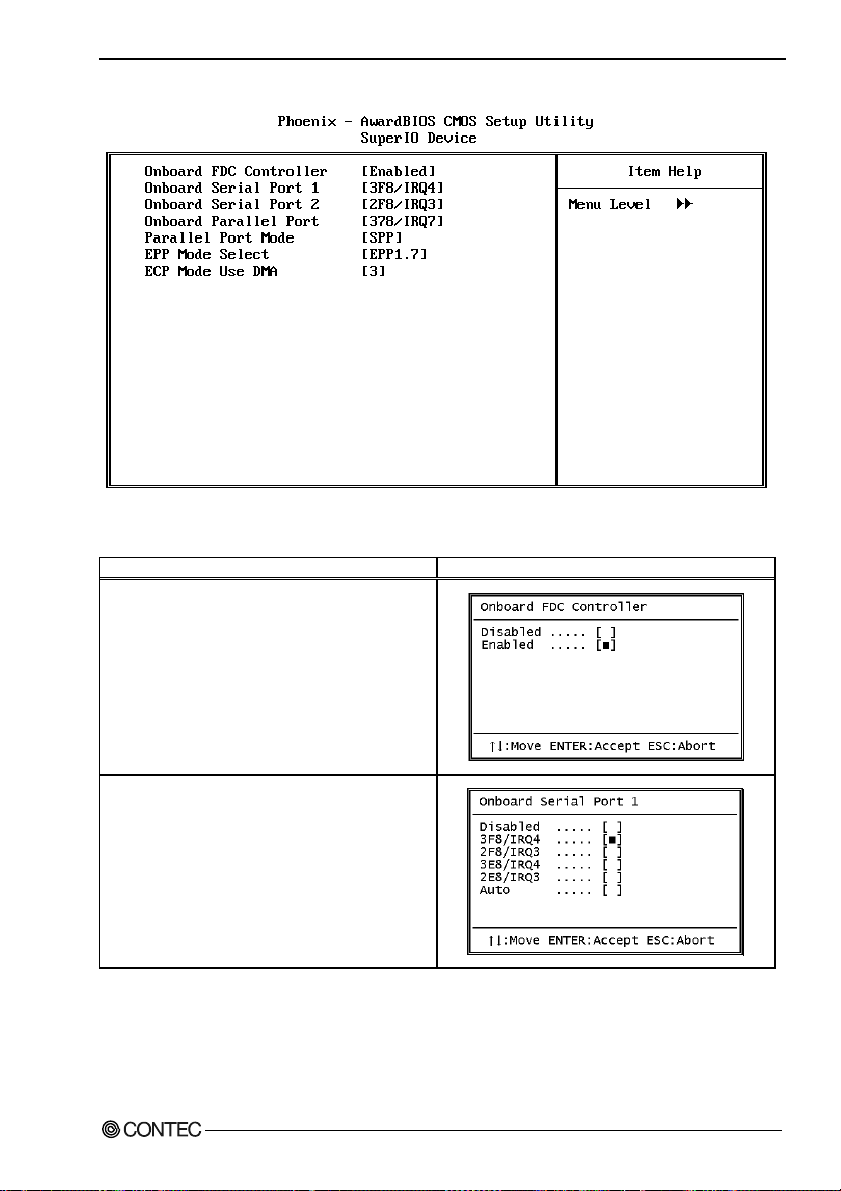

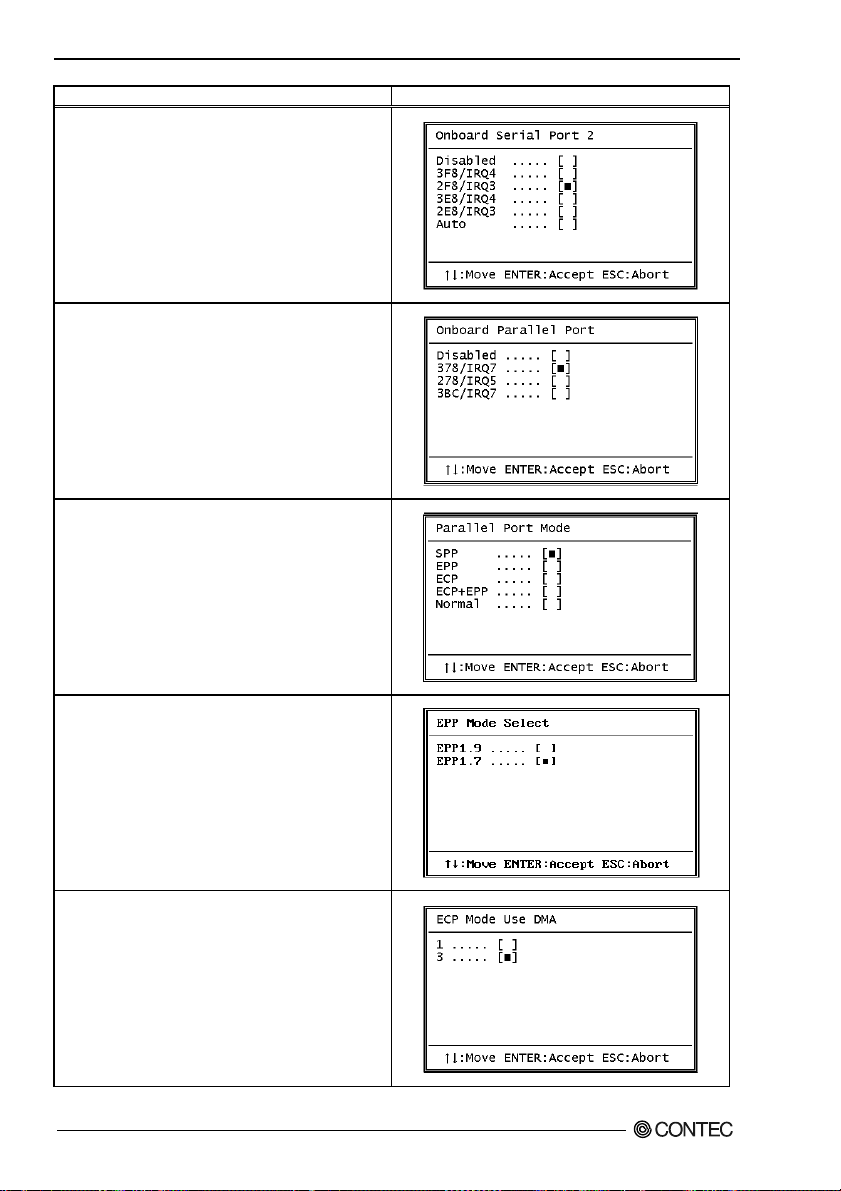

Integrated Peripherals............................................................................................................................ 58

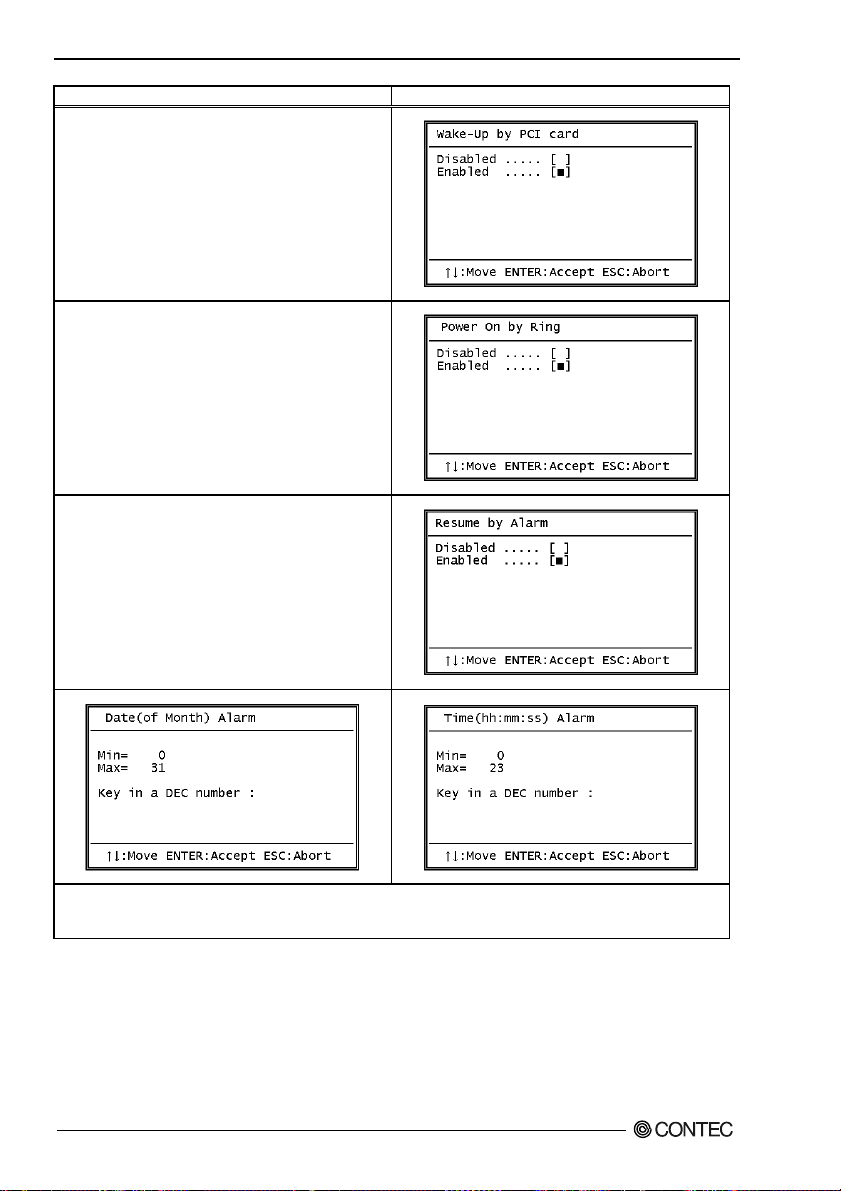

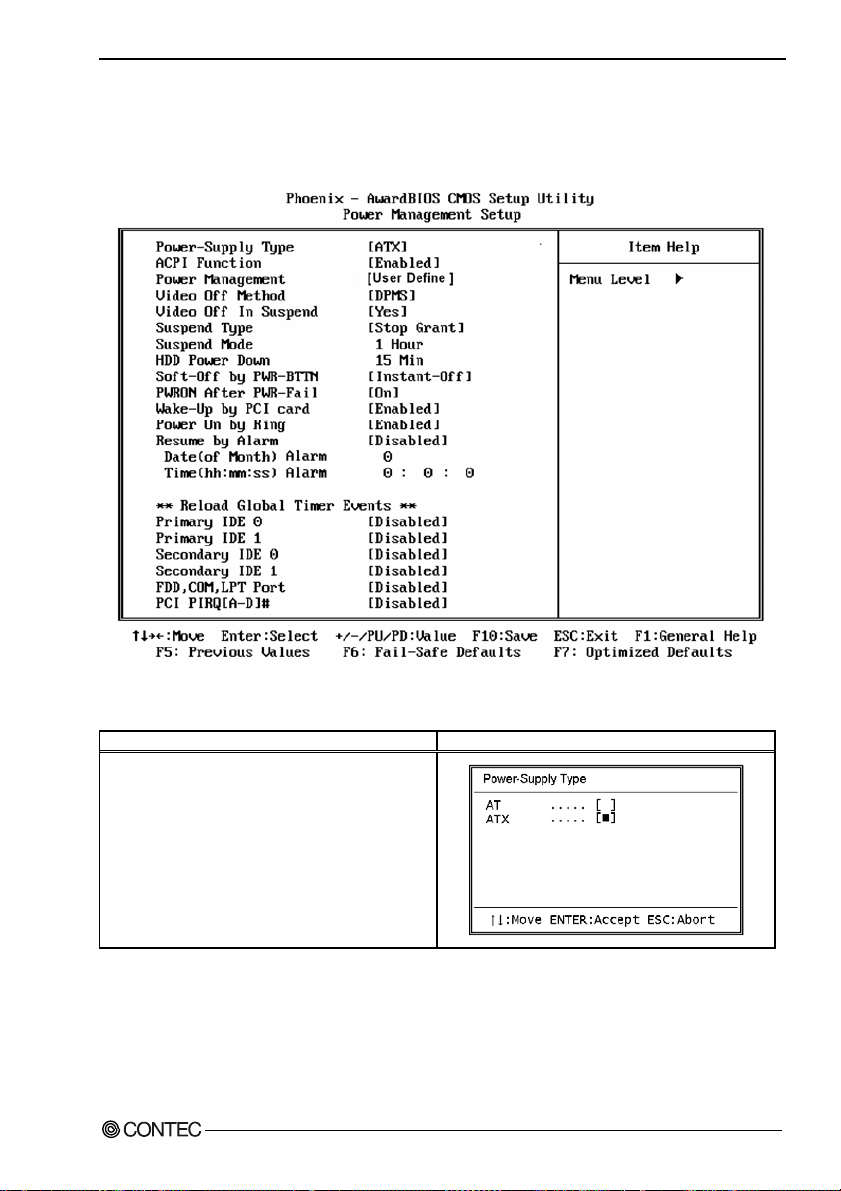

Power Management Setup.....................................................................................................................65

PnP/PCI Configuration Setup................................................................................................................70

PC Health Status....................................................................................................................................72

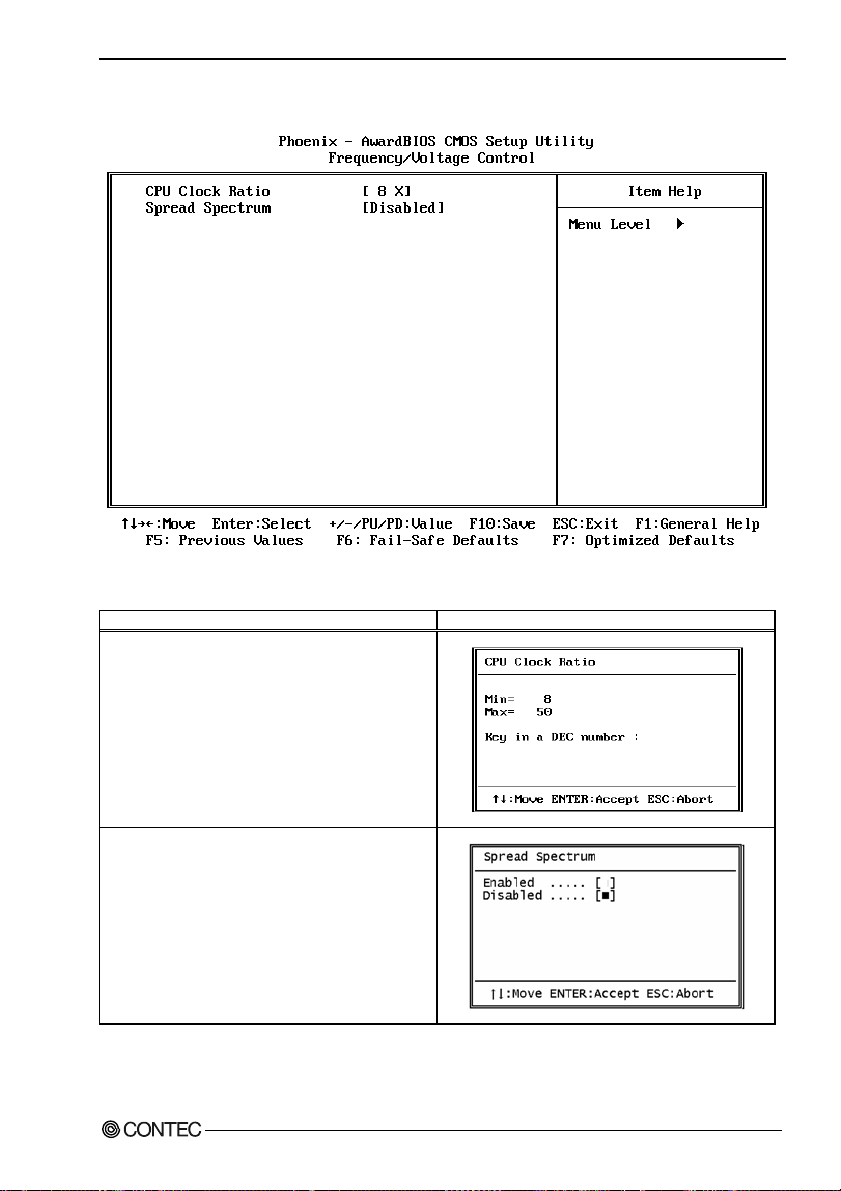

Frequency/Voltage Control ...................................................................................................................73

Defaults Menu ................................................................................................................................74

Supervisor/User Password Setting ........................................................................................................74

Exit Selecting......................................................................................................................................... 75

POST Messages.....................................................................................................................................75

POST Beep ............................................................................................................................................75

Error Messages ......................................................................................................................................76

POST Codes...........................................................................................................................................80

SPC-8520-LA, SPC-8521-LA

v

vi

SPC-8520-LA , SPC-8521-LA

1. Introduction

1. Introduction

About the SBC

This product, which is equipped with the Intel(R) 852GM chip set, is a PCI bus compliant half-sized
single board computer that supports

SPC-8520-LA : Capable of equipping with the Pentium(R) M 1.6G - 2.0GHz or Celeron(R) M 1.3G -

1.5GBHz.
SPC-8521-LA : Equipped with the Celeron(R) M 800MHz of the fan less type
Max. 1GB DDR SDRAM SO-DIMM support and featured all-in-one-design with a variety of interfaces,

equipped with the analog RGB, LVDS interface, also supported the Dual View
This product also equipped with a CF card slot (Type I), enabling boot-up from a CF card.
When connecting external devices or building the system, please read this manual carefully.

Features

[SPC-8520-LA]

- Supported CPU : Intel(R) Pentium(R) M processor 1.6G - 2.0GHz (FSB400MHz),

Intel(R) Celeron(R) M processor 1.3G - 1.5GHz (FSB400MHz).

[SPC-8521-LA]

- Equipped with the fan less type Intel(R) Celeron(R) M processor 800MHz (FSB400MHz) CPU
[Common]

- Half sized CPU board for the PCI and equipped with the wide variety of interface including the IDE,

USB2.0 x 2, serial x 2, parallel, PS/2, LAN, audio and so on

- Adopting the Intel(R) 852GM chip set

- Capable of equipping with Max. 1GB DDR SDRAM SO-DIMM

- Equipped with the Analog RGB and LDVS interface, supports Dual View

- Equipped with the LDVS interface, capable of connecting to the LCD display directly

- Equipped with a CF card slot (Type I), enabling boot-up from a CF card

SPC-8520-LA, SPC-8521-LA

1

1. Introduction

Option List

CPU (For SPC-8520-LA)

- CPUPM-16 Pentium M 1.6GHz CPU

- CPUPMC-15 Celeron M 1.5GHz CPU

- CPUPMC-13 Celeron M 1.3GHz CPU

Heat Sink Fan (For SPC-8520-LA)

- HSF-PM Heat Sink Fan for Pentium M/Celeron M

Memory (PC2100 SDRAM No parity)

- PC-MDD256-200 200-Pin SO-DIMM DDR-Memory (PC2100, 256MB)

- PC-MDD512-200 200-Pin SO-DIMM DDR-Memory (PC2100, 512MB)

- PC-MDD1G-200 200-Pin SO-D IMM DDR-Memory (PC2100, 1GB)

2

SPC-8520-LA , SPC-8521-LA

1. Introduction

Customer Support

CONTEC provides the following support services for you to use CONTEC products more efficiently and
comfortably.

Web Site

Japanese http://www.contec.co.jp/
English http://www.contec.com/
Chinese http://www.contec.com.cn/

Latest product information
CONTEC provides up-to-date information on products.
CONTEC also provides product manuals and various technical documents in the PDF.
Free download
You can download updated driver software and differential files as well as sample programs available in

several languages.
Note! For product information

Contact your retailer if you have any technical question about a CONTEC product or need its price,
delivery time, or estimate information.

Limited One Year Warranty

CONTEC products are warranted by CONTEC CO., Ltd. to be free from defects in material and
workmanship for up to one year from the date of purchase by the original purchaser.

Repair will be free of charge only when this device is returned freight prepaid with a copy of the original
invoice and a Return Merchandise Authorization to the distributor or the CONTEC group office from
which it was purchased.

This warranty is not applicable for scratches or normal wear, but only for the electronic circuitry and
original products. The warranty is not applicable if the device has been tampered with or damaged
through abuse, mistreatment, neglect, or unreasonable use, or if the original invoice is not included, in
which case repairs will be considered beyond the warranty policy.

How to Obtain Service

For replacement or repair, return the device freight prepaid, with a copy of the original invoice. Please
obtain a Return Merchandise Authorization Number (RMA) from our Sales Administration Department
before returning any product.

* No product will be accepted by CONTEC group without an RMA number.

Liability

The obligation of the warrantor is solely to repair or replace the product. In no event will the warrantor
be liable for any incidental or consequential damages due to such defect or consequences that arise from
inexperienced usage, misuse, or malfunction of this device.

SPC-8520-LA, SPC-8521-LA

3

1. Introduction

Safety Precautions

Understand the following definitions and precautions to use the product safely.

Safety Information

This document provides safety information using the following symbols to prevent accidents resulting in
injury or death and the destruction of equipment and resources. Understand the meanings of these labels
to operate the equipment safely.

DANGER

WARNING

CAUTION

Handling Precautions

CAUTION

- Do not modify the product. CONTEC will bear no responsibility for any problems, etc., resulting
from modifying this product.

- Do not strike or bend the product.
Otherwise, the product may malfunction, overheat, cause a failure or breakage.

- Do not touch the product's metal plated terminals (edge connector) with your hands.
Otherwise, the product may malfunction, overheat, or cause a failure. If the terminals are touched
by someone's hands, clean the terminals with industrial alcohol.

- There are switches and jumpers on the product that need to be set in advance. Be sure to check
these before installing to the expansion slot.

- Only set the switches and jumpers on the product to the specified settings.
Otherwise, the product may malfunction, overheat, or cause a failure.

DANGER indicates an imminently hazardous situation which, if not avoided, will
result in death or serious injury.

WARNING indicates a potentially hazardous situation which, if not avoided, could
result in death or serious injury.

CAUTION indicates a potentially hazardous situation which, if not avoided, may result
in minor or moderate injury or in property damage.

DANGER

Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent
type recommended by the manufacturer. Dispose of used batteries according to the manufacturer’s
instructions.

4

SPC-8520-LA , SPC-8521-LA

1. Introduction

Environment

Use this product in the following environment. If used in an unauthorized environment, the product may
overheat, malfunction, or cause a failure.

Operating temperature
0 - 60°C (SPU-8520-LA), 0 - 50°C (SPU-8521-LA)

Operating humidity
10 - 90%RH (No condensation)

Corrosive gases
None

Floating dust particles
Not to be excessive

Inspection

Inspect the product periodically as follows to use it safely.

- Check that the bus connector
of the board and its cable have
been plugged corre ctly.

1

1
1

1

11

1

1

1

1

1

1

1

- The gold-plated leads of the bus connector
have no stain or corrosion.

1

111

1

1

1

- Check that the board
has no dust or foreign

1

matter adhering.

Storage

When storing this product, keep it in its original packing form.
(1) Put the product in the storage bag.
(2) Wrap it in the packing material, then put it in the box.
(3) Store the package at room temperature at a place free from direct sunlight, moisture, shock, vibration,

magnetism, and static electricity.

Disposal

When disposing of the product, follow the disposal procedures stipulated under the relevant laws and
municipal ordinances.

SPC-8520-LA, SPC-8521-LA

5

1. Introduction

6

SPC-8520-LA , SPC-8521-LA

2. System Reference

Specifications

2. System Reference

Table 2.1. Functional Specifications <1/2>

Type

Option:
Intel(R) Pentium(R) M Processor

CPU

Cache Built in CPU None
Processor socket Socket 478 None
Memory(Option) Max.1GB, 200 pin SO-DIMM socket x 1, PC2100 (DDR266) DDR SDRAM
Chipset Intel(R) 852GM + ICH4
BIOS Award BIOS, PnP support

VGA

Keyboard / Mouse connector

Serial I/F

Parallel I/F

On board expansion bus None

LAN Port

IDE I/F

SATA I/F None

FDD I/F

CF Slot *1 Type I x 1, IDE secondary port connection, Support booting
SSD Socket None
USB Port 2ch USB2.0 compliant ports, Two USB Type A connectors (on bracket)
RAID None
Audio AC97 CODEC, One pin-header 10-pin connector for line-out, line-in, microphone-in.

Watchdog Timer

General-purpose I/F None

Hardware Monitor

1.6G - 2.0GHz (FSB400MHz),
Intel(R) Celeron(R) M Processor

1.3G - 1.5GHz (FSB400MHz)
478pin FC-PGA

Built in Intel 852GM
One Analog RGB I/F (One HD-SUB 15pin connector),
One LVDS(18bit) I/F (One box-header 30-pin connector)
One PS/2 keyboard/Mouse connector(Bundled the 2 in 1 cable) ,
One box-header 5-pins connector for external keyboard
16550 UART
Two box-header 10-pin connector (RS-232C x 1, RS-232C/422A/485 x 1),
Baud rate: 50 - 115,200bps (programmable)
One box-header 26-pin connector,
One high-speed parallel port, support SPP/EPP/ECP mode

100BASE-TX/10BASE-T, Intel ICH4 integrated controller
One RJ-45 connector, Wake On LAN support
One IDE port, up to two IDE devices,
One box-header 40-pin connector, support Ultra DMA 33/66/100

One FDD port, up to two floppy drives (720KB, 1,44MB, 2.88MB),
One box-header 34-pin connector, 3.5inch 2mode I/F.

1 - 255sec, 255 level
When time up: RESET

Monitoring of the temperature of CPU and board, power supply voltage, and fan speed
(Function of the Winbond W83627HG)

SPC-8520-LA SPC-8521-LA

Intel(R) Celeron(R) M Processor 800MHz
(FSB400MHz)
(Fan less mounting)

SPC-8520-LA, SPC-8521-LA

7

2. System Reference

Table 2.1. Functional Specifications <2/2>

Type

RTC/CMOS

Power Management

Bus specification/Size(mm) PCI / 185(L) x 122(H) x 28(W) PCI / 185(L) x 122(H) x 41(W) *2

DC Power Requirements

Power supply specifications
(Max.)

Operating temperature /
Operating Humidity
Storage temperature -20 - 80°C

Floating dust particles Not to be excessive
Corrosive gases None
Weight 390g 450g

Operating System Support

*1This CF Card slot do not have the hot-swap function. The card cannot remove from slot and attach to slot at the time of

a power supply ON. The card may be damaged if a power supply is turned off at the time of card access.

*2 The one up to 122mm or less in the size of board can be used for two next slots of this board (one substance slot).

Heat Sink

The RTC (real-time clock) and CMOS data backup by the lithium battery.
The Lithium battery specification is shown in table

* Backup time: Over 10 years at none AC power 25ºC.
* Real Time Clock accurate: ±3 minutes/month at 25ºC.
Power management setup via BIOS
Modem Ring On/Wake On LAN
Supports PC98/PC99 ACPI Power management

+5VDC±5%
+12VDC±5% (For fan)
+5VSB(Stand by) ±5%(Only when using the ATX power supply)
Pentium M 1.6GHz
+5VDC±5%, 9.0A
+12VDC±5%, 0.1A (For fan, Average)
+5VSB (Stand by) ±5%, 0.5A
0 - 60°C *3 / 10 - 90%RH
(No condensation)

Windows XP Professional
Windows XP Home Edition
Windows 2000 Professional

SPC-8520-LA SPC-8521-LA

Specification BR-2/3AC2P
Voltage 3V

Capacity 1200mAh
Weigh 15.5g

+5VDC±5%, 5.0A
+5VSB (Stand by) ±5%, 0.5A

0 - 50°C / 10 - 90%RH
(No condensation)

PCI Slot

Max.122mm

*3 It depends on the specification of the CPU and the heat-sink.

Board

8

SPC-8520-LA , SPC-8521-LA

2. System Reference

Power Management Features

- Support both ACPI (Advanced Configuration and Power Interface) and legacy (APM) power
management.

- ACPI v2.0 compliant

- APM v1.2 compliant

- PCI bus clock run, Power Management Enable (PME) control, all with hardware automatic wake-up.

- Multiple suspend power plane controls and suspend status indicators

- Normal, doze, sleep, suspend and conserve modes

- Global and local device power control

Power Requirements

Your system requires a clean, steady power source for reliable performance of the high frequency CPU,
the quality of the power supply is even more important. For the best performance makes sure your
power supply provides a range of 4.75 volts minimum to 5.25 volts maximum DC power source.

Power Consumption

For typical configurations, the CPU board is designed to operate with at least a 250 W power supply. A
higher-wattage power supply should be used for heavily-loaded configurations. The power supply must
meet the following requirements:

- Rise time for power supply: 2 ms - 20 ms

- Minimum delay for reset to Power Good: 100 ms

- Minimum Power down warning: 1 ms

The following table lists the power supply’s tolerances for DC voltages:

Table 2.2. DC voltage tolerance

DC Voltage Acceptable Tolerance

+5V ± 5%

+5VSB (Standby) ± 5%

+12V(For fan) ± 5%

SPC-8520-LA, SPC-8521-LA

9

2. System Reference

Connector & Jumper Location

CNA1
CNL1

CNU1
CNU2

CNV1

CNQ1

JKB1

1
1

CNQ2

CNG1CNG2

CN1CN2

1

1

11

1

1

JP5

1

1

1

CNJ2

CNP1

JBAT1

1

CNW1

1

CNF1

1

1

JP3JP2JP1CNI1

1

1

CNJ1

1

1

JP3

CN6

CN3

1

CNK1

1

1

CND1

CNE1

Figure 2.1. Connector & Jumper Location

Item Content

CN1 Front Panel Connector CNK1 LVDS LCD Panel Connector
CN2 CD-IN Connector CNL1 10/100BASE-TX LAN Connector
CN3 ATX power control Connector CNP1 Parallel Port Connector

CN6

External Power Connector

(only SPC-8521-LA)
CNA1 Audio connector CNQ2 External Keyboard Connector
CND1 SO-DIMM Memory Socket CNU1 / CNU2 U SB Connector
CNE1 CF Slot CNW1 On board Battery Connector
CNF1 Floppy Disk Drive Connector JBAT1 Clear CMOS Content

CNG1 / CNG2

Serial Port Connector

(SERIAL1,SERIAL2)
CNV1 Analog RGB Connector JP1 RS-422A/485 Terminator
CNI1 Primary IDE Connector JP2 / JP3 RS-232C/422A/485 Selector
CNJ1 FAN1 Connector JP5 Clear ROM Content
CNJ2 FAN2 Connector

Item Content

CNQ1 Keyboard / Mouse Connector

JKB1 Keyboard / Mouse Selector

10

SPC-8520-LA , SPC-8521-LA

Block Diagram

2. System Reference

LVDS

Connector

Analog RGB

Connector

Audio
Jack

FDD

Parallel

SERIAL2
RS-232C
RS-422
RS-485

Analog RGB

AC97
CODEC

FWH BIOS

LPC SUPER I/O

W83627

SERIAL1
RS-232C

PS/2
KB / MS

AC Link

LPC I/F

Pentium M
CPU Socket

852GM GMC H

ICH4

PCI BUS

PSB

HUB LINK

CLK GEN.

IDE

PHY

82562GZ

PCI FINGER
Connector

Primary

IDE

CFSlot

(S-IDE)

USB1/2

200 pin DDR
SO-DIMM

RJ-45

Figure 2.2. Block Diagram

SPC-8520-LA, SPC-8521-LA

11

2. System Reference

12

SPC-8520-LA , SPC-8521-LA

3. Hardware Installations

3. Hardware Installations

This chapter provides information on how to use the jumpers and connectors on this product in order to
set up a workable system.

Installation procedure

(1) Confirm the power supply is off.
(2) Install the processor with correct orientation. (only SPC-8520-LA)
(3) Install the fan on top of the processor and connect it to the CNJI connector.

(Only SPC-8520-LA)
(4) Insert the DRAM module with correct orientation.
(5) The jumpers are set up according to the conditions to be used.
(6) Insert all external cables (Hard disk, floppy, keyboard, Mouse, LAN, etc.)
(7) Insert the monitor to the analog RGB connector (CNV1).
(8) Turn on the power.
(9) Enter the BIOS setup mode by pressing ‘Del’ key during boot up.
(10) Use the “Load BIOS Optimized Defaults” feature.
(11) Configure the Peripheral Setup and the Standard Setup correctly.

CAUTION

The CMOS memory may be in an undefined state at power-on after a period of no battery backup.

SPC-8520-LA, SPC-8521-LA

13

3. Hardware Installations

CPU Installation

The SPC-8520-LA supports a single Intel(R) Celeron M or Pentium M processor (FSB 400MHz). The
processor’s VID pins automatically program the voltage regulator on the CPU board to the required
processor voltage. The host bus speed is automatically selected. The processor connects to the CPU
board through the 478-pins socket.

The socket-478 contains a turn lock to secure the processor. Make sure the notch on the corner of the
CPU corresponds with the notch on the inside of the socket.

The CPU should always have a Heat Sink and a cooling fan attached to prevent overheating.
Refer to the user’s guide of optional heat sink fan appending for attachment of a heat sink fan.
(The user’s manual for the optional heat sink fan [HSF-PM] is available on the CD-ROM attached to this

product.)

CAUTION

Ensure that the CPU heat sink and the CPU top surface are in total contact to avoid CPU overheating
problem that would cause your system to hang or be unstable.

(Only SPC-8520-LA)

:

14

SPC-8520-LA , SPC-8521-LA

3. Hardware Installations

Audio Connector: CNA1

This connector connects the Audio jack cable.

Table 3.1. Audio Connector

CNA1

Pin No.

21

109

1
3
5
7
9

Function

LINE-OUT-R

GND

N.C.

GND

LINE-IN-R

Pin No.

2
4
6
8

10

Function

LINE-OUT-L

GND

MIC-IN

GND

LINE-IN-L

Main Memory Installation: CND1

This product support one single-side or double-sided DDR200(PC1600)/266(PC2100) unregistered
SO-DIMM, 200-pin SO-DIMM sockets for a maximum memory of 1GB. Using the non-ECC DDR
SDRAM SO-DIMM.

The CPU board supports the following memory features:

- 200-pin SO-DIMM with gold-plated contacts

- 200 MHz (PC1600)/266 MHz (PC2100) DDR SDRAM

- Non-ECC DIMM

- Unbuffered, unregistered single-sided or double-sided SO-DIMMs

Table 3.2. DDR SDRAM

SO-DIMM Size Non-ECC

128MB 16Mbit x 64
256MB 32Mbit x 64
512MB 64Mbit x 64
1024MB 128Mbit x 64

CAUTION

All memory components and DIMM used with this product must comply with the PC SDRAM
Specification. These include : the PC SDRAM Specification (memory component specific), the PC
Unbuffered DIMM Specification, and the PC Serial Presence Detect Specification.

SPC-8520-LA, SPC-8521-LA

15

3. Hardware Installations

Compact Flash Slot: CNE1

This product provides a Compact Flash interfaces. This interface is a very small removable mass
storage device. It provides compatibility plus True IDE functionality compatible with ATA/ATA-4.

Table 3.3. Compact Flash Slot

2

CNE1

50

1

Pin No.

1
3
5
7

9
11
13
15
17
19
21
23
25
27
29
31
33
35
37
39
41
43
45
47
49

Function

GND

D4

D6
CS1#
GND
GND

VCC
GND
GND

A1
D0
D2

GND

D11
D13
D15

GND

IOW#

IRQ15

CSEL#

SDRST#

SDREQ

CF_LED2#

D8

D10

Pin No.

2
4
6

8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40
42
44
46
48
50

49

Function

D3
D5

D7
GND
GND
GND
GND
GND

A2

A0

D1

NC

GND

D12

D14
CS3#
IOR#
VCC
VCC

NC

IORDY

SDDACK#

SDIAG

D9

GND

16

SPC-8520-LA , SPC-8521-LA

3. Hardware Installations

Floppy Disk Drive Connector: CNF1

The floppy interface can be configured for the following floppy drive capacities and sizes:

- 720 KB, 3.5-inch

- 1.44 MB, 3.5-inch

- 2.88 MB, 3.5-inch

This connector supports the provided floppy drive ribbon cable. After connecting the single end to the
product, connect the two plugs on the other end to the floppy drives.

Table 3.4. Floppy Disk Drive Connector

33

Pin No.

1
3
5
7

9
11
13
15
17
19
21
23
25
27
29
31
33

Function

GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND
GND

CNF1

Pin No.

2
4
6

8
10
12
14
16
18
20
22
24
26
28
30
32
34

1

234

Function

RWC

N.C.

FDC_DS1

INDEX

MOA

DSB
DSA

MOB

DIR

STEP

WD
WE

TRCK 0

WP

RD

HEAD

DSKCHG

SPC-8520-LA, SPC-8521-LA

17

3. Hardware Installations

Serial Port Connector: CNG1 , CNG2

Serial1 (CNG1) and Serial2 (CNG2) are 10-pin box-headers. Both are onboard serial ports of this
product. The following table shows the pin assignments of these connectors.
RS-232C/422A/485 assigned for Serial2 (CNG2) connector only.

Table 3.5. Serial Port connector

Pin No.

CNG1/CNG2

16

510

*RS-422A/485 supported for Serial2 (CNG2) connector only.

Pin assignment after conversion by attached cable (D-SUB 9Pin Male Connector, No.4-40UNC )

Table 3.6. Attached cable (9pin D-SUB) pin assignment

15

RS-232C

1

DCD

2

RXD
3
4

DTR
5

GND
6
7
8
9

10

TSD

DST
RTS
CTS

RI

N.C.

RS-422A*

TX­TX+
RX+
RX-

GND

RTS­RTS+
CTS+

CTS-

N.C.

RS-485*

TX­TX+
RX+

RX-

GND

N.C.
N.C.
N.C.
N.C.
N.C.

9

6

TX­TX+
RX+
RX-

RS-485

TX­TX+
RX+

RX­GND
N.C.
N.C.
N.C.
N.C.

RS-232C

Pin No.

1
2
3
4
5
6
7
8
9

CAUTION

RS-422A

DCD

RXD
TXD
DTR

GND

DSR
RTS
CTS

RI

GND

RTS­RTS+
CTS+

CTS-

- For RS-485, TX+(pin 2) and RX+ (pin 3) must jumper together inside the D type connector.

- TX- (pin 1) and RX- (pin 4) is the same.

18

SPC-8520-LA , SPC-8521-LA

RS-422 / RS-485 specifications

Table 3.7. RS-422A/RS-485 specifications

Transmission system Asynchronous, half-/ full-duplex serial transmission

conforming to RS-422A/RS-485

Baud rate 50 - 115,200bps (programmable)

Signal extensible distance 1.2km Max.

RTS#

JP2: 7-8

47k Ω

3. Hardware Installations

JP2: 4-6
JP2: 5-6

RXD

TXD

CTS#

RTS#

D

D

6.2kΩ

R

Terminating Resister

6.2kΩ

47

k

Ω

+5V

47k Ω

47

6.2kΩ

6.2kΩ

k

Ω

R

120 Ω

120 Ω

120 Ω

120 Ω

JP1: 5-6

JP1: 7-8

JP1: 1-2

JP1: 3-4

10 5

61

Figure 3.1. RS-422A / RS-485 Setting

VGA Connector: CNV1

It is a VGA (Analog RGB) connector. The pin assignments are as follows:

Table 3.8. VGA Connector (CN13)

PIN No. Function PIN No. Function

1

5

10

15

1

6

11

3Blue4N.C.
5 GND 6 GND
7 GND 8 GND

9 VCC 10 GND
11 N.C. 12 DDC data
13 H-Sync 14 V-Sync
15 DDC clock 16 N.C.

Red

2

Green

SPC-8520-LA, SPC-8521-LA

19

3. Hardware Installations

Primary IDE Connector: CNI1

This product provides a bus-mastering PCI IDE interface. This interface support PIO Mode 3, PIO
Mode 4, ATAPI devices (e.g., CD-ROM drive), and Ultra DMA/33/66/100 synchronous- DMA mode
transfers. The BIOS supports logical block addressing (LBA) and extended cylinder head sector
(ECHS) translation modes. The BIOS automatically detects the IDE device transfer rate and translation
mode.

This connector supports the provided IDE hard disk ribbon cable. After connecting the single end to the
product, connect the two plugs at the other end to your hard disk(s). If you install two hard disks, you
must configure the second drive to Slave mode by setting its jumper accordingly. Please refer to your
hard disk documentation for the jumper setting.

Table 3.9. Primary IDE Connector

39

CNI1

1

40

Pin No.

1
3
5
7
9

11
13
15
17
19
21
23
25
27
29
31
33
35
37
39

Function

RESET

D7
D6
D5
D4
D3
D2
D1
D0

GND

DREQ

IOW

IOR

IORDY

DACK

IRQ

A1
A0

CS0

HD ACT

Pin No.

2
4
6

8
10
12
14
16
18
20
22
24
26
28
30
32
34
36
38
40

2

Function

GND

D8

D9
D10
D11
D12
D13
D14
D15
N.C.

GND
GND
GND

ALE

GND
Reserved
Reserved

A2

CS1

GND

20

SPC-8520-LA , SPC-8521-LA

3. Hardware Installations

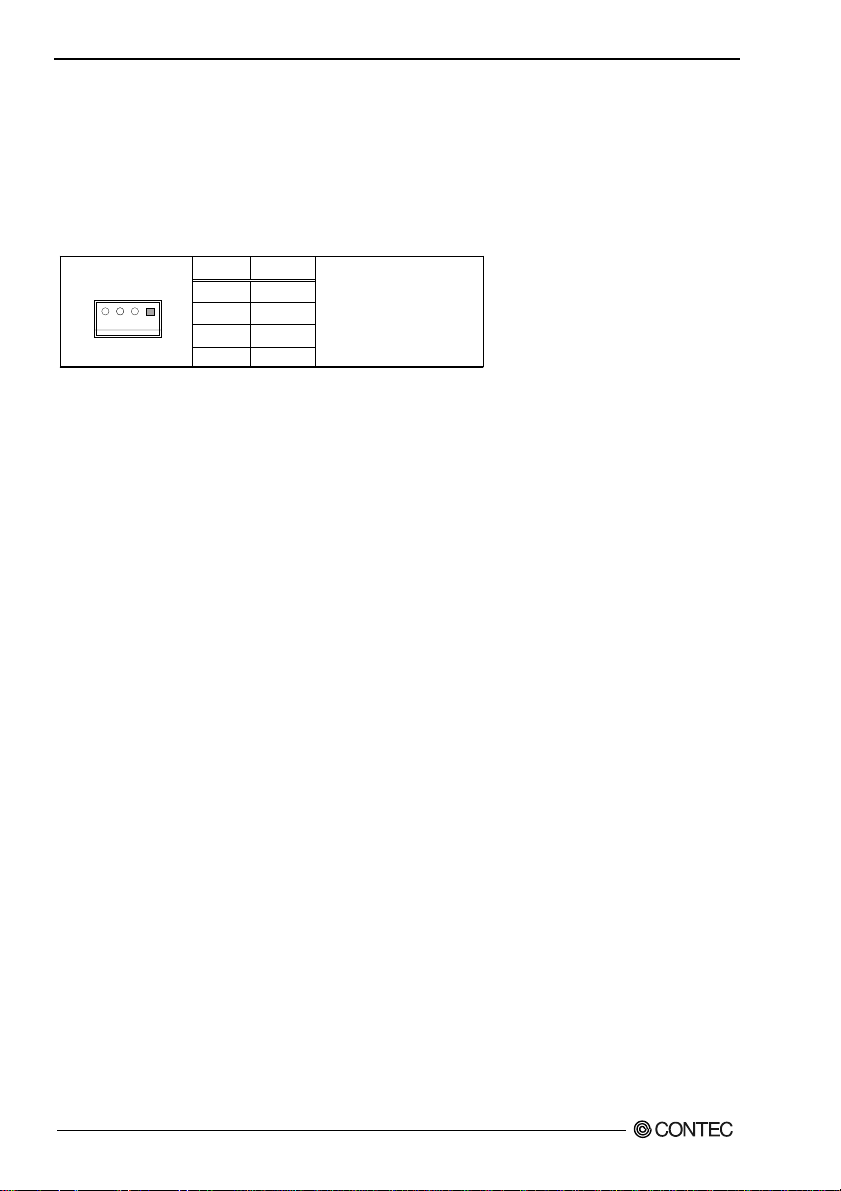

FAN1 Connector: CNJ1

CNJ1 is a 3-pins box-header for the cooling fan power connector. The fan must be a 12V fan. Pin 3 is
for Fan speed sensor input.

Table 3.10. FAN1 Connector

CNJ1

1

Pin No.

1

2

2

3

3

Function

GND

POWER

FAN

Housing : 5102-03 (molex)
Contact : 5103 (molex)

FAN2 Connector: CNJ2

CNJ2 is a 3-pins box-header for the cooling fan power connector. The fan must be a 12V fan. Pin 3 is
for Fan speed sensor input.

Table 3.11. FAN2 Connector

CNJ2

1

Pin No.

1

2

2

3

3

Function

GND

POWER

FAN

Housing : 5102-03 (molex)
Contact : 5103 (molex)

SPC-8520-LA, SPC-8521-LA

21

3. Hardware Installations

LVDS LCD panel Connector: CNK1

CNK1 consist of 30-pin connector that using the Hirose’s DF13A-30DP-1.25V. The product supports 1
channels of LVDS LCD panel display.

Table 3.12. LVDS LCD panel Connector

Pin No.

CNK1

1

2

Housing: DF13-30DS-1.25C
(HIROSE)
Contact: DF13-2630SCF
(HIROSE)

LCD_VDD : +3.3V LCD power out (1A Max.)
+5V(BKL) : Power out controlled by BKL_EN signal (1A Max.)
Reserved : keep none connect

29

30

2
4
6

8
10
12
14
16
18
20
22
24
26
28
30

Function

A_TX1+

A_TX1-

GND

A_TX3+

A_TX3-

GND
LCD_VDD
LCD_VDD

GND

DDC_DATA

Reserved

+5V (BKL)

+5V
+12V
+12V

Pin No.

1
3
5
7
9

11
13
15
17
19
21
23
25
27
29

Function

A_TX0+

A_TX0-

GND

A_TX2+

A_TX2-

GND

A_CLK1+

A_CLK1-

GND

DDC_CLK

Reserved
Reserved
BKL_EN

GND
GND

10/100BASE-TX LAN Connector: CNL1

This connector is for the 10/100 LAN adapter 10/100Mbps base-TX RJ45 single port (1x1) tab-up with
LEDs integrated magnetic connector. The follow table shows the pin assignments of this connector.

Table 3.13. 10/100BASE-TX LAN Connector

Speed

LED

CNL1

Link / ACT

LED

81

Pin No.

Left LED: Speed LED
10M: OFF, 100M: Orange
Right LED: Link/Ack LED
Link: Green, Ack: Blink

22

Function
1
2
3
4

TX+

TX­RX+
N.C.

Pin No.

5
6
7
8

Function

N.C.

RX­N.C.
N.C.

SPC-8520-LA , SPC-8521-LA

3. Hardware Installations

Parallel Port Connector: CNP1

The parallel port bracket can use to add an additional parallel port for additional parallel devices. There
are four options for parallel port operation:

- Compatible (Standard mode)

- Bi-Directional (PS/2 compatible)

- Bi-Directional EPP. A driver from the peripheral manufacturer is required for operation.

- Bi-Directional High-speed ECP

Table 3.14. Parallel Port Connector

25

CNP1

1

Pin No.

1
3
5
7

9
11
13
15
17
19
21
23
25

26

Function

STROBE

PD0
PD1
PD2
PD3
PD4
PD5
PD6
PD7

ACK

BUSY

PE

SLCT

Pin No.

2
4
6

8
10
12
14
16
18
20
22
24
26

2

Function

ALF

ERROR

INIT

SLCT IN

GND
GND
GND
GND
GND
GND
GND
GND

N.C.

SPC-8520-LA, SPC-8521-LA

23

3. Hardware Installations

Keyboard / Mouse Connector: CNQ1

This product provides a standard PS/2 keyboard/mouse connector for attaching a PS/2 keyboard/mouse.
You will connect with an add-on cable for a PS/2 keyboard/mouse. You can select that plug a PS/2
mouse directly, PS/2 keyboard directly or both (use 2 in 1 cable) by jumper (JKB1) setting.

The PS2 Keyboard/Mouse Connector pin definition is shown below:

Table 3.15. Keyboard / Mouse Connector

Pin No.

CNQ1

6

4

5

3

1

2

Table 3.16. K/B & M/S Select Jumpers

Select the func tion

JKB1

1
2

MS or KB DATA
3
4
5

KB or MS Clock
6

MS or KB Clock

2 in 1 cable

(Default)

7 5 3 1

8 6 4 2

Function

KB or MS Data

GND

+5VSB

keyboard directly

plug a PS/2

7 5 3 1

8 6 4 2

plug a PS/2

mouse directly

7 5 3 1

8 6 4 2

External Keyboard Connector: CNQ2

This is a 5-pin connector for external keyboard.

Table 3.17. External Keyboard Connector

CNQ2

5
4
3
2
1

Pin No.

5
4
3
2
1

24

Function

+5V
GND
N.C.

KB Data
KBClock

Housing: XHP-5(JST)
Contact : SXH- 001T-P06(JST)

SPC-8520-LA , SPC-8521-LA

USB Connector: CNU1, CNU2

This product have two USB (v2.0 compliant) A Type connector (CNU1/2).

Table 3.18. USB A TYPE Connector

Pin No.

CNU1 / CNU2

1

4

Function

1

VCC1

2

USBP1-

3

USBP1+

4

GND

3. Hardware Installations

CAUTION

Computer systems that have an unshielded cable attached to a USB port may not meet FCC Class
requirements, even if no device or a low-speed USB device is attached to the cable. Use shielded
cable that meets the requirements for full-speed devices.

External Battery Connector: CNW1

It is a 2 Pin connector used for external battery. An external battery power for used of Real-time clock
and CMOS memory.

Table 3.19. External Battery Connector

CNW1

2
1

Pin No.

2
1 GND

This product has the large capacity battery connected to this connector as standard.

Function

External battery

(3V)

Housing: IL-2S-S3L-(N) (JAE)
Contact: IL-C2-1-10000 (JAE)

SPC-8520-LA, SPC-8521-LA

25

3. Hardware Installations

Front Panel Connector: CN1

This header can be connected to a front panel power switch. The front panel connector includes headers
for these I/O connections:

Power Button:
When the ATX power supply is used, this header connects power supply ON button.

Power LED:
This header is connected with a LED when turning on power to the computer.

Reset Button:
This header connects the reset button.

HDD LED:
This header is connected with a LED shown while being reading the data of the IDE hard disk drive or

writing it.

Speaker:
An external speaker can be installed in this product as an option. When the computer cannot use the

video interface, the speaker offers the error warning sound in POST. Moreover, because this speaker is
not connected with the audio subsystem, it is not possible to sound it by the output from the audio
subsystem.

Table 3.20. Front Panel Connector

CN1

15

1

Pin No.

1
3
5
7

9
11
13
15

Speaker
Reset Button
Power LED

16

Function

Power BT

GND

RESET

GND

Speaker+

N.C.
N.C.

Speaker-

9, 11, 13, 15
5, 7
8, 10, 12

Pin No.

2
4
6

8
10
12
14
16

Power Button
HDD LED

2

Function

HDD LED+

HDD LED-

N.C.

Power LED+

N.C.

Power LED-

N.C.
N.C.

Power Swi tch
for ATX

Reset Switch

External Speaker

(Ex. 8Ω 0.25W)

1, 3
2, 4

1

HDD Active Indicator LED

Power LED

15

26

SPC-8520-LA , SPC-8521-LA

3. Hardware Installations

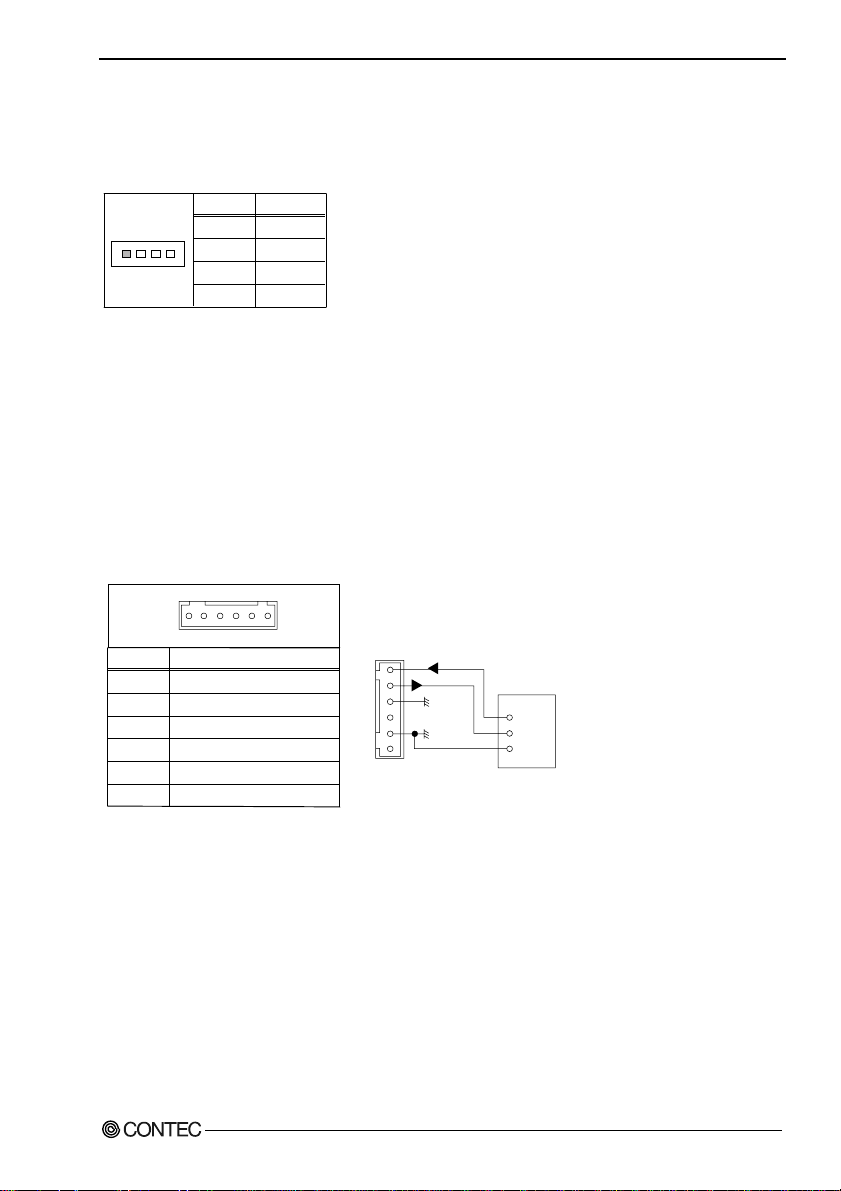

CD-IN Connector: CN2

This connector is used to connect CD Audio cable from CD-ROM or DVD drive to onboard sound.

Table 3.21. CD-IN Connector

Pin No.

CN2

4

1

Function

Audio-L

1

GND

2
3

GND

Audio-R

4

ATX power control Connector: CN3

When used with an ATX-compliant power supply that supports remote power on/off, the product can turn
off the system power through software control.

When using the ATX power supply, connect this connector to the ATX power control connector on the
backplane, using the attached cable.

To enable soft-off control in software, advanced power management must be enabled in the Setup
program and in the operation system. When the system BIOS receives the correct APM command from
the operating system, the BIOS turns off power to the computer.

Table 3.22. ATX power control Connector

CN3

12345

Pin No.

1
2
3
4
5
6

PCI_PME# : Connects to a PME# signal from the PCI bus. This product can be booted up from the PCI board which

supports the PME (Power Management Event) function. Use the product in an open state when not using

this function.
PSWIN : Connects a power push button switch and has the same function as CN2-1 pin (PowerBT).
PS_ON : Output for ATX power-on/off control

5VSB : +5V voltage supplied from the ATX power in standby mode

6

Function

PCI_PME#

GND

PSWIN

GND

PS_ON

5VSB

CN3

6
5
4
3
2
1

Housing : XHP-6 (JST)
Contact : SXH-001T-P0.6 (JST)

5VSB

PS-ON

ATX Power
Control signal

5VSB
PS-ON
GND

SPC-8520-LA, SPC-8521-LA

27

3. Hardware Installations

External Power Connector (Only SPC-8521-LA) : CN6

This connector support only SPC-8521-LA. The supply of the power is possible from this connector in
the case that it does not use the Back Plane.

Table 3.23. External Power Connector

Function

CN6

4 3 2 1

Pin No.

1
2
3
4

GND

GND
Vcc(+5V)
Vcc(+5V)

Housing:VHR-4N(JST)
Contact:SVH-21T-P1.1(JST)

28

SPC-8520-LA , SPC-8521-LA

4. Jumper Setting

RS-422A/485 Terminator: JP1

Table 4.1. RS-422A/485 Terminator

JP1 Terminator

102

---

91

102

CTS for RS-422A

91

102

RTS for RS-422A

91

102

RXD for RS-422A/485

91

102

TXD for RS-422A/485

91

Function

No terminating resister

(Default)

Terminating resisiter provided

Terminating resisiter provided

Terminating resisiter provided

Terminating resisiter provided

4. Jumper Setting

SPC-8520-LA, SPC-8521-LA

29

4. Jumper Setting

RS-232C/422A/485 Selector: JP2/JP3

Table 4.2. RS-232/422A/485 Selector

JP2

9

RS-232C
(Default)

RS-422A

RS-485

1. For RS-485, TX+(pin 2) and RX+ (pin 3) must jumper together
inside the D type connector.

2. TX- (pin 1) and RX- (pin 4) is the same.

7531

10

8642

JP2

97531

10

9

10

864

JP2

75

864

2

31

2

Transmit date control in half-duplex mode

In half-duplex mode, the transmission buffer must be controlled to prevent transmit data from causing a
collision. The product uses the RTS signal and bit 1 in the modem control register to control transmit
data.

JP3

19 1 7 15 13 11 9 7 5 3 123 21

20 1 8 16 14 12

JP3

19 17 15 13 11 9 7 5 3 123 21

20 18 16 14 12

JP3

19 1 7 15 13 11 9 7 5 3 123 21

20 18 16 14 12

10 8 6 4 225 22

10 8 6 4 225 22

10 8 6 4 225 22

Modem control register
(Setting I/O address +4H) bit 1: 0 … RTS High (Disables transmission)
1 … RTS low (Enables transmission)

30

SPC-8520-LA , SPC-8521-LA

4. Jumper Setting

Setting the RS-422A/RS-485 receiver disable control jumper

When the RS-422A/RS-485 port is used, the RTS signal is used for driver enable control Connecting JP2
Pins 4 and 6 set to OFF disable the receiver at the same time, preventing the port from receiving output
data to an external device.

RS-422A Setting

TXD#

D

JP2: 4-6

JP2: 5-6

RXD#

RTS

CTS

R

D

R

Figure 4.1. RS-422A Setting

RS-485 Setting

TXD#

D

JP2: 4-6

JP2: 5-6

RXD#

R

Figure 4.2. RS-485 Setting

JP2: 7-8

120Ω

120Ω

120Ω

120Ω

JP2: 7-8

120 Ω

120 Ω

RTS#

RTS#

JP1: 7-8

JP1: 5-6

JP1: 7-8

JP1: 5-6

JP1: 3-4

JP1: 1-2

TX­RTS­TX+
RTS+
RX+
CTS+
RX­CTS-

SERIAL2

6
7
8
9

SERIAL2

1

6

2

7

3

8

4

9

5

1
2
3
4
5

DATA-

DATA+

SPC-8520-LA, SPC-8521-LA

31

4. Jumper Setting

I/O addresses and instructions

The table below lists I/O addresses for use as SERIAL2.

Table 4.3. I/O addresses and instructions

I/O address DLAB Read/Write Register

02F8h

02F9h

02FAh X R Interrupt ID Register IIR
02FBh X W Line control Register LCR
02FCh X W Modem Control Register MCR
02FDh X R Line status Register LSR
02FEh X R Modem Status Register MSR
02FFh X R/W Scratch Register SCR

0

1 W Divisor latch Register (LSB) DLL
1 W Divisor latch Register (MSB) DLM
0 W Interrupt enable Register IER

W Transmitter holding Register THR

R Receiver buffer Register RBR

32

SPC-8520-LA , SPC-8521-LA

4. Jumper Setting

Clear CMOS Content: JBAT1

The time, date, and CMOS values can be specified in the Setup program. The CMOS values can be
returned to their defaults by using the Setup program. The RAM data contains the password information
is powered by the onboard button cell battery. User can erase the CMOS memory content by short pin2
and pin3 of JBAT1 together.

Table 4.4. Clear CMOS Content

JBAT1 Function

321

321

Normal Operation( Def a ult)

Clear CMOS Content

Clear ROM Content: JP5

It is possible to start by invalidating the BIOS setting because pin 2 and pin 3 of JP5 are connected and
the system is started. If the system doesn’t start, please try this setting. Please set the BIOS setup
again when the system starts. Return pin1 and pin2 connection (Normal Operation) after set the BIOS
setup.

Please connect pin 1 and pin 2 in the state of driving usually.

Table 4.5. Clear ROM Content

JP5 Function

321

321

Normal Operation( Def a ult)

Clear CMOS Content

SPC-8520-LA, SPC-8521-LA

33

4. Jumper Setting

34

SPC-8520-LA , SPC-8521-LA

5. Board Resources

5. Board Resources

System Address Map

The GMCH memory map includes a number of programmable ranges. All of these ranges must be
unique and non-overlapping. There are no hardware interlocks to prevent problems in the case of
overlapping ranges. Accesses to overlapped ranges may produce indeterminate results.

Table 5.1. Compatibility Area

Address Description

0 - 640KB DOS area
640 - 768KB Video Buffer area
768 - 896KB Expansion Area
896 - 960KB Extended System BIOS Area

960 - 1MB System BIOS Area

Table 5.2. Memory Segment

Memory Segments Comments

00000h - 9FFFFh 0 - 640K DOS Region
A0000h - BFFFFh Video Buffer
B0000h - B7FFFh Monochrome Adapter range
C0000h - CFFFFh Video BIOS
D0000h - DFFFFh Expansion Area
E0000h - EFFFFh Extended System BIOS Area
F0000h - FFFFFh System BIOS Area
100000h - FFFFFFFFh Extended Memory Area
100000h - Top of Main Memory Main DRAM Address Range
Top of Main Memory Extended SMRAM Address Range
Top of Main Memory To 4GB P CI Memory Address Range
FEC00000h - FECFFFFFh,
FEE00000h - FEEFFFFFh
FFFE0000h - FFFFFFFFh High BIOS Area

APIC configuration space

SPC-8520-LA, SPC-8521-LA

35

5. Board Resources

36

SPC-8520-LA , SPC-8521-LA

6. Watch-Dog-Timer (WDT) Setting

6. Watch-Dog-Timer (WDT) Setting

The watchdog timer serves as a safeguard against possible system lock-up in your industrial computer
system. In most industrial environments, there are heavy equipment, generators, high-voltage power
lines, or power drops that have adverse effects on your computer system. For instance, when a power
drop occurs, it could cause the CPU to come to a halt state or enter into an infinite loop, resulting in a
system lock-up.

The application software created by user with the watchdog timer enabled, a RESET automatically
generated unless the software periodically triggers the timer within the setting time-out interval. That is,
while the system gets hung up, the running program can’t trigger the timer periodically. The timer will
generate a reset signal to reboot the system. This feature allows a running program to restart in an
orderly way when a power glitch or any abnormal condition occurs.

The watchdog timer comes with 255-level time-out interval, 1 - 255 seconds per interval, which can be
adjusted by software setting. There is a tolerance of 2 second for this time-out interval. For example,
if the time-out interval has been set to 32 seconds, your program should trigger the watchdog timer before
28 seconds are escaped. Otherwise, after 28-32 seconds are escaped, the system will automatically
reboot. To keep the system running normally, your program should trigger the watchdog timer every 28
seconds.

The I/O port is defined at address 2eH. You can trigger/enable disable the timer by writing address 2e.
Here is an example for flow chart and programming how to use the watch-dog-timer.

(1) Example flow chart

START

WDT Initial

WDT Start

WDT Stop

Yes

WDT
Restart?

* It is also possible not to perform [WDT Stop] instead of performing [WDT Stop] to [WDT Start], but to perform [WDT

Start] continuously at the time of a re-start.

SPC-8520-LA, SPC-8521-LA

}

When performing the re-start of WDT, it repeats [WDT Start] and [WDT Stop].

No

END

If [WDT Stop] is not performed within the limit time set up
by [WDT Start], system reset occurs.

37

6. Watch-Dog-Timer (WDT) Setting

(2) Example programming
The following example is written in Intel8086 assembly language.

;===============
;<WDT Initial>
;===============
;----------------------------------­;Enter the extended function mode
;----------------------------------­MOV DX,2EH
MOV AL,87H
OUT DX,AL
OUT DX,AL
;----------------------------------­;Set WDT function at pin89
;----------------------------------­MOV DX,2EH
MOV AL,2BH
OUT DX,AL
MOV DX,2FH
MOV AL,0DH
OUT DX,AL
;-----------------------------------------------­;Select logical device WDT(number 8)
;------------------------------------------------­MOV DX,2EH
MOV AL,07H
OUT DX,AL
MOV DX,2FH
MOV AL,08H
OUT DX,AL
;--------------------------------------------------­;Activate logical device WDT(number 8)
;--------------------------------------------------­MOV DX,2EH
MOV AL,30H
OUT DX,AL
MOV DX,2FH
MOV AL,01H
OUT DX,AL
;----------------------------------­;Set timer unit : second
;----------------------------------­MOV DX,2EH
MOV AL,F5H
OUT DX,AL
MOV DX,2FH
MOV AL,00H
OUT DX,AL

38

SPC-8520-LA , SPC-8521-LA

;-----------------------------------------­;Exit the extended function mode
;-----------------------------------------­MOV DX,2EH
MOV AL,AAH
OUT DX,AL

;================================
;<WDT START : counter set and a start >
;================================
;--------------------------------------------­;Enter the extended function mode
;--------------------------------------------­MOV DX,2EH
MOV AL,87H
OUT DX,AL
OUT DX,AL
;-----------------------------------------------­;Select logical device WDT(number 8)
;-----------------------------------------------­MOV DX,2EH
MOV AL,07H
OUT DX,AL
MOV DX,2FH
MOV AL,08H
OUT DX,AL
;-----------------------------------------------------­;Set time of WDT and start to count down
;-----------------------------------------------------­MOV DX,2EH
MOV AL,F6H
OUT DX,AL
MOV DX,2FH
;---------------------------------------------------------------------------------­;The data of an example is 15 seconds.(01H=1sec.- FFH=255sec.)
MOV AL,0FH ; 0FH = 15Sec.
;----------------------------------------------------------------------------------­OUT DX,AL
;----------------------------------­;Exit the extended function mode
;----------------------------------­MOV DX,2EH
MOV AL,AAH
OUT DX,AL

6. Watch-Dog-Timer (WDT) Setting

SPC-8520-LA, SPC-8521-LA

39

6. Watch-Dog-Timer (WDT) Setting

;==============
;<WDT STOP>
;==============
;----------------------------------­;Enter the extended function mode
;----------------------------------­MOV DX,2EH
MOV AL,87H
OUT DX,AL
OUT DX,AL
;----------------------------------­;Select logical device WDT(number 8)
;----------------------------------­MOV DX,2EH
MOV AL,07H
OUT DX,AL
MOV DX,2FH
MOV AL,08H
OUT DX,AL
;----------------------------------­;Stop count down of WDT
;----------------------------------­MOV DX,2EH
MOV AL,F6H
OUT DX,AL
MOV DX,2FH
;----------------------------------­;The data of 00H is stop WDT
MOV AL,00H
;----------------------------------­OUT DX,AL
;----------------------------------­;Exit the extended function mode
;----------------------------------­MOV DX,2EH
MOV AL,AAH
OUT DX,AL

CAUTION

The timer’s intervals have a tolerance of ±2 seconds.

40

SPC-8520-LA , SPC-8521-LA

7. BIOS Setup

7. BIOS Setup

Introduction

This chapter discusses Award’s Setup program built into the FLASH ROM BIOS. The Setup program
allows users to modify the basic system configuration. This special information is then stored in battery­backed RAM so that it retains the Setup information when the power is turned off.

The rest of this chapter is intended to guide you through the process of configuring your system using
Setup.

Starting Setup

The Award BIOS is immediately activated when you first power on the computer. The BIOS reads the
system information contained in the CMOS and begins the process of checking out the system and
configuring it. When it’s finish , the BIOS will seek an operating system on one of the disks and then
launch and turn control over to the operating system.

While the BIOS is in control, the Setup program can be activated in one of two ways:

1. By pressing <Del> immediately after switching the system on, or

2. By pressing the <Del> key when the following message appears briefly at the bottom of the screen
during the POST (Power On Self-Test).

Press DEL to enter SETUP.

If the message disappears before you respond and you still wish to enter Setup, restart the system to try
again by turning it OFF then ON or pressing the "RESET" button on the system case. You may also
restart by simultaneously pressing <Ctrl>, <Alt>, and <Delete> keys. If you do not press the keys at the
correct time and the system does not boot, an error message will be displayed and you will again be asked
to...

Press F1 to continue, DEL to enter SETUP

Using Setup

In general, you use the arrow keys to highlight items, press <Enter> to select, use the PageUp and
PageDown keys to change entries, press <F1> for help and press <Esc> to quit. The following table
provides more detail about how to navigate in the Setup program using the keyboard.

Table 7.1. Using Setup

Key Function
Up Arrow Move to the previous item
Down Arrow Move to the next item
Left Arrow Move to the item on the left (menu bar)
Right Arrow Move to the item on the right (menu bar)

Esc

Move Enter Move to the item you desired
PgUp key Increase the numeric value or make changes
PgDn key Decrease the numeric value or make changes
+ key Increase the numeric value or make changes

SPC-8520-LA, SPC-8521-LA

Main Menu: Quit without saving changes
Submenus: Exit Current page to the next higher level menu

41

7. BIOS Setup

Key Function

- key Decrease the numeric value or make changes

Esc key

F1 key General help on Setup navigation keys
F5 key Load previous values from CMOS
F6 key Load the fail-safe defaults from BIOS default table
F7 key Load the optimized defaults
F10 key Save all the CMOS changes and exit

Main Menu -- Quit and not save changes into CMOS
Status Page Setup Menu and Option Page Setup Menu -- Exit current page and

return to Main Menu

Getting Help
Press F1 to pop up a small help window that describes the appropriate keys to use and the possible

selections for the highlighted item. To exit the Help Window press <Esc> or the F1 key again.

In Case of Problems
If after making and saving system changes with Setup, you discover that your computer no longer is able

to boot, the AwardBIOS supports an override to the CMOS settings which resets your system to its
defaults.

The best advice is to only alter settings which you thoroughly understand. To this end, we strongly
recommend that you avoid making any changes to the chipset defaults. These defaults have been
carefully chosen by both Award and your systems manufacturer to provide the absolute maximum
performance and reliability. Even a seemingly small change to the chipset setup has the potential for
causing you to use the override.

A Final Note About Setup
The information in this chapter is subject to change without notice.

42

SPC-8520-LA , SPC-8521-LA

7. BIOS Setup

Main Menu

Once you enter the Award BIOS CMOS Setup Utility, the Main Menu will appear on the screen. The
Main Menu allows you to select from several setup functions and two exit choices. Use the arrow keys
to select among the items and press <Enter> to accept and enter the sub-menu.

Note that a brief description of each highlighted selection appears at the bottom of the screen.

Figure 7.1. Main Menu

Setup Items
The main menu includes the following main setup categories. Recall that some systems may not include

all entries.

Standard CMOS Features
Use this menu for basic system configuration.

Advanced BIOS Features
Use this menu to set the Advanced Features available on your system.

Advanced Chipset Features
Use this menu to change the values in the chipset registers and optimize your system's performance.

Integrated Peripherals
Use this menu to specify your settings for integrated peripherals.

Power Management Setup
Use this menu to specify your settings for power management.

PnP / PCI Configuration
This entry appears if your system supports PnP / PCI.

SPC-8520-LA, SPC-8521-LA

43

7. BIOS Setup

PC Health Status
This menu shows the health/temperature of your PC if your computer contains a monitoring system.

Frequency/Voltage Control
Use this menu to configure CPU Clock Ratio settings and enable/disable Spread Spectrum

Load Fail-Safe Defaults
Use this menu to load the BIOS default values for the minimal/stable performance for your system to

operate.

Load Optimized Defaults
Use this menu to load the BIOS default values that are factory settings for optimal performance system

operations. While Award has designed the custom BIOS to maximize performance, the factory has the
right to change these defaults to meet their needs.

Supervisor / User Password
Use this menu to set User and Supervisor Passwords.

Save & Exit Setup
Save CMOS value changes to CMOS and exit setup.

Exit Without Saving
Abandon all CMOS value changes and exit setup.

Standard CMOS Setup

Figure 7.2. Standard CMOS Setup

The items in Standard CMOS Setup Menu are divided into 10 categories. Each category includes no,
one or more than one setup items. Use the arrow keys to highlight the item and then use the <PgUp> or
<PgDn> keys to select the value you want in each item.

44

SPC-8520-LA , SPC-8521-LA

Main Menu Selections

This table shows the selections that you can make on the Main Menu

Item Options Description

Date Month DD YYYY

Time HH : MM : SS Set the system time

IDE Primary Master

IDE Primary Slave

IDE Secondary Master

IDE Secondary Master

Drive A
Drive B

Video

Halt On

Base Memory N/ A

Extended Memory N/A

Total Memory N/A

Options are in its sub
menu(described in Table 64)

Options are in its sub
menu(described in Table 64)

Options are in its sub
menu(described in Table 64)

Options are in its sub
menu(described in Table 64)

None
360K, 5.25 in

1.2M, 5.25 in
720K, 3.5 in

1.44M, 3.5 in

2.88M, 3.5 in
EGA/VGA
CGA 40

CGA 80
MONO

All Errors
No Errors
All, but Keyboard
All, but Diskette
All, but Disk/Key

Set the system date. Note that the
‘Day’ automatically changes when you
set the date

Press <Enter> to enter the sub menu of
detailed options

Press <Enter> to enter the sub menu of
detailed options

Press <Enter> to enter the sub menu of
detailed options

Press <Enter> to enter the sub menu of
detailed options

Select the type of floppy disk drive
installed in your system

Select the default video device

Select the situation in which you want
the BIOS to stop the POST process and
notify you

Displays the amount of conventional
memory detected during boot up

Displays the amount of extended
memory detected during boot up

Displays the total memory available in
the system

7. BIOS Setup

SPC-8520-LA, SPC-8521-LA

45

7. BIOS Setup

IDE Adapters

The IDE adapters control the hard disk drive. Use a separate sub menu to configure each hard disk
drive.

Use the legend keys to navigate through this menu and exit to the main menu. Use Table 3 to configure
the hard disk.

Item Options Description

IDE HDD Auto-detection Press Enter

IDE Primary Master

Capacity

Access Mode

The following options are selectable only if the ‘IDE Primary Master’ item is set to ‘Manual’

Cylinder

Head

Precomp

Landing zone

Sector

None
Auto
Manual

Auto Display your disk
drive size

Normal
LBA
Large
Auto

Min = 0
Max = 65535
Min = 0
Max = 255
Min = 0
Max = 65535
Min = 0
Max = 65535
Min = 0
Max = 255

Press Enter to auto-detect the HDD on this channel.
If detection is successful, it fills the remaining fields on
this menu.
Selecting ‘manual’ lets you set the remaining fields on
this screen. Selects the type of fi xed disk. "User
Type" will let you select the number of cylinders, heads,
etc. Note: PRECOMP=65535 means NONE !
Disk drive capacity (Approximated). Note that this
size is usually slightly greater than the size of a
formatted disk given by a disk checking program.

Choose the access mode for this hard disk

Set the number of cylinders for this hard disk.

Set the number of read/write heads

Set the “Precomp” value of this hard disk.

Set the cylinder of “Landing zone” for this hard disk.

Number of sectors per track

46

SPC-8520-LA , SPC-8521-LA

7. BIOS Setup

Advanced BIOS Features Setup

This section allows you to configure your system for basic operation. You have the opportunity to select
the system’s default speed, boot-up sequence, keyboard operation, shadowing and security.

Figure 7.3. Advanced BIOS Features Setup

SPC-8520-LA, SPC-8521-LA

47

7. BIOS Setup

CPU Feature
Press enter to setup the CPU Feature.

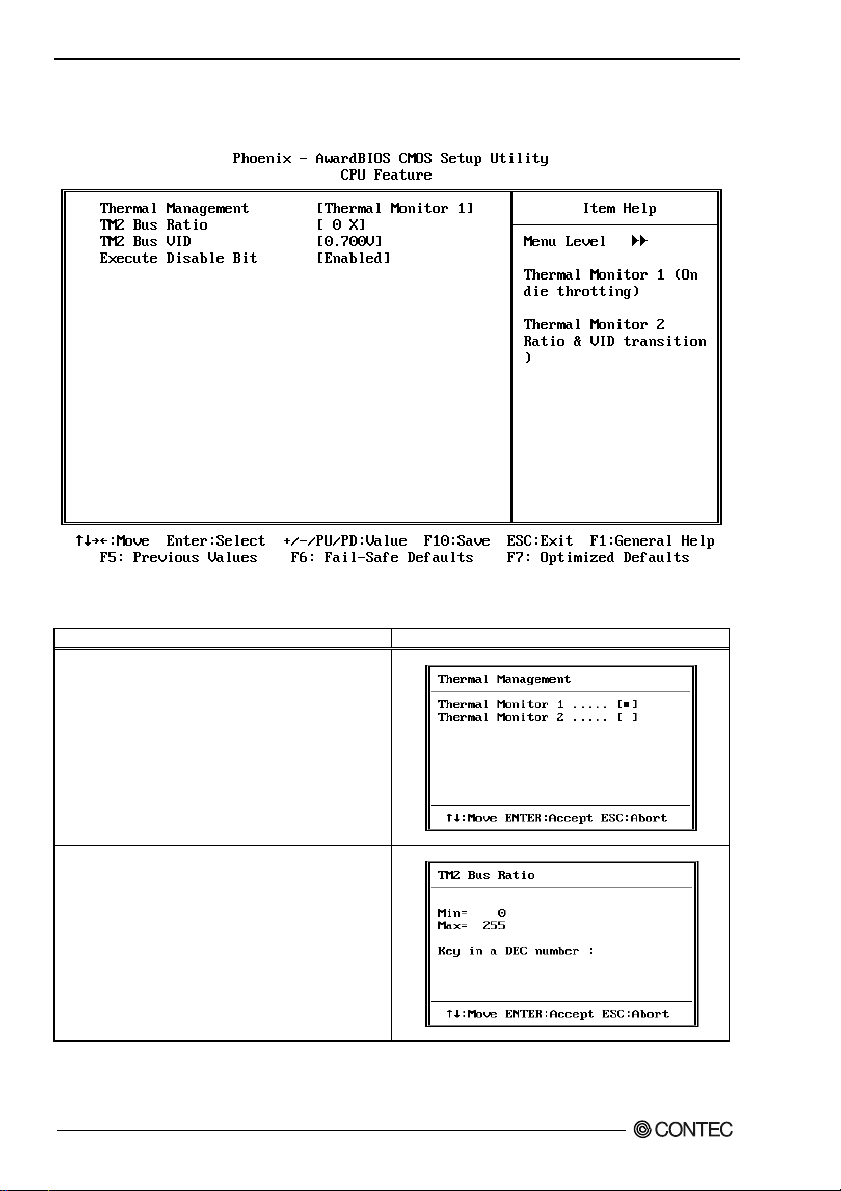

Figure 7.4. CPU Feature

Description Choice

Thermal Management
Select the Thermal Monitor 1 (On die throtting) or Thermal
Monitor 2 (Ratio & VID transition).
Use the default values under normal conditions.

TM2 Bus Ratio
Displays the frequency for when the Thermal Monitor 2 is
selected.
(The bus ratio for the throttle performance condition starts
when the CPU sensor detects a high temperature.)

48

SPC-8520-LA , SPC-8521-LA

Description Choice

TM2 Bus VID
Indicates the voltage for the throttle performance condition,
which starts when a high temperature is detected.

7. BIOS Setup

SPC-8520-LA, SPC-8521-LA

49

7. BIOS Setup

Description Choice

Execute Disable Bit
When disabled, forces the XD feature flag to always return

0.

Virus Warning

When enabled, you receive a warning message if a program (specifically, a virus) attempts to write to the
boot sector or the partition table of the hard disk drive. You should then run an anti-virus program.
Keep in mind that this feature protects only the boot sector, not the entire hard drive.

CAUTION

Many disk diagnostic programs that access the boot sector table can trigger the virus warning
message. If you plan to run such a program, we recommend that you first disable the virus warning.

Enabled

Disabled

CPU L1 & L2 Cache
Please use this setting by “Enabled”.

Quick Power On Self Test
Selecting Enabled can shorten the time required to execute
POST (self-test upon power-up).

Activates automatically when the system boots up causing a warning message to
appear when anything attempts to access the boot sector or hard disk partition table.

No warning message will appear when anything attempts to access the boot sector or
hard disk partition table.

Description Choice

50

SPC-8520-LA , SPC-8521-LA

Description Choice

First / Second / Third / Other Boot Device
The BIOS attempts to load the operating system from the
devices in the sequence selected in these items.

Swap Floppy Drive
This field is effective only in systems w ith two f loppy drives.
Selecting Enabled assigns physical drive B to logical drive
A, and physical drive A to logical drive B.

Boot Up Floppy Seek
When Enabled, the BIOS tests (seeks) floppy drives to
determine whether they have 40 or 80 tracks. Only 360-KB
floppy drives have 40 tracks; drives with 720 KB, 1.2 MB,
and 1.44 MB capacity all have 80 tracks. Because very few
modern PCs have 40-track floppy drives, we recommend
that you set this field to Disabled to save time.
Seeks disk drives during boot up. Disabling speeds boot up.

7. BIOS Setup

Boot Up NumLock Status
Toggle between On or Off to control the state of the
NumLock key when the system boots. When toggled On,
the numeric keypad generates numbers instead of
controlling cursor operations.

SPC-8520-LA, SPC-8521-LA

51

7. BIOS Setup

Description Choice

Gate A20 option
Gate A20 refers to the way the system addresses memory
above 1 MB (extended memory). When set to Fast, the
system chipset controls Gate A20. When set to Normal,
a pin in the keyboard controller controls Gate A20.
Setting Gate A20 to Fast improves system speed,
particularly with OS/2 and Windows

Typematic Rate Setting
When Disabled, the following two items (Typematic Rate
and Typematic Delay) are irrelevant. Keystrokes repeat at
a rate determined by the keyboard controller in your
system. When Enabled, you can select a typematic rate and
typematic delay.

Typematic Rate (Chars/Sec)
When the typematic rate setting is enabled, you can select
a typematic rate (the rate at which character repeats when
you hold down a key) of 6, 8, 10,12, 15, 20, 24 or 30
characters per second.

Typematic Delay (Msec)
When the typematic rate setting is enabled, you can select
a typematic delay (the delay before key strokes begin to
repeat) of 250, 500, 750 or 1000 milliseconds.

Security Option
Select whether the password is required every time the
system boots or only when you enter setup. If you have set
a password, select whether the password is required every
time the System boots, or only when you enter Setup.
System: The system will not boot and acc ess to Setup will be
denied if the correct password is not entered at the prompt.
Setup: The system will boot, but access to Setup will be
denied if the correct password is not entered at the prompt.

52

SPC-8520-LA , SPC-8521-LA

7. BIOS Setup

Description Choice

Note: To disable security, select PASSWORD SETTING at Main Menu and then yo u will be asked to enter password.
Do not type anything and just press <Enter>, it will disable security. Once the security is disabled, the system will boot
and you can enter Setup freely.

OS Select For DRAM > 64MB
Select OS2 only if you are running OS/2 operating system
with greater than 64 MB of RAM on your system.

Report No FDD For Win 95
Select Yes to release IRQ6 when the system contains no
floppy drive, for compatibility with Windows 95 logo
certification. In the Integrated Peripherals screen, select
Disabled for the Onboard FDC Controller field.

SPC-8520-LA, SPC-8521-LA

53

7. BIOS Setup

Advanced Chipset Features Setup

Figure 7.5. Advanced Chipset Features Setup

This section allows you to configure the system based on the specific features of the installed chipset.
This chipset manages bus speeds and access to system memory resources, such as DRAM and the
external cache. It also coordinates communications between the conventional ISA bus and the PCI bus.
It must be stated that these items should never need to be altered. The default settings have been chosen
because they provide the best operating conditions for your system. The only time you might consider
making any changes would be if you discovered that data was being lost while using your system.

Description Choice

DRAM Timing Selectable
The value in this field depends on performance parameters
of the installed memory chips (DRAM). Do not change the
value from the factory setting unless you install new
memory that has a different performance rating than the
original DRAM

54

SPC-8520-LA , SPC-8521-LA

Description Choice

CAS Latency Time
When synchronous DRAM is installed, the number of clock
cycles of CAS latency depends on the DRAM timing.
Do not change the default value of this field.

Active to Precharge delay
Select the precharge delay timer.

DRAM RAS# to CAS# delay
This field lets you insert a timing delay between the CAS
and RAS strobe signals, used when DRAM is written to,
read from, or refreshed. Fast gives faster performance;
and Slow gives more stable performance. This field applies
only when synchronous DRAM is installed in the system.

7. BIOS Setup

DRAM RAS# Precharge
The precharge time is the number of cycles it takes for the
RAS to accumulate its charge before DRAM refresh. If
insufficient time is allowed, refresh may be incomplete and
the DRAM may fail to retain data.

Memory Frequency for
If selecting the auto, it is defined by the BIOS.

SPC-8520-LA, SPC-8521-LA

55

7. BIOS Setup

Description Choice

System BIOS Cacheable
Selecting Enabled allows caching of the system BIOS ROM
at F0000h-FFFFFh, resulting in better system
performance. However, if any program writes to this
memory area, a system error may result.

Video BIOS Cacheable
Selecting Enabled allows caching of the video BIOS ROM at
C0000h to CFFFFh, resulting in better video performance.
However, if any program writes to this memory area, a
system error may result.

Memory Hole At 15M-16M
You can reserve this area of system memory for ISA adapter
ROM. When this area is reserved, it cannot be cached. The
user information of peripherals that need to use this area of
system memory usually discusses their memory
requirements.

Delay Transaction
The chipset has an embedded 32-bit posted write buffer to
support delay transactions cycles. Select Enabled to
support compliance with PCI specification version 2.1.

Delay Prior to Thermal
Select the interval to setup the delay timer for CPU
Thermal-Throttling.

56

SPC-8520-LA , SPC-8521-LA

Description Choice

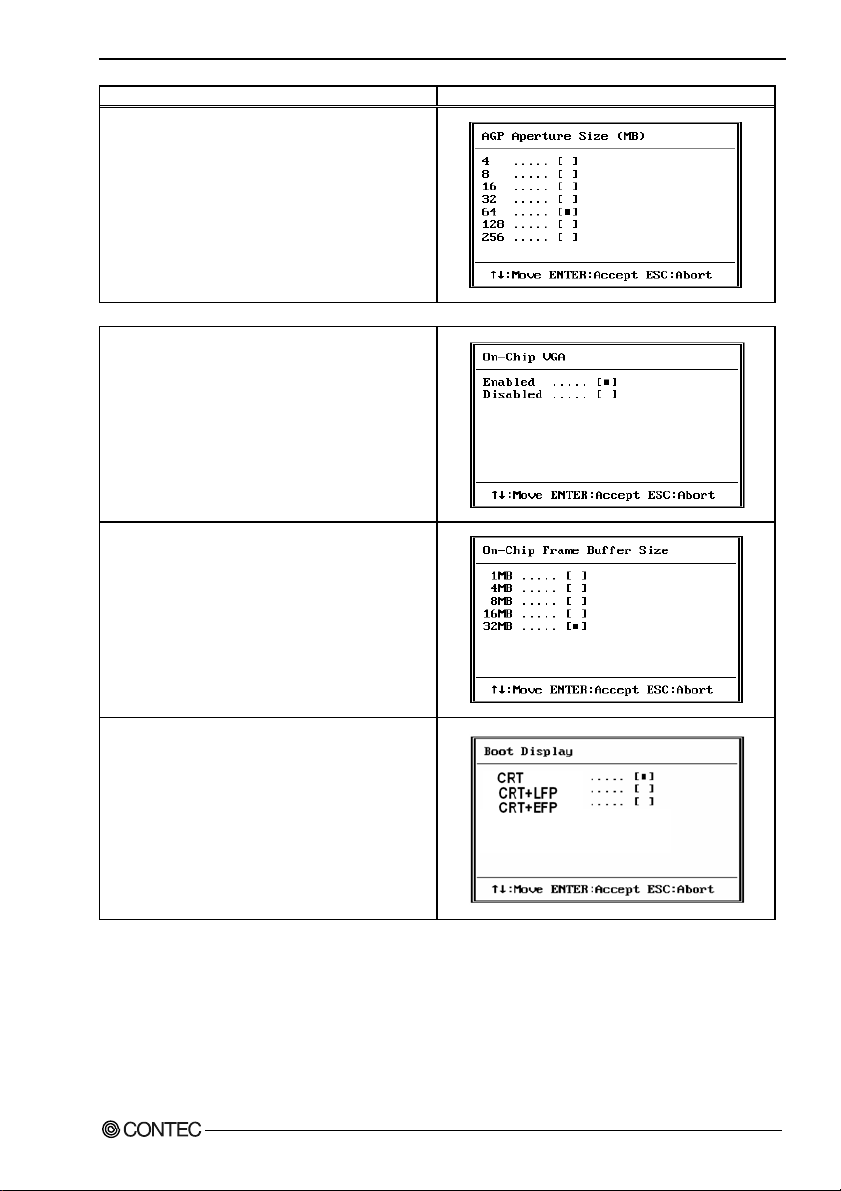

AGP Aperture Size (MB)
Select the size of the Accelerated Graphics Port (AGP)
aperture. The aperture is a portion of the PCI memory
address range dedicated for graphics memory address
space. Host cycles that hit the aperture range are
forwarded. Host cycles that hit the aperture range are
forwarded to the AGP without any translation.

On-Chip VGA setting

On-Chip VGA
When Enabled to choice the on-board VGA function,
otherwise disabled the on-board VGA function.

On chip Frame buffer size
Select the size of video memory assigned from the main
memory.

7. BIOS Setup

Boot Display
To select display device.
CRT: Analog RGB Display
LFP: LVDS Display
EFP: Not support (Please don’t setting)

SPC-8520-LA, SPC-8521-LA

57

7. BIOS Setup

Description Choice

Panel Number
Select the LVDS panel device resolution.

Integrated Peripherals

Figure 7.6. Integrated Peripherals

58

SPC-8520-LA , SPC-8521-LA

Onchip IDE device

Figure 7.7. OnChip IDE device

Description Choice

7. BIOS Setup

On-Chip Primary PCI IDE
The integrated peripheral controller contains an IDE
interface with support for two IDE channels. Select
Enabled to activate each channel separately.

IDE Primary Master/Slave PIO
The four IDE PIO (Programmed Input/Output) fields let you
set a PIO mode (0-4) for each of the four IDE devices that
the onboard IDE interface supports. Modes 0 through 4
provide successively increased performance. In Auto
mode, the system automatically determines the best mode
for each device.

SPC-8520-LA, SPC-8521-LA

59

7. BIOS Setup

Description Choice

IDE Primary Master/Slave UDMA
UDMA (Ultra DMA) is a DMA data transfer protocol that
utilizes ATA commands and the ATA bus to allow DMA
commands to transfer data at a maximum burst rate of 33
MB/s. When you select Auto in the four IDE UDMA fields
(for each of up to four IDE devices that the internal PCI IDE
interface supports), the system automatically determines
the optimal data transfer rate for each IDE device.

On-Chip Secondary PCI IDE
The integrated peripheral controller contains an IDE
interface with support for two IDE channels. Select
Enabled to activate each channel separately.

IDE Secondary Master/Slave PIO
The four IDE PIO (Programmed input/output) fields let you
set a PIO mode (0-4) for each of the four IDE devices that
the onboard IDE interface supports. Modes 0 through 4
provide successively increased performance. In Auto
mode, the system automatically determines the best mode
for each device.

IDE Secondary Master/Slave UDMA
UDMA (Ultra DMA) is a DMA data transfer protocol that
utilizes ATA commands and the ATA bus to allow DMA
commands to transfer data at a maximum burst rate of 33
MB/s. When you select Auto in the four IDE UDMA fields
(for each of up to four IDE devices that the internal PCI IDE
interface supports), the system automatically determines
the optimal data transfer rate for each IDE device.

IDE HDD Block mode
Block mode is also called block transfer, multiple
commands, or multiple sector read/write. If your IDE hard
drive supports block mode (most new drives do), select
Enabled for automatic detection of the optimal number of
block read/writes per sector the drive can support.

60

SPC-8520-LA , SPC-8521-LA

Onboard device

Figure 7.8. Onboard Device

Description Choice

7. BIOS Setup

Onboard LAN Controller
Select Enabled to active the onboard LAN controller, select
Disabled to turn-off the Internal LAN controller when you
do not want to use this function

USB Controller
Select Enabled if your system contains a Universal Serial
Bus (USB) controller and you have USB peripherals.

SPC-8520-LA, SPC-8521-LA

61

7. BIOS Setup

Description Choice

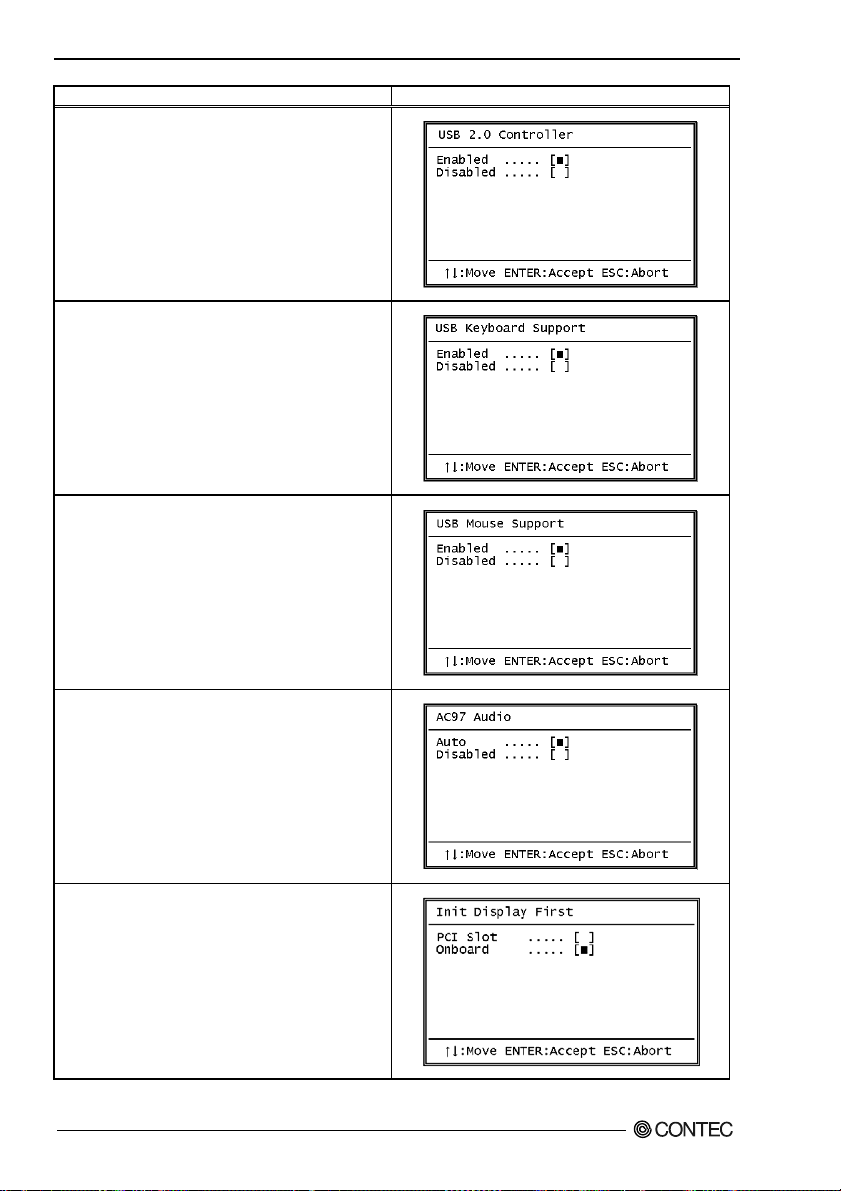

USB 2.0 controller
Select Enabled if your system contains a Universal Serial
Bus (USB 2.0) controller and you have USB peripherals.

USB Keyboard Support
Select Enabled if you have a USB keyboard.

USB Mouse support
Select Enabled if you have a USB mouse.

AC’97 Audio
Select Auto to use the audio capabilities of your system.

Init Display First
Initialize the on-board video display before initializing any
other display device on the system.
Thus the AGP on-board display becomes the primary
display.

62

SPC-8520-LA , SPC-8521-LA

Super IO Device

Figure 7.9. Super IO Device

Description Choice

7. BIOS Setup

Onboard FDC Controller
Select Enabled if you use the onboard floppy disk controller
(FDC). If you install and-in FDC or the system has no
floppy drive, select Disabled in this field.

Onboard Serial Port 1
Select an address and corresponding interrupt for the first
serial port (SERIAL1).

SPC-8520-LA, SPC-8521-LA

63

7. BIOS Setup

Description Choice

Onboard Serial Port 2
Select an address and corresponding interrupt for the
second serial port (SERIAL2).

Onboard Parallel Port
Select the on-board parallel port address and interrupt.

Parallel Port Mode
Selected an operating mode for the onboard parallel port.
Select Normal unless you are certain both your hardware
and software support EPP or ECP mode.

EPP Mode Select

ECP Mode Use DMA
Select a DMA channel for the port

64

SPC-8520-LA , SPC-8521-LA

7. BIOS Setup

Power Management Setup

The Power Management Setup allows you to configure you system to most effectively save energy while
operating in a manner consistent with your own style of computer use

Figure 7.10. Power Management Setup

Description Choice

Power-Supply Type
Select the power supply type.

SPC-8520-LA, SPC-8521-LA

65

7. BIOS Setup

Description Choice

ACPI function
Select to Enabled the ACPI function and select Disabled to
disable the APCI.

Power management

Video Off Method

This determines the manner in which the monitor is blanked.
Blank Screen
This option only writes blanks to the video buffer.
V/H SYNC+Blank
This selection will cause the system to turn off the vertical and horizontal synchronization ports and write blanks to the
video buffer.
DPMS
Initial display power management signaling.

Video Off In Suspend
Select whether the monitor is turned off or not at the time of
suspend.

66

SPC-8520-LA , SPC-8521-LA

Description Choice

Suspend Type
Select the Suspend Type.

Suspend Mode
Setup up the time of the suspend in DOS.

HDD Power Down
When enabled and after the set time of system inactivity,
the hard disk drive will be powered down while all other
devices remain active.

7. BIOS Setup

Soft-Off by PWR-BTTN
Set up the operation of the power button at the time of
power supply turn OFF.
Instant-off:
If a button is pushed, it turns off immediately.
Delay 4 Sec.:
If a button is pushing continues for 4 seconds, it turns off.

PWRON After PWR-Fail
Sets the boot-up state for when the AC power is turned back
Former-Sts: The on/off state of the ATX power will be the
same as the state immediately before the AC power was
turned off last time.on (On-state), when the ATX power is
used.

On: The ATX power will be turned on and the board will
start up.

Off: The ATX power will be turned off and the board will
wait for input from the power push button (PowerBT).

SPC-8520-LA, SPC-8521-LA

67

7. BIOS Setup

Description Choice

Wake up by PCI card
When Enabled, your can awakens the system from Suspend
mode from a PCI card event.

Power On by Ring
An input signal on the serial Ring Indicator (RI) line
(in other words, an incoming call on the modem) awakens
the system from a soft off state.

Resume by Alarm
When Enabled, your can set the date and time at which the
RTC (real-time clock) alarm awakens the system from
Suspend mode.

Reload Global Timer Events: When Enabled, an event occurring on each listed device restarts the global timer for
Standby mode.

68

SPC-8520-LA , SPC-8521-LA

Description Choice

7. BIOS Setup

SPC-8520-LA, SPC-8521-LA

69

7. BIOS Setup

PnP/PCI Configuration Setup

This section describes configuring the PCI bus system. PCI, or Personal Computer Interconnect, is a
system which allows I/O devices to operate at speeds nearing the speed the CPU itself uses when
communicating with its own special components. This section covers some very technical items and it
is strongly recommended that only experienced users should make any changes to the default settings.

Figure 7.11. PnP/PCI Configuration Setup

Description Choices

Reset Configuration Data
Normally, you leave this field Disabled. Select Enabled to
reset Extended System Configuration Data (ESCD) when
you exit Setup if you have installed a new add-on and the
system reconfiguration has caused such a serious conflict
that the operating system can not boot.

70

SPC-8520-LA , SPC-8521-LA

Description Choices
Resources Controlled by
The Award Plug and Play BIOS can automatically configure
all the boot and Plug and Play - compatible devices. If you
select Auto, all the interrupt request (IRQ) and DMA
assignment fields disappear, as the BIOS automatically
assigns them.
If you use a manual setup option, you can set to Legacy ISA,
the IRQ/DMA which you do not wish to be assigned
automatically in the next IRQ/DMA Resources setup.
This will prevent the IRQ/DMA number from being
assigned automatically by BIOS.

IRQ n Resources

7. BIOS Setup

Figure 7.12. IRQ n Resources

When resources are controlled manually, assign each system interrupt as on of the following type,
depending on the type of device using the interrupt.

Legacy ISA Devices compliant with the original PC AT bus specification, requiring a specific interrupt
(Such as IRQ4 for serial port 1)

PCI/ISA PnP Devices compliant with the Plug and Play standard, whether designed for PCI or ISA bus
architecture.

The Choice: Legacy ISA and PCI/ISA PnP.

PCI/VGA Palette Snoop
Leave this field at Disabled.

SPC-8520-LA, SPC-8521-LA

71

7. BIOS Setup

PC Health Status

Figure 7.13. PC Health Status

The BIOS shows the PC health status in this window.

Item Description

Current System Temp.

Current CPU1 Temp.

Current CPUFAN1/2 Speed These fields display the current speed of connecting fan.

Vcore / 1V05_Vccp/ +3.3V / +5V / 5VSB

This field displays the current system temperature, if your computer
contains a monitoring system.

This field displays the current CPU temperature, if your computer contains
a monitoring system.

These fields display the current voltage of input lines, if your computer
contains a monitoring system.

72

SPC-8520-LA , SPC-8521-LA

Frequency/Voltage Control

Figure 7.14. Frequency/Voltage Control

Description Choices

7. BIOS Setup

CPU Clock Ratio
Use this field at Default.

Spread Spectrum
Use this field at Default.

SPC-8520-LA, SPC-8521-LA

73

7. BIOS Setup

Defaults Menu

Selecting “Defaults” from the main menu shows you two options which are described below

Load Fail-Safe Defaults
When you press <Enter> on this item you get a confirmation dialog box with a message similar to:

Load Fail-Safe Defaults (Y/N) ? N

Pressing ‘Y’ loads the BIOS default values for the most stable, minimal-performance system operations.

Load Optimized Defaults
When you press <Enter> on this item you get a confirmation dialog box with a message similar to:

Load Optimized Defaults ( Y/N) ? N

Pressing ‘Y’ loads the default values that are factory settings for optimal performance system operations.

Supervisor/User Password Setting

You can set either supervisor or user password, or both of them. The differences between are:

SUPERVISOR PASSWORD
USER PASSWORD

When you select this unction, the following message will appear at the center of the screen to assist you
in creating a password.

Type the password, up to eight characters in length, and press <Enter>. The password typed now will
clear any previously entered password from CMOS memory. You will be asked to confirm the password.
Type the password again and press <Enter>. You may also press <Esc> to abort the selection and not
enter a password.

To disable a password, just press <Enter> when you are prompted to enter the password. A message
will confirm the password will be disabled. Once the password is disabled, the system will boot and you
can enter Setup freely.

When a password has been enabled, you will be prompted to enter it every time you try to enter Setup.
This prevents an unauthorized person from changing any part of your system configuration.

Additionally, when a password is enabled, you can also require the BIOS to request a password every
time your system is rebooted. This would prevent unauthorized use of your computer.

You determine when the password is required within the BIOS Features Setup Menu and its Security
option (see Section 3). If the Security option is set to “System”, the password will be required both at boot
and at entry to Setup. If set to “Setup”, prompting only occurs when trying to enter Setup.

: can only enter but do not have the right to change the options of the setup menus.

: can enter and change the options of the setup menus.

ENTER PASSWORD:

PASSWORD DISABLED.

74

SPC-8520-LA , SPC-8521-LA

7. BIOS Setup

Exit Selecting

Save & Exit Setup
Pressing <Enter> on this item asks for confirmation:

Save to CMOS and EXIT (Y/N)? Y

Pressing “Y” stores the selections made in the menus in CMOS – a special section of memory that stays
on after you turn your system off. The next time you boot your computer, the BIOS configures your
system according to the Setup selections stored in CMOS. After saving the values the system is restarted
again.

Exit Without Saving
Pressing <Enter> on this item asks for confirmation:

Quit without saving (Y/N)? Y

This allows you to exit Setup without storing in CMOS any change. The previous selections remain in
effect. This exits the Setup utility and restarts your computer.

POST Messages

During the Power On Self-Test (POST), if the BIOS detects an error requiring you to do something to fix,
it will either sound a beep code or display a message.

If a message is displayed, it will be accompanied by:

PRESS F1 TO CONTINUE, CTRL-ALT-ESC OR DEL TO ENTER SETUP

POST Beep

Currently there are two kinds of beep codes in BIOS. This code indicates that a video error has occurred
and the BIOS cannot initialize the video screen to display any additional information. This beep code
consists of a single long beep followed by two short beeps. The other code indicates that your DRAM
error has occurred. This beep code consists of a single long beep repeatedly.

SPC-8520-LA, SPC-8521-LA

75

7. BIOS Setup

Error Messages

One or more of the following messages may be displayed if the BIOS detects an error during the POST.
This list includes messages for both the ISA and the EISA BIOS.

CMOS battery has failed
CMOS battery is no longer functional. It should be replaced.

CMOS checksum error

Checksum of CMOS is incorrect. This can indicate that CMOS has become corrupt. This error may
have been caused by a weak battery. Check the battery and replace if necessary.

DISK BOOT failure

INSERT SYSTEM DISK AND PRESS ENTER

No boot device was found. This could mean that either a boot drive was not detected or the drive does
not contain proper system boot files. Insert a system disk into Drive A: and press <Enter>. If you
assumed the system would boot from the hard drive, make sure the controller is inserted correctly and all
cables are properly attached. Also be sure the disk is formatted as a boot device. Then reboot the
system.

Diskette drives or types mismatch error

RUN SETUP
Type of diskette drive installed in the system is different from the CMOS definition. Run Setup to

reconfigure the drive type correctly.

Display switch is set incorrectly

Display switch on the product can be set to either monochrome or color. This indicates the switch is set
to a different setting than indicated in Setup. Determine which setting is correct, and then either turn off
the system and change the jumper, or enter Setup and change the VIDEO selection.

Display type has changed since last BOOT
Since last powering off the system, the display adapter has been changed. You must configure the

system for the new display type.

EISA configuration checksum error

PLEASE RUN EISA CONFIGURATION UTILITY

The EISA non-volatile RAM checksum is incorrect or cannot correctly read the EISA slot. This can
indicate either the EISA non-volatile memory has become corrupt or the slot has been configured
incorrectly. Also be sure the card is installed firmly in the slot.

EISA configuration is not complete

PLEASE RUN EISA CONFIGURATION UTILITY

The slot configuration information stored in the EISA non-volatile memory is incomplete.

Note: When either of these errors appear, the system will boot in ISA mode, which allows
you to run the EISA Configuration Utility.

76

SPC-8520-LA , SPC-8521-LA

7. BIOS Setup

Error encountered initializing hard drive
Hard drive cannot be initialized. Be sure the adapter is installed correctly and all cables are correctly

and firmly attached. Also be sure the correct hard drive type is selected in Setup.

Error initializing hard disk controller
Cannot initialize controller. Make sure the cord is correctly and firmly installed in the bus. Be sure the

correct hard drive type is selected in Setup. Also check to see if any jumper needs to be set correctly on
the hard drive.

Floppy disk controller error or no controller present
Cannot find or initialize the floppy drive controller. Make sure the controller is installed correctly and

firmly. If there are no floppy drives installed, be sure the Diskette Drive selection in Setup is set to
NONE.

Invalid EISA configuration

PLEASE RUN EISA CONFIGURATION UTILITY

The non-volatile memory containing EISA configuration information was programmed incorrectly or has
become corrupt. Re-run EISA configuration utility to correctly program the memory.

NOTE: When this error appears, the system will boot in ISA mode, which allows you to run
the EISA Configuration Utility.

Keyboard error or no keyboard present
Cannot initialize the keyboard. Make sure the keyboard is attached correctly and no keys are being

pressed during the boot.
If you are purposely configuring the system without a keyboard, set the error halt condition in Setup to

HALT ON ALL, BUT KEYBOARD. This will cause the BIOS to ignore the missing keyboard and
continue the boot.

Memory address error at ...
Indicates a memory address error at a specific location. You can use this location along with the

memory map for your system to find and replace the bad memory chips.

Memory parity error at ...
Indicates a memory parity error at a specific location. You can use this location along with the memory

map for your system to find and replace the bad memory chips.

Memory size has changed since last BOOT
Memory has been added or removed since the last boot. In EISA mode use Configuration Utility to

reconfigure the memory configuration. In ISA mode enter Setup and enter the new memory size in the
memory fields.

Memory verify error at ...
Indicates an error verifying a value already written to memory. Use the location along with your

system's memory map to locate the bad chip.

SPC-8520-LA, SPC-8521-LA

77

7. BIOS Setup

Offending address not found
This message is used in conjunction with the I/O CHANNEL CHECK and RAM PARITY ERROR

messages when the segment that has caused the problem cannot be isolated.

Offending segment
This message is used in conjunction with the I/O CHANNEL CHECK and RAM PARITY ERROR

messages when the segment that has caused the problem has been isolated.

Press a key to REBOOT
This will be displayed at the bottom screen when an error occurs that requires you to reboot. Press any

key and the system will reboot.

Press F1 to disable NMI, F2 to REBOOT
When BIOS detects a Non-maskable Interrupt condition during boot, this will allow you to disable the

NMI and continue to boot, or you can reboot the system with the NMI enabled.

RAM parity error

CHECKING FOR SEGMENT ...

Indicates a parity error in Random Access Memory.

Should be empty but EISA board found

PLEASE RUN EISA CONFIGURATION UTILITY

A valid board ID was found in a slot that was configured as having no board ID.

NOTE; When this error appears, the system will boot in ISA mode, which allows you to run
the EISA Configuration Utility.

Should have EISA board but not found

PLEASE RUN EISA CONFIGURATION UTILITY

The board installed is not responding to the ID request, or no board ID has been found in the indicated
slot.

NOTE: When this error appears, the system will boot in ISA mode, which allows you to run
the EISA Configuration Utility.

Slot not empty
Indicates that a slot designated as empty by the EISA Configuration Utility actually contains a board.
NOTE: When this error appears, the system will boot in ISA mode, which allows you to run the EISA

Configuration Utility.

System halted, (CTRL-ALT-DEL) to REBOOT ...

Indicates the present boot attempt has been aborted and the system must be rebooted. Press and hold
down the CTRL and ALT keys and press DEL.

78

SPC-8520-LA , SPC-8521-LA

7. BIOS Setup

Wrong board in slot

PLEASE RUN EISA CONFIGURATION UTILITY

The board ID does not match the ID stored in the EISA non-volatile memory.

NOTE: When this error appears, the system will boot in ISA mode, which allows you to run
the EISA Configuration Utility.

Floppy disk(s) fail (80)
Unable to reset floppy subsystem.

Floppy disk(s) fail (40)
Floppy Type dismatch.

Hard disk(s) fail (80)
HDD reset failed.

Hard disk(s) fail (40)
HDD controller diagnostics failed.

Hard disk(s) fail (20)
HDD initialization error.

Hard disk(s) fail (10)
Unable to recalibrate fixed disk.

Hard disk(s) fail (08)
Sector Verify failed.

Keyboard is locked out - Unlock the key.
Unlock the key. BIOS detect the keyboard is locked. P17 of keyboard controller is pulled low.

Keyboard error or no keyboard present
Cannot initialize the keyboard. Make sure the keyboard is attached correctly and no keys are being

pressed during the boot.

Manufacturing POST loop
System will repeat POST procedure infinitely while the P15 of keyboard controller is pull low. This is

also used for M/B burn in test.

BIOS ROM checksum error - System halted
The checksum of ROM address F0000H-FFFFFH is bad.

Memory test fail
BIOS reports the memory tests fail if the onboard memory is tested error.

SPC-8520-LA, SPC-8521-LA

79

7. BIOS Setup

POST Codes

POST

(hex)

CFh Test CMOS R/W functionality.

Early chipset initialization:

-Disable shadow RAM

C0h

-Disable L2 cache (socket 7 or below)

-Program basic chipset registers
Detect memory

C1h

-Auto-detection of DRAM size, type and ECC.

-Auto-detection of L2 cache (socket 7 or below)
C3h Expand compressed BIOS code to DRAM
C5h Call chipset hook to copy BIOS back to E000 & F000 shadow RAM.
01h Expand the Xgroup codes locating in physical address 1000:0
02h Reserved
03h Initial Superio_Early_Init switch.
04h Reserved

1. Blank out screen
05h

2. Clear CMOS error flag
06h Reserved

Clear 8042 interface

07h

Initialize 8042 self-test
Test special keyboard controller for Winbond 977 series Super I/O chips.

08h

Enable keyboard interface.

09h Reserved

Disable PS/2 mouse interface (optional).

0Ah

Auto detect ports for keyboard & mouse followed by a port & interface swap (optional).

Reset keyboard for Winbond 977 series Super I/O chips.
0Bh Reserved
0Ch Reserved
0Dh Reserved
0Eh Test F000h segment shadow to see whether it is R/W-able or not. If test fails, keep beeping the speaker.
0Fh Reserved

Auto detect flash type to load appropriate flash R/W codes into the run time area in F000 for ESCD & DMI
10h

support.
11h Reserved

Use walking 1’s algorithm to check out interface in CMOS circuitry. Also set real-time clock power status,
12h

and then check for override.
13h Reserved
14h Program chipset default values into chipset. Chipset default values are MODBINable by OEM customers.
15h Reserved
16h Initial Early_Init_Onboard_Generator switch.
17h Reserved
18h Detect CPU information including brand, SMI type (Cyrix or Intel®) and CPU level (586 or 686).
19h Reserved
1Ah Reserved

Initial interrupts vector table. If no special specified, all H/W interrupts are directed to
1Bh

SPURIOUS_INT_HDLR & S/W interrupts to SPURIOUS_soft_HDLR.
1Ch Reserved
1Dh Initial EARLY_PM_INIT switch.
1Eh Reserved

Description

80

SPC-8520-LA , SPC-8521-LA

7. BIOS Setup

POST

(hex)

1Fh Load keyboard matrix (notebook platform)
20h Reserved
21h HPM initialization (notebook platform)
22h Reserved

Check validity of RTC value: e.g. a value of 5Ah is an invalid value for RTC minute.
Load CMOS settings into BIOS stack. If CMOS checksum fails, use default value instead.
Prepare BIOS resource map for PCI & PnP use. If ESCD is valid, take into consideration of the ESCD’s
legacy information.

23h

Onboard clock generator initialization. Disable respective clock resource to empty PCI & DIMM slots.
Early PCI initialization:

-Enumerate PCI bus number

-Assign memory & I/O resource

-Search for a valid VGA device & VGA BIOS, and put it into C000:0.
24h Reserved
25h Reserved
26h Reserved
27h Initialize INT 09 buffer
28h Reserved

Program CPU internal MTRR (P6 & PII) for 0-640K memory address.
Initialize the APIC for Pentium class CPU.

29h

Program early chipset according to CMOS setup. Example: onboard IDE controlle r.
Measure CPU speed.

Invoke video BIOS.
2Ah Reserved
2Bh Reserved
2Ch Reserved

Initialize multi-language
2Dh

Put information on screen display, including Award title, CPU type, CPU speed ….
2Eh Reserved
2Fh Reserved
30h Reserved
31h Reserved
32h Reserved
33h Reserved
34h Reserved
35h Reserved
36h Reserved
37h Reserved
38h Reserved
39h Reserved
3Ah Reserved
3Bh Reserved
3Ch Test 8254
3Dh Reserved
3Eh Test 8259 interrupt mask bits for channel 1.
3Fh Reserved
40h Test 8259 interrupt mask bits for channel 2.
41h Reserved
42h Reserved
43h Test 8259 functionality.
44h Reserved

SPC-8520-LA, SPC-8521-LA

Description

81

7. BIOS Setup

POST

(hex)

45h Reserved
46h Reserved
47h Initialize EISA slot
48h Reserved

Calculate total memory by testing the last double word of each 64K page.

49h

Program writes allocation for AMD K5 CPU.
4Ah Reserved
4Bh Reserved
4Ch Reserved
4Dh Reserved

Program MTRR of M1 CPU

Initialize L2 cache for P6 class CPU & program CPU with proper cacheable range.
4Eh

Initialize the APIC for P6 class CPU.

On MP platform, adjust the cacheable range to smaller one in case the cacheable ranges between each CPU

are not identical.
4Fh Reserved
50h Initialize USB
51h Reserved
52h Test all memory (clear all extended memory to 0)
53h Reserved
54h Reserved
55h Display number of processors (multi-processor platform)
56h Reserved

Display PnP logo
57h

Early ISA PnP initialization

-Assign CSN to every ISA PnP device.
58h Reserved
59h Initialize the combined Trend Anti-Virus code.
5Ah Reserved

(Optional Feature)

5Bh

Show message for entering AWDFLASH.EXE from FDD (optional)

5Ch Reserved

Initialize Init_Onboard_Super_IO switch.

5Dh

Initialize Init_Onbaord_AUDIO switch.
5Eh Reserved
5Fh Reserved
60h Okay to enter Setup utility; i.e. not until this POST stage can users enter the CMOS setup utility.
61h Reserved
62h Reserved
63h Reserved
64h Reserved
65h Initialize PS/2 Mouse
66h Reserved
67h Prepare memory size information for function call: INT 15h ax=E820h
68h Reserved
69h Turn on L2 cache
6Ah Reserved
6Bh Program chipset registers according to items described in Set u p & Auto-configuration table.
6Ch Reserved

Assign resources to all ISA PnP devices.
6Dh

Auto assign ports to onboard COM ports if the corresponding item in Setup is set to “AUTO”.

Description

82

SPC-8520-LA , SPC-8521-LA

7. BIOS Setup

POST

(hex)

6Eh Reserved

Initialize floppy controller

6Fh

Set up floppy related fields in 40:hardware.
70h Reserved
71h Reserved
72h Reserved

(Optional Feature)

Enter AWDFLASH.EXE if :
73h

-AWDFLASH is found in floppy drive.

-ALT+F2 is pressed
74h Reserved
75h Detect & install all IDE devices: HDD, LS120, ZIP, CDROM…..
76h Reserved
77h Detect serial ports & parallel ports.
78h Reserved
79h Reserved
7Ah Detect & install co-processor
7Bh Reserved
7Ch Reserved
7Dh Reserved
7Eh Reserved

Switch back to text mode if full screen logo is supported.

-If errors occur, report errors & wait for keys
7Fh

-If no errors occur or F1 key is pressed to continue:

Clear EPA or customization logo.
80h Reserved
81h Reserved

Call chipset power management hook.
82h

Recover the text fond used by EPA logo (not for full screen logo)

If password is set, ask for password.
83h Save all data in stack back to CMOS
84h Initialize ISA PnP boot devices

USB final Initialization

NET PC: Build SYSID structure

Switch screen back to text mode

Set up ACPI table at top of memory.
85h

Invoke ISA adapter ROMs

Assign IRQs to PCI devices

Initialize APM

Clear noise of IRQs.
86h Reserved
87h Reserved
88h Reserved
89h Reserved
90h Reserved
91h Reserved
92h Reserved
93h Read HDD boot sector information for Trend Anti-Virus code

Description

SPC-8520-LA, SPC-8521-LA

83

7. BIOS Setup

POST

(hex)

Enable L2 cache
Program boot up speed
Chipset final initialization.

94h

Power management final initialization
Clear screen & display summary table
Program K6 write allocation
Program P6 class write combining
Program daylight saving

95h

Update keyboard LED & typematic rate
Build MP table
Build & update ESCD

96h

Set CMOS century to 20h or 19h
Load CMOS time into DOS timer tick
Build MSIRQ routing table.

FFh Boot attempt (INT 19h)

Description

84

SPC-8520-LA , SPC-8521-LA

SPC-8520-LA
SPC-8521-LA

User’s Manual

CONTEC CO.,LTD.

3-9-31, Himesato, Nishiyodogawa-ku, Osaka 555-0025, Japan
Japanese http://www.contec.co.jp/
English http://www.contec.com/
Chinese http://www.contec.com.cn/

No part of this document may be copied or reproduced in any form by any means without prior written
consent of CONTEC CO., LTD. [04122007]

[04142006] Management No. A-51-178
[04122007_rev4] Parts No. LYFU01 3

April 2007 Edition
