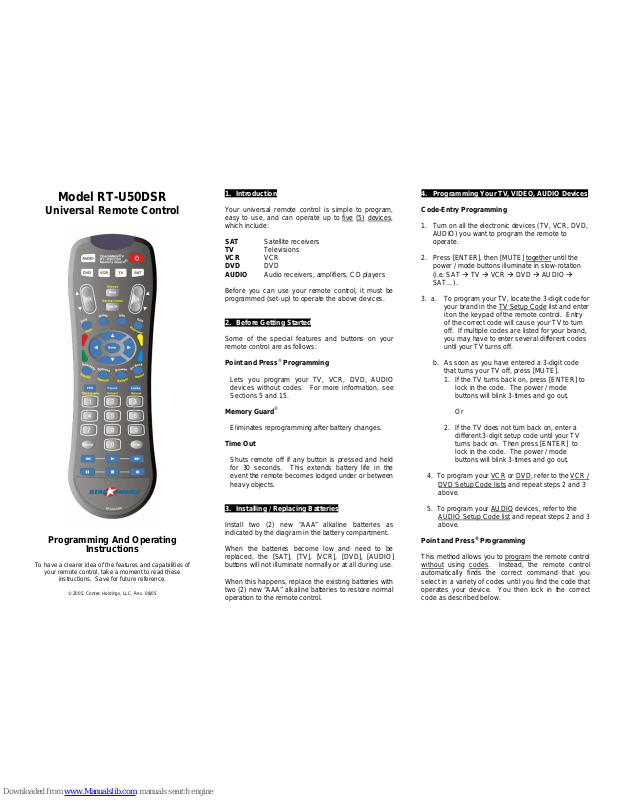

Page 1
Model RT-U50DSR
Universal Remote Control
Programming And Operating
Instructions
To have a clearer idea of the features and capabilities of
your remote control, take a moment to read these
instructions. Save for future reference.
© 2005, Contec Holdings, LLC, Rev. 08/05
1. Introduction
Your universal remote control is simple to program,
easy to use, and can operate up to five
(5) devices,
which include:
SAT Satellite receivers
TV Televisions
VCR VCR
DVD DVD
AUDIO Audio receivers, amplifiers, CD players
Before you can use your remote control, it must be
programmed (set-up) to operate the above devices.
2. Before Getting Started
Some of the special features and buttons on your
remote control are as follows:
Point and Press® Programming
Lets you program your TV, VCR, DVD, AUDIO
devices without codes. For more information, see
Sections 5 and 15.
Memory Guard®
Eliminates reprogramming after battery changes.
Time Out
Shuts remote off if any button is pressed and held
for 30 seconds. This extends battery life in the
event the remote becomes lodged under or between
heavy objects.
3. Installing / Replacing Batteries
Install two (2) new “AAA” alkaline batteries as
indicated by the diagram in the battery compartment.
When the batteries become low and need to be
replaced, the [SAT], [TV], [VCR], [DVD], [AUDIO]
buttons will not illuminate normally or at all during use.
When this happens, replace the existing batteries with
two (2) new “AAA” alkaline batteries to restore normal
operation to the remote control.
4. Programming Your TV, VIDEO, AUDIO Devices
Code-Entry Programming
1. Turn on all the electronic devices (TV, VCR, DVD,
AUDIO) you want to program the remote to
operate.
2. Press [ENTER], then [MUTE] together
until the
power / mode buttons illuminate in slow-rotation
(i.e. SAT Æ TV Æ VCR Æ DVD Æ AUDIO Æ
SAT…).
3. a. To program your TV, locate the 3-digit code for
your brand in the TV Setup Code list and enter
it on the keypad of the remote control. Entry
of the correct code will cause your TV to turn
off. If multiple codes are listed for your brand,
you may have to enter several different codes
until your TV turns off.
b. As soon as you have entered a 3-digit code
that turns your TV off, press [MUTE].
1. If the TV turns back on, press [ENTER] to
lock in the code. The power / mode
buttons will blink 3-times and go out.
Or
2. If the TV does not turn back on, enter a
different 3-digit setup code until your TV
turns back on. Then press [ENTER] to
lock in the code. The power / mode
buttons will blink 3-times and go out.
4. To program your VCR
or DVD, refer to the VCR /
DVD Setup Code lists
and repeat steps 2 and 3
above.
5. To program your AUDIO
devices, refer to the
AUDIO Setup Code list
and repeat steps 2 and 3
above.
Point and Press® Programming
This method allows you to program
the remote control
without
using codes. Instead, the remote control
automatically finds the correct command that you
select in a variety of codes until you find the code that
operates your device. You then lock in the correct
code as described below.
Page 2
The following instructions describe how to program
your remote control using the [CHS] or [CHT]
buttons ("Power" function during programming). You
can also program your remote control using other
buttons / functions as described in Section 15. When
using this method, there are several important points
to remember:
• The order in which you program your electronic
devices is not
important.
• There may be several codes that turn your
electronic devices on / off (or perform other
functions). Once you lock-in a code, be sure to
check the available functions for that device (i.e.
TV
- Vol S/T, Mute, TV Input (TV / VCR button),
Ch S/T, 0-9, VCR
- Play, Stop, Rew..., DVD -
Play, Stop, Rew..., AUDIO
- Vol S/T, Mute) to
see if they are operating.
• While the remote is searching for the correct
setup code(s) for your electronic devices, it is
possible that other (previously programmed)
devices may turn on / off (or perform other
functions). If this occurs, continue pressing the
[CHS] or [CHT] buttons (or the buttons
described in Section 15) until you find the correct
code for the device you are programming.
• It may take several minutes for the remote to find
the correct code that turns your device on / off (or
performs another selected function). During this
time, the power / mode buttons will illuminate in
fast-rotation (i.e. SAT Æ TV Æ VCR Æ DVD Æ
AUDIO Æ SAT...).
Programming your electronic devices using the
[Ch +] or [Ch -] buttons (“Power” function during
programming)...
1. Turn on all the electronic devices (TV, VCR, DVD,
AUDIO) you want to program the remote to
operate.
2. Press [ENTER], then [MUTE] together
until the
power / mode buttons illuminate in slow-rotation
(i.e. SAT Æ TV Æ VCR Æ DVD Æ AUDIO Æ
SAT...).
3. Press and hold the [CH S] button until one
device
turns off. While you are pressing the [CH S]
button, the power / mode buttons will illuminate in
fast-rotation. As soon as one device turns off,
release the [CH S] button.
4. Press [MUTE]. If the device that turned off...
a. Turns back on, press [ENTER] to lock in this
code. The power / mode buttons will blink 3times and go out.
Or
b. Does not turn back on, press [CH T] one step
at a time until that device turns back on. Each
time you press the [CH T] button, the power /
mode buttons will illuminate once
in reverse
fast-rotation (AUDIO Æ DVD Æ VCR Æ TV Æ
SAT).
Once you have found a code that turns the
device on / off, press [ENTER] to lock in this
code. The power / mode buttons will blink 3times and go out.
5. Repeat steps 2 to 4 above for each of the
remaining electronic devices you wish to program
the remote to operate.
5. Programming Your TV / VCR Combination
1. First, turn on your TV / VCR combination device
and install a VHS tape.
2. Next
, program your remote to operate the TV
functions.
Using the Code Entry Programming method
described in Section 5, find a TV Setup Code that
operates the TV functions (Power, Vol S/T, Mute,
Ch S/T, 0-9) of your TV / VCR unit.
3. Last, program your remote to operate the VCR
functions.
Using the Code Entry Programming method
described in Section 5, enter, lock and test each
3-digit VCR Setup Code
for your brand until a
code is found that operates the transport functions
(PLAY, STOP, REW, FWD, PAUSE, REC) of your
TV / VCR unit.
Before you can test for the correct VCR setup
code, you must first press the [VCR] button first to
put the remote in its VCR mode.
6. Programming Your TV / DVD or TV / VCR / DVD
Combination
1. First, turn on your TV / DVD combination device
and install a DVD.
2. Next
, program your remote to operate the TV
functions.
Using the Code Entry Programming method
described in Section 5, find a TV Setup Code that
operates the TV functions (Power, Vol S/T, Mute,
Ch S/T, 0-9) of your TV / DVD unit.
3. Last, program your remote to operate the DVD
functions.
Using the Code Entry Programming method
described in Section 5, enter, lock and test each
3-digit DVD Setup Code
for your brand until a
code is found that operates the transport functions
(PLAY, STOP, REW, FWD, PAUSE, REC) of your
TV / DVD unit.
Before you can test for the correct DVD setup
code, you must first press the [DVD] button to put
the remote in its DVD mode.
4. If you have a TV / VCR / DVD
combination unit,
you would then program your remote to operate
the VCR functions.
Using the Code Entry Programming method
described in Section 5, enter, lock and test each
3-digit VCR Setup Code for your brand until a
code is found that operates the VCR transport
functions (PLAY, STOP, REW, FWD, PAUSE,
REC) of your TV / DVD / VCR unit.
Before you can test for the correct VCR setup
code, you must first press the [VCR] button first to
put the remote in its VCR mode.
Page 3
TV Setup Codes
Admiral
026 054 211
213
Advent
072 094 425 447
Adventura
047
Aiwa
214
Akai
053
Amark
023 215
Amstrad
157
Anam
217 218 219 220 221
222 223
AOC
053
APEX
030 038 427
Audiovox
220
451
Belcor
073
Bell & Howell
211
213
Broksonic
165 167
Brokwood
073
Candle
068 091
Centurion
095 107 108
Citizen 068 091 211
213 233
Concerto 073 095
Contec 147
Coronado 023
Craig 223
Crown 023
Curtis Mathes 016 054 107 108 211
213
Daewoo 051 068 073 095 158
159 189 191 194 196
197 198 200 202 204
205 206 207 209
Daytron 073 095 107 108
Dell
448
Dumont 073
Electro Home 073 095
Elektra 353
Emerson 016 023 053 064 103
139 158 159 164 165
166 167 168 169 392
400 401 402 408
415
Envision 073 095
ESA
454
Fisher 355 356
Funai 047
048 157 168 211
Gateway
426
GE 015 018 042 044 049
054 055 068 073 090
095 101 102 103 389
390 396 403 406 407
092
Gibralta 023 048 053 068 073
090 095 107 108 233
360
Goldstar (LG) 023 053 068 073 090
107 108 233 360 361
Gradiente
104
Grundig 233
Go Video
443
Hall Mark 073 095
Hitachi 023 068 095 096 097
098 099 100
Hyundai
453
Inkel 364
Insigna
450
JC Penney 039 053 068 073 092
095 102 355
Jensen
062
JVC 104 105 106 396 397
410
Kawasho 073 095
KMC 023
KTV 023 053 233 366
Konka
445
Kurazai 211 213
LG (Goldstar) 023 053 068 073 090
107 108 233 360 361
Lodgenet 211 213
Logik 211 213
Luxman 068 073 095
LXI 024 026 157
Magnavox (Philips)
023 068 071 072 073
089 090 091 092 093
094 134 385 387 397
404
Majestic 211 213
Marantz 053 107 108 109
Megatron 215
Memorex 090 211 213 355 388
405
MGA / Mitsubishi 053 068 073 090 095
107 109 110 216 384
394 395 398 399
417
108
Montgomery Ward 022 023 026 053 071
072 108 211 213
NEC 028 068 090 108 200
Net TV
426
Norcent
455
Orion 019 159 160 161 162
163 382
Panasonic 042 043 044 045 046
429
Philco 023 053 068 071 072
091
Magnavox (Philips)
023 068 071 072 073
089 090 091 092 093
094 134 385 387 397
404
Pilot 073 094 233
Pioneer 111 144 383
Portland 023 068
ProScan 055 070
Proton 090 371 372
Protron
457
Proview
459
Pulsar 073
Quasar 044
Radio Shack 073
Realistic 022 166 168
RCA 042 052 053 054 055
069 070
416 068
Sampo 090 108
Samsung 015 016 017 023 031
090 107 108 134 147
151 153 386 411
Sansui
423 424
Sanyo 353 355 356 376 377
Scott 090 108 168
Sears 023 031 038 039 068
353 355 356
Sharp 016 022 023 024 025
026 027 028 029 393
395 409
Signature 2000 023 026 108 211 213
Sony 014 020 021
Soundesign 091
Squareview 157
Supre-Macy 380
Sylvania 068 071 072 090 091
093 107 108 157 158
419 092 456
Symphonic 047 157
Tatung 044
446
Techwood 068
Teknika 023 068 072 091 168
213
Telerent 023 213
Tera 381
Tevion 065
414
TMK 068 090
Toshiba 030 031 038 039
Totevision 233
Universal 068 102
Page 4
Vidtech 068
ViewSonic
428
Wards 068 090
White Westinghouse 211 408
449 458
XR-1000 213
Yamaha 068
York 090 108
Zenith 047 048 049 050 051
391 405 406
434
VCR Setup Codes
Admiral 066 075
Adventura
Aiwa 132
Akai 269 275 336 351 352
354
Audio Dynamics 243 291
Bell & Howell 357
238
Broksonic 333 337 358 359
Canon 086 362
Citizen 033 172 247 331
Colortyme 291
Craig 172 363
Curtis Mathes 086 112 247 291
Daewoo 033 343 344 345 346
347
Daytron 345 365
DBX 243 291
Dynatech 132
Emerson 033 086 132 326 327
331 332 333 334 335
336 337 338 339 340
341 342
Fisher 035 081 357 363
Funai 132
GE 086 172 174
170
Go Video 348 349 350
Goldstar (LG) 247 331
Harman Kardon 291
Hitachi 078 132
Instant Replay 086
JC Penney 078 086 172 238 291
JCL 086
JVC 120 128 243 247 250
253
238
Kenwood 120 132 238 243 247
LG (Goldstar) 247 331
Lloyd 132
Logik 367
LXI 132 331
Magnavox (Philips) 086 132 183
Marantz 086 172 183 238 247
291
Marta 331
Matsui 368
Memorex 132 238 331 363 369
370
Mitsubishi 255 258
MTC 132 172
Montgomery Ward 066 170 173 373
Multi Tech 132 172 367
NEC 120 238 243 291 374
375
Orion 322 326 327 328 329
330
Panasonic 112 117
430 086
Pentax 078
Philco 086 132 183
Philips (Magnavox) 086 132 183
Pioneer 078 120 263
Portland 345
ProScan 170 174
Quartz 238 378
Quasar 112
RCA 078 132 141 170 172
173 174
086
Realistic 066 132 238 363
Samsung 269 271 275 276 278
Sansui 120 367 379
Sanyo 238 346 357 363
Scott 033 332 367
Sears 035 078 238 331 363
Sharp 066 075
Shintom 367
Signature 2000 066 170 173 373
Sony 056 058 060
Soundesign 132
Sylvania 086 132 141 183 184
322 324
420
Symphonic 132
Tandy 132 238
Tashiko 331
Tatung 243
Teac 132 243
Technics 086
Teknika 132 331 359
Thomas 132
TMK 338
Toshiba 033 035 078 081
Totevision 172 331
Unitech 172
Vector Research 291
Video Concepts 132 291
Wards 066 132 172 247 331
XR-1000 367
Yamaha 132 243 291
238
Zenith 058 120 122 128 132
435
DVD Setup Codes
Apex Digital 193 227
B144 146
Denon 201 203
DVD-Video 199
ECA 156
GE 150 152 156 175
Goldstar (LG) 129 133 135 179 260
Gradiente 212 234
Harmon Kardon 256 259
Hitachi 149
JVC 177 179
Kenwood 228
KLH 248 252
LG (Goldstar) 129 133 135 179 260
Magnavox 138 143 146
Marantz 270
Mintek
432
Mitsubishi 181 185
NAD 246
Onkyo 085 244
Panasonic 115 118 121 124
431
Pioneer 125 187 188
Proceed 236
Samsung 192 224 225
Sharp 034 076 077 079
Sony 040 059 061
436
Sylvania
421
Thomson 156 237
Toshiba 082 085 087 113
Yamaha 121 124 210
Zenith 129 133 135
AUDIO Setup Codes
Compact Disc
ADC 318
Akai 249 261
Aiwa 176
Carver 176
155
Crown 154
Denon 273
Fisher 230 274
Goldstar (LG) 308
Page 5
Harman Kardon 315
JVC 297
Kenwood 131 176 274 289 299
Krol 176
LG (Goldstar) 308
Magnavox (Philips) 037 084 119 296
Mission 176
Mitsubishi 245 249
NAD 182 231 290
Nakamichi 264 319
NEC 235
NSM 176
Onkyo 300
Panasonic 184 266
437
Philips (Magnavox) 037 084 119 296
433
Pioneer 116 127
Quasar 184
Radio Shack 186 190 266 279 289
RCA 295
037 119
Sanyo 230 309
SAE 176
Scott 186
Sharp 288 289
Sony 067 292 293
Soundesign 148 242 311 320
STS 318
Sylvania 084
Teac 186
Technics 184 208 317
Toshiba 290
Yamaha 280
Receiver / Amplifier
Adcom 325
Aiwa 301
Akai 142
Bose 302
440
Carver 155 180
Denon 262 307
Everquest 136
Fisher 063 180
Fosgate Audionics 305
Goldstar (LG) 036
Harman Kardon 130 257 305 306
Hitachi 240
Jensen 140
JVC 114 241
Kenwood 063 277
444
LG (Goldstar) 036
Luxman 281
Magnavox 080
Marantz 282 283 284 285
NAD 286
Onkyo 126 171 304
Optimus 142 229 321
Panasonic 032 074
438 441
Parasound 323
Philips (Magnavox) 080
Pioneer 123 137 251 298
Quasar 032
Radio Shack 229 267
RCA
439
Realistic 226 268
Rotel 310
Sansui 283
Sanyo 195
Scott 272
Sharp 294
Sherwood 229 267
Sony 041 057 232 287
442
Soundesign 083 088 239 265
SSI 313
Taekwang 142
Teac 314 316
Technics 032
Wards 063
Victor 114 241
Yamaha 145 254 303
Zenith 036 083 088 239 265
7. Code Number Read-Back
To identify the 3-digit setup codes stored under the
Point and Press
®
programming method, follow these
steps:
To identify the TV setup code…
1. Press [TV], then [ENTER] together
until the [TV]
button illuminates.
2. Press [INFO]. The [TV] button will “blink back” the
code numbers, with a 1-second interval between
each digit of the code.
Example: For code “035”, the remote will blink
10 times, then 3 times, then 5 times.
To identify the 3-digit VCR code, press [VCR],
then [ENTER] in step 1, then press [INFO].
To identify the 3-digit DVD code, press [DVD],
then [ENTER] in step 1, then press [INFO].
To identify the 3-digit AUDIO code, press [AUDIO],
then [ENTER] in step 1, then press [INFO].
8. Operating Your Satellite Receiver
To operate your Satellite receiver, press [SAT] to
select the Satellite mode. Then refer to Section 16
for the operation of your Satellite receiver.
9. Operating Your TV
To operate your TV, press [TV] to select the TV
mode. In your remote’s TV
mode, you can then
press…
[POWER] TV on / off
[CH S] / [CH T] Inc. / dec. TV channel
[0] – [9] Numeric entry buttons
[VOL S] / [VOL T] Inc. / dec. TV volume
[MUTE] Mute TV volume
[LAST CH] Tune to last TV channel
[SOURCE] Change TV video inputs
10. Operating Your VCR
To operate your VCR, press [VCR] to select the
VCR mode. In your remote’s VCR
mode, you can
then press…
[POWER] VCR on / off
[CH S] / [CH T] Inc. / dec. VCR channel
[0] – [9] Numeric entry buttons
[VOL S] / [VOL T] Inc. / dec. TV volume
[MUTE] Mute TV volume
[SOURCE] Change VCR video inputs
[
] VCR rewind
[
] VCR play
[
] VCR fast-forward
[
] VCR pause
[] VCR stop
[
] VCR record
Page 6
11. Operating Your Device
To operate your DVD, press [DVD] to select the
DVD mode. In your remote’s DVD
mode, you can
then press…
[POWER] DVD on / off
[VOL S] / [VOL T] Inc. / dec. TV volume
[MUTE] Mute TV volume
[] DVD rewind
[
] DVD play
[
] DVD fast-forward
[
] DVD pause
[] DVD stop
[ ] DVD record
12. Operating Your AUDIO Device
To operate your Audio device, press [AUDIO] to
select the Audio mode. In your remote’s Audio
mode
, you can then press…
[POWER] Audio on / off
[VOL S] / [VOL T] Inc. / dec. Audio volume
[MUTE] Mute Audio volume
13. Programming Volume Control
When you first program your remote, volume / mute are
controlled through your TV (except AUDIO which defaults to
the AUDIO device).
The volume control options in each
mode of the remote are:
SAT TV (default), SAT or Audio.
TV TV (default), SAT or Audio.
VCR TV (default), SAT or Audio.
DVD TV (default), SAT or Audio.
AUDIO AUDIO device (default), SAT or TV.
To control volume / mute through your Satellite
receiver in the remote’s Satellite
mode…
1. Press [SAT], then [ENTER] together until the
[SAT] button illuminates.
2. Press [VOL S], then [SAT] for Satellite volume.
The [SAT] button will blink 3-times and go out.
To return volume control to your TV, repeat step 1,
then press [VOL S], then [TV] in step 2.
14. Additional Programming Information,
Troubleshooting, Tips
Additional Programming Information
1. The power / mode buttons will illuminate in
slow-rotation (i.e. SAT Æ TV Æ VCR Æ DVD Æ
AUDIO Æ SAT...) while the remote is in a
programming mode. In the absence of a keypress
entry, the power / mode buttons will stop
illuminating after 30 seconds and the remote will
exit the programming mode.
2. When programming the remote control using the
[CH S] or [CH T] buttons (Power function) under
the Point and Press® Programming method, you
may find a code that turns a device off but not
back on. If this happens…
a. The correct code has not been found as
you may have a code that operates some
but not all of the functions of your device.
Continue pressing [CH S] until your device
turn on.
OR
b. You may have gone past the correct matching
code. Try pressing [CH T] one press at a
time until you find a code that turns your
device back on.
3. When using the Point and Press
®
Programming
method, you can also program your remote using
buttons other than the [CH S] or [CH T] (as
described in Section 5) as follows:
a. [VOL S] – to “go forward” through the codes
using the “VOL S” function on your devices.
b. [VOL T] – to “go back” through the codes
using the “VOL T“ function on your devices.
Note: When you find the correct code, the
volume of the device being programmed will
increase or decrease.
c. [S] - to “go forward” through the codes using
the “CH S” function on your devices.
d. [T] - to “go back” through the codes using the
“CH T“ function on your devices.
Note: When you find the correct code, the
channel of the device being programmed will
increase or decrease.
e. [XX] - to “go forward” through the codes using
the “Fast Forward” function on your devices.
f. [WW] - to “go back” through the codes using
the “Rewind” function on your devices.
Note: When you find the correct code, the
fast-forward or rewind function of the device
being programmed will be performed. To
simplify programming using these buttons,
insert a VHS tape or DVD in the device being
programmed.
You can also program your remote using the other
available functions as follows:
a. Press [ENTER], then [MUTE] together until
the power / mode buttons illuminate in slowrotation (i.e. SAT Æ TV Æ VCR Æ DVD Æ
AUDIO Æ SAT...).
b. In this order, carefully press [0], [0], [0], [CH S]
and [VOL S]. The power / mode buttons
illuminate in slow-rotation (i.e. SAT Æ TV Æ
VCR Æ DVD Æ AUDIO Æ SAT...).
c. You can now program your remote using the
[CH S], [CH T], [VOL S], [VOL T], [S], [T],
[FFWD], [REW], [PLAY], [STOP], [REC],
[PAUSE], [LAST], [FAV], [0] - [9] buttons.
When you find the correct code, the function
associated with the selected button will be
performed.
4. Your remote is equipped with a Point and Press
®
Programming label on the back of its case. This
will help you quickly program the remote without
using codes.
Page 7
Troubleshooting / Tips
1. If the same button is pressed and held for 30
seconds, your remote control will turn itself off
automatically. This extends the battery life should
the remote become lodged under or between
heavy objects, for example sofa cushions.
2. If you have a TV that’s operated by remote
control, it is recommended that you plug it directly
into a wall outlet instead of the Satellite receiver.
3. If you have any questions concerning the brand,
model or operation of your Satellite receiver,
contact your Satellite service provider.
Frequently Used Terms
AUDIO Devices
- Audio receivers, amplifiers, CD
players that you can program your remote to operate.
Default Setting
– How your remote is set when you
receive it from your Satellite service provider.
Electronic Components / Devices
- The various
electronic devices the remote is designed to operate.
These include Satellite receivers, TVs, VCRs,
DVDs, Audio receivers, amplifiers and CD players.
Fast-Rotation
- The power / mode buttons will
illuminate in a fast sequence (i.e. SAT Æ TV Æ VCR
Æ DVD Æ AUDIO Æ SAT...) repeated every 1/3
second. Fast-rotation occurs when the remote is
receiving keypresses to program it to your electronic
devices.
Mode
- The device the remote is set to operate (ex.
SAT, TV, VCR, DVD, AUDIO).
Program (Setup)
– the process of teaching your
remote control to operate your electronic devices.
Slow-Rotation - The power / mode buttons illuminate
in a slow sequence (i.e. SAT Æ TV Æ VCR Æ DVD
AUDIO Æ SAT...) repeated every 1 second. Slowrotation illumination occurs when the remote is in the
programming mode, waiting for the next entry on the
keypad of the remote.
TV Output Channel
- The channel your TV needs to
be set on for proper Satellite reception (most often TV
channel 3, but may be TV channel 2 or 4). If you
have any questions concerning your TV output
channel, contact your Satellite service provider. Or,
with your Satellite receiver turned on, try setting your
TV to channel 2, 3 or 4 to obtain a clear picture.
Transport Functions - These are the [STOP], [PLAY],
[FWD], [REW], [PAUSE] and [REC] buttons.
In the remote's Satellite
mode, these buttons operate
your Satellite receiver's features.
In the remote's VCR or DVD mode, these buttons
operate your VCR or DVD functions.
In the remote's Audio
mode, these buttons operate
your CD player.
VIDEO Devices
- VCR or DVD players.
Rev. 08/05
© 2005, Contec Holdings, LLC
CheckMate®, Point and Press® and Memory Guard
®
are registered trademarks of Contec Holdings, LLC
Page 8
Select Mode of remote. Press …
[SAT] - for Satellite mode
[TV] - for TV mode
[VCR] - for VCR mode
[DVD] - for DVD mode
[AUDIO] - for Audio mode
Mutes volume
Increase or decrease volume
Display Help screens, Press again
to remove
Display Interactive Programming
Guide, Press again to remove
Select highlighted item
Display Interests menu, exit any menu
Display Pay-Per-View programming
Display Options menu, exit any menu
Input source to SAT receiver or TV
Satellite, VCR, DVD, Audio transport
functions
Power for selected device
Increase or decrease channel
Returns to last channel viewed
Display detailed program information
Exit any menu, display program information
Highlight (S,T,W,X) menu screen items,
navigate listings in Browse banner
Return to previous menu
Display current program title at bottom of
screen
Displays parental control menu
Future to display a program banner
of what’s on in the future; in guide mode
navigate to a future date in the guide
Enter channel # - 3 digits
Press after entering channel # less than 3digits
15. Using Your R
T
-
U50 DSR Remote Contro
l
+
-
Loading...
