Contec PT-E831H, PT-E831HS User Manual

Download
Page 1
IPC Series
PANEL-PC E Series PT-E831H, PT-E831HS

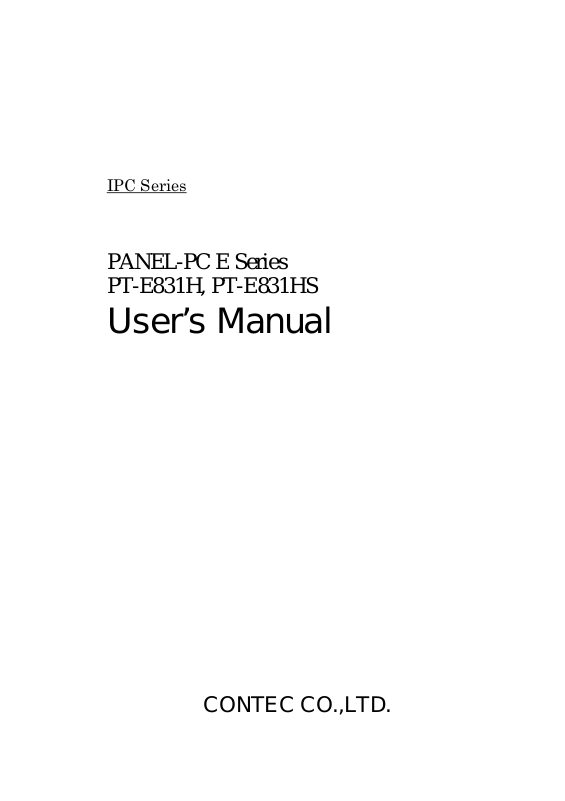

User’s Manual
CONTEC CO.,LTD.
Page 2

Check Your Package

Thank you for purchasing the CONTEC product.
The product consists of the items listed below.
Check, with the following list, that your package is complete. If you discover damaged or missing items, contact your
retailer.
If you use IPC-SLIB-01 (driver&utility software set), download it from the CONTEC’s Web site.

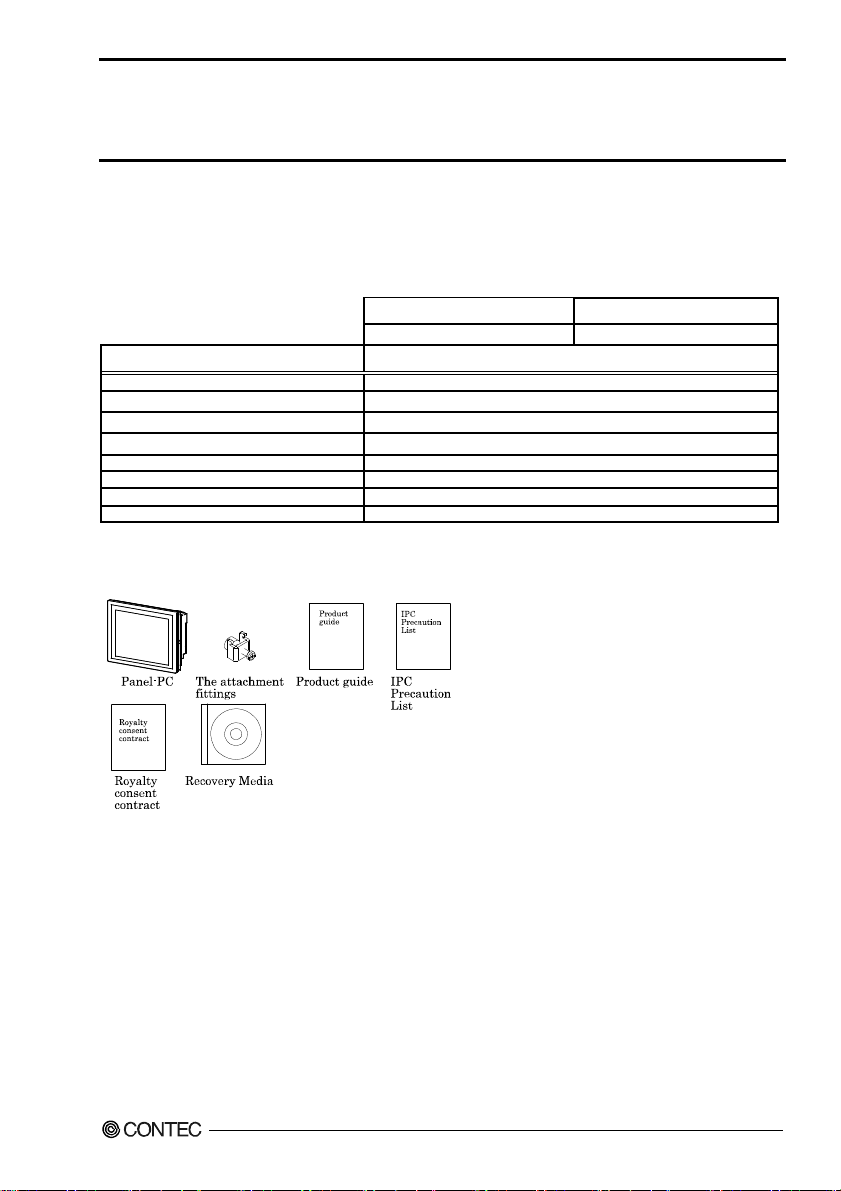

Product Configuration List
Name Pcs.
Panel-PC 1 The attachment fittings[PT-E71MOUNT] 1 set (Conteined 8 pcs.)
Face protective seal[PT-E82PSC] Attached Panel-PC
Holding battery for BIOS Attached Panel-PC Product guide (this sheet) 1
IPC Precaution List 1 Royalty consent contract 1 Recovery Media *1 1
*1 Please confirm latest information on the CONTEC homepage though the user's manual is stored in Recovery Media.
The installation method is described in this document as well as the UsersManual. [File storing place: \Manual]
Product Configuration Image
PT-E831H-AC431x PT-E831HS-AC431x
[Basic Type] [Multi-Interface Type]
*See the Product Configuration List to check if all the components are included for the specified number of units
i
Page 3

Copyright

Copyright 2011 CONTEC CO., LTD. ALL RIGHTS RESERVED.
No part of this document may be copied or reproduced in any form by any means without prior written consent of CONTEC CO., LTD.
CONTEC CO., LTD. makes no commitment to update or keep current the information contained in this document.
The information in this document is subject to change without notice.
All relevant issues have been considered in the preparation of this document. Should you notice an omission or any questionable item in this document, please feel free to notify CONTEC CO., LTD.
Regardless of the foregoing statement, CONTEC assumes no responsibility for any errors that may appear in this document or for results obtained by the user as a result of using this product.

About the handling of the battery and the storage battery in E U

Signatory

Note: This symbol mark is for EU countries only.
This symbol mark is according to the directive 2006/66/EC Article 20 Information
for end-users and Annex II.
This symbol means that batteries and accumulators, at their end-of-life, should be disposed of separately from your household waste.
If a chemical symbol is printed beneath the symbol shown above, this chemical symbol means that the battery or accumulator contains a heavy metal at a certain concentration.
This will be indicated as follows: Hg: mercury (0.0005%), Cd: cadmium (0.002%), Pb: lead (0.004%)
These ingredients may cause serious hazardous for human and the global environment.
Please refer to the user's manual for the annulment of detaching a detailed battery specification and the battery and the batteries.

Trademarks

Intel, Intel Atom, Intel Core and Celeron are registered trademarks of Intel Corporation. MS, Microsoft and Windows are trademarks of Microsoft Corporation. Other brand and product names are trademarks of their respective holder.
PT-E831H, PT-E831HS User’s manual
ii
Page 4

Table of Contents

Check Your Package ................................................................................................................................ i
Copyright .................................................................................................................................................ii
About the handling of the battery and the storage battery in E U...........................................................ii
Signatory........................................................................................................................................... ii
Trademarks ..............................................................................................................................................ii
Table of Contents.................................................................................................................................... iii
1. INTRODUCTION 1
About the Product.................................................................................................................................... 1
PT-E Models..................................................................................................................................... 1
Features............................................................................................................................................. 2
Supported OS.................................................................................................................................... 2
Customer Support.................................................................................................................................... 3
Web Site ........................................................................................................................................... 3
Limited One-Year Warranty.................................................................................................................... 3
How to Obtain Service ............................................................................................................................ 3
Liability.................................................................................................................................................... 3
Safety Precautions ...................................................................................................................................4
Safety Information............................................................................................................................ 4
Caution on the PT-E Series ..............................................................................................................4
2. SYSTEM REFERENCE 7
Specification ............................................................................................................................................7
Physical Dimensions.............................................................................................................................. 10
3. HARDWARE SETUP 11
Before Using the Product for the First Time......................................................................................... 11
Hardware Setup ..................................................................................................................................... 12
How to Mount................................................................................................................................. 12
Installation Requirements............................................................................................................... 14
4. EACH COMPONENT FUNCTION 17
Parts Identification................................................................................................................................. 17
System Configuration ............................................................................................................................ 19
Component Function .............................................................................................................................20
Operation State LED ......................................................................................................................20
AC Power Input Connector : AC-IN........................................................................................... 21
ON/OFF Switch: POWER SW ...................................................................................................... 23
CF Card Slot ................................................................................................................................... 24
Giga bit-Ethernet : LAN 1 – 2 ..................................................................................................... 26
iii
Page 5
USB Port: USB
Serial Port Interface: COM2 – 3 .....................................................................................................27
WDT/EMG Connector....................................................................................................................30
IDE Connector ................................................................................................................................31
DC Power Supply Connector..........................................................................................................31
PCI Bus Expansion Slot..................................................................................................................31
SSCNET Connector ........................................................................................................................32
...............................................................................................................................27
5. STARTUP AND TERMINATION 33
Before Setup....................................................................................................................................33
Write-protect ...................................................................................................................................34
Power OFF ......................................................................................................................................39
6. SETTING THE TOUCH PANEL DRIVER 41
Calibration Settings.........................................................................................................................41
Test..................................................................................................................................................46
Mouse Operation.............................................................................................................................48
Function of Touch Panel Driver .....................................................................................................49
7. RESUME FUNCTION/ EPC SYSTEM MONITOR 63
Resume Function ............................................................................................................................63
EPC System Monitor ......................................................................................................................64
8. BIOS SETUP 77
Introduction ............................................................................................................................................77
Starting Setup .........................................................................................................................................77
Using Setup .....................................................................................................................................78
Getting Help....................................................................................................................................78
In Case of Problems ........................................................................................................................78
A Final Note About Setup ..............................................................................................................78
Main Menu .............................................................................................................................................79
Setup Items......................................................................................................................................79
Standard CMOS Setup ...........................................................................................................................81
Main Menu Selections ...........................................................................................................................82
Onboard PATA Master/Onboard PATA Slave ..............................................................................83
Onboard SATA-0/Onboard SATA-1..............................................................................................85
Advanced BIOS Features Setup ............................................................................................................86
Hard Disk Boot Priority .........................................................................................................................87
Advanced Chipset Features Setup .........................................................................................................92
VGA Setting...........................................................................................................................................94
Integrated Peripherals ............................................................................................................................96
OnChip IDE Device ...............................................................................................................................97
On Chip Serial ATA setting...................................................................................................................99
Onboard Device ...................................................................................................................................100
PT-E831H, PT-E831HS User’s manual
iv
Page 6
Super IO Device .................................................................................................................................. 102
PnP/PCI Configuration Setup..............................................................................................................103
IRQ Resources ..................................................................................................................................... 105
PC Health Status .................................................................................................................................. 106
Defaults Menu ..................................................................................................................................... 107
Supervisor/User Password Setting ......................................................................................................108
Exit Selecting....................................................................................................................................... 109
9. APPENDIX 111
Battery Specification ...........................................................................................................................111
10. LIST OF OPTIONS 113
v
Page 7
PT-E831H, PT-E831HS User’s manual
vi
Page 8

1. Introduction

1. Introduction About the Product
This product is a fanless PANEL-PC for embedded use based on Intel (R) Celeron M ULV processor.
Usable worry-free in factory automation fields, PT-E is PC/AT-compatible controller for built-in use; it is compatible with Windows XP/Windows XP Embedded.
Unless otherwise specified, this manual uses the following abbreviations and generic terms to describe PT-E.
Table 1.1 Abbreviation in this Manual
Abbreviation/Generic Abbreviation/Generic Term
OS Operating system HD Hard disk HDD Hard disk drive FD Floppy disk FDD Floppy disk drive LCD Color liquid crystal display CF card Compact flash disk I/F Interface

PT-E Models

Classify PT-E831 models according to I/F loaded on the PT-E and the display features of the PT-E. Models of PT-E831 series is shown in table 1.2.
Table 1.2 PT-E Models
Resolution * XGA (W1024 x H768 dots) Standard I/F PT-E831H Special I/F PT-E831HS
*: For the LCD resolution, there are about two dots upper and lower, right and left are masked by the protective sheet. Therefore, please set
the screen size in consideration of the masked range when creating a scre en.
- Standard: Ethernet, USB, RS232C, WDT, RS485/RS422
- Special I/F: SSCNET + Standard I/F
1
Page 9
1. Introduction

Features

Correspond to USB I/F. Correspond to USB2.0 standard.
Resume Function By equipping a lithium ion battery pack (option), PT-E can keep operating regardless of the occurrence of instantaneous interruption or power failure andprotect the data.
If battery voltage drop is detected or the power does not restore after power failure, PT-E will go to shutdown automatically.
When using resume function, needs to start up EPC System Monitor (refer to p.63 of Chapter 7).
CF card Adopt CF card as a storage disk, which is possible to build a system without hard disk; it secures high reliability to the vibration and impact shock under the factory environment.
Ease of operation with touch panel Mouse simulation realized high-resolution touch panel (resolution: 1024 x 1024) implements an excellent man-machine interface to perform operations without a mouse and a keyboard.
Dustproof, drip proof structure Front panel of PT-E series is IP65F-equivalent for worry-free use in the environment of dust, mist, etc. User should take measures against dust and mist for the other sections of PT-E series, e.g. by putting PT-E in a self-made box.
Improved vibration resistance and shock resistance Without structurally movable parts, PT-E series are resistant to vibration and shock, requiring no special anti-vibration measures and handling precautions.
Compact size PT-E series’ fan less structure makes PT-E get a compact size. It is easy to build PT-E in the equipment.

Supported OS

- Windows XP Professional / Windows XP Embedded
PT-E831H, PT-E831HS User’s manual
2
Page 10
1. Introduction

Customer Support

CONTEC provides the following support services for you to use CONTEC products more efficiently and comfortably.

Web Site

Japanese http: //www.contec.co.jp/ English http: //www.contec.com/ Chinese http: //www.contec.com.cn/
Latest product information
CONTEC provides up-to-date information on products. CONTEC also provides product manuals and various technical documents in the PDF.
Free download
You can download updated driver software and differential files as well as sample programs available in several languages.
Note! For product information
Contact your retailer if you have any technical question about a CONTEC product or need its price, delivery time, or estimate information.

Limited One-Year Warranty

CONTEC products are warranted by CONTEC CO., LTD. to be free from defects in material and workmanship for up to one year from the date of purchase by the original purchaser.
Repair will be free of charge only when this device is returned freight prepaid with a copy of the original invoice and a Return Merchandise Authorization to the distributor or the CONTEC group office, from which it was purchased.
This warranty is not applicable for scratches or normal wear, but only for the electronic circuitry and original products. The warranty is not applicable if the device has been tampered with or damaged through abuse, mistreatment, neglect, or unreasonable use, or if the original invoice is not included, in which case repairs will be considered beyond the warranty policy.

How to Obtain Service

For replacement or repair, return the device freight prepaid, with a copy of the original invoice. Please obtain a Return Merchandise Authorization number (RMA) from the CONTEC group office where you purchased before returning any product.
* No product will be accepted by CONTEC group without the RMA number.

Liability

The obligation of the warrantor is solely to repair or replace the product. In no event will the warrantor be liable for any incidental or consequential damages due to such defect or consequences that arise from inexperienced usage, misuse, or malfunction of this device.
3
Page 11
1. Introduction

Safety Precautions

Understand the following definitions and precautions to use the product safely.

Safety Information

This document provides safety information using the following symbols to prevent accidents resulting in injury or death and the destruction of equipment and resources. Understand the meanings of these labels to operate the equipment safely.
DANGER
WAR NI NG
CAUTION

Caution on the PT-E Series

DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury or in property damage.
Handling Precautions
WA RN IN G
- Always check that the power supply is turned off before connecting or disconnecting power cables.
- Procedures that could result in serious injury or loss of human life should never be performed from a touch panel. Use system design methods that can guard against input errors.
- Do not modify the product.
- Always turn off the power before inserting or removing circuit boards or cables.
- This product is not intended for use in aerospace, space, nuclear power, medical equipment, or other applications that require a very high level of reliability. Do not use the product in such applications.
- If using this product in applications where safety is critical such as in railways, automotive, or disaster prevention or security systems, please contact your retailer.
- Do not attempt to replace the battery as inappropriate battery replacement poses a risk of explosion.
- When disposing of a used battery, follow the disposal procedures stipulated under the relevant laws and municipal ordinances.
- Always power off the PT-E before installing or removing it to or from an enclosure.
Not doing so can cause a failure, fire or electric shock.
- Always start wiring after powering off the PT-E.
Not doing so can cause an electric shock or product damage.
- Earth the equipment securely. A failure to do so can cause an electric shock.
- Before starting cleaning the PT-E and/or peripheral devices, always power off the PT-E and/or
peripheral devices.
Not doing so can cause a failure or electric shock.
- Do not allow dust and foreign matter to enter the PT-E and peripheral devices.
Doing so can cause a fire or electric shock.
PT-E831H, PT-E831HS User’s manual
4
Page 12
1. Introduction
- Do not allow your hands and foreign matter to enter the openings of the PT-E and peripheral devices.
Doing so can cause injury or electric shock.
- Always start the fitting of the expansion board or memory after dismounting the PT-E from the enclosure and placing it on a level surface.
Fitting it with the PT-E mounted on the enclosure can cause injury due to a drop.
- Do not touch the edges and projections of the electrical circuit boards and parts in the PT-E.
Doing so can cause injury.
- Before installing the cover, always connect the internal cables securely.
Insecure connections can cause a fire due to a short circuit.
- Always change the battery after powering off the PT-E.
Not doing so can cause an electric shock.
CAUTION
- Do not use or store this product in a location exposed to high or low temperature that exceeds range
of specification or susceptible to rapid temperature changes. Example: - Exposure to direct sun
- In the vicinity of a heat source
- Do not use this product in extremely humid or dusty locations. It is extremely dangerous to use this
product with its interior penetrated by water or any other fluid or conductive dust. If this product must be used in such an environment, install it on a dust-proof control panel, for example.
- Avoid using or storing this product in locations subject to shock or vibration that exceeds range of
specification.
- Do not use this product in the vicinity of devices that generate strong magnetic force or noise. Such
products will cause this product to malfunction.
- Do not use or store this product in the presence of chemicals.
- To clean this product, wipe it gently with a soft cloth dampened with either water or mild detergent.
Do not use chemicals or a volatile solvent, such as benzene or thinner, to prevent pealing or discoloration of the paint.
- This product’s case may become hot. To avoid being burned, do not touch that section while this
product is in operation or immediately after turning off the power. Avoid installation in a location where people may come into contact with that section.
- CONTEC does not provide any guarantee for the integrity of data on CF.
- Always disconnect the power cable from the receptacle before mounting or removing the expansion
board, or before connecting or disconnecting any connector.
- To prevent corruption of files, always shutdown the OS before turning off this product.
- CONTEC reserves the right to refuse to service a product modified by the user.
- In the event of failure or abnormality (foul smells or excessive heat generation), unplug the power
cord immediately and contact your retailer.
- To connect with peripherals, use a grounded, shielded cable.
- Do not use any sharp-pointed object such as a mechanical pencil to touch the touch panel. Doing so
may scratch the touch panel, resulting in malfunctions.
- Do not subject the touch panel to shock as doing so may break it.
- When the surface or frame of the touch panel has become dirty, wipe it with neutral detergent. Do not
wipe the touch panel with thinner, alcohol, ammonia, or a strong chlorinated solvent.
5
Page 13
1. Introduction
- It is a characteristic of analog touch panels that their resistance may vary with changes to the ambient environment (temperature and humidity) and with their own aging, resulting in the deviation of the detection point. If this is the case, calibrate the touch panel again to re-set calibration data.
- LCD may have a few bright spots that are always on or a few black spots that are always off. Color irregularity may also occur depending on the viewing angle. This however is due to the structural characteristics of the LCD; therefore, it is not a product fault.
- Burn-in on TFT Display “Burn-in” may occur if the same display is retained for a long time. Avoid this by periodically switching the display so that the same display is not maintained for a long time.
* Burn-In : Phenomenon characterized by a TFT display as a result of long-time display of the same
screen where a shadow-like trace persists because electric charge remains in the LCD
- The CF card connector doesn't support hot plug. The pulling out opening of the CF card cannot be done in the state of power supply ON. Please neither pulling out opening of CF in the state of power supply ON of this product nor come in contact with CF. This product may malfunction or cause a failure.
- Do not put the PT-E on any object. Doing so can cause a failure.
- Do not touch the conductive areas and electronic parts of the PT-E directly.
Doing so can malfunction or fail the PT-E.
- When disconnecting the cables connected to the PT-E, do not hold and pull the cable part.
Doing so can cause damage to the PT-E and/or cables or a malfunction due to poor cable connection.
- Do not block the air vents. Doing so can cause a fire.
- When carrying the PT-E, always do it after powering off the PT-E. Also disconnect all connection cords.
Not doing so can cause a fire or electric shock.
- When the equipment will be left unused for an extended period of time, power off the PT-E.
Not doing so can cause a fire due to accumulated dust.
- Before starting the fitting of the expansion board or memory, always touch any metallic area.
Starting the work with your body charged with static electricity can damage the electronic parts.
- Component Life:
(1) Battery---The internal calendar clock and CMOS RAM are backed by a Lithium primary battery.
(2) CF ---The OS-installed model uses a CF card in the OS storage area.
(3) Touch panel--- The operating lifetime of the touch panel is at least 1 million touches
(4) LCD backlight--- Display brightness decreases over time with use.
element even after the patterns are changed.
The backup time at a temperature of 25°C with the power disconnected is 10 years or more.
Estimated failure rates: 100,000 rewrite cycles, 500,000 hours MTBF
(as tested by mechanical touching under 300g of force at a rate of two presses per second).
The operating lifetime of the backlight is 50,000 hours (the time until the brightness is lowered to 50% of the initial value at atemperature of 25°C).
PT-E831H, PT-E831HS User’s manual
6
Page 14

2. System Reference

2. System Reference Specification
Table 2.1 Functional Specification < 1 / 2 >
Model PT-E831H PT-E831HS
OS Windows XP Embedded SP2 (recommend), Windows XP Professional CPU Intel Celeron M ULV 1 GHz Memory 512 MB
Resume Function (*1)
Battery pack (Optional)
USB (2.0) 4 ch (A type)
Serial Port
Ethernet (10BASE-T/100BASE-TX/ 1000BASE-T) PCI bus expansion slot Expands PCI bus with an add-on unit.
External Interface (*2)
CF card slot
SSCNET None 1 ch (14 pin, female)
WDT/EMG
IDE Interface 1 ch (Only one device can be connected to master.)
External DC output 5V/2A, 12V/1A (*2) Reset button Has Operation LED Has
LCD size (inch) 15
LCD
Resolution (dot) XGA (1024 x 768)
display
brightness (cd/m2) 250
function
Life of backlight (Hr) 50,000
(*3)
Exchanging of backlight Exchangeable
Backlight ON/OFF Backlight ON/FF can be controlled by software.
(*1): For the model PT-E831HS, if it is using SSCNET communication, then Standby mode is unavailable. (*2): Electrical currents that are supplied to external devices including those are connected to expansion slot, USB port
and external DC output (only PT-E831HS) should be 5V/2A, 12V/1A or less.
(*3): For the LCD resolution, there are about two dots upper and lower, right and left are masked by the protective sheet.
Therefore, please set the screen size in consideration of the masked range when creating a screen.
(*4): When using both 2CH Ethernets in 1000BASE-T, please use PT-E under the environment where the operating
ambient temperature is "Front display section is 0°C to 40°C, other than display section is 0°C to 45°C".
(*5): The capacity of CF is a value when 1GB is calculated by 1 billion bytes. The capacity that can be recognized from OS
Resume function (Continue/Standby mode can be selected when power failure is
detected.)
[Continue mode]: System keeps operating for 10 minutes during the power failure.
(Backlight becomesOFF.)
[Standby mode]: System keeps the standby status for 30 minutes. (Standby status
is released as powersupply restoring, and the system restarts
operating immediately from the status right before power failure.) Lithium ion battery pack EP73BAT (Not require the battery pack if not use resume function.)
2 ch (D-sub9pin, male) (1 ch is compatible with RS232C) (1 ch is allowed to switch among RS232C, RS422 and RS485)
2 ch (*4)
2 slot (CF Type I, II) CF1 is finished mounting CF (1 GB, 1 partition) *5
1 ch (Watchdog Timer can be set from 0.1 sec to 25.5 sec and the signal can be output) (D-sub9 pin, female)
7
Page 15
2. System Reference
might be displayed fewer than an actual value.
Table 2.1 Functional Specification < 2 / 2 >
Model PT-E831H PT-E831HS
Touch Panel
Input power supply Voltage
(Terminal input) Fit wire size 0.75 to 2 mm2 Power consumption 135VA (maximum load), 90VA (no load, only PT-E main body) Rush current 65A or less (264VAC, maximum load) Cooling method Nature cooling (no fan) External dimensions
(mm (inch)) Weight(kg) 5.9
Method Resistive-film analog type Resolution 1024 x 1024
AC100 to 240V, 50/60Hz
395(W) x 310(H) x 85(D) (15.55 x 12.20 x 3.35)
Table 2.2 Installation Environment Requi rements
Model PT-E831H PT-E831HS
Operating ambient
temperature Storage ambient temperature -20 to 60 °C Operating/storage
ambient humidity Vibration resistance, Shock resistance
Operating atmosphere
Altitude 2000m or less Over voltage category II Noise resistance 2 or less
Noise resistance
Protection structure IP65f-equivalent (front section)
(*1): Electrical currents that are supplied to external devices including those are connected to expansion slot, USB
port and external DC output (only PT-E831HS) should be 5V/2A, 12V/1A or less.
(*2): When using both 2CH Ethernets in 1000BASE-T, please use PT-E under the environment where the operating
ambient temperature is "Front display section is 0°C to 40°C, other than display section is 0°C to 45°C".
Front display section is 0 to 40 °C, other than display section is 0 to 55 °C (*1) (*2)
10 to 90% RH, 60 or less wet-bulb temperature, non-condensing
Based on JIS B3502, IEC61131-2.
No oily smoke, no corrosive gas, no flammable gas, no so much conductive dust, no direct sunshine.
(As well as storage environment)
By noise simulation with noise voltage 1,500Vp-p, noise width 1us and noise frequency 25 to 60Hz.
PT-E831H, PT-E831HS User’s manual
8
Page 16
2. System Reference
Display Optical Specification
Table 2.3 Display Optical Specification
Parameter Condition Min. Typ.
Visual angle (vertical)
Visual angle (horizontal)
Surface brightness (at center)
* “Surface brightness” represents a numerical value per display. The expected brightness through a touch panel is about
80% lower than the above value.
Contrast ratio (CR) =
Brightness at screen center with white displayed Brightness at screen center with black displayed
φ = 180° 65deg 80deg
φ = 0° 65deg 80deg
CR⊇10
φ = +90° 65deg 80deg
φ= -90°
Display in white 200cd/m2250cd/m
Display.
Monochrome
65deg 80deg
2
Measurement direction
Z
o
( θ = 0
)
Left ( φ =
-
90o )
θ
Top
o
( φ = 180
)
X
Bottom ( φ = 0
φ
o
)
Y
Module
Right ( φ = 90
o
)

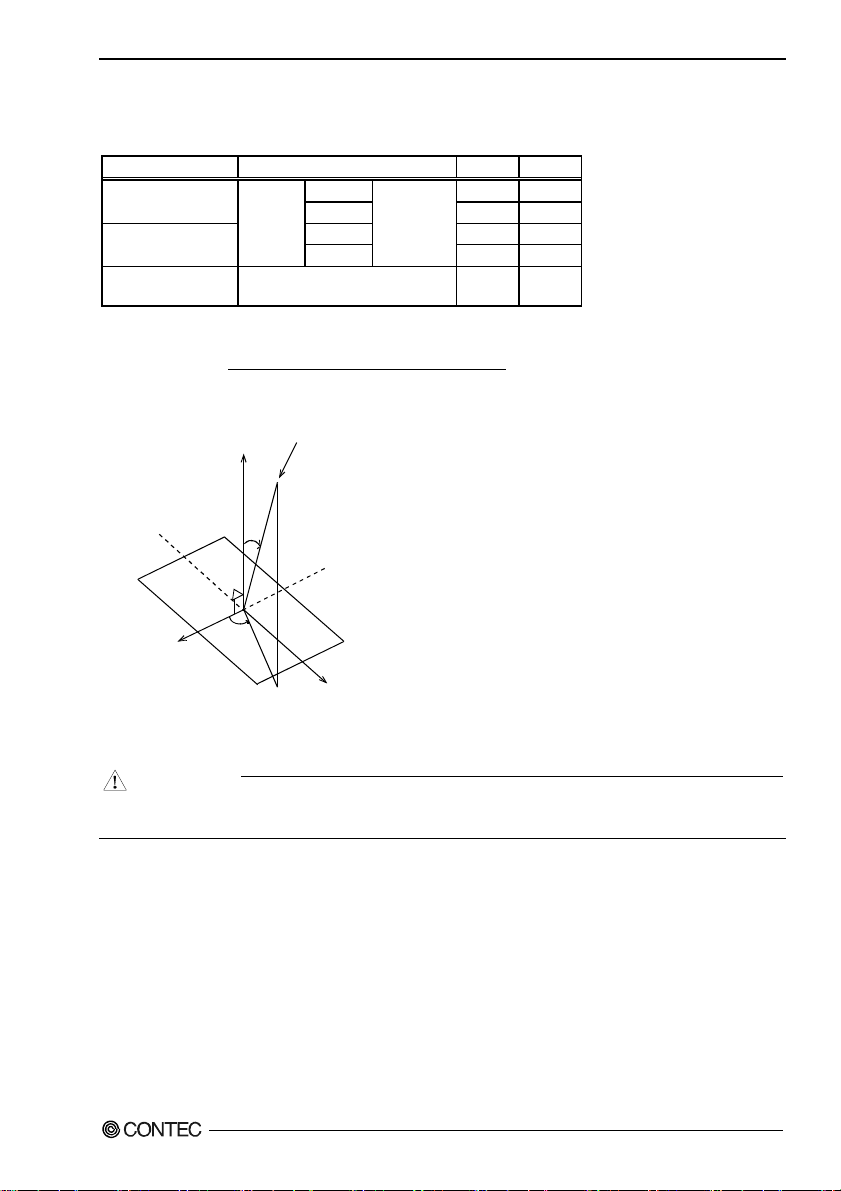

Figure 2.1 Definition of viewable range
CAUTION
The above optical specification data shows optical characteristics of the liquid crystal in the display;
the data does not represent the actual view on the display or its viewing angles.
9
Page 17
2. System Reference

Physical Dimensions

PT-E831H / PT-E831HS

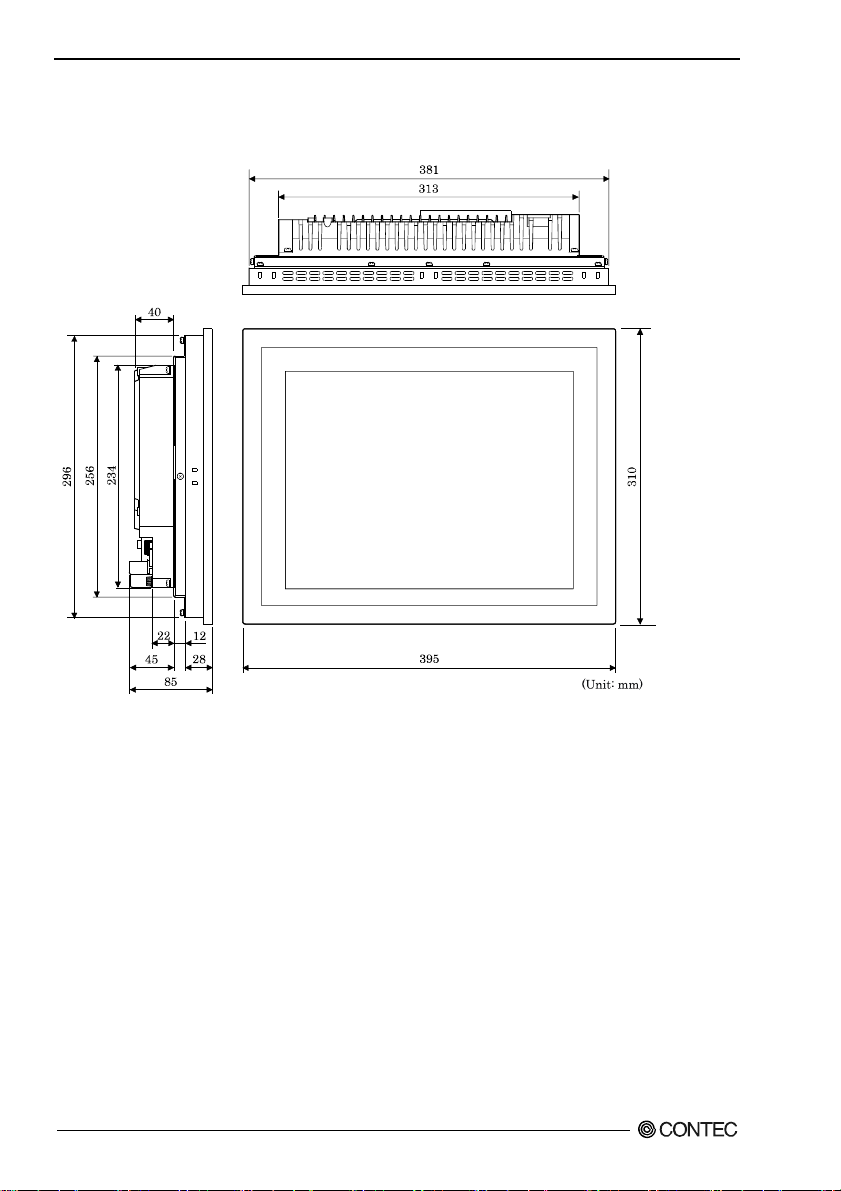

Figure 2.2 Physical Dimensions
PT-E831H, PT-E831HS User’s manual
10
Page 18

3. Hardware Setup

3. Hardware Setup
Before Using the Product for the First Tim
Follow the next steps to set up this product :
STEP1 By referring to the information in this chapter, install, connect and set this product.
STEP2 Connect cables.
Connect the cable of necessary external devices, such as keyboard and a display, to this product using appropriate cables.
STEP3 Turn on the power.
After verifying that you have correctly followed steps 1 and 2, turn on the power. If you find any abnormality after turning on the power, turn it off and check to see if the setup has been performed properly.
STEP4 Set up BIOS.
By referring to Chapter 8, set up BIOS. This setup requires a keyboard and a display.
* Before using this product, be sure to execute “ LOAD SETUP DEFAULTS” to initialize
the BIOS settings to their default values. (See Chapter 8, “Main Menu.”)
e
11
Page 19
3. Hardware Setup

Hardware Setup

- Before you start, be sure that the power is turned off.
- Remove only those screws that are explained. Do not move any other screw.

How to Mount

PT-E831H/PT-E831HS
(1) The following panel cutting is needed to mount PT-E. The plate thickness of the mounting panel is
maximum 5.0 mm (0.20 inch). (The plate thickness of the mounting panel is minimum 1.6 mm.)

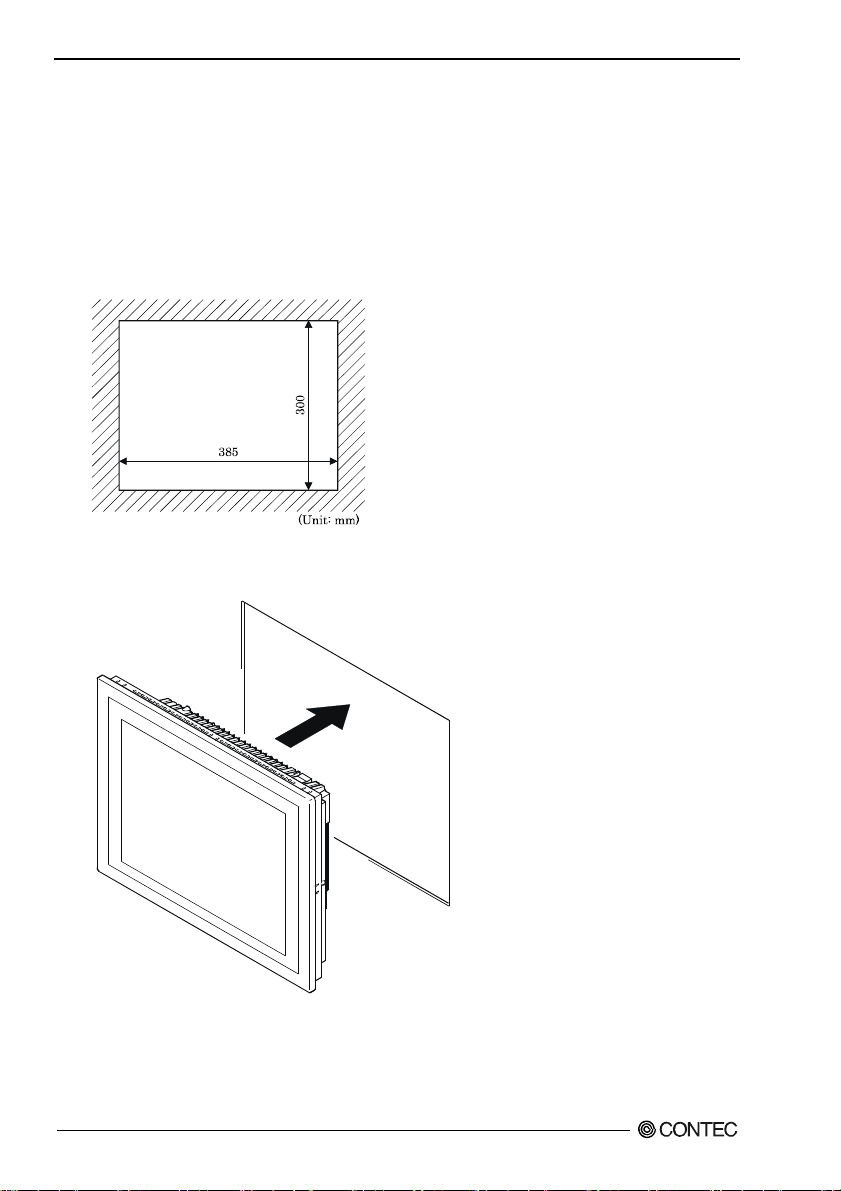

Figure 3.1 Dimensions of Panel Opening (PT-E831H / PT-E831HS)
(2) Put PT-E into the mounting hole.
Figure 3.2 How to Mount PT-E (PT-E831H / PT-E831HS)
PT-E831H, PT-E831HS User’s manual
12
Page 20
3. Hardware Setup
(3) Place the mounting fittings in the holes of PT-E, make the latches catch theholes. Mount four mount
fittings on the upside and downside holes of PT-E
Figure 3.3 setting the mounting fittings (PT-E831H / PT-E831HS)
(4) Tighten the screws of mounting fittings to fix PT-E.
(The tightening torque range is 6.3 to 8.4 kgf·cm.)
Figure 3.4 Fixing PT-E (PT-E831H / PT-E831HS)
13
Page 21
3. Hardware Setup

Installation Requirements

Be sure that the ambient temperature is within the range specified in the installation environment requirement by making space between the product and device that generates heat or exhaust air.

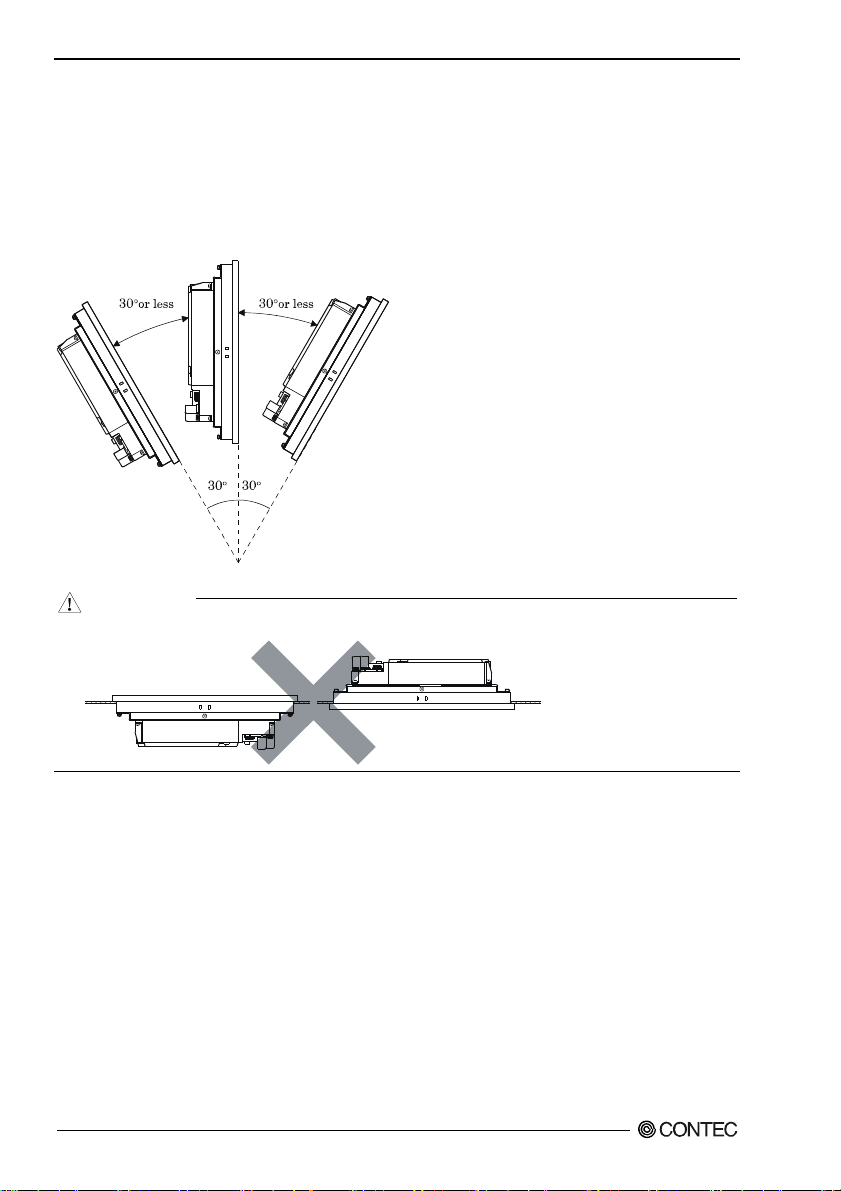

Installed angle which is recommended 30°
Basically mount main body of PT-E in vertical direction. PT-E must be mounted with a tilt of +/- 30° or less from vertical when mounting it diagonally.
Figure 3.5 Installed angle which is recommended
CAUTION
Do not mount the main body of PT-E upward or downward.
PT-E831H, PT-E831HS User’s manual
14
Page 22
Mounting Clearance of PT-E
3. Hardware Setup

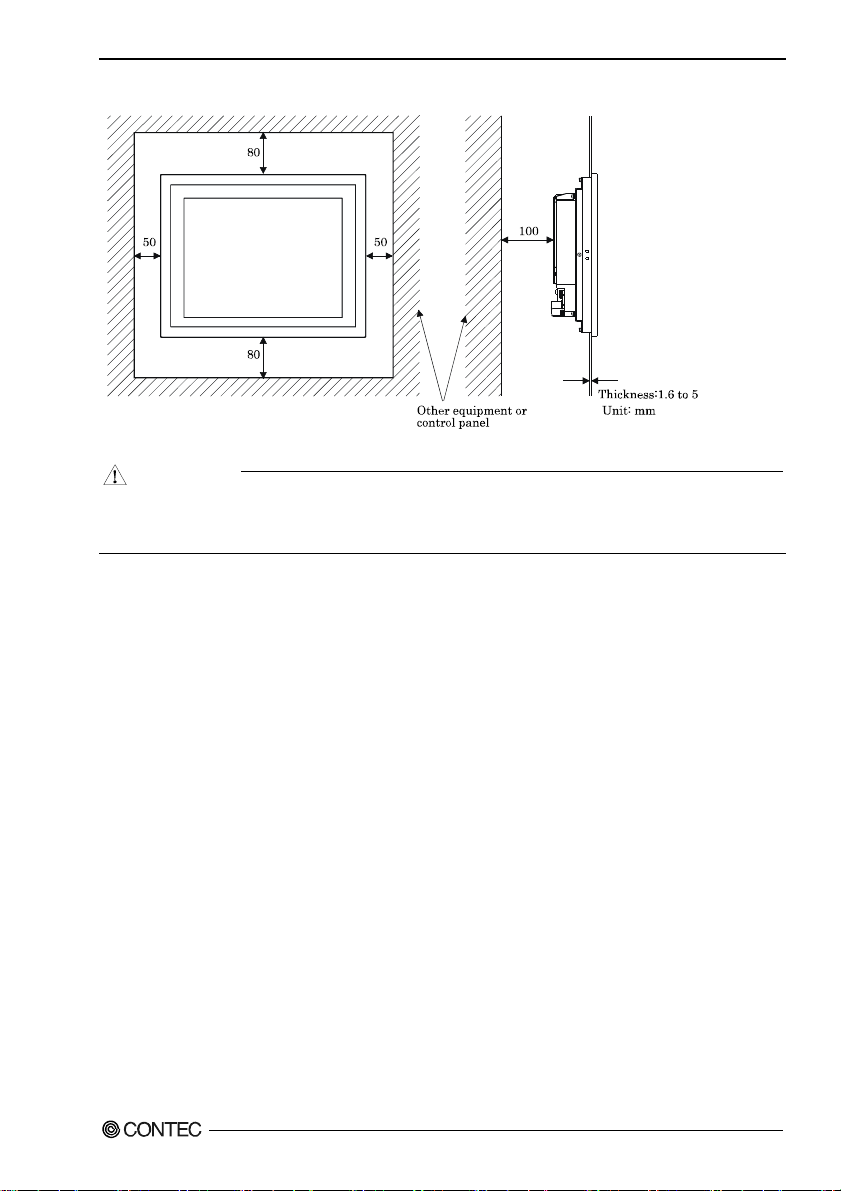

Figure 3.6 Distances between this product and its vicinity
CAUTION
Do not install this product into the fully-sealed space except the case in which the internal
temperature is adjustable by equipment such as air conditioner. Troubles such as operational malfunctions could be occurred by the temperature increase caused by long-term usage.
15
Page 23
3. Hardware Setup
PT-E831H, PT-E831HS User’s manual
16
Page 24
4. Each Component Function Parts Identification
PT-E831H/PT-E831HS

4. Each Component Function

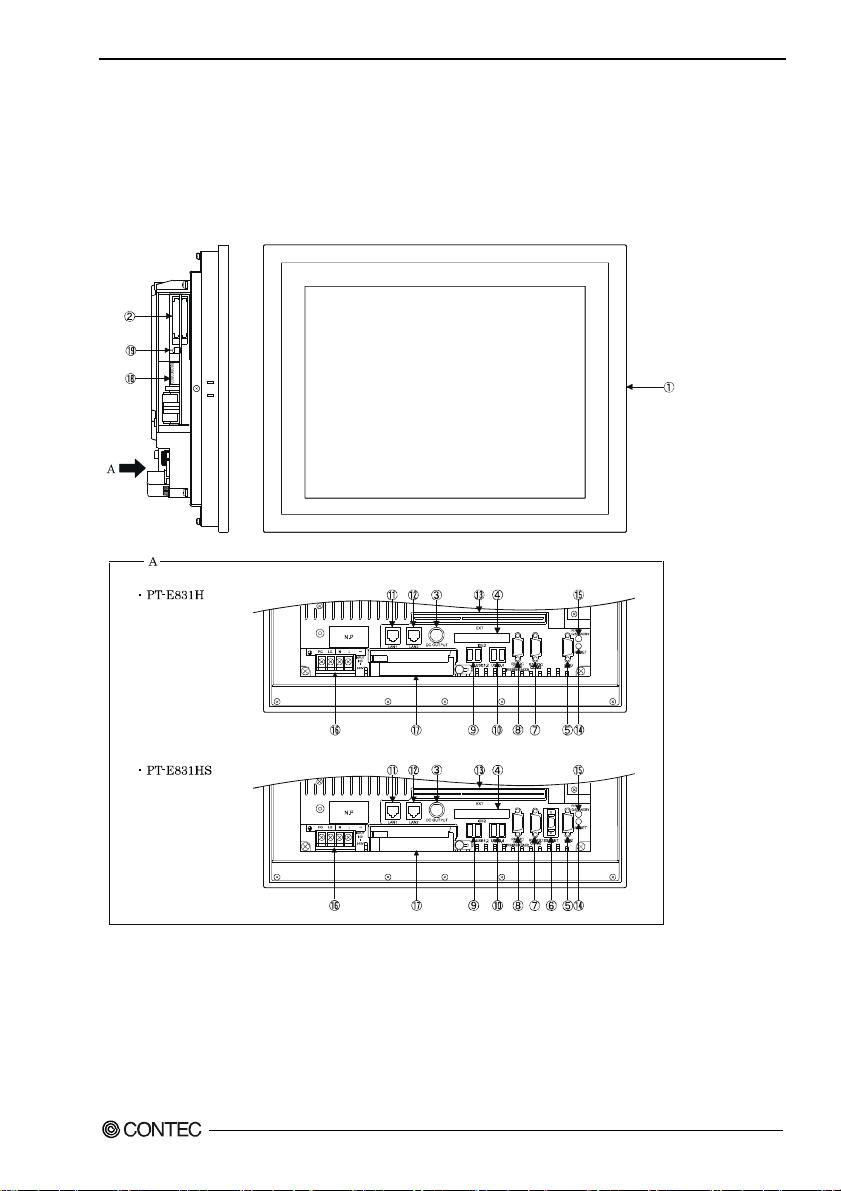

Figure 4.1 Parts Identification
17
Page 25
4. Each Component Function
Table 4.1 Parts Function
No. Name Description
(1) Display TFT color liquid crystal display with touch panel.
CF card slot
(2)
(Built-in disk drive) DC power supply
(3)
connector
(4) IDE connector
(5) WDT/EMG connector
SSCNET connector
(6)
(PT-E831HS only) RS-232C connector
(7)
(COM2) RS-232C connector
(8)
(COM3)
(9) USB connector 1, 2 (10) USB connector 3, 4 (11) LAN connector 1 (12) LAN connector 2 (13) PCI bus expansion slot Connect an add-on unit and use PCI-bus expansion board. (14) Reset button Restart PT-E.
(15) Operation status LED
Power supply input
(16)
terminal
(17) Battery pack (Optional)
(18) Setting switch
(19) ON/OFF switch Switch power on/off. Upside: ON; downside: OFF.
You can insert a CF card in the slot. (The built-in disk drive has primary master drive and primary slave drive.) Connect an IDE power supply cable for feeding the peripheral device (CD-ROM drive, HDD etc.) that is connected with IDE. Connect an IDE-compatible peripheral device (CD-ROM, HDD etc.). (It will be secondary master drive.) Watchdog timer can be set from 0.1sec to 25.5sec, and the signal can be output. Moreover, an emergency stop signal can be input.
Connect a SSCNET-compatible device (motion controller, etc.).
Connect a RS-232C-compatible device. (COM3 can be switched among RS232C, RS422 and RS485.)
Connect USB-compatible devices such as keyboard, mouse, printer, etc.
Connect with network.
Display PT-E’S operation status.
- Red blinking: During starting up, shutting down; or EPC System Monitor is not started.
- Red: EPC System Monitor starting up
- Green blinking: Standby.
Connect power supply cable.
Lithium ion battery pack EP73BAT. Do not need the battery pack if not use resume function. Switch COM3’s communication mode among RS232C, RS422 and RS485. (Switch No.1 to No.7)
PT-E831H, PT-E831HS User’s manual
18
Page 26

System Configuration

PT-E831H/PT-E831HS
4. Each Component Function

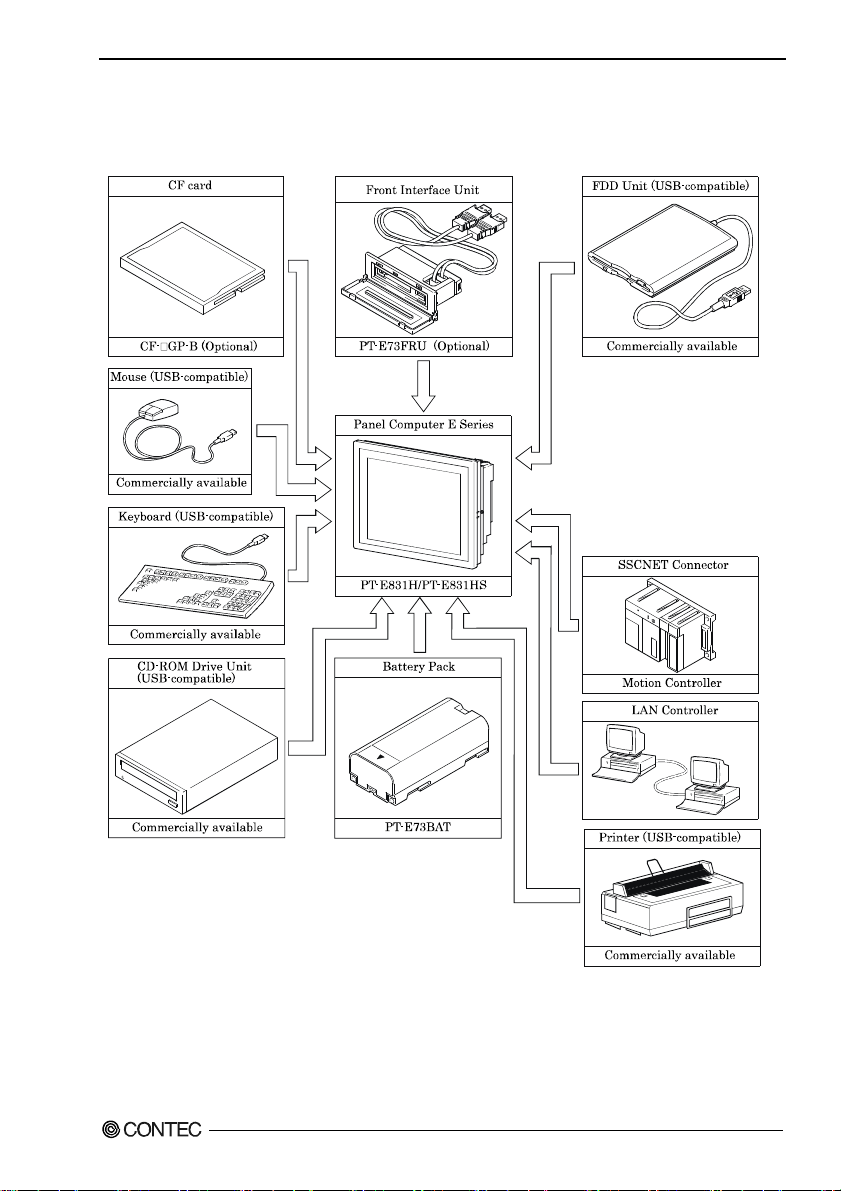

Figure 4.2 System Configuration
19
Page 27
4. Each Component Function

Component Function

Operation State LED

Operation state LEDs are loaded on PT-E.
PT-E’s operation state LEDs light on/off as the operation state changing. Therefore, PT-E’s operation state can be confirmed by the operation state LEDs.

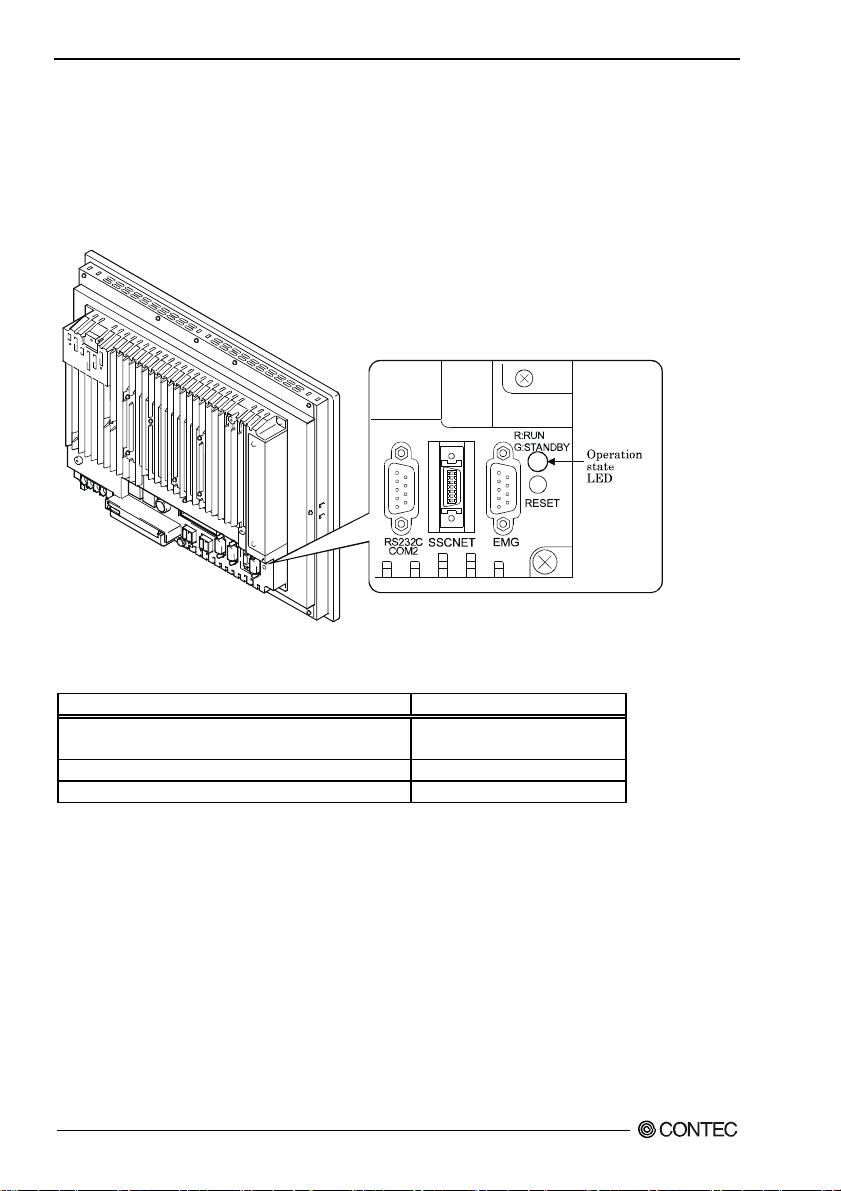

Figure 4.3 Operation State LED
Table 4.2 LED display color
Operation state of PT-E LED display color
During starting or shutdown, or EPC System Monitor is not started, or EPC System Monitor process error occurring.
During EPC System Monitor running Red lihgting
During resume function working Green blinking
PT-E831H, PT-E831HS User’s manual
20
Red blinking
Page 28
4. Each Component Function

AC Power Input Connector : AC-IN

Power Supply Wiring
Secure the cable terminals with screws in the FG, N and L positions of the power supply terminals at the back of PT-E. Connect LG and FG terminals and directly earth them using an earth cable of φ2mm2 or more.
PT-E831H / PT-E831HS can use power supply voltage of "100VAC to 240VAC".
Do not connect PT-E with an improper power supply voltage. Doing so can cause a breakdown.

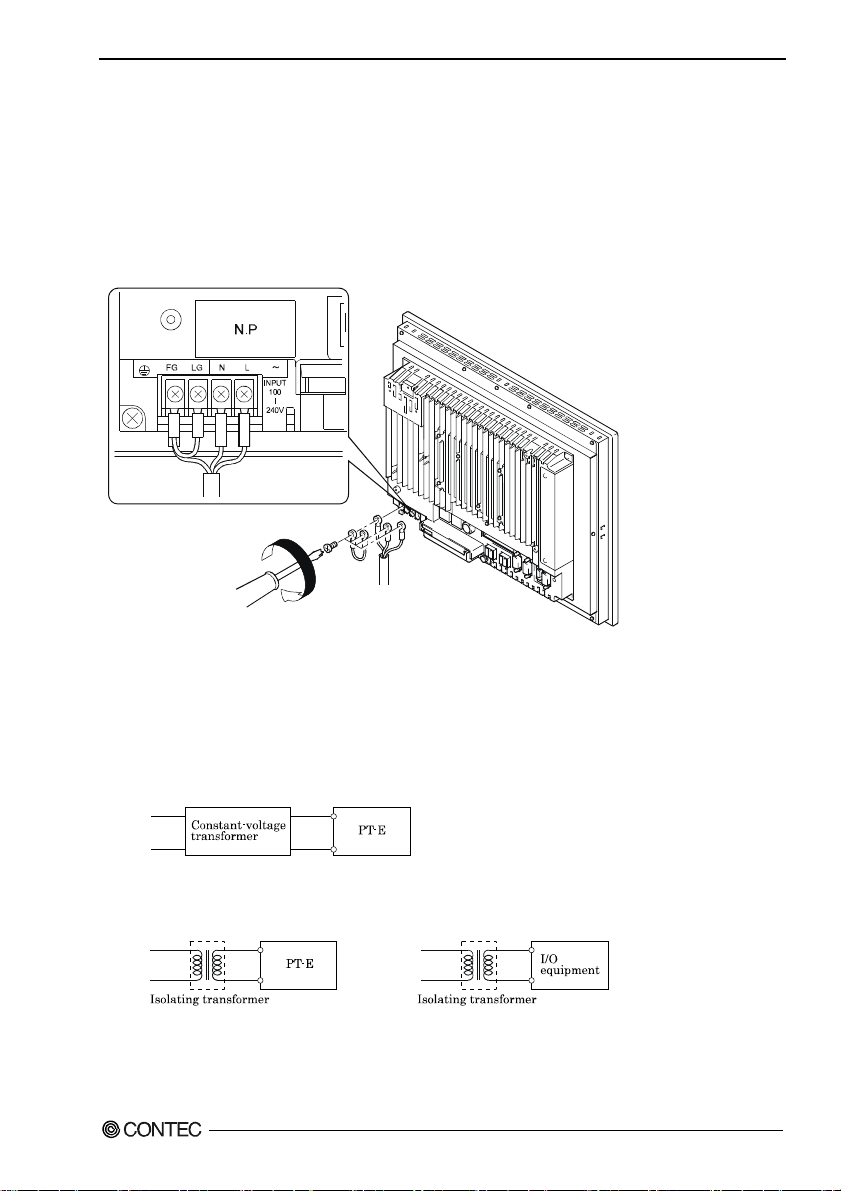

Figure 4.4 AC Power Connector
Wiring Precautions
This section gives the wiring guidelines for using PT-E.
The following are the instructions for wiring the power cable.
(1) Power supply wiring

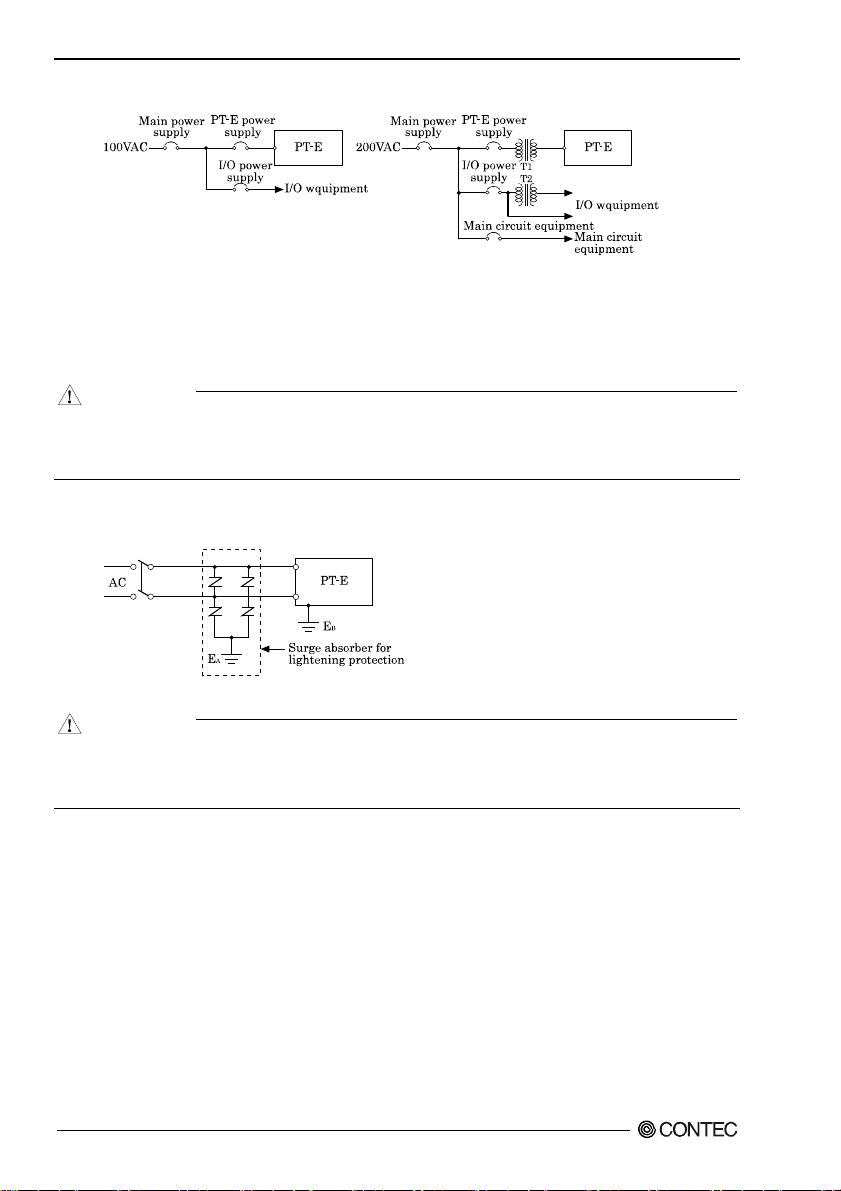

(a) Connect a constant-voltage transformer if voltage fluctuations are outside the specified range.
Figure 4.5 Constant-voltage transformer
(b) Across the terminals and across ground, use power supplies that generate little noise.
Connect an isolating transformer if noise generated is excessive.
Figure 4.6 Isolating transformer
21
Page 29
4. Each Component Function
(c) The PT-E, I/O equipment and power equipment should be wired separately as shown below.
Figure 4.7 I/O equipment and Power equipment
(d) When increasing power cable length, twist cable as tightly as possible and connect it within the
shortest distance.
(e) When increasing power cable length, use cable as thick (2mm2) as possible to decrease voltage
drop.
CAUTION
Do not bundle or run the power cable with the main circuit (high voltage, large current) cables and
I/O signal cables. Where possible, run it at least 100 mm (3.94 inches) away from them.
Normally use wire of 0.75 to 2 mm2 for power supply cable.
(f) As a measure against any potential surges due to lightening, connect a surge absorber as shown
below.
Figure 4.8 Ground lightening surge absorber
CAUTION
Ground lightening surge absorber (EA) and PT-E’s power cable earth wire (EB) separately.
Select the lightening surge absorber that not exceeds the maximum permissible circuit voltage of the
sure absorber at the maximum power supply voltage.
PT-E831H, PT-E831HS User’s manual
22
Page 30
4. Each Component Function
(2) Grounding
(a) Where possible, ground the PT-E independently.
The grounding work is class D grounding (grounding resistance 100Ω or less)
(b) When independent grounding is impossible, use the joint grounding method marked (2) below.

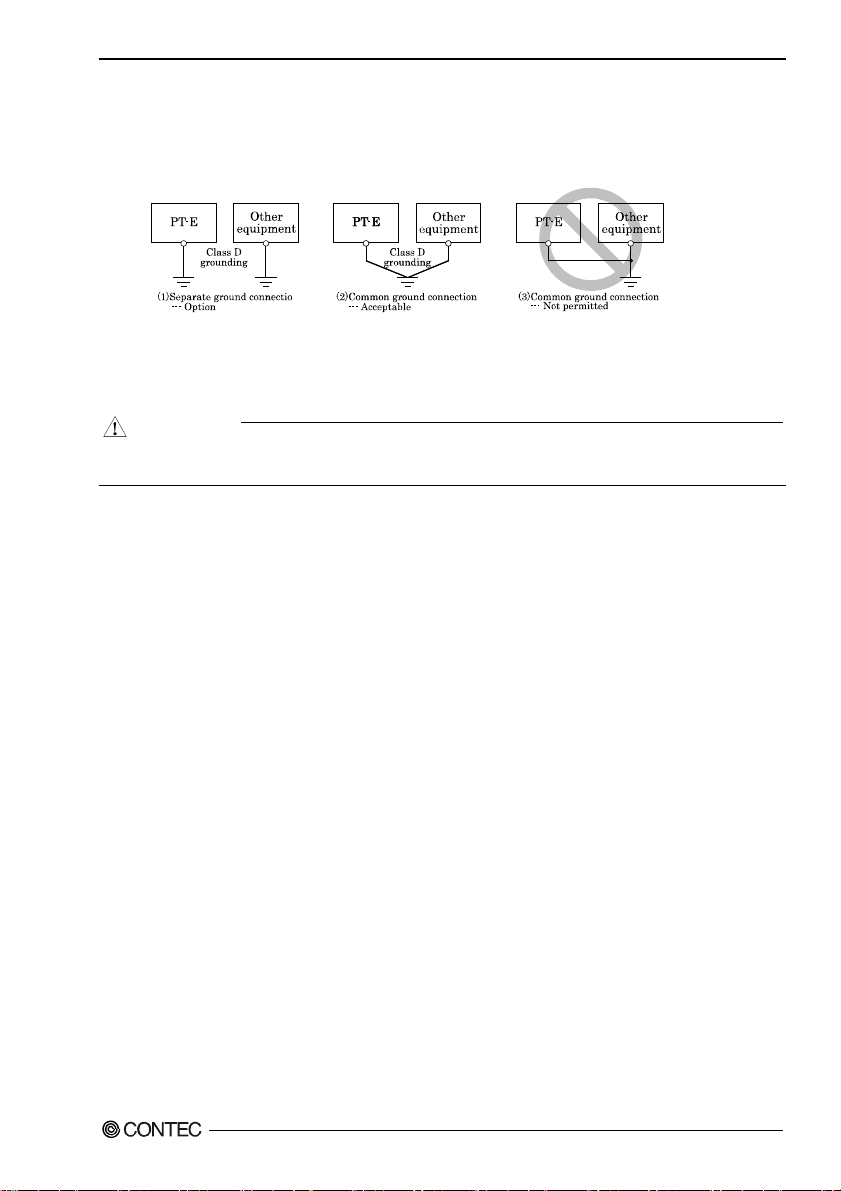

Figure 4.9 Grounding method
(c) The size of grounding wires must be 2 mm
Use wire in which green and yellow color is combined for grounding wire. The grounding point should be as near as possible to PT-E to minimize grounding cable length.
CAUTION
Do class D or higher grounding work to earth PT-E. In addition, do not share the grounding with other equipment.
(3) Remark
For PT-E831 series, if use resume function, operation shifts to either mode below when power failure
or voltage drop occurring.
1) [Continue mode]: Keep operating for 10 minutes.
2) [Standby mode]: Keep standby state for 30 minutes. Standby state is released when power
*Require the battery pack PT-E73BAT(Optional) if use resume function.
restoring; and operation is restarted immediately from the state right before power failure.
2
or more.

ON/OFF Switch: POWER SW

POWER SW is provided.
23
Page 31
4. Each Component Function

CF Card Slot

The CF card (Type I, II) can be connected. The built-in disk drive has primary master drive and primary slave drive.
CAUTION
Do not use the CF card after removing it from PT-E.
Doing so might cause trouble such as corrupt the files in the CF card due to improper using method.

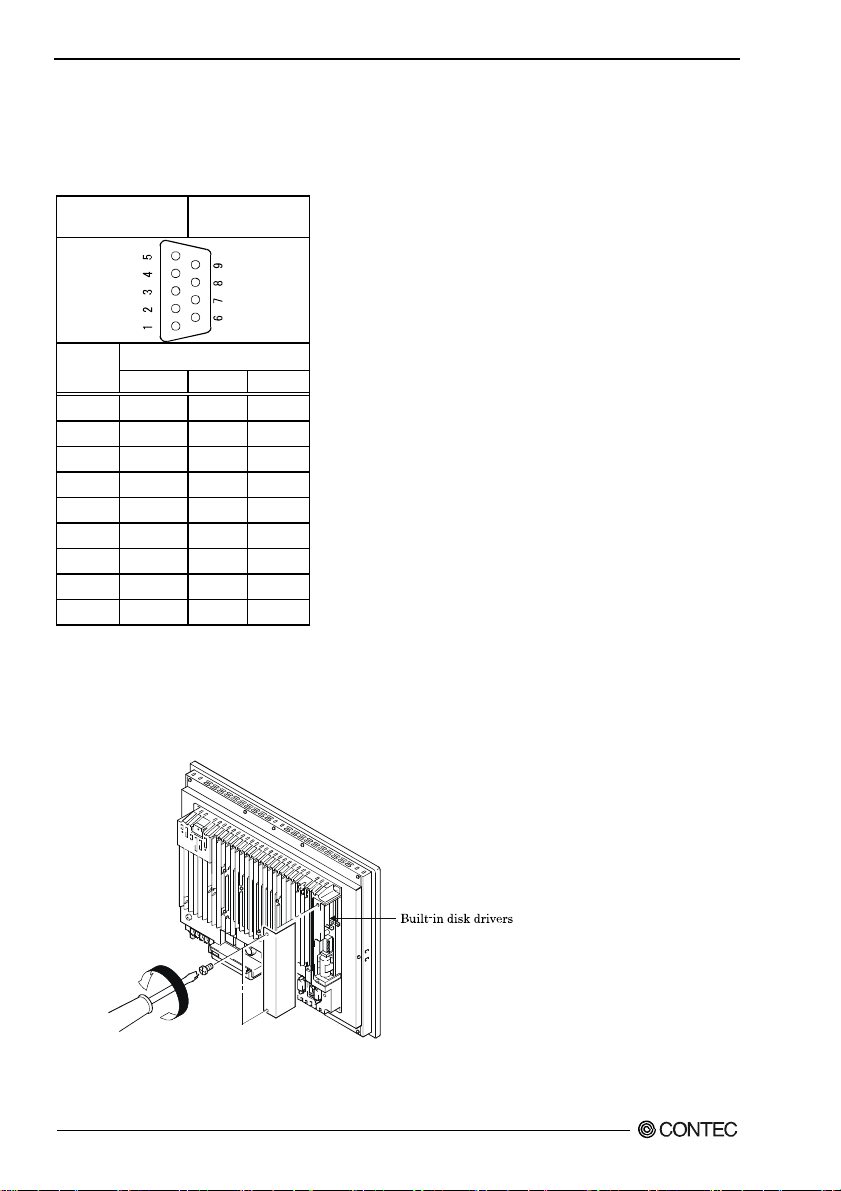

Mountting a CF card

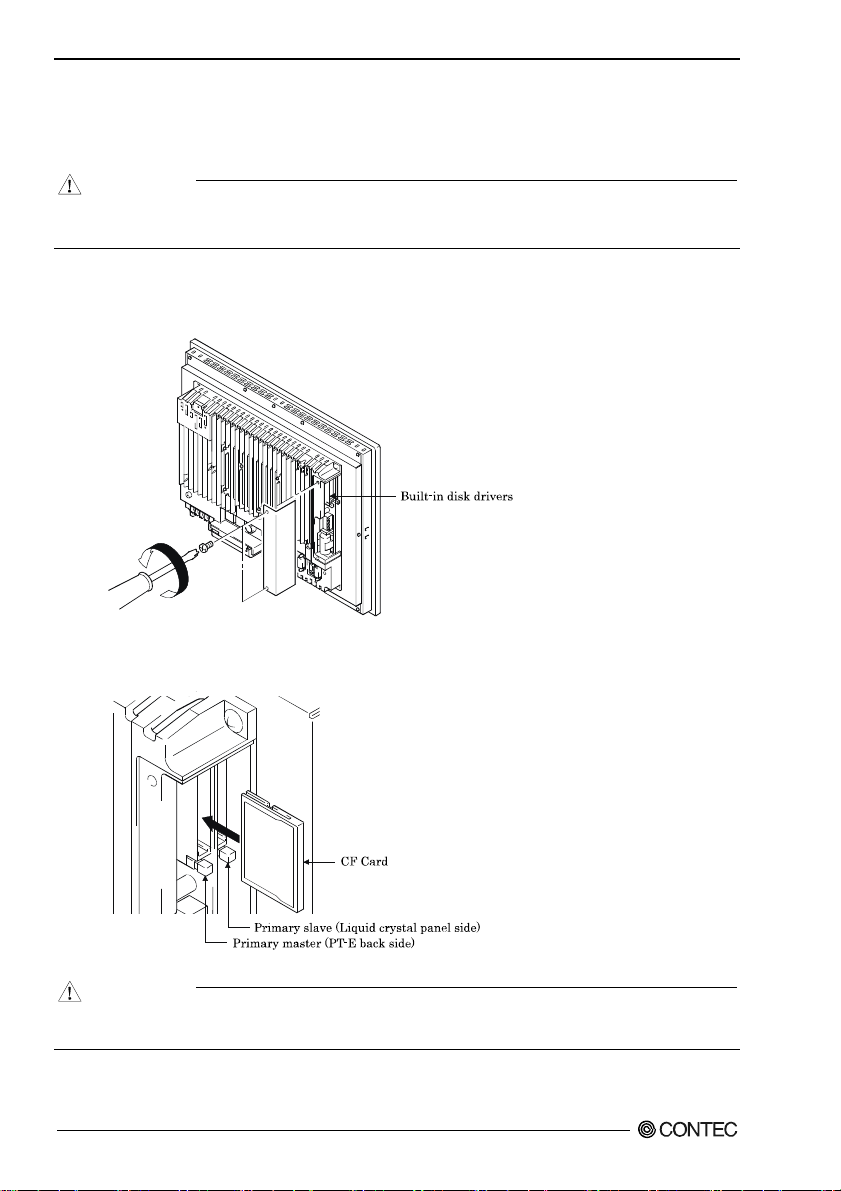

(1) Remove the two screws on the back of PT-E, and remove the cover.
Figure 4.10 Remove the cover
(2) Confirm the up/down sides and orientation of the CF card, and insert the CF card far enough into the
built-in disk drive. Up to two pieces of disks can be mounted.
Figure 4.11 Mounting a CF card
CAUTION
The drive near the backside of PT-E is the primary master drive; the drive near the LCD panel side is
the primary slave drive.
PT-E831H, PT-E831HS User’s manual
24
Page 32
4. Each Component Function
Removing a CF card

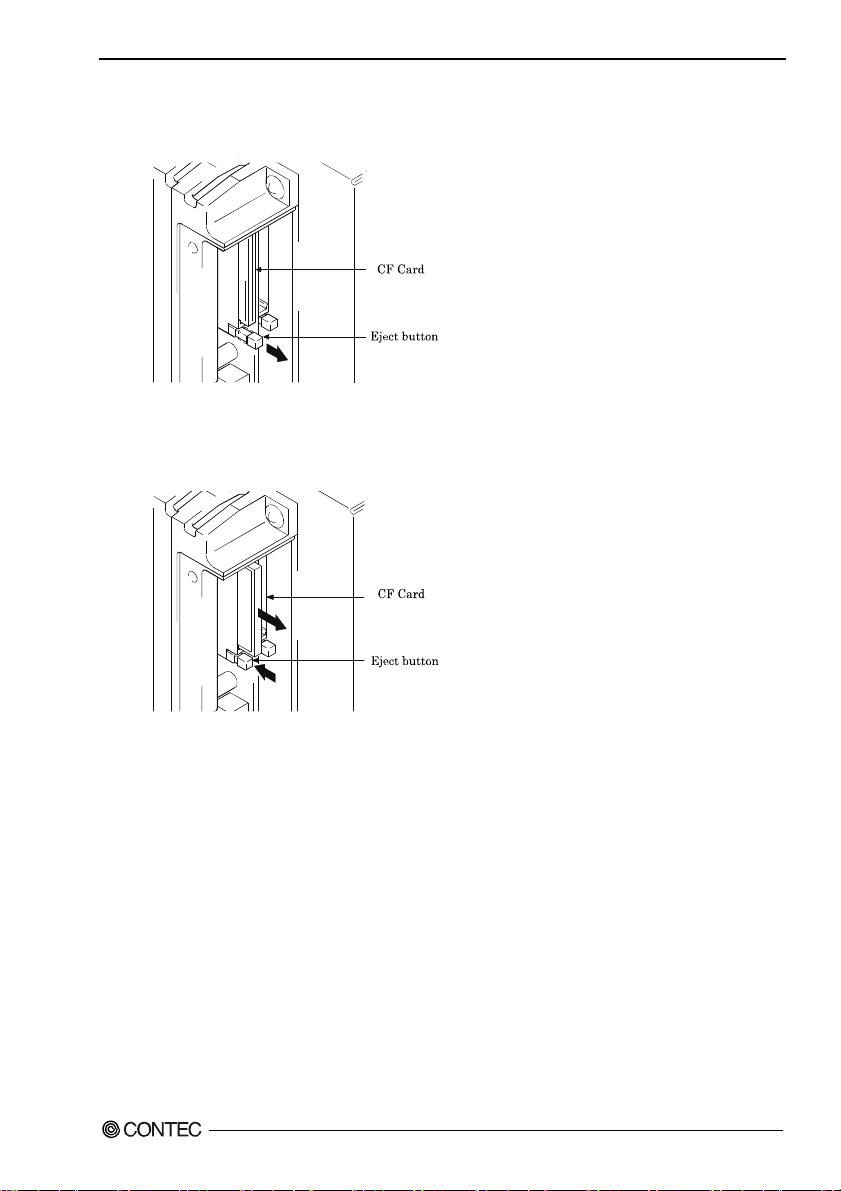

(1) Press the eject button of the drive from where the CF card will be removed. The eject button pops
out.
Figure 4.12 Eject button
(2) Push in the eject button. Push in the eject button and push out the CF card halfway.
Pull and remove the CF card gently with your hand.
Figure 4.13 Removing a CF card
25
Page 33
4. Each Component Function

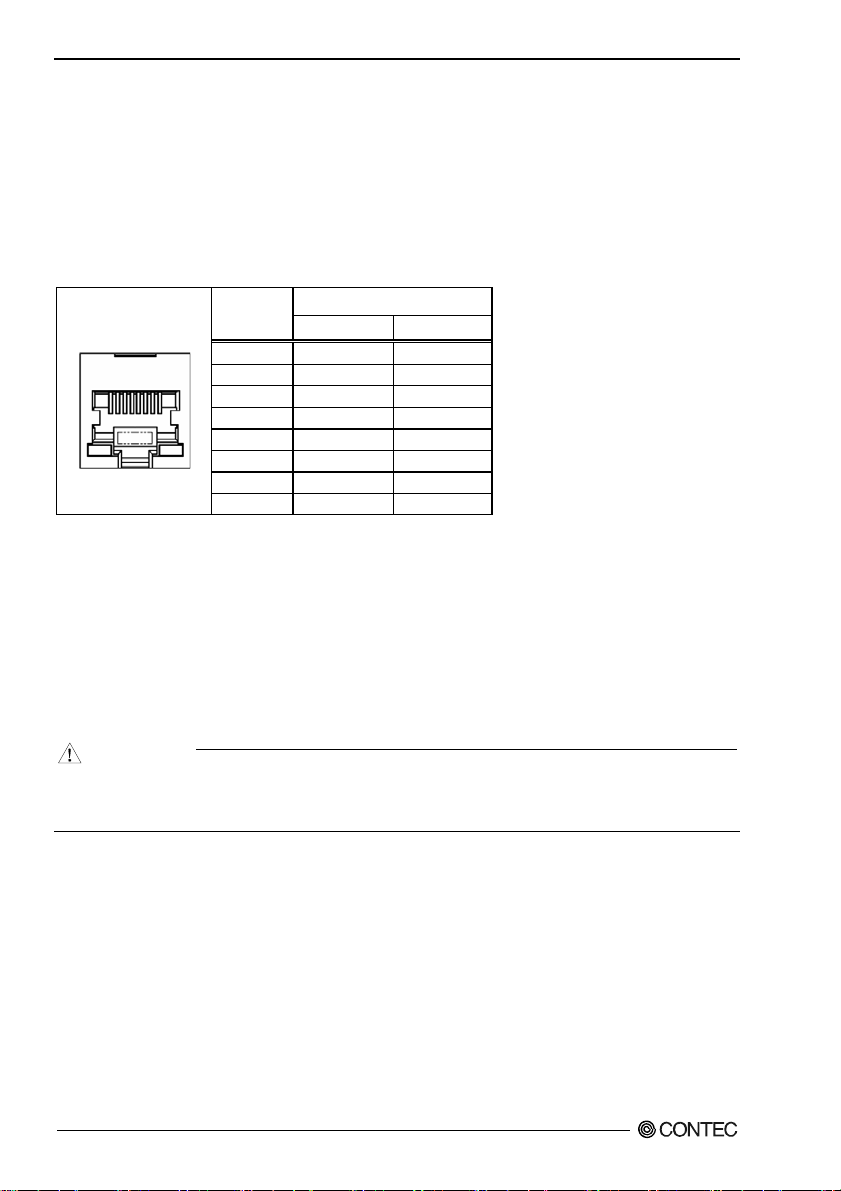

Giga bit-Ethernet : LAN 1 – 2

This product is equipped with 2 ports for giga bit.
- Network type : 1000BASE-T/100BASE-TX/10BASE-T
- Transmission speed * : 1000M/100M/10M bps
- Max. network path length : 100 m/segment
- Controller : Marvell 88E8053
Table 4.3 Giga bit-Ethernet Connector
Pin No.
LAN
100BASE-TX 1000BASE-T
1 TX+ TRD+(0)
2 TX- TRD-(0)
3 RX+ TRD+(1)
4 N.C. TRD+(2)
5 N.C. TRD-(2)
6 RX- TRD-(1)
7 N.C. TRD+(3)
8 N.C. TRD-(3)
LED LEDs for display of network statuses
Left LED : Link LED Green ON, Operation: Green Blinking Right LED : Operation LED 10M: Off, 100M: Green, 1000M: Red
LAN drivers
Install the appropriate LAN driver for your OS from the CONTEC’s Web site [IPC-SLIB-01]. (For information on the latest version of IPC-SLIB-01, check the CONTEC's web site.)
CAUTION
When using both 2 ch Ethernets in 1000 BASE -T, please use PT-E under the environment where the
operating ambient temperature is "Front display section is 0°C to 40°C, other than display section is 0°C to 45°C".
Function
PT-E831H, PT-E831HS User’s manual
26
Page 34

USB Port: USB

This product is equipped with 4 ports for USB 2.0 interface.

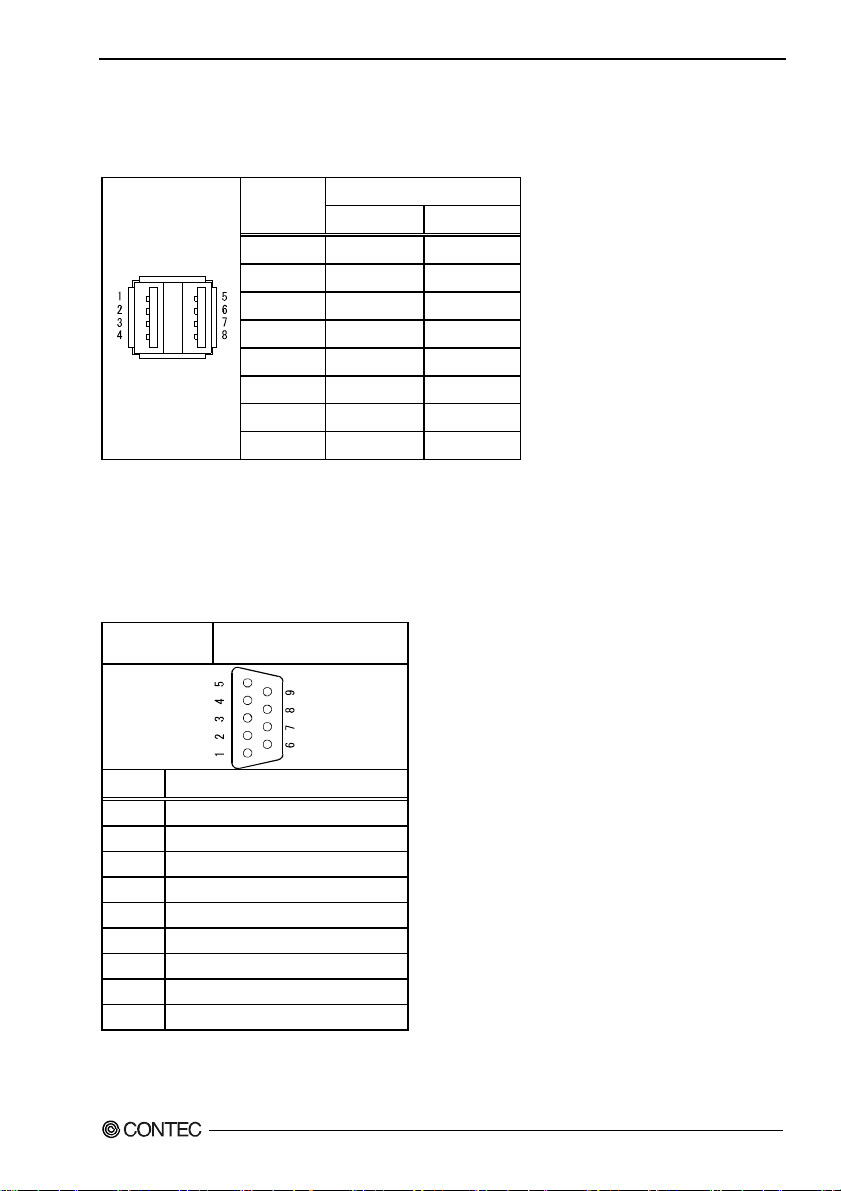

Table 4.4 USB Connector
Pin No.
1 USB1_VCC USB3_VCC
2 USB1- USB3-
3 USB1+ USB3+
4 USB1_GND USB3_GND
5 USB2_VCC USB4_VCC
6 USB2- USB4-
7 USB2+ USB4+
8 USB2_GND USB4_GND
Function
USB 1, 2 USB 3, 4

Serial Port Interface: COM2 – 3

Serial Port COM2 (RS232C)
This product has a serial port that corresponds to RS232C,
Table 4.5 Serial Port Connector (COM2)
Connector used
on the product
D-sub9 pin, male
4. Each Component Function
Pin No. Function
1 DCD
2 RXD
3 TXD
4 DTR
5 GND
6 DSR
7 RTS
8 CTS
9 RI
27
Page 35
4. Each Component Function
Serial Port COM3(RS232C/RS422/RS485)
This product has a serial port that corresponds to the communication modes RS232C, RS422 and RS485
You may set communication mode of serial port COM3 by setting switches in PT-E.
Table 4.6 Serial Port Connector (COM3)
Connector used
on the product
Pin No.
RS-232C RS-422 RS-485
1 DCD TX+ DATA+
2 RXD TX- DATA-
3 TXD RX+ -
4 DTR RX- -
5 GND GND GND
6 DSR - -
7 RTS - -
8 CTS - -
9 RI - -
D-sub9 pin, male
Function
Switching Serial Port COM3 among RS232C, RS422 and RS485
The serial port COM2 corresponds to RS232C; COM3 corresponds to the communication modes RS232C, RS422 and RS485. Using the serial communication mode setting switches (No.1 to No.7), you can set communication mode for serial port COM3. The setting method is as follows.
(1) Remove the two screws on the back of PT-E, and remove the cover.
Figure 4.14 Remove the cover
PT-E831H, PT-E831HS User’s manual
28
Page 36
4. Each Component Function
(2) According to Table 4.7, set the communication mode to be used with the serial communication mode
setting switches (No.1 to No.7).

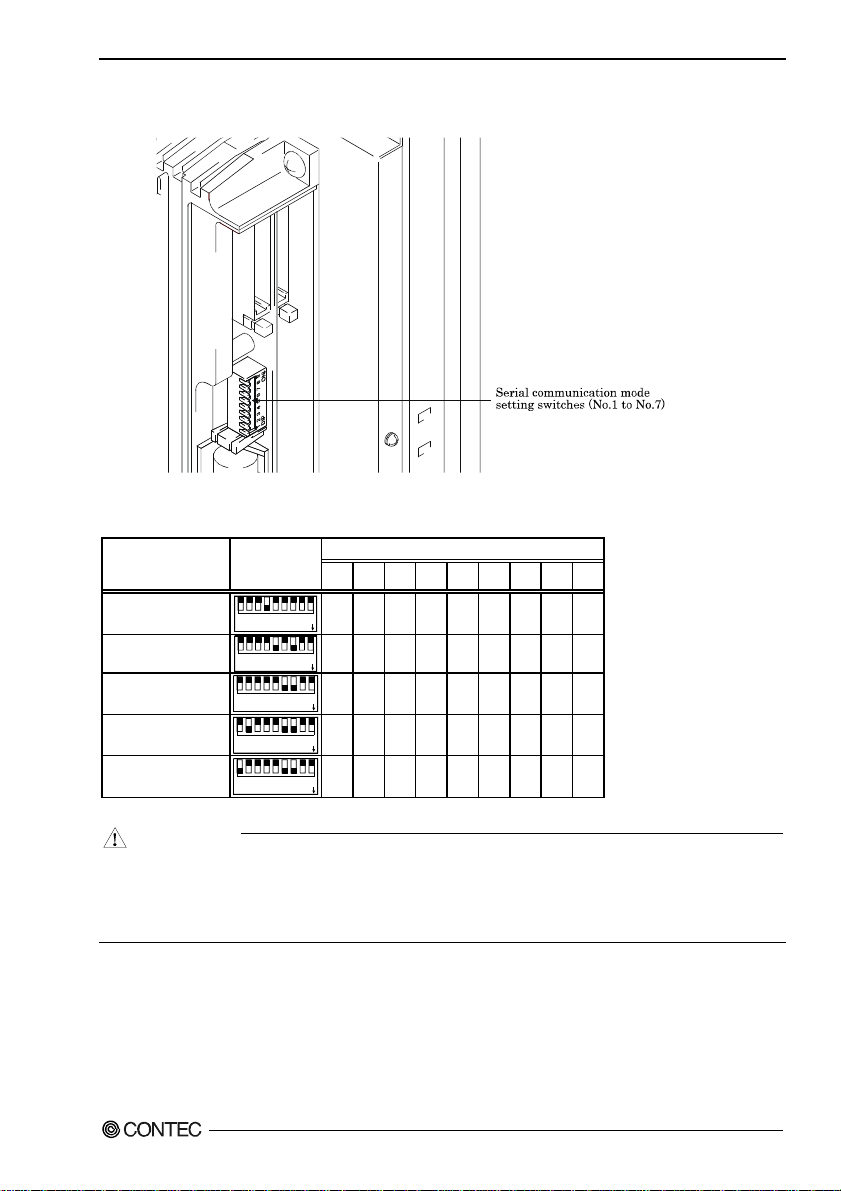

Figure 4.15 Serial communication mode setting switches
Table 4.7 Switch Setting of Communication Mode of Serial Port COM3
Communication Mode Switch Setting
RS232C (Default)
RS422
RS485 (Low baud rate)
RS485 (Middle baud rate)
RS485 (High baud rate)
1 DIP
1 DIP
1 DIP
1 DIP
1 DIP
ON
ON
ON
ON
ON
12345 6789
OFF OFF OFF ON OFF OFF OFF OFF OFF
92345678
OFF OFF OFF OFF ON OFF ON OFF OFF
92345678
OFF OFF OFF OFF OFF ON ON OFF OFF
92345678
OFF ON OFF OFF OFF ON ON OFF OFF
92345678
ON OFF OFF OFF OFF ON ON OFF OFF
92345678
Switch No.
CAUTION
(1) Switch No.3, 8 and 9 are set by maker. They are unavailable for user. PT-E might not work normally
if set them ON. Do not set them ON please.
(2) Switch setting other than the patterns in Table 4.7 may lead to communication failure. Do not set
switches to pattern other than Table 4.7.
29
Page 37
4. Each Component Function

WDT/EMG Connector

This product is equipped with a Connector for WDT/EMG.Watchdog Timer can be set from 0.1sec to
25.5 sec and the signal can be output)
Table 4.8 WDT/EMG Connector
Connector used on
the product
D-sub9 pin, female
Pin No. Function
1 WDT_NO Input: 30VDC; 2A or less
2 WDT_NC Input: 30VDC; 2A or less
3 - -
4 - -
5 EMER_COM2 Ground for emergency stop input
6 WDT_COM WDT_Common
7 - -
8 - -
9 EMER_COM1
Specifications
24VDC input power supply for
emergency stop input.
Emergency Stop Wiring Example
This section describes how to wire for Emergency stop.

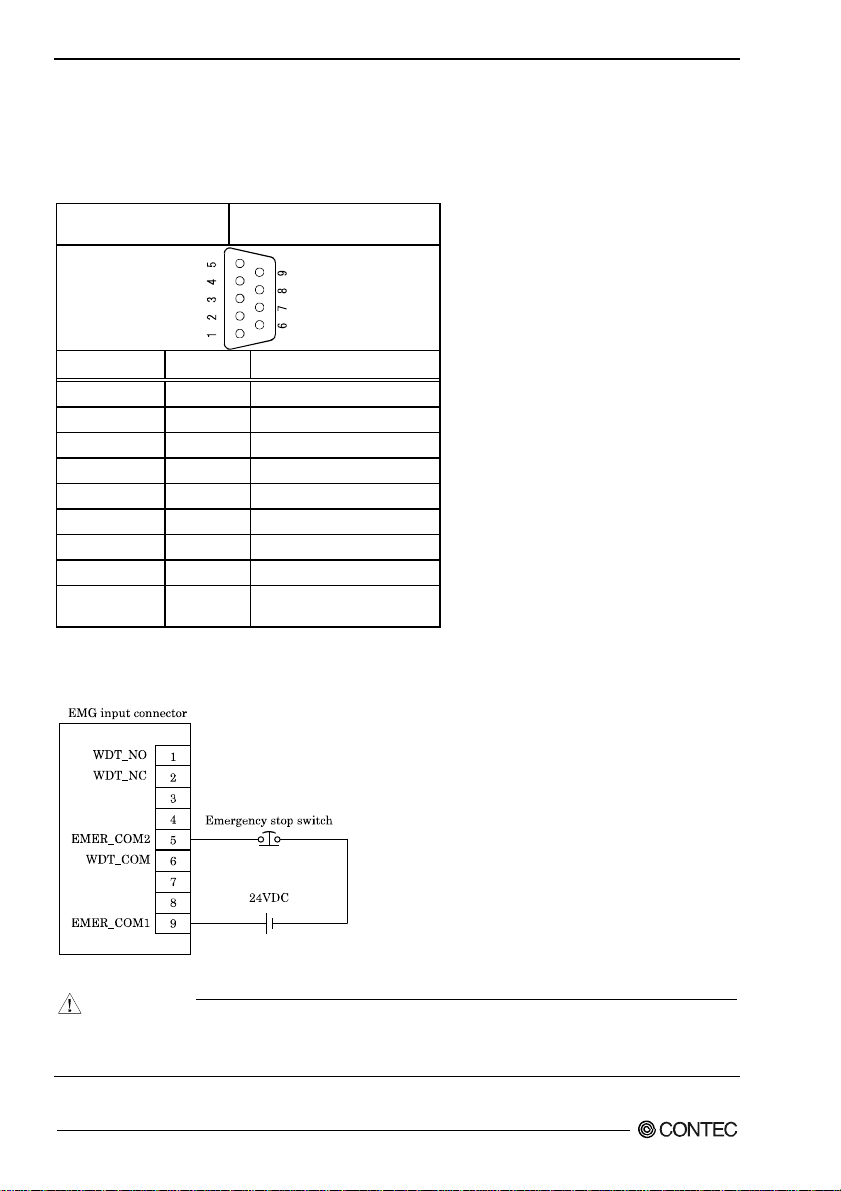

Figure 4.16 Emergency Stop Wiring Example
CAUTION
(1) Need wiring above when releasing the emergency stop for servo amplifier. (2) When wiring for emergency stop, always connect or disconnect to EMG connector after turning off
the power supplied to PT-E.
PT-E831H, PT-E831HS User’s manual
30
Page 38
4. Each Component Function

IDE Connector

This product is equipped with a Connector for external HDD unit. Use IDE connection cable and IDE power supply cable to fit the HDD unit.
CAUTION
- Only one HDD unit can be connected to PT-E.
- For the HDD unit that is connected with IDE connection cable, set the setting pin [MASTER/SLAVE] as follows.
- IDE connector 1………. MASTER
- IDE connection cable must be 80-pin cable. HDD unit might not work normally if use 40-pin cable.

DC Power Supply Connector

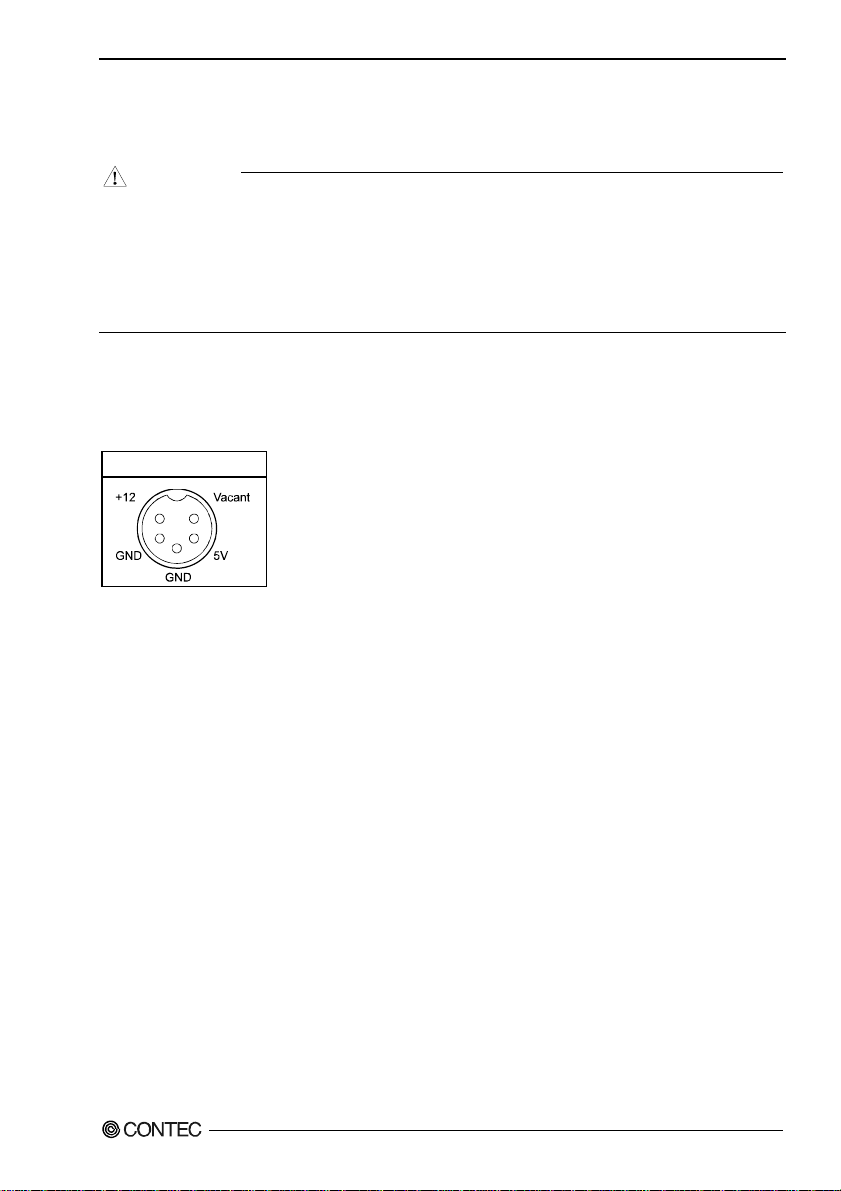

This product is equipped with a Connector for IDE power supply cable (PT-71IDE-PWCBL).
Table 4.9 DC Power Supply Connector
DC Power Supply Connector

PCI Bus Expansion Slot

This product is equipped with a Slot for Connecting an add-on unit and use PCI-bus expansion board.
31
Page 39
4. Each Component Function

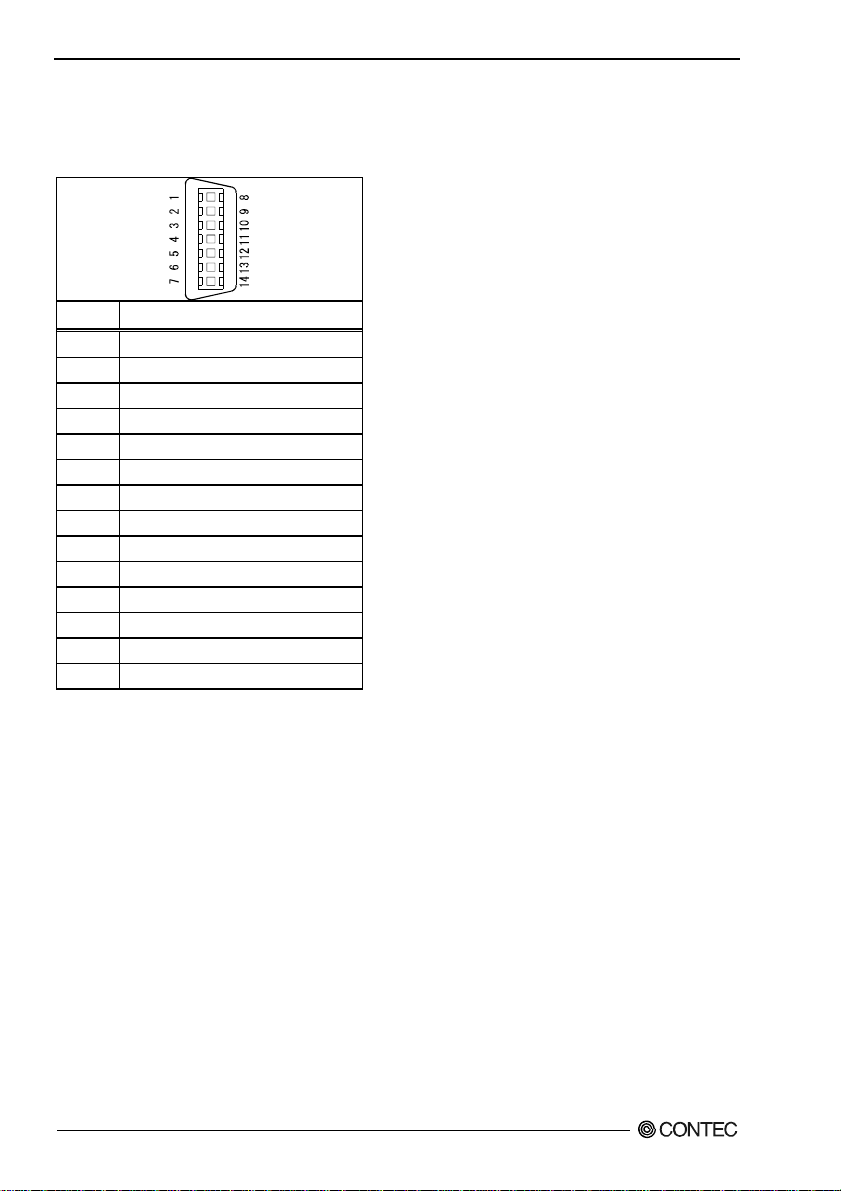

SSCNET Connector

PT-E831HS is equipped with 1 port for SSCNET.
Table 4.10 SSCNET Connector
Pin No. Function
1 GND
2 RD2
3 RD1
4 EMG1
5 TD2
6 TD1
7 GND
8 GND
9 RD2L
10 RD1L
11 EMG1L
12 TD2L
13 TD1L
14 VCC
PT-E831H, PT-E831HS User’s manual
32
Page 40

5. Startup and Termination

5. Startup and Termination
CAUTION
- If switch power off or execute reset operation right after writing data, always do it after exiting windows correctly. Not doing so may break the data that have been written into the CF card, sometimes it may get PT-E not to start up normally.
- Use same series' CF cards in SLAVE and MASTER sides (Any capacity is acceptable). CF card supplied by our company is recommended.
- Do not copy OS data by Explorer. Doing so may get PT-E not to start up normally.

Before Setup

When PT-E is started for the first time, Windows Setup (OS or Drivers' installation, etc.) might be necessary.
Table 5.1 Windows Setup
Boot-up Disk Drive
Configuration
Boot PT-Ewith a CF card
that is built in PT-E.
Boot PT-E with an external HDD.
Windows XP Embedded is already preinstalled. (Option) Not required.
(1) If you ordered a CF card (option) in which Windows XP Embedded has been preinstalled, you may
use PT-E without setting up Windows.
If you order a CF card in which Windows XP Embedded is not installed, you need to setup Windows.
(2) In case of using an external HDD as the boot-up disk
As Windows OS is not installed in the external HDD; you need to setup Windows when powering on
PT-E for the first time.
CAUTION
- When customer installing Windows OS, note that not only OS but also PT-E dedicated drivers should be installed.
- For installing OS, commercially available CD-ROM for Windows setup and PT-E dedicated driver CD are necessary.
The customer needs to purchase CD-ROM for Windows setup.
- Contact our agent or sales office if you need PT-E dedicated driver CD.
Whether OS is Preinstalled or Not Windows Setup
OS is not installed. Windows setup is required.
OS is not installed. Windows setup is required.
33
Page 41
5. Startup and Termination

Write-protect

Executing write-protect can prevent from deleting the important data preserved in the CF card and overwriting them by mistake.
This section describes how to execute and release write-protect to a CF card.
CAUTION
Do not use the CF card after removing it from PT-E.
Write-protect is only available for the CF card that is installed in PT-E.
Method of Executing Write-protect

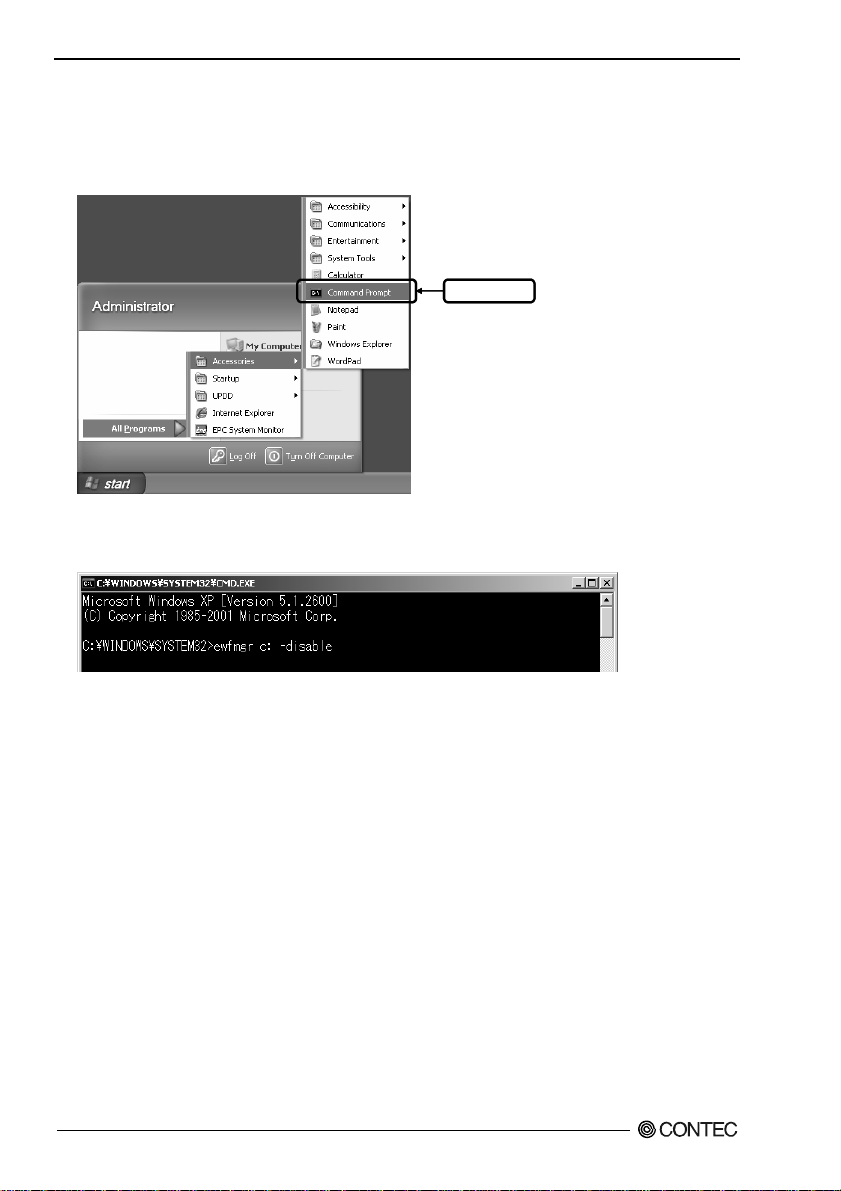

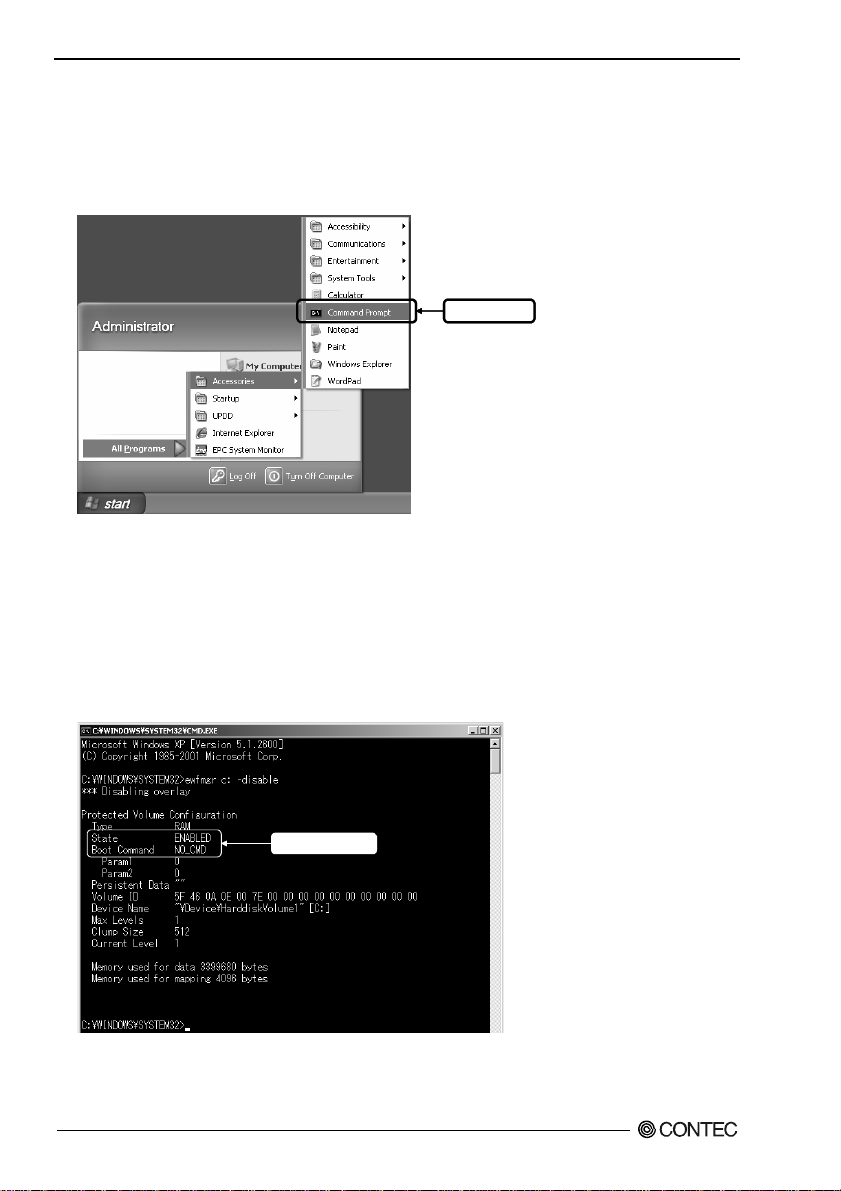

(1) Click [Start] on taskbar.
Move the cursor to [All programs (P)] → [Accessories] and click [Command Prompt].
Click hereClick here

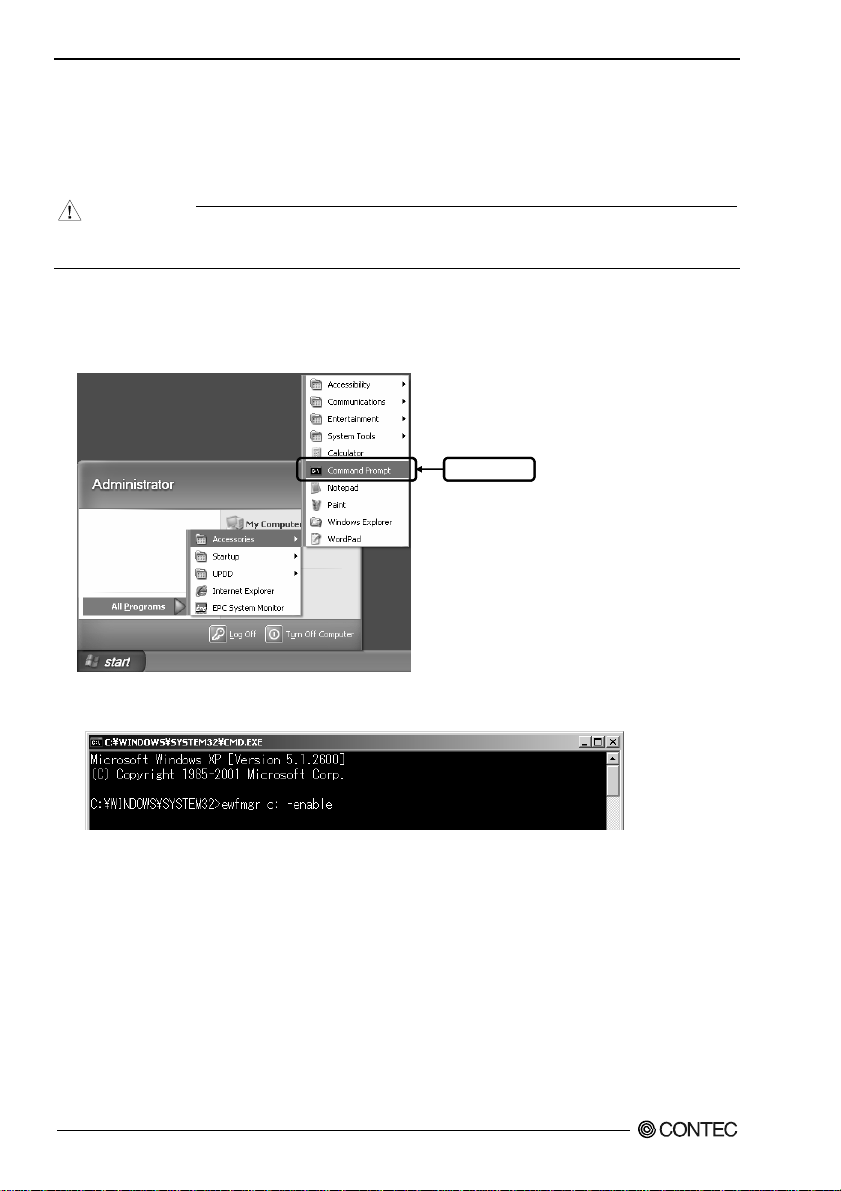

Figure 5.1 Command Prompt
(2) The command prompt is started. Input command "ewfmgr C: -enable" and then press [Enter] key.
Figure 5.2 Executing command
PT-E831H, PT-E831HS User’s manual
34
Page 42

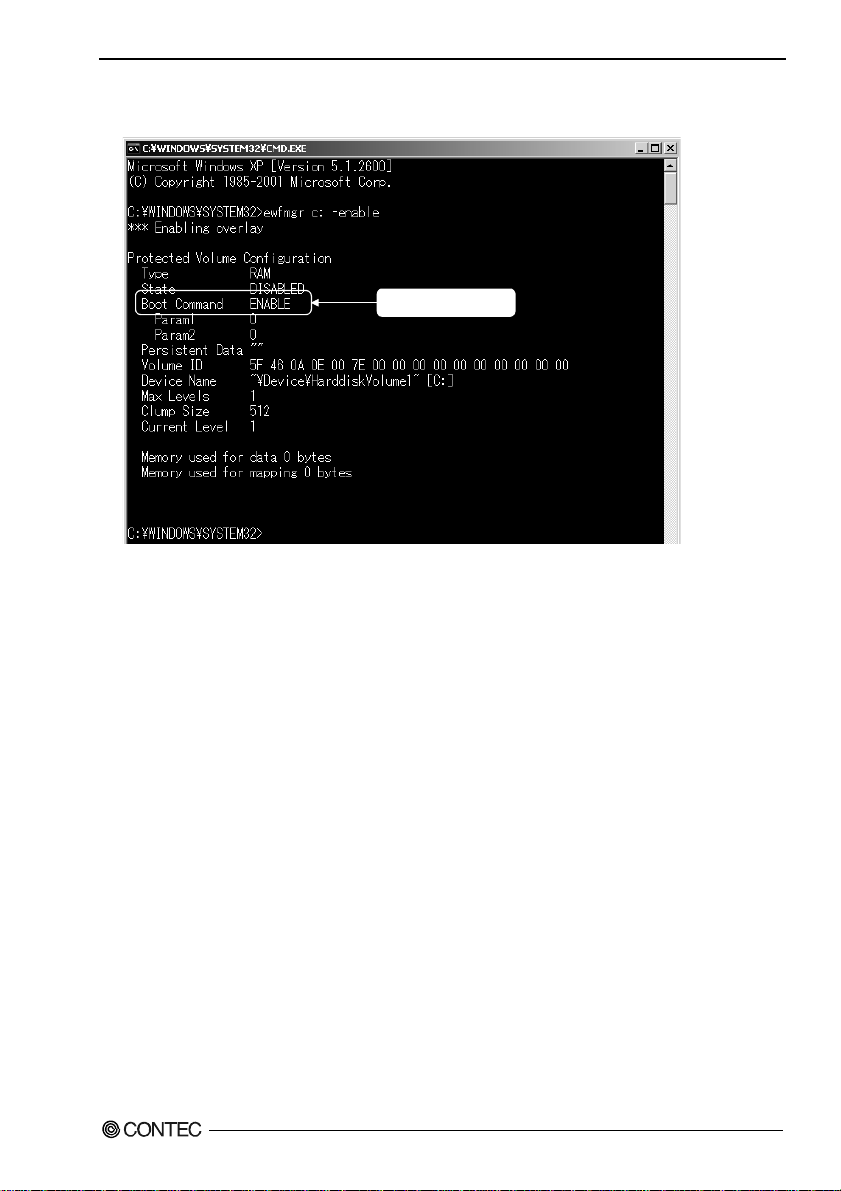

(3) Show as follows as soon as the processing of write-protect is completed.
Confirm that the item of "Boot Command" becomes "ENABLE".
Confirm this item.
5. Startup and Termination
Figure 5.3 The item of Boot Command
(4) Quit command prompt and then restart PT-E.
(5) Write-protect is executed after restarting PT-E.
As for the method of confirming the state of write-protect, refer to next page.
35
Page 43
5. Startup and Termination
Method of Releasing Write-protect
This section describes how to release write-protect.
(1) Click [Start] on taskbar.
Move the cursor to [All programs (P)] → [Accessories] and click [Command Prompt].
Click hereClick here
Figure 5.4 Command Prompt
(2) The command prompt is started.
Input command "ewfmgr C: -disable" and then press [Enter] key.
Figure 5.5 Releasing Command
PT-E831H, PT-E831HS User’s manual
36
Page 44

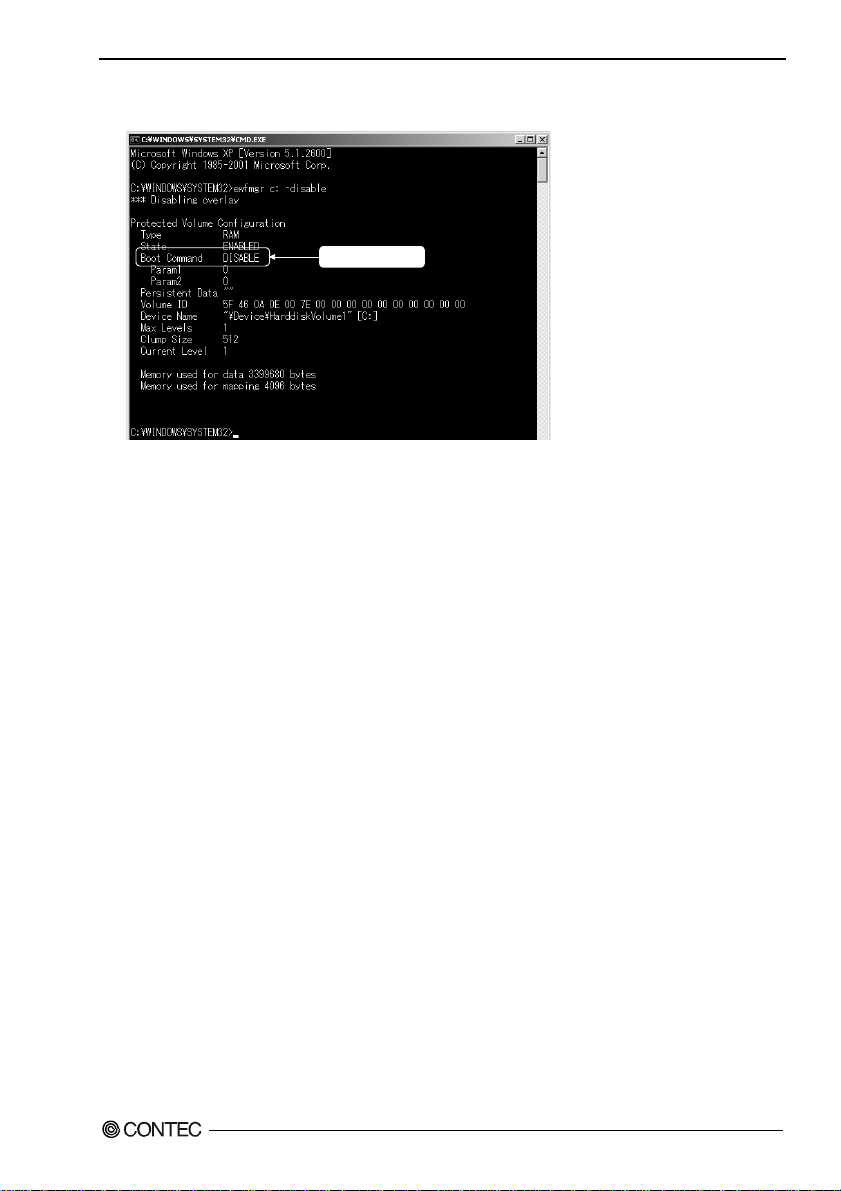

(3) Show as follows as soon as the releasing of write-protect is completed.
Confirm that the item of "Boot Command" becomes "DISABLE".
Confirm this item.
Figure 5.6 The item of Boot Command
(4) Quit command prompt and then restart PT-E.
(5) Write-protect is released after restarting PT-E.
5. Startup and Termination
37
Page 45
5. Startup and Termination
Method of Confirming the State of Write-protect
This section describes how to confirm present state of CF card and how to confirm whether write-protect already been executed or not.
(1) Click [Start] on taskbar.
Move the cursor to [All programs (P)] → [Accessories] and click [Command Prompt].
Click hereClick here
Figure 5.7 Command Prompt
(2) Command prompt is started.
Input command "ewfmgr C: ". Show as follows after pressing [Enter] key.
Confirm the item of "State".
- State DISABLED : The state that write-protect is released.
ENABLED : The state that write-protect is executed.
*: When confirming the state of the CF card, the item of "Boot Command" shows as "NO_CMD",
executing/releasing write-protect cannot be switched.
Confirm this item.
Figure 5.8 The item of State and the item of Boot Command
(3) Quit command prompt. (Not require to restart PT-E).
PT-E831H, PT-E831HS User’s manual
38
Page 46
5. Startup and Termination

Power OFF

This section explains how to power off PT-E.
To switch power off, always quit Windows correctly following the next procedures and switch off the power supplied to PT-E.
1) Save data and exit all applications.

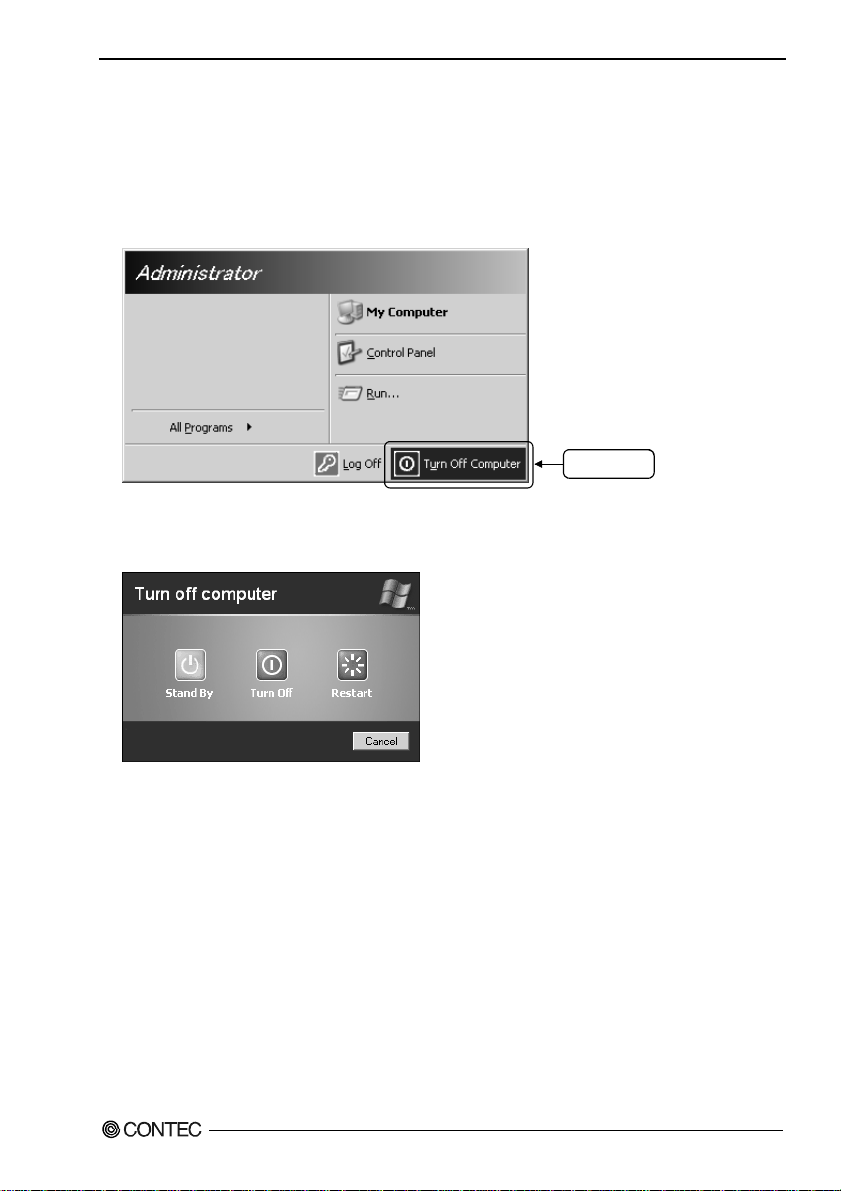

2) Choose [Turn Off Computer] from [Start] menu.
Click here.
Figure 5.9 Turn Off Computer button
3) The window of [Turn off computer] is displayed.
Choose Turn Off to switch off the power.
Figure 5.10 The window of Turn off computer
4) After quitting the system, switch the power supplied to PT-E main body.
39
Page 47
5. Startup and Termination
Point
(1) In case of using a CF card, executing write-protect to the CF card may reduce access number of times
to the CF card; and it also may reduce risk that corrupts data in the area where write-protect has been executed.
(2) In case of not using resume function, if turns on the power right after switching off, please wait more
than 10 seconds before switching it on again.
(3) In case of using resume function, PT-E’s operation state will be shifted to [Continue Mode] or
[Standby Mode] after switching off power of PT-E. Within the setting time that has been set in EPC System Monitor, PT-E operates in either [Continue Mode] or [Standby Mode].
PT-E’s operation state can be confirmed by operation state LED on the back of PT-E. (Refer to p.20)
Do not remove CF card during the operation state LED lighting on.
Doing so can lose data or damage the CF card.
(4) Do not operate the power ON/OFF switch near the CF card slot during operation state LED lighting
on or blinking. Doing so can lose data or damage the CF card.
PT-E831H, PT-E831HS User’s manual
40
Page 48

6. Setting the Touch panel Driver

6. Setting the Touch panel Driver
PT-E is incorporated with the touch panel driver that allows you to operate it by touching screen.
Default settings are made by factory before shipment.
Use "Touch Panel Driver Property” application to make calibration settings if necessary.

Calibration Settings

Calibration settings are used to adjust the recognized position when screen is touched.
There are two kinds of methods to do calibration setting. One is a setting that doesn’t use EEPROM calibration; another is a setting that uses EEPROM calibration in the calibration setting.
Calibration Settings When Not Using EEPROM Calibration
The setting that doesn’t use EEPROM calibration saves the calibration data in the Windows. When using the identical start-up disk, once made the setting at the beginning, not need to do calibration setting later. However, when exchange a start-up disk and if a touch position is shifted, do calibration setting again.

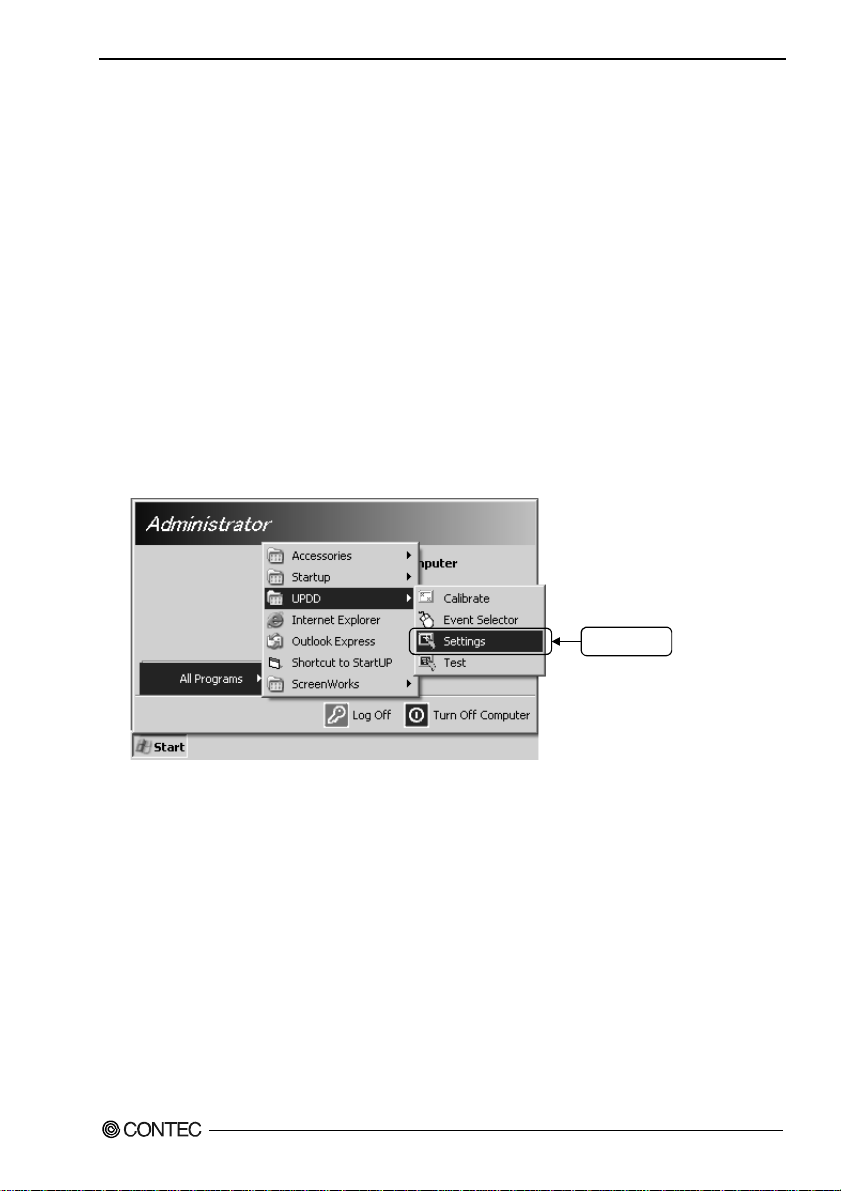

(1) Click [Start] on taskbar.
Move the cursor to [All programs (P)] → [UPDD] and click [Operation Setting].
Figure 6.1 [Settings] button
Click here.
41
Page 49
6. Setting the Touch panel Driver

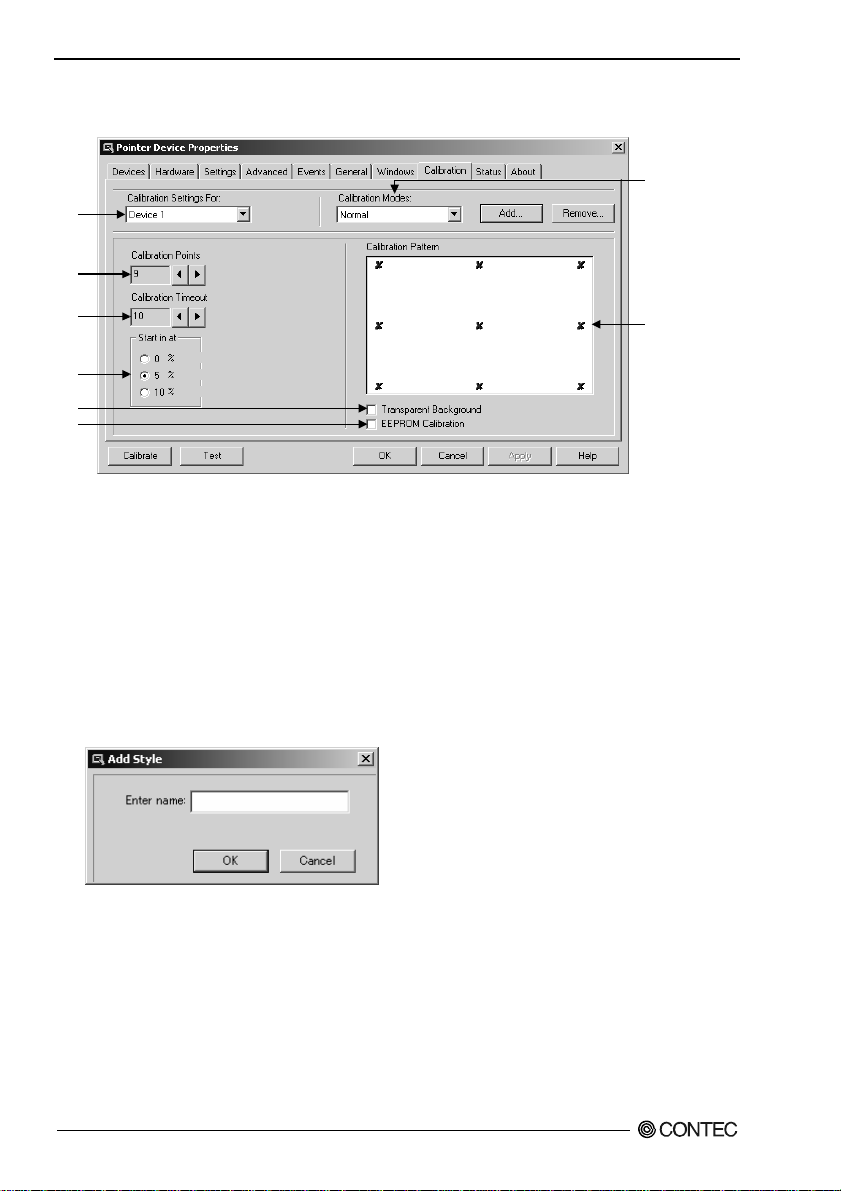

(2) "Touch Panel Driver Properties" window is displayed.
Click [Calibration (N)] tab. Remove the checking of "EEPROM Calibration".
Make calibration setting according to need. (Refer to next page)
Click [Apply (A)] button when change the settings so that the changed settings are available.
After completing all settings, click [Calibration (C)] button.
Figure 6.2 Pointer Device Properties
CAUTION
- When changed settings, always click [Apply (A)] button to make the changed settings available.
- Clicking [Apply (A)] button makes the controller initialization, which may make touch panel not react for several seconds
PT-E831H, PT-E831HS User’s manual
42
Remove the checking.
Page 50

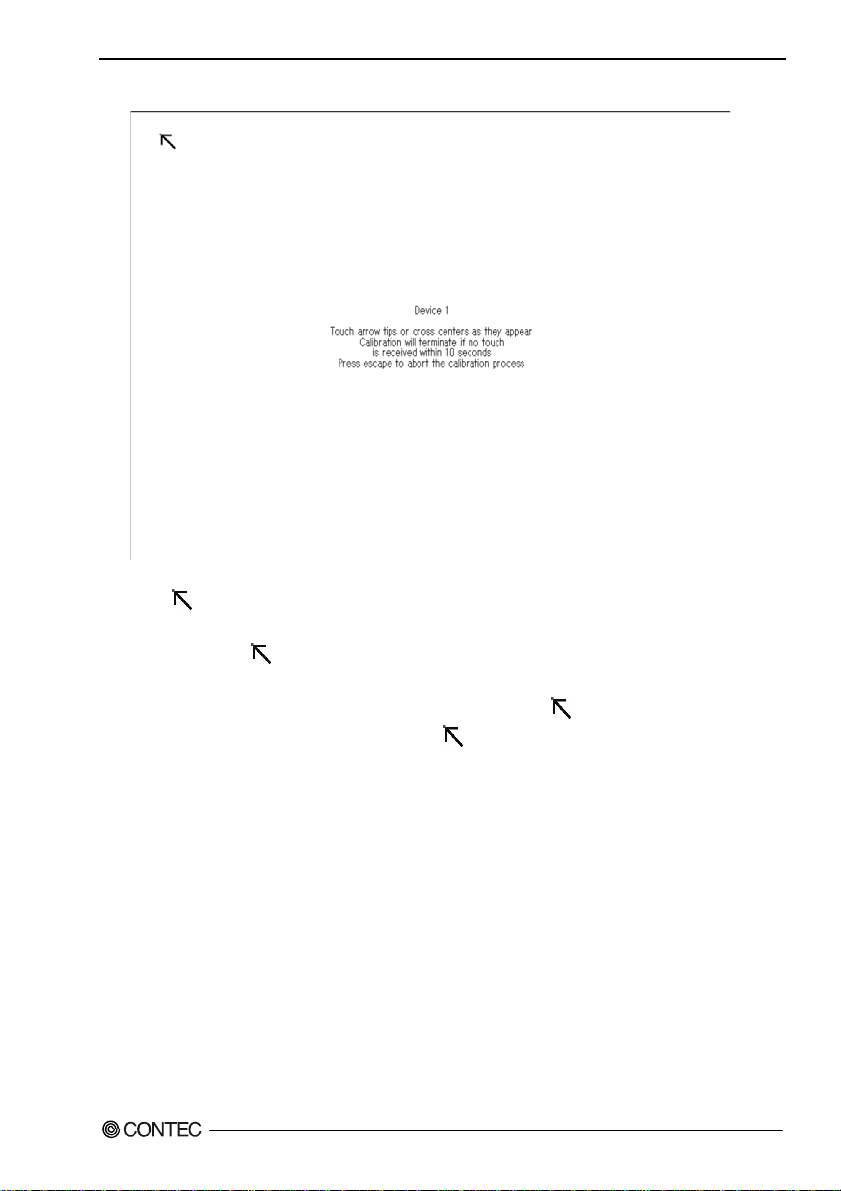

(3) Calibration window is displayed.
6. Setting the Touch panel Driver
Figure 6.3 Calibration screen
Press
The method of setting is as follows.
1) Press the tip of
2) Lift the touch pen off screen.
3) After lifting the touch pen off the screen, a "beep" sounds and
Similarly, set the position where is indicated by
Perform this operation for all numbers of points that have been set at “point number “in [Calibration
Setting] window.
* If the screen is not touched for the time that has been set in the calibration settings, calibration
window will be closed and calibration is aborted. Do calibration setting again.
in order and make settings.
with a touch pen.
appears in the next position.
.
43
Page 51
6. Setting the Touch panel Driver

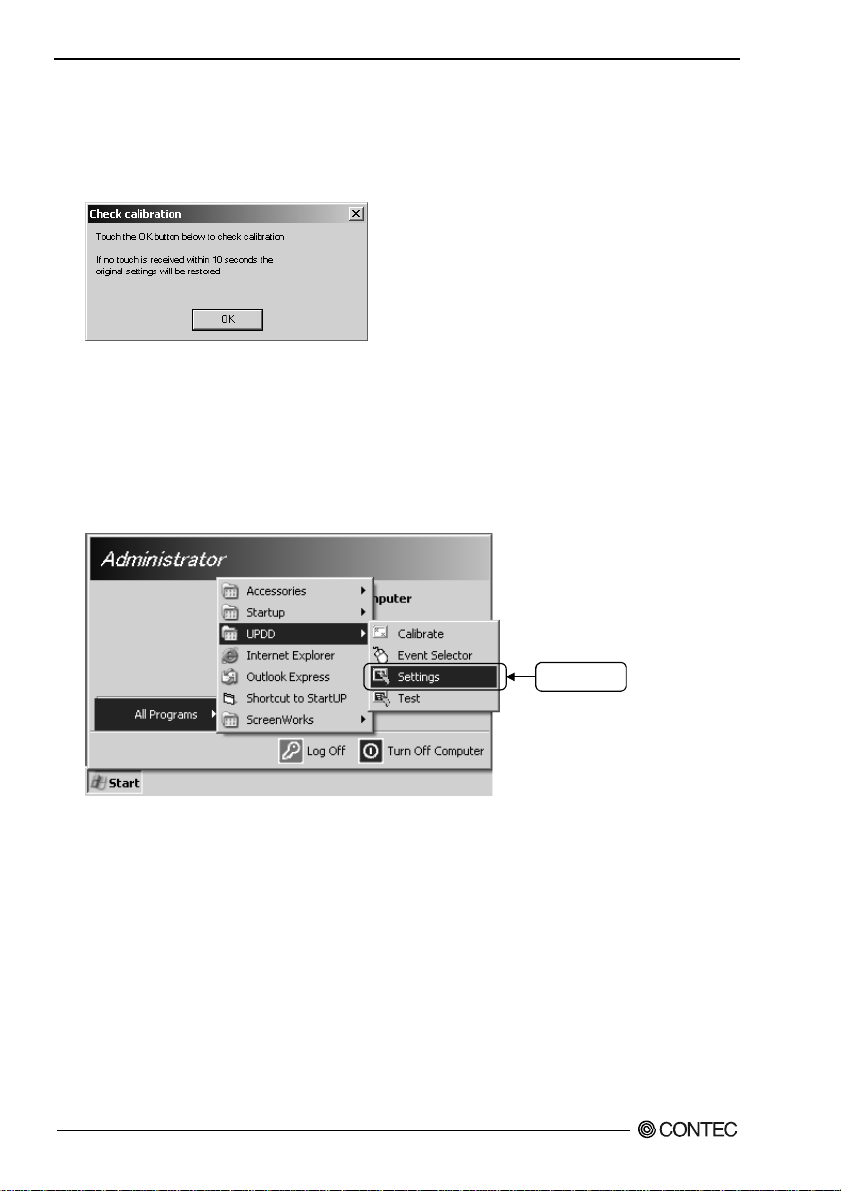

(4) When all calibration points’ settings are completed, a dialog box for calibration confirmation is
displayed.
If no problem occurs on any calibration point, clicks [OK] to finish the calibration.
If make a mistake in point except the calibration points, doing nothing but waiting 10 seconds. After
10 seconds passed, the calibration data are canceled and they are not saved in the Windows.
Figure 6.4 Check calibration window
Calibration Settings When Using EEPROM Calibration
Calibration setting that uses EEPROM calibration saves the calibration data in EEPROM within PT-E.
Because the calibration data are saved in EEPROM, the calibration setting condition is identical for the same PT-E. Don’t need to do calibration again even though exchange start-up disk.
(1) Click [Start] on taskbar.
Move the cursor to [All Programs (P)] → [UPDD] and click [Operation Setting].
Click here.
Figure 6.5 Settings button
PT-E831H, PT-E831HS User’s manual
44
Page 52
6. Setting the Touch panel Driver

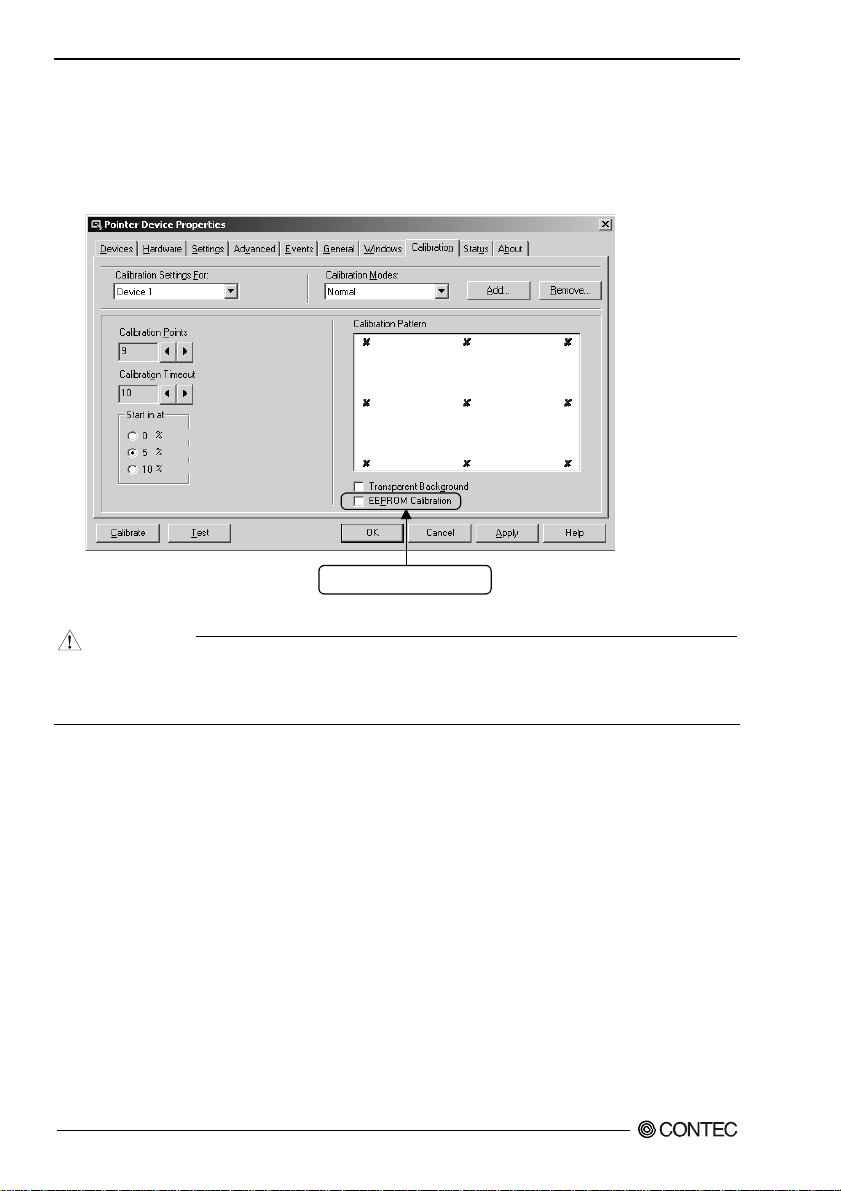

(2) "Touch Panel Driver Properties" window is displayed.
Click [Calibration (N)] tab and check "EEPROM Calibration".
Make calibration setting according to need. (Refer to p. 52)
Click [Apply (A)] button when change the settings so that the changed settings are available.
After completing all settings, click [Calibration (C)] button.
Check here.

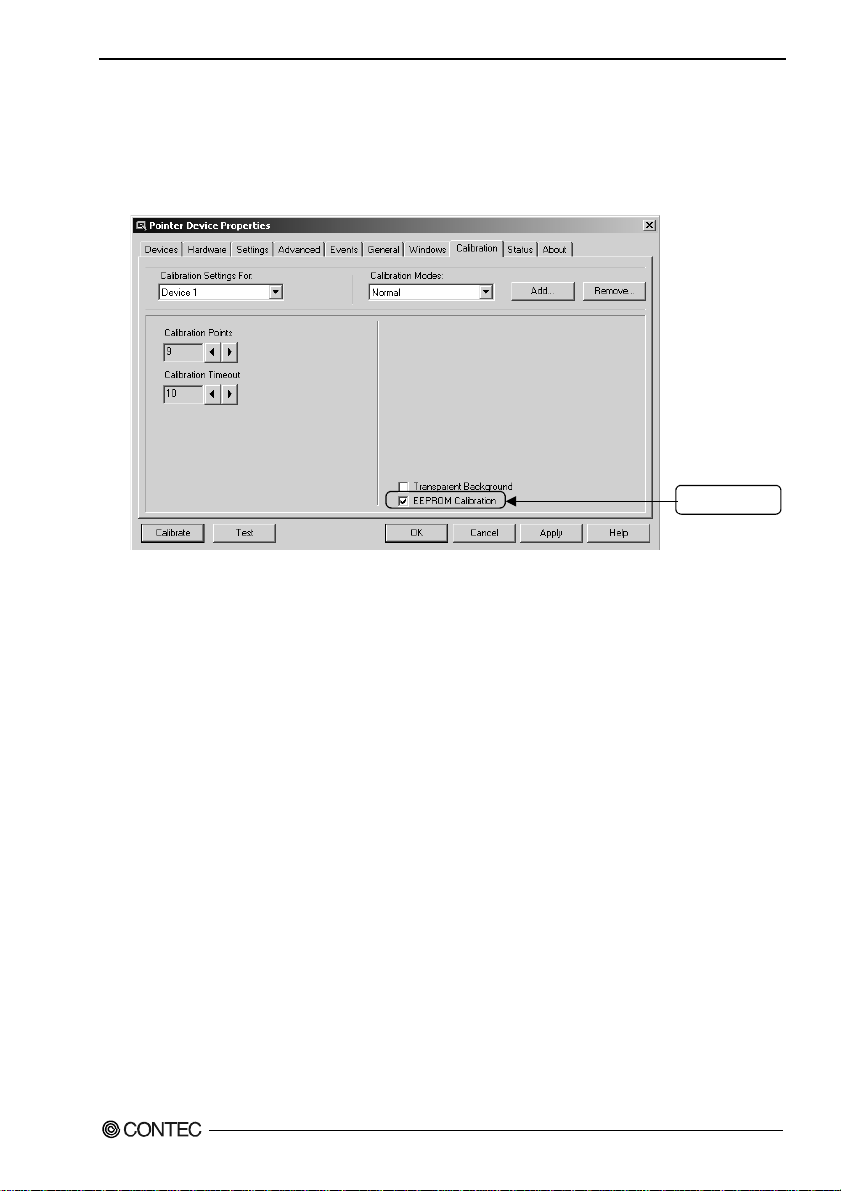

Figure 6.6 Pointer Device Properties
(3) The calibration window is displayed; make calibration following the procedures in p. 43-44.
45
Page 53
6. Setting the Touch panel Driver

Test

Used to check the recognition speed of system when screen is touched, including touch panel operation and calibration accuracy. This section describes how to do an operation test for touch panel.
(1) Click [Start] on taskbar.

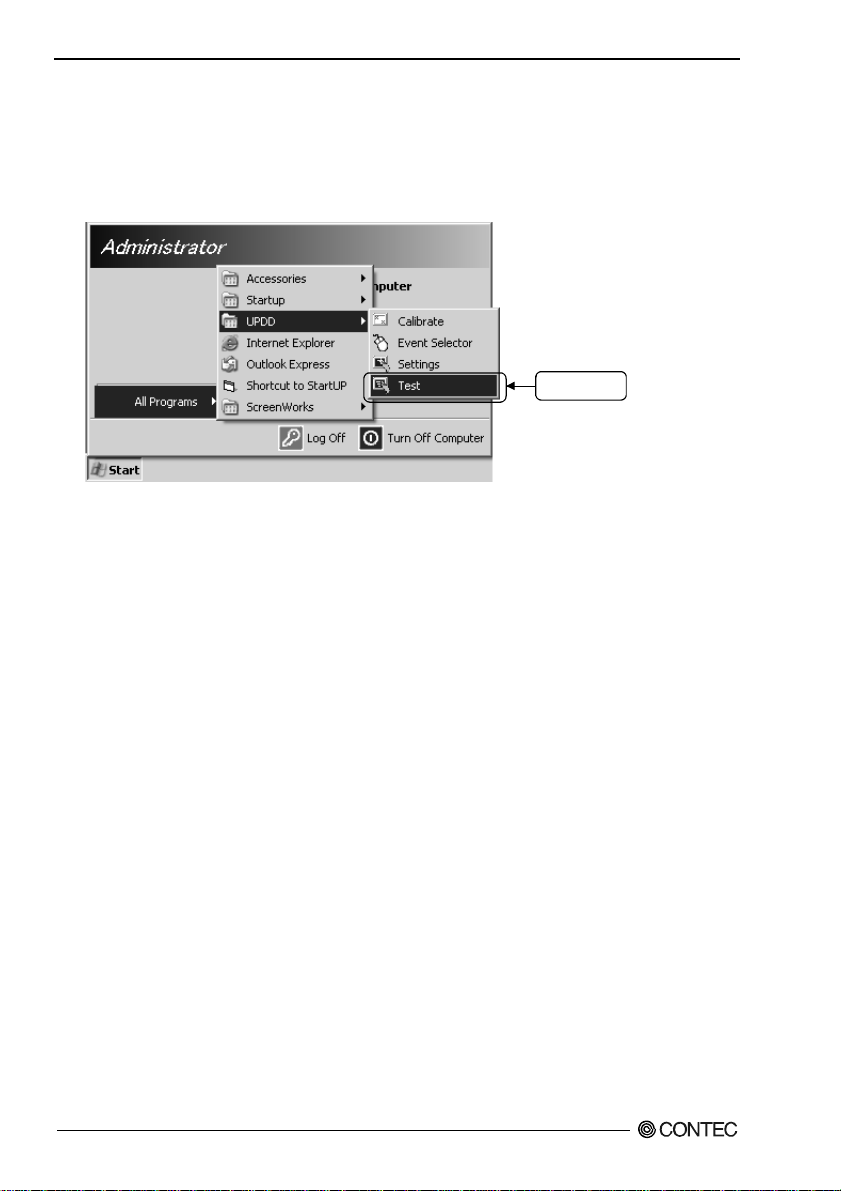

Move the cursor to [All Programs (P)] → [UPDD] and click [Test].
Click here.
Figure 6.7 [Test]button
PT-E831H, PT-E831HS User’s manual
46
Page 54
6. Setting the Touch panel Driver
(2) Test window is displayed.

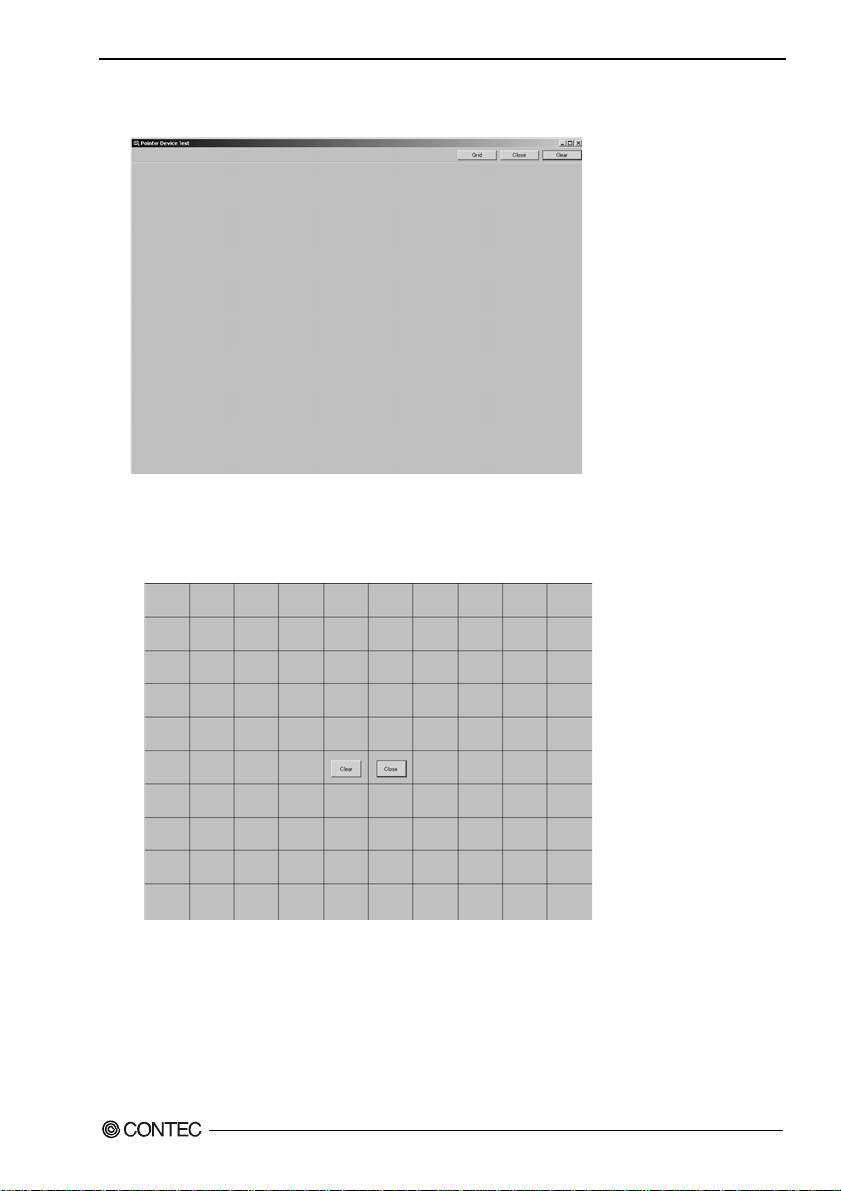

Touch the screen and move touch pen to draw a line or write some characters.
Figure 6.8 Test window
1) Grid
Press [Grid] button, test window is displayed with grids.
Press [Close] button to back to the test window.
Figure 6.9 Test window (Grid view)
2) Clear
Press [Clear] button to clear the line and characters that are drawn or written when testing.
3) Close
Press [Close] button to exit test window.
47
Page 55
6. Setting the Touch panel Driver

Mouse Operation

(1) Click and drag operation
Touch panel does the basic operations including click mouse, double-click and drag etc. as follows:
- Click : Touch the screen and lift off
- Double-click : Touch the screen twice quickly
- Drag : Touch the title bar of Window or icon with a finger (or a touch pen) and move the
finger (or the touch pen) while touching.
(2) Right-click
There is no left/right button on touch panel like a mouse, use [Event selector] enable the right-click
operation by touch panel.
Do this operation as follows.

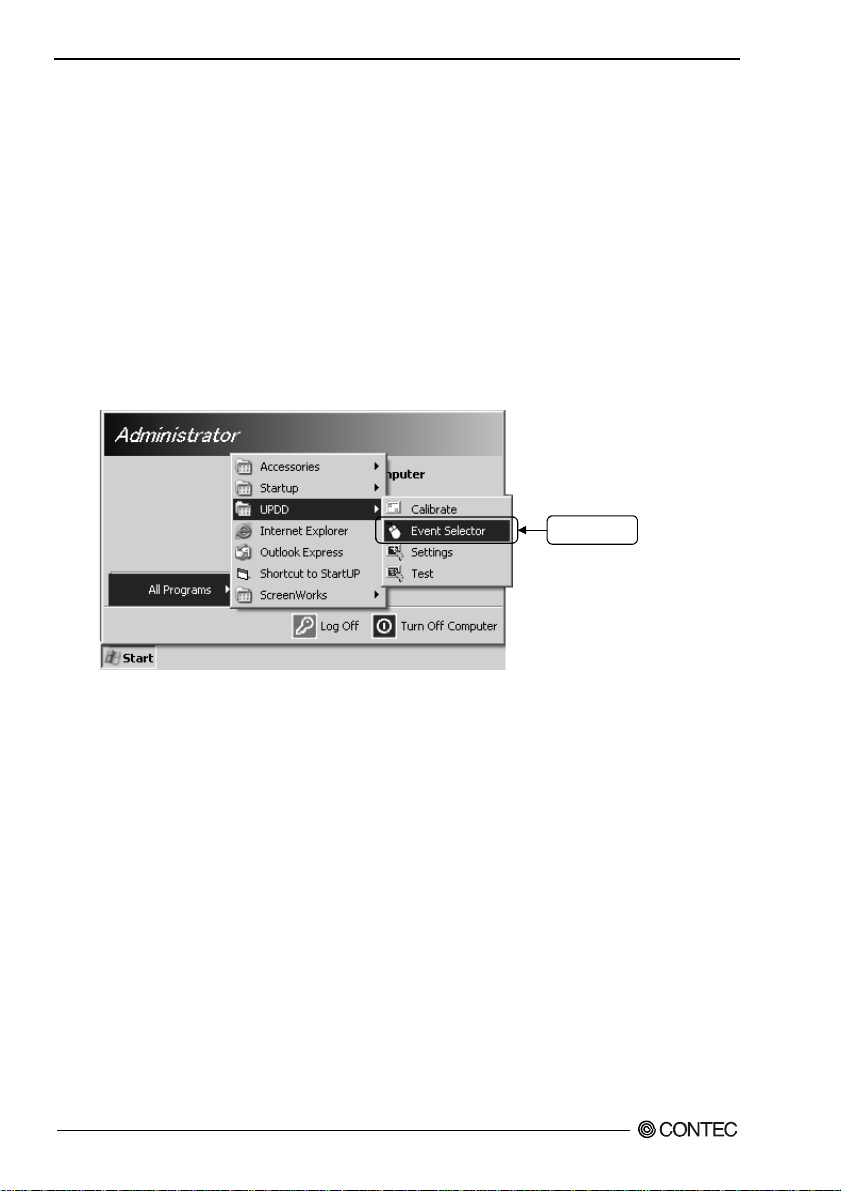

1) Click [Start] on taskbar. Move the cursor to [All Programs (P)] → [UPDD] and click [Event selector].
Click here.
Figure 6.10 [Event Selector] button
PT-E831H, PT-E831HS User’s manual
48
Page 56
6. Setting the Touch panel Driver

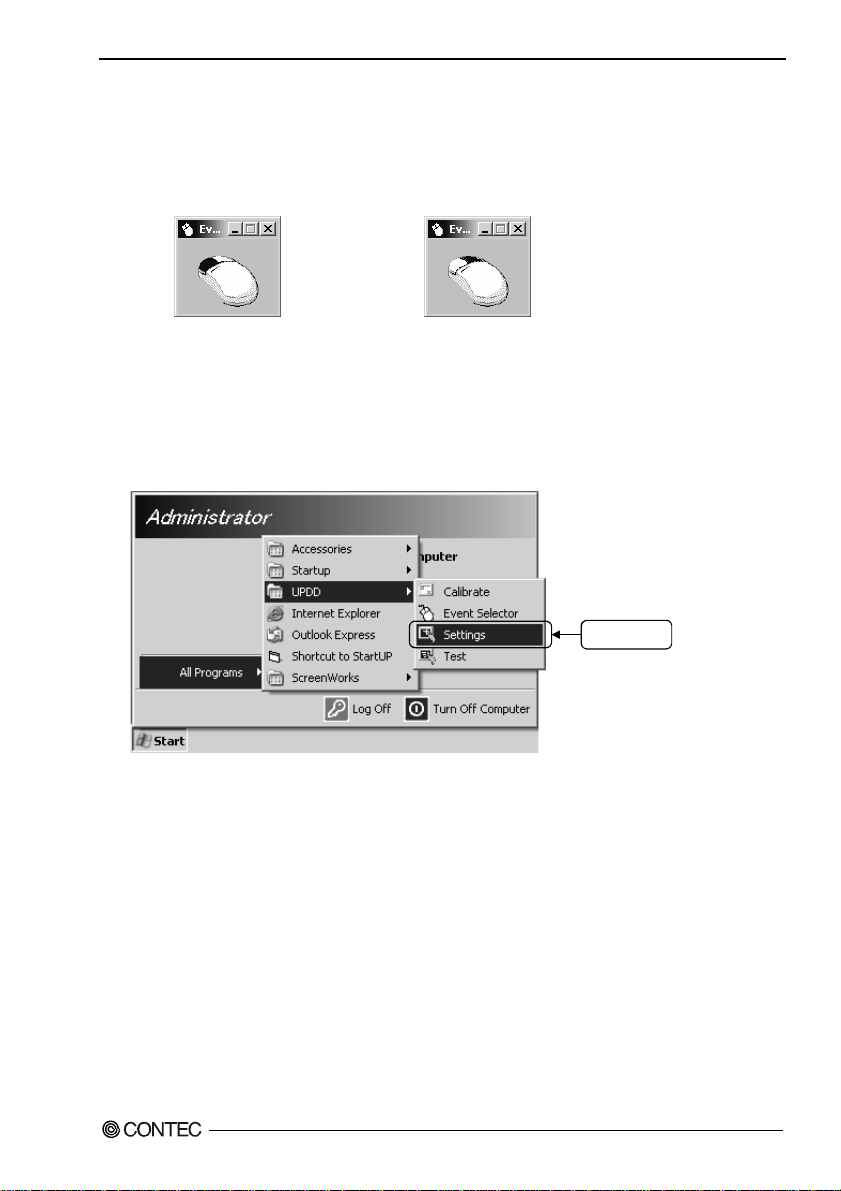

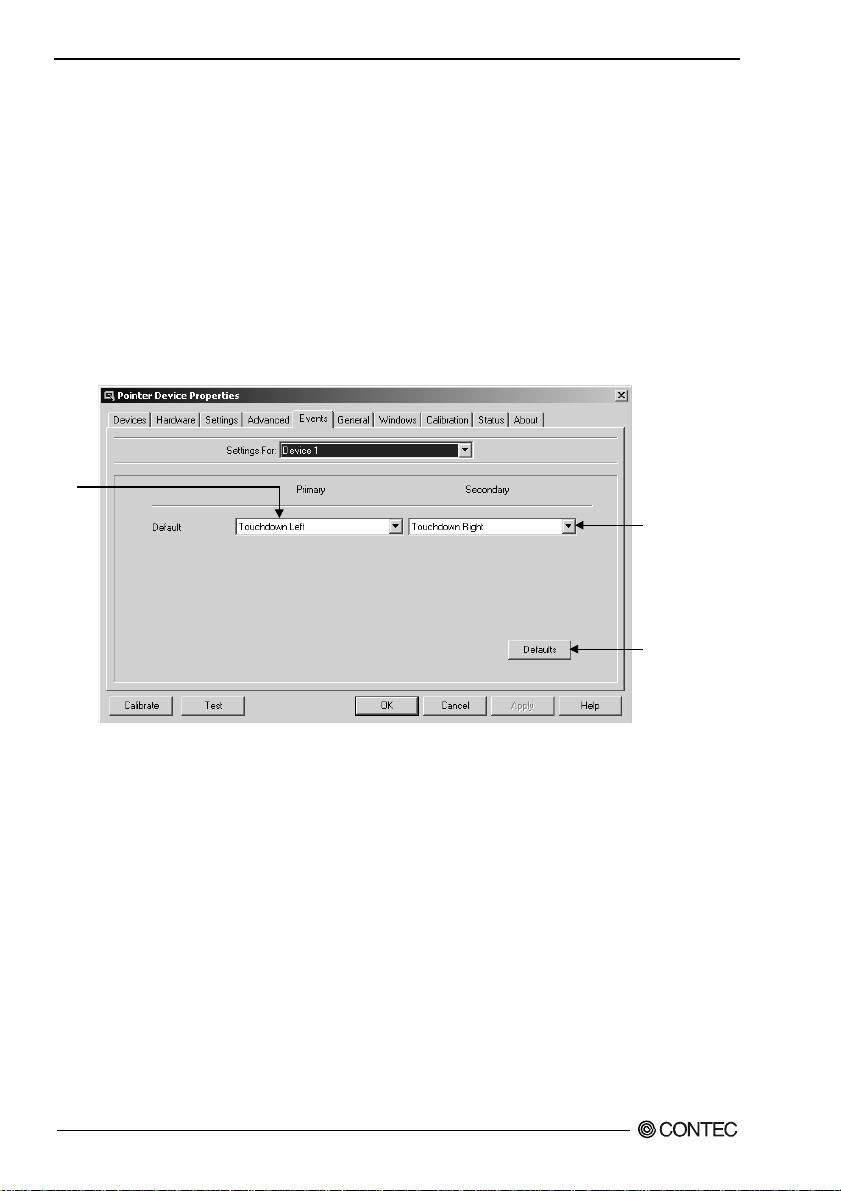

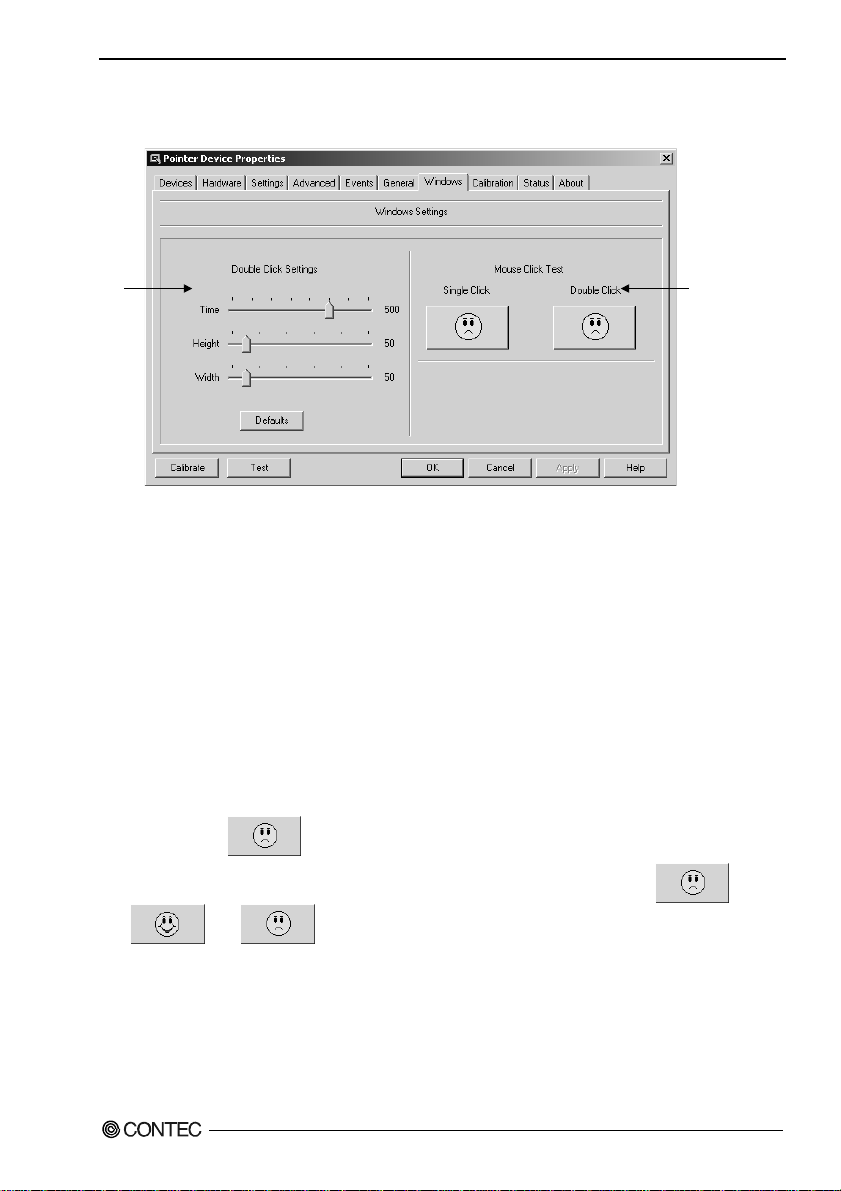

2) Mouse window is displayed. When touching the picture of the button in Mouse window, the button shown in dark blue is switched. The button shown in dark blue becomes the active button. Touch operation right after active button is switched, is the operation of mouse button.
When left button is active When right button is active
Figure 6.11 Event Selector Window

Function of Touch Panel Driver

Make necessary settings for touch action.
This section describes how to make these settings.
(1) Click [Start] on taskbar.
Move the cursor to [All Programs (P)] and click [Operation Setting].
Figure 6.12 [Settings] button
Click here.
49
Page 57
6. Setting the Touch panel Driver
(2) "Touch Panel Driver Properties" window is displayed.
Click tab of setting item to set touch panel driver.
(1)

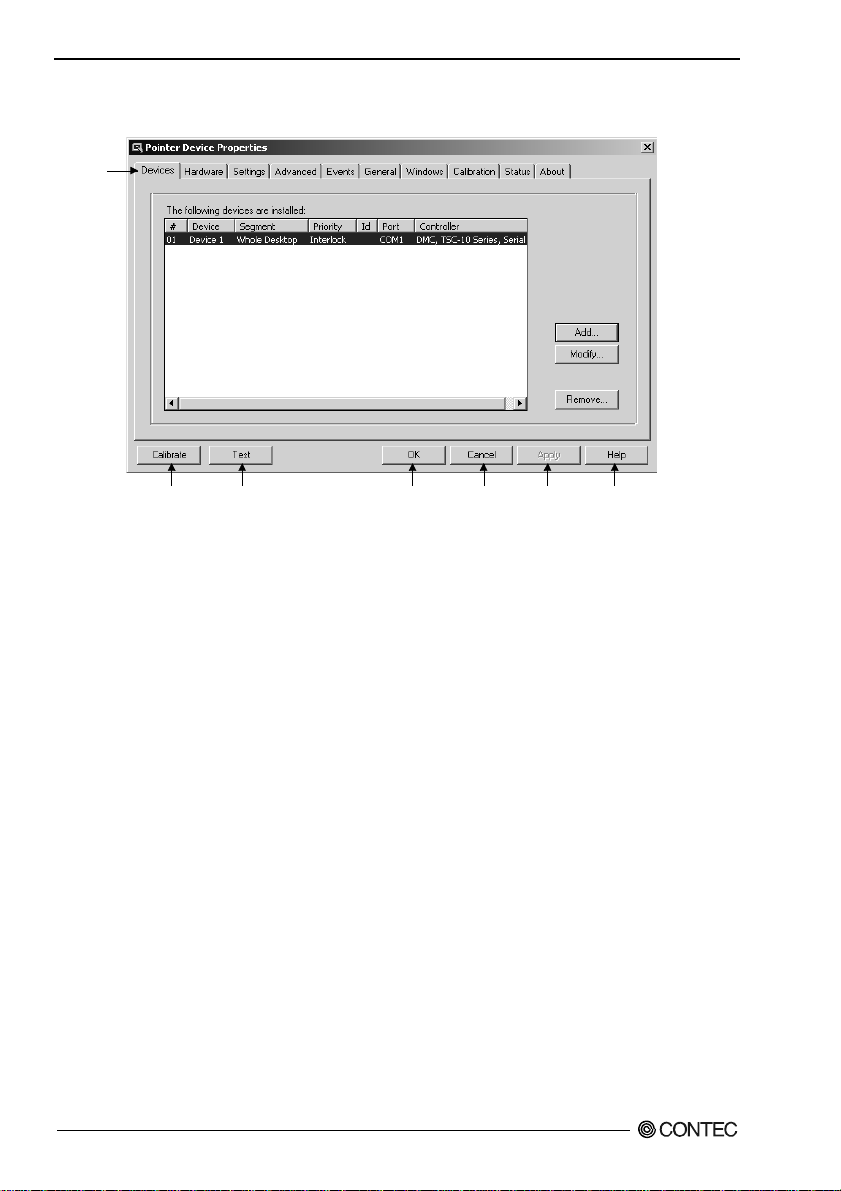

Figure 6.13 Pointer Device Properties
1) Setting tabs
Click tab to select setting item.
- General
- Calibration
- Device
- Hardware
- Action Setting
- Advanced Setting
- Event
- Double-Click
- States
- Information
2) [Calibration (C)] button
Make calibration settings.
About calibration setting, refer to p. 41.
3) [Test (T)] button
Make a touch operation testing.
About testing, refer to p. 46.
4) [OK] button
Save the setting data, and exit "Touch Panel Driver Properties" window.
(2)
(3) (4)
(5) (6)
(7)
PT-E831H, PT-E831HS User’s manual
50
Page 58
5) [Cancel] button
Cancel the setting data, and exit "Touch Panel Driver Properties" window.
6) [Apply (A)] button
Make the changed settings available.
7) [Help] button
Show online help of touch panel driver.
General
Used to set basic operations for touch panel.
(1) (2)
(3)
(4) (5)
6. Setting the Touch panel Driver

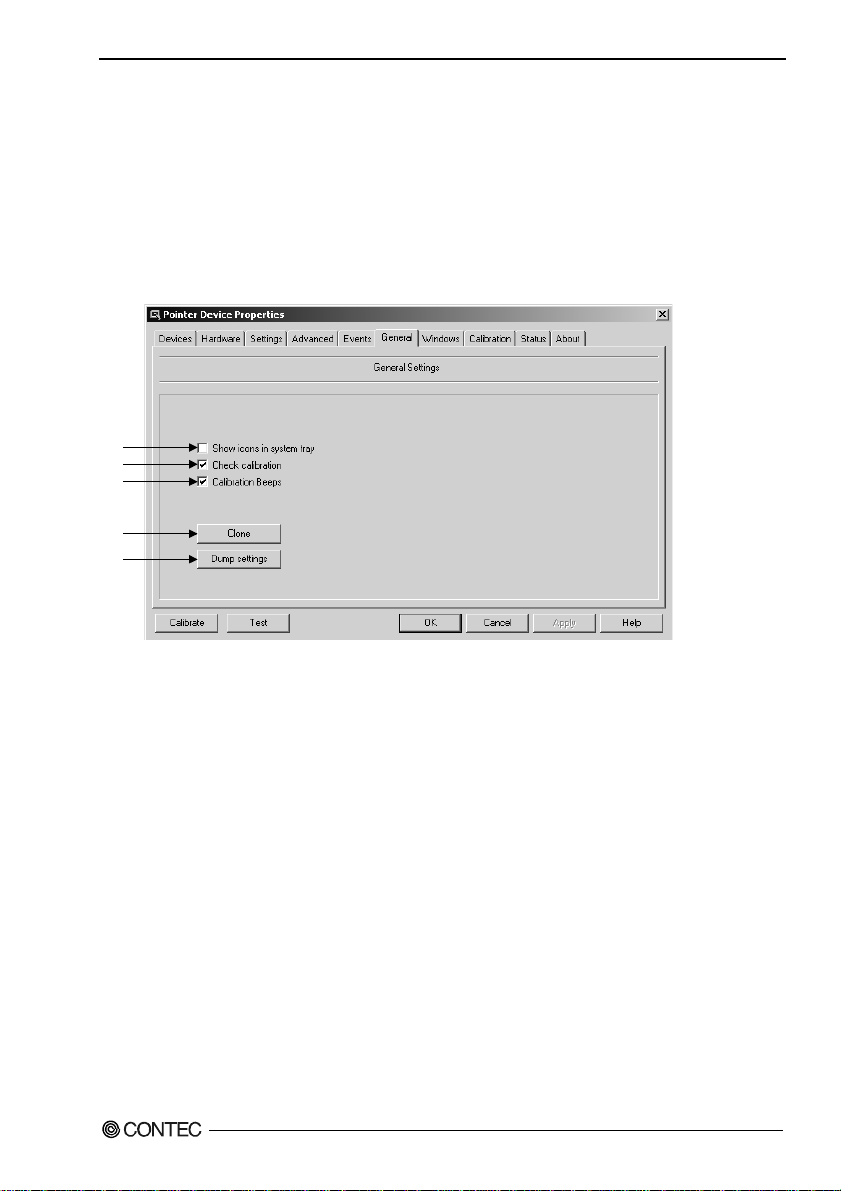

Figure 6.14 General tab
(1) Show icons in system tray
Use this setting to enable or disable register the icon on the taskbar.
If show icons in system tray, check the checkbox.
(2) Check calibration
If set it, a "Calibration confirmation" dialog box is displayed at the end of calibration.
(3) Calibration Beeps
If set it, sound is used to indicate a calibration point has been accepted.
(4) Clone
Copy the current UPDD configuration setting into file upddclon.reg, which be used for automatic
setup in subsequent installation. Click [Clone (O)] button to create the file "upddclon.reg" that is in folder
C: \Program Files\UPDD\upddclon.reg.
Double-click the file to register the setting environment.
(5) Dump settings
Use this function to dump driver and system settings to a text file UPDDset.txt. Click
[Dump setting (M)] button to create a file "UPDDset.txt". The file is in folder
C: \Program Files\UPDD\UPDDset.txt.
51
Page 59
6. Setting the Touch panel Driver
Calibration
Used to make settings for calibration.
(1)
(3)
(4)
(5) (6)
(7)
Figure 6.15 Calibration tab
(1) Calibration Settings
Specifies the device that these calibration setting apply to.
About the information of the controller you are using, can be confirmed by [Device] in p.54.
(2) Calibration Modes
Shows the calibration mode in use.
A device may have a number of different calibration modes.
Add calibration modes, the information that is set in (3) to (7) can be saved more than one time.
- Click [Add (A)] button to show the following dialog box. Input the name of calibration mode.
- Click [Remove (R)] button to delete the calibration mode.
(2)
(8)
Figure 6.16 Add Style dialog box
(3) Calibration points
Specify the number of calibration points to be set.
The default is "4" points. For revising a position difference correctly, increase the number of the calibration points.
- The setting range 2 to 25 points
PT-E831H, PT-E831HS User’s manual
52
Page 60
6. Setting the Touch panel Driver
(4) Timeout
Indicate the calibration timeout value if the calibration point is not touched within the specified
period. Defined it in seconds. The default is "10" seconds.
- The setting range 10 to 60 seconds
(5) Starting
Set the position of the calibration point.
On 4 corners of the screen, it is 0%. The bigger the setting value is, the nearer the screen center position calibration point becomes. The default is set to "5%".
(6) Transparent Background
If it is enabled, specify that the calibration points are shown on the Windows desktop without a white
background.
(7) EEPROM Calibration
Set where the calibration setting data are saved.
- If enabled, save the calibration setting data in EEPROM.
- If disabled, save the calibration data in the windows.
When using EEPROM calibration, the position (position of the arrow) of the calibration point
becomes a fixation.
*: About calibration setting method, refer to following.
- Save to Windows Refer to p. 41
- Save to EEPROM Refer to p. 44
(8) Calibration Pattern
Show the calibration point pattern to be set in (3) and (5).
Used to confirm the number of points and point position that have been set in (3) and (5).
53
Page 61
6. Setting the Touch panel Driver
Devices
Used to add, modify and delete controllers.
(1)

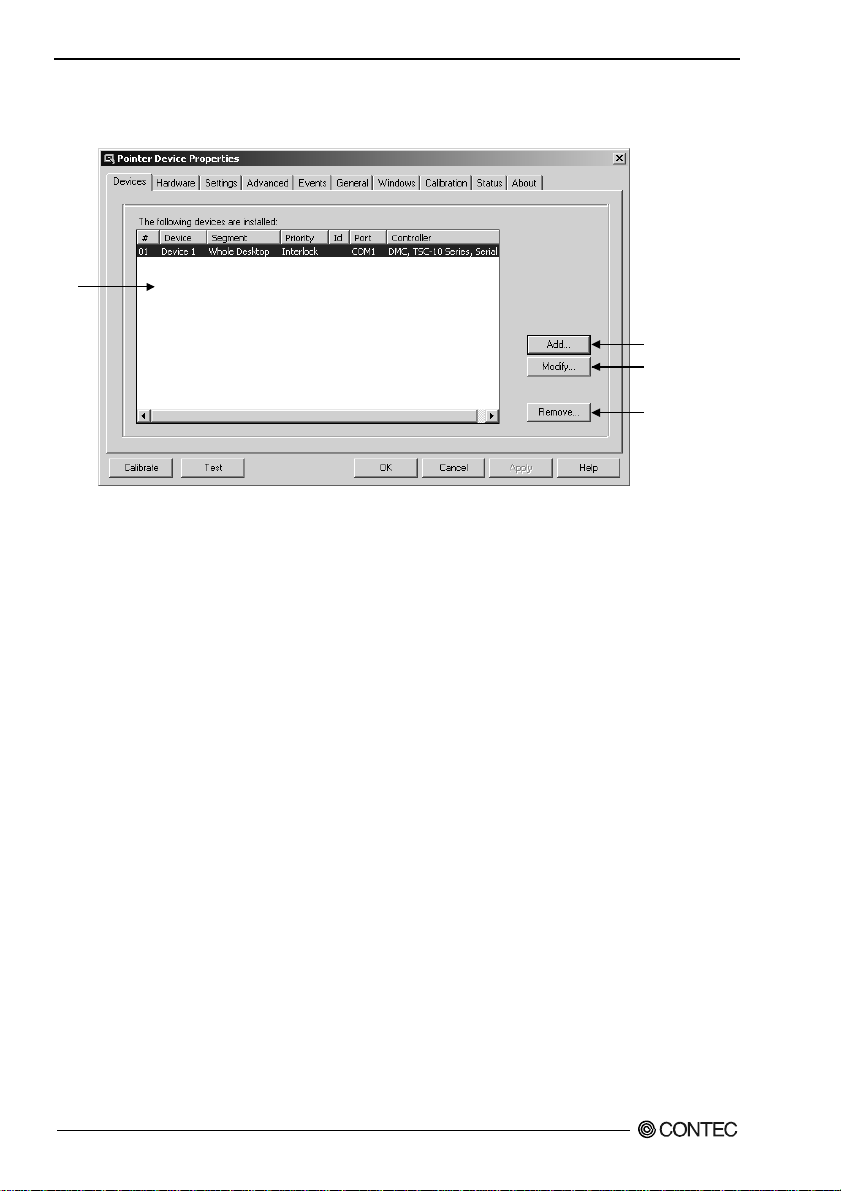

Figure 6.17 Devices tab
(1) Device list
Show the information of the controller to be used.
(2) [Add (D)] button
Add a controller.
(3) [Modify (M)] button
Change name or operation object of controller.
(4) [Remove (R)] button
Delete a controller.
(2) (3)
(4)
PT-E831H, PT-E831HS User’s manual
54
Page 62
6. Setting the Touch panel Driver
Hardware
Used to set touch panel driver’s communication setting.
(1)
(2) (3)
(4)

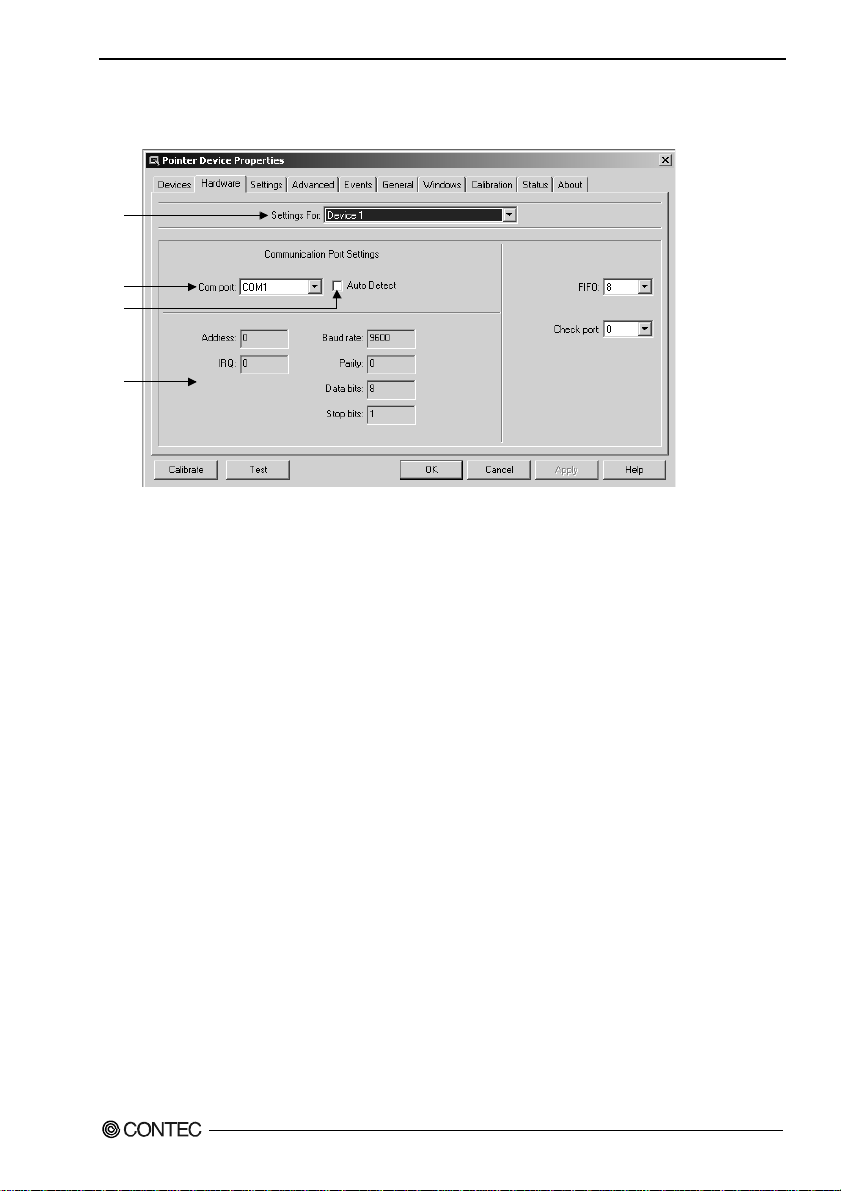

Figure 6.18 Hardware tab
(1) Settings
Shows the controller to be used.
(2) COM Port
Set serial port that is connected with controller.
(3) Auto Detect
If enabled, when windows start-up, the serial port connected the controller is detected automatically.
(4) Information of communication port
Show the information of the serial port connected with the controller.
55
Page 63
6. Setting the Touch panel Driver
Action Settings
Used to adjust the reaction time or the touch action when touching a touch panel.
(1) (2) (3) (4) (5)

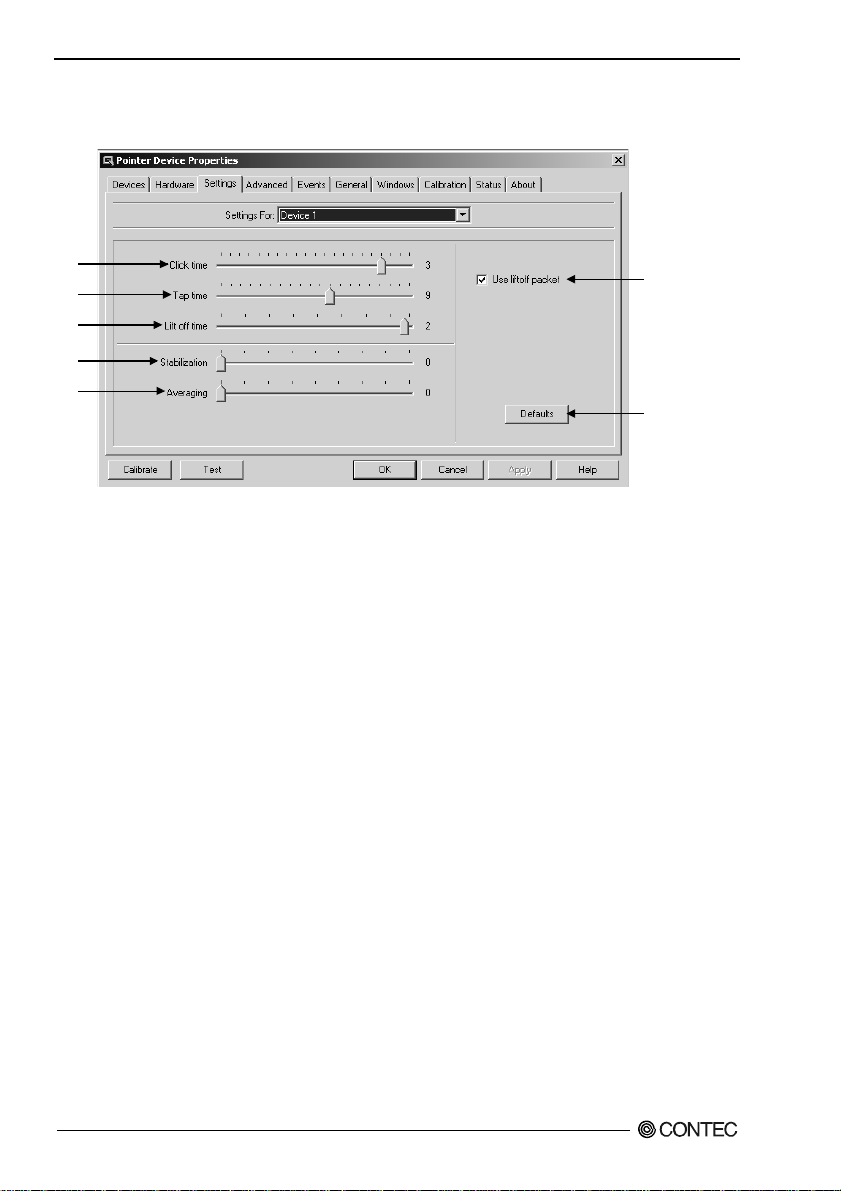

Figure 6.19 Settings tab
(1) Click time
Click time is "a short time" interval that the driver uses in the button click logic that uses time
intervals between clicks.
(2) Tap time
Tap time is "a short time" interval that the driver uses in the button click logic that uses time intervals
between taps.
(3) Lift off time
The Lift off Time value specifies the time interval required to register a stylus lift. Lift off time is
defined in units of 20ms. This value is only used to perform a pen up if the ‘Use Lift off’ packet is disabled otherwise Pen ups are generated as soon as the stylus leaves the pointer device display.
(4) Stabilization
Stabilization causes small movements to be ignored.
(5) Averaging
Apply a filter to produce smoother drawing. Averaging takes the average of the last N co-ordinates.
This is a very basic approach to filtering that can improve drawing and not affect drawing speed.
(6) Use lift off pocket
If enabled, when click the screen, it assumes separated immediately when separating a finger.
When input characters, don’t check the checkbox.
(7) [Default (U)] button
Press the [Default (U)] button to return to the default setting.
(6)
(7)
PT-E831H, PT-E831HS User’s manual
56
Page 64
6. Setting the Touch panel Driver
Advanced
Used to do advanced settings, including touch action, beep etc.
(1)
(1)
(1) (2)
(2)
(2) (3)
(3)
(3) (4)
(4)
(4)

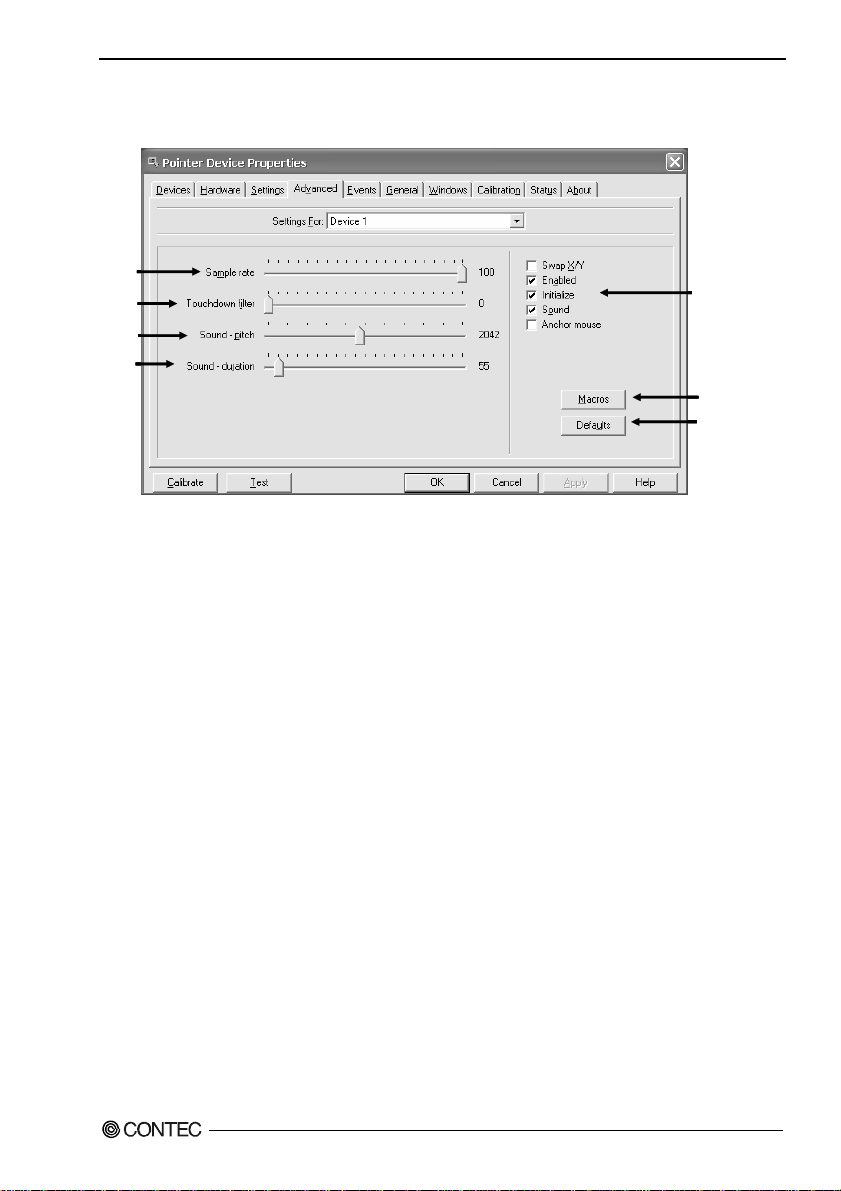

Figure 6.20 Advanced tab
(1) Sample rate
Determine the percentage of pointer device data packets that are passed on to the mouse driver. This
should normally be set to 100%.
(2) Touchdown filter
Specify the initial number of touch packets before sensing a touchdown.
(3) Sound pitch
Set the frequency of the beep.
The bigger the setting value is, the higher the beep becomes. (It becomes maximum volume near setting value 2000 from the buzzer characteristic.)
(4) Sound duration
Sets the length of the beep.
The bigger the setting value is, the longer the beep becomes.
(5) Check items
1) Swap X/Y Normally, the cursor appears in the XY coordinate position touched on the screen. However, the cursor can be displayed in the position opposite to the XY coordinate position touched.
2) Enabled Check the checkbox to make touch operation available. When doing the touch operation, don’t remove the checking.
3) Initialize Indicates that the device’s initialization macro, if it exists, it will be executed.
4) Sound Enables or disables the Sound option that accompanies simulated button presses.
(5)
(5)
(6)
(6) (7)
(7)
57
Page 65
6. Setting the Touch panel Driver
5) Anchor mouse If enabled, mouse cursor is fixed.
(6) [Macro (M)] button
Define the controller macros. Some controllers can accept commands to change the internal settings.
(7) [Defaults] button
Press the [Default] button to be the default setting.
Event
This screen shows the pointer device events that can be generated by the device and the Button Modes (mouse click actions) associated with the events. When an event occurs either the Primary or Secondary action will be performed depending on the Event Selector state.
To change the primary (default: the left button) or secondary (default: the right button) action, also may use mouse window, refer to section p. 48.
(1)
(2)
(3)
Figure 6.21 Event tab
(1) Primary
Set mouse’s primary action setting.
(2) Secondary
Set mouse’s secondary action setting.
(3) [Defaults] button
Press [Defaults] button to return to the default setting.
PT-E831H, PT-E831HS User’s manual
58
Page 66
Double click
Used to make settings about double-click.
6. Setting the Touch panel Driver
(1)
Figure 6.22 Double click tab
(1) Double Click Settings
(a) Time
Change the time period within which windows will register two clicks as a double click.
(b) Height
Specify the number of pixels, vertically, within which windows will recognize two clicks as a double click.
(c) Width
Specify the number of pixels, horizontally, within which windows will recognize two clicks as a double click.
(d) [Default] button
Press the [Default] button to return the default setting.
(2) Mouse Click Test
Used to test single and double click responses, which is set in section (1).
You can click
to test single or double click response.
(2)
When touching is recognized as a single or double-click, the icon changes from
to .
to
59
Page 67
6. Setting the Touch panel Driver
Status
Used to show the controller status along with system resource usage and to re-initialize the controller.
(1)
(2) (4)
(3)

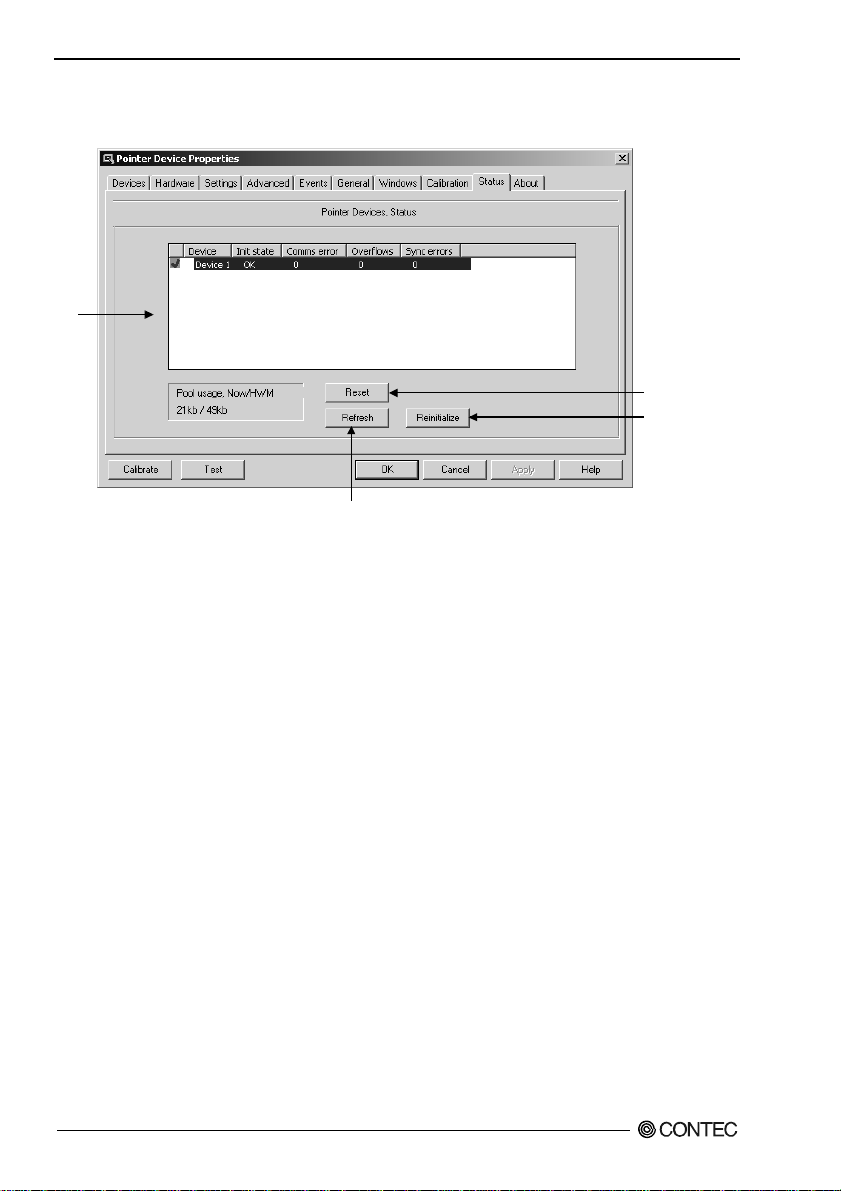

Figure 6.23 Status tab
(1) Status
Show the status information of the controller.
(2) [Reset (X)] button
Reset the default status.
(3) [Refresh (R)] button
Reset the count values shown for the "Com port error", "Overflow" and "Synchronize error".
(4) [Re-initialise (Z)] button
Re-initialise the controller.
PT-E831H, PT-E831HS User’s manual
60
Page 68
6. Setting the Touch panel Driver
About
Used to show version information, support information and licence agreement of touch panel driver.
(1)
(3)
(2)

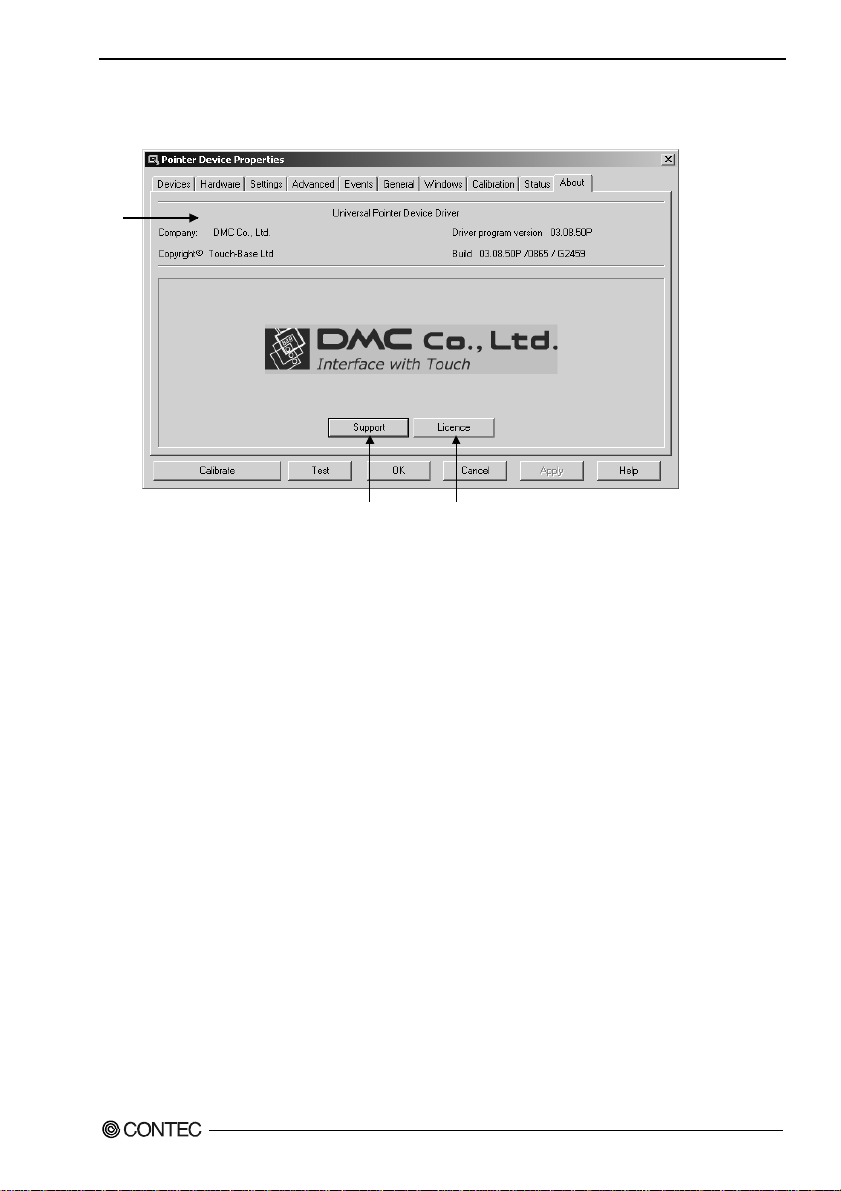

Figure 6.24 About tab
(1) Touch Panel Driver
Show the version information of the controller to be used.
(2) [Support (P)] button
Show the support information.
(3) [License (L)] button
Show Licence agreement information of touch panel driver.
61
Page 69
6. Setting the Touch panel Driver
PT-E831H, PT-E831HS User’s manual
62
Page 70

7. Resume Function/ EPC System Monitor

7. Resume Function/ EPC System Monitor

Resume Function

Resume function can keep PT-E operating regardless of the occurrence of instantaneous interruption or power failure and protect data by equipping a lithium ion battery pack (option) on PT-E. With EPC System Monitor, it is possible to choose [Continue mode] or [Standby mode] when power failure occurring and do time setting. Moreover, when battery voltage drop is detected or power supply is not restored after power failure, PT-E will go to shutdown automatically.
(1) Continue mode
a. When power failure is detected, PT-E keeps on operating, but backlight becomes OFF. (In
Continue mode, screen operation is unavailable.)
b. If power supply restores before passing the setting time (0 to 10 minutes), or power supply restores
before detecting battery voltage drop, backlight will become ON, and operation goes on. If power supply does not restore, goes to shutdown (*1).
c. If battery voltage drop is detected before passing setting time, PT-E goes to shutdown (*1).
(*1): You can set whether execute shutdown process or not. (Refer to p. 73)
(2) Standby mode
a. When power failure is detected, backlight becomes OFF, PT-E goes to standby state.
b. If power supply restores before passing the setting time (0 to 30 minutes), or power supply restores
before detecting battery voltage drop, standby state is released and PT-E restarts operation from the state right before power failure. If power supply does not restore, PT-E goes to shutdown.
c. If battery voltage drop is detected before passing setting time, PT-E goes to shutdown.
Point
(1) For using resume function, you must equip a lithium ion battery pack with PT-E.
(2) Before using resume function, always fully charges the lithium ion battery pack. (Continuously
charge the battery pack for eight hours and confirm [Charge end] by EPC System Monitor.)
(3) For using resume function, you must start software EPC System Monitor and do necessary settings.
(Refer to next page)
(4) Use EPC System Monitor to set operation time of [Continue mode] or [Standby mode].
(Refer to p. 68)
CAUTION
- In case of connecting external devices, if you are using resume function, the currents supplied to the
external devices should be under DC5V/1A.
- If connects external devices that supplying current more than DC5V/1A, over current detection of
lithium ion battery will work, so that Continue mode and Standby mode can not work normally. In this case recommend using an external UPS.
- If lithium ion battery is not full-charged, PT-E might go to shutdown operation even within the
specified time.
- If lithium ion battery is in the state of discharge (under 6.7V), resume function will not work.
63
Page 71
7. Resume Function/ EPC System Monitor

EPC System Monitor

Software EPC system monitor may watch system temperature in PT-E; it supports PT-E’s power supply unit and lithium ion battery pack on preservation and maintenance.
1) Our company supplies Windows XP Embedded pre-installed CF card, in which EPC System Monitor
has been installed. User needs to do necessary settings. (Refer to p. 68 and p. 73.)
2) When using commercially available Windows XP package, PT-E’s specified drivers (touch panel
driver, display driver and etc.) and EPC System Monitor are necessary. Call our sales offices please.
EPC System Monitor Function
EPC System Monitor has the following functions.
(1) PT-E’s power supply management
Control operation when power failure occurring (refer to p.62 for Resume function) and going to
shutdown.
(2) Hardware state monitor
Monitors operating time, system temperature, CPU temperature, battery state and control voltage etc.
(3) WDT (Watch Dog Timer) function
After starting EPC System Monitor, Windows application regularly executes WDT reset, if reset
operation is not executed after passing the setting time, system is regarded as abnormality, and WDT error signal is output.
(4) Alarm detection
Detect alarm of system temperature, CPU temperature, battery state and control voltage (power
supply voltage for internal circuit) etc.
(5) Event log
Output hardware monitor state change or occurred alarm information to a history file.
(6) State output
PT-E main body hardware’s monitor state or alarm information can be used by other applications.
PT-E831H, PT-E831HS User’s manual
64
Page 72

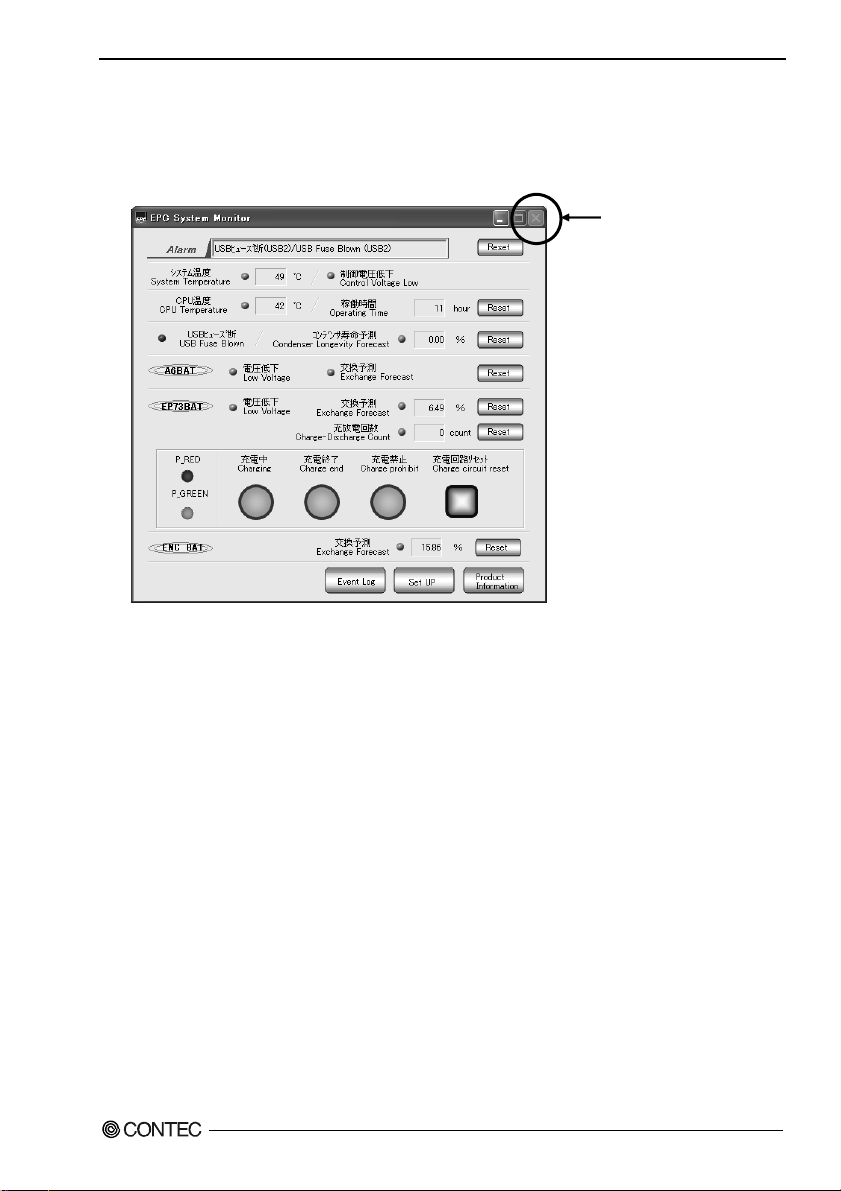

Monitor Screen (Start screen)
(1) (2) (3)
(4) (5)
(6) (7)
(8)
7. Resume Function/ EPC System Monitor
Clicking button can not close the screen. (10)
(11) (12)
(13)
(14) (15)
(16)
(9)
(18)
(19) (20)

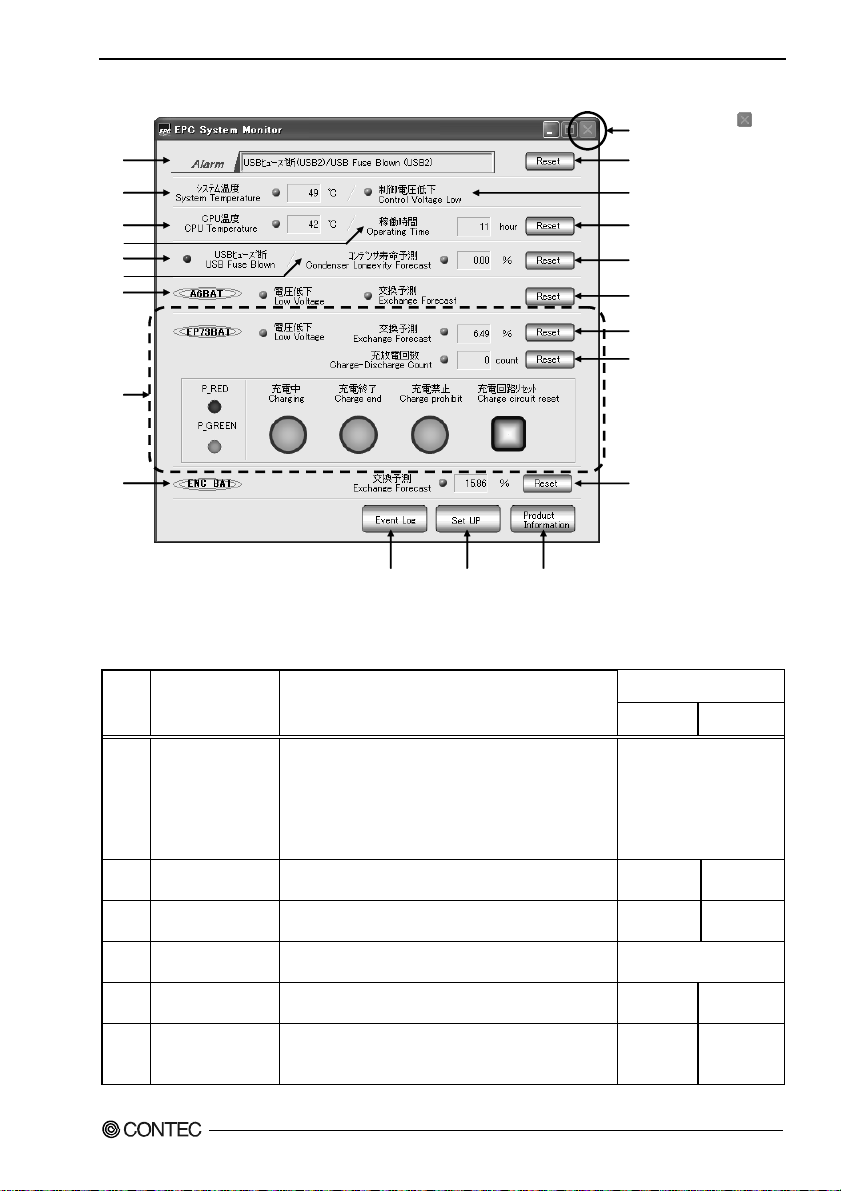

Figure 7.1 Monitor Screen (Start screen)
The following shows details about Item/button on Set UP screen.
Table 7.1 Monitor Screen Item/Button Description
No. Item/Button Description
When detecting an alarm, the corresponding alarm message is displayed.
(1) Alarm
(2) System Temperature
(3) CPU Temperature
(4) Operating Time
(5) USB fuse blown
Condenser Longevity
(6)
Forecast
When more than one alarm occurring, messages are switch-displayed every 5 seconds. (Confirm occurring time and detected data etc. on Event LOG screen.)
Display internal board temperature. Give an alarm when system temperature is over 100°C.
Display CPU internal temperature. Give an alarm when CPU temperature is over 100°C.
Display operating time (current time) from starting PT-E the first time.
Detect USB (1 to 4) fuse blowout and display current state. Give an alarm when detecting USB fuse blowout.
Display forecast result of condenser longevity based on Operating Time and System Temperature. Give an alarm when forecast result is over 98%.
(17)
Lamp Color
Normal Alarm/Error
None
Green Red
Green Red
None
Green Red
Green Red
65
Page 73
7. Resume Function/ EPC System Monitor
No. Item/Button Description
Low
(7) A6BAT
(8) EP73BAT
ENC BAT(*4)
(9)
Exchange Forecast
(10) Alarm Reset button Reset all alarms shown in (1). Detect new alarm after reset. None
(11) Control Voltage Low
Operating Time Reset
(12)
button
Condenser Longevity
(13)
Forecast Reset button
Voltage
Exchange Forecast
Low Voltage
Exchange Forecast
Charge­Discharge Count
Charging Light during charging normally. Orange Blinking
Charge end
Charge prohibit
Charge circuit reset
Check low voltage signal of PT-A6BAT and display the current state.
Give an alarm when low voltage is detected. Green Red
Check low voltage signal of PT-E73BAT and display the current state. (Give an alarm if PT-E73BAT is not loaded on.)
Display forecast result of PT-E73BAT longevity. Give an alarm when forecast result is over 98%.
Display charge-discharge count number. Give an alarm when charge-discharge count number is over 300 times since started the first time.
Light when charge is over normally. Green None
Light when PT-E73BAT can not be charged due to the following causes (Lamp color at moment of lighting: Red)
1)PT-E73BAT is not loaded on.
2)Adapter is abnormal.
Light at the moment of the following case. (Lamp color at moment of lighting: Blue)
1) PT-E (EPC System Monitor) start/restart (30 seconds later)
2) Power restore from power failure
3) Regularly (1Hr) reset in the state of Charge prohibit
4) Regularly (60 days) reset in the state of Charge end
5) Error occurred during charging (Charge prohibit lamp blinking for 10 seconds or more during charging.)
Display forecast result of encoder battery of servo amplifier that is connected to PT-E. Give an alarm when forecast result is over 98%. This item is available when setting “Execute” for the item in Option setting (refer to p. 73). It is masked when setting Not Execute in Option setting.
Monitor control voltage of circuit on motherboard and display the current state.
Reset operating time. Forecast result will be added up from 0Hr after reset. Do this operation when only exchanging PT-E main body (Goes on using CF card).
Reset condenser longevity forecast result and the related alarm message (longevity warning). Forecast result will be added up from 0.00% after reset. Do this operation when only exchanging PT-E main body (Goes on using CF card.)
Lamp Color
Normal Alarm/Error
Green Red
Green Red
Green Red
Green Red
None Blinking
None
Green Red
Green Red
None
None
PT-E831H, PT-E831HS User’s manual
66
Page 74
7. Resume Function/ EPC System Monitor

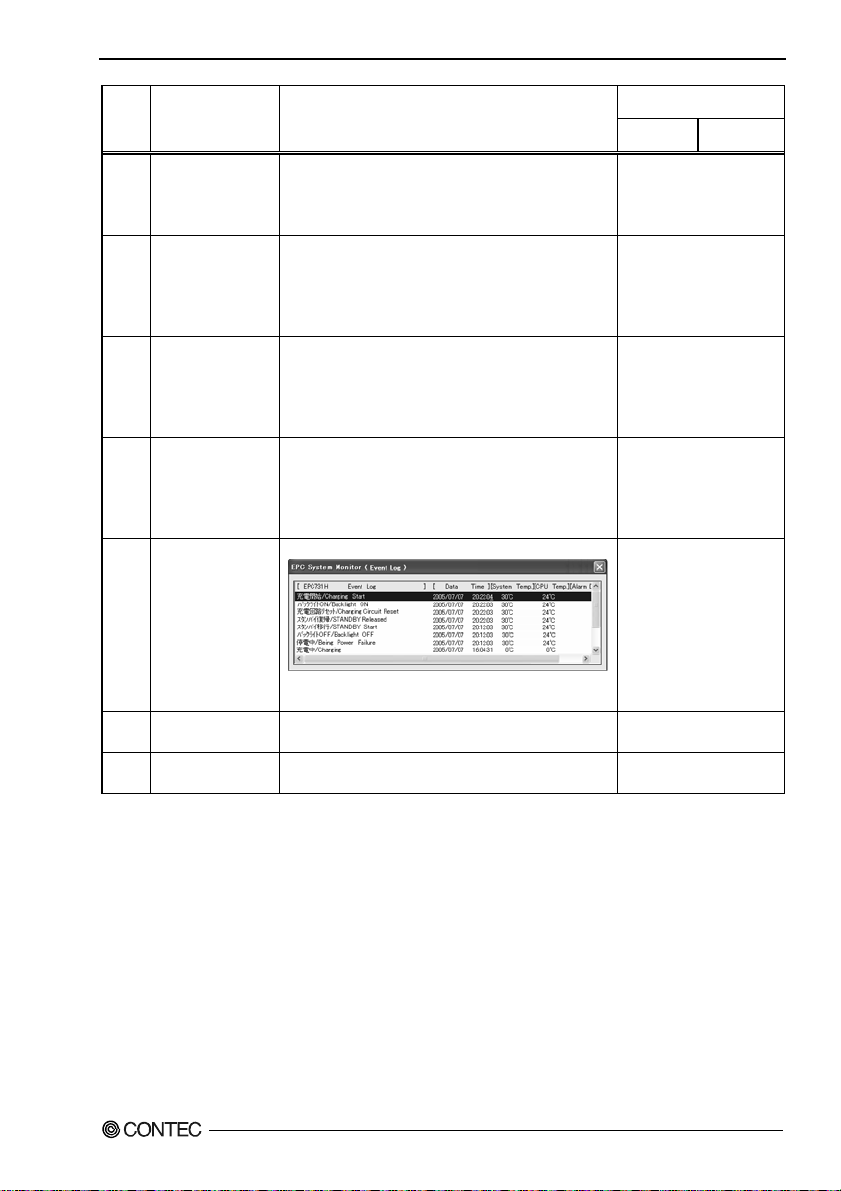

No. Item/Button Description
A6BAT (*1) Exchange
(14)
Forecast Reset button
EP73BAT (*2)
(15)
exchange forecast reset button
Charge-discharge
(16)
count Reset button
ENC BAT Exchange
(17)
Forecast Reset
Event Log
(18)
button
(19) Set UP button
Product Information
(20)
button *1: PT-A6BAT is a battery for saving PT-E’s time data and BIOS information. *2: PT-E73BAT is a lithium ion battery pack for using resume function. *3: Dotted line region is masked if set [Not use] in the area of Resume function. *4: ENC BAT is encoder battery of servo amplifier that is connected to PT-E.
Reset Exchange forecast result and the related alarm message (exchange warning, low voltage). Detect new alarm after reset. Do this operation when exchanging PT-A6BAT.
Reset PT-E73BAT’s exchange forecast result and the related alarm message (exchange warning, low voltage). Forecast result will be added up from 0.00% after reset. Do this operation when exchanging PT-E73BAT. This item is masked if [No use] is set in area of [Resume Function].
Reset PT-E73BAT’s charge-discharge count result and the PT-E73BAT related alarm message (exchange warning). Count number will be added up from 0 after reset. (Do this operation when exchanging PT-E73BAT. This item is masked if [Not use] is set in area of [Resume Function]).
Reset exchange forecast result of encoder battery of servo amplifier that is connected to PT-E. Detect new alarm after reset. Do this operation when exchanging encoder battery. This item is masked if [Not use] is set for this item in option setting.
Push this button, the following screen is displayed.
Up to 500 cases, occurred event contents or occurring times are displayed. The latest event is displayed at top line.
Display EPC System Monitor’s Set UP screen. (Refer to p.68 for details.)
Display EPC system monitor’s product information and copy right information.
Lamp Color
Normal Alarm/Error
None
None
None
None
None
None
None
67
Page 75
7. Resume Function/ EPC System Monitor
Set UP Screen
Click button [Set UP] that is at the bottom of Start screen, EPC System Monitor’s Set UP Screen is displayed.
There is [Power] setting and [Other] setting in Set UP screen.
(1) [Power] setting
Set necessary items for power management. The following shows power setting screen.
(1)
(2)

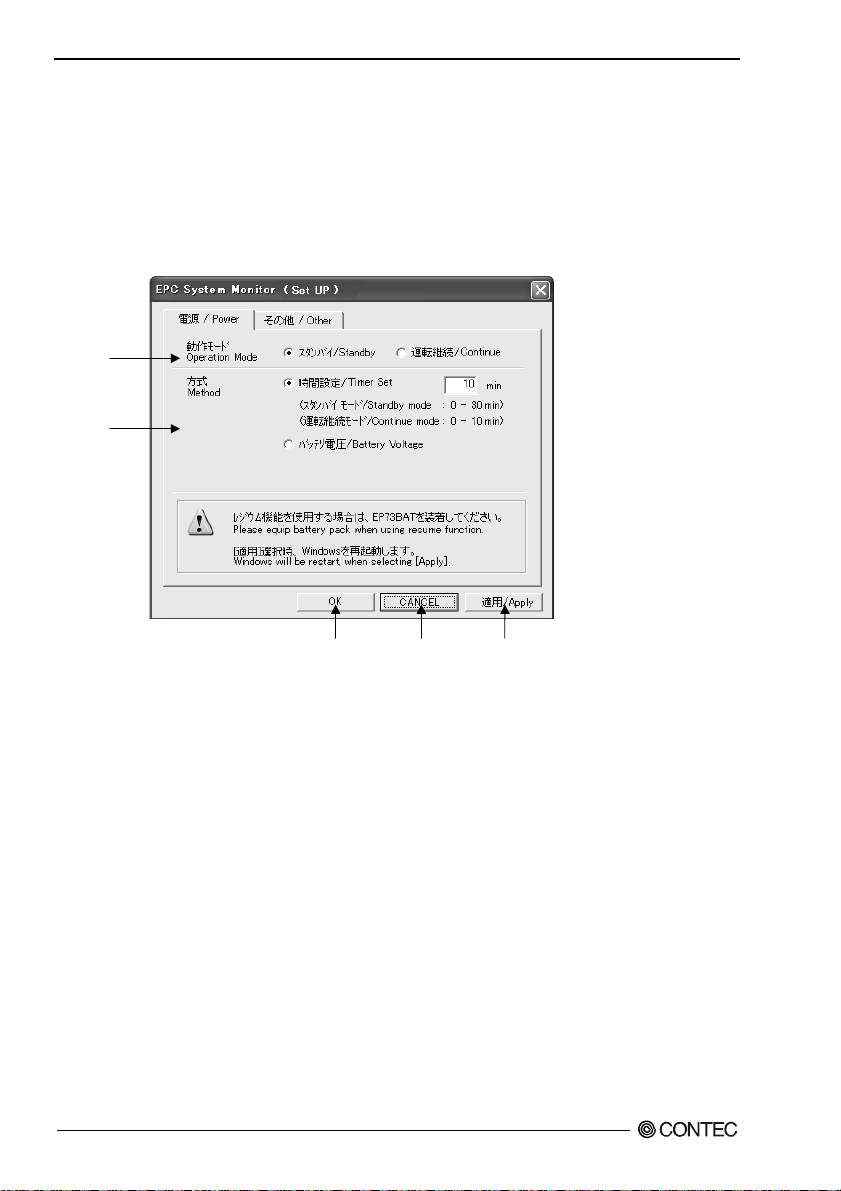

Figure 7.2 [Power] Setting screen
PT-E831H, PT-E831HS User’s manual
68
(6) (7) (8)
Page 76
7. Resume Function/ EPC System Monitor
(2) [Other] setting
Set items other than power. The following shows other setting screen.
(3)
(4)
(5)
(6) (7) (8)

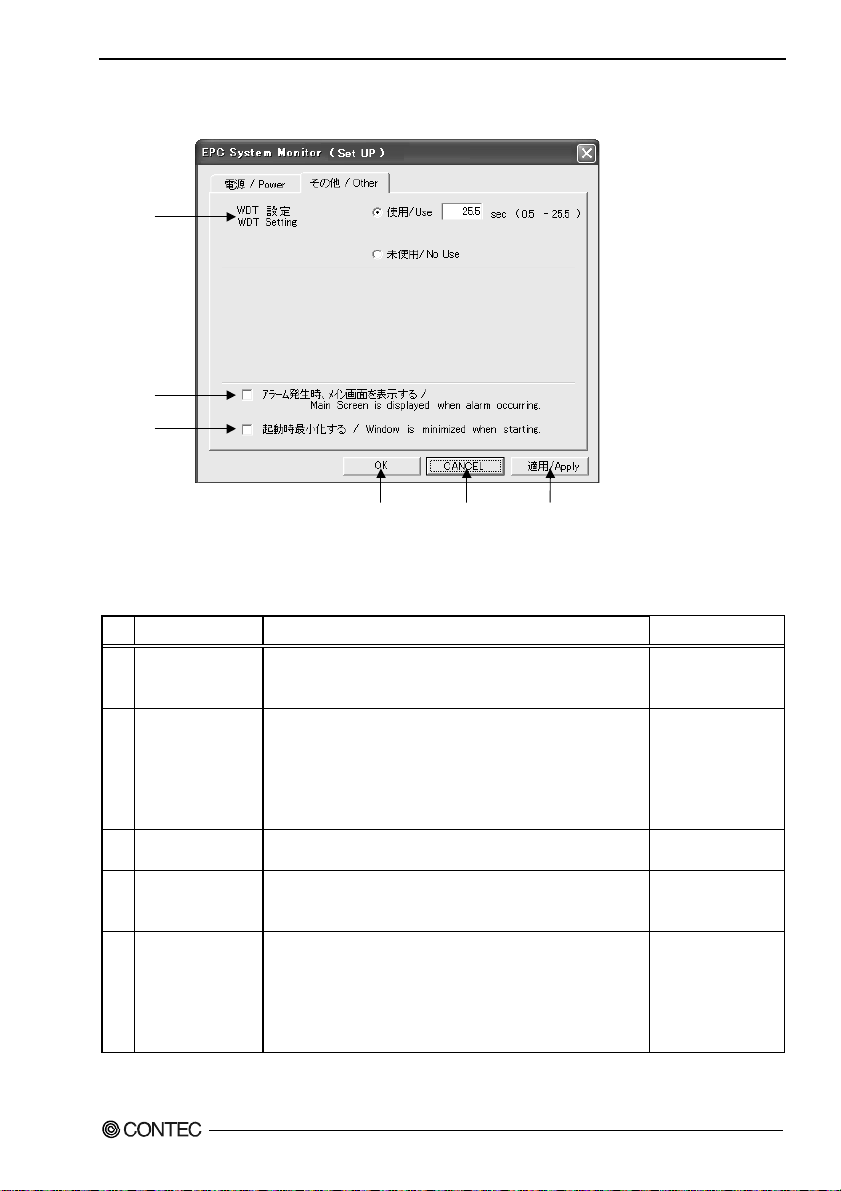

Figure 7.2 [Other]setting screen
The following shows details about Item/button on Set UP screen.
Table 7.2 Set UP Screen Item/Button
No. Item/Button Description Note
(1) Operation Mode
(2) Method
(3) WDT (*2) Setting
Main Screen is
(4)
displayed when alarm occurring
Windows is
(5)
minimized when starting
Set operation mode (Standby or Continue) of resume function (refer to p.63 for resume function) This item is available when setting USE for Resume Function. (*1)
Set method of resume function. a. [Timer Set] or [Battery Voltage] can be chosen. b. In case of choosing [Timer Set], please do time setting. c. Even in method of [Timer Set], if low battery voltage is detected before passing the setting time, system will go to shutdown. d. This item is available when setting USE for Resume Function.
Set time to output error. If reset operation is not done after passing the setting time, WDT error signal is output.
If choose this item, EPC System Monitor’s start screen (refer to p.
65) will be opened automatically when error occurring.
If choose this item, EPC System Monitor’s start screen will be minimized and put in task bar at the moment of starting. Display the screen and operate when necessary.
If not choose this item, EPC System Monitor’s monitor screen (refer to p. 65) is displayed at the moment of starting.
69
Page 77
7. Resume Function/ EPC System Monitor
No. Item/Button Description Note

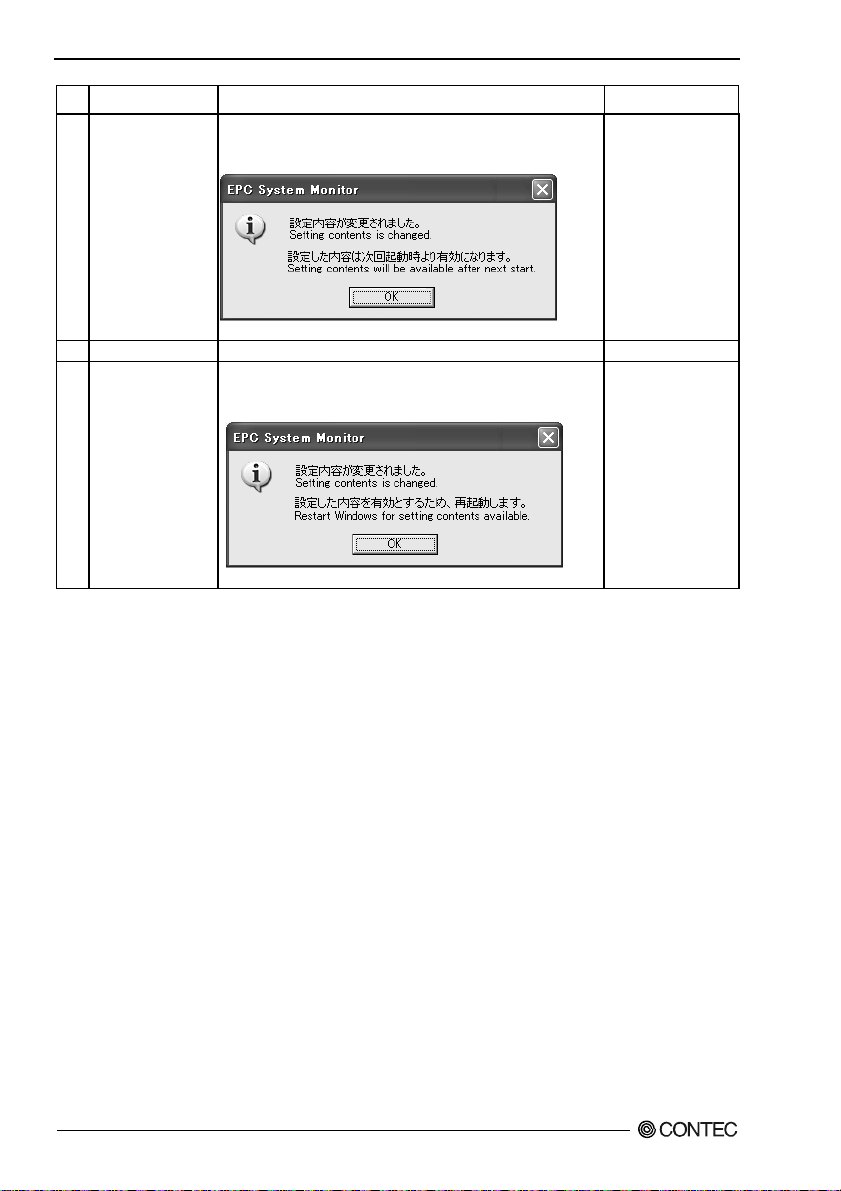

Save the current settings. The settings will be available from next time starting. The following message is displayed if the settings have been changed.
(6) OK button
Push OK button, Set UP screen is closed.
(7) CANCEL button Cancel the setting contents and close the setting window.
Save the current setting and restart. The following message is displayed if the settings have been changed.
(8) Apply button
Push OK button, close Set UP screen, and restart Windows.
*1: Using EPC System Monitor’s start option set whether use resume function or not. (Refer to p. 73 for setting method.)
*2: WDT is abbreviation of Watch Dog Timer.
PT-E831H, PT-E831HS User’s manual
70
Page 78
7. Resume Function/ EPC System Monitor
(3) Error Message
If there is a setting error, the corresponding error message is displayed.

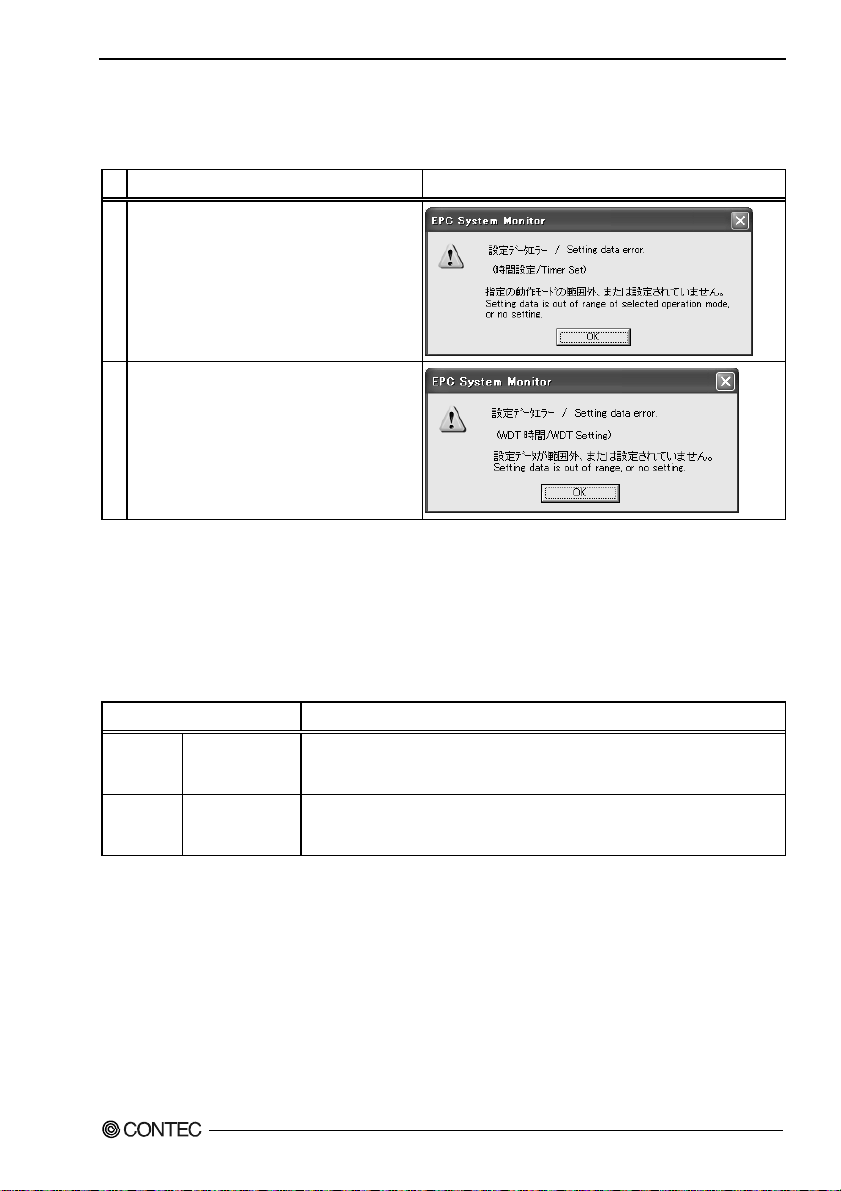

Table 7.3 Error Message
No. Check Item Error Message
In case of selecting [Timer Set], setting time is out
(1)
of range, or not set.
In case of setting [Use] for WDT, WDT time is out of
(2)
range, or not set.
Status Output Function
Output monitor state of H/W and alarm state to user I/F (Windows shared memory or CB/CW memory). CB/CW memory is common memory area for screen design software HMI-Designer that is made by our company and other user’s application. CB/CW memory can be used to transfer data and communicate. There are two kinds of memories Bit memory (CB) and Word memory (CW).
Table 7.4 Status Output Function
Output Memory User application
Windows
Shared
Memory
CB/CW
Momery
Default
Set head number of CB/CW
Access the shared memory with application such as VC++ etc. and display them on user screen.
a. Display by user screen that is created by HMI-Designer. b. Access CB/CW memory with application such as VC++ etc. and display them on
user screen.
Output data to Windows shared memory occupies 16-byte as bit data and 8-word as word data.
71
Page 79
7. Resume Function/ EPC System Monitor
Bit data are shown as below.
Table 7.5 Output Bit data
Output Memory Output Data
CB/CW Memory Windows
shared memory
CB Head number
+0 Condenser Longevity alarm
+1 PT-E73BAT Exchange alarm
+2 PT-A6BAT Exchange alarm
+3 Encoder battery exchange alarm
+4 Power outage
+5 PT-E73BAT Charge finished
+6 PT-E73BAT Charging
+7 PT-E73BAT Charge Prohibit
+8 Epcutil.log file process error occurred (setting).
+9 EpcutilLog.txt file process error occurred (event).
+10 UPCUtl.inf file process error occurred (alarm).
+11 PT-E73BAT Low Voltage
+12 PT-A6BAT Low Voltage
+13 CPU Over Temperature
+14 System Over Temperature
+15 Control voltage low
Word data are shown as below.
Item Content
0: Normal 1: Alarm
0: Fixed. 1: Power
outage 1: Charge is finished.
1: Charging 1: Charge is
prohibited.
0: Normal 1: Alarm
1: Alarm
Table 7.6 Output Word data
Output Memory Output Data
Windows
shared memory
CB/CW Memory
CW head number
+0 System Temperature (degree) -128 to 127
+1 Condenser Longevity Forecast (*0.01%) 0 - 10000
+2 PT-E73BAT Exchange Forecast (*0.01%) 0 - 10000
+3 PT-A6BAT Exchange Forecast (*0.01%) 0 - 10000
+4 Encoder battery Exchange Forecast (*0.01%) 0 - 10000
+5 Operating Time (H) 0 - 65535
+6 System Information (EPC System Monitor 1Sec counter) 0 - 65535
+7 System information None
Item Content
PT-E831H, PT-E831HS User’s manual
72
Page 80
7. Resume Function/ EPC System Monitor
Start/Quit of EPC System Monitor
EPC System Monitor implements power management; therefore EPC SystemMonitor’s Start/Quit synchronizes with Windows OS’.
(1) Start EPC System Monitor
Make a setting to start EPC System Monitor while starting Windows. (For example, register the
shortcut of executable file (Epcutil.exe) of EPC System Monitor to Startup.)
Moreover, set the following start option if necessary.
There are two kinds of setting methods, specify file save destination drive, and do setting with “/”.
1) Specify file save destination drive
Table 7.7 Specify File Save Destination Drive
Option Description Default Example
[Specify file save destination drive]
1st argument
Specify file save destination drive for saving the following files that are output by EPC System monitor. System setting information file (epcutil.log), Alarm state file (UPCUtl.inf), event history file (EpcutilLog.txt).
C: Epcutil.exe
D
2) Do setting with “/”
The following shows EPC System Monitor’s start option list.
Start option setting example:
Epcutil.exe
/Dd: \EPCSys\ /B100 /W100
Table 7.8 EPC System Monitor’s start option list.
Option Description Default Example
[Resume function setting]
/R
/S
/E
/B
Set whether or not to use resume function. Y: Use; N: Not Use
[Exit setting in continue mode]
Set whether or not to execute shutdown in continue mode. Y: Execute; N: Not execute
[Encoder BAT exchange forecast setting]
Set whether or not to execute encoder BAT exchange forecast. U: Execute; N: Not Execute
[Operation state output memory (BIT) setting]
Set operation state output memory (BIT). Not set: Windows shared memory, or Set: Set head number of shared memory (CB)) If setting number is improper, works by CB0.
Use /RN
Execute /SN
Not Execute /EU
Windows Shared memory
/B100 (16 points from CB100 are output.)
73
Page 81
7. Resume Function/ EPC System Monitor
Option Description Default Example
[Operation state output memory (WORD) setting]
/W
/L
/D
*: Work based default setting if no option setting is done.
Set operation state output memory (WORD). Not set: Windows shared memory, or Set: Set head number of shared memory (CW) If setting number is improper, works by CW0.
[Write event history information setting]
Set timing of writing event history information. Y: Write when event occurring N : Not write
(n: Write every setting time and at the time of exiting (n: 1 to 24(Unit: hour))) If setting time is improper, works based the following: Works by n=1 when n<1, works by n=24 when n>24
[Specify file save folder]
Specify folder by full path to save the following files that are output by EPC System Monitor. System setting information file (epcutil.log), Alarm state file (UPCUtl.inf), Event history file (EpcUtilLog.txt). Number of character: Max.240 characters(half-size character) Characters to be prohibited: \ / : ; , . * ? < > |
Windows Shared memory
Write when event occurring
c: \ /Dd: \EPCSys\
/W100 (8 points from CW100 are output.)
/LN
PT-E831H, PT-E831HS User’s manual
74
Page 82
7. Resume Function/ EPC System Monitor
(2) Quit of EPC System Monitor
Quit of EPC System Monitor only works when quitting Windows OS (Shutdown request from
Windows OS).
EPC System Monitor screen’s quitting button doesn’t work.
Quitting button
Figure 7.3 Quitting button
Point
(1) When exchanging CF card, please copy EPC System Monitor related files such as EpcUtilLog.txt
and epcutil.log to the new CF card. Not doing so, the operating time will be reset.
(2) Please set optional settings in the setting range.
(3) During EPC System Monitor working, do not remove the drive where has been specified by option
setting as file save folder. Doing so may cause file writing error.
75
Page 83
7. Resume Function/ EPC System Monitor
PT-E831H, PT-E831HS User’s manual
76
Page 84

8. BIOS Setup

8. BIOS Setup Introduction
This chapter discusses Award’s Setup program built into the FLASH ROM BIOS. The Setup program allows users to modify the basic system configuration. This special information is then stored in battery-backed RAM so that it retains the Setup information when the power is turned off.
The rest of this chapter is intended to guide you through the process of configuring your system using Setup.

Starting Setup

The Award BIOS is immediately activated when you first power on the computer. The BIOS reads the system information contained in the CMOS and begins the process of checking out the system and configuring it. When it finishes, the BIOS will seek an operating system on one of the disks and then launch and turn control over to the operating system.
While the BIOS is in control, the Setup program can be activated in one of two ways:
1 By pressing <Del> immediately after switching the system on, or
2 By pressing the <Del> key when the following message appears briefly at the bottom of the screen
during the POST (Power On Self-Test).
Press DEL to enter SETUP.
If the message disappears before you respond and you still wish to enter Setup, restart the system to try again by turning it OFF then ON. If USB Keyboard Support is set to “Enabled”, restart can be initiated by pressing the <Ctrl>, <Alt>, and <Delete> keys simultaneously. If you do not press the keys at the correct time and the system does not boot, an error message will be displayed and you will again be asked to.
Press F1 to continue, DEL to enter SETUP
77
Page 85
8. BIOS Setup

Using Setup

In general, you use the arrow keys to highlight items, press <Enter> to select, use the PageUp and PageDown keys to change entries, press <F1> for help and press <Esc> to quit. The following table provides more detail about how to navigate in the Setup program using the keyboard.
Table 8.1 Using Setup
Key Function
Up Arrow Move to the previous item
Down Arrow Move to the next item
Left Arrow Move to the item on the left (menu bar)
Right Arrow Move to the item on the right (menu bar)
Esc
Move Enter Move to the item you desired
PgUp key Increase the numeric value or make changes
PgDn key Decrease the numeric value or make changes
+ key Increase the numeric value or make changes
- key Decrease the numeric value or make changes
Esc key
F1 key General help on Setup navigation keys
F5 key Load previous values from CMOS
F6 key Load the fail-safe defaults from BIOS default table
F7 key Load the optimized defaults
F10 key Save all the CMOS changes and exit
Main Menu: Quit without saving changes
Submenus: Exit Current page to the next higher level menu
Main Menu -- Quit and not save changes into CMOS Status Page Setup Menu and Option Page Setup Menu -- Exit current page and return to Main Menu

Getting Help

Press F1 to pop up a small help window that describes the appropriate keys to use and the possible selections for the highlighted item. To exit the Help Window press <Esc> or the F1 key again.

In Case of Problems

If, after making and saving system changes with Setup, you discover that your computer no longer is able to boot, the AwardBIOS™ supports an override to the CMOS settings which resets your system to its defaults.
The best advice is to only alter settings which you thoroughly understand. To this end, we strongly recommend that you avoid making any changes to the chipset defaults. These defaults have been carefully chosen by both Award and your systems manufacturer to provide the absolute maximum performance and reliability. Even a seemingly small change to the chipset setup has the potential for causing you to use the override.

A Final Note About Setup

The information in this chapter is subject to change without notice.
PT-E831H, PT-E831HS User’s manual
78
Page 86
8. BIOS Setup

Main Menu

Once you enter the Award BIOS CMOS Setup Utility, the Main Menu will appear on the screen. The Main Menu allows you to select from several setup functions and two exit choices. Use the arrow keys to select among the items and press <Enter> to accept and enter the sub-menu.
Note that a brief description of each highlighted selection appears at the bottom of the screen.
P hoenix - AwardBIOS COMS Setu p Utility
4Standard CMOS Features
4Advanced BIOS Features
4Advanced Chipset Feat ures
4Integrated Peripherals
4PnP/PCI Configuration s
4PC Health Status
Esc : Quit ↑ ↓ → ← : Select Item F10 : Save & Exit Se tup
Time, Date, Hard Disk Type...
Load Fail-Safe Defaults
Load Optimized Defaults
Set Supervisor Password
Set User Password
Save & Exit Setup
Exit Without Saving
Figure 8.1 Main Manu

Setup Items

The main menu includes the following main setup categories. Recall that some systems may not include all entries.
Standard CMOS Features Use this menu for basic system configuration.
Advanced BIOS Features Use this menu to set the Advanced Features available on your system.
Advanced Chipset Features Use this menu to change the values in the chipset registers and optimize your system's performance.
Integrated Peripherals Use this menu to specify your settings for integrated peripherals.
PnP / PCI Configuration This entry appears if your system supports PnP / PCI.
Load Fail-Safe Defaults Use this menu to load the BIOS default values for the minimal/stable performance for your system to operate.
79
Page 87
8. BIOS Setup
Load Optimized Defaults Use this menu to load the BIOS default values that are factory settings for optimal performance system operations. While Award has designed the custom BIOS to maximize performance, the factory has the right to change these defaults to meet their needs.
Supervisor / User Password Use this menu to set User and Supervisor Passwords.
Save & Exit Setup Save CMOS value changes to CMOS and exit setup.
Exit Without Save Abandon all CMOS value changes and exit setup.
PT-E831H, PT-E831HS User’s manual
80
Page 88
8. BIOS Setup

Standard CMOS Setup

Phoenix - AwardBIOS COMS Setup Utility Standard CMOS Features
Date (mm:dd:yy) Fri, May 11 2007 Time (hh:mm:ss) 14 : 5 : 31
4Onboard PATA Master [ None] 4Onboard PATA Slave [ None] 4Onboard SATA-0 [ None]
4Onboard SATA-1 [ None]
Video [EGA/VGA] Halt On [No Errors]
Base Memory 640K Extended Memory 252928K Total Memory 253952K
Figure 8.2 Standard CMOS Setup
The items in Standard CMOS Setup Menu are divided into 11 categories. Each category includes no, one or more than one setup items. Use the arrow keys to highlight the item and then use the <PgUp> or <PgDn> keys to select the value you want in each item.
Menu Level 4
Change the day, month, year and century
Item Help
81
Page 89
8. BIOS Setup

Main Menu Selections

This table shows the selections that you can make on the Main Menu.
Table 8.2 Main Menu Selections
Item Option Description
Date Month DD YYYY
Time HH : MM : SS Set the system time
Onboard PATA Master Options are in its sub menu
Onboard PATA Slave Options are in its sub menu
Onboard SATA-0 Options are in its sub menu
Onboard SATA-0 Options are in its sub menu
EGA/VGA
Video
Halt On
Base Memory N/A
Extended Memory N/A
Total Memory N/A
CGA 40 CGA 80 MONO All Errors No Errors All, but Keyboard
Set the system date. Note that the automatically changes when you set the date
Press <Enter> to enter the sub menu of detailed options Press <Enter> to enter the sub menu of detailed options Press <Enter> to enter the sub menu of detailed options Press <Enter> to enter the sub menu of detailed options
Select the default video device
Select the situation in which you want the BIOS to stop the POST process and notify you Displays the amount of conventional memory detected during boot up Displays the amount of extended memory detected during boot up Displays the total memory available in the system
‘Day’
PT-E831H, PT-E831HS User’s manual
82
Page 90
8. BIOS Setup

Onboard PATA Master/Onboard PATA Slave

Phoenix - AwardBIOS COMS Setup Utility Onboard PATA Master
IDE HDD Auto-Detection [Press Enter]
Onboard PATA Master [Auto]
Menu Level 44
Access Mode [Auto]
Capacity 1024 MB
To auto-detect the HDD's size, head... on
this channel Cylinder 1985 Head 16 Precomp 0 Landing Zone 1984 Sector 63
↑↓→←
:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults
Figure 8.3 Onboard PATA Master/Onboard PATA Slave Setup
The IDE adapters control the CF card. Use a separate sub menu to configure each CF card.
Use the legend keys to navigate through this menu and exit to the main menu. Use Table 8.3 to configure the hard disk.
Item Help
Table 8.3 IDE adapters
Item Option Description
IDE HDD Auto-detection Press Enter
Onboard PATA Master/ Onboard PATA Slave
Access Mode
Capacity
The following options are selectable only if the ‘IDE Channel 0/2 Master/Slave’ item is set to ‘Manual’ and ‘CHS’ item is set to ‘Manual’
Cylinder
Head
Precomp
None Auto Manual CHS LBA Large Auto
Auto Display your CF card size
Min = 0 Max = 65535 Min = 0 Max = 255
Min = 0 Max = 65535
Press Enter to auto-detect the CF card on this channel. If detection is successful, it fills the remaining fields on this menu. Set the CF Card specifications. Normally specify [Auto]. When using an old CF Card that is not recognized by [Auto] setting,
Choose the access mode for this CF Card.
Disk drive capacity (Approximated). Note that this size is usually slightly greater than the size of a formatted disk given by a disk checking program.
Set the number of cylinders for this CF card.
Set the number of heads for this CF card.
**** Warning: Setting a value of 65535 means no CF card
83
Page 91
8. BIOS Setup
Item Option Description
Landing zone
Sector
Min = 0 Max = 65535 Min = 0 Max = 255
****
Number of sectors per track
PT-E831H, PT-E831HS User’s manual
84
Page 92
8. BIOS Setup

Onboard SATA-0/Onboard SATA-1

Phoenix - AwardBIOS COMS Setup Utility Onboard SATA-0
IDE HDD Auto-Detection [Press Enter]
Extended IDE Drive [Auto] Access Mode [Auto]
Capacity 1024 MB
Cylinder 1985 Head 16 Precomp 0 Landing Zone 1984 Sector 63
↑↓→←
:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults
Figure 8.4 Onboard SATA-0/Onboard SATA-1
The IDE adapters control the external HDD. Use a separate sub menu to configure each HDD.
Use the legend keys to navigate through this menu and exit to the main menu. Use Table 8.4 to configure the hard disk.
Item Help
Menu Level 44
To auto-detect the HDD's size, head... on this channel
Table 8.4 IDE Adapters
Item Option Description
IDE HDD Auto-detection Press Enter
Extended IDE Drive
Access Mode
Capacity
The following options are selectable only if the ‘IDE Channel 0/2 Master/Slave’ item is set to ‘Manual’ and ‘CHS’ item is set to ‘Manual’
Cylinder
Head
Precomp
Landing zone
Sector
None Auto
Large Auto
Auto Display your HDD card size
Min = 0 Max = 65535 Min = 0 Max = 255 Min = 0 Max = 65535 Min = 0 Max = 65535 Min = 0 Max = 255
Press Enter to auto-detect the HDD on this channel. If detection is successful, it fills the remaining fields on this menu. Set the HDD specifications. Normally specify [Auto]. When using an old HDD that is not recognized by [Auto] setting,
Choose the access mode for this HDD.
Disk drive capacity (Approximated). Note that this size is usually slightly greater than the size of a formatted disk given by a disk checking program.
Set the number of cylinders for this HDD.
Set the number of heads for this HDD.
**** Warning: Setting a value of 65535 means no HDD
****
Number of sectors per track
85
Page 93
8. BIOS Setup

Advanced BIOS Features Setup

This section allows you to configure your system for basic operation. You have the opportunity to select the system’s default speed, boot-up sequence, keyboard operation, shadowing and security.
Phoenix - AwardBIOS COMS Setup Utility Advanced BIOS Featires
4Hard Disk Boot Priority [Press Enter] CPU L1 & L2 Cache [Enabled] Quick Power On Self Test [Enabled] First Boot Device [Hard Disk] Second Boot Device [CDROM] Third Boot Device [USB-FDD] Boot Other Device [Enabled] Boot Up NumLock Status [On] Gate A20 Option [Fast] Typematic Rate Setting [Disabled] x Typematic Rate (Chars/Sec) 6 x Typematic Delay (Msec) 250 Security Option [Setup] Summary Screen Show [Disabled]
↑↓→←
:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults
Menu Level 4
Select Har Disk boot
Figure 8.5 Advanced BIOS Features Setup
Item Help
Device Priolty
PT-E831H, PT-E831HS User’s manual
86
Page 94
8. BIOS Setup

Hard Disk Boot Priority

Phoenix - AwardBIOS CMOS Setup Utility Hard Disk Boot Priority
1. Ch0 M. :TOSIHBA THNCF512MDG
2. Bootable Add-in Cards
↑↓:Move PU/PD/+/-:Change Priority F10:Save ESC:Exit F5:Previous Values F6:Fail-Safe Defaults F7: Optimized Defaults
Figure 8.6 Hard Disk Boot Priority
Details screen is displayed when selecting the item of [Hard Disk Boot Priority] on the screen of [Advanced BIOS Features]
Item Help
Menu Level 44
↑
> or <↓> to
Use < select a device , then press <+> to move it up , or <-> to move it down the list. Press <ESC> to exit this menu.
Table 8.5 Hard Disk Boot Priority
Item Option
CHO.M Set the connected HD. Bootable Add-in Cards Set start priority order of connecting HD.
87
Page 95
8. BIOS Setup

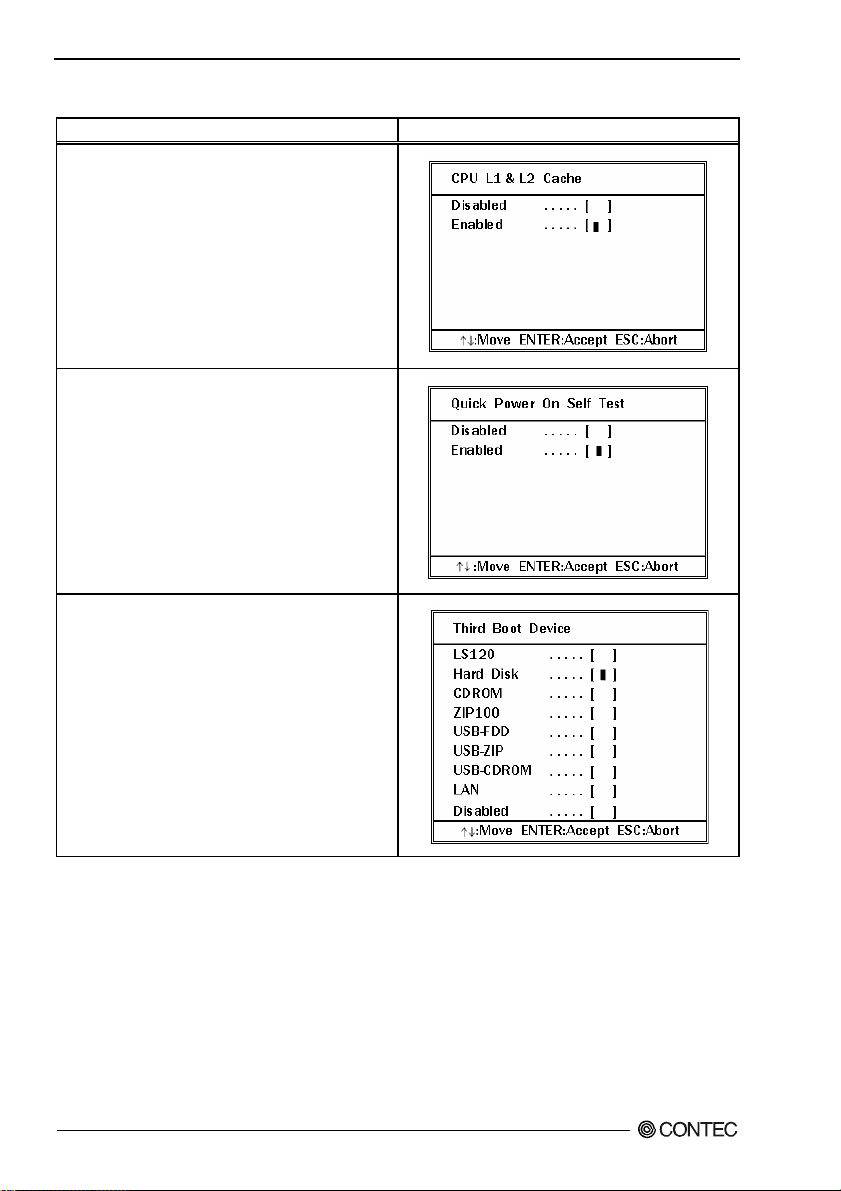

Table 8.6 Advance BIOS Feature Selections
Description Choices
CPU L1 & L2 Cache
These allow you to enable (speed up memory access) or disable the cache function.
Quick Power On Self Test
Select Enabled to reduce the amount of time required to run the power-on self-test (POST). A quick POST skips certain steps. We recommend that you normally disable quick POST. Better to find a problem during POST than lose data during your work.
First Boot Device
The BIOS attempts to load the operating system from the devices in the sequence selected in these items.
PT-E831H, PT-E831HS User’s manual
88
Page 96

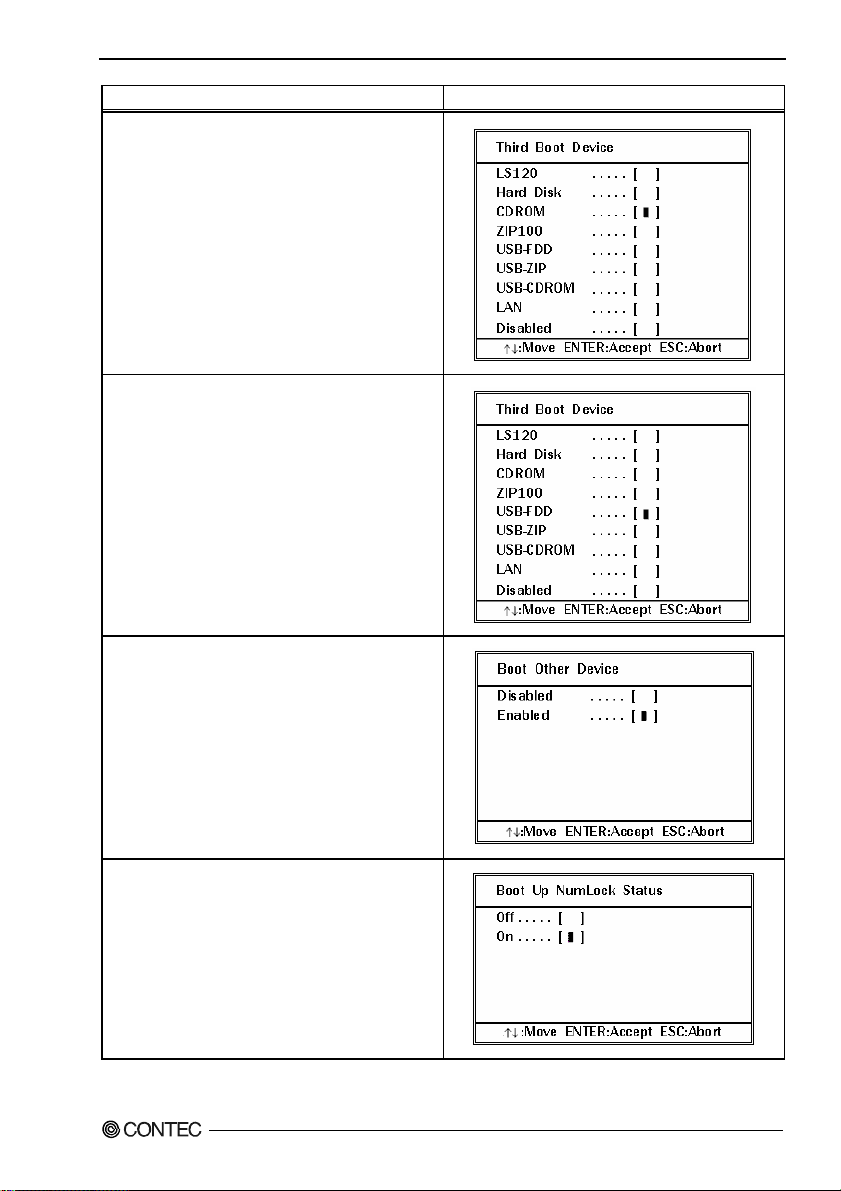

Description Choices
Second Boot Device
The BIOS attempts to load the operating system from the devices in the sequence selected in these items.
Third Boot Device
The BIOS attempts to load the operating system from the devices in the sequence selected in these items.
8. BIOS Setup
Boot Other Device
The BIOS attempts to load the operating system from the devices in the sequence selected in these items.
Boot Up NumLock Status
Toggle between On or Off to control the state of the NumLock key when the system boots. When toggled On, the numeric keypad generates numbers instead of controlling cursor operations.
89
Page 97
8. BIOS Setup
Description Choices

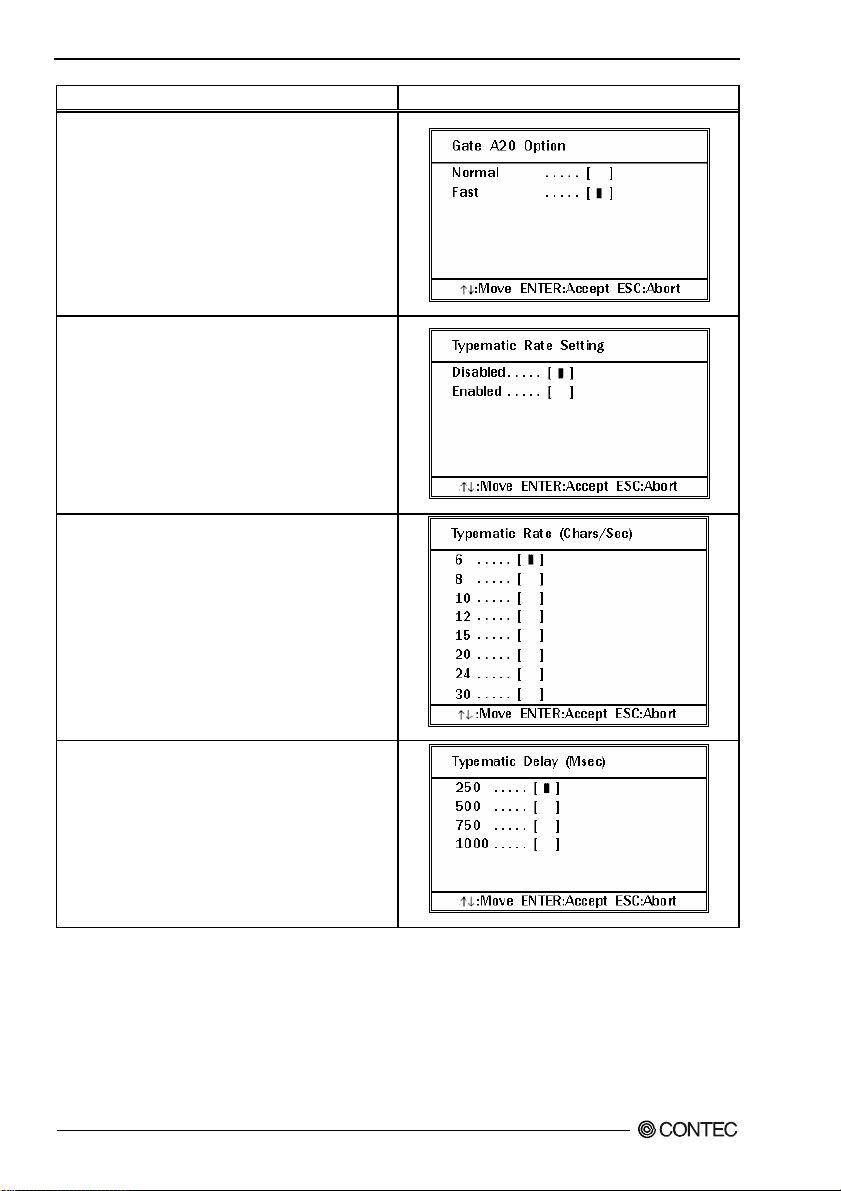

Gate A20 option
Gate A20 refers to the way the system addresses memory above 1 MB (extended memory). When set to Fast, the system chipset controls Gate A20.
When set to Normal, a pin in the keyboard controller controls Gate A20. Setting Gate A20 to Fast improves system speed, particularly with OS/2 and Windows.
Typematic Rate Setting
When Disabled, the following two items (Typematic Rate and Typematic Delay) are irrelevant. Keystrokes repeat at a rate determined by the keyboard controller in your system. When Enabled, you can select a typematic rate and typematic delay.
Typematic Rate (Chars/Sec)
When the typematic rate setting is enabled, you can select a typematic rate (the rate at which character repeats when you hold down a key) of 6, 8, 10, 12, 15, 20, 24 or 30 characters per second.
Typematic Delay (Msec)
When the speed setting for the key input is enabled, you can specify the interval of waiting time for the continuous key input.
PT-E831H, PT-E831HS User’s manual
90
Page 98
8. BIOS Setup
Description Choices

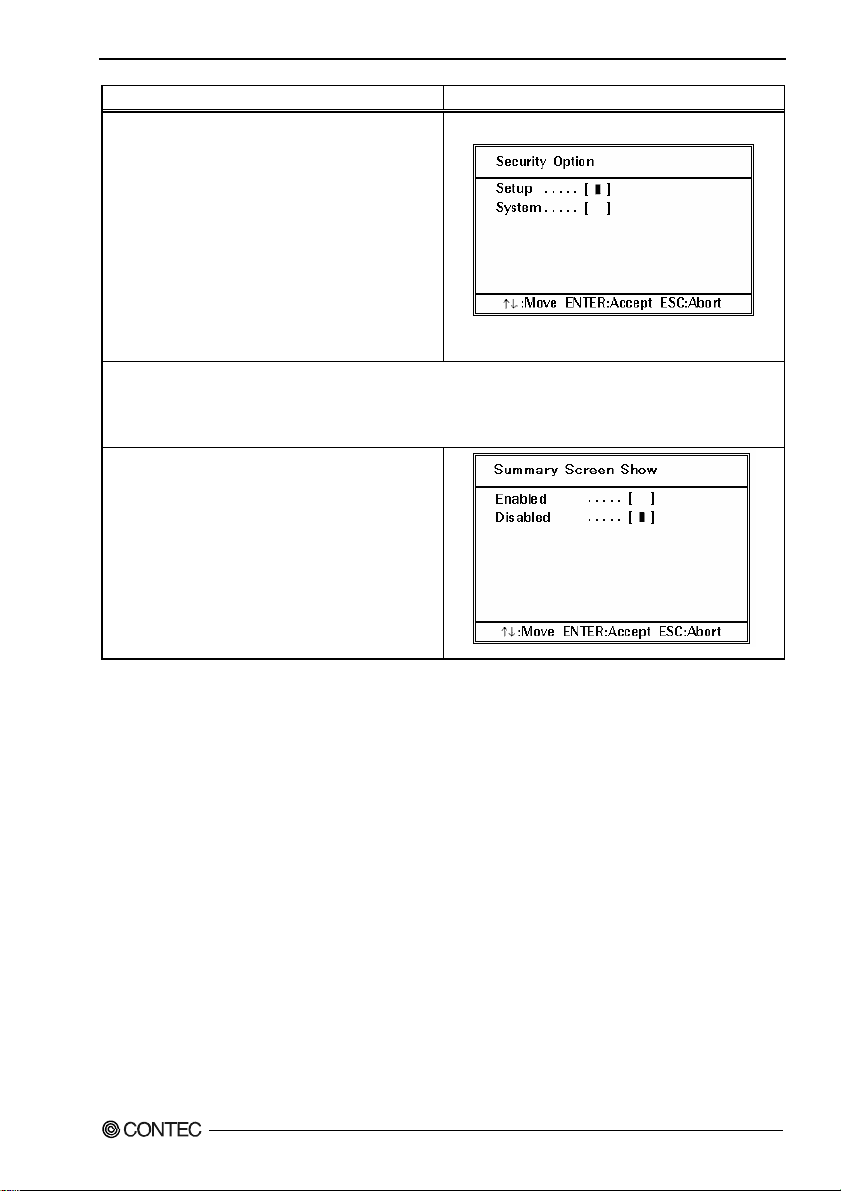

Security Option
Select whether the password is required every time the system boots or only when you enter setup. If you have set a password, select whether the password is required every time the System boots, or only when you enter Setup.
System: The system will not boot and access to Setup will be denied if the correct password is not entered at the prompt.
Setup: The system will boot, but access to Setup will be denied if the correct password is not entered at the prompt.
Note: To disable security, select PASSWORD SETTING at Main Menu and then you will be asked to enter password. Do not type anything and just press <Enter>, it will disable security. Once the security is disabled, the system will boot and you can enter Setup freely.
Summary Screen Show
Set whether or not to display configuration screen after BIOS starting.
91
Page 99
8. BIOS Setup

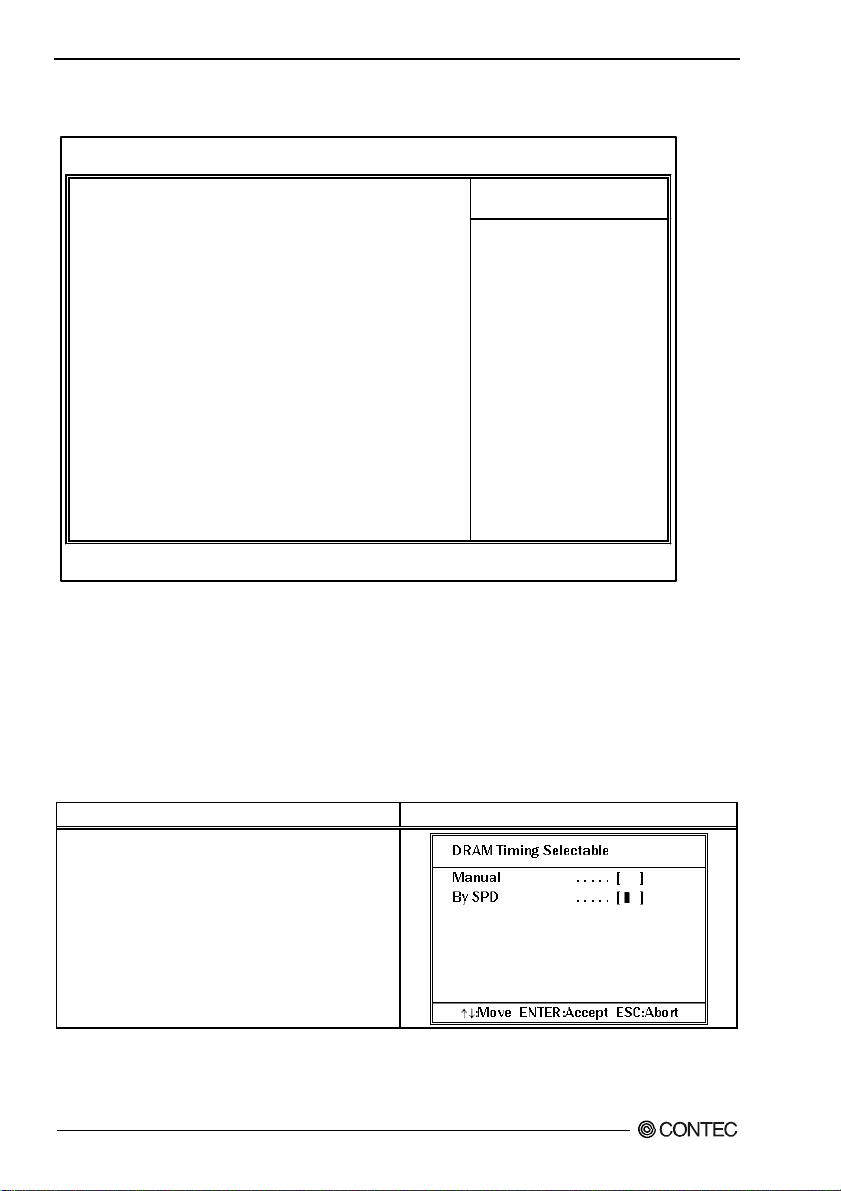

Advanced Chipset Features Setup

Phoenix - AwardBIOS COMS Setup Utility Advanced Chipset Features
DRAM Timing Selectable [By SPD] x CAS Latency Time 3 x DRAM RAS# to CAS# Delay 3 System BIOS Cacheable [Enabled] Video BIOS Cacheable [Disabled]
** VGA Setting ** PEG/Onchip VGA Control [Onchip VGA] On-Chip Frame buffer size [ 8MB] DVMT Mode [DVMT] DVMT/FIXED Memory Size [ 64MB] Boot Display [CRT+LVDS] Panel Type [LVDS] Boot After SWON [Non-Boot]
↑↓→←
:Move Enter:Select +/-/PU/PD:Value F10:Save ESC:Exit F1:General Help
F5: Previous Values F6: Fail-Safe Defaults F7: Optimized Defaults
Figure 8.7 Advanced Chipset Features Setup
This section allows you to configure the system based on the specific features of the installed chipset. This chipset manages bus speeds and access to system memory resources, such as DRAM and the external cache. It must be stated that these items should never need to be altered. The default settings have been chosen because they provide the best operating conditions for your system. The only time you might consider making any changes would be if you discovered that data was being lost while using your system.
Menu Level 4
Item Help
Table 8.7 Advance Chipset Feature Selections
Description Choices
DRAM Timing Selectable
The value in this field depends on performance parameters of the installed memory chips (DRAM). Do not change the value from the factory setting unlees you install new memory that has a different performance rating than the original DRAMs.
PT-E831H, PT-E831HS User’s manual
92
Page 100

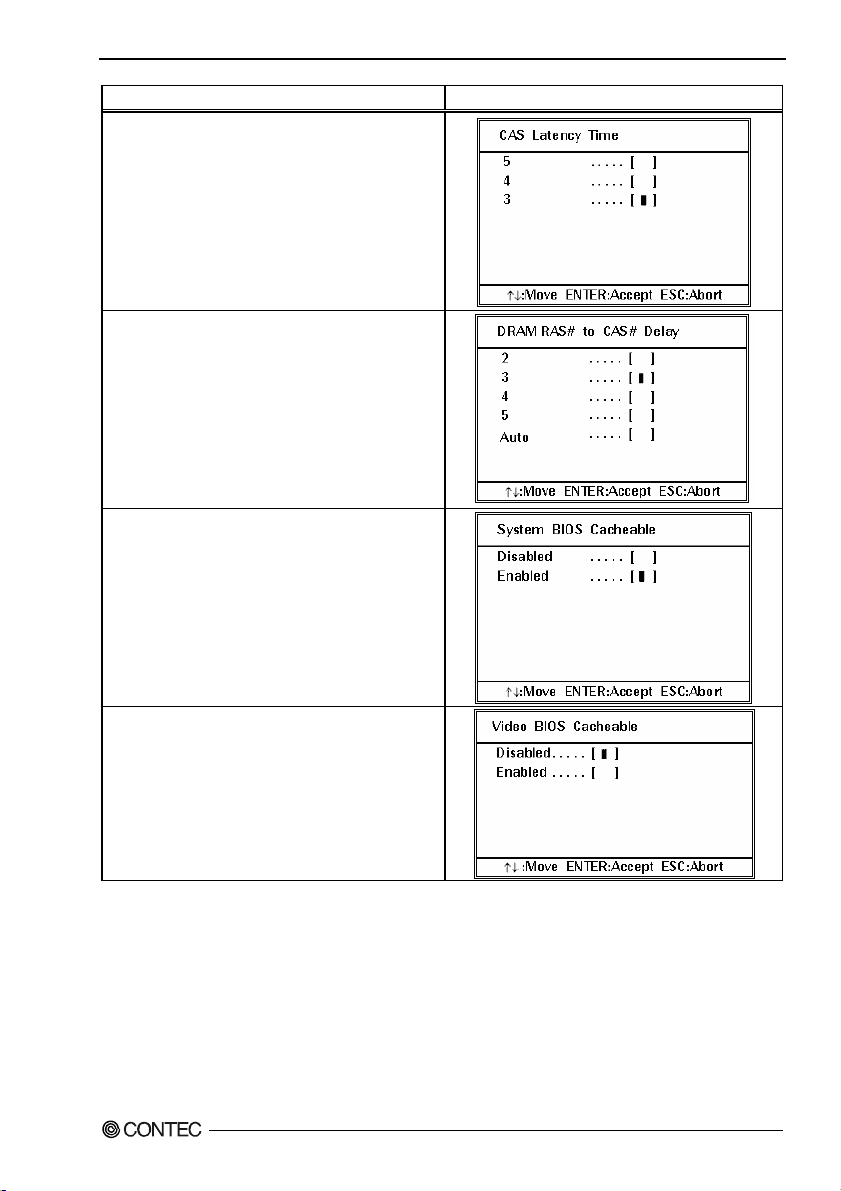

Description Choices
CAS Latency Time
When synchronous DRAM is installed, the number of clock cycles of CAS latency depends on the DRAM timing. Do not reset this field from the default value specified by the system designer.
DRAM RAS# to CAS# delay
This field lets you insert a timing delay between the CAS and RAS strobe signals, used when DRAM is written to, read from, or refreshed. Fast gives faster performance; and Slow gives more stable performance. This field applies only when synchronous DRAM is installed in the system.
System BIOS Cacheable
Selecting Enabled allows caching of the system BIOS ROM at F0000h-FFFFFh, resulting in better system performance. However, if any program writes to this memory area, a system error may result.
8. BIOS Setup
Video BIOS Cacheable
Selecting Enabled allows caching of the video BIOS ROM at C0000h - C7FFFh, resulting in better video performance. However, if any program writes to this memory area, a system error may result.
93
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
