1 Overview

Thank you for choosing the PT-D2515, a high-performance industrial
touch panel PC.

The PT-D2515 is designed for panel mounting, VESA mounting or
integration as open-frame chassis in machine and plant engineering. A
highly integrated and easy-to-use platform, the PT-D2515 is perfect for
heavy duty factory automation, kiosk and more industrial applications
like point of sale system, automatic ticket machine, food processing
monitoring system, food ordering machine, automated teller machine,
etc.

Features include:

■ Intel mainstream mobile CPU

■ TFT LCD with resistive touch panel

■ Flexible storage interfaces (HDD/SSD/mSATA/SATA DOM)

■ Fanless design with excellent ventilation

■ Support DC-in 12V

■ Open-frame panel PC or with bezel (optional)

■ IP65 front panel for waterproof applications

1-1-1

Overview Touch Panel PC

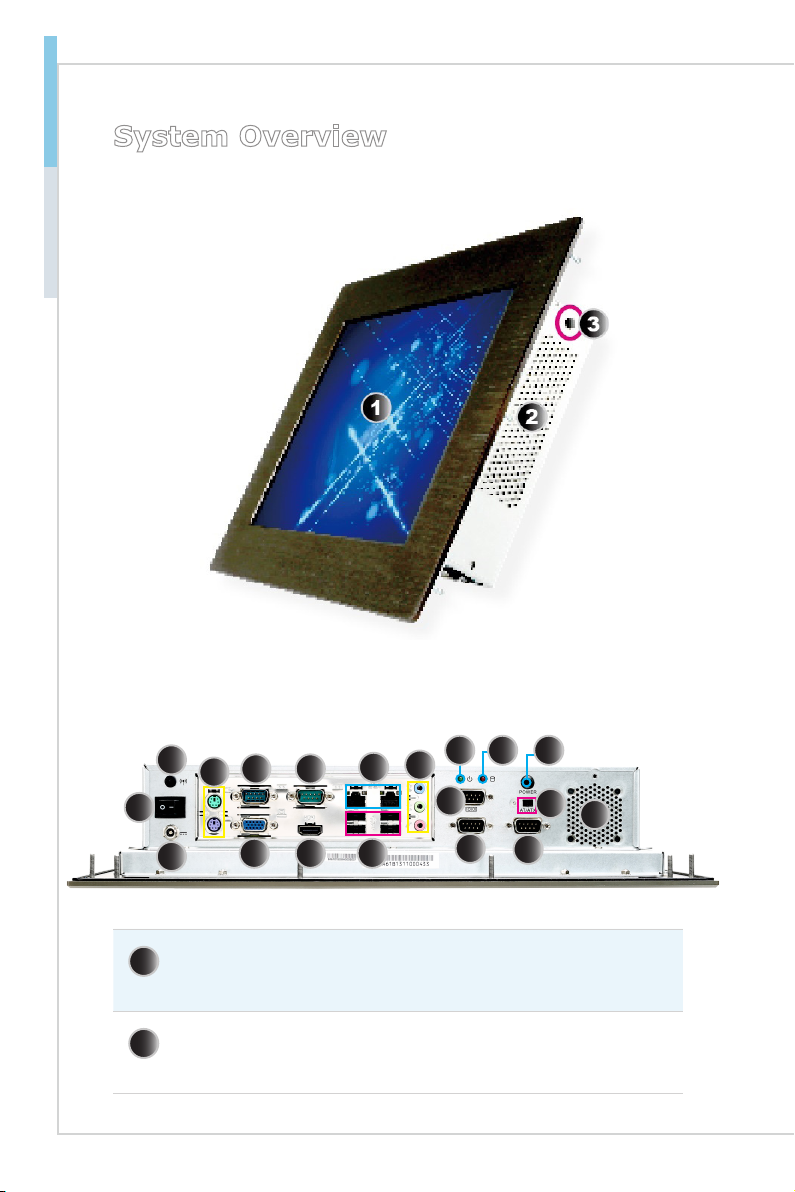

System Overview

3

1

2

h System I/O & Controls

14

18

19

15316

17

20

6

7 8

13

4

5

Touch Screen

1

The user-friendly touch screen enables e󰘯ective operation and control of the

system on the user’s end.

9 101112

2

1-2

Ventilator

2

The ventilator on the enclosure is used for air convection and to prevent the
equipment from overheating. Do not cover the ventilator.

Antenna Connector (Optional)

®

3

This connector allows you to connect an external antenna for wireless LAN.

Users may 󰘰nd one antenna connector on the bottom I/O panel and two on the
left and right sides of the system.

Power Supply Switch

4

Press the switch to turn the power supply on or o󰘯.

12V DC Power Jack

5

Power supplied through this jack supplies power to the system.

Mouse/Keyboard Port

6

The standard PS/2 mouse/keyboard DIN connector is for a PS/2 mouse/
keyboard.

RS-232/422/485 Serial Port: COM1

7

The serial port is a 16550A high speed communications port that sends/receives
16 bytes FIFOs. It supports barcode scanners, barcode printers, bill printers,
credit card machine, etc.

RS-232 Serial Port: COM6

8

The serial port is a 16550A high speed communications port that sends/receives
16 bytes FIFOs. It supports barcode scanners, barcode printers, bill printers,
credit card machine, etc.

VGA Port

9

The DB15-pin female connector is provided for VGA-interface devices.

10

HDMI Port

The High-De󰘰nition Multimedia Interface (HDMI) is an all-digital audio/video
interface capable of transmitting uncompressed streams. HDMI supports all
TV format, including standard, enhanced, or high-de󰘰nition video, plus multi­channel digital audio on a single cable.

1-3

Overview Touch Panel PC

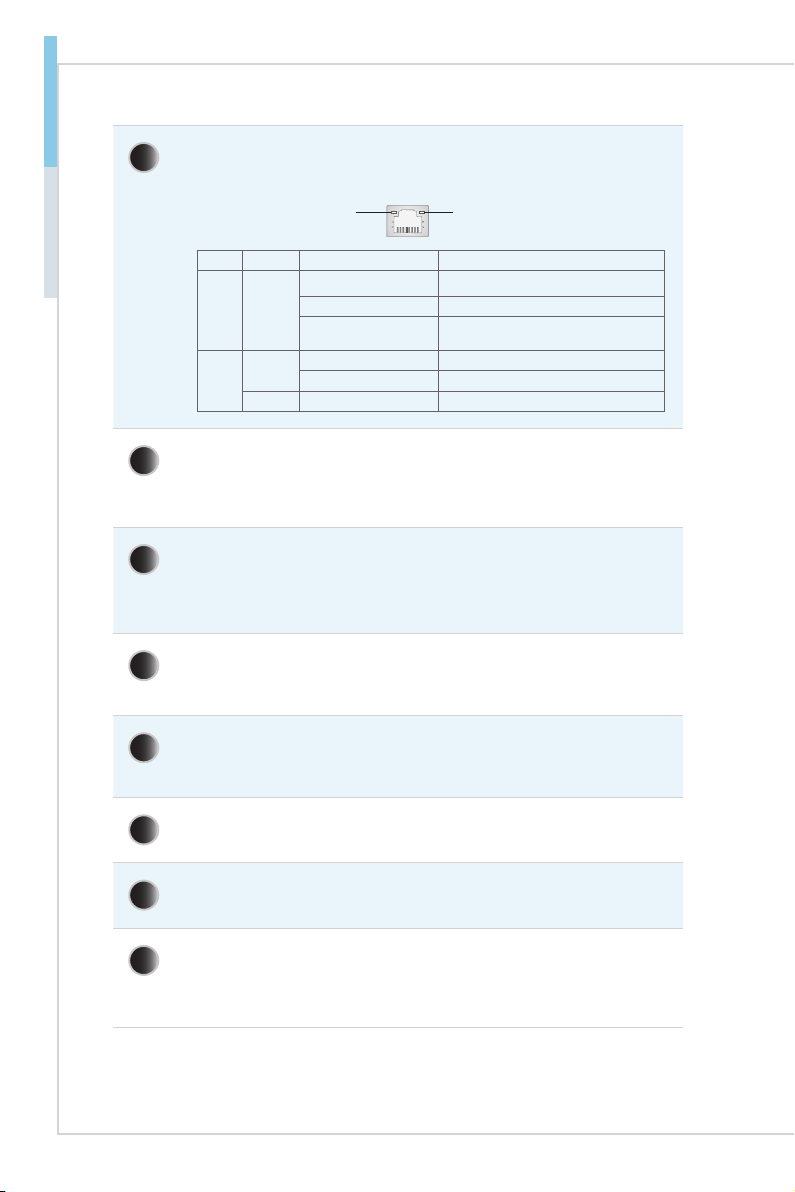

RJ45 LAN Jack

11

The standard RJ-45 LAN jack is provided for connection to the Local Area
Network (LAN). You can connect a network cable to it.

Yellow Green/ Orange

LED Color LED State Condition

Left Yellow Off LAN link is not established.

On (steady state) LAN link is established.

On (blinking) The computer is communicating with an-

Right Green O ff 10 Mbit/sec data rate is selected.

On 100 Mbit/sec data rate is selected.

Orange On 1000 Mbit/sec data rate is selected.

USB 2.0 Port

12

The USB (Universal Serial Bus) port is for attaching USB devices such as
keyboard, mouse, or other USB-compatible devices. It supports up to 480Mbit/s
(Hi-Speed) data transfer rate.

Audio Jack

13

14

■ Line-In (Blue) - for external CD player or other audio devices

■ Line-Out (Green) - for speakers or headphones

■ Mic-In (Pink) - for microphones

System Power LED (Green)

The power LED glows when the system is turned on and goes o󰘯 when the

system is shut down.

other computer on the LAN.

1-4

Hard Disk Drive LED (Red)

15

This indicator shows the activity status of the HDD. It 󰘱ashes when the system is
accessing data on the HDD and remains o󰘯 when no disk activity is detected.

System Power Button

16

Press the system power button to turn the system on or o󰘯.

AT/ATX Switch

17

Use this switch to select between AT and ATX power modes.

RS-232 Serial Port: COM5

18

The serial port is a 16550A high speed communications port that sends/receives
16 bytes FIFOs. It supports barcode scanners, barcode printers, bill printers,
credit card machine, etc.

RS-232 Serial Port: COM4

19

The serial port is a 16550A high speed communications port that sends/receives
16 bytes FIFOs. It supports barcode scanners, barcode printers, bill printers,
credit card machine, etc.

RS-232 Serial Port: COM2

20

The serial port is a 16550A high speed communications port that sends/receives
16 bytes FIFOs. It supports barcode scanners, barcode printers, bill printers,
credit card machine, etc.

1-5

Overview Touch Panel PC

System Specications

Processor

■ Intel Atom D2550 processor

Chipset

■ Intel NM10 chipset

Memory

■ 2GB DDR3 1066MHz SO-DIMM

LAN

■ Realtek RTL8111E Gigabit Fast Ethernet controller

Audio

■ Realtek ALC887 High De󰘰nition Audio codec

Storage

■ 1 * 2.5” SATA HDD bay

Display

■ 15” anti-glare CCFL-backlit LCD display

- VGA + HDMI inputs

- 1024 x 768 XGA resolution

System I/O & Controls

■ 3 * Antenna Connectors (Optional)

■ 1 * Power Supply Switch

■ 1 * 12V DC Power Jack

■ 1 * Mouse/Keyboard Port

■ 1 * RS-232/422/485 Serial Port

■ 4 * RS-232 Serial Ports

■ 1 * VGA Port

■ 1 * HDMI Port

■ 2 * RJ45 LAN Jacks

■ 4 * USB 2.0 Ports

■ 3 * Audio Jacks

■ 1 * System Power LED

■ 1 * Hard Disk Drive LED

■ 1 * System Power Button

■ 1 * AT/ATX Switch

1-6

Certication

■ CE, FCC Class A, VCCI, C-Tick, CB, TUV, RoHS

Power Supply

■ 84 Watt AC/DC Adapter

■ Input: 100-240V~, 1.3A, 50-60Hz

■ Output: 12V 7A MAX

■ Each COM port outputs 0.5A/Maximum

OS Support

■ Windows XP 32-bit

■ Windows 7 32-bit

Environmental

■ Operation Temperature:

- 0 ~ 45°C for 2.5” HDD

- 0 ~ 50°C for SSD and mSATA

■ Storage Temperature: -20 ~ 80°C

■ Relative Humidity: 0 ~ 90%, non-condensing

1-7

Overview Touch Panel PC

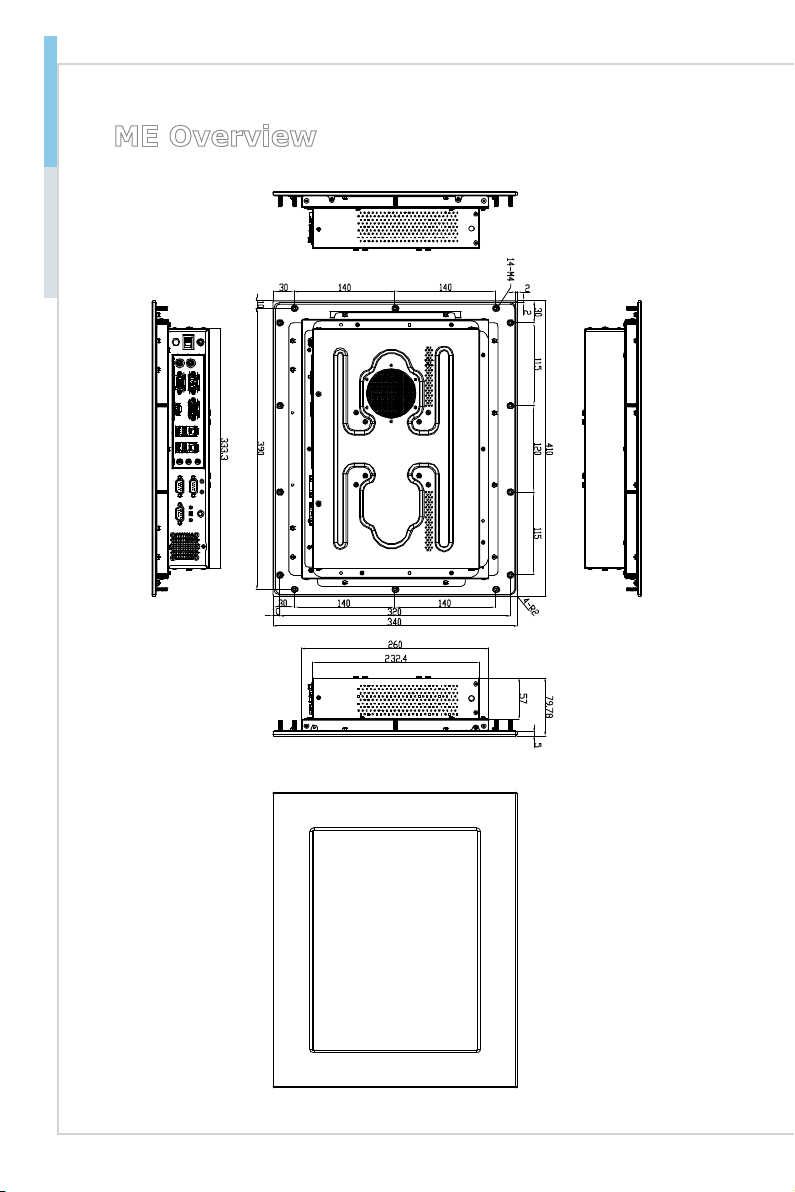

ME Overview

1-8

2 Getting Started

This chapter provides you with the information on hardware setup
procedures. While connecting peripheral devices, be careful in holding
the devices and use a grounded wrist strap to avoid static electricity.

1-2-1

Getting Started Touch Panel PC

Installing Components

h Installing Memory

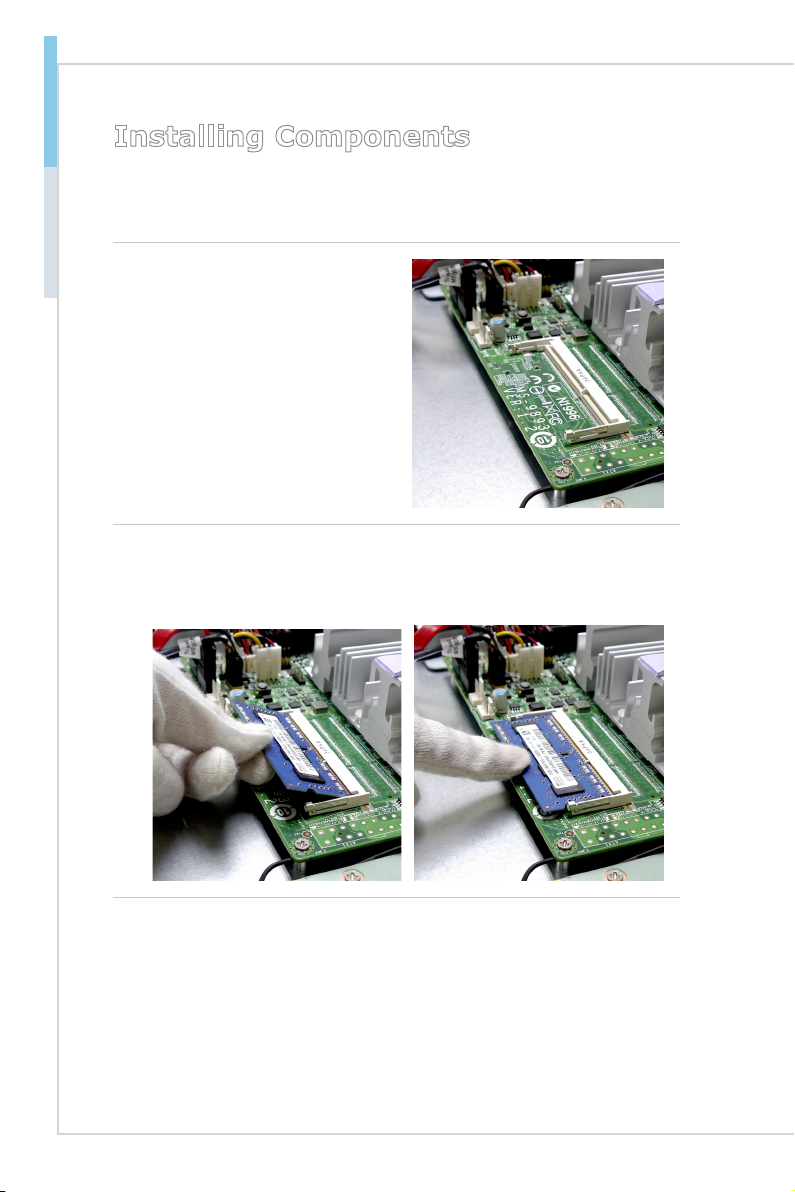

1. Locate the memory slot.

2. Align the notch on the memory with the key on the slot and insert the
memory into the slot at a 45-degree angle.

3. Push the memory gently downwards until the slot clips click and lock the
memory in place.

2-2

h Installing Hard Disk Drive

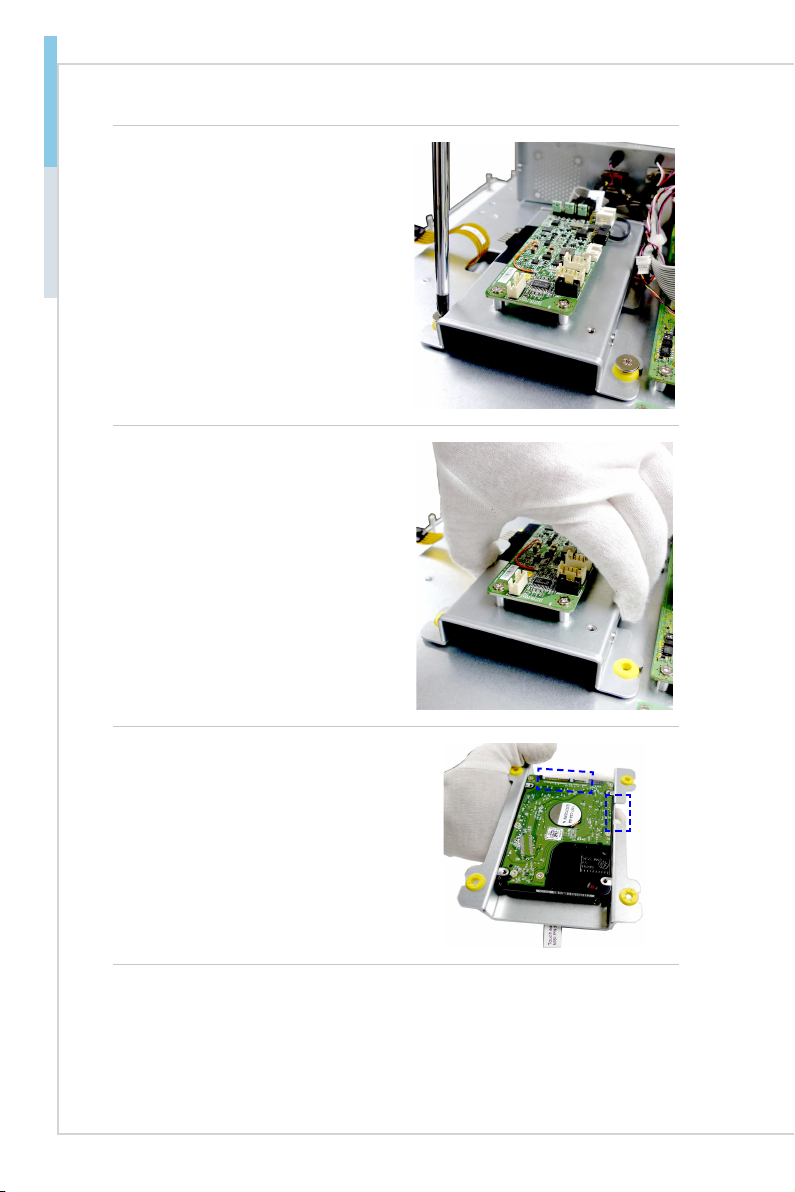

1. Locate the HDD tray. The HDD
tray is designed with yellow
rubber grommets to cut down on
vibrations.

2. To release the HDD tray, rst

disconnect the monitor cable.

3. And then disconnect the USB
cable.

2-3

Getting Started Touch Panel PC

4. Unscrew the HDD tray to free it up
for removal.

5. Gently remove the HDD tray from
the system.

6. Fit the HDD into the tray. Be sure
to put the HDD in the correct
orientation.

2-4

7. Fasten the HDD to the tray with
screws.

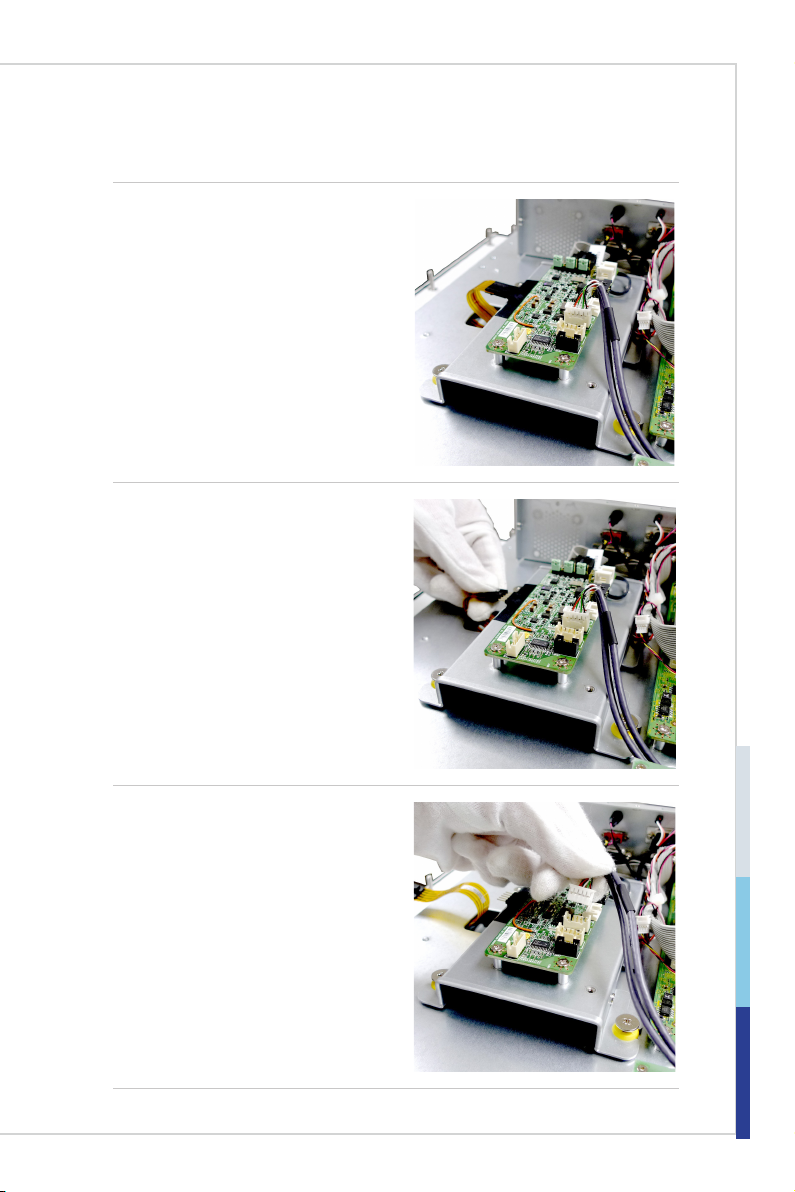

8. The SATA cable comes with a
large combined power and data
connector for the HDD. Connect
the large end of the SATA cable
to the HDD.

9. Once the HDD has been securely
installed onto the tray, place the
tray back to the system. Make
sure the HDD tray is correctly
oriented.

2-5

Getting Started Touch Panel PC

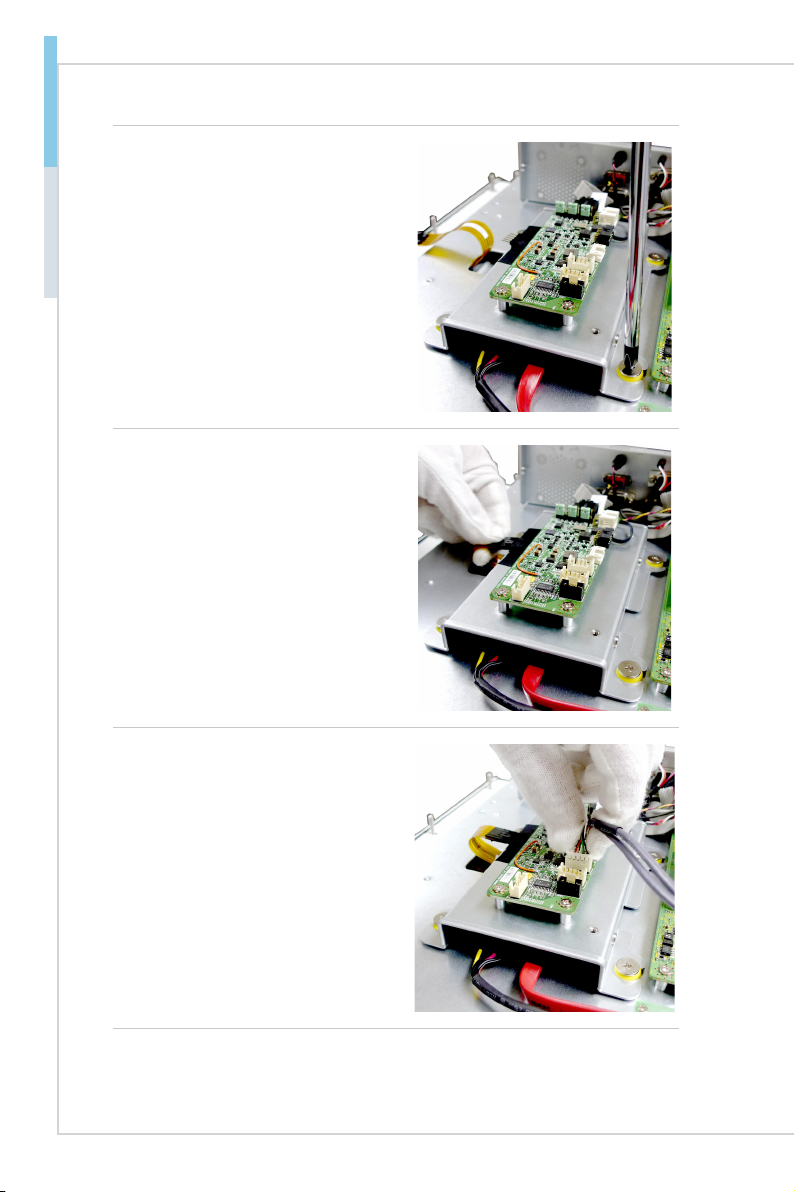

10. After checking the screw holes

for correct alignment, fasten
the HDD tray to the system with
screws.

11. Reconnect the monitor cable.

12. Reconnect the USB cable.

2-6

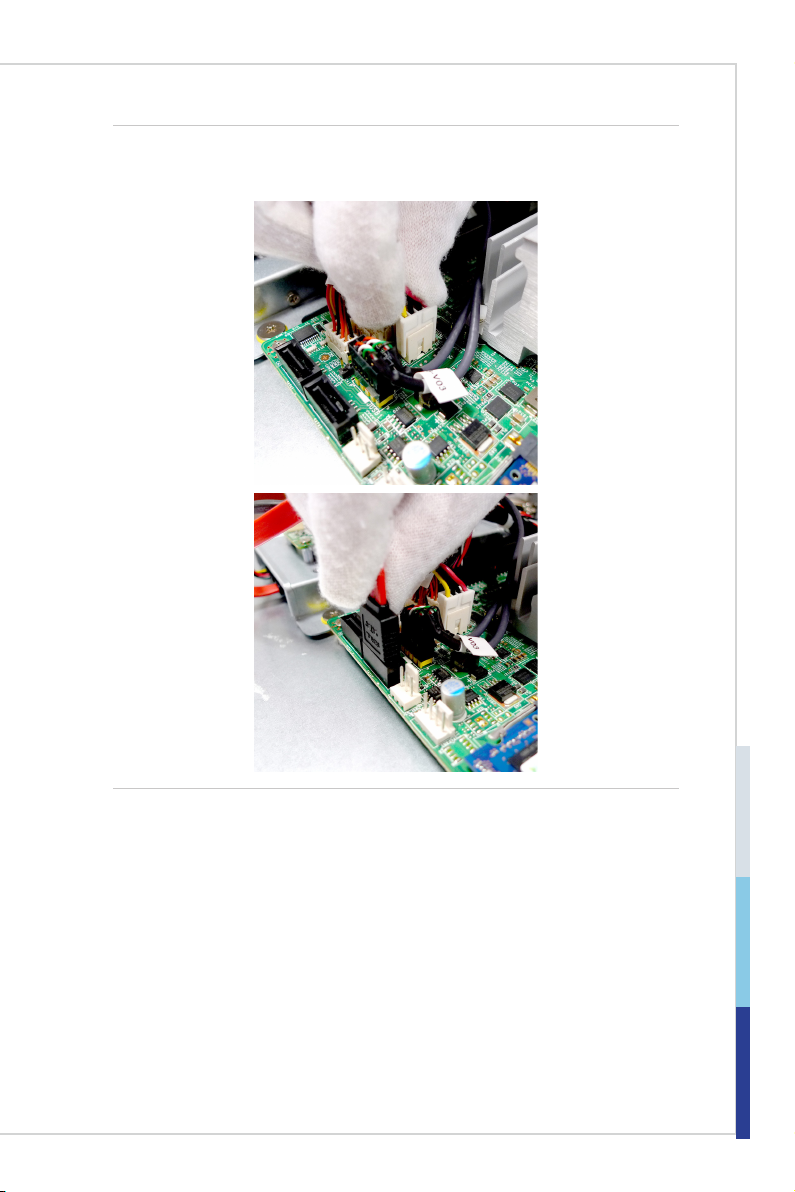

13. To complete the installation, connect the small ends of the SATA cable

to the SATA port and SATA power connector on the motherboard.

2-7

Getting Started Touch Panel PC

Mounting the System

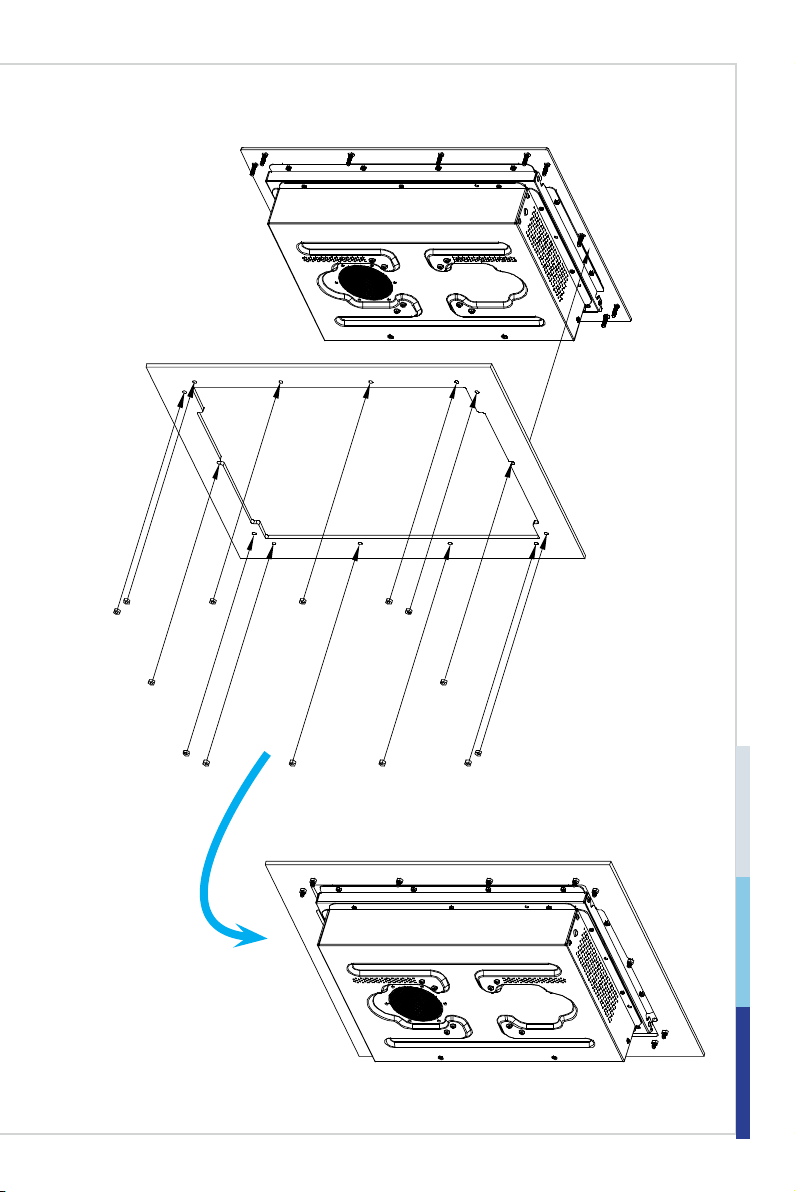

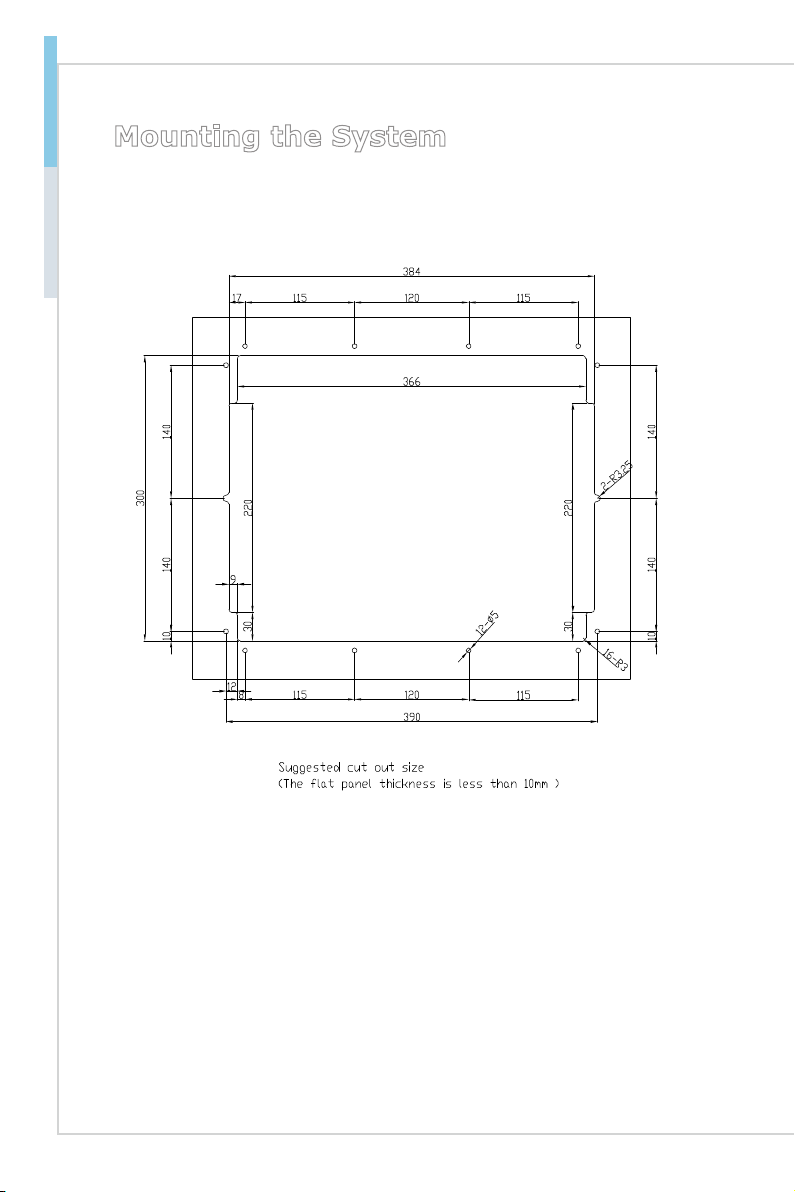

h Panel Mounting

2-8

2-9

Getting Started Touch Panel PC

h Wall Mounting

2-10

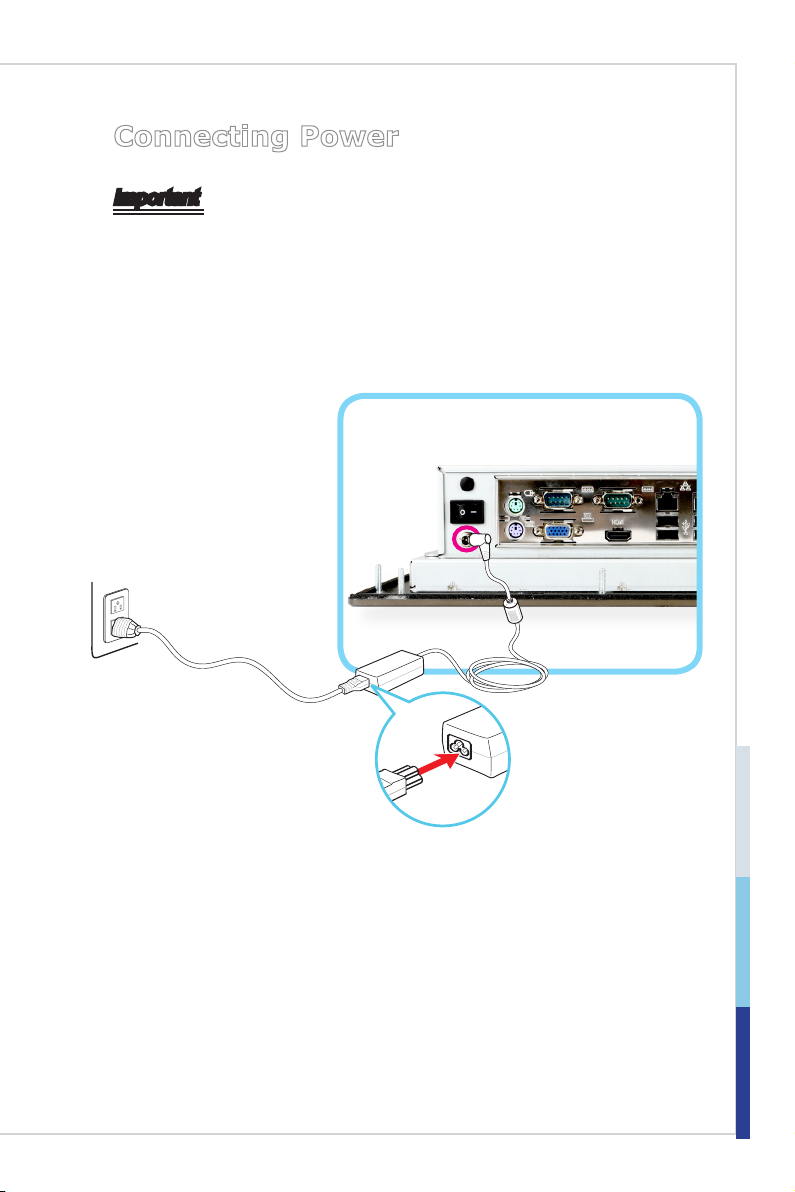

Connecting Power

1

2

3

Important

For safety concerns, we suggest that you connect the AC/DC adapter to the

system 󰘰rst and then connect the AC power cord to the electrical outlet.

1. Assemble the AC/DC adapter and the AC power cord.

2. Plug the DC end of the adapter to the system.

3. Plug the male end of the AC power cord to the electrical outlet.

2-11

Getting Started Touch Panel PC

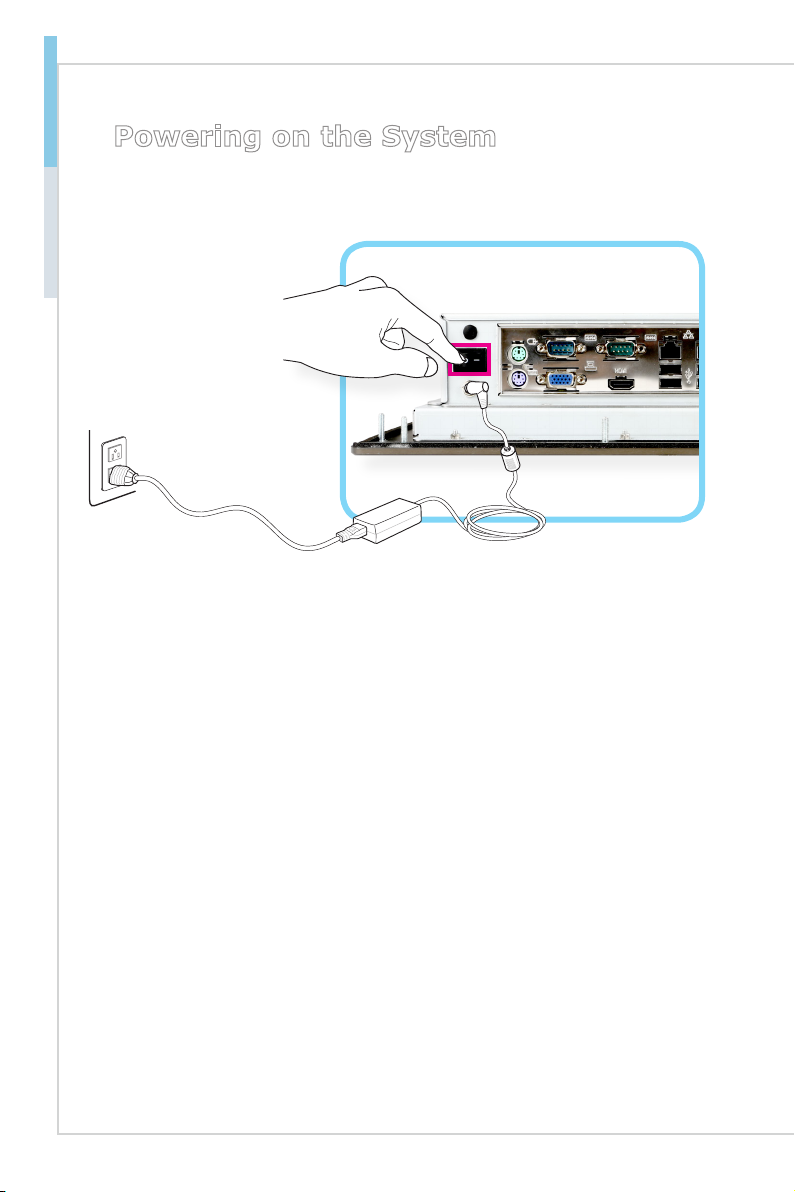

Powering on the System

Press the power button to power on the system.

2-12

3 BIOS Setup

This chapter provides information on the BIOS Setup program and allows

users to congure the system for optimal use.
Users may need to run the Setup program when:

■ An error message appears on the screen at system startup and re-

quests users to run SETUP.

■ Users want to change the default settings for customized features.

Important

• PleasenotethatBIOSupdateassumestechnician-levelexperience.

• AsthesystemBIOSisundercontinuousupdateforbettersystem
performance,theillustrationsinthischaptershouldbeheldforrefer­enceonly.

2-3-1

BIOS Setup Touch Panel PC

Entering Setup

Power on the computer and the system will start POST (Power On Self Test)
process. When the message below appears on the screen, press <DEL> or <F2>
key to enter Setup.

Press <DEL> or <F2> to enter SETUP

If the message disappears before you respond and you still wish to enter Setup,
restart the system by turning it OFF and On or pressing the RESET button. You
may also restart the system by simultaneously pressing <Ctrl>, <Alt>, and <De­lete> keys.

Important

TheitemsundereachBIOScategorydescribedinthischapterareundercontinu­ous update for better system performance. Therefore, the description may be
slightlydifferentfromthelatestBIOSandshouldbeheldforreferenceonly.

3-2

Control Keys

← → Select Screen

↑ ↓ Select Item

Enter Select

+ - Change Option

F1 General Help

F7 Previous Values

F9 Optimized Defaults

F10 Save & Exit

Esc Exit

Getting Help

After entering the Setup menu, the rst menu you will see is the Main Menu.

Main Menu

The main menu lists the setup functions you can make changes to. You can use
the arrow keys ( ↑↓ ) to select the item. The on-line description of the highlighted
setup function is displayed at the bottom of the screen.

Sub-Menu

If you nd a right pointer symbol appears to the left of certain elds that means
a sub-menu can be launched from this eld. A sub-menu contains additional op­tions for a eld parameter. You can use arrow keys ( ↑↓ ) to highlight the eld
and press <Enter> to call up the sub-menu. Then you can use the control keys to
enter values and move from eld to eld within a sub-menu. If you want to return
to the main menu, just press the <Esc >.

General Help <F1>

The BIOS setup program provides a General Help screen. You can call up this
screen from any menu by simply pressing <F1>. The Help screen lists the ap­propriate keys to use and the possible selections for the highlighted item. Press
<Esc> to exit the Help screen.

3-3

BIOS Setup Touch Panel PC

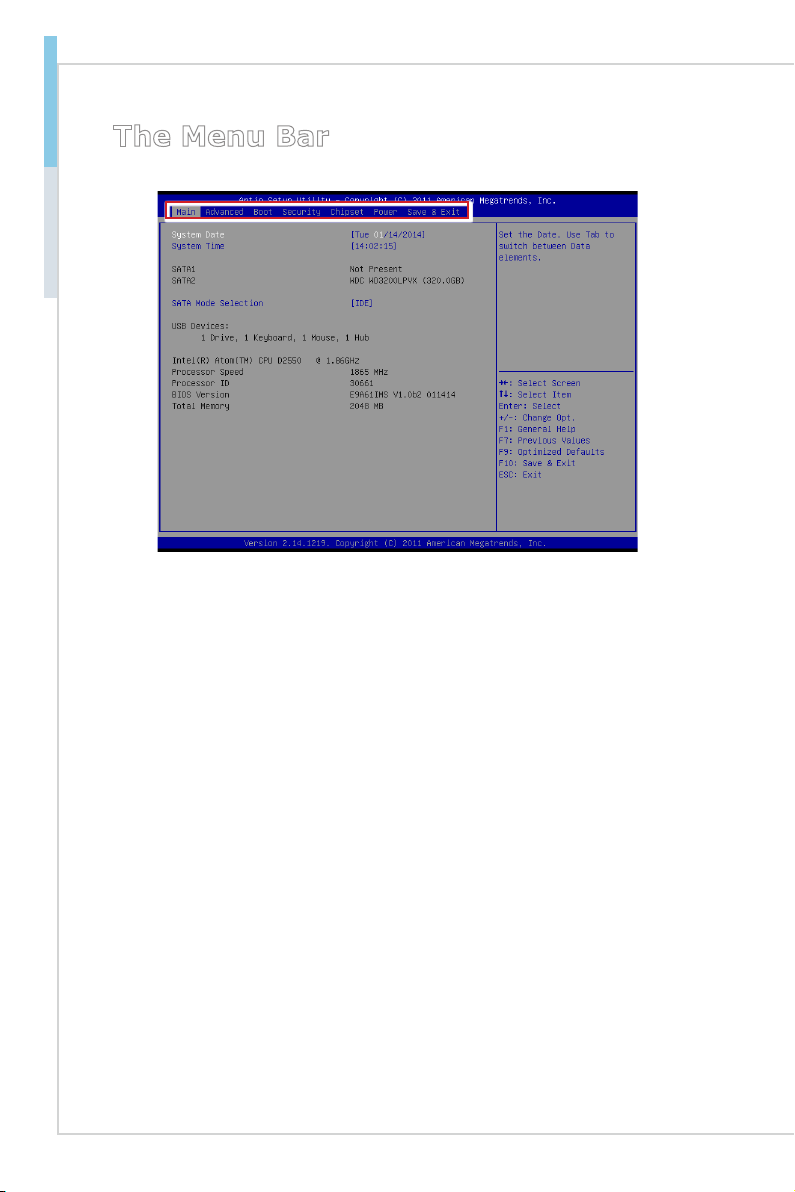

The Menu Bar

▶Main

Use this menu for basic system congurations, such as time, date, etc.

▶Advanced

Use this menu to set up the items of special enhanced features.

▶Boot

Use this menu to specify the priority of boot devices.

▶Security

Use this menu to set supervisor and user passwords.

▶Chipset

This menu controls the advanced features of the onboard chipsets.

▶Power

Use this menu to specify your settings for power management.

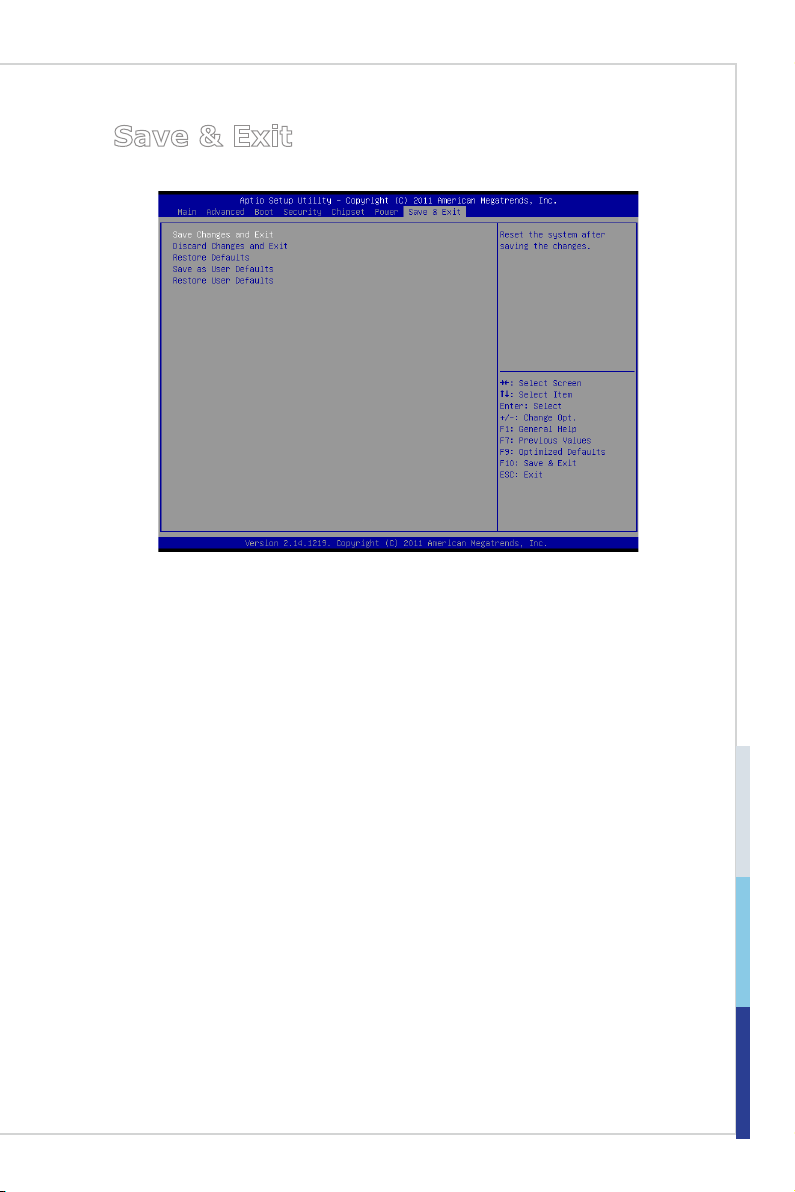

▶Save & Exit

This menu allows you to load the BIOS default values or factory default settings
into the BIOS and exit the BIOS setup utility with or without changes.

3-4

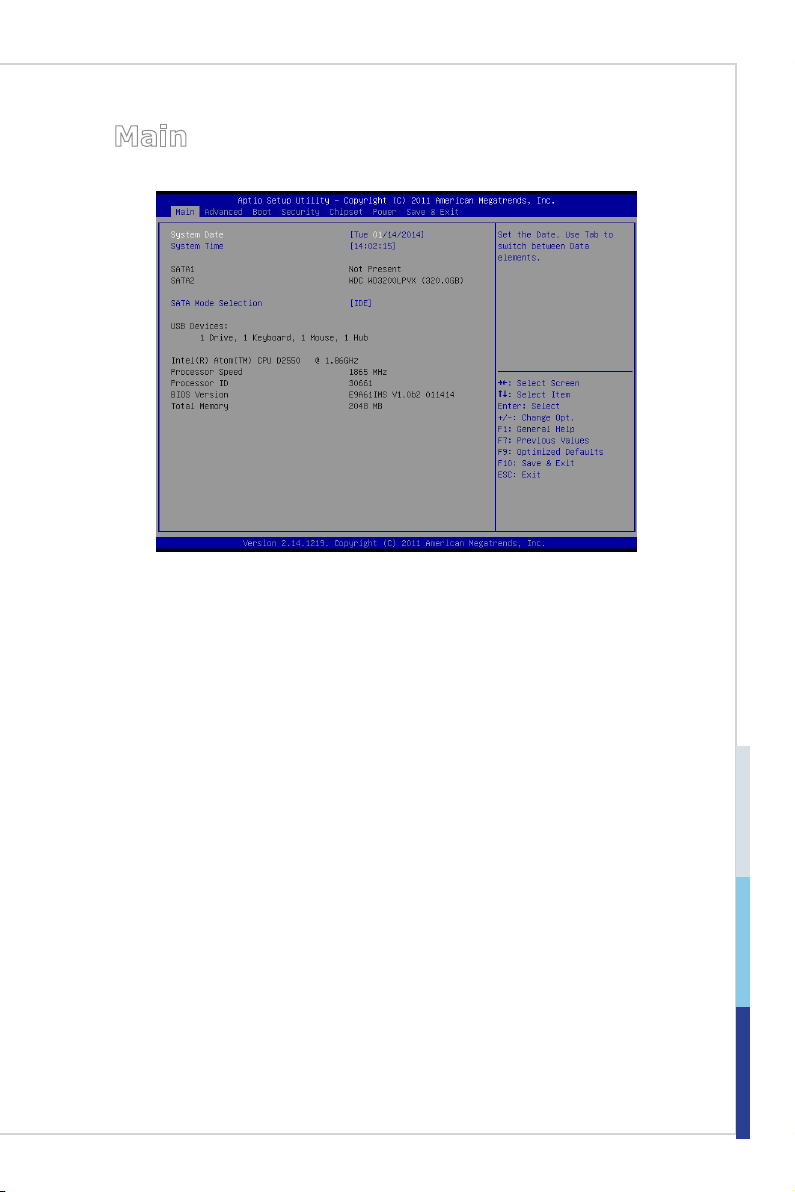

Main

▶System Date

This setting allows you to set the system date. The date format is <Day>, <Month>
<Date> <Year>.

▶System Time

This setting allows you to set the system time. The time format is <Hour> <Min­ute> <Second>.

▶SATA Mode Selection

This setting species the SATA controller mode.

3-5

BIOS Setup Touch Panel PC

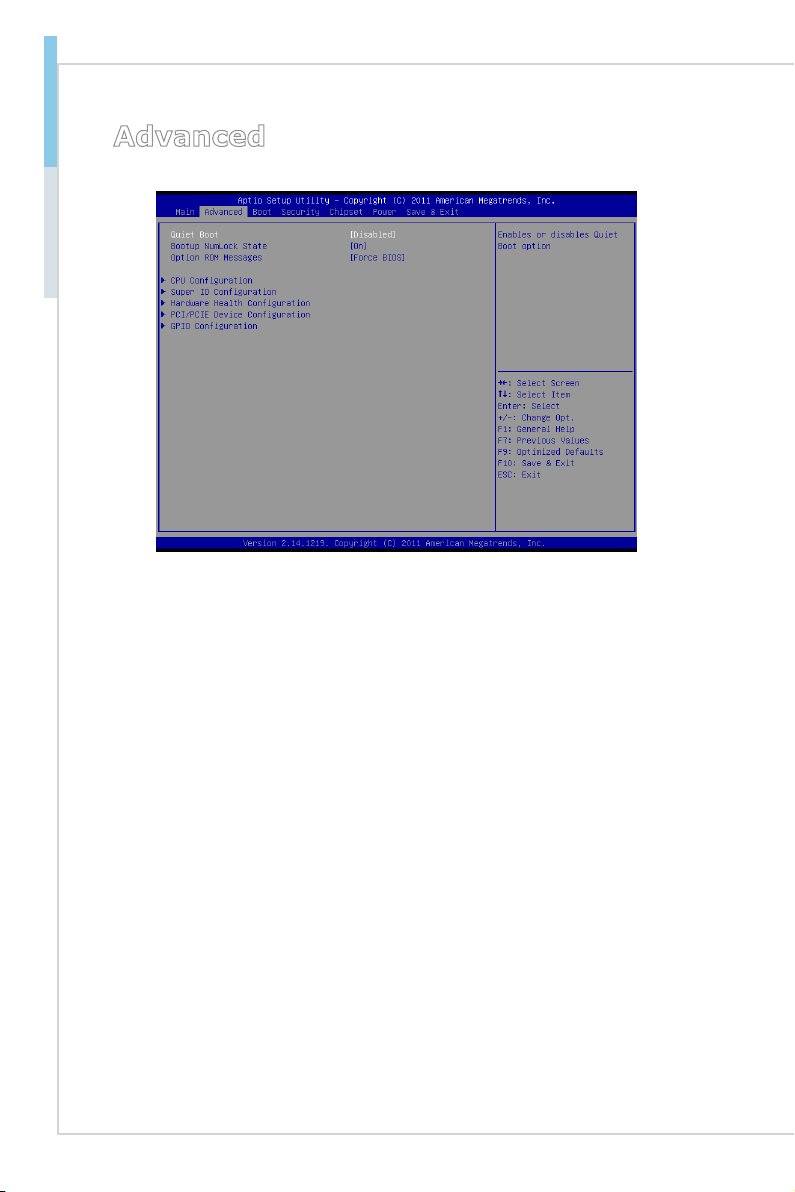

Advanced

▶Quiet Boot

This BIOS feature determines if the BIOS should hide the normal POST messages

with the motherboard or system manufacturer’s full-screen logo.
When it is enabled, the BIOS will display the full-screen logo during the boot-up

sequence, hiding normal POST messages.
When it is disabled, the BIOS will display the normal POST messages, instead

of the full-screen logo.
Please note that enabling this BIOS feature often adds 2-3 seconds of delay to

the booting sequence. This delay ensures that the logo is displayed for a sufcient
amount of time. Therefore, it is recommended that you disable this BIOS feature
for a faster boot-up time.

▶Bootup NumLock State

This setting is to set the Num Lock status when the system is powered on. Setting
to [On] will turn on the Num Lock key when the system is powered on. Setting to
[Off] will allow users to use the arrow keys on the numeric keypad.

▶Option ROM Messages

This item is used to determine the display mode when an optional ROM is ini­tialized during POST. When set to [Force BIOS], the display mode used by AMI
BIOS is used. Select [Keep Current] if you want to use the display mode of op­tional ROM.

3-6

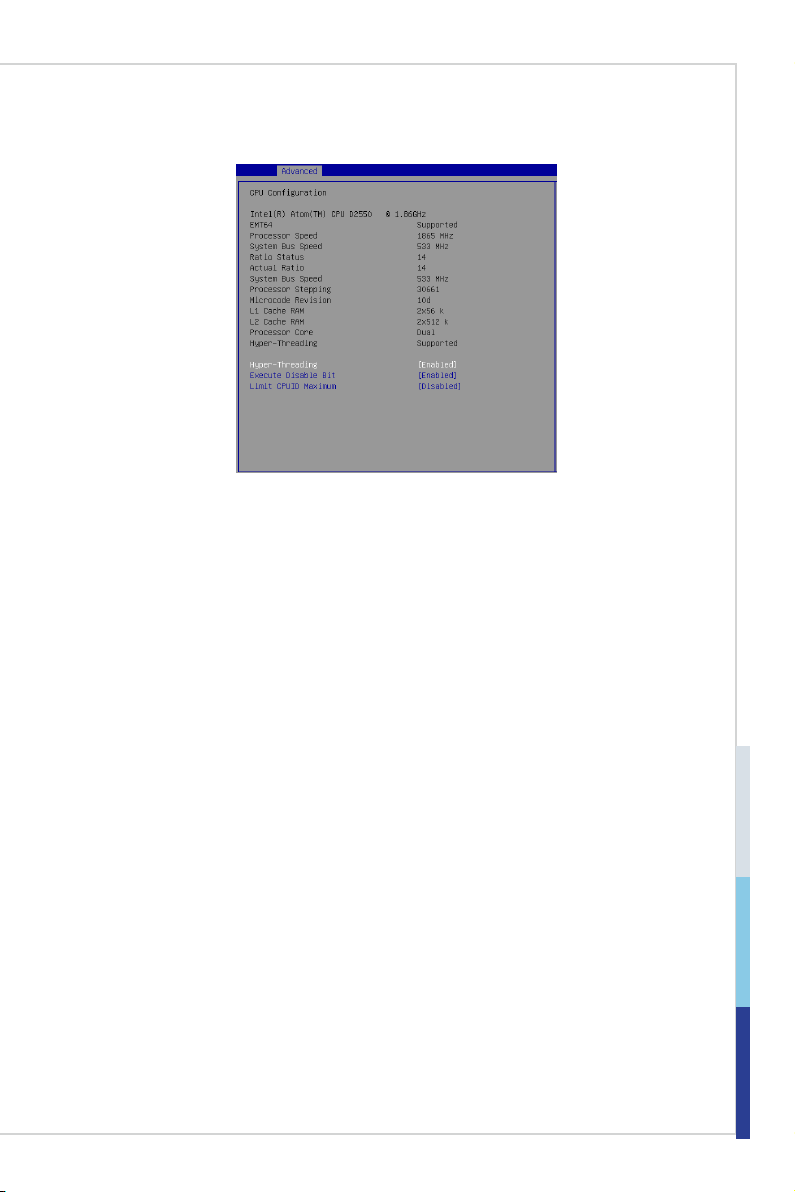

▶CPU Conguration

▶Hyper-Threading

The processor uses Hyper-Threading technology to increase transaction
rates and reduces end-user response times. The technology treats the two

cores inside the processor as two logical processors that can execute instruc-

tions simultaneously. In this way, the system performance is highly improved.
If you disable the function, the processor will use only one core to execute the
instructions. Please disable this item if your operating system doesn’t support
HT Function, or unreliability and instability may occur.

▶Execute Disable Bit

Intel’s Execute Disable Bit functionality can prevent certain classes of mali­cious “buffer overow” attacks when combined with a supporting operating
system. This functionality allows the processor to classify areas in memory by
where application code can execute and where it cannot. When a malicious
worm attempts to insert code in the buffer, the processor disables code execu­tion, preventing damage or worm propagation.

▶Limit CPUID Maximum

This feature allows you to circumvent problems with older operating systems
that do not support the Intel Pentium 4 processor with Hyper-Threading Tech­nology. When enabled, the processor will limit the maximum CPUID input
value to 03h when queried, even if the processor supports a higher CPUID
input value. When disabled, the processor will return the actual maximum
CPUID input value of the processor when queried.

3-7

BIOS Setup Touch Panel PC

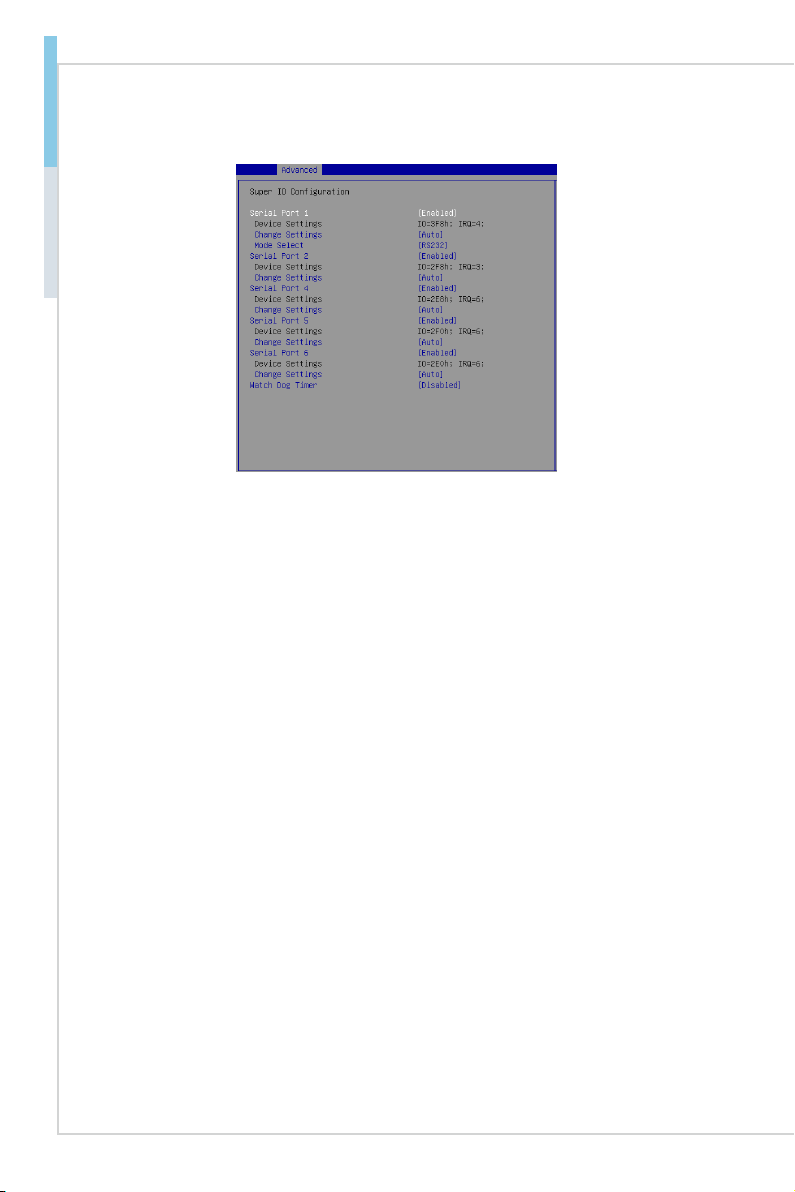

▶Super IO Conguration

▶Serial Port 1/ 2/ 4/ 5/ 6

This setting enables/disables the specied serial port.

▶Change Settings

This setting is used to change the address & IRQ settings of the specied
serial port.

▶Mode Select

Select an operation mode for the serial port 1.

▶Watch Dog Timer

You can enable the system watch-dog timer, a hardware timer that generates

a reset when the software that it monitors does not respond as expected each

time the watch dog polls it.

3-8

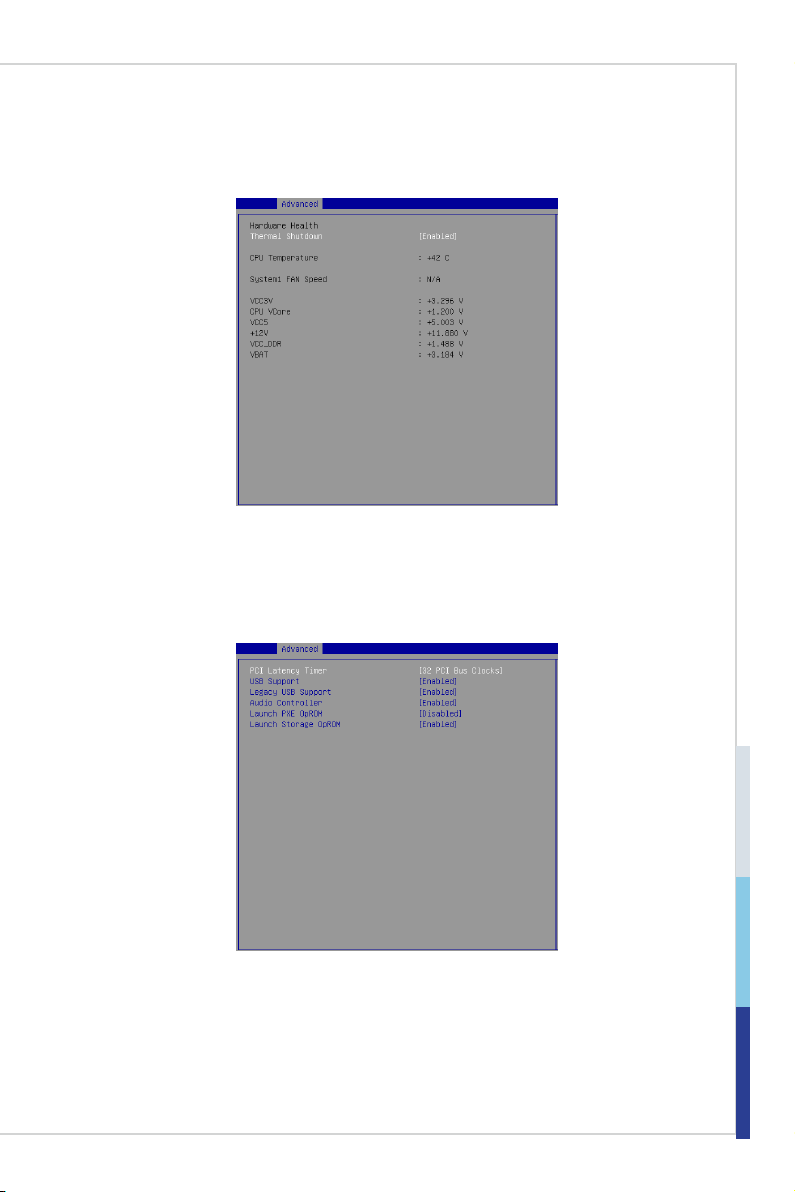

▶Hardware Health Conguration

These items display the current status of all monitored hardware devices/compo­nents such as voltages, temperatures and all fans’ speeds.

▶Thermal Shutdown

This setting controls the thermal shutdown function to prevent the system
from overheating.

▶PCI/PCIE Device Conguration

▶PCI Latency Timer

This item controls how long each PCI device can hold the bus before another
takes over. When set to higher values, every PCI device can conduct trans­actions for a longer time and thus improve the effective PCI bandwidth. For
better PCI performance, you should set the item to higher values.

3-9

BIOS Setup Touch Panel PC

▶USB Support

This setting enables/disables the onboard USB controller.

▶Legacy USB Support

Set to [Enabled] if you need to use any USB 1.1/2.0 device in the operating
system that does not support or have any USB 1.1/2.0 driver installed, such
as DOS and SCO Unix.

▶Audio Controller

This setting enables/disables the onboard audio controller.

▶Launch PXE OpROM, Launch Storage OpROM

This setting enables/disables the initialization of the onboard PXE/storage
Boot ROM during bootup. Selecting [Disabled] will speed up the boot pro­cess.

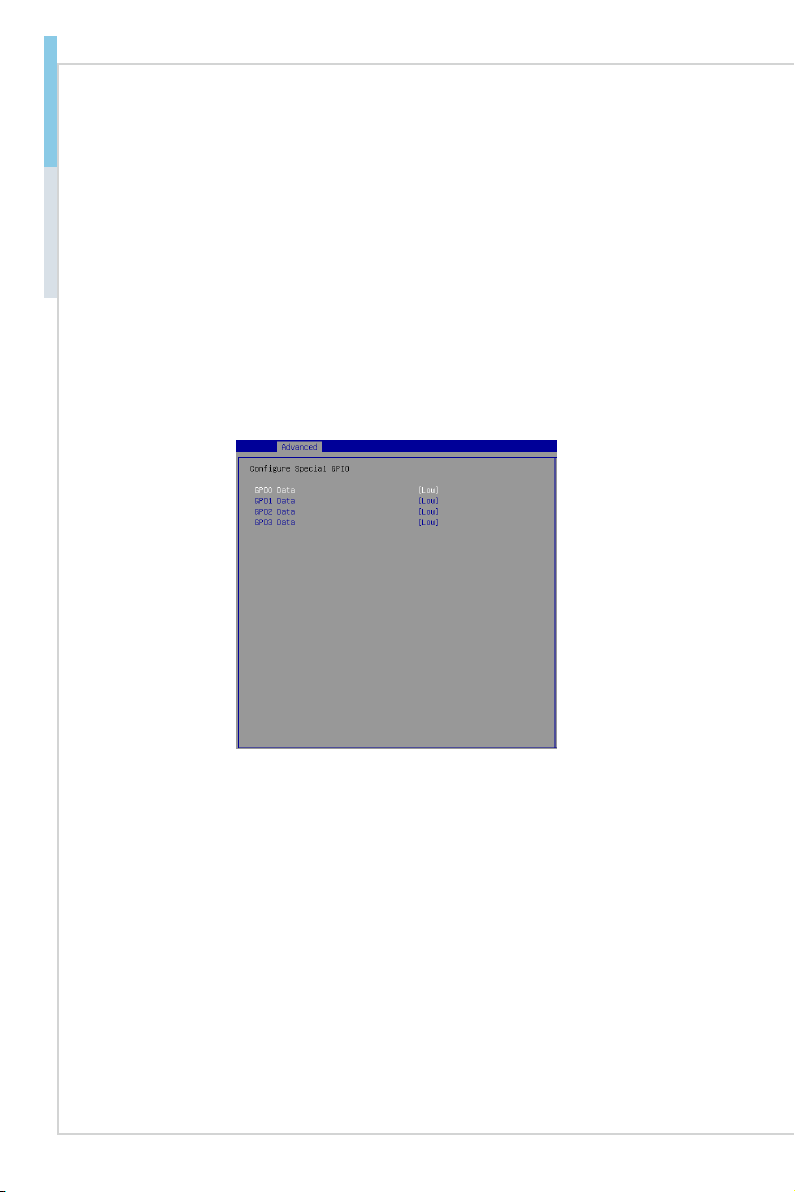

▶GPIO Conguration

▶GPO0 ~ GPO3 Data

This setting controls the operation mode of the specied GPIO.

3-10

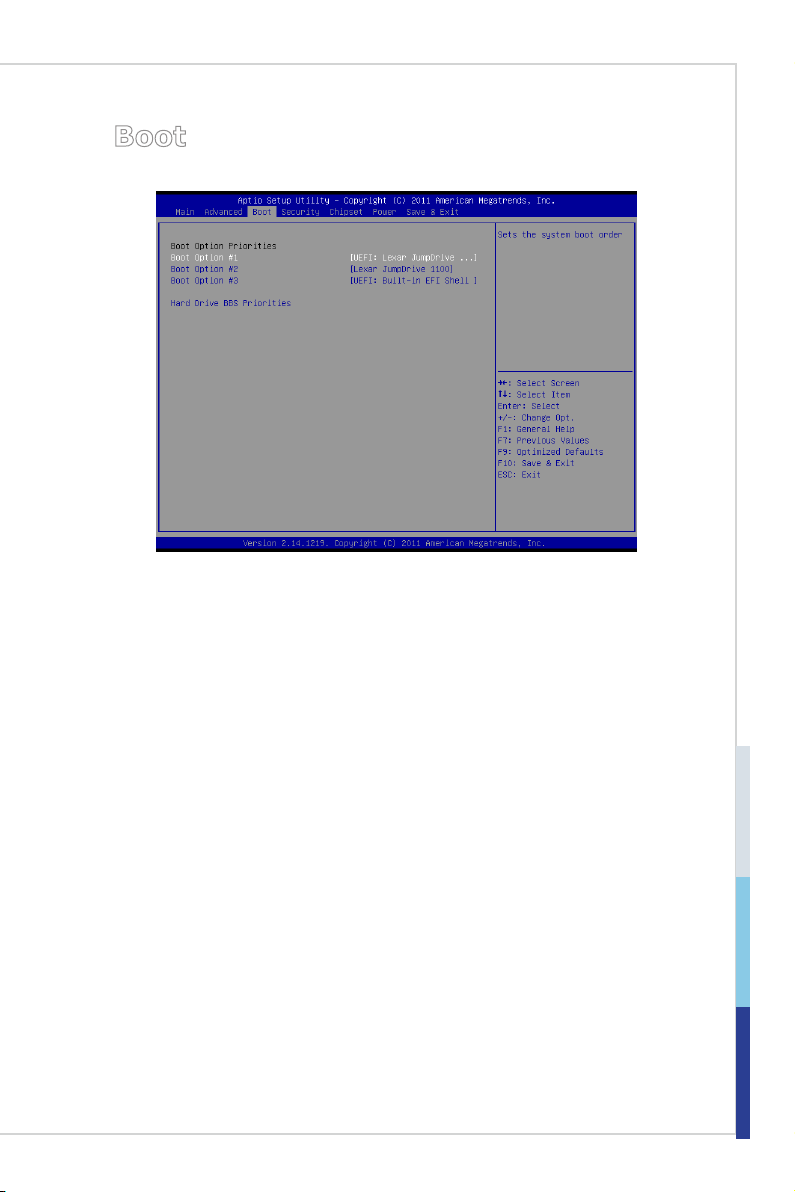

Boot

▶Boot Option Priorities

This setting allows users to set the sequence of boot devices where BIOS at­tempts to load the disk operating system.

▶Hard Drive BBS Priorities

This setting allows users to set the priority of the specied devices. First press
<Enter> to enter the sub-menu. Then you may use the arrow keys ( ↑↓ ) to select
the desired device, then press <+>, <-> or <PageUp>, <PageDown> key to move
it up/down in the priority list.

3-11

BIOS Setup Touch Panel PC

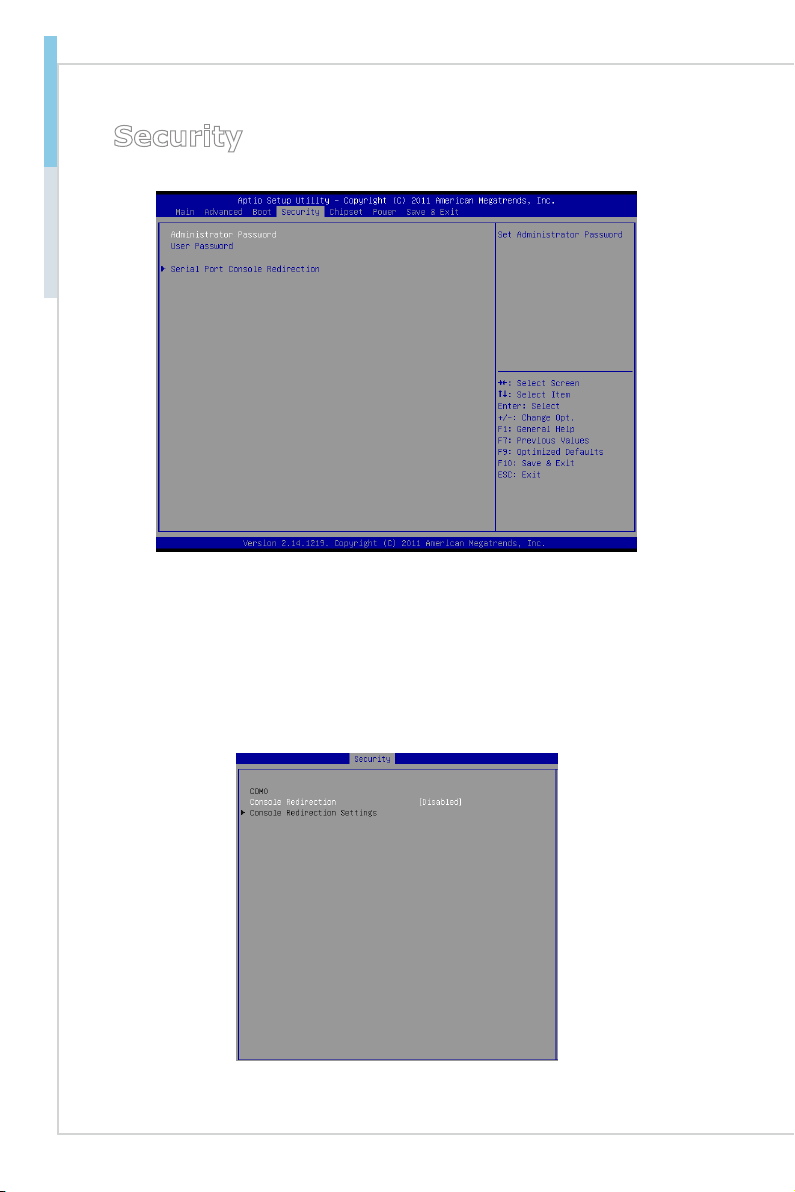

Security

▶Administrator Password

Administrator Password controls access to the BIOS Setup utility.

▶User Password

User Password controls access to the system at boot and to the BIOS Setup
utility.

▶Serial Port Console Redirection

3-12

▶Console Redirection

Console Redirection operates in host systems that do not have a monitor and
keyboard attached. This setting enables/disables the operation of console re­direction. When set to [Enabled], BIOS redirects and sends all contents that
should be displayed on the screen to the serial COM port for display on the
terminal screen. Besides, all data received from the serial port is interpreted
as keystrokes from a local keyboard.

▶Console Redirection Settings

Press <Enter> to enter the submenu.

▶Terminal Type

To operate the system’s console redirection, you need a terminal supporting
ANSI terminal protocol and a RS-232 null modem cable connected between
the host system and terminal(s). This setting species the type of terminal
device for console redirection.

▶ Bits per second, Data Bits, Parity, Stop Bits

This setting species the transfer rate (bits per second, data bits, parity,
stop bits) of Console Redirection.

▶Flow Control

Flow control is the process of managing the rate of data transmission be­tween two nodes. It’s the process of adjusting the ow of data from one

device to another to ensure that the receiving device can handle all of the

incoming data. This is particularly important where the sending device is ca­pable of sending data much faster than the receiving device can receive it.

▶VT-UTF8 Combo Key Support

This setting enables/disables VT-UTF8 Combo Key Support.

▶Recorder Mode, Resolution 100x31

These settings enable/disable the recorder mode and the resolution
100x31.

▶Legacy OS Redirection Resolution

This setting species the redirection resolution of legacy OS.

▶Putty KeyPad

This setting species the type of Putty KeyPad.

▶Redirection After BIOS POST

This setting species the Redirection conguration after BIOS POST.

[Disable] Turn off the redirection after POST

[Boot Loader] Set the Redirection to be active during

[Always Enable] Set the Redirection to be always active

POST and Boot Loader

3-13

BIOS Setup Touch Panel PC

Chipset

▶IGFX - Boot Type

Use the eld to select the type of device you want to use as the boot display of
the system.

▶Fixed Graphics Memory Size

This setting species the size of system memory allocated for video memory.

3-14

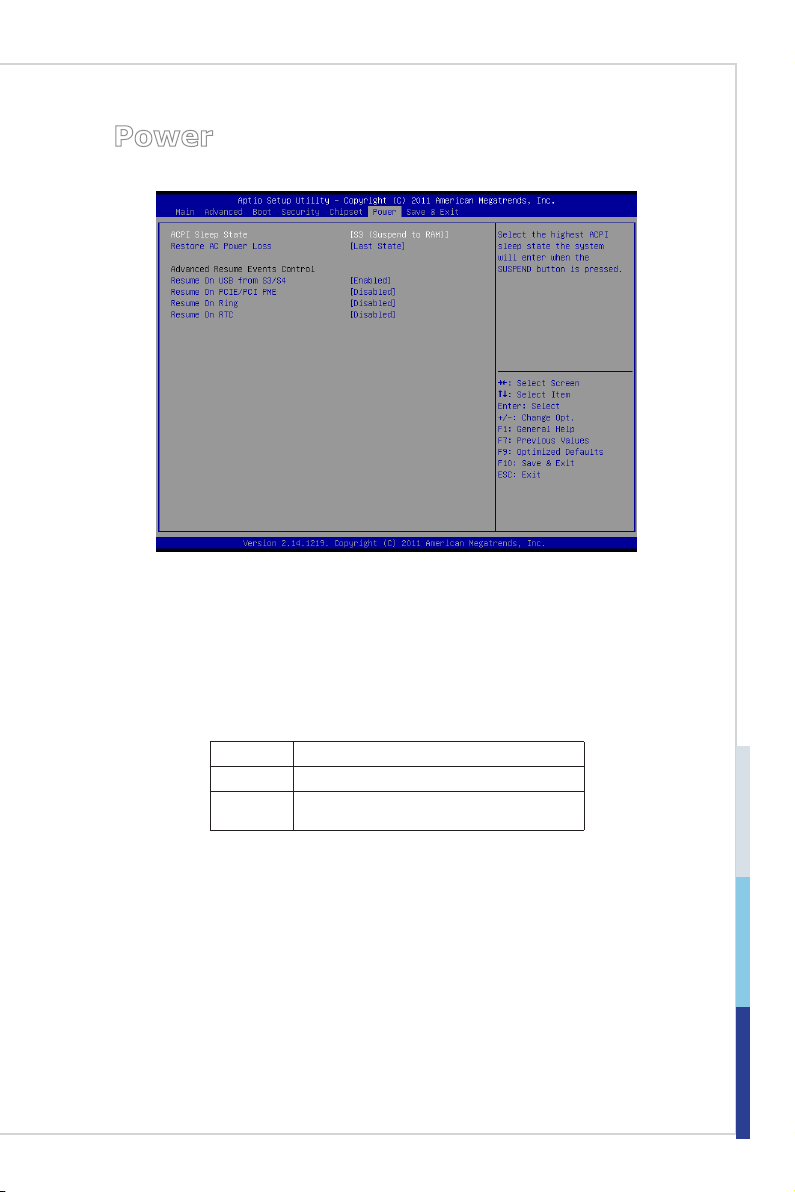

Power

▶ACPI Sleep State

This item species the power saving modes for ACPI function. If your operating
system supports ACPI, you can choose to enter the Standby mode in S1 (POS)
or S3 (STR) fashion through the setting of this eld.

▶Restore AC Power Loss

This setting species whether your system will reboot after a power failure or
interrupt occurs. Available settings are:

[Power Off] Leaves the computer in the power off state.

[Power On] Leaves the computer in the power on state.

[Last State] Restores the system to the previous status before

power failure or interrupt occurred.

** Advanced Resume Events Control **

▶Resume On USB from S3/S4

The item allows the activity of the USB device to wake up the system from S3/S4
sleep state.

▶Resume On PCIE/PCI PME

This eld species whether the system will be awakened from power saving
modes when activity or input signal of onboard PCIE/PCI PME is detected.

3-15

BIOS Setup Touch Panel PC

▶Resume On Ring

An input signal on the serial Ring Indicator (RI) line (in other words, an incoming
call on the modem) awakens the system from a soft off state.

▶Resume On RTC

When [Enabled], your can set the date and time at which the RTC (real-time
clock) alarm awakens the system from suspend mode.

3-16

Save & Exit

▶Save Changes and Exit

Save changes to CMOS and exit the Setup Utility.

▶Discard Changes and Exit

Abandon all changes and exit the Setup Utility.

▶Restore Defaults

Restore the factory defaults.

▶Save as User Defaults

Save all changes as the user defaults.

▶Restore User Defaults

Restore the preset user defaults.

3-17

Appendix

WDT & GPIO

This appendix provides the sample codes of WDT (Watch Dog Timer)
and GPIO (General Purpose Input/ Output).

2-A-1

WDT & GPIO Touch Panel PC

SIO_INDEX_Port
SIO_DATA_Port
SIO_UnLock_Value
SIO_Lock_Value
WatchDog_LDN
WDT_UNIT
WDT_Timer

Sample code:
;Enable config mode

;Change to WDT

;Acive WDT

;set UINT

;enable reset

;close config mode

WDT Sample Code

equ 04Eh

equ 04Fh

equ 087h

equ 0AAh

equ 007h

equ 60h ;60h=second, 68h=minute, 40h=Disabled Watchdog timer

equ 30 ;ex. 30 seconds

;set timer

A-2

mov dx, SIO_INDEX_Port
mov al, SIO_UnLock_Value
out dx, al
jmp short $+2 ;Io_delay
jmp short $+2 ;Io_delay
out dx, al

mov dx, SIO_INDEX_Port
mov al, 07h
out dx, al
mov dx, SIO_DATA_Port
mov al, WatchDog_LDN
out dx, al

mov dx, SIO_INDEX_Port
mov al, 30h
out dx, al
mov dx, SIO_DATA_Port
in al, dx
or al, 01h
out dx, al

mov dx, SIO_INDEX_Port
mov al, 0F6h
out dx, al
mov dx, SIO_DATA_Port

mov al, WDT_Timer

out dx, al

mov dx, SIO_INDEX_Port
mov al, 0F5h
out dx, al
mov dx, SIO_DATA_Port

mov al, WDT_UNIT

out dx, al

mov dx, SIO_INDEX_Port
mov al, 0FAh
out dx, al
mov dx, SIO_DATA_Port
in al, dx
or al, 01h
out dx, al

mov dx, SIO_INDEX_Port
mov al, SIO_Lock_Value
out dx, al

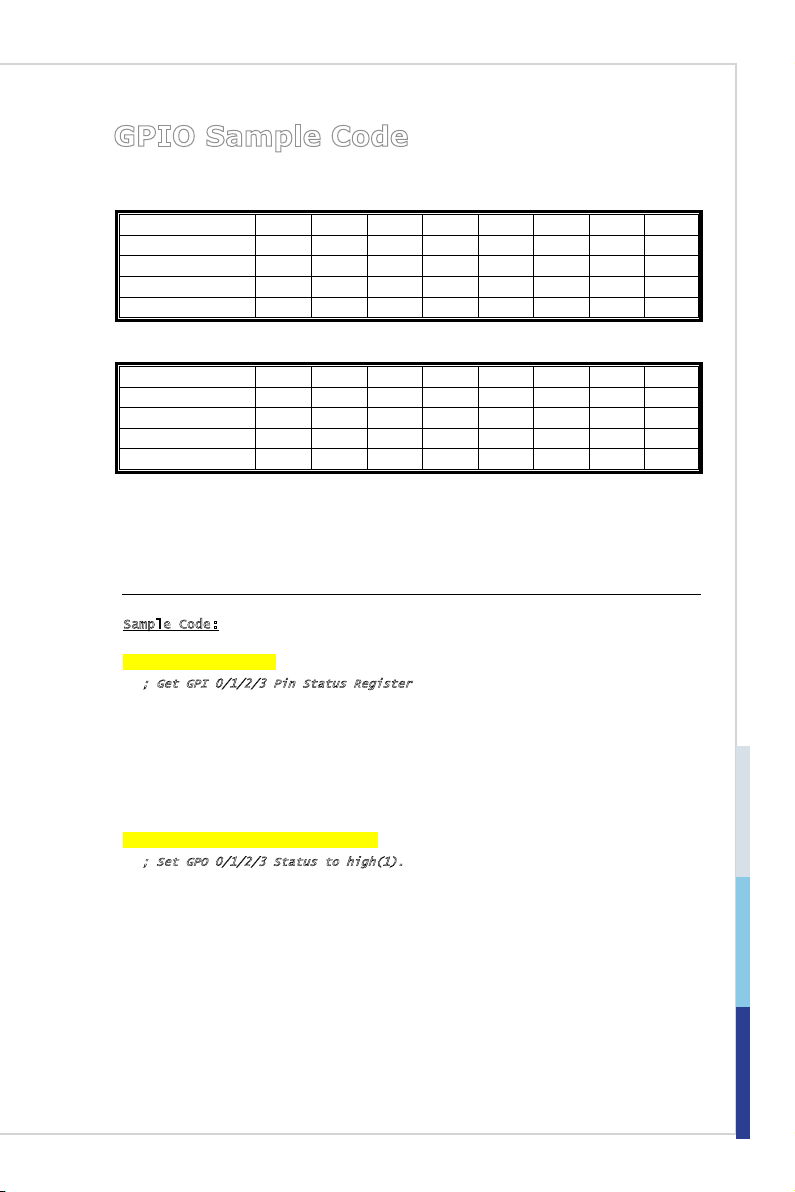

GPIO Sample Code

 GPI 0 ~ GPI 3

GPI 0 GPI 1 GPI 2 GPI 3

IO Address 50Ch 50Ch 50Ch 50Ch

SIO GPIO Register

Bit 24 26 27 28

Sample code #1 #1 #1 #1

 GPO 0 ~ GPO 3

GPO 0 GPO 1 GPO 2 GPO 3

IO Address 538h 538h 538h 538h

SIO GPIO Register

Bit 1 2 6 7

Sample code #2 #2 #2 #2

GPO_0 equ 00000010b

GPO_1 equ 00000100b

GPO_2 equ 01000000b

GPO_3 equ 10000000b

Sample Code:

#1 : Get GPI 0 status

;

Get GPI 0/1/2/3 Pin Status Register

mov dx, 50Ch

in eax, dx

;eax bit24 = GPI 0 status

;eax bit26 = GPI 1 status

;eax bit27 = GPI 2 status

;eax bit28 = GPI 3 status

#2 : Set GPO 0/1/2/3 status to high

; Set GPO 0/1/2/3 Status to high(1).

mov dx, 538h

in eax, dx

or eax, GPO_0 + GPO_1 + GPO_2 + GPO_3

out dx,eax

A-3
