IPC Series
U
PANEL-PC 310 Series
Fanless, ARM Cortex-A8, SD, 12.1inch
User’s Manual
CONTEC CO., LTD.
Page 2
PT-310LS-AC35311x
Name
Pcs.
The main body
1
The attachment fittings
8
SD card removal prevention fitting
1
I/O connector
1
Screws fo r attachment fi ttings Three-point sems
screw (M3×6)
Cable clamp
3
Product guide
1
IPC Precaution List
1
Warranty Certifi cate
1
Serial Number Label
1
Panel-PC
The attachment
fittings
SD card removal
prevention fitting
Screws for
attachment fittings
Three-point
sems screw (M3×6)
Product guide IPC Precaution List
I/O connector Cable clamp
Warranty Certificate Serial Number Label
Product guid e
IPC Precaution
List
Warrant y
Certificate
Check Your Packa g e
Thank you for purchas i ng the CON TEC p rod uc t.
The product cons ists o f the ite ms lis ted be l ow.
Check, with the fol low ing l ist, t hat yo ur pa cka ge is co mple te. If you dis cove r damaged or missing items, contact your
retailer.

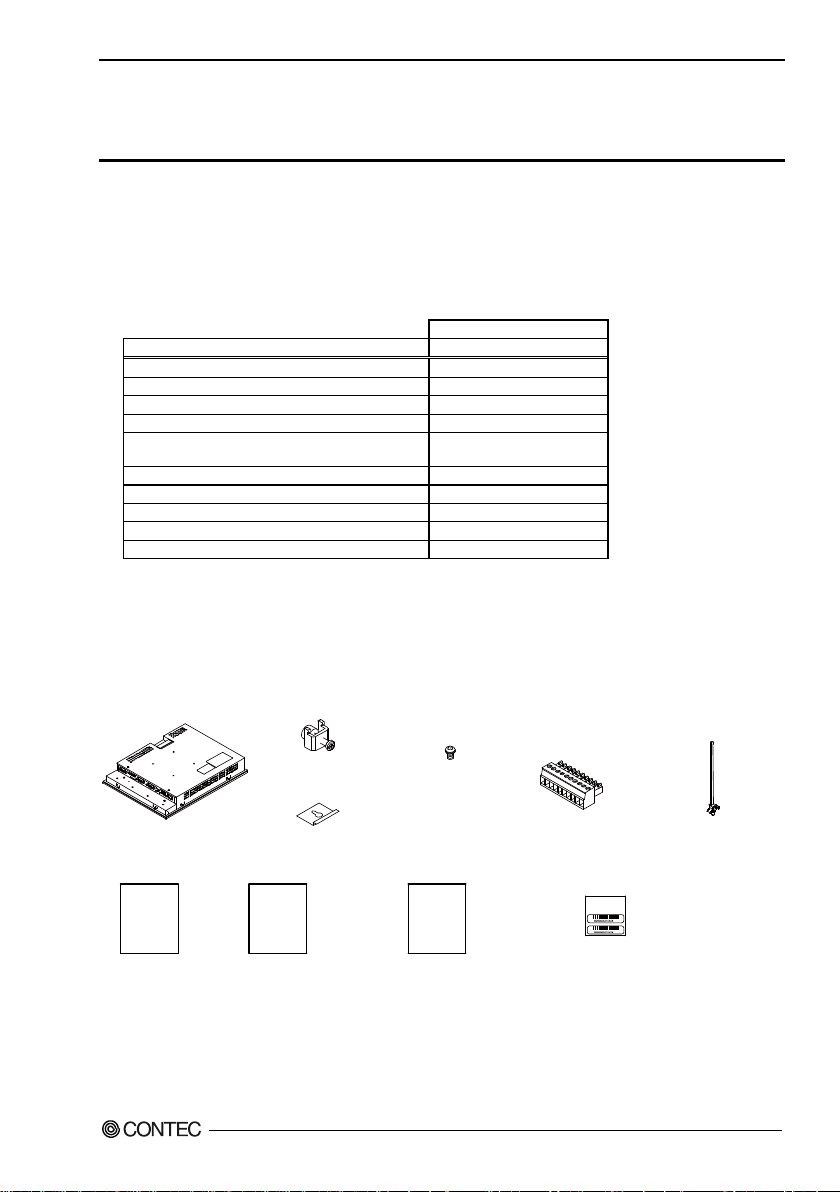

Product Configuration List
1
* The user's manual, softwar e manua l * 1 for this product is availab le as a PDF file throug h CONTE C’ s Web site.
The user's manual provides such information as hardware settings, functions for each component settings.
Refer to it as necessary
*1 PT-310LS-AC353111: Please refer t o the softwar e manual (Japa nese ver sio n).
PT-310LS-AC353112: Please refer t o the softwar e manual (Eng lish vers ion) .

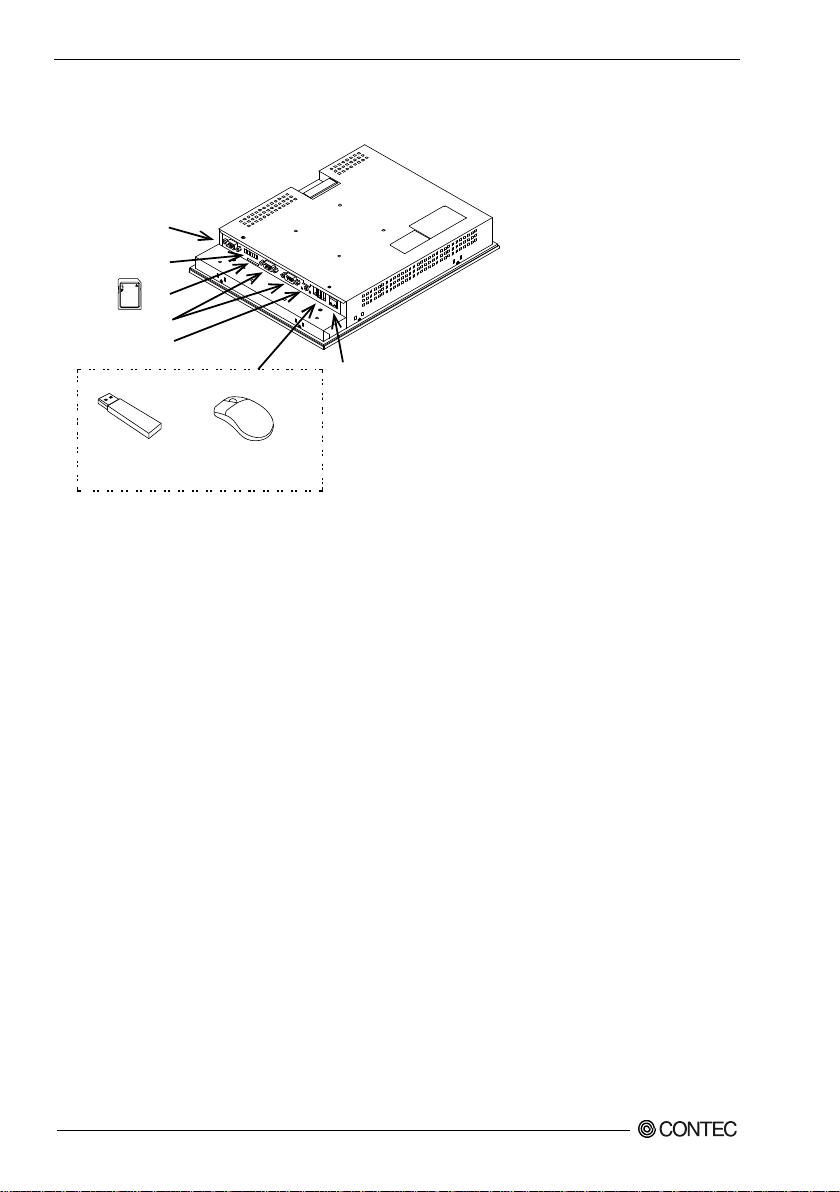

Product Configuration Image
* See the Product Configuration List to check if all the compon ents are included for the specified number of units.
PT-310 User’s manual
i
Page 3
Copyright
Copyright 2016 CONTEC CO., LTD. ALL RIGHTS RESERVED.
No part of this document may be copied or reproduced in any form by any means without prior written
consent of CONTEC CO., LTD.
CONTEC CO., LTD. makes no commitment to update or keep current the information contained in this
document.
The information in this document is subject to change without notice.
All relevant issues have been considered in the preparation of this document. Should you notice an
omission or any questionable item in this document, please feel free to notify CONTEC CO., LTD.
Regardless of the foregoing statement, CONTEC assumes no responsibility for any errors that may
appear in this document or for results obtained by the user as a result of using this product.
Trademarks
MS, Microsoft and Windows are trademarks of Microsoft Corporation. Other brand and product names
are trademarks of their respective holder .
PT-310 User’s manual
ii
Page 4
Table of Contents
Check Your Package ............................................................................................................................ i
Copyright ............................................................................................................................................ ii
Trademarks .......................................................................................................................................... ii
Table of Contents ............................................................................................................................... iii
1. INTRODUCTION 1
About the Product ............................................................................................................................... 1
Features ........................................................................................................................................ 2
Supported OS ............................................................................................................................... 2
Customer Support................................................................................................................................ 3
Web Site ....................................................................................................................................... 3
Limited One-Year Warranty ............................................................................................................... 3
How to Obtai n Servic e ........................................................................................................................ 3
Liability ............................................................................................................................................... 3
Safety Precautions ............................................................................................................................... 4
Safety Inf orma tion ....................................................................................................................... 4
Caution on the PT-310 Series ....................................................................................................... 4
2. SYSTEM REFERENCE 7
Specifications ...................................................................................................................................... 7
Power Requirements ........................................................................................................................... 9
Power Consumption ..................................................................................................................... 9
Physical Dimensions ......................................................................................................................... 10
3. HARDWARE SE TUP 11
Before Using the Product for the First Time ..................................................................................... 11
Hardwar e Setup ................................................................................................................................. 12
Attaching the SD Attachment Fittings ....................................................................................... 12
Fastening the Cable .................................................................................................................... 12
Hardware Setup .......................................................................................................................... 13
Installation Requirements ........................................................................................................... 15
4. EACH COMPONENT FUNCTION 19
Component Name .............................................................................................................................. 19
System Configuration ........................................................................................................................ 20
Component Function ......................................................................................................................... 21
LED: POWER, ACCESS ........................................................................................................... 21
AC Power input terminal: AC-IN ........................................................................................... 21
PT-310 User’s manual
iii
Page 5
RESET SW: RESET-SW ........................................................................................................ 21
LINE OUT Interface: LINE OUT ........................................................................................... 22
Function switches: F1, F2, F3 ................................................................................................. 22
USB2.0 Port: USB2.0 .............................................................................................................. 22
100M Ethernet: LAN ............................................................................................................... 23
SD Card Connector: SD1, 2 .................................................................................................... 24
RS-232C Serial Port: SERIAL A, B ........................................................................................ 25
RS-422A/485 Serial Port: SERIAL C ..................................................................................... 26
General-purpose I/O ports .......................................................................................................... 27
5. APPENDIX 29
Battery ............................................................................................................................................... 29
6. LIST OF OPTIONS 31
PT-310 User’s manual
iv
Page 6
1. Introduction
1. Introduction About the Pro duct
This product is a fanless computer for embedded applications. It features an ARM® Cortex-A8
AM3354 600MHz chipset.
As the unit has assorted interfaces including the USB, SD Card, 100BASE-TX, and Serial connectors, it
can be used widely as a general-purpose terminal for embedded applications. It uses Windows
Embedded Compact 7 loaded from Flash ROM along with user programs, the unit is implemented as
diskless hardware without the need for a shutdown procedure.
Also, this product uses a 5-wire resistive film touch panel, which has improved durability. The front
side has an IP65-rated dustproof/drip-proof structure. What's more, this product complies with the
VESA standard and can be installed on an LCD arm.
Also, this product uses a 5-wire resistive film touch panel, which has improved durability.
This product can be used in a variety of applications as the controller such as operation terminals
located in manufacturing lines, distribution systems, and other parts of factories.
This product is available in the following 2 models:
12.1 inches panel mount type, LCD (SVGA), OS-installed model with ARM® Cortex-A8 AM3354
600MHz
- PT-310LS-AC353111 (Memory 256MB, Windows Embedded Compact 7 (Japan es e v er s i on),
SD card (SLC) 512MB)
- PT-310LS-AC353112 (Memory 256MB, Windows Embedded Compact 7 (English version),
SD card (SLC) 512MB)
PT-310 User’s manual
1
Page 7
1. Introduction
Features
Improved durability due to its 5-wire resistive film touch panel
This product uses a 5-wire resistive film touch panel that has excellent durability, which provides a long
operating lifetime. Compared to our conventional product, the IPC-PT/LS11 Series, the number of
operations has increased from 10 million to 36 million*1.
*1 This value has been tested by mechanical touching under 300g of force at a rate of two presses per second.
Front side in IP65-rated dustproof/drip-proof structure
Front side in IP65-rated dustproof/drip-proof structure.
Slitless/fanless design that reduces maintenance work
This product's spindle-less design eliminates the heat dissipation slit and CPU fan and adopts SD card
for the storage. It is free from dusts and foreign objects, and the use the parts that degrades over the
years is avoided in most case, resulting in drastic alleviation of the maintenance burden.
Supports a ri ch variety of main peripheral types.
This product is standard-equipped with 3 serial channels (RS-232C × 2, RS-422A/485 × 1), USB, SD
card slot, 100BASE-TX, 4 channels of general-purpose, isolated digital I/O ports, and stereo sound
function. The drivers for the equipped interfaces are installed as standard.
Falling-off prevention tools and cable clamps provided to avoid trouble caused by disconnected cable
This product stays trouble-free, being equipped with USB removal prevention fitting and cable clamp
for connectors with no locking mechanism, such as USB cable, and with hardware to properly mount
and avoid falling out of SD card.
Mounting structure supporting VESA 75mm standard
Mounting structure supporting the VESA 75mm standard allows you to install this product on an LCD.
High-speed startup
XIP & memory loading boot function, enabling high-speed startup/operation.
System memory
256MB (SDRAM) system memory standard. 128 MB of internal, erasable programmable Flash ROM
available as a user area, allowing user.
Supported OS
- Windows Embedded Compact 7 Japanese
- Windows Embedded Compact 7 English
PT-310 User’s manual
2
Page 8
1. Introduction
Customer Su pp ort
CONTEC provides the following support services for you to use CONTEC products more efficiently
and comfortably.
Web Site
Japanese http://www.contec.co.jp/
English http://www.contec.com/
Chinese http://www.contec.com.cn/
Latest product information
CONTEC provides up-to-date information on products.
CONTEC also provides product manuals and various technical documents in the PDF.
Free download
You can download updated driver software and differential files as well as sample programs available in
several languages.
Note! For product information
Contact your retailer if you have any technical question about a CONTEC product or need its price,
delivery time, or estimate information.
Limited One-Year Warranty
CONTEC products are warranted by CONTEC CO., LTD. to be free from defects in material and
workmanship for up to one year from the date of purchase by the original purchaser.
Repair will be free of charge only when this device is returned freight prepaid with a copy of the
original invoice and a Return Merchandise Authorization to the distributor or the CONTEC group
office, from which it was purchased.
This warranty is not applicable for scratches or normal wear, but only for the electronic circuitry and
original products. The warranty is not applicable if the device has been tampered with or damaged
through abuse, mistreatment, neglect, or unreasonable use, or if the original invoice is not included, in
which case repairs will be considered beyond the warranty policy.
How to Obtain Service
For replacement or repair, return the device freight prepaid, with a copy of the original invoice. Please
obtain a Return Merchandise Authorization number (RMA) from the CONTEC group office wh ere you
purchased before returning any product.
* No product will be accepted by CONTEC group without the RMA number.
Liability
The obligation of the warrantor is solely to repair or replace the product. In no event will the warrantor
be liable for any incidental or consequential damages due to such defect or consequences that arise from
inexperienced usage, misuse, or malfunction of this device.
PT-310 User’s manual
3
Page 9
1. Introduction
DANGER
WARNING
CA
UT
IO
N
WARNING
Safety Pr ecautions
Understand the following definitions and precautions to use the product safely.
Safety Information
This document provides safety information using the following symbols to prevent accidents resulting
in injury or death and the destruction of equipment and resources. Understand the meanings of these
labels to operate the equipment safely.
DANGER indicates an imminently hazardous situation which, if not avoided, will
result in death or serious injury.
WARNING indicates a potentially hazardous situation which, if not avoided, could
result in death or serious injury.
CAUTION indicates a potentially hazardous situation which, if not avoided, may
result in minor or moderate injury or in property damage.
Caution on the PT-310 Series
Handling Precautions
- Always check that the p o wer supply is turned off before connecting or disconnecting power cables.
- D o not modify the product.
- Always turn off the power before inserting or removing circuit boards or cables.
- This product is not intended for use in aerospace, space, nuclear power, medical equipment, or other
applications that require a very high level of reliability. Do not use the product in such applications.
- If using this product in applications where safety is critical such as in railways, automotive, or
disaster prevention or security systems, please contact your retailer.
- Do not attempt to replace the battery as inappropriate battery replacement poses a risk of explosion.
- For battery replacement, contact yo ur ret ailer as it must be performed as a pr o cess of repair .
- When disposing of a used battery, follow the disposal procedures stipulated under the relevant laws
and municipal ordinances. For details on replacing the battery, refer to the appendix.
PT-310 User’s manual
4
Page 10
1. Introduction
CAUTION
- D o not use or store this product in a location exposed to high or low temperature that exceeds range
of specification or susceptible to rapid temperature changes.
Example: - Exposure to direct sun
- In the vicinity of a heat source
- D o not use this product in extremely humid or dusty locations. It is extremely dangerous to use this
product with its interior penetrated by water or any other fluid or conductive dust. If this product
must be used in such an environment, install it on a dust-proof control panel, for example.
- Avoid using or storing this product in locations subject to shock or vibration that exceeds range of
specification.
- D o not use this product in the vicinity of devices that generate strong magnetic force or noise. Such
products will cause this product to malfunction.
- D o not use or store this product in the presence of chemicals.
- To clean this product, wipe it gently with a soft cloth dampened with either water or mild detergent.
Do not use chemicals or a volatile solvent, such as benzene or thinner, to prevent pealing or
discoloration of the paint.
- This product’s case may become hot. To avoid being burned, do not touch that section while this
product is in operation or immediately after turning off the power. Avoid installation in a location
where people may come into contact with that section.
- CONTEC does not provide any guarantee for the integrity of data on SD card.
- In order to prevent file corruption, be sure to check that the importing of data from the SD card is
complete before tu r ning off the product.
- CONTEC reserves the right to refuse to service a product modified by the user.
- In the event of failure or abnormality (foul smells or excessive heat generation), unplug the power
cord immediately and contact your retailer.
- To connect with peripherals, use a grounded, shielded cable.
- D o not use any sharp-pointed object such as a mechanical pencil to touch the touch panel. Doing so
may scratch the touch panel, resulting in malfunctions.
- Do not subject the touch panel to shock as doing so may break it.
- When the surface or frame of the touch panel has become dirty, wipe it with neutral detergent. Do
not wipe the touch panel with thinner, alcohol, ammonia, or a strong chlorinated solvent. Use a
protective sheet (available as an option) if the touch panel is used where it can easily collect dust
and dirt.
- It is a characteristic of analog touch panels that their resistance may vary with changes to the
ambient environment (temperature and humidity) and with their own aging, resulting in the
deviation of the detection point. If this is the case, calibrate the touch panel again to re-set
calibration data.
- LCD may have a few bright spots that are always on or a few black spots that are always off. Color
irregularity may also occur depending on the viewing angle. This however is due to the structural
characteristics of the LCD; therefore, it is not a product fault.
PT-310 User’s manual
5
Page 11
1. Introduction
This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection
against harmful interference when the equipment is operated in a commercial envi ronment.
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and
used in accordance with the instruction manual, may cause harmful interference to radio
communications. Operation of this equipment in a residential area is likely to cause harmful
interference in which case the user will be required to correct the interference at his own expense.
NOTE
FCC WARNING
Changes or modifications not expressly approved by the party responsible for compliance could void
the user's authority to operate the equipment.
- Burn-in on TFT Display
“Burn-in” may occur if the same display is retained for a long time. Avoid this by periodically
switching the display so that the same display is not maintained for a long time.
* Burn-In : Phenomenon characterized by a TFT display as a result of long-time display of the
same screen where a shadow-like trace persists because electric charge remains in the
LCD element even after the patterns are changed.
- The SD card connector doesn't support hot plug. The pulling out opening of the SD card cannot be
done in the state of power supply ON. Please neither pulling out opening of SD in the state of
power supply ON of this product nor come in contact with SD. This product may malfunction or
cause a failure.
- If you use any other SD than our SD, we can not guarantee this product’s specification. When you
newly select SD for this product, you should read “Chapter 6” at first. If you select unpreferable
SD, the system may work out of order.
- C omp onent Life :
(1) Battery--- A coin cell lithium battery is used to back up the internal calendar clock. When
no power is supplied, the backup time is 10 years or more at 25°C.
(2) Built-in SD card (NFDisk) --- On models preinstalled with Windows Embedded Compact 7, a
Flash ROM is used for the storage area for the user applications and system
settings. For the SLC model, the estimated failure rate is after 60,000 rewrite
operations. For details, refer to the manual of the optional SD card.
Moreover, when power supply OFF is done while writing it, data in flash
memory (NFDISK) might be damaged.
(3) BackLight--- Display brightness decreases over time with use.The operating lifetime of the
backlight is 50,000 hours.
* Ambient temperature25°C±5°C, maximum brightness setting, up to 50% of
the initial brightness decrease.
(4) Touch panel--- The operating lifetime of the touch panel is at least 36 million touches
(as tested by mechanical touching under 250g of force at a rate of two presses
per second).
* Replacement of expendables is handled as a repair (there will be a charge).
* The service life for consumable parts are reference values and are not guaranteed values.
FCC PART 15 Class A Noti ce
EN55032 Class A Notice
Warning: Operation of this equipment in a residential environment could cause radio interference.
PT-310 User’s manual
6
Page 12
2. System Reference
Model
PT-310LS-AC35311x
CPU
ARM® Cortex-A8 AM3354 600MHz
OS
Microsoft Windows Embedded Compact 7
Controller
Built in CPU
Video RAM
Main memory shared
LCD type
12.1-inch TFT color LCD, SVGA(800 x 600), 260,000 colors
Backlight
LED method, The ON/OFF software can co ntrol.
Flash memory
(NFDISK)
System memory
256MB DDR3 SDRAM
OS loading
Flash memory
Resolution
4096 x 4096 (emulated in 1024 x 768)
Detection method
5-wire resistive f ilm touch panel
Connection
Internal serial port
Audio φ3.5 Stereo mini jack Full-scale output level 1.0 Vrms (Typ.) x 1
Power LED: 1 points
Front SW input: 3 points
SD Card Type I × 2
PT-310LS-AC35311x: Built-in SD card slot (SLC) (512MB x 1, NFD isk) *2
LAN *2
100BASE-TX/10BASE-T 1 port
USB*3
USB 2.0-compliant 3 port
RS-232C(generic) 2 port, Baud rate: 50 - 115,200bps
RS-422A/485(generic) 1 port, Baud rate: 300 - 115,200bps
General-purpose I/O
Optocoupler isolated inputs and outputs: 4 channels each
The real-ti me clock is accu rate within ±3 minutes (at 25°C) per month
Lithium backup battery life : 10 years or more
Power supply
Power supply conn ector
100VAC
Input power supply voltage
100V - 240 VAC
Current consump tion (Max.)
100V 0.34A
External device power supply
capacity
SD card slots: +3.3V: 0.4A (200mA x 2)
USB2.0 I/F: +5V: 1.5A (500mA x 3)
Physical dimensions (mm)
315 (W) x 50.4(D) x 254(H) (Storage device isn't included)
Panel cut dimensions (mm)
303 (W) x 243(H)
Weight
About 3.1kg (without mounting bra cket)
2. System Reference
Specifications
Table 2.1. Functional Specifications
Graphic
LCD type
512MB
Memory
128MB
Touch panel
*1
Front swi tch
SD card slots
Serial I/F
RTC
*1 The tapping error precision is within 1.5% in the 10mm of the outer circumference of the area that can be tapped
and is within 1% in all other parts of the area that can be tapped.
*2 The capacity that can be recognized from OS might be displayed fewer than an actual value.
*3 Use the USB interface to connect a keyboard/mouse.
(CPU built-in RTC),
PT-310 User’s manual
7
Page 13
2. System Reference
Model
PT-310LS-AC35311x
Operating temperature *4
0 - 50 ºC
Storage te mperatu re
-10 - 60 ºC
Operating humidi ty
10 - 90%RH(No condensation)
Floating dust particles
Not to be excessive
Corrosive gas
None
AC line / ±2kV *5
Signal line / ±1kV (IEC61000-4-4 Level 3, EN61000-4-4 Level 3)
Static
resistance
10 - 57Hz/0.075 mm (semi-amplitude (0-p))
(JIS C60028-2-6-compliant, IEC60068-2-6-compliant)
10G, half-sine shock for 11 ms in x, y, and z directions
(JIS C60068-2-27-compliant, IEC60068-2-27-compliant)
Water-proof and dust-proof
IP65, front
Grounding
Class D grounding, SG-FG / continuity
Standard
VCCI Class A, FCC Class A, CE Marking (EMC Directive Class A, RoHS Directive)
Paramete r
Condition
Min.
Typ.
ϕ = 180°
55deg
65deg
ϕ = 0°
65deg
75deg
ϕ = +90°
70deg
80deg
ϕ= -90°
70deg
80deg
Surface
(at center)
Con
trast r
atio (CR) =
Brightness
at screen center with w
hite displ
ayed
Bri
ghtness a
t scree
n center w
ith black d
isplayed
Table 2.2. Installation Environment Requirements
Noise
resistance
Vibration
resistance
Impact resistance
*4: For more details on this, please refer to chapter 3, “Installation Requirements”.
*5: When using the IPC-ACCODE3 AC power cable.
Line noise
electricity
Sweep
resistance
Contact discharge / ±4kV (IEC61000-4-2 Level 2, EN61000-4-2 Level2),
Atmospheric discharge / ±8kV (IEC61000-4-2 Level 3, EN61000-4-2 Level3)
One cycle (10-150-10 Hz) of 1 oct/min test at 9.8 m/s2 (1G) between 57 and 150 Hz 5
times in three (X/Y/Z) directions (40 minutes each)
Display Optical Specifications
Table 2.3. Display Optical Specifications
Visual angle
(vertical)
Visual angle
(horizontal)
brightness
* “Surface brightness” represents a numerical value per displ ay. The expected brightness through a touch panel is
about 80% lower than the above value.
CR ≥10
Display in white 300cd/m2 450cd/m
Display.
Monochro
me
2
PT-310 User’s manual
8
Page 14
2. System Reference
AC Voltage
Acceptable Tolerance
100V
+ 100V - 240V
L
e
f
t
(
φ =
-
90
o
)
Z
Y
X
Top
( φ = 180
o
)
Right
( φ = 90
o
)
Bottom
( φ = 0
o
)
( θ = 0
o
)
Measurement direction
θ
Module
φ
CAUTION

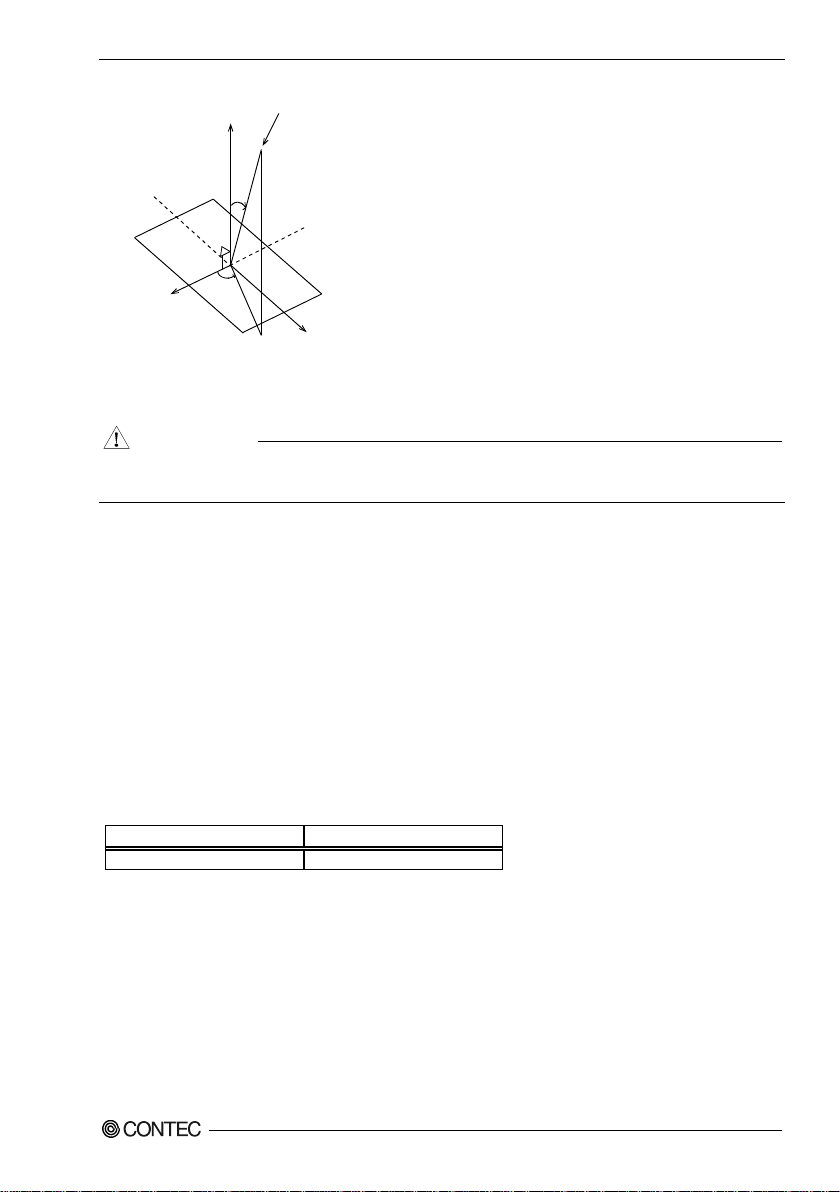

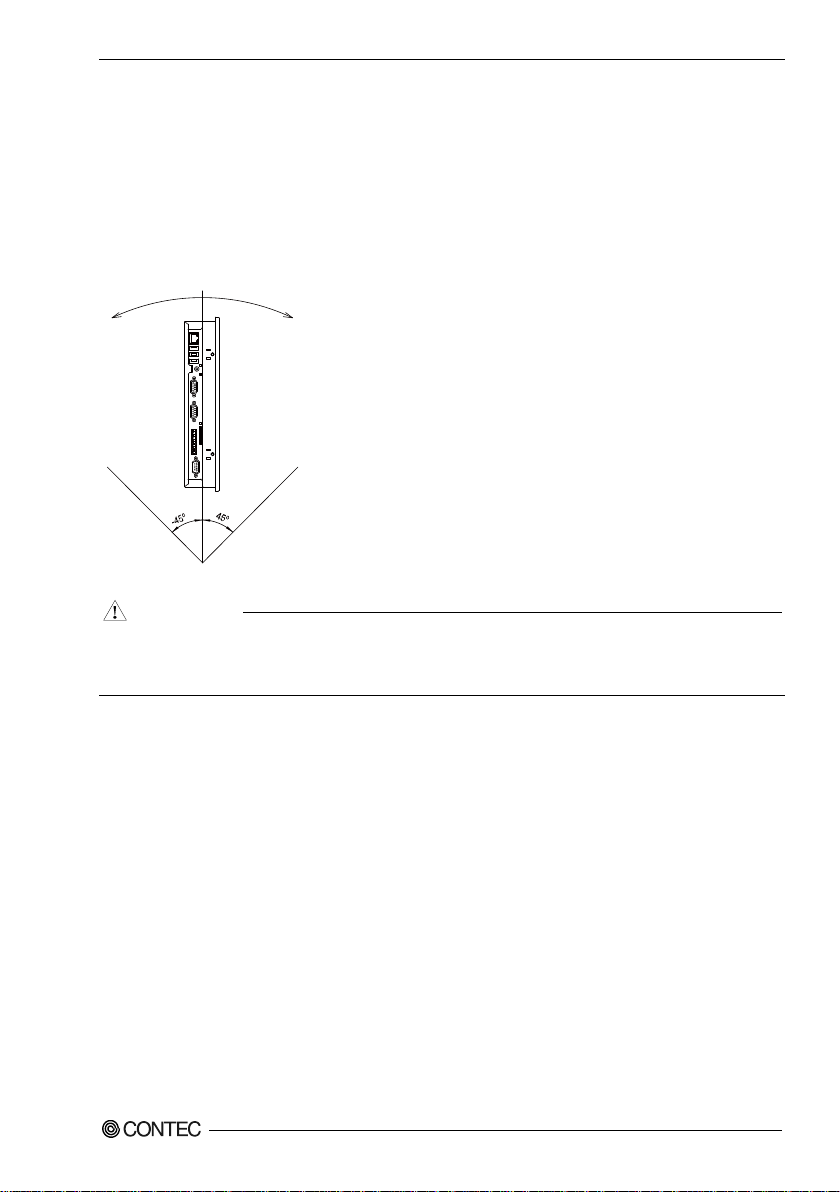

Figure 2.1. Definition of viewable range
The above optical specification data shows optical characteristics of the liquid crystal in the display;
the data does not represent the actual view on the display or its viewing angles.
Power Requirements
Your system requires a clean, steady power source for reliable performance of the high frequency CPU
on the product, the quality of the power supply is even more important. For the best perfo rmance
makes sure your power supply provides a range of 100 V minimum to 240 V maximum AC power
source
Power Consumption
The following table lists the power supply’s tolerances for AC voltages:
Table 2.4. AC voltage tolerance
PT-310 User’s manual
9
Page 15
2. System Reference
254
301
58
19
242
5.445
315
75
75
[mm]

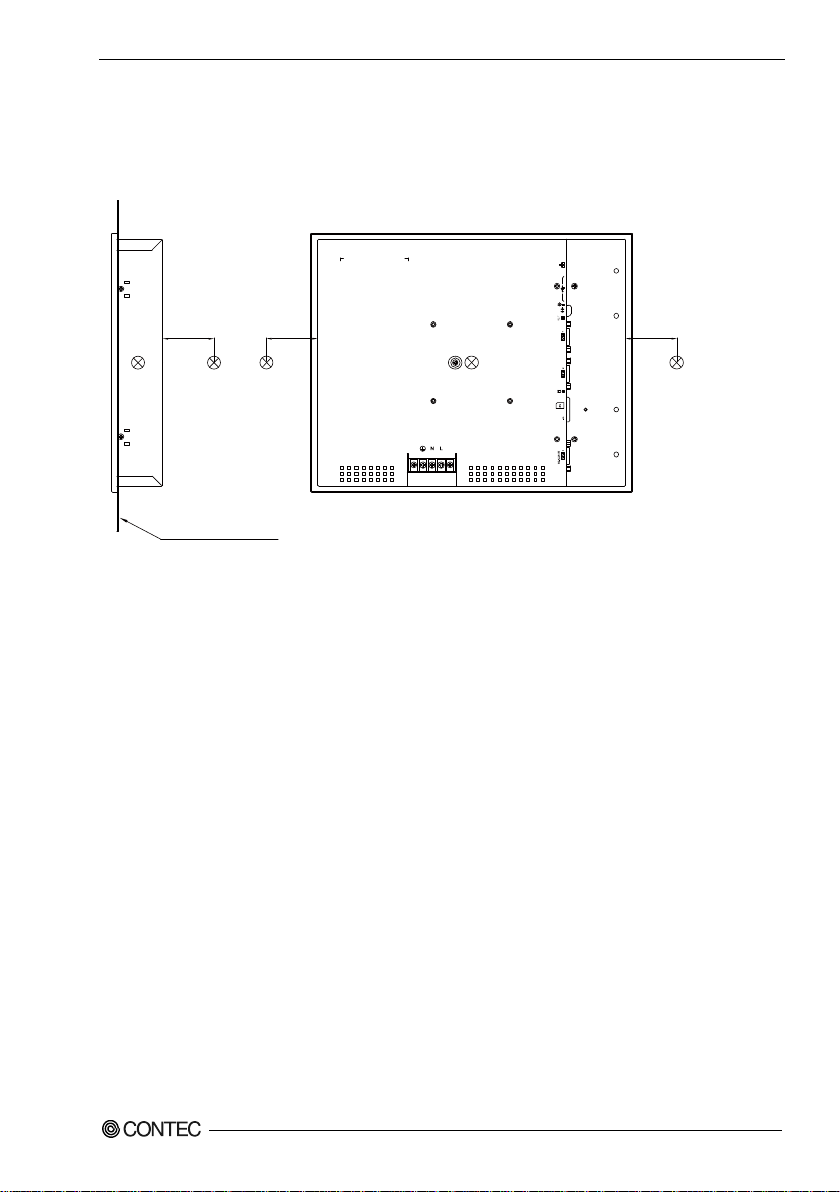

Physical Dimensions
*1 The M4 screw tips must pr otrude into the ins ide of the boss to a depth of less than 4 mm.

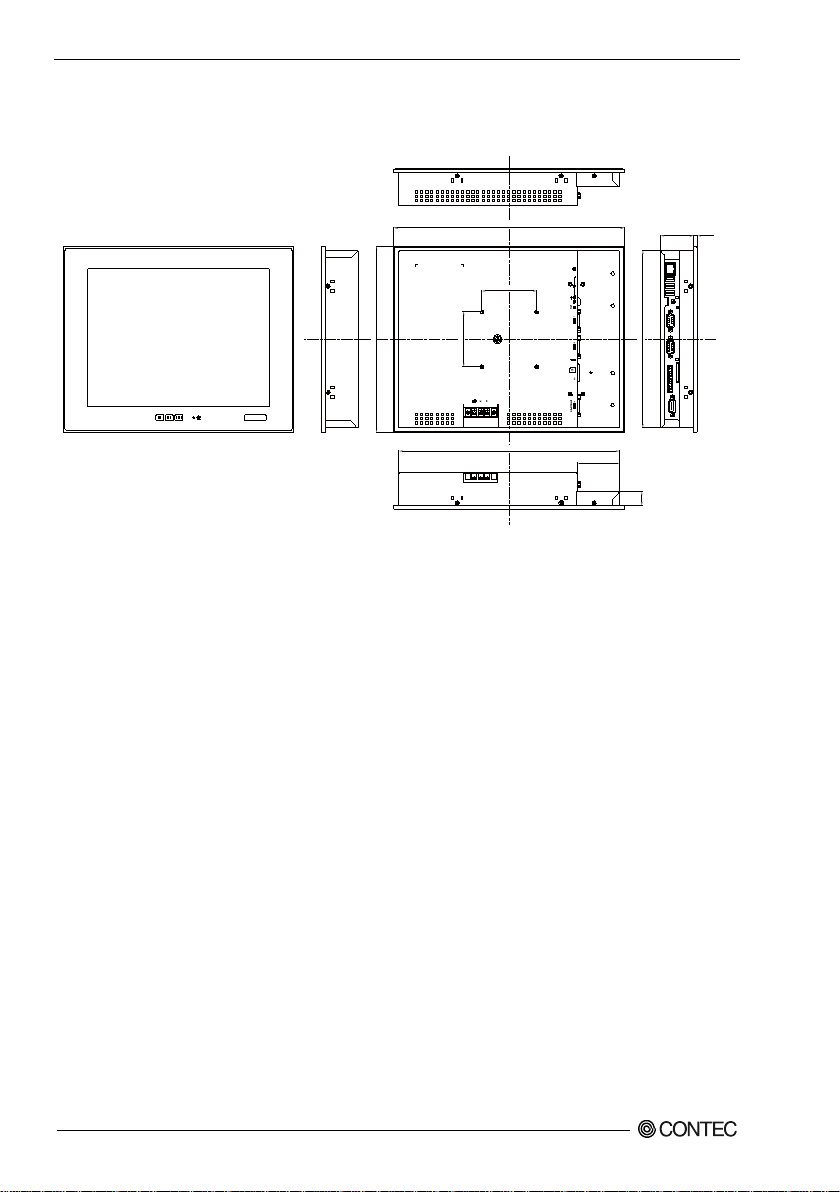

Figure 2.2. Physical Dimensions
PT-310 User’s manual
10
Page 16
3. Hardware Setup
C
AUTION
3. Hardware Setup
Before Using th e Product for the First Time
Follow the next steps to set up this product:
STEP1 By referring to the information in this chapter, install, connect and set this product.
STEP2 Connect cables.
Connect the cable of nec es s ar y ex t er n al d evices, such as keyboard and a mouse, to this
product using appropriate cables.
STEP3 Turn on the power.
After verifying that you have correctly followed steps 1 and 2, turn on the
power. If you find any abnormality after turning on the power, turn it off and
check to see if the setup has been performed properly.
Be sure to connect the keyboard and mouse to it before turning the power on for the first time.
PT-310 User’s manual
11
Page 17
3. Hardware Setup
CAUTION
Hardware Set up
- Before you start, be sure that the power is turned off.
- Remove only those screws that are explained. Do not move any other screw.

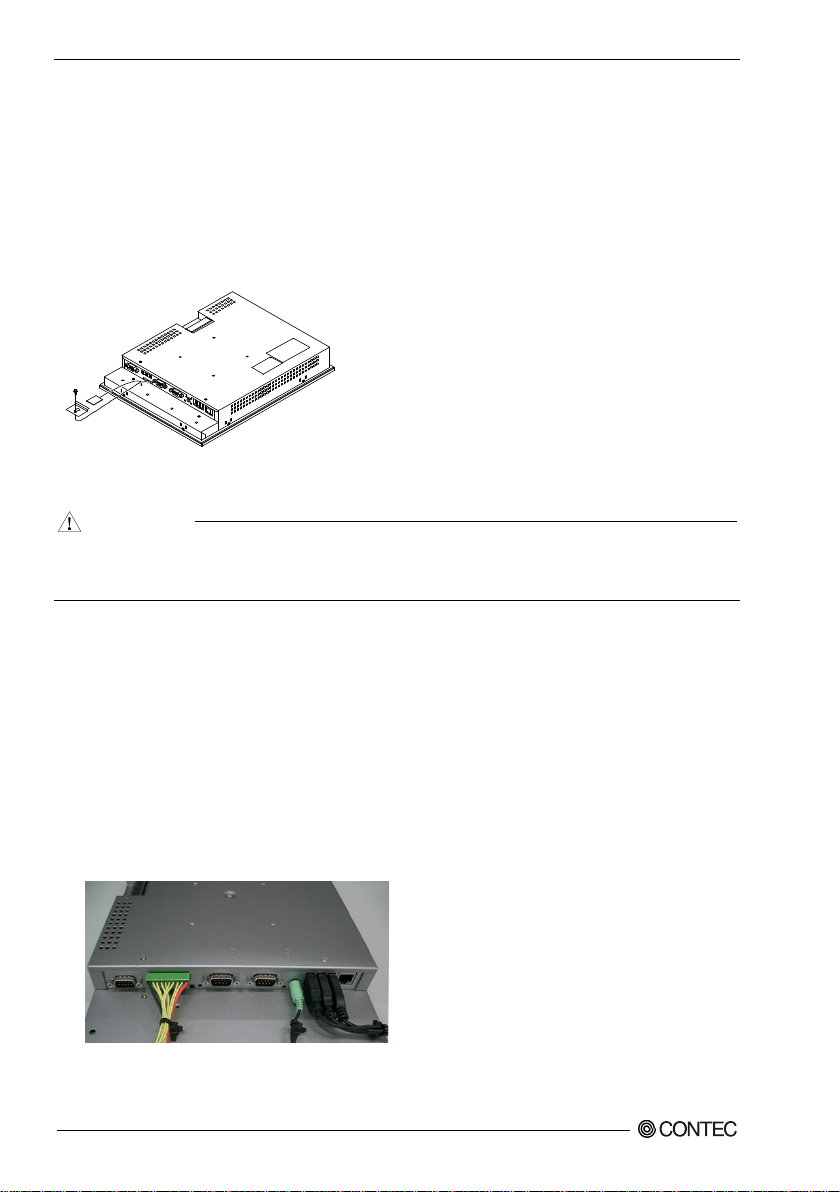

Attaching the SD Attac hment Fittings

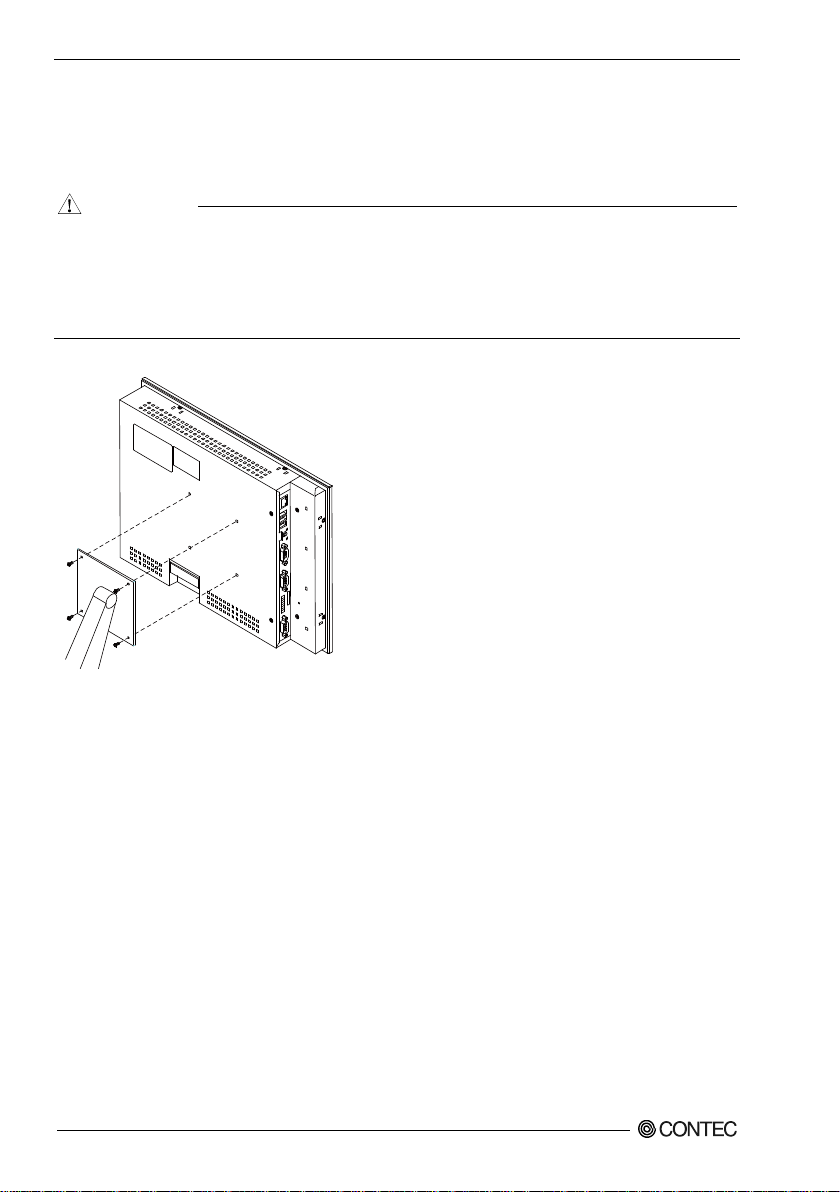

(1) After inserting a SD card, fasten the bundled SD attachment fittings with a screw.
*1: Attached screw M3x6
Figure 3.1. Attaching the SD car d Attachment Fittings
- Insert the SD Card fac e up.
- Screw holes may be damaged if screws are tightened with a torque greater than the specified torque.
The specified tightening torque is 5 - 6kgf
cm.
•
Fastening the Cable
This product comes with clamps for fixing cables.
Fastening the LINEOUT, USB Cable
(1) The system unit has a hole for attaching cable clamp. Using a cabl e clamp for a cabl e with lock-less
connector, such as the LINEOUT and USB Cable, prevents the connector from being unplugged.
Use the cable ties and cable clamps appropriately according to the connecting states and wiring
directions of cables.

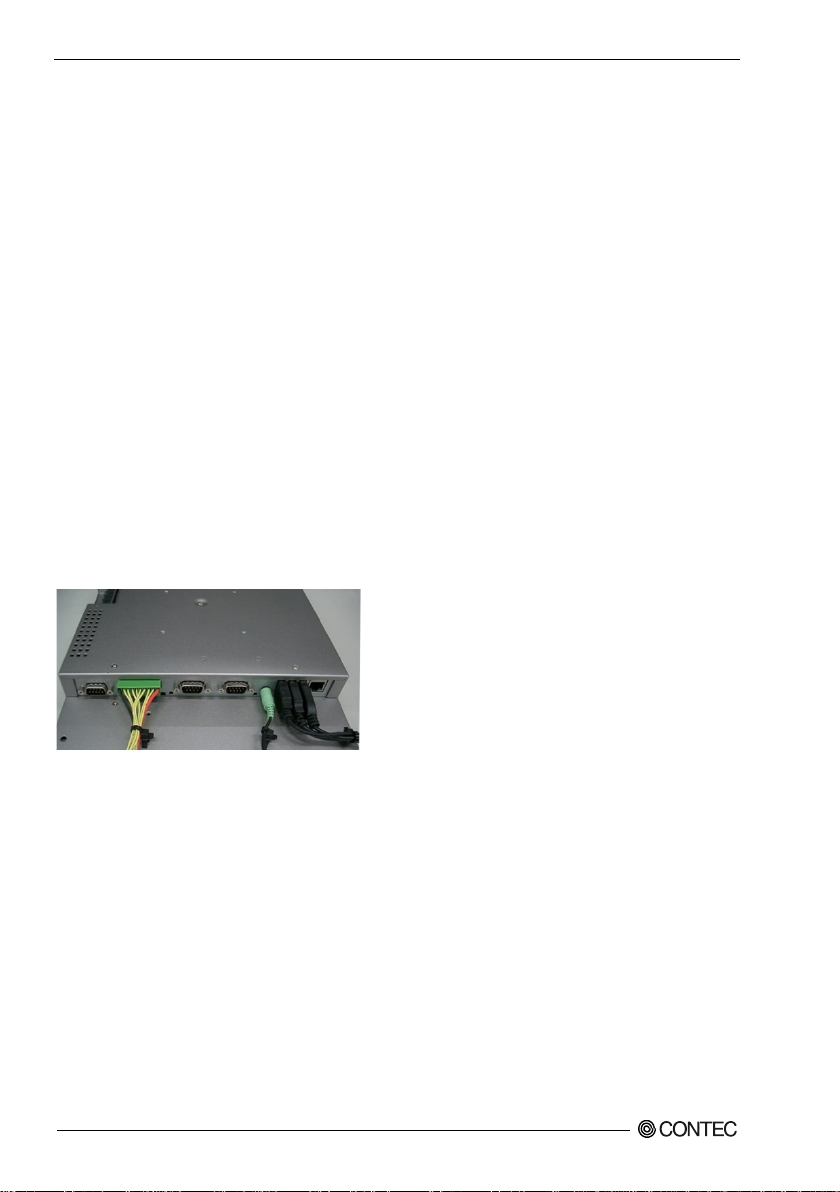

(2) The photo below shows an example of using a cable clamp. Fix the cable with a clamp without
applying s tress to t he connector.
Figure 3.2. Attaching the cable clamp
PT-310 User’s manual
12
Page 18
3. Hardware Setup
303
+1
-0
243
+1
-0
R1 or less
Panel thickness range 1.6 - 7mm
[mm]
Overtightning screws may result in damage.
Proper tightening torque for splash-proof is 0.3N•m.
Main body
Main body
Panel
Metal fittings
C
AUTION
Hardware Setup

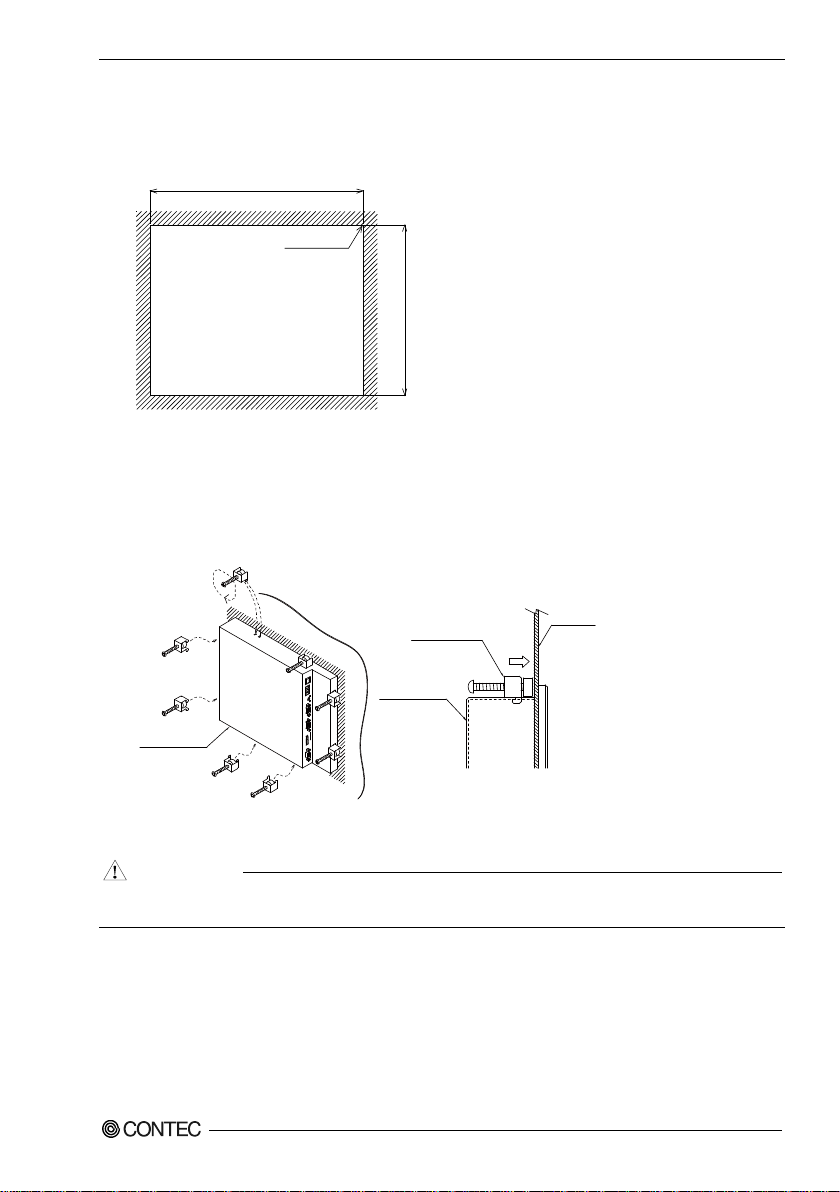

(1) Cut out a panel according to the following dimensions to mount the main unit.
Figure 3.3. Dimensions o f Panel Opening
(2) Insert the main body into the panel from the external side. Connect the attachment fittings from
the inside of the panel.
Figure 3.4. Connecting the Main Body Attachment Fi ttings
Screw holes may be damaged if screws are tightened with a torque greater than the specified torque.
The specified tightening torque is 5 - 6kgf
PT-310 User’s manual
cm.
•
13
Page 19
3. Hardware Setup
CA
UTION
When using VESA standard 75mm mounting holes
This product complies with VESA standard mounting and has VESA standard 75mm mounting holes.
When using a VESA standard 75mm stand or the like, attach it as shown the following figure.
- Use M4 mounting screws and ensure that they are inserted to a maximum depth of 4mm.
Note that the mounting screws are not included. You are requested to prepare these screws
separately.
- The dust proofing and waterproofing specifications are not fulfilled when you attach the product to
a VESA stand.
Figure 3.5. Installation of VESA metal fittings
PT-310 User’s manual
14
Page 20
3. Hardware Setup
+θ
-θ
0º
CAUTION
Installation Requirements
Be sure that the ambient temperature is within the range specified in the installation environment
requirement by making space between the product and device that generates heat or exhaust air.
Installed angle which is recommended -45- 45°
Installed angle of this product which is recommended is -45° - +45°. Except for that, the temperature
specification of this product might not be filled.
Figure 3.5. Installed angle which is recommended
Note that even though the ambient temperature is within the specified range, an operational
malfunction may occur if there is other device generating high heat; the radiation will influence the
product to increase its temperature.
PT-310 User’s manual
15
Page 21
3. Hardware Setup

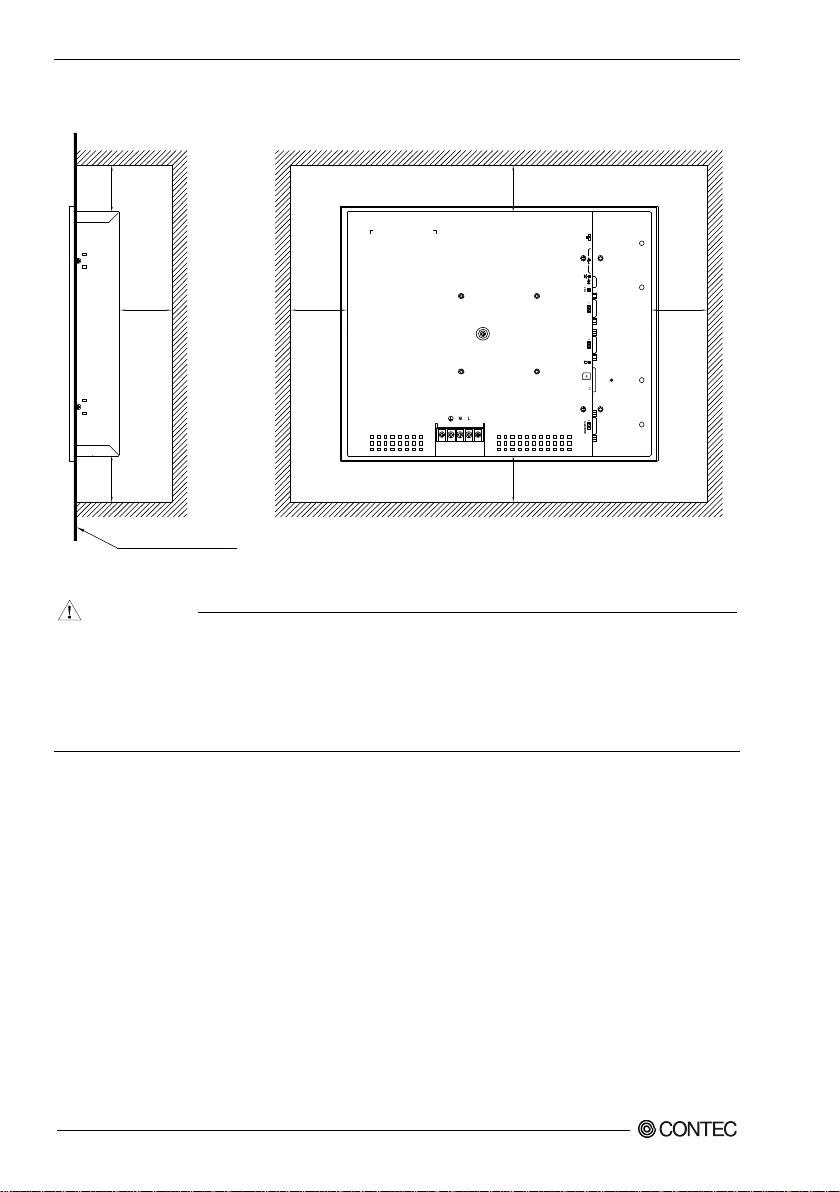

Installation panel
50mm
or more
50mm
or more
50mm
or more
50mm
or more
50mm
or more
50mm
or more
CAUTION
Distances between this product and its vicinity
Figure 3.6. Distances between this product and its vicinity
- Wall temperatures should be within the guaranteed operating temperature range of the product.
- Adjust the air flow so as not to allow waste heat from the product to accumulate around the product
- Do not install this product into the fully-sealed space except the case in which the internal
temperature is adjustable by equipment such as air conditioner. Troubles such as operational
malfunctions could be occurred by the temperature increase caused by long-term usage.
PT-310 User’s manual
16
Page 22
3. Hardware Setup
Installation panel
50mm
or more
50mm
or more
50mm
or more
Ambient temperature
In this product, the ambient temperature is decided from the multiple measurement points as shown
below. When making use of the product, the air current should be adjusted to prevent that all the
temperatures measured at the measu rement points exceed the specified temperature.
Figure 3.7. Measurement points of ambient temperature
PT-310 User’s manual
17
Page 23
3. Hardware Setup
PT-310 User’s manual
18
Page 24
4. Each Component Function
Name
Function
POWER LED
Power ON display LED
ACCESS LED
SD disk access display LED
RESET-SW
Power reset switch
AC-IN
AC power input te rminal
LINE OUT
Line out (3.5ϕ PHONE JACK)
Front SW
Functional switch (F1, F2, F3)
USB2.0
USB2.0 port TYPE-A connector x 3
LAN A
Ethernet 100BASE-TX/10BASE-T RJ-45 connector
SD card slot
SD2 SD card (512MB), Built-in
SERIAL 1,2: RS-232C Serial port 2 connector (9pin D-SUB/male)
SERIAL 3: RS-422 A/485 Serial port 1 connector (9pin D-SUB/male)
General-purpose I/O
Isolated I/O connector
Functional switch
POWER LED
LAN A
USB2.0
LINE OUT
General-purpose I/O
RESET-SW
SERIAL 1, 2 (RS-232C)
SD 1
ACCESS LED
SERIAL 3 (RS-422/485)
AC-IN
4. Each Compone n t Fu nc t io n Component Name

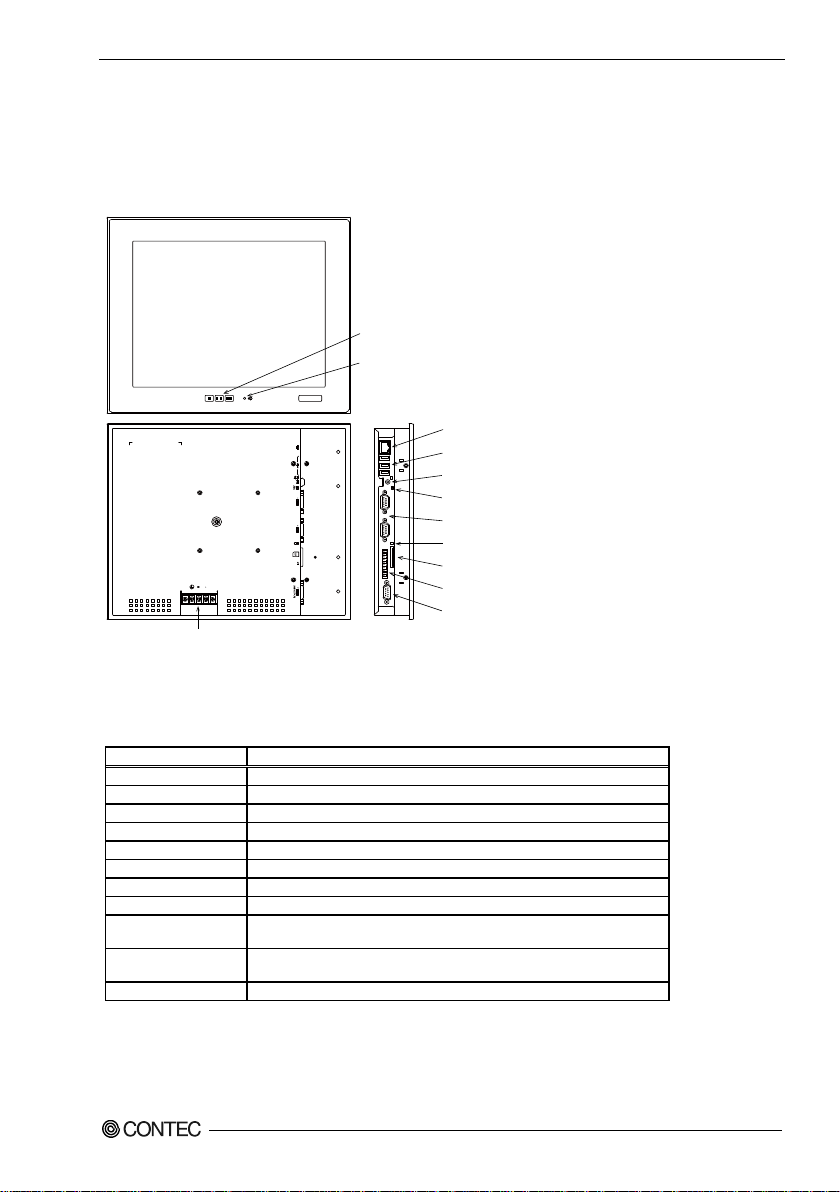

Figure 4.1. Componen t Na me
Table 4.1. Component Function
SD 1, 2
SERIAL 1, 2, 3
PT-310 User’s manual
19
Page 25
4. Each Component Functi on
LINE OUT
USB2.0
Generalpurpose I/O
SD
SERIAL 3
SERIAL (1, 2)
LAN
USB device such
as Mouse
USB memory
System Configuration
Figure 4.2. System Configuration
20
PT-310 User’s manual
Page 26
4. Each Component Function
Connecto r type
W168A-3P-C (Made World)
CAUTION
CAUTION
Component Function
LED: POWER, ACCESS
There are 2 LED in front of this product.
Table 4.2. Display Contents of LED
LED name State Display contents
POWER LED
ACCESS LED
AC Power input terminal: AC-IN
To supply the power, always use the power supply listed below.
Rated input voltage: 100VAC
Range of input voltage: 100 – 240VAC
Power capacity: 100V 0.34A or more

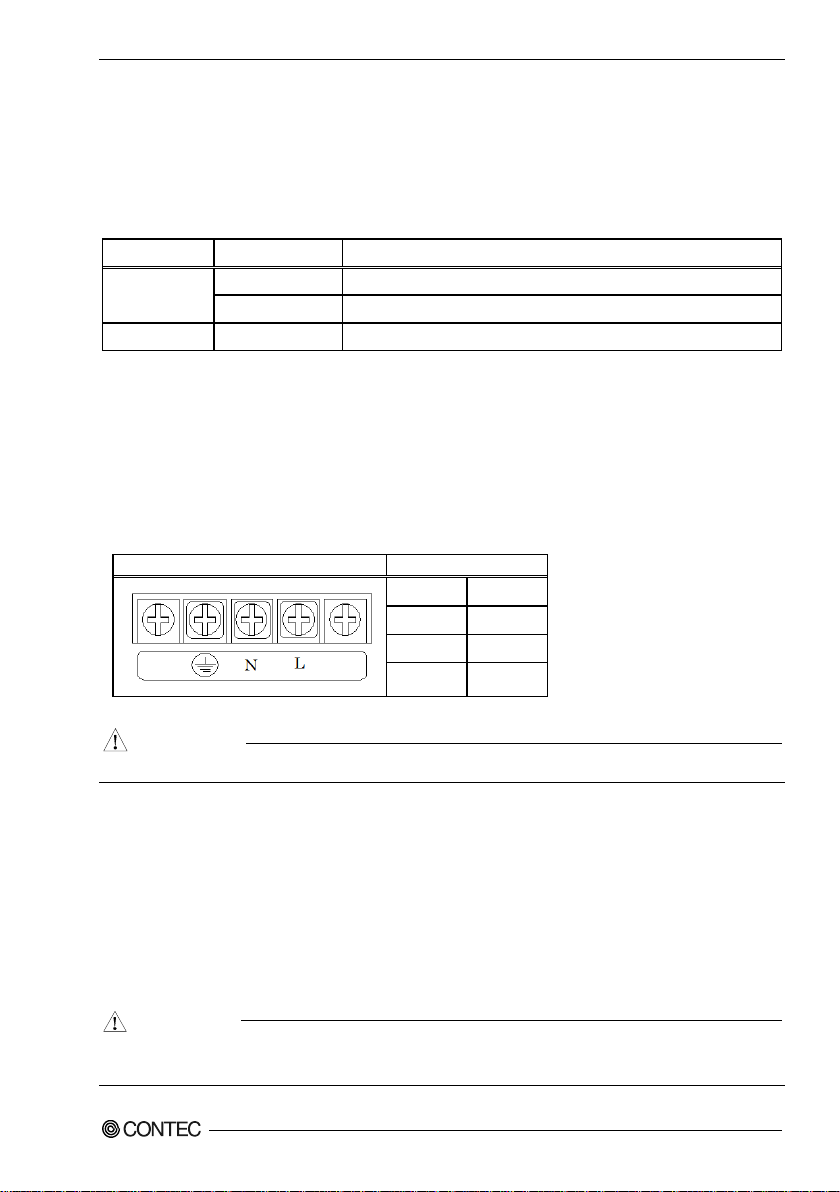

Table 4.3. AC Power Connector
Be careful not to connect power at wrong. In voltage, or the unit may cause a fault.
OFF Indicate s that this product is switched off.
ON (Green) Indicate s that this product is switched on.
ON (Orange)
Indicate s that the SATA device is being accessed.
Pin No. Signal name
1 FG
2 100VAC
3 GND
RESET SW: RESET-SW
RESET SW is provided.
When you s et something different to support by using [System settings panel] or NFDisk is damaged
and so could not boot, the system can be reset to the default state by using the forced reset.
To perform a force reset, switch the power on while push the “Reset” button of the “Reset” butt o n when
the lighting of “ACCESS” LED (in case of the PANECON-PC, the LED below the front side of the
panel) changes from orange into green.
If a force reset is performed, the system setting wil l be return to t he default setting; the registry and
object st o r e w i l l no t b e restored .
PT-310 User’s manual
21
Page 27
4. Each Component Functi on
Key
Explanation
Press the (■) key to display the software keyboard.
(■■)
(■■■)
Signal name
USB2.0
1
USB_VCC
2
DATA-
3
DATA+
4
USB_GND
4
1
LINE OUT Interface: LINE OUT
The product is equipped with a connector for line output. As such, headphones or an amplified speaker
can be connected.
Function switches: F1, F2, F3
The following functions are mapped to these function switches.
(■)
(■ + ■■)
(■ + ■■■)
*1 This means to press both fun ction keys at the same time. The corresponding function will n ot be performed if you
hold down one key and then press the other one.
To hide the software keyboard, press the (■) key again.
Press the (■■) key to send the keyboard's F2 key code to the system.
Press the (■■■) key to send the keyboard's F3 key code to the system.
Press the (■) key and (■■) key at the same time(*1) to darken the LCD's backlight.
Press the (■) key and (■■■) key a t the same time(*1) to brighten the LCD's backli ght.
USB2.0 Port: USB2.0

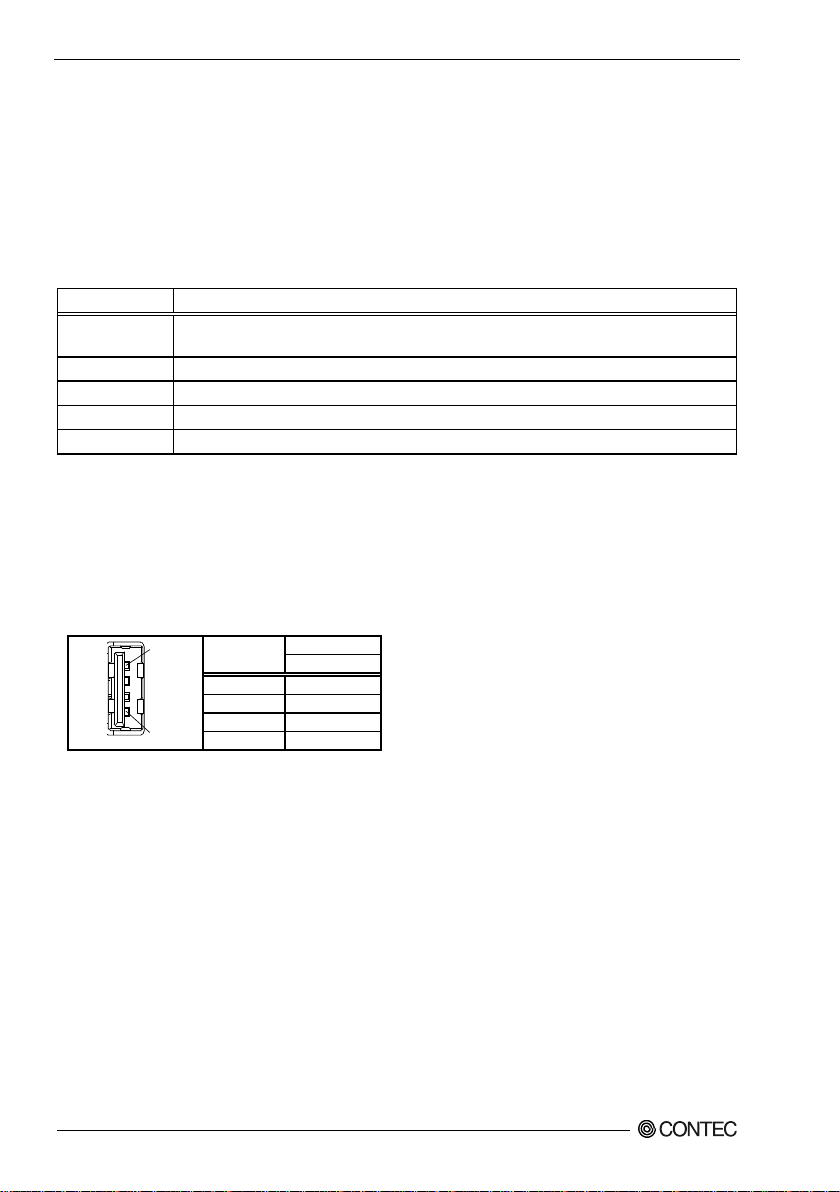

This product is equipped with 3 channel for USB 2.0 TYPE-A interface.
Table 4.4 USB2.0 Connector
Pin No.
PT-310 User’s manual
22
Page 28
4. Each Component Function
LAN
Signal name
10BASE-T
1
TX+
2
TX-
3
RX+ 4 NC 5 NC 6 RX-
7
NC
8
NC
Tr
ansmit
LED
Li
nk
LE
D
8 1

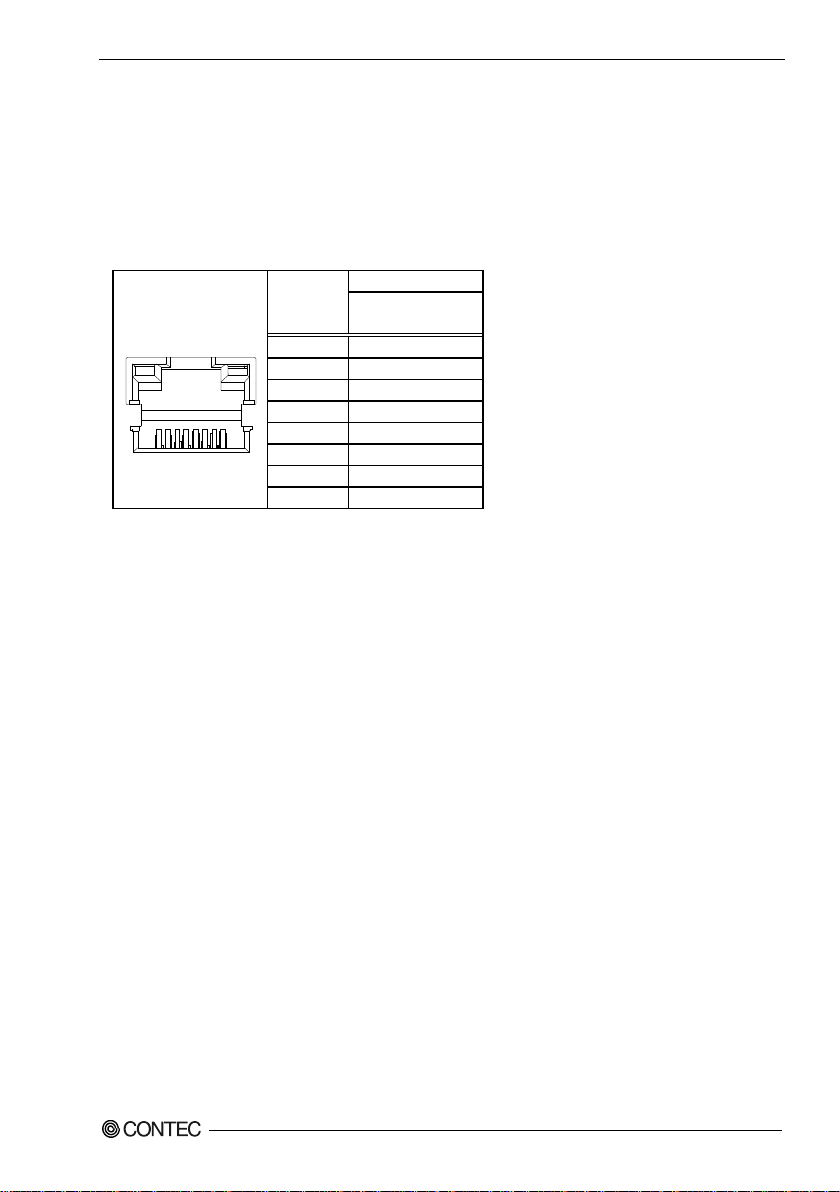

100M Ethernet: LAN
This product is equipped with 1 ports for 100M Ethernet.
- Network type : 100BASE-TX/10BASE-T
- Transmission speed * : 100M/10M bps
- Max. network path length : 100m/segment
Table 4.5. Fast Ethernet Connector
Pin No.
100Base-TX
LEDs for display of network statuses:
Right LED : Lin k for LED
Normal connection : Orange ON
Operation : Orange Blinking
Left LE D : Operation check for LED
10M : Off
100M : Green
PT-310 User’s manual
23
Page 29
4. Each Component Functi on
Connecto r type
SD Card Connector
1
2
VCC
5
6
DAT0 8 DAT1
9
CAUTION

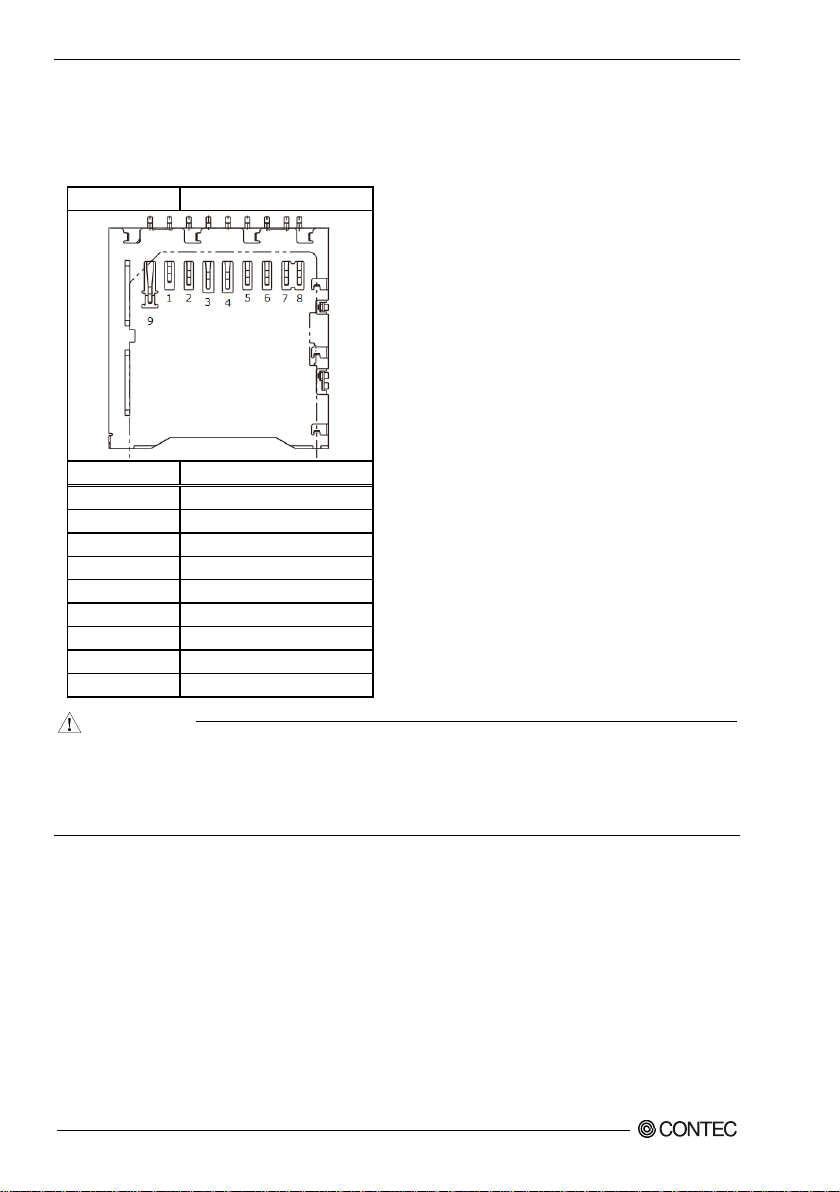

SD Card Connec to r : SD1, 2
You can connect an SD memory card to the SD card connector.
Table 4.6. SD Card Connector
Pin No. Signal name
CD/DATA3
CMD
3
4
7
VSS
CLK
VSS
DAT2
- The SD card is not hotpluggable. While this product is turned on, do not insert or remove the SD
card or touch the SD card connector on the product. Doing so may lead to a malfunction or failure.
- For details on the SD card that is inserted in this product, refer to the manual of the optional SD
card.
PT-310 User’s manual
24
Page 30
4. Each Component Function
9-pin D-SUB (MALE)
1 5
9
6
No.4-40UNC
Inch screw threads

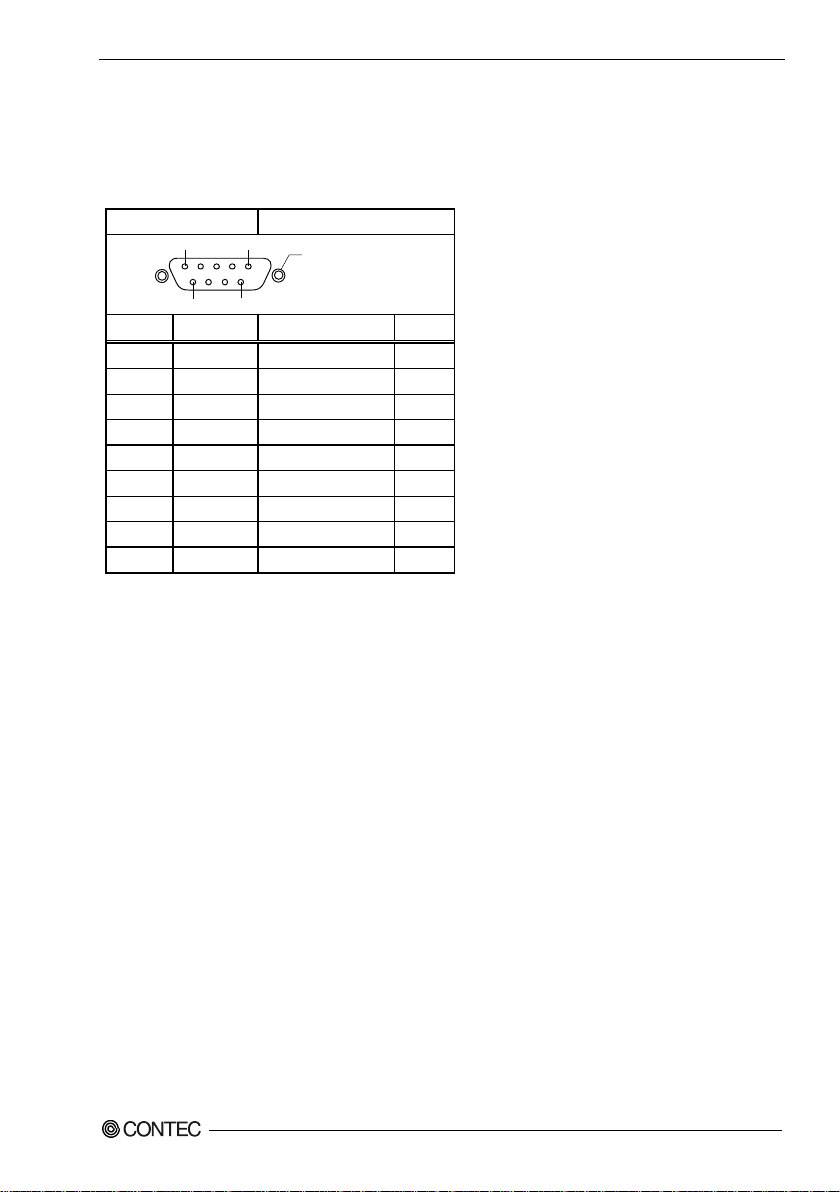

RS-232C Serial Port: SERIAL A, B
The product has 1 ports of RS-232C compliant serial ports supporting up to a baud rate of 115,200bps with
a 16-byte transmission-de dicated dat a buffer and a 16-byte reception-dedicated data buffer.
Table 4.7. Serial Port Connector
Connecto r type
NoPin No. Signal name Meaning Direction
1 CD Carrier detect Input
2 RD Received data Input
3 TD Transmitted data Output
4 DTR Data terminal ready Output
5 GND Signal ground -----
6 DSR Data set ready Input
7 RTS Request to send Outpu t
8 CTS Clear to send Input
9 RI Ring indicator Input
PT-310 User’s manual
25
Page 31
4. Each Component Functi on
1
GND
Signal ground
-----
4
TxD+
Transmitted data +
Output 5 TxD-
Transmitted data -
Output
8
RxD+
Received data +
Input 9 RxD-
Received data -
Input
1
5
9
6
No.4-40UNC
Inch screw threads
COM2
TX_enable
TXD
RXD
RX_enable
TXD+ 4
TXD- 5
RXD+ 8
RXD- 9
COM2
TX_enable
TXD
RXD
RX_enable
TXD+ 4
TXD- 5
RXD+ 8
RXD- 9

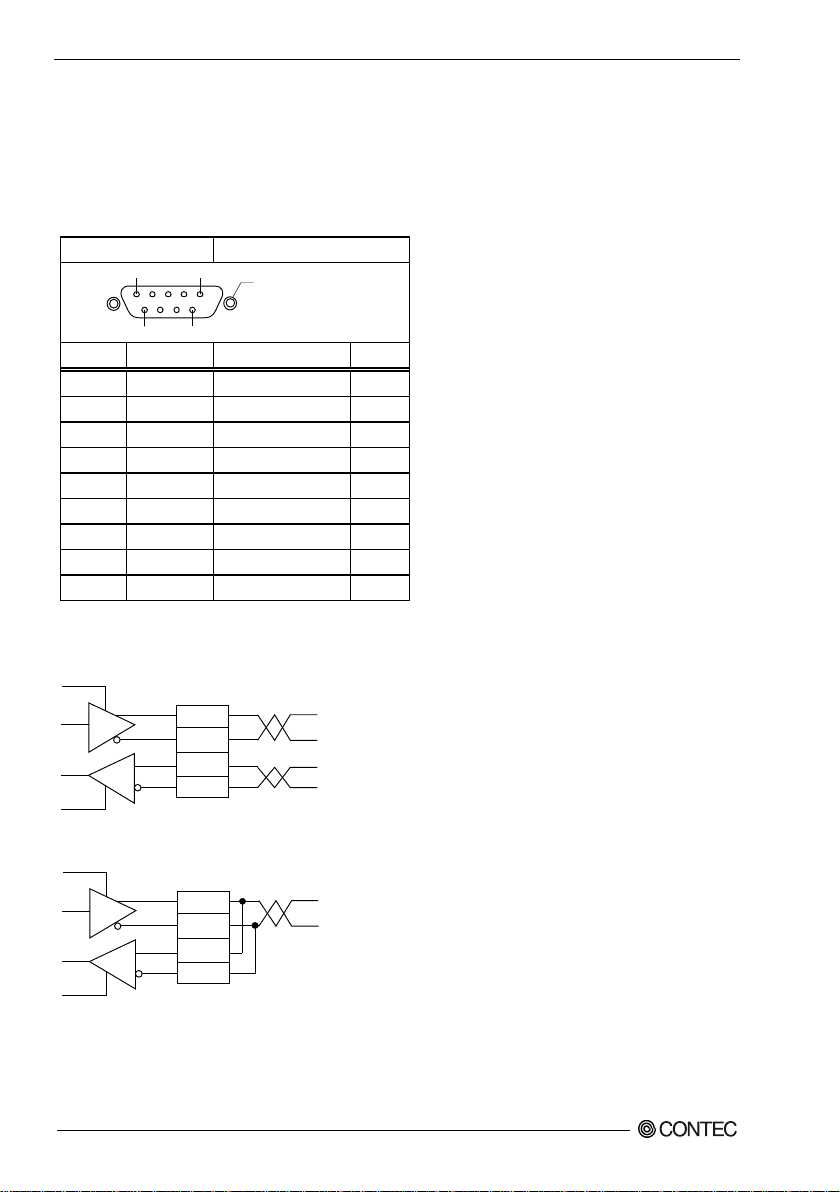

RS-422A/485 Serial Port: SERIAL C
Use the software to s witch between the half-duplex connection method and the full-duplex connection
method and to switch between RTS and CTS when using the full-duplex connection method.
For details, refer to the software manual.
Table 4.8. Serial Port Connector
Connecto r type 9-pin D-SUB (MALE)
NoPin No. Signal name Meaning Direction
2 N.C. None -----
3 N.C. None -----
6 N.C. None -----
7 N.C. None -----
Connection Procedure
Figure 4.3. Full-Duplex Connection Method
Figure 4.4. Half-Duplex Connection Method
26
PT-310 User’s manual
Page 32
4. Each Component Function
↓ Front(LCD) side
NoPin No.
Signal name
Remarks

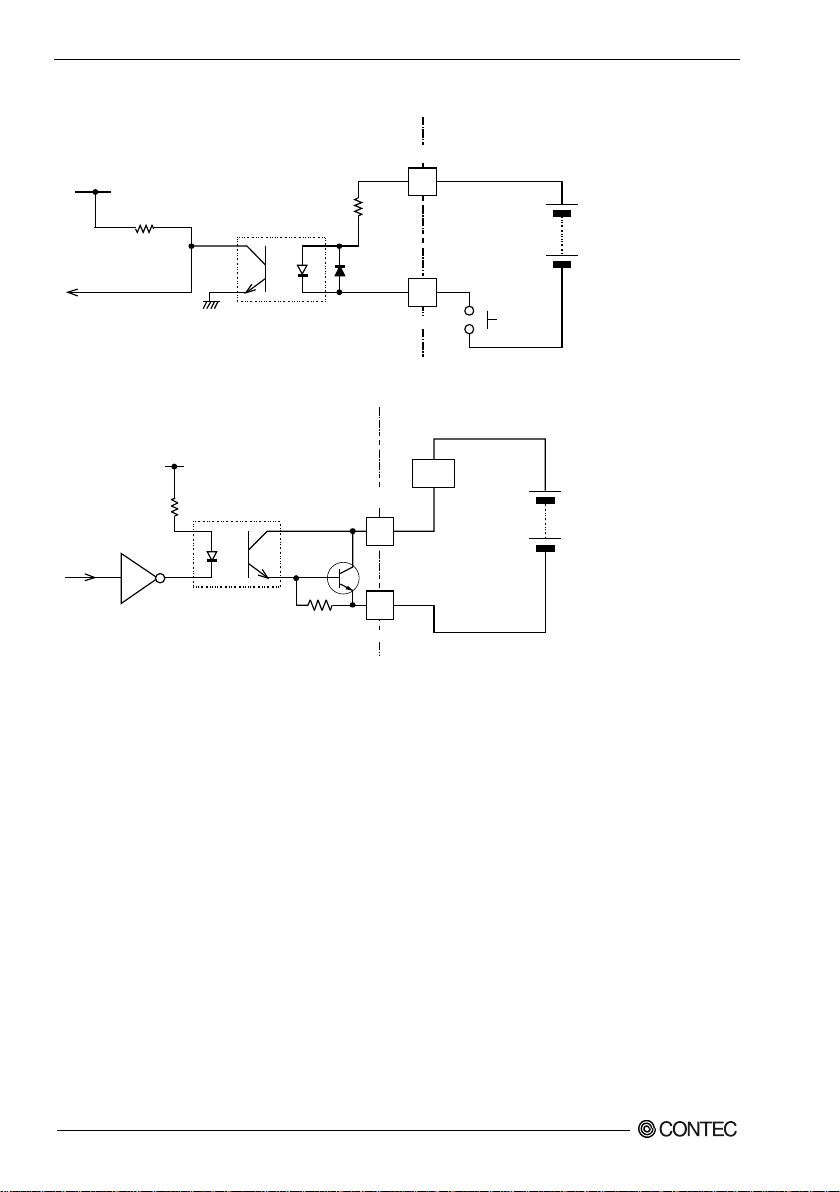

General-purpose input
(plus common)
2
PI(0)
General-purpose Input 0
3
PI(1)
General-purpose Input 1
4
PI(2)
General-purpose Input 2
5
PI(3)
General-purpose Input 3
6
PO(0)
General-purpose Output 0
7
PO(1)
General-purpose Output 1
8
PO(2)
General-purpose Output 2
9
PO(3)
General-purpose Output 3
General-purpose Output
(minus co mmon)
1
10
General-purpose I/O ports
The unit has four channels of general-purpose isolated I/O port.
Refer to the software manual for programming this ports.

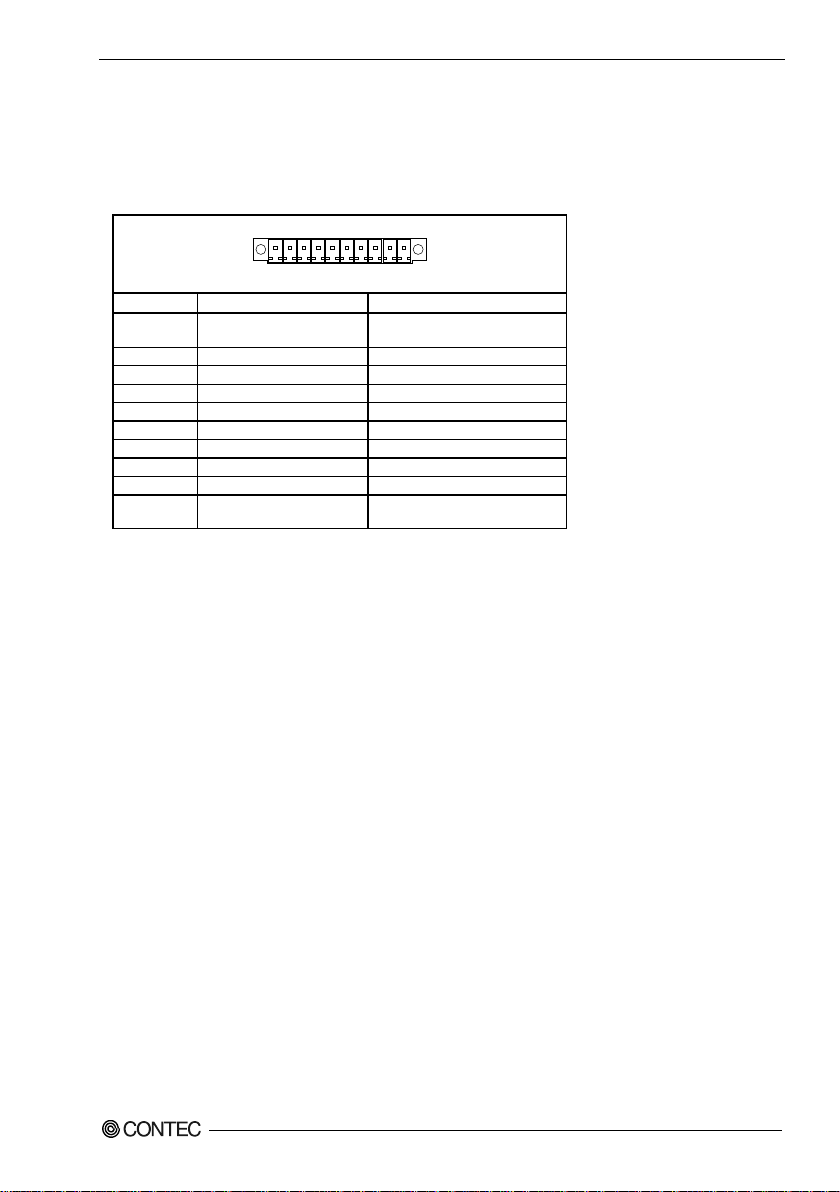

Table 4.9. General-purpose I/O ports connector
1 PI_PCOM
10 PCOM_PO
Connector: 15EDGRC-3.5-10P-14 (DEGSON ELECTRONICS CO.,LTD)
Cable connector: 15EDGK-3.5-10P-14 (DEGSON ELECTRONICS CO.,LTD)
Specifications
[Input section]
- Input specification : Optocoupler isolated current drive input
- Input resistance : 1.1kΩ
- Input protection circuit : Reverse-connection protection diode provided
- Input response time : Within 200 µsec
- External circuit power supply : 12V - 24VDC (±10%)
[Output section]
- Output specification : Optocoupler isolated open -collector output
- Output rating : 30VDC, 40mA max.
- No. of output signals : 4
- Output response time : Within 200 µsec
PT-310 User’s manual
27
Page 33
4. Each Component Functi on
1.1kΩ
1/2W
External power supply
(12V - 24VDC)
Input
contacts
PI_PCOM
PI(0) - PI(3)
I/O connector
4.7kΩ
PS2805-4
PO(0) - PO(3)
PCOM_PO
External power supply
(Max. 30VDC)
(External circuit)
I/O connector
PS2801-4
Load
330Ω
4.7kΩ
2SD1782KR
External Connecti on
Figure 4.5. Input circ uit
Figure 4.6. Output circuit
PT-310 User’s manual
28
Page 34
5. Appendix
5. Appendix
Battery
Battery Specification
This product uses the following battery.
- Type : Coin cell lithium battery
- Model : BR2330A/HD
- Maker : Panasonic
- Nominal voltage : 3V
- Nominal capacity : 255mAh
- Lithium content : 3.2g or less
Removing the battery
Use a pair of diagonal cutting pliers to remove the battery terminal as shown below.

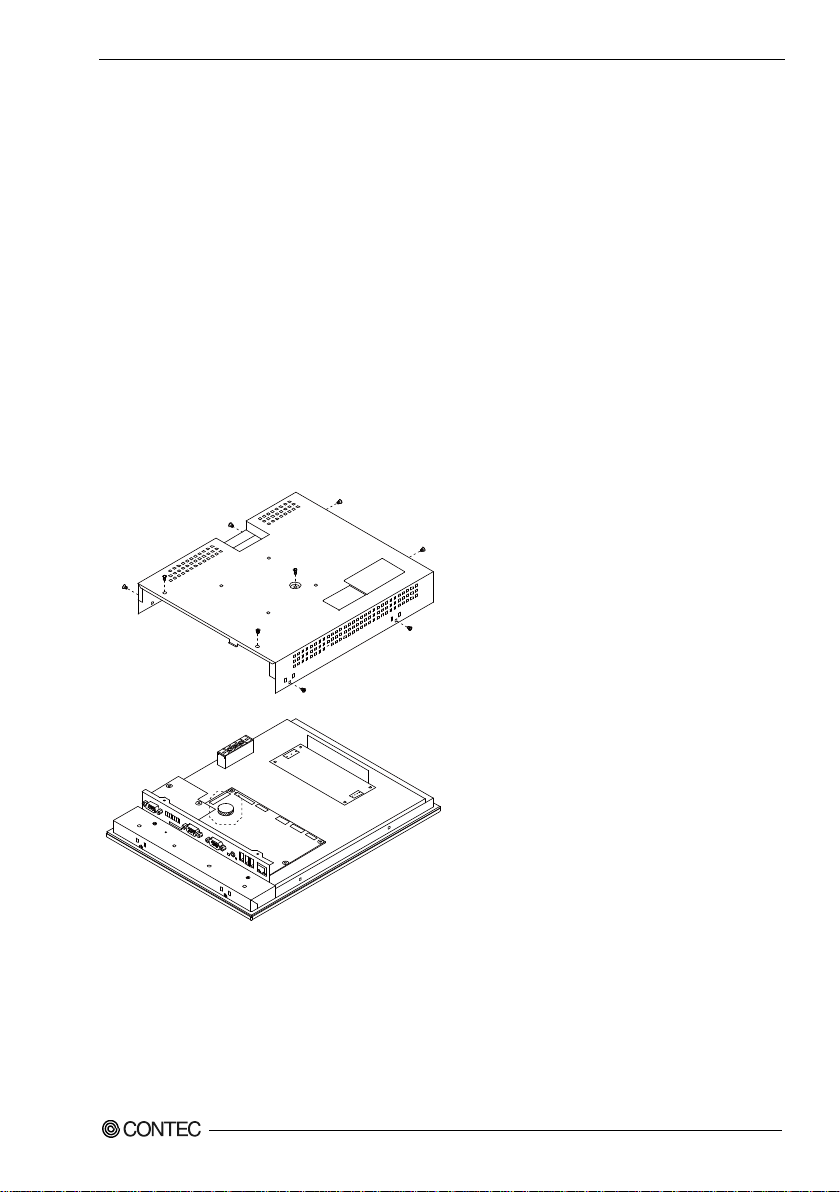

Figure 5.1. Remo ving the bat te ry
Disposing the battery
Dispose the removed battery properly as instructed by local government.
PT-310 User’s manual
29
Page 35
5. Appendix
PT-310 User’s manual
30
Page 36
6. List of Options
CAUTION
6. List of Options
Cable
- IPC-ACCODE3 : AC power cable (2 m, 125 VAC supported)
SD Card (SLC)
- SD-512MB-A : SD Card 512MB
Screen protective sheets
- IPC-CV12 : Scr een protective sheets for 12.1inch (10 sheets)
Precautions when using products other than our options
- If a product other than our option is used, the normal operation may be impaired or the functions
may be limited.
PT-310 User’s manual
31
Page 37
PT-310 Series
User’s Manual
PT-310LS-DC35311x
CONTEC CO., LTD. December 2016 Edition
3-9-31, Himesato, Nishiyodogawa-ku, Osaka 555-0025, Japan
Japanese http://www.contec.co.jp/
English http://www.contec.com/
Chinese http://www.contec.com.cn/
No part of this document may be copied or reproduced in any form by any means without prior written
consent of CONTEC CO., LTD. [12022016]
[11092016] Managem en t N o. NA05073
[12022016_rev2] Parts No. LYUB562
Loading...
