Contec PIO-64, PO-128L, PI-128L, PIO-64L User Manual

Digital I/O Board with Opto-Isolation for PCI

PIO-64/64L(PCI)

Digital Input Board with Opto-Isolation for PCI

PI-128L(PCI)

Digital Output Board with Opto-Isolation for PCI

PO-128L(PCI)

User’s Guide

Check Your Package

Thank you for purchasing the CONTEC product.
The product consists of the items listed below.
Check, with the following list, that your package is complete. If you discover damaged or missing items,

contact your retailer.

Product Configuration List

- Board
[PIO-64/64L(PCI), PI-128L(PCI) or PO-128L(PCI)] …1

- This User’s Manual…1

- CD-ROM [API-PAC(W32)]…1

Manual

Board

CONTEC CO., LTD.
PIO-64/64L(PCI), PI-128L(PCI), PO-128L(PCI)

Manual

CD-ROM

[API-PAC(W32)]

i

Copyright

Copyright 2002 CONTEC Co., LTD. ALL RIGHTS RESERVED
No part of this document may be copied or reproduced in any form by any means without prior written

consent of CONTEC Co., LTD.

CONTEC Co., LTD. makes no commitment to update or keep current the information contained in this
document. The information in this document is subject to change without notice.

All relevant issues have been considered in the preparation of this document. Should you notice an
omission or any questionable item in this document, please feel free to notify CONTEC Co., LTD.

Regardless of the foregoing statement, CONTEC assumes no responsibility for any errors that may
appear in this document nor for results obtained by the user as a result of using this product.

Trademarks

MS, Microsoft, MS-DOS and Windows are trademarks of Microsoft Corporation. Other brand and
product names are trademarks of their respective holder.

ii

PIO-64/64L(PCI), PI-128L(PCI), PO-128L(PCI)

CONTEC CO., LTD.

Table of Contents

Check Your Package....................................................................................................................................i

Copyright.....................................................................................................................................................ii

Trademarks..................................................................................................................................................ii

Table of Contents.......................................................................................................................................iii

1. BEFORE USING THE PRODUCT 1

About the Board .......................................................................................................................................... 1

Features.................................................................................................................................................1

Support Software ................................................................................................................................. 2

Cable & Connector (Option).............................................................................................................2

Accessories (Option)..........................................................................................................................2

Customer Support.......................................................................................................................................3

Web Site http://www.contec.co.jp/en/...............................................................................................3

Limited Three-Year Warranty...................................................................................................................3

How to Obtain Service...............................................................................................................................3

Liability........................................................................................................................................................ 3

Safety Precautions.......................................................................................................................................4

Safety Information...............................................................................................................................4

Handling Precautions..........................................................................................................................5

Environment ......................................................................................................................................... 6

Inspection.............................................................................................................................................6

Storage..................................................................................................................................................6

2. SETUP 7

What is Setup?.............................................................................................................................................7

Using the Board under Windows Using the API Function Library Package API-PAC(W32)...7

Using the Board under Window Using Software Other than

the API Function Library Package API-PAC(W32)............8

Using the Board under an OS Other than Windows........................................................................8

Step 1 Installing the Software....................................................................................................................9

Starting the Install Program................................................................................................................9

Selecting the Digital I/O Driver ....................................................................................................... 10

Executing the Installation.................................................................................................................11

Step 2 Setting the Hardware....................................................................................................................12

Parts of the Board and Factory Defaults ......................................................................................... 12

Setting the Board ID..........................................................................................................................13

Plugging the Board............................................................................................................................14

CONTEC CO., LTD.
PIO-64/64L(PCI), PI-128L(PCI), PO-128L(PCI)

iii

Step 3 Installing the Hardware ................................................................................................................ 15

Turning on the PC ............................................................................................................................. 15

Setting with the Add New Hardware Wizard.................................................................................15

Step 4 Initializing the Software...............................................................................................................18

Invoking API-TOOL Configuration................................................................................................ 18

Updating the Settings ........................................................................................................................ 18

Step 5 Checking Operations with the Diagnosis Program...................................................................19

What is the Diagnosis Program?......................................................................................................19

Check Method.................................................................................................................................... 19

Using the Diagnosis Program...........................................................................................................20

Setup Troubleshooting.............................................................................................................................23

Symptoms and Actions.....................................................................................................................23

If your problem cannot be resolved.................................................................................................23

3. EXTERNAL CONNECTION 25

Using the On-board Connectors.............................................................................................................. 25

Connecting a Device to a Connector...............................................................................................25

Connector Pin Assignment...............................................................................................................26

Relationships between API-PAC(W32) Logical Ports/Bits and Connector Signal Pins..........29

Connecting Input Signals......................................................................................................................... 32

Input Circuit ....................................................................................................................................... 32

Connecting a Switch..........................................................................................................................32

Connecting Output Signals...............................................................................................................33

Output Circuit............................................................................................................................................33

Example of Connection to LED....................................................................................................... 34

Example of Connection to TTL Level Input .................................................................................. 34

Connecting the Sink Type Output and Sink Output Support Input.....................................................35

4. FUNCTIONS 37

Data I/O Function.....................................................................................................................................37

Data Input...........................................................................................................................................37

Data Output........................................................................................................................................37

Monitoring Output Data....................................................................................................................37

Digital Filter Function of Input Channels.............................................................................................. 38

Digital Filter Function Principle...................................................................................................... 38

Set Digital Filter Time......................................................................................................................38

Interrupt Control Function ....................................................................................................................... 39

Disabling/enabling Interrupts...........................................................................................................39

Selecting the Interrupt Edge............................................................................................................. 39

Clearing the Interrupt Status and Interrupt Signal.........................................................................39

iv

PIO-64/64L(PCI), PI-128L(PCI), PO-128L(PCI)

CONTEC CO., LTD.

5. ABOUT SOFTWARE 41

Accessing the Help File............................................................................................................................41

Using Sample Programs...........................................................................................................................42

Uninstalling the API Function Libraries................................................................................................44

CD-ROM Directory Structure.................................................................................................................45

6. ABOUT HARDWARE 47

Hardware specification.............................................................................................................................47

Block Diagram..........................................................................................................................................51

CONTEC CO., LTD.
PIO-64/64L(PCI), PI-128L(PCI), PO-128L(PCI)

v

vi

PIO-64/64L(PCI), PI-128L(PCI), PO-128L(PCI)

CONTEC CO., LTD.

1. Before Using the Product

1. Before Using the Product

This chapter provides information you should know before using the product.

About the Board

This board is a PCI-compliant interface board for input/output of digital signals.
The board can input the open/closed circuit states of switches and can control relays.
<PIO-64/64L(PCI)> can input and output up to 64 channels.

<PI-128L(PCI)> can input up to 128 channels.
<PO-128L(PCI)> can output up to 128 channels.

Using the bundled API function library package [API-PAC(W32)], you can create Windows application
software for this board in your favorite programming language supporting Win32 API functions, such as
Visual Basic or Visual C/C++.

Features

- Common power-supply configuration in 16 channel units, capable of supporting different external
power supplies.

- Opto-coupler used to electrically isolated I/O signal interface from the PCI bus, offering good noise
immunity.

- Capable of using up to 16 channels of input signals as interrupt inputs.

Also capable of selecting the input signal edge for generating interrupts
<PIO-64/64L(PCI)>, <PI-128L(PCI)>

- Digital filtering that prevents input signal noise and chattering.
<PIO-64/64L(PCI)>, <PI-128L(PCI)>

- Up to 35VDC, 100mA per signal, max. output.
<PIO-64/64L(PCI)>, <PO-128L(PCI)>

- Zener diode connected to output transistors for protection from surge voltage. Over-current
protective device provided for every eight channels of output transistors.
<PIO-64/64L(PCI)>, <PO-128L(PCI)>

CONTEC CO., LTD.
PIO-64/64L(PCI), PI-128L(PCI), PO-128L(PCI)

1

1. Before Using the Product

Support Software

You should use CONTEC support software according to your purpose and development environment.
Driver Software Package

API-PAC(W32) is the library software that provides the commands for CONTEC hardware products in
the form of Windows standard Win32 API functions (DLL). It makes it easy to create high-speed
application software taking advantage of the CONTEC hardware using various programming languages
that support Win32 API functions, such as Visual Basic and Visual C/C++.

It can also be used by the installed diagnosis program to check hardware operations.
CONTEC provides download services (at http://www.contec.co.jp/en/) to supply the updated drivers and

differential files.
For details, read Help on the bundled CD-ROM or visit the CONTEC’s Web site.

< Operating environment >
OS Windows XP, 2000, NT, Me, 98, etc..
Adaptation language Visual C/C++, Borland C++, Visual Basic, etc..
Others Each piece of library software requires 20 megabytes of free hard disk space.

API-PAC(W32)

(Bundled)

Cable & Connector (Option)

Connection Conversion Shield Cable (100P→96P) : PCB100/96PS-* (1.5m, 3m, 5m)

Accessories (Option)

Screw Terminal : EPD-96 *1
Digital I/O 64CH Series Terminal Panel : DTP-64(PC) *1
Signal Monitor for Digital I/O(64Bits) : CM-64(PC)E *1

*1: A PCB100/96PS optional cable is required separately.

* Check the CONTEC’s Web site for more information on these options.

2

PIO-64/64L(PCI), PI-128L(PCI), PO-128L(PCI)

CONTEC CO., LTD.

1. Before Using the Product

Customer Support

CONTEC provides the following support services for you to use CONTEC products more efficiently and
comfortably.

Web Site http://www.contec.co.jp/en/

Latest product information
CONTEC provides up-to-date information on products.
CONTEC also provides product manuals and various technical documents in the PDF.

Free download
You can download updated driver software and differential files as well as sample programs available in

several languages.

Note! For product information
Contact your retailer if you have any technical question about a CONTEC product or need its price,
delivery time, or estimate information.

Limited Three-Year Warranty

CONTEC Interface boards are warranted by CONTEC Co., LTD. to be free from defects in material and
workmanship for up to three years from the date of purchase by the original purchaser.

Repair will be free of charge only when this device is returned freight prepaid with a copy of the original
invoice and a Return Merchandise Authorization to the distributor or the CONTEC group office, from
which it was purchased.

This warranty is not applicable for scratches or normal wear, but only for the electronic circuitry and
original boards. The warranty is not applicable if the device has been tampered with or damaged through
abuse, mistreatment, neglect, or unreasonable use, or if the original invoice is not included, in which case
repairs will be considered beyond the warranty policy.

How to Obtain Service

For replacement or repair, return the device freight prepaid, with a copy of the original invoice. Please
obtain a Return Merchandise Authorization Number (RMA) from the CONTEC group office where you
purchased before returning any product.

* No product will be accepted by CONTEC group without the RMA number.

Liability

The obligation of the warrantor is solely to repair or replace the product. In no event will the warrantor
be liable for any incidental or consequential damages due to such defect or consequences that arise from
inexperienced usage, misuse, or malfunction of this device.

CONTEC CO., LTD.
PIO-64/64L(PCI), PI-128L(PCI), PO-128L(PCI)

3

1. Before Using the Product

Safety Precautions

Understand the following definitions and precautions to use the product safely.

Safety Information

This document provides safety information using the following symbols to prevent accidents resulting in
injury or death and the destruction of equipment and resources. Understand the meanings of these labels
to operate the equipment safely.

DANGER

WARNING

CAUTION

DANGER indicates an imminently hazardous situation which, if not avoided, will
result in death or serious injury.

WARNING indicates a potentially hazardous situation which, if not avoided, could
result in death or serious injury.

CAUTION indicates a potentially hazardous situation which, if not avoided, may
result in minor or moderate injury or in property damage.

4

PIO-64/64L(PCI), PI-128L(PCI), PO-128L(PCI)

CONTEC CO., LTD.

1. Before Using the Product

Handling Precautions

DANGER

Do not use the product where it is exposed to flammable or corrosive gas. Doing so may result in an
explosion, fire, electric shock, or failure.

CAUTION

- There are switches on the board that need to be set in advance. Be sure to check these before
installing the board.

- Only set the switches and jumpers on the board to the specified settings.
Otherwise, the board may malfunction, overheat, or cause a failure.

- Do not strike or bend the board. Doing so could damage the board.
Otherwise, the board may malfunction, overheat, cause a failure or breakage.

- Do not touch the board's metal plated terminals (edge connector) with your hands.
Otherwise, the board may malfunction, overheat, or cause a failure.
If the terminals are touched by someone's hands, clean the terminals with industrial alcohol.

- Do not install or remove the board to or from the slot while the computer's power is turned on.
Otherwise, the board may malfunction, overheat, or cause a failure.
Doing so could cause trouble. Be sure that the personal computer or the I/O expansion unit power is
turned off.

- Make sure that your PC or expansion unit can supply ample power to all the boards installed.

Insufficiently energized boards could malfunction, overheat, or cause a failure.

- The specifications of this product are subject to change without notice for enhancement and quality

improvement.
Even when using the product continuously, be sure to read the manual and understand the contents.

- Do not modify the product. CONTEC will bear no responsibility for any problems, etc., resulting
from modifying this product.

- Regardless of the foregoing statements, CONTEC is not liable for any damages whatsoever
(including damages for loss of business profits) arising out of the use or inability to use this
CONTEC product or the information contained herein.

CONTEC CO., LTD.
PIO-64/64L(PCI), PI-128L(PCI), PO-128L(PCI)

5

1. Before Using the Product

- Check that the bus connecto

r

Environment

Use this product in the following environment. If used in an unauthorized environment, the board may
overheat, malfunction, or cause a failure.

Operating temperature

0 to 50ºC

Humidity

10 to 90%RH (No condensation)

Corrosive gases

None

Floating dust particles

Not to be excessive

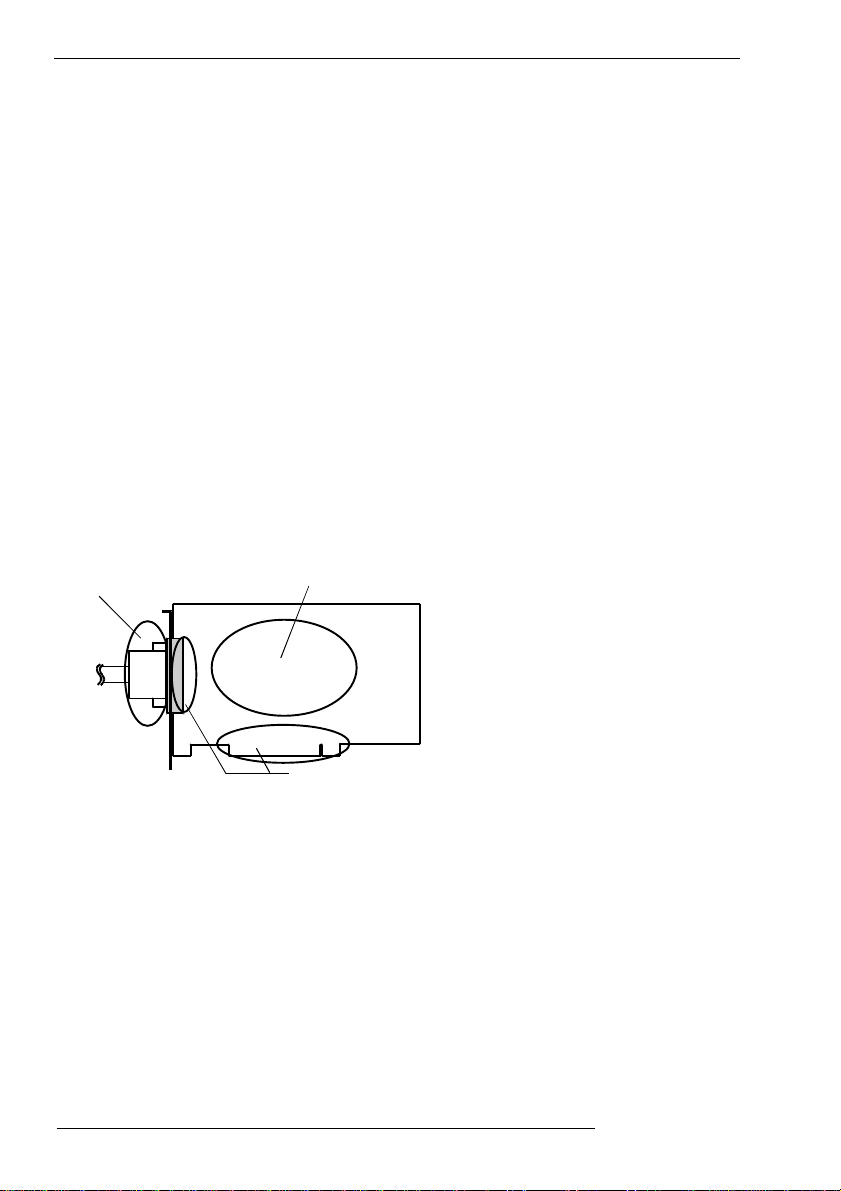

Inspection

Inspect the product periodically as follows to use it safely.

of the board and its cable have
been plugged correctly .

- Check that the board has
no dust or foreign matter adhering.

- The gold-plated leads of the bus connector
have no stain or corrosion.

Storage

When storing this product, keep it in its original packing form.
(1) Put the board in the storage bag.
(2) Wrap it in the packing material, then put it in the box.
(3) Store the package at room temperature at a place free from direct sunlight, moisture, shock,

vibration, magnetism, and static electricity.

PIO-64/64L(PCI), PI-128L(PCI), PO-128L(PCI)

6

CONTEC CO., LTD.

2. Setup

2. Setup

This chapter explains how to set up the board.

What is Setup?

Setup means a series of steps to take before the product can be used.
Different steps are required for software and hardware
The setup procedure varies with the OS and applications used.

Using the Board under Windows

Using the API Function Library Package API-PAC(W32)

This section describes the setup procedure to be performed before you can start developing application
programs for the board using the bundled CD-ROM “API Function Library Package API-PAC(W32)”.

Taking the following steps sets up the software and hardware. You can use the diagnosis program later
to check whether the software and hardware function normally.

Step 1 Installing the Software
Step 2 Setting the Hardware
Step 3 Installing the Hardware
Step 4 Initializing the Software
Step 5 Checking Operations with the Diagnosis Program

If Setup fails to be performed normally, see the “Setup Troubleshooting” section at the end of this
chapter.

CONTEC CO., LTD.
PIO-64/64L(PCI), PI-128L(PCI), PO-128L(PCI)

7

2. Setup

Using the Board under Window

Using Software Other than the API Function Library Package
API-PAC(W32)

For setting up software other than API-PAC(W32), refer to the manual for that software. See also the
following parts of this manual as required.

This chapter Step 2 Setting the Hardware
This chapter Step 3 Installing the Hardware
Chapter 3 External Connection
Chapter 6 About Hardware

Using the Board under an OS Other than Windows

For using the board under an OS other than Windows, see the following parts of this manual.

This chapter Step 2 Setting the Hardware
Chapter 3 External Connection
Chapter 6 About Hardware

8

PIO-64/64L(PCI), PI-128L(PCI), PO-128L(PCI)

CONTEC CO., LTD.

Step 1 Installing the Software

This section describes how to install the API function libraries.
Before installing the hardware on your PC, install the API function libraries from the bundled

API-PAC(W32) CD-ROM.
The following description assumes the operating system as Windows Me. Although some user

interfaces are different depending on the OS used, the basic procedure is the same.

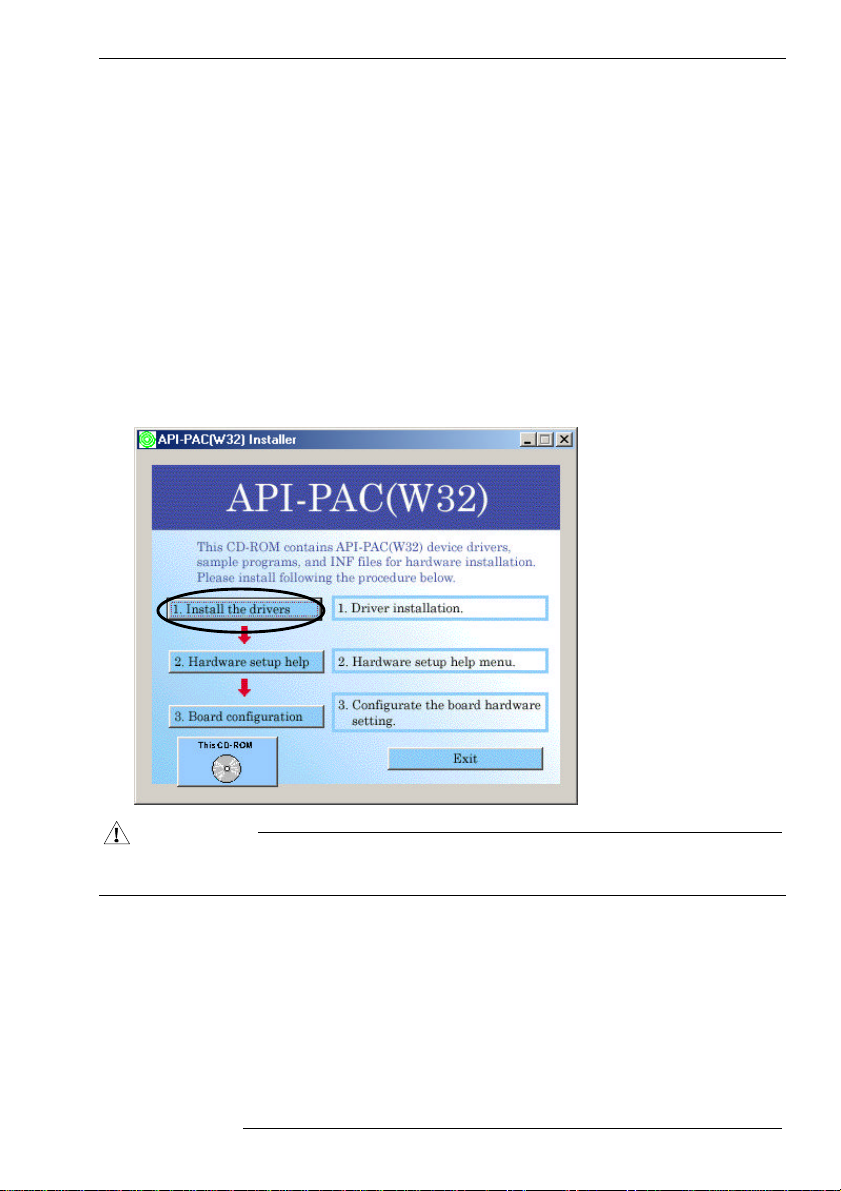

Starting the Install Program

(1)

Load the CD-ROM [API-PAC(W32)] on your PC.

(2)

The API-PAC(W32) Installer window appears automatically.

If the panel does not appear, run (CD-ROM drive letter):\AUTORUN.exe.

(3)

Click on the [Install the drivers] button.

2. Setup

CAUTION

Before installing the software in Windows XP, 2000, or NT, log in as a user with administrator
privileges.

CONTEC CO., LTD.
PIO-64/64L(PCI), PI-128L(PCI), PO-128L(PCI)

9

2. Setup

Selecting the Digital I/O Driver

(1)

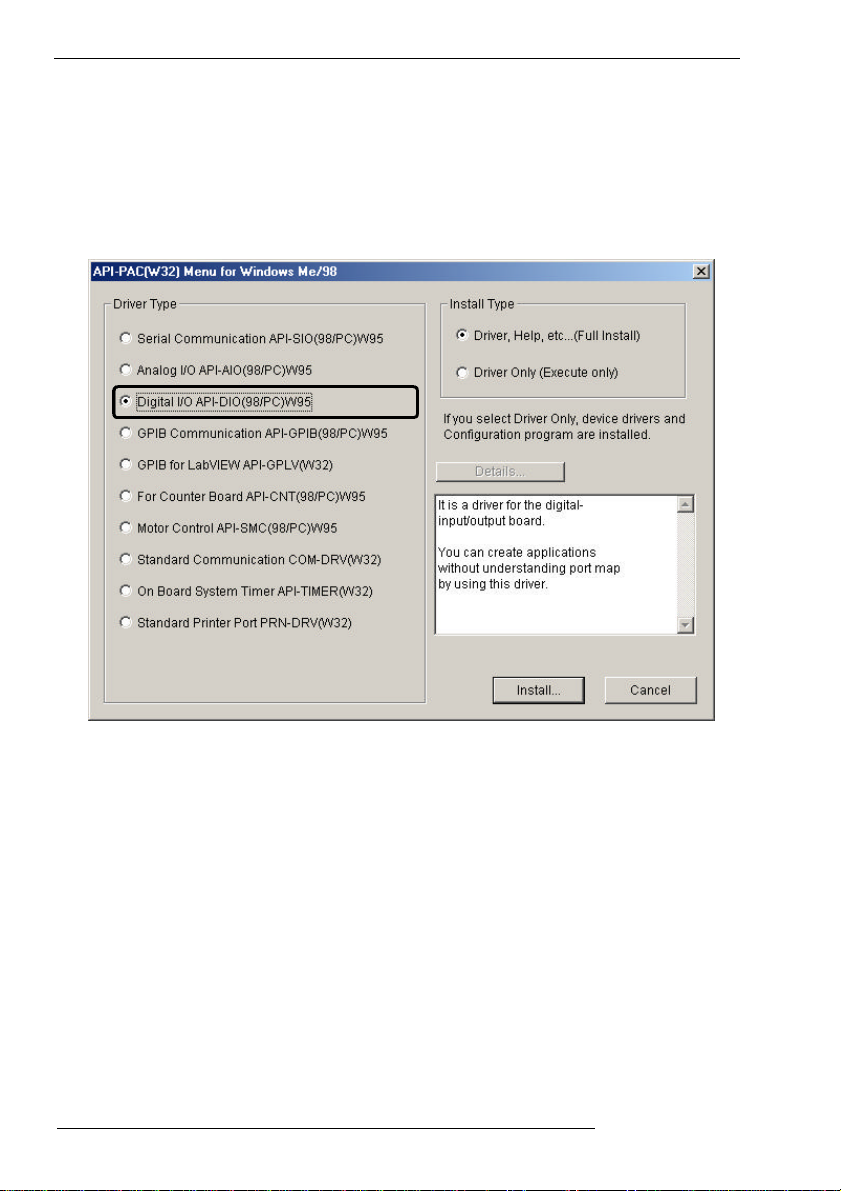

The following dialog box appears to select “Driver Type” and “Install Type”.

(2)

Select “Digital I/O API-DIO(98/PC)W95”.

(3)

Select “Driver, Help, etc..(Full Install)”.

(4)

Click on the [Install] button.

10

PIO-64/64L(PCI), PI-128L(PCI), PO-128L(PCI)

CONTEC CO., LTD.

2. Setup

Executing the Installation

(1) Follow the on-screen instructions to proceed to install.

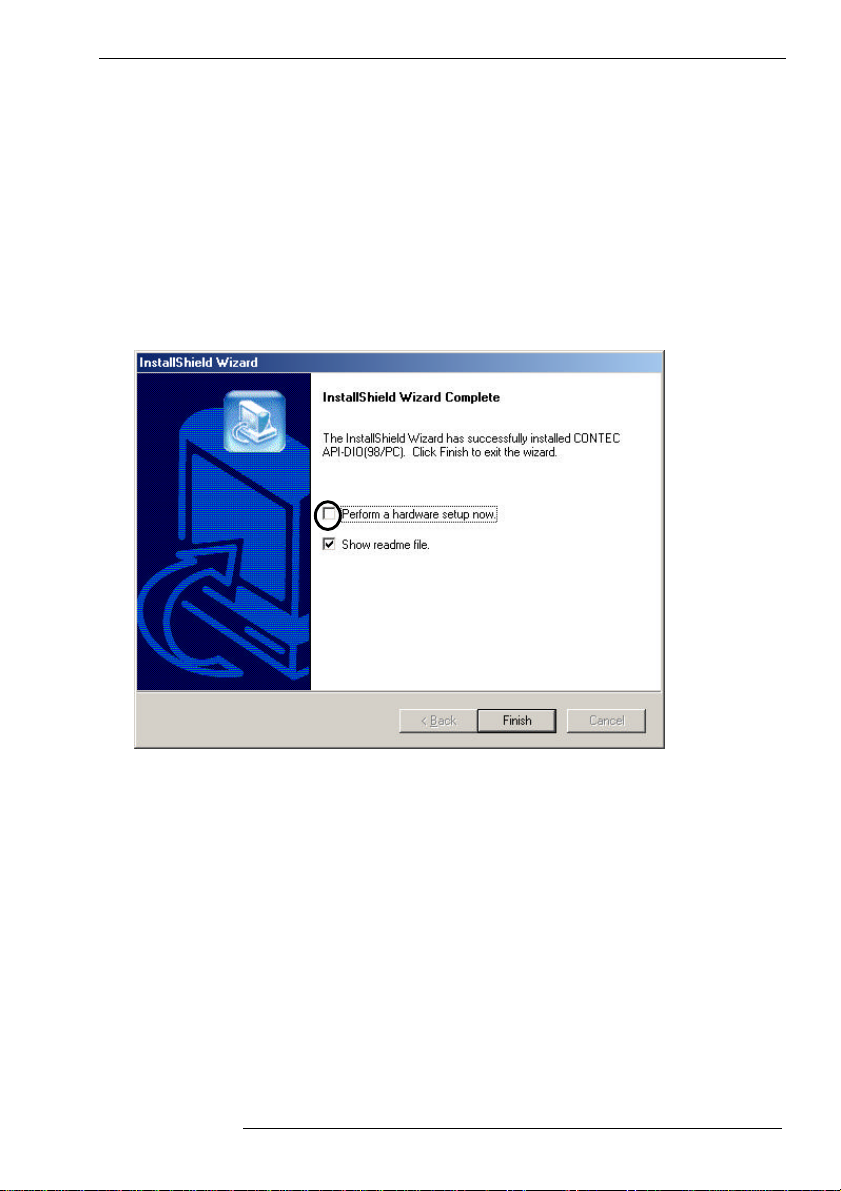

(2) When the required files have been copied, the “ Perform a hardware setup now” and “Show readme

file” check boxes are displayed.
When you are installing the software or hardware for the first time:

1) Uncheck “Perform a hardware setup now”.

2) Click on the [Finish] button. Go to Step 2 to set and plug the hardware.

* When the hardware has already been installed:
Check “Perform a hardware setup now”, then go to Step 4 “Initializing the Software”.

You have now finished installing the software.

CONTEC CO., LTD.
PIO-64/64L(PCI), PI-128L(PCI), PO-128L(PCI)

11

2. Setup

Step 2 Setting the Hardware

This section describes how to set the board and plug it on your PC.
The board has some switches and jumper to be preset.
Check the on-board switches and jumpers before plugging the board into an expansion slot.
The board can be set up even with the factory defaults untouched. You can change board settings later.

Parts of the Board and Factory Defaults

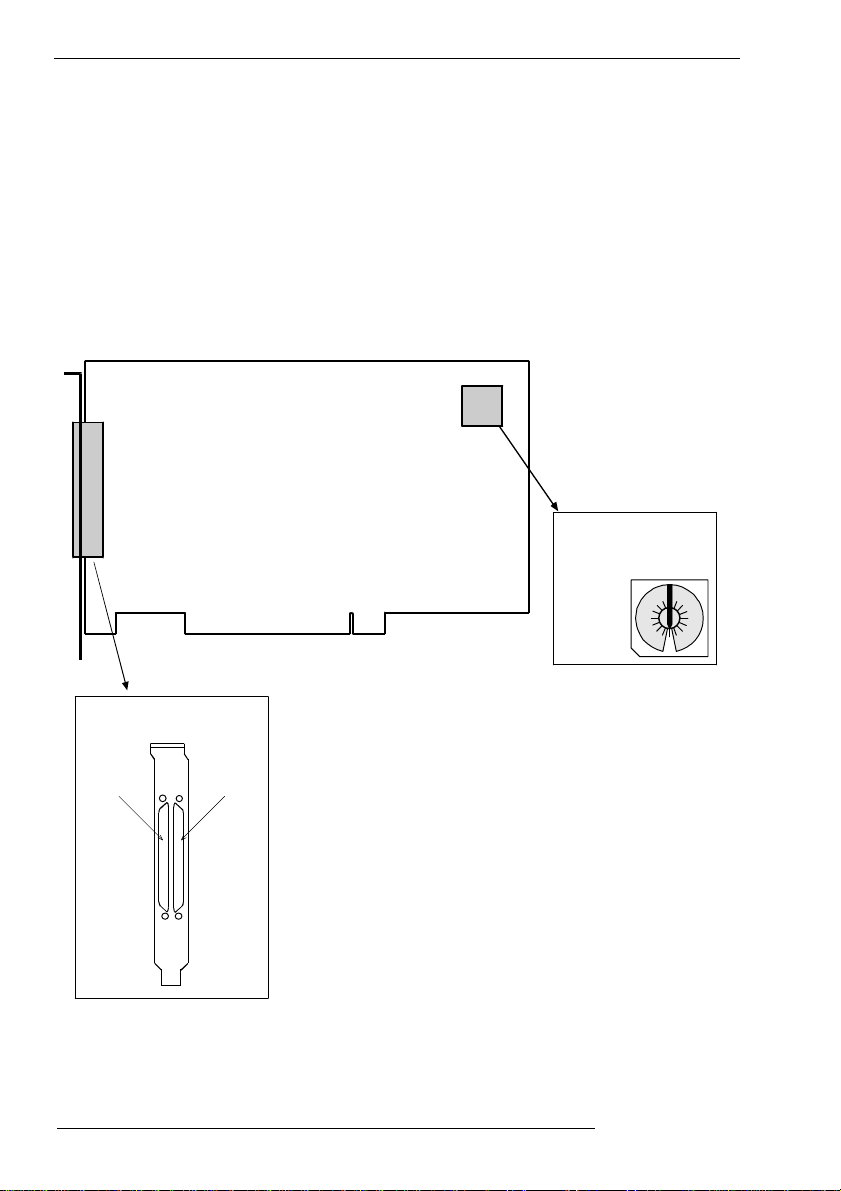

Figure 2.1. shows the names of major parts on the board.
Note that the switch setting shown below is the factory default.

PIO/PI/PO-xx(PCI)

SW1

BOARD ID

- BOARD ID Setting Switch

SW1

BOARD ID

9

7

A

6

B

5

C

4

D

3

E

2

F

1

0

- Interface connector(CNA,CNB)

CNACNB

Figure 2.1. Component Locations <PIO-64/64L(PCI)>, <PI-128L(PCI)>, <PO-128L(PCI)>

12

PIO-64/64L(PCI), PI-128L(PCI), PO-128L(PCI)

CONTEC CO., LTD.

2. Setup

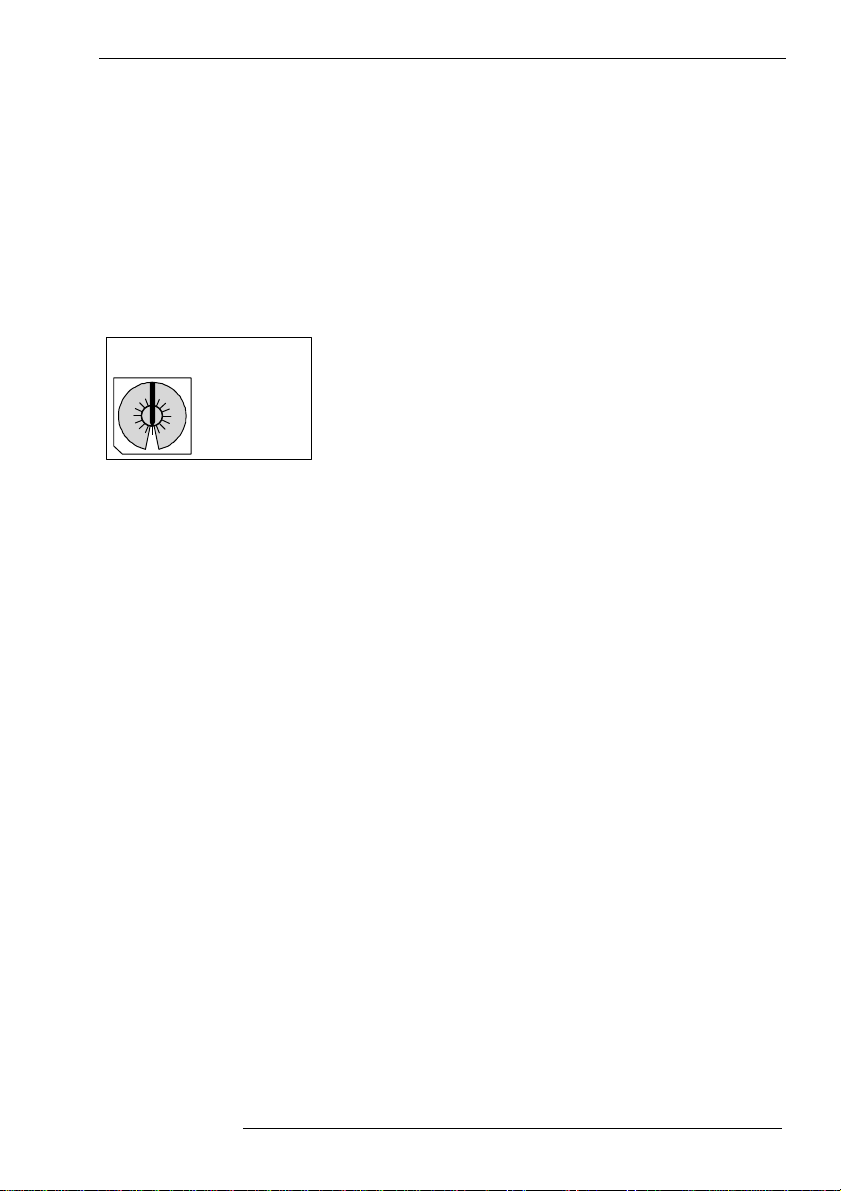

Setting the Board ID

If you install two or more boards on one personal computer, assign a different ID value to each of the
boards to distinguish them.

The board IDs can be set from 0 to Fh to identify up to sixteen boards.
If only one board is used, the original factory setting (Board ID = 0) should be used.

Setting Procedure
To set the board ID, use the rotary switch on the board. Turn the SW1 knob to set the board ID as shown

below.

SW1

BOARD ID

9

7

A

6

B

5

C

4

D

3

E

Factory setting:

2

F

0

1

Figure 2.2. Board ID Settings (SW1)

(Board ID = 0)

CONTEC CO., LTD.
PIO-64/64L(PCI), PI-128L(PCI), PO-128L(PCI)

13

2. Setup

Plugging the Board

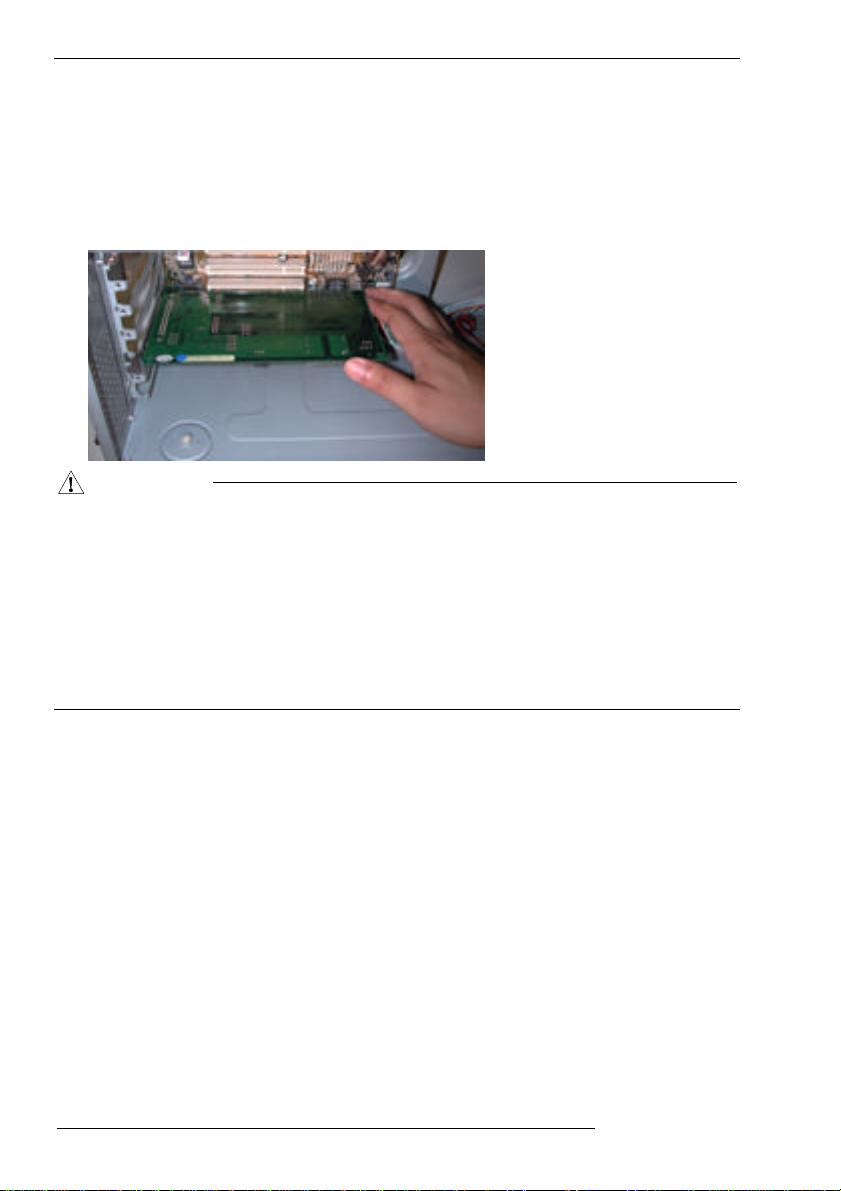

(1) Before plugging the board, shut down the system, unplug the power code of your PC.
(2) Remove the cover from the PC so that the board can be mounted.
(3) Plug the board into an expansion slot.
(4) Put the cover back into place.

CAUTION

- Do not touch the board's metal plated terminals (edge connector) with your hands.
Otherwise, the board may malfunction, overheat, or cause a failure.
If the terminals are touched by someone's hands, clean the terminals with industrial alcohol.

- Do not install or remove the board to or from the slot while the computer's power is turned on.
Otherwise, the board may malfunction, overheat, or cause a failure.
Doing so could cause trouble. Be sure that the personal computer or the I/O expansion unit power is
turned off.

- Make sure that your PC or expansion unit can supply ample power to all the boards installed.
Insufficiently energized boards could malfunction, overheat, or cause a failure.

14

PIO-64/64L(PCI), PI-128L(PCI), PO-128L(PCI)

CONTEC CO., LTD.

2. Setup

Step 3 Installing the Hardware

For using an expansion board under Windows, you have to let the OS detect the I/O addresses and IRQ to
be used by the board. The process is referred to as installing the hardware.

In the case of using two or more boards, make sure you install one by one with the Add New Hardware
Wizard.

Turning on the PC

Turn on the power to your PC.

CAUTION

- The board cannot be properly installed unless the resources (I/O addresses and interrupt level) for
the board can be allocated. Before attempting to install the board, first determine what PC resources
are free to use.

- The resources used by each board do not depend on the location of the PCI bus slot or the board itself.
If you remove two or more boards that have already been installed and then remount one of them on
the computer, it is unknown that which one of the sets of resources previously assigned to the two
boards is assigned to the remounted board. In this case, you must check the resource settings.

Setting with the Add New Hardware Wizard

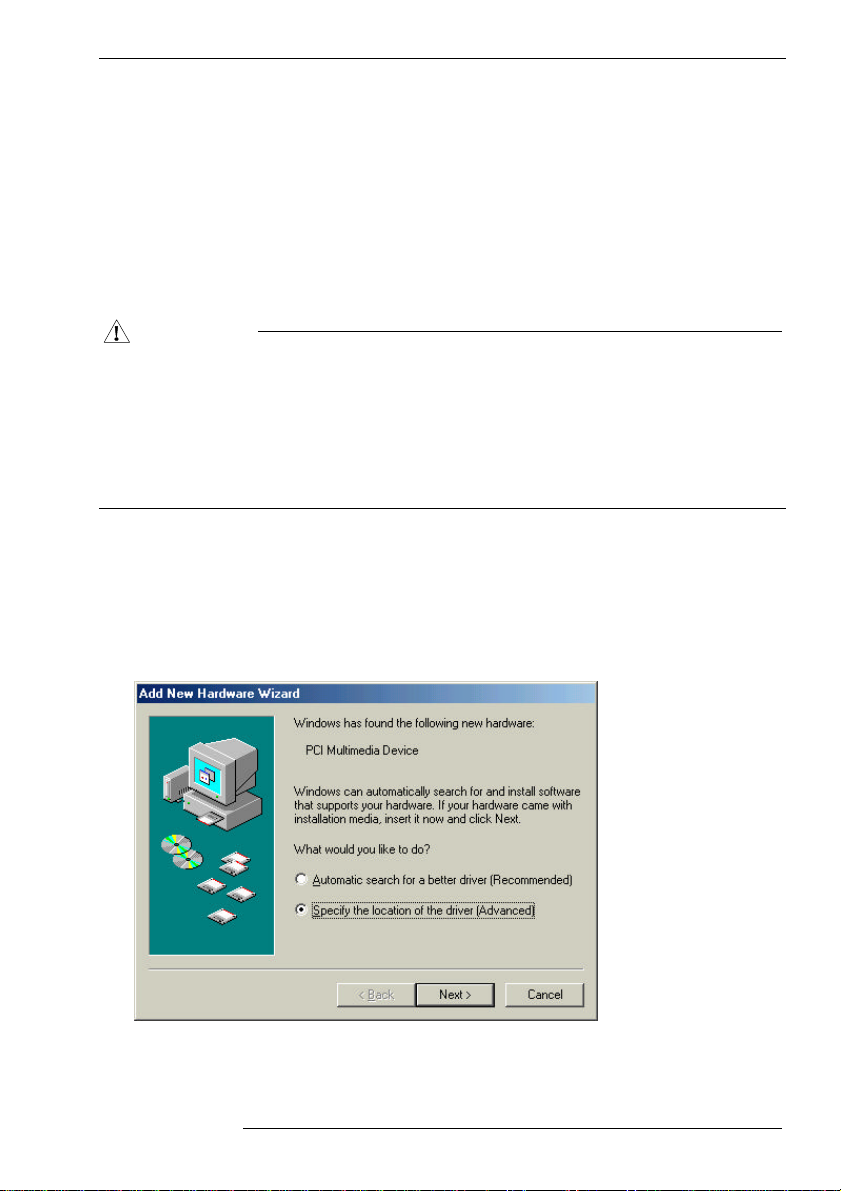

(1) The “Add New Hardware Wizard” will be started.

Select “Specify the location of the driver”, then click on the [Next] button.

If you are using Windows NT 4.0, the “Add New Hardware Wizard” is not started.
Go to Step 4 “Initializing the Software”.

CONTEC CO., LTD.
PIO-64/64L(PCI), PI-128L(PCI), PO-128L(PCI)

15

2. Setup

(2) Specify that folder on the CD-ROM which contains the setup information (INF) file to register the

board.

* The name of the board
you have just added is
displayed.

- PIO-64/64L(PCI)

- PI-128L(PCI)

- PO-128L(PCI)

Source folder
The setup information (INF) file is contained in the following folder on the bundled CD-ROM.

Windows XP, 2000 \INF\Win2000\Dio\PCI
Windows Me, 98, 95 \INF\Win95\ Dio\PCI

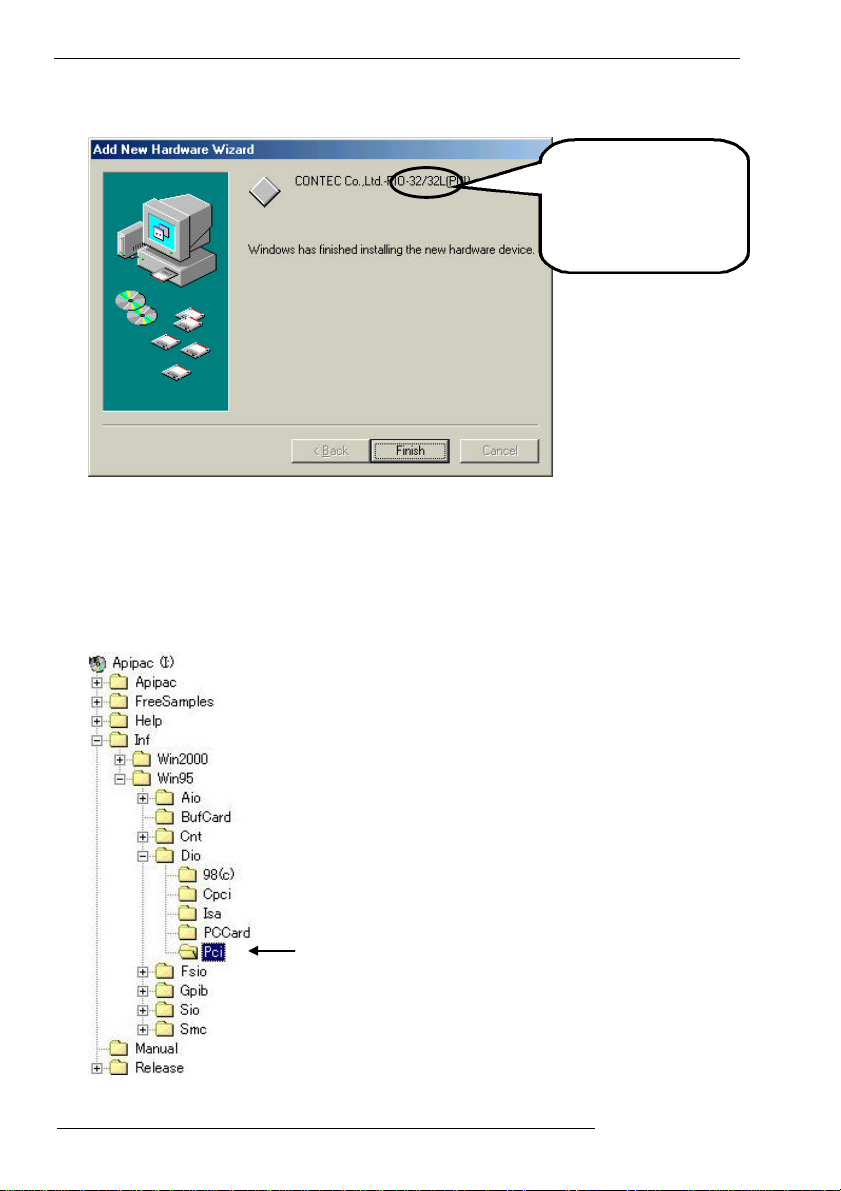

Example of specifying the folder for use under Windows Me

\INF\Win95\Dio\PCI

16

PIO-64/64L(PCI), PI-128L(PCI), PO-128L(PCI)

CONTEC CO., LTD.

2. Setup

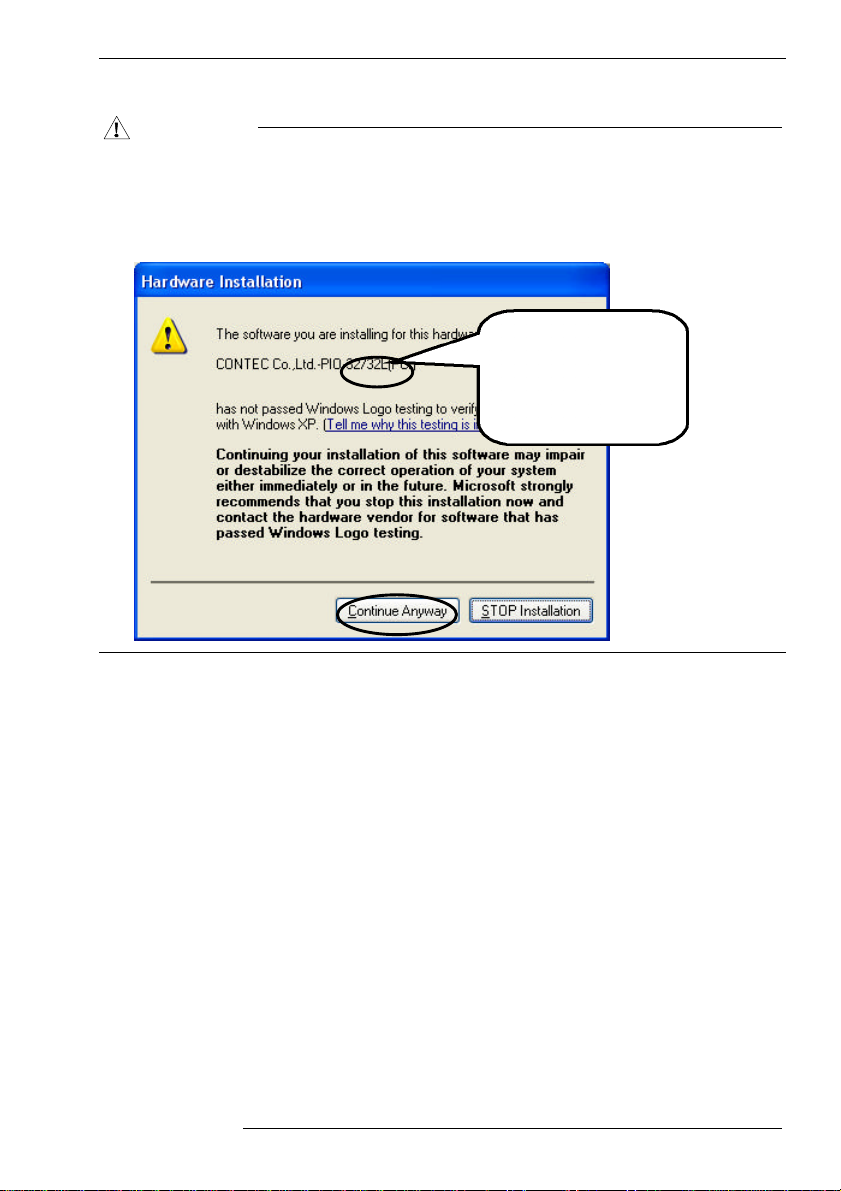

CAUTION

In Windows XP, the Hardware Wizard displays the following alert dialog box when you have
located the INF file. This dialog box appears, only indicating that the relevant driver has not passed
Windows Logo testing, and it can be ignored without developing any problem with the operation of
the board.
In this case, click on the [Continue Anyway] button.

* The name of the board
you have just added is
displayed.

- PIO-64/64L(PCI)

- PI-128L(PCI)

- PO-128L(PCI)

You have now finished installing the hardware.

CONTEC CO., LTD.
PIO-64/64L(PCI), PI-128L(PCI), PO-128L(PCI)

17

2. Setup

Step 4 Initializing the Software

The API function library requires the initial setting to recognize the execution environment. It is called
the initialization of the API function library.

Invoking API-TOOL Configuration

(1) Open the Start Menu, then select “Programs” – “CONTEC API-PAC(W32)” – “API-TOOL

Configuration”.

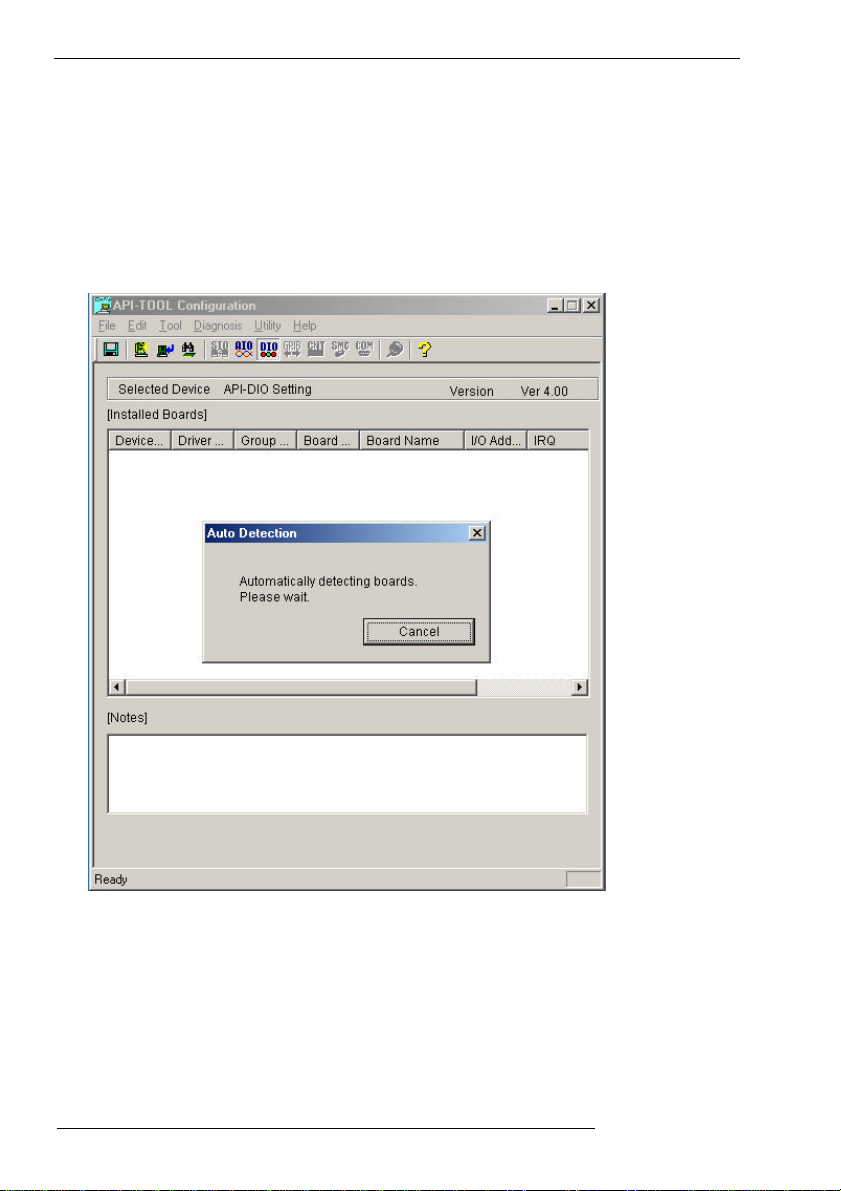

(2) API-TOOL Configuration detects boards automatically.

The detected boards are listed.

Updating the Settings

(1) Select “Save settings to registry…” from the “File” menu.

You have now finished installing the initial setting of Software.

18

PIO-64/64L(PCI), PI-128L(PCI), PO-128L(PCI)

CONTEC CO., LTD.

2. Setup

Step 5 Checking Operations with the Diagnosis
Program

Use the diagnosis program to check that the board and driver software work normally, thereby you can
confirm that they have been set up correctly.

What is the Diagnosis Program?

The diagnosis program diagnoses the states of the board and driver software.
It can also be used as a simple checker when an external device is actually connected.
Using the “Diagnosis Report” feature reports the driver settings, the presence or absence of the board,

I/O status, and interrupt status.

Check Method

Connect the board to a remote device to text the input/output and check the execution environment.
For this board, prepare an external power supply (12 to 24 V).
The Check Mate (CM-64(PC)E) comes in handy when you check digital I/O boards.
Check the board with the factor defaults untouched.

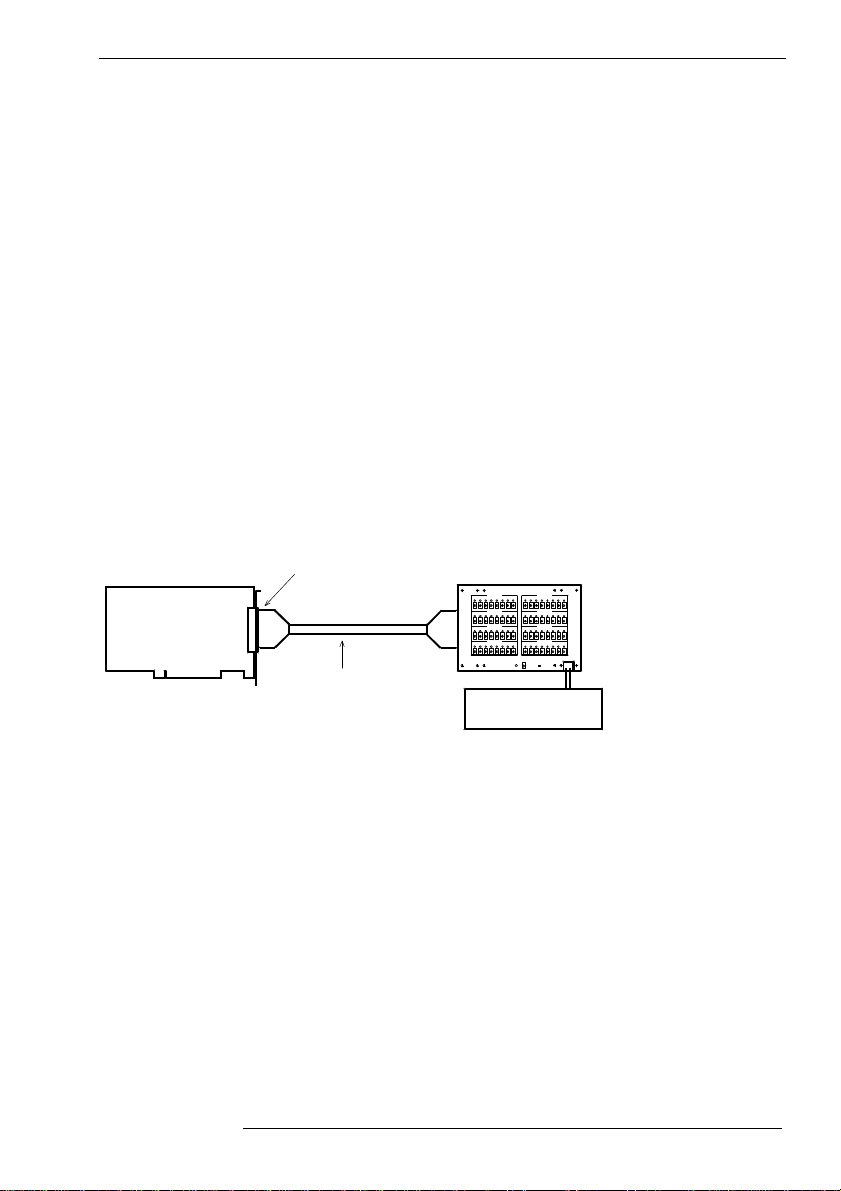

Connection diagram

CM-64 (PC )E

GR OUP 0

GRO UP 1

7 6 5 4 3 2 1 0

7 6 5 4 3 2 1 0

7 6 5 4 3 2 1 0

7 6 5 4 3 2 1 0

7 6 5 4 3 2 1 0

Exte r nal Power Supply
12 to 24V DC

GR OUP 3

GRO U P 5

GRO U P 7

AC K S TB

GRO UP 2

7 6 5 4 3 2 1 0

GR OUP 4

7 6 5 4 3 2 1 0

GR OUP 6

7 6 5 4 3 2 1 0

POW ER

CN 3

Board

Connector

Optional cabl es
PCB10 0 /96PS -xx

To connect a device other than the Check Mate, see Chapter 3 “External Connection”.

CONTEC CO., LTD.
PIO-64/64L(PCI), PI-128L(PCI), PO-128L(PCI)

19

2. Setup

Using the Diagnosis Program

Starting the Diagnosis Program

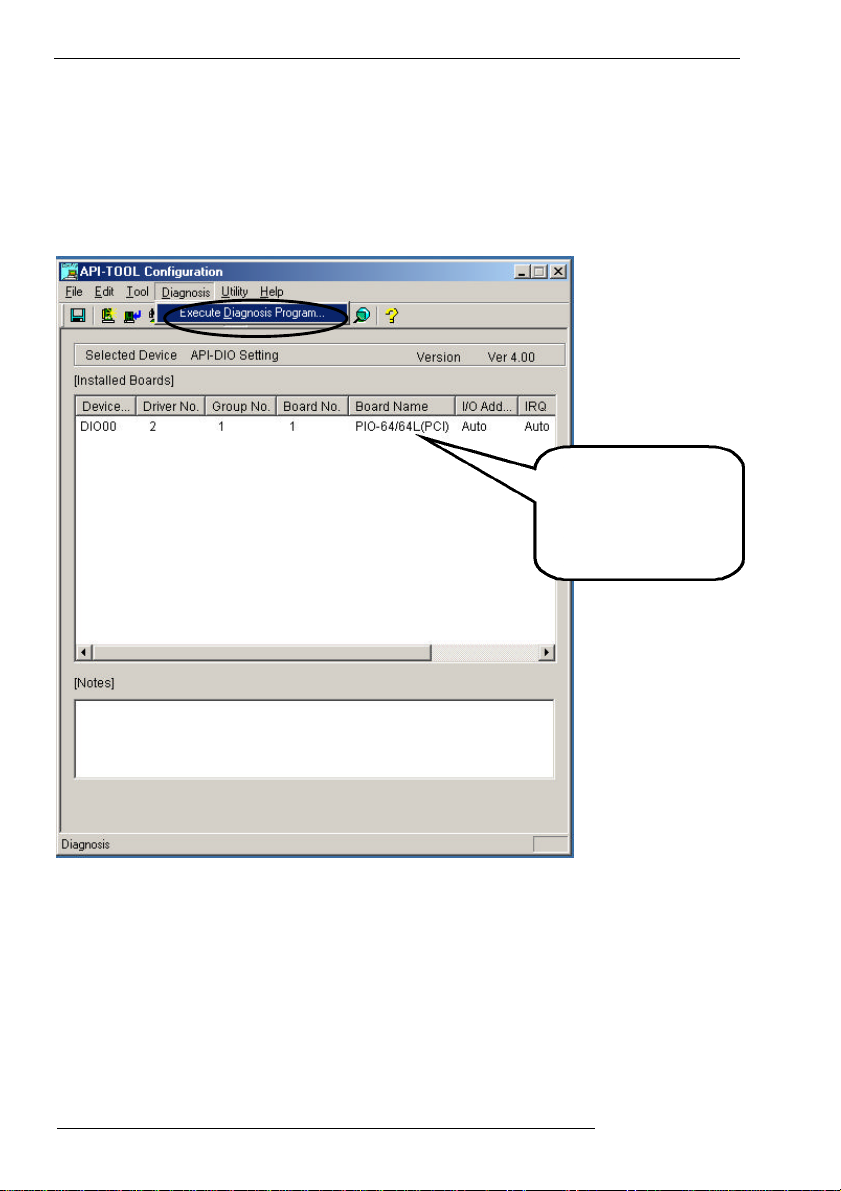

Select the board in the API-TOOL Configuration windows, then run the Diagnosis Program.
* The name of the board you have just added is displayed.

* The name of the board
you have just added is
displayed.

- PIO-64/64L(PCI)

- PI-128L(PCI)

- PO-128L(PCI)

20

PIO-64/64L(PCI), PI-128L(PCI), PO-128L(PCI)

CONTEC CO., LTD.

Checking Digital Inputs and Outputs

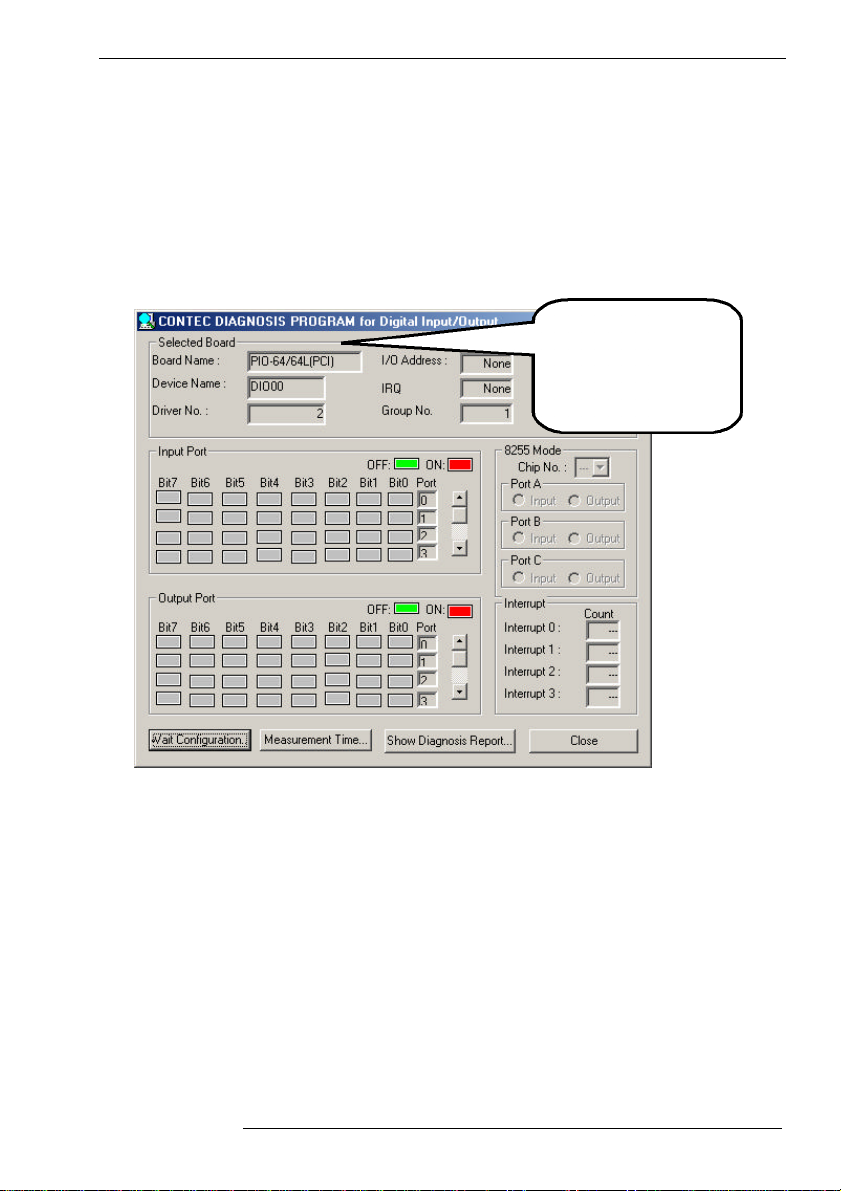

The main panel of the Diagnosis Program appears.
You can check the current operation states of the board in the following boxes:

“Input Port ”: Displays input values bit by bit at fixed time intervals.
“Output Port”: Mouse operation allows the data to output or display.
“Interrupt ”: Displays the number of interrupts detected bit by bit.

* The name of the board
you have just added is
displayed.

- PIO-64/64L(PCI)

- PI-128L(PCI)

- PO-128L(PCI)

2. Setup

To use the wait time control feature, click on the [Wait Configuration] button. Use the feature when the
wait time based on the DioWait or DioWaitEx function is not normal.

To use the function execution time measurement feature, click on the [Measurement Time] button. Enter
the I/O start port and the number of ports, then press the measurement button. The time for each
execution of a function will be measured.

CONTEC CO., LTD.
PIO-64/64L(PCI), PI-128L(PCI), PO-128L(PCI)

21

2. Setup

Diagnosis Report
(1) Clicking on the [Show Diagnosis Report] button displays detailed data such as board settings and

the diagnosis results while saving them in text format.
The results are saved and displayed as a text file (DioRep.txt) in the install folder (Program

Files\CONTEC\API-PAC(W32)).
The Diagnosis Program performs “board presence/absence check”, “ driver file test”, “board setting

test”, and so on.

CAUTION

- Before executing diagnosis report output, unplug the cable from the board.

* The name of the board
you have just added is
displayed.

- PIO-64/64L(PCI)

- PI-128L(PCI)

- PO-128L(PCI)

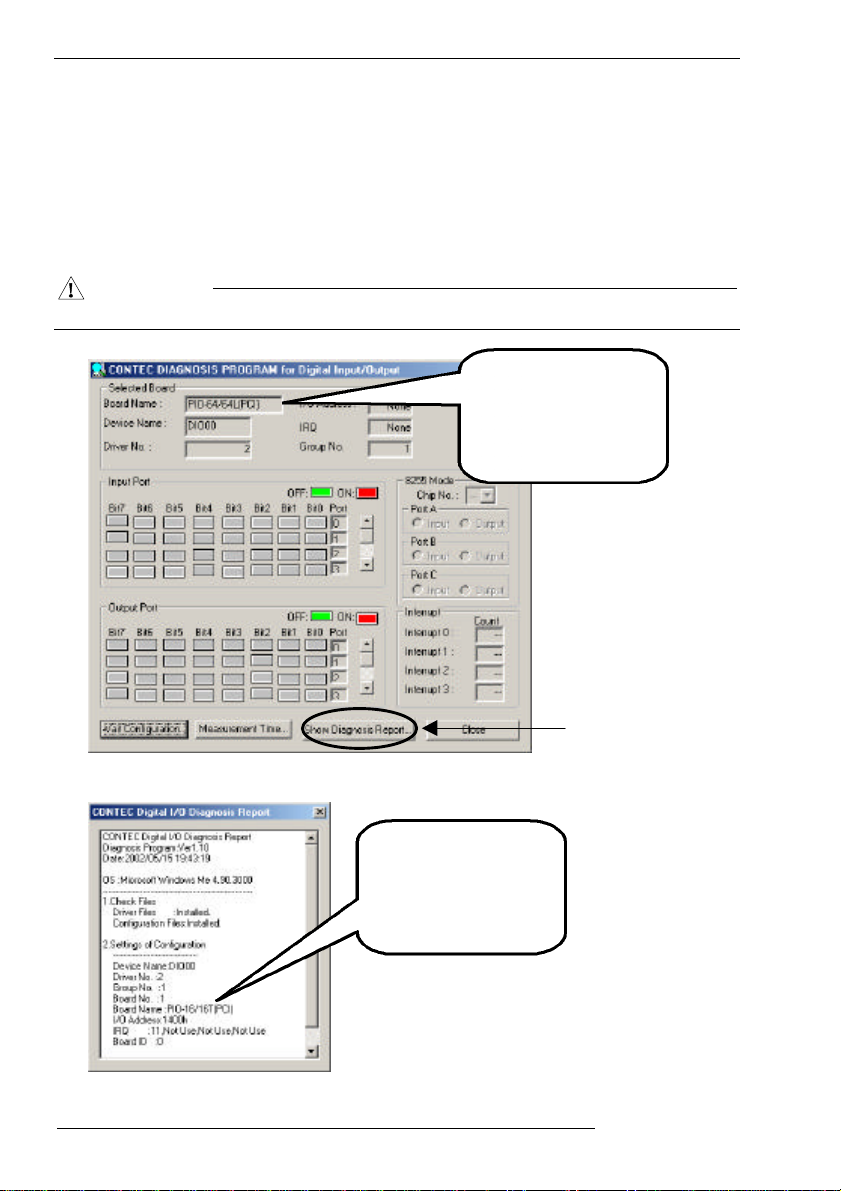

Click on [Show
Diagnosis Report].

(2) A diagnosis report is displayed as shown below.

* The name of the board
you have just added is
displayed.

- PIO-64/64L(PCI)

- PI-128L(PCI)

- PO-128L(PCI)

22

PIO-64/64L(PCI), PI-128L(PCI), PO-128L(PCI)

CONTEC CO., LTD.

2. Setup

Setup Troubleshooting

Symptoms and Actions

The board cannot be initialized. [Windows NT 4.0]
The driver may not yet be activated.
When using the board under an OS not compliant with Plug and Play, such as Windows NT 4.0, make

sure that the [PnP OS] BIOS option has been set to [NO], [disable], or [Do not use]. If the option has
been set to [Windows 95], for example, the board may not be detected normally. For details on BIOS
settings, refer to the user’s guide for your PC.

No output can be obtained.
Use API-TOOL Configuration to check whether the board name setting is wrong.

The board works with the Diagnosis Program but not with an application.
The Diagnosis Program is coded with API-TOOL functions. As long as the board operates with the

Diagnosis Program, it is to operate with other applications as well. In such cases, review your program
while paying attention to the following points:

- Check the arguments to functions and their return values.

- When the board is an isolated type, it has a time lag for its response between the output by a function
and the actual output. Consider the execution intervals between functions.

The OS won’t normally get started or detect the board. [Windows XP, 2000]
Turn off the power to your PC, then unplug the board. Restart the OS and delete the board settings of

API-TOOL Configuration. Turn off the PC again, plug the board, and restart the OS. Let the OS detect
the board and use API-TOOL Configuration to register board settings.

If your problem cannot be resolved

Refer to the FAQs in API-DIO HELP and, if you still have a question, contact your retailer with a report
generated by the Diagnosis Report feature of the Diagnosis Program.

CONTEC CO., LTD.
PIO-64/64L(PCI), PI-128L(PCI), PO-128L(PCI)

23

2. Setup

24

PIO-64/64L(PCI), PI-128L(PCI), PO-128L(PCI)

CONTEC CO., LTD.

3. External Connection

3. External Connection

This chapter describes the interface connectors on the board and the external I/O circuits.
Check the information available here when connecting an external device.

Using the On-board Connectors

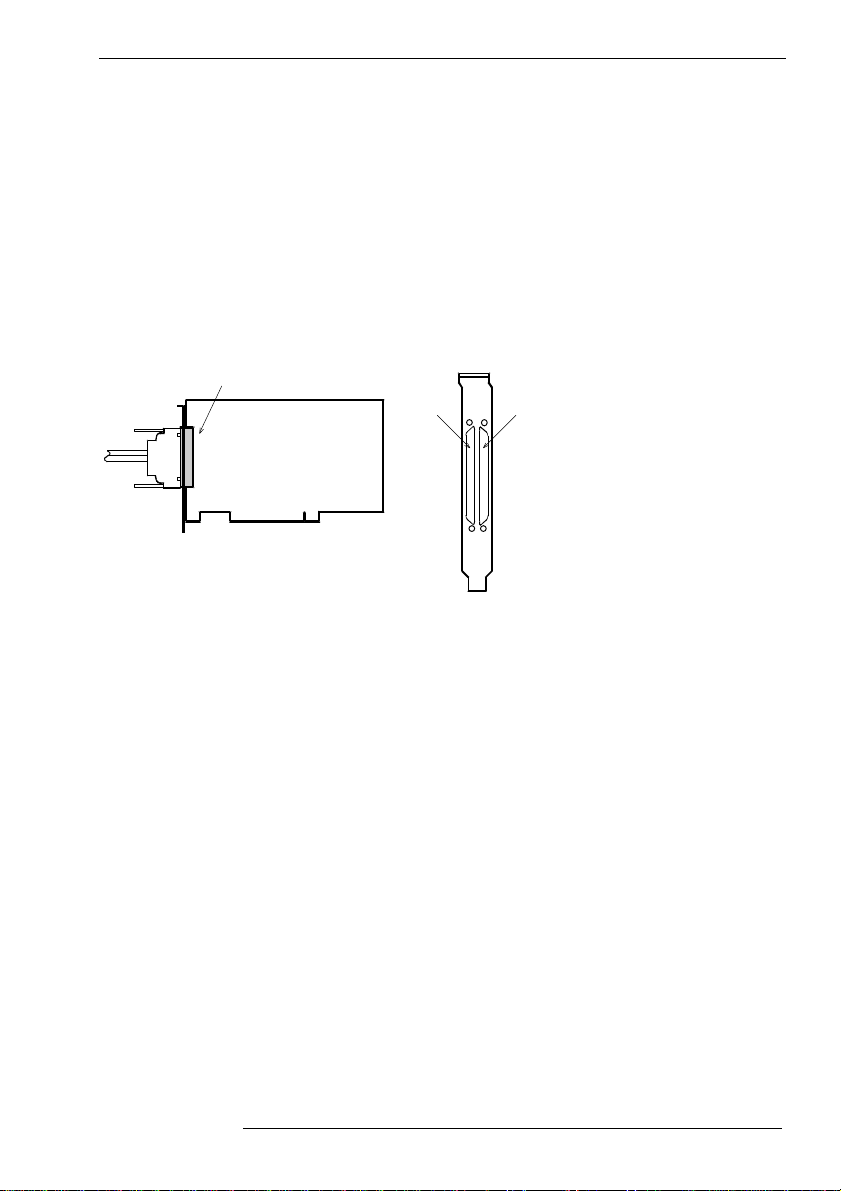

Connecting a Device to a Connector

To connect an external device to this board, plug the cable from the device into the interface connector
(CAN,CNB) shown below.

Interface connector

CN ACNB

- Conne c tor used
HDRA-E100W1LF DT1 E C-SL

(m fd.by H O NDA )eq uiv alent

- Applicab le co nn ect or

H D RA-E 100MA1(mfd.by HON DA)

Figure 3.1. Interface Connector

CONTEC CO., LTD.
PIO-64/64L(PCI), PI-128L(PCI), PO-128L(PCI)

25

3. External Connection

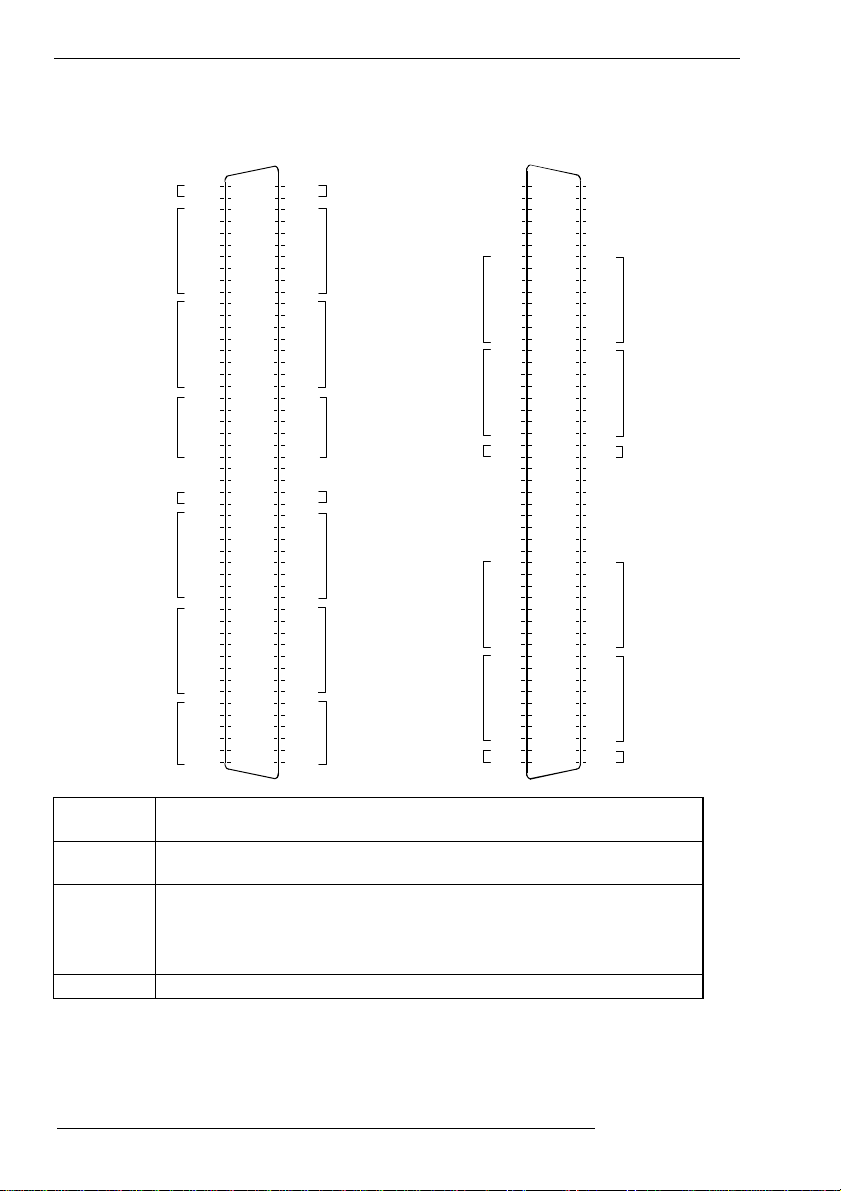

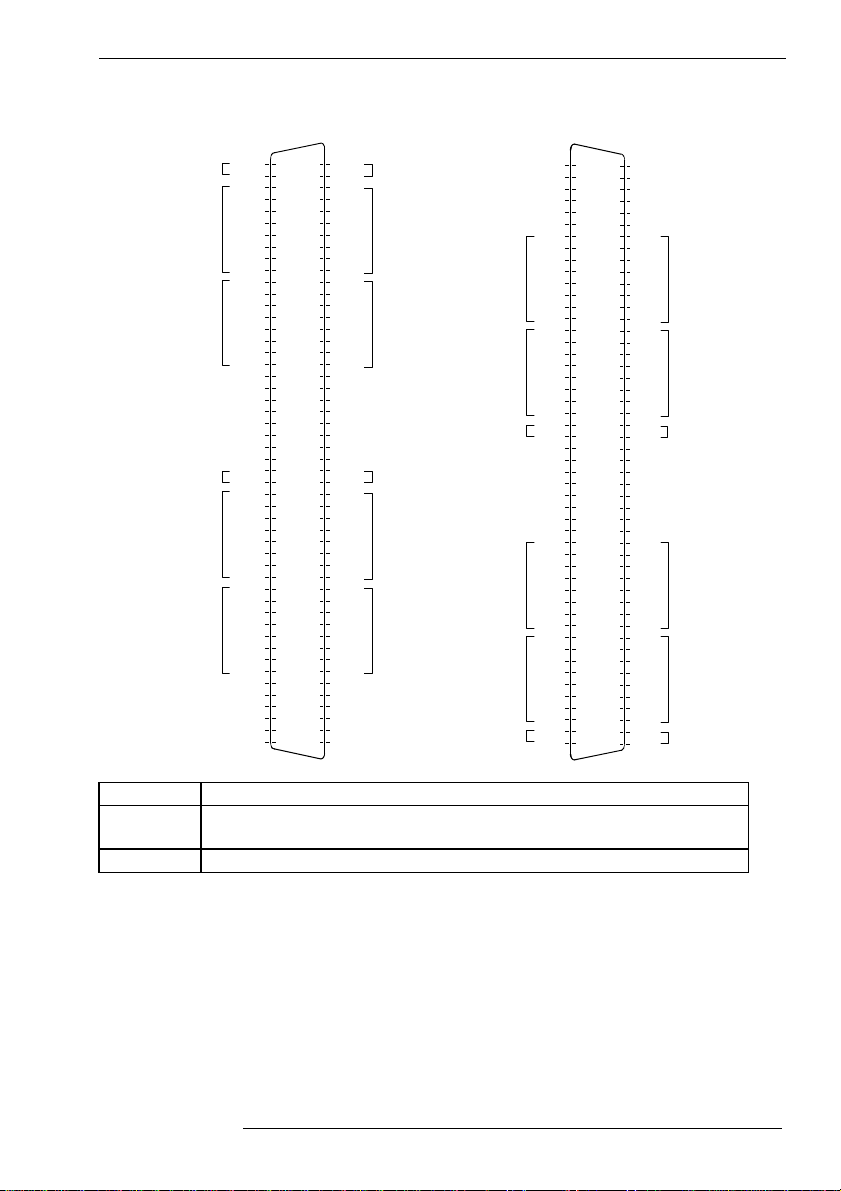

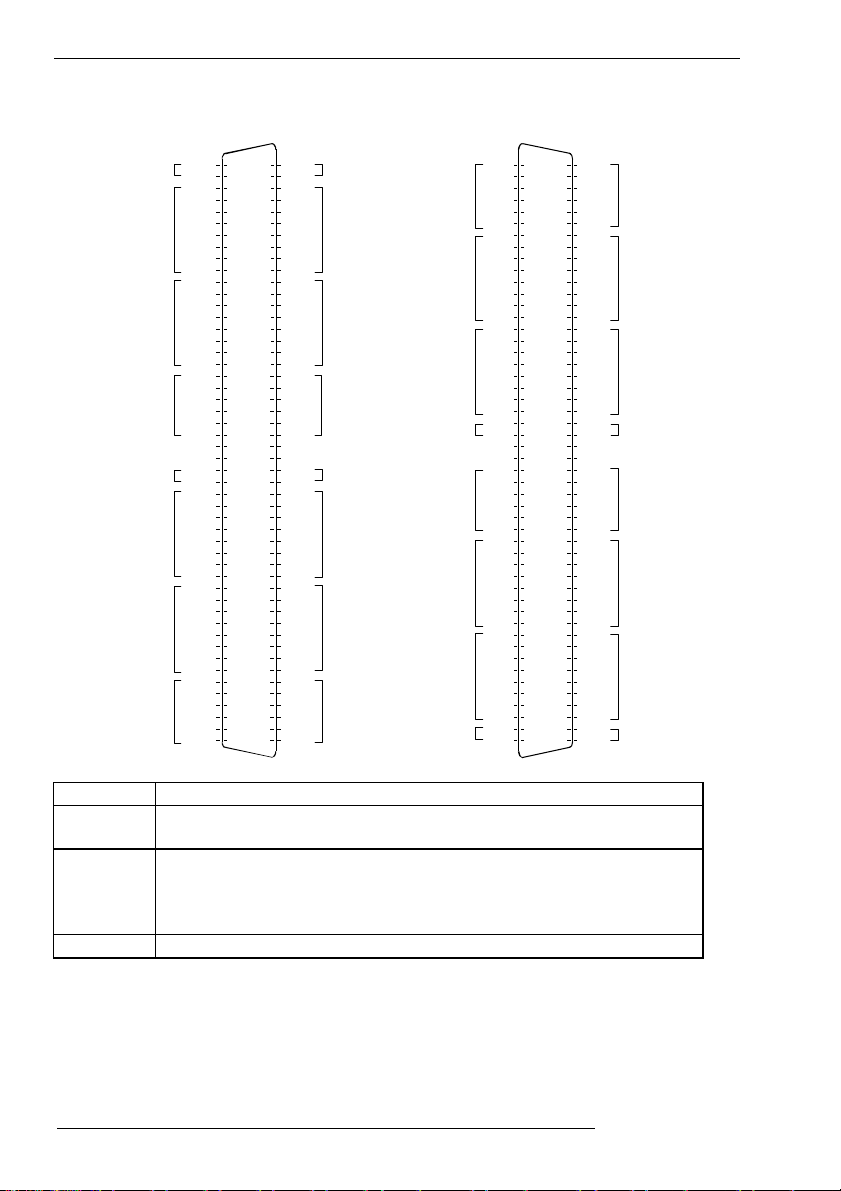

Connector Pin Assignment

Pin Assignments of Interface Connector <PIO-64/64L(PCI)>

Co mmon plus pin for

+E/+F outp ut ports

+F port (Outp ut)

+E port (Outp ut)

Common m inu s p in for

+E/+F outp ut ports

Co mmon plus pin for

+

C/+D output ports

+D port (Outp ut)

+C port (Outp ut)

Common minus pin for

+C/+D output ports

* I-00 to I-17 can be used as interrupt sig nal.

P-E/F
P-E/F

O-F7
O-F6
O-F5
O-F4
O-F3
O-F2
O-F1
O-F0
O-E7
O-E6
O-E5
O-E4
O-E3
O-E2
O-E1

O-E0
N - E/ F
N - E/ F
N - E/ F
N - E/ F
N - E/ F
N - E/ F

N . C.

N . C.
P-C/D
P-C/D

O -D 7
O -D 6
O -D 5
O -D 4
O -D 3
O -D 2
O -D 1
O -D 0
O-C7
O-C6
O-C5
O-C4
O-C3
O-C2
O-C1

O-C0
N - C/ D
N - C/ D
N - C/ D
N - C/ D
N - C/ D
N - C/ D

10 0

99
98
97
96
95
94
93
92
91
90
89
88
87
86
85
84
83
82
81
80
79
78
77
76
75
74
73
72
71
70
69
68
67
66
65
64
63
62
61
60
59
58
57
56
55
54
53
52
51

CNB

50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
32
31
30
29
28
27
26
25
24
23
22
21
20
19
18
17
16
15
14
13
12

11

10

9
8
7
6
5
4
3
2
1

+A/+B output ports

P -A /B
O -B 7
O -B 6
O -B 5
O -B 4

+B port (Output)

O -B 3
O -B 2
O -B 1
O -B 0
O -A 7
O -A 6
O -A 5
O -A 4

+A port (Output)

O -A 3
O -A 2
O -A 1
O -A 0
N -A /B
N -A /B

Common minus pin for

N -A /B

+A/+B output ports

N -A /B
N -A /B
N -A /B
N .C .
N .C .
P -8/9

Common plus pin for

P -8/9

+8/+9 output ports

O -97
O -96
O -95
O -94

+9 port (Output)

O -93
O -92
O -91
O -90
O -87
O -86
O -85
O -84

+8 port (Output)

O -83
O -82
O -81
O -80
N -8/9
N -8/9

Common minus pin for

N -8/9

+8/+9 output ports

N -8/9
N -8/9
N -8/9

+0 port (Input)

+1 port (Input)

Common plus pin for

+0/+1 input ports

+2 Port (Input)

+3 Port (Input)

Common plus pin for

+2/+3 input ports

Common plus pin for

P -A /B

P-0/1 to P-6/7 Connect the positive side of the external power supply. These pins are common to 16 input

signal pins.

P-8/9 to P-E/F

Connect the positive side of the external power supply. These pins are common to 16 output
signal pins.

N-8/9 to N-E/F Connect the negative side of the external power supply. These pins are common to 16 output

signal pins.
A current of 0.3 A is allowable per connector pin. Connect the required number of pins for the

total current for the corresponding 16 output signals.

N.C. This pin is left unconnected.

N . C.
N . C.
N . C.
N . C.
N . C.
N . C.

I-00

*

I-01

*

I-02

*

I-03

*

I-04

*

I-05

*

I-06

*

I-07

*

I-10

*

I-11

*

I-12

*

I-13

*

I-14

*

I-15

*

I-16

*

I-17

*
P-0/1
P-0/1

N . C.
N . C.
N . C.
N . C.
N . C.
N . C.
N . C.
N . C.

I-20
I-21
I-22
I-23
I-24
I-25
I-26
I-27
I-30
I-31
I-32
I-33
I-34
I-35
I-36

I-37
P-2/3
P-2/3

C NA

N .C .

1

51

N .C .

2

52

N .C .

3

53

N .C .

4

54

N .C .

5

55

N .C .

6

56

I-40

7

57

I-41

8

58

I-42

9

59

I-43

10

60

11

61

12

62

13

63

14

64

15

65

16

66

17

67

18

68

19

69

20

70

21

71

22

72

23

73

24

74

25

75

26

76

27

77

28

78

29

79

30

80

31

81

32

82

33

83

34

84

35

85

36

86

37

87

38

88

39

89

40

90

41

91

42

92

43

93

44

94

45

95

46

96

47

97

48

98

49

99

50

10 0

+4 port (Input)

I-44
I-45
I-46
I-47
I-50
I-51
I-52
I-53

+5 port (Input)

I-54
I-55
I-56
I-57
P -4/5

Common plus pin for

P -4/5

+4/+5 input ports

N .C .
N .C .
N .C .
N .C .
N .C .
N .C .
N .C .
N .C .
I-60
I-61
I-62
I-63

+6 port (Input)

I-64
I-65
I-66
I-67
I-70
I-71
I-72
I-73

+7 Port (Input)

I-74
I-75
I-76
I-77
P -6/7

Common plus pin for

P -6/7

+6/+7 input ports

Figure 3.2. Pin Assignments of Interface Connector <PIO-64/64L(PCI)>

26

PIO-64/64L(PCI), PI-128L(PCI), PO-128L(PCI)

CONTEC CO., LTD.

3. External Connection

Pin Assignments of Interface Connector <PI-128L(PCI)>

N.C.
N.C.
N.C.
N.C.
N.C.
N.C.

I-00

*

I-01

*

I-02

*

I-03

*

I-04

*

I-05

*

I-06

*

I-07

*

I-10

*
*

I-12

*

I-13

*

I-14

*

I-15

*

I-16

*

I-17

*

P-0/1
P-0/1

N.C.
N.C.
N.C.
N.C.
N.C.
N.C.
N.C.
N.C.

I-20
I-21
I-22
I-23
I-24
I-25
I-26
I-27
I-30
I-31
I-32
I-33
I-34
I-35
I-36

I-37
P-2/3
P-2/3

I-11

CNA

1

N.C.

51

2

N.C.

52

3

N.C.

53

4

N.C.

54

5

N.C.

55

6

56

N.C.

7

I-40

57

8

I-41

58

9

I-42

59

10

I-43

60

11

61

12

62

13

63

14

64

15

65

16

66

17

67

18

68

19

69

20

70

21

71

22

72

23

73

24

74

25

75

26

76

27

77

28

78

29

79

30

80

31

81

32

82

33

83

34

84

35

85

36

86

37

87

38

88

39

89

40

90

41

91

42

92

43

93

44

94

45

95

46

96

47

97

48

98

49

99

50

100

+4 port (Input)

I-44
I-45
I-46
I-47
I-50
I-51
I-52
I-53

+5 port (Input)
I-54
I-55
I-56
I-57

Common plus pin for

P-4/5

+4/+5 input ports

P-4/5
N.C.
N.C.
N.C.
N.C.
N.C.
N.C.
N.C.
N.C.
I-60
I-61
I-62
I-63

+6 port (Input)
I-64
I-65

I-66
I-67
I-70
I-71
I-72
I-73

+7 Port (Input)
I-74

I-75
I-76
I-77

Common plus pin for

P-6/7

+6/+7 input ports

P-6/7

CNB

Common plus pin for

+E/+F input ports

+F port (Input)

+E port (Input)

Common plus pin for

+C/+D input ports

+D port (Input)

+C port (Input)

* I-00 to I-17 can be used as interrupt signal.

P-E/F
P-E/F

I-F7
I-F6
I-F5
I-F4
I-F3
I-F2
I-F1
I-F0
I-E7
I-E6
I-E5
I-E4
I-E3
I-E2
I-E1
I-E0
N.C.
N.C.
N.C.
N.C.
N.C.
N.C.
N.C.

N.C.
P-C/D
P-C/D

I-D7

I-D6

I-D5

I-D4

I-D3

I-D2

I-D1

I-D0

I-C7

I-C6

I-C5

I-C4

I-C3

I-C2

I-C1

I-C0

N.C.

N.C.

N.C.

N.C.

N.C.

N.C.

100

50

99

49

98

48

97

47

96

46

95

45

94

44

93

43

92

42

91

41

90

40

89

39

88

38

87

37

86

36

85

35

84

34

83

33

82

32

81

31

80

30

79

29

78

28

77

27

76

26

75

25

74

24

73

23

72

22

71

21

70

20

69

19

68

18

67

17

66

16

65

15

64

14

63

13

62

12

61

11

60

10

59

9

58

8

57

7

56

6

55

5

54

4

53

3

52

2

51

1

P-A/B
P-A/B
I-B7
I-B6
I-B5
I-B4
I-B3
I-B2
I-B1
I-B0
I-A7
I-A6
I-A5
I-A4
I-A3
I-A2
I-A1
I-A0
N.C.
N.C.
N.C.
N.C.
N.C.
N.C.
N.C.
N.C.
P-8/9
P-8/9
I-97
I-96
I-95
I-94
I-93
I-92
I-91
I-90
I-87
I-86
I-85
I-84
I-83
I-82
I-81
I-80
N.C.
N.C.
N.C.
N.C.
N.C.
N.C.

Common plus pin for
+A/+B input ports

+B port (Input)

+0 port (Input)

+A port (Input)

+1 port (Input)

Common plus pin for

+0/+1 input ports

Common plus pin for
+8/+9 input ports

+9 port (Input)

+2 Port (Input)

+8 port (Input)

+3 Port (Input)

Common plus pin for

+2/+3 input ports

I-00 to I-F7 128 input signal pins. Connect output signals from the external device to these pins.
P-0/1 to P-E/F

Connect the positive side of the external power supply. These pins are common to 16 input
signal pins.

N.C. This pin is left unconnected.

Figure 3.3. Pin Assignments of Interface Connector <PI-128L(PCI)>

CONTEC CO., LTD.
PIO-64/64L(PCI), PI-128L(PCI), PO-128L(PCI)

27

3. External Connection

Pin Assignments of Interface Connector <PO-128L(PCI)>

CNB

Co mmon plus pin for

+E /+F outp ut ports

+F port (Outp ut)

+E port (Outp ut)

Comm on m inu s p in for

+E /+F outp ut ports

Co mmon plus pin for

+C /+D outp ut ports

+D port (Outp ut)

+C port (Outp ut)

Comm on m inu s p in for

+C /+D outp ut ports

P-E/F
P-E/F

O-F7
O-F6
O-F5
O-F4
O-F3
O-F2
O-F1

O-F0
O -E 7
O -E 6
O -E 5
O -E 4
O -E 3
O -E 2
O -E 1
O -E 0

N - E/ F
N - E/ F
N - E/ F
N - E/ F
N - E/ F
N - E/ F

N . C.

N . C.
P-C/D
P-C/D

O-D7
O-D6
O-D5
O-D4
O-D3
O-D2
O-D1
O-D0
O -C 7
O -C 6
O -C 5
O -C 4
O -C 3
O -C 2
O -C 1

O -C 0
N -C /D
N -C /D
N -C /D
N -C /D
N -C /D
N -C /D

100

50

99

49
48

98
97

47
46

96
95

45
44

94
93

43
42

92
91

41
40

90

89

39

88

38

87

37

86

36

85

35

84

34

83

33

82

32

81

31

80

30

79

29

78

28

77

27

76

26

75

25

74

24

73

23

72

22

71

21

70

20

69

19

68

18

67

17

66

16

65

15

64

14

63

13

62

12

61

11

60

10

59

9

58

8

57

7

56

6

55

5

54

4

53

3

52

2

51

1

Co mm on plus pin for

P-A/B

+A /+B output por ts

P-A/B
O-B7
O-B6
O-B5
O-B4

+B port (Ou tput)

O-B3
O-B2
O-B1
O-B0
O-A7
O-A6
O-A5

+A port (Outpu t)

O-A4
O-A3
O-A2
O-A1
O-A0
N-A/B
N-A/B

Co mm on minu s p in for

N-A/B

+A /+B output por ts

N-A/B
N-A/B
N-A/B
N.C.
N.C.

Co mm on plus pin for

P-8/9

+8 /+9 ou tpu t p orts

P-8/9
O-97
O-96
O-95
O-94

+9 po rt (Ou tpu t)

O-93
O-92
O-91
O-90
O-87
O-86
O-85
O-84

+8 po rt (Ou tpu t)

O-83
O-82
O-81
O-80
N-8/9
N-8/9

Co mm on minu s p in for

N-8/9

+8 /+9 ou tpu t p orts

N-8/9
N-8/9
N-8/9

Common m inu s p in for

+0/+1 output por ts

+0 po rt (Ou tput)

+1 po rt (Ou tput)

Co mm on plus pin for

+0 /+1 ou tput p orts

Common m inu s pin for

+2 /+3 ou tpu t p orts

+2 port (Ou tput)

+3 Port (Ou tput)

Common p lus pi n for

+2 /+3 ou tput p orts

N-0/1
N-0/1
N-0/1
N-0/1
N-0/1
N-0/1

O-00
O-01
O-02
O-03
O-04
O-05
O-06
O-07
O-10
O-11
O-12
O-13
O-14
O-15
O-16

O-17
P-0/1
P-0/1

N.C.

N.C.
N-2/3
N-2/3
N-2/3
N-2/3
N-2/3
N-2/3

O-20
O-21
O-22
O-23
O-24
O-25
O-26
O-27
O-30
O-31
O-32
O-33
O-34
O-35
O-36

O-37
P-2/3
P-2/3

1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50

CNA

100

51

N-4/5
N-4/5

52
53
54
55
56
57
58
59
60
61
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
90
91
92
93
94
95
96
97
98
99

Co mmon m inu s p in for

N-4/5

+4 /+5 ou tput p orts

N-4/5
N-4/5
N-4/5
O-40
O-41
O-42
O-43

+4 po rt (Ou tput)

O-44
O-45
O-46
O-47
O-50
O-51
O-52
O-53

+5 po rt (Ou tput)

O-54
O-55
O-56
O-57

Co mm on plus pin for

P-4/5

+4 /+5 ou tput p orts

P-4/5
N.C.
N.C.
N-6/7
N-6/7

Common m inu s p in for

N-6/7

+6 /+7 ou tput ports

N-6/7
N-6/7
N-6/7
O-60
O-61
O-62
O-63

+6 po rt (Ou tput)

O-64
O-65
O-66
O-67
O-70
O-71
O-72
O-73

+7 Po rt (Ou tput)

O-74
O-75
O-76
O-77

Co mm on plus pin for

P-6/7

+6 /+7 ou tput p orts

P-6/7

O-00 to O-F7 128 output signal pins. Connect input signals from the external device to these pins.
P-0/1 to P-E/F

Connect the positive side of the external power supply. These pins are common to 16 output
signal pins.

N-0/1 to N-E/F Connect the negative side of the external power supply. These pins are common to 16 output

signal pins.
A current of 0.3 A is allowable per connector pin. Connect the required number of pins for the
total current for the corresponding 16 output signals.

N.C. This pin is left unconnected.

Figure 3.4. Pin Assignments of Interface Connector <PO-128L(PCI)>

28

PIO-64/64L(PCI), PI-128L(PCI), PO-128L(PCI)

CONTEC CO., LTD.

3. External Connection

Relationships between API-PAC(W32) Logical Ports/Bits
and Connector Signal Pins

The following table lists the relationships between the connector signal pins and the logical port/bit
numbers used for I/O functions when applications are written with API-PAC(W32).

PIO-64/64L(PCI)

Table 3.1. Relationships between Logical Ports/Bits and Connector Signal Pins
<PIO-64/64L(PCI)>

D7 D6 D5 D4 D3 D2 D1 D0

I-07

I-06

I-05

I-04

I-03

I-02

I-01

Input logical port 0

Input logical port 1

Input logical port 2

Input logical port 3

Input logical port 4

Input logical port 5

Input logical port 6

Input logical port 7

[7]

I-17

[15]

I-27

[23]

I-37

[31]

I-47

[39]

I-57

[47]

I-67

[55]

I-77

[63]

[6]
I-16
[14]
I-26
[22]
I-36
[30]
I-46
[38]
I-56
[46]
I-66
[54]
I-76
[62]

[5]
I-15
[13]
I-25
[21]
I-35
[29]
I-45
[37]
I-55
[45]
I-65
[53]
I-75
[61]

[4]
I-14
[12]
I-24
[20]
I-34
[28]
I-44
[36]
I-54
[44]
I-64
[52]
I-74
[60]

[3]
I-13
[11]
I-23
[19]
I-33
[27]
I-43
[35]
I-53
[43]
I-63
[51]
I-73
[59]

[2]
I-12
[10]
I-22
[18]
I-32
[26]
I-42
[34]
I-52
[42]
I-62
[50]
I-72
[58]

[1]

I-11

[9]
I-21
[17]
I-31
[25]
I-41
[33]
I-51
[41]
I-61
[49]
I-71
[57]

I-00

[0]

I-10

[8]
I-20
[16]
I-30
[24]
I-40
[32]
I-50
[40]
I-60
[48]
I-70
[56]

D7 D6 D5 D4 D3 D2 D1 D0

O-87

O-86

O-85

O-84

O-83

Output logical port 0

Output logical port 1

Output logical port 2

Output logical port 3

Output logical port 4

Output logical port 5

Output logical port 6

Output logical port 7

I-xx represents a CNA input signal; O-xx represents a CNB output signal.
[xx] represents a logical port.

CONTEC CO., LTD.

[7]

[6]

[5]

[4]

O-97

O-96

O-95

O-94

[15]

[14]

[13]

[12]

O-A7

O-A6

O-A5

[23]

O-B7

[31]

O-C7

[39]

O-D7

[47]

O-E7

[55]

O-F7

[63]

[22]

O-B6

[30]

O-C6

[38]

O-D6

[46]

O-E6

[54]

O-F6

[62]

[21]

O-B5

[29]

O-C5

[37]

O-D5

[45]

O-E5

[53]

O-F5

[61]

O-A4

[20]

O-B4

[28]

O-C4

[36]

O-D4

[44]

O-E4

[52]

O-F4

[60]

[3]

O-93

[11]

O-A3

[19]

O-B3

[27]

O-C3

[35]

O-D3

[43]

O-E3

[51]

O-F3

[59]

O-82

[2]

O-92

[10]

O-A2

[18]

O-B2

[26]

O-C2

[34]

O-D2

[42]

O-E2

[50]

O-F2

[58]

PIO-64/64L(PCI), PI-128L(PCI), PO-128L(PCI)

O-81

[1]

O-91

[9]

O-A1

[17]

O-B1

[25]

O-C1

[33]

O-D1

[41]

O-E1

[49]

O-F1

[57]

O-80

[0]

O-90

[8]

O-A0

[16]

O-B0

[24]

O-C0

[32]

O-D0

[40]

O-E0

[48]

O-F0

[56]

29

3. External Connection

PI-128L(PCI)

Table 3.2. Relationships between Logical Ports/Bits and Connector Signal Pins <PI-128L(PCI)>

D7 D6 D5 D4 D3 D2 D1 D0

I-07

I-06

I-05

I-04

I-03

I-02

I-01

Input logical port 0

Input logical port 1

Input logical port 2

Input logical port 3

Input logical port 4

Input logical port 5

Input logical port 6

Input logical port 7

Input logical port 8

Input logical port 9

Input logical port 10

Input logical port 11

Input logical port 12

Input logical port 13

Input logical port 14

Input logical port 15

I-xx represents a CNA or a CNB input signal. [xx] represents a logical bit.

[7]
I-17
[15]
I-27
[23]
I-37
[31]
I-47
[39]
I-57
[47]
I-67
[55]
I-77
[63]
I-87
[71]
I-97
[79]

I-A7

[87]

I-B7

[95]

I-C7

[103]

I-D7

[111]

I-E7

[119]

I-F7

[127]

[6]

I-16

[14]

I-26

[22]

I-36

[30]

I-46

[38]

I-56

[46]

I-66

[54]

I-76

[62]

I-86

[70]

I-96

[78]

I-A6

[86]

I-B6

[94]

I-C6

[102]

I-D6

[110]

I-E6

[118]

I-F6

[126]

[5]
I-15
[13]
I-25
[21]
I-35
[29]
I-45
[37]
I-55
[45]
I-65
[53]
I-75
[61]
I-85
[69]
I-95
[77]

I-A5

[85]

I-B5

[93]

I-C5

[101]

I-D5

[109]

I-E5

[117]

I-F5

[125]

[4]
I-14
[12]
I-24
[20]
I-34
[28]
I-44
[36]
I-54
[44]
I-64
[52]
I-74
[60]
I-84
[68]
I-94
[76]

I-A4

[84]

I-B4

[92]

I-C4

[100]

I-D4

[108]

I-E4

[116]

I-F4

[124]

[3]

I-13

[11]

I-23

[19]

I-33

[27]

I-43

[35]

I-53

[43]

I-63

[51]

I-73

[59]

I-83

[67]

I-93

[75]

I-A3

[83]

I-B3

[91]

I-C3

[99]

I-D3

[107]

I-E3

[115]

I-F3

[123]

[2]
I-12
[10]
I-22
[18]
I-32
[26]
I-42
[34]
I-52
[42]
I-62
[50]
I-72
[58]
I-82
[66]
I-92
[74]
I-A2
[82]
I-B2
[90]
I-C2
[98]
I-D2

[106]

I-E2

[114]

I-F2

[122]

[1]

I-11

[9]
I-21
[17]
I-31
[25]
I-41
[33]
I-51
[41]
I-61
[49]
I-71
[57]
I-81
[65]
I-91
[73]

I-A1

[81]

I-B1

[89]

I-C1

[97]

I-D1

[105]

I-E1

[113]

I-F1

[121]

I-00

[0]

I-10

[8]
I-20
[16]
I-30
[24]
I-40
[32]
I-50
[40]
I-60
[48]
I-70
[56]
I-80
[64]
I-90
[72]
I-A0
[80]
I-B0
[88]
I-C0
[96]
I-D0

[104]

I-E0

[112]

I-F0

[120]

30

PIO-64/64L(PCI), PI-128L(PCI), PO-128L(PCI)

CONTEC CO., LTD.

3. External Connection

PO-128L(PCI)

Table 3.3. Relationships between Logical Ports/Bits and Connector Signal Pins
<PO-128L(PCI)>

D7 D6 D5 D4 D3 D2 D1 D0

O-07

O-06

O-05

O-04

O-03

O-02

O-01

Output logical port 0

Output logical port 1

Output logical port 2

Output logical port 3

Output logical port 4

Output logical port 5

Output logical port 6

Output logical port 7

Output logical port 8

Output logical port 9

Output logical port 10

Output logical port 11

Output logical port 12

Output logical port 13

Output logical port 14

Output logical port 15

O-xx represents a CNA or a CNB output signal. [xx] represents a logical bit.

[7]

O-17

[15]

O-27

[23]

O-37

[31]

O-47

[39]

O-57

[47]

O-67

[55]

O-77

[63]

O-87

[71]

O-97

[79]

O-A7

[87]

O-B7

[95]
O-C7
[103]
O-D7
[111]
O-E7
[119]
O-F7
[127]

[6]

O-16

[14]

O-26

[22]

O-36

[30]

O-46

[38]

O-56

[46]

O-66

[54]

O-76

[62]

O-86

[70]

O-96

[78]

O-A6

[86]

O-B6

[94]
O-C6
[102]
O-D6
[110]
O-E6
[118]
O-F6
[126]

[5]

O-15

[13]

O-25

[21]

O-35

[29]

O-45

[37]

O-55

[45]

O-65

[53]

O-75

[61]

O-85

[69]

O-95

[77]

O-A5

[85]

O-B5

[93]
O-C5
[101]
O-D5
[109]
O-E5
[117]
O-F5
[125]

[4]

O-14

[12]

O-24

[20]

O-34

[28]

O-44

[36]

O-54

[44]

O-64

[52]

O-74

[60]

O-84

[68]

O-94

[76]

O-A4

[84]

O-B4

[92]
O-C4
[100]
O-D4
[108]
O-E4
[116]
O-F4
[124]

[3]

O-13

[11]

O-23

[19]

O-33

[27]

O-43

[35]

O-53

[43]

O-63

[51]

O-73

[59]

O-83

[67]

O-93

[75]

O-A3

[83]

O-B3

[91]

O-C3

[99]
O-D3
[107]
O-E3
[115]
O-F3
[123]

[2]

O-12

[10]

O-22

[18]

O-32

[26]

O-42

[34]

O-52

[42]

O-62

[50]

O-72

[58]

O-82

[66]

O-92

[74]

O-A2

[82]

O-B2

[90]

O-C2

[98]
O-D2
[106]
O-E2
[114]
O-F2
[122]

[1]

O-11

[9]

O-21

[17]

O-31

[25]

O-41

[33]

O-51

[41]

O-61

[49]

O-71

[57]

O-81

[65]

O-91

[73]

O-A1

[81]

O-B1

[89]

O-C1

[97]
O-D1
[105]
O-E1
[113]
O-F1
[121]

O-00

[0]

O-10

[8]

O-20

[16]

O-30

[24]

O-40

[32]

O-50

[40]

O-60

[48]

O-70

[56]

O-80

[64]

O-90

[72]

O-A0

[80]

O-B0

[88]

O-C0

[96]
O-D0
[104]
O-E0
[112]
O-F0
[120]

CAUTION

The logical port and logical bit numbers are virtual port and bit numbers that enable programming
independent of board I/O addresses or board types.
For details, refer to API-DIO HELP available after installing API-PAC(W32).

CONTEC CO., LTD.
PIO-64/64L(PCI), PI-128L(PCI), PO-128L(PCI)

31

3. External Connection

Connecting Input Signals

Connect the input signals to a device which can be current-driven, such as a switch or transistor output
device.

The connection requires an external power supply to feed currents.
The board inputs the ON/OFF state of the current-driven device as a digital value.

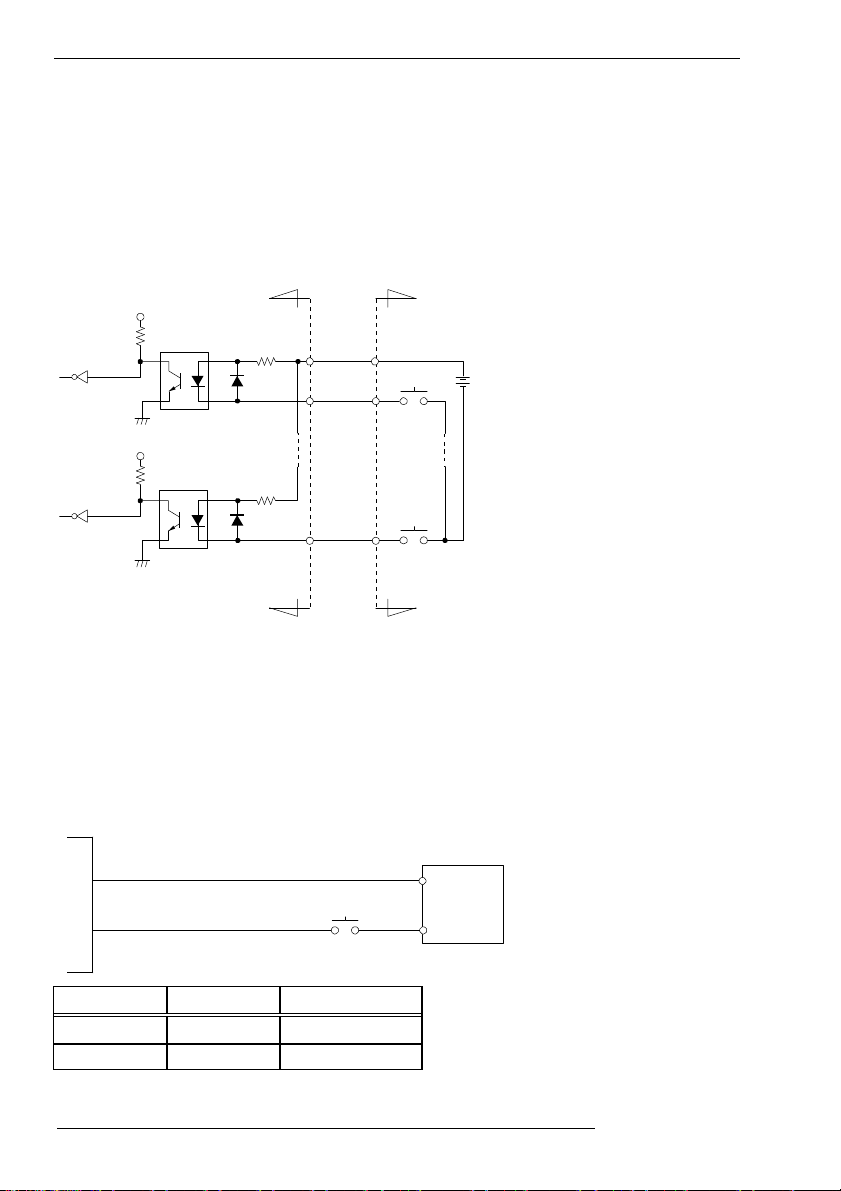

Input Circuit

External C ircuitBoard

Vcc

Ω

4.7k

opto-coupl er

Vcc

4.7k

Plus

Com m on

Input Pin

Ω

Switch

External

Power
Supply
12V to

24VD C

* I n pu t P in: I-x x

opto-coupl er

Input Pin

Switch

Figure 3.5. Input Circuit <PIO-64/64L(PCI)>, <PI-128L(PCI)>

The input circuit of this board is illustrated in Figure 3.5. The on-board opto-couplers isolate internal
input circuits from outside devices. The input channels are to be connected with current sinking output
signals. Driving these opto-isolated circuits require an additional power supply isolated from the PC
system. When a 12VDC external power is used, each input channel will consume about 2.6mA current;
when a 24VDC external power supply is selected, each input channel will consume about 5.1mA current.

Connecting a Switch

Com m on plus for inp ut (C NA : 23 p in)

I-00 (CN A : 7 pin)

Board

Switch

Input Data I-xx External Circuit

1 Low Close
0 High Open

Figure 3.6. An Example to use Input I00 <PIO-64/64L(PCI)>, <PI-128L(PCI)>

32

+

External
Power
Supp ly
12 to
24VD C

-

CONTEC CO., LTD.

PIO-64/64L(PCI), PI-128L(PCI), PO-128L(PCI)

3. External Connection

Connecting Output Signals

Connect the output signals to a current-driven controlled device such as a relay or LED.
The connection requires an external power supply to feed currents.
The board controls turning on/off the current-driven controlled device using a digital value.

Output Circuit

External C ircuit

External

Load

Power

Supply

12V to

24 VD C

Load

Vc c

opto -isolated

opto -isolated

* Output P in: O-xx

10 k Ω

10kΩ

Board

Zener

diode

Zener

diode

Poly Switch

Plus

Com m on

Output

Pin

Outp ut

Pin

Minnus

Com m on

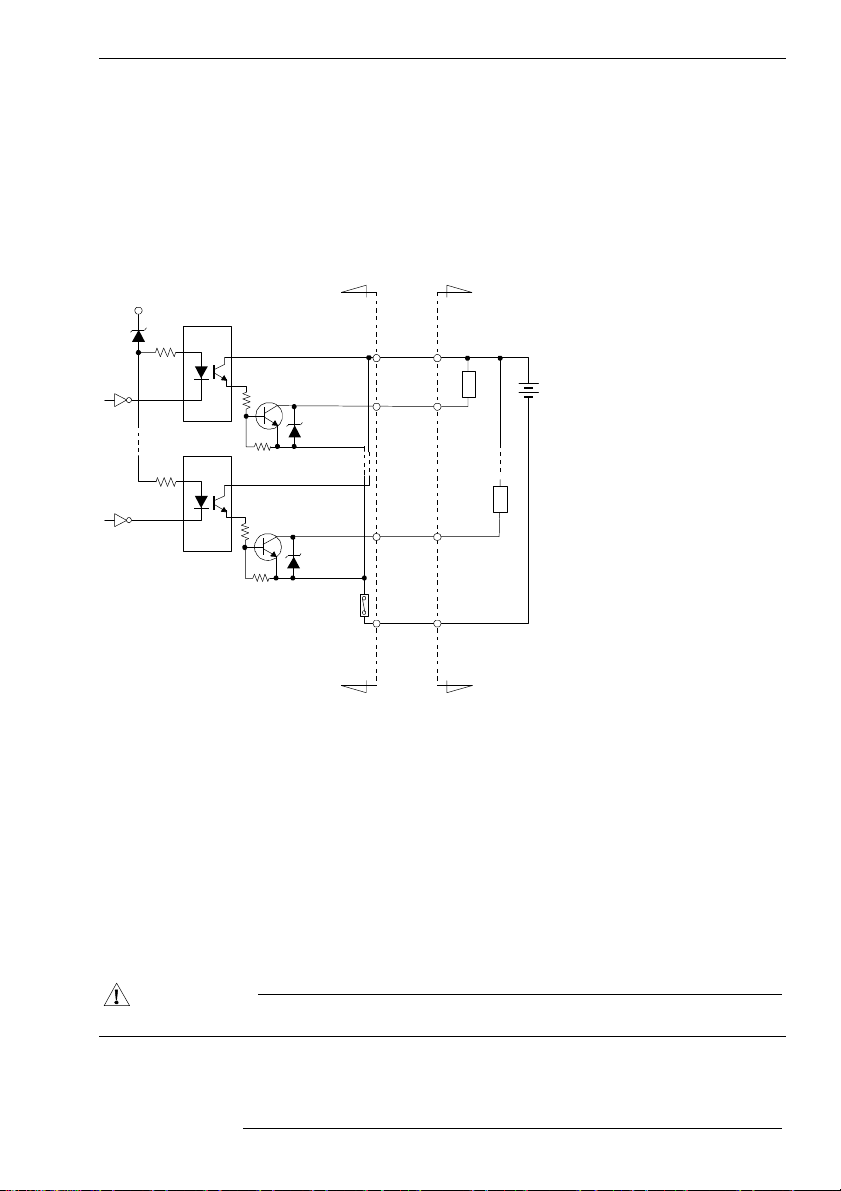

Figure 3.7. Output Circuit <PIO-64/64L(PCI)>, <PO-128L(PCI)>

The output circuit of this board is illustrated in Figure 3.7. The signal output section is an opto- isolated,
open-collector output (current sink type). Driving the output section requires an external power supply.

The rated output current per channel is 100 mA at maximum.
The output section can also be connected to a TTL level input as it uses a low-saturated transistor for

output. The residual voltage (low-level voltage) between the collector and emitter with the output on is

0.5 V or less at an output current within 50 mA or at most 1.0 V at an output current within 100 mA.
A zener diode is connected to the output transistor for protection from surge voltages. A PolySwitch-

based over-current protector is provided for every eight output transistors. When the over-current
protector works, the output section of the board is temporarily disabled. If this is the case, turn of the
power to the PC and the external power supply and wait for a few minutes, then turn them on back.

CAUTION

When the PC is turned on, all output are reset to OFF.

CONTEC CO., LTD.
PIO-64/64L(PCI), PI-128L(PCI), PO-128L(PCI)

33

3. External Connection

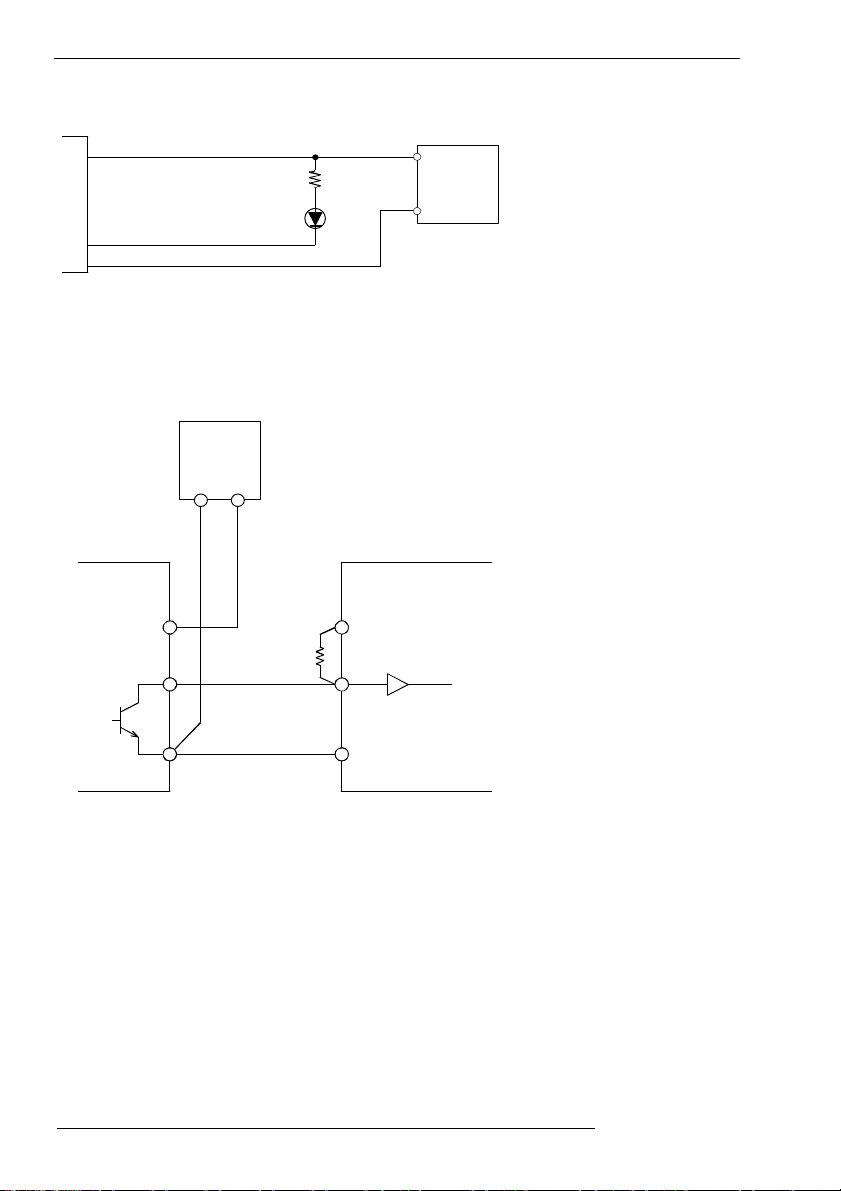

Example of Connection to LED

Com m on pluus for ou tp ut (CNB : 2 3 p in)

Ω

5.1k

Board

O-80 (CNB : 7 pin)
Com m on Minu s for outp ut (C NB : 1 p in)

Whe n “1” is output to a relevant bit, the corres pon ding LE D com es on.
Whe n “0” is output to t he bit, in con tr ast, th e L ED g oes ou t.

LED

Figure 3.8. An Example to use Output O-80 <PIO-64/64L(PCI)>, <PO-128L(PCI)>

External

+

-

Power
Supply
12V to

24VD C

Example of Connection to TTL Level Input

External

Power S up pl y

1 2V t o 24VDC

+

-

Input Boa rd

Com m on plus
fo r ou tput

Outp ut

Com m on Minn us
fo r ou tput

VCC

2k Ω

TTL Le v el Input

GND

Figure 3.9. Connection Example of Output and TTL level Input Signal
<PIO-64/64L(PCI)>, <PO-128L(PCI)>

34

PIO-64/64L(PCI), PI-128L(PCI), PO-128L(PCI)

CONTEC CO., LTD.

3. External Connection

Connecting the Sink Type Output and Sink
Output Support Input

The following example shows a connection between a sink type output (output board) and a sink output
support input (input board). Refer to this connection example when you connect such boards to each
other.

External
Power Supply
12V to 24VDC

+

-

Outp ut Board

Com m on plus
fo r ou tput

Output(Sin k Type)

Com m on Minn us
fo r ou tput

Input Board

Com m on plus
fo r input

Input(Sink O utput Suppo rt)

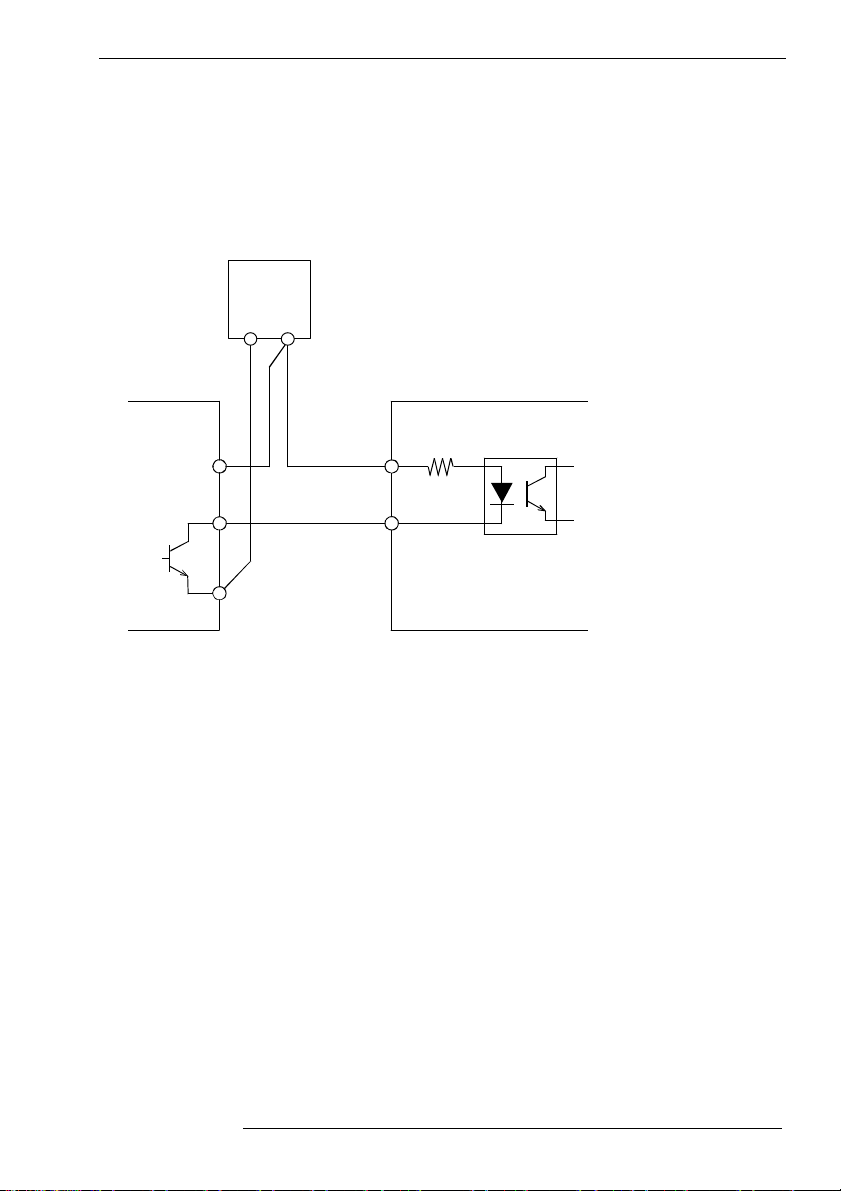

Figure 3.10.Example of Connecting the Sink Type Output and Sink Output Support Input

CONTEC CO., LTD.
PIO-64/64L(PCI), PI-128L(PCI), PO-128L(PCI)

35

3. External Connection

36

PIO-64/64L(PCI), PI-128L(PCI), PO-128L(PCI)

CONTEC CO., LTD.

4. Functions

4. Functions

This section describes the functions of the board.

Data I/O Function

Data Input

When input data is “ON”, “1” is input to the relevant bit.
When the input data is “OFF”, in contrast, “0” is input to the relevant bit

Data Output

When “1” is output to the relevant bit, the corresponding transistor is set to “ON”.
When “0” is output to the relevant bit, in contrast, the corresponding transistor is set to “OFF”.

CAUTION

When the PC is turned on, all output are reset to 0 (OFF).

Monitoring Output Data

The <PIO-64/64L(PCI)> and <PO-128L(PCI)> can read the state of the data currently being output
without affecting the output data.

CONTEC CO., LTD.
PIO-64/64L(PCI), PI-128L(PCI), PO-128L(PCI)

37

4. Functions

Digital Filter Function of Input Channels

<PIO-64/64L(PCI)>, <PI-128L(PCI)> are equipped with a digital filter function for input signals. This
function provides all input channels with a means of cutting chattering and noise.

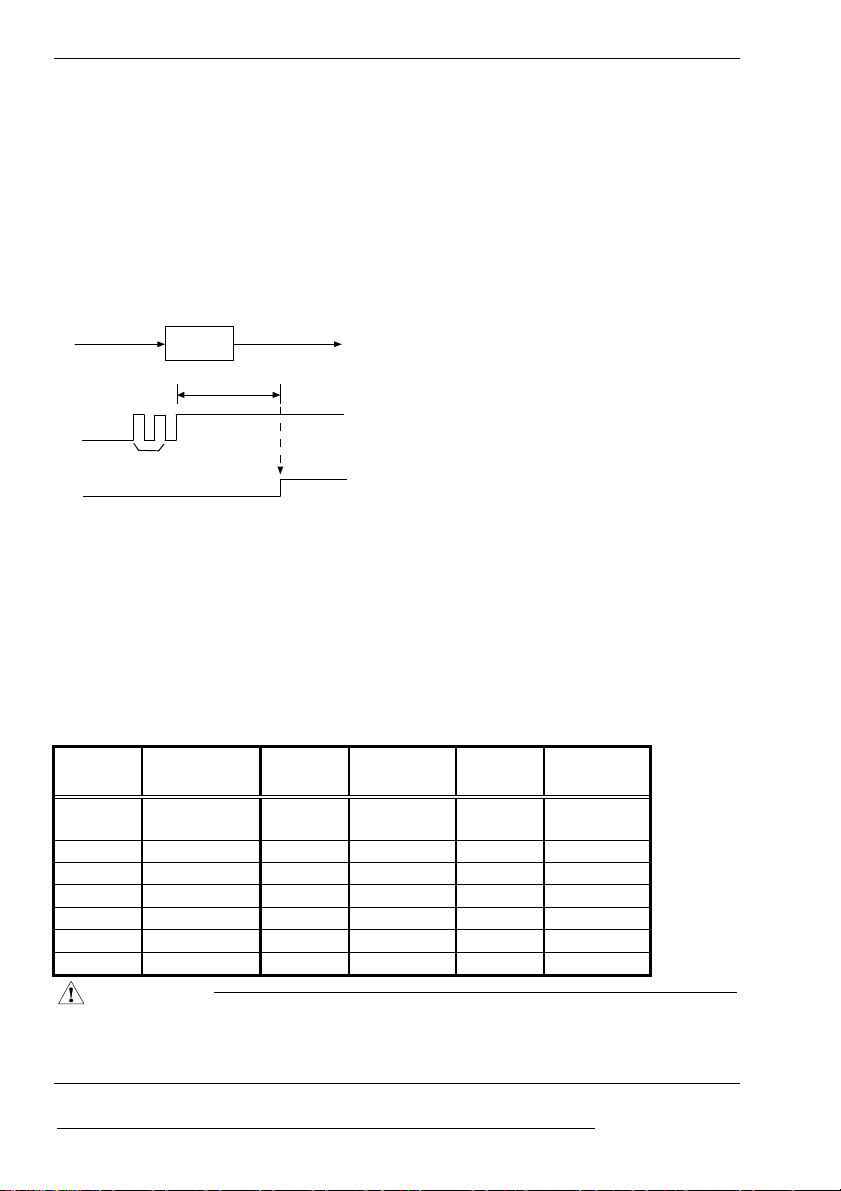

Digital Filter Function Principle

To use this function, you must set a filter time. The function circuits will then check all input signals
synchronizing with the clock. A signal level, low or high, will be input only if the signal level remains
stable during the filter set time. Therefore, if a signal level changes faster than the filter set time, this
level change will be ignored and the previous signal level will be input.

Input Signal

Input Signal

Input to PC

Digi tal
Filter

Fi lter Se tting Tim e

Inva lid

Input to PC

Va lid

Figure 4.1. Digital Filter Function Principle

Set Digital Filter Time

Set the digital filter time to 0 to 24 (14h).
Setting the digital filter time to 0 disables digital filtering. It is set to 0 when the power is turned on.
Table 4.1. shows the relationships between digital filter time settings and the actual digital filter times.

Digital Filter Time[sec.] = 2n / (8 ´ 106)

n: = setting data(0 to 20)

Table 4.1. Digital Filter Time and Setting Data

Setting Data

(n)

0 (00h)

1 (01h) 0.25µsec 8 (08h) 32µsec 15 (0Fh) 4.096msec
2 (02h) 0.5µsec 9 (09h) 64µsec 16 (10h) 8.192msec
3 (03h) 1µsec 10 (0Ah) 128µsec 17 (11h) 16.384msec
4 (04h) 2µsec 11 (0Bh) 256µsec 18 (12h) 32.768msec
5 (05h) 4µsec 12 (0Ch) 512µsec 19 (13h) 65.536msec
6 (06h) 8µsec 13 (0Dh) 1.024msec 20 (14h) 131.072msec

CAUTION

Digital Filter

Time

The filter function

is not used.

Setting Data

(n)

7 (07h) 16µsec 14 (0Eh) 2.048msec

- Writing a setting data other than a "0" will apply this filter function to all input channels. This
function cannot be applied to particular pins only but is applied to all input channels.

- Do not set a data more than 20(14H). Doing so may cause the board malfunctioning.

Digital Filter

Time

Setting Data

(n)

Digital Filter

Time

38

PIO-64/64L(PCI), PI-128L(PCI), PO-128L(PCI)

CONTEC CO., LTD.

4. Functions

Interrupt Control Function

The <PIO-64/64L(PCI)> and <PO-128L(PCI)> can use up to 16 channels of input signals as interrupt
request signals. The input signals available as interrupt request signals are I-00 to I-17.

The board can generate an interrupt request signal to the PC when the input signal change from High to
Low or from Low to High.

When the digital filter (described above) is used, interrupt requests are generated by input signals that
have passed through the filter.

Disabling/enabling Interrupts

Interrupt mask bits can be used to disable or enable the individual bits for interruptions.
Once a certain bit has been interrupt-disabled, no interrupt occurs even when the corresponding input

signal changes its level.
To let interrupts occur, enable the corresponding interrupt mask bit for interruptions.

CAUTION

All of the interrupt mask bits are interrupt-disabled when the power is turned on.

Selecting the Interrupt Edge

Interrupt edge select bits can be used to set the input logic for interruption bit by bit.
If you set an interrupt edge select bit to 0, an interrupt occurs when the input value to the corresponding

bit changes from 0 to 1 (at the fall of the input signal from High to Low).
If you set an interrupt edge select bit to 1, an interrupt occurs when the input value to the corresponding

bit changes from 1 to 0 (at the rise of the input signal from Low to High).

CAUTION

When the power is turned on, all of the interrupt edge select bits are set to 0 so that an interrupt
occurs when the input value changes from 0 to 1 (at the fall of the input signal from High to Low).

Clearing the Interrupt Status and Interrupt Signal

Interrupt status bits are used to identify the input signal bit being used for requesting an interrupt.
When an interrupt status is input, the interrupt request signal and the interrupt status are cleared

automatically.

CAUTION

- All of the interrupt status bits are set to 0 when the power is turned on.

- If an interrupt mask bit has been set to disable interrupts, the interrupt status bit is not set even when
the input signal changes its level.

CONTEC CO., LTD.
PIO-64/64L(PCI), PI-128L(PCI), PO-128L(PCI)

39

4. Functions

40

PIO-64/64L(PCI), PI-128L(PCI), PO-128L(PCI)

CONTEC CO., LTD.

5. About Software

5. About Software

The bundled CD-ROM “API Function Library Package API-PAC(W32) ” contains the functions that
provide the following features:

- Digital input/output of specified ports

- Hardware digital input/output of specified bits

- Hardware digital filtering that prevents chattering

For details, refer to the help file. The help file provides various items of information such as “Function
Reference”, “Sample Programs” , and “FAQs”. Use them for program development and troubleshooting.

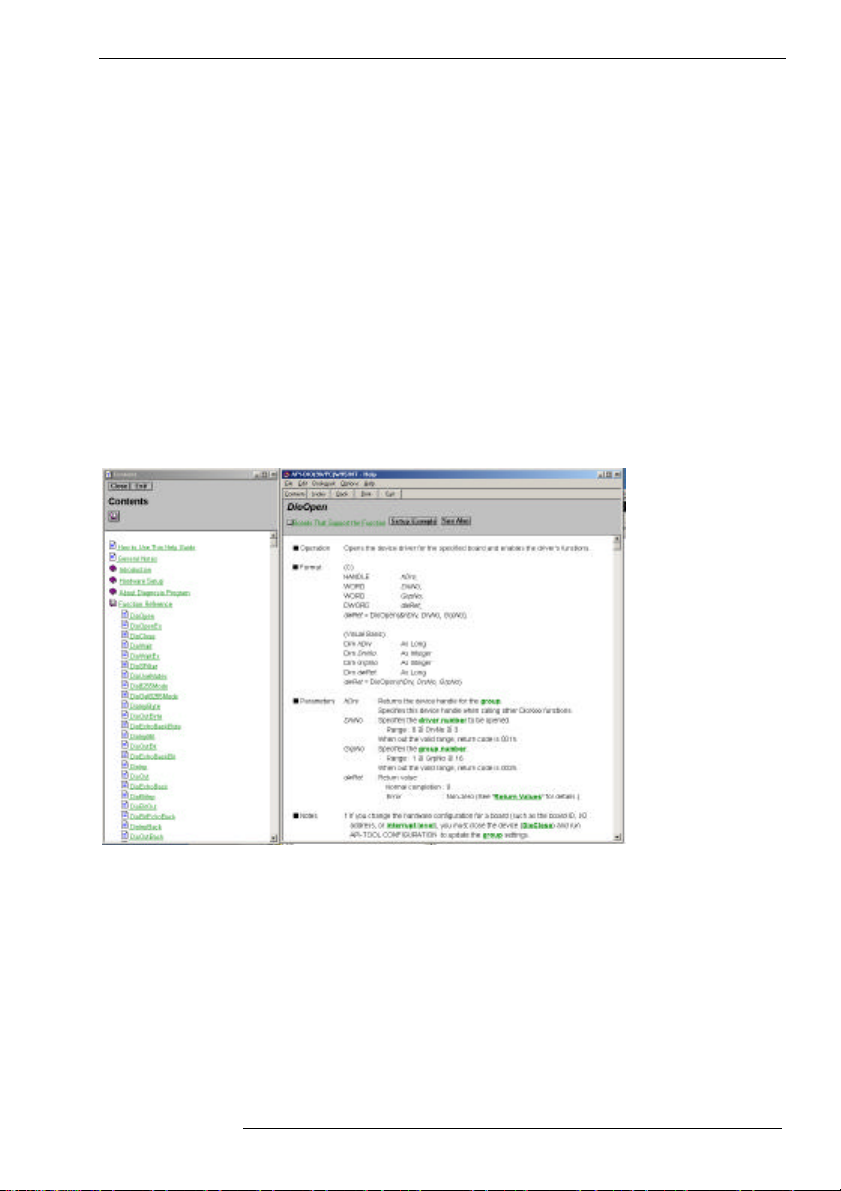

Accessing the Help File

(1) Click on the [Start] button on the Windows taskbar.
(2) From the Start Menu, select “Programs” – “CONTEC API-PAC(W32)” – “Dio” – “API-DIO

HELP” to display help information.

CONTEC CO., LTD.
PIO-64/64L(PCI), PI-128L(PCI), PO-128L(PCI)

41

5. About Software

Using Sample Programs

Sample programs have been prepared for specific basic applications.
To use each sample program, enter its driver number and group number set by API-TOOL Configuration

in the DrvNo and GrpNo fields.
Use these sample programs as references for program development and operation check.
The sample programs are stored in \Program Files\CONTEC\API-PAC(W32)\Dio\Samples.

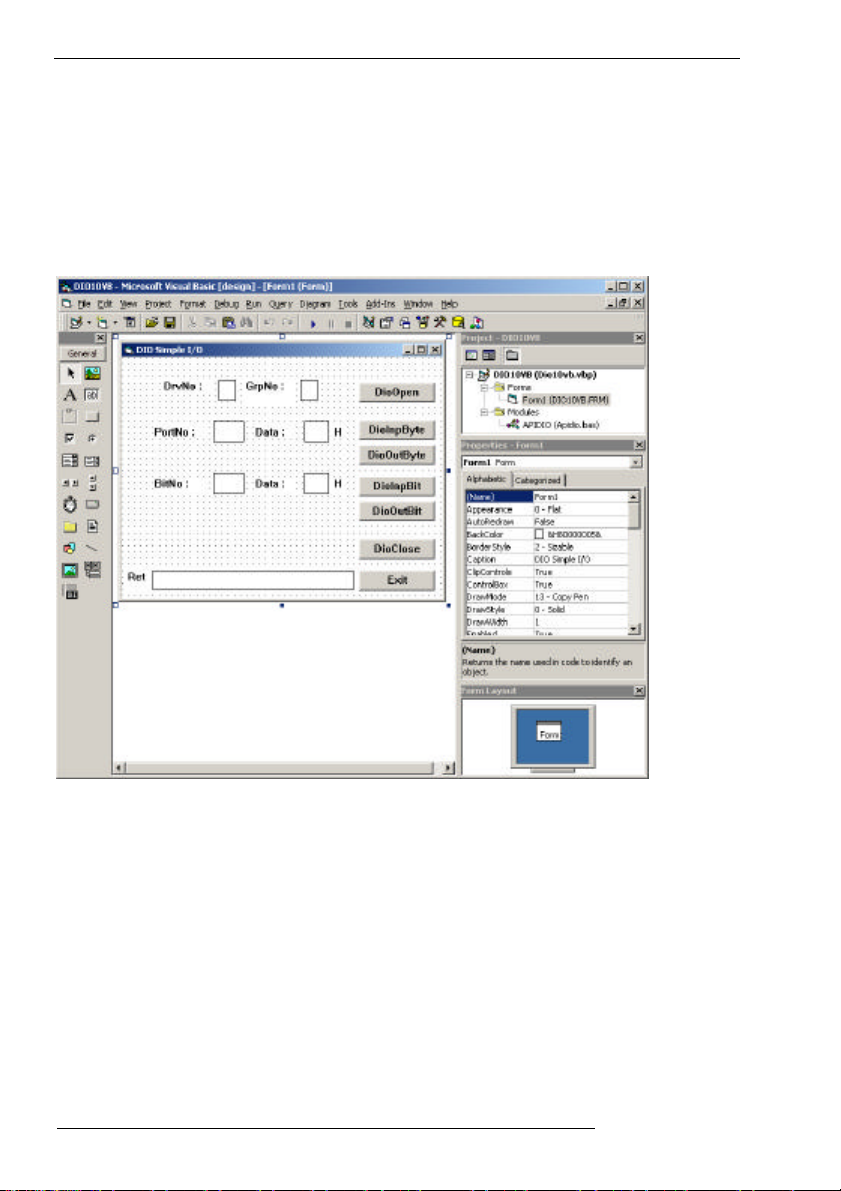

Running a Sample Program
(1) Click on the [Start] button on the Windows taskbar.
(2) From the Start Menu, select “Programs” – “CONTEC API-PAC(W32)” – “Dio” – “SAMPLE…”.
(3) A sample program is invoked.

42

PIO-64/64L(PCI), PI-128L(PCI), PO-128L(PCI)

CONTEC CO., LTD.

5. About Software

Sample Programs - Examples

-Sample program 1 : Inputs digital data through a specified port.

-Sample program 2 : Outputs digital data through a specified port.

-Sample program 3 : Inputs/outputs digital data from/to a programmable board.

-Sample program 4 : Inputs digital data from a specified port in the background.

-Sample program 5 : Inputs/outputs digital data through a specified bit.

-Sample program 6 : Services interrupts of a specified board.

-Sample program 7 : Performs process control of a specified board.

-Sample program 8 : Performs trigger monitoring of a specified board.

-Sample program 9 : Inputs digital data through a specified port using BCD data.

-Sample program 10 : Executes digital input (simple functions) at specified bits through a

specified port.

-Sample program 11 : Services interrupts of a specified board (using an extended function).

-Sample program (Console) : Inputs/outputs digital data through a specified board.

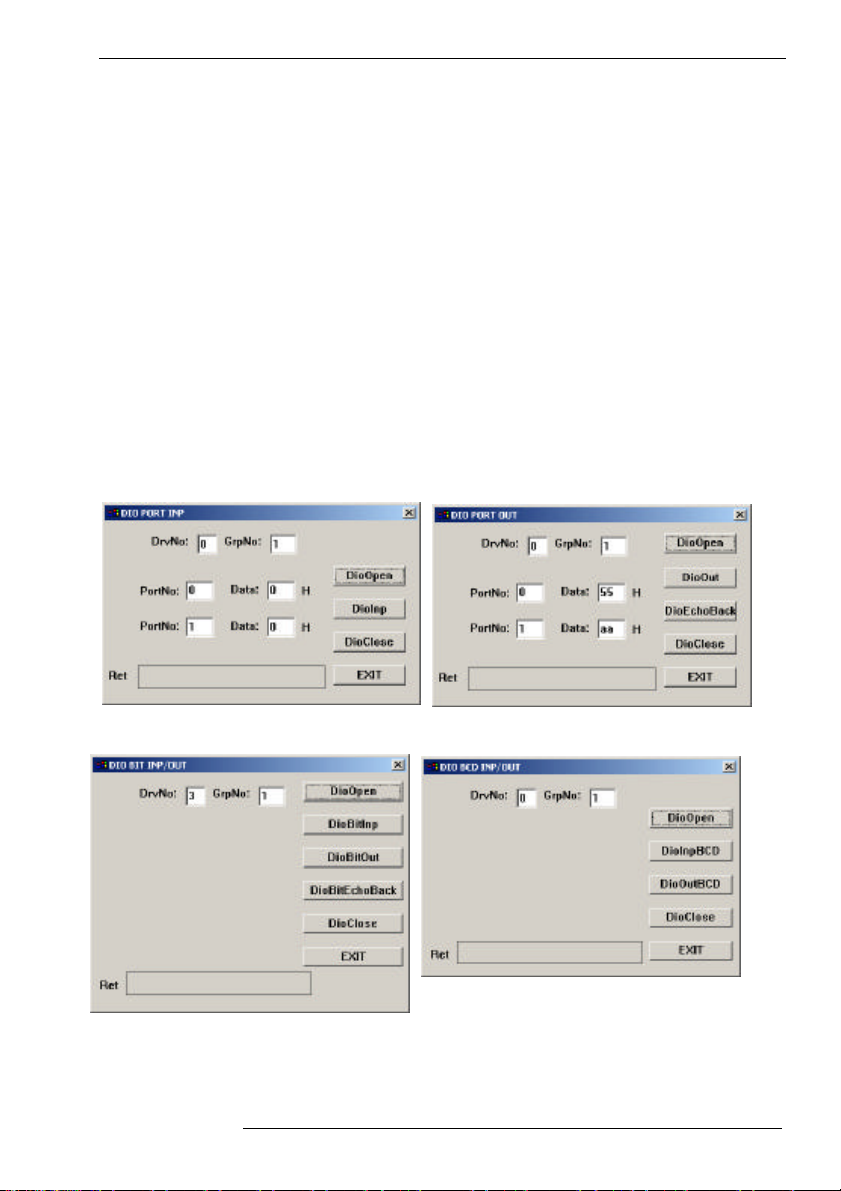

[Sample program 1] [Sample program 2]

[Sample program 5] [Sample program 9]

CONTEC CO., LTD.
PIO-64/64L(PCI), PI-128L(PCI), PO-128L(PCI)

43

5. About Software

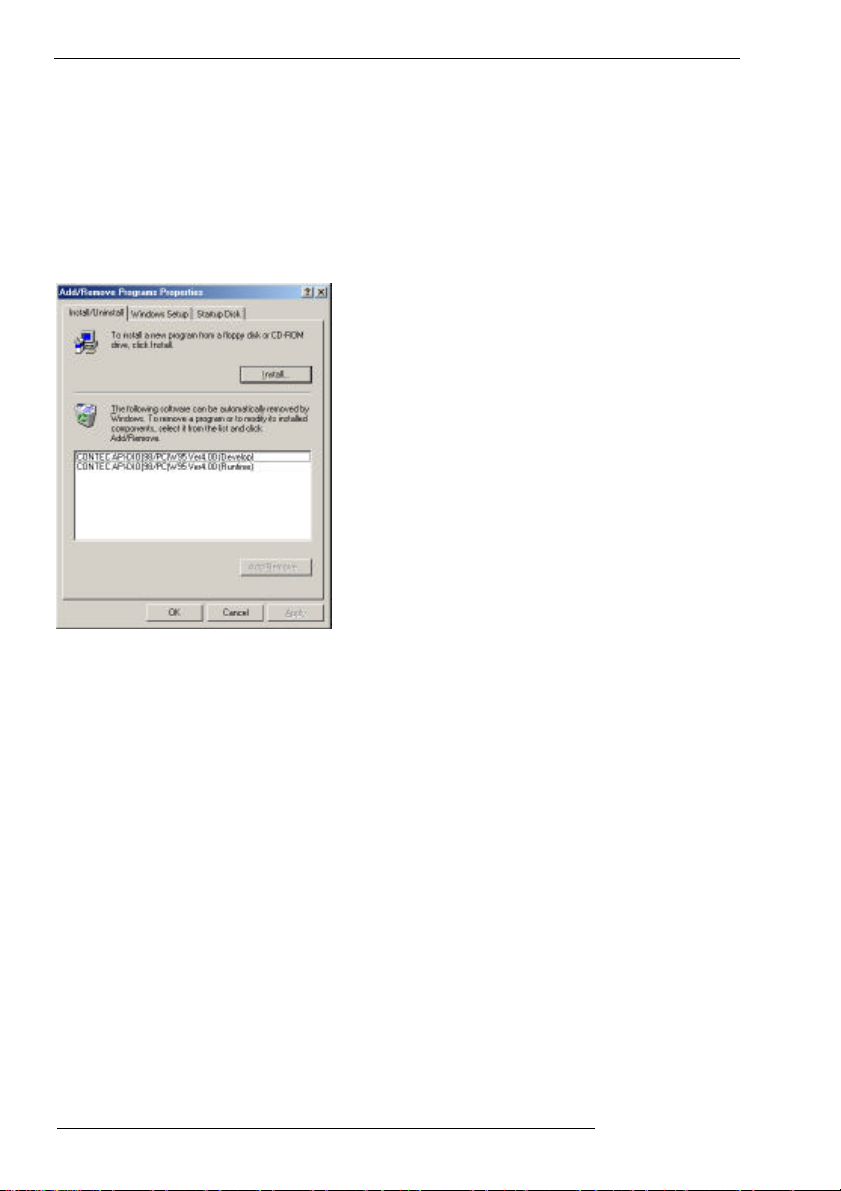

Uninstalling the API Function Libraries

To uninstall API-PAC(W32), follow the procedure below.
(1) Click on the [Start] button on the Windows taskbar. From the Start Menu, select “Settings” –

“Control Panel”.
(2) Double-click on “Add/Remove Programs” in the Control Panel.
(3) Select “CONTEC API-DIO(98/PC)xx” from the application list displayed, then click on the

[Add/Remove] button. Follow the on-screen instructions to uninstall the function libraries.

44

PIO-64/64L(PCI), PI-128L(PCI), PO-128L(PCI)

CONTEC CO., LTD.

CD-ROM Directory Structure

\
| Autorun.exe Installer Main Window
| Readmeu.htm Version information on each API-TOOL
|– APIPAC
| |– AIO
| | |– Disk 1
| | |– Disk 2
| | |– ……
| | |– Disk N
| |– CNT
| |– ……
|– FreeSamples Sample programs in Delphi and Builder
| |– Builder 1.0
| |– ……
|– HELP HELP file
| |– Aio
| |– Cnt
| |– ……
|– INF OS-specific INF file folder(Windows 9X, 2000)
| |– WDM
| |– Win2000
| |– Win95
|– Manual Reference Manual(PDF type)
|– Readme Driver readme file folder
|– Release Driver file(For creation of a user-specific install program)
|– API_NT
|– API_W95

5. About Software

CONTEC CO., LTD.
PIO-64/64L(PCI), PI-128L(PCI), PO-128L(PCI)

45

5. About Software

46

PIO-64/64L(PCI), PI-128L(PCI), PO-128L(PCI)

CONTEC CO., LTD.

6. About Hardware

6. About Hardware

This chapter provides hardware specifications and hardware-related supplementary information.

Hardware specification

PIO-64/64L(PCI)

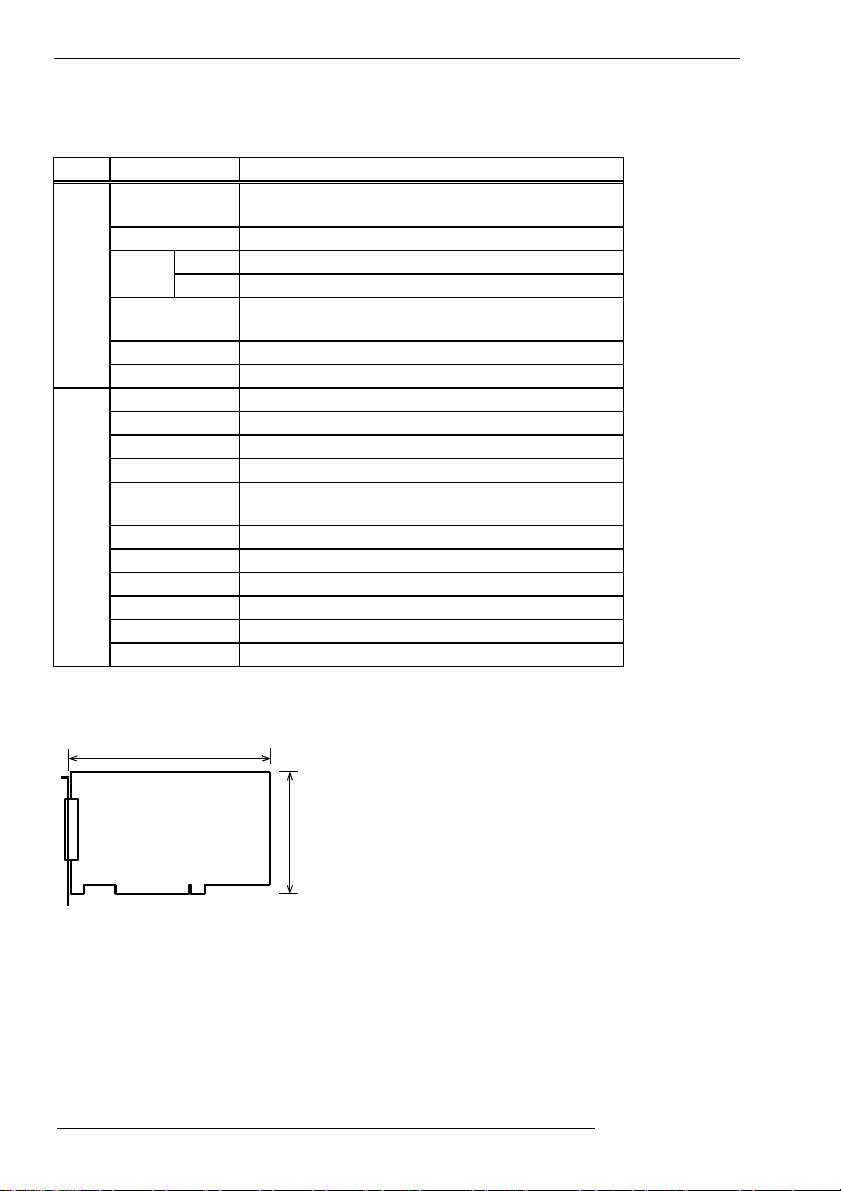

Table 6.1. Specifications < PIO-64/64L(PCI)>

Item Specification

Type Opto-Isolated Input (for current sinking output) (Negative logic *)

Input

Number of Channels 64 channels (16 of these 64 can be used as interrupt signal)

(16 channels share a positive common)
Resister 4.7kΩ
Current required to

turn ON
Current required to

turn OFF
Interrupts Combine four interrupt signals to one interrupt request signal as

Response time 200µsec(Max.)
Type Opto-Isolated Open Collector Output (current sinking type)

Output

Number of Channels 64 channels (16 channels share a negative common)

Voltage 35VDC(Max.)Rate
Current 100mA/channel (Max.)

Residual voltage
with output on

Surge protector Zener diode RD47FM(NEC)
Response time 200µsec(Max.)
I/O address Any 32-byte boundary

Common

Interrupt level 1 level use
Boards in one system Maximum of 16 boards can be install in a same system.
Isolated voltage 250Vrms
External power

supply
Power consumption 5VDC 500mA(Max.)
Operating condition 0 to 50°C, 10 to 90%RH (No condensation)
Connecting distance 50m(Typ.)(depending on wiring environment)
PCI bus specification 32bit, 33MHz, 5V
Dimension (mm) 176.41(L)×106.68(H)
Weight 215g

* Data “0” and “1” correspond to the High and Low levels, respectively.

CONTEC CO., LTD.
PIO-64/64L(PCI), PI-128L(PCI), PO-128L(PCI)

2.0mA(Min.)

0.16mA(Max.)

the INTA.

Either rising edge or falling edge of input signal can generate

interrupt.

(Negative logic *)

0.5V or less (Output current ≤ 50mA),

1.0V or less (Output current ≤ 100mA)

12 to 24VDC (±10 % )

47

6. About Hardware

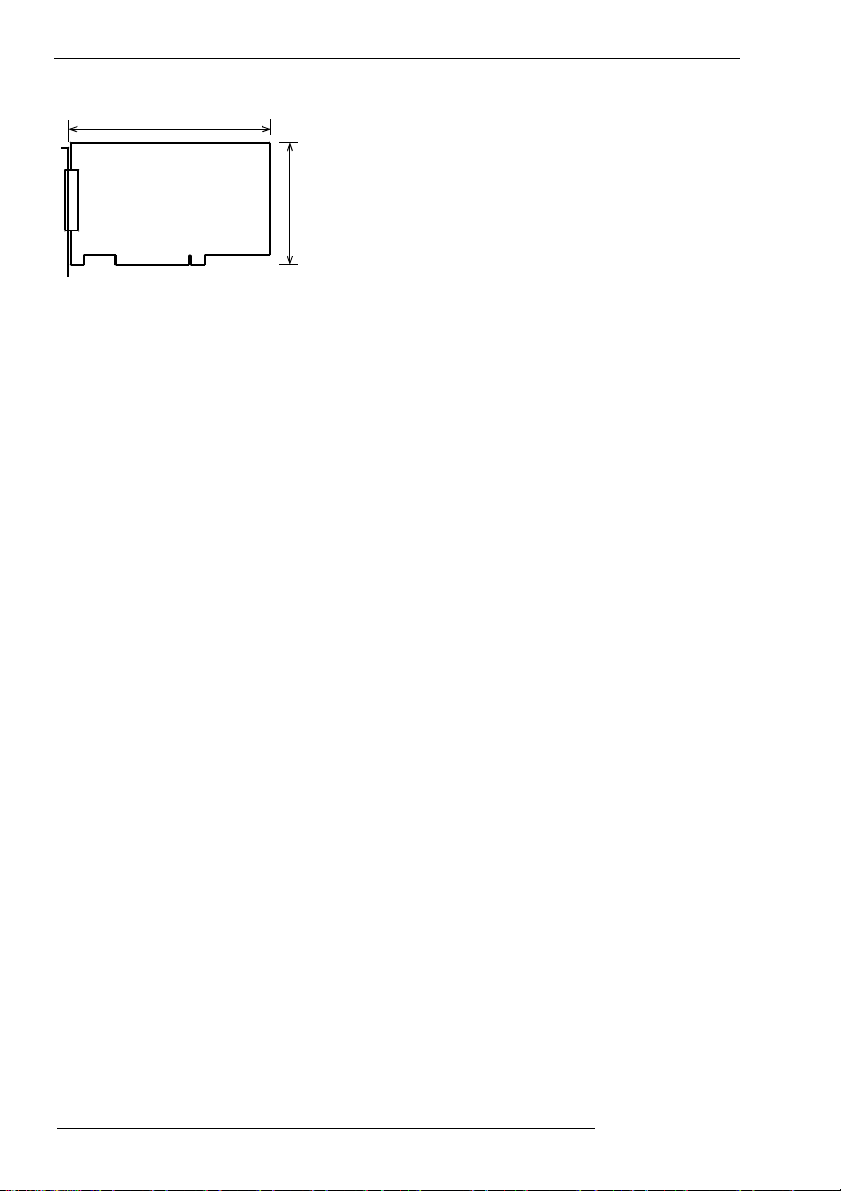

Board Dimensions

176.41(L)

106.68(H)

The standard outside dimension (L) is
the distance from the end of the board
to the outer surface of the slot cover.

[mm]

48

PIO-64/64L(PCI), PI-128L(PCI), PO-128L(PCI)

CONTEC CO., LTD.

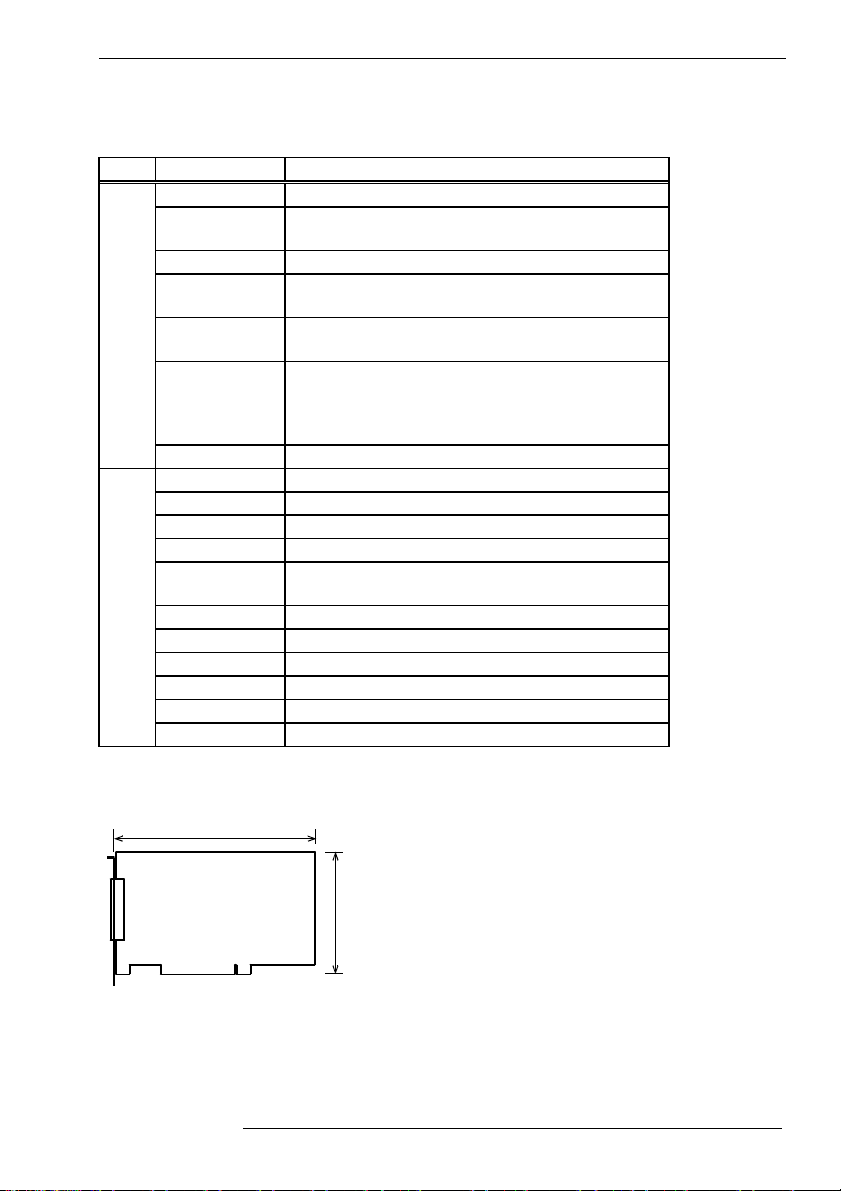

PI-128L(PCI)

Table 6.2. Specifications < PI-128L(PCI)>

Item Specifications

Type Opto-Isolated Input (for current sinking output) (Negative logic *)

Input

Number of Channels

Resister 4.7kΩ
Current required to

turn ON
Current required to

turn OFF
Interrupts Combine four interrupt signals to one interrupt request signal as

Response time 200µsec(Max.)
I/O address Any 32-byte boundary

Common

Interrupt level 1 level use
Boards in one system Maximum of 16 boards can be install in a same system.
Isolated voltage 250Vrms
External power

supply
Power consumption 5VDC 500mA(Max.)
Operating condition 0 to 50°C, 10 to 90%RH (No condensation)
Connecting distance 50m(Typ.)(depending on wiring environment)
PCI bus specification 32bit, 33MHz, 5V
Dimension (mm) 176.41(L)×106.68(H)
Weight 215g

* Data “0” and “1” correspond to the High and Low levels, respectively.

128 channels (16 of these 128 can be used as interrupt signal)

(16 channels share a positive common)

2.0mA(Min.)

0.16mA(Max.)

the INTA.

Either rising edge or falling edge of input signal can generate

interrupt.

12 to 24VDC(±10%)

6. About Hardware

Board Dimensions

176.41(L)

106.68(H)

The standard outside dimension (L) is
the distance from the end of the board
to the outer surface of the slot cover.

CONTEC CO., LTD.

[mm]

PIO-64/64L(PCI), PI-128L(PCI), PO-128L(PCI)

49

6. About Hardware

PO-128L(PCI)

Table 6.3. Specifications < PO-128L(PCI)>

Item Specifications

Type Opto-Isolated Open Collector Output (current sinking type)

Output

(Negative logic *)

Number of Channels 128 channels ( 16 channels share a negative common)

Voltage 35VDC(Max.)Rate
Current 100mA/channel (Max.)

Residual voltage
with output on

Surge protector Zener diode RD47FM(NEC)
Response time 200µsec(Max.)
I/O address Any 32-byte boundary

Common

Interrupt level not use
Boards in one system Maximum of 16 boards can be install in a same system.
Isolated voltage 250Vrms
External power

supply
Power consumption 5VDC 500mA(Max.)
Operating condition 0 to 50°C, 10 to 90%RH (No condensation)
Connecting distance 50m(Typ.)(depending on wiring environment)
PCI bus specification 32bit, 33MHz, 5V
Dimension (mm) 176.41(L)×106.68(H)
Weight 215g

* Data “0” and “1” correspond to the High and Low levels, respectively.

0.5V or less (Output current ≤ 50mA),

1.0V or less (Output current ≤ 100mA)

12 to 24VDC(±10%)

Board Dimensions

176.41(L)

106.68(H)

The standard outside dimension (L) is
the distance from the end of the board
to the outer surface of the slot cover.

[mm]

50

PIO-64/64L(PCI), PI-128L(PCI), PO-128L(PCI)

CONTEC CO., LTD.

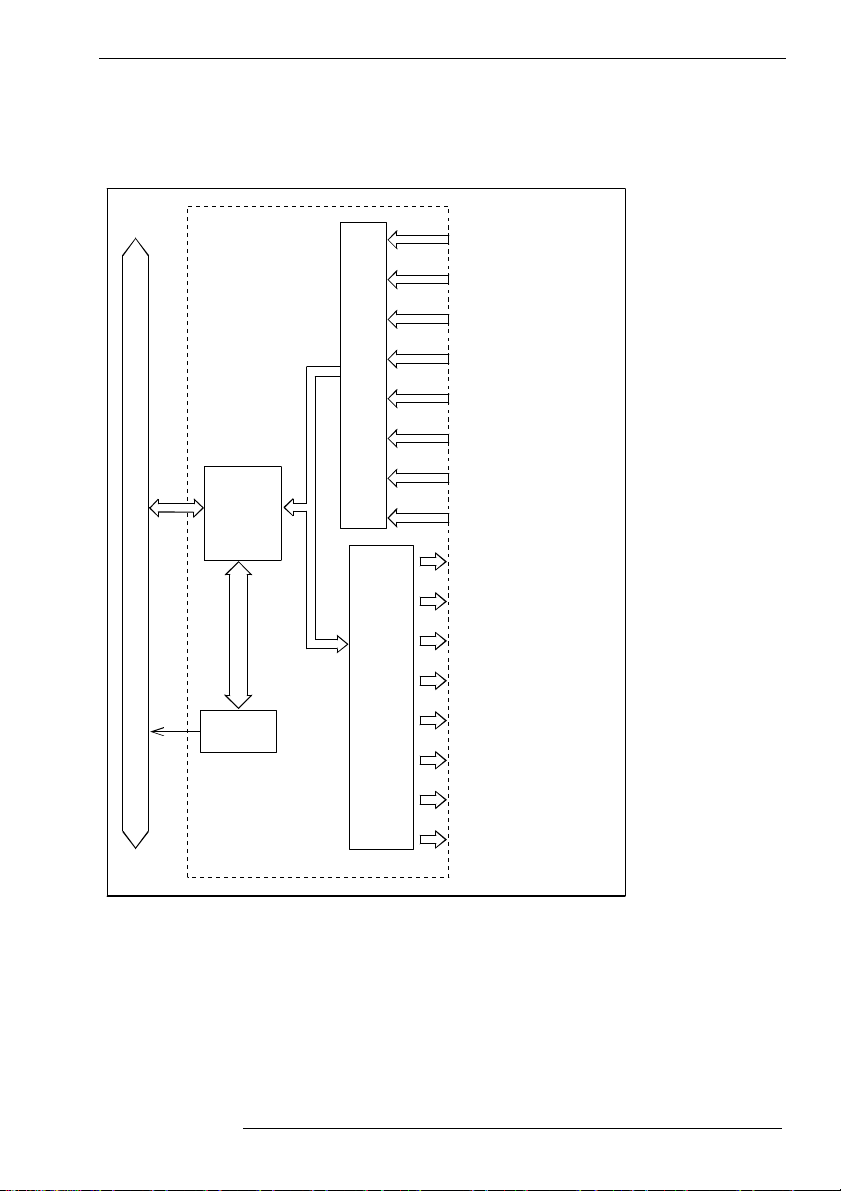

Block Diagram

PIO-64/64L(PCI)

Control

Circuit

PCI BUS

Interrupt

Control

Opto­coupler

Opto-

coupler

&

Transistor

PIO-64/64L(PCI)

External
Digital Input Port0

(8ch, Group0)

External
Digital Input Port1

(8ch, Group1)
External
Digital Input Port2

(8ch, Group2)
External
Digital Input Port3

(8ch, Group3)
External
Digital Input Port4

(8ch, Group4)
External
Digital Input Port5

(8ch, Group5)

External
Digital Input Port6

(8ch, Group6)
External
Digital Input Port7

(8ch, Group7)
External
Digital Output Port8

(8ch, Group8)
External
Digital Output Port9

(8ch, Group9)
External
Digital Output PortA

(8ch, GroupA)

External
Digital Output PortB

(8ch, GroupB)
External
Digital Output PortC

(8ch, GroupC)

External
Digital Output PortD

(8ch, GroupD)
External
Digital Output PortE

(8ch, GroupE)
External
Digital Output PortF

(8ch, GroupF)

6. About Hardware

Figure 6.1. Block Diagram < PIO-64/64L(PCI)>

CONTEC CO., LTD.
PIO-64/64L(PCI), PI-128L(PCI), PO-128L(PCI)

51

6. About Hardware

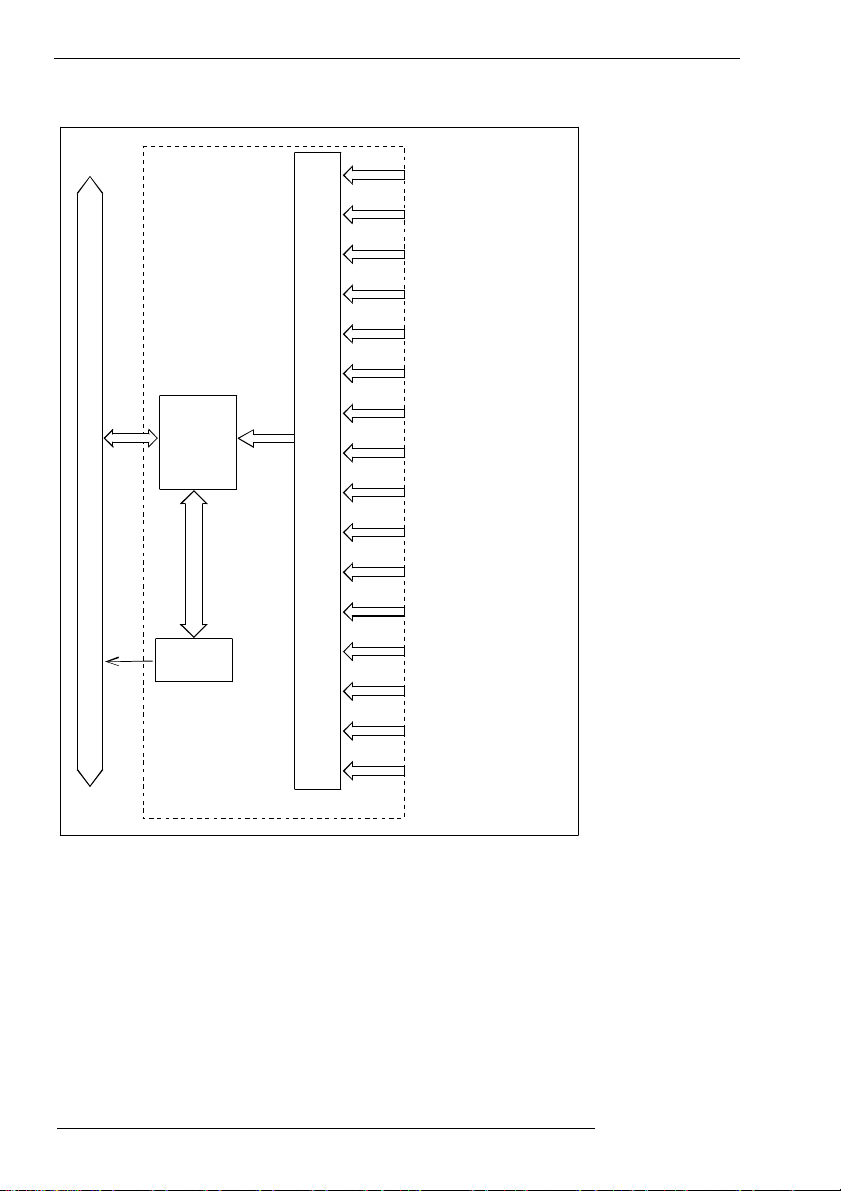

PI-128L(PCI)

PCI BUS

Interrupt

Control
Circuit

Control

Opto­coupler

PI-128L(PCI)

External
Digital Input Port0

(8ch, Group0)

External
Digital Input Port1

(8ch, Group1)
External
Digital Input Port2

(8ch, Group2)
External
Digital Input Port3

(8ch, Group3)
External
Digital Input Port4

(8ch, Group4)
External
Digital Input Port5

(8ch, Group5)
External
Digital Input Port6

(8ch, Group6)
External
Digital Input Port7

(8ch, Group7)
External
Digital Input Port8

(8ch, Group8)
External
Digital Input Port9

(8ch, Group9)
External
Digital Input PortA

(8ch, GroupA)

External
Digital Input PortB

(8ch, GroupB)

External
Digital Input PortC

(8ch, GroupC)
External
Digital Input PortD

(8ch, GroupD)
External
Digital Input PortE

(8ch, GroupE)
External
Digital Input PortF

(8ch, GroupF)

Figure 6.2. Block Diagram < PI-128L(PCI)>

52

PIO-64/64L(PCI), PI-128L(PCI), PO-128L(PCI)

CONTEC CO., LTD.

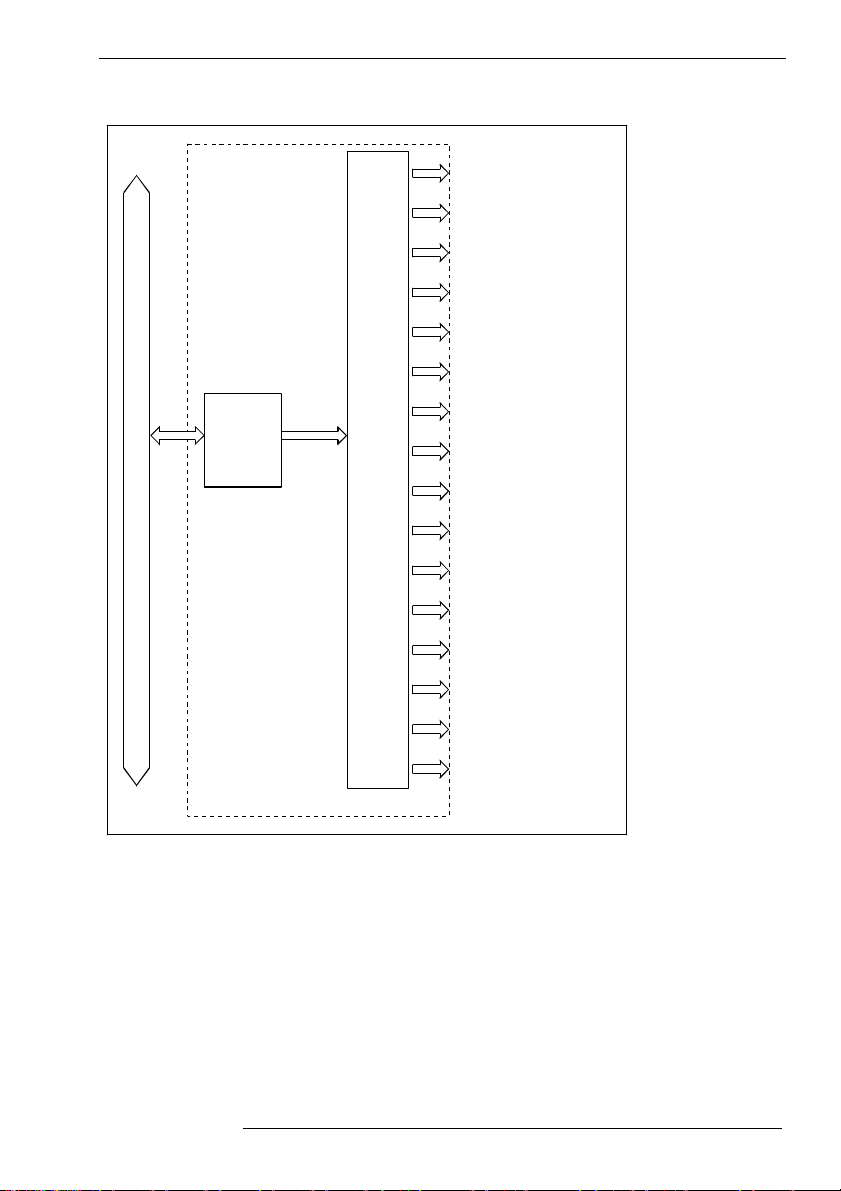

PO-128L(PCI)

PC I B U S

Control
Circuit

Opto-

co u pler

&

Transistor

PO-128 L (P CI)

Exte r na l
Digital Output P ort0

(8 c h, Group0)

External
Digital Output Port1

(8 c h, Group1)
Exte r na l
Digital Output Port2

(8 c h, Group2)
Exte r na l
Digital Output Port3

(8 c h, Group3)
Exte r na l
Digital Output Port4

(8 c h, Group4)
Exte r na l
Digital Output Port5

(8 c h, Group5)

External

Digital Output Port6

(8 c h, Group6)

External

Digital Output Port7

(8 c h, Group7)

External

Digital Output Port8

(8 c h, Group8)
Exte r na l
Digital Output Port9

(8 c h, Group9)
Exte r na l
Digital Output PortA

(8 c h, GroupA )
Exte r na l
Digital Output PortB

(8 c h, GroupB )
Exte r na l
Digital Output P ortC

(8 c h, GroupC )
Exte r na l
Digital Output PortD

(8 c h, GroupD )
Exte r na l
Digital Output PortE

(8 c h, GroupE )
Exte r na l
Digital Output PortF
(8 c h, GroupF)

6. About Hardware

Figure 6.3. Block Diagram< PO-128L(PCI) >

CONTEC CO., LTD.
PIO-64/64L(PCI), PI-128L(PCI), PO-128L(PCI)

53

A-46-647

LYBN981

[020712]

CONTEC Group

JAPAN : Headquarters

CONTEC Co., LTD.
3-9-31, Himesato, Nishiyodogawa-ku, Osaka 555-0025, Japan
Tel : [phone] Fax : [phone]
E-mail : [e-mail]

U.S.A. : CONTEC MICROELECTRONICS U.S.A. INC.

744 South Hillview Drive, Milpitas, CA 95035 U.S.A.
Tel : [phone] Fax : [phone]
E-mail : [e-mail]

EUROPE : CONTEC MICROELECTRONICS EUROPE B.V.

Binnenweg 4, 2132 CT, Hoofddorp, The Netherlands
Tel : [phone] Fax : [phone]
E-mail : [e-mail]

KOREA : HYOJIN CONTEC C o., LTD.

Ki-im Bldg. #399, Shindolim-Dong, Kuro-ku, Seoul, Korea
Tel : [phone] Fax : [phone]
E-mail : [e-mail]

CHINA : INTERNATIONAL CONTEC TECHNOLOGY CO., LTD.

B-8F, Hua Tong Building, No. B19, Che Gong Zhuang West Road,
Hai Dian District, Beijing 100044, China
Tel : [phone] Fax : [phone]
E-mail : [e-mail]

SHANGHAI CONTEC MICROELECTRONICS CORP.
No. 481 Gui Ping Road, Cao He Jing Hi-Tech Park Shanghai, 200233, China
Tel : [phone] Fax : [phone]
E-mail : [e-mail]

SHENYANG CONTEC MICROELECTRONICS Co., LTD.
No. 169, Qingnian Street, Shenhe District, Shenyang 110015, China
Tel : [phone] Fax : [phone]

TAIWAN : MACROMATE CORP.

8F, Universal Center, No.179, Ta-Tung Rd., Sec.1 Hsi-Chih, Taipei Hsien, Taiwan,
R.O.C
Tel : [phone] Fax : [phone]
E-mail : [e-mail]

A-46-368 Ver. 2001. 02. 06
