Page 1
PC-HELPER
Digital I/O Board for PCI
PIO-16/16T(PCI)
User’s Guide
CONTEC CO.,LTD.
Page 2

Check Your Package

Thank you for purchasing the CONTEC product. The product consists of the items listed below. Check, with the following list, that your package is complete. If you discover damaged or missing
items, contact your retailer.
Product Configuration List
- Board [PIO-16/16T(PCI)] …1
- User’s Guide (this booklet) …1
- CD-ROM [API-PAC(W32)] …1
User's Guide
CD-ROM
Board
User's Guide
[API-PAC(W32)]
i
Page 3

Copyright

Copyright 1998 CONTEC CO., LTD. ALL RIGHTS RESERVED No part of this document may be copied or reproduced in any form by any means without prior written
consent of CONTEC CO., LTD.
CONTEC CO., LTD. makes no commitment to update or keep current the information contained in this document. The information in this document is subject to change without notice.
All relevant issues have been considered in the preparation of this document. Should you notice an omission or any questionable item in this document, please feel free to notify CONTEC CO., LTD.
Regardless of the foregoing statement, CONTEC assumes no responsibility for any errors that may appear in this document or for results obtained by the user as a result of using this product.

Trademarks

MS, Microsoft, Windows, Windows NT and MS-DOS are trademarks of Microsoft Corporation. Other brand and product names are trademarks of their respective holder.
ii
Page 4

Table of Contents

Check Your P ackage................................................................................................................................ i
Copyright .................................................................................................................................................ii
Trademarks ..............................................................................................................................................ii
Table of Contents ...................................................................................................................................iii
1. BEFORE USING THE PRODUCT 1
About the Bo ard ......................................................................................................................................1
Features............................................................................................................................................. 1
Support Software.............................................................................................................................. 2
Cable & Connector (Opti o n) ........................................................................................................3
Accessories (Option).....................................................................................................................3
Customer Su pport.................................................................................................................................... 4
Web Site ...........................................................................................................................................4
Limited Th ree-Years Wa rranty............................................................................................................... 4
How to Obta in Service............................................................................................................................ 4
Liability ...................................................................................................................................................4
Safety Precautions................................................................................................................................... 5
Safety Information ...........................................................................................................................5
Handling Precautions.......................................................................................................................6
Environment..................................................................................................................................... 7
Inspection .........................................................................................................................................7
Storage.............................................................................................................................................. 7
Disposal ............................................................................................................................................7
2. SETUP 9
What is Setup?......................................................................................................................................... 9
Using the Board under Windows Using the Driver Library API-PAC (W32)............................... 9
Using the Board under Windows Using Software Other than the Driver Library
API-PAC(W32)................................................................................................................................9
Using the Board under an OS Other than Windows..................................................................... 10
Step 1 Installing the Software...............................................................................................................11
Starting th e Install Pro gram...........................................................................................................11

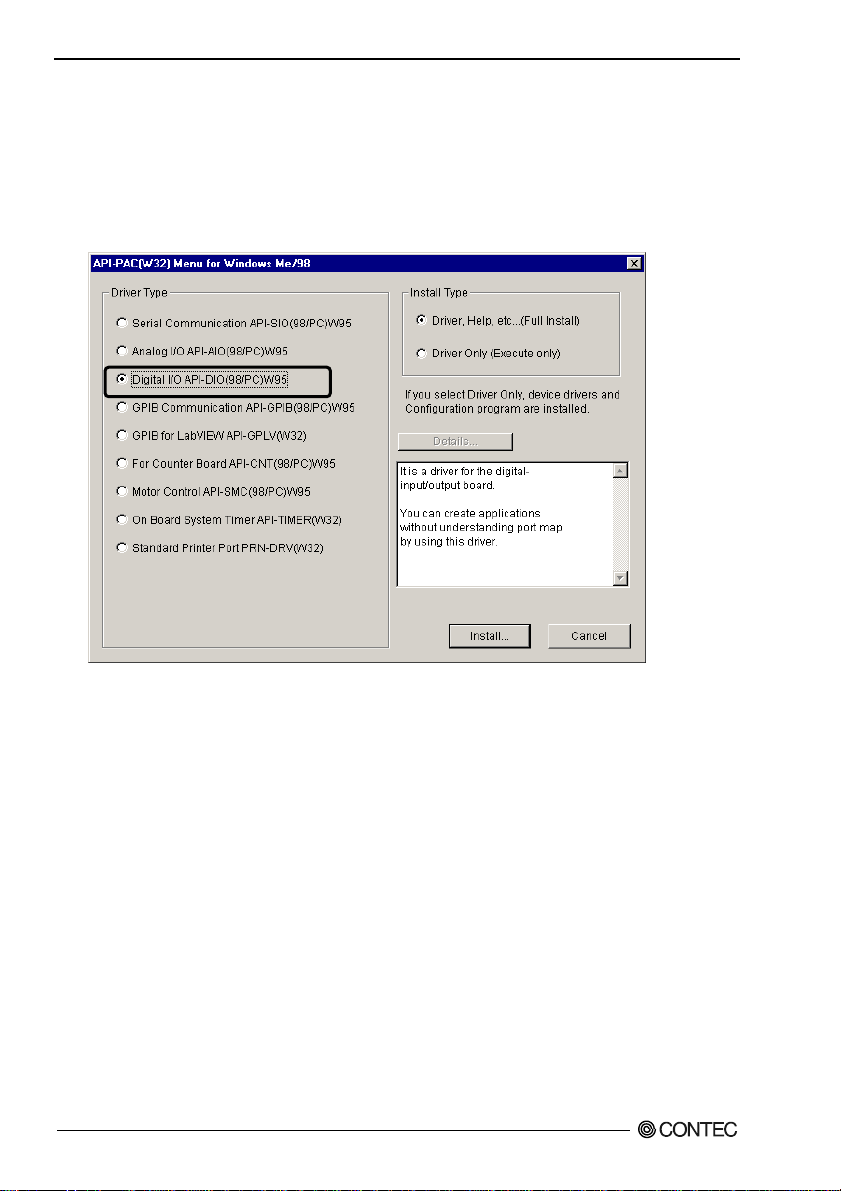

Selecting the Digital I/O Driver ....................................................................................................12

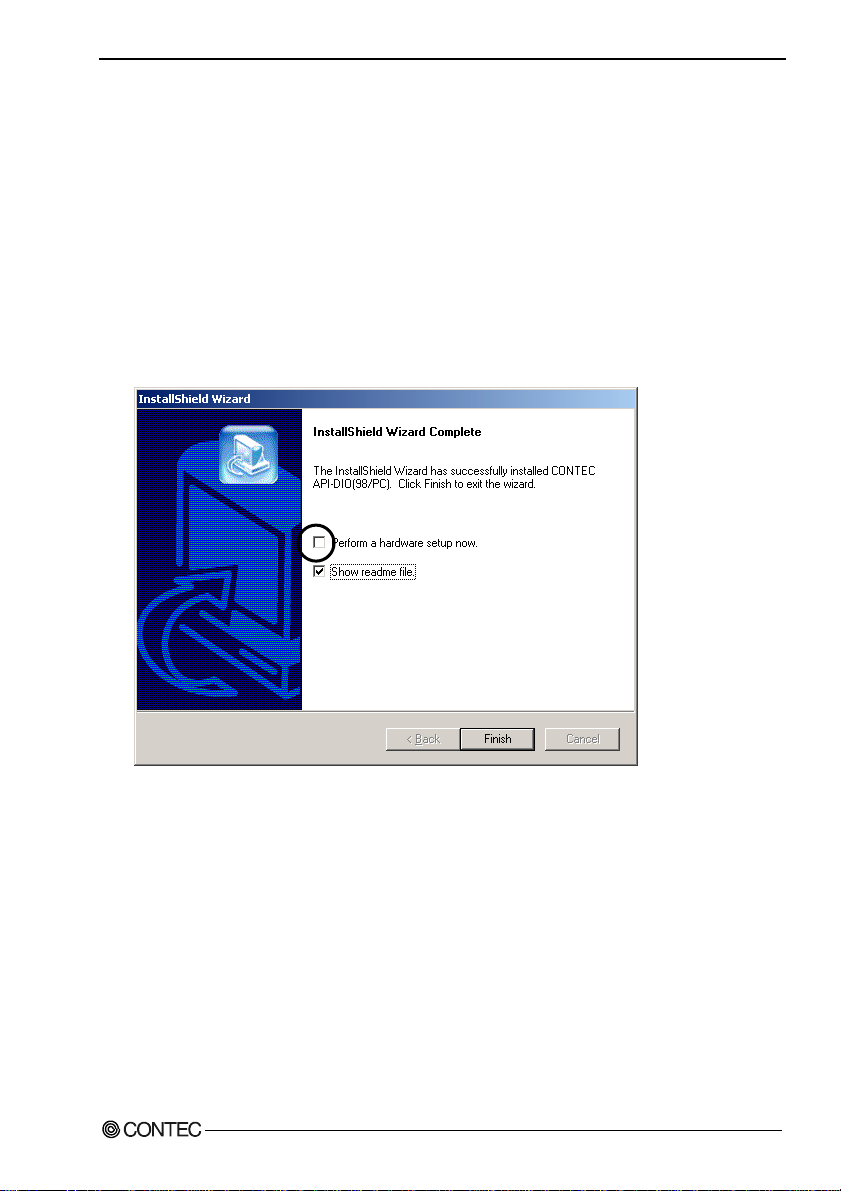

Executing the Installation ..............................................................................................................13
Step 2 Sett ing the Hardw a re .................................................................................................................14

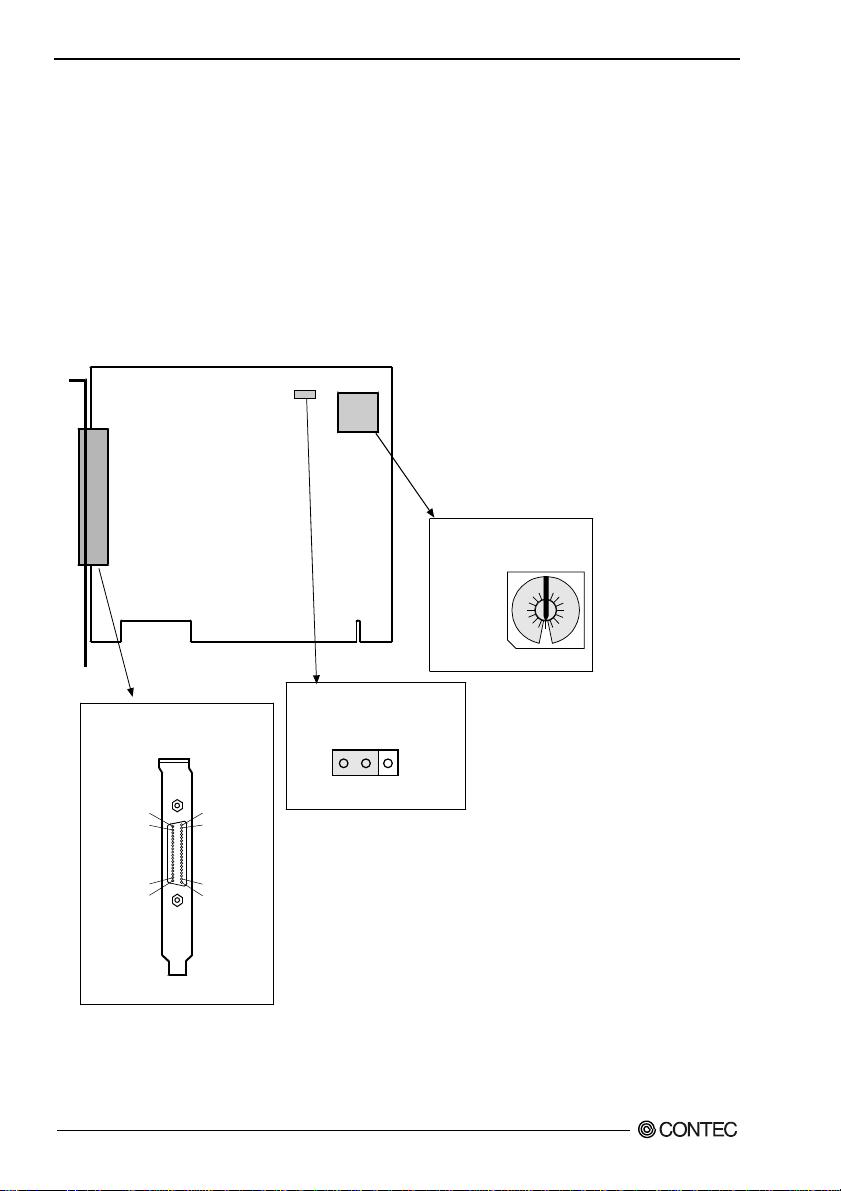

Parts of the Board and Fa c tory Defaul ts .......................................................................................14
Setting the Board ID ......................................................................................................................15
Setting an I nterrupt Signal Resour c e.............................................................................................15

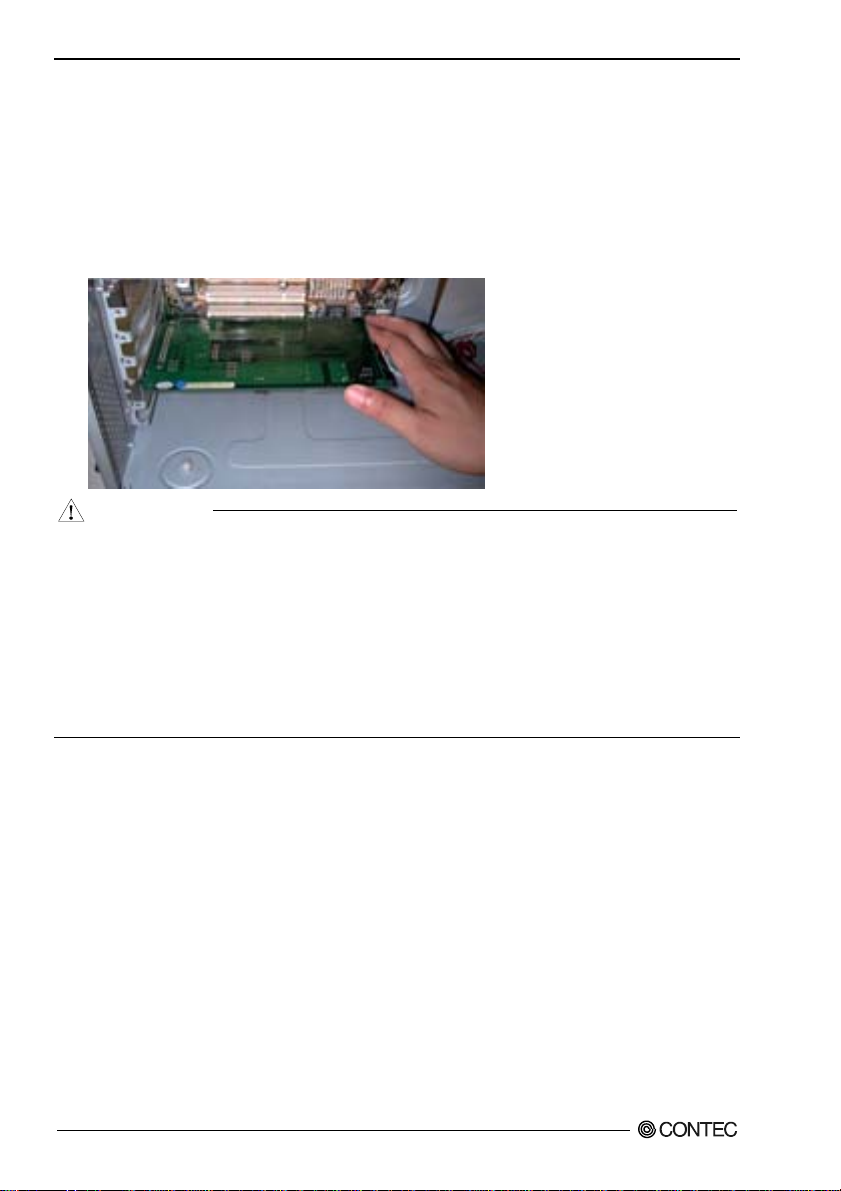

Plugging the Board......................................................................................................................... 16
Step 3 Installing the Hardware .............................................................................................................17
iii
Page 5
Turning on the PC ..........................................................................................................................17

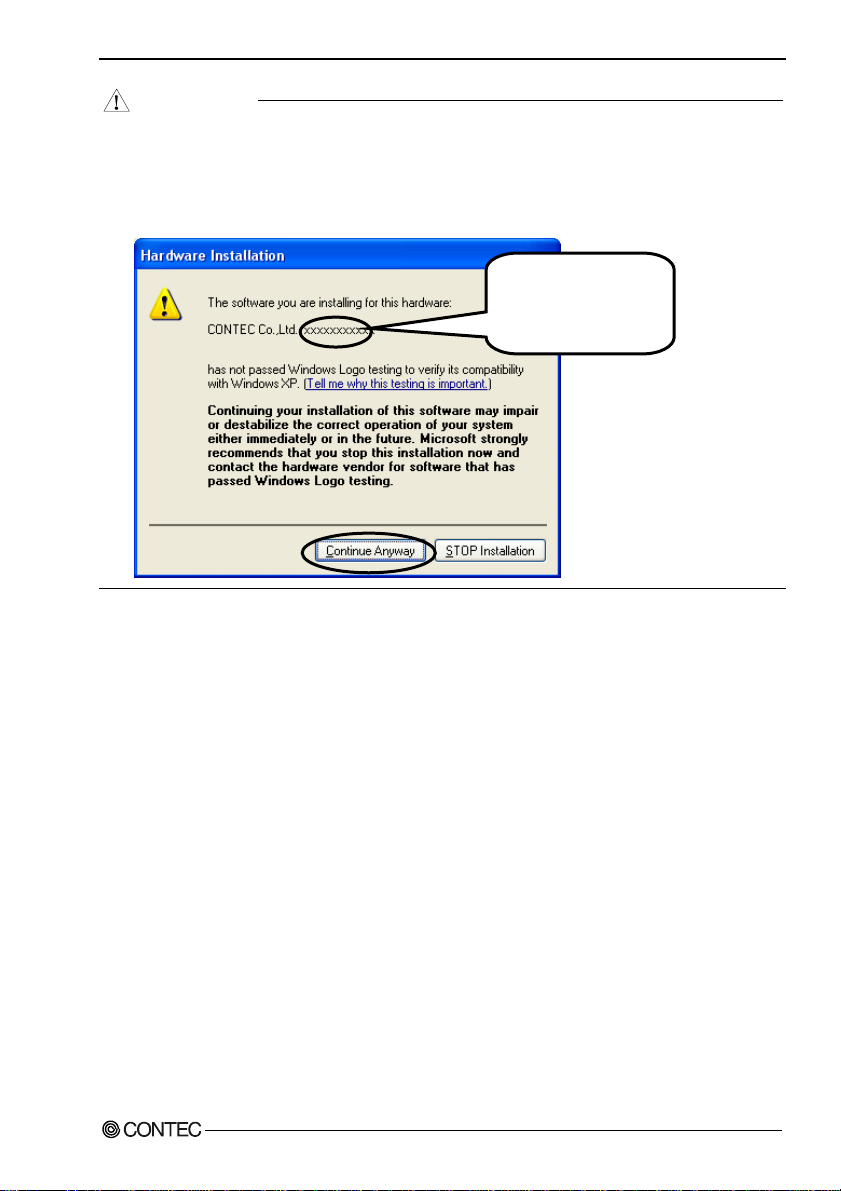

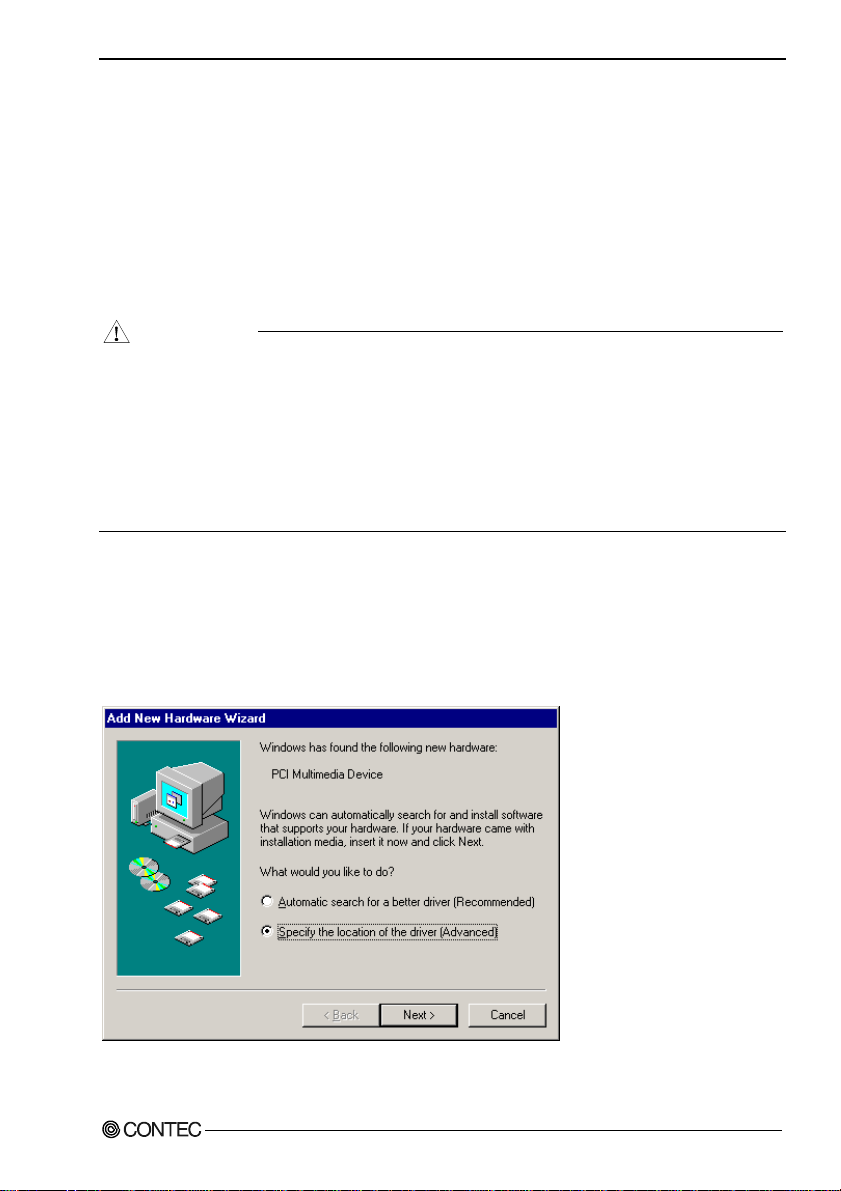

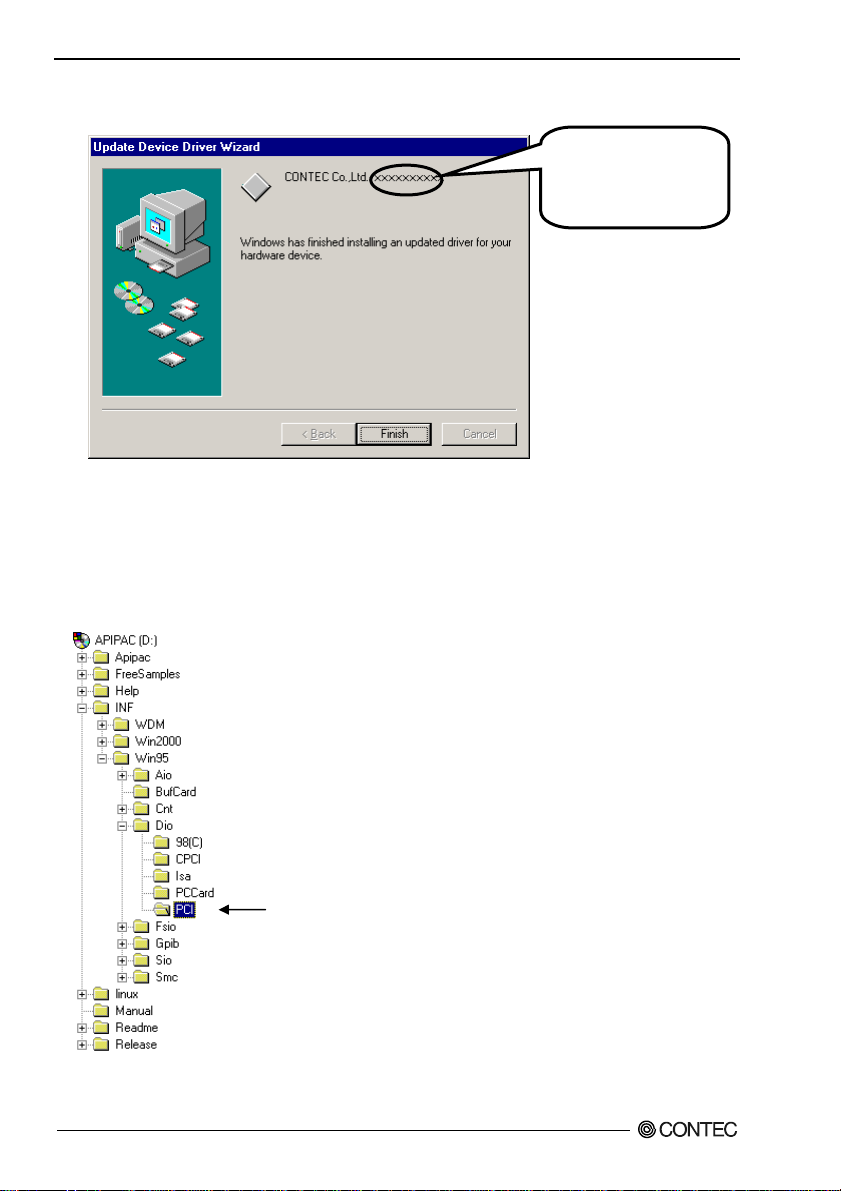

Setting wi th the Add New Hardware Wiz ard................................................................................17
Step 4 Initi alizing the Software.............................................................................................................20

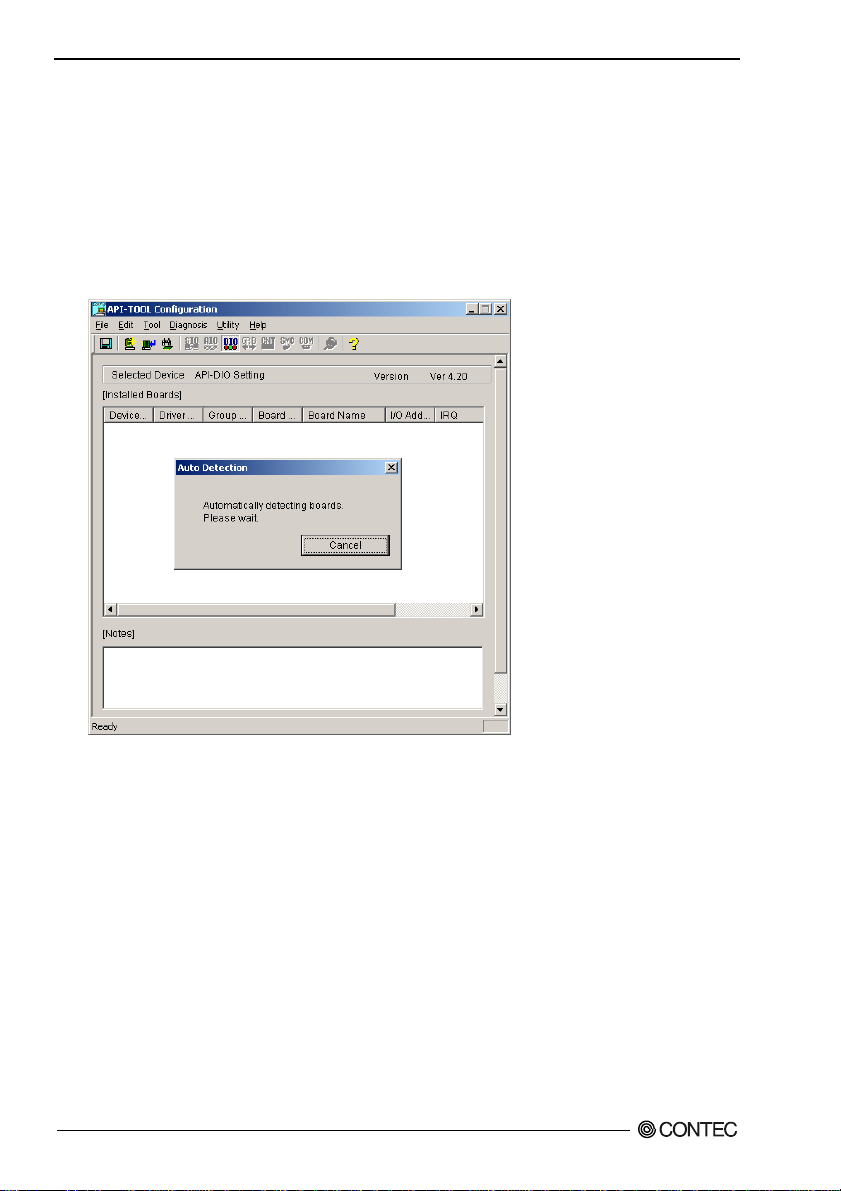

Invoking API-TOOL Configuration ..............................................................................................20
Updating th e Settings .....................................................................................................................20

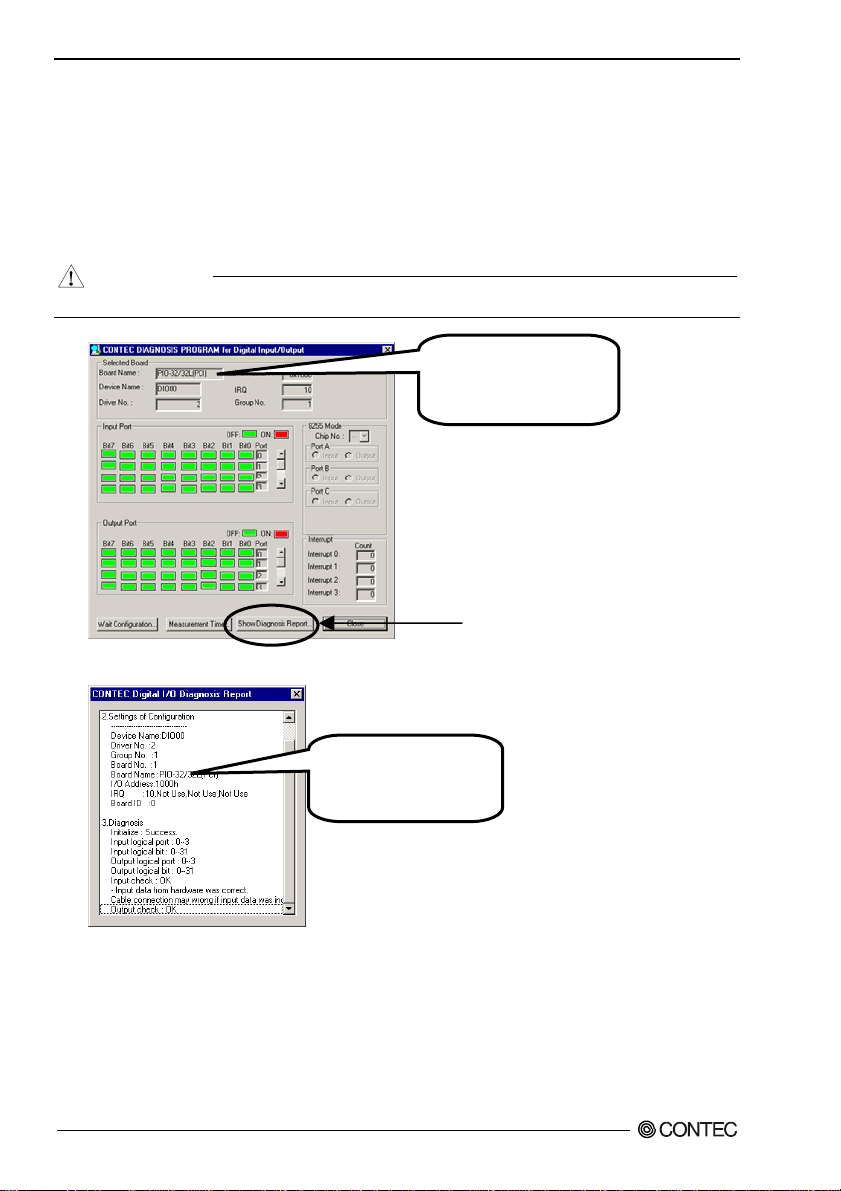

Step 5 Check ing Operations with the Diagnosis Pr o gram................................................................... 2 1
What is the Diagnosis P r o gram?....................................................................................................21
Check Method.................................................................................................................................21

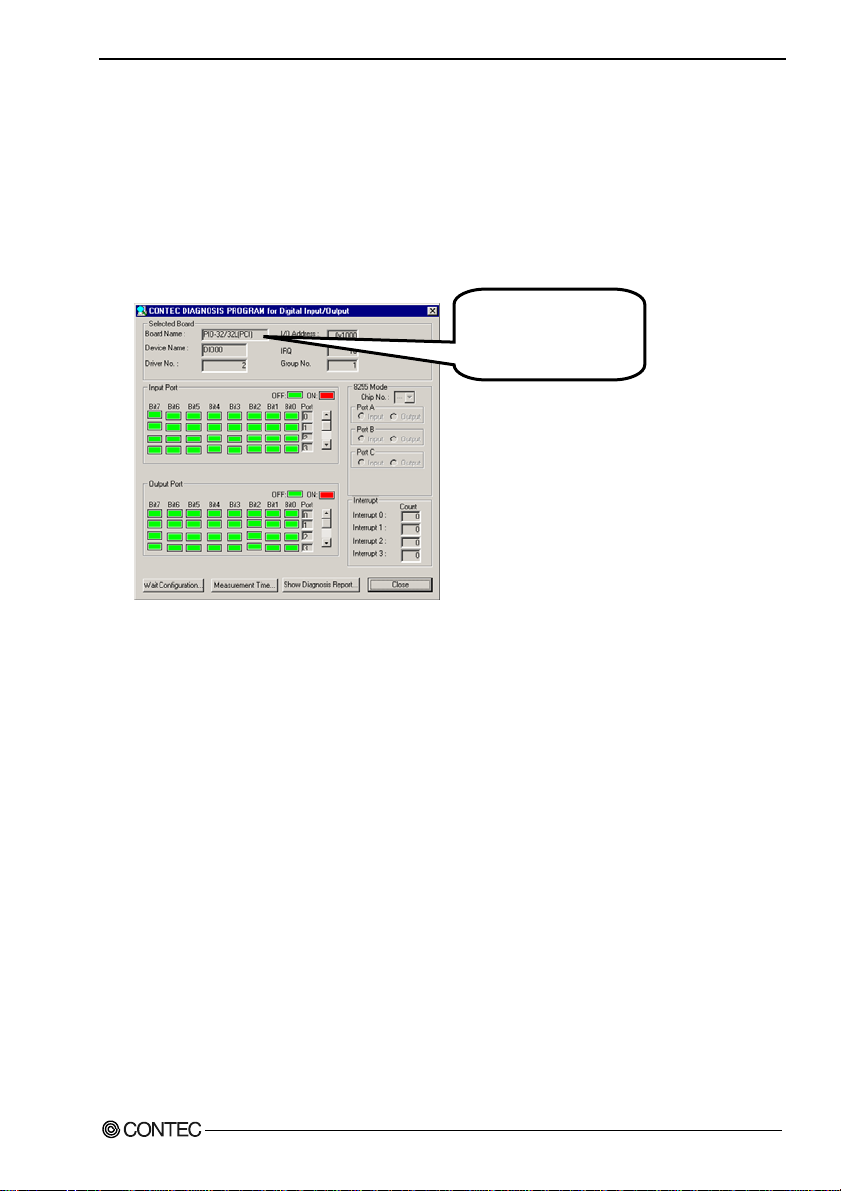

Using the Di agnosis Prog ram.........................................................................................................22
Setup Troubleshooting...........................................................................................................................25
Symptoms and Actions...................................................................................................................25
If your problem cannot be resolved ...............................................................................................25
3. EXTERNAL CONNECTION 27
Using the On-board Connectors............................................................................................................27
Connecting a Device to a Connector .............................................................................................27
Connector Pin Assignment.............................................................................................................28
Relationshi ps between API - P AC(W32) Logical Ports/Bi t s and Connect or Signal Pins.............29
Connecting I n put Signals ......................................................................................................................30

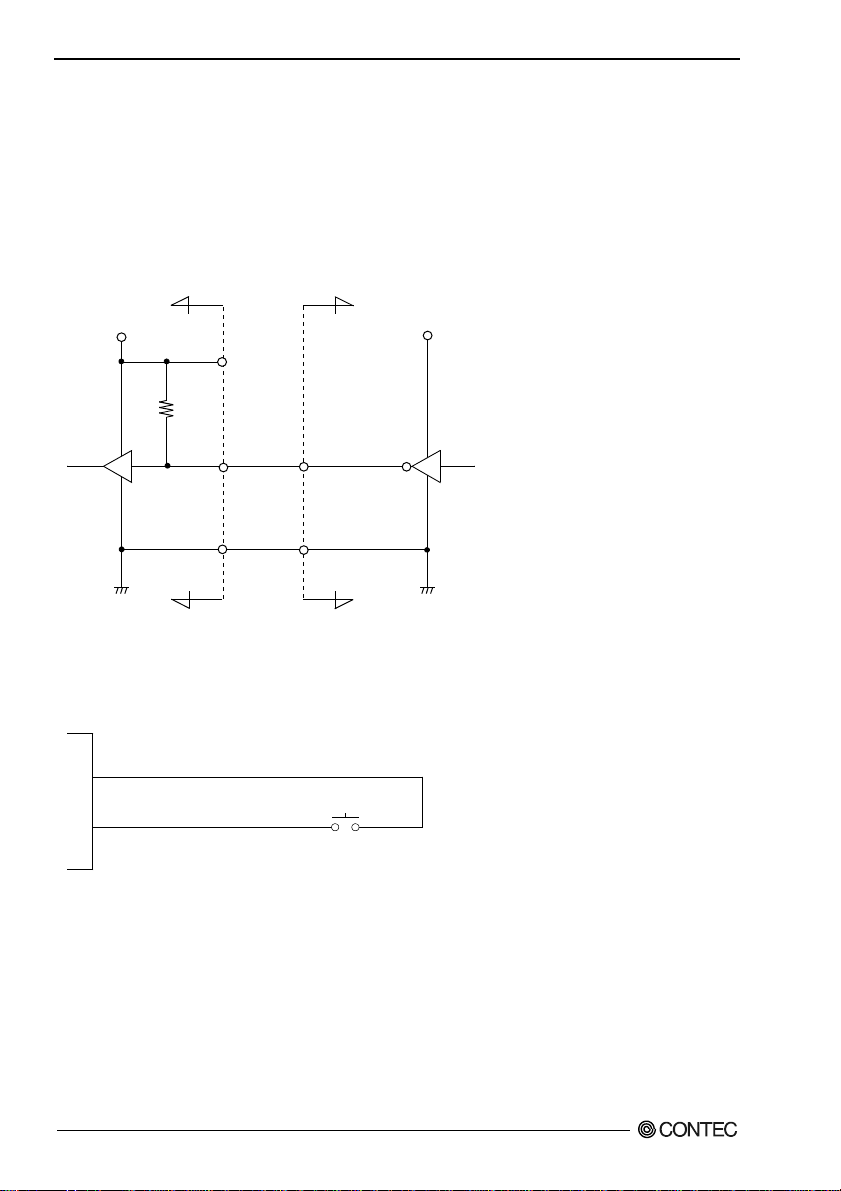

Input Circuit....................................................................................................................................30
Example of C o nnection to SW.......................................................................................................30
Connecting Output Signa ls....................................................................................................................31

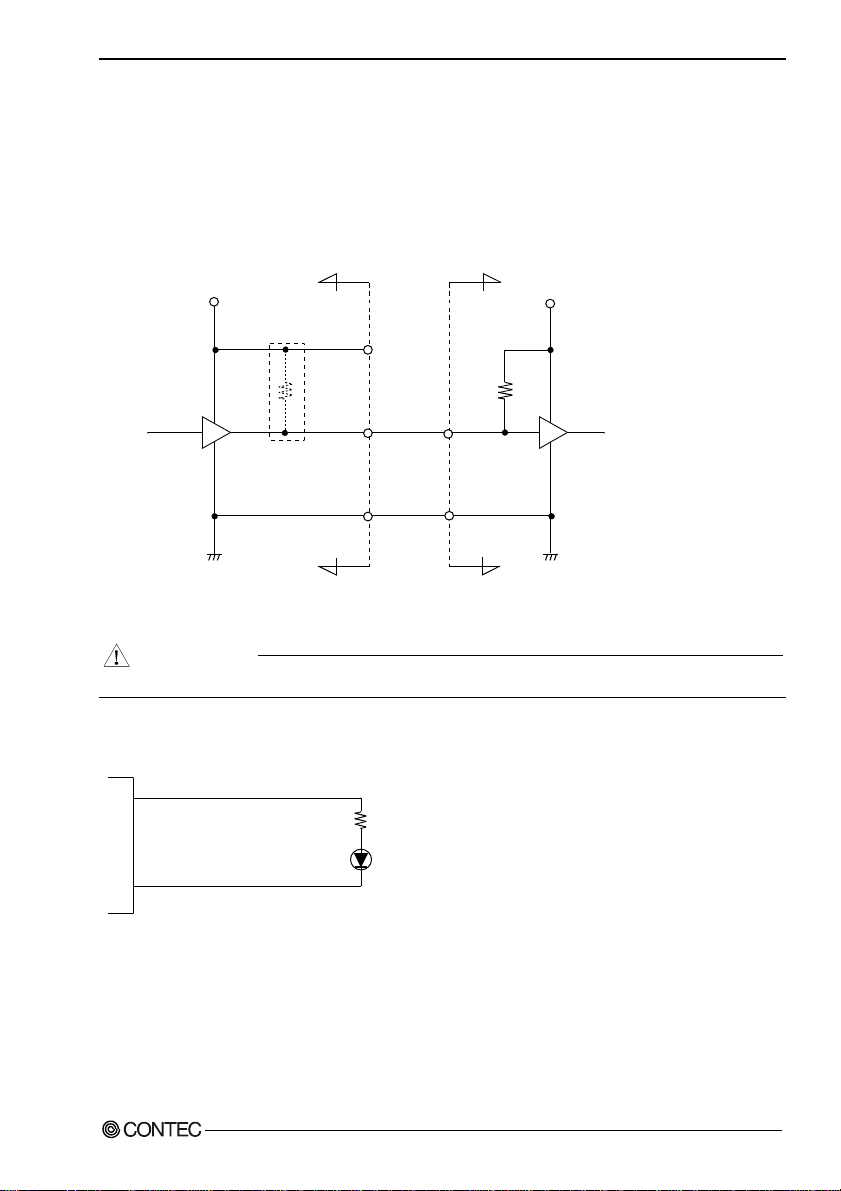

Output Circuit.................................................................................................................................31
Example of C o nnection to LED................................................................................................... ..31

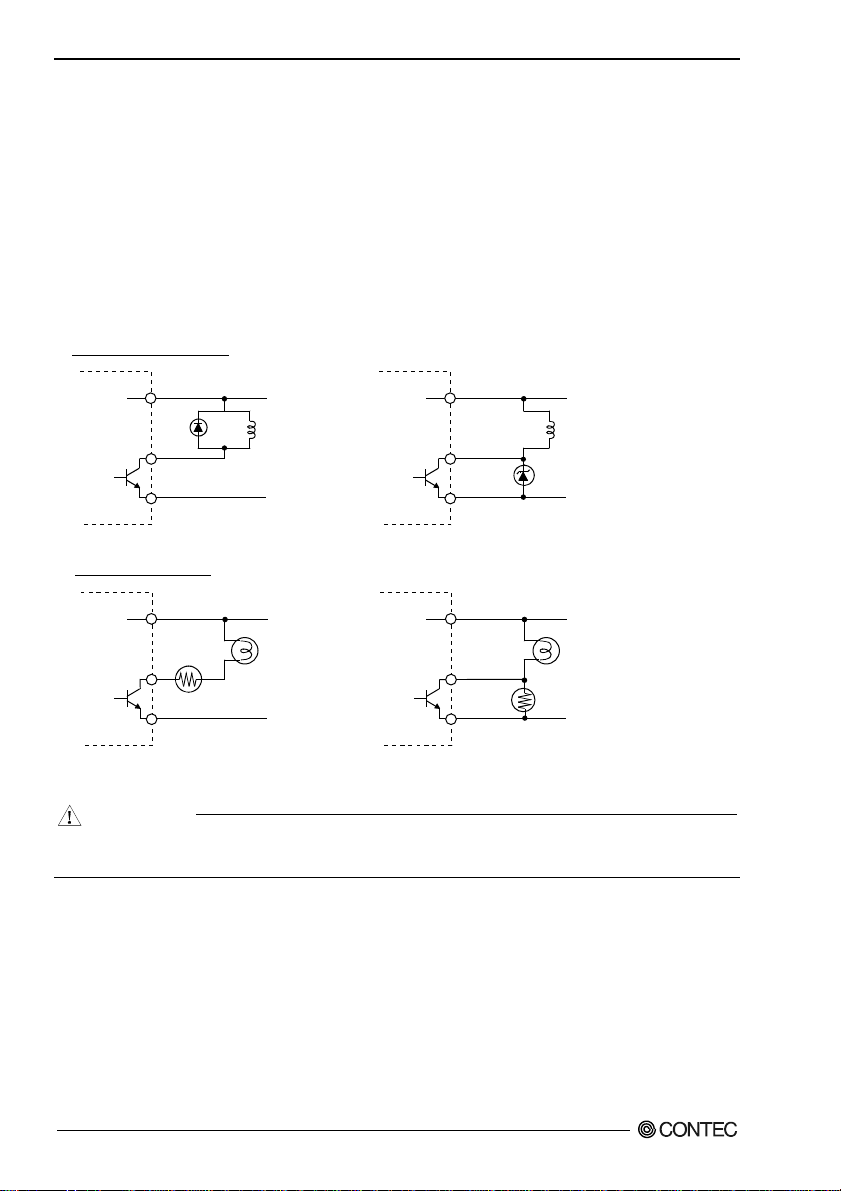

Surge Volt age Countermeasures...........................................................................................................32
About the P r otection Fea ture.................................................................................................................32
4. FUNCTION 33
Data I/O Function ..................................................................................................................................33
Data Input .......................................................................................................................................33
Data Output.....................................................................................................................................33
Monitoring Output Data .................................................................................................................33
Digital Filter...........................................................................................................................................34

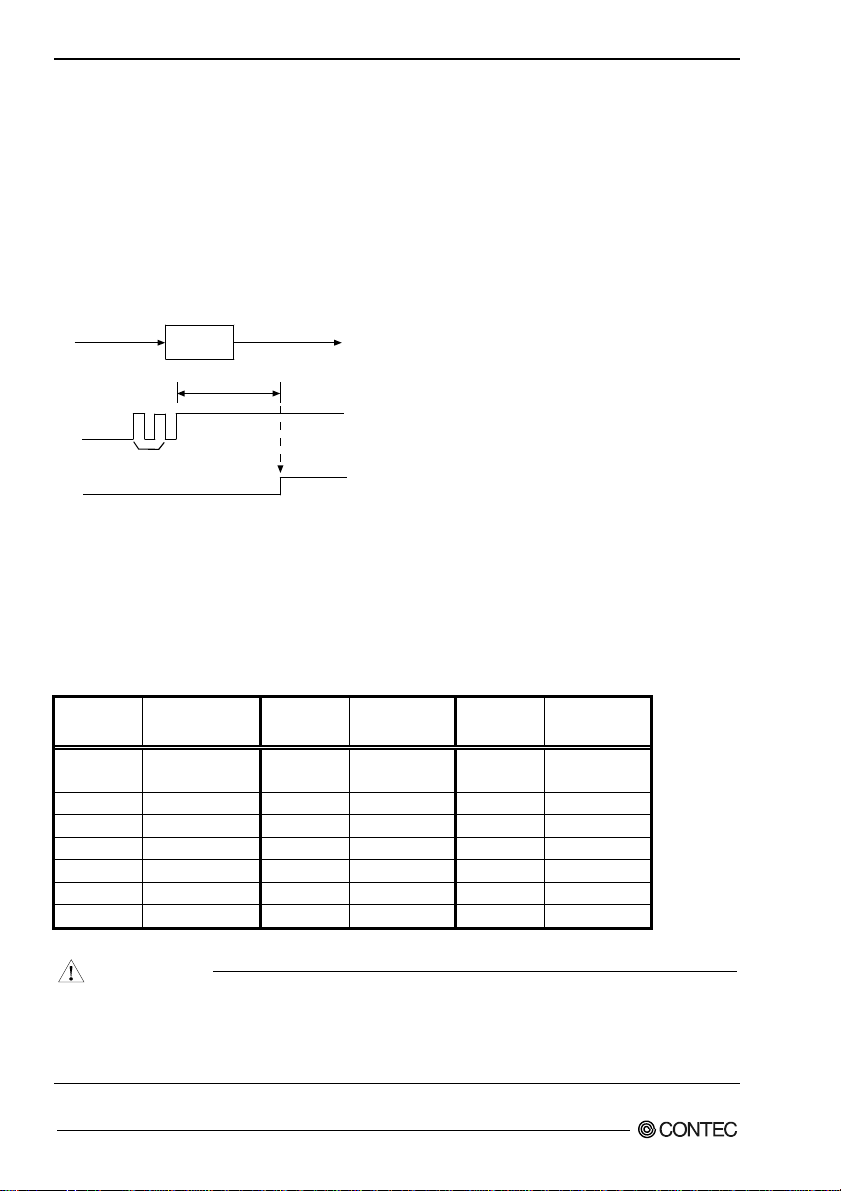

Digital Filter Function Principle....................................................................................................34
Set Digital Filter Time....................................................................................................................34
Interrupt Control Func tion.....................................................................................................................35
Disabling/enabling In terrupts.........................................................................................................35
Selecting the Interrup t Edge ...........................................................................................................35
Clearing th e Interrupt Status and Interrupt Signal ........................................................................35
iv
Page 6
5. ABOUT SOFTWARE 37
CD-ROM Directory Stru cture ..............................................................................................................37
About Software for Windows............................................................................................................... 38

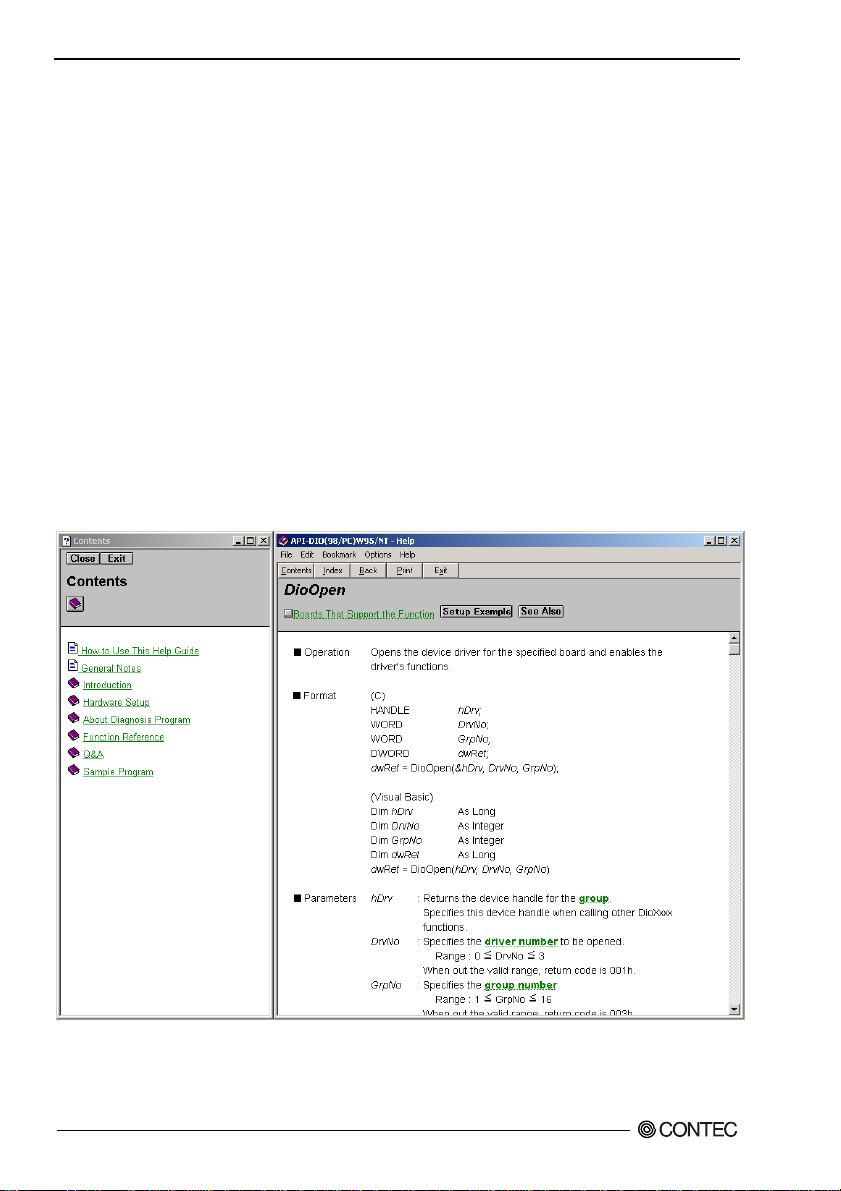

Accessing the Help File .................................................................................................................38

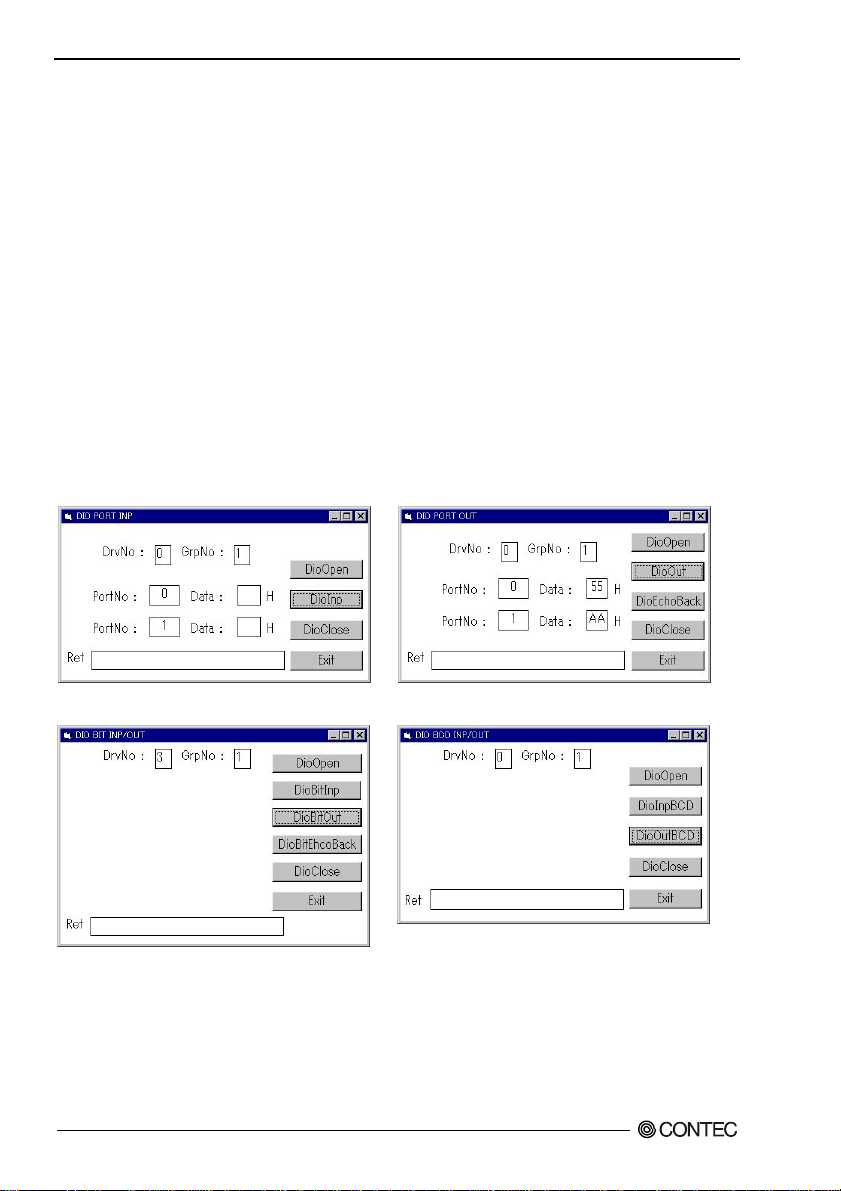

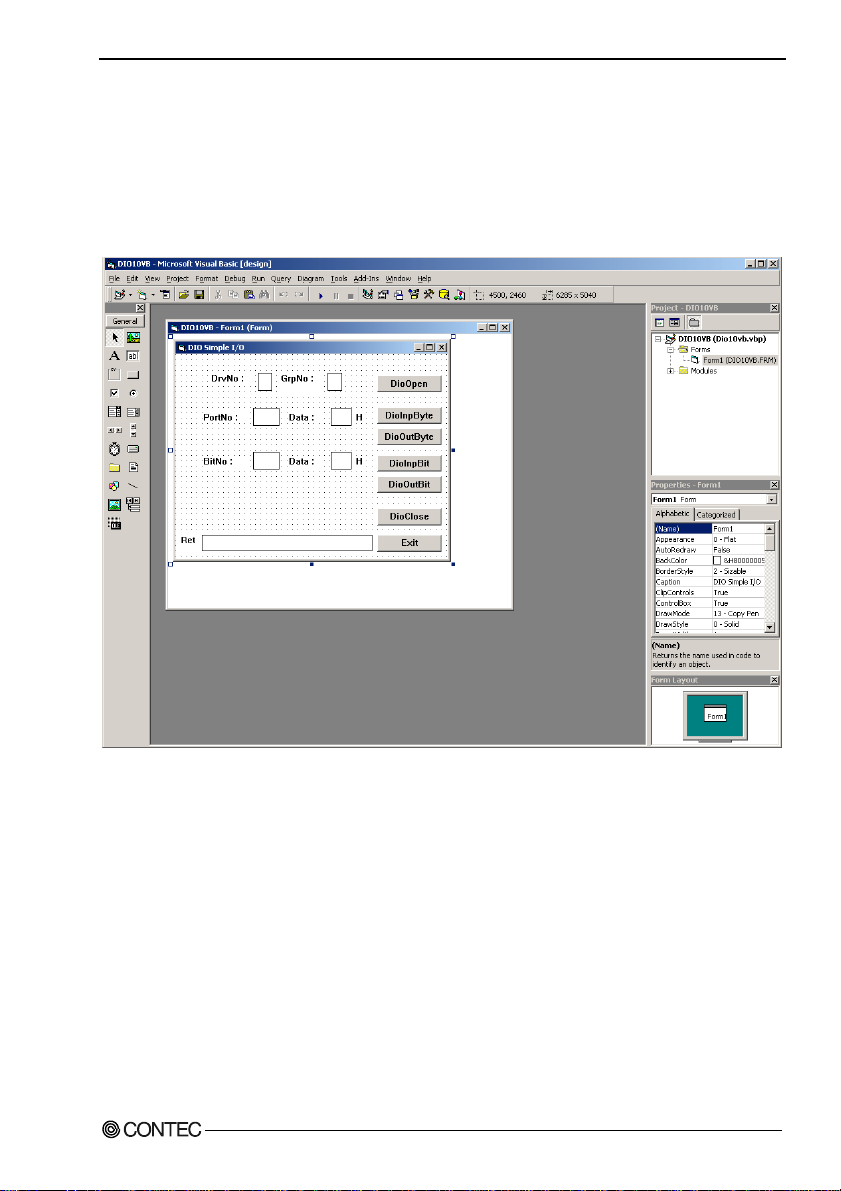

Using Sampl e Programs.................................................................................................................39

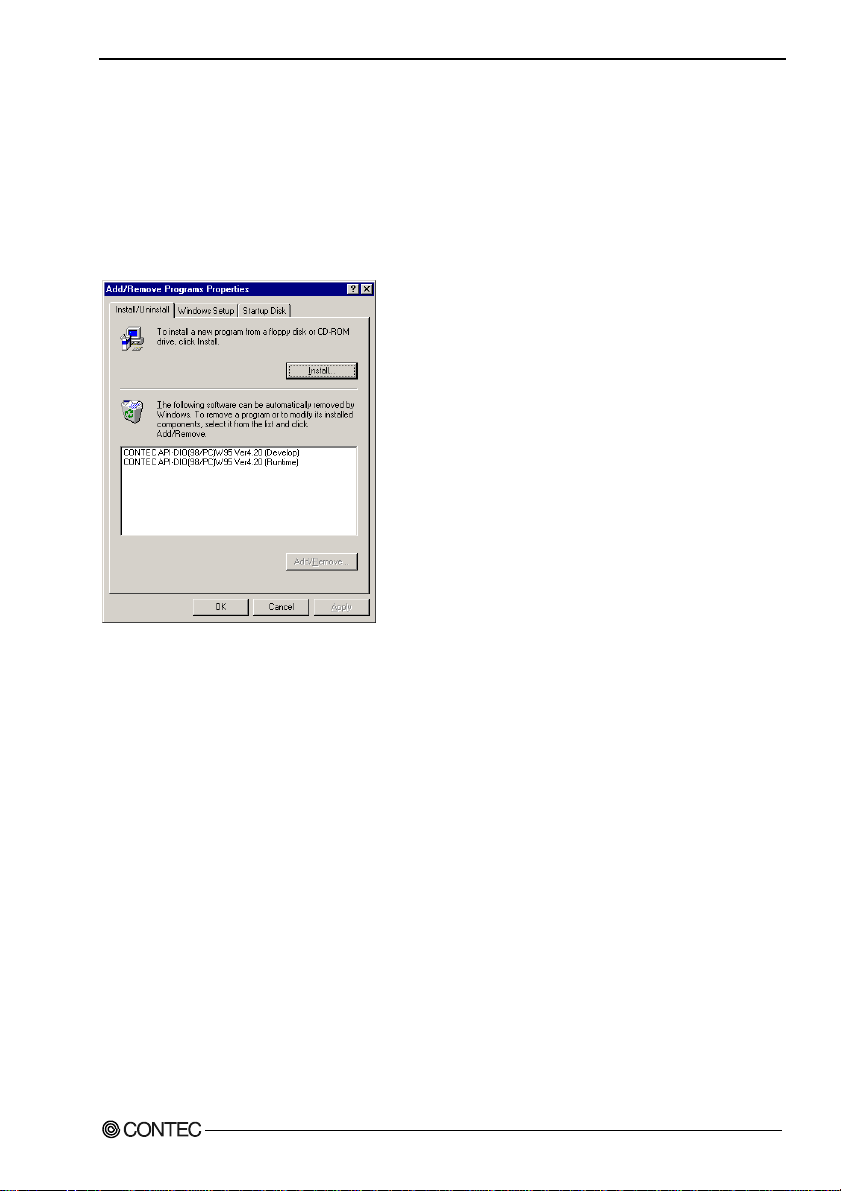

Uninstalling the Driver Libraries...................................................................................................41
About Software for Lin u x .....................................................................................................................42
Driver Software Instal l Procedure .................................................................................................42
Accessing the Help File .................................................................................................................43
Using Sampl e Programs.................................................................................................................43
Uninstalling the driver ...................................................................................................................43
6. ABOUT HARDWARE 45

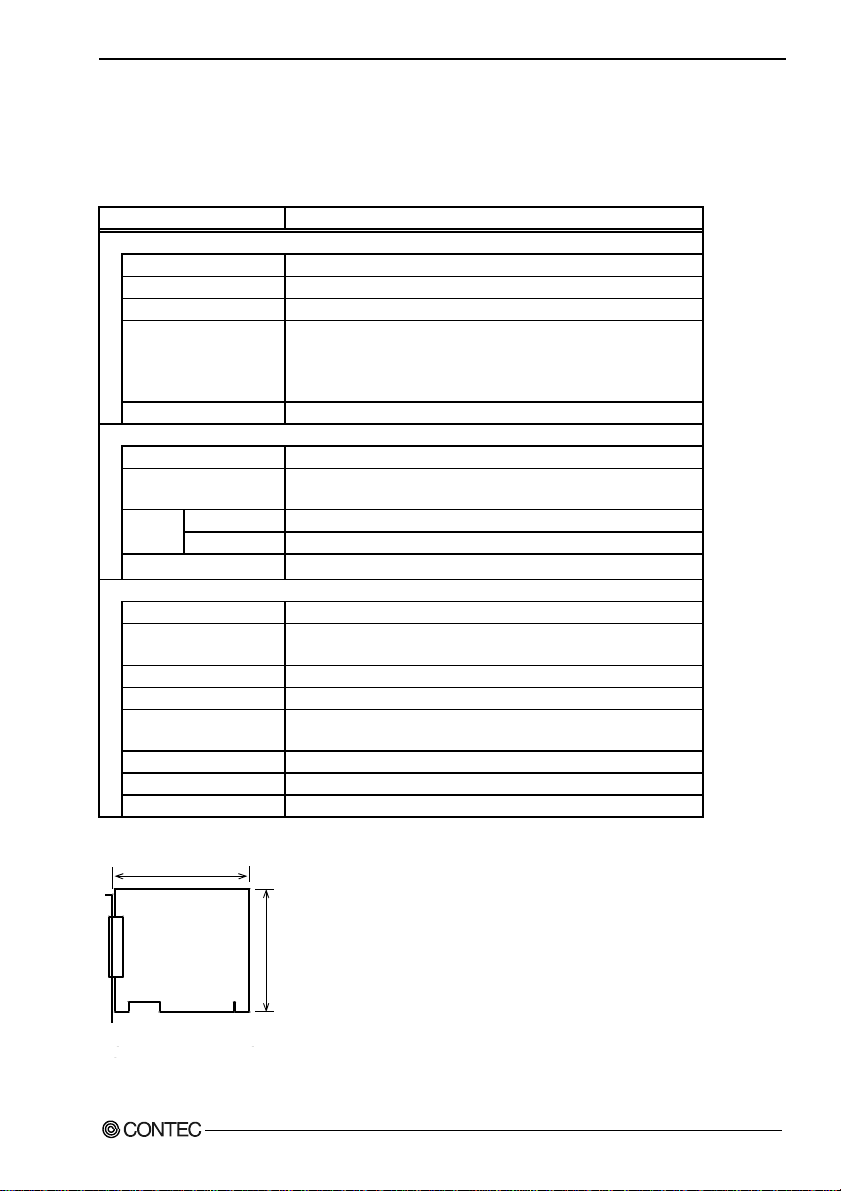

Hardware sp ecification ......................................................................................................................... 45

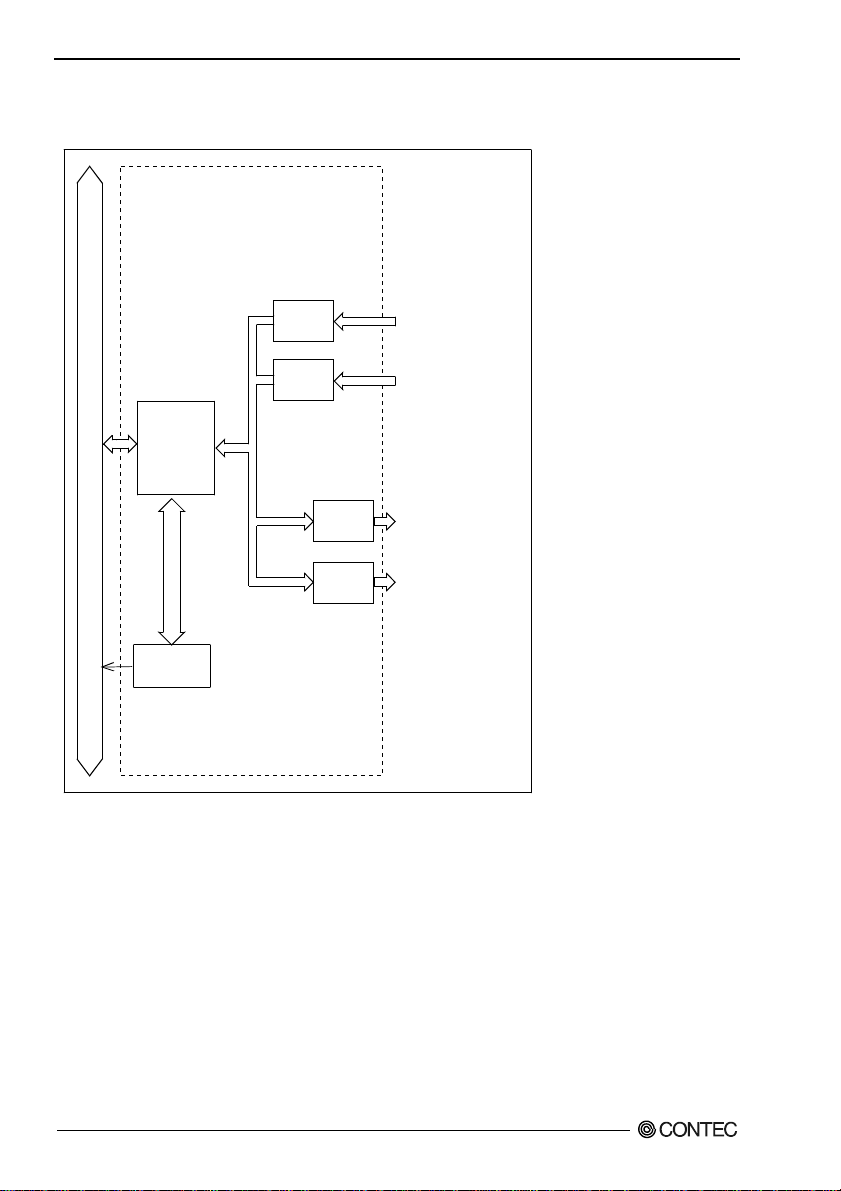

Block Diagr am.......................................................................................................................................46
v
Page 7
vi
Page 8

1. Before Using the Product

1. Before Using the Product
This chapter provides information you should know before using the product.

About the Board

PIO-16/16T(PCI) is a PCI bus-compliant interface board for input/output of TTL-level digital signals. This board can input and output up to 16 channels. Using the bundled driver library [API-PAC(W32)], you can create Windows application software for
this board in your favorite programming language supporting Win32 API functions, such as Visual Basic or Visual C/C++.

Features

- Unisolated TTL-level input/output enabling fast response.
- Capable of receiving 16-channels TTL digital signals.
- Capable of sending 16-channels open-collector digitals.
- Four out of 16 input signals can be used as interru p t in pu ts . You can also select the interrupt trigger edge of the input signal.
- The board has a digital filter feature to prevent noise or chatter from causing erroneous inputs.
- Up to 30 VDC, 40 mA per signal, max. output.
1
Page 9
1. Before Using the Product

Support Software

You should use CONTEC support software according to your purpose and development environment.
Driver Library
API-PAC(W32) is the library software that provides the commands for CONTEC hardware products in the form of Windows standard W in32 API functions (DLL). It makes it easy to create high-speed application software taking advantage of the CONTEC hardware using various programming languages that support Win32 API functions, such as Visual Basic and Visual C/C++. It can also be used by the installed diagnosis program to check hardware operations. CONTEC provides download services to supply the updated drivers and differential files. For details, read Help on the bundled CD-ROM or visit the CONTEC’s Web site.
< Operating environment > OS Windows XP, 2000, NT, Me, 98, etc.. Adaptation language Visual C/C++, Visual Basic, Delphi, Builder, etc.. Others Each piece of library software requires 50 megabytes of free hard disk space.
API-PAC(W32)
Linux version of digital I/O driver CD-ROM)
This driver is used to control CONTEC digital I/O boards (PC Cards) from within Linux. You can control CONTEC I/O boards easily using the shared library used by gcc and Kylix, the device driver (module) for each kernel version, and the board (PC Card) configuration program (config). CONTEC provides download services to supply the updated driv ers and differential files. For details, read Help on the bundled CD-ROM or visit the CONTEC’s Web site.
(Bundled)
API-DIO(LNX)
(Supplied: Stored on the API-PAC(W32)
< Operating environment > OS RedHatLinux, TurboLinux, etc..
Adaptation language gcc, Kylix, etc.. Others Requires 3 megabytes of free hard disk space.
(For details on supported distributions, refer to Help available after installation.)
Base package of ActiveX components for measurement system development
ACX-PAC(W32)BP
This is a set of useful Windows development tools for m easurement systems and consists of a software component library with ready-to-use samples which you can combine for easy programming. The package contains components for controlling CONTEC I/O boards (PC Cards). Features include interface control for analog I/O, digital I/O, GPIB communications, and counter inputs, as well as X-Y plotting and fil e stor age support. Check the CONTEC’s Web si te for more information on this soft.
(Option)
Advanced package of ActiveX components for measurement system development
ACX-PAC(W32)AP
Complements the ACX-PAC(W32)BP functions with additional components including graphics ( plotting, switches, and lamps, etc.) and mathematical and analysis tools. Check the CONTEC’s Web si te for more information on this soft.
(Option)
2
Page 10
1. Before Using the Product
Data acquisition VI library for LabVIEW VI-DAQ (Free download) This is a VI library to use in National Instruments LabVIEW.
VI-DAQ is created with a function form similar to that of LabVIEW's Data Acquisition VI, allowing you to use various devices without complicated settings.

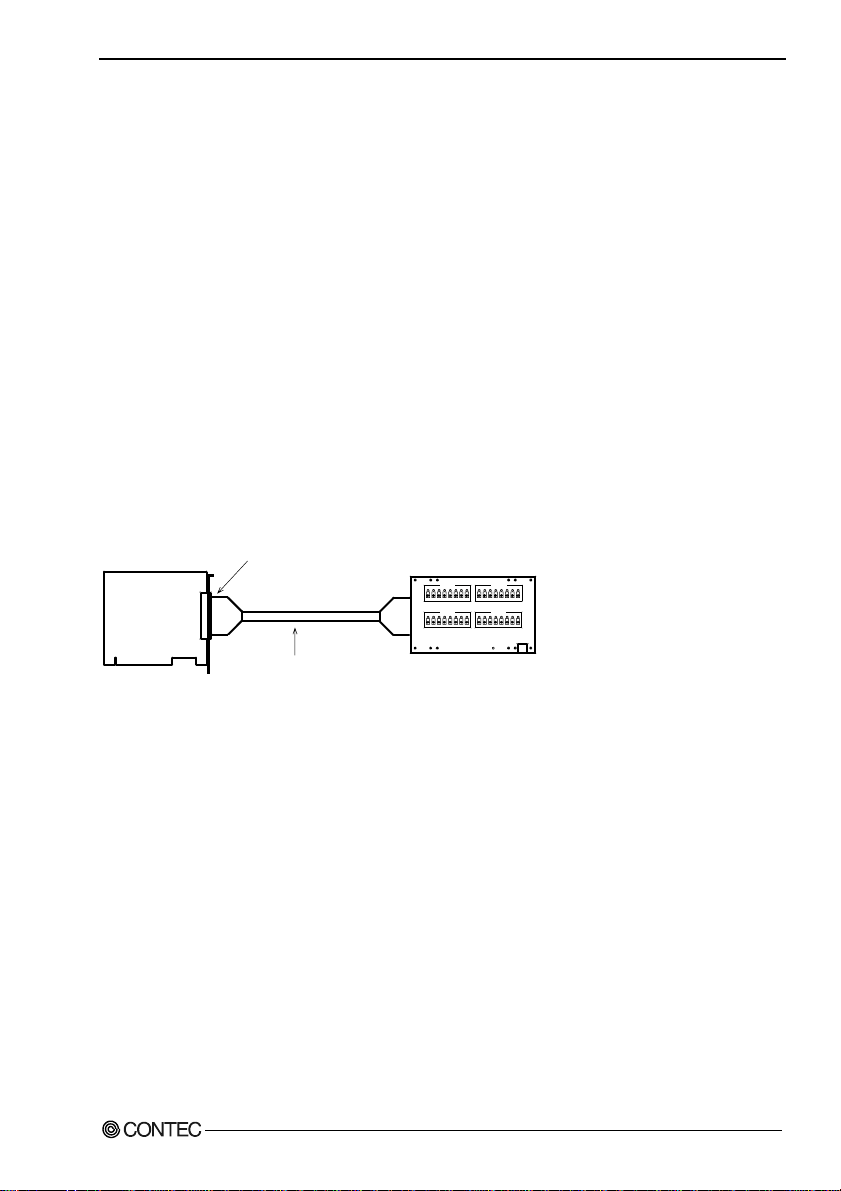

Cable & Connector (Option)

Flat Cable with 37-Pin D-SUB Connectors on 2Ends : PCB37P-1.5 (1.5m) Shielded cable with 37-pin D-SUB connectors on 2 Ends : PCB37PS-0.5P (0.5m)
PCB37PS-1.5P (1.5m) Flat Cable with a 37-pin D-SUB Connector : PCA37P-1.5 (1.5m) Shielded Cable with a 37-pin D-SUB Connector : PCA37PS-0.5P (0.5m)
PCA37PS-1.5P (1.5m)

Accessories (Option)

Relay Terminal Unit for Crimping : EPD-37A *1 Relay Terminal Unit for Crimping : EPD-37 *1 Termination Panel (M3) : DTP-3(PC) Terminal Unit for Cables : DTP-4(PC) Signal Monitor for Digital I/O : CM-32(PC)E *1
*1 PCB37P-1.5, PCB37PS-0.5P or PCB37PS-1.5P optional cable is required separately. * Check the CONTEC’s Web site for more information on these options.
3
Page 11
1. Before Using the Product

Customer Support

CONTEC provides the following support services for you to use CONTEC products more efficiently and comfortably.

Web Site

Japanese http://www.contec.co.jp/ English http://www.contec.com/ Chinese http://www.contec.com.cn/
Latest product information CONTEC provides up-to-date information on products. CONTEC also provides product manuals and various technical documents in the PDF.
Free download You can download updated driver software and differential files as well as sample programs available in
several languages.
Note! For product information Contact your retailer if you have any technical question about a CONTEC product or need its price,
delivery time, or estimate information.

Limited Three-Years Warranty

CONTEC Interface products are warranted by CONTEC CO., LTD. to be free from defects in material and workmanship for up to three years from the date of purchase by the original purchaser.
Repair will be free of charge only when this device is returned freight prepaid with a copy of the original invoice and a Return Merchandise Authorization to the distributor or the CONTEC group office, from which it was purchased.
This warranty is not applicable for scratches or normal wear, but only for the electronic circuitry and original products. The warranty is not applicable if the device has been tampered with or damaged through abuse, mistreatment, neglect, or unreasonable use, or if the original invoice is not included, in which case repairs will be considered beyond the warranty policy.

How to Obtain Service

For replacement or repair, return the device freight prepaid, with a copy of the original invoice. Please obtain a Return Merchandise Authorization number (RMA) from the CONTEC group office where you purchased before returning any product.
* No product will be accepted by CONTEC group without the RMA number.

Liability

The obligation of the warrantor is solely to repair or replace the product. In no event will the warrantor be liable for any incidental or consequential damages due to such defect or consequences that arise from inexperienced usage, misuse, or malfunction of this device.
4
Page 12
1. Before Using the Product

Safety Precautions

Understand the following definitions and precautions to use the product safely.

Safety Information

This document provides safety information using the following symbols to prevent accidents resulting in injury or death and the destruction of equipment and resources. Understand the meanings of these labels to operate the equipment safely.
DANGER
WARNING
CAUTION
DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.
CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury or in property damage.
5
Page 13
1. Before Using the Product

Handling Precautions

DANGER
Do not use the product where it is exposed to flammable or corrosive gas. Doing so may result in an explosion, fire, electric shock, or failure.
CAUTION
- There are switches and jumpers on the board that need to be set in advance. Be sure to check these before installing to the expansion slot.
- Only set the switches and jumpers on the board to the specified settings. Otherwise, the board may malfunction, overheat, or cause a failure.

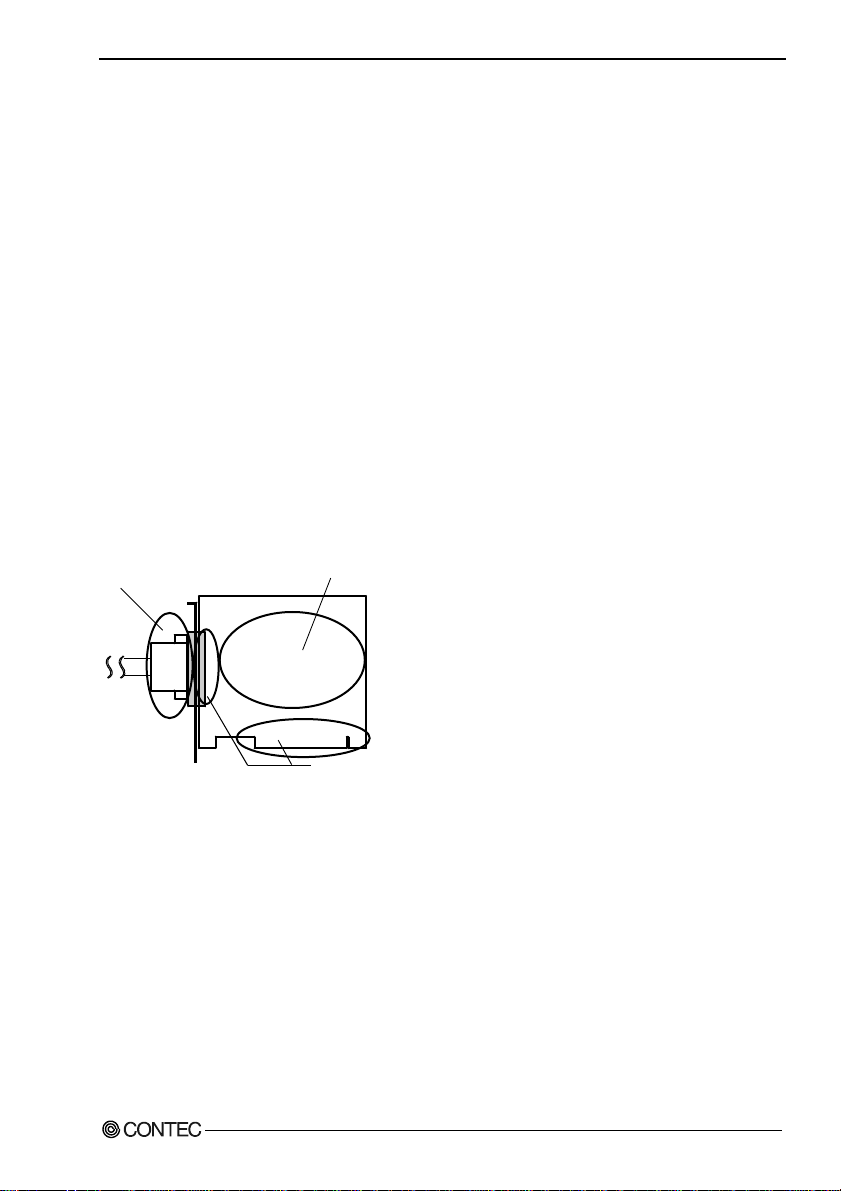

- Do not strike or bend the board. Otherwise, the board may malfunction, overheat, cause a failure or breakage.
- Do not touch the board's metal plated terminals (edge connector) with your hands. Otherwise, the board may malfunction, overheat, or cause a failure. If the terminals are touched by someone's hands, clean the terminals with industrial alcohol.
- Do not install or remove the board to or from the expansion slot while the computer's power or expansion unit is turned on. Otherwise, the board may malfunction, overheat, or cause a failure. Be sure that the personal computer power is turned off.
- Make sure that your PC or expansion unit can supply ample power to all the boards installed. Insufficiently energized boards could malfunction, overheat, or cause a failure.
- The specifications of this product are subject to change without notice for enhancement and quality improvement. Even when using the product continuously, be sure to read the user’s guide and understand the contents.
- Do not modify the product. CONTEC will bear no responsibility for any problems, etc., resulting from modifying this product.
- Regardless of the foregoing statements, CONTEC is not liable for any damages whatsoever (including damages for loss of business profits) arising out of the use or inability to use this CONTEC product or the information contained herein.
6
Page 14
1. Before Using the Product

Environment

Use this product in the following environment. If used in an unauthorized environment, the board may overheat, malfunction, or cause a failure.
Operating temperature
0 to 50°C
Operating humidity
10 to 90%RH (No condensation)
Corrosive gases
None
Floating dust particles
Not to be excessive

Inspection

Inspect the product periodically as follows to use it safely.
- Check that the bus connector of the board and its cable have been plugged correctly.
- Check that the board has no dust or foreign matter adhering.
- The gold-plated leads of the bus connector have no stain or corros ion.

Storage

When storing this product, keep it in its original packing form. (1) Put the board in the storage bag. (2) Wrap it in the packing material, then put it in the box. (3) Store the package at room temperature at a place free from direct sunlight, moisture, shock,
vibration, magnetism, and static electricity.

Disposal

When disposing of the product, follow the disposal procedures stipulated under the relevant laws and municipal ordinances.
7
Page 15
1. Before Using the Product
8
Page 16

2. Setup

2. Setup
This chapter explains how to set up the board.

What is Setup?

Setup means a series of steps to take before the product can be used. Different steps are required for software and hardware. The setup procedure varies with the OS and software used.
Using the Board under Windows
Using the Driver Library API-PAC(W32)
This section describes the setup procedure to be performed before you can start developing application programs for the board using the bundled CD-ROM “Driver Library API-PAC(W32)”.
Taking the following steps sets up the software and hardware. You can use the diagnosis program later to check whether the software and hardware function normally.
Step 1 Installing the Software Step 2 Setting the Hardware Step 3 Installing the Hardware Step 4 Initializing the Software Step 5 Checking Operations with the Diagnosis Program
If Setup fails to be performed normally, see the “Setup Troubleshooting” section at the end of this chapter.
Using the Board under Windows
Using Software Other than the Driver Library API-PAC(W32)
For setting up software other than API-PAC(W32), refer to the user’s guide for that software. See also the following parts of this user’s guide as required.
This chapter Step 2 Setting the Hardware This chapter Step 3 Installing the Hardware Chapter 3 External Connection Chapter 6 About Hardware
9
Page 17
2. Setup

Using the Board under an OS Other than Windows

For using the board under Linux, see the following parts of this user’s guide.
This chapter Step 2 Setting the Hardware Chapter 3 External Connection Chapter 5 About Software Chapter 6 About Hardware
For using the board under an OS such as MS-DOS other than Windows, see the following parts of this user’s guide.
This chapter Step 2 Setting the Hardware Chapter 3 External Connection Chapter 6 About Hardware
10
Page 18

Step 1 Installing the Software

This section describes how to install the Driver libraries.
Before installing the hardware on your PC, install the Driver libraries from the bundled API-PAC(W32) CD-ROM.
The following description assumes the operating system as Windows Me. Although some user interfaces are different depending on the OS used, the basic procedure is the same.

Starting the Install Program

(1) Load the CD-ROM [API-PAC(W32)] on your PC. (2) The API-PAC(W32) Installer window appears automatically.
If the panel does not appear, run (CD-ROM drive letter):\AUTORUN.exe.
(3) Click on the [Install the drivers] button.
2. Setup
CAUTION
Before installing the software in Windows XP, 2000, or NT, log in as a user with administrator privileges.
11
Page 19
2. Setup

Selecting the Digital I/O Driver

(1) The following dialog box appears to select “Driver Type” and “Install Type”. (2) Select “Digital I/O API-DIO(98/PC)W95”. (3) Select “Driver, Help, etc… (Full install)”. (4) Click on the [Install] button.
12
Page 20

Executing the Installation

(1) Follow the on-screen instructions to proceed to install.
(2) When the required files have been copied, the “Perform a hardware setup now(API-TOOL
Configuration)” and “Show readme file” check boxes are displayed.
When you are installing the software or hardware for the first time:
1) Uncheck “Perform a hardware setup now”.
2) Click on the [Finish] button. Go to Step 2 to set and plug the hardware.
*When the hardware has already been installed:
Check the “Perform a hardware setup now(API-TOOL Configuration)” and then go to the Step 4 “Initializing the Software”.
2. Setup
You have now finished installing the software.
13
Page 21
2. Setup

Step 2 Setting the Hardware

This section describes how to set the board and plug it on your PC. The board has some switches and jumper to be preset.
Check the on-board switches and jumpers before plugging the board into an expansion slot. The board can be set up even with the factory defaults untouched. You can change board settings later.

Parts of the Board and Factory Defaults

Figure 2.1. shows the names of major parts on the board. Note that the switch setting shown below is the factory default.
INT
PIO-16/16T(PCI)
JP1
BOARD ID
SW1
- Board ID setting switch
BOARD ID
9
7
A
6
5
4
3
2
F
1
0
SW1
B
C
D
E
- Interrupt sig nal setting
- Interface connector (CN1)
37 36 18
21 2 20
19
1
jumper(JP1)
JP1
INT
USE
1 2 3
NOT USE
Figure 2.1. Component Locations
14
Page 22
2. Setup

Setting the Board ID

If you install two or more boards on the PIO-16/16T(PCI), assign a different ID value to each of the boards to distinguish them.
The board IDs can be set from 0 to Fh to identify up to sixteen boards. If only one board is used, the original factory setting (Board ID = 0) should be used.
Setting Procedure To set the board ID, use the rotary switch on the board. Turn the SW1 knob to set the board ID as
shown below.
SW1
BOARD ID
9
7
A
6
B
5
C
4
D
3
E
F
1
0
Factory setting:
(Board ID= 0)
2
Figure 2.2. Board ID Settings (SW1)

Setting an Interrupt Signal Resource

This board can send an interrupt request signal to the PC via the PCI bus. When the board uses interrupts, an interrupt level is assigned to the board by the PC. When the interrupt function is not used, you can make the PC recognize the board as not using interrupts
to save the PC's interrupt signal resources.
Setup method Use the on-board jumper JP1 to select whether the board uses interrupts.
If using the interrupt
JP1
INT
USE
1 2 3
Connect JP1 pins 1 and 2 together.
(Factory setting)
NOT USE
If not using th e interrupt
JP1 INT
USE
1 2 3
Connec t JP 1 pins 2 and 3 together.
NOT USE
Figure 2.3. Setting an Interrupt Signal Resource
15
Page 23
2. Setup

Plugging the Board

(1) Before plugging the board, shut down the system, unplug the power code of your PC. (2) Remove the cover from the PC so that the board can be mounted. (3) Plug the board into an expansion slot. (4) Attach the board bracket to the PC with a screw. (5) Put the cover back into place.
CAUTION
- Do not touch the board's metal plated terminals (edge connector) with your hands. Otherwise, the board may malfunction, overheat, or cause a failure. If the terminals are touched by someone's hands, clean the terminals with industrial alcohol.
- Do not install or remove the board to or from the slot while the computer's power or expansion unit is turned on. Otherwise, the board may malfunction, overheat, or cause a failure. Be sure that the personal computer power is turned off.
- Make sure that your PC or expansion unit can supply ample power to all the boards installed. Insufficiently energized boards could malfunction, overheat, or cause a failure.
16
Page 24
2. Setup

Step 3 Installing the Hardware

For using an expansion board under Windows, you have to let the OS detect the I/O addresses and interrupt level to be used by the board. The process is referred to as installing the hardware.
In the case of using two or more boards, make sure you install one by one with the Add New Hardware Wizard.

Turning on the PC

Turn on the power to your PC.
CAUTION
- The board cannot be properly installed unless the resources (I/O addresses and interrupt level) for the board can be allocated. Before attempting to install the board, first determine what PC resources are free to use.
- The resources used by each PCI bus board do not depend on the location of the PCI bus slot or the board itself. If you remove two or more boards that have already been installed and then remount one of them on the computer, it is unknown that which one of the sets of resources previously assigned to the two boards is assigned to the remounted board. In this case, you must check the resource settings.

Setting with the Add New Hardware Wizard

(1) The “Add New Hardware Wizard” will be started.
Select “Specify the location of the driver”, then click on the [Next] button.
If you are using Windows NT 4.0, the “Add New Hardware Wizard” is not started. Go to Step 4 “Initializing the Software”.
17
Page 25
2. Setup
(2) Specify that folder on the CD-ROM which contains the setup information (INF) file to register the
board.
* The name of the board you have just added is displayed.
- PIO-16/16T(PCI)
Source folder The setup information (INF) file is contained in the following folder on the bundled CD-ROM.
Windows XP, 2000 \INF\Win2000\Dio\PCI Windows Me, 98, 95 \INF\Win95\Dio\PCI
Example of specifying the folder for use under Windows Me
\INF\Win95\Dio\PCI
18
Page 26
2. Setup
CAUTION
In Windows XP, the Hardware Wizard displays the following alert dialog box when you have located the INF file. This dialog box appears, only indicating that the relevant driver has not passed Windows Logo testing, and it can be ignored without developing any problem with the operation of the board.
In this case, click on the [Continue Anyway] button.
You have now finished installing the software.
* The name of the board you have just added is displayed.
- PIO-16/16T(PCI)
19
Page 27
2. Setup

Step 4 Initializing the Software

The driver library requires the initial setting to recognize the execution environment. It is called the initialization of the Driver library.

Invoking API-TOOL Configuration

(1) Open the Start Menu, then select “Programs” – “CONTEC API-PAC(W32)” – “API-TOOL
Configuration”.
(2) API-TOOL Configuration detects hardware automatically.
The detected boards are listed.

Updating the Settings

(1) Select “Save settings to registry…” from the “File” menu.
You have now finished installing the initial setting of Software.
20
Page 28
2. Setup

Step 5 Checking Operations with the Diagnosis Program

Use the diagnosis program to check that the board and driver software work normally, thereby you can confirm that they have been set up correctly.

What is the Diagnosis Program?

The diagnosis program diagnoses the states of the board and driver software. It can also be used as a simple checker when an external device is actually connected. Using the “Diagnosis Report” feature reports the driver settings, the presence or absence of the board, I/O status, and interrupt status.

Check Method

Connect the board to a remote device to test the input/output and check the execution environment. Check Mate (CM-32(PC)E) is convenient to check digital I/O boards. Set the board in the default factory.
Wiring diagram
CM-32(PC)E
GROUP 1
7 6 5 4 3 2 1 0
GROUP 3
7 6 5 4 3 2 1 0
GROUP 0
7 6 5 4 3 2 1 0
GROUP 2
7 6 5 4 3 2 1 0
POWER
CN3
Board
Connector
Optional cable PCB37PS-0.5P, PCB37P-1.5P or PCB37P-1.5
To connect the device other than Check Mate, see Chapter 3 “External Connection”.
21
Page 29
2. Setup

Using the Diagnosis Program

Starting the Diagnosis Program Select the board in the API-TOOL Configuration windows, then run the Diagnosis Program. Follow
the instructions on screen.
* The name of the board you have just added is displayed.
* The name of the board you have just added is displayed.
- PIO-16/16T(PCI)
22
Page 30
Checking Digital Inputs and Outputs The main panel of the Diagnosis Program appears. You can check the current operation states of the board in the following boxes:
“Input Port” : Displays input values bit by bit at fixed time intervals. “Output Port” : Mouse operation allows the data to output or display. “Interrupt” : Displays the number of interrupts detected bit by bit.
* The name of the board you have just added is displayed.
- PIO-16/16T(PCI)
2. Setup
To use the wait time control feature, click on the [Wait Configuration] button. Use the feature when the wait time based on the DioWait or DioWaitEx function is not normal.
To use the function execution time measurement feature, click on the [Measurement Time] button. Enter the I/O start port and the number of ports, then press the measurement button. The time for each execution of a function will be measured.
23
Page 31
2. Setup
(
)
Diagnosis Report (1) Clicking on the [Show Diagnosis Report] button displays detailed data such as board settings and
the diagnosis results while saving them in text format. The results are saved and displayed as a text file (DioRep.txt) in the install folder (Program Files\CONTEC\API-PAC(W32)). The Diagnosis Program performs “board presence/absence check”, “driver file test”, “board setting test”, and so on.
CAUTION
Before executing diagnosis report output, unplug the cable from the board.
(2) A diagnosis report is displayed as shown below.
* The name of the board you have just added is displayed.
- PIO-16/16T(PCI)
Click on [Show Diagnosis Report].
* The name of the board you have just added is displayed.
- PIO-16/16T
24
PCI
Page 32

Setup Troubleshooting

Symptoms and Actions

2. Setup
The board cannot be initialized [Windows NT 4.0 The driver may not yet be activated.
When using the board under an OS not compliant with Plug and Play, such as Windows NT 4.0, make sure that the [PnP OS] BIOS option has been set to [NO], [disable], or [Do not use]. If the option has been set to [Windows 95], for example, the board may not be detected normally. For details on BIOS settings, refer to the user’s guide for your PC.
No output can be obtained. Use API-TOOL Configuration to check whether the board name setting is wrong.
The board works with the Diagnosis Program but not with an application. The Diagnosis Program is coded with API-TOOL functions. As long as the board operates with the
Diagnosis Program, it is to operate with other applications as well. In such cases, review your program while paying attention to the following points:
- Check the arguments to functions and their return values.
- When the board is an isolated type, it has a time lag for its response between the output by a function and the actual output. Consider the execution intervals between functions.
The OS won’t normally get started or detect the board. [Windows XP Turn off the power to your PC, then unplug the board. Restart the OS and delete the board settings of
API-TOOL Configuration. Turn off the PC again, plug the board, and restart the OS. Let the OS detect the board and use API-TOOL Configuration to register board settings.
]
2000]
,

If your problem cannot be resolved

Contact your retailer.
25
Page 33
2. Setup
26
Page 34

3. External Connection

3. External Connection
This chapter describes the interface connectors on the board and the external I/O circuits. Check the information available here when connecting an external device.

Using the On-board Connectors

Connecting a Device to a Connector

To connect an external device to this board, plug the cable from the device into the interface connector (CN1) shown below.
Interface connector (CN1)
37 36 18
21 2 20
CN1
- Connector used
19
37-pin D-SUB, female connector DCLC-J37SAF-20L9(mfd. by JAE) Thumb screw : UNC#4-40(inch screw)
- Applicable connectors 17JE-23370-02(D8C) (mfd. by DDK, Male) FDCD-37P (mfd. by HIROS E, Male )
1
DC-37P-N (mfd. by JAE, Male)
Figure 3.1. Interface Connector and Applicable Cable Connector
27
Page 35
3. External Connection

Connector Pin Assignment

Signal common
+0 port (input)
+1 port (input)
* I-00 to I-03 can be used as interrupt signal.
I-00 to I-17 16 input signal pins. Connect output signals from the external device to these pins. O-20 to O-37 16 output signal pins. Connect these pins to the input signal pins of the external device. VCC Output +5V. GND It is connected to the slot GND. N.C. This pin is not connected to any part.
+5V
GND *I-00 *I-01 *I-02 *I-03
I-04 I-05 I-06 I-07 I-10 I-11 I-12 I-13 I-14 I-15 I-16 I-17
Vcc
N.C.
1
20
2
21
3
22
4
23
5
24
6
25
7
26
8
27
9
28
10
29
11
30
12
31
13
32
14
33
15
34
16
35
17
36
18
37
19
GND O-20 O-21 O-22 O-23 O-24 O-25 O-26 O-27 O-30 O-31 O-32 O-33 O-34 O-35 O-36 O-37 Vcc
Signal common
+2 port (output)
+3 port (output)
+5V
Figure 3.2. Pin Assignments of Interface Connector
28
Page 36
3. External Connection
Relationships between API-PAC(W32) Logical Ports/Bits and Connector Signal Pins
The following table lists the relationships between the connector signal pins and the logical port/bit numbers used for I/O functions when applications are written with API-PAC(W32).
Table 3.1. Logical Ports, Logical Bits, and Connector Signal Pins
D7 D6 D5 D4 D3 D2 D1 D0
Input Logical Ports0
Input Logical Ports1
Output Logical
Ports0
Output Logical
Ports1
Note : I-xx represents an input signal, O-xx represents an output signal.
I-07
I-17 [15]
O-27
O-37
[15]
[xx] represents a logical bit.
I-06
I-05
I-04
I-03
I-02
I-01
[7]
[6]
[5]
[4]
[3]
[2]
I-16
I-15
I-14
I-13
[14]
[13]
[12]
D7 D6 D5 D4 D3 D2 D1 D0
O-26
O-25
[7]
[6]
O-36
[14]
[5]
O-35
[13]
O-24
[4]
O-34
[12]
[11]
O-23
[3]
O-33
[11]
I-12 [10]
O-22
[2]
O-32
[10]
[1]
I-11
[9]
O-21
[1]
O-31
[9]
I-00
[0]
I-10
[8]
O-20
[0]
O-30
[8]
CAUTION
The logical port and logical bit numbers are virtual port and bit numbers that enable programming independent of board I/O addresses or board types. For details, refer to API-DIO HELP available after installing API-PAC(W32).
29
Page 37
3. External Connection

Connecting Input Signals

The Input circuits in the interface section of this board are illustrated in Figure 3.3. External digital signals given to signal inputs are TTL levels. The individual input signals are passed to the personal computer as active low signals. As each of the signal inputs is pulled up internally, the output of a relay contact or semiconductor switch can be connected directly between the signal input and the signal common pin.

Input Circuit

Externalcircuit
Vcc
74ALS541
Board
Vcc
10kΩ
+5V output
Input pin
Signal
common
GND
* Input pin represents I-xx.
GND
Figure 3.3. Input Circuit

Example of Connection to SW

I-00 (CN1 : 2 pin)
GND (CN1 : 1 pin)
Board side
When switch is "ON", the corresponding bit is "1". When switch is "OFF" in contrast, the corresponding bit is "0".
Figure 3.4. Connection Example of Input I-00
30
SW
Page 38
3. External Connection

Connecting Output Signals

The Input circuits in the interface section of this board are illustrated in Figure 3.5. Signal outputs are open-collector outputs; individual output signals are sent to the external device as active low signals. Note that each signal output must be pulled up at the external device as it is not pulled up internally.

Output Circuit

Board
Vcc
74LS07
(Open-collector)
* Output pin represents O-xx.
Unconnection
GND
+5V output
Output pin
Signal
common
Figure 3.5. Output Circuit
CAUTION
When the PC is turned on, all output are reset to OFF.

Example of Connection to LED

Vcc (CN1 : 37 pin)
2kΩ
External circuit
Vcc
10kΩ
GND
Board side
O-20 (CN1 : 21 pin)
When "1" is output to a relevant bit, the corresponding LED comes on. When "0" is output to the bit, in contrast, the LED goes out.
LED
Figure 3.6. Connection Example of Output O-20
31
Page 39
3. External Connection

Surge Voltage Countermeasures

When a load that generates surge voltages and inrush currents, such as an induction load (relay coil) or an incandescent light bulb, is connected to the digital output, appropriate protection must be provided in order to prevent damage to the output stage or a malfunction due to noise. The rapid shutoff of a coil, such as in a relay, generates a sudden high-voltage pulse. If this voltage exceeds the withstand voltage of the output transistor, it can cause the transistor to gradually deteriorate, or even completely damage the transistor. Therefore, when driving an induction load, such as a relay coil, you should always connect a surge-absorbing device. The following illustrates a surge voltage countermeasure that can be employed:
Examples of use of relay coil
+5V
Diode
Output pin
Signal common
Examples of use of lump
+5V
Output pin
Signal common
Relay coil
Surge current
prevention
resistor
+5V
Output pin
Signal common
+5V
Output pin
Signal common
Relay coil
Zener diode
External power voltage < Zener diode voltage
Resistor
Figure 3.7. Surge Voltage Countermeasure
CAUTION
In order for a protection circuit to operate effectively, it must be connected within 50cm from a load and a contact point.

About the Protection Feature

The +5V output of the board is provided with a PolySwitch-based protection feature. If the +5V output is accidentally connected to GND, the protection feature works and it may disable the board temporarily. In that case, turn the PC off, wait for a few minutes, then turn the PC back on.
32
Page 40

4. Function

4. Function
This section describes the features of the board.

Data I/O Function

Data Input

When input data is “ON”, “1” is input to the relevant bit. When the input data is “OFF (high level)”, in contrast, “0” is input to the relevant bit.

Data Output

When “1” is output to the relevant bit, the corresponding transistor is set to “ON (output is low level)”. When “0” is output to the relevant bit, in contrast, the corresponding transistor is set to “OFF (output is high level)”.
CAUTION
When the PC is turned on, all output are reset to 0 (OFF).

Monitoring Output Data

The PIO-16/16T(PCI) can read the state of the data currently being output without affecting the output data.
33
Page 41
4. Function

Digital Filter

Using this feature, the PIO-16/16T(PCI) can apply a digital filter to every input pin, thereby preventing the input signal from being affected by noise or chattering.

Digital Filter Function Principle

The digital filter checks the input signal level during the sampling time of the clock signal. When the signal level remains the same for the digital filter set time, the digital filter recognizes that signal as the input signal and changes the signal level of the PC.
If the signal level changes at a frequency shorter than the set time, therefore, the level change is ignored.
Input Signal
Input Signal
Input to PC
Digital Filter
Filter Setting Time
Invalid
Input to PC
Valid
Figure 4.1. Digital Filter Function Principle

Set Digital Filter Time

Set the digital filter time to 0 to 20 (14h). Setting the digital filter time to 0 disables digital filtering. It is set to 0 when the power is turned on. Figure 4.2 shows the relationships between digital filter time settings and the actual digital filter times.
Digital Filter Time[sec.] = 2
n: = setting data(0 to 20)
Setting Data
(n)
0 (00h) The filter function
1 (01h) 0.125µsec 8 (08h) 16µsec 15 (0Fh ) 2.048msec 2 (02h) 0.25µsec 9 (09h) 32µsec 16 (10h) 4.096msec 3 (03h) 0.5µsec 10 (0Ah) 64µsec 17 (11h) 8.192msec 4 (04h) 1µsec 11 (0Bh) 128µsec 18 (12h) 16.384msec 5 (05h) 2µsec 12 (0Ch) 256µsec 19 (13h) 32. 76 8mse c 6 (06h) 4µsec 13 (0Dh) 512msec 20 (14 h) 65.536msec
Digital Filter
Time
is not used.
Figure 4.2. Digital Filter Time and Setting Data
CAUTION
- If you set the digital filter time, the filter applies to all input pins. You cannot apply the filter only to a specific filter.
- Do not set Setting Data to a value outside the above range as doing so can cause the board to malfunction.
n
/ (16 x 106)
Setting Data
(n)
7 (07h) 8µsec 14 (0Eh) 1.024msec
Digital Filter
Time
Setting Data
(n)
Digital Filter
Time
34
Page 42
4. Function

Interrupt Control Function

When jumper JP1 has been set "to use interrupts," the board can use up to four input signals as interrupt request signals. I-00 to I-03 can be used as interrupt request signals.
The board can generate an interrupt request signal to the PC when the input signal change from High to Low or from Low to High.
When the digital filter (described above) is used, interrupt requests are generated by input signals that have passed through the filter.

Disabling/enabling Interrupts

Interrupt mask bits can be used to disable or enable the individual bits for interruptions. Once a certain bit has been interrupt-disabled, no interrupt occurs even when the corresponding input signal changes its level. To let interrupts occur, enable the corresponding interrupt mask bit for interruptions.
CAUTION
All of the interrupt mask bits are interrupt-disabled when the power is turned on.

Selecting the Interrupt Edge

Interrupt edge select bits can be used to set the input logic for interruption bit by bit. If you set an interrupt edge select bit to 0, an interrupt occurs when the input value to the corresponding bit changes from 0 to 1 (at the fall of the input signal from High to Low). If you set an interrupt edge select bit to 1, an interrupt occurs when the input value to the corresponding bit changes from 1 to 0 (at the rise of the input signal from Low to High).
CAUTION
When the power is turned on, all of the interrupt edge select bits are set to 0 so that an interrupt occurs when the input value changes from 0 to 1 (at the fall of the input signal from High to Low).

Clearing the Interrupt Status and Interrupt Signal

Interrupt status bits are used to identify the input signal bit being used for requesting an interrupt. When an interrupt status is input, the interrupt request signal and the interrupt status are cleared automatically.
CAUTION
- All of the interrupt status bits are set to 0 when the power is turned on.
- The interrupt status bits are set regardless of the state of the interrupt mask bit.
35
Page 43
4. Function
36
Page 44
5. About Software CD-ROM Directory Structure
\ |– Autorun.exe Installer Main Window
| Readmej.html Version information on each API-TOOL (Japanese) | Readmeu.html Version information on each API-TOOL (English)
. . |–––APIPAC Each installer | |––AIO | | |––DISK1 | | |––DISK2 | | |––…… | | |––DISKN | |––AioWdm | |––CNT | |––DIO | |––……
. . | ––HELP HELP file | |––Aio | |––Cnt | |––……
. . | ––INF Each INF file for OS | |––WDM | |––Win2000 | |––Win95
. . |––linux Linux driver file | |––cnt | |––dio | |––……
. . | ––Manual Reference manual (PDF)
. . | ––Readme Readme file for each driver
. . | ––Release Driver file on each API-TOOL | |––API_NT (For creation of a user-specific install program) | |––API_W95

5. About Software

37
Page 45
5. About Software

About Software for Windows

The bundled CD-ROM “Driver Library API-PAC(W32)” contains the functions that provide the following features:
- Digital input/output of specified ports
- Hardware digital input/output of specified bits
- Hardware digital filtering that prevents chattering
For details, refer to the help file. The help file provides various items of information such as “Function Reference”, “Sample Programs”, and “FAQs”. Use them for program development and troubleshooting.

Accessing the Help File

(1) Click on the [Start] button on the Windows taskbar. (2) From the Start Menu, select “Programs” – “CONTEC API-PAC(W32)” – “Dio” – “API-DIO
HELP” to display help information.
38
Page 46
5. About Software

Using Sample Programs

Sample programs have been prepared for specific basic applications. To use each sample program, enter its driver number and group number set by API-TOOL Configuration in the DrvNo and GrpNo fields.
Use these sample programs as references for program development and operation check. The sample programs are stored in \Program Files\CONTEC\API-PAC(W32)\Dio\Samples.
Running a Sample Program (1) Click on the [Start] button on the Windows taskbar. (2) From the Start Menu, select “Programs” – “CONTEC API-PAC(W32)” – “Dio” – “SAMPLE…”. (3) A sample program is invoked.
39
Page 47
5. About Software
Sample Programs – Examples
-Sample program 1 : Inputs digital data through a specified port.
-Sample program 2 : Outputs digital data through a specified port.
-Sample program 3 : Inputs/outputs digital data from/to a programmable board.
-Sample program 4 : Inputs digital data from a specified port in the background.
-Sample program 5 : Inputs/outputs digital data from/to a specified bit.
-Sample program 6 : Services interrupts of a specified board.
-Sample program 7 : Provides process control of a specified board.
-Sample program 8 : Performs trigger monitoring of a specified board.
-Sample program 9 : Inputs digital data through a specified port using BCD data.
-Sample program 10 : Executes digital input (simple functions) at specified bits through a
-Sample program 11 : Services interrupts of a specified board (using an extended function).
-Sample program (Console): Inputs/outputs digital data through a specified port.
[Sample program 1] [Sample program 2]
specified port.
[Sample program 5] [Sample program 9]
40
Page 48
5. About Software

Uninstalling the Driver Libraries

To uninstall API-PAC(W32), follow the procedure below. (1) Click on the [Start] button on the Windows taskbar. Fro m the Start Menu, select “Settings” –
“Control Panel”. (2) Double-click on “Add/Remove Programs” in the Control Panel. (3) Select “CONTEC API-DIO(98/PC)xx” from the application list displayed, then click on the
[Add/Remove] button. Follow the on-screen instructions to uninstall the function libraries.
41
Page 49
5. About Software

About Software for Linux

The Linux version of digital I/O function driver, API-DIO(LNX), provides functions that execute the following features:
- Digital input/output of specified ports
- Digital input/output of specified bits
- Hardware digital filtering that prevents chattering
For details, refer to the help file. The help file provides various items of information such as “Function Reference”, “Sample Programs”, and “FAQs”. Use them for program development and troubleshooting.

Driver Software Install Procedure

The Linux version for digital I/O driver, API-DIO(LNX), is supplied as a compressed file /linux/dio/cdioXXX.tgz on the bundled API-PAC(W32)CD-ROM. (Note: XXX represents the driver version.)
Mount the CD-ROM as shown below, copy the file to an arbitrary directory, and decompress the file to install the driver.
For details on using the driver, refer to readme.txt and the help file in HTML format extracted by installation.
To install the d r iver, log in as a superuser.
Decompression and setup procedure
# cd # mo unt /dev/cdrom /mnt /cdrom Mount the CD-ROM. # cp /mnt/cdr om/linux/dio/ cdioXXX.tgz ./ Copy the compressed file. # tar xvfz cdioXXX.tgz Decompress the compressed file.
................
# cd contec/cdio # ma ke Compile the file.
................
# make install Install.
................
# cd config # ./config Set up the board to be used.
.. ... Set as follows .... .....
# ./ contec_dio_start .sh Start the driver. # cd
42
Page 50
5. About Software

Accessing the Help File

(1) Invoke a web browser in your X-Window environment. (2) In the browser, open diohelp.htm in the contec/cdio/help directory.

Using Sample Programs

Sample programs have been prepared for specific basic applications. Sample programs for each language are contained in the contec/cdio/samples directory. For compiling
them, refer to the user’s guide for the desired language.

Uninstalling the driver

To uninstall the driver, use the uninstall shell script contained in the contec/cdio directory. For details, check the contents of the script.
43
Page 51
5. About Software
44
Page 52

6. About Hardware

6. About Hardware
This chapter provides hardware specifications and hardware-related supplementary information.

Hardware specification

Table 6.1. Specification
Item Specification
Input
Input format Number of input channels Pull-up resistance
Interrupt
Response time
Output
Output format Number of output
channels
Ratings
Response time
Common
I/O address Max. board count for connection Power consumption Operating condition Allowable distance of signal exten sion PCI bus specification Dimension (mm) Weight
*1 Data “0” is corresponding t o hig h leve l and “1” to low level.
Output voltage Output current
Unisolated TTL-level input 16 channels (4 channels can be used for interrupts.) 10k
Ω (1 TTL loading)
4 interrupt input signals are arranged into a single output of interrupt signal INTA. An interrupt is generated at the rising (HIGH-to-LOW transition) or at the falling edge (LOW-to-HIGH transition). 200nsec within
Unisolated open-collector output 16 channels
30 VDC (Max.) 40 mA (per channel) (Max.) 200nsec within (Variable with pull-up resistance)
8 bits x 32 ports boundary (Common to I/O part) 16 boards including the master board
5 VDC 400 mA(Max.) 0 to 50
°C, 10 to 90%RH (No condensation)
Approx. 1.5m (depending on wiring environment)
32bit, 33MHz, 5V
121.69(L) x 106.68(H) 1100g
Board Dimensions
121.69(L)
(Negative logic *1)
(Positive logic *1)
106.68(H)
The standard outside dimension (L)is
thedistancefromtheendoftheboar to the outersurface ofthe slot cover.
[mm]
d
45
Page 53
6. About Hardware

Block Diagram

Control
PCI bus
circuit
Interrupt
control
Figure 6.1. Block Diagram
TTL receiver
TTL receiver
TTL driver
TTL driver
PIO-16/16T(PCI)
External digital input port 0 (8 points, group 0)
External digital input port 1 (8 points, group 1)
External digital output port 0 (8 points, group 2)
External digital output port 1 (8 points, group 3)
46
Page 54
PIO-16/16T(PCI)
User’s Guide
CONTEC CO., LTD. September 2004 Edition
3-9-31, Himesato, Nishiyodogawa-ku, Osaka 555-0025, Japan Japanese http://www.contec.co.jp/ English http://www.contec.com/ Chinese http://www.contec.com.cn/
No part of this document may be copied or reproduced in any form by any means without prior written consent of CONTEC CO., LTD. [03112004]
[12101998] Management No. A-41-957 [09062004_rev2] Parts No. LZH3031
Loading...
Buy Points How it Works FAQ Contact Us Questions and Suggestions Privacy Policy Cookie Policy Terms of Use
