Contec ITX-i7435/ATX Quick Installation Manual

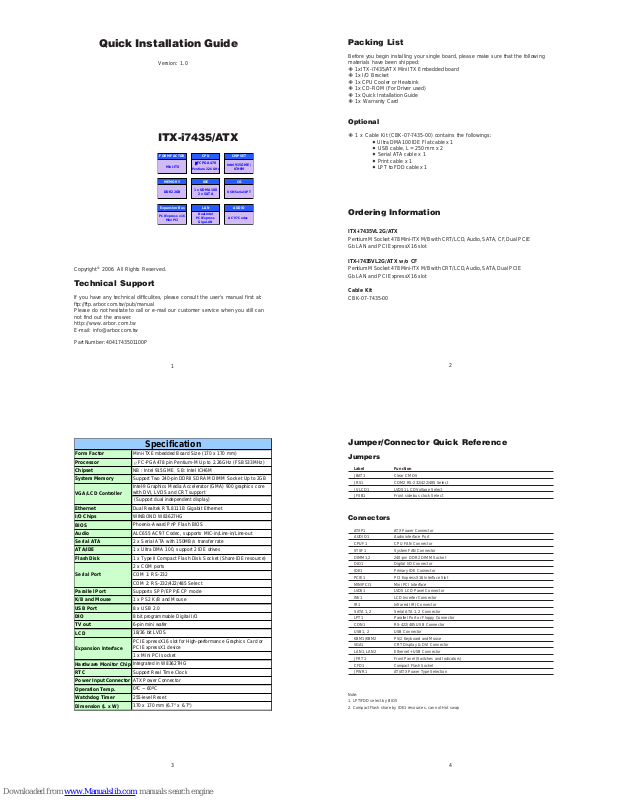

Quick Installation Guide

Version: 1.0

ITX-i7435/ATX

FORM FACTOR

Mini-ITX

CPU

μFCPGA 478

MEMORY

DDR2 2GB

LAN

Dual Intel

PCI Express

Giga LAN

IDE

1 x UDMA 100

2 x SATA

AUDIO

AC'97 Codec

Expansion Bus

PCI Express x 16

Mini PCI

CHIPSET

Intel 915GME /

ICH6M

I/O

USB/Serial/LP T

Pentium 2.26 GHz

Copyright© 2006 All Rights Reserved.

Technical Support

If you have any technical difficulites, please consult the user's manual first at:
ftp://ftp.arbor.com.tw/pub/manual
Please do not hesitate to call or e-mail our customer service when you still can
not find out the answer.
http://www.arbor.com.tw
E-mail: [e-mail]

Part Number: 4041743501100P

Packing List

Before you begin installing your single board, please make sure that the following
materials have been shipped:

 1x ITX-i7435/ATX Mini ITX Embedded board
 1x I/O Bracket
 1x CPU Cooler or Heatsink
 1x CD-ROM (For Driver used)
 1x Quick Installation Guide


1x Warranty Card

Optional

 1 x Cable Kit (CBK-07-7435-00) contains the followings:

 Ultra DMA100 IDE Flat cable x 1
 USB cable, L = 250 mm x 2
 Serial ATA cable x 1
 Print cable x 1
 LPT to FDD cable x 1

Ordering Information

ITX-i7435VL2G/ATX

Pentium M Socket 478 Mini-ITX M/B with CRT/LCD, Audio, SA T A, CF , Dual PCIE
Gb LAN and PCI ExpressX16 slot

ITX-i7435VL2G/ATX w/o CF

Pentium M Socket 478 Mini-ITX M/B with CRT/LCD, Audio, SA T A, Dual PCIE
Gb LAN and PCI ExpressX16 slot

Cable Kit

CBK-07-7435-00

Jumper/Connector Quick Reference

Jumpers

Label Function

JBAT1 Clear CMOS
JRS1 COM2 RS-232/422/485 Select
JVLCD1 LVDS1 LCD Voltage Select
JFSB1 Front side bus clock Select

Connectors

ATXP1 ATX Power Connector
AUDIO1 Audio interface Port
CPUF1 CPU FAN Connector
SYSF1 System FAN Connector
DIMM1,2 240-pin DDR2 DIMM Socket
DIO1 Digital I/O Connector
IDE1 Primary IDE Connector
PCIE1 PCI ExpressX16 Interface Slot
MINIPCI1 Mini PCI Interface
LVDS1 LVDS LCD Panel Connector
INV1 LCD Inverter Connector
IR1 Infrared (IR) Connector
SATA 1, 2 Serial ATA 1, 2 Connector
LPT1 Parallel Port or Floppy Connector
CON1 RS-422/485 USB Connector
USB1, 2 USB Connector
KBM1/KBM2 PS/2 Keyboard and Mouse
VGA1 CRT Display & DVI Connector
LAN1, LAN2 Ethernet +USB Connector
JFRT1 Front Panel (Switches and Indicators)
CFD1 Compa ct Flash Socket
JPWR1 AT/ATX Power Type Selection

1

2

3 4

Note:

1. LPT/FDD select by BIOS

2. Compact Flash share by IDE1 resources, can not Hot swap

Form Factor

Mini-iTX Embedded Board Size (170 x 170 mm )

Pr oce sso r

μ

FC-PGA478 pin Pent i um-M Up t o 2. 26GHz (F S B 533M Hz )

Chipset

NB : Intel 915GME SB: Intel ICH6M

System Memory

Support Two 240-pin DDRII SDRAM DIMM S oc ket Up to 2GB
Intel® Graphics Media Accelerator (GMA) 900 graphics c ore

with DVI, LV DS and CRT supp or t
(Support dual independent dis pl ay)

Etherne t

Dual Realtek RTL8111B Gigabit E thernet

I/O Chips

WINBOND W83627HG

BIOS

Phoenix-Award P nP Fl as h B IOS

Audio

ALC655 AC'97 Codec, support s M IC-in/Li ne-in/ Li ne-out

Serial ATA

2 x Serial A TA wit h 150MB /s trans fer rate

ATA/IDE

1 x Ultra DMA 100, support 2 IDE drives

Flash Disk

1 x Type II Compact Flas h Dis k Soc k et (S hare IDE resourc e)
2 x COM ports
COM 1: RS - 23 2
COM 2: RS-232/422/485 S el ec t

Parallel Port

Supports SPP/EPP/ECP mode

K/B a n d Mouse

1 x PS2 K/B and Mouse

USB P ort

8 x USB 2.0

DIO

8 bit programmable Digit al I/O

TV out

6-pin mini wafer

LCD

18/36 bit LVDS
PCI Express X16 slot for High-performance Graphics Card or

PCI Expres sX1 device
1 x Mini PCI socket

Hardw a re Monitor Chip

Integrated in W83627HG

RTC

Support Real Time Cloc k

Power Input Connector

ATX Power Connect or

Operation Temp.

0ºC ~ 60ºC

Watchdog Timer

255-level Reset

Dimension (L x W)

170 x 170 mm (6.7" x 6. 7")

Specification

VGA/ L CD Co n t roll e r

Serial Port

Expansion Interface

01 Keyboard & PS/2 Mouse (KBM1)

Type: Standard Mini-Din connector

02 Keyboard & PS/2 Mouse (KBM2)

Type: 6-pin wafer connector

Pin Description Pin Description

1 KB_DATA 2 GND
3 MS_DATA 4 KB_CLK
5 VCC 6 MS_CLK

03 ATX Power Connector (ATXP1)
04 05 DIMM1, DIMM2
06 12 CPU/System Fan Connector (CPUF1/SYSF1)

Type: Onboard 3-pin wafer connector

Pin Description

1 GND
2 +12V
3 Fan_Detect

07 08 Serial ATA (SATA1/SATA2)

High speed transfer rates (150MB/sec)
Type: Standard 7-pin SATA connector

Pin Description

1 GND
2 TX+
3 TX­4 GND
5 RX+
6 RX­7 GND

09 CMOS Setup (JBAT1)

Type: Onboard 3-pin header

CMOS Setup JBAT1

Keep CMOS 1-2 ON
Clear CMOS 2-3 ON

Default setting: 1-2

10 IDE Connector (IDE1)

Type: Standard 2.54mm 40-pin box header

11 Digital I/O Connector (DIO1)

Type: Onboard 2.54mm 2*5-pin header

Pin Description Pin Description

1 DIO1 2 DIO2
3 DIO3 4 DIO4
5 DIO5 6 DIO6
7 DIO7 8 DIO8
9 +5V 10 GND

13 Front Side BUS Clock Select (JFSB1)

Type: onboard 1*3-pin header

JFSB1 1-2 2-3

Front side bus 400MHz 533MHz

Default setting: 400MHz

14 PCI ExpressX16 Interface Slot (PCIE1)
15 Mini PCI Interface (MINIPCI1)
16 Switches and Indicators (JFRT1)

Type: Onboard 16-pin header

Pin Description Pin Description

1 Power LED+ 2 PWRBTN+
3 GND 4 PWRBTN­5 GND 6 RESET+
7 HDD LED+ 8 RESET­9 HDD LED- 10 SPEAKER+
11 SMBCLK 12 SPEAKER+
13 SMBDA TA 14 SPEAKER­15 GND 16 SPEAKER-

17 COM1 Power Source Special Support (JV1)

Type: onboard 1*3-pin header

COM1 Power SourceSupport JV1

Standard 2-3
POS: 5V on Pin1 1-2

Default setting: Standard

18 RS-422/485 Output Connector (CON1)

Type: Onboard 2.0mm 4-pin wafer connector

Pin RS-422 RS-485

1 TX+ DATA+
2 TX- DATA­3 RX+ N.C
4 RX- N.C

RS-422/RS-485 Select by JRS1, share COM2
resource.

19 Serial Port Selection (RS232C/422/485) (JRS1)

The onboard COM2 port can be configured to operate
in RS-422 mode or in different RS-422/485 modes.

Mode Selection 1-2 3-4 5-6

RS-232 ON OFF OFF
RS-422 OFF ON OFF
RS-485 OFF OFF ON

Default setting: RS-232

20 21 USB Connector (USB1/USB2)

Type: Onboard 2.54mm 10-pin header for two USB
ports

Pin Description Pin Description

1 +5V 2 +5V
3 USBD- 4 USBD­5 USBD+ 6 USBD+
7 GND 8 GND
9 GND 10 N.C

22 Parallel Port Connector (LPT1)

Type: Onboard 2.0mm 2*13-pin box header

Pin Description Pin Description

1 STROBE 14 AFD
2 PTD0 15 ERROR
3 PTD1 16 INIT
4 PTD2 17 SLIN
5 PTD3 18 GND
6 PTD4 19 GND
7 PTD5 20 GND
8 PTD6 21 GND
9 PTD7 22 GND
10 ACK 23 GND
11 BUSY 24 GND
12 PE 25 G ND
13 SELECT 26 Key(N/C)

LPT1: Floppy Drive Connector

LPT1 can be configured as a connector of floppy disk
drive interface through BIOS setup

Type: Onboard 2.0mm 2*13-pin box header

Pin Description Pin Description

1 NC 14 RWC­2 RINDEX- 15 HEAD­3 TRAK0- 16 DIR­4 WP- 17 STEP­5 RDATA- 18 GND
6 DSKCHG- 19 GND
7 NC 20 GND
8 NC 21 GND
9 NC 22 GND
10 DSB- 23 GND
11 MOB- 24 GND
12 WD- 25 GND
13 WE- 26 Key(N/C)

5 6

7

8

31 LVDS LCD Connector (LVDS1)

Type: Onboard DF-13-30DP-1.25V

Pin Description Pin Description

1 VDD 2 VDD
3 TX1CLK+ 4 TX2CLK+
5 TX1CLK- 6 TX2CLK­7 GND 8 GND
9 TX1D0+ 10 TX2D0+
11 TX1D0- 12 TX2D0­13 GND 14 GND
15 TX1D1+ 16 TX2D1+
17 TX1D1- 18 TX2D1­19 GND 20 GND
21 TX1D2+ 22 TX2D2+
23 TX1D2- 24 TX2D2­25 GND 26 GND
27 N C 28 NC
29 N C 30 NC

VDD could be selected by JVLCD1 in +5V or +3.3V.

32 CRT/DVI Connector (VGA1)

Note: Driver Install

CHIPSET: \DRIVER\CHIPSET\Intel\INF 7.2
IDE: \DRIVER\IDE\Intel\ICH7

VG A: \DRIVER\Graphics\Intel\9X5
USB: \DRIVER\USB2\ICH5
LAN: \DRIVER\Ethernet\Realtek
MONITOR: \DRIVER\H-MONITOR\Winbond
AUDIO: \DRIVER\AUDIO\Realtek

23 Infrared Connector (IR1)

Type : onboard 2.54mm 5-pin header

Pin Description

1 +5v
2NC
3 IRRX
4 GND
5 IRTX

24 Audio Interface Port (AUDIO1)

AC’97 Audio

25 RS-232 Serial Port (COM1)

Type: Two D-SUB 9 connecotor

26 27 USB/LAN Connector (LAN1/LAN2)
This connector supports USB 2.0 x 4 (USB 0, 1, 2,

3) & Gigabit RJ-45 Ethernet Connector.

28 AT/ATX Power Mode Select (JPWR1)

Type: Onboard 1*2-pin header

JPWR1 Select 1-2

AT-MODE SHORT
ATX-MODE OPEN

Default setting: ATX MODE

29 LCD Voltage Selection (JVLCD1)

Type: Onboard 3-pin header
The voltage of LCD panel could be selected by

JVLCD1 in 5V or 3.3V.

Mode JVLCD1

3.3V 2-3
5V 1-2

Default setting: 3.3V

30 LCD Inverter Connector (INV1)

Type: Onboard 5-pin wafer connector

Pin Description Pin Description

1 +12 V 2 GND
3 Backlight on/off 4 Brightness control
5 GND

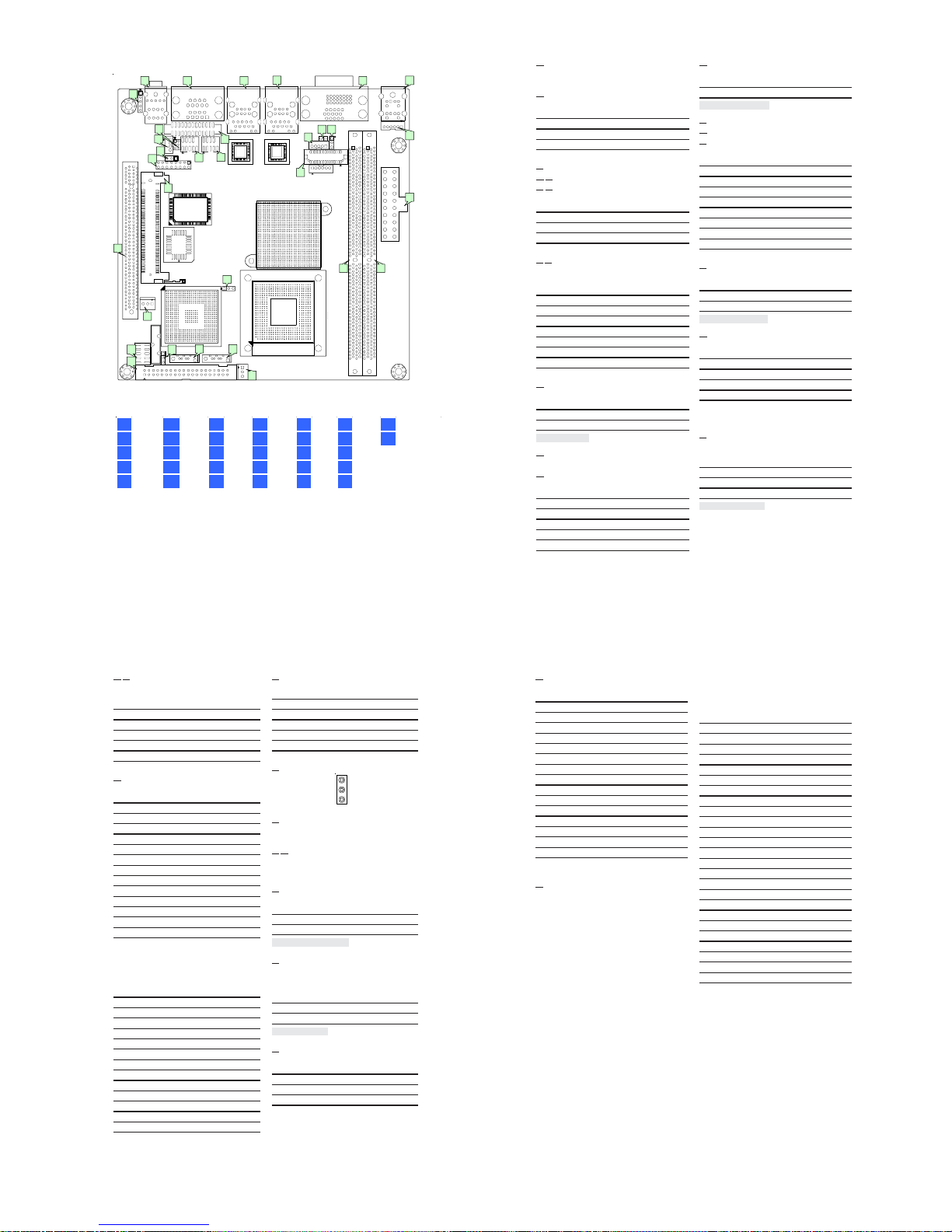

01 KBM1 06 CPUF1 11 DIO1 16 JFRT1 21 USB2 26 LAN1 31 LVDS1
02 KBM2 07 SATA1 12 SYSF1 17 JV1 22 LPT1 27 LAN2 32 VGA1
03 ATXP1 08 SATA2 13 JFSB1 18 CON1 23 IR1 28 JPWR1
04 DIMM1 09 JBAT1 14 PCIE1 19 JRS1 24 AUDIO1 29 JVLCD1
05 DIMM2 10 IDE1 15 MINIPCI1 20 USB1 25 COM1 30 INV1

Audio-In
Audio-Out
MIC-In

111

+

+

49

4833

32

64

1

16

17

49

48

33

32

64

1

16

17

4653

21

12

10

9

11

78

26

13

14

1

2

1

1
2
3

124

1

1

8

1

2

3

4

7

6

5

+

3

1

2

3

4 5

6

8

12

14

16

7

17

11

19

20 21

23

24 25 26

27

28 29

32

31

30

18

15

22

9

13

10

Solder Side

Compact Flash Connector (CFD1)
Note: Does not support hot swap.

Pin Description Pin Description

1 GND 26 N/C
2DATA3 27DATA11
3DATA4 28DATA12
4DATA5 29DATA13
5DATA6 30DATA14
6DATA7 31DATA15
7 CS#1 32 CS#3
8 GND 33 N/C
9 GND 34 IO READ
10 GND 35 IO WRITE
11 GND 36 +5V
12 GND 37 IRQ15
13 +5V 38 +5V
14 GND 39 CSEL
15 GND 40 N/C
16 GND 41 IDE RESET
17 GND 42 IO READY
18 ADDR2 43 REQ
19 ADDR1 44 ACK#
20 ADDR0 45 ACT#
21 DATA0 46 DIAG
22 DATA1 47 DATA8
23 DATA2 48 DATA9
24 N /C 49 DATA10
25 GND 50 GND
