IPC Series

BOX-PC for IPC-BX/M360(PCI)C

User’s Manual

CONTEC CO.,LTD.

Copyright

consent of CONTEC CO., LTD.

CONTEC CO., LTD. makes no commitment to update or keep current the information contained in this document.

The information in th is do cument is subject to cha ng e wi thou t not ice .

All relevant issues have been considered in the preparation of this document. Should you notice an omission or any questionable item in this document, please feel free to notify CONTEC CO., LTD.

Regardless of the foregoing statement, CONTEC assumes no responsibility for any errors that may appear in this document or for results obtained by the user as a result of using this product.

Trademarks

Intel and Celeron are registered trademarks of Intel Corporation. MS, Microsoft and Windows are trademarks of Microsoft Corpor ation. Other brand an d product nam es are tradem arks of their respec tive holder.

User’s Manual

Copyright ............................................................................................................................................. i

Trademarks ..........................................................................................................................................i

Table of Con tents................................................................................................................................ ii

1. INTRODUCTION 1

Features ........................................................................................................................................1

Supported OS ............................................................................................................................... 1

Customer Supp o rt ............................................................................................................................... 2

Web Site....................................................................................................................................... 2

Limited One- Ye ar Wa r ra n t y............................................................................................................... 2

How to Obtain Serv ic e........................................................................................................................ 2

Liability............................................................................................................................................... 2

Safety Precau t ion s............................................................................................................. .................. 3

Safety Infor mat i on ....................................................................................................................... 3

Handling Pre ca u tio n s................................................................................................................... 3

FCC PART 15 Cla s s A No ti c e ....................................................................................................4

2. OVERVIEW 5

Specificatio n s...................................................................................................................................... 5

System Config u rat i on ......................................................................................................................... 8

External Dime ns io n s........................................................................................................................... 9

3. HARDWARE SETUP 11

Before Using th e B OX - PC fo r th e F ir s t T i me.................................................................................. 11

Hardware Se tup................................................................................................................................. 12

Removing th e Left-side Cov e r and HDD Bracket .................................................................... 12

Locations and S ett in g s of I nt e rn al Co nn e cto r s and Jumpers .................................................... 13

Power connect ion....................................................................................................................... 14

Installation met hod ....................................................................................................................1 5

Installation Requirement s .......................................................................................................... 17

4. BIOS SETUP 19

BIOS Setup ....................................................................................................................................... 19

Starting the S e tup Sc re e n........................................................................................................... 19

Main Menu................................................................................................................................. 22

Standard CMO S Se tu p............................................................................................................... 23

Advanced BIOS Features Setup ................................................................................................ 25

Advanced Chip s et F e a tu res S etu p ............................................................................................. 29

Integrated P eri p h era l s ................................................................................................................ 35

User’s Manual

Power Manage men t S etu p ......................................................................................................... 39

PnP/PCI Configuration Setu p .................................................................................................... 45

PC Health Sta tus ........................................................................................................................ 47

Frequency/Vo l tag e Co n t ro l .......................................................................................................48

Load Fail-Sa fe Defaults............................................................................................................. 48

Load Optimiz ed Defaults........................................................................................................... 48

Supervisor/U se r Pas s wo rd S ett in g ............................................................................................ 49

Save & Exit Set u p...................................................................................................................... 50

Exit Without S av in g .................................................................................................................. 50

POST Messages ................................................................................................................................ 51

POST Beep ....................................................................................................................................... 51

Error Messag es ................................................................................................................................. 52

5. EACH COMPONENT FUNCTION 55

Component Ident ification.......................................................................................................... 55

Line out Interface....................................................................................................................... 5 7

Keyboard / Mou s e I n t erf a ce ......................................................................................................57

Serial Port In t erf ac e ................................................................................................................... 58

USB Ports .................................................................................................................................. 64

Ethernet...................................................................................................................................... 6 5

PC Card Slots............................................................................................................................. 66

DVI Connector........................................................................................................................... 67

RAS Functions........................................................................................................................... 71

Watchdog Ti mer ................................................................................................................. ....... 7 2

General-purp o se I/ O .................................................................................................................. 76

RS-422/485 ................................................................................................................................ 78

IDE Interfac e.............................................................................................................................. 80

6. APPENDIX 83

Memory Map .................................................................................................................................... 83

I/O Port Addresses............................................................................................................................ 84

Interrupt Le ve l L is t........................................................................................................................... 85

List of Opt ions.................................................................................................................................. 86

User’s Manual

iii

User’s Manual

1. Introduction

The IPC-BX/M360(PCI)C is an IBM PC/AT compatible, box computer designed for industrial use based on the Ultra Low Voltage Intel(R) Celeron(R) Processor 400MHz, to operate as a completely naturecooled (fanless) system. The IPC-BX/M360(PCI)C is smaller in size than the IPC-BX/M400(PC)H while providing assorted interfaces such as USB 2.0, 100BASE-TX, and RS-232C. It can be a compact platform based on an OS for general-purpose PCs. As this series incorporates handpicked components such as the embedded types of CPU and chipset, it excels in environmental resistance and remains in stable supply for an extended period of time. You can therefore use the box computer under severe operating conditions such as FA with ease.

For the components of this package, refer to the bundled product guide. If you discover damaged or missing items, contact your retailer.

Features

- Equipped with the latest Ultra Low Voltage Intel(R) Celeron(R) Processor 400MHz (FSB 100MHz) CPU

- Very small size (system unit: 146 (W) x 157 (D) x 64 (H))

- Fan-less operation achieved by natural air-cooling

- High reliability and completely silent running (when fitted with the PC-SDD V series sil icon d isk from CONTEC)

- Long, reliable supply (The CPU and chip set are embedded versions.)

- Adopting the slot-in mounted HDD implements easy maintenance and replacem en t eas y.

- Equipped with a DVI video output connector (VGA adapter bundled)

- Capable of starting up, e ven with th e b at tery d e ad, us ing C MO S dat a re tain ed by EEP RO M

- Equipped with PC Card Slot, CF Card Slot (dedicated to memory card; bootable), 100BASE-TX x 2 ports and USB 2.0 x 4 ports

- Equipped with a secondary-IDE connector to allow an optional external CD-ROM drive to be connected

- Equipped with AC97 compliant audio features

Supported OS

- Windows 2000 Professional

- Windows XP Embedded

- Windows XP Professional

* The Windows 2000 Profession and Windows XP Embedded models have the recovery CD-ROM

bundled for restoring the OS environment to the default state.

* The Windows XP Profession model has the OS install CD-ROM (DSP version) and driver & utility

set CD-ROM [IPC-SLIB-01] bundled. T o restore the OS environment to the default, install the OS and then individual drivers.

User’s Manual

1. Introduction

Customer Support

CONTEC provides the following sup port services for you t o use CONTEC products m ore efficiently and comfortably.

Web Site

Japanese http://www.contec.co.jp/ English http://www.contec.com/ Chinese http://www.contec.com.cn/

Latest product information CONTEC provides up-to-date information on products.

CONTEC also provides product manuals and various technical documents in the PDF. Free download

You can download updated driver software and differential files as we ll as sample program s available in several languages.

Note! For product information Contact your retailer if you have any technical question about a CONTEC product or need its price,

delivery time, or estimate information.

Limited One-Year Warranty

CONTEC Products are warranted by CONTEC CO., LTD. to be free from defects in material and workmanship for up to one year from the date of purchase by the original purchaser.

Repair will be free of charge only when this device is returned freight pre paid with a c opy of the ori ginal invoice and a Return Merchandise Authorization to the distributor or the CONTEC group office, from which it was purchased.

This warranty is not applicable for scratches or normal wear, but only for the electronic circuitry and original products. The warranty is not applicable if the device has been tampered with or damaged through abuse, mistreatment, neglect, or unreasonable use, or if the original invoice is not included, in which case repairs will be considered beyond the warranty policy.

How to Obtain Service

For replacement or repair, return the device freight prepaid, with a copy of the original invoice. Please obtain a Return Merchandise Authorization number (RMA) from the CONTEC group office where you purchased before returning any product.

* No product will be accepted by CONTEC group without the RMA number.

Liability

The obligation of the warrantor is solely to repair or replace the product. In no event will the warrantor be liable for any incidental or consequentia l damages due to s uch defect or consequences t hat arise from inexperienced usage, misuse, or malfunction of this device.

User’s Manual

1. Introduction

Safety Precautions

Understand the following definitions and precautions to use the product safely.

Safety Information

This document provides safety i nformation usin g the following sym bols to prevent accidents resulting in injury or death and the destruction o f equipment and r esource s. Understa nd the meanings o f these label s to operate the equipment safely.

DANGER

WARNING

CAUTION

DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury or in property damage.

Handling Precautions

WARNING

- Always check that the power supply is turned off before connecting or disconnecting power cables.

- Do not modify the product.

- Always turn off the power before inserting or removing circuit boards or cables.

- This product is not intended for u se in aerospace , space, nuclear power, medical equipment, or other applications that require a very high level of reliability. Do not use the pr oduct in suc h applications .

- If using this product in ap pli cat io ns wh e re saf e ty i s crit ica l su ch as in ra ilwa ys, au to mot ive , or disaster prevention o r s ecu rit y sy stems, please contact your retailer.

CAUTION

- Do not use or store the product in a location exposed to extremely high or low temperature or susceptible to rapid temperature changes. Example: - Exposure to direct sun

- Do not use the product in extremely humid or dusty locations. It is extreme ly da ngerous to use the product with its interior penetrated by water or any other fluid or conductive dust. If the product must be used in such an environment, install it on a dust-proof control panel, for example.

- Avoid using or storing the device in locations subject to shock or vibration.

- Do not use the product in the vicinity of devices tha t ge nerate str on g magne tic f orce or noi se . Suc h devices will cause this device to malfunction.

- Do not use or store the product in the presence of chemicals.

- The heat sink on top may become hot. To avoid being burned, do not touch that section while the product is in operation or immediately after turning off the power. Avoid installation in a location where people may come into contact with that section.

- In the vicinity of a heat source

User’s Manual

1. Introduction

- To clean the BOX-PC, wipe it gent ly with a so ft cloth dam pened with either water or mild deter gent. Do not use chemicals or a volatile solvent, such as benzene or thinner, to prevent pealing or discoloration of the paint.

- 2.5 inches hard disk drive (HDD) of our company has not guaranteed use by continuation and continuation power for 24 hour s. When it is used by continuation operation and continuation power, a life fails extremely. In the case of a 24 hours operation system, use of our company silicon disk drive (SDD) is recommended.

- Hard disks have a limited life span. Please perform systematic backup and maintenance.

- CONTEC does not provide any guarantee for the integrity of data on hard disks.

- To prevent corruption of files, always shutdown the OS before turning off the BOX-PC.

- Be sure to unplug the power cable from a wall outlet be fore plugging or unplugging a PCM CIA card, CF card, or any connector.

- CONTEC reserves the right to refuse to service a product modified by the user.

- In the event of failure or abnormality (foul smells or excessive heat generation), unplug the power cord immediately and contact your retailer.

- To connect with peripherals, use a grounded, shielded cable.

- Component Life:

(1) Battery--- The internal calendar clock and CMOS RAM are backed by a Lithium primary

battery. The backup time at a temperature of 25°C with the power disconnected is 10 years or more.

* Replacement of expendables is handled as a repair (there will be a charge).

- Connection USB apparatus There is USB apparatus by which cu rrent flow s conversely to BOX PC through a connecti on cable at the time of power supply off of BOXPC. When such apparatus is connected, since 5V power supply does not turn off completely, BOXPC may be unable to be started. In such a case, please remove

USB apparatus and connect again after a power supply injection. However, please connect again before performing apparatus detection, when using USB apparatus as a boot device.

FCC PART 15 Class A Notice

NOTE

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference at his own expense.

WARNING TO USER

Change or modifications not expressly approved the manufacturer can void the user's authority to operate this equipment.

User’s Manual

2. Overview Specifications

Table 2.1. Functional Specifications < 1 / 2 >

Model IPC-BX/M360(PCI)C

CPU Ultra Low Voltage Intel(R) Celeron(R) Processor 400MHz, FSB100MHz Chip set VIA CLE266(VT8623+VT8235) Memory

Video

System resolution

Audio AC97 compliant

IDE HDD I/F

Serial I/F RS-232C (general-purpose): 2ch (SERIAL PORT1, 2) 9pin D-SUB connector

PC Card Slot PCMCIA Type I or II x 1 (Startup from ATA card not allowed)

CF Card Slot CF CARD Type I, II x 1 (For memory card) (Secondary IDE) *6 USB I/F 4ch (USB 2.0 specification) Keyboard I/F Corresponding to PS/2 keyboard (6pin MINI DIN con nector )

General-purpose I/O 3 opto-isolated inputs and outputs

L2 Cache 256KB Main

memory BIOS ROM 128KB E0000H - FFFFFH (Award) Controller VIA VT8623 (Built into the controller)

Video RAM Main memory shared (Default 32MB, Up to 64 MB configurable by BIOS Video BIOS 64KB (C0000H - CFFFF F) Display I/F DVI-I 29pin *2

Primary Ultra DMA/133

Secondary Equipped with a dedicated 36pin, half-pitch connector

I/F Ethernet 100BASE-TX/10BASE-T RJ-45 connector: 2chLAN Controller Realtek RT8139DL x 2

512MB *1 (3.3V 200pin DDR SO-DIMM PC2100 Socket x 1)

640 x 480(16,770,000 colors), 800 x 600(16,770,000 colors), 1,024 x 768(16,770,000 colors), 1,280 x 1,024(16,770,000 colors)

LINE OUT: φ3.5 Stereo mini jack Full-scale o ut put lev el 1. 0Vrms(Ty p.)

2.5 inch IDE HDD or silicon disk drive: 1 internal unit

(for connection of an optional CD-ROM) (left surface)

RS-422/485 (general-purpose): 1ch (SERIAL PORT1) [inside the RAS connector] *3 RS-232C (touch panel): 1 ch (S ERI AL PO RT2 ) [in sid e the DVI con ne ct or] *4 *5

CardBus correspondence

(PS/2 mouse acceptable wi th t he b un dle d k e yb oa rd/ m ous e b ran ch cable)

(However, one output also serves as an external WDT output and one input also serves as remote reset. They b e come a vaila ble wh en swi t che d. )

2. Overview

User’s Manual

2. Overview

Table 2.1. Functional Specifications < 2 / 2 >

Model IPC-BX/M360(PCI)C

RAS function WDT: 1sec - 255sec (RESET or external output is allowed at time expiration)

Remote reset: External input signal

Expansion board slot None RTC/CMOS Lithium backup battery life: 10 year s or more

The real-time clock is accurate within ±2 minutes (at 25°C) pe r mont h.

DC Power supply

External dimensions (mm) 146(W) x 157(D) x 64(H) (No protrusion) Weight About 1.5kg Supported OS Windows 2000 Professional, Windows XP Embedded, Windows XP Professional

*1 512MB memory module is plugged. No more me mory c an be added. *2 The interface can connect the PC to a CONTEC Panel Link input type display (using an optional cable) or an

*3 The SERIAL1 connector (RS-232C) and RS-422/485 are mutually exclusive. (RS-232C is used by factory defa ult.) *4 The interface is used for the CONTEC Panel Link or touch panel type display. *5 The SERIAL2 connector (RS-2 32C) and touch p anel func t ion ar e mutu ally e xclusive. (T ou ch panel funct ion is use d

*6 When starting Windows from CF card, CF card different from a general marketing article is required.

*7 At ATX mode.

Input supply voltage 10 - 12VDC (However, change is less then ±5% of power supply voltage) Current consumption 12V 2.5A (Max.)

Current consumption (At shutdown) *7

ordinary analog RGB input display (using the bundled DVI-analog RGB adapter).

by factory default. )

( Our company option CF card can start Windows. However, the capacity of CF card should choose the thing in which Windows installation is possible.) Moreover, about operation of C F c ard, it is checking with our compan y option CF card. Operation of all the cards of general marketing is not secured.

12V 0.27A(Max.)

User’s Manual

2. Overview

Table 2.2. Installation Environment Requirements

Parameter Requirement des cri pti on

Operating temperature

Storage temperature -10 - 60°C Operating humidity 10 - 90%RH(No condensation) Floating dust particle s Not to be excessive Corrosive gases None

Line-noise resistance

Vibration resistance *8

Impact resistance *7 *8

Grounding Class D grounding (previous class 3 grounding) *7 Not guaranteed in all environments while tried and tested for conformance under relevant test conditions.

Not guaranteed for resistance to resonance which can occur in the vicinity of the natural frequency of the system unit.

*8 When the HDD is not in use.

Static electricity resistance

When the HDD is in operation.

When the HDD is not in operation. (when deenergized)

0 - 45°C (SDD in use) 5 - 40°C (HDD in use)

Contact dischar ge/ 4kV (IE C1 000 -4 -2L eve l 2 , EN61 00 0-4-2 L ev e l 2) Atmospheric discharge/8kV (IEC1000-4-2Level 3, EN61000-4-2Level 3)

10 - 50Hz/0.5G 25 min. each in x, y, and z dire ction s (JIS C0040-compliant, IEC68-2-6-compliant) 10 - 57Hz/semi-amplitude 0.15mm 57 - 150Hz/2.0G 40 min. each in x, y, and z dire ction s (JIS C0040-compliant, IEC68-2-6-compliant) 10G, half-sine shock for 11 ms in x, y, and z directions (JIS C0041-compliant, IEC68-2-27-compliant)

Power Up Specification for DC Powered Models

Volt

11.4V

1 to 30mS

User’s Manual

Time

2. Overview

System Configuration

Option CD-ROM

CF Card

SERIAL port

USB

LINE OUT

6pin mini DIN cable (Keyboard mouse distribution cable)

RST Switch

Mouse

HDD

USB2.0/1.1

FD drive

Printer

USB device such as the CD-ROM drive

Power unit IPC-POAW/10-01 (Option)

Figure 2.1. System Configuration

LAN

PC Card Slot PCMCIA Type I or II x 1

Using the bundled cable of IPC-POA W / 10-0 1 to connect.

Display

Keyboard

User’s Manual

External Dimensions

(13)

(18)

120

(13)

M4 TAP

(Maximum tapping length: 5mm)

(18)

M4 TAP

(Maximum tapping

(18)

length: 5mm)

M3 TAP (Maximum tapping length: 5mm)

2. Overview

157

79.2

49.4

(6)

SERIAL1

SERIAL2

(15)

USB DVI

LNK

ACT

LAN2

116

146

SPKKB

PCMCIA

RAS

LNKACT

LAN1

RST

SPD

ACCESSPWR

V+FG V-

DC-IN

(15)

M4 TAP (Maximum tapping length: 5mm)

22.4

(18.5)

120

Figure 2.2. IPC-BX/M360(PCI)C

User’s Manual

(18.5)

[mm]

2. Overview

(13)

120

(13)

M4 TAP (Maximum tapping

length: 5mm)

157

(6)

146

SERIAL1

SERIAL2

102

USB

PCMCIA

ACT

LNKACTLNK

LAN2

LAN1

N L

134

RAS

ACCESSPWR SPD

KBDVI

DC-IN FG V- V +

10VDC-OU T

FG V-

SPK

RST

V+

(6)(6)

M4 TAP (Maximum tapping length: 5mm)

(18.5)

120

M4 TAP

(Maximum tappinglength: 5mm)

(18.5)

[mm]

Figure 2.3. IPC-BX/M360(PCI)C (with optional power supply IPC-POAW/10-01 installed)

User’s Manual

3. Hardware Setup

3. Hardware Setup Before Using the BOX-PC for the First Time

Follow the next steps to set up the BOX-PC: STEP1 Install the hard disk and set jumper switches.

By referring to the information in this chapter, set the BOX-PC.

STEP2 Connect cables.

Connect necessary external devices, such as a printer and a CRT, to the BOX-PC usi n g appropriate cables.

STEP3 Turn on the power.

After verifying that you have correctly followed steps 1 and 2, turn on the power. If you feel something is wrong after turning on the power, turn off the power immediately and check to see if the BO X-P C h as been s e t up co rre ctl y.

STEP4 Set up BIOS.

By referring to Chapter 4, set up BIOS. This setup requires a keyboard and a display. * Before using the BOX-PC, be sure to execute "Load Optimized Defaults" to initialize the

BIOS settings to their default values. (See Chapter 4, "Main Menu.")

CAUTION

If your BOX-PC is a Windows preinstalled model, be sure to connect the keyboard and mouse to it before turning the power on for the first time.

User’s Manual

3. Hardware Setup

Hardware Setup

Removing the Left-side Cover and HDD Bracket

- Before you start, be sure that the power is turned off.

- Remove only those screws that are explained. Do not move any other screw. (1) Remove the screws from the left-side cover and open the cover. (2) Remove the hard disk bracket.

To remove the hard disk (silicon disk) unit, open the left-side cover, hook the lower end of the cover on the chassis t o lever the unit out toward you.

Figure 3.1. Removing the HDD bracket

(3) Connect the hard disk (silicon disk) to the HDD bracket. (4) Insert the hard disk unit (silicon disk drive) as illustrated below and attach the left-side cover.

HDD or SDD

Attachment position adjustment hole *1

Figure 3.2. Removing and attaching the left-side cover, HDD bracket

*1 A connector attachment position chang e w it h HDD (SDD ) . Pl ea se a dj ust HDD(SDD) attachment

position adjustment hole after checking a side cover attachment.

CAUTION

Do not plug the HDD (SDD) with its pins bent. Doing so may break the pins.

User’s Manual

3. Hardware Setup

Locations and Settings of Internal Connectors and Jumpers

A jumper and connectors are located under the left-side cover as illustrated below.

JP1 CN5

HDD

CN1

< Left-side >

Figure 3.3. Locations and Settings of Jumpers, Connectors, and Switches inside the Top Cover

Table 3.1. Jumper List

Name Function Factory setting Reference page

JP1 Sets RS-485 termination Open 78, 79

Table 3.2. Internal Connector List

Name Function Reference page

CN1 CD-ROM Connection Connector (36 pin half pitch) 81 CN5 CF Card Connector *1 82 *1 Insert the CF card with th e bott om fa ce d own.

User’s Manual

3. Hardware Setup

Power connection

Table 3.3. Power Connector

Connector

type

DC input connector Type

Pin No. Signal name

123

Connect the power unit IPC-POAW/10-01(option) for the IPC-BX/M360(PCI)C. (1) Check that the power unit’s SW is turned to be OFF. (2) Connect the DC cable of power unit to the power connector on the computer itself. (3) Fasten the DC cable with its built-in screws on both sides.

DC Cable (IPC-POAW/10-01's

accessory)

DFK-MC1,5/3-GF-3,81

(Made by PHONIX

CONTACT)

1FG

2GND

3 VCC

IPC-BX/M360(PCI)C

Attached screws

(IPC-POAW/10-01's accessory)

Attached fittings

(IPC-POAW/10-01's accessory)

IPC-POAW/10-01

Figure 3.4. Connecting the IPC-BX/M360(PCI)C to the IPC-POAW/10-01(option)

User’s Manual

3. Hardware Setup

An external power cable connector [MC1,5/3STF-3,81] is bundled. You can use this connector to connect a 10-V to 12-V external power supply. (A power supply of at least 30W is required to operate the IPC-BX/M360(PCI)C normally.)

28 to 16AWG

MC1,5/3STF-3,81 (bundled)

Figure 3.5. Connection with power cable connector in use

Installation method

The system unit can be installed in one of the orientations in (1) to (3) below. (Using the bundled system unit brackets)

(1)

190 170

Figure 3.6. Installation method < 1 / 3 >

User’s Manual

R2.5 R5.5

10.5 120

642.3

(Connector side)

146

SERIAL1 USB DVI

SERIAL2

PCMCIA

LNKACT

ACTLNK

LAN1LAN2

SPK

RST

PWR

ACCESS

SPD

RAS

V+V-FGDC-IN

[mm]

3. Hardware Setup

(2)

Figure 3.6. Installation method < 2 / 3 >

(3)

146

102

R2.5 R5.5

120

SERIAL1

USB DVI

PCMCIA

LNK

ACT

SERIAL2

LAN2

LAN1

SPK

RST

SPD

PWR ACCESS

RAS

DC-IN

FG V- V+

[mm]

12010.5

R2.5

R5.5

(Connector side)

102

1082

[mm]

Figure 3.6. Installation method < 3 / 3 >

User’s Manual

3. Hardware Setup

Installation Requirements

The BOX-PC can be installed in any orientation Ο. Avoid orientation x’s installation *1 since it might not adequately dissipate heat. Similarly, to maintain the operating temperature within the range specified in the specifications, ensure a clearance betwe en the unit and sur rounding equipm ent of at least 100mm for the top and rear and 50mm for the bottom and sides. (Meet these requirements even with the IPC-POAW/10-01 (option) connected.)

*1 Do not install the system unit with the heat sink upside down, on the ceiling, or with the HDD unit

slot (left-side cover) blocked by the wall.

Installation Orientation

SERIAL2

LAN2

LNK

ACTACT

LAN1

LNK

PCMCIA

PWR

RAS

SERIAL1

USB

KBDVI SPK

PCMCIA

RST

SPD

ACCESSPWR

RAS

SERIAL2 LNKACT

ACT LNK

LAN2

LAN1

DC-IN

FGV- V+

SERIAL2

SERIAL1

ACT

LAN2

LAN1

LNKLNKACT

PCMCIA

PWR ACCESS

DVIUSB

RAS

V+DC-IN FG V-

RSTSPD

SPKKB

(Connector side)

ACCESS

KB SPKDVIUSBSERIAL1

V-FG V+DC-IN

RSTSPD

SERIAL1

USB

DVI

KB SPK

RST

PCMCIA

ACCESSPWR

SPD

RAS

SERIAL2

LNKACT

ACTLNK

LAN2 LAN1

FGV- V+DC-IN

V+

DC-IN

V-FG

LAN1

LAN2

SERIAL2

LNK

LNKACTACT

RAS

RST

ACCESS

SPD

PWR

PCMCIA

SPK

USB

SERIAL1

DVI

Upside down

RST

V-FG V+

KB SPK

DC-IN

RAS

DVI

PWR ACC ESS SPD

PCMCIA

LNKAC T

LAN1

USBSERIAL1

LNK

LAN2

ACT

SERIAL2

Top face positioned vertically

Figure 3.7. Installation Orientation

User’s Manual

V+

DC-IN FG V-

LAN1

LAN2

LNK

ACTLNK

RAS

ACCESS

SPD

PWR

PCMCIA

RST

DVI

USB

SPK

Left-side face blocked

SERIAL1

USB

DVI

PCMCIA

PWR

LNK

SERIAL2

LNK

ACT

LAN1

LAN2

SERIAL2

ACT

On the ceiling

SERIAL1

SPK

RST

ACCESS

SPD

RAS

V+V-FG

DC-IN

3. Hardware Setup

Distances between the BOX-PC and Its Vicinity

50mm or more (side)50mm or more (side)

50mm or more (side) 50mm or more (side)

100mm or more (above)

USBSERIAL1

LNKACT

LNK

ACT

SERIAL2

LAN2

LAN1

DVI

SPK

SPD

ACCESSPWR

PCMCIA

RST

RAS

DC-IN

V+V-FG

50mm or more (back)

Connector side

Figure 3.8. Distances between the BOX-PC and Its Vicinity

100mm or more (above)

SERIAL2

ACT

LNK

USBSE RIAL1

ACT

LAN1LAN2

LNK

PCMCIA

PWR

RAS

SPDACCESS

DC-IN V+FG V-

RST

SPKKBDVI

User’s Manual

4. BIOS Setup

4. BIOS Setup BIOS Setup

BIOS setup sets various settings during startup. When using the system for the first time, be sure t o run BIOS setup. Once set up, the specified details will be backed up.

Starting the Setup Screen

When you turn on the system power supply, the BOX- PC display s t he followi ng initi al scree n as long as the system is normal. Press the <DEL> key at the keyboard.

IPC-360 series BIOS ver. x.xx Main processor : Intel Celeron(R) 400MHz(100x4.0) Memory Testing : Primary Master : None Primary Slave : None Secondary Master : None Secondary Slave : None

Press DEL to enter SETUP

Figure 4.1. Initial Screen

User’s Manual

4. BIOS Setup

Using Setup In general, you use the arrow keys to highlight items, press <Enter> to select, use the <PageUp> and

<PageDown> keys to change entries, press <F1> for help and press <Esc> to quit.

Table 4.1. Using Setup program

Key Function Up Arrow Down Arrow Left Arrow Right Arrow

Esc

Move Enter PgUp key PgDn key + key

- key

Esc key

F1 key F5 key F6 key F7 key F10 key

Move to the previous item Move to the next item Move to the item on the left (menu bar) Move to the item on the right (menu bar)

Main Menu: Quit with ou t sav ing cha nge s Submenus: Exit Current page to the next higher level menu

Move to the item you desired Increase the numeric valu e or ma ke cha nges Decrease the numeric value or make changes Increase the numeric valu e or ma ke cha nges Decrease the numeric value or make changes Main Menu -- Quit and not save changes into CMOS(EEPROM)

Status Page Setup Menu and Option Page Setup Menu -- Exit current page and return to Main Menu

General help on Setup naviga tion key s Load previous values from CMOS(EEPROM) Load the fail-safe defa ults fr om BI OS de faul t tab le Load the optimized defaults Save all the CMOS(EEPROM) changes and exit

Getting Help Press <F1> to pop up a small help window that describes the appropriate keys to use an d th e po ss ib le

selections for the highlighted item. To exit the Help Window, press <Esc> or the <F1> key again.

User’s Manual

Note on the setup

Information in this ch ap te r is subj ect t o c ha nge with ou t no ti ce.

Figure 4.2. Main window

4. BIOS Setup

User’s Manual

4. BIOS Setup

Main Menu

Once you enter the Award BIOS CMOS Setup Utility, the Main Menu will appear on the screen. The Main Menu allows you to select from several set up functions a nd two exit choices. Use the arrow keys to select among the items and press <Enter> to accept and enter the sub-menu.

Note that a brief description of each highlighted selection appears at the bottom of the screen.

Setup Items The main menu includes the following main setup categories.

Standard CMOS Features Use this menu to set th e stan d ard CMO S f un cti on av ai lab l e on you r s ystem.

Advanced BIOS Features This section allows you to configure your system for basic operation.

Advanced Chipset Features Use this menu to set up some features of the chip s et.

Integrated Pe ri ph era l s Use this menu to set up peripheral devices such as IDE and PCI devices.

Power Management Setup Use this menu to specif y yo ur sett ings fo r pow er manage me n t.

PnP / PCI Configuration Use this menu to config ur e th e PC I bus syst e m.

PC Health Status Use this menu to ref eren c e in te rnal voltages and temperatures of the PC.

Frequency/Voltage Control You do not have to use th is me nu f or s e tup on th is mach in e.

Load Fail-Safe Defaults Use this menu to lo ad th e Fa il -Sa f e Def a ult s valu es .

Load Optimized Defaults Use this menu to lo ad th e B IOS app ro p ria te def au lt valu e s.

User’s Manual

4. BIOS Setup

Supervisor / User Password

Use these menu items to specify passwords for BIOS Setup.

You can set up all the BIOS setup items in supervisor mode but not in user mode.

CAUTION

Once a password is registered, even the password function itself cannot be cancelled without the password. Passwords should be handled with great care.

Save & Exit Setup

Use this option to sav e al l th e ch anges mad e on th e Se tup sc ree n to CM OS (E EPR OM ) a nd rebo ot th e

PC.

Exit Without Save

Use this option to reboo t the P C wi th th e las t sav ed settings without saving any chang es made on the

Setup screen to CMOS (EEPROM).

Standard CMOS Setup

Phoenix - AwardBIOS CMOS Setup Utility

Standard CMOS Features

Date (mm:dd:yy) Thu, Jan 1 2001 Time (hh:mm:ss) 10 : 22 : 30]

IDE Primary Master [ None] IDE Primary Slave [ None] IDE Secondary Master [ None] IDE Secondary Slave [ None]

Halt On [All , But keyboard]

Base Memory 640K

Extended Memory 490496K

Total Memory 491520K

Item Help

Menu Level

Change the day, month , year and century

↓

↓→←

:Move Enter:Select +/-/PU/PD:Values F10:Save Esc:Exit F1 General Help

F5: Previous Values F6: Fail-Safe Defaults F7: 0 timized Defaults

Figure 4.3. Standard CMOS Setup Window (factory setting)

The items in Standard CMOS S etup Men u are divi ded into 10 categories. Each category includes no, one

or more than one setup items. Use the arrow keys to highlight the item and then use the <PgUp> or

<PgDn> keys to select the value you want in each item.

User’s Manual

4. BIOS Setup

Selection from the This table shows the selections that you can make on the

Standard CMOS Setup

Table 4.2. Selecting item of the Standard CMOS Setup

Item Option Description

Date Month DD YYYY Sets the date on the equipment calendar clock.

Note that the ‘Day’ automatically changes when you set the date.

Time HH : MM : SS Sets the time on the equipment calendar

clock.

IDE Primary Master None

Auto Manual

IDE Primary Slave None

Auto Manual

IDE Secondary Master None

Auto Manual

IDE Secondary Slave None

Auto Manual

Halt On

Base Memory N/A Displays the detected amount of memory

Extended Memory N/A

Total Memory N/A Displays the detected amount of memory

*1 To use a PC-SDD V series product with a capacity of 500 MB or less, set the item to "Manual" and select the CHS

mode. For drive information such as the number of cylinders, see the manual for the PC-SDD series.

All Errors No Errors All, but Keyboard All, but Diskette All, but Disk/Key

Set the type of HDD( SDD * 1) to b e used as the first drive. Selecting this field changes the screen to the submenu for manually setting drive configuration data such as the number of cylinders. This field is set to [Auto] by default. You can leave i t inta ct f or n orma l use.

Connection not allowed. Set to "None."

Usually, set this item to "None." If you hav e connected a CD-ROM drive to the secondary IDE connector, set this to "Auto" or "Manual" as required.

Usually, set this item to "N on e. " I f y ou ha v e connected a CF card to the CF connector, set this to "Auto" or "Manual" as required.

The default is "All, but Keyboard"; you usuall y do not have to change this setting.

installed on the syst em. Displays the detected amount of memory

installed on the syst em.

User’s Manual

4. BIOS Setup

Advanced BIOS Features Setup

This section allows you to configure your system for basic operation.

Virus Warning [Disabled] CPU internal Cache [Enabled] External Cache [Enabled] Processor Number Feature [Enabled] Quick Power On Self Test [Enabled] First Boot Device [U SB FD D] Second Boot Device [CDROM] Third Boot Device [HDD-0] Boot Other Device [Enabled] Boot Up NumLock Status [On] Gate A20 Option [Fast]

Typematic Rate Setting [Disabled] x Typematic Rate (Chars/Sec) 6 x Typematic Delay (Msec) 250

Security Option [Setup]

OS Select For DRAM > 64MB [Non-OS2]

Video BIOS Shadow [Enabled]

↓

↓→←

:Move Enter:Select +/-/PU/PD:Values F10:Save Esc:Exit F1 General Help

F5: Previous Values F6: Fail-Safe Defaults F7: 0 timized Defaults

Figure 4.4. Advanced BIOS Features Window (factory setting)

Virus Warning If you enable this feature, a warning message is displaye d when a program (a virus in particular) attempts

to write to the boot sector or partition table o f the hard di sk dri ve. I f a war ning me ssa ge a ppears, ru n a n antivirus program. This feature protects only the boot sector. Note that the feature does not protect the entire hard disk drive.

CAUTION

A virus warning message may be displayed in response to various diagnostic and installation programs which access the boot sector table. You should disable Virus Warning before running such a program.

Enabled Displays a warning message when an attempt is made to access the boot sector or hard

Disabled

disk partition t abl e. No warning message will appear when anything attempts to access the boot sector or

hard disk partition table.

User’s Manual

4. BIOS Setup

Description Choice

CPU internal Ca c h e The default is "Enabled"; you u suall y do not

have to change this setting. External Cache The default is "Enabled"; you u suall y do not

have to change this setting. Processor Number Feature The default is "Enabled"; you u suall y do not

have to change this setting. Quick Power On Self Test Setting this item to "Disabled" causes Power On

Self Test (POST) to be per for med in mor e detail. The default is "Enabled"; you usually do not have to change this setting .

First/Second/Third/Boot Device BIOS starts booting the sy stem i n the de vice order selected here. Set these items depending

on the devices connected.

- HDD-0 : Internal HDD (SDD) *1

- CD-ROM : Optional C D-R OM driv e (IDE connection )

- HDD-1 : Card plugged in the CF connector on the system unit *1 (IDE connectio n )

- HDD-2/3 : Not available

- USB-FDD/CDROM/HDD : Device connecting to the USB

- LAN : For boot-up from a network *2

Boot Other Device In the case that it is not possible boot with the

First/Second/Third setting devices, BIOS tries the boot from other device s. The default is "Enabled"; you u suall y do not have to change this setting.

Boot Up NumLock Status Select a NumLock key status at system startup. The default is "On"; you usually do not have to

change this setting. Gate A20 option The default is "Fast"; you usu ally do not h ave t o

change this setting. *1 If the system unit contains no HDD (SDD), "HDD-0" causes the system to be booted from the card in the CF

connector on the system unit. ("HDD-1" is disabled.)

*2 Boot-up from a network uses the PXE (Pre-Boot eXecution Environment) client feature.

Boot-up from a LAN requires a server supporting the PXE client. (Such as a Windows remote install server)

Enabled Disabled

Disabled Enabled

HDD-0 CDROM HDD-1 HDD-2 HDD-3 USB-FDD USB-CDROM USB-HDD LAN Disabled

Disable Enable

Off On

Nomal Fast

User’s Manual

Description Choice

Typematic Rate Setting The default is "Disabled"; you u suall y do not

have to change this setting.

Typematic Rate (Chars/Sec) This item is disabled with "Typematic Rate

Setting" set to "Disabled." You usually do not have to change this setting.

Typematic Delay (Msec) This item is disabled with "Typematic Rate

Setting" set to "Disabled." You usually do not have to change this setting.

Security Option Select whether the password is required every

time the system boots or only when you enter setup. Select whether the password be requested whenever the system boots up or only upon startup of Setup. The default is "Setup"; you usually do not have to change this se tting . System: The system won't boot up and access to Setup will be denied unless the correct password is entered at the prompt. Setup: The system will boot, b ut access to Setup will be denied if the correct password is not entered at the prompt.

4. BIOS Setup

Disabled Enabled

6 8 10 12 15 20 24 30

250 500 750 1000

Setup System

CAUTION

To disable security, select PASSWORD SETTING at Main Menu and then you will be asked to enter password. Do not type anything and just press <Enter>, it will disable security. Once the security is disabled, the system will boot and you can enter Setup freely.

User’s Manual

4. BIOS Setup

Description Choice

OS Select For DR AM > 6 4 MB The default is " Non-OS2"; you usually do not

have to change this setting. Video BIOS Shadow The default is " Enabled"; you usually do not

have to change this setting.

Non-OS2 OS2

Disabled Enabled

User’s Manual

Advanced Chipset Features Setup

Use this menu to set up some features of the chip s et.

Phoenix - AwardBIOS CMOS Setup Utility

Advanced Chipset Featu r es

DRAM Clock/Drive Control [Press Enter]

AGP & P2P Bridge Control [Press Enter] CPU & PCI Bus Control [Press Enter] Memory Hole [Disabled] System BIOS Cacheable [Disabled] Video RAM Cache a bl e [Disabled] Power-Supply Type [ATX] VGA Share Memory Size [32M] Select Display Device [CRT+LCD] Panel Type [Auto] Lan2 Select [Enabled] Serial1 Select [RS232C] Serial2 Select [Touch Panel] WDT Output to PO2 [Disabled] WDT Power-on State [Off] WDT Time-up State [On] HDD Select [Auto Serect]

↓

↓→←

:Move Enter:Select +/-/PU/PD:Values F10:Save Esc:Exit F1 General Help

F5: Previous Values F6: Fail-Safe Defaults F7: 0 timized Defaults

Figure 4.5. Advanced Chipset Features Window (factory setting)

DRAM Clock / Drive Control

Phoenix - AwardBIOS CMOS Setup Utility

DRAM Clock / Drive Control Features

Current FSB Frequency Current DRAM Frequency DRAM Clock [By SPD] DRAM Timing [By SPD] DRAM CAS Latency 2.5

Precharge to Active(Trp) 3T Active to Precharge(Tras) 6T Active to CMD(Tras) 3T DRAM Command Rate [2T Command]

Item Help

Menu Level

Item Help

Menu Level

4. BIOS Setup

↓

↓→←

:Move Enter:Select +/-/PU/PD:Values F10:Save Esc:Exit F1 General Help

F5: Previous Values F6: Fail-Safe Defaults F7: 0 timized Defaults

Figure 4.6. DRAM Clock / Drive Control Window (factory setting)

User’s Manual

4. BIOS Setup

Description Choice

DRAM Clock The default is "By SPD "; y ou usually do not have to

change this setting. DRAM Timing The default is "By SPD "; y ou usually do not have to

change this setting. DRAM CAS Latency This item is disabled with "DRAM Timing" set to

"BySPD." You usually do not have to change this setting.

Precharge to Active (Trp) This item is disabled with "DRAM Timing" set to "

By SPD." You usually do not have t o chang e thi s setting.

Active to Precharg e (Tr a s) This item is disabled with "DRAM Timing" set to " By SPD." You usually do not have t o chang e thi s

setting. Active to CMD (Trcd) This item is disabled with "DRAM Timing" set to "

By SPD." You usually do not have t o chang e thi s setting.

DRAM Command Rate The default is "2T Comman d"; you u suall y do no t have to change this setting.

100Mhz 133Mhz By SPD

Manual By SPD

2.5 2

2T 3T

5T 6T

2T 3T

2T Command 1T Command

User’s Manual

AGP & P2P Bridge Control

Phoenix - AwardBIOS CMOS Setup Utility

AGP & P2P Bridge Control

AGP Aperture Size [64M] AGP Driving Control [Auto] AGP Driving Value DA AGP Fast write [Disabled] AGP Master 1 ws write [Disabled] AGP Master 1 ws Read [Disabled]

↓

↓→←

:Move Enter:Select +/-/PU/PD:Values F10:Save Esc:Exit F1 General Help

F5: Previous Values F6: Fail-Safe Defaults F7: 0 timized Defaults

Item Help

Menu Level

Figure 4.7. AGP & P2P Bridge Control Window (factory setting)

Description Choice

AGP Aperture Size (MB) The default is "64M"; you usually do not have to

change this setting.

AGP Driving Control The default is "Auto"; you u suall y do not have to change this setting. AGP Driving Value This item is disabled with "AGP Driving Control" set to "Auto."

You usually do not have to change this setting. AGP Fast Write The default is "Disabled"; you usually do not have

to change this setting. AGP Master 1 WS Write The default is "Disabled"; you usually do not have

to change this setting. AGP Master 1 WS Re a d The default is "Disabled"; you usually do not have

to change this setting.

256M 16M 128M 8M 64M 4M

32M

Auto Manual

Min = 0000(h) Max = 00FF(h )

Disabled Enabled

4. BIOS Setup

User’s Manual

4. BIOS Setup

CPU & PCI Bus Control

Phoenix - AwardBIOS CMOS Setup Utility

CPU to PCI Write Buffer [Enabled] PCI Master 0 ws Write [Enabled] PCI Delay Transaction [Disabled]

↓

↓→←

:Move Enter:Select +/-/PU/PD:Values F10:Save Esc:Exit F1 General Help

F5: Previous Values F6: Fail-Safe Defaults F7: 0 timized Defaults

CPU & PCI Bus Control

Item Help

Menu Level

Figure 4.8. CPU & PCI Bus Control Window (factory setting)

Description Choice

CPU to PCI Write Buf fer The default is "Enabled"; you u suall y do not have

to change this setting.

PCI Master 0 WS Write The default is "Enabled"; yo u usual ly do not have

to change this setting. PCI Delay Transaction The default is "Disabled"; you usually do not have

to change this setting. Memory Hole The default is "Disabled"; you usually do not have

to change this setting. System BIOS Cacheabl e The default is "Disabled"; you usually do not have

to change this setting.

Disabled Enabled

Enabled Disabled

Disabled Enabled

Disabled 15M – 16M

Disabled Enabled

User’s Manual

4. BIOS Setup

Description Choice

Video RAM Cacheabl e The default is "Disabled"; you usually do not have

to change this setting. Power-Supply Type The default is "ATX"; you usually do not have to

change this setting. Video Share Memory Size

Specify the size of video memory. The specified size of main memory is allocated as video memory.

Select Display Device Specify the display device. Set this item to "LCD" when the monit or to be

used is a DVI/panel-link type (see "DVI Co nnector in Chapter 6.

Panel Type Specify the panel type. In Auto mode, the type (SVGA or XGA) of the FPD is automatically identified with the serial signal

(COM) of the FPD at startup. If no FPD is connected (or the FPD connected is left off), the module enters the CRT mode (providing no display on the FPD). *1 *2 *3

Lan2 Select Enable or disable the left LAN port. Serial1 Select Switches between the RS232C (Serial1 connector)

and RS485 (in the RAS connector). Serial2 Select Switches between the RS232C (Serial2 connector)

and touch panel port (in the DVI connector).

*1 In the "Auto" mode, only a CONTEC panel display can be identified when connected. If any other monitor is

connected, the module enters the CRT mode. *2 For use of "Auto," be sure to set "Se rial2 Se lect" t o "To uch Pan el." *3 FPD: Flat Panel Display LCD device

Disabled Enabled

AT ATX

16M 32M 64M

CRT LCD CRT+LCD

Auto 640x480 800x600 1024x768 1280x1024

Enabled Disabled

RS232C RS485

RS232C Touch Panel

User’s Manual

4. BIOS Setup

Description Choice

WDT Output to PO2 Set watchdog timer output to PO2 . Selecting "Enabled" connects the output of the watchdog timer to the PIO2 pin in the RAS

connector. The output value changes depending on the "WDT Power-on State" and "WDT Time-up State" settings. (See P7 4)

WDT Power-on State This item is enabled with "WD T O utp ut t o PO2"

set to " Enabled." Set the state of output from the watchdog timer when the powe r is tu rne d on. (See P74)

WDT Time-up State This item is enabled with "WD T O utp ut t o PO2"

set to " Enabled." Set the state of output from the watchdog timer when the time-u p. (S ee P74)

HDD Select Set the transfer mode of the HDD (SDD)

connected. The default is "Auto Select"; you usually do not have to change this setting.

Disabled Enabled

Off On

On Off

UDMA33 Auto Serect

User’s Manual

Integrated Peripherals

Phoenix - AwardBIOS CMOS Setup Utility

Integrated Peripherals

VIA OnChip IDE Device [Press Enter] VIA OnChip PCI Device [Press Enter] SuperIO Device [Press Enter] Init Display First [PCI Slot]

↓

↓→←

:Move Enter:Select +/-/PU/PD:Values F10:Save Esc:Exit F1 General Help

F5: Previous Values F6: Fail-Safe Defaults F7: 0 timized Defaults

Figure 4.9. Integrated Peripherals Window (factory setting)

For details on each item, see the co rrespond in g menu given below.

VIA OnChip IDE Device

Item Help

Menu Level

4. BIOS Setup

Phoenix - AwardBIOS CMOS Setup Utility

Onchip IDE Channel0 [Enabled] Onchip IDE Channel1 [Enabled] IDE prefetch Mode [Enabled] Primary Master PIO [Auto] Primary Slave PIO [Auto] Secondary Master PIO [Auto] Secondary Slave PIO [Auto] Primary Master UDMA [Auto] Primary Slave UDMA [Auto] Secondary Maste r UDMA [Auto] Secondary Slave UDM A [Auto] IDE HDD Block Mode [Enabled]

↓

↓→←

:Move Enter:Select +/-/PU/PD:Values F10:Save Esc:Exit F1 General Help

F5: Previous Values F6: Fail-Safe Defaults F7: 0 timized Defaults

VIA OnChip IDE Device

Item Help

Menu Level

Figure 4.10. VIA Onchip IDE Device Window (factory setting)

User’s Manual

4. BIOS Setup

Description Choice

On-Chip IDE Channel 0 The default is "Enabled"; you u suall y do not

have to change this setting. On-Chip IDE Channel 1 The default is "Enabled"; you u suall y do not

have to change this setting. IDE Prefetch Mode The default is "Enabled"; you u suall y do not

have to change this setting.

Primary Master/Slave PIO The default is "Auto"; you usually do n ot have to change this setting.

Secondary Master/Slave PIO The default is "Auto"; you usually do n ot have to change this setting.

Primary Master/Slave UDMA The default is "Auto"; you usually do n ot have to

change this setting. Secondary Master/Slave UDMA The default is "Auto"; you usually do n ot have to

change this setting. IDE HDD Block mode The default is "Enabled"; you u suall y do not

have to change this setting.

Disabled Enabled

Auto Mode 0 Mode 1 Mode 2 Mode 3 Mode 4

Disabled Auto

Disabled Enabled

User’s Manual

VIA OnChip PCI Device

Phoenix - AwardBIOS CMOS Setup Utility

VIA-3058 AC97 Au dio [Auto] Onchip USB controller [All Enabled] Onchip USB2.0 controller [Enabled] USB keyboard Support [Disabled]

↓

↓→←

:Move Enter:Select +/-/PU/PD:Values F10:Save Esc:Exit F1 General Help

F5: Previous Values F6: Fail-Safe Defaults F7: 0 timized Defaults

VIA OnChip PCI Device

Figure 4.11. OnChip USB Controller Window (factory setting)

Description Choice

VIA-3058 AC97 Audio Enable or disable the audio feature.

OnChip USB Controller Enable or disable the USB port.

OnChip 2.0 cont ro ll er Enable or disable the use of the USB po rts f or

USB2.0. When "Disabled" is selected, the USB port works as a USB1.1 port.

USB Keyboard Support Select whether to emulate a USB ke yboa rd as a PS/2 keyboard. Set this item to "Enabled" to install an OS with a USB keyboard. You do not

have to set this to "Enabled" to place the keyboard under control of the OS's driver after starting the OS. The default is "Disable d"; yo u usually do not have to change this setting.

Auto Disabled

All Disabled 1& 3 U SB P o rt All Enabled 1 U SB P o rt 1&2 USB Port

Enabled Disabled

Disabled Enabled

4. BIOS Setup

User’s Manual

4. BIOS Setup

Super IO Device

Phoenix - AwardBIOS CMOS Setup Utility

Onboard Serial Port 1 [3F8/IRQ4] Onboard Serial Port 2 [2F8/IRQ3]

↓

↓→←

:Move Enter:Select +/-/PU/PD:Values F10:Save Esc:Exit F1 General Help

F5: Previous Values F6: Fail-Safe Defaults F7: 0 timized Defaults

Super IO Device

Item Help

Menu Level

Figure 4.12. SuperIO Device Window (factory setting)

Description Choice

Onboard Serial Port 1 Select the base I/O address and IRQ for serial port 1.

- Selecting "3F8/IRQ4" assig ns th e port to COM1

- Selecting "2F8/IRQ3" assig ns th e port to COM2

- Selecting "3E8/IRQ4" assigns the port to COM3

- Selecting "2E8/IRQ3" assigns the port to COM4 in Windows.

Onboard Serial Port 2 Select the base I/O address and IRQ for serial port 2.

- Selecting "3F8/IRQ4" assig ns th e port to COM1

- Selecting "2F8/IRQ3" assig ns th e port to COM2

- Selecting "3E8/IRQ4" assigns the port to COM3

- Selecting "2E8/IRQ3" assigns the port to COM4 in Windows.

Init Display First The default is "PCI Slot"; yo u usual ly d o not have to

change this setting.

Disabled 3F8 / IRQ4 2F8 / IRQ3 3E8 / IRQ4 2E8 / IRQ3 Auto

PCI Slot AGP

User’s Manual

Power Management Set u p

Phoenix - AwardBIOS CMOS Setup Utility

Power Management Setup

ACPI function [Disabled] Power Manageme nt Option [User Define] HDD Power Down [Disabled] Suspend Mode [Disabled] Video Off Optio n [Suspend -> Off] Video Off Method [V/H SYNC+Blank] MODEM Use IRQ [3] IRQ/Event Activ i ty De tec t [Press Ente r]

↓

↓→←

:Move Enter:Select +/-/PU/PD:Values F10:Save Esc:Exit F1 General Help

F5: Previous Values F6: Fail-Safe Defaults F7: 0 timized Defaults

Figure 4.13. Power Management Setup Window (factory setting)

Description Choice

ACPI function The default is "Disabled"; you u suall y do no t hav e to

change this setting.

Power management Optio n Set the power save mode.

HDD Power Down This item is enabled with "Power management

Option" set to "User De f in e. " When the module is used under Windows, the

relevant setting in Windows overrides the setting of this item.

Enabled Disabled

User Define Min saving Max saving

Disabled 1 Min 2 Min 3 Min 4 Min 5 Min 6 Min 7 Min 8 Min 9 Min 10 Min 11 Min 12 Min 13 Min 14 Min 15 Min

Item Help

Menu Level

4. BIOS Setup

User’s Manual

4. BIOS Setup

Description Choice

Suspend Mode This item is enabled with "Power management

Option" set to "User De f in e. " When the module is used under Windows, the

relevant setting in Windows overrides the setting of this item.

Video Off Option

- Always On : The monitor remains on even in suspend mode.

- Suspend --> Off : The monitor is turned off in suspend mode.

When the module is used under Windows, this setting is not adapted.

Video Off Method Select how to turn the monitor off. The default is

"V/H SYNC+Blank"; you usually do not have to change this setting.

Modem Use IRQ The default is "3"; you usual ly do no t have t o cha nge

this setting.

Disabled 1 Min 2 Min 4 Min 6 Min 8 Min 10 Min 20 Min 30 Min 40 Min 1 hour

Always On Suspend -> Off

Blank Screen V/H SYNC+Blank DPMS Support

NA 3 4 5 7 9 10 11

User’s Manual

IRQ/Event Activity Detect

Phoenix - AwardBIOS CMOS Setup Utility

IRQ/Event Activity Detect

PS2KB Wakeup Select [Hot key] PS2KB Wakeup from S3/S4/S5 [Disable] xPower Button Lock [Enabled] PS2MS Wakeup from S3/S4/S5 [Disable] USB Resume from S3 [Disabled] VGA [OFF] LPT & COM [LPT/COM] HDD & FDD [ON] PCI Master [OFF] PowerOn by PCI Card [Disable] Wake Up On LAN/Ring [Disable] RTC Alarm Resume [Disable ] xData (of Month) 0 xResume Time (hh:mm:ss) 0 : 0 : 0 IRQs Activity Monitoring [Press Enter]

↓

↓→←

:Move Enter:Select +/-/PU/PD:Values F10:Save Esc:Exit F1 General Help

F5: Previous Values F6: Fail-Safe Defaults F7: 0 timized Defaults

Figure 4.14. IRQ/Event Activity Detect Window (factory setting)

Description Choice

PS2KB Wakeup Select This item is not used for the module . Use the mod ule

with this item set to "Hot key" by default.

PS2KB Wakeup from S3/S4/S5 This item is not us ed f or the modu le. Use the modu le with this item set to "Disabled" by default.

Power Button Lock This item is not us ed f or the modu le. Use the modu le

with this item set to "Enabled" by default. PS2MS Wakeup from S3/S4/S5 Enable or disable the PS/2 mouse to turn the power

on with Windows in the sl ee p / hib e rn at e/ s hut d ow n state. (Dedicated to ATX mode. See P56)

USB Resume from S3 This item is not us ed f or the modu le. Use the modu le with this item set to " Disabled" by defaul t. VGA This item is not us ed f or the modu le. Use the modu le

with this item set to "OFF" by default.

Hot key Password

Disable Ctrl+F1 to Ct rl+F12 Power Wake Any key

Disable Enable

OFF ON

4. BIOS Setup

User’s Manual

4. BIOS Setup

Description Choice

LPT & COM This item is not us ed f or the modu le. Use the modu le

with this item set to "LPT/COM" by default.

HDD & FDD The default is "ON"; you usuall y do no t have to

change this setting. PCI Master The default is "OFF"; you usually do not have to

change this setting. Power-On by PCI card The default is "Disabled"; you u suall y do no t hav e to

change this setting. Wake Up On LAN/Ring Enable or disable the LAN to turn the power on with

Windows in the sleep/hibernate/shutdown state. (Dedicated to ATX mode. See P56) *1

RTC Alarm Resume If this item is set to "Enabled," the RTC (realtime

clock) alarm can be used to specify the date and time at which to resume from suspend mode or restart the system.

NONE LPT COM LPT/COM

OFF ON

Disabled Enabled

*1 To use the Wake Up On LAN feature, this machine must r eceive a magic p acket to awaken itself. The magi c p acket

contains six bytes of FF followed by 16 contiguous copies of the MAC address (irrespective of the protocol used).

User’s Manual

4. BIOS Setup

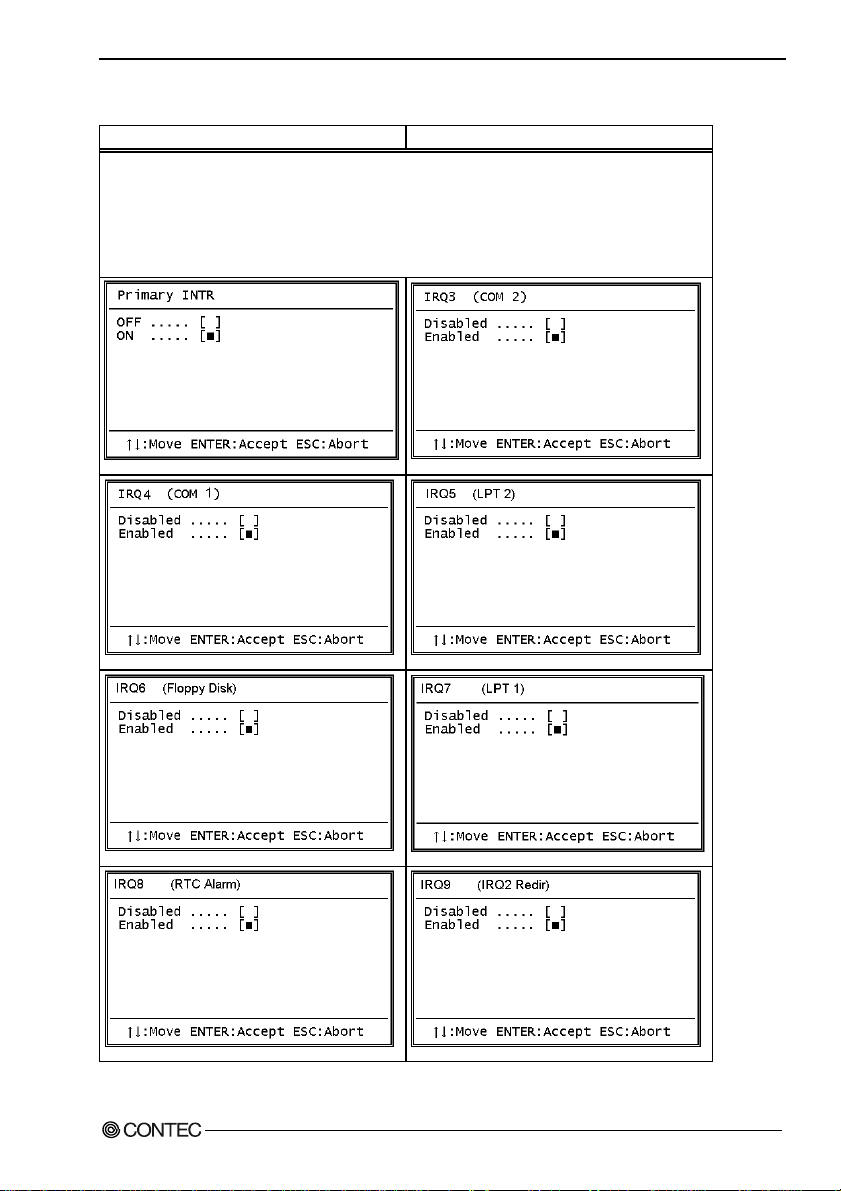

IRQs Activity Monitoring

Description Choice

Selecting "On" (default) causes the system to resume from suspend mode whenever an event occurs. The following table lists IRQs (Interrupt R eQuests). You us ually d o not have to ch ange th e setting fro m the

default. When an I/O devices requires servicing by the operating sy stem, the I/O device gen erates an IRQ to send the signal. When the operating system is ready for response, it generates an interrupt to execute the requested service. Accordingly, the options available are On (default) and Off. When "Off" is selected, the system won't enter suspend mode or return to normal mode in response to IRQs.

User’s Manual

4. BIOS Setup

Description Choice

Figure 4.15. IRQs Activity Monitoring Window (factory setting)

User’s Manual

PnP/PCI Configuration Setup

Phoenix - AwardBIOS CMOS Setup Utility

PnP/PCI Configuration Setup

PNP OS Installed No Reset Configuration Data [Disabled]

Resources Controlled By [Auto(ESCD)] IRQ Resources Press Enter

PCI/VGA Palette Snoop [Disabled]

↓

↓→←

:Move Enter:Select +/-/PU/PD:Values F10:Save Esc:Exit F1 General Help

F5: Previous Values F6: Fail-Safe Defaults F7: 0 timized Defaults

Figure 4.16. PnP/PCI Configuration Setup Window (factory setting)

Description Choice

PNP OS Installed The default is "No"; you usually do not have to

change this setting. Reset Configuration Data The default is "Disabled"; you u suall y do not have

to change this setting. After upgrading the BIOS, start it up with "Enabled" selected, then select "Disabled" again. Resource Contro ll ed by The default is "Auto(ESCD)"; you usually do not have to change this setting.

No Yes

Disabled Enabled

Auto(ESCD) Manual

Item Help

Menu Level Select Yes if you are

using a Plug and Play capable operating system Select No if you need the BIOS to configure non-boot devices

4. BIOS Setup

User’s Manual

4. BIOS Setup

IRQ Resources

Phoenix - AwardBIOS CMOS Setup Utility

IRQ-3 assigned to [PCI Device] IRQ-4 assigned to [PCI Device] IRQ-5 assigned to [PCI Device] IRQ-7 assigned to [PCI Device] IRQ-9 assigned to [PCI Device] IRQ-10 assigned to [PCI Device] IRQ-11 assigned to [PCI Device] IRQ-12 assigned to [PCI Device] IRQ-14 assigned to [PCI Device] IRQ-15 assigned to [PCI Device]

↓

↓→←

:Move Enter:Select +/-/PU/PD:Values F10:Save Esc:Exit F1 General Help

F5: Previous Values F6: Fail-Safe Defaults F7: 0 timized Defaults

IRQ Resources

Item Help

Menu Level Legacy ISA for devices

compliant with the original PC AT bus specification, PCI/ISA PnP for devices compliant with the Plug and Play standard PCI or ISA bus architecture

Figure 4.17. IRQ Resources Window (factory setting)

To set resources manually, use them as "PCI Device" because this machine cannot accept ISA devices.

Description Choice

PCI/VGA Palette Snoop This item is not used for the module. Use the

module with this item set to "Disabled" by default.

Disabled Enabled

User’s Manual

PC Health Status

Phoenix - AwardBIOS CMOS Setup Utility

Current System Temp. Current CPU1 Temperature IN0(V) IN2(V) +5V VBAT(V) 5VSB(V)

↓

↓→←

:Move Enter:Select +/-/PU/PD:Values F10:Save Esc:Exit F1 General Help

F5: Previous Values F6: Fail-Safe Defaults F7: 0 timized Defaults

Figure 4.18. PC Health Status Window

Description Choice

Current CPU Temp. Displays the temperatu re detected by the CPU temperature sensor. Current System Temp. Displays the temperature detected by the CPU board temperature sensor. IN0 / IN2 / +5V / VBAT / 5VSB Displays the CPU core, +3.3 V, +5 V, b at tery , a nd 5 VS B vol tag es.

PC Health Status

4. BIOS Setup

User’s Manual

4. BIOS Setup

Frequency/Voltage Control

Phoenix - AwardBIOS CMOS Setup Utility

Frequency/Voltage Control

Spread Spectrum [Disabled]

↓

↓→←

:Move Enter:Select +/-/PU/PD:Values F10:Save Esc:Exit F1 General Help

F5: Previous Values F6: Fail-Safe Defaults F7: 0 timized Defaults

Figure 4.19. Frequency/Voltage Control Window (factory setting)

Description Choice

Spread Spectrum This item is not used for the mod ule. Use the modul e

with this item set to "Disabled" by default.

Disable Enable

Item Help

Menu Level

Load Fail-Safe Defaults

When you press <Enter> on this item you get a confirmation dialog box with a message similar to: Load Fail-Safe Defaults (Y/N) ? N Press the <Y> key loads the most safe settings.

Load Optimized Defaults

When you press <Enter> on this item you get a confirmation dialog box with a message similar to: Load Optimized Defaults (Y/N) ? N

Pressing the <Y> key loads the values optimized by the BIOS. The BIOS optimized settings are factory defaults.

User’s Manual

4. BIOS Setup

Supervisor/User Password Setting

You can set either supervisor or user password, or both of then. The differences between are: SUPERVISOR PASSWORD: can enter and change the options of the setup menus. USER PASSWORD: just can only enter but do not have the right to change the options of the setup

menus. When you select this function, the following message will appear at the center of the screen to assist you in creating a password.

ENTER PASSWORD: Enter a password within eight characters and press the <Enter> key, and you will be prompted to c onfirm

the password. Type the password again and press <Enter>. You may also press <Esc> to abort the selection and not enter a password.

To disable a password, just press <Enter > when yo u are prompte d to enter the passwor d. A message wi ll confirm the password will be disabled. Once the password is disabled, the system will boot and you can enter Setup fr eely.

PASSWORD DISABLED. When a password has been enabled, you will be prompted to enter it every time you try to enter Setup.

This prevents an unauthorized person from changing any part of your system configuration. You can also set up the password so that you are prompted to enter it whenever the system is rebooted.

This would prevent unauthorized use of your computer. You determine when the password is required within the BIOS Features Setup Menu and its Security

option. If the Security option is set to “System”, the password will be required both at boot and at entry to BIOS Setup. If se t to “S et up”, p romp t ing only occurs when trying to enter BIOS Setup.

User’s Manual

4. BIOS Setup

Save & Exit Setup

Pressing <Enter> on this item asks for confirmation: Save to CMOS and EXIT (Y/N)? Y Pressing the <Y> key saves the changes made on the Setup screen to CMOS (EEPROM).

Pressing “Y” stores the selections made in the menus in CMOS(EEPROM) – a special section of memory that stays on after you turn y our system of f. The next tim e you start up your computer, the BIO S configures your system according to the value stored in CMOS(EEPROM). After saving the values the system is restarted again.

Exit Without Saving

Pressing <Enter> on this item asks for confirmation: Quit Without Saving (Y/N)? N Pressing the <Y> key quits Setup without saving the changes made on the Setup screen to CMOS

(EEPROM). Quitting Se tup wi thout savi ng leav es the las t s aved set ting s in eff e ct, w ith wh ich th e system is rebooted after that.

User’s Manual

4. BIOS Setup

POST Messages

During the Power On Self-Test (POST), if the BIOS detects an error requiring you to do something to fix, it will either sound a beep code or display a message.

POST Beep

The BIOS reports errors using tw o types of beeps w hen they cannot be r eported with o n-scre en messages. One is a long beep followed by two short beeps. This indicates an error in the video system. The other is a repetition of a long beep, indicating a DRAM error.

User’s Manual

4. BIOS Setup

Error Messages

One or more of the following messages may be displayed if the BIOS detects an error during the POST.

CMOS checksum error

CMOS memory recording BIOS Setup information contains an invalid checksum. This indicates that invalid data has been written to CMOS memory. The error occurs, for example, when th e BIO S is upg r aded o r wh en th e po we r is tur n ed off wh i le BIO S Setup is saving data.

You can recover from the err or by writi ng valid Setup data un less the err or is cause d by a fault in CMO S memory.

DISK BOOT failure [INSERT SYSTEM DISK AND PRESS ENTER]

No boot device was found. This message appears, for example, when the BIOS cannot find any drive from which

to boot the system. Check whether a bootable device has been connected and whether the connectors and cables have been plugged correctly.

Error encountered initializing hard drive Error initializing hard disk controller Hard disk(s) fail (80) Hard disk(s) fail (40) Hard disk(s) fail (20) Hard disk(s) fail (10) Hard disk(s) fail (08)

The HDD (SDD) is abnormal. These messages appear when the HDD (SDD) connected is detected to be abnorm al in

some way. If any of the messages is displayed, check the connection of the drive and its settings.

Primary IDE Channel no 80 conductor cable installed Secondary IDE Channel no 80 conductor cable installed

These messages appear when the system unit cannot recognize a connected ATA100 IDE device as an ATA100 device. If either of the messages is displayed, check that "HDD Select" in the "Advanced Chipset Features" m enu has been set t o "Auto Select."

User’s Manual

Keyboard error or no keyboard present

This message appear with no keyboard connected. The message may also appear if a key remains held down during a boot-up. If this message is displayed, check the connection of the keyboard and its situation

during startup. If you use the module with no keyboard connecte d, use BIOS Set up to set "Halt O n" in

the "Standard CMOS Feature" menu to "All, But Keyboard."

Keyboard is locked out – Unlock the key

A key remains held down during a system boot. Check that the keyboard is connected correctly and that no key is pressed during a system boot.

Memory address error at… Memory parity error at… Memory verify error at… Memory test fail

These error messages appear when system memory is abnormal. They may appear when a BIOS Setup value is abnormal. Run BIOS Setup again if possible.

4. BIOS Setup

Press F1 to disable NMI, F2 to REBOOT

This message appears when the system detects a nonmaskable interrupt (NMI). You can select whether to continue processing with the NMI disable or to reboot the

system with the NMI enabled after the message is cleared.

Press a key to REBOOT

This message appears along with ano ther messa ge for an error, indicating that the error requires a reboot.

Press any key and the system will reboot.

System halted, (CTRL-ALT-DEL) to REBOOT…

This message appears along with another message as well, but indicating that the system has been hung. Press and hold down the <CTRL> and <ALT> keys and press <DEL> to re-start the system.

User’s Manual

4. BIOS Setup

BIOS ROM checksum error – System halted

BIOS ROM data is invalid. This message appears, for example, when an attempt to upgrade the BIOS has failed. BIOS ROM must be removed for repair.

User’s Manual

5. Each Component Function

Component Identification

POWER LED

LAN1LAN2

PCMCIA

PWR

ACCESS LED

STANDBY POWER LED

DVI

RAS

SPK

RST

ACCESS

SPD

DC-IN FG V- V+

10VDC-INRAS

KEYBOARD

LINE OUT RESET

PCMCIA

DVI

USB

SERIAL1

SERIAL2

USB

ACT

LNKACT LNK

SERIAL2

LAN2 LAN1

SECONDARY IDE

CF Slot

HDD

< Left side >

Figure 5.1. Component Identification

5. Each Component Function

Table 5.1. Component Identification

Name Function

LINE OUT Line out (φ3.5 PHONE JACK) KEYBOARD Keyboard conn ector (MINI-D IN , 6pin) SERIAL1 SERIAL2

Serial port 1 connec tor (9p in, mal e D-SU B) Serial port 2 connec tor (9p in, mal e D-SU B)

USB USB port conne cto r LAN1, LAN2 Ethernet connector (RJ-45) PCMCIA PCMCIA card slot DVI DVI connector (29pin, DVI-I) RAS RAS fu nc tion (9 pin, fema le D-SU B) RESET Hard reset push button POWER LED Power ON indicator ACCESS LED Internal hard disk access lamp STANDBY POWER LED Stand by Power LED (Dedicated to ATX mode, coming on at shutdown) *1 SECONDARY IDE Secondary IDE connector (dedicated 36pin half-pitch connector) CF Slot CF C a r d Sl ot ( Se c o n da ry I D E c on n e ct io n ) *1 See the list of the next page for differences between ATX and AT modes.

User’s Manual

5. Each Component Function

Mode Setting method At shutdown (standby/power-off state)

- In case of Windows XP Open the Control Panel, select "Turn off

Computer" from "Performan ce and Maintenance," then chec k "Ena ble

ATX mode

AT mode

Advanced Power Management support." under the APM tab, the n re boot t h e sy st em

- In case of Windows 2 000 Check "Enable Advanced Power

Management support." under the APM tab from the Control Pa nel – Power Option, then reboot the system

Uncheck the above option, then reboot the system.

- SPD (standby power indicator LED) comes on.

- Recycle the DC power supply, press any key on the PS/2 keyboard, click the PS/2 mous e butt on (s ee P41) , or use WakeupOnLan (see P42) to return to the power-on state.

Recycle the DC power su ppl y to re tu rn t o the powe r-on state.

User’s Manual

5. Each Component Function

Line out Interface

A line output connector is provided, named SPK (3.5φ stereo mini jack). You can plug a headphone or amplifier-integrate d spe ak ers in to th is conn ec to r.

Audio driver The audio driver is required to use the line output interface. Visit the CONTEC web site to download the audio driver (IPC-SLIB-01) for the OS runn ing on your

BOX-PC. For the download, see Chapter 6 “List of Options".

Keyboard / Mouse Interface

The BOX-PC is equipped with a keyboard connector named KB (MINI-DIN 6P). A PS/2 mouse can also be used with the bundled keyboard/mouse branch cable.

Table 5.2. Keyboard / Mouse Interface

Connector typ e

Pin No.

1 2 3 4

Equivalent to the MD-DS12300-14S-14(JST)

Pin No.

5 6

SHELD

---

Signal name

+KBD CLK

+MOUSE CLK

GND

Signal name

+KBD DATA

+MOUSE DATA

GND

+5.0V DC

User’s Manual

5. Each Component Function

Serial Port Interface

Serial port 1, 2(RS-232C port) The BOX-PC is equipped with two RS-232C-compliant serial port connectors (SERIAL1: Serial port 1

and SERIAL2: Serial port 2). You can use BIOS Setup (described in Chapter 4) to configure an I/O address, interrupt and unused state for each of the ports independent ly. (The same I/O address and IRQ cannot be shared with any other device.)

Note that Serial Ports 1 and 2 are shared ports also available as the RS-422/485 and touch panel interfaces, respectively. The interfaces sharing each serial port are mutually exclusive. *1

To use the serial port for the interface other than RS-232C, see the relevant page.

*1 The serial ports are set as follows by default: SERIAL1: RS232C / SERIAL2: TouchPanel. To use Serial Port 2, run

BIOS Setup to set "Serial2 Select" in the "Advanced Chipset Features" menu to "RS232C". (See P33)

Table 5.3. Serial port 1, 2 I/O address and Interrupts

COM I/O address Interrupt

13F8h-3FFh 22F8h-2FFh 33E8h-3EFh 42E8h-2EFh

The BIOS defaults to the following factory settings:

Serial port 1: COM1(3F8h-3FFh),IRQ4 Serial port 2: COM2(2F8h-2FFh),IRQ3

IRQ 3 IRQ 4

Table 5.4. Serial Port Connector

Connector used on the unit 9-socket D-SUB (MALE)

Pin No.

1 2 3 4 5 6 7 8 9

Signal name

CD RD TD

DTR

GND

DSR RTS CTS

Carrier detect Received data Transmitted data Data terminal ready Signal ground Data set ready Request to send Clear to send Ring indicator

No.4-40UNC

Meaning

Inch thread

Direction

Input

Input Output Output

-----

Input Output

Input

User’s Manual

5. Each Component Function

I/O Addresses and Instructions The I/O addresses and instructions of COM1 are shown next.

Table 5.5. I/O Addresses

I/O address DLAB Read/Write Register

03F8H

03FAH X R Interrupt ID register IIR 03FBH X W Line control regi ster LCR 03FCH X W Modem control register MCR 03FDH X R Line status register LSR 03FEH X R Modem status register MSR

03FFH X R/W Scratch register SCR

DLAB (Divisor Latch Access Bit) : The value in bit 7 of the line control register

0 W Transmitter holding register THR

R Receive buffer register RBR 1 W Divisor latch register (LSB) DLL 1 W Divisor latch register (MSB) DLM03F9H 0 W Interrupt enable register IER

User’s Manual

5. Each Component Function

Table 5.6. Function of Each Register < 1 / 4 >

I/O address Description

03F8H

03F9H

THR: Transmitter Holding Register [DLAB=0]

D7 D6 D5 D4 D3 D2 D1 D0

bit7

MSB

RBR: Reciever Buffer Regis t e r [DLAB=O]

D7 D6 D5 D4 D3 D2 D1 D0

bit7

MSB

DLL: Divisor Latch (LSB) [DLAB=1 ]

D7 D6 D5 D4 D3 D2 D1 D0

bit7

MSB

Baud rate setting register (LSB)

DLH: Divisor La tch (MSB) [DLAB=1]

D7 D6 D5 D4 D3 D2 D1 D0

bit7

MSB

Baud rate setting register (MSB)

IER: Interrupt Enable Registe r [D LAB=0]

D7 D6 D5 D4 D3 D2 D1 D0

000EMSELSI

Modem statu s interrupt enable [Always use d at 0. ]

bit0 LSB

ERDAI

ETHREI

Received dat a Interru p t e na b l e

Received data register empty Interrupt enable

Receiver line status Interrupt enable

1: Enable interrupt 0: Disable interrupt

User’s Manual

Table 5.6. Function of Each Register < 2 / 4 >

I/O address Description

03FAH

IIR : Interrupt Identification Register

D7 D6 D5 D4 D3 D2 D1 D0

00000

Interrupt details

bit20bit10bit01Priority Description

Interrupts are not generated.

110

100

010

000

Generated by overrun, parity, framing error or break

1 (high)

interrupt. Cleared when the line status register is read.

Generated when the receive buffer register is ready.

Cleared when the receiving buffer is read. Generated when the transmitter holding register is

empty. Cleared when the IIR is read or when transmitted data is written to THR.

Modem status interrupt is generated.

4 (low)

(CTS, DSR, RI, CD) Cleared when the modem status register is read.

5. Each Component Function

1: Do not generate interrupts 0: Generate interrupts

03FBH

LCR : Line Contror Regester

D7 D6 D5 D4 D3 D2 D1 D0

0 : 1 STOP bit 1 : 1.5 STOP bits at 5-bit length

2 STOP bits at 6-, 7-, or 8-bit length

0 : Disable parity 1 : Enable parity

0 : Odd parity 1 : Even parity

0 : Disable stick parity 1 : Enable stick parity

0 : Break signal off 1 : Send break signal

DLAB (Divisor Latch Access Bi t) In order to access the divisor latch register, you need to set the bit to 1. To access another register, set the bit to 0.

Bit table

0 0 1 1

User’s Manual

5. Each Component Function

Table 5.6. Function of Each Register < 3 / 4 >

I/O address Description

03FCH

03FDH

MCR: Modem Control Register

D7 D6 D5 D4 D3 D2 D1 D0

0 0 0 Loop

LSR: Line Status Regester

D7 D6 D5 D4 D3 D2 D1 D0

TEMT

THRE

Transmit ter em pty (Set to 1 when both transmitter holding register and transmitter shift register are empty.)

IRQ X RTS DTR

Interrupt contr ol bi t

0 : Disable 1 : Enable

Diagnostic local loop-back test

0 : Disable 1 : Enable

BI FE PE OE DR

Framing error (1 for occurrence of an error)

Break interrupt (1 for detection of break state)

Transmitter holding register empty (1 for transmission buffer being empty)

DTR

0 : Inactive [HIGH] 1 : Active

RTS

Overrun error (1 for occurrence of an error)

Parity error (1 for occurrence of an error)

[LOW]

0 : Inactive [HIGH] 1 : Active [LOW]

Data ready (1 for existence of received data)

User’s Manual

5. Each Component Function

Table 5.6. Function of Each Register < 4 / 4 >

I/O address Description 03FEH

03FFH

MSR : Modem Status Re gister

D7 D6 D5 D4 D3 D2 D1 D0

DSR

DDCD

TERI

Delta data carrier detect

CTS

DCD RI DSR CTS

DCD

SCR : Scratchpad Re gister

This is an 8-bit, readable/writable register which is available to the user to allow data to be saved temporarily.

DCTS

DDSR

Delta CTS

Delta DSR

Trailing edge RI

Since these statuses are not used with RS-485, data is not valid.

Baud Rate Settings A baud rate is set by software by dividing the clock input (1.8432MHz). The baud rate in terms of

hardware can be set to a maximum of 115,200 bps. The baud rates available in practice depend on the operating environment (cable, software, etc.). The table below lists typical baud rates and their respective values to be written to the divisor latch register (LSB, MSB).

Table 5.7. Baud Rate Settings

Baud rate to be set

50 2304 --75 1536 ---

110 1047 0.026

134.5 857 0.058 150 768 --300 384 --600 192 ---

1200 96 --1800 64 --2000 58 0.69 2400 48 --3600 32 --4800 24 --7200 16 --9600 12 ---

19200 6 --Example: To set 9,600 bps, write "00" to the (MSB) divisor latch register and "12 (decimal)" to the (LSB) divisor latch register.

Value to be set

in the divisor register

Setting error (%)

User’s Manual

5. Each Component Function

USB Ports

The BOX-PC is equipped with four USB interface channels.

Table 5.8. USB Connector

C4 C1

D4 D1 B4 B1

Pin No.

Signal name

USB0 Vcc

USB0 -Data

USB0 +Data

USB0 GND

USB2 Vcc

USB2 -Data

USB2 +Data

USB2 GND

CAUTION

A4 A1

Pin No.

B1 B2 B3 B4 D1 D2 D3 D4

Signal name USB1 Vcc USB1 -Data USB1 +Data USB1 GND USB3 Vcc USB3 -Data USB3 +Data USB3 GND

- When installing the Windows2000/XP package versions from USB-CDROM, there are no note.*1*2 In recovering pre-installation OS, please recover with reference to an appending recovery procedure document.

- USB-HDD boot is checking only starting of MS-DOS.*2

- The total current capacity of four channels of USB connectors is 1 A or less. Although the maximum current capacity per channel is 500 mA, configure the devices such t hat the total current consumption by the four channels does not exceed 1 A.

- There is apparatus by which current flow s backwards from a connection cable to BOXPC at the tim e of power supply off of BOXPC among USB apparatus. Since you may be unable to start BOXPC when such apparatus is co nnected , pleas e remov e USB appa ratus and connec t again af ter a power supply injection. However, plea se co nnect again before perform ing ap paratus d etecti on, when using USB apparatus as a boot device.

*1 Only SP4(or later) is about Windows 2000.

*2 Basic functional operation of a screen display etc is checked. However, no operation of the functions of OS is guaranteed.

User’s Manual

Ethernet

The module is equipped with two channels of Fast Ethernet.

- Network type : 100BASE-TX/10BASE-T

- Transmission speed * : 100M/10M bps

- Max. network path length : 100m/segment

- Controller : RTL8139DL(Realtek) * Operation at 100Mbps requires a category 5 cable.

Table 5.9. Ethernet Connector

Connector type

RJ-45

5. Each Component Function

Pin No.

1 2 3 4 5 6 7 8

Act

Signal name

TD+

TDRD+ N.C. N.C. RDN.C. N.C.

Link

Meamimg Trans m i tted data (+) Trans m i tted data (-) Received data (+) Not connected Not connected Received data (+) Not connected Not connected

LEDs for the display of network status

LINK : Normal connection display ACT : Transmission/reception indicator

LAN drivers Visit the CONTEC web site to download the LAN driver (IPC-SLIB-01) for the OS running on your

BOX-PC. For the download, see Chapter 6 “List of Options"

User’s Manual

5. Each Component Function

PC Card Slots

PCMCIA compliant, CardBus compatible card slots are provided [TYPE II x 1 size]

Slot

Figure 5.2. Slot Numbers and Locations

Attaching the Metal Brace to Keep the Card in Place

Bind screws (M3 x 6) (Bundled)

Figure 5.3. Attaching the Metal Brace to Keep the Card in Place

Power Supply to the C ard The voltage that can be used and the current capacity are as shown below:

Table 5.10. Power Supply to the Card

Voltage Current capaci ty (Ma x. )

+5V 250mA/Slot +3.3V 250mA/Sl ot +12V Not supplied.

User’s Manual

5. Each Component Function

DVI Connector

This is the DVI connector for the CRT/LCD. You can use it to connect a display (even a D-SUB-15pin connector is acceptable by using the bundled DVI-analog RGB adapter) or a CONTEC Panel Link display *1. The pin assignments are as follows.

Table 5.11. DVI Connector

Connector type DVI-I 29pin

C3C4

C1C2

Pin No. Signal name Pin No. Signal name Pin No. Signal name

1 DATA2- 13 N.C. C1 RED 2 DATA2+ 14 +5V C2 GREEN

4N.C.16HPDC4HSYNC 5 N.C. 17 DATA0- C5 GND 6 DDC CLK 18 DATA0+

8VSYNC20TXD 9 DATA1- 21 RXD

10 DATA1+ 22

12 N.C. 24 CLK-

*1 To use a CONTEC panel displ ay, sel e ct "Tou ch Panel" to the "Serial2 Select" in the "Advanced Chipset Features"

menu or the display mode of the connected display with the "Panel Type." (See P33)

CAUTION

DATA2

SHIELD

DDC

DATA

DATA1

SHIELD

15 GND C3 BLUE

23 CLK+

- Installation of the display driver for wind ows se ts resolution as 1024 x 7684. When you use it in different resolution, please re-setup in the display mode before re-starting. When it re-starts without setti ng up, it be com es im possi ble to e xpre ss a sc reen as t he monitor which cannot display 1024 x 768.

- The display is not guaranteed about resolution except 720 x 400, 640 x 480, 800 x 600, 1024 x 768. There is a case where it cannot be displayed that the display mode more than the recommendation resolution of a display is set up.

172416 9

DATA0

SHIELD

DATA0

SHIELD

User’s Manual

5. Each Component Function

Table 5.12. DVI-Analog RGB conversion adapter

Connector type DVI-I 29pin

39.40

33.00

11 15

15.00

Pin No. Signal name Pin No. Signal name

1RED9HPD 2 GREEN 10 GND 3BLUE11N.C. 4N.C.12DDC DATA 5GND13HSYNC 6GND14VSYNC 7 GND 15 DDC CLK 8GND

6.20 5.80

30.00

Analog RGB signals

[mm]

User’s Manual

The table below lists the LCDs that can be connected. Note that in order to connect an LCD, you need a connecting cable.

Table 5.13. LCD Displays Acceptable

Display Model Signal name Display

6.5 inch TFT with a panel-mounting

touch panel

6.5 inch TFT with

built-in touch panel

10.4 inch TFT with a panel-mounting

touch panel

10.4 inch TFT with

built-in touch panel

12 inch TFT with a panel-mounting

touch panel

12 inch TFT with

built-in touch panel

15 inch TFT with a panel-mounting

touch panel

15 inch TFT with

built-in touch panel

12 inch TFT with a

desktop/wall-mounted

touch panel

IPC-DT/S61VT-DC1

IPC-DT/S65VT-DC1

IPC-DT/M61VT-DC1

IPC-DT/M61VT-AC0

IPC-DT/M65VT-DC1

IPC-DT/L61SVT-DC1 IPC-DT/L61SVT-AC0

IPC-DT/L40S(PC)T Panel link

IPC-DT/L65SVT-DC1

IPC-DT/H61XT-D C1 IPC-DT/H61XT-AC0

IPC-DT/H40X(PC)T Panel link

IPC-DT/H65XT-D C1

IPC-DT/L440(PC)TA IPC-DT/L440(PC)TB

Analog RGB

DVI

Analog RGB

DVI

Analog RGB

DVI

Analog RGB

DVI

Analog RGB

DVI

Analog RGB

DVI

Analog RGB

DVI

Analog RGB

DVI

Panel link

(640 x 480)

(640x x480)

(640 x 480)

(800 x 600)

(1024 x 768)

(800 x 600)

5. Each Component Function

VGA

SVGA

XGA

SVGA

CAUTION

When using IPC-DT/x6x series, even if it uses "Auto detect", when the display has shifted in the direction of length, please adjust by "V positionSP" of IPC-DT/x6x series.

Display Driver Visit the CONTEC web site to download the Display driver (IPC-SLIB-01) for the OS running on your

BOX-PC. For the download, see Chapter 6 “List of Options".

User’s Manual

5. Each Component Function

Serial Interface for Touch Panel (Inside the DVI connector) The BOX-PC is equipped with a serial port (Serial port 2) to communicate with a touch panel when an

LCD equipped with a touch panel is used. *1 Visit the CONTEC web site to download the Touch Panel driver (IPC-SLIB-01) for the OS running on

your BOX-PC. For the download, see Chapter 6 “List of Options".

*1 The SERIAL2 connector (RS-232C) and touch panel function are mutually exclusive.

(In the default settings, the touch panel function is used.) (See P33)

User’s Manual

5. Each Component Function

RAS Functions

A RAS port is provided. This port offers watchdog timer, remote reset, and general-purpose I/O RAS functions.

Table 5.14. RAS Connector

Connector type

Pin No.

1 9 2

6 7

*Fastening screw: No. 4-40UNC inch thread

15pin D-SUB(FEMALE) (DALC-J15SAF-20L9) JAE

915

Signal name

SPK

GND

TX +

TX RX + RX -

NCOM

PO2/WDT

PO0 PO1

NCOM

PI1

PI2/IRQ

PCOM

PI0

External speaker signal External speaker ground RS-485 transmitting line

RS-485 receiving line

Minus common de dicated to PO 2 General-purpose output or watchdog timer alarm output General- purpose output

General-purpose output minus common General- purpose i nput General-purpose input or interrupt input General-purpose input plu s common General- purpose i nput

Function

RAS Port address: 4000h to 4006h

CAUTION

Pin 4 NCOM (minus common dedicated to PO2) and pin 6 NCOM (minus common shared by PO0 and PO1) are electrically separated from each other.

User’s Manual

5. Each Component Function

Watchdog Timer

The watchdog timer is started by output of A5 to I/O port address 4002h. A second output of A5 to the same port within the specified expiration time once again triggers the watchdog timer. If a time-out occurs, a reset or an interrupt is generated according to the 4004h port setting or an alarm is output according to the 4004h port setting.

The time-out period can be set between 1 and 255 seconds depending on the timer value setting for the WDT counter port (4003h).

The watchdog timer stops by reading port 4002h. The alarm-out output is cancelled at the same ti me. The alarm out is output from the RAS connector's PO2/WDT (12-pin) and cancelled when reset. The alarm-out output can be s et t o BI OS st art up by BIOS setup (see Chapter 4), watc h dog t i m er startu p,

or watchdog timer time-up.

Specifications

- Time to be set : 1sec to 255sec

- Interrupt or reset : Resets or generates an interrupt at time-up (Port setting).

- External alarm output : Opto-coupler isolated open-collector output (the output status is set by software). For more information, see the general-purpose I/O specifications.

- I/O addresses : 4001h to 4005h (RAS port)

User’s Manual

How to Use the Watchdog Ti mer

BIOS setting

Power ON

5. Each Component Function

Set event

output control

Instruct

WDT to stop

Set timer value

Start & cl ear WDT

Application

Modify timer

value?

*WDT: Watch Dog Timer

YES

Output data to ports 4001h and 4004h to set the

...

output mode of event, external alarm.

Read port 4002h, stop the WDT, and turn off alarm output.

...

Output set d ata to port 4003h.

Output of A5h to port 4002h starts the WDT and output

...

of A5h to the same port clears the timer.

To modify the timer value during operation, the WDT

...

needs to be stopped temporarily.

Figure 5.4. How to Use the Watchdog Timer Example use

: To assign IRQ5 to the event whose time-up value is 15sec: Out 4004h 02h : Set the event at the time of WDT expiration to IRQ5. In 4002h : Stop the WDT timer and cancel the alarm. Out 4003h 0Fh : Set the WDT expiration time to 15sec. Out 4002h A5h : Start the WDT. In 4002h : Stop the WDT and cancel the alarm.

User’s Manual

5. Each Component Function

* 4001h (bit4-6): Alarm out output control (See P77 for bits 0 to 3.)

D5 D4 D3 D2 D1

--- WD_S0

WD_S1 PO2_M PIM2 PIM1 PIM0RESET

D0D7

R/W (default: XXXX0000b)

Figure 5.5. Alarm Out Output Control Port (4001h)

PO2_M : PO PO2/WDT pin output setting

0 : Set the RAS connector's PO2/WDT(12) signal to PO2 (general-purpose output). 1 : Set the RAS connector's PO2/WDT(12) signal to alarm out.

*1 When "WDT Output to PO2" in the "Advanced Chipset Features Setup" menu in BIOS Setup is set

to: "Disabled" (default): The PO2_M bit is set to 0. "Enabled": The PO2_M bit is set to 1.

Table 5.15. WD_S1, WD_S0: Alarm-out Output Status Settings

WD_S1*2WD_S0

0 0 OFF OFF OFF ON 1 0 OFF OFF ON OFF 11 OFF ON ON OFF 0 1 OFF ON OFF ON

*2 When "WDT Power-on State" in the "Advanced Chipset Features Setup" menu in BIOS Setup is set to:

"Off" (default): The WD_S0 bi t i s se t to 0. "On": The WD_S0 bit is set t o 1 .

*3 When "WDT Time-up State" in the "Advanced Chipset Features Setup" menu in BIOS Setup is set to:

"Off": The WD_S1 bit is set to 1. "On (default)": The WD_S2 bit is set to 0.

When power is

turned off

External alarm output status When BIOS

starts

When

WDT starts

When time

expires on WDT

* 4002h WDT control

D6 D5 D4 D3 D2 D1 D0

R/W

Figure 5.6. WDT Control Port (4002h)

R:Cancels WDT stop/alarm.

Read data is undefined.

W : Start and clear the WDT.

Write A5h to start and clear the WDT.

User’s Manual

* 4003h: WDT counter

D6 D5 D4 D3 D2 D1 D0D7

T6 T5 T4 T3 T2 T1 T0T7

Figure 5.7. WDT Counter Port (4003h)

W : Writes watchdog timer count data.

Write watchdog timer counter expiration time data. 1sec

8sec 15sec 30sec

01h

→

08h

→

0Fh

→

1Eh

→

* 4004h : Event output control

D5 D4 D3 D2 D1

--- ---

--- --- WM2 WM1 WM0RESET

D0D7

R/W (Default: XXXX0000b)

Figure 5.8. Event Output Control Port (4004h)

Table 5.16. WM2-WM0: Interrupt Output Modes

WM2 WM1 WM0 Interrupt output at occurrence of WDT errors

0 0 0 Disable an interrupt when the watchdog timer causes a time-out 0 0 1 Output to NMI when the watchdog timer causes a time-out. 0 1 0 Output to IRQ5 when ti me ex pir es on t he WDT. 0 1 1 Output to IRQ7 when ti me ex pir es on t he WDT. 1 0 0 Output to IRQ9 when ti me ex pir es on t he WDT. 1 0 1 Output to IRQ10 when time ex pir es o n the WDT. 1 1 0 Output to IRQ11 when time ex pir es o n the WDT.

5. Each Component Function

Table 5.17. RESET: Reset Output Modes

RESET RESET output at occurrence of WDT errors

Inhibits RESET output when time expires on the WDT.

Allows RESET output when time expires on the WDT.

Note! When time expires on WDT, the alarm-out is output irrelevant to the settings of the port for controlling event

output.

* 4005h : RAS status port

D6 D5 D4 D3 D2 D1 D0D7

WDT

R (Default: XXXXXXX0b)

Figure 5.9. RAS Status Port (4005h)

R:RAS status port

WDT : WDT status

This is the WDT status bit. This bit is cleared when the WD T s tops (r ead po rt 4002h ).

0 : The WDT is either stopped or counting. 1 : The time set on the WDT expired.

User’s Manual

5. Each Component Function

General-purpose I/O

The BOX-PC is equipped with three general-purpose isolated signals each for input and output in the RAS connector. The input signals can also be used for interrupt input or remote reset input.

Specifications [ Input ]

- Input specifications : Current-driven input by opto-coupler isolation.

- Input resistance : 4.7k

- Input signal count : 3 [One of them can be used for remote reset and interrupt input.

- Input protection circuit : Equipped with a reverse-connection protection diode

- Input response time : Less than 100µsec

- External circuit power supply: 12 to 24VDC (±10%) [ Output ]

- Output specifications : Open-collector output by opto-coupler isolation.

- Output rating : Max. 30VDC, 100mA

- Output signal count : 3 [One of th e m can b e u s ed fo r WDT alarm output.

- Output response time : Less than 300µsec [ Common ]

- I/O addresses 4000h and 4001h

Ω

(bit2<fixed>)]

How to Use General-purpose I/O and Remote Reset

Event output

control

I/O

...

Output data to port 4001h to set PI2 mode.

...

Implement input and output with port 4000h.

Figure 5.10. How to Use General-purpose I/O and Remote Reset

User’s Manual

5. Each Component Function

I/O Addresses and Instructions

* 4000h : General-purpose I/O

D6 D5 D4 D3 D2 D1 D0D7

PIO2 PIO1 PIO0

R/W

Figure 5.11. General-purpose I/O Port (4000h)

R : Read data from PI0, PI1 and PI2.

W : Set data to be output to PO0, PO1 and PO2.

* 4001h (bit0-3): PI2/IRQ(14) event input control (See P74 for bits 4 to 6.)

D6 D5 D4 D3 D2 D1 D0

WD_S0WD_S1 PO2_M PIM2 PIM1 PIM0RESET

Figure 5.12. Event Input Control Port (4001h)

Table 5.18. PIM2-PIM0

PIM2 PIM1 PIM0 PI2/IRQ (14) interrupt input

0 0 0 Inhibit the RAS connector's PI2/IRQ (14) signal interrupt to be set. 0 0 1 Input the RAS connector's PI2/IRQ (14) signal to NMI. 010 011 100 101 110

Input the RAS connector's PI2/IRQ (14) signal to IRQ5. Input the RAS connector's PI2/IRQ (14) signal to IRQ7. Input the RAS connector's PI2/IRQ (14) signal to IRQ9. Input the RAS connector's PI2/IRQ (14) signal to IRQ10. Input the RAS connector's PI2/IRQ (14) signal to IRQ11.

Table 5.19. RESET: Re set I npu t Mo d es

RESET PI2/IRQ (14)'s RESET input

Inhibit the remote reset input functi on of th e RAS co nnecto r's PI2/IRQ (14 ) sig nal.

Use as the remote reset input function of the RAS connector's PI2/IRQ (14) signal.

User’s Manual

5. Each Component Function

RS-422/485

RS-422/485 signal is provided in the RAS connector *1. *1 The SERIAL1 connector (RS-232C) and RS-422/485 are mutually exclusive.

(The default is the use for RS232C. To use the RS-422/485, use BIOS Setup to set "Serial1 Select" in the "Advanced Chipset Features" menu to " RS485." (See P33)

For use in half-duplex mode, the transmission buffer must be controlled to prevent transmit data from causing collisions.

To control the transmission buffer, set RTS or port address 4006h register. * 4006h : Control of RS-485 transmission and reception

D4 D3 D2 D1 D0

RE_GATE TE_GATE TE_SEL rsv*

rsv*

(Default: xxx00000b)

R/W

Figure 5.13. RS-485 Transmission and Reception Control Port (4006h)

TE_SEL : Select the RS-485 transmission enable signal.

0 : Sets the RTS signal to the RS-485 transmission enable signal. (factory setting) 1 : Sets the TE_GATE value to the RS-485 t ran s missi on en abl e sig na l.

TE_GATE : RS-485 transmission enable signal. Valid only when the TE_SEL value is "1."

0 : RS-485 transmission Enable (factory setting) 1 : RS-485 transmission Disable

RE_GATE : RS-485 reception enable signal.

0 : RS-485 reception Enable (factory s etting) 1 : RS-485 reception Disable

CAUTION

A bit indicated with "rsv" is used by the system. Do not modify the bit.

TXD

0 : Transmission prohibited

RTS

1 : Transmission permitted

TE_GATE

0 : Transmission permitted 1 : Transmission prohibited

RE_GATE

RXD

TE_SEL

0 : Receiving permitted 1 : Receiving prohibited

0 : Controlled by RTS 1 : Controlled by TE_GATE

0 1

47k

6.2k

6.2k 47k

VCC

RX-(11)

JP1

Ω

120

RX+ (3) TX

(10)

TX+ (2)

Figure 5.14. Half-Duplex Connection Method

User’s Manual

5. Each Component Function

TXD

0 : Controlled by RTS

TE_SEL

0 : Transmission prohibited

RTS

1 : Transmission permitted

TE_GATE

0 : Transmission permitted 1 : Transmission prohibited

RE_GATE

RXD

0 : Receiving permitted 1 : Receiving prohibited

1 : Controlled by TE_GATE

0 1

Figure 5.15. Full-Duplex Connection Method

External I/O Circuit

(IN)

Internal

reset

4.7kΩ PC817

4.7kΩ 1/4W

(PI 0 to 2)

RAS connector

47k

6.2k

6.2k 47k

(PCOM)

VCC

(External circuit)

Input

contact

JP1

120Ω

RX RX+ (3) TX TX+ (2)

External po w er (12V to 24VDC)

(11)

(10)

Figure 5.16. Input Circuit

510Ω

PC817

Figure 5.17. Output Circuit

User’s Manual

2N3904

4.7kΩ

RAS connector

(PO 0 to 2)

(NCOM)

(External circuit)

Lord

Extern al power (Max. 30VDC)

5. Each Component Function

Reset Switch The BOX-PC is equipped with a hardware reset swi tch. To prevent i t from being pre ssed by mistake, the

switch is designed to be difficult to press. Use a pointed object to push the switch with.

IDE Interface

Connector for the Internal Drive (Primary IDE Connector) The module is equipped with an E-IDE controller, allowing a 2.5-inch IDE hard disk drive to the on-

board connector using the bundled hard disk bracket.

Table 5.20. Primary IDE Connector

Connector in use

44-socket header type (2mm pitch)

Pin No.

1 3 5 7 9

11 13 15 17 19 21 23 25 27 29 31 33 35 37 39 41 43

Signal

RESET-

DD7 DD6 DD5 DD4 DD3 DD2 DD1 DD0

GND

DDRQ

DIOW-

DIOR-

IOCHRDY

DDACK-

INTRQ

DA1 DA0 CSI-

DACT-

+5V

GND

Direction

Output

I/O

I/ I/O

I/O I/O I/O I/O I/O

-------

Input Output Output

Input Output

Input Output Output Output Output

-------

Pin No.

2 4 6

8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38

40 42 44

Signal

GND

DD8

DD9 DD10 DD11 DD12 DD13 DD14 DD15

N.C.

GND GND GND

DALE

GND

N.C.

DA2

CS3GND

+5V

N.C.

Direction

------I/O I/O I/O I/O I/O I/O I/O I/O

-------

Output

-------

Output Output

-------

User’s Manual

5. Each Component Function

Secondary IDE Connector-CN1 Use the dedicated option cable (IPC-CDC-03) to connect the option CD-ROM/DVD-ROM drive

(IPC-CDD-02).

Table 5.21. Secondary IDE Connector (CN1)

Connector in use 36pin, half-pitch type (0.8mm pitch)

18 1

36 19

Pin No. Signal name Direction Pin No. Signal name Direction

1 RESET - Output 1 9 DDRQ Input 2GND 20GND

3 DD7 I/O 21 DIOW- Output 4 DD8 I/O 22 GND

5 DD6 I/O 23 DIOR- Output

6 DD9 I/O 24 GND 7 DD5 I/O 25 IOCHRDY Input 8 DD10 I/O 26 DDACK- Output

9 DD4 I/O 27 GND 10 DD11 I/O 28 INTRQ Input 11 DD3 I/O 29 +5V

12 DD12 I/O 30 DA1 Output 13 DD2 I/O 31 DALE Output

14 DD13 I/O 32 DA0 Output

15 DD1 I/O 33 DA2 Ou tput

16 DD14 I/O 34 CS1- Output 17 DD0 I/O 35 CS3 - Ou tput 18 DD15 I/O 36 DACT- Output

User’s Manual

5. Each Component Function

CF Card Connector(CN5) A CF card (Type I/II x 1 dedicated to use as a memory card) can be connected.

Table 5.22. CF Card Connector (CN5)

Connector in use 50 socket header-type (1.27mm pitch)

50 26

25 1

Pin No. Signal name Direction Pin No. Signal name Direction

1 GND 26 N.C 2 DD3 I/O 27 DD11 I/O 3 DD4 I/O 28 DD12 I/O 4 DD5 I/O 29 DD13 I/O 5 DD6 I/O 30 DD14 I/O 6 DD7 I/O 31 DD15 I/O 7 CS0- Output 32 CD3- Output 8 GND 33 N.C

9GND 34DIOR-Output 10 GND 35 DIO W- Output 11 GND 36 +5V 12 GND 37 INTRQ Input 13 +5V 38 +5V 14 GND 39 CSEL- Output 15 GND 40 N.C 16 GND 41 RESET- Output 17 GND 42 IOCHRDY Input 18 DA2 Output 43 DDRQ Input 19 DA1 Output 44 DDACK- Output 20 DA0 Output 45 DACT- Output 21 DD0 I/O 46 DALE Output 22 DD1 I/O 47 DD8 I/O 23 DD2 I/O 48 DD9 I/O 24 N.C 49 DD10 I/O 25 N.C 50 GND

CAUTION

- Insert the CF card with facing up the bottom side.

- When starting Windows from CF card, CF card di fferent from a gener al marketing artic le is require d. Our company option CF card can start Windows.( However, the capacity of CF card should choose the thing in which Window s ins tal la tion is poss ible .)

- Operation of all the cards of general marketing is not secured.

User’s Manual

6. Appendix Memory Map

FFFFFFF

Expansion memory area

0100000 00FFFFF

00E0000 00DFFFF

00D8000 00D7FFF

00D0000 00CFFFF

00C0000 00BFFFF

00A0000 009FFFF

0000000

Main BIOS

(128KB)

Expansion ROM area

(Free to the user)

Reserved for BIOS

VGA BIOS

(64KB)

Video RAM area

(128KB)

RAM

(640KB)

6. Appendix

*1 When "First/Second/Third/Boot Device" in the "Advanced BIOS Features Setup" menu in BIOS Setup is set to

"LAN," 00D8000 - 00DFFFF are used a s a BI OS reserve d a rea.

Figure 6.1. Memory Map

User’s Manual

6. Appendix

I/O Port Addresses

Table 6.1. I/O Port Addresses < 1 / 2 >

ADDRESS(HEX) Description Remark

000 to 01F DMA controller 1 (slave) 020 to 03F Interrupt controlle r 1 (master) 040 to 05F Timer / counter 060 to 06F Keyboard controll er 070 to 077 RTC / CMOS / NMI mask 078 to 07F Available to user

080 Reserved for syst e m 081 to 08F DMA page register 090 to 091 Available to user

092 System control 093 to 09F Available to user

0A0 to 0BF Interrupt controller 2 (slave) 0C0 to 0DF DMA controller 2 (master) 0E0 to 0FF Reserved for system

100 to 16F Available to user 170 to 17F IDE hard disk controlle r Secondary 180 to 18F Reserved for system

190 to 1DF Available to u ser 1E8 to 1EF Reserved for system 1F0 to 1FF IDE hard disk controll er Primary

200 to 277 Available to user 278 to 27F Reserved for system 280 to 2E7 Available to user

2E8 to 2EF Reserved for system 2F0 to 2F7 Available to user 2F8 to 2EF Serial port COM2

300 to 35F Available to user 370 to 375 Reserved for system 376 to 377 IDE hard disk controller Secondary

378 to 3DF Reserved for system 3E0 to 3E7 PCMCIA 3E8 to 3F7 Reserved for system 3F8 to 3FF Serial port COM1 4D0 to 4DF Reserved for system

User’s Manual

Table 6.1. I/O Port Addresses < 2 / 2 >

ADDRESS(HEX) Description Remark

CF0 to CFF Reserved for system 4000 to 4007 RAS functions 4008 to 400F Reserved for system

46E8 Reserved for system

83D0 to B3D3 Reserved for system

Interrupt Level List

Table 6.2. Hardware Interrupt Levels (Factory Settings)

Type 8259

NMI

IRQ0 MASTER

IRQ1 " ⎪ IRQ2 " ⎪

IRQ8 SLAVE ⎪

IRQ9 " ⎪ ACPI 71H IRQ10 " ⎪ IRQ11 " ⎪ IRQ12 " ⎪ IRQ13 " ⎪

IRQ14 " ⎪ IRQ15 " ⎪

IRQ3 MASTER ⎪

IRQ4 " ⎪

IRQ5 " ⎪ Reserved for PCI device 0DH USB, V ID EO , PC MCI A

IRQ6 " ↓ Not in use 0EH

IRQ7 " Low Reserved for PCI device 0FH USB

Priority Des cription Vecto r Remarks

High

-I/O CHECK 02H Timer 0

↑

Keyboard Interrupt controller 2

(slave) Real-time clock

Reserved for PCI device Reserved for PCI device Not in use Reserved for

coprocessor Reserved for hard disk

Reserved for optional CD-ROM

Serial port B (COM2) Serial port A (COM1)

08H

09H

0AH

70H

72H LAN2, USB 73H LAN1, USB 74H 75H

76H Primary 77H Secondary

0BH 0CH

6. Appendix

User’s Manual

6. Appendix

List of Options

Silicon disk drive for extension (IDE 2.5inch) [PC-ESD Series]

- PC-ESD500 512MB silicon disk drive

- PC-ESD1000 1GB silicon disk drive

- PC-ESD2000 2GB silicon disk drive

- PC-ESD4000 4GB silicon disk drive

- PC-ESD8000 8GB silicon disk drive [PC-SDD V Series]

- PC-SDD64V 64MB silicon disk drive

- PC-SDD128V 128MB silicon disk drive

- PC-SDD192V 192MB silicon disk drive

- PC-SDD320V 320MB silicon disk drive

- PC-SDD500V 512MB silicon disk drive

- PC-SDD1000V 1GB silicon disk drive

- PC-SDD2000V 2GB silicon disk drive

CAUTION

Only one HDD (SDD) can be installed on this model. HDD (SDD) installed models can accept an additional HDD (SDD).

CF Card

- CF-512MB 512MB CompactFlash for Fix Dis k

- CF-1GB-R 1GB CompactFlash for Fix Disk

- CF-2GB-R 2GB CompactFlash for Fix Disk

- CF-4GB-R 4GB CompactFlash for Fix Disk

- CF-8GB-R 8GB CompactFlash for Fix Disk

Terminal block for connecting the RAS connector

- IPC-PSD-20 Terminal block for general-purpose I/O (with cable)

TFT color liquid-crystal display < Analog RGB/DVI-D types>

- IPC-DT/S61VT-DC1 (6.5inch 640 x 480 dots, 12VDC, Panel mounted type)

- IPC-DT/S65VT-DC1 (6.5inch 640 x 480 dots, 12VDC, Embedded type)

- IPC-DT/M61VT-DC1 (10.4inch 640 x 480 dots, 12VDC, Panel mounted type)

- IPC-DT/M61VT-AC0 (10.4inch 640 x 480 dots, Panel mounted type)

- IPC-DT/M65VT-DC1 (10.4inch 640 x 480 dots, 12VDC, Embedded type)

User’s Manual

6. Appendix

- IPC-DT/L61SVT-DC1 (12.1inch 800 x 600 dots, 12VDC, Panel mounted type)

- IPC-DT/L61SVT-AC0 (12.1inch 800 x 600 dots, Panel mounted type)

- IPC-DT/L65SVT-DC1 (12.1inch 800 x 600 dots, 12VDC, Embedded type)

- IPC-DT/H61XT-DC1 (15inch 1024 x 768 dots, 12VDC, Panel mounted type)

- IPC-DT/H61XT-AC0 (15inch 1024 x 768 dots, Panel mounted type)

- IPC-DT/H65XT-DC1 (15inch 1024 x 768 dots, 12VDC, Embedded type)

TFT color liquid-crystal display < Panel Link types >

- IPC-DT/H40X(PC)T (15inch 1024 x 768 dots, Panel mounted type)

- IPC-DT/L40S(PC)T (12.1inch 800 x 600 dots, Panel mounted type)

- IPC-DT/L440(PC)TA (12.1inch 800 x 600 dots, Desktop/wall-mounted)

- IPC-DT/L440(PC)TB (12.1inch 800 x 600 dots, Desktop/wall-mounted, anti-glare type)

- IPC-DT/M20V(PC)T (10.4inch 640 x 480 dots) *1

- IPC-DT/L20S(PC)T (12.1inch 800 x 600 dots) *1

- IPC-DT/H20X(PC)T (15inch 1024 x 768 dots) *1

DVI-D cable

- IPC-DVI/D-020 DVI-D cable (2m)

- IPC-DVI/D -050 DVI-D cable (5m)

Panel link DVI-D conversion cable

- IPC-DVIPL-020 DVI-Panel Link conversion display cable (2m)

- IPC-DVIPL-050 DVI-Panel Link conversion display cable (5m)

Touch-panel cable for an analog RGB display

- IPC-CBL3-2 Touch panel, COM cable (2m)

- IPC-CBL3-5 Touch panel, COM cable (5m)

Power unit

- IPC-POAW/10-01 10VDC Power Unit for IPC Series(100 to 240VAC Input)

CD-ROM drive or connection cable

- IPC-CDD-02 CD-ROM/DVD-ROM Drive Unit (with cable) *2

- IPC-CDC-03 Drive connection cable for the IPC-BX/M360(PCI)C CD-ROM

drive (400mm)

User’s Manual

6. Appendix

Driver

- IPC-SLIB-01 *1*2 Driv er & Ut il it y S of t Se t (CD-ROM version) *3 *4

*1 To connect a touch panel to a USB port, set "OnChip 2.0 controller" to "Disable" to use it as a USB1.1

device.

*2 The bund led cable canno t be us ed. Pu rcha se a dedicated cabl e (IPC-CDC-03) s epa rately.

(Supported OS: Windows XP/2000)

*3 If your BOX-PC is an OS preinstalled model, the driver is supplied with the OS or already installed

on the PC.

*4 You can download the driver from the Download Library

(http://www.contec.com/download) on the CONTEC web site. If you need IPC-SLIB-01 (CD-ROM version), it is available as a separately priced option.

User’s Manual

IPC-BX/M360(PCI)C

User’s Manual

IPC-BX/M360(PCI)-HMU

CONTEC CO.,LTD. April 2006 Edition

3-9-31, Himesato, Nishiyodogawa-ku, Osaka 555-0025, Japan Japanese http://www.contec.co.jp/ English http://www.contec.com/ Chinese http://www.contec.com.cn/

No part of this document may be copied or reproduced in any form by any means without prior written consent of CONTEC CO., LTD. [04052006]

[01252005] Management No. A-46-954 [04052006_rev4] Parts No. LYEK291

Contec IPC-BX/M360C, IPC-BX/M360PCI User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Copyright

Trademarks

Table of Contents

1. Introduction

Features

Supported OS

Customer Support

Web Site

Limited One-Year Warranty

How to Obtain Service

Liability

Safety Precautions

Safety Information

Handling Precautions

FCC PART 15 Class A Notice

2. Overview

System Configuration

External Dimensions

3. Hardware Setup

Hardware Setup

Removing the Left-side Cover and HDD Bracket

Locations and Settings of Internal Connectors and Jumpers

Power connection

Installation method

Installation Requirements

4. BIOS Setup

Starting the Setup Screen

Main Menu

Standard CMOS Setup

Advanced BIOS Features Setup

Advanced Chipset Features Setup

Integrated Peripherals

Power Management Set u p

PnP/PCI Configuration Setup

PC Health Status

Frequency/Voltage Control

Load Fail-Safe Defaults

Load Optimized Defaults

Supervisor/User Password Setting

Save & Exit Setup

Exit Without Saving

POST Messages

POST Beep

Error Messages

5. Each Component Function

Component Identification

Line out Interface

Keyboard / Mouse Interface

Serial Port Interface

USB Ports

Ethernet

PC Card Slots

DVI Connector

RAS Functions

Watchdog Timer

General-purpose I/O

RS-422/485

IDE Interface

6. Appendix

I/O Port Addresses

Interrupt Level List

List of Options
