System Overview
1. System Overview
1.1. Introduction
Powell Inc., a world-leading innovator in the Industrial PC (IPC) market and a
member of the Intel® Communications Alliance, has launched its new GMB-C2165LLVA in response to market demand for a simplified embedded system board (ESB)
that combines a smaller footprint, lower power consumption, robust computing
power and with longevity support.
Against the pre-generation chipset GMB-C2165-LLVA based on C216 chipset, C216
offers Core i3/Xeon processors, VGA, DVI-D, Display port, USB 3.0 and SATA III
support which USB 3.0 is first integrated.
GMB-C2165-LLVA based on the latest 3nd Gen Intel® Xeon Processor which offers
22nm Hi-K process technology with energy efficient architecture. GMB-C2165-LLVA
adopts four channels DDR3 long DIMMs up to 32GB.
Desktop solution is still popular in the market of DVR and Factory Automation
which can fulfill most of these applications; therefore, with high performance and
high-end specifications, Q77 is our first generation Ivy bridge chip architecture on
1.2. Check List
The GMB-C2165-LLVA package should cover the following basic items
✓ One GMB-C2165-LLVA Industrial Mother board
✓ One SATA III Cable
✓ One I/O Shield bracket
✓ One Installation Resources CD-Title
If any of these items is damaged or missing, please contact your vendor and keep all
packing materials for future replacement and maintenance.
1.3. Product Specification
● Main Processor
-Intel® Dual Core/Quad Core i3/Xeon LGA1155 processor
● Chipset
- Intel® C216 Express chipset
● System BIOS
- Phoenix UEFI BIOS
GMB-C2165-LLVA User‟s Manual
3
Page 5
System Overview
● Main Memory
-Four 240-pin DDR3 DIMM (ECC/non-ECC) socket support up to 32GB dual
channel 1600/1333MHz memory
-GMB-C2165-LLVA supports Non-ECC memory
● Expansion Interface
One PCIe x16 slot
One PCIe x16 slot (setting jump to support two PCIe x8 from CPU)
One PCIe x4 slot
Four PCI slots
● SATA Interface
Five SATA ports(Two SATA 6Gb/s, Three SATA 3Gb/s)
One CFEX (SATA 3Gb/s interface)
● Serial Port
Support four RS232 and two RS232/422/485
● USB Interface
Support Ten USB ports, four on rear I/O and six on board header for internal
devices
● Audio Interface
Connector for Mic-In, Line-In and Line-Out
● Real Time Clock/Calendar (RTC)
Support Y2K Real Time Clock/Calendar
● Watch Dog Timer
Support WDT function through software programming for enable/disable and
interval setting
General system reset
● On-board Ethernet LAN
Two Gigabit Ethernet (10/100/1000 Mbits/sec) LAN ports using Intel
82579LM & 82583V GbE Ethernet Controller
● High Drive GPIO
One pin-header for 8 bit GPIO(4bit in & 4bit out)
● System Monitoring Feature
Monitor system temperature and major power sources.
● Outline Dimension (L x W)
304.8mm (12”) X 243.8mm (9.6”)
GMB-C2165-LLVA User‟s Manual
4
Page 6
System Overview
Item
Power ON
Full Loading
10Min
Full Loading
30Min
CPU +12V
1.90A
3.15A
3.32A
System +12V
0.93A
1.01A
0.96A
System +3.3V
0.63A
0.97A
0.90A
System +5V
2.12A
3.88A
3.85A
System+Device +12V
3.75A
4.77A
4.47A
System+ Device +5V
2.58A
4.65A
4.33A
USB Loading Test
4.76~5.02V / 530mA
CPU Type
Intel(R) Xeon(R) CPU E3-1275 V2 @ 3.50GHz L3 8MBytes
SBC BIOS
CONTEC, Inc. GMB-C2165-LLVA Rev.:R1.00.W1 (06102013)
Memory
WARIS DDR3 ECC-DIMM 1600/8GB (hynix H5TQ4G83MFR) x 4
VGA Card
ONBOARD Intel(R) HD Graphics P4000
VGA Driver
Intel(R) HD Graphics P4000 Version:9.17.10.2753
LAN Card
ONBOARD Intel(R)82579LM Gigabit Network Connection
LAN Driver
Intel(R)82579LM Gigabit Network Connection Version:11.14.32.0
LAN Card
ONBOARD Intel(R)82583V Gigabit Network Connection
LAN Driver
Intel(R)82583V Gigabit Network Connection Version:11.11.43.0
Audio Card
ONBOARD Intel(R) Display Audio
Audio Driver
Intel(R) Display Audio Version:6.14.0.3090
Audio Card
ONBOARD Realtek High Definition Audio
Audio Driver
Realtek High Definition Audio Version:6.0.1.6649
Chip Driver
Intel(R) Chipset Device Software Version:9.3.0.1019
USB3.0Driver
Intel(R) USB 3.0 eXtensible Host Controller Version:1.0.4.225
SCSI Card
Adaptec SCSI Card 29160LP
● Power Requirements
● Configuration:
GMB-C2165-LLVA User‟s Manual
5
Page 7
System Overview
SCSI HDD
SEAGATE ST39173W
SATA HDD
Seagate ST250DM000 250GB
CDROM
ASUS DRW-24D3ST DVD-ROM
Power Supply
CONTEC ORION-D4601
●
● Operating Temperature
0 °C ~ 60 °C
● Storage temperature
-20 ~ 80 °C
● Relative Humidity
0% ~ 90%, non-condensing
GMB-C2165-LLVA User‟s Manual
6
Page 8
System Overview

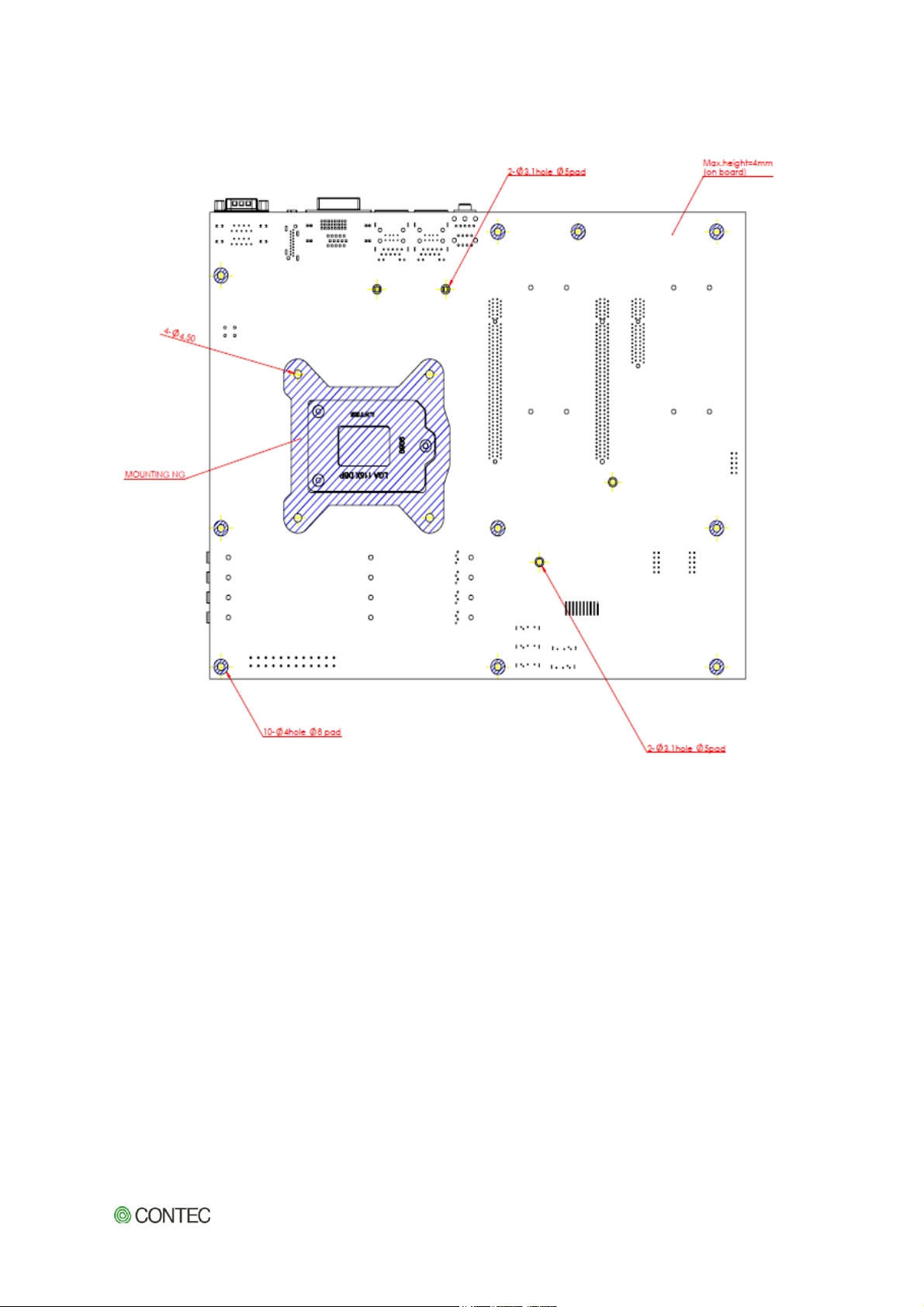

1.3.1 MechanicalDrawing
GMB-C2165-LLVA User‟s Manual
7
Page 9
System Overview
GMB-C2165-LLVA User‟s Manual
8
Page 10
System Overview
1.4. System Architecture
All of details operating relations are shown in GMB-C2165-LLVA System Block
Diagram.
GMB-C2165-LLVA System Block Diagram
GMB-C2165-LLVA User‟s Manual
9
Page 11
Hardware Configuration
2. Hardware Configuration
This chapter gives the definitions and shows the positions of jumpers, headers and
connectors. All of the configuration jumpers on GMB-C2165-LLVA are in the proper
position. The default settings shipped from factory are marked with an asterisk (★).
2.1 Jumper Setting
In general, jumpers on the single board computer are used to select options for certain
features. Some of the jumpers are designed to be user-configurable, allowing for system
enhancement. The others are for testing purpose only and should not be altered. To select
any option, cover the jumper cap over (SHORT) or remove (NC) it from the jumper pins
according to the following instructions. Here NC stands for “Not Connect”.

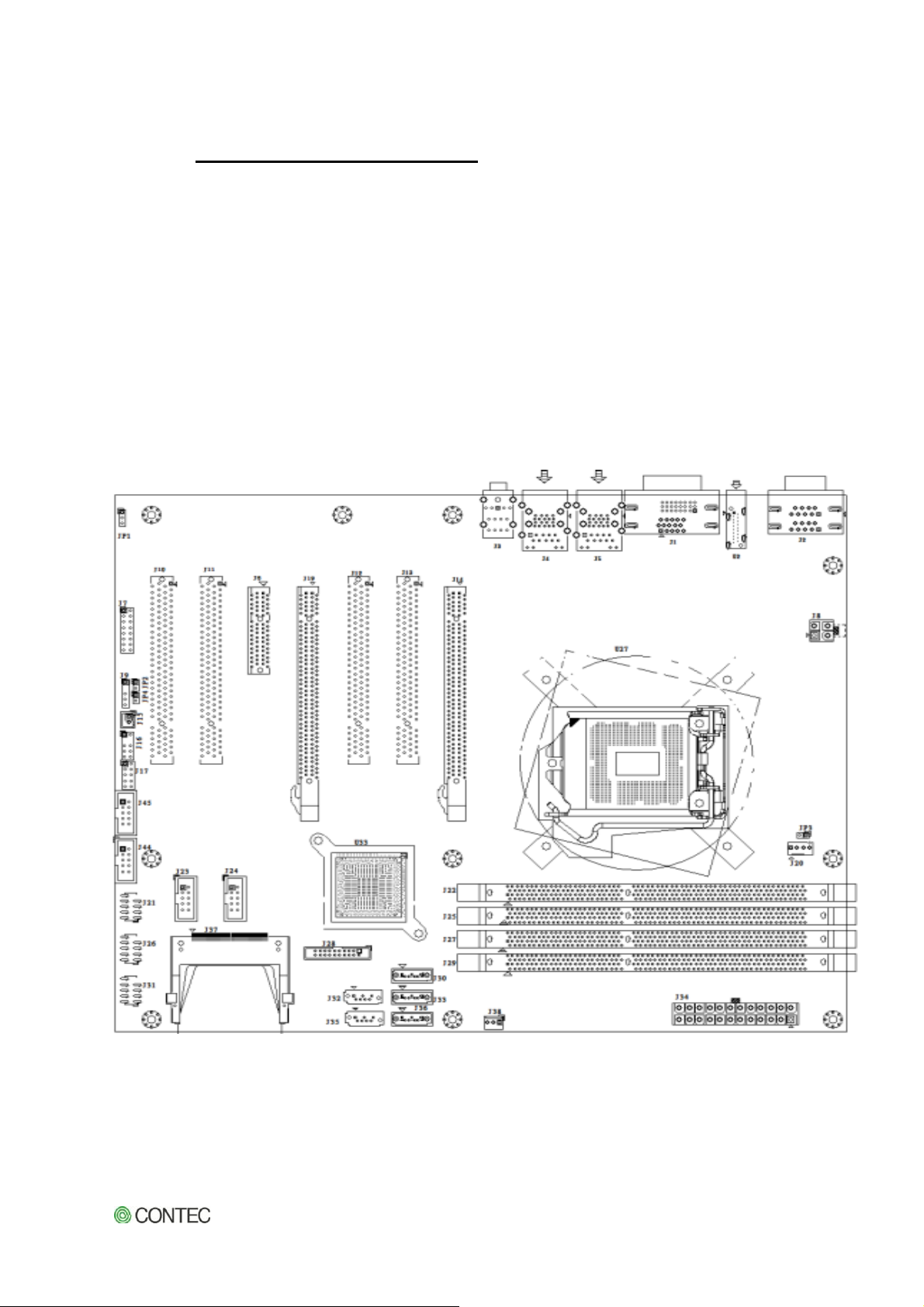

Figure 1-1 GMB-C2165-LLVA Top-side Jumper and Connector Locations
GMB-C2165-LLVA User‟s Manual
10
Page 12
Hardware Configuration
PIN No.
Signal Description
1-2
Normal
2-3
Clear CMOS
PIN No.
Signal Description
1-2 short
ATX emulation AT mode
1-2 open
ATX mode ê★
PIN No.
Signal Description
1-2 short
select x8
1-2 open
select x16
PIN No.
Signal Description
1-2 short
select x8
1-2 open
select x16
Pin Assignments of Connectors
JP1: Clear CMOS
JP2: ATX / AT Mode Select
JP3: Control CFG to Select PCIE x16 or x8
JP4: Control Switch to Select PCIE x16 or x8
GMB-C2165-LLVA User‟s Manual
11
Page 13
Hardware Configuration
PIN
No.
Signal Description
PIN No.
Signal Description
1
PWR_LED(+)
2
Speaker(+)
3
PWR_LED(-)
4
N/C
5
J4 LAN1_ACT(+)
6
N/C
7
J4 LAN1_LINK(-)
8
Speaker(-)
9
J5 LAN2_LINK(-)
10
Power Button
11
J5 LAN2_ACT(+)
12
GND
13
HDD_LED(+)
14
GND
15
HDD_LED(-)
16
Rest
PIN No.
Signal Description
1
Ground
2
Ground
3
+12V
4
+12V
J7: Front Panel System Connector
J8: ATX 4Pin 12V Power Connector
GMB-C2165-LLVA User‟s Manual
12
Page 14
Hardware Configuration
PIN No.
Signal Description
1
SMBus_CLK
2
N/C
3
Ground
4
SMBus_DAT
5
+5V
PIN No.
Signal Description
1
GND
2
Case open
PIN
No.
Signal Description
PIN No.
Signal Description
1
Mouse Data
2
Keyboard Data
3
N/C
4
N/C
5
Ground
6
Ground
7
PS2 Power
8
PS2 Power
9
Mouse Clock
10
Keyboard Clock
J9: SMBus Connector
J15: Case Open Connector
J16: External Keyboard/Mouse Connector
GMB-C2165-LLVA User‟s Manual
13
Page 15
Hardware Configuration
PIN
No.
Signal Description
PIN No.
Signal Description
1
LPC_GP60
2
LPC_GP64
3
LPC_GP61
4
LPC_GP65
5
LPC_GP62
6
LPC_GP66
7
LPC_GP63
8
LPC_GP67
9
GND
10
Vcc
PIN No.
Signal Description
1
Ground
2
+12V
3
Fan on/off output
4
Fan Speed control
PIN
No.
Signal Description
PIN
No.
Signal Description
1
DCD (Data Carrier Detect)
2
DSR (Data Set Ready)
3
RXD (Receive Data)
4
RTS (Request to Send)

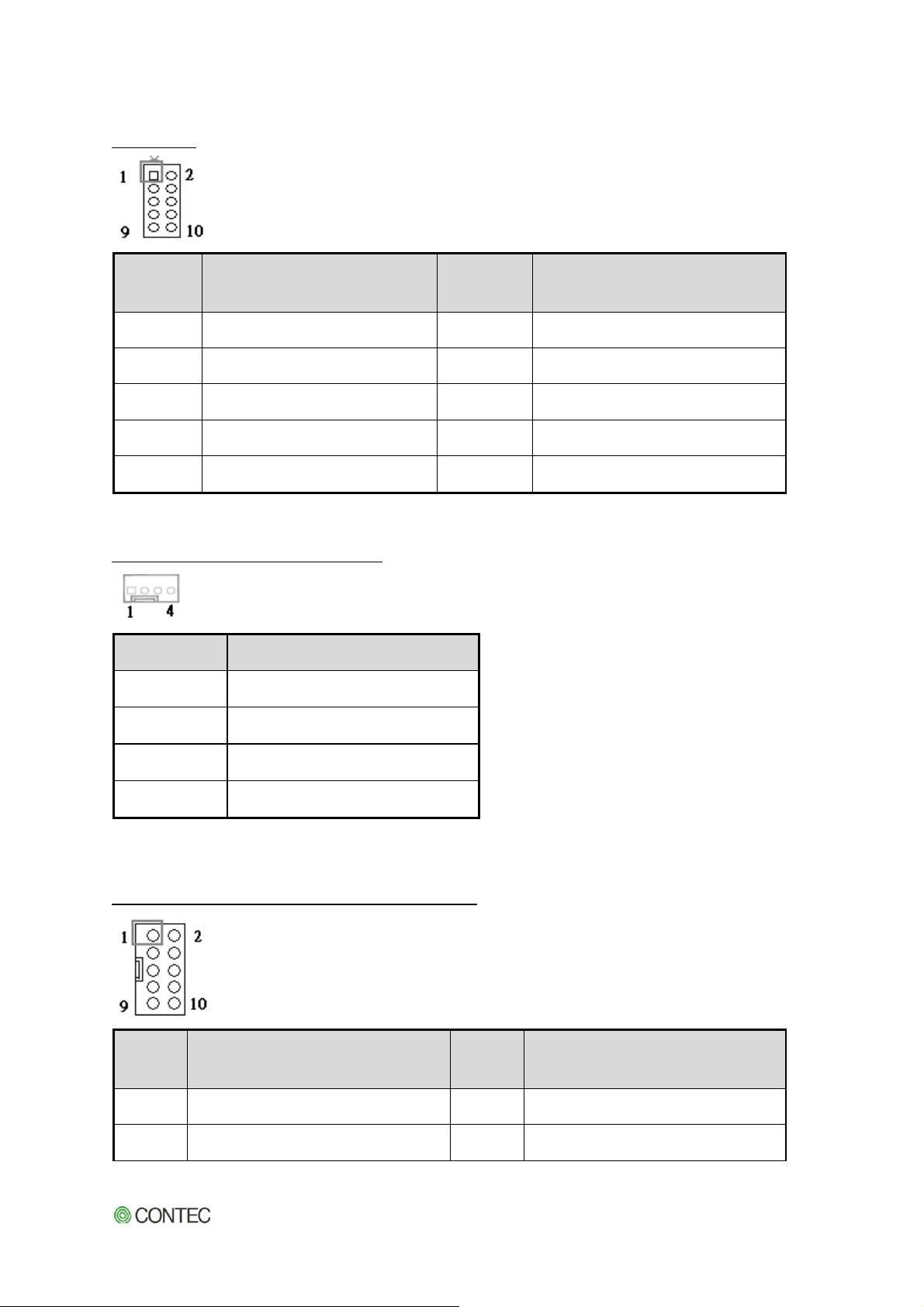

J17: GPIO
J20: CPU FAN Power Connector
J23/24: COM3/COM4 Serial Port Connector
GMB-C2165-LLVA User‟s Manual
14
Page 16
Hardware Configuration
5
TXD (Transmit Data)
6
CTS (Clear to Send)
7
DTR (Data Terminal Ready)
8
RI (Ring Indicator)
9
GND (Ground)
10
N/C
PIN
No.
Signal Description
PIN
No.
Signal Description
1
DCD (Data Carrier Detect)
2
DSR (Data Set Ready)
3
RXD (Receive Data)
4
RTS (Request to Send)
5
TXD (Transmit Data)
6
CTS (Clear to Send)
7
DTR (Data Terminal Ready)
8
RI (Ring Indicator)
9
GND (Ground)
10
N/C
PIN
No.
Signal Description
PIN No.
Signal Description
1
5V Dual
2
5V Dual
3
USB-
4
USB-
5
USB+
6
USB+
7
Ground
8
Ground
9
5V Dual
10
N/C
J44/45: COM5/COM6 Serial Port Connector
J21/J26/J31: External USB Connector
GMB-C2165-LLVA User‟s Manual
15
Page 17
Hardware Configuration
PIN No.
Signal Description
1
Ground
2
Fan speed control
3
Fan on/off output
Connector
Function
Remark
J1
DVI & VGA Port
J2
COM PORT
COM2
Support 232/422/485
J3
Audio connector
J4
USB 0&1/100+Giga
Lan Connector (LAN1) 82579LM
J5
USB 2&3/100+Giga
Lan Connector (LAN2) 82583V
J6
PCI-E x4 Slot
Support x4 signal
J7
Front Panel System Connector
J8
ATX 4Pin 12V Power Connector
J9
SMBUS HEADER
J10、J11、J12、J13
PCI Slot
J14
PCI-E x16 Slot
Support PCI-E Gen3
J15
Case Open Connector
J16
External Keyboard/
Mouse Connector
J38: SYSTEM FAN Power Connector
2.2 Connector Allocation
I/O peripheral devices are connected to the interface connectors.
Connector Function List
GMB-C2165-LLVA User‟s Manual
16
Page 18
Hardware Configuration
J17
8Bit GPIO Connector
J19
PCI-E x16 Slot
Support SLI Function
J20
CPU FAN Power Connector
J21、J26、J31
External USB Connector
J22、J25、J27、J29
DIMM
J23、J24、J44、J45
COM3/COM4/COM5/COM6
Serial Port Connector
J28
TPM(Trusted Platform
Module) Connector
J30、J33、J36
SATA Connector(3Gb/s)
J32、J35
SATA Connector(6Gb/s)
J34
ATX Power
J37
CFEX Slot
J38
System FAN Power Connector
U2
HDMI Port
JP1
Clear CMOS
JP2
ATX / AT Mode Select
JP3
Control CFG to Select PCIE x16
or x8
JP4
Control Switch to Select PCIE x16
or x8
GMB-C2165-LLVA User‟s Manual
17
Page 19
BIOS Setup Information
Alignment key
Notch
3. System Installation
This chapter provides the instructions to set up the system. The additional
information is enclosed to help you set up onboard devices
3.1 Intel® Dual Core/Quad Core processor
LGA-1155 CPU Socket
In the top, right corner of the CPU Socket is Pin1, and the red two circles are
alignment key under the picture
LGA-1155 CPU
In the top, the Yellow Triangle of the CPU is Pin1.
Please remember to locate the alignment keys on the CPU socket of the
motherboard and the notches on the CPU.
GMB-C2165-LLVA User‟s Manual
18
Page 20
BIOS Setup Information

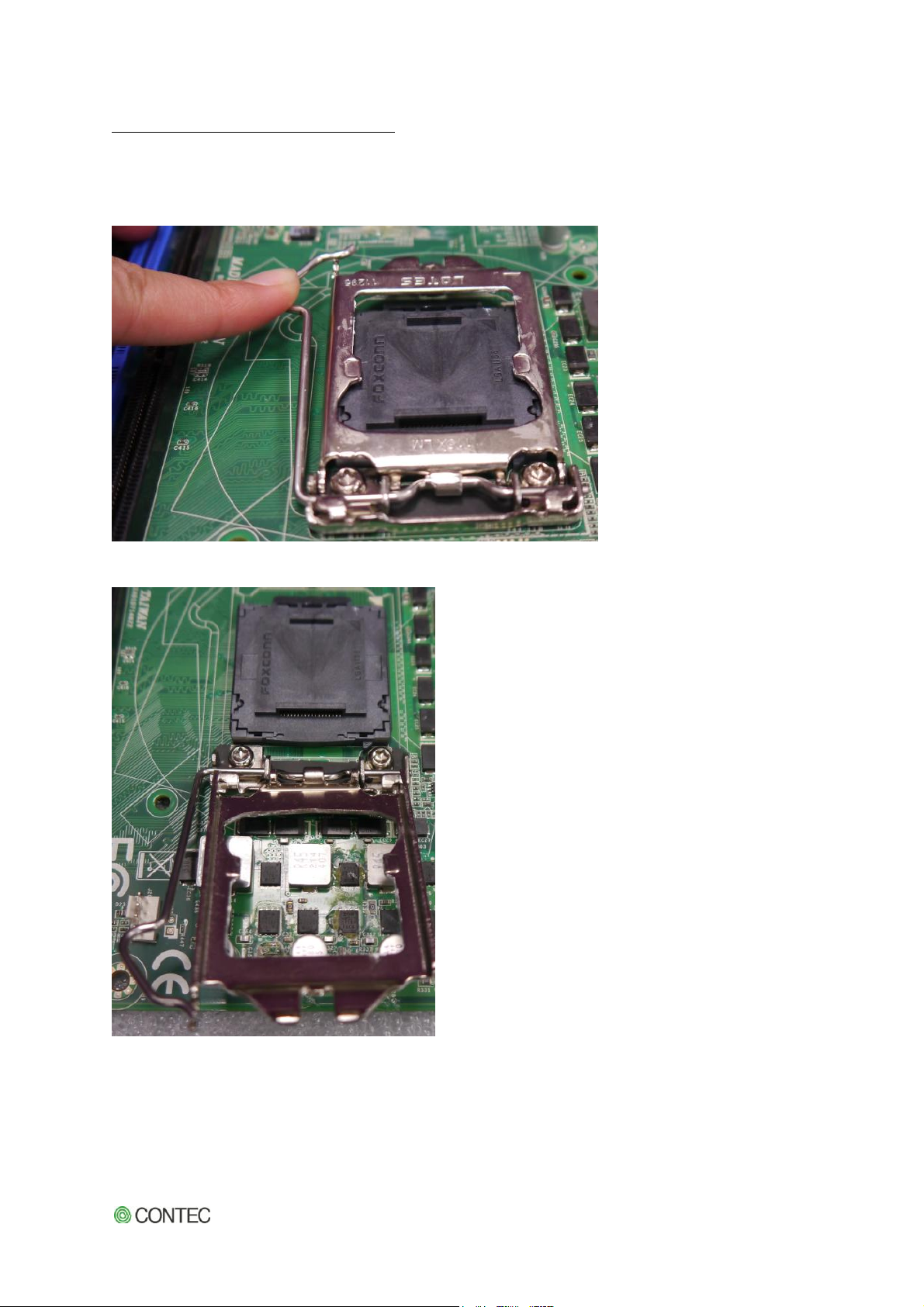

LGA-1155 CPU Installation Steps
Before install the CPU, please make sure to turn off the power first!!
1. Open the load lever.
2. Lift the load lever up to fully open
GMB-C2165-LLVA User‟s Manual
19
Page 21
BIOS Setup Information
3. Remove the plastic cap on the CPU socket. Before you install the CPU, always
cover it to protect the socket pin.
4. After confirming the CPU direction for correct mating, put down the CPU in the
socket housing frame. Note that alignment keys are matched.
GMB-C2165-LLVA User‟s Manual
20
Page 22
BIOS Setup Information
5. Make sure the CPU has been seated well into the socket. If not, take out the CPU
and reinstall.
6. Engage the load lever while pressing down lightly onto the load plate.
GMB-C2165-LLVA User‟s Manual
21
Page 23
BIOS Setup Information
7. Push the CPU socket lever back into its locked position.
8. Please make sure four hooks are in proper position before you install the core.
3.2 Main Memory
GMB-C2165-LLVA provide 4x240 pin DIMM sockets (Dual Channel) which
supports Dual channel non-ECC 1333/1600 DDR3-SDRAM and 32GB DDR3 ECC
memory, non-register function. The maximum memory can be up to 32GB.
Memory clock and related settings can be detected by BIOS via SPD interface.
For system compatibility and stability, do not use memory module without brand.
Memory configuration can be set to either one double-sided DIMM in one DIMM
socket or two single-sided DIMM in both sockets.
Beware of the connection and lock integrity from memory module to socket.
Inserting improperly it will affect the system reliability.
Before locking, make sure that all modules have been fully inserted into the card
slots
Note:
To insure the system stability, please do not change any of DRAM parameters in
BIOS setup to modify system the performance without acquired technical
information.
GMB-C2165-LLVA User‟s Manual
22
Page 24
BIOS Setup Information
3.3 Installing the Single Board Computer
To install your GMB-C2165-LLVA into standard chassis or proprietary
environment, please perform the following:
Step 1 : Check all jumpers setting on proper position.
Step 2 : Install and configure CPU and memory module at right position.
Step 3 : Place GMB-C2165-LLVA into the dedicated position in the system.
Step 4 : Attach cables to existing peripheral devices and secure it.
WARNING
Please ensure that SBC is properly inserted and fixed by mechanism.
Note
Please refer to section 3.3.1 to 3.3.5 to install INF/VGA/LAN/Audio/AMT drivers.
3.3.1 Chipset Component Driver
GMB-C2165-LLVA uses state-of-art Intel® Panther Point chipset. It‟s a new chipset
that some old operating systems might not be able to recognize. To overcome this
compatibility issue, for previous Windows Operating Systems such as Windows XP,
please install its INF before any of other Drivers are installed. You can find very
easily this chipset component driver in GMB-C2165-LLVA
CD-title.
Moreover, if using some old OS, the driver may not be supported anymore. We
recommend changing the different OS to comply with this new chipset.
3.3.2 Intel® HD Graphics Family
With latest Intel® Quad Core and Dual core series structure (Ivy Bridge), GMBC2165-LLVA Intel® HD Graphic 4000 is built in with CPU. Therefore 2nd
Generation Core and 3nd
Generation Core CPUs provide HD integrated Graphic support sharing on board
physical memories. GMB-C2165-LLVA has both internal VGA/DVI-D/HDMI
interface. This combination makes GMB-C2165-LLVA an excellent piece of
multimedia hardware. With no additional video adaptor, this onboard video will
usually be the system display output. By adjusting the BIOS setting to disable onboard VGA, an add-on PCI-Express Graphic card can take over the system display.
You can find very easily this graphic driver in GMB-C2165-LLVA CD-title.
※To use Intel® Integrated HD Graphic, it‟s required to choose the CPU which has
Integrated Graphic built-in. Otherwise there will be no display whatsoever.
GMB-C2165-LLVA User‟s Manual
23
Page 25
BIOS Setup Information
JP1
Function
1-2 Short
Normal Operation
2-3 Short
Clear CMOS Contents
3.3.3 Intel® PROSet Gigabit Ethernet Controller
Drivers Support
Please find Intel® 82583V and 82579LM LAN driver form GMB-C2165-LLVA CDtitle.
3.3.4 Audio Controller
Please find Realtek ALC886-GR (Intel® High Definition Audio driver) form GMB-
C2165-LLVA CD-title.
3.3.5 Intel® Active Management Technology (Intel® AMT)
Please find the latest Intel® AMT 8.0 driver from GMB-C2165-LLVA CD-title.
3.4 Clear CMOS Operation
JP1: CLEAR CMOS
3.5 WDT Function
The Watchdog Timer of motherboard consists of 8-bit programmable time-out
counter and a control and status register.
WDT Controller Register
There are two PNP I/O port addresses that can be used to configure WDT.
2Eh: EFIR (Extended Function Index Register, for identifying CR index number)
2Fh: EFDR (Extended Function Data Register, for accessing desired CR)
WDT Control Mode Register
GMB-C2165-LLVA User‟s Manual
24
Page 26
BIOS Setup Information
The working algorithm of the WDT function can be simply described as a counting
process. The Time-Out Interval can be set through software programming. The
availability of the time-out interval settings by software or hardware varies from
boards to boards.
GMB-C2165-LLVA allows users to control WDT through dynamic software
programming. The WDT starts counting when it is activated. It sends out a signal to
system reset or to non-maskable interrupt (NMI), when time-out interval ends. To
prevent the time-out interval from running out, a re-trigger signal will need to be
sent before the counting reaches its end. This action will restart the counting process.
A well-written WDT program should keep the counting process running under
normal condition. WDT should never generate a system reset or NMI signal unless
the system runs into troubles.
The related Control Registers of WDT are all included in the following sample
program that is written in C language. User can fill a non-zero value into the Timeout Value Register to enable/refresh WDT. System will be reset after the Time-out
Value to be counted down to zero. Or user can directly fill a zero value into Timeout Value Register to disable WDT immediately. To ensure a successful accessing to
the content of desired Control Register, the sequence of following program codes
should be step-by-step run again when each register is accessed.
Additionally, there are maximum 2 seconds of counting tolerance that should be
considered into user‟ application program. For more information about WDT, please
refer to ITE IT8783F data sheet.
There are two PNP I/O port addresses that can be used to configure WDT,
1) 0x2E:EFIR (Extended Function Index Register, for identifying CR index number)
2) 0x2F:EFDR (Extended Function Data Register, for accessing desired CR)
WDT Control Command Example
#include <stdio.h>
#include <conio.h>
#include <dos.h>
#define SIO_Port 0x2E
#define SIO_Port2 0x4E
#define GPIO_LDN 0x07
void Enter_IT8783_SIO() {
outportb(SIO_Port, 0x87);
outportb(SIO_Port, 0x01);
outportb(SIO_Port, 0x55);
outportb(SIO_Port, 0x55);
}
GMB-C2165-LLVA User‟s Manual
25
Page 27
BIOS Setup Information
void Set_LDN(unsigned char LDN) {
outportb(SIO_Port, 0x07);
outportb(SIO_Port+1, LDN);
printf("LDN=%x\n", LDN);
}
void Set_Register(unsigned char offset, unsigned char value) {
outportb(SIO_Port, offset);
outportb(SIO_Port+1, value);
printf("Write offset:%x = %x\n", offset, value);
}
int main(void) {
printf("test string\n");
Enter_IT8783_SIO();
Set_LDN(GPIO_LDN);
Set_Register(0x72, 0xC0);
Set_Register(0x73, 0x05);
printf("System will reset in 5 seconds\n");
return 0;
}
3.6 GPIO
The motherboard provides 4 input/output ports that can be individually configured
to perform a simple basic I/O function.
GPIO Pin Assignment
The GMB-C2165-LLVA provides 4 input/output ports that can be individually
configured to perform a simple basic I/O function. Users can configure each
individual port to become an input or output port by programming register bit of
I/O Selection. To invert port value, the setting of Inversion Register has to be made.
Port values can be set to read or write through Data Register.
The GPIO port is located on J17 shown as follows. Please note: Do not short the Pin 9
and Pin 10 of the J17!
The control for the GPIO signals is handled through a separate 1-byte I/O
space.
GMB-C2165-LLVA User‟s Manual
26
Page 28
BIOS Setup Information
PIN
No.
Signal Description
PIN No.
Signal Description
1
LPC_GP60
2
LPC_GP64
3
LPC_GP61
4
LPC_GP65
5
LPC_GP62
6
LPC_GP66
7
LPC_GP63
8
LPC_GP67
9
GND
10
Vcc
J17: General Purpose I/O Connector
Note:
All General Purpose I/O ports can only apply to standard TTL±5% signal
level (0V/5V), and each Fan.
GMB-C2165-LLVA User‟s Manual
27
Page 29
BIOS Setup Information
GPIO Control Command Example (C Language)
/*******************************************************
Sample Code for ITE series SIO GPIO Access
SIO IO INDEX : 0x2E
GPIO IO BASE : 0x0A00
GPIO PIN Define:
Pin 1 : GP60
Pin 2 : GP61
Pin 3 : GP62
Pin 4 : GP63
Pin 5 : GP64
Pin 6 : GP65
Pin 7 : GP66
Pin 8 : GP67
*******************************************************/
#include <stdio.h>
#include <conio.h>
#include <string.h>
#include <dos.h>
//Common defines
#define HIGH 1
#define LOW 0
#define IN 1
#define OUT 0
//Prototype defines
Int Get_IT8783_GPIOBase(
int IOINDEX
);
void Enter_IT8783_SIO(
int IOINDEX
);
void Exit_IT8783_SIO(
int IOINDEX
);
void Set_IT8783_LDN(
int IOINDEX,
int LDN
);
GMB-C2165-LLVA User‟s Manual
28
Page 30
BIOS Setup Information
int Get_IT8783_Byte_Val(
int IOINDEX,
int offset
);
void Set_IT8783_Byte_Val(
int IOINDEX,
int offset,
int Data
);
//MAIN Code Start
int main(){
return;
}
/*******************************************************
Procedure Name: Get Super IO GPIO Base address
Check defines in config file name
input 1 : INT IOINDEX
return : GPIO BASE
*******************************************************/
Int Get_IT8783_GPIOBase(int IOINDEX){
int IODATA = IOINDEX + 1;
int GPIOBASE;
//SIO Enter Key
Enter_IT8783_SIO(IOINDEX);
//Change LDN to 7 (GPIO)
Set_IT8783_LDN(IOINDEX,0x07);
//Get GPIO BASE
GPIOBASE = Get_IT8783_Byte_Val(IOINDEX,0x62) * 0x100;
GPIOBASE = GPIOBASE + Get_IT8783_Byte_Val(IOINDEX,0x63);
return GPIOBASE;
}
/*******************************************************
Procedure Name : Enter IT8783 Super IO
Check defines in config file name
input 1 : INT IOINDEX
*******************************************************/
void Enter_IT8783_SIO(int IOINDEX){
int IODATA = IOINDEX + 1;
outportb(IOINDEX,0x87);
outportb(IOINDEX,0x01);
outportb(IOINDEX,0x55);
GMB-C2165-LLVA User‟s Manual
29
Page 31
BIOS Setup Information
outportb(IOINDEX,0x55);
return;
}
/*******************************************************
Procedure Name: Exit IT8783 Super IO
Check defines in config file name
input 1 : INT IOINDEX
*******************************************************/
void Exit_IT8783_SIO(int IOINDEX) {
int IODATA = IOINDEX + 1;
outportb(IOINDEX,0x02);
outportb(IODATA ,0x02);
return;
}
/*******************************************************
Procedure Name: Change IT8783 LDN
Description: Change Super IO Logical Device Number
Input 1: INT IOINDEX
Input 2: INT LDN(Logical Device Number)
*******************************************************/
void Set_IT8783_LDN(
int IOINDEX,
int LDN ){
int IODATA = IOINDEX+1;
outportb(IOINDEX,0x07);
outportb(IODATA, LDN);
return;
}
/*******************************************************
Procedure Name: Get IT8783 offset data
Description : Get IT8783 offset byte data
Input 1: INT IOINDEX
Input 2: INT offset
return: INT Data (Byte)
*******************************************************/
int Get_IT8783_Byte_Val(
int IOINDEX,
int offset ){
int Data;
int IODATA = IOINDEX + 1;
outportb(IOINDEX,offset); //set offset of data read
Data = inportb(IODATA); //Get Data from offset
return Data;
GMB-C2165-LLVA User‟s Manual
30
Page 32
BIOS Setup Information
}
/*******************************************************
Procedure Name: Set IT8783 offset data
Description: Set Byte data to IT8783 offset
input 1 : INT IOINDEX
input 2 : INT offset
input 3 : INT Data
*******************************************************/
void Set_IT8783_Byte_Val(
int IOINDEX,
int offset,
int Data ) {
int IODATA = IOINDEX + 1;
outportb(IOINDEX,offset);
outportb(IODATA, Data);
return;
}
/*******************************************************
Procedure Name: Set GPIO Pin 1 Mode & In/Out data
Description: Set GPIO Pin I/O Mode
if GPIOMode is Input, input 2 data will
don‟t care and this function will return
read value.
Pin 1: GP60
input 1 : INT GPIOMode
input 2 : INT Data
Out 1: INT Data
*******************************************************/
int SET_GPIO_PIN1(
int GPIOMode,
int Data ) {
//GPIO Mode is Output
if(GPIOMode = 0){
Set_IT8783_Byte_Val(0x2E,0xCD,Get_IT8783_Byte_Val(0x2E,0xCD)|
(1<<0));
//if Data is HIGH
if(Data==1){
outportb(0x0A00 + 5, 1<<0);
}
//if Data is LOW
if(Data==0){
outportb(0x0A00 + 5, (inportb(0x0A00 + 5) & ~(1<<0) ) );
}
return NULL;
GMB-C2165-LLVA User‟s Manual
31
Page 33
BIOS Setup Information
}
//GPIO Mode is Input
else if(GPIOMode = 1){
Set_IT8783_Byte_Val(0x2E,0xCD,Get_IT8783_Byte_Val(0x2E,0xCD)&
~(1<<0));
Data = inportb(0x0A00 + 5) & (1<<0);
return Data;
}
return NULL;
}
/*******************************************************
Procedure Name: Set GPIO Pin 2 Mode & In/Out data
Description: Set GPIO Pin I/O Mode
if GPIOMode is Input , input 2 data will
don‟t care and this function will return
read value.
Pin 2: GP61
Input 1: INT GPIOMode
Input 2: INT Data
Out 1: INT Data
*******************************************************/
int SET_GPIO_PIN2(
int GPIOMode,
int Data ) {
//GPIO Mode is Output
if(GPIOMode = 0){
Set_IT8783_Byte_Val(0x2E,0xCD,Get_IT8783_Byte_Val(0x2E,0xCD)|
(1<<1));
//if Data is HIGH
if(Data==1){
outportb(0x0A00 + 5, 1<<1 );
}
//if Data is LOW
if(Data==0){
outportb(0x0A00 + 5, (inportb(0x0A00 + 5) & ~(1<<1) ) );
}
return NULL;
}
//GPIO Mode is Input
else if(GPIOMode = 1){
Set_IT8783_Byte_Val(0x2E,0xCD,Get_IT8783_Byte_Val(0x2E,0xCD) &
~(1<<1));
Data = inportb(0x0A00 + 5) & (1<<1);
return Data;
GMB-C2165-LLVA User‟s Manual
32
Page 34
BIOS Setup Information
}
return NULL;
}
/*******************************************************
Procedure Name: Set GPIO Pin 3 Mode & In/Out data
Description: Set GPIO Pin I/O Mode
if GPIOMode is Input , input 2 data will
don‟t care and this function will return
read value.
Pin 3:GP62
Input 1: INT GPIOMode
Input 2: INT Data
Out 1: INT Data
*******************************************************/
int SET_GPIO_PIN3(
int GPIOMode,
int Data ){
//GPIO Mode is Output
if(GPIOMode = 0){
Set_IT8783_Byte_Val(0x2E,0xCD, Get_IT8783_Byte_Val(0x2E,0xCD) |
(1<<2));
//if Data is HIGH
if(Data==1){
outportb(0x0A00 + 5, 1<<2 );
}
//if Data is LOW
if(Data==0){
outportb(0x0A00 + 5, (inportb(0x0A00 + 5) & ~(1<<2) ) );
}
return NULL;
}
//GPIO Mode is Input
else if(GPIOMode = 1){
Set_IT8783_Byte_Val(0x2E,0xCD, Get_IT8783_Byte_Val(0x2E,0xCD) &
~(1<<2));
Data = inportb(0x0A00 + 5) & (1<<2);
return Data;
}
return NULL;
}
/*******************************************************
GMB-C2165-LLVA User‟s Manual
33
Page 35
BIOS Setup Information
Procedure Name: Set GPIO Pin 4 Mode & In/Out data
Description: Set GPIO Pin I/O Mode
if GPIOMode is Input , input 2 data will
don‟t care and this function will return
read value.
Pin 4: GP63
Input 1 : INT GPIOMode
Input 2: INT Data
Out 1: INT Data
*******************************************************/
int SET_GPIO_PIN4(
int GPIOMode,
int Data ) {
//GPIO Mode is Output
if(GPIOMode = 0){
Set_IT8783_Byte_Val(0x2E,0xCD, Get_IT8783_Byte_Val(0x2E,0xCD) |
(1<<3));
//if Data is HIGH
if(Data==1){
outportb(0x0A00 + 5, 1<<3 );
}
//if Data is LOW
if(Data==0){
outportb(0x0A00 + 5, (inportb(0x0A00 + 5) & ~(1<<3) ) );
}
return NULL;
}
//GPIO Mode is Input
else if(GPIOMode = 1){
Set_IT8783_Byte_Val(0x2E,0xCD, Get_IT8783_Byte_Val(0x2E,0xCD) &
~(1<<3));
Data = inportb(0x0A00 + 5) & (1<<3);
return Data;
}
return NULL;
}
/*******************************************************
Procedure Name: Set GPIO Pin 5 Mode & In/Out data
Description: Set GPIO Pin I/O Mode
if GPIOMode is Input , input 2 data will
don‟t care. and this function will return
read value.
Pin 5: GP64
Input 1: INT GPIOMode
GMB-C2165-LLVA User‟s Manual
34
Page 36
BIOS Setup Information
Input 2: INT Data
Out 1: INT Data
*******************************************************/
int SET_GPIO_PIN5(
int GPIOMode,
int Data ){
//GPIO Mode is Output
if(GPIOMode = 0){
Set_IT8783_Byte_Val(0x2E,0xCD, Get_IT8783_Byte_Val(0x2E,0xCD) |
(1<<4));
//if Data is HIGH
if(Data==1){
outportb(0x0A00 + 5, 1<<4 );
}
//if Data is LOW
if(Data==0){
outportb(0x0A00 + 5, (inportb(0x0A00 + 5) & ~(1<<4) ) );
}
return NULL;
}
//GPIO Mode is Input
else if(GPIOMode = 1){
Set_IT8783_Byte_Val(0x2E,0xCD, Get_IT8783_Byte_Val(0x2E,0xCD) &
~(1<<4));
Data = inportb(0x0A00 + 5) & (1<<4);
return Data;
}
return NULL;
}
/*******************************************************
Procedure Name: Set GPIO Pin 6 Mode & In/Out data
Description: Set GPIO Pin I/O Mode
if GPIOMode is Input , input 2 data will
don‟t care and this function will return
read value.
Pin 6: GP65
Input 1: INT GPIOMode
Input 2: INT Data
Out 1: INT Data
*******************************************************/
int SET_GPIO_PIN6(
int GPIOMode,
int Data ) {
//GPIO Mode is Output
GMB-C2165-LLVA User‟s Manual
35
Page 37
BIOS Setup Information
if(GPIOMode = 0){
Set_IT8783_Byte_Val(0x2E,0xCD, Get_IT8783_Byte_Val(0x2E,0xCD) |
(1<<5));
//if Data is HIGH
if(Data==1){
outportb(0x0A00 + 5, 1<<5 );
}
//if Data is LOW
if(Data==0){
outportb(0x0A00 + 5, (inportb(0x0A00 + 5) & ~(1<<5) ) );
}
return NULL;
}
//GPIO Mode is Input
else if(GPIOMode = 1){
Set_IT8783_Byte_Val(0x2E,0xCD, Get_IT8783_Byte_Val(0x2E,0xCD) &
~(1<<5));
Data = inportb(0x0A00 + 5) & (1<<5);
return Data;
}
return NULL;
}
/*******************************************************
Procedure Name: Set GPIO Pin 7 Mode & In/Out data
Description: Set GPIO Pin I/O Mode
if GPIOMode is Input , input 2 data will
don‟t care and this function will return
read value.
Pin 7: GP66
Input 1: INT GPIOMode
Input 2: INT Data
Out 1: INT Data
*******************************************************/
int SET_GPIO_PIN7(
int GPIOMode,
int Data ) {
//GPIO Mode is Output
if(GPIOMode = 0){
Set_IT8783_Byte_Val(0x2E,0xCD, Get_IT8783_Byte_Val(0x2E,0xCD) |
(1<<6));
//if Data is HIGH
if(Data==1){
outportb(0x0A00 + 5, 1<<6 );
}
GMB-C2165-LLVA User‟s Manual
36
Page 38
BIOS Setup Information
//if Data is LOW
if(Data==0){
outportb(0x0A00 + 5, (inportb(0x0A00 + 5) & ~(1<<6) ) );
}
return NULL;
}
//GPIO Mode is Input
else if(GPIOMode = 1){
Set_IT8783_Byte_Val(0x2E,0xCD, Get_IT8783_Byte_Val(0x2E,0xCD) &
~(1<<6));
Data = inportb(0x0A00 + 5) & (1<<6);
return Data;
}
return NULL;
}
/*******************************************************
Procedure Name: Set GPIO Pin 8 Mode & In/Out data
Description: Set GPIO Pin I/O Mode
if GPIOMode is Input , input 2 data will
don‟t care and this function will return
read value.
Pin 8: GP67
Input 1: INT GPIOMode
Input 2: INT Data
Out 1: INT Data
*******************************************************/
int SET_GPIO_PIN8(
int GPIOMode,
int Data ) {
//GPIO Mode is Output
if(GPIOMode = 0){
Set_IT8783_Byte_Val(0x2E,0xCD, Get_IT8783_Byte_Val(0x2E,0xCD) |
(1<<7));
//if Data is HIGH
if(Data==1){
outportb(0x0A00 + 5, 1<<7 );
}
//if Data is LOW
if(Data==0){
outportb(0x0A00 + 5, (inportb(0x0A00 + 5) & ~(1<<7) ) );
}
return NULL;
}
//GPIO Mode is Input
GMB-C2165-LLVA User‟s Manual
37
Page 39
BIOS Setup Information
else if(GPIOMode = 1){
Set_IT8783_Byte_Val(0x2E,0xCD, Get_IT8783_Byte_Val(0x2E,0xCD) &
~(1<<7));
Data = inportb(0x0A00 + 5) & (1<<7);
return Data;
}
return NULL;
}
GMB-C2165-LLVA User‟s Manual
38
Page 40
BIOS Setup Information
4. BIOS Setup Information
GMB-C2165-LLVA is equipped with the Phoenix BIOS stored in Flash ROM. These
BIOS has a built-in Setup program that allows users to modify the basic system
configuration easily. This type of information is stored in CMOS RAM so that it is
retained during power-off periods. When system is turned on, GMB-C2165-LLVA
communicates with peripheral devices and checks its hardware resources against
the configuration information stored in the CMOS memory. If any error is detected,
or the CMOS parameters need to be initially defined, the diagnostic program will
prompt the user to enter the SETUP program. Some errors are significant enough to
abort the start up.
4.1 Entering Setup -- Launch System Setup
Power on the computer and the system will start POST (Power on Self Test) process.
When the message below appears on the screen, press <F2> key will enter BIOS
setup screen.
Press <F2> to enter SETUP
If the message disappears before responding and still wish to enter Setup, please
restart the system by turning it OFF and On or pressing the RESET button. It can be
also restarted by pressing <Ctrl>, <Alt> and <Delete> keys on keyboard
simultaneously.
Press <F1> to Run General Help or Resume
The BIOS setup program provides a General Help screen. The menu can be easily
called up from any menu by pressing <F1>. The Help screen lists all the possible
keys to use and the selections for the highlighted item. Press <Esc> to exit the Help
screen.
GMB-C2165-LLVA User‟s Manual
39
Page 41
BIOS Setup Information
4.2 Main
Use this menu for basic system configurations, such as time, date etc.
System Date
The date format is <Month>, <Day> and <Year>. Use [＋] or [－] to configure
system Date.
System Time
The time format is <Hour>, <Minute> and <Second>. Use [＋] or [－] to configure
system Time.
GMB-C2165-LLVA User‟s Manual
40
Page 42
BIOS Setup Information
4.3 Configuration
Use this menu to set up the items of special enhanced features
Boot Configuration
Set boot configuration.
GMB-C2165-LLVA User‟s Manual
41
Page 43
BIOS Setup Information
NumLock:
Selects Power-on state for NumLock.
Choices: OFF, ON.
Quick Boot
Enable/Disable quick boot.
Choices: Disabled, Enabled.
Diagnostic Splash Screen
If you select „Enabled‟ the diagnostic splash screen always displays during boot. If
you select „Disabled‟ the diagnostic splash screen does not displays unless you press
HOTKEY during boot.
Choices: Disabled, Enabled.
Diagnostic Summary Screen
Display the Diagnostic summary screen during boot.
Choices: Disabled, Enabled.
Allow Hotkey in S4 resume
Enable hotkey detection when system resuming from Hibernate state.
Choices: Disabled, Enabled.
UEFI Boot
Enable the UEFI boot.
Choices: Disabled, Enabled.
GMB-C2165-LLVA User‟s Manual
42
Page 44
BIOS Setup Information
PCI/PCIE Configuration
Configure PCI/PCI Express slot.
Processor PCI Express Configuration
GMB-C2165-LLVA User‟s Manual
43
Page 45
BIOS Setup Information
FEG0 PEG0 – Gen X
Configure PFG0 B0:D0:F0 Speed.
Choices: Auto, Gen1, Gen2, Gen3
FEG1 PEG1 – Gen X
Configure PFG1 B0:D0:F1 Speed.
Choices: Auto, Gen1, Gen2, Gen3
FEG2 PEG2 – Gen X
Configure PFG2 B0:D0:F2 Speed.
Choices: Auto, Gen1, Gen2, Gen3
FEG3 PEG3 – Gen X
Configure PFG3 B0:D0:F3 Speed.
Choices: Auto, Gen1, Gen2, Gen3
ICH PCI Express Configuration
DMI Link ASPM Control
The control of active state Power Management on both NB side of the DMI Link.
Choices: Disabled, L0s, L1, L0sL1 and Auto.
GMB-C2165-LLVA User‟s Manual
44
Page 46
BIOS Setup Information
PCI Express Root Port 1, 7, 8
Control PCI Express root port.
PCI Express Root Port 1, 7, 8
Control PCI Express root port.
Choices: Disabled, Enabled.
PCIe Speed
Select PCIe Speed to Gen1 or Gen2.
Choices: Auto, Gen1, Gen2.
ASPM
Control PCIe Active State Power Management settings.
Choices: Disabled, L0S, L1, L0S and L1, Auto.
HOT PLUG
PCI Express Hot Plug Enabled/Disabled.
Choices: Disabled, Enabled.
URR
PCI Express Unsupported Request Reporting Enable/Disable.
Choices: Disabled, Enabled.
GMB-C2165-LLVA User‟s Manual
45
Page 47
BIOS Setup Information
FER
PCI Express Device Fatal Error Reporting Enable/Disable.
Choices: Disabled, Enabled.
NFER
PCI Express Device Non-Fatal Error Reporting Enable/Disable.
Choices: Disabled, Enabled.
CER
PCI Express Device Correctable Error Reporting Enable/Disable.
Choices: Disabled, Enabled.
SEFE
Root PCI Express System Error on Fatal Error Enable/Disable.
Choices: Disabled, Enabled.
SENFE
Root PCI Express System Error on Non-Fatal Error Enable/Disable.
Choices: Disabled, Enabled.
SECE
Root PCI Express System Error on Correctable Error Enable/Disable.
Choices: Disabled, Enabled.
PME Interrupt
Root PCI Express PME Interrupt Enable/Disable.
Choices: Disabled, Enabled.
PME SCI
PCI Express PME SCI
Choices: Disabled, Enabled.
GMB-C2165-LLVA User‟s Manual
46
Page 48
BIOS Setup Information
Power Control Configuration
Configure ACPI and RTC wake up setting.
ACPI Sleep State
Select the highest APCI sleep state the system will enter when the SUSPEND button
is pressed.
Choices: S1, S3.
Restore AC Power Loss
Select AC Power state when power is re-applied after a power failure.
Choices: Power Off, Power On, Last State.
SLP_S4 Assertion stretch Enable
Choices: Disabled, Enabled
Wake system with Fixed Time
Enable or disable system wake on alarm event. When Enabled, system will wake on
the hr: min: sec specified.
Choices: Disabled, Enabled
Wake up By PS/2 Keyboard
Choices: Enabled, Disabled.
GMB-C2165-LLVA User‟s Manual
47
Page 49
BIOS Setup Information
Wake up By PS/2 Mouse
Choices: Enabled, Disabled.
Wake up By PCI
Choices: Enabled, Disabled.
Wake up By PCIe
Choices: Enabled, Disabled.
Wake up By Ring
Choices: Enabled, Disabled.
CPU configuration
Configure the specific active core(s) and advanced processor management
technologies.
Hyper-Threading
Enabled for Windows XP and Linux (OS optimized for Hyper-Threading
Technology) and Disabled for other OS (OS not optimized for Hyper-Threading
Technology). When disabled only one.
Choices: Disabled, Enabled.
48
GMB-C2165-LLVA User‟s Manual
Page 50
BIOS Setup Information
Active Processor Cores
Select the number of physical cores to enable in each processor package.
Choices: All, 1, 2, 3.
Limit CPUID Maximum
Disabled for Windows XP.
Choices: Disabled, Enabled.
Execute Disabled Bit
Enabled Execute Disabled functionality. Also known as Data Execution Prevention
(DEP).
Choices: Disabled, Enabled.
EIST
Selects Disabled or Enabled for Enhanced Intel SpeedStep Technology.
Choices: Disabled, Enabled.
C-States
Selects Disabled or Enabled for CPU operating states.
Choices: Disabled, Enabled.
VT-x
When enabled, a VWM can utilize the additional hardware capabilities provided by
Vander pool Technology.
Choices: Disabled, Enabled.
Local x2APIC
Selects Disabled or Enabled for Advanced Programmable Interrupt Controller.
Choices: Disabled, Enabled.
GMB-C2165-LLVA User‟s Manual
49
Page 51
BIOS Setup Information
LAN Configuration
Configure onboard LAN device.
Intel 82579LM GbE LAN
Enabled/Disabled Intel 82579LM GbE LAN.
Choices: Disabled, Enabled.
Wake on LAN
Enabled/Disabled Wake on LAN Function.
Choices: Disabled, Enabled.
LAN Boot ROM
Control LAN Boot ROM (PXE) function.
Choices: Disabled, Enabled.
Intel 82583V LAN
Enabled/Disabled 82583V LAN.
Choices: Disabled, Enabled.
Wake on LAN
Enabled/Disabled Wake on LAN Function.
Choices: Disabled, Enabled.
GMB-C2165-LLVA User‟s Manual
50
Page 52
BIOS Setup Information
Chipset Configuration
Configure Chipset provide feature.
VT-d
Check to enable VT-d function on MCH.
Choices: Disabled, Enabled.
GMB-C2165-LLVA User‟s Manual
51
Page 53
BIOS Setup Information
NB PCIe Configuration
Config NB PCI Express Settings.
Always Enable PEG
To Enable the PEG Slot.
Choices: Disabled, Enabled.
PEG ASPM
Control ASPM (Active State Power Management) Support for the PEG Device. This
has mp effect if PEF is not the current active service.
Choices: Disabled, Auto, ASPM L0s, ASPM L1, ASPM L0sL1.
Choices: Enabled, Disabled.
GMB-C2165-LLVA User‟s Manual
52
Page 54
BIOS Setup Information
Memory Configuration
Memory Configuration Parameters.
Max TOLUD
Maximum Value of TOLUD. Dynamic assignment would adjust TOLUD
automatically based on largest MMIO length of installed graphic controller.
Choices: Dynamic, 1GB, 1.25GB, 1.5GB, 1.75GB, 2GB, 2.25GB, 2.5GB, 2.75GB, 3GB,
3.25GB, 3.5GB.
Memory Frequency
Maximum Memory Frequency Selections in Mhz.
Choices: Auto, 1067, 1333, 1600, 1867, 2133.
Memory ECC Support
Selects ECC memory function Disable/Enable.
Choices: Disable, Enable.
GMB-C2165-LLVA User‟s Manual
53
Page 55
BIOS Setup Information
SB Azalia Configuration
SB Azalia Config Parameters.
Azalia
Control detection of the Azalia device.
Choices: Disable, Enable.
Azalia PME Enable
Choices: Disable, Enable.
Azalia Vci Enable
Choices: Disable, Enable.
Azalia Internal HDMI codec
Choices: Disable, Enable.
HDMI codec Port B
Choices: Disable, Enable.
HDMI codec Port C
Choices: Disable, Enable.
GMB-C2165-LLVA User‟s Manual
54
Page 56
BIOS Setup Information
HDMI codec Port D
Choices: Disable, Enable.
Graphic Configuration
Configure integrated Graphic like Boot display, video memory and external Graphic
feature.
Primary Display
Select which of IGFX/PEG/PCI Graphics device should be Primary Display or
select SG for Switchable Gfx.
Choices: Auto, IGFX, PEG and PCI.
Internal Graphics
Keep IGD Enabled Based on the setup options,
Choices: Auto, Disabled, Enabled.
Aperture Size
Select the Aperture Size
Choices: 128MB, 256MB, 512MB.
55
GMB-C2165-LLVA User‟s Manual
Page 57
BIOS Setup Information
DVMT Pre-Allocated
Select DVMT 5.0 Pre-Allocated Graphics Memory size used by the Internal Graphics
Device.
Choices: 0M, 32M, 64M, 96M, 128M, 160M, 192M, 224M, 256M, 288M, 320M , 352M,
384M, 416M, 448M, 480M, 512M.
DVMT Total Gfx Mem
Select DVMT 5.0 Total Graphics Memory size used by the Internal Graphics Device.
Choices: 128MB, 256MB, MAX.
Primay Boot display
Choices: VBIOS Default, CRT, LFP, LFP2, EFP, EFP2, EFP3.
SATA Configuration
Configure SATA controller and view detected HDD Information.
GMB-C2165-LLVA User‟s Manual
56
Page 58
BIOS Setup Information
SATA Controller (s)
Determines how SATA controllers (s) operate.
Choices: Disabled, Enabled.
Launch Storage OpROM
Enable or Disable Boot Option for Legacy Mass Storage Devices with Option ROM.
Choices: Enabled, Disabled.
SATA Mode
Determines how SATA controllers (s) operate.
Choices: Disabled, IDE, AHCI, and RAID.
Serial ATA Port 0
Display the identity of the device attached.
Choices: Empty.
Port 0-4
Enabled or Disabled SATA Port 0.
Choices: Disabled, Enabled.
Hot Plug
Designates this port as Hot Pluggable.
Choices: Disabled, Enabled.
External Port
External SATA Support.
Choices: Disabled, Enabled.
SATA Device Type
Select”Solid State Drive” only if a Solid State Drive is connected to this SATA port.
Choices: Hard Disk Driver, Solid State Drive.
CFex
Choices: Empty.
CFex
Enabled or Disabled CFex Port.
Choices: Disabled, Enabled.
Hot Plug
Designates this port as Hot Pluggable.
Choices: Disabled, Enabled.
External Port
External SATA Support.
Choices: Disabled, Enabled.
GMB-C2165-LLVA User‟s Manual
57
Page 59
BIOS Setup Information
USB Configuration
Configure USB controller and other advanced setting.
Legacy USB Support
Enables Legacy USB support. AUTO option disables legacy support if no USB
devices are connected. DISABLE option will keep USB devices available only for EFI
applications.
Choices: Enabled, Disabled.
GMB-C2165-LLVA User‟s Manual
58
Page 60
BIOS Setup Information
PCH USB Configuration
Control each of the USB ports disabling.
USB Ports Per-Port Disable
Control each of the USB ports disabling.
Choices: Enabled, Disabled.
GMB-C2165-LLVA User‟s Manual
59
Page 61
BIOS Setup Information
ME Configuration
Configure Management Engine Technology Parameters.
Intel (R) ME
Enable/Disable Intel (R) Management Engine.
Choices: Enabled, Disabled.
GMB-C2165-LLVA User‟s Manual
60
Page 62
BIOS Setup Information
Super IO Configuration
Configure LPC Super IO.
Serial Port 1-6
Choices: Disabled, 3F8/IRQ4, 2F8/IRQ3, 3E8/IRQ5, 2E8/IRQ6, 220/IRQ7,
228/IRQ11.
COM2 Configuration
Select Com2 Configuration.
Choices: RS-232, RS-422, RS-485.
Watch Dog Timer Select
Choices: Disabled, 30 secs, 1 min, 2 mins and 3 mins.
Case Open Warning
Choices: Disabled, Enable.
GMB-C2165-LLVA User‟s Manual
61
Page 63
BIOS Setup Information
Hardware Monitor
Provide on board sensor reading information. (Show only)
CPU Fan Feature
GMB-C2165-LLVA User‟s Manual
62
Page 64
BIOS Setup Information
Smart Fan Control
Choices: Enabled, Disabled.
Serial Port Console Configuration
Configure console redirection on serial port.
Console Redirection
Control Console Redirection enable/disable.
Choices: Enabled, Disabled.
GMB-C2165-LLVA User‟s Manual
63
Page 65
BIOS Setup Information
4.4 Security
This section lets you set security passwords to control access to the system at boot
time and/or when entering the BIOS setup program.
Set Supervisor Password
Set or clear the Supervisor account‟s password.
Supervisor Hint String
Press Enter to type Supervisor Hint String.
Set User Password
Set or clear the User account‟ password.
Supervisor Hint String
Press Enter to type User Hint String.
Min. password length
Set the minimum number of characters for password (1-20).
GMB-C2165-LLVA User‟s Manual
64
Page 66
BIOS Setup Information
4.5 Boot
Use this menu to specify the priority of boot devices.
Boot Priority Order
Keys used to view or configure devices:↑and↓arrows Select a device. „+‟ and „-„move
the device up or down. „Shift + 1‟ enabled or disables a device. „Del‟ deletes an
unprotected device.
GMB-C2165-LLVA User‟s Manual
65
Page 67
BIOS Setup Information
4.6 Exit
Exit Saving Changes
Equal to F10, save all changes of all menus, then exit setup configure driver. Finally
resets the system automatically.
Exit Discarding Changes
Equal to ESC, never save changes, then exit setup configure driver.
Load Setup Defaults
Equal to F9. Load standard default values.
Discard Changes
Load the original value of this boot time. Not the default Setup value.
Save Changes
Save all changes of all menus, but do not reset sys
GMB-C2165-LLVA User‟s Manual
66
Page 68
Troubleshooting
5. Troubleshooting
This chapter provides a few useful tips to quickly get GMB-C2165-LLVA running
with success. As basic hardware installation has been addressed in Chapter 2, this
chapter will focus on system integration issues, in terms of BIOS setting, and OS
diagnostics.
5.1 Hardware Quick Installation
ATX Power Setting
GMB-C2165-LLVA supports ATX. Therefore, there is no other setting that really
needs to be
set up. However, there are only two connectors that must be connected—J8 (4 pins
CPU +12V main power connector) & J34 (24 pins ATX Power Connector)
ATX Power Connector
4-Pins CPU Main Power Connector
GMB-C2165-LLVA User‟s Manual
67
Page 69
Troubleshooting
Serial ATA Hard Disk Setting for IDE/RAID/AHCI mode
Unlike IDE bus, each Serial ATA channel can only connect to one SATA hard disk at
a time; there are total five connectors, SATA1~5 port. The installation of Serial ATA
is simpler and easier than IDE, because SATA hard disk doesn‟t require setting up
Master and Slave, which can reduce mistake of hardware installation. All you need
to operate IDE, RAID (0/1/5/10) and AHCI application for system, please follow up
setting guide in BIOS setup utility
5.2 BIOS Setting
It is assumed that users have correctly adopted modules and connected all the
devices cables required before turning on ATX power. CPU, CPU Fan, 204-pin DDR3
memory, keyboard, mouse, floppy drive, SATA hard disk, DVI connector, but it only
can use on DVI-D function, doesn‟t support DVI-I function, device power cables,
ATX accessories are good examples that deserve attention. With no assurance of
68
GMB-C2165-LLVA User‟s Manual
Page 70
Troubleshooting
Interrupt Request Lines IRQ
IRQ#
Current Use
Default Use
IRQ 0
Unused
System Timer
IRQ 1
System ROM
Keyboard Event
IRQ 2
【Unassigned】
Usable IRQ
IRQ 3
System ROM
COM2
IRQ 4
System ROM
COM1
IRQ 5
【Unassigned】
Usable IRQ
properly and correctly accommodating these modules and devices, it is very
possible
to encounter system failures that result in malfunction of any device.
To make sure that you have a successful start with GMB-C2165-LLVA , it is
recommended, when going with the boot-up sequence, to hit “DEL” key and enter
the BIOS setup menu to tune up a stable BIOS configuration so that you can wake up
your system far well.
Loading the default optimal setting
When prompted with the main setup menu, please scroll down to “Load Optimal
Defaults”, press “Enter” and “Y” to load in default optimal BIOS setup. This will
force your BIOS setting back to the initial factory configuration. It is recommended
to do this so you can be sure the system is running with the BIOS setting that
CONTEC has highly endorsed. As a matter of fact, users can load the default BIOS
setting any time when system appears to be unstable in boot up sequence.
Improper disable operation
There are too many occasions where users disable a certain device/feature in one
application through BIOS setting. These variables may not be set back to the original
values when needed. These devices/features will certainly fail to be detected.
When the above conditions happen, it is strongly recommended to check the BIOS
settings. Make sure certain items are set as they should be. These include the COM1/
COM2 ports, USB ports, external cache, on-board VGA and Ethernet.
It is also very common that users would like to disable a certain device/port to
release IRQ resource. A few good examples are
Disable COM1 serial port to release IRQ #4
Disable COM2 serial port to release IRQ #3
Etc…
A quick review of the basic IRQ mapping is given below for your reference.
GMB-C2165-LLVA User‟s Manual
69
Page 71
Troubleshooting
IRQ 6
System ROM
Diskette Event
IRQ 7
Unused
Usable IRQ
IRQ 8
System ROM
Real-Time Clock
IRQ 9
【Unassigned】
Usable IRQ
IRQ 10
【Unassigned】
Usable IRQ
IRQ 11
【Unassigned】
Usable IRQ
IRQ 12
System ROM
IBM Mouse Event
IRQ 13
System ROM
Coprocessor Error
IRQ 14
System ROM
Hard Disk Event
IRQ 15
【Unassigned】
Usable IRQ
System Memory Address Map
Memory Area
Size
Description
0000-003F
1K
Interrupt Area
0040-004F
0.3K
BIOS Data Area
0050-006F
0.5K
System Data
0070-0548
19K
DOS
0549-0FC2
41K
Program Area
0FC3-9B7F
558K
【Available】
9B80-9D7F
8K
Unused
First Meg -- Conventional memory end at 630K --
9D80-9DFF
2K
Extended BIOS Area
It is then very easy to find out which IRQ resource is ready for additional
peripherals. If IRQ resource is not enough, please disable some devices listed above
to release further IRQ numbers.
5.3 System Memory Address Map
Each On-board device in the system is assigned a set of memory addresses, which
also can be identical of the device. The following table lists the system memory
address used for your reference.
GMB-C2165-LLVA User‟s Manual
70
Page 72
Troubleshooting
9E00-9FFF
8K
Unused
A000-AFFF
64K
VGA Graphics
B000-BFFF
32K
Unused
C000-CE5F
32K
VGA Text
CE60-EFFF
57K
Video ROM
134K
Unused
71
GMB-C2165-LLVA User‟s Manual
Loading...
