Contec DS-380D Series User Manual

Download

Page 1

DS-380D Series Fanless, R-452L, mSATA, Half-Slim SSD, DC input

User’s Manual

CONTEC CO.,LTD.

Page 2

DS-380D-DC741D, DS-380D-DC741E,

Name

Pcs.

The main body

The attachment fi ttings

2*1

USB removal prevention fitting (base)

USB removal prevention fitting (angle)

Washer assembled screw (M3 x 6)

Washer assembled screw (M3 x 8)

Power supply conn ector complete set

Power connector

Contact

Product guide

IPC Precaution List

Warranty Certificate

Serial number label

Royalty consent contract

Setup Procedure Document

Recovery Media *2

AC adapter set (PWA-84AWD1)*3

Dust cover complete set

COM Dust Cover

1*1

USB Dust Cover

3*1

LAN Dust Cover

2*1

DVI Dust Cover

2*1

Audio Dust Cover

2*1

Check Your Package

Thank you for purchasing the CONTEC product. The product consists of the items listed below. Check, with the following list, that your package is complete. If you discover damaged or missing items, contact your retailer.

Product Configuration List

DS-380D-DC7512, DS-380D-DC7516, DS-380D-DC7517, DS-380D-DC7518

*1 It is attached to the main body.

*2 Please confirm latest info rmation on the CONTEC homepage.

*3 The "PWA-84AWD1" o ptional pro duct is inc luded in the package.

For details, see the "PWA-84AWD 1" user's manual, whi ch can be dow nloaded from the CONT EC website.

Do not use the "PWA-84AWD1" with any product s other than this produ ct.

Only use the included AC power cable with th e included AC adapter.

DS-380D Series User’s manual

Page 3

Product C onfigurati on Image

* See the Product Configuration List to check if all the components are in cluded for the specified number of units.

Copyright

consent of CONTEC CO., LTD.

CONTEC CO., LTD. makes no commitment to update or keep current the information contained in this document.

The information in this document is subject to change without notice.

All relevant issues have been considered in the preparation of this document. Should you notice an omission or any questionable item in this document, please feel free to notify CONTEC CO., LTD.

Regardless of the foregoing statement, CONTEC assumes no responsibility for any errors that may appear in this document or for results obtained by the user as a result of using this product.

Trademarks

AMD, ATI and AMD Corporation are registered trademarks of Intel Corporation. Microsoft Windows are trademarks of Microsoft Corporation. AMI a re trademarks of AMI Software International, Inc. Other brand and product names are trademarks of their respective holder.

DS-380D Series User’s manual

Page 4

Check your package ............................................................................................................................. i

Copyright ............................................................................................................................................ ii

Trademarks .......................................................................................................................................... ii

Table of Contents ............................................................................................................................... iii

1. INTRODUCTION 1

About the Product ............................................................................................................................... 1

Features ........................................................................................................................................ 1

Supported OS ............................................................................................................................... 2

Customer Support................................................................................................................................ 3

Web Site ....................................................................................................................................... 3

Limited One-Year Warranty ............................................................................................................... 3

How to Obtai n Service ........................................................................................................................ 3

Liability ............................................................................................................................................... 3

Safety Precautions ............................................................................................................................... 3

Safety Inf orm a ti on ....................................................................................................................... 4

Caution on the DS-380D Series ................................................................................................... 4

2. SYSTEM REFERENCE 7

Specification ........................................................................................................................................ 7

Power Management Fea t ures .............................................................................................................. 9

Power Requirements ........................................................................................................................... 9

Power Consumption ..................................................................................................................... 9

Physical Dimensions ......................................................................................................................... 10

3. HARDWARE SE TUP 11

Before Using the Product for the First Time ..................................................................................... 11

Hardwar e Setup ................................................................................................................................. 12

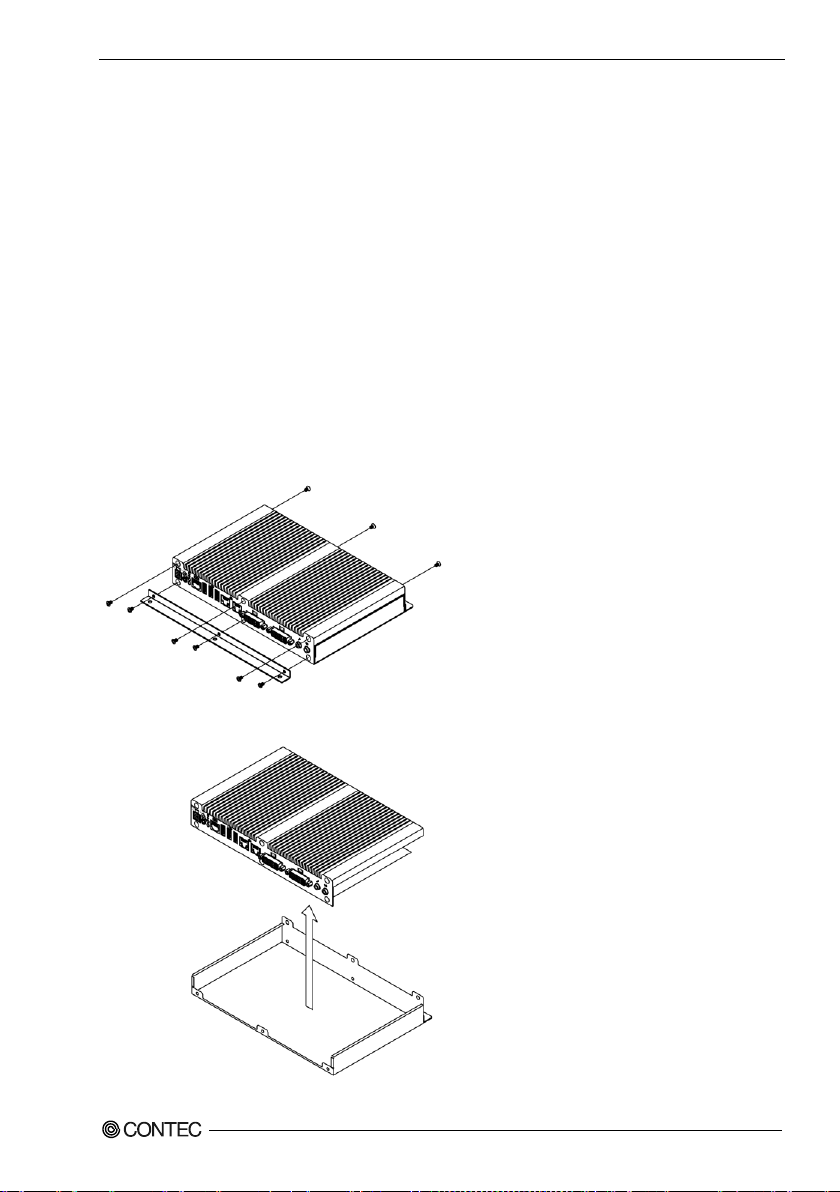

Attaching the Attachment Fittings ............................................................................................. 12

Attaching the FG ........................................................................................................................ 12

Fastening the Cable .................................................................................................................... 13

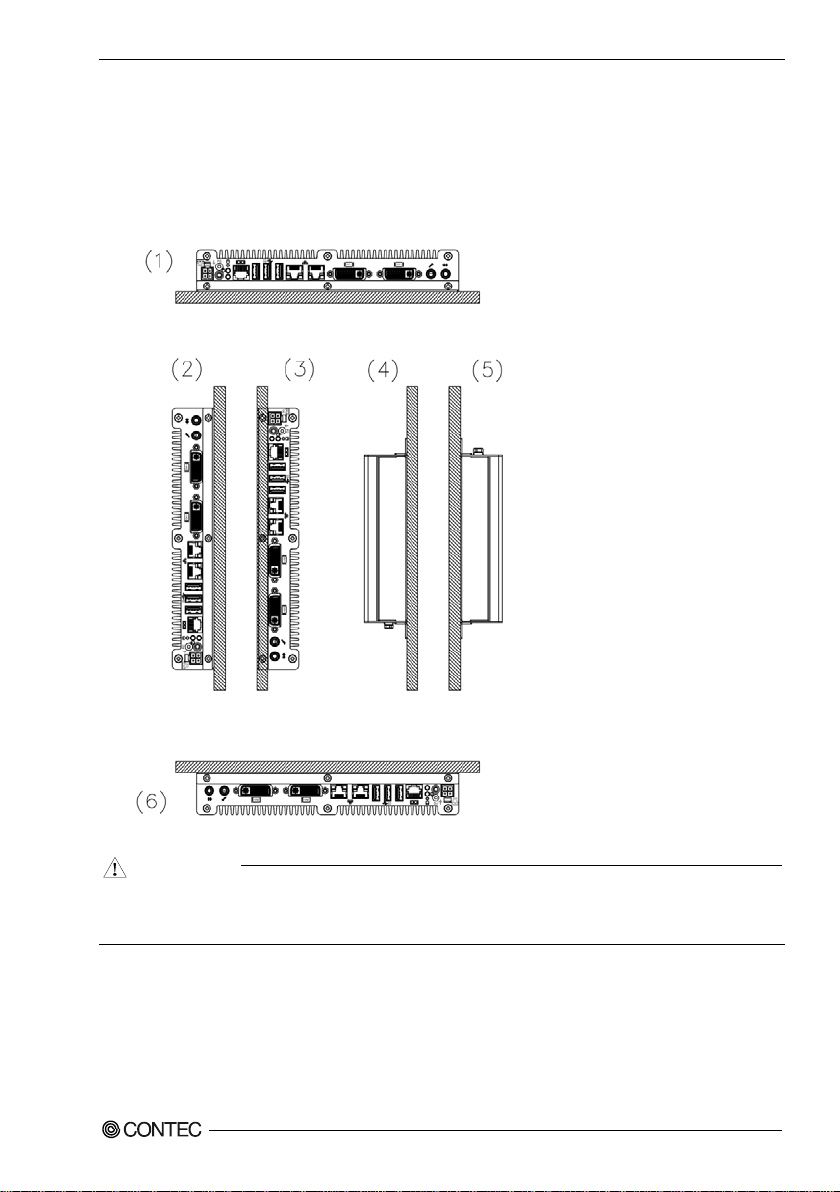

Installation Methods ................................................................................................................... 14

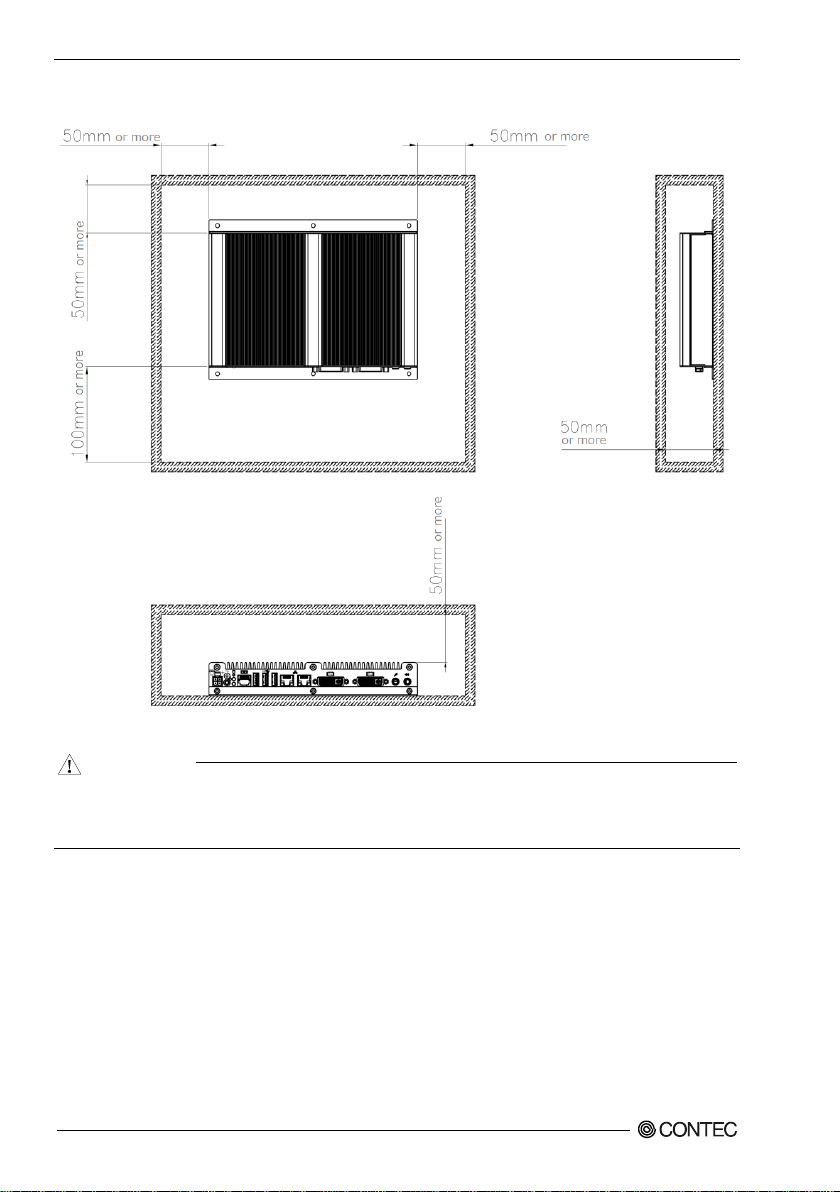

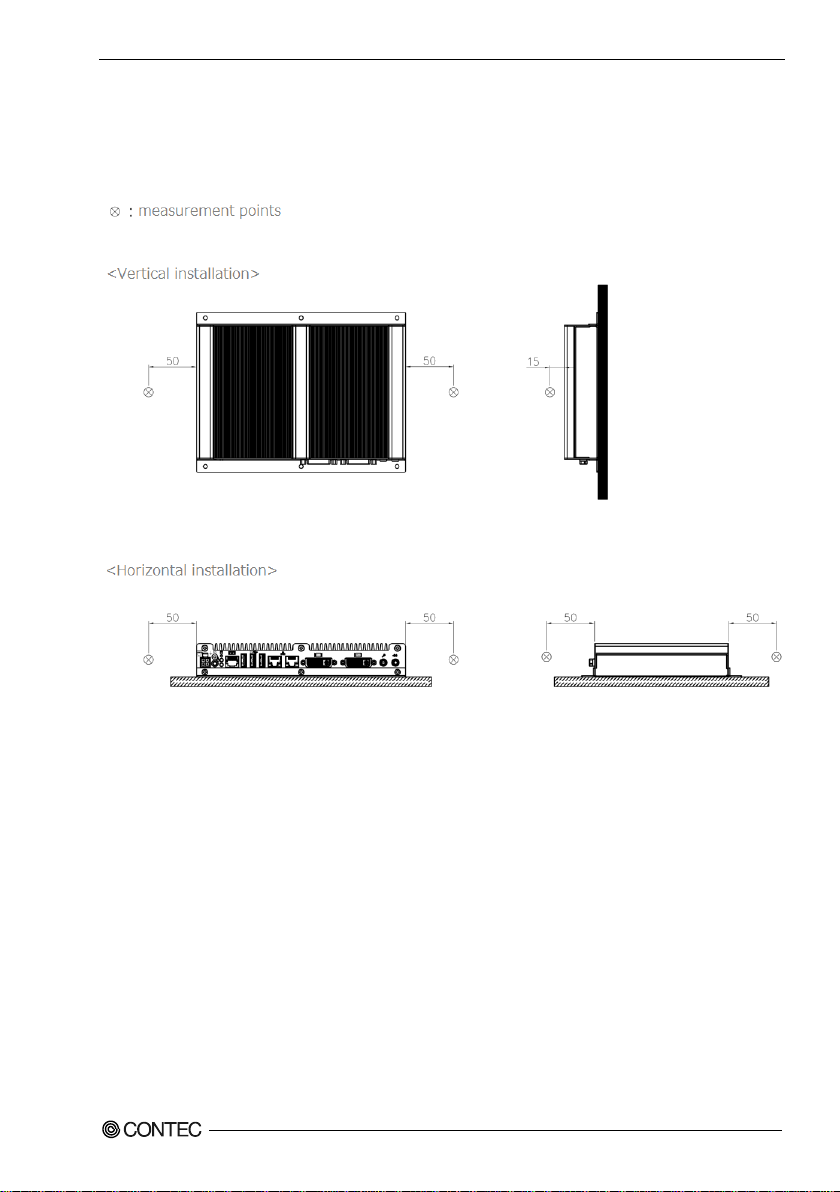

Installation Requirements ........................................................................................................... 15

4. EACH COMPONENT FUNCTION 19

Component Name .............................................................................................................................. 19

System Configurati on ........................................................................................................................ 19

LED: POWER, ACCESS, STATUS .......................................................................................... 20

DS-380D Series User’s manual

iii

Page 5

DC Power Input Connector : DC-IN .......................................................................................... 20

Power Switch : POWER SW ...................................................................................................... 20

Line out Interface: LINE OUT ................................................................................................... 20

MIC in Interface: MIC IN .......................................................................................................... 20

Giga bit-Ethern et : LAN ............................................................................................................. 21

USB Ports : USB 3.0 .................................................................................................................. 22

Serial Port Int erfa ce : SERIAL ................................................................................................... 22

DVI In terface : DV I ................................................................................................................... 23

5. BIOS SETUP 25

Introduction ....................................................................................................................................... 25

Starting Setup .................................................................................................................................... 25

Using Setup ....................................................................................................................................... 26

Getting Help ............................................................................................................................... 26

In Case of Problems ................................................................................................................... 26

A Final Note About Setup .......................................................................................................... 26

Main Menu ........................................................................................................................................ 27

Setup It ems ................................................................................................................................. 27

Main .................................................................................................................................................. 28

Advanced ........................................................................................................................................... 29

PCI Subsystem Settings.............................................................................................................. 31

ACPI Settings ............................................................................................................................. 32

CPU Configuration ..................................................................................................................... 33

Node 0 Information .................................................................................................................... 34

EuP/ErP P ower Saving C ontroller .............................................................................................. 35

IDE Configuration ...................................................................................................................... 36

Shutdown Temperature Configuration ....................................................................................... 37

iSmart Controller ........................................................................................................................ 38

USB Configuration ..................................................................................................................... 41

NCT6106D Super IO Configuration .......................................................................................... 42

Serial Po r t x Configu ration (x =0, 1) .......................................................................................... 43

NCT6106D HW Monitor ........................................................................................................... 44

Chipset............................................................................................................................................... 45

South Bridge ............................................................................................................................... 46

SB SATA Con figuration ............................................................................................................ 47

SB USB Configuration ............................................................................................................... 48

North Bridge ............................................................................................................................... 49

Socket 0 Information .................................................................................................................. 50

Boot ................................................................................................................................................... 51

CSM parameters ......................................................................................................................... 54

Security ............................................................................................................................................. 55

Save & Exit ....................................................................................................................................... 56

DS-380D Series User’s manual

Page 6

6. APPENDIX 59

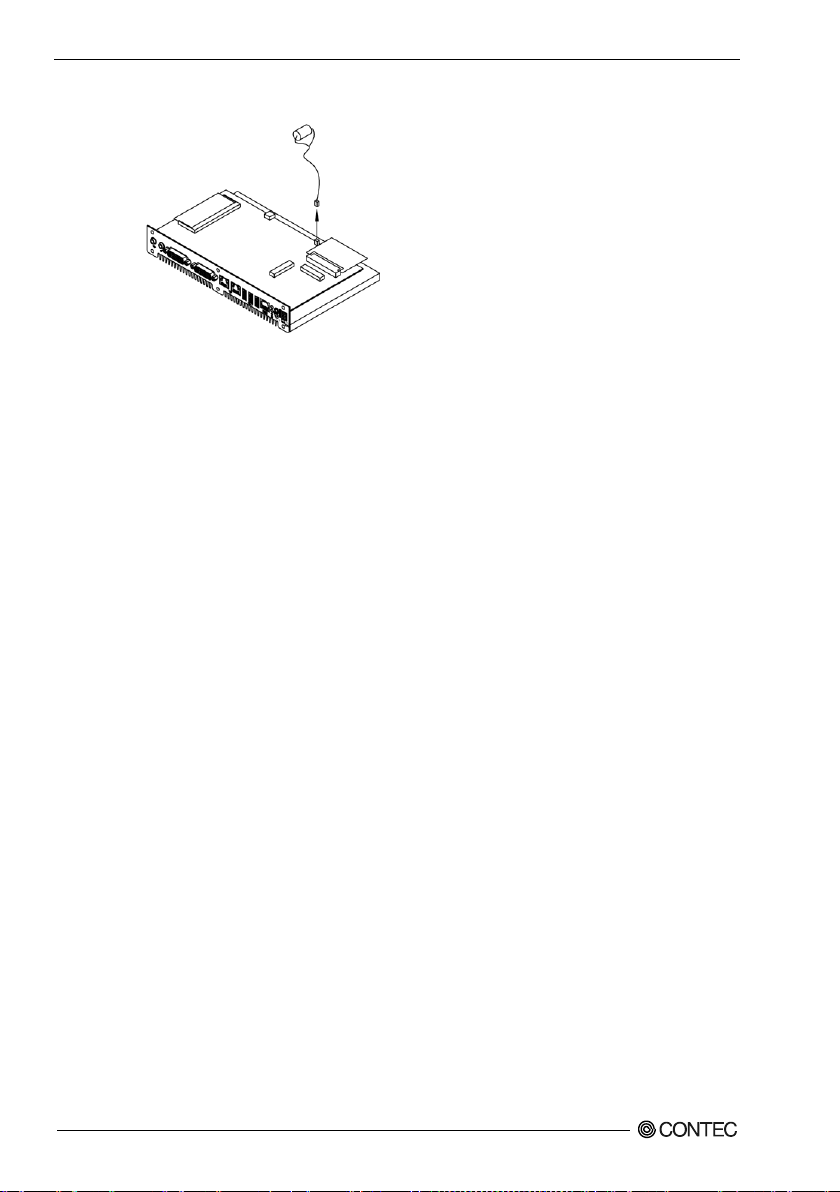

Battery ............................................................................................................................................... 59

7. LIST OF OPTIONS 61

DS-380D Series User’s manual

Page 7

DS-380D Series User’s manual

Page 8

1. Introduction

DS Series are the products assumed to be used at ordinary environment and market as

1. Introduction About the Product

This product is a signage STB that is equipped with a 1.6 GHz, R-452L AMD Embedded R-Series Quad-Core APU (Accelerated Processing Unit). The improved graphics capabilities of the APU make it possible to smoothly play full-HD videos th rough the DVI-I interface. For storage, this product is standard-equipped with an 8GB mSATA drive or with a 32GB Half-Slim SSD drive. The body is so compact and supports SATA interface which can transport data at high speed. It enables you to read high-quality movie, store so big data and transport data at high bit rate.

"Digital Signage".Operating environment condition, supply period, maintenance period and other conditions are different from ones of our industrial products (IPC Series, BOX-PC, PT-Series and others).For details, please consult our retailer.

This product is available in the following 6 models :

- Windows® Embedded 8.1 Industry Pro 64bit (Japanese version) installed model DS-380D-DC741D (Memory 4GB, mS ATA 8 GB, Ha l f-Slim SSD 32GB)*1

- Windows® Embedded 8.1 Industry Pro 64bit (English version) installed model DS-380D-DC741E (Memory 4GB, mSATA 8GB, Half-Slim SSD 32GB)*1

- Windows® Embedded Standard 7 32bit (Japanese version) installed model DS-380D-DC7512 (Memory 4GB, mSATA 8GB, Half-Slim SSD 32GB)*2

- Windows® Embedded Standard 7 32bit (English version) installed model DS-380D-DC7516 (Memory 4GB, mSATA 8GB , H alf-Slim SSD 32GB)*2

- Windows® Embedded Standard 7 64bit (Japanese version) installed model DS-380D-DC7517 (Memory 4GB, mSATA 8GB, Half-Slim SSD 32GB)*2

- Windows® Embedded Standard 7 64bit (English version) installed model DS-380D-DC7518 (Memory 4GB, mSATA 8GB, Half-Slim SSD 32GB)*2

*1: The OS is installed on the Half-Slim SSD drive. *2: The OS is installed on the mSATA.

Features

- Equipped with DVI output to support high-definition video

This product is standard-equipped with two DVI output ports that support displays of 1920 × 1080 pixels. You can create dual-screen applications just by using this product as a standalone device.

- Equipped with a high-performance Quad-Core APU

This product has a built-in graphics processing unit (GPU) and is equipped with a 1.60GHz, R-452L AMD Embedded APU. It supports applications which require high-speed processing.

- Discrete GPU -quality graphic processing

This product has APU that is equipped with GPU (AMD Radeon HD 7600G) that features discrete GPU-quality. It supports DirectX 11 and OpenCL

DS-380D Series User’s manual

1.1

Page 9

1. Introduction

- Fanless / slitless design that reduces maintenance work This product has a completely spindleless design in which the CPU fan has been eliminated and mSATA and Half-Slim SSD drives have been used for storage. This eliminates concerns about the ingress of dust and other foreign matter into the product. By minimizing the use of parts that degrade over time, we have greatly reduced the cost of maintenance and inspection.

- Remote power management function to reduce operation tasks This product supports timed/automated system start-up (iSmart). For example, it enables unattended operation, such as starting to show information of an establishment in unison at opening time. Also, it supports system start-up externally via network (Wake On LAN). It encourages significant labor saving in operation.

- Major types of peripherals are supported with rich interfaces It has a variety of extended interface such as DVI-I x 2, 1000BASE-T x 2, USB3.0 x 3 and serial. This makes it possible to use this product in a variety of situations.

- Falling-off prevention tools and fixing clamps provided to avoid trouble caused by disconnected cable

The USB removal prevention fitting and cable clamp enable you to prevent disconnections of USB cables and other connectors that are not equipped with locking mechanisms, which enables you to prevent problems from occurring.

- Models available with Windows Embedded 8.1 Industry Pro and Windows Embedded Standard 7 installed

For Windows Embedded Standard installed model, it is possible to use the EWF*1 function of OS. It is designed for safety required for embedding purpose, for example, prohibiting unwanted writing to the mSATA or Half-Slim SSD with EWF function will relieve the concern about the writing limits to the mSATA or Half-Slim SSD and prevent an unintentional system alteration.

*1 EWF (Enhanc ed Wr it e Filt er) is a function specific to Windows Embedded St andard that protects t he disk from being actua ll y written

redirecting the wri ting to RAM.

- A wide range of power supplies (10.8 - 26.4VDC) supported

As the product supports a wide range of power (10.8 - 26.4VDC), it can be used in a variety of power environments. The separately available AC adapter adds support for 100VAC power.

Supported OS

- Windows® Embedded 8.1 Industry Pro 64bit Japanese/English

- Windows® Embedded Standard 7 32bit/64bit Japanese/English

DS-380D Series User’s manual

Page 10

1. Introduction

Customer Su pport

CONTEC provides the following support services for you to use CONTEC products more efficiently and comfortably.

Web Site

Japanese http://www.contec.co.jp/ English http://www.contec.com/ Chinese http://www.contec.com.cn/

Latest product information CONTEC provides up-to-date information on products.

CONTEC also provides product manuals and various technical documents in the PDF. Free download

You can download updated driver software and differential files as well as sample programs available in several languages.

Note! For product information Contact your retailer if you have any technical question about a CONTEC product or need its price,

delivery time, or estimate information.

Limited One-Year Warranty

CONTEC products are warranted by CONTEC CO., LTD. to be free from defects in material and workmanship for up to one year from the date of purchase by the original purchaser. Repair will be free of charge only when this device is returned freight prepaid with a copy of the original invoice and a Return Merchandise Authorization to the distributor or the CONTEC group office, from which it was purchased. This warranty is not applicable for scratches or normal wear, but only for the electronic circuitry and original products. The warranty is not applicable if the device has been tampered with or damaged through abuse, mistreatment, neglect, or unreasonable use, or if the original invoice is not included, in which case repairs will be considered beyond the warranty policy.

How to Obtain Service

For replacement or repair, return the device freight prepaid, with a copy of the original invoice. Please obtain a Return Merchandise Authorization number (RMA) from the CONTEC group office where you purchased before returning any product. * No product will be accepted by CONTEC group without the RMA number.

Liability

The obligation of the warrantor is solely to repair or replace the product. In no event will the warrantor be liable for any incidental or consequential damages due to such defect or consequences that arise from inexperienced usage, misuse, or malfunction of this device.

Safety Pr ecautions

Understand the following definitions and precautions to use the product safely.

DS-380D Series User’s manual

Page 11

1. Introduction

DANGER

ARNING

CAUTION

ANG

WARNING

Safety Information

This document provides safety information using the following symbols to prevent accidents resulting in injury or death and the destruction of equipment and resources. Understand the meanings of these labels to operate the equipment safely.

DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.

WARNING indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury.

CAUTION indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury or in property damage.

Caution on the DS-380D Series

Handling Precautions

- Do not use the included AC adapter or the included AC power cable in combination with the AC

adapter or AC power cable of another product. Do not use the included AC adapter and AC power cable with any products other than this product.

- Do not disassemble or modify the product or replace any of its part s. Doing so may lead to

electric shock, fire, or product failures. In addition, CONTEC may not be able to provide servicing for the product if you modify it.

- Do not attempt to replace the battery as inappropriate battery replacement poses a risk of exp l osion.

- Always check that the power supply is turned off before connecting or disconnecting power cables.

- This product is not intended for use in aerospace, space, nuclear power, medical equipment, or

other applications that require a very high level of reliability. Do not use the product in such applications.

- If using this product in applications where safety is critical such as in railways, automotive, or

disaster prevention or security systems, please contact your retailer.

DS-380D Series User’s manual

Page 12

1. Introduction

CAUT

- Do not use or store this product in a location exposed to high or low temperature that exceeds range of specification or susceptible to rapid temperature changes. Example: - Exposure to direct sun

- In the vicinity of a heat source

- Do not use t his product in extremely humid or dusty locations. It is extremely dangerous to use this product with its interior penetrated by water or any other fluid or conductive dust. If this product must be used in such an environment, install it on a dust-proof control panel, for example.

- Avoid using or storing this product in locations subject to shock or vibration that exceeds range of specification.

- Do not use t his product in the vicinity of devices that generate strong magnetic force or noise. Such products will cause this product to malfunction.

- Do not use or store this product in the presence of chemicals.

- To clean this product, wipe it gently with a soft cloth dampened with either water or mild detergent. Do not use chemicals or a volatile solvent, such as benzene or thinner, to prevent pealing or discoloration of the paint.

- This product’s case may become hot. To avoid being burned, do not touch that section while this product is in operation or immediately after turning off the power. Avoid installation in a location where people may come into contact with that section.

- CONTEC does not provide any guarantee for the integrity of data on storage device.

- Be sure to disconnect the power cable from the outlet before connecting cables to and disconnecting cables from the connectors and before configuring hardware settings such as switches.

- To prevent corruption of files, always shutdown the OS before turning off this product.

- CONTEC reserves the right to refuse to service a product modified by the user.

- In the event of failure or abnormality (foul smells or excessive heat generation), unplug the power cord immediately and contact your retailer.

- To connect with peripherals, use a grounded, shielded cable.

- When transporting the product, implement sufficient countermeasures to prevent the product from being directly subjected to vibrations and impacts.

- You cannot clear the BIOS settings of this product. If you change the BIOS settings and become unable to boot the computer, it will have to be repaired.

- If the battery needs to be replaced, the product will have to be repaired. In this situation, contact your retailer.

- When disposing of used batteries, do so properly as instructed by the local government.

- Component Li fe :

(1) Battery---The internal calendar clock and CMOS RAM are backed by a Lithium primary battery.

The backup time at a temperature of 25°C with the power disconnected is 10 years.

DS-380D Series User’s manual

Page 13

1. Introduction

This equipment has been tested and found to comply with the limits for a Class A digital device, pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in commercial environment. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with th

e instruction manual, may cause harmful interference to radio communications. Operation of this equipment in a residential area is likely to cause harmful interference at his own expense.

NOTE

Change or modifications not expressly approved the manufacturer can void the user's authority to operate this equipment.

WARNING TO USER

(2) mSATA,Half-Slim SSD ---This model uses a mS ATA or Half-Slim SSD in the OS storage area.

The NandFlash can be rewritten 60,000 times or more for the mSATA drive and

3,000 times or more for the Half-Slim SSD drive. As a reference v alue, th e rewrita ble lifetime can be dete r mined b y the following calculation. Rewritable lifetime (number of times) = ((capacity [MB] / management block size [MB]) × 60,000 times) / (number of management blocks rewritten each time) Example: If a 4MB file is created on an 8GB mSATA drive and is rewritten once every 10 seconds: Rewritable lifetime = ((8,012/2) × 60,000)) / 2 = 120,180,000 (number of times) Lifetime = 120,180,000 / ((60/10) × 60 × 24 × 365)≒38 (year) Example: If a 4MB file is created on an 32GB Half-Slim SSD drive and is rewritten once every 10 seconds: Rewritable lifetime = ((30,533/2) × 3,000)) / 2 = 22,899,750 (number of times) Lifetime = 22,899,750 / ((60/10) × 60 × 24 × 365)≒7 (year)

(3) AC adapter---The "PWA-84AWD1" optional product is included in the package. For details on

the lifetime, see the "PWA-84AWD1" user's manual, which can be downloaded from the CONTEC website.

* Replacement of expendables is handled as a repair (there will be a charge). * Component life is not guaranteed value but only referential value.

FCC PART 15 Class A Notice

DS-380D Series User’s manual

Page 14

2. System Reference

Model

DS-380D-DCxxxx

CPU

AMD R-Series Quad-Core APU R-452L 1.6GHz

Chip set

AMD A70M Controller Hub

BIOS

BIOS (mfd. by AMI)

Memory

4GB (2GB x 2 204pin SO-DIMM socket x 2), PC3-12800 DDR3 SDRAM

Video

Controller AMD Radeon™ HD 760 0G

Video RAM

Main memory shared

Display I/F

DVI-I I/F x 2 (29 pin connector x 2)

System resolution *1

DVI

800 x 600, 1024 x 600, 1024 x 768, 1280 x 720, 1280 x 768, 1280 x 1024,

1920 x 1080@60Hz (16,770,000 colors)

Audio

HD Audio compliant

Full-scale input level 1.4Vr ms(Typ.)

mSATA

1 slot, mSATA 8GB *2 is f inished mounting, bootable *3

Serial ATA

1 slot, Half-Slim SSD 32GB *2 is finished mounting, bootable *3

Serial I/F

RS-232C (general-purpose) : 1ch (SERIAL PORT) 10pin RJ- 50 connector Baud rate : 50 - 115,200bps

LAN *4 I/F

1000BASE-T/100BASE-TX/10BASE-T RJ-45 connector x 2 (Wake On LAN support)

Controller

Realtek 8111G Controller

USB I/F

3channels (USB 3.0-compli ant)

Keyboard/mouse I/F

None *5

General-purpose I/O

None

Hardware monitoring

Monitoring CPU temperature, board temperature, power voltage

Watch dog timer

Software programmable, 255 level (1sec - 255 sec) Causes a reset upon time-out.

RTC/CMOS

Lithium backup battery life : 10 years or more The real-time clock is accurate within ±3 minutes (at 25°C) per month

Power Management

Power management setup via BIOS

Supports ACPI Pow er management

Power supply

Rated input voltage

12 - 24VDC *6

Range of input vol tage

10.8 - 26.4VDC

Power consumption

12V 6.5A (Max.), 24V 3.3A (Max.)

External device power supply capacity

- USB I/F : +5V 2.7A (900mA x 3) Physical dimensions (mm)

218mm (W) x 140mm (D) x 35mm (H) (No protrusions)

Weight

About 1.83kg

System Reference

2. Specification

Table 2.1. Functional Specification

1360 x 768, 1366 x 768, 1400 x 1050, 1440 x 900, 1600 x 900, 1680 x 1050,

LINE OUT: φ3.5 Stereo mini jack Full-scale output level 1.15Vrms (Typ.), MIC IN: φ3.5 Stereo mini jack

Power On by Ring / Wake On LAN

*1 : It may not be possible for the screen to be displayed correctly depending on the specifications of the connected

display. Also, when the OS is Windows Embedded Standard 7 and a DVI display is connected, although all the

resolutions shown in this table can be set for the resolution setting of the OS, use the produ ct with a resolution

that matches the specifications of th e connected display.

*2 : The disk capacities are values calculated with 1GB representing 1 billion bytes. The capacity that can be

recognized by the OS may be smaller than the actual capacity.

DS-380D Series User’s manual

Page 15

2. System Reference

Model

DS-380D-DCxxxx

Operating temperature *7

0 - 45°C (When using 1000BASE-T : 0 - 40°C)

Storage te mperature

-10 - 60°C

Humidity

10 - 90%RH (No condensation)

Floating dust particles

Not to be excessive

Corrosive gases

None

AC line / ±2kV *8, Signal line / ±1kV (IEC61000-4-4 Level 3, EN61000-4-4 Level 3)

Static

10 - 57Hz/semi-ampli tude 0.15 mm 57 - 150Hz/2.0G

(JIS C60068-2-6, IEC60068-2-6-compliant)

Others

JIS E4031-compliant Classification : 1 class : B

10G, half-sine shock for 11 ms in x, y, and z directions

JIS E4031-compliant Classification : 1 class : B

Grounding

Class D grounding (previous class 3 grounding), SG-FG / continuity

*3 : The storage that is installed varies depending on the OS model.

- mSATA 8GB DS-380D-DC7512 : Windows Embedded Standard 7 32bit Japanese DS-380D-DC7516 : Windows Embedded Standard 7 32bit English DS-380D-DC7517 : Windows Embedded Standard 7 64bit Japanese DS-380D-DC7518 : Windows Embedded Standard 7 64bit English

- Half-Slim SSD 32GB DS-380D-DC741D : Windows Embedded 8.1 Industry Pro 64bit Japanese DS-380D-DC741E : Windows Embedded 8.1 Industry Pro 64bit English

*4 : If you use the 1000BASE-T, be careful of the operating temperature. For more details on this, refer to chapter3,

Installation Requirements. *5 : Use USB I/F for the keyboard / mouse. *6 : Use a powe r cable shorter than 3m.

For details, see the "PWA-84AWD1" user's manual, which can be downloaded from the CONTEC website.

Table 2.2. Installation Environment Requirements

Line-noise resistance

Vibration resistance

Impact resistance

*7 : For more details on this, please refer to chapter 3, “Installation Requirements”.

*8 : When PWA-84AWD1 is used.

Line noise

electricity resistance

Sweep resistance

Contact discharge / ±4kV (IEC61000-4-2 Level 2, EN61000-4-2 Level 2), Atmospheric discharge / ±8kV (IEC61000-4-2 Level 3, EN61000-4-2 Level 3)

40 min. each in x, y, and z directions

(JIS C 60068-2-27, IEC 60068-2-27-compliant)

DS-380D Series User’s manual

Page 16

2. System Reference

DC Voltage

Acceptable Tolerance

+ 12V - 24V

+ 10.8 - 26.4VDC

Power Managemen t Features

- Support ACPI (Advanced Configuration and Power Interface).

Power Requirements

Your system requires a clean, steady power source for reliable performance of the high frequency CPU on the product, the quality of the power supply is even more important. For the best performance makes sure your power supply provides a range of 12 V minimum to 24 V maximum DC power source.

Power Consumption

For typical configurations, the CPU card is designed to operate with at least a 84W power supply. The power supply must meet the following requirements :

- Rise time for power supply: 2 ms - 30 ms

The following table lists the power supply’s tolerances for DC voltages:

Table 2.3. DC voltage tolerance

DS-380D Series User’s manual

Page 17

2. System Reference

Physical Di mensions

DS-380D-DCxxxx

Figure 2.1. DS-380D-DCxxxx

DS-380D Series User’s manual

Page 18

3. Hardware Setup

CAUTION

3. Hardware Setup

Before Using th e Product for the First Time

Follow the next steps to set up this product: STEP1 By referring to the information in this chapter, install, connect and set this product. STEP2 Connect cables.

Connect the cable of necessary external devices, such as keyboard and a display, to this product using appropriate cables.

STEP3 Turn on the power.

After verifying that you have correctly followed steps 1 and 2, turn on the power. If you find any abnormality after turning on the power, turn it off and check to see if the setup has been performed properly.

STEP4 Set up BIOS.

By referring to Chapter 5, set up BIOS. This setup requires a keyboard and a monitor. *1 Before using this product, be sure to execute "Restore Defaults" to initialize the BIOS

settings to their default values. (See Chapter 5, "Sav e & E xi t".)

Be sure to connect the keyboard and mouse to it before turning the power on for the first time.

DS-380D Series User’s manual

Page 19

3. Hardware Setup

CAUTION

Hardware Set up

- Before you start, be sure that the power is turned off.

- Remove only those screws that are explained. Do not move any other screw.

Attaching the Attachment Fittings

(1) Use screws to attach the bundled attachment fittings with a screw.

(The attachment fittings are attached to the product when it is shipped.)

Do not tighten screws with excess force.

* Attached screw (M3)

Figure 3.1. Attaching the At tac h men t Fi tti ng s

Attaching the FG

Use screws to attach the FG. (The screw is attached to the product when it is shipped.)

* Attached screw (M3)

Figure 3.2. Attaching the FG

The FG pin of this product is connected to the GND signal of the DC power connector (DC-IN).

Note that the connection cannot be cut off.

Screw holes may be damaged if screws are tightened with a torque greater than the specified

torque.The specified tightening torque is 5 - 6kgf⋅cm.

DS-380D Series User’s manual

Page 20

3. Hardware Setup

Fastening the Cable

This product comes with clamps for fixing cables.

Fastening the USB Cable With this product, you can prevent disconnections of USB connectors that are not equipped with locking

mechanisms by using the cable clamp. Use the cable clamp by matching it to the connection status and wiring directions of the cables. Use the clamp to fix the connectors in place so that stress is not applied to them.

* Attached screw (M3 x 6, M3 x 8)

Figure 3.3. Attaching the c able clamp

DS-380D Series User’s manual

Page 21

3. Hardware Setup

Installation Methods

Use screws to attach the attachment fittings to the installation surface. Do not apply excessive force when tightening the screws .

Figure 3.4. Installation Methods

DS-380D Series User’s manual

Page 22

3. Hardware Setup

CAUTION

Installation Requirements

Be sure that the operating temperature is within the range specified in the installation environment requirement by making space between the product and device that generates heat or exhaust air.

DS-380D-DCxxxx

Installable directions at operating temperature 0 - +45°C (When using 1000BASE-T : 0 - +40°C)

Figure 3.5. Installation Orientation (DS-380D-DCxxxx)

Note that even though the ambient temperature is within the specified range, an operational

DS-380D Series User’s manual

malfunction may occur if there is other device generating high heat; the radiation will influence the product to increase its temperature.

Page 23

3. Hardware Setup

CAUTION

Distances between this product and its vicinity

Figure 3.6. Distances between this pr oduct and its vicinity

Do not install this product into the fully-sealed space except the c ase in which the internal

temperature is adjustable by equipment such as air conditioner. Troubles such as operational

malfunctions could be occurred by the temperature increase caus ed by long-term usage.

DS-380D Series User’s manual

Page 24

3. Hardware Setup

Operating temperature In this product, the operating temperature is decided from the multiple measurement points as shown

below. When making use of the product, the air current should be adjusted to prevent that all the temperatures measured a t the measurement points exceed the specified tem peratur e. *1

Figure 3.7. Operating tempera t ur e

*1 The operating temperature specifications are met with the following installation environment

requirements.

Installation direction :Vertical installation Operating temperature :45°C (10BASE-T/100BASE-T), 40°C (1000BASE-T) Air f low :0.5m/s Load state : - CPU utilization 100%

- Memory, storage Read/Write

- Continuous operation of all interfaces (COM, LAN x 2, DVI-I x 2, MIC, LINE-OUT)

* It is assumed that USB mice, USB keyboards, or other USB 3.0 devices

(900mA loads) will be used with the three USB 3.0 ports.

* 2D graphics and 3D graphics (1920 × 1080) are displayed.

DS-380D Series User’s manual

Page 25

3. Hardware Setup

DS-380D Series User’s manual

Page 26

4. Each Component Function

Name

Function

POWER-SW

Power switch

POWER LED

Power ON display LED

ACCESS LED

Disk access display LED

DC-IN

DC power input connector

LINE OUT

Line out ( φ3.5 PHONE JACK)

MIC IN

Mike in (φ3.5 PHONE JACK)

LAN

Ethernet 1000BASE-T/100BASE-TX/10BASE-T RJ-45 connector x 2

USB

USB 3.0 port connector x 3

SERIAL

Serial port connector (10pin RJ-50connector)

DVI-I

Display (29pin D-SUB/female) x 2

Each Compone n t Fu nc t io n

Component Name

Figure 4.1. Component N ame

Table 4.1. Component Function

System Configuration

DS-380D Series User’s manual

Page 27

4. Each Component Function

LED name

State

Display contents

POWER LED

OFF

Indicate s that this product is swi tched off.

ON (Green)

Indicate s that this product is swi tched on.

ACCESS LED

ON (Orange)

Indicate s that the storage device is being accessed.

Connecto r type

9360-04P(mfd. by ALEX)

2 1

Pin No.

Signal name

GND

12 - 24V

Time

12V

Voltage

2 - 30mS

LED: POWER, AC CESS, STATUS

There are 2 LED in front of this product.

Table 4.2. Display Contents of LED

DC Power Input Connecto r : D C-IN

To supply the power, always use the power supply listed below. Rated input voltage : 12 - 24VDC Range of input voltage : 10.8 - 26.4VDC Power capacity : 12V 3.0A or more, 24V 1.6A or mo re

Table 4.3. DC Power Connector

Applicable connector on the connector side Housing : 9357-04 (mfd. by ALEX) or 5557-04R (mfd. by MOLEX) Contact : 4256T2-LF (AWG18-24) (mfd. by ALEX) or 5556 (AWG18-24) (mfd. by MOLEX)

Rise time of power supply

Figure 4.3. Graph of Rise Time of Power Sup ply

Power Switch : POWER SW

POWER SW is provided.

Line out Interface: LINE OUT

A line output connector is provided. You can plug a headphone or amplifier-integrated speakers into this connector.

MIC in Interface: MIC IN

A MIC input connector is provided. You can plug a microphone to this connector for sound input.

DS-380D Series User’s manual

Page 28

4. Each Component Function

LAN

Function

10BASE-T

100BASE-TX

TX+

TRD+(0)

TX-

TRD-(0)

RX+

TRD+(1)

N.C.

TRD+(2)

N.C.

TRD-(2) 6 RX-

TRD-(1)

N.C.

TRD+(3)

N.C.

TRD-(3)

CAUTION

Giga bit-Ethernet : LAN

This prod uct is equipped with 2 ports for giga bit.

- Network t ype : 1000BASE-T/100BASE-TX/10BASE-T

- Transmission speed : 1000M/100M/10M bps

- Max. network path length : 100m/segment

- Controller : Realtek 8111G

Table 4.4. Giga bit-Ethernet Connector

Pin No.

LEDs for display of network statuses: Right LED : Link LED

Normal connection : Orange ON, Operation: Orange Blinking Left LE D : Operation LED 10M : Off, 100M : Green, 1000M : Orange

- Be careful of the guaranteed operating temperature when using the 1000BASE-T network type. For details, see "Installation Requirements" in chapter 3. When using this product in an environment with a temperature of 0 to 45°C, set the network type to 100BASE-TX or 10BASE-T.

- If you are using the Wake On LAN (WOL) function, set the OS driver setting "Wake on Magic Packet" to "Enabled". Also enable WOL from the BIOS setup screen. (For details, s ee "EuP/ErP Power Saving Controller" under "Advanced" in chapter 5.)

1000BASE-T

DS-380D Series User’s manual

Page 29

4. Each Component Function

Signal

I/O address

Interrupt

3F8h - 3FFh

IRQ 4

Connector used on

10-pin RJ-50 (male)

Signal

DSR

Data set ready

Input

GND

Signal ground

-----

GND

Signal ground

-----

TXD

Transmitted data

Output

RXD

Received data

Input

DCD

Carrier detect

Input

DTR

Data terminal ready

Output

CTS

Clear to send

Input

RTS

Request to send

Output

Ring indicator

Input

USB Ports : USB 3.0

This product is equipped with 3 channels for USB 3.0 interface. You have to configure the BIOS settings to use USB 3.0. For details on the BIOS settings, see "SB USB Configuration" under "South Bridge" under "Chipset" in chapter 5.

Table 4.5. USB Co nnector

No.

name

SSTX+

SSTX-

GND

SSRX+

SSRX-

Signal name

No.

1 USB_VCC

2 USB-

3 USB+

4 USB_GND

Serial Port Interface : SERIAL

SERIAL (RS-232C port) This product is equipped with one serial port that complies with RS-232C. This port has a baud rate of

115,200 bps (max.), a dedicated data transmission buffer of 16 bytes, and a dedicated data reception buffer of 16 bytes. You can use the BIOS setup (see chapter 5) to set the I/O address and interrupt of this port and to disable the port. (The same I/O address and IRQ cannot be shared with any other device.)

Table 4.6. SERIAL B I/O Addre sses and Interrupts

Table 4.7. Serial Port Connector

the product

Pin No.

name

Meaning Direction

DS-380D Series User’s manual

Page 30

4. Each Component Function

Connecto r type

DVI-I 29 pin

Signal

DATA2-

N.C.

RED

DATA2+

+5V

GREEN

DATA2

N.C.

HPD

HSYNC

N.C.

DATA0-

GND

DDC CLK

DATA0+

DATA0

SHIELD

VSYNC

N.C. 9 DATA1-

N.C.

DATA0

DATA1

SHIELD

N.C.

CLK-

DVI Interface : DVI

Two DVI interfaces are provided. The connector is named DVI (DVI-I 29-pin connector).

Table 4.8. DVI Connector

Pin No. Signal name Pin No.

SHIELD

7 DDC DATA 19

10 DATA1+ 22

name

15 GND C3 BLUE

SHIELD

23 CLK+

Pin No. Signal name

DS-380D Series User’s manual

Page 31

4. Each Component Function

DS-380D Series User’s manual

Page 32

5. BIOS Setup

BIOS Setu p

Introduction

This chapter discusses AMI’s Setup program built into the FLASH ROM BIOS. The Setup program allows users to modify the basic system configuration. This setup information is stored in battery backed-up RAM, so the setup information is maintained even when the computer's power is turned off.

The rest of this chapter is intended to guide you through the process of configuring your system using Setup.

Starting Setu p

The BIOS is immediately activated when you first power on the computer. The BIOS reads the system information contained in the FLASH ROM and begins the process of checking out the system and configuring it. When it finishes, the BIOS will seek an operating system on one of the disks and then launch and turn control over to the operating system.

While the BIOS is in control, the Setup program can be activated in one of two ways:

- By pressing <Del> or <F2> immediately after switching the system on, or

- By pres sing the <Del> or <F2> key when the following message appears briefly at the bottom of the screen during the POST (Power On Self-Test).

Press <DEL> or <F2> to enter setup.

If the message disappears before you respond and you still wish to enter Setup, restart the system to try again by turning it OFF then ON. You may also restart by simultaneously pressing <Ctrl>, <Alt>, and <Delete> keys.

DS-380D Series User’s manual

Page 33

5. BIOS Setup

Key

Function

Up Arrow

Move to the previous item

Down Arrow

Move to th e next item

Left Arrow

Move to the item on the left (menu bar)

Right Arrow

Move to the item on the right (menu bar)

Main Menu: Quit without saving changes Move Enter

Move to the item you desired

+ key

Increase the numeric value or make changes

- key

Decrease the numeric value or make changes

F1 key

General help on Setup navigation keys

F2 key

Load previous settings

F3 key

Load the optimized defaults

F4 key

Save all settings changes to the FLASH ROM and exit

Using Setup

In general, you use the arrow keys to highlight items, press <Enter> to select, use the “+” and “-” keys to change entries, press <F1> for help and press <Esc> to quit. The following table provides more detail about how to navigate in the Setup program using the keyboard.

Table 5.1. Using Setup

Esc

Submenus: Exit Cu rrent page to the n ext higher level menu

Getting Help

Press F1 to pop up a small help window that describes the appropriate keys to use and the possible selections for the highlighted item. To exit the Help Window press <Esc> or the F1 key again.

In Case of Problems

If it is not possible to boot the computer after system settings have been changed and saved during setup, this product will need to be repaired.

The best advice is to only alter settings which you thoroughly understand. To this end, we strongly recommend that you avoid making any changes to the CPU/chipset defaults. These defa ults ha ve been carefully chosen by both AMI and your systems manufacturer to provide the absolute maximum performance and reliability. If chipset settings are changed even slightly, it may become necessary to repair the unit.

A Final Note About Setup

The information in this chapter is subject to change without notice.

DS-380D Series User’s manual

Page 34

5. BIOS Setup

Aptio Setup Utility - Copyright (C) 20xx American Megatrends, Inc.

Main

Advanced

Chipset

Boot

Security

Save & Exit

BIOS Information Memory Information Total Memory XXXX MB(DDR3)

System Date [Mon MM/DD/YYYY] System Time

[HH:MM:SS]

Access Level

Administrator

→←:Select Screen ↑↓:Select Item

Enter:Select +/-:Change Opt. F1:General Help F2:Previous Values F3:Optimized Defaults F4:Save & Exit ESC:Exit

Version x.xx.xxxx. Copyright (C) 20xx American Megatrends, Inc.

Main Menu

Once you enter the AMI BIOS Setup Utility, the Main Menu will appear on the screen. By pressing the left or right arrow k eys, you will be able to move the tab of each item.

Figure 5.1. Main Manu

Setup Ite ms

You can choose the following tabs. Main Use this menu to confirm the system basic configuration and set the language and time at the same time.

Advanced Use this menu to set the detailed function that can setting to your system.

Chipset Use this menu to specify the setting about your chipset.

Boot Use this menu to specify the setting about the system boot.

Security Use this menu to set the pass word so that the system security can be protected.

Save & Exit Use this menu to load or save the setup item and to exit the setup menu.

DS-380D Series User’s manual

Page 35

5. BIOS Setup

Item

Options

Description

Set the Date. Use Tab to switch between Data elements.

Data elements.

Main

Use this menu to check basic system configuration. Settings that can be configured in the Main menu are described in the table below.

Table 5.2. Mai n Menu Selections

System Date Month / Day / Year

System Time Hour : Minute : Second

Set the Time . Use Tab to swi tch between

DS-380D Series User’s manual

Page 36

5. BIOS Setup

Aptio Setup Utility - Copyright (C) 20xx American Megatrends, Inc.

Main

Advanced

Chipset

Boot

Security

Save & Exit

▶PCI Subsystem Settings ▶ACPI Settings ▶CPU Configuration ▶EuP/ErP Power Saving Controller ▶IDE Configuration ▶Shutdown Temperature Configuration ▶iSmart Controller ▶USB Configuration ▶NCT6106D Super IO Configuration ▶NCT6106D HW Monitor

→←:Select Screen ↑↓:Select Item

Enter:Select +/-:Change Opt. F1:General Help F2:Previous Values F3:Optimized Defaults F4:Save & Exit ESC:Exit

Version x.xx.xxxx. Copyright (C) 20xx American Megatrends, Inc.

Advanced

Use this menu to set the detailed function that can setting to your system.

Figure 5.2. Advanced menu

Settings that can be configured in the Advanced menu are described in the table below. The following sub items are available:

PCI Subsystem Settings Use this menu to specify PCI Subsystem Settings.

ACPI Settings Use this menu to specify ACPI power management settings.

CPU Configuration Use this menu to specify CPU Configuration.

EuP/ErP P ower Saving C ontroller Use this menu to specify the power saving setting.

IDE Configuration Use this menu to specify IDE controller settings.

Shutdown Temperature Configuration Use this menu to set the shutdown temperature.

iSmart Controller Use this menu to specify the power-on and power-off settings.

DS-380D Series User’s manual

Page 37

5. BIOS Setup

USB Configuration Use this menu to specify USB Configuration.

NCT6106D Super I/O Configuration Use this menu to specify the super I/O settings.

NCT6106D HW Monitor Use this menu to view the hardware monitor.

DS-380D Series User’s manual

Page 38

5. BIOS Setup

Aptio Setup Utility - Copyright (C) 20xx American Megatrends, Inc.

Main

Advanced

Chipset

Boot

Security

Save & Exit

PCI Bus Driver Version V 2.05.02

PCI Common Settings PCI Latency Timer [32 PCI Bus Clocks] VGA Palette Snoop [Disabled] PERR# Generation [Disabled] SERR# Generation

[Disabled]

→←:Select Screen ↑↓:Select Item

Enter:Select +/-

:Change Opt. F1:General Help F2:Previous Values F3:Optimized Defaults F4:Save & Exit ESC:Exit

Version x.xx.xxxx. Copyright (C) 20xx American Megatrends, Inc.

Item

Options

Description

32 PCI Bus Cl ocks

248 PCI Bus Clocks

Disabled

Enabled

Enables or disables VGA Pal ette Registers

Disabled

Enabled

Enables or disabl es PCI device to generate

Disabled

Enabled

Enables or disabl es PCI device to generate

PCI Subsystem Settings

Use this menu to specify P CI Subsystem Settings.

Figure 5.3. PCI Subsystem Settin gs

Items that can be configured for PCI subsystem settings are described in the table below.

Table 5.3. PCI Su bs ystem Settings

64 PCI Bus Clocks 96 PCI Bus Clocks

PCI Latency Timer

VGA Palette Snoop

PERR# Generation

SERR# Generation

DS-380D Series User’s manual

128 PCI Bus Clocks 160 PCI Bus Clocks 192 PCI Bus Clocks 224 PCI Bus Clocks

Value to be programmed into PCI Latency Timer Regi ster.

Snooping.

PERR#.

SERR#.

Page 39

5. BIOS Setup

Aptio Setup Utility - Copyright (C) 20xx American Megatrends, Inc.

Main

Advanced

Chipset

Boot

Security

Save & Exit

ACPI Settings Enable ACPI Auto Configuration [Disabled] Enable Hibernation [Enabled]

ACPI Sleep State [S3 (Suspend to RAM)] Lock Legacy Resources [Disabled]

→←:Select Screen ↑↓:Select Item

Enter:Select +/-:Change Opt. F1:General Help F2:Previous Values F3:Optimized Defaults F4:Save & Exit ESC:Exit

Version x.xx.xxxx. Copyright (C) 20xx American Megatrends, Inc.

Item

Options

Description

Enabled ACPI Auto

Disabled

Enabled

Disabled

Enabled

Enables or Disables System ability to Hibernate (OS/S4

S3(Suspend to RAM)

Select ACPI sleep state the system will enter, when the

Disabled

Enabled

ACPI Settings

Use this menu to specify ACPI power management settings.

Figure 5.4. ACPI Setting s

Settings that can be configured in the ACPI Settings are described in the table below.

Table 5.4. ACPI Settings

Configuration

Enable Hibernation

ACPI Sleep State

Lock legacy Resources

DS-380D Series User’s manual

Suspend Disabled

Enable or Disable ACPI Auto Configuration.

Sleep State). Thi s option may be not effective with some OS.

SUSPEND button is pressed.

Enabled or Disabled Lock of Legacy Resources.

Page 40

5. BIOS Setup

Aptio Setup Utility - Copyright (C) 20xx American Megatrends, Inc.

Main

Advanced

Chipset

Boot

Security

Save & Exit

CPU Configuration

Module Version : 4.6.5.1 TrinityPI 019 AGESA Version : 1.0.0.9

PSS Support [Enabled] PSTATE Adjustment [PState 0] PPC Adjustment [PState 0] NX Mode [Enabled] SVM Mode [Enabled] C6 Mode

[Auto]

▶Node 0 Information

→←:Select Screen ↑↓:Select Item

Enter:Select +/-:Change Opt. F1:General Help F2:Previous Values F3:Optimized Defaults F4:Save & Exit ESC:Exit

Version x.xx.xxxx. Copyright (C) 20xx American Megatrends, Inc.

Item

Options

Description

Disabled

Enabled

Enable/disable the generation of ACPI

PState 0

PState 7

PState 0

PState 4

Disabled

Enabled

Enable/disable No-execute page protection

Disabled

Enabled

Auto

Disabled

CPU Configuration

Use this menu to specify CPU Configuration.

Figure 5.5. CPU Configuration

Settings that can be configured in the CPU Configuration are described in the table below.

Table 5.5. CPU Configuraiton

PSS Support

PSTATE Adjustment

PPC adjustment

NX Mode

SVM Mode

C6 Mode

DS-380D Series User’s manual

PState 1 PState 2 PState 3 PState 4 PState 5 PState 6

PState 1 PState 2 PState 3

_PPC, _PPC, _PSS, and _PCT objects.

Provide to adjust startup P-state level.

Provide to adjust _PPC object.

function.

Enable/disable CPU Virtualization.

Auto/disable CPB.

Page 41

5. BIOS Setup

Aptio Setup Utility - Copyright (C) 20xx American Megatrends, Inc.

Main

Advanced

Chipset

Boot

Security

Save & Exit

Socket0: AMD R-452L APU with Radeon(tm) HD Graphics Quad Core Running @ 1620 MHz 887 mV Max Speed:1600 MHZ Intended Speed: 1600 MHZ Min Speed:900 MHZ Microcode Patch Level:6001119

--------- Cache per Core --------L1 Instruction Cache:32 KB/2-way

L1 Date Cache:16 KB/4-way

L2 Cache:1024 KB/16-way

No L3 Cache Present

→←:Select Screen ↑↓:Select Item

Enter:Select +/-:Change Opt. F1:General Help F2:Previous Values F3:Optimized Defaults F4:Save & Exit ESC:Exit

Version x.xx.xxxx. Copyright (C) 20xx American Megatrends, Inc.

The following sub items are available :

Node 0 Information View memory information related to Node 0.

Node 0 Information

Figure 5.6. Node 0 Information

DS-380D Series User’s manual

Page 42

5. BIOS Setup

Aptio Setup Utility - Copyright (C) 20xx American Megatrends, Inc.

Main

Advanced

Chipset

Boot

Security

Save & Exit

EuP/ErP standby power control [Keep standby power]

→←:Select Screen ↑↓:Select Item

Enter:Select +/-:Change Opt. F1:Gener

al Help F2:Previous Values F3:Optimized Defaults F4:Save & Exit ESC:Exit

Version x.xx.xxxx. Copyright (C) 20xx American Megatrends, Inc.

Item

Options

Description

[Keep standby power]

Shut down all of the standby power.

EuP/ErP Power Saving Controller

Figure 5.7. IEuP/ErP Power Saving Controller

The setting that can be configured on the EuP/ErP Power Saving Controller screen is described in the table below.

Table 5.6. EuP/ErP Power Saving Controller

EuP/ErP standby power con trol

DS-380D Series User’s manual

Keep standb y power Ethernet Only [WOL] No standby power

Enable All of the standby power and ignore EuP/ErP specification. [Ethernet Only] Only provide the standby power for Ethernet chip. [No standby power]

Page 43

5. BIOS Setup

Aptio Setup Utility - Copyright (C) 20xx American Megatrends, Inc.

Main

Advanced

Chipset

Boot

Security

Save & Exit

IDE Configuration SATA Port0 Not Present

SATA Port1 Not Present

→←:Select Screen ↑↓:Select Item

Enter:Select +/-:Change Opt. F1:General Help F2:Previous Values F3:Optimized Defaults F4:Save & Exit ESC:Exit

Version x.xx.xxxx. Copyright (C) 20xx American Megatrends, Inc.

IDE Configuration

Figure 5.8. IDE Configuration

DS-380D Series User’s manual

Page 44

5. BIOS Setup

Aptio Setup Utility - Copyright (C) 20xx American Megatrends, Inc.

Main

Advanced

Chipset

Boot

Security

Save & Exit

ACPI Shutdown Temperature [Disabled]

→←:Select Screen ↑↓:Select Item

Enter:Select +/-:Change Opt. F1:General Help F2:Previous Values F3:Optimized Defaults F4:Save & Exit ESC:Exit

Version x.xx.xxxx. Copyright (C) 20xx American Megatrends, Inc.

Item

Options

Description

ACPI Shutdown

Disabled

100 C/212 F

Shutdown Temperature Configuration

Figure 5.9. Shutdown Temperature Configuration

The setting that can be configured on the Shutdown Temperature Configuration screen is described in the table below.

Table 5.7. Shutdown Temperature Configuration

70 C/158 F 75 C/167 F 80 C/176 F

Temperature

DS-380D Series User’s manual

85 C/185 F 90 C/194 F 95 C/203 F

The default setting is Disabled.

Page 45

5. BIOS Setup

Aptio Setup Utility - Copyright (C) 20xx American Megatrends, Inc.

Main

Advanced

Chipset

Boot

Security

Save & Exit

iSmart Controller Power-On after Power failure [Enable]

Schedule Slot 1

[None]

Schedule Slot 2 [None]

→←:Select Screen ↑↓:Select Item

Enter:Select +/-:Change Opt. F1:General Help F2:Previous Values F3:Optimized Defaults F4:Save & Exit ESC:Exit

Version x.xx.xxxx. Copyright (C) 20xx American Megatrends, Inc.

Item

Options

Description

Power

Disable

Enable

Schedule Slot

None

Power On/Off

iSmart Controller

Figure 5.10. iSmart Controller

The setting that can be configured on the iSmart Controller screen is described in the table below.

Table 5.8. iSmart Controller

-On after Power failure

DS-380D Series User’s manual

Power On

Enable or Disable.

Setup the hour/minute for system power on.

Page 46

5. BIOS Setup

Aptio Setup Utility - Copyright (C) 20xx American Megatrends, Inc.

Main

Advanced

Chipset

Boot

Security

Save & Exit

iSmart Controller Power-On after Power failure [Enable]

Schedule Slot 1 [Power On]

Sunday [Disable] Monday

[Disable] Tuesday [Disable] Wednesday

[Disable] Thursday

[Disable] Friday

[Disable] Saturday [Disable] PowerOn Hour 8 PowerOn Minute

Schedule Slot 2 [Power On]

Sunday [Disable] Monday [Disable] Tuesday [Disable] Wednesday [Disable] Thursday [Disable] Friday

[Disable]

Saturday

[Disable] PowerOn Hour 8 PowerOn Minute

→←:Select Screen ↑↓:Select Item

Enter:Select +/-:Change Opt. F1:General Help F2:Previous Values F3:Optimized Defaults F4:Save & Exit ESC:Exit

Version x.xx.xxxx. Copyright (C) 20xx American Megatrends, Inc.

Item

Options

Description

Sunday,Monday,Tuesday,Wednesday Thursday,Friday,Saturday

Disable

Enable

Hour : 8 Minute :0

When "Schedule Slot" is set to

Power On

, the settings become those shown in the following figure.

Figure 5.11. iSmart Controller [Screen with "Schedule Slot" Set to "Power On"]

The settings that can be configured when "Schedule Slot" is set to Power On are described in the table below.

Table 5.9. iSmart Controller [Screen with "Schedule Slot" Set to "Power On"]

PowerOn Hour / Minute

DS-380D Series User’s manual

Page 47

5. BIOS Setup

Aptio Setup Utility

- Copyright (C) 20xx A merican Megatrends, Inc.

Main

Advanced

Chipset

Boot

Security

Save & Exit

iSmart Controller Power-On after Power failure [Enable]

Schedule Slot 1 [Power On/Off]

Sunday

[Disable] Monday [Disable] Tuesday [Disable] Wednesday

[Disable] Thursday [Disable] Friday

[Disable] Saturday [Disable] PowerOn Hour 8 PowerOn Minute

0 PowerOff Hour 21 PowerOff Minute

Schedule Slot 2 [Power On/Off]

Sunday

[Disable]

Monday

[Disable] Tuesday [Disable] Wednesday [Disable] Thursday [Disable] Friday

[Disable] Saturday [Disable] PowerOn Hour 8 PowerOn Minute 0 PowerOff Hour 21 PowerOff Minute

→←:Select Screen ↑↓:Select Item

Enter:Select +/-:Change Opt. F1:General Help F2:Previous Values F3:Optimized Defaults F4:Save & Exit ESC:Exit

Version x.xx.xxxx. Copyright (C) 20xx American Megatrends, Inc.

Item

Options

Description

Sunday,Monday,Tuesday,Wednesday Thursday,Friday,Saturday

Disable

Enable

PowerOn Hour / Minute

Hour : 8 Minute :0

PowerOff Hour / Minute

Hour : 21 Minute :0

When "Schedule Slot" is set to

Power On/Off

, the settings become those shown in the following

figure.

Figure 5.12. iSmart Controller [Screen with "Schedule Slot" Set to "Power On/Off"]

The settings that can be configured when "Schedule Slot" is set to Power On/Off are described in the table below.

Table 5.10. iSmart Controller [Screen with "Schedule Sl ot" Set to "Power On/Off"]

DS-380D Series User’s manual

Page 48

5. BIOS Setup

Aptio Setup Utility - Copyright (C) 20xx American Megatrends, Inc.

Main

Advanced

Chipset

Boot

Security

Save & Exit

USB Configuration USB Devices:

X Drive, X Keyboard, X Mouse

Legacy USB Support [Enabled] XHCI Hand-off [Enabled] EHCI Hand-off [Enabled]

USB hardware delays and time-outs: USB transfer time-out [20 sec] Device reset time-out [20 sec] Device power-up delay [Auto]

Mass Storage Devices: “Storage Name” [Auto]

→←:Select Screen ↑↓:Select Item

Enter:Select +/-:Change Opt. F1:General Help F2:Previous Values F3:Optimized Defaults F4:Save & Exit ESC:Exit

Version x.xx.xxxx. Copyright (C) 20xx American Megatrends, Inc.

Item

Options

Description

Enables Legacy USB support.

Enabled

Disabled

This is a workaround for OSes without XHCI

be claimed by XHCI driver.

1 sec

20 sec

10 sec

40 sec

Maximum time the device will take before it properly

port the delay is taken from Hub descriptor.

USB Configuration

Figure 5.13. USB Configuration

Settings that can be configured in the USB Configuration are described in the table below.

Table 5.11. USB Configuraiton

Legacy USB Support

XHCI Hand off

EHCI Hand-off

USB transfer time-out

Device reset time-out

Device power-up delay

DS-380D Series User’s manual

Enabled Disabled Auto

Enabled Disabled

5 sec 10 sec

20 sec 30 sec

Auto Manual

AUTO option disables legacy support if no USB devices are connected. DISABLE option keeps USB devices available only for EFI applications.

Enable/Disable USB3.0 (XHCI) Controller support.

hand-off support. The XHCI ownership change should

The time-out value for Control, Bulk, and Interrupt transfers.

USB mass Storage device start Unit command time-out.

reports itself to the Host Controller. ‘Auto’ uses default value: for a Root port it is 100ms, for a Hub

Page 49

5. BIOS Setup

Aptio Setup Utility - Copyright (C) 20xx American Megatrends, Inc.

Main

Advanced

Chipset

Boot

Security

Save & Exit

NCT6106D Super IO Configuration

NCT6106D Super IO Chip NCT6106D

▶Serial Port 0 Configuration ▶Serial Port 1 Configuration

→←:Select Screen ↑↓:Select Item

Enter:Select +/-:Change Opt. F1:General Help F2:Previous Values F3:Optimized Defaults F4:Save & Exit ESC:Exit

Version x.xx.xxxx. Copyright (C) 20xx American Megatrends, Inc.

NCT6106D Super IO Con figuration

Figure 5.14. NCT6106D Super IO Configration

The following sub items are available:

Serial Po r t x Configu ration (x =0, 1) Set Parameters of S eri al Ports. User can Enable/Disable the serial port and Select an optimal settings for the Super IO Device. You cannot use Serial Port 1.

DS-380D Series User’s manual

Page 50

5. BIOS Setup

Aptio Setup Utility - Copyright (C) 20xx American Megatrends, Inc.

Main

Advanced

Chipset

Boot

Security

Save & Exit

Serial Port x Configuration Serial Port [Enabled]

Device Settings

IO=XXXh; IRQ=X;

Change Settings [Auto]

→←:Select Screen ↑↓:Select Item

Enter:Select +/-:Change Opt. F1:General Help F2:Previous Values F3:Optimized Defaults F4:Save & Exit ESC:Exit

Version x.xx.xxxx. Copyright (C) 20xx American Megatrends, Inc.

Item

Options

Description

Disabled

Enabled

Enable/Disable Serial

Auto

IO=2E8h; IRQ=3,4,5,6,7,10,11,12;

The def

Serial Port x Configuration (x =0, 1)

Figure 5.15. Serial Port x Configuration (x =0, 1)

The setting that can be configured on the Serial Port x Configuration (x =0, 1) screen is des cribed in the table below.

Table 5.12. Serial Port x Configuration (x =0, 1)

Serial Port

Change Settings

DS-380D Series User’s manual

IO=3F8h; IRQ=4; IO=3F8h; IRQ=3,4,5,6,7,10,11,12; IO=2F8h; IRQ=3,4,5,6,7,10,11,12; IO=3E8h; IRQ=3,4,5,6,7,10,11,12;

Port support.

ault setting is Auto.

Page 51

5. BIOS Setup

Aptio Setup Utility - Copyright (C) 20xx American Megatrends, Inc.

Main

Advanced

Chipset

Boot

Security

Save & Exit

Pc Health Status CPU Smart Fan Function [50] SYS Temp

:+ C

CPU T emp

:+ C

VCORE

:+ V +5V :+ V +12V :+ V +1.5V :+ V

→←:Select Screen ↑↓:Select Item

Enter:Select +/-:Change Opt. F1:General Help F2:Previous Values F3:Optimized Defaults F4:Save & Exit ESC:Exit

Version x.xx.xxxx. Copyright (C) 20xx American Megatrends, Inc.

Item

Options

Description

CPU Smart Fan Function

Disabled

NCT6106D HW Monitor

View the system status such as the CPU and system temperatures and the input voltage.

Figure 5.16. NCT6106D HW Monitor

The setting that can be configured on the NCT6106D HW Monitor screen is described in the table below.

Table 5.13. Item Displayed on the NCT6106D HW Monitor Menu

DS-380D Series User’s manual

60 70 80

This function is not supported by this product.

Page 52

5. BIOS Setup

Aptio Setup Utility - Copyright (C) 20xx American Megatrends, Inc.

Main

Advanced

Chipset

Boot

Security

Save & Exit

▶South Bridge ▶North Bridge

→←:Select Screen ↑↓:Select Item

Enter:Select +/-:Change Opt. F1:General Help F2:Previous Values F3:Optimized Defaults F4:Save & Exit ESC:Exit

Version x.xx.xxxx. Copyright (C) 20xx American Megatrends, Inc.

Chipset

Use this menu to specify advanced chipset settings.

Figure 5.17. Chipset Menu

The following sub items are available:

South Bridge Use this menu to specify South Bridge.

North Bridge Use this menu to specify North Bridge.

DS-380D Series User’s manual

Page 53

5. BIOS Setup

Aptio Setup Utility - Copyright (C) 20xx American Megatrends, Inc.

Main

Advanced

Chipset

Boot

Security

Save & Exit

AMD Reference code Version: Trinity PI 1.0.0.9

▶SB SATA Configuration ▶SB USB Configuration

→←:Select Screen ↑↓:Select Item

Enter:Select +/-:Change Opt. F1:General Help F2:Previous Values F3:Optimized Defaults F4:Save & Exit ESC:Exit

Version x.xx.xxxx. Copyright (C) 20xx American Megatrends, Inc.

South Bridge

Figure 5.18. South Bridge

The setting tha t can be selected o n the South Bridge screen is described below. The following sub items are available:

SB SATA Con figuration Use this menu to specify the SATA settings.

SB USB Configuration Use this menu to specify the USB settings.

DS-380D Series User’s manual

Page 54

5. BIOS Setup

Aptio Setup Utility - Copyright (C) 20xx American Megatrends, Inc.

Main

Advanced

Chipset

Boot

Security

Save & Exit

OnChip SATA Channel [Enabled] OnChip SATA Type [Native IDE] OnChip IDE mode [Legacy mode] SATA IDE Combined Mode

[Enabled]

→←:Select Screen ↑↓:Select Item

Enter:Select +/-:Change Opt. F1:General Help F2:Previous Values F3:Optimized Defaults F4:Save & Exit ESC:Exit

Version x.xx.xxxx. Copyright (C) 20xx American Megatrends, Inc.

Item

Options

Description

Disabled

Enabled

Native ID E

AHCI

Native IDE /n RAID /n AHCI /n AHCI /n Legacy IDE /n IDE->AHC I /n HyperFlash

Legacy mode

Native mode

Disabled

Enabled

SB SATA Configuration

Figure 5.19. SB SATA Configuration

The setting that can be configured on the SB SATA Configuration screen is described in the table below.

Table 5.14. SB SATA Configuration

OnChip SATA Channel

OnChip SA TA Type

OnChip IDE mode

SATA IDE Combined Mode

DS-380D Series User’s manual

Enabled or Disabled.

Legacy mode or Native mode

Enabled or Disabled.

Page 55

5. BIOS Setup

Aptio Setup Utility - Copyright (C) 20xx American Megatrends, Inc.

Main

Advanced

Chipset

Boot

Security

Save & Exit

XHCI Controller 0 [Disabled] XHCI Controller 1 [Disabled]

→←:Select Screen ↑↓:Select Item

Enter:Select +/-:Change Opt. F1:General Help F2:Previous Values F3:Optimized Defaults F4:Save & Exit ESC:Exit

Version x.xx.xxxx. Copyright (C) 20xx American Megatrends, Inc.

Item

Options

Description

XHCI Controller

Disabled

Enabled

Enable or Disable USB3.0 (XHCI) Controller support.

SB USB Configuration

Figure 5.20. SB USB Configuration

The setting that can be configured on the SB USB Configu ration screen is described in the table below. If you will use USB 3.0, enable the following item.

Table 5.15. Item Displayed on the SB USB Config uration Menu

DS-380D Series User’s manual

Page 56

5. BIOS Setup

Aptio Setup Utility - Copyright (C) 20xx American Megatrends, Inc.

Main

Advanced

Chipset

Boot

Security

Save & Exit

North Bridge Configuration

Memory Information Total Memory: XXXX MB (DDR3)

▶Socket 0 Information

→←:Select Screen ↑↓:Select Item

Enter:Select +/-:Change Opt. F1:General Help F2:Previous Values F3:Optimized Defaults F4:Save & Exit ESC:Exit

Version x.xx.xxxx. Copyright (C) 20xx American Megatrends, Inc.

North Bridge

Configure the North Bridge chipset.

Figure 5.21. North Bridge

The setting that can be selected on the North Bridge screen is described below. The following sub items are available:

Socket 0 Information Use this menu to view the memory information.

DS-380D Series User’s manual

Page 57

5. BIOS Setup

Aptio Setup Utility - Copyright (C) 20xx American Megatrends, Inc.

Main

Advanced

Chipset

Boot

Security

Save & Exit

Socket 0 Information

Starting Address: X KB

End Address:XXXXXXX KB

Dimm0: size=2048 MB, speed=800 MHz Dimm1: size=2048 MB, speed=8

00 MHz

→←:Select Screen ↑↓:Select Item

Enter:Select +/-:Change Opt. F1:General Help F2:Previous Values F3:Optimized Defaults F4:Save & Exit ESC:Exit

Version x.xx.xxxx. Copyright (C) 20xx American Megatrends, Inc.

Socket 0 Informat ion

Figure 5.22. Socket 0 Information

DS-380D Series User’s manual

Page 58

5. BIOS Setup

Aptio Setup Utility - Copyright (C) 20xx American Megatrends, Inc.

Main

Advanced

Chipset

Boot

Security

Save & Exit

Boot Configuration Setup Prompt Timeout 1 Bootup NumLock State [On]

Quiet Boot [Disabled] Fast Boot [Disabled]

CSM16 Module Version 07.69 GateA20 Active

[Upon Request]

Option ROM Messages

[Force BIOS] INT19 Trap Response [Immediate] CSM Support

[Enabled] Driver Option Priorities Boot Option Priorities

Boot Option #x [“Device Name”] Hard Drive BBS Priorities

CD/DVD

ROM Drive BBS Priorities

▶CSM parameters

→←:Select Screen ↑↓:Select Item

Enter:Select +/-:Change Opt. F1:General Help F2:Previous Values F3:Optimized Defaults F4:Save & Exit ESC:Exit

Version x.xx.xxxx. Copyright (C) 20xx American Megatrends, Inc.

Item

Options

Description

Timeout

Number of seconds to wait for setup activation key. 65535(0xFFFF) means indefinite waiting.

Bootup NumLock State

Off

Select the keyboard NumLock s

Disabled

Enabled

Enables/Disables Quiet Boot option.

Enables/Disables boot with initialization of a minimal set of devices required to launch active boot option. Has no effect for BBS boot options.

UPON REQUEST ALWAYS when any RT code i s executed above 1MB.

Option ROM Messages

Force BIOS

Keep Current

Set display mode for Option ROM. Options are Force BIOS and Keep Current.

Immediate

Postponed

Enable: Allows Option ROMs to trap Int 19.

Disabled

Auto

OpROM execution, boot options, filter, etc.

Boot

Figure 5.23. Boot Menu

Specify the settings related to how the system will start. The following items are available.

Table 5.16. Boot

Setup Pro mpt

Quiet Boot

Fast Boot

GateA20 Active

INT19 Trap Response

CSM Support

DS-380D Series User’s manual

1 – 65535

Disabled

Enabled

Upon Request

Always

Enabled

tate.

– GA20 can b e disabled using BIOS services.

– do not allow disabling GA20; this option is useful

Page 59

5. BIOS Setup

Item

Options

Description

Boot Option #x

XXXXXXXXX (Specify an arbitrary device.)

Hard Drive BBS Priorites

XXXXXXXXX (Specify an arbitrary device.)

CD/DVD ROM Drive BBS Priorities

(Specify an arbitrary device.)

CAUTION

XXXXXXXXX

Sets the system boot order.

Sets the HDD boot order.

Sets the CD/DVD ROM Drive boot order.

- In the Boot Option #x list, the same device may be displayed as shown below. (1) USB Disk (2) UEFI：USB Disk In this situation, select (1) to perform legacy booting in which the disk is assumed to be MBR formatted and (2) to perform UEFI booting in which the disk is assumed to be GPT formatted. Be sure to specify (1) for the boot setting. Booting with option (2) is not supported.

- Only the devices set with high priorities with the other settings such as CD/DVD ROM Drive BBS Priorities can be selected in the Boot Option #x lists.

DS-380D Series User’s manual

Page 60

5. BIOS Setup

Aptio Setup Utility - Copyright (C) 20xx American Megatrends, Inc.

Main

Advanced

Chipset

Boot

Security

Save & Exit

Boot Configuration Setup Prompt Timeout 1 Bootup NumLock State [On]

Quiet Boot [Disabled] Fast Boot

[Enabled]

Skip VGA

[Disabled]

Skip USB

[Disabled]

Skip PS2 [Disabled] CSM16 Module Version 07.69 GateA20 Active [Upon Request]

Option ROM Messages [Force BIOS] INT19 Trap Response [Immediate] CSM Support

[Enabled] Driver Option Priorities Boot Option Priorities

Boot Option #x [“Device Name”] Hard Drive BBS Priorities

CD/DVD ROM Drive BBS Priorities ▶CSM parameters

→←:Select Screen ↑↓:Select Item

Enter:Select +/-:Change Opt. F1:General Help F2:Previous Values F3:Optimized Defaults F4:Save & Exit ESC:Exit

Version x.xx.xxxx. Copyright (C) 20xx American Megatrends, Inc.

Item

Options

Description

Disabled

Enabled

Disabled

Enabled

Disabled

Enabled

When "Fast Boot" is set to

Enabled

, the settings become those shown in the following figure.

Figure 5.24. Screen with "Fast Boot" Set to "Enabled"

The settings that can be configured when "Fast Boot" is set to Enabled are described in the table below.

Table 5.17. iSmart Controller [Screen with "Schedule Slot" Set to "Power On"]

Skip VGA

Skip USB

Skip PS2

The following sub items are available :

CSM parameters OpROM execution, boot options, filter, etc.

DS-380D Series User’s manual

Page 61

5. BIOS Setup

Aptio Setup Utility - Copyright (C) 20xx American Megatrends, Inc.

Main

Advanced

Chipset

Boot

Security

Save & Exit

Launch CSM [Always] Boot option filter

[UEFI and Legacy] Launch PXE OpROM policy [UEFI only] Launch Storage OpROM policy [UEFI only] Launch Video OpROM policy [Legacy only]

Other PCI device ROM priority [UEFI OpROM]

→←:Select Screen ↑↓:Select Item

Enter:Select +/-:Change Opt. F1:General Help F2:Previous Values F3:Optimized Defaults F4:Save & Exit ESC:Exit

Version x.xx.xxxx. Copyright (C) 20xx American Megatrends, Inc.

Item

Options

Description

Launch CSM

Always

Never

This option controls if CSM

Boot option filter

UEFI and Legacy

UEFI only

This option controls what devices system can boot to.

Launch PXE OpROM policy

Legacy only

Controls the execution of UEFI and Legacy PXE OpROM.

Launch Stor

Legacy only

Controls the execution of UEFI and Legacy Storage OpROM.

Launch Video policy

Do not launch

Legacy only

Controls the execution of UEFI and Legacy Video OpROM.

Other PCI device ROM priority

UEFI OpROM

Legacy OpROM

For PCI devices other than Network, Mass storage or Video defines which OpROM to launch.

CSM parameters

Figure 5.25. CSM parameters

The setting tha t can be selected o n the CSM parameters screen is described below.

Table 5.18. CSM parameters

DS-380D Series User’s manual

age OpROM policy

Legacy only

Do not launch

UEFI only

Do not launch

UEFI only

will be launched.

Page 62

5. BIOS Setup

Aptio Setup Utility - Copyright (C) 20xx American Megatrends, Inc.

Main

Advanced

Chipset

Boot

Security

Save & Exit

Password Description If ONLY the Administrator’s password is set,

then this only limits access to Setup and is only asked for when en

tering Setup. If ONLY the User’s password is set, then this is a power on password and must be entered to boot or enter Setup. In Setup the user will have Administrator rights. The password must be In the following range: Minimum length 3 Maximum length 20

Adiministrator Password User Password

→←:Select Screen ↑↓:Select Item

Enter:Select +/-:Change Opt. F1:General Help F2:Previous Values F3:Optimized Defaults F4:Save & Exit ESC:Exit

Version x.xx.xxxx. Copyright (C) 20xx American Me

gatrends, Inc.

Create New Password

[**** ]

Confirm New Password

[**** ]

Enter Current Password

[**** ]

Create New Password

[ ]

Confirm New Password

[ ]

Create New Password

[**** ]

Confirm New Password

[**** ]

CAUTION

Security

Use this menu to configure system security settings.

Figure 5.26. Security menu

The following items are available:

Administrator Password When you press <Enter> on this item, you are required to input the password as below.

Enter a password of between 3 and 20 characters twice. To nullify the password, go to the Administrator Password Input Screen again.

When you input old password in the initial item and then press <Enter> by inputting nothing to the new password item, the password will be nullified.

User Password When you press <Enter> on this item, you are required to input the password as below.

Enter a password of between 3 and 20 characters twice. Follow the same procedure as Administrator Password to nullify the password.

Be careful to not forget the password. If you forget the password, the product will have to be

repaired.

DS-380D Series User’s manual

Page 63

5. BIOS Setup

Aptio Setup Utility

- Copyright (C) 20xx A merican Megatrends, Inc.

Main

Advanced

Chipset

Boot

Security

Save & Exit

Save Changes and Exit Discard Changes and Exit Save Changes and Reset Discard Changes and Reset

Save Options Save Changes Discard Changes

Restore Defaults Save as User Defaults Restore User Defaults

Boot Override SATA PM:”Device Name” UEFI: ”Device Name”

→←:Select Screen ↑↓:Select Item

Enter:Select +/-:Change Opt. F1:General Help F2:Previous Values F3:Optimized Defaults F4:Save & Exit ESC:Exit

Version x.xx.xxxx. Copyright (C) 20xx American Megatrends, Inc.

Save & Exit Setup

Save configuration and exit?

[Yes] [No]

Exit Without Saving

Quit without saving?

[Yes] [No]

Save & Exit

Use this menu to load/save settings changes, and exit the setup menu.

Figure 5.27. Save & Exit menu

The following items are available:

Save Changes and Exit When you press <Enter> on this item you get a confirmation dialog box with a message similar to:

Select "[Yes]" to record the selections that you made on the menu to the FLASH ROM. Depending on the changed items, the system may restart. The next time the computer is booted, the BIOS configures the system based on the configuration stored in FLASH ROM. Pressing [No], it will return to setup menu.

Discard Changes and Exit When you press <Enter> on this item you get a confirmation dialog box with a message similar to:

Pressing [Yes] continues to boot the system without saving any changes made in FLASH ROM. Pressing [No] returns to the setup menu without records in FLASH ROM.

DS-380D Series User’s manual

Page 64

5. BIOS Setup

Save & Reset

Save configuration and reset?

[Yes] [No]

Reset Wi thout Saving

Reset without saving?

[Yes] [No]

Save Setup Values

Save Configuration?

[Yes] [No]

Load Previos Values

Load Previous Values?

[Yes] [No]

Load Opti mized Def aults

Load Opti mized Def aults?

[Yes] [No]

Save Changes and Reset When you press <Enter> on this item you get a confirmation dialog box with a message similar to:

Pressing [Yes] saves any changes made in FLASH ROM and reboots the system. The next time the computer is booted, the BIOS configures the system based on the configuration stored in FLASH ROM. Pressing [No], it will return to setup menu.

Discard Changes and Reset When you press <Enter> on this item you get a confirmation dialog box with a message similar to:

Pressing [Yes] reboots the system without s aving any cha nges made in FLASH ROM. Pressing [No] returns to the setup menu without records in FLASH ROM.

Save Changes When you press <Enter> on this item you get a confirmation dialog box with a message similar to:

Pressing [Yes] saves any changes made in FLASH ROM and takes you back to the setup menu. Pressing [No], it will return to setup menu.

Discard Changes When you press <Enter> on this item you get a confirmation dialog box with a message similar to:

Pressing [Yes] discards any changes made and takes you back to the setup menu after loading the previous settings saved in FLASH ROM. Pressing [No], it will return to setup menu.

Restore Defaults When you press <Enter> on this item you get a confirmation dialog box with a message similar to:

Select "[Yes]" to load the default values of the factory settings to use in operating the system. This setting will not take effect until you save to FLASH ROM. Pressing [No] returns to the setup menu without loading.

DS-380D Series User’s manual

Page 65

5. BIOS Setup

Save Values as User Defaults

Save Configuration?

[Yes] [No]

Restore User Defaults

Restore User Defaults?

[Yes] [No]

Save as User Defaults When you press <Enter> on this item you get a confirmation dialog box with a message similar to:

Pressing [Yes] saves the current settings as the user default settings in FLASH ROM and takes you back to the setup menu. Pressing [No], it will return to setup menu.

Restore User Def aults When you press <Enter> on this item you get a confirmation dialog box with a message similar to:

Pressing [Yes] loads the settings saved in FLASH ROM as the user default settings and takes you back to the setup menu. This setting is not reflected to the FLASH ROM until you save it. Pressing [No], it will return to setup menu.

Boot Override Using the cursor to select the device that you want to start and pressing <Enter> ke y directly boots the selected device regardless of the order set in the Boot menu.

DS-380D Series User’s manual

Page 66

6. Appendix

Battery

Battery Specification This product uses the following battery.

- Type : Lithium primary battery

- Model : ER 1/2AA

- Maker : VARTA

- Nominal voltage : 3.6V

- Nominal capacity : 1200mAh

- Lithium content : 1g or less Removing the Battery When Disposing of the Product Before disposing of the product, follow the instructions given below to remove the battery. (1) Remove the nine countersunk head screws

- Front (six screws)

- Back (three screws), upper surface only

Figure 6.1. Removing the battery 1

(2) Remove the heat sink and the case.

Figure 6.2. Removing the battery 2

DS-380D Series User’s manual

Page 67

6. Appendix

(3) Remove the battery.

Figure 6.3. Removing the battery 3

Disposing the battery Dispose the removed battery properly as instructed by local government.

DS-380D Series User’s manual

Page 68

7. List of Options

CAUTION

7. List of Options

AC adapter

- PWA-84AWD1 AC adapter (Input : 100-240VAC, Output : 12VDC 7A)

When using the product to match this AC adapter, ensure that the current consumption with USB

+5VDC is 2.7A or less in total for the three ports.

RS-232C D-sub 9pin conversion cable

- IPC-RJ50/9F-020 : RJ-50(10pin) - D-sub (9pin) conversion cable

Precautions when using options not made by CONTEC

- When you use options n ot made by CO NTEC, the product may not operate correctly and there may

be limits on the product's functions.

* For more information on this options, see the Contec’s website.

DS-380D Series User’s manual

Page 69

DS-380D Series

User’s Manual

DS-380D-DC741D DS-380D-DC741E

DS-380D-DC7512 DS-380D-DC7516 DS-380D-DC7517 DS-380D-DC7518

CONTEC CO.,LTD. May 2015 Edition

3-9-31, Himesato, Nishiyodogawa-ku, Osaka 555-0025, Japan Japanese http://www.contec.co.jp/ English http://www.contec.com/ Chinese http://www.contec.com.cn/

No part of this document may be copied or reproduced in any form by any means without prior written consent of CONTEC CO., LTD.

[08042014] Managem en t N o. NA03535 [05082015_rev4] Parts No. LYRS714

Contec DS-380D Series User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Check Your Package

Copyright

Trademarks

Table of Contents

1. Introduction

Features

Supported OS

Customer Su pport

Web Site

Limited One-Year Warranty

How to Obtain Service

Liability

Safety Pr ecautions

Safety Information

Caution on the DS-380D Series

2. System Reference

Power Managemen t Features

Power Requirements

Power Consumption

Physical Di mensions

3. Hardware Setup

Before Using th e Product for the First Time

Hardware Set up

Attaching the Attachment Fittings

Attaching the FG

Fastening the Cable

Installation Methods

Installation Requirements

4. Each Component Function

Component Name

System Configuration

LED: POWER, AC CESS, STATUS

DC Power Input Connecto r : D C-IN

Power Switch : POWER SW

Line out Interface: LINE OUT

MIC in Interface: MIC IN

Giga bit-Ethernet : LAN

USB Ports : USB 3.0

Serial Port Interface : SERIAL

DVI Interface : DVI

5. BIOS Setup

Introduction

Starting Setu p

Using Setup

Getting Help

In Case of Problems

A Final Note About Setup

Main Menu

Setup Ite ms

Main

Advanced

PCI Subsystem Settings

ACPI Settings

CPU Configuration

Node 0 Information

EuP/ErP Power Saving Controller

IDE Configuration

Shutdown Temperature Configuration

iSmart Controller

USB Configuration

NCT6106D Super IO Configuration

Serial Port x Configuration (x =0, 1)

NCT6106D HW Monitor

Chipset

South Bridge

SB SATA Configuration

SB USB Configuration

North Bridge

Socket 0 Information

Boot

CSM parameters

Security

Save & Exit

6. Appendix

Battery

7. List of Options
