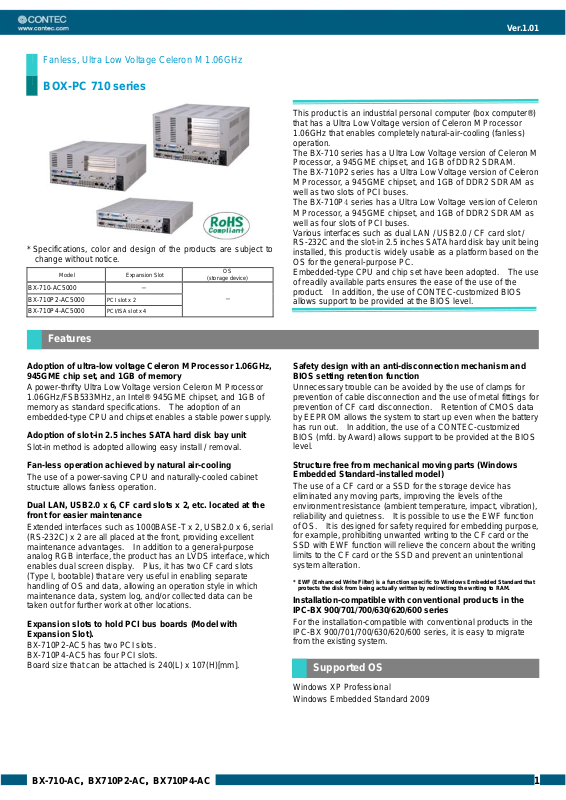

Contec BX-710-AC, BX710P2-AC User Manual

Ver.1.01

Fanless, Ultra Low Voltage Celeron M 1.06GHz

BOX-PC 710 series

* Specifications, color and design of the products are subject to

change without notice.

Model Expansion Slot

BX-710-AC5000 －
BX-710P2-AC5000 PCI slot x 2
BX-710P4-AC5000 PCI/ISA slot x 4

Features

OS

(storage device)

－

Adoption of ultra-low voltage Celeron M Processor 1.06GHz,
945GME chip set, and 1GB of memory

A power-thrifty Ultra Low Voltage version Celeron M Processor

1.06GHz/FSB533MHz, an Intel® 945GME chipset, and 1GB of
memory as standard specifications. The adoption of an
embedded-type CPU and chipset enables a stable power supply.

Adoption of slot-in 2.5 inches SATA hard disk bay unit

Slot-in method is adopted allowing easy install / removal.

This product is an industrial personal computer (box computer®)
that has a Ultra Low Voltage version of Celeron M Processor

1.06GHz that enables completely natural-air-cooling (fanless)
operation.
The BX-710 series has a Ultra Low Voltage version of Celeron M
Processor, a 945GME chipset, and 1GB of DDR2 SDRAM.
The BX-710P2 series has a Ultra Low Voltage version of Celeron
M Processor, a 945GME chipset, and 1GB of DDR2 SDRAM as
well as two slots of PCI buses.
The BX-710P4 series has a Ultra Low Voltage version of Celeron
M Processor, a 945GME chipset, and 1GB of DDR2 SDRAM as
well as four slots of PCI buses.
Various interfaces such as dual LAN / USB2.0 / CF card slot /
RS-232C and the slot-in 2.5 inches SATA hard disk bay unit being
installed, this product is widely usable as a platform based on the
OS for the general-purpose PC.
Embedded-type CPU and chip set have been adopted. The use
of readily available parts ensures the ease of the use of the
product. In addition, the use of CONTEC-customized BIOS
allows support to be provided at the BIOS level.

Safety design with an anti-disconnection mechanism and
BIOS setting retention function

Unnecessary trouble can be avoided by the use of clamps for
prevention of cable disconnection and the use of metal fittings for
prevention of CF card disconnection. Retention of CMOS data
by EEPROM allows the system to start up even when the battery
has run out. In addition, the use of a CONTEC-customized
BIOS (mfd. by Award) allows support to be provided at the BIOS
level.

Fan-less operation achieved by natural air-cooling

The use of a power-saving CPU and naturally-cooled cabinet
structure allows fanless operation.

Dual LAN, USB2.0 x 6, CF card slots x 2, etc. located at the
front for easier maintenance

Extended interfaces such as 1000BASE-T x 2, USB2.0 x 6, serial
(RS-232C) x 2 are all placed at the front, providing excellent
maintenance advantages. In addition to a general-purpose
analog RGB interface, the product has an LVDS interface, which
enables dual screen display. Plus, it has two CF card slots
(Type I, bootable) that are very useful in enabling separate
handling of OS and data, allowing an operation style in which
maintenance data, system log, and/or collected data can be
taken out for further work at other locations.

Expansion slots to hold PCI bus boards (Model with
Expansion Slot).

BX-710P2-AC5 has two PCI slots.
BX-710P4-AC5 has four PCI slots.
Board size that can be attached is 240(L) x 107(H)[mm].

Structure free from mechanical moving parts (Windows
Embedded Standard-installed model)

The use of a CF card or a SSD for the storage device has
eliminated any moving parts, improving the levels of the
environment resistance (ambient temperature, impact, vibration),
reliability and quietness. It is possible to use the EWF function
of OS. It is designed for safety required for embedding purpose,
for example, prohibiting unwanted writing to the CF card or the
SSD with EWF function will relieve the concern about the writing
limits to the CF card or the SSD and prevent an unintentional
system alteration.

* EWF (Enhanced Write Filter) is a function specific to Windows Embedded Standard that

protects the disk from being actually written by redirecting the writing to RAM.

Installation-compatible with conventional products in the
IPC-BX 900/701/700/630/620/600 series

For the installation-compatible with conventional products in the
IPC-BX 900/701/700/630/620/600 series, it is easy to migrate
from the existing system.

Supported OS

Windows XP Professional
Windows Embedded Standard 2009

BX-710-AC, BX710P2-AC, BX710P4-AC 1

Features

Functional Specifications

Model BX-710-AC5 BX-710P2-AC5 BX-710P4-AC5

CPU Ultra Low Voltage Intel® Celeron® M Processor 1.06GHz (FSB533MHz)

Chip set Intel® 945GME + ICH7M-DH

BIOS BIOS (mfd. by Award)

Memory 1GB, 200pin SO-DIMM socket, PC2-4300 (DDR2 533) DDR2 SDRAM support

Graphic

Controller Built in Intel 945GME

Video RAM Main memory shared

Video BIOS 64KB(C0000H-CFFFFH)

Analog RGB 640 x 480, 800 x 600, 1,024 x 768, 1,152 x 864, 1,280 x 600, 1,280 x 720, 1,280 x 768, 1,280 x 960, 1,280 x 1,024, 1,360 x 768,

System
resolution

Audio AC97 compliant, LINE OUT x 1, MIC IN x 1

Storage SATA Serial ATA 1.0 compliant support: 1 port

LAN Intel® 82573L Controller

USB USB 2.0-compliant 6 port

Serial I/F RS-232C (general-purpose) : 2 port, Baud rate : 50 - 115,200bps

General-purpose I/O 3 opto-isolated inputs and outputs (However, one output also serves as an external WDT output and one input also serves as

Hardware monitoring Monitoring CPU temperature, board temperature, power voltage

RTC/CMOS ICH7M-DH built in. The real-time clock is accurate within 3 minutes (at 25C) per month.

Power Management Power management setup via BIOS. Modem Ring On/Wake One LAN.

Interface

Power supply

Physical dimensions
(mm)

Wei ght

*1 The total of the external device power supply load for +5V should be 3A or lower. * The PCI bus slot is for 32 bit specification. No operational tests are done for the 32/64 bit boards.

LVDS 640 x 480, 800 x 600, 1,024 x 768 (26,000,000 colors)

Watch dog timer 1sec - 255sec (RESET, interrupt or external output is allowed at time expiration) RAS

Remote reset External input signal

Display 2 port

Audio

CF card slot 2 slots (CF1/CF2), CF CARD Type I, bootable

HDD 2 slots , Slot-in method, 2.5 inches SATA hard disk

LAN*2 2 port (RJ-45 connector)

USB 6 port (A-TYPE connector)

RS-232C 2 port (9 pin D-SUB connector [male])

RS-422/485/
General-purpose I/O/RAS

Expansion board slot None PCI slot x 2,

Power supply connector 100-240VAC(50/60Hz) input automatic operation switch

Input power supply voltage 85 - 264VAC (47 - 63Hz)

Current consumption 90VA (Max.) 115VA (Max.) 130VA (Max.)

Expansion board power supply
capacity

External device power supply
capacity

1,400 x 1,050, 1,600 x 900, 1,600 x 1,200, 1,856 x 1,392, 1,920 x 1,080, 1,920 x 1,200, 1,920 x 1,400, 2,048 x 1,536 (16,770,000
colors)

1000BASE-T/100BASE-TX/10BASE-T x 2 (Wake On LAN support only A side of the main body silk.)

RS-232C (for touch panel communication) : 1 port, RS-422/485 (general-purpose): 1 port, Baud rate : 50 - 115,200bps

remote reset. They become available when switched.)

Lithium backup battery life: 10 years or more

Supports PC98/PC99 ACPI Power management.

(15pin HD-SUB connector [Analog RGB] x 1, 26 pin half pitch connector [LVDS] x 1)
LINE OUT: φ3.5 Stereo mini jack, Full-scale output level 1.5Vrms (Typ.), Dual 50mW Amplifier
MIC IN: φ3.5 Stereo mini jack, Full-scale input level 1.6Vrms (Typ.)

Windows Embedded Standard pre-install CF model : CF (2GB) is finished mounting (one partition)

Windows XP Professional pre-install model : SATA HDD (80GB) is finished mounting (one partition)
Windows Embedded Standard pre-install SSD model : SATA SSD (2GB) is finished mounting (one partition)
The other model : It is not mounted.

1 port (15 pin D-SUB connector [female])

Usable board dimension : 240mm (Max.)

None +12V 0.5A, +5V 1A,

CF card slot
: +5V 500mA *1

USB I/F
: +5V 3A (500mA×6) *1

262(W) x 262(D) x 55(H)
(No protrusion)

約 3.1kg
(At the time of the HDD(SSD)
uninstalling)

+3.3V 1A, -12V 80mA,

-5V Not supplied
CF card slot

: +5V 500mA *1
USB I/F

: +5V 3A (500mA×6) *1
Expansion board slot
(total 2 slot)

: +12V 0.5A, +5V 1A *1,
+3.3V 1A, -12V 80mA,

-5V Not supplied
262(W) x 262(D) x 115(H)
(No protrusion)
約 3.9kg

(At the time of the HDD(SSD)
uninstalling)

PCI slot x 4,
Usable board dimension : 240mm (Max.)

+12V 0.5A, +5V 2A,
+3.3V 2A, -12V 80mA,

-5V Not supplied
CF card slot

+5V 500mA *1
USB I/F

: +5V 3A (500mA×6) *1
Expansion board slot
(total 4 slot)

: +12V 0.5A, +5V 2A *1,
+3.3V 2A, -12V 80mA,

-5V Not supplied
262(W) x 262(D) x 155(H)
(No protrusion)
約 4.3kg

(At the time of the HDD(SSD)
uninstalling)

Ver.1.01

BX-710-AC, BX710P2-AC, BX710P4-AC 2
