Contec BX220 Series, BX-830 Series User Manual

IPC Series
BOX-PC for BX220 Series
Users Manual
CONTEC CO.,LTD.
BX-220D-DC700000
[Base Model]
BX-220D-DC7x121x
[OS PreInstallModel]
Name
Pcs.
Pcs.
BOX-PC
1
1
The attachment fi ttings
2
2
CFast card re moval pre vention fitting
1
1
USB removal prevention fitting
1
1
USB removal preven tion clamp
1
2
DVI-analog RGB conversion adapter
1
1
Washer assembled screw (M3 x 6)
6
6
Washer assembled and cross recessed
Cable clamp
1
2
connector complete set
Power connector 1 1
Contact 4 4
Product guide
1
1
Warranty Certificate
Serial number label 1 1
Royalty consent contract(For OS)
- *1
1
Setup Procedure Document
- *1
1
Recovery Media
- *1
1
Check Yo ur Packag e
Thank you for purchasing the CONTEC product. The product consists of the items listed below. Check, with the following list, that your package is complete. If you discover damaged or missing items, contact your retailer. Product Configuration List
hexagonal bolt (M4 x 10, black)
Power supply
IPC Precaution List 1 1
*1 Not included in models without OS. * The user's manual for this product is available as a PDF file through CONTEC’s Web site. The user's manual provides such information as hardware settings, functions for each component, and BIOS settings. Refer to it as necessary.
4 4
i
BOX-PC The attachment fitting s
Cable clamp
USB removal prevention clamp
Contact
Power connector
Power supply connec tor complete set
USB removal prevention fitting
CFast card removal prevention fitting
Wacher assembled screw (M3 x 6)
Wacher assembled and cross recessed hexagonal bolt (M4 x 10, blac k)
Product guide
Product guide
IPC Precaution List
IPC Precaution List
Warranty Certifi cate
Royalty consent contract
Setup Procedure Document
Setup Procedure Document
Recovery Media
DVI-Analog RGB conversion adapter
Warranty Certificate
Serial n umber label
XXXXXXXXXXXXX
XXXXXXXXXXXXX
Royalty consent contract (For OS)

Product C onfiguration Image

* See the Product Configuration List to check if all the components are included for the specified number of units.

Copyright

Copyright 2015 CONTEC CO., LTD. ALL RIGHTS RESERVED. No part of this document may be copied or reproduced in any form by any means without prior written
consent of CONTEC CO., LTD. CONTEC CO., LTD. makes no commitment to update or keep current the information contained in this
document. The information in this document is subject to change without notice. All relevant issues have been considered in the preparation of this document. Should you notice an
omission or any questionable item in this document, please feel free to notify CONTEC CO., LTD. Regardless of the foregoing statement, CONTEC assumes no responsibility for any errors that may
appear in this document or for results obtained by the user as a result of using this product.
BX-220 User’s manual
ii

Trademarks

Intel, Intel Atom, Intel Core and Celeron are register ed tra d ema rk s o f Int el Corporation. MS, Microsoft and Windows are trademarks of Microsoft C orporation. Other brand and product names are trademarks of their respective holder.
iii
BX-220 User’s manual
iv

Table of Contents

Check your package ............................................................................................................................. i
Copyright ............................................................................................................................................ ii
Trademarks ......................................................................................................................................... iii
Table of Conten ts ................................................................................................................................ v
1. INTRODUCTION 1
About the Product ............................................................................................................................... 1
Features ........................................................................................................................................ 2
Supported OS ............................................................................................................................... 3
Customer Support................................................................................................................................ 4
Web Site ....................................................................................................................................... 4
Limited One-Year Warranty ............................................................................................................... 4
How to Obtai n Service ........................................................................................................................ 4
Liability ............................................................................................................................................... 4
Safety Precautions ............................................................................................................................... 5
Safety Inf orma tion ....................................................................................................................... 5
Caution on the BX-220 Series ...................................................................................................... 5
2. SYSTEM REFERENCE 9
Specification ........................................................................................................................................ 9
Power Ma nagement Features ............................................................................................................ 11
Power Requirements ......................................................................................................................... 12
Power Consumption ................................................................................................................... 12
Physical Dimensions ......................................................................................................................... 13
3. HARDWARE SE T UP 15
Before Using the Product for the First Time ..................................................................................... 15
Hardwar e Setup ................................................................................................................................. 16
Inserting an Embedded CFast Card ............................................................................................ 16
Attaching the CFast Attachment Fittings ................................................................................... 17
Attaching the Attachment Fittings ............................................................................................. 17
Attaching the FG ........................................................................................................................ 18
Fastening the Cable .................................................................................................................... 19

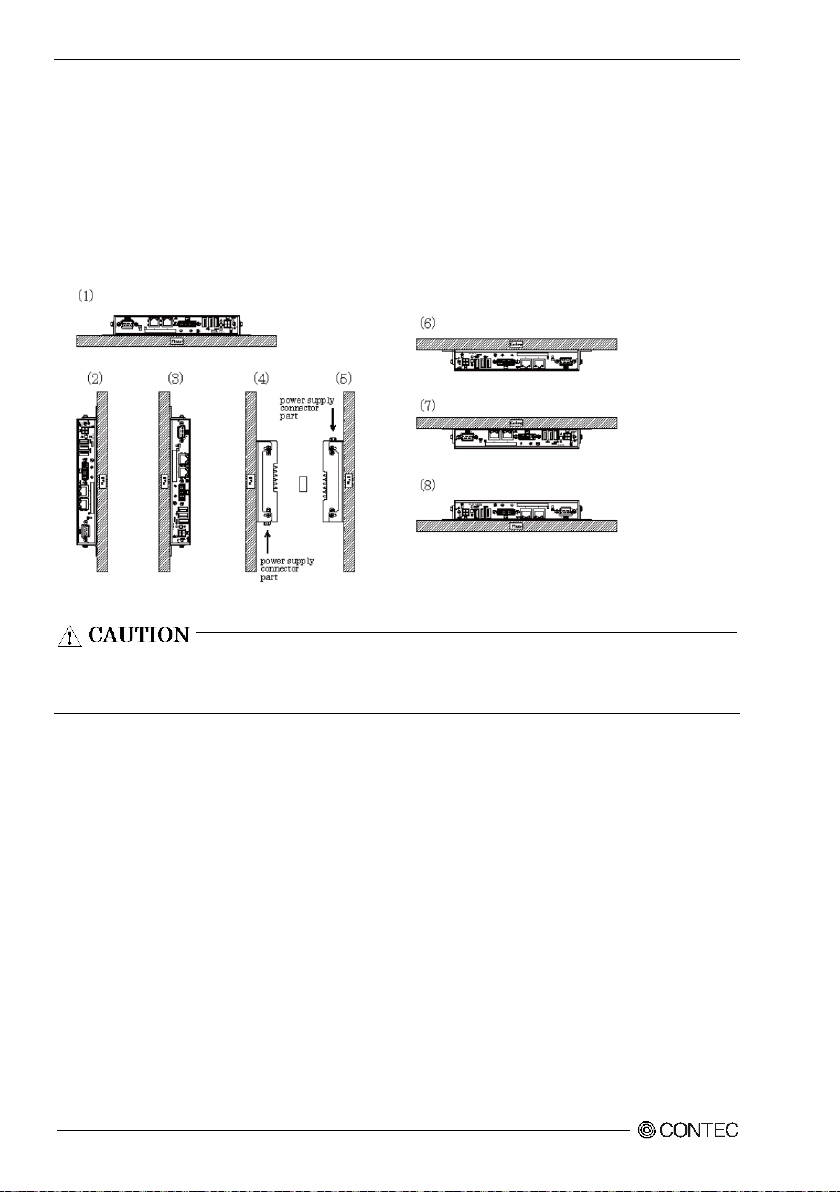

Installation Requirements ........................................................................................................... 20
4. BIOS SETUP 23
Introduction ....................................................................................................................................... 23
Starting Setup .................................................................................................................................... 23
v
Using Setup ....................................................................................................................................... 24
Getting Help ............................................................................................................................... 24
In Case of Problems ................................................................................................................... 24
A Final Note About Setup .......................................................................................................... 24
Main Menu ........................................................................................................................................ 25
Setup Item s ................................................................................................................................. 25
Main .................................................................................................................................................. 26
Advanced ........................................................................................................................................... 27
ACPI Settings ............................................................................................................................. 28
RAS Confi gr ation ....................................................................................................................... 30
Super IO Configuration .............................................................................................................. 32
H/W Monit or .............................................................................................................................. 34
CPU Confi guration ..................................................................................................................... 35
PPM Configuration..................................................................................................................... 36
SATA Confi guration .................................................................................................................. 37
CSM Configuration .................................................................................................................... 38
USB Confi guration ..................................................................................................................... 39
Chipset............................................................................................................................................... 40
North Bridge ............................................................................................................................... 41
Intel IGD Configuration ............................................................................................................. 42
LCD Control ............................................................................................................................... 43
South Bridge Configuration ....................................................................................................... 44
Azalia HD Audio Configuration ................................................................................................ 45
Security ............................................................................................................................................. 47
Secure Boot menu ...................................................................................................................... 48
Boot Configuration ............................................................................................................................ 49
Save & Exit ....................................................................................................................................... 50
5. EACH COMPONE NT FUNCTION 53
Component N ame .............................................................................................................................. 53
Front Vie w.................................................................................................................................. 53
Rear View ................................................................................................................................... 53
System Configuration ........................................................................................................................ 54
Component Function ......................................................................................................................... 55
LED: POWER, ACCE SS, S TATU S ....................................................................................... 55
DC Power Input Connector: DC-IN ........................................................................................ 55
POWER SW ............................................................................................................................... 56
LINE OUT Interface : LINE OUT .......................................................................................... 56
MIC IN Inter face : MIC .......................................................................................................... 56
DVI In terface: DVI-I ............................................................................................................... 57
Displa y Port Interface : Display Por t ....................................................................................... 59
USB3.0 Port : USB3.0 ............................................................................................................. 60
USB2.0 Port : USB2.0 ............................................................................................................. 60
BX-220 User’s manual
vi
Giga bit-Ethernet: LAN A, B .................................................................................................. 61
CFast Card Connector : CFast1, 2 ........................................................................................... 62

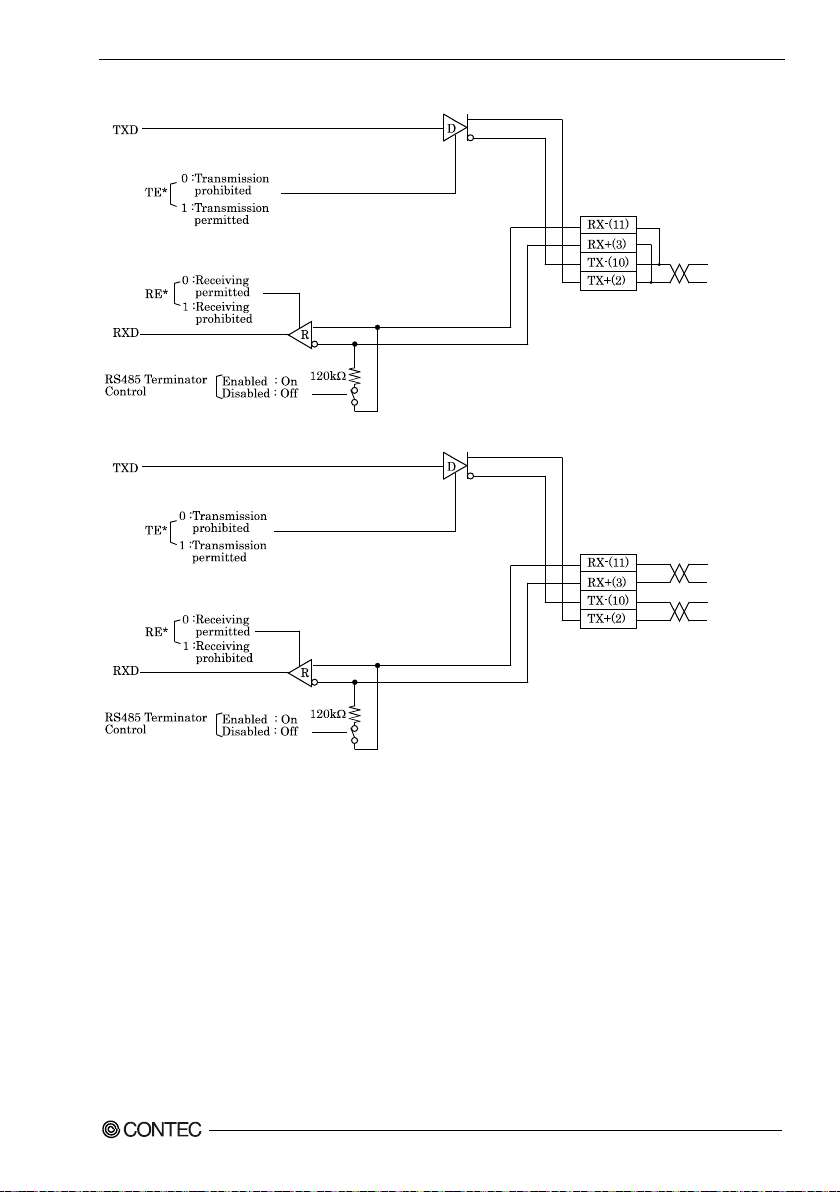

Serial Port Int erfa c e: SERIAL A, B ........................................................................................ 63
RAS Functions ........................................................................................................................... 64
General Purpose Input/Output and Remote Power On/Reset ..................................................... 66
6. APPENDIX 69
POST Co des ...................................................................................................................................... 69
SERIAL I/O Address and Register Function .................................................................................... 72
Watch-Dog-Timer ............................................................................................................................. 78
Battery ............................................................................................................................................... 82
7. LIST OF OPTIONS 83
vii
BX-220 User’s manual
viii

1. Introduction

1. Introduction About the Product
This product is a fanless computer for embedded applications. It features an Intel Atom processor E3845 chipset. Thanks to a quad-core CPU, simultaneous stable high-speed processing for four applications is possible with four cores. This CPU also allows for computing power almost four times that of conventional products in addition to three times the graphics performance, a significant improvement. Moreover, power consumption has been significantly reduced, resulting in nearly double the power efficiency compared w it h t he previous ge neration's architecture.It combines sufficient performance and low power consumption in a space-saving de s ign that can be ins talled in spaces only 50-mm thick with roughly the same area as a paperback book. This "resource-saving PC" helps you design more compact, energy efficient equipment to reduce running costs and promote energy efficiency.
It has extension interfaces such as DVI-I, Display Port, 1000BASE-T, USB 3.0, and serial. It employs a CFast card for storage and is fanless to ensure a totally spindleless design that simplifi es maintenance.
In addition, this product is equipped with a proprietary extended RAS*1 function independent of the main computer functions. This feature provides various functions to increase system reliability by automatically restarting the system when detecting errors such as frozen programs, operating system startup faults, and a rise in internal temperature, and by saving detailed logs of the occurrence of errors, which can be useful in failure analysis.
Embedded-type CPU have been adopted. The use of readily ava ilable parts ensures the ease o f the use of the product . In addition, the use of Contec-customized BIOS allows support to be provided at the BIOS level.
This product is av a ilable in the f ol l owing 5 models:
- Base model with Intel Atom Processor E3845 1.91GHz BX-220D-DC700000 (Memory 4GB, ECC, without OS, withou t CFast)
- OS-installed mod el wit h Intel Atom Processor E3845 1.91GHz BX-220D-DC731211 (Memory 4GB, ECC, Windows Embedded Standard 7 32bit (Japanese version),
BX-220D-DC731212 (Memory 4GB, ECC, Windows Embedded Standard 7 32bit (English version),
BX-220D-DC761211 (Memory 4GB, ECC, Windows Embedded Standard 7 32bit (Japanese), CFast Card (MLC) 32GB) BX-220D-DC761212 (Memory 4GB, ECC, Windows Embedded Standard 7 32bit (English) CFast Card (MLC) 32GB)
*1 Reliability Availability and Serviceability: Support functions for stable system operation.
CFast Card (SLC) 16GB)
CFast Card (SLC) 16GB)
1
1. Introduction

Features

- Contributing to redu ction of running cost and promotion of energy efficiency It adopts the low-power platform with Intel consumption while ensuring sufficient performance.
- Contributing to c omp ac t device design. Ultra-small PC is roughly the same area as a paperback book It is the smallest [178 (W) x 115 (D) x 29 (H)] and lightest [800 g] PC in the series, and can be installed almost anywh ere.
Can be installed in spaces only 50-mm thick with roughly the same area as a paperback book. It largely serves downsizing of your equipment, fits any area with the aestheticness kept.
- Slitless/fanless design that reduces maintenance work This product's spindleless design eliminates the heat dissipating slit and CPU fan and adopts CFast card for the storage. There is no need to worry about the intrusion of dust or foreign objects , and the use of parts that degrade over time is minimized to facilitate maintenance.
- Remote power managemen t function to reduce operation tasks Supports system startup by external device over network (Wake-on-LAN), by general purpose input (power on by GPI), and by modem reception (power on by ring). It encourages significant labor saving in operation.
- Major types of peripherals are supported with rich interfaces including the two CFast card slots It has a variety of extended i nterface such as DVI-I x 1, Display Port x 1, 1000BASE-T x 2, USB3.0 x 1, serial (RS-232C) x 2. It has two CFast card slots (one built into main unit), providing the ability to separate data from the operating system, as well as the convenience of being able to use one slot for system star tup and the oth er for maintenance or for taking home system logs or collected data.
- Built-in monitoring function for improved reliability of industrial equipment The built-in sub-CPU for monitoring offers the ability to save failure logs documenting such information as start-up failures, abnormal temperatures, abnormal OS operation, and reco r ding media swapped while powered up, as well as the ability to restart the OS or the device. Recording the power-on time and the operation time allows for proactive predictions of malfunctions due to parts having reached thei r service life. This ability makes it possible to construct stable and highly reliable industrial systems.
- Falling-off prevention tools and fixing clamps pr ovided to avoid trouble caused by disconnected cable This product stays trouble-free, being equipped with USB removal prevention fitting and cable clam p for connectors with no loc king mechanism, such as USB cable, and with hardware to properly mount and avoid falling out of CFast card.
®
(TM)
Atom
Processor E3845 that realizes l ower power
BX-220 User’s manual
2
1. Introduction
- Safety design required for embedded applications For Windows Embedded Standard installed model, it is possible to use the EWF*2 function of OS. It is
designed for safety required for embedding purpose, for example, prohibiting unwanted writing to the CF card with EWF function will relieve the concern about the writing limits to the CF card and prevent an unintentional system alteration.
*2 EWF (E nhanced Write Filter) is a func tion specific to Windows E mbedded Standard that protects the disk from being actually written
by
redirecting the writing to RAM.
- A wide range of power supplies (10.8 - 31.2VDC) supported As the product supports a wide range of power (10.8 - 31.2VDC), it can be used in a variety of power
environments. The separately available AC adapter adds support for 100VAC power.

Supported OS

- Windows Embedded Standard 7 32bit Japan ese
- Windows Embedded Standard 7 32bit English
3
1. Introduction

Customer Support

CONTEC provides the following support services for you to use CONTEC products more efficiently and comfortably.

Web Site

Japanese http: //www.contec.co.jp/ English http: //www.contec.com/ Chinese http: //www.contec.com.cn/
Latest produc t inf o r m a tio n CONTEC provides up-to-date inform ation on products.
CONTEC also provides p r oduct manuals and various technical documents in the PDF. Free download You can dow nl oad updated driver software and diff er ential files as well as samp l e programs available in
several languages. Note! For product in f orm ation Contact your retailer if you have any technical quest ion about a CONTEC product or need its price,
delivery ti me, or estimate informat i o n .

Limited One-Year Warranty

CONTEC products are warranted by CONTEC CO., LTD. to be free from d ef ects in material and workmanship for up to one year from the date of purchase by the original purchaser.
Repair will b e free of charge only when this device is returned freight prepaid with a copy of the original invoice and a Return M erchandise Authorization t o the distributor or the CONTEC group office, from which it was purchased.
This warranty is not applicable for scratches or normal wear, but only for the electronic circuitry and original products. The warranty is not applicable if the device has been tampered with or damaged through abuse, mist r eatment, neglect, or unreasonable use, or if the original invoice is not included, in which case repairs will be considered beyond the warranty policy.

How to Obtain Service

For replacement or repai r , return the device freight pr epaid, with a co py of the original invoice. Please obtain a Return Mercha ndise Authorization number (R MA) from the CONTEC group offic e where you purchased before returning any product.
* No product will be accepted by CONTEC group without the RMA number.

Liability

The obligation of the warra ntor is solely to repair or replace the product. In no event will the warrantor be liable for any incidental or consequential damages due to such defect or consequences that arise from inexperienced usage, misuse, or malfunction of this device.
BX-220 User’s manual
4
1. Introduction
DANGER
WARNING
CAUT
ION
WARNING

Safety Precautions

Understand the following definitions and precautions to use the product safely.

Safety Information

This document provides safety information using the following symbols to prevent accidents resulting in injury or death and the destruction of equipment and resources. Understand the mean i ngs of these labels to operate the equipment safely.
DANGER indicates an imminently hazardous situation which, if not avoided, will result in death or serious injury.
WARNING indicates a potentially ha z a r do u s s ituation which, if not avoid e d, could result in death or serious injury.
CAUTION indicates a potentia lly hazardous situation which, if not avoided, may result in minor or moderate injury or in property damage.

Caution on the BX-220 Series

Handling Precautions
- Always check that the power supply is turned off before connecting or disconnecting powe r cabl es.
- Do not modify the product.
- Always turn off the power before inserting or removing circuit boards or cables.
- This product is not int ended for use in aerospace, sp ace, nuclear power, medical equipment, or other applications that require a very high level of reliability. Do not use the product in such applications.
- If using this product in applications where safety is critical such as in railways, automotive, or disaster prevention or s ecurity systems, please contact your retailer.
- Do not attempt to replace the battery as in ap propriate ba t tery replacement poses a ris k of explosion.
- For battery replacement, contact your retailer as it m u st be performed as a process of repa ir.
- When disposing of a used battery, follow the disposal procedures stipulated under the relevant laws and municipal ordinances. For details on replacing the battery, refer to the appendix.
5
1. Introduction
CAUTION
- Do not use or store this product in a location exposed to high or low temperature that exceeds range of specification or susceptible to rap id temperature changes. Example: - Exposure to direct sun
- In the vicinity of a heat source
- Do not use this product in extremely humid or dusty locations. It is extremely dangerous to use this product with its interior penetrated by water or any other fluid or conductive dust. If this product must be used in such an environment, install it on a dust-proof control panel, for example.
- Avoid using or storing this prod uc t in locations subject to s hock or vibration that exceeds range of specification.
- Do not use this product in the vic inity of devices that generate s trong magnetic force or nois e. Such products will cause this product to malfunction.
- Do not use or store this product in the presence of chemicals.
- To clean this product, wipe it gently with a soft cloth dampened with either water or mild detergent. Do not use chemicals or a volatile solvent, such as benzene or thinner, to prevent pealing or discoloration of the paint.
- This product’s case may become hot. To avoid being burned, do not touch that section while this product is in operation or immediately after turning off the power. Avoid installation in a location where people may come into co ntact with th at section.
- CONTEC does not provide any guarantee for the integrity of data on CFast.
- Always remove the power ca ble from the power outlet before mounting or removing an expansi on board and before conn ec ting or disconnecting a connector.
- Always remove the power cable from the power outlet before co nnecting or disconnec ting a connector.
- To prevent corruption of files, always shutdown the OS before turning off this product.
- CONTEC reserves the right to refuse to servi ce a product modified by the user.
- In the event of failure or abnormality (foul smells or excessi ve heat generation), unplu g t he power cord immediately and contact your retailer.
- To connect with peripherals, use a grounded, shielded cable.
- The CFast card connector doesn't support hot plug. The pulling out opening of the CFast card cannot be done in the state of power supply ON. Please neither pulling out opening of CFast in the state of power supply ON of this product nor come in contact with CFast. This product may malfunction or cause a fail ure.
- If you use any other CFast than our CFast, we can not guarantee this product’s specification. When you newly select CFast for this product, you should read “Chapter 7” at first. If you select unpreferable CFast, the system may work out of order.
- Component Life:
(1) Battery---The internal calendar clock and CMOS RAM are backed by a Lithium primary battery.
The backup time at a temperature of 25°C with the power disconnected is 10 years or more.
(2) CFast --- Windows Embedded Standard installed model uses a CFast card in the OS storage area.
The estimated failure rate is 1 every 60,000 rewrites for SLC models and 1 every 2000
rewrites for MLC models * Replacement of ex pendables is h andled as a repair (there will be a charge). * The service life for consumable parts are reference values and are not guaranteed values. * This product's specifications allow the device to be rebooted from the BIOS screen during startup.
This has no effect on operation after the OS boots
BX-220 User’s manual
6
1. Introduction
This equipment has been
t
es
te
d
a
nd
fo
un
d
t
o
c
om
p
ly
w
i
th
t
h
e
l
im
it
s
f
or
a
Cl
a
ss
A
di
g
it
al
de
vice,
pu
rsu
ant
to
par
t 1
5 of
th
e F
CC R
ule
s
.
Th
es
e l
imi
ts a
re
des
igne
d t
o p
rov
ide
rea
son
abl
e pr
ote
cti
on
aga
ins
t h
armf
ul
int
erfe
ren
ce
whe
n th
e e
qu
ip
me
nt
is
oper
ate
d i
n c
omme
rci
al
envi
ron
men
t.
This
eq
uip
men
t ge
ner
ate
s, u
ses
, a
nd
can
rad
iat
e
ra
di
o f
requ
enc
y e
ner
gy a
nd,
if
not
in
sta
lle
d an
d
u
sed
in
acc
ord
anc
e wi
th
the
in
stru
cti
on
manu
al,
ma
y
ca
use
ha
rmf
ul i
nte
rfe
renc
e t
o r
adi
o
c
omm
unic
ati
ons
. O
pera
tio
n o
f t
his
eq
ui
pmen
t i
n a
re
side
nti
al
area
is
li
kel
y to
ca
use
ha
rmfu
l
i
nte
rfer
enc
e a
t h
is o
wn
exp
ense
.
N
O
TE
Cha
nge
or
mod
ifi
cat
ions
no
t e
xpre
ssl
y a
ppr
oved
the
man
ufa
ctur
er
can
voi
d t
he
use
r's
aut
hor
ity
to
oper
ate
th
is
equi
pme
nt.
W
ARN
ING
TO
USE
R
FCC PART15 Class A Notice
7
1. Introduction
BX-220 User’s manual
8

2. System Reference

1,600x900, 1,680x1,050, 1,920x1,080, 1,920x1,200 (16,770,000 colors, ReduceBlanking)
1,600x900, 1,680x1,050, 1,920x1,080, 1,920x1,200 (16,770,000 colors, ReduceBlanking)
RS-422/485 (general-purpose) 1port, Baud rate : 50 - 115,200bps
Remote reset: Input signal from external device
remote power on.)
The real-time clock is accurate within ±3 minutes (at 25°C) per month
Supports PC98/PC99 ACPI Power management
System Reference
2. Specification

Table 2.1. Functional Specification < 1 / 2 >

Model BX-220D-DC7xxxxx
CPU Intel® Atom™ Processor E3845 1.91GHz
BIOS BIOS (mfd. by AMI)
Memory 4GB, 204pin SO-DIMM socket x 1, PC3-10600(DDR3L 1333) ECC
Graphic Intel® HD Graphics (built-in CPU)
System resolution
Audio HD Audio compliant, LINE OUT x 1, MIC IN x 1
CFast card slot 2 slot, CFast CARD Type I x 2 bootable
LAN *2 Intel I210IT Controller
USB USB 3.0 compliant 1 port
Serial I/F RS-232C (general-purpose) : 2port (SERIAL PORTA, B), 9pin D-SUB connector (male)
Analog RGB 640x480, 800x600, 1,024x768, 1,152x864, 1,280x600, 1,280x720, 1,280x768,
1,280x800, 1,280x960, 1,280x1,024, 1,360x768, 1,366x768, 1,400x1,050, 1,440x900, 1,600x900, 1,680x1,050, 1,920x1,080, 1,920x1,200 (16,770,000 colors, ReduceBlanking)
DVI-D 640x480, 800x600, 1,024x768, 1,152x864, 1,280x600, 1,280x720, 1,280x768,
1,280x800, 1,280x960, 1,280x1,024, 1,360x768, 1,366x768, 1,400x1,050, 1,440x900,
Display Port 640x480, 800x600, 1,024x768, 1,152x864, 1,280x600, 1,280x720, 1,280x768,
1,280x800, 1,280x960, 1,280x1,024, 1,360x768, 1,366x768, 1,400x1,050, 1,440x900,
BX-220D-DC73121x: Built-in CFast card slot (SLC) (16GB, 1 partition) *1 BX-220D-DC76121x: Built-in CFast card slot (MLC) (32GB, 1 partition) *1 Other models: none
1000BASE-T/100BASE-TX/10BASE-T 2 port (Wake On LAN support)
USB 2.0 compliant 2 port
Baud rate : 50 - 115,200bps
RAS WDT: Software programmable, 1sec - 255sec (Time up allows reset, interrupt, or external
output)
General-purpose I/O Photocoupler insulation inputs/outputs (3 of each)
Hardware monitoring Monitoring CPU temperature, power voltage
RTC/CMOS Lithium backup battery life: 10 years or more.
Power Management Power management setup via BIOS, Power On by Ring / Wake On LAN,
*1: The capacity of CFast is a value when 1GB is calculated by 1 billion bytes. The capacity that can be recognized from
OS might be displayed fewer than an actual value.
(One output used for WDT external output, one input switched between remote reset or
9
2. System Reference
Model
BX-220D-DC7xxxxx
Display
DVI-I x 1 (29pin DVI-I connector), Display Port x1
MIC IN : 3.5φ Stereo mini jack, Full-scale input level 1.4Vrms(Typ.)
USB2.0 compliant 1port (TYPE-A connector x2)
RS-232C
2 port (9pin D-SUB connector [male])
voltage
External device power
(mm)
Weight
About 0.8kg (Excluding attachment fittings)

Table 2.1. Functional Specification < 2 / 2 >

Interface
Audio LINE OUT : 3.5φ Stereo mini jack, Full-scale output level 1.4Vrms(Typ.)
CFast card slot 2 slot, CFast CARD Type I x 2, bootable
LAN *2 2 port (RJ-45 connector)
USB USB3.0 compliant 1port (TYPE-A connector x1)
RS-422/485/
General-purpose I/O / RAS
Power supply
Rated input voltage 12 - 24VDC *3
Range of input
Power consumption 12V 2.6A, 24V 1.5A
supply capacity
Physical dimensions
*2: If you use the 1000BASE-T, be careful of the operating temperature.
For more details on this, refer to chapter3, Installation Requirements.
*3: Use a power cable shorter than 3m.
BX-220D-DC700000 : -, BX-220D-DC73121x : Built-in CFast card slot contains a CFast card(SLC) .
(16GB, 1 partition)*1
BX-220D-DC76121x : Built-in CFast card slot contains a CFast card(MLC) .
(32GB, 1 partition)*1
1 port (15pin D-SUB connector [femaie])
10.8 - 31.2VDC
CFast card slot : 3.3V : 1A(500mAx2) USB3.0 I/F : +5V : 0.9A (900mAx1) USB2.0 I/F : +5V : 1A (500mAx2)
178 (W) x 115(D) x 29(H) (No protrusions)
BX-220 User’s manual
10
2. System Reference
Operating temperature Storage temperature
Corrosive gases
None
resistance
(JIS C60068-2-6compliant, IEC68-2-6-compliant)
Grounding

Table 2.2. Installation Environment Requirements

Model
*4
Humidity
Floating dust particles
0 - 50°C (When using 1000BASE-T : 0 - 45°C)
-10 - 60°C
10 - 90%RH (No condensation)
Not to be excessive
BX-220D-DC7xxxxx
Line noise
Ambient specifications
*4 : For more details on this, please refer to chapter 3, “Installation Requirements”. *5 : When AC adapter “ACAP19-01” is used.
Line-noise resistance
Vibration resistance
Impact resistance
Static electricity
Sweep resistance
AC line / ±2kV *5, Signal line / ±1kV (IEC61000-4-4 Level 3, EN61000-4-4 Level 3)
Contact discharge / ±4kV (IEC61000-4-2 Level 2, EN61000-4-2 Level 2) Atmospheric discharge / ±8kV (IEC61000-4-2 Level 3, EN61000-4-2 Level 3)
10 - 57Hz/semi-amplitude 0.375 mm 57 - 500Hz/5.0G 60 min. each in x, y, and z directions
100G, half-sine shock for 6 ms in x, y, and z directions (JIS C0041-compliant, IEC68-2-27-compliant)
Class D grounding, SG-FG / continuity

Power Management Features

- Support both ACPI (Advanced Configuration and Power Interface) .
- ACPI v2.0 compliant
- Hardware automatic wake-up
11
2. System Reference
DC Voltage
Acceptable Tolerance
+ 12V - 24V
+ 10.8V - 31.2V

Power Requirements

Your system requires a clean, steady power source for reliable performance of the high frequency CPU on the product, th e quality of the power supply is even more important. For the best performa nce makes sure your power supply provides a range of 10.8 V minimum to 31.2 V maximum DC power source.

Power Consumption

For typical configurations, the CPU card is designed to operate with at least a 60W power supply. The power supply must meet the following requirements:
- Rise time for power supply: 2 ms - 30 ms
The following table lists the power supply’s tolerances for DC voltages:
Table 2.3. DC voltage tolerance
BX-220 User’s manual
12
2. System Reference

Physical Dimensions

BX-220D-DC7xxxxx

*1 : When you fasten the bundled attachment fittings to be fixed to the body, you should use the attached screws (M3 x 6).
Otherwise, the length (L) from the surface of the cabinet to the screw tip should be 4mm or less.
Figure 2.1. BX-220D-DC7xxxxx
13
2. System Reference
BX-220 User’s manual
14
3. Hardware Set up
CAUT
ION

3. Hardware Setup

Before Using the Product for the First Time

Follow the next steps to set up this product : STEP1 By referring to the information in this chapter, install, connect and set t his product. STEP2 Connect cables.
Connect the cab l e o f necessary external devices, such as keyboard and a display, to this product using appropriate cables.
STEP3 Turn on the power.
After verifying that you have correctly followed steps 1 and 2, turn on the power. If you find any abnormality after turning on the power, turn it off and check to see if the setup has been performed properly.
STEP4 Set up BIOS.
By referring to Chapt er 4, set up BIOS. This setup requires a keyboard and a display. * B efore using this product, be sure to execu te " Restore Defaults " to initialize the BIOS
settings to their de f ault values. (See Chapter 4, " Save &a Exit.")
- Be sure to c onnect the keyboard and mouse to it before turning the power on for the first time.
- Be sure to connect the display before turning the power on. Connecting the display after turning the power on may prevent it from being displayed properly.
15
3. Hardware Set up
CFast CARD
(BACK SIDE)
CAUTI
ON

Hardware Setup

- Before you start, be sure that the power is turned off.
- Remove only those screws that are explained. Do not move any other screw.

Inserting an Embedded CFast Card

One CFast card (Typ e I) can be embedded. BX-220D-DC7x121x come with CFast cards with the OS
already inst alled. (1) Detach the side panel and insert the CFast card. (2) Reattach the side pan el and tighten the screws to secure it.
Figure 3.1. Inser ting an Embedded CFast Card
- Screw holes may be damaged if screws are tightened with a to rque greater than the specif ied torque. The specified tightening torq ue is 5 - 6kgf⋅cm.
- If you use a CFast card other than the optional card, we cannot guarantee the specifi ca tions of this product. To use the product within its specifications, be sure to use the optional CFast card.
- To prevent potential damage caused by static electricity, take appropriate anti-static measures (for example, wea r ing an anti-static wristband) when inserting or removing the CFast card.
- Do not touch the electronic board components when inserting or removing the CFast card.
- Do not touch the terminals on the CFast card. Doing so may damage the card.
- Be careful not to mistake the orientation of the CFast card when inserting it. Also, do not use excessive fo r ce when ins er t ing the CFast card. Doing so may damage the connector.
- Do not drop or otherwise subject the CFast card to st rong impacts before insertion. Doing so may damage the card.
BX-220 User’s manual
16
3. Hardware Set up
*1
CFast CA RD
(LA BEL SIDE)
CAUTION
*1
CAUTION

Attaching the CFast Attachment Fitting s

(1) After inserting a CFast Card, fasten the bun dl ed CFast attachment fit tings with a sc r ew.
*1 Attached screw (M3 x 6)
Figure 3.2. Attaching the CFast Attachment Fitti ngs
- Insert the CFast Card face up.
- Screw holes may be damaged if screws are tightened with a to rque greater than the specif ied torque.The spe cified tighten ing to r que is 5 - 6 kgf⋅cm.

Attaching the Attachment Fittings

(1) Use screws to attach the bundled attachment fittings with a screw.
Do not tighten sc rews with excess f o rce.
Figure 3.3. Attaching the Attachment Fittings
- Screw holes may be damaged if screws are tightened with a t o r que greater than the specified torque. The specified tightening torq ue is 5 - 6kgf⋅cm.
17
3. Hardware Set up
CAUTION

Attaching the FG

(1) Use screws to attach the FG.
Figure 3.4. Attaching the FG
- The FG pin of this product is connected to the GND signal of the DC power connector (DC-IN).
- Note that the connection cannot be cut off.
- Screw holes may be damaged if screws are tightened with a to rque greater than the specif ied torque.The spe cified tighten ing torque is 5 - 6kgf⋅cm.
BX-220 User’s manual
18
3. Hardware Set up
*1
Wind the USB cable around the USB removal prevention fitting.
*2
No. of connected USB cables and winding patterns (removal prevention fitting viewed from above).
3 USB cable
USB remov al prevention clamp
2 USB cable 1 USB cable

Fastening the Cable

This product comes with clamps for fixing cables. Fastening the LINEOUT, USB Cable
(1) The system unit has a hole for attaching cable clamp to USB removal prevention fitting. Using a
cable clamp for a cable with lock-less connector, such as the LINEOUT and USB Cable, prevents the connector from being unplugged. Use the cab le ties and cab le clamps approp riately accor d ing to the connecting stat es and wiring directions of cables.
*1 Attached screw (M3 x 6) *2 Attached USB removal prevention clamp.
Figure 3.5. Attaching the cable clamp
(2) The photo below shows an example of using a cable clamp. Fix the cable with a clamp without
applying stress to th e connector.
Figure 3.6. Using example of cable c lamp
19
Loading...
+ 65 hidden pages
