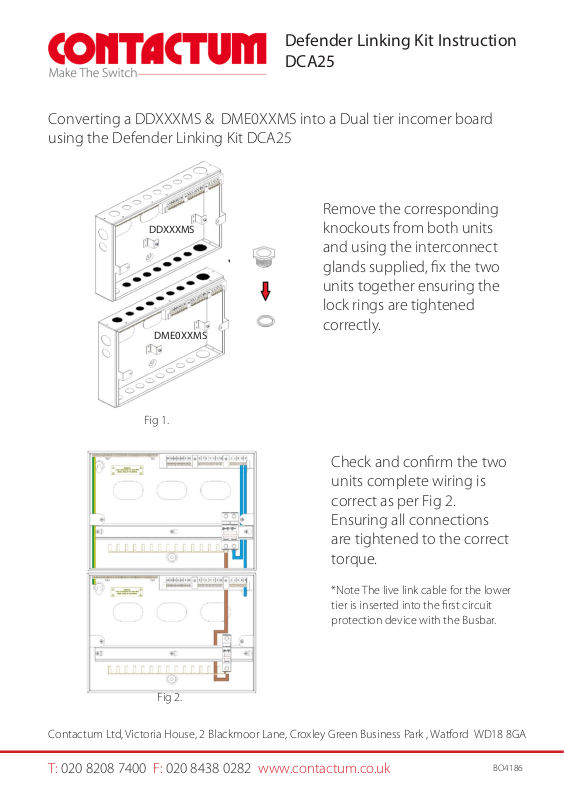

Defender Linking Kit Instruction
DCA25
Converting a DDXXXMS & DME0XXMS into a Dual tier incomer board
using the Defender Linking Kit DCA25

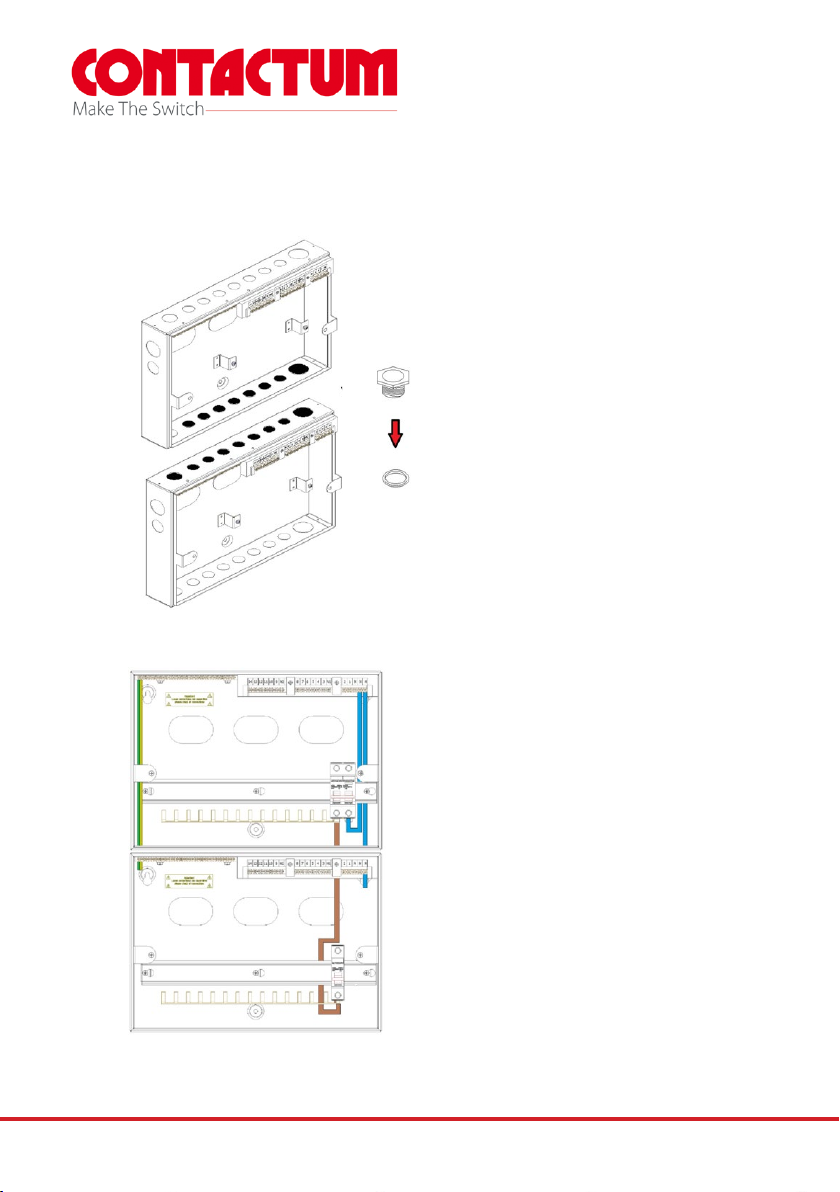

Remove the corresponding
DDXXXMS
DME0XXMS
Fig 1.
knockouts from both units
and using the interconnect
glands supplied, fix the two
units together ensuring the
lock rings are tightened
correctly.
Check and confirm the two
units complete wiring is
correct as per Fig 2.
Ensuring all connections
are tightened to the correct
torque.
*Note The live link cable for the lower
tier is inserted into the first circuit
protection device with the Busbar.
Fig 2.
